MLRK1-TS/LSDA2

(EDLP2-UL-M-KIT)

• • Push to Set (PTS)Technology
• • Fast, Quiet, Smooth, & Strong
• • Easy Installation
• • UL Listed
• • Optional integrated Request to Exit switch

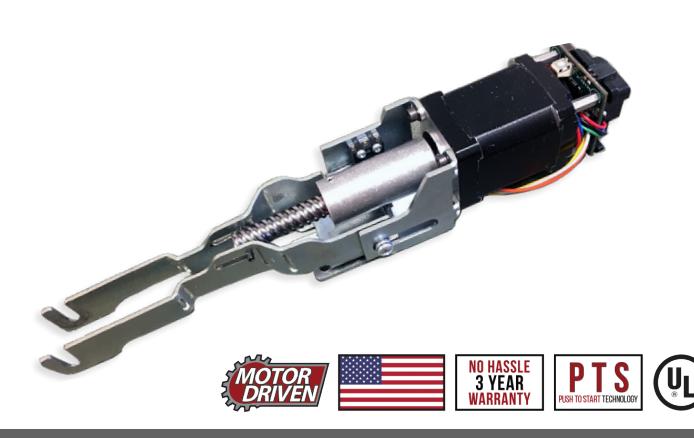

The new MLRK1-TS/LSDA2 is a practical and cost-effective way to convert a mechanical Townsteel ED1000, LSDA PD9200 & USCAN series device to an electrified latch pullback device. The retrofit kit will maintain all UL listings on the device and for peace of mind is backed by CAT's 3-year no hassle warranty. The new unit easily hooks onto the back activating bracket and is secured with (2) screws, in a matter of seconds. The only hole you'll need to drill is for the wire raceway. PTS allows for a smooth post-installation adjustment of the latch/latches. An optional built-in REX switch is available on all units! Last but not least, it features an updated MM4S module with 2 different energy consumption settings from energy conscious to high torque to get the tough jobs done!

SPECIFICATIONS

Voltage:

• Voltage range 24 to 28 VDC
• System protection unit shutdown when voltage exceeds 28VDC
• Standard Average Current Peak: 900A, Average Current Hold: 200mA
• High Torque Average Current Peak: 2A, Average Current Hold: 250mA
• PTS adjustment approx. 1/4"

Wire Run:

• 300' with 18ga wire

Product Details:

• Weight: 2 Lbs

Device Cutdown Details:

• 36" 3"
• 48" 5.5"

Accessories: additional charge

• Request-to-Exit can be built-in to kit

Features:

• Next Generation MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• "PTS": 5 second electronic adjustment for easy post installation adjustment
• Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
• Low Current Draw Field switchable to "High Torque" mode
• Up to 300' wire run with 2-18ga wire Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
• Push-n-Go Pigtail + 6' cable with Quick Connect for MM4S module to easily connect to power supply lead
• Optional Request-to-exit can be built-in
• 3-year "no hassle" warranty

Canada Customer Support 1-855-823-3002

Visit our website for more details www.CommandAccess.com

U.S. Customer Support 1-888-622-2377

MLRK1 KIT MATRIX

Townsteel 1000, LSDA 9200, USCAN

MLRK1-TS/LSDA2

How to Order

Pa	rt#	Easy Order #	Description
N	ИLRK1-TS	79555	Kit for the Townsteel ED1000 & USCAN series. EU 24V
MLRI	K1-LSDA2	78995	Kit for the LSDA PD9200. EU 24V
MLRI	<1-LSDA2	78996	Kit for the LSDA PD9200. EU 24V w/ REX

NEED A LOCKING HARDWARE POWER SUPPLY? RECOMMENDED LOCKING HARDWARE POWER SUPPLIES:

• PS204/PS204B PS220/220B
  • PS210 PS440B
• PS480B
