2018 Locker and Storage Security Price List

Master Lock offers the widest range of innovative locker and storage security products available. From schools to businesses to health & recreation facilities, there's a built-in or portable solution for every need.

Education

Known for strong, reliable locker security, Master Lock specializes in providing schools with convenient and efficient administration of locker locks.

Everyone faces tight budgets, limited personnel, and time constraints. Our products are engineered to be responsive to the ever-changing landscape of educational institutions.

We make the installation and combination changing process simple and fast. Helping you save money and make the kick off to the new school year stress free.

Health & Recreation

Master Lock helps to elevate the locker room experience.

Building loyalty with a frequent flow of guests requires good service and a clean, safe and efficient environment.

Our range of portable, built-in and multi-user locker locks provides clubs and facilities with choices that optimize locker room management. The Multi-User set-your-own combination option allows staff members to focus on front desk tasks and the training required to provide great service.

Business & Employee

From manufacturing facilities to hospital buildings, Master Lock offers peace of mind like no other security company can.

Our products are strong and easy to use in the workplace and help employees and visitors feel confident that their valuables are being well protected.

We provide employers with lock options that grant supervisory access when needed.

THE MASTER LOCK ADVANTAGE

As the industry leader in locker security solutions, only Master Lock offers such a wide variety of options and customization services. We are the innovator in cost effective ADA compliant locker locks and the originator of ADA inspired locking options. Depending on your specific industry need, you can choose alternate shackle lengths for best fit, color dials that enhance user environment and custom/laser engraving for morale and identification.

Table of Contents

Terms of Sale	.3
Special Programs	.4
ADA Lock Solutions	.5
Electronic Built-In Locker Locks	.6
Multi-Liser Combination Locks	7

Terms of Sale3	Built-In Combination Locks8	Pricing Index13
Special Programs4	Built-In Keyed Locks9	Great Technologies14
ADA Lock Solutions5	Portable Combination Locks10	Service & Support15
Electronic Built-In Locker Locks6	Portable Keyed Locks11
Multi-User Combination Locks7	Service Parts & Accessories Pricing12

Pricing Index1	(
Great Technologies1	4
Service & Support1	į

Terms of Sale

THE MASTER LOCK COMPANY TERMS OF SALE – EFFECTIVE NOVEMBER 2018

All orders are subject to acceptance by Master Lock Company LLC, Milwaukee, Wisconsin, USA

PRICES:

• · All prices are stated in US dollars ($).
• Orders are subject to prevailing prices on order acceptance date.
• 10% will be added for less than Master Carton quantities per customer program.
• Although descriptions are believed correct at publication approval, accuracy cannot be guaranteed.

ADDITIONS/CHANGES:

• Once your order has been processed, additions, cancellations or changes may not be accepted. A separate order may be required.
• Master Lock Company LLC reserves the right to make product specification changes from time to time, without notice or obligation, and to change or discontinue models.

FREIGHT TERMS:

• All shipments within the US and Canada are FOB destination.
• Shipments to Alaska or Hawaii will be to US port of exit (Seattle or Los Angeles)
• Master Lock Company LLC will pre-pay freight charges on all orders over US$1,000 (based on net prices) to a single destination within the contiguous United States or Canada
• Orders destined to Alaska or Hawaii ship prepaid to the customer's designated freight forwarder in either Seattle or Los Angeles.
• Freight charges on orders less than US$1,000 (net) will be shipped on a Prepay & Add basis. Freight charges will be added to the customer's invoice.
• Master Lock Company LLC reserves the right to select both the carrier and mode of transport when shipping on a Prepaid or Prepay & Add basis.
• Customer is responsible for any charges in excess of normal transportation that result from services requested by the receiving party.
• For an International Shipment that is a Routed-Transaction the Buyer's [consignee's] freight forwarder is responsible for export clearance and
• On request, charts/keys can be shipped separately from the locks. Charts and/ or keys will be sent prepaid in the total order, including locks, is over $1000 net price. When orders are under $1000 net price, shipping charges will be added to both the charts/key invoice and lock invoice.

• You must report any claims for shortages or damages for which Master Lock Company LLC or our freight carriers are responsible within 30 days of receipt of
• Receivers must note visible discrepancies on the carrier's copy of the delivery receipt in order for the claim to be considered valid. Visible discrepancies include, but are not limited to, open, torn, crushed or water damaged cartons, piece counts that do not match the delivery receipt, etc.
• Master Lock Company LLC uses yellow stretch-wrap. If freight is received with stretch-wrap that is clear or any other color, it should be noted on carrier's copy of the delivery receipt.
• Concealed damages must be reported within five business days of receipt of merchandise in order to determine liability.
• All carriers' claims on Prepaid (or Prepay & Add) shipments are filed by Master Lock Company LLC.

RETURNED GOODS:

No merchandise may be returned without authorization from The Master Lock Company.

• All returns must have a Returned Material Authorization (RMA) Number issued by The Master Lock Company Customer Care.
• The RMA must be shown on all labels and correspondence with regards to returned merchandise.
• All returns must be prepaid and returned within 30 days of authorization in order to receive credit.
• A minimum 15% handling charge will be assessed on authorized returns.
• Returns received without prior authorization (RMA Code) may be returned to the
• Returns will not be authorized for custom "Made To Order (MTO)" products and/ or products built to a specific customer requirement such as laser engraved, master keyed, or keyed alike products.

NOTE: All Master Lock Locker Lock products are considered MTO.

WARRANTY INFORMATION:

• If this product or any part of the product fails due to a defect in materials or workmanship at any time during the life of the product, Master Lock Company LLC ("Master Lock") will repair or replace the product or part free of charge. Simply contact Master Lock at www.masterlock.com or 1.800.464.2088 for instructions on obtaining repair or replacement. Canadian customers please call 1.800.227.9599.
• This limited warranty applies only to defects in materials and workmanship, and does not cover products which have been abused, altered, damaged, misused, cut or excessively worn. Products over 10 years old will be evaluated and inspected for abuse, alteration, damage, misuse, and wear prior to warranty coverage. TO THE EXTENT PERMITTED BY LAW, MASTER LOCK DISCLAIMS ALL OTHER IMPLIED OR EXPRESS WARRANTIES INCLUDING ALL WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE.
• This limited warranty is your sole and exclusive remedy and MASTER LOCK shall not be liable for any damages, whether direct, indirect, incidental, special, consequential, exemplary, or otherwise, including property damage, lost revenues and lost profits, arising out of any theory of recovery, including statutory, contract or tort.
• This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state and province to province.
• For complete warranty details please visit www.masterlock.com.

SALES OF KEY CONTROLLED SYSTEMS:

• · Master Lock customer shall only sell key controlled lock systems to distributors, businesses, and institutions.
• For replacement control keys offered for sale, Master Lock customer agrees to validate that each prospective buyer is an owner of the applicable key system.

SERIAL NUMBER CHARTING AVAILABLE

• Installation registration prevents serial number duplication and assures key system security.
• An original list of lock serial numbers and corresponding combinations are furnished at no extra charge with a lock order.
• Replacement Control Charts are available at a $50.00 net price per individual chart request.
• A complete end-user history control chart is available at $100.00 net price
• A written request on school or company letterhead is required. For complete chart request instructions please visit www.masterlock.com/faq/school.shtml

Thank you for specifying Master Lock® locker locks! We want to provide you with the finest possible service and product. Please be sure to provide the requested information with your order. This allows The Master Lock Company to process your order in the most timely manner possible.

• 1. Provide the full name, address, and postal code of the school or other ultimate user. We require this information to register serial numbers and key systems to each specific installation. This enables us, on future orders, to continue with or avoid the key system of record, and it ensures non-duplication of serial numbers already in use. Failure to provide end-user information will delay processing the order.
• Indicate which key system we are to extend. Many Master Lock installations use the same lock model but several different key systems. The key system is stamped on control keys and master keys currently in use. If a new key system is required, one different from any now in use at the installation, state your order "furnish new key system." Most of Master Lock built-in combination locks have two model numbers; one for locker door hinged on the right as you face the doors, and one for left hinged doors. For example, the Master No. 1630 mounts only on right hinged doors, while Master No. 1631 can be used only on doors hinged on the left. Be certain to check your application and specify the correct lock model for the lockers involved. This will avoid costly and time-consuming replacements. Since lockers vary in styles and design, your Master Lock Representative is available to assist in determining the correct lock to be used on your particular application.
• 4. Replacement Control Charts: Replacement, hard-copy control charts are available at a $50.00 net price per individual chart request.

Quick Ship Stock Locker Lock Program

Quick Ship Stock Locker Lock Program – Ships within 48 Hours!

When your customers need locker locks in a hurry, you can deliver with the Master Lock® Quick Ship Stock Locker Lock Program's inventory of stocked locks. Master Lock will ship within 48 hours of receipt on the order.

Made-to-Order Locks Fast!

All other locks are made-to-order. Once an order is placed, the locks will typically ship in five to ten business days.

Call us if better times are required 1-888-878-9952.

QUICK SHIP STOCK LOCKER LOCK PROGRAM PRODUCTS

Product No.	Description	List Price (each)	Case Qty
1525STK	General security combination different padlock with control key	$9.33	50
1630STK	Built-in lift handle locker lock with control key	$19.22	50
1652STK	Built-in single point latch locker lock with control key	$21.42	50
1670STK	Built-in manual deadbolt locker lock with control key	$22.25	50

NOTES: Quick Ship Stock Locker Lock program includes the products shown exclusively in chart. Special markings and stampings are not available.

Order product by case quantity. Each case contains 1 control key and 1 combination chart. Standard freight terms apply.

ADA Lock Solutions

ADA COMPLIANCE DEFINED

The Master Lock® 1600 ADA Series and 1700 ADA Series Built-in Locks meet the United States Department of Justice "2010 ADA Standards for Accessible Design". This Standard requires 5% of lockers meet ADA specifications. In addition, these standards state that operable parts, the locks, meet the following requirements:

• Shall be operable with one hand
• Shall not require tight grasping, pinching, or twisting of the wrist to operate
• Shall have a force required to activate of 5 lbf (22.2N) maximum

Master Lock ADA Compliant Locker Locks achieve these requirements through the use of a specially designed keyhead and the simple operation of the lock. The large flat keyhead makes the key easy to grip for those with extreme joint pain. For those with clenched fist dexterity, the flat keyhead fits securely between their fingers. The operation of the lock can be achieved by a simple bumping action to the ADA keyhead to both open and close the lock without the need of tight grasping, pinching, or twisting of the wrist.

Many of these locks are already in use in the field for ADA applications.

As needs and requirements vary, please consult the local authority regarding use of any of these locks for a specific application.

1600 ADA SERIES BUILT-IN COMBINATION LOCKS WITH STUDENT KEY/ MASTER KEY

Three-Ways-To-Open™ technology lock:

• Student Key for ADA users (opens 1 lock)
• Master Key for supervisors (opens all ADA locks in your system)
• Combination for use like other combo locks in your system (5 combinations built in for reuse year after year)

Two keys with ADA keyheads included; order Master Keys separately Left hand models available; see chart

1636MKADA

For Multi-Point Latch, Lift Handle Lockers

1656MKADA

For Single Point Horizontal Latch Lockers, Springbolt Operation

1676MKADA

For Single Point or Multi-Point Horizontal Latch Lockers, Deadbolt Operation

1695MKADA

For Single Point Wrap Around Latch™ Lockers

1700 SERIES BUILT-IN KEY ONLY LOCKS

• Simple and economical solution for lockers for those with special needs
• · Each includes two keys, one with large ADA key head. Order Master Keys separately.

1710MKADA

For Single Point or Multi-Point Latch Lockers, Deadbolt Operation

1714MKADA

For Single Point Latch Lockers, Springbolt Horizontal Operation

1790MKADA

For Single Point Wrap Around Latch™ Lockers

ADA Lock Selection Guide

Master Locker	Reduced	Reduced	Same
Lock Hinge	Physical	Cognitive	Function
Product # Orientation	Abilities	Abilities	as Model

ADA COMPLIANT BUILT-IN LOCKER LOCKS

1636MKADA	Right Hand	*	*	1630
1637MKADA	Left Hand	*	*	1631
1656MKADA	Right Hand	*	*	1652
1651MKADA	Left Hand	*	*	1653
1676MKADA	Right Hand	*	*	1670
1677MKADA	Left Hand	*	*	1671
1695MKADA	Right Hand	*	*	1690
1710MKADA	Right or Left Hand	*	*	1710MK
1714MKADA	Right or Left Hand	*	*	1714MK
1790MKADA	Right Hand	*	*	1790MK

ADA INSPIRED PORTABLE LOCKER LOCKS

1525EZ	RC	Right or Left Hand	-	*	1525
2650		Right or Left Hand	*	*	_

ADA INSPIRED DEFINED

Master Lock ADA Inspired locks address special needs beyond those outlined in the "2010 ADA Standards for Accessible Design". These portable locks are designed to be easy to use and assist those with physical or cognitive challenges operate a lock independently. All ADA Inspired locks fit most standard lockers.

1525EZRC Simple Combos™

• Simple Combos^™ specially selected combinations that use only numbers printed on the dial (no sub-increments) so users can more easily recall and dial their combination
• Supervisory key override matches existing Master Lock portable systems, plus key can also be matched with many built-in combination lock systems
• Colored dials black, green, purple, red, blue, orange, grey or gold, and customization with your logo or text available

PushKey™

• Easy-to-open and simple-to-use simply insert
• the key and pull down on the flared, easyto-grip body to open (no key turning required)
• · Includes four keys, two with large key head covers for ease of gripping.

Electronic Built-In Locker Lock

Exclusive Features

• High visibility display provides interactive feedback
• A single CR123 3V lithium battery lasts longer to help minimize maintenance
• Electromechanical deadbolt enhances security
• Enhanced design to withstand humid environments
• Visual and audible alerts to signal if locking mechanism is blocked
• High-gloss keypad allows user to easily create personal code
• Clear identification of locker vacancy

Benefits

• Intuitive operation to customize lock settings
• Ease of use with the simple lock and unlock instructions
• Ability to set a personal code
• Unique master backup code allows administrative access to locker

Product Options

• Single-user and multi-user lock modes
• Set code length to 4, 5, and 6 digits
• Administration key allows setting changes
• Bluetooth®/ADA FOB used with the 3681 Model
• Suitable for most lockers metal, wood or phenolic

		Product No.	Description	List Price (each)	Case Qty.
THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PART OF THE PA		3685	Electronic Built-In Locker Lock – Fits most standard lockers. Reversible design for both left or right hinged locker doors	$200.00	12
		Electronic Built-In Locker Lock includes 1 programmed Bluetooth®/ADA Fob. Fits most standard lockers. Reversible design for both left or right hinged locker doors. Additional Bluetooth®/ADA Fobs sold separately.
Options and	Accesso	ries
7		1566	Administration Key– Allows fast and easy locker access and changes to lock settings. Can be used with 3685 and 3681 models.	$203.52	36
1566 3686	3686	Bluetooth®/ADA Fob – the 3681 model includes 1 programmed Bluetooth®/ADA Fob for ADA applications.	$68.90	48

Multi-User Mechanical Locks

3670

Exclusive Features

• Intuitive, easy-to-use design
• Set-your-own 3-digit combination
• Retains current combination until re-set
• Sleek design with satin finish

Built-In Multi-User Lock Advantages

• Designed for multiple use in a day for high customer turnover facilities
• Eliminates distribution, tracking and management of keys, combination or locks
• Concealed mounting and rugged zinc case
• Standard key control allows quick supervisory access
• End user registration provided to secure and simplify administration

Product Options

• Model 3670
  • -for left-handed & right-handed hinged doors
  • -for lift handle lockers
  • -for single point latch lockers
  • -manual deadbolt locking
• Model 3630
  • -for right-handed hinged doors
  • -for lift handle lockers
  • -manual spring locking
• Model 3631
  • -for left-handed hinged doors
  • -for lift handle lockers
  • -manual spring locking
• Extension Kit available for doors with a thickness of 11/16in (17mm) to 3/4in (19mm) #3630-0320

www.masterlock.com/multiuser

	Product No.	Description	List Price (each)	Case Qty.
3670 shown	3630	Set-Your-Own combination lock - For standard lift handle lockers - manual deadbolt locking, right-hand hinged door - override key sold separately	$93.27	1
	3631	Set-Your-Own combination lock - For standard lift handle lockers - manual deadbolt locking, left-hand hinged door - override key sold separately	$93.27	1
1 6 6	3670	Set-Your-Own combination lock - For lift handle, turn handle and single point latch/box horizontal latch lockers - manual deadbolt locking, right-hand or left-hand hinged door - override Key sold separately	$93.27	1
Options and Access	ories
	K3630	Supervisory override key	$3.99	1
	3630-0320	Extension Kit for doors with a thickness of 11/16in (17mm) to 3/4in (19mm)	$5.74	1
	3633LES	English/Spanish user instruction magnets – 4in (102mm) x 6in (152mm)	$17.92	10
20	3633LEF	English/French user instruction magnets – 4in (102mm) x 6in (152mm)	$17.92	10
	3634LES	English/Spanish user instruction stickers – 4in (102mm) x 6in (152mm)	$22.15	10
	3634LEF	English/French user instruction stickers – 4in (102mm) x 6in (152mm)	$22.15	10

Built-In Combination Locks

	Product No.	Description	List Price (each)	Case Qty.
		1630 SERIES - FOR LIFT HANDLE LOCKERS
	1630	Automatic locking, for right-hand hinged door	$19.22	50
	1631	Automatic locking, for left-hand hinged door	$19.22	50
	1636MKADA	ADA version of 1630 lock - Master Key enabled. Includes 2 student keys (only opens one lock) with ADA key heads. Order Master Key separately	$26.81	50
1630 shown	1637MKADA	ADA version of 1631 lock - Master Key enabled. Includes 2 student keys (only opens one lock) with ADA key heads. Order Master Key separately	$26.81	50
		1652 & 1654 SERIES - FOR SINGLE POINT LATCH LOCKERS & BOX LOCKERS
	1652	For Single Point Latch Lockers - Automatic locking, for right-hand hinged door - button-less combination change	$21.42	50
	1653	For Single Point Latch Lockers - Automatic locking, for left-hand hinged door - button-less combination change	$21.42	50
1652 shown	1654	For Box Lockers - Automatic locking, for right-hand hinged door	$21.42	50
	1655	For Box Lockers - Automatic locking, for left-hand hinged door	$21.42	50
	1651MKADA	ADA version of 1653 lock - Master Key enabled. Includes 2 student keys (only opens one lock) with ADA key heads. Order Master Key separately - Button-less combination change	$29.01	50
1654 shown	1656MKADA	ADA version of 1652 lock - Master Key enabled. Includes 2 student keys (only opens one lock) with ADA key heads. Order Master Key separately - Button-less combination change	$29.01	50
		1670 SERIES - FOR ALL LOCKERS (EXCEPT WRAP AROUND LATCH™)
	1670	Manual deadbolt locking, for right-hand hinged doors	$22.25	50
	1671	Manual deadbolt locking, for left-hand hinged doors	$22.25	50
	1676MKADA	ADA version of 1670 lock - Master Key enabled. Includes 2 student keys (only opens one lock) with ADA key heads. Order Master Key separately	$29.84	50
1670 shown	1677MKADA	ADA version of 1671 lock - Master Key enabled. Includes 2 student keys (only opens one lock) with ADA key heads. Order Master Key separately	$29.84	50
		1690 SERIES - FOR SINGLE POINT LATCH LOCKERS - WRAP AROUND LATCH™ TECHNOLOGY
1690 shown	1690	Automatic deadbolt locking, for right-hand hinged door	$25.12	50
	1695MKADA	ADA version of 1690 lock - Master Key enabled. Includes 2 student keys (only opens one lock) with ADA key heads. Order Master Key separately	$32.71	50
Options and Accessories
	K1630	Control key for built-in combination locker locks (Except 1695MKADA)	$8.44	1
	K1695	Cut user key for 1600MKADA Series locks. Order ADA key head separately. (Note: each 1600MKADA Series lock includes 2 user keys with ADA key heads.)	$8.44	1
Control Key	K1695CM	Cut Master Key for 1600MKADA Series locks	$8.44	1
	1654-0320	Extension set for doors with a thickness of 11/16in (17mm) to 3/4in (19mm). Works for all built-in combination locks (Excluding the Multi-User models)	$5.74	1
	MD	Black Metal Dial – available on all built-ins – add "MD" to Product No. (e.g. 1630MD)	add'l $1.28 ea	-
Colored dials shown	Colored Dials	Colored Dials are available in Metal Dials - must add the following prefixes to specify color: Blue (MDBLU), Green (MDGRN), Red (MDRED) or Purple (MDPRP).	add'l $1.28 ea	-
	IMPC	Special Back Case Printing - 100 locks minimum, initials or numbers up to seven characters, on back case	add'l $1.43 ea.	-

Built-In Keyed Locks

	Product No.	Description	List Price (each)	Case Qty.
	1710	For all lockers (except Wrap Around Latch™) - Manual deadbolt locking, fits both right- and left-hand hinged doors. Includes 2 user keys	$13.59	50
	1714	For all lockers (except Wrap Around Latch™) - Automatic locking, fits both right- and left-hand hinged doors. Includes 2 user keys	$13.59	50
	1790	For Keyed Only Single Point Latch Lockers - Wrap Around Latch™ Technology - automatic deadbolt locking, for right-hand hinged door. Includes 2 user keys.	$18.51	50
	1710MKADA	ADA version of 1710 lock - Master Key enabled. Includes 2 student keys (only opens one lock) with 1 ADA keyhead. Order Master Key separately	$20.32	50
	1714MKADA	ADA version of 1714 lock - Master Key enabled. Includes 2 student keys (only opens one lock) with 1 ADA keyhead. Order Master Key separately	$20.32	50
	1790MKADA	ADA version of 1790 lock - Master Key enabled. Includes 2 student keys (only opens one lock) with 1 ADA keyhead. Order Master Key separately	$25.24	50
Options and Accessories
	KA	Keyed Alike - available on 1710, 1714 and 1790. Add "KA" to end of Product No. (e.g. 1710KA)	add'l $0.42 ea.	-
	MK	Master Keyed - available on 1710, 1714 and 1790. Add "MK" to end of Product No. (e.g. 1710MK)	add'l $5.45 ea.	-
	K1710W81KM	Cut Master Key for 1710MK, 1714MK and 1790MK locks	$8.33	1
Control Key	K1710W81	Cut regular key for 1710, 1714, 1790, 1710MK, 1714MK and 1790MK locks	$8.33	1
	K1710KMBOX	Box of 50 key blanks for 1710MK, 1714MK and 1790MK	$22.11	50/box
	K1710BOX	Box of 50 key blanks for 1710, 1714 and 1790	$22.11	50/box
	RMVK	Removable Key Feature - available in locked and unlocked positions	N/C	-
ADA Key Head	IMPC	Special Back Case Printing - 100 locks minimum, initials or numbers up to seven characters, on back case	add'l $1.43 ea.	-
	ADA	Americans with Disabilities Act Compliant Key Head - available on any 1710, 1714 or 1790 - add "ADA" to product number (e.g. 1710ADA) Includes 1 key head cover per lock	add'l $1.28 ea.	-
		Note: All built-in products - Order Control Key / Master Key separately. User keys included with key operated locks, 1600ADA locks and all 1700 series locks

Portable Combination Locks

	Product No.	Description	List Price (each)	Case Qty.
		HIGH SECURITY COMBINATION PADLOCKS A: 5/16in (8mm) C: 15/16in (24mm)
	2002	Combination Different - B: standard 1in (25mm) shackle height	$27.54	50
A C 2002 B	2002S	Combination Different - B: short 1/2in (13mm) shackle height, recommended for recessed handle lockers	$28.34	50
shown	2010	Combination Different - Control key feature, B: standard 1in (25mm) shackle height	$31.45	50
	2010S	Combination Different - Control key feature, B: short 1/2in (13mm) shackle height, recommended for recessed handle lockers	$32.25	50
Options and Accessories
	K1525	Control key for 2010 padlocks	$8.44	1
	TIS	Combinations in pairs - Order 2 or more locks with the same combination. Locks are packed in serial number sequence, the user may easily match up individual locks	add'l $1.00 ea.	-
Control Key	KA	Combinations Alike - Any quantity available at no charge	N/C	-
	IMPC	Special Back Case Printing - 100 locks minimum, initials or numbers up to seven characters, on back case	add'l $0.29 ea.	-
		GENERAL SECURITY COMBINATION PADLOCKS A: 9/32in (7mm) C: 13/16in (21mm)
1502 shown A C	1502	Combination Different - B: standard 3/4in (19mm) shackle height	$7.41	25
B	1502LF	Combination Different - B: standard 1-1/2in (38mm) shackle height	$9.21	36
	1502LH	Combination Different - B: 2in (51mm) shackle height	$10.46	36
	1591	Shackle Shroud with Combination Different - B: standard 3/4in (19mm) shackle height	$9.20	25
1502LFORJ shown	1525	Combination Different - Control Key feature, B: standard 3/4in (19mm) shackle height	$9.33	25
A C	1525LF	Combination Different - Control Key feature, B: 1-1/2in (38mm) shackle height	$11.13	36
B	1525LH	Combination Different - Control Key feature, B: 2in (51mm) shackle height	$12.38	36
1591 shown	1525EZRC	Combination Different - Control key feature, B: standard 3/4in (19mm) shackle height Simple Combos™ for Easy-To-Remember Combinations	$10.33	36
A C 1572 shown	1592	Shackle Shroud with Combination Different - Control Key feature, B: standard 3/4in (19mm) shackle height	$11.24	25
B	1572	Letter Combination Different - B: standard 3/4in (19mm) shackle height	$7.41	25
	1572LF	Letter Combination Different - B: 1-1/2in (38mm) shackle height	$9.21	36
	1572LH	Letter Combination Different - B 2in (51mm) shackle height	$10.46	36
1572LFBLU shown	1593	Shackle Shroud with Letter Combination Different - B: standard 3/4in (19mm) shackle height	$9.20	25
A C	1585	Letter Combination Different - Control Key feature, B: 3/4in (19mm) shackle height	$9.33	25
B	1585LF	Letter Combination Different - Control Key feature, B: 1-1/2in (38mm) shackle height	$11.13	36
1593 shown	1585LH	Letter Combination Different - Control Key feature, B: 2in (51mm) shackle height	$12.38	36
	1594	Shackle Shroud with Letter Combiantion Different - Control Key feature, B: standard 3/4in (19mm) shackle height	$11.24	25
Options and Accessories
	K1525	Control Key for 1525 padlocks	$8.44	1
	TIS	Combinations in pairs - order 2 or more locks with the same combination. Locks are packed in serial number sequence, the user may easily match up individual locks	add'l $1.00 ea.	-
	KA	Combinations Alike - Any quantity available at no charge	N/C	-
	Colored Dials	Colored Dials are available in Metal Dials - must add the following prefixes to specify color: Blue (BLU), Green (GRN), Red (RED), Purple (PRP) Orange (ORJ), Gold (GLD) or Grey (GRY).	add'l $0.25 ea.	-
	LZ1	Laser Engraved Dial - same as above but image/text etched into dial. No set-up charge	add'l $0.65 ea.	-
	IMPC	Special Back Case Printing - 100 locks minimum, initials or numbers up to seven characters, on back case	add'l $0.29 ea.	-
	0620	Bumpers - Reduces locker wear/less noise. Available in Black (1500-0620), Red (1504-0620) or Blue (1506-0620)	$127.11/bag	200/bag
	1596	Shackle Shroud - Fits General Security Combination Padlocks with standard 3/4in (19mm) shackle height	$4.34	25

Portable Keyed Locks

	Product No.	Description	List Price (each)	Case Qty.
		GENERAL SECURITY KEYED PADLOCKS A: 9/32in (7mm) C: 13/16in (21mm)
A C B	2650	PushKey™ no key turn portable lock - 4 keys included: 2 with large key head covers B: 3/4in (19mm) shackle	$17.95	24
Options and Accessories
	K2650BOX	Box of 25 key blanks	$21.42	25 per box
	1710-43959	ADA Compliant key head. (Note: 2650 comes with 4 keys and 2 key heads)	add'l $1.28 ea.	-
		HIGH SECURITY SOLID ALUMINUM PADLOCKS A: 5/16in (8mm) C: 3/4in (19mm)
A C B	A1205	1-3/4in (38mm) wide padlock with B: 1-1/8in (28mm) boron shackle	$15.88	24
	A1265	1-3/4in (38mm) wide padlock with B: 1-1/8in (28mm) boron shackle, 6-pin cylinders	$17.11	24
Options and Accessories
	KA	Keyed Alike	add'l $1.15	-
	MK	Master Keyed	add'l $5.20	-
	KAMK	Keyed Alike; Master Keyed	add'l $6.35	-
	CN	#40 Sash Chain, 9in (23cm) long, zinc plated	add'l $3.20	-
	NR	Non-removable Key	N/C
	Color Options	Lock body colors available - Black (BLK), Blue (BLU), Brown (BRN), Clear (CLR), Green (GRN), Orange (ORJ), Purple (PRP), Red (RED), Yellow (YLW). Add to Product No. (e.g. A1205BLU)	N/C
	Laser Engraving Option	Laser engraving available on 6 different surface areas of the lock. Please contact your Customer Care Representative for details	$1.11 per area	-
		COMMERICAL MAGNUM® PADLOCKS B: 1in (25mm)
A C B	M1STS	Laminated Steel Padlock with Stainless Steel Body Cover A: 5/16in (8mm) C: 13/16in (21mm)	$14.82	24
	M5STS	Laminated Steel Padlock with Stainless Steel Body Cover A: 5/16in (8mm) C: 13/16in (21mm)	$18.70	24
		LAMINATED STEEL PADLOCKS A: 9/32in (7mm) C: 5/8in (16mm)
A C B	3	Laminated steel body with hardened steel B: 3/4in (19mm) shackle	$10.67	24
	11	Laminated steel body with hardened steel B: 1-1/2in (38mm) shackle, Non-removable key	$13.56	24
Options and Accessories
	KA	Keyed Alike	add'l $1.15	-
	MK	Master Keyed	add'l $5.20	-
	KAMK	Keyed Alike; Master Keyed	add'l $6.35	-
	LF	Hardened steel 1-1/2in (38mm) shackle (3 and 11 Option Only) Octagonal Boron Shackle, B = 1-1/2in (38mm) (M1 STS and M5 STS Option Only)	add'l $1.80	-
	LH	Hardened steel 2in (51mm) shackle (3 and 11 Option Only)	add'l $3.05	-
	LJ	Octagonal Boron Shackle, B = 2-1/2in (64mm) (M1 STS and M5 STS Option Only)	add'l $3.20	-

Service Parts and Accessories Pricing

	Model
Parts	List Price	1630/ 1631	1652/ 1653	1654/ 1655	1670/ 1671	1690	1790	1710/ 1714	1502/ 1525	2010 2002/
1500-0590 Blank Dialing Instruction Tags	$0.11
1500-0620 Black Bumpers (Bag of 200)	$129.91
1504-0620 Red Bumpers (Bag of 200)	$129.91
1506-0620 Blue Bumpers (Bag of 200)	$129.91
1525-2500 Individual Padlock Boxes	$0.25
1630-0035 Bag (50) Kep Nuts	$3.45
1630-0313 Dial, Escutcheon Plate, Cylinder Assembly	$8.24
1652-0313MD Metal Dial, Escutcheon Plate, Cylinder Assembly	$9.52
1652-0606 Complete Back Case Assembly	$11.95
1670-1590 Blank Dialing Instruction Tags	$0.11
1690-0313 Easy Grip-and-Pull Dial, 1690 Escutcheon Plate, Cylinder Assembly	$9.26
1690-0606 Complete Back Case Assembly	$14.30
1710-0390 Nuts & Bolts (Bag of 50)	$9.94
1710-43959 ADA Compliant Key Head (Key available separately)	$1.28
2010-1590 Blank Dialing Instruction Tags	$0.11

MOST POPULAR PRODUCT OPTION PRICING

(not all options shown)

IMPORTANT!

When ordering, please review Ordering Information under the Terms of Sale.

See Page 3

Product Number	List Price
3	$10.67
3MK	$15.87
11	$13.56
11MK	$18.76
1502	$7.41
1502KA	$7.41
1502LF	$9.21
1502LH	$10.46
1525	$9.33
1525EZRC	$10.33
1525IMPC	$9.62
1525KA	$9.33
1525LF	$11.13
1525LH	$12.38
1525STK	$9.33
1525TIS	$10.33
1566	$203.52
1572	$7.41
1585	$9.33
1591	$9.20
1592	$11.24
1593	$9.20
1594	$11.24
1596	$4.34
1630	$19.22
1630KA	$19.22
1630MD	$20.50
1630STK	$19.22
1631	$19.22
1631MD	$20.50
1636MKADA	$26.81
1637MKADA	$26.81
1651MKADA	$29.01
1652	$21.42
1652MD	$22.70
1652STK	$21.42
1653	$21.42
1654	$21.42
1654KA	$21.42
1654MD	$22.70
1655	$21.42
1655KA	$21.42
1655MD	$22.70
1656MKADA	$29.01
1670	$22.25
1670KA	$22.25
1670MD	$23.53
1670STK	$22.25
1671	$22.25
1671KA	$22.25

PRODUCT SELECTION				PARTS & SERVICE
Product Number	List Price	Product Number	List Price
3	$10.67	1671MD	$23.53
3MK	$15.87	1676MKADA	$29.84
11	$13.56	1677MKADA	$29.84
11MK	$18.76	1690	$25.12
1502	$7.41	1695MKADA	$32.71
1502KA	$7.41	1710	$13.59
1502LF	$9.21	1710ADA	$14.87
1502LH	$10.46	1710KA	$14.01
1525	$9.33	1710KAMK	$19.46
1525EZRC	$10.33	1710KAMKRMVK	$19.46
1525IMPC	$9.62	1710MK	$19.04
1525KA	$9.33	1710MKADA	$20.32
1525LF	$11.13	1710MKRMVK	$19.04
1525LH	$12.38	1710RMVK	$13.59
1525STK	$9.33	1714	$13.59
1525TIS	$10.33	1714ADA	$14.87
1566	$203.52	1714KA	$14.01
1572	$7.41	1714KAMK	$19.46
1585	$9.33	1714MK	$19.04
1591	$9.20	1714MKADA	$20.32
1592	$11.24	1790	$18.51
1593	$9.20	1790ADA	$19.79
1594	$11.24	1790KA	$18.93
1596	$4.34	1790KAMK	$24.38
1630	$19.22	1790KAMKRMVK	$24.38
1630KA	$19.22	1790KARMVK	$18.93
1630MD	$20.50	1790MK	$23.96
1630STK	$19.22	1790MKADA	$25.24
1631	$19.22	1790MKRMVK	$23.96
1631MD	$20.50	1790RMVK	$18.51
1636MKADA	$26.81	2002	$27.54
1637MKADA	$26.81	2002IMPC	$27.83
1651MKADA	$29.01	2002S	$28.34
1652	$21.42	2010	$31.45
1652MD	$22.70	2010KA	$31.45
1652STK	$21.42	2010S	$32.25
1653	$21.42	2010SIMPC	$32.54
1654	$21.42	2650	$17.95
1654KA	$21.42	3630	$93.27
1654MD	$22.70	3631	$93.27
1655	$21.42	3670	$93.27
1655KA	$21.42	3681	$230.00
1655MD	$22.70	3685	$200.00
1656MKADA	$29.01	3686	$68.90
1670	$22.25	A1205BLK	$15.88
1670KA	$22.25	A1205MKBLK	$21.08
1670MD	$23.53	A1265BLK	$17.11
1670STK	$22.25	A1265MKBLK	$22.31
1671	$22.25	M1STS	$14.82
1671KA	$22.25	M5STS	$18.70

Product Number	Description	List Price
1500-0590	Blank Dialing Tags 1502/1525	$0.11
1500-0620	Black Rubber Bumper 1502/1525 Qty. 200	$129.91
1504-0620	Red Rubber Bumper 1502/1525 Qty. 200	$129.91
1506-0620	Blue Rubber Bumper 1502/1525 Qty. 200	$129.91
1525-2500	Ind. Box for 1502/1525	$0.25
1630-0035	Nuts for Built-In Combo Locks	$3.45
1630-0313	Complete Built-In Combo Dial Assembly for 1630/1631	$8.24
1652-0313MD	Same as above with Metal Dial	$9.52
1710-0390	Nuts & Bolts for 1710/1714/1790 Qty. 50	$9.94
1710-43959	ADA Compliant Key Head – Order key separately	$1.28
2010-1590	Blank Dialing Tags	$0.11
K1525	Control Key for 1525/2076/2010	$8.44
K1630	Control Key for all Built-In Combo Locks except ADA locks	$8.44
K1695CRM	Cut Student Key/Change Key for all ADA Built-In Combo Locks	$8.44
K1695CM	Cut Master Key for all ADA Built-In Combo Locks	$8.44
K1710W81KM	Cut Master Key for 1710/1714/1790	$8.33
K1710W81	Cut Regular Key for 1710/1714/1790	$8.33
K2650BOX	Box of 25 key blanks	$21.42
K3630	Supervisory override key	$3.99

QUICK SHIP STOCK LOCKER LOCK PROGRAM!

The 4 Most Popular Master Lock Locker Locks Are Now Stocked For Quick Delivery!

See Page 4 For Details

Call Your Customer Care or Sales Representative For Any Ordering Questions - 1.888.878.9952

Great Technologies

Button-Less Combination Change

No Buttons to Push. No Doors to Open. No Accidental Combination Changes.

The redesigned 1652 Series now features a patent-pending button-less combination change process that allows you to switch to the next combination without having to open the locker door! Sporting an all-new sleek dial design, this lock saves on overall maintenance time and prevents accidental combination change by overstuffed lockers.

View the 1652 Lock Videos at www.masterlock.com/school/video

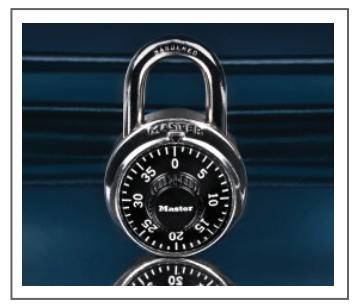

BlockGuard® Anti-Shim Padlock Technology

Advances Padlock Security to the Next Level.

Leading the market with innovative security solutions, Master Lock® offers the patented BlockGuard® Anti-Shim Technology – the very best in shim deterrence for combination padlocks.

These enhanced combination locks deter shimming, a method of violating a lock by inserting a specially designed shim tool into its latch mechanism. BlockGuard® has unique flat latch technology that actually blocks typical shimming tools from opening the lock – deterring break-ins.

Master Lock exclusive BlockGuard® Anti-Shim Technology (U.S. Patent No. 8,099,985) is now available on Models 1502, 1525, 1572, 1585 and 2076.

View the BlockGuard® Video at www.masterlock.com/school/video

Wrap Around Latch™ Technology

The Best Lock for Single Point Latch Lockers!

The patented model 1690, 1695MKADA, and 1790 built-in locks use the same technology as an automotive door lock system, utilizing slam shut operation combined with a rotating latch that wraps around the latch plate. Designed for Single Point Latch Lockers, these locks provide the most robust design and requires the least adjustment for proper operation (U.S. Patent No. 7,984,630).

Latch Wraps Around The Latch Plate

Less Maintenance, More Security, Easy-To-Use

Even in the case of ventilated lockers the 1690/1790 hold strong as the Wrap Around Latch™ prevents the use of shims and similar techniques for opening the door. Dead bolt latch automatically locks in position once the locker door is shut, preventing defeating the lock through attempts to move or shim the lock.

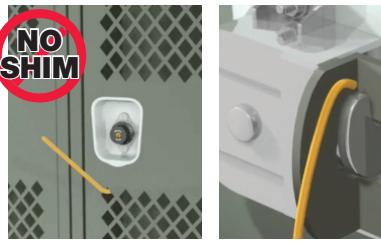

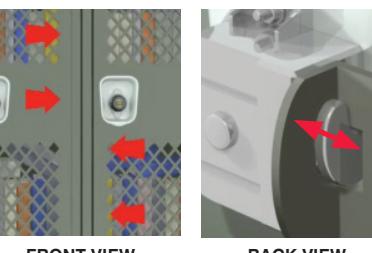

EXTREMELY SHIM RESISTANT INCREASED HORIZONTAL TOLERANCE

FRONT VIEW BACK VIEW FRONT VIEW BACK VIEW

A wider operating range reduces the need for call backs or future maintenance adjustments.

This saves your facility time and money. The 1690 design offers a much wider operating range.

View the 1690 Video at www.masterlock.com/school/video

Service and support that's second to none

Ordering and Shipping

www.masterlockshop.com

Available to direct purchasing distributors only. Registration and log-on credentials required.

Easy online ordering

Place orders or build quotes around the clock. Why order this way? It's easy, fast and accurate with instant order acknowledgements and easy order tracking. Contact Customer Care for details on how to sign up or

Place an order for future delivery

On time when you want it! If you place a future order, we will deliver the order within one working week of your requested date. We make your planning easy!

Quick Ship Stock Locker Lock Program will ship your order within 48 hours

A selection of our most popular locks are now stocked in Louisville, KY. See page four for more information.

Track your order online at masterlock.net

Regardless of how you place your order (web, fax, etc.), you can always track your orders online. Basic information is available with just the P.O. and delivery zip code. Additional information is available after setting up an account.

Your order status is at your fingertips any time of the day or night.

Customer Service and Resources

Our vast network of regional sales managers is available to answer all of your needs

Call our team of dedicated locker lock customer service representatives 1-888-878-9952

This team is extensively trained and located at Master Lock's Headquarters. Take advantage of a direct connection to this knowledgeable team today.

Excite your customers with a full library of product videos

Videos are a great way to excite your customers and train users. We make it simple for you to access our product videos directly from your website at no cost to you. Visit our website to view instructions and product videos.

www.masterlock.com/school/video

UNMATCHED SERVICE

Master Lock® has a nationwide network of regional sales managers and inside account specialists as well as locker and school supply distributors. Our factory-trained sales representatives provide expert planning, product selection, lock management and support services. Master Lock sells through locker distributors that specialize in locker installation, service and repair. The school supply distributors service educational customers by consolidating multiple, related products.

COMPLETE SUPPORT

Master Lock provides a printed chart and electronic (Excel) file of every lock serial number and combination in an installation. Facility administration can use the printed chart to record locker assignments and the corresponding combination.

CONTROLLED SECURITY

Security management is crucial to any installation. Therefore, Master Lock registers authorized end users and maintains installation records in an extensive database. These records make it easy to expand your system, eliminate duplicate lock serial numbers within a system and disperse control keys by zip code to avoid key crossover between schools.Master Lock provides control keys with the original installation of a key controlled lock system. The keys provide quick, supervisory access to any lock in the system. Replacement keys are only available to registered end users, directly from Master Lock.

Customer Care - 888.878.9952
