GATE & PANIC HARDWARE
vol. 1902
GATE CLOSERS
TB100 TB175 www.LockeyUSA.com/product/TB100 www.LockeyUSA.com/product/TB175
Gently closes gates up to 125 lbs. Pushes gate closed Adjustable closing speed
Recommended for use with: Metal/Vinyl/Wood/Chain Link gates with in-line/flush hinges.
Order #: TB100
Max. Gate Weight: 125 lbs. Max. Gate Width: 54"
Max. Opening Angle: 90 degrees
Material: Steel
Please note: LockeyUSA product warranty requires a gate stop to be installed in conjuction with the gate closer to prevent gates from opening past the listed maximum opening angle. www.LockeyUSA.com/warranty

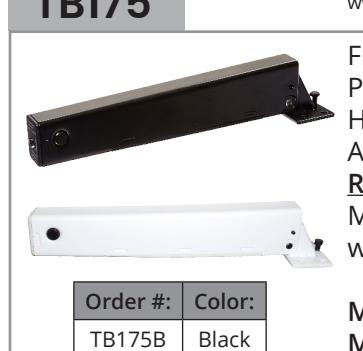

TB175W White
Flush mount gate closer Pushes the gate closed Hold open feature Adjustable closing/latching speed Recommended for use with: Metal, Vinyl, and Wood gates with in-line hinges.
Max. Gate Weight: 125 lbs. Max. Gate Width: 54"
Max. Opening Angle: 90 degrees
Material: Steel
www.LockeyUSA.com/product/TB200 www.LockeyUSA.com/product/TB400 www.LockeyUSA.com/product/TB600

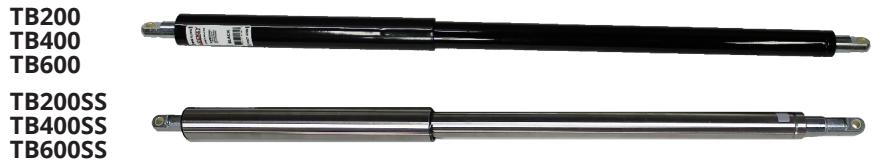

TB200, TB400, TB600
|
TB200SS
TB400SS TB600SS |
|
|---|---|
| Order #: | Material: | Gate Weight: | Gate Width: | Opening Pressure: | ||
|---|---|---|---|---|---|---|
| TB200 | EG Steel | Black | 50-125 lbs. | 30"-52" | 3-7 lbs. | |
| TB200SS | Stainless Steel | Silver |
50-125 lbs.
30"-52" |
3-7 lbs. | ||
| TB400 | EG Steel |
Black
75-175 lbs. |
40"-64" | 6-12 lbs. | ||
| TB400SS | Stainless Steel | 75-175 lbs. | 40"-64" | 6-12 lbs. | ||
| TB600 |
EG Steel
Black 150-250 lbs. |
44"-72" | 8-18 lbs. | |||
| TB600SS | Stainless Steel | Silver | 150-250 lbs. | 44"-72" | 8-18 lbs. | |
Mounting Hardware
Hydraulic controlled closing speed Installs on top/middle/bottom Works with left and right hand gates Mounts on opening side of gate Pushes the gate closed Mounting brackets and fitting bar included Hinge Arrangements: In-line or Offset Max. Opening Angle: 100 degrees

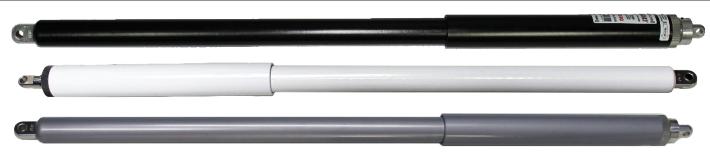

TB250, TB450, TB650 Adjustable
Adjustable Closing Speed!
| Order #: | Specify Color: | Gate Weight: | Gate Width: | Opening Pressure: |
|---|---|---|---|---|
|
TB250B
TB250W TB250G |
Black
White Gray |
50-125 lbs. | 30"-52" | 3-7 lbs. |
|
TB450B
TB450W TB450G |
Black
White Gray |
75-175 lbs. | 40"-64" | 6-12 lbs. |
|
TB650B
TB650W TB650G |
Black
150-250 lbs. White Gray |
44"-72" | 8-18 lbs. | |
www.LockeyUSA.com/product/TB250 www.LockeyUSA.com/product/TB450 www.LockeyUSA.com/product/TB650
Mounting Hardware
Adjustable hydraulic controlled closing speed Installs on top/middle/bottom Works with left and right hand gates Mounts on opening side of gate Pushes the gate closed Mounting brackets and fitting bar included Hinge Arrangements: In-line or Offset Max. Opening Angle: 100 degrees Material: Electro-galvanized (EG) Steel Finish: PVC wrapped

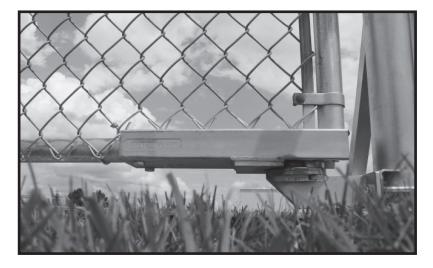

TB950 Magnum Closer & Hinge
www.LockeyUSA.com/product/TB950
All-in-one closer and hinge system Concealed, high use, pedestrian gate closer Self-closing, no hold open Tamper and vandal resistant Two speed adjustments: closing & latching Closes gates weighing between 50-250 lbs. Restrictor to avoid over opening Speed adjustments hidden from view 180 degree capable (saloon style) with 180 Drive Plate*
Accessories
Order #: TB-LINX

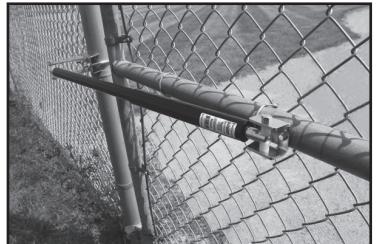

To mount closer on chain link (TB200,400,600 & TB250,450,650)
Order #: TB950-LINX
To mount TB950 on chain link
Order #: TB950-180 Plate
To make the TB950 180 degree capable (saloon style)
GATE LOCKS & BOXES
LockeyUSA recommends installing a hydraulic gate closer along with the gate lock and gate stop in order to prevent the gate from slamming and to increase the lifetime of the latch.

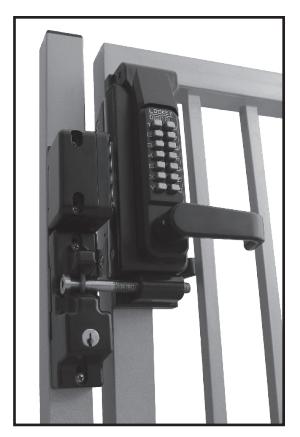

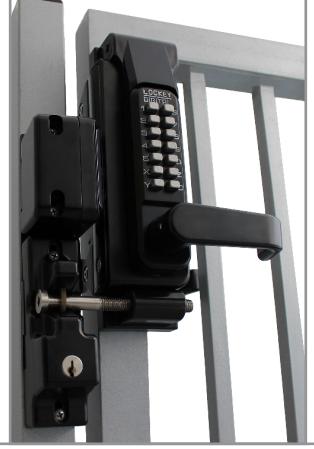

SUMO GL2 Gate Lock
SURFACE MOUNT SECURITY GATE LOCK
| Order #: | Lock Body: | Finish: |
|---|---|---|
| GL2SCMG | Single Combination | SCMG* |
| GL2JBMG | Single Combination | JBMG* |
| GL2SCMGDC | Double Combination | SCMG* |
| GL2JBMGDC | Double Combination | JBMG* |
www.LockeyUSA.com/product/SUMO
Easy to install surface mount gate kit, lock included Locks automatically
Equipped with passage function
Keyed cylinder lockout function prevents code use when locked Deadlocking spring latch prevents tampering
Adjustable strike accommodates gaps between gate & post up to 2" One user code, thousands of possible combinations
Changeable handing
Ideal for ornamental, aluminum, vinyl, and wood gates
Dimensions on gate post:
Length: 9 5/16" Width: 2 1/2" Depth: 4"
Dimensions on fence post:
Length: 8 5/8" Width: 1 1/2" Depth: 2 1/4"
NO WELDING NEEDED!
Gate Boxes & Gate Box Kits
www.LockeyUSA.com/gate-boxes
For use with M210, M230
Steel: GB200M Aluminum: GB200MAL
GB2500 For use with 2210, 2830, 2835, 3210, 3830, 3835 Steel: GB2500 Aluminum: GB2500AL
GBADDABOLT (box only) For use with M210DC & a
drive-in-deadbolt Designed for narrow stiles Black: GB-ADD-A-BOLT-B White: GB-ADD-A-BOLT-W
For use with 2930, 2985 Steel (black): GB900 Aluminum: GB900AL
GB2900-LINX
For use with 2900 Series 2900, 2930, 2950, 2985 Stainless Steel for Chain Link 1 5/8": GB2900-LINX 1 7/8": GB2900-LINX 1 7/8"
For use with 2900, 2950 Steel (black): GB950 Aluminum: GB950AL
GBADDABOLTKIT
Includes GBADDABOLT box, M210DC & drive-in-deadbolt Designed for narrow stiles Black: GBADDABOLTKITB White: GBADDABOLTKITW
GB1150
For use with 1150, 1600 Steel: GB1150 Aluminum: GB1150AL
GB210PLUSDC Kit
Includes GB210 box, M210DC & a knob or lever Specify knob or lever Steel: GB210PLUSDC Aluminum: GB210PLUSDCAL

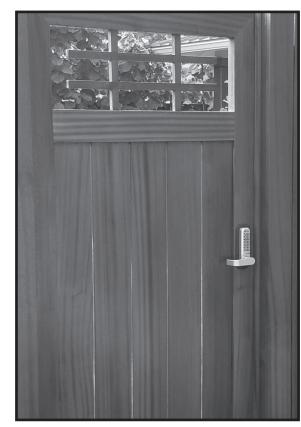

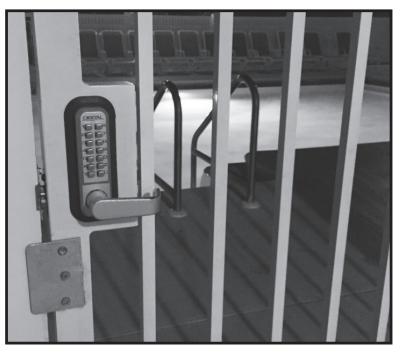

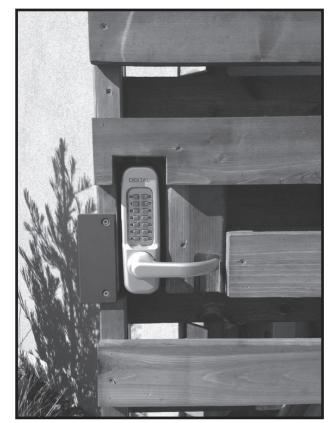

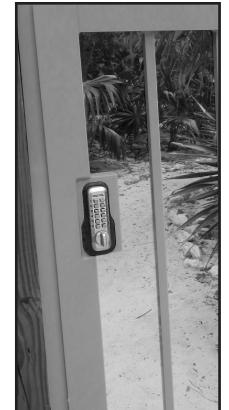

Keyless Locks for Gates
For our full selection of LockeyUSA locks, visit www.LockeyUSA.com.
2835 Lever Lock Shown above on GB2500 Available in 9 finishes: AB, BB, BC, JB, MG* (above), OIL, SC, SN, WH
M210 Deadbolt & M230 Lock Shown above on GB200M Available in 9 finishes: AB, BB, BC, JB, MG* (above), OIL, SC, SN, WH
3835 Passage Lever Lock Shown above on GB2500 Available in 4 finishes: JBMG*, OIL, SCMG*, SN
2900 Series Locks Shown above on GB2900 LINX Available in 9 finishes: AB, BB, BC, JB, MG* (above), OIL, SC, SN, WH (2930 not pictured)
1150 Heavy-Duty Lever Lock Shown above on GB1150 Available in 3 finishes: JB, MG*, OIL
AB: Antique Brass BB: Bright Brass BC: Bright Chrome JB: Jet Black *MG: Marine Grade OIL: Oil Rubbed Bronze SC: Satin Chrome SN: Satin Nickel WH: White * MG in the finish indicates Marine Grade, which extends the life of the finish when exposed to corrosive elements of saltwater environments. *
PANIC BARS & TRIMS
PB1100 Panic Bar
www.LockeyUSA.com/product/PB1100
| Order #: | Material: | Length: | ||||
|---|---|---|---|---|---|---|
| PB1100AL | Aluminum | |||||
| PB1142 | 42" | |||||
| PB1100FR | Fire Rated | |||||
| PB1100SS | 33" | |||||
| PB1142SS | Stainless Steel | 42" | ||||
Grade 1 Certified ANSI/BHMA A156.3 Series Complies with ANSI A117.a ADA requirements UL/cUL Listed
Weather Resistant
Latch Bolt: Stainless Steel Powder Metallurgy, 11/16" throw Deadlocking Latch: Stainless Steel Powder Metallurgy, 9/16" throw
Narrow Stile: 2 1/2"
Door Thickness: 1 3/4" (standard) PB1100 Device Length: 33" for 36" doors PB1142 Device Length: 42" for 48" doors Field-sizable: Can be cut down to 27"
PB1100FR only: UL/cUL Listed 3 hour fire-rated 10C, UBC 7-2 (1997) Compatible with all LockeyUSA Panic Trims & Keyless Panic Trims
PB2500 Panic Bar www.LockeyUSA.com/product/PB2500
| Order #: | Device Type: | Length: |
|---|---|---|
| PB2500 | Panic Bar | 33" |
| PB2500Alarm | Alarm Bar | 33" |
| PB2542 | Panic Bar | 42" |
| PB2542Alarm | Alarm Bar | 42" |
Patented double-interlocking system makes the PB2500 virtually impossible to tamper with, pry, or force open
UL Certified ANSI/BHMA 156.3 2008, Grade 1
Listed by CA State Fire Marshall
ADA Compliant
Conforms to Positive Pressure Standards, UL 10C UBC 7-2 Accepted by NYC, Department of Buildings, MEA 337-92M
Standard lengths for 36" or 48" doors/gates Can be field cut for undersized doors/gates Designed for narrow stile aluminum doors
Made in the USA Weather Resistant Non-handed

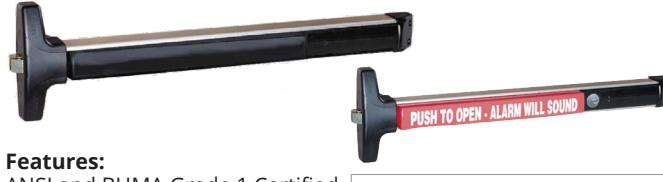

DETEX V40 Series Panic Bars www.LockeyUSA.com/product/DETEX-V40
ANSI and BHMA Grade 1 Certified UL/cUL Listed ADA Compliant Narrow Stile: 2 1/2" Door Thickness: 1 3/4" (standard) LockeyUSA offers DETEX
products & manufactures DETEX compatible panic shields & keyless trims. V40 Series bars are also offered as part of our Panic Shield Kits.
Non-Alarm Options:
33″ Bar: V40
33″ Bar, Black: V40x711
33″ Bar, Weatherized: V40xW
42″ Bar: V40x48
42″ Bar, Black: V40x48x711
Alarm Options:
33″ Alarm Bar: V40xEB
33″ Alarm Bar, Black: V40x711xEB
33″ Alarm Bar, Weatherized: V40xEBxW 33″ Alarm Bar, Black, Weatherized: V40x711xEBxW
42″ Alarm Bar: V40x48xEB
42″ Alarm Bar, Weatherized: V40x48xEBxW
42″ Alarm Bar, Black: V40x48x711xEB
42″ Alarm Bar, Black Weatherized: V40x48x711xEBxW
Panic Trims
Pull Handle Entry Trim
Order #: PB-DUMED
Lever Handle Passage Trim Order #: PB-LHPS
Lever Handle Clutch Trim
Order #: PB-LHCL
Lever Handle Keyed Entry Order #: PB-LHED
Lever Handle Storeroom Order #: PB-LHSR
Night Latch Handleset Trim
Order #: PB-NLED
Thumbpiece Keyed Entry Trim
Order #: PB-TPED
Keyless Panic Trims
www.LockeyUSA.com/product/115P www.LockeyUSA.com/product/160P
www.LockeyUSA.com/product/285P www.LockeyUSA.com/product/310P
Field-sizable Weatherproof
115P Heavy-Duty Lever Lock (1150 Lock Body)
Compatible with panic bars that accept a flat tail piece & have a turn radius of 74° or less.
| Finish: | Order #: |
|---|---|
| JB | 115PJB |
| MG* | 115PMG* |
| OIL | 115POIL |
160P Heavy-Duty Knob Lock (1600 Lock Body)
Compatible with panic bars that accept a flat tail piece & have a turn radius of 90° or less.
| Finish: | Order #: |
|---|---|
| JB | 160PJB |
| MG* | 160PMG* |
| OIL | 160POIL |
285P Lever Lock (2835 Lock Body)
Compatible with panic bars that accept a flat tail piece & have a turn radius of 74° or less.
Available in 9 finishes:
| AB | 285PAB |
| BB | 285PBB |
| BC | 285PBC |
| JB | 285PJB |
| MG* | 285PMG* |
| OIL | 285POIL |
| SC | 285PSC |
| SN | 285PSN |
| WH | 285PWH |
310P Knob Lock (3210 Lock Body)
Compatible with panic bars that accept a flat tail piece & have a turn radius of 90° or less.
| Finish: | Order #: |
|---|---|
| MG* | 310PMG* |
Compatible trim boxes for LockeyUSA keyless panic trims are listed on the "Panic Hardware" page of this catalog.
PANIC HARDWARE
LockeyUSA panic hardware (excluding 12" panic shields) is available individually or as a component of a Panic Shield Kit. See next page for more information.
www.LockeyUSA.com/panic-shields

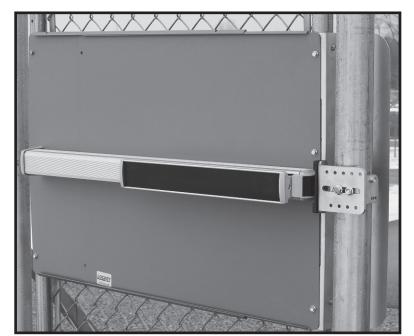

Panic Shields
PS3x1S24
PS24S ED3x1S24 PS12S PS3x1S12 ED3x1S12
Order #: Style: Shield Height: Color: Hole Pattern: PS3x1S24 Standard 24" Silver Predrilled for PB1100, PB2500 & V40 Series Panic Bars PS3x1B24 Standard 24" Black Predrilled for PB1100, PB2500 & V40 Series Panic Bars ED3x1S24 Edge 24" Silver Predrilled for PB1100, PB2500 & V40 Series Panic Bars ED3x1B24 Edge 24" Black Predrilled for PB1100, PB2500 & V40 Series Panic Bars PS3x1S12 Standard 12" Silver Predrilled for PB1100, PB2500 & V40 Series Panic Bars PS3x1B12 Standard 12" Black Predrilled for PB1100, PB2500 & V40 Series Panic Bars ED3x1S12 Edge 12" Silver Predrilled for PB1100, PB2500 & V40 Series Panic Bars ED3x1B12 Edge 12" Black Predrilled for PB1100, PB2500 & V40 Series Panic Bars PS24S Standard 24" Silver No panic bar mounting holes PS24B Standard 24" Black No panic bar mounting holes PS12S Standard 12" Silver No panic bar mounting holes PS12B Standard 12" Black No panic bar mounting holes
Mounting plate for a panic bar Turns gates into emergency exits 16ga eg-steel Adjustable for 28"-54" gates Available in 24" and 12" shield heights Powder-coated finish
PS-EXT Extension shields Extends panic shield to 74" Available in both 12" and 24"
| Order #: | Shield Height: | Color: |
|---|---|---|
| PSEXTS | 24" | Silver |
| PSEXTB | 24" | Black |
| PSEXT12S | 12" | Silver |
| PSEXT12B | 12" | Black |
Gate Hardware
Latch Protector
Provides extra security to gate latches, for gates with over 1" gap 16ga eg-steel 23.375" long
Black: LPB Silver: LPS
Max Guard
Mounts above panic bar to prevent tampering 4" Protrusion, 24" wide
Black: MAXB Silver: MAXS
Gate Stop
Prevents gate from opening past 90 ° Gate Stop: GS90
www.LockeyUSA.com/gate-hardware
LINX Gate Stop
Prevents chain link gate from opening past 90 ° 3" Posts: GSLINX
4" Posts: GSLINX 4"
Edge Jamb Stop
Acts as a gate stop on EDGE shield setups
Order #: EDJS
PS Strike Bracket
For standard style shield setups, includes mounting hardware
Black: PSSBB Silver: PSSBS
ED Strike Bracket
For edge style shield setups, includes mounting hardware
Black: EDSBB Silver: EDSBS
2900 Strike Bracket
Strike Bracket for 2900/2950 locks Includes necessary mounting hardware Silver: SB2900
2985 Strike Bracket
Strike Bracket for 2930/2985 locks Includes necessary mounting hardware Silver: SB2985
www.LockeyUSA.com/panic-hardware
Keyed Cylinder For use with:
PSGB5 and EDGB5 Order #: PS-CYL Specify Keyed Alike or Keyed Different
Mounting Tabs For use with: 2900 Series Locks
Order #: AR-2991-0965
Trim Boxes
PSGB100
For use with 115P, 160P Black: PSGB100B Silver: PSGB100S
PSGB200 (STANDARD)
For use with 285P Black: PSGB200B Silver: PSGB200S
EDGB200 (EDGE)
For use with 285P Black: EDGB200B Silver: EDGB200S
PSGBLH
For use with PB-LHPS, PB-LHED, PB-LHSR Black: PSGBLHB
Silver: PSGBLHS
PSGB5
For use with keyed cylinder for standard shield setups
Black: PSGB5B Silver: PSGB5S
EDGB5
For use with keyed cylinder for EDGE shield setups
Black: EDGB5B Silver: EDGB5S
LockeyUSA 24" panic shields are available individually or as a component of a Panic Shield Kit. Information on how to order a panic shield kit is found below.
Standard vs. EDGE Style Kits
www.LockeyUSA.com/standard-kits www.LockeyUSA.com/edge-kits
Panic Shield Kits are offered in two styles, Standard and EDGE
The main differences between Standard and EDGE panic shield kits:
- ü Panic bar mounts closer to the edge of the gate with EDGE kits
- ü Reduced strike size on EDGE kits when compared to Standard kits
- ü Reduced strike protrusion on EDGE kits when compared to Standard kits
- ü Latch Protector & Jamb Stop (gate stop) included with all EDGE kits
Standard
Standard Style EDGE Style

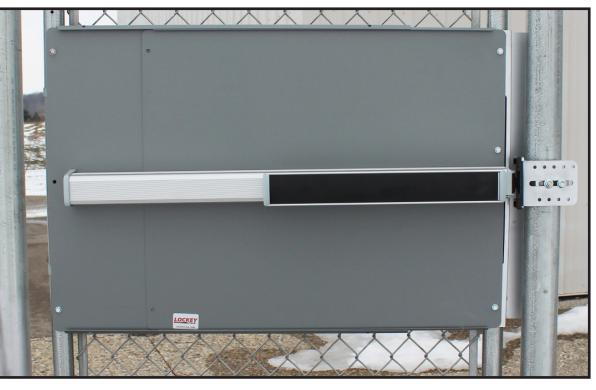

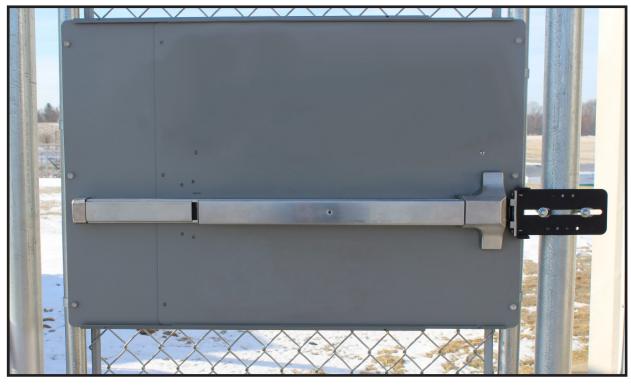

PB1100 mounted on a Standard Style Panic Shield setup PB2500 mounted on an EDGE Style Panic Shield setup

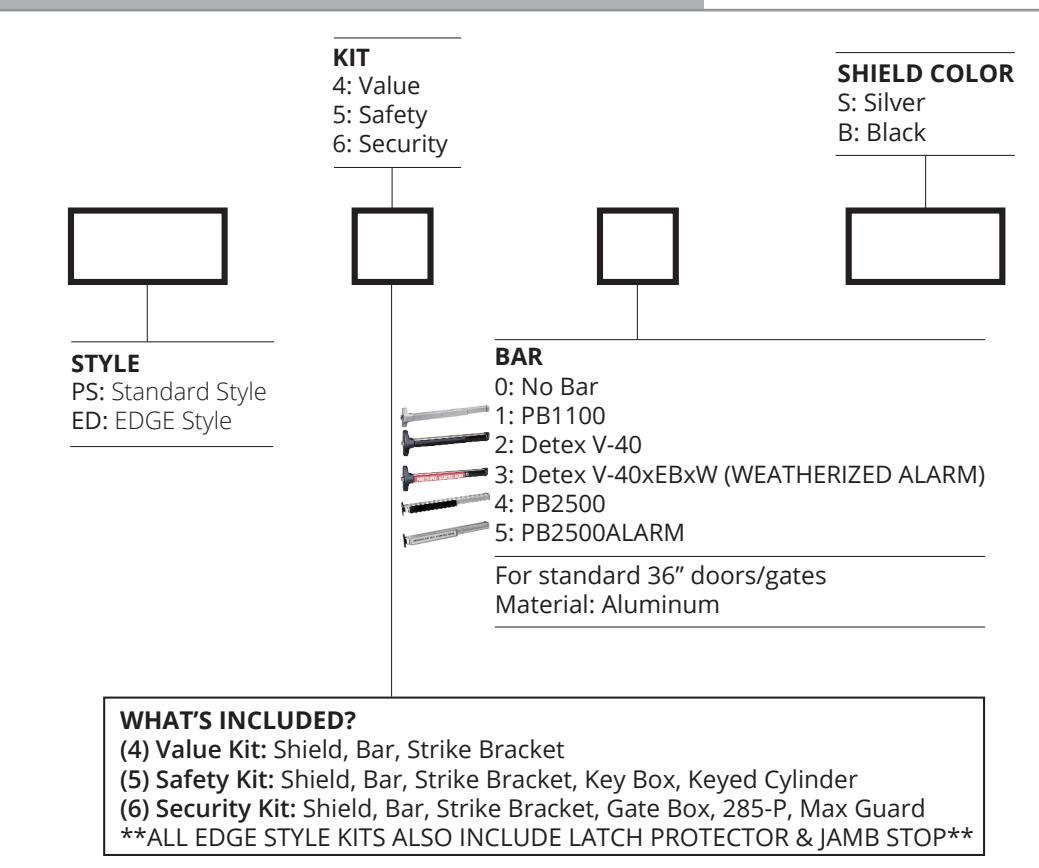

How to Order a Panic Shield Kit
www.LockeyUSA.com/resources/ordering-information
*OPTIONAL PANIC BAR UPGRADE SELECT ONLY ONE:
PB1100 UPGRADES
L: 42" Bar
M: Stainless Steel
F: Fire Rated
LM: 42" Stainless Bar
DETEX V-40 UPGRADES
L: 42" Bar
W: Weatherized V-40
7: Black V-40
L7: 42" Black V-40
DETEX V-40xEBxW UPGRADES
L: 42" Bar
7: Black V-40xEB
L7: 42" Black V-40xEB
PB2500 & PB2500AL UPGRADES
L: 42" Bar
Refer to the "Panic Hardware" page of this catalog to view the individual items included in the various Panic Shield Kits.
Panic Shield Kits
www.LockeyUSA.com/standard-kits
www.LockeyUSA.com/edge-kits
| Content | s of kits a | re ind | licated b | y x belov | v. See "H o | ow to Ord | ler Pa | nic Shield | Kit" for av | ailable pa | anic bar | upgrades | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Order
#: |
Value
Safety Security |
Style: |
24"
Shield |
PB1100 | V40 |
V40x-
EBxW |
PB2500 |
PB2500
Alarm |
Strike
Bracket |
Key
Box |
Keyed
Cylinder |
Keyless
Lock Trim Box |
285P
Keyless Trim |
Max
Guard |
LP |
Jamb
Stop |
| PS40 | Value | Standard | х | х | ||||||||||||
| PS41 | Value | Standard | х | ж | ж | |||||||||||
| PS42 | Value | Standard | х | х | × | |||||||||||
| PS43 | Value | Standard | х | х | х | |||||||||||
| PS44 | Value | Standard | х | х | х | |||||||||||
| PS45 | Value | Standard | х | ж | х | |||||||||||
| PS50 | Safety | Standard | х | х | х | x | ||||||||||
| PS51 | Safety | Standard | х | х | х | х | ж | |||||||||
| PS52 | Safety | Standard | x | х | х | х | ж | |||||||||
| PS53 | Safety | Standard | х | х | х | х | x | |||||||||
| PS54 | Safety | Standard | х | х | х | х | х | |||||||||
| PS55 | Safety | Standard | х | х | х | х | х | |||||||||
| PS60 | Security | Standard | x | х | x | ж | x | |||||||||
| PS61 | Security | Standard | х | ж | ж | х | × | х | ||||||||
| PS62 | Security | Standard | х | х | х | х | х | х | ||||||||
| PS63 | Security | Standard | х | х | х | х | ж | х | ||||||||
| PS64 | Security | Standard | х | х | х | х | x | х | ||||||||
| PS65 | Security | Standard | х | х | х | х | х | х | ||||||||
| ED40 | Value | EDGE | х | х | х | х | ||||||||||
| ED41 | Value | EDGE | х | х | х | х | х | |||||||||
| ED42 | Value | EDGE | х | х | × | х | х | |||||||||
| ED43 | Value | EDGE | х | х | х | x | х | |||||||||
| ED44 | Value | EDGE | х | х | x | х | х | |||||||||
| ED45 | Value | EDGE | х | x | х | х | x | |||||||||
| ED50 | Safety | EDGE | x | ^ | x | х | х | х | x | |||||||
| ED50 | Safety | EDGE | v | |||||||||||||
| ED51 | EDGE | X | Х | \- | X | X | X | X | Х | |||||||
| Safety | X | х | X | X | X | X | X | |||||||||
| ED53 | Safety | EDGE | х | х | х | х | х | Х | х | |||||||
| ED54 | Safety | EDGE | х | х | х | х | х | х | х | |||||||
| ED55 | Safety | EDGE | х | х | х | х | х | х | х | |||||||
| ED60 | Security | EDGE | х | x | х | х | x | x | х | |||||||
| ED61 | Security | EDGE | х | х | х | х | х | х | х | х | ||||||
| ED62 | Security | EDGE | х | х | х | х | х | x | x | х | ||||||
| ED63 | Security | EDGE | х | х | х | х | х | ж | ж | x | ||||||
| ED64 | Security | EDGE | х | х | х | х | х | х | х | х | ||||||
| ED65 | Security | EDGE | х | х | х | х | х | х | ж | х | ||||||
WARRANTY STATEMENTS: LockeyUSA Hydraulic Gate Closers (not including the TB950 Magnum) are covered by a one year warranty. The one year warranty covers manufacturer defects to the hydraulic gate closer. The one year warranty does NOT cover defects resulting from vandalism, improper installation or use. LockeyUSA TB950 Magnum Hydraulic Gate Closer & Hinge is covered by a ten year warranty. The ten year warranty covers manufacturer defects to the hydraulic gate closer and hinge. The ten year warranty does not cover defects resulting from vandalism, improper installation, or use. LockeyUSA Panic Hardware including panic bars and panic shields, comes with a five year warranty. The five year warranty does NOT cover damage or defects to the product finish, defects resulting from vandalism, or defects resulting from improper installation or use. LockeyUSA product warranty does not apply to DETEX Panic Hardware, sold by LockeyUSA. All DETEX warranty inquiries must be directed to the manufacturer.
FULL WARRANTY STATEMENTS AVAILABLE AT www.LockeyUSA.com/warranty
4245 S. Lincoln Rd. Mt. Pleasant, MI 48858 888.395.0163 LockeyUSA.com
