LPM19x Series

• Motorized Latch Retraction in a mortise lock
• GREAT INTEGRATED SOLUTION FOR DOORS W/ AUTO-OPERATORS
• DIRECT RETROFIT FOR SCHLAGE L SERIES
• LATCH RETRACTION X LEVER CONTROL MODELS OFFER GREATER CONTROL, IDEAL FOR SINGLE OCCUPANCY RESTROOMS
• UL LISTED

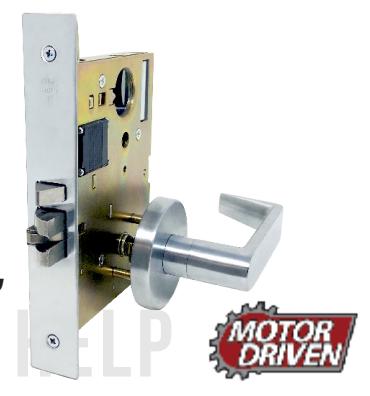

The Command Access LPM190 series motorized latch retraction mortise lock utilizes a high-quality Grade 1 chassis built to withstand years of abuse. This unique model brings latch retraction to a standard mortise lockset & is the perfect solution for push-pull conditions, handicap access, single-occupancy restroom applications, and automatic operators where panic devices are unnecessary. It utilizes a CAT-designed custom motor assembly to maximize the pulling force, lower surge, allowing long wire runs and multiple locks on one power supply. This mortise lock uses standard 'type 86' door prep and is a direct retrofit to Schlage L9000 compatible trim. We offer this model as chassis only or with complete trim. Available with lever control solenoid for latch retraction x lever control allowing for multiple speciality functions.

SPECIFICATIONS

Voltage: Latch Retraction

• Voltage range 24 +/- 10%
• System protection unit shutdown when voltage exceeds 28VDC
• Standard Average Current Peak: 1A, Average Current Hold: 300mA

Lever Control

• Operating Voltage Specify 12 or 24VAC/DC (+/- 10%)
• Amperage 24v = 350mA or 12V = 700mA
• Solenoid coil resistance 24v = 69Ω

Wire Run:

300' with 18ga wire

Product Details:

• Chassis Only Box: 10.5" x 3.75": x 2.5" Weight: 3 Lbs Master Pack Qty: 10 ea.
• Complete Lock Box: 10.5" x 3.75": x 2.5" Weight: 7 Lbs Master Pack Qty: 4 ea.

Accessories

• · Request-to-Exit Field Installable
• Latchbolt Monitor Switch Field Installable
• · Door Position Switch See IDPS series

FEATURES

• Built-in Smart Module: Simplifies installation, low current draw & provides latch sensing status.
• Rated for continuous duty Auto re-engage if latch is pulled from held back position
• Up to 300' wire run with 2-18ga wire Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
• 8' cable with Quick Connect to easily connect to power supply lead
• Built-in REX & LBM switches available.
• Field-Handable Direct Retrofit for Schlage L9000 series
• 3-year "no hassle" warranty

LPM1 Series Functions

	Latchbolt Control:
LPM1910EU passage	Motorized Latchbolt retracted by lever outside or by lever inside. Applied power electronically (EU) retracts latchbolt for push/pull operation.
passage	Lever Control:	Outside Lever & Inside Lever
	Level Control.	Always free ingress & egress
LPM190EU	Latchbolt Control:	Motorized Latchbolt retracted by key outside or by lever inside. Applied
storeroom		power electronically (EU) retracts latchbolt for push/pull operation.
LTUUMS	Lever Control:	Outside Lever Always Rigid (Locked)
DIMIONIU
		Inside Lever Always free egress
LPM192EU	Latchbolt Control:	Motorized Latchbolt retracted by key outside or inside (Double Cylinder operation).
institutional	Latoribolt Control	Applied power electronically (EU) retracts latchbolt for push/pull operation.
	Lever Control:	Outside Lever & Inside Lever
		Always Rigid (Locked)
LPM193EUxEL	Latchbolt Control:	Motorized Latchbolt retracted by key outside or inside
LPM194EUxEU	X	Applied power electronically (EU) retracts latchbolt for push/pull operation.
storeroom	Lever Control:	Outside Lever EL - locked electronically: Applied power prohibits Outside lever from retracting
X		latchbolt. EU - unlocked electronically: Applied power allows Outside lever to retract latchbolt.
storeroom
		Inside Lever Always free egress.
		Latchbolt retracted by key outside or inside.
		Applied power electronically (EU only) retracts latchbolt for push/pull operation.
LPM195EUxEL	Latchbolt Control:	Motorized Latchbolt retracted by key outside or inside
LPM196EUxEU	X	Applied power electronically (EU) retracts latchbolt for push/pull operation.
institutional	Lever Control:	Outside Lever Always Clutching (Does not activate outside lever at anytime)
X storeroom		Inside Lever
3.010100111		EL - locked electronically: Applied power prohibits Inside lever from retracting latchbolt.
-A51		EU - unlocked electronically: Applied power allows Inside lever to retract latchbolt.
LPM197EUxEL	Latchbolt Control:	Motorized Latchbolt retracted by key outside or inside (Double Cylinder
LPM198EUxEU	Х	operation). Applied power electronically (EU only) retracts latchbolt for push/ pull operation.
institutional	Lever Control:	Outside Lever & Inside Lever
X		EL - locked electronically: Applied power prohibits both levers from retracting latchbolt.
institutional		EU - unlocked electronically: Applied power allows both levers to retract latchbolt.

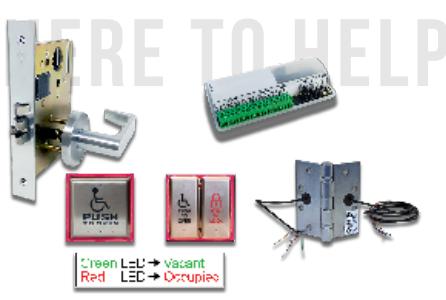

SINGLE OCCUPANCY PRIVACY BATHROOM PACKAGE

ADD ON EMERGENCY KIT

How to Order

TRIMS AVAILABLE	LEVERS AVAILABLE	FINISHES AVAILABLE	SAMPLE
L	3	ALWA605 HERE	L3 605
L_B	6	612	L7B 613
	7	613	ESC17 626
ESC		625	Trim Dimensions L = 2-7/16"
	17	626	LB= 2-3/4" ESC= 1-3/4" x 8"

Note: Less OS or IS trim available upon request

All configurations not available . Call for availability

E XAMPLE

• Complete Lock: LPM1910 EU L6B 626 LBM
• Chassis Only: LPM193 EU x EL CH REX LBM

CONTROLLED ACCESS APPLICATION

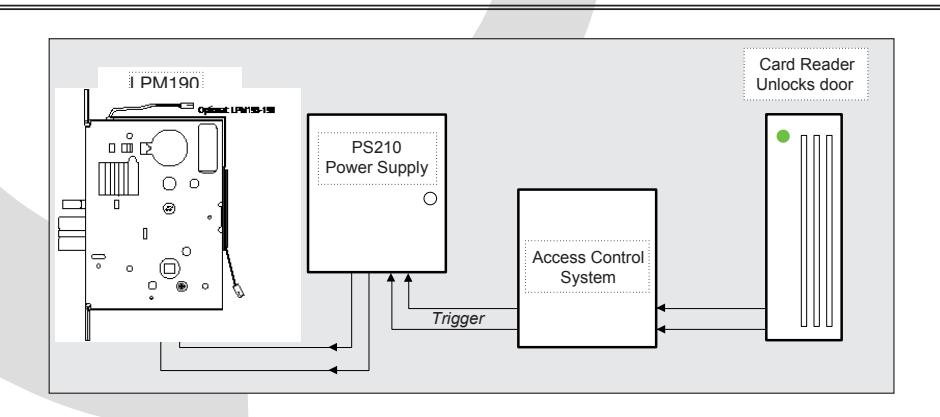

The Command Access LPM190 mortise lock may be utilized in conjunction with any access control application using standard mortise locksets. When activated the LPM190 creates a push/pull that satisfies both in-swinging and out-swinging doors. Inside free egress can be attained by turning the inside lever to manually open the door. Outside access is controlled by the access control system or by physical key override.
