Product selection guide

High Security LCN closers feature a vandal resistant design engineered for each application, easy installation, and superior performance. This guide is based on the desired mounting of the closer.

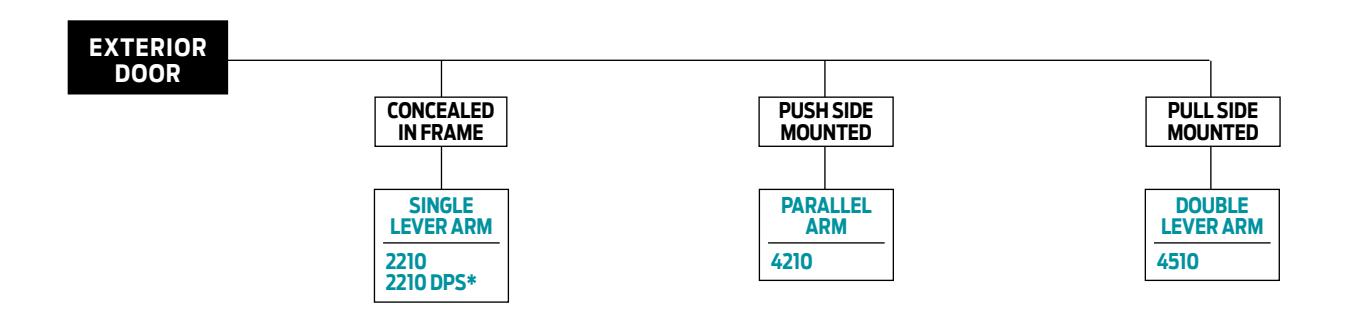

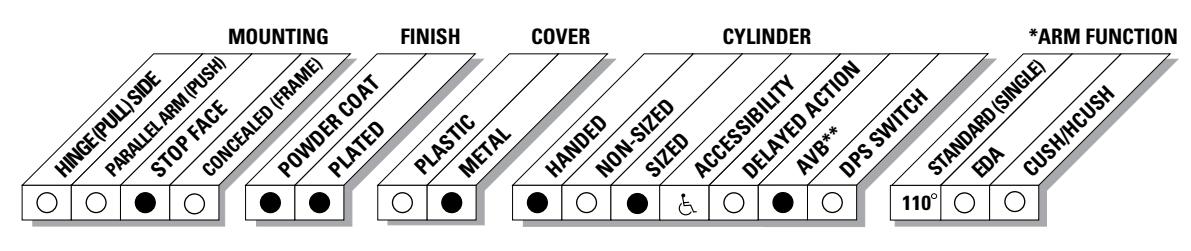

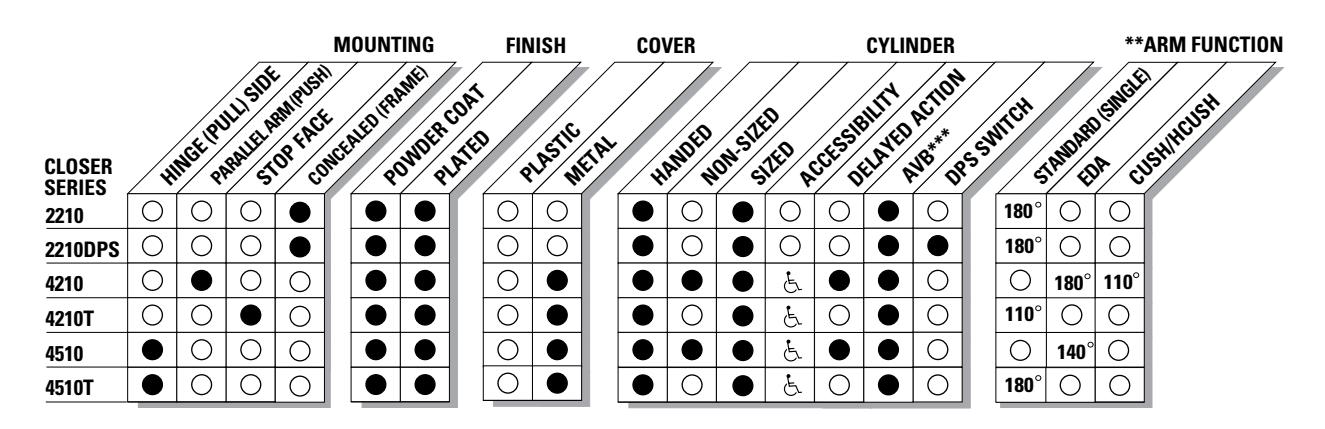

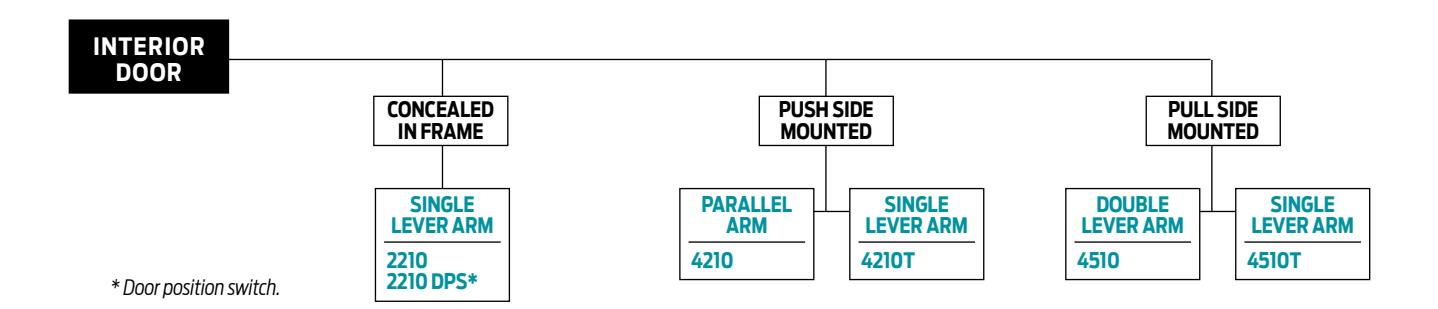

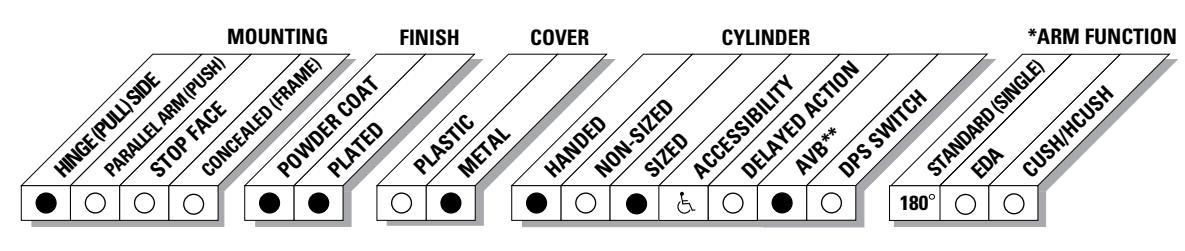

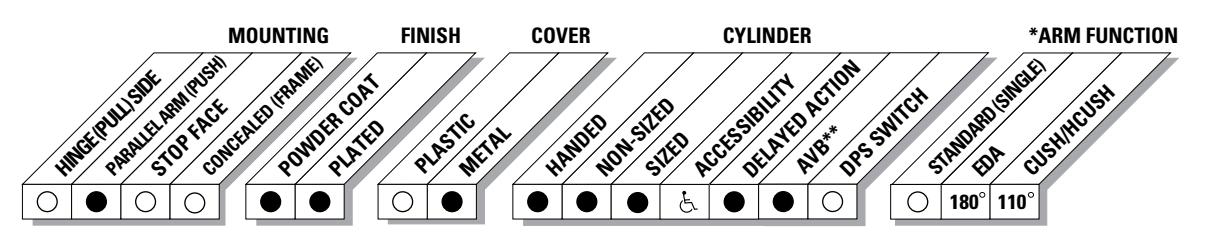

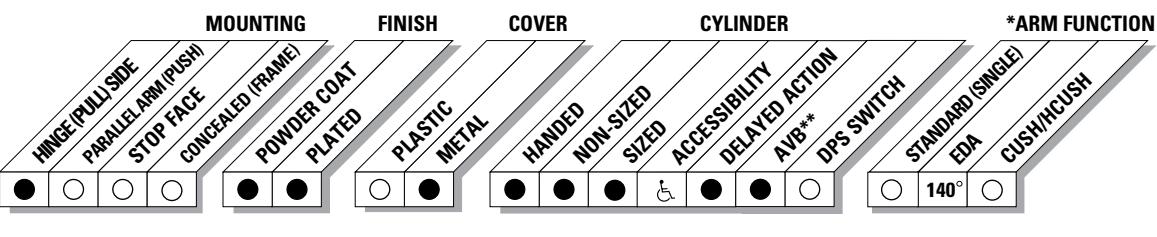

Product comparison

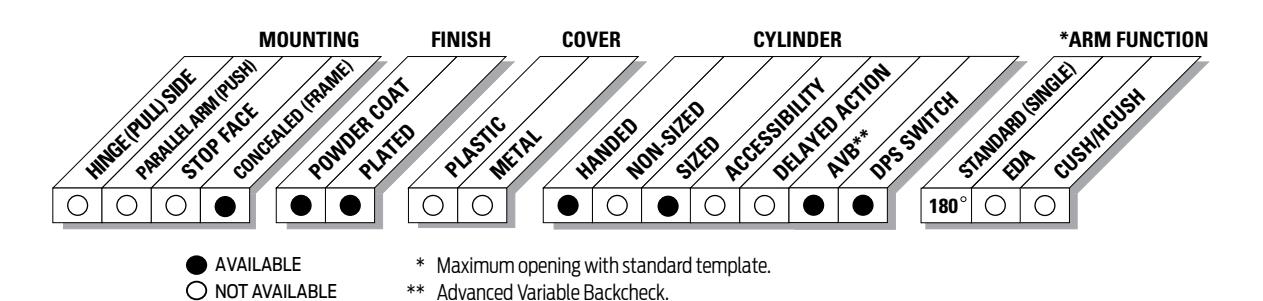

This chart shows a basic comparison of LCN High Security closers. Refer to the specific closer chapter for complete details.

  • AVAILABLENOT AVAILABLE
  • Closer available with less than 5.0 lbs. opening force on 36 "door.
  • ** Maximum opening with standard template. See individual closer series for degrees of opening per installation.
  • *** Advanced Variable Backcheck.

F1

High Security Closers Series

APPLICATIONS

  • n For any concealed or surface mounted installation subject to potential abuse or vandalism.
  • n For correctional, aluminum, hollow metal, or wood doors and frames.
  • n Can be used with hinge or pivot mounted door.
  • n Adapter plates and other installation accessories available for unusual conditions.

FEATURES COMMON TO HIGH SECURITY CLOSERS

  • n Each closer is a vandal resistant design for a specific mounting; hinge side, parallel arm, stop face, or concealed.
  • n All high security closers are based on a cylinder certified to exceed 10,000,000 cycles in independent testing.
  • n Handed for right or left swinging doors.
  • n Closers to meet ADA reduced opening force requirements.
  • n All closers furnished with TORX tamper resistant machine screws.
  • n All surface mount closers include a heavy gauge steel cover with four attachment points.
  • n All closer adjustments are protected when installation is complete.
  • n All track closers use a jam resistant track and tamper resistant arm/ roller assembly.
  • n Adjustable hydraulic backcheck cushions opening swing prior to 90°.
  • n Advanced variable backcheck (AVB) is available on all high security closers.
  • n Separate regulation of general closing speed and latching speed.

DESIGN ASSISTANCE

LCN has been providing reliable solutions to unique door control problems since 1925. Design and specification assistance are only a phone call away. Contact LCN for assistance or technical information at 877-671-7011 or FAX 800-248-1460 (order entry) , Fax 815-879-1495 for Technical Support.

WARRANTY

High Security Series closers carry a 15 year limited warranty, except for the 2210DPS Series closer that carries a 2 year limited warranty. See General Information Section for complete warranty details.

MATERIALS

  • n High strength cast iron cylinder.
  • n Forged steel main arms and forearms.
  • n One piece forged steel piston.
  • n LCN's all weather " Liquid X " fluid performs to temperature ranges from 120°F (49°C) to -30°F (-35°C) without any seasonal adjustment.
  • n High efficiency, full complement , low friction bearings.
  • n Double heat treated pinions.
  • n Tamper resistant regulating screws.
  • n Full rack and pinion hydraulic action.
  • n Quiet, low friction track and roller combination for all single lever arm closers.

FINISHES

  • n Available in six standard or a wide selection of optional custom powder coat finishes to blend with door and frame.
  • n LCN's powder coat finishes surpass 100 hours of salt spray which is over four times the ANSI standard for corrosion resistance.
  • n For installations where a higher level of corrosive resistance is required, LCN offers an optional special rust inhibiting (SRI) pre-treatment. Closers that combine the exclusive LCN powder coat finish and the SRI

pre-treatment exceed the ANSI standard for corrosion resistance even further.

n Plated finishes are available as an option to accent door and frame.

LISTINGS & APPROVALS

UL listed for self-closing doors without hold-open under "SWINGING DOOR CLOSERS"(GVEV) file R 1943.

Tested and certified under ANSI Standard A 156.4. Consult factory for details.

Consult factory for other listings such as; ULC, California State Fire Marshal, Bureau of Standards and Appeals.

POSITIVE PRESSURE

FASTENERS

TORX MACHINE SCREW (TORX) pack contains tamper resistant machine screws to install the closer. Thru Bolts for TORX machine screws are available for all high security closers, except 2210 series.

LCN thru bolts (TB) can be installed on 1-3/4˝ thick doors with the 1/4-20 TORX screws supplied with the closer. Optional sizes are available for 1-5/8˝ or 1-3/8˝ door thicknesses, but this must be specified when ordering.

Note 1: For Thru Bolts,specify door thicknessif other than 1-3/4˝ (44mm).

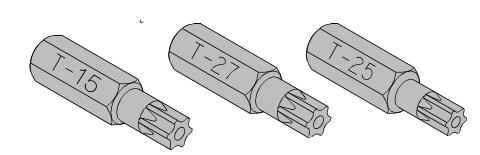

Special driver bits are required for installation or removal of TORX machine screws with a security pin as supplied with LCN High Security closers. All bits fit a 1/4˝ hex drive socket. For 1/4-20 screws use T-27, for #12 machine screws use T-25, for 10# machine screws use T20, for #8 (and undercut #10) machine screws use T15, and for #6 machine screws use T10. The specific bits required for installation are listed on the "HOW TO ORDER" page for each closer. Sold separately.

FASTENERS

TORX MACHINE SCREW (TORX) pack contains tamper resistant machine screws to install the closer. Thru Bolts for TORX machine screws are available for all high security closers, except 2210 series.

SPECIFICATIONS

Refer to "SPECIFICATIONS" section for suggested architectural specifications.

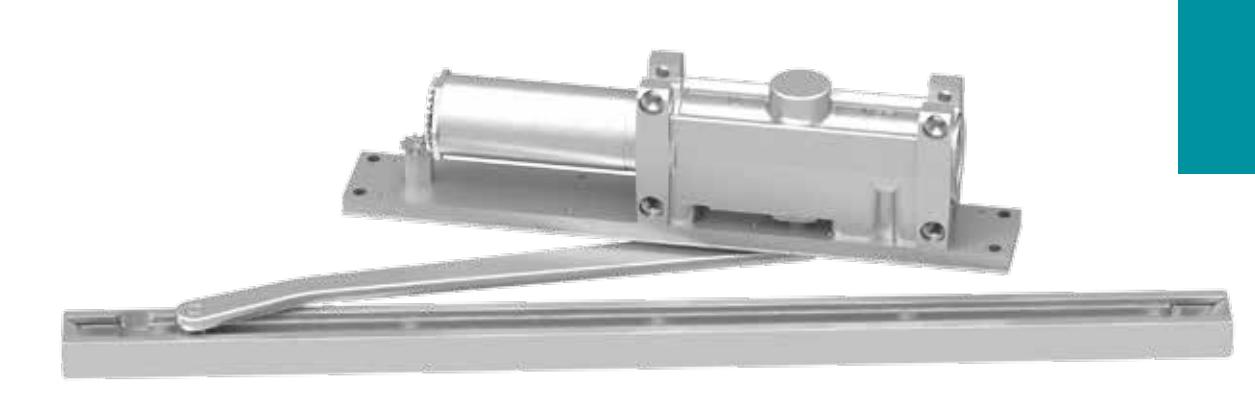

The concealed 2210 Series, heavy duty, high security track closer features complete concealment with special components to minimize tampering and vandalism. Forged steel, single lever arm and heavy steel mounting plate are designed for correctional, vandal prone, institutional, and other high traffic applications. A choice of finishes and cylinder functions meet correctional and vandal resistant requirements.

Certifications Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour
Salt Spray, Meets BAA - Buy American Act
Body Construction
  • Cast Iron Body
  • Full Complement Bearing
  • 1-1/2" Diameter Piston
  • 11/16" Diameter Double Heat Treated
    Pinion Journal
Fluid All Weather Liquid X Fluid
Handing Handed
Size Sized, interior, exterior and vestibule 3-5 (refer to chart)
Warranty 15 years (2210); 2 years (2210DPS)
Cover Metal, standard TORX machine screw pack
Fasteners
Mounting
  • Concealed, single acting cylinder in head
    frame
  • Concealed, arm and track in top rail of
    door
Arms Standard security arm and security track
Finishes/Colors/
Powder Coat
  • Aluminum (689)
  • Statuary Bronze (690)
  • Light Bronze (691)
  • Black (693)
  • Dark Bronze (695)
  • Brass (696)
  • Custom colors optional
  • Optional SRI primer - powder coat only
  • Optional plated finishes

Special Templates

Customized installation templates or products may be available to solve unusual applications. Contact LCN Product Support for assistance.

2210 Series

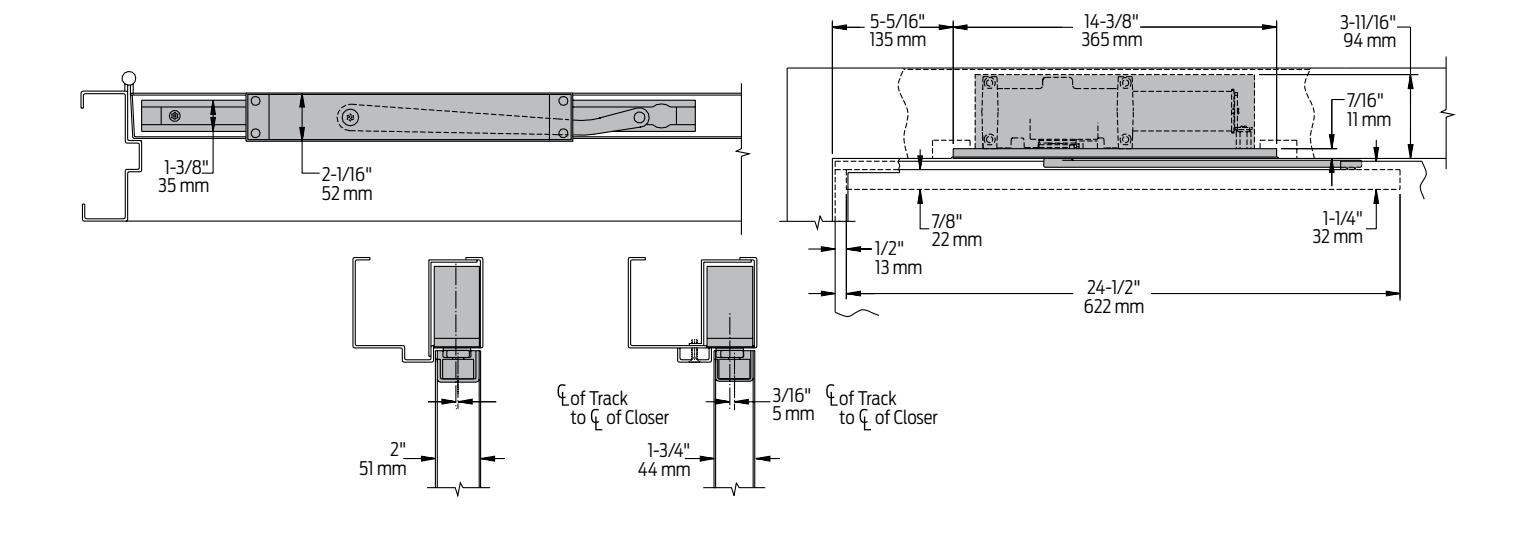

Mounting details

Concealed Mounting

Butt Hinges Should not exceed 4-1/2˝ (114 mm)in width
Auxiliary Stop Recommended where a door cannot swing 180°
Top Rail
1-1/4˝ (32 mm) mortise required. 3/8˝ (10 mm) cutoutrequired attop of door, stop face only
Door Thickness
1-3/4˝ (44 mm) minimum
Door Width 28˝ (711 mm) minimum
Head Frame n 5-3/4˝ (146 mm) wide and 4˝ (102 mm) high with 2-3/16˝ (56 mm)rabbetrequired
n Consult factory if any dimension is less
Steel Mounting Plate Thickness 3/8˝ (10 mm)
Door Position Switch n Optional, newly redesigned, field adjustable switch can interface with security and monitoring systems
n Add suffix "DPS"to selected cylinder
n Provides normally open (N.O.) and normally closed (N.C.) circuit
n A three wire connector harness with 84˝ (2134 mm), 16 AWG leads is furnished to simplify connection to field wiring
n Single pole double throw (SPDT) contacts rated at125/250 VAC at10.1 amps maximum resistive load are standard
Advanced Variable
Backcheck 		n Cylinder starts backcheck at approximately 45° instead ofthe normal 75°
n Add suffix "AVB"to selected cylinder(eg. 2213 DPS AVB)
Maximum Opening n Templating allows 180°
n Consultfactory if door will be held open at180°
n Pivot mounting door limits opening to 110° and increases minimum door width to 32˝ (813 mm). Consultfactory
n Please note that many track style door closers are capable of allowing 180° of door swing
Note: Track style closers are at their weakestclosing force at 180°. Consult factory for applications where door mustswing 180°.
Options n Advanced Variable Backcheck Cylinder
n Door Position Switch

Cylinder

2213(4)(5)-3071 Cylinder Assembly

  • n Handed
  • n Cast iron
  • n Standard

2210DPS-3071 Cylinder Assembly

2210DPS-3038

  • n Handed
  • n Cast iron

Arms

2210-3077T 2210DPS-3077T

Standard Security Arm

  • n Handed
  • n Solid forged steel and large cross section for potentially abusive installations
  • n Special threaded attachment of track roller for extra security
  • n Double slab arm/pinion attachmentfor maximum strength
  • n Can only be used with high security track roller, 2210-3034 or 2210DPS-3034
  • n Roller is included with arm when eitherthe 2210-3077T or 2210DPS-3077T are ordered separately

Tracks

2210-3038 Security Track

  • n Non-handed
  • n Hold-open function not available
  • n Designed to eject foreign objects placed in track during either opening or closing motion
  • n Requires track roller, 2210-3034

Finish Plates

2210-11 Long Plate

  • n Heavy gauge metal plate
  • n Required for complete enclosure
  • n Six point TORX® mounting screws for extra security
  • n Closer adjustments not accessible with finish plates installed

2210-12 Short Plate

  • n Heavy gauge metal plate
  • n Required for complete enclosure
  • n Four point TORX® mounting screws for extra security
  • n Closer adjustments not accessible with finish plates installed

Installation Accessories

2210-3034 Security Track Roller

  • n Low friction track rollerthreads into 2210-3077T arm for extra strength and security
  • n Can not be removed without disconnecting arm from closer

2210-493

Test Kit

  • n Battery operated designed to verify switch signal response point
  • n Can be used directly at door location (used for 2210 DPS only)

2210 Series

Ordering Information

How-to-order 2210 Series closers

Select cylinder size

2213

2213 DPS

2214

2214 DPS

2215 2215 DPS

Select hand

RH LH

Specify finish

Standard Powder Coat__________

Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass

Closer will be shipped with:

  • Standard cylinder
  • Finish plate
  • Standard security arm
  • Security track roller
  • Security track
  • Torx machine screw pack, unless options listed below are selected.

Closer options

Cylinder

Advanced Variable Backcheck (AVB)

Finishes

Custom Powder Coat(RAL)___________

Plated Finish, US ___________(cover plate and arm only)

SRI primer(excludes DPS)(use with powder_ coatfinishes only)

NOTE: Installation of this closer requires T-27, T-25 and T-15 driver bits for TORX machine screws with a security pin. Sold separately.

Special template

ST-________

Table of sizes

  • n Select closer based on width of door
  • n 2210 Series cylinders available in size 3, 4, or 5
  • n Spring power is set atthe factory for size 3, 4, or 5, butis field adjustable (may be increased 50%)

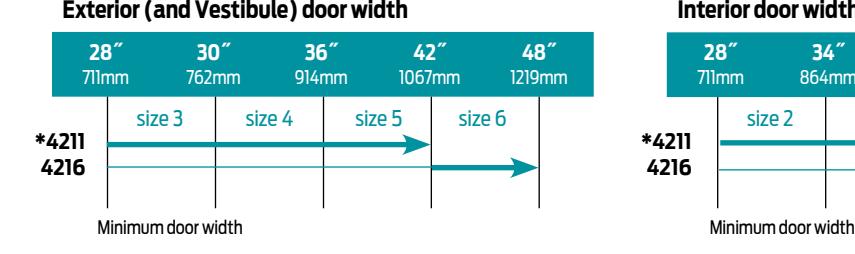

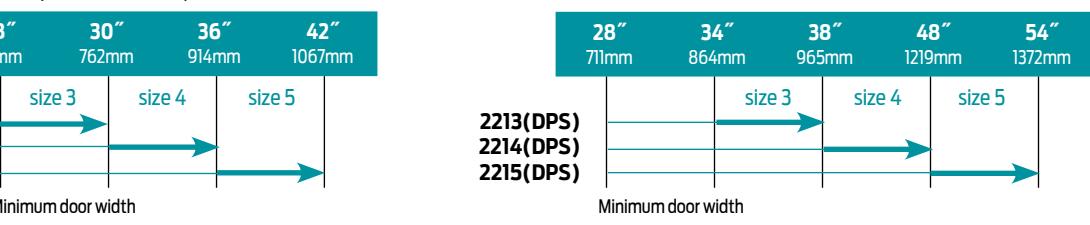

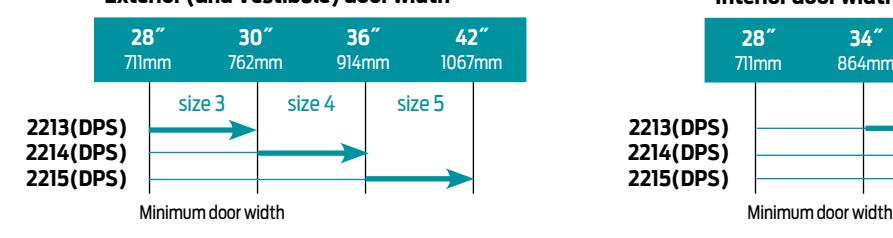

Exterior (and Vestibule) door width

Interior door width

Indicates recommended range of door width for closer size.

Note: Minimum door width 28˝ (711mm).

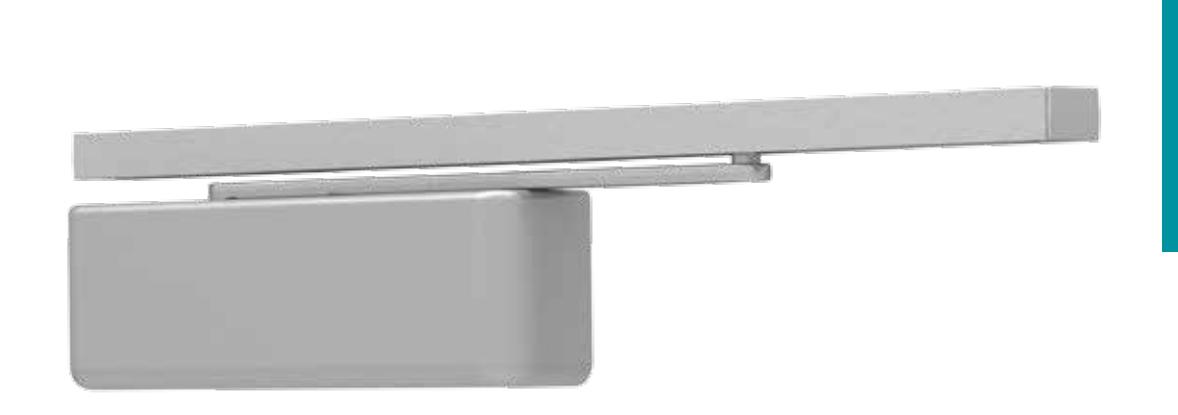

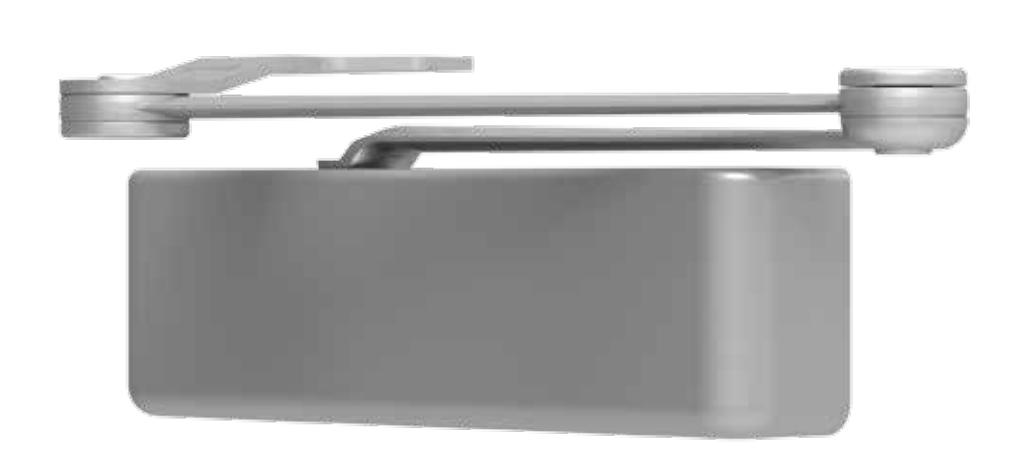

The 4210 SMOOTHEE® Series is a heavy duty, high security closer with special components to minimize tampering and vandalism. Forged steel parallel arms and heavy gauge metal security covers are designed for correctional, vandal prone, institutional and other high traffic applications. The closer has passed 10 million cycles in independent testing. A choice of finishes and cylinder functions meet correctional and vandal resistant requirements.

Certifications Grade 1 - ANSI A156.4, UL 10C, ADA*, 100 Hour
Salt Spray, Meets BAA - Buy American Act
*4211 cylinder meets ADA
Body Construction
  • Cast Iron Body
  • Full Complement Bearing
  • 1-1/2 Diameter Piston
  • 11/16 Diameter Double Heat Treated Pinion Journal
Fluid All Weather Fluid
Handing Handed
Size
  • Adjustable Exterior and, Vestibule, Size 3-5 or size 6
  • Adjustable, Interior, Size 2-5; or size 6
Warranty 15 years
Cover Metal Security
Fasteners TORX machine screw pack
Mounting Parallel (Push Side)
Arms Extra duty, non hold-open
Finishes/Colors/
Powder Coat
  • Aluminum (689)
  • Statuary Bronze (690)
  • Light Bronze (691)
  • Black (693)
  • Dark Bronze (695)
  • Brass (696)
  • Custom colors optional
  • Optional SRI primer - powder coat only
  • Optional plated finishes (cover only)

Special Templates

Customized installation templates or products may be available to solve unusual applications. Contact LCN Product Support for assistance.

AVAILABLENOT AVAILABLE

  • & Closer available with less than 5.0 lbs. opening force on 36 "door.
  • * Maximum opening with standard template. See individual closer series for degrees of opening per installation.
  • ** Advanced Variable Backcheck.

4210 Series

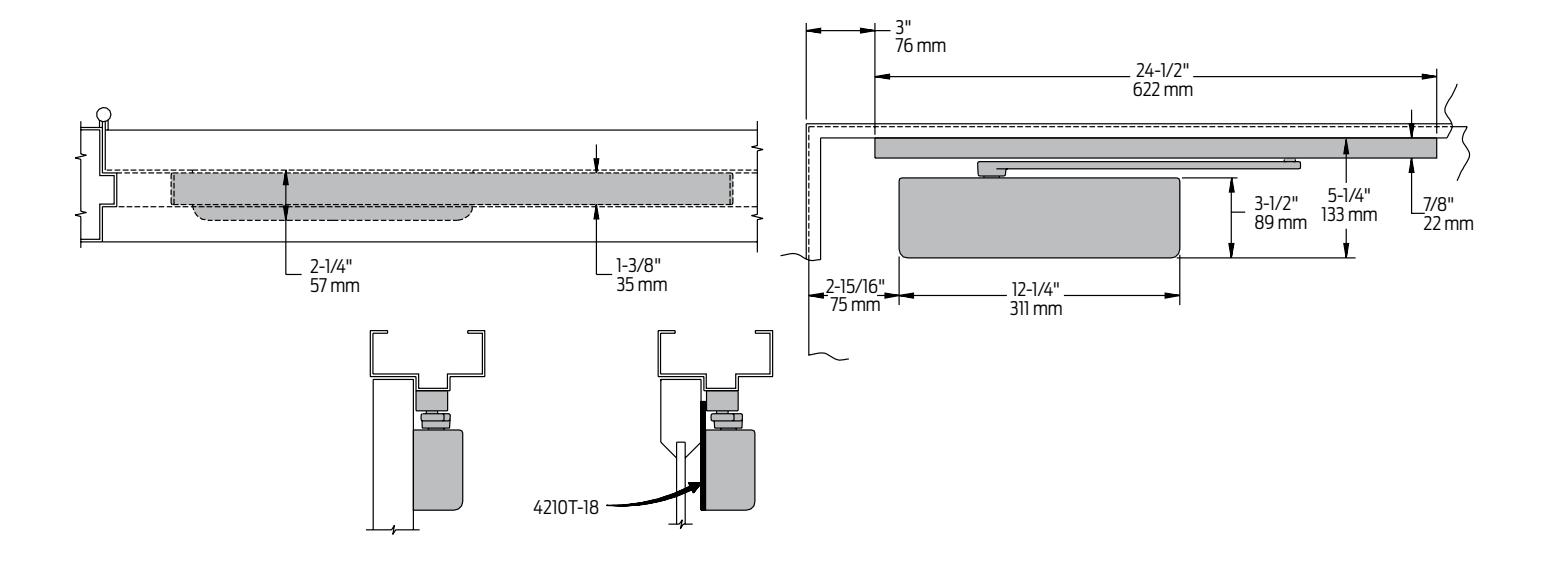

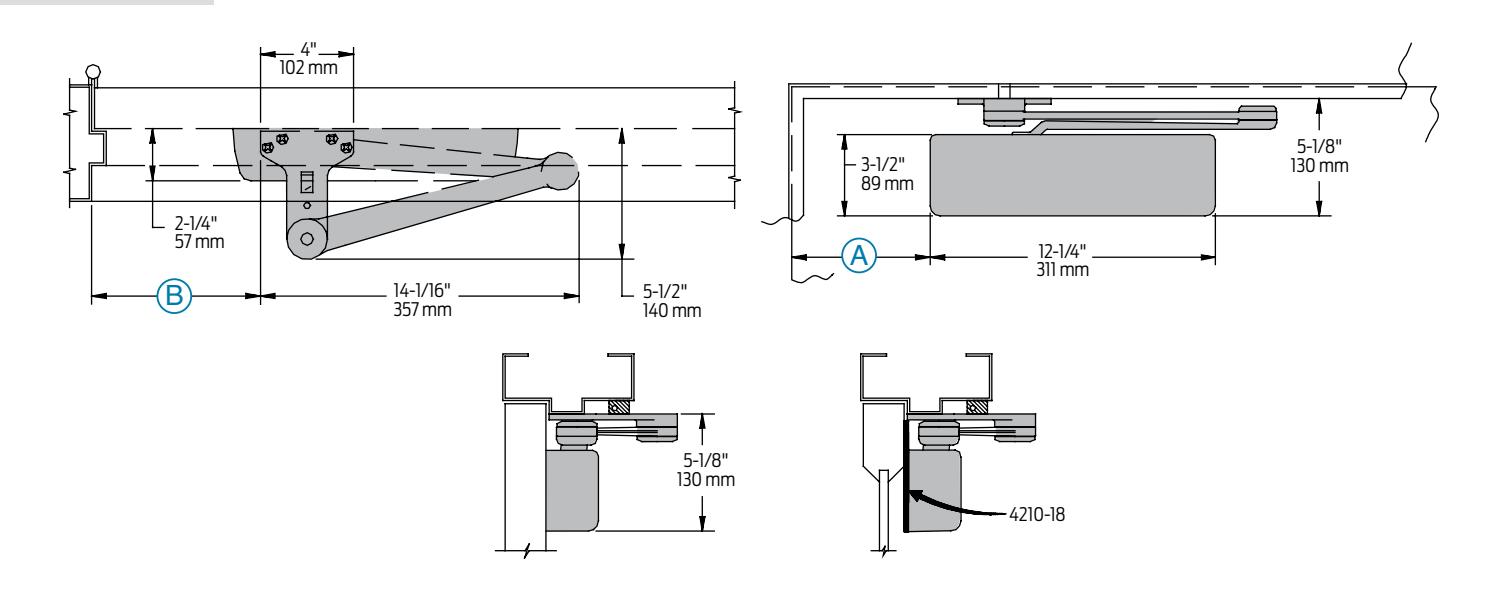

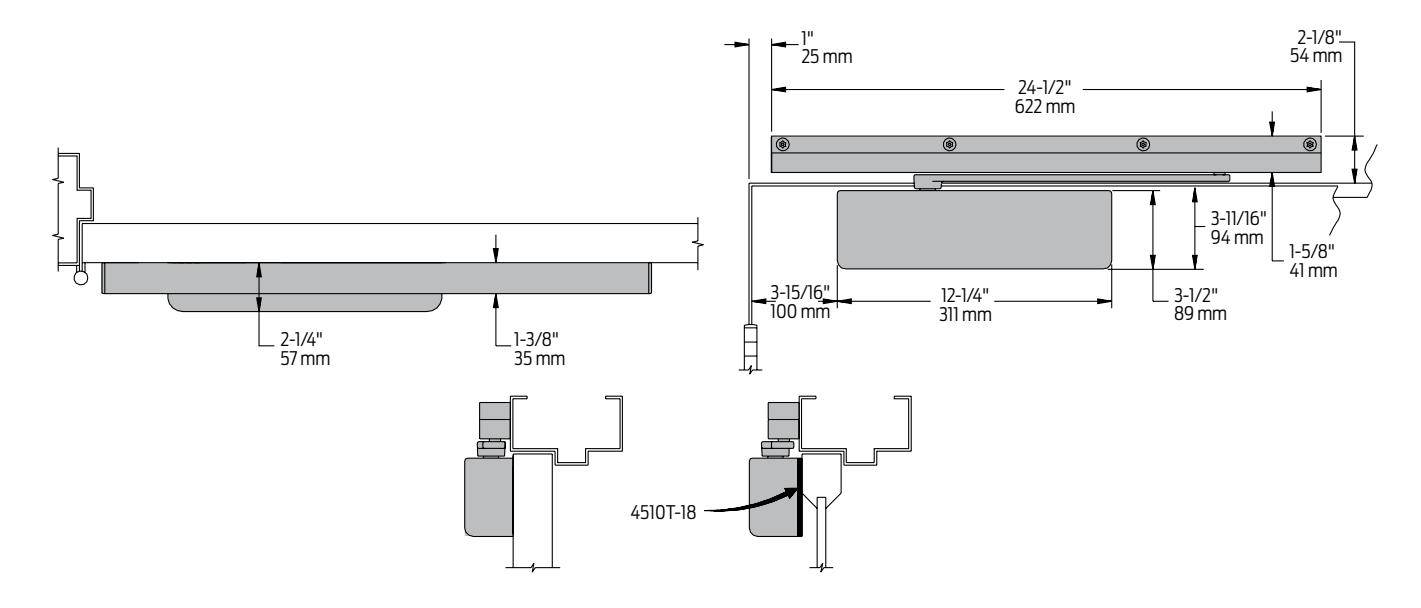

Mounting details

Parallel Arm (Push Side) Mounting

Butt Hinges Should not exceed 5˝ (127 mm)in width
Auxiliary Stop Recommended where the door cannot swing 180° or where CUSH arms not used
Clearance For EDA or CUSH is 5-1/2˝ (140 mm)from push side of door
Top Rail Less than 5-1/8˝ (130 mm) measured from stop, requires PLATE 4210-18. Plate requires 2˝ (51 mm) minimum top rail
Stop Width 2-3/4˝ (70 mm)recommended. Less than 1˝ (25mm), consultfactory
Delay Action n Add suffix "DEL"to selected cylinder(eg. 4211DEL)
n Not available with 4215 or 4216 cylinder
n Delays closing from maximum opening to approximately 70°
n Delays time adjustable up to approximately 1 minute
Advanced Variable
Backcheck 		n Cylinder starts backcheck at approximately 45° instead ofthe normal 75°
n Add suffix "AVB"to selected cylinder(eg. 4211 AVB)
Maximum opening EDA arm can be templated for CUSH arm can be templated for
maximum opening at
100°: A = 5-15/16˝ (151 mm)
B = 7-1/4˝ (184 mm) 		85°:
A = 8-5/16˝ (211 mm)
B = 9-5/8˝ (244 mm)
140°: A = 4-7/16˝ (113 mm)
B = 5-3/4˝ (146 mm) 		90°:
A = 7-11/16˝ (195 mm)
B = 9˝ (229 mm)
180°: A = 2-15/16˝ (75 mm)
B = 4-1/4˝ (108 mm) 		100°: A = 6-7/16˝ (164 mm)
B = 7-3/4˝ (197 mm)
110°:
5-9/16˝ (141 mm)
B = 6-7/8˝ (175 mm)
Hold-open point at maximum opening
with H-CUSH arm.
Options n Delayed Action or Advanced Variable Backcheck cylinder.

Cylinder

4211(6)-3071 Cylinder Assembly

  • n Handed
  • n Cast iron
  • n Standard

Cover

4210-72MC

Metal Security Cover

  • n Handed
  • n Four point mounting for extra security
  • n Closer adjustments not accessible with cover installed
  • n Standard

Arms

4210-3077EDA Extra Duty Arm

  • n Non-handed
  • n Parallel arm features solid forged steel main arm and forearm for potentially abusive installations
  • n Double slab arm/pinion attachmentfor maximum strength

4210-3077CNS

Cush-N-Stop® (CUSH) Arm

  • n Non-handed
  • n Parallel arm features solid forged steel main arm and forearm with built-in stop in soffit shoe
  • n Double slab arm/pinion attachmentfor maximum strength

4210-3049CNS HCUSH Arm

  • n Non-handed
  • n Parallel arm provides hold-open function with templated stop/hold-open points
  • n Handle controls hold-open function with thumb turn
  • n HCUSH arm not available with 4216 cylinder
  • n Double slab arm/pinion attachmentfor maximum strength

Installation Accessories

4210-18, 4210-18CUSH

Plate

  • n Required for push side mount where top rail is less than 5-1/8˝ (130 mm), measured from the stop
  • n Requires 2˝ (51 mm) minimum top rail measured from the stop.
  • n Also used with CUSH arm installations

4210-30

CUSH Shoe Support

n Provides anchorage for fifth screw used with CUSH arms where reveal is less than 3-1/16˝ (78mm)

4210-61

Blade Stop Spacer

n Lowers parallel arm shoe to clear 1/2˝ (13 mm) blade stop

4210-419

n Provides horizontal mounting surface for EDA or CUSH shoe on single rabetted or flush frame

PA Flush Panel Adapter

Ordering Information

How-to-order 4210 Series

Select cylinder size

4211(adjustable from size 1to 5)

4216 (DEL or HCUSH arm not available)

Select hand

  • RH
  • LH

Specify finish

Standard Powder Coat__________ Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass

Closer will be shipped with: - Standard cylinder

  • Security cover
  • Standard security arm
  • Torx machine screw pack, unless options listed below are selected.

NOTE: Installation of this closer requires T-27 and T-25 driver bits for TORX machine screws with a security pin. Sold separately.

Closer options

Cylinder

Delayed Action (DEL)

Advanced Variable Backcheck (AVB)

Finishes

  • Custom Powder Coat(RAL)___________
  • Plated Finish, US ___________(cover only)
  • SRI primer(excludes DPS)(use with powder coat finishes only)

Arms

Cush-N-Stop arm (CUSH)

HCush-N-Stop arm (HCUSH)

Screw pack

TB* and TORX Machine Screw (TBTRX) * Specify door thicknessif other than 1-3/4˝.

Installation accessories

PLATE, 4210-18

PLATE, 4210-18CUSH

Special template

ST-________

Table of sizes

  • n Select closer based on width of door
  • n The spring power of non-sized 4211 cylinder is adjustable from size 1through size 5 and is shipped setto size 3
  • n Sized 4210 Series cylinder available in size 6
  • n Delayed action not available with 4216 cylinder

Interior door width

Indicates recommended range of door width for closer size. * Adjustable Size 1 thru 5

Reduced opening force 4210 Series closers

CAUTION ! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4,thatis selected, installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient powerto reliably close and latch a door.

Referto POWER OPERATORS section for information on systems that meetreduced opening force requirements without affecting closing power.

* Maximum opening force.

DOOR WIDTH 36˝ 42˝ 48˝
8.5* lbs. 4211 4211 4211
5.0* lbs. 4211 4211 4211

* Maximum opening force.

The 4210T SMOOTHEE® Series is a heavy duty, high security track closer with special components to minimize tampering and vandalism. Forged steel arms and heavy gauge metal security covers are designed for correctional, vandal prone, institutional and other high traffic interior applications. The closer has passed 10 million cycles in independent testing. A choice of finishes and cylinder functions meet correctional and vandal resistant requirements.

Certifications Grade 1 - ANSI A156.4, UL 10C, ADA*, 100 Hour
Salt Spray, Meets BAA - Buy American Act
*4211 meeting ADA requirements
Body Construction
  • Cast Iron Body
  • Full Complement Bearing
  • 1-1/2 Diameter Piston
  • 11/16 Diameter Double Heat Treated Pinion Journal
Fluid All Weather Fluid
Handing Handed
Size Interior, Sized 1, 3 or 4
Warranty 15 years
_
Cover Metal Security
Fasteners TORX machine screw pack
Mounting Stop Face (Push Side) Security arm, security track with roller
Arms
Finishes/Colors/
Powder Coat
  • Aluminum (689)
  • Statuary Bronze (690)
  • Light Bronze (691)
  • Black (693)
  • Dark Bronze (695)
  • Brass (696)
  • Custom colors optional
  • Optional SRI primer - powder coat only
  • Optional plated finishes

Special Templates

Customized installation templates or products may be available to solve unusual applications. Contact LCN Product Support for assistance.

  • AVAILABLENOT AVAILABLE
  • & Closer available with less than 5.0 lbs. opening force on 36" door.
  • * Maximum opening with standard template.
  • ** Advanced Variable Backcheck.

4210T Series

Mounting details

Stop Face (Push Side) Mounting

Butt Hinges Should not exceed 5˝ (127 mm)in width
Auxiliary Stop Recommended where the door cannot swing 110°
Clearance 2-1/4˝ (57 mm)from door
Top Rail n Less than 5-1/4˝ (133 mm) measured from stop, requires PLATE 4210T-18
n Plate requires 2-1/4˝ (57mm) minimum measured from the stop
Stop Width Minimum 1-3/8˝ (35 mm)
Advanced Variable
Backcheck 		n Cylinder starts backcheck at approximately 45° instead ofthe normal 75°
n Add suffix "AVB"to selected cylinder(eg. 4213T AVB)
Maximum opening Templating allows 110°
Options Advanced Variable Backcheck cylinder

Cylinder Arms

4211(3)(4)T-3071

Cylinder Assembly

  • n Handed
  • n Cast iron
  • n For various applications see "Table of Sizes" on 4210T Series page 14
  • n Standard

Cover

4210T-72MC

Metal Security Cover

  • n Handed
  • n Four point TORX mounting for extra security
  • n Closer adjustments not accessible with cover installed

4210T-3077T

Standard Security Arm

  • n Handed
  • n Solid forged steel, large cross section arm
  • n Specialthreaded attachment oftrack roller for extra security
  • n Double slab arm/pinion attachmentfor maximum strength
  • n Can only be used with high security track roller, 4210T-3034

Track

4210T-3038 Security Track

  • n Non-handed
  • n Designed to eject foreign objects placed in track during either opening or closing motion
  • n Requires track roller, 4210T-3034

4210T-3034

Security Track Roller

  • n Low friction track rollerthreads into 4210T-3077 arm for extra strength and security
  • n Can not be removed without disconnecting arm from closer

Installation Accessories

4210T-18

Plate

  • n Required where top rail, when measured from the stop, is less than 5-1/4˝ (133 mm)
  • n Requires 2-1/4˝ (57 mm) minimum top rail measured from the stop

Ordering Information

How-to-order 4210T Series

Select cylinder size

4211T (ADA)

4213T

4214T

Select hand

RH

LH

Specify finish Standard Powder Coat__________ Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass

Closer will be shipped with:

  • Standard cylinder
  • Security cover
  • Standard security arm
  • Security track roller
  • Security track
  • Torx machine screw pack, unless options listed below are selected.

NOTE: Installation of this closer requires T-27 and T-25 driver bits for TORX machine screws with a security pin. Sold separately.

Closer options

Cylinder

Advanced Variable Backcheck (AVB)

Finishes

Custom Powder Coat(RAL)___________

Plated Finish, US ___________

SRI primer(excludes DPS)(use with powder coat finishes only)

Screw pack

TB* and TORX Machine Screw (TBTRX)

* Specify door thicknessif other than 1-3/4˝.

Installation accessories

PLATE, 4210T-18

Special template

ST-________

Table of sizes

  • n Select closer based on width of door
  • n 4210T series cylinders available in size 1, 3 or 4
  • n Closing power of all 4210T Series closers may be increased 15%

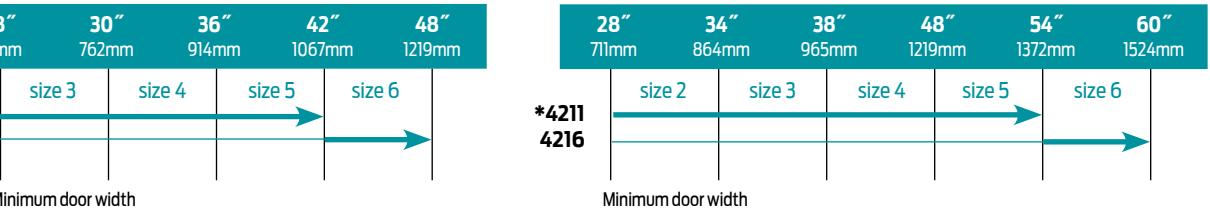

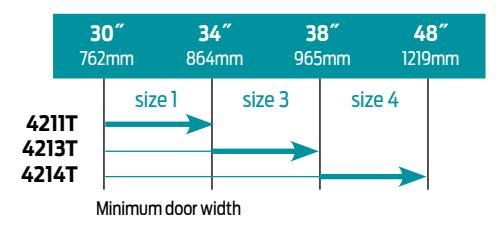

Interior door width

Indicates recommended range of door width for closer size. Note: Minimum door width 30˝ (762mm).

Reduced opening force 4210T Series closers

CAUTION ! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4,thatis selected, installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient powerto reliably close and latch a door.

Referto POWER OPERATORS section for information on systems that meetreduced opening force requirements without affecting closing power.

* Maximum opening force.

DOOR WIDTH 36˝ 42˝ 48˝
8.5* lbs. 4213T 4213T 4213T
5.0* lbs. 4211T 4211T 4211T

* Maximum opening force.

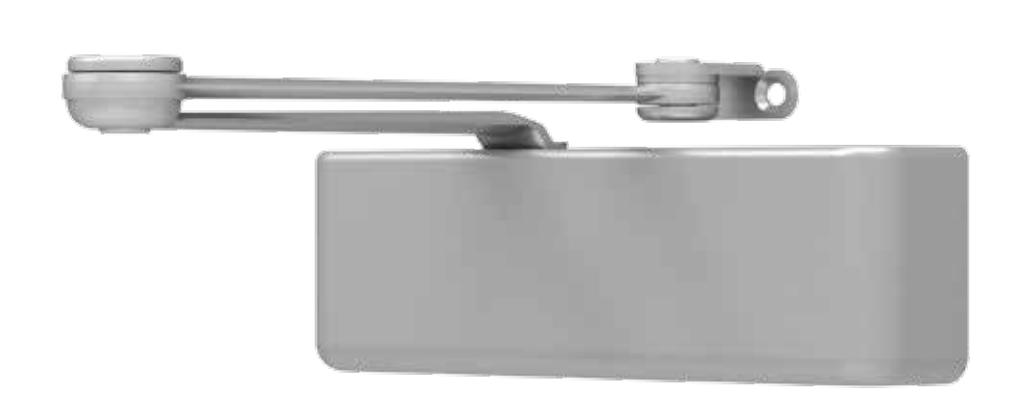

The 4510 SMOOTHEE® Series is a heavy duty, high security closer with special components to minimize tampering and vandalism. Forged steel double lever arms and heavy gauge metal security covers are designed for correctional, vandal prone, institutional and other high traffic applications. The closer has passed 10 million cycles in independent testing. A choice of finishes and cylinder functions meet correctional and vandal resistant requirements.

Certifications Grade 1 - ANSI A156.4, UL 10C, ADA*, 100 Hour
Salt Spray, Meets BAA - Buy American Act
*4511 cylinder meets ADA requirements
Body Construction
  • Cast Iron Body
  • Full Complement Bearing
  • 1-1/2" Diameter Piston
  • 11/16" Diameter Double Heat Treated
    Pinion Journal
Fluid All Weather Fluid
Handing Handed
Size Exterior and Vestibule, Adjustable Size 1-5
Interior, Adjustable Size 1-5
Warranty 15 years
Cover Metal Security
Fasteners TORX machine screw pack
Mounting Hinge (Pull Side)
Arms Extra heavy duty, non-hold open
Finishes/Colors/
Powder Coat
  • Aluminum (689)
  • Statuary Bronze (690)
  • Light Bronze (691)
  • Black (693)
  • Dark Bronze (695)
  • Brass (696)
  • Custom colors optional
  • Optional SRI primer - powder coat only
  • Optional plated finishes

Special Templates

Customized installation templates or products may be available to solve unusual applications. Contact LCN Product Support for assistance.

AVAILABLENOT AVAILABLE

  • & Closer available with less than 5.0 lbs. opening force on 36" door.
  • * Maximum opening with standard template.
  • ** Advanced Variable Backcheck.

4510 Series

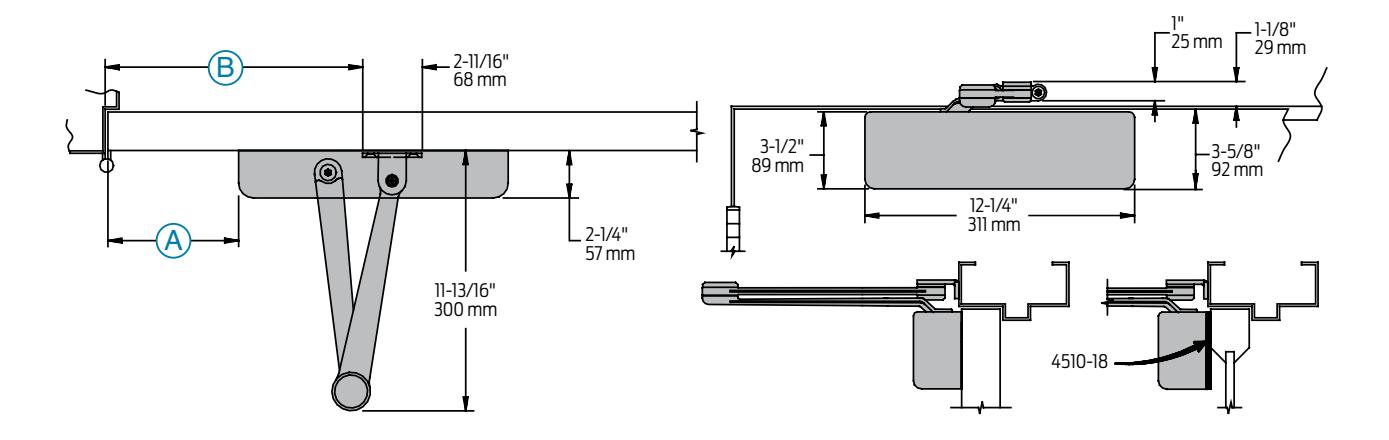

Mounting details

Hinge (Pull Side) Mounting

ould not exceed 5" (127 mm) in width commended where a door cannot swing 140° ould not exceed 1/8" (3 mm) Less than 3-1/2" (89 mm), requires PLATE 4510-18 Plate requires 2" (51mm) minimum top rail as than 1" (25 mm), consult factory /4" (57 mm) behind door required for installation ove door 1-1/8" (29 mm) required
ould not exceed 1/8" (3 mm) Less than 3-1/2" (89 mm), requires PLATE 4510-18 Plate requires 2" (51mm) minimum top rail ss than 1" (25 mm), consult factory /4" (57 mm) behind door required for installation
Less than 3-1/2" (89 mm), requires PLATE 4510-18 Plate requires 2" (51mm) minimum top rail ss than 1" (25 mm), consult factory /4" (57 mm) behind door required for installation
Plate requires 2" (51mm) minimum top rail ss than 1" (25 mm), consult factory /4" (57 mm) behind door required for installation
/4" (57 mm) behind door required for installation
ove door 1-1/8″ (29 mm) required
Above door 1-1/8" (29 mm) required
Add suffix "DEL" to selected cylinder.
Not available with 4516 cylinder.
Delays closing from maximum opening to approximately 70°.
Delay time adjustable up to approximately 1 minute.
Cylinder starts backcheck at approximately 45° instead of the normal 75°
Add suffix "AVB" to selected cylinder
n be templated for
0°: A = 4-3/16″ (106 mm)
B = 9-7/8″ (251 mm)

Cylinder Arms

4511(6)-3071

Cylinder Assembly

  • n Handed
  • n Cast iron
  • n Standard

Cover

4510-72MC

Metal Security Cover

  • n Handed
  • n Four point mounting for extra security
  • n Closer adjustments not accessible with cover installed
  • n Standard

4510-3077EDA

Extra Duty Arm

  • n Non-handed
  • n Solid forged steel main arm and forearm for potentially abusive installations
  • n Double slab arm/pinion attachmentfor maximum strength
  • n Standard

Installation Accessories

4510-18

Plate

  • n Required where top rail is less than 3-1/2˝ (89 mm)
  • n Requires minimum 2˝(51 mm) top rail

Ordering Information

How-to-order 4510 Series

Select cylinder size

4511(adjustable from size 1to 5)

4516 (DEL not available)

Select hand

RH

LH

Specify finish

Standard Powder Coat__________ Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass

Closer will be shipped with:

  • Standard cylinder
  • Security cover
  • Extra duty arm
  • Torx machine screw pack,

unless options listed below are selected.

NOTE: Installation of this closer requires T-27 and T-25 driver bits for TORX machine screws with a security pin. Sold separately.

Closer options

Cylinder

Delayed Action (DEL)

Advanced Variable Backcheck (AVB)

Finishes

Custom Powder Coat(RAL)___________

Plated Finish, US ___________

SRI primer(use with powder coatfinishes only)

Screw pack

TB* and TORX Machine Screw (TBTRX)

* Specify door thicknessif other than 1-3/4˝.

Installation accessories

PLATE, 4510-18

Special template

ST-________

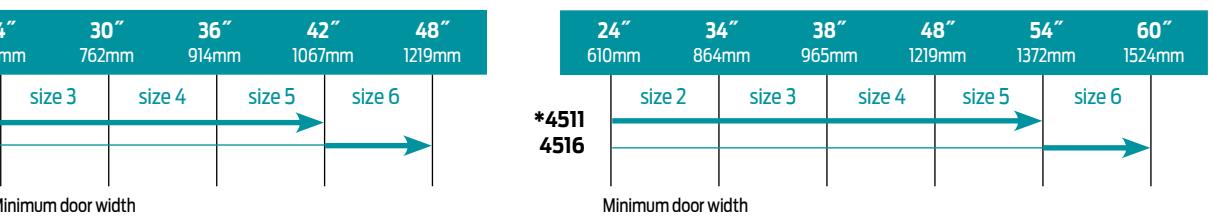

Table of sizes

  • n Select closer based on width of door
  • n The spring power of non-sized 4511 cylinder is adjustable from size 1through size 5 and is shipped setto size 3
  • n Sized 4510 Series cylinder available in size 6
  • n Delayed action not available with 4516 cylinder

Interior door width

Indicates recommended range of door width for closer size. * Adjustable Size 1 thru 5

Reduced opening force 4510 Series closers

CAUTION ! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4,thatis selected, installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient powerto reliably close and latch a door.

Referto POWER OPERATORS section for information on systems that meetreduced opening force requirements without affecting closing power.

* Maximum opening force.

DOOR WIDTH 36˝ 42˝ 48˝
8.5* lbs. 4511 4511 4511
5.0* lbs. 4511 4511 4511

* Maximum opening force.

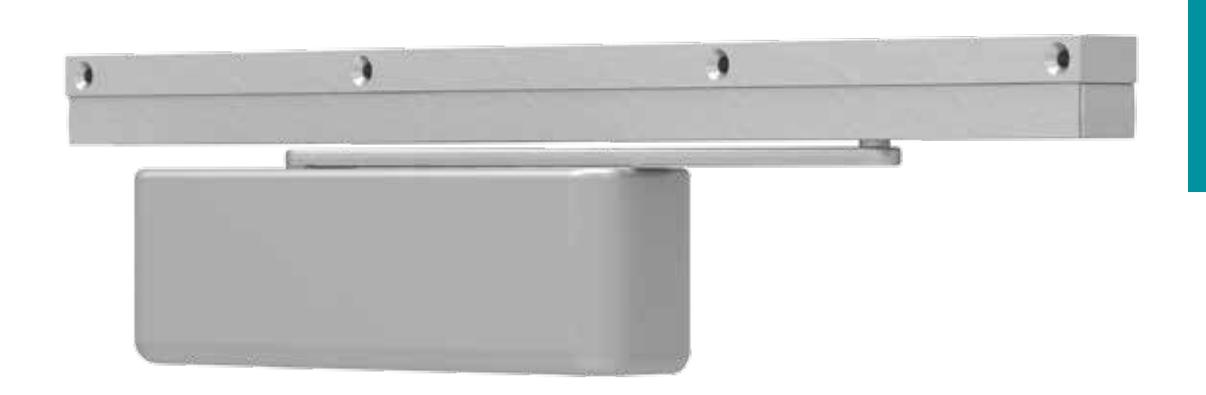

The 4510T SMOOTHEE® Series is a heavy duty, high security track closer with special components to minimize tampering and vandalism. Forged steel single lever arm and heavy gauge metal security cover are designed for correctional, vandal prone, institutional and other high traffic interior applications. The closer has passed 10 million cycles in independent testing. A choice of finishes and cylinder functions meet correctional and vandal resistant requirements.

Certifications Grade 1 - ANSI A156.4, UL 10C, ADA*, 100 Hour
Salt Spray, Meets BAA - Buy American Act
*4511T cylinder meets ADA requirements
Body Construction
  • Cast Iron Body
  • Full Complement Bearing
  • 1-1/2" Diameter Piston
  • 11/16" Diameter Double Heat Treated
    Pinion Journal
Fluid All Weather Fluid
Handing Handed
Size Sized, 1, 3 or 4
15 years
Warranty
Cover Metal Security TORX machine screw pack
Fasteners
Mounting Hinge (Pull Side)
Arms Standard security arm, security track (non hold-open) and track roller
Finishes/Colors/
Powder Coat
  • Aluminum (689)
  • Statuary Bronze (690)
  • Light Bronze (691)
  • Black (693)
  • Dark Bronze (695)
  • Brass (696)
  • Custom colors optional
  • Optional SRI primer - powder coat only
  • Optional plated finishes

Special Templates

Customized installation templates or products may be available to solve unusual applications. Contact LCN Product Support for assistance.

AVAILABLENOT AVAILABLE

  • & Closer available with less than 5.0 lbs. opening force on 36" door.
  • * Maximum opening with standard template.
  • ** Advanced Variable Backcheck.

4510T Series

Mounting details

Hinge (Pull Side) Mounting

Butt Hinges Should not exceed 5˝ (127 mm)in width
Auxiliary Stop Recommended where a door cannot swing 180°
Reveal Should not exceed 1/8˝ (3 mm)
Top Rail n Less than 3-3/4˝ (95 mm), requires PLATE 4510T-18
n Plate requires 2˝ (51 mm) minimum top rail
Head Frame Minimum 2-1/8˝ (54 mm)
Clearance 2-1/4˝ (57 mm) behind door required for installation
Advanced Variable
Backcheck 		n Cylinder starts backcheck at approximately 45° instead ofthe normal 75°
n Add suffix "AVB"to selected cylinder(eg. 4513T AVB)
n Templating allows 180°
n Consultfactory if door will be held open at180°.
Maximum opening
Options Advanced Variable Backcheck cylinder

Cylinder Arms

4511T(3)(4) Cylinder Assembly

  • n Handed
  • n Cast iron
  • n Standard

Cover

4510T-72MC

Metal Security Cover

  • n Handed
  • n Four point TORX mounting for extra security
  • n Closer adjustments not accessible with cover installed

4510T-3077T

Standard Security Arm

  • n Handed
  • n Solid forged steel, large cross section arm
  • n Specialthreaded attachment oftrack roller for potentially abusive installations
  • n Double slab arm/pinion attachmentfor maximum strength
  • n Can only be used with high security track roller, 4510T-3034

Track

4510T-3038

Security Track

  • n Non-handed
  • n Designed to eject foreign objects placed in track during either opening or closing motion
  • n Requires track roller, 4510T-3034

4510T-3034

Security Track Roller

  • n Low friction track rollerthreads into 4510T-3077T arm for extra strength and security
  • n Can not be removed without disconnecting arm from closer

Installation Accessories

4510T-18

Plate

  • n Required where top rail is less than 3 3/4˝ (95 mm)
  • n Requires minimum 2˝ (51 mm) top rail

Ordering Information

How-to-order 4510T Series

Table of sizes

  • n Select closer based on width of door
  • n Sized 4510T Series cylinders available in size 1, 3 or 4
  • n Closing power of all 4510T Series closers may be increased 15%

Select cylinder size

4511T (ADA)

4513T

4514T

Select hand

RH

LH

Specify finish

Standard Powder Coat__________

Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass

Closer will be shipped with:

  • Standard cylinder
  • Security cover
  • Standard security arm
  • Security track roller
  • Security track
  • Torx machine screw pack, unless options listed below are selected.

NOTE: Installation of this closer requires T-27 and T-25 driver bits for TORX machine screws with a security pin. Sold separately.

Closer options

Cylinder

Advanced Variable Backcheck (AVB)

Finishes

Custom Powder Coat(RAL)___________

Plated Finish, US ___________

SRI primer(use with powder coatfinishes only)

Screw pack

TB* and TORX Machine Screw (TBTRX)

* Specify door thicknessif other than 1-3/4˝.

Installation accessories

PLATE, 4510T-18

Special template

ST-________

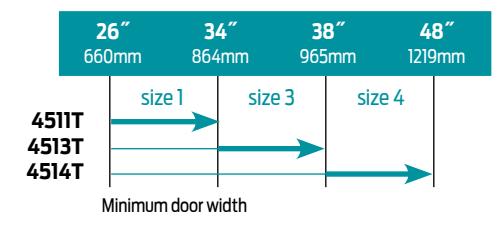

Interior door width

Indicates recommended range of door width for closer size. Note: Minimum door width 30˝ (762mm).

Reduced opening force 4510T Series closers

CAUTION ! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4,thatis selected, installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient powerto reliably close and latch a door.

Referto POWER OPERATORS section for information on systems that meetreduced opening force requirements without affecting closing power.

* Maximum opening force.

DOOR WIDTH 36˝ 42˝ 48˝
8.5* lbs. 4513T 4513T 4513T
5.0* lbs. 4511T 4511T 4511T

* Maximum opening force.
