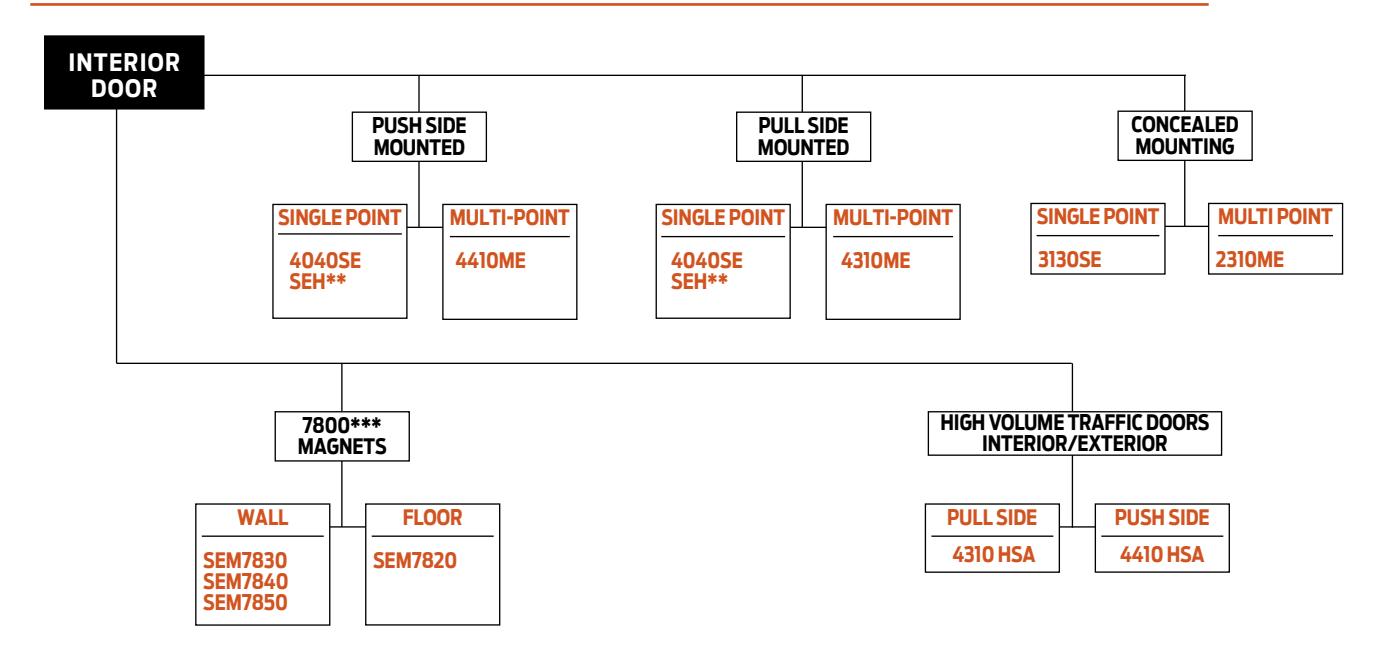

Product selection guide

SENTRONIC® Series LCN closer/holders combine heavy duty closers with electrically controlled holdopen functions to control fire and smoke barrier doors. This guide is based on the desired mounting of the unit.

^** See SEH section (cylinder not included).

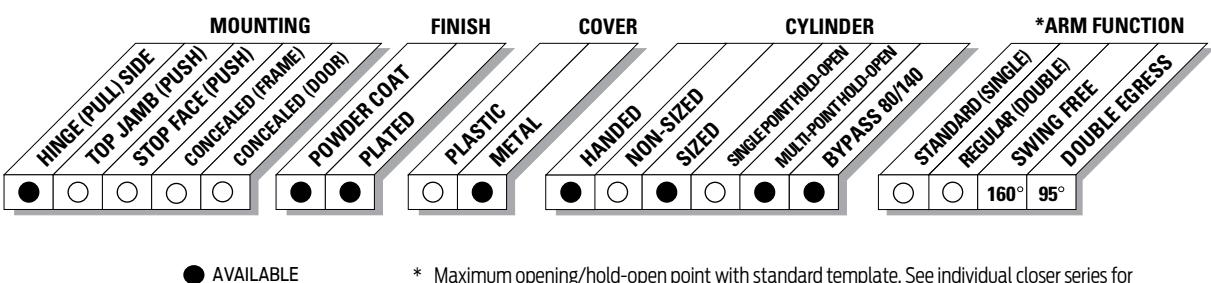

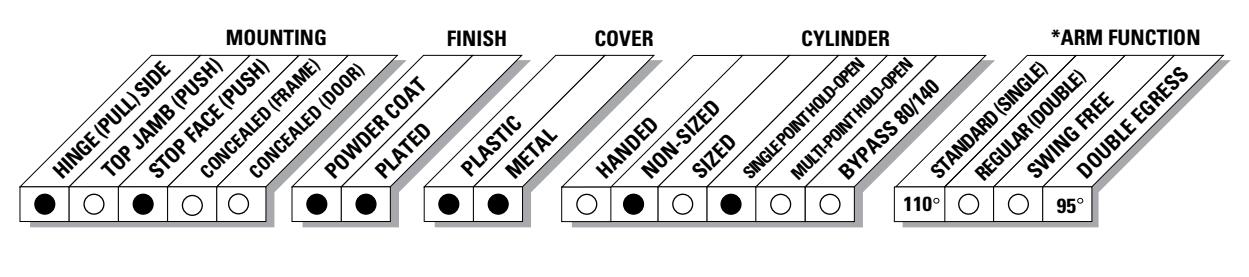

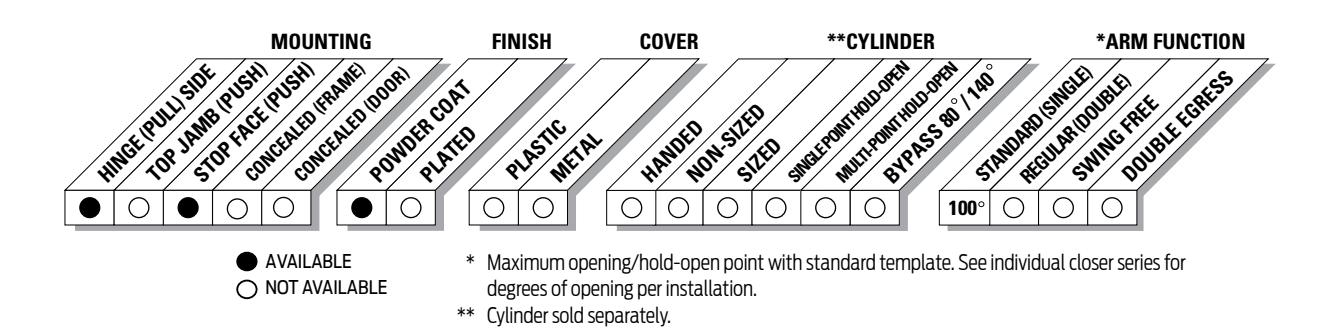

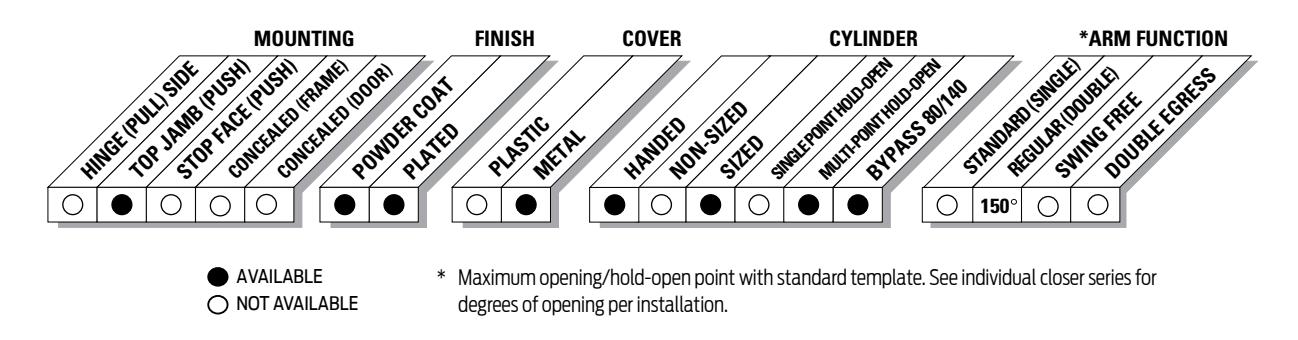

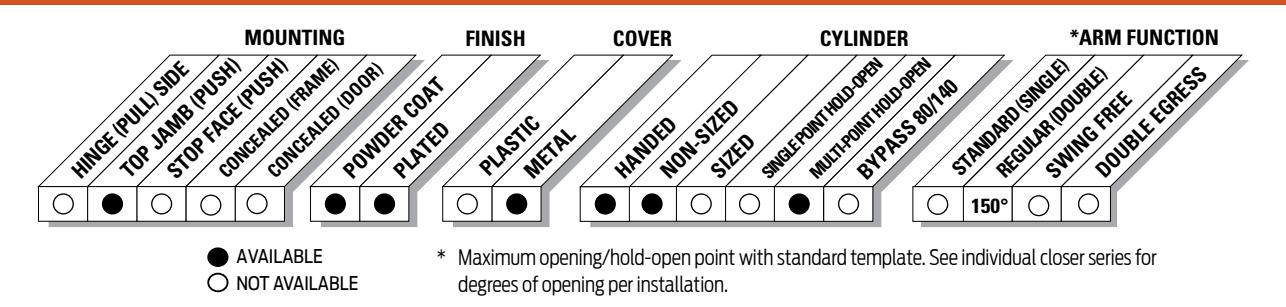

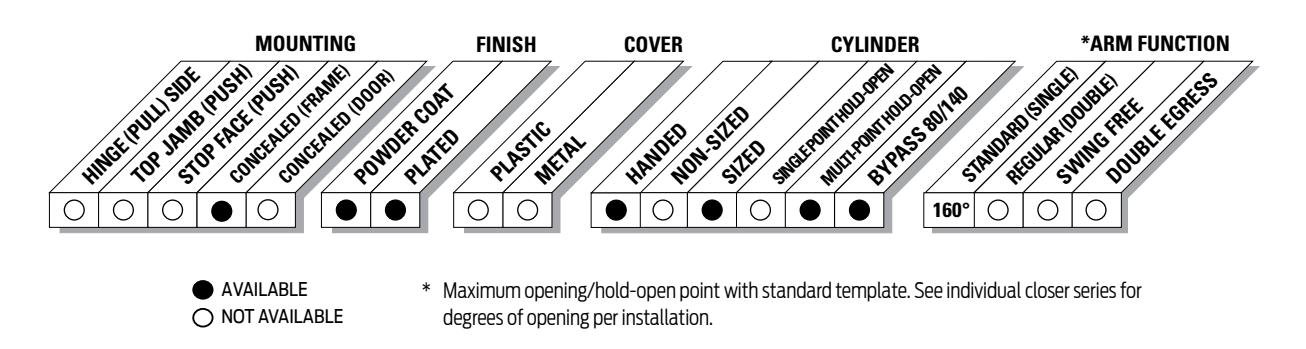

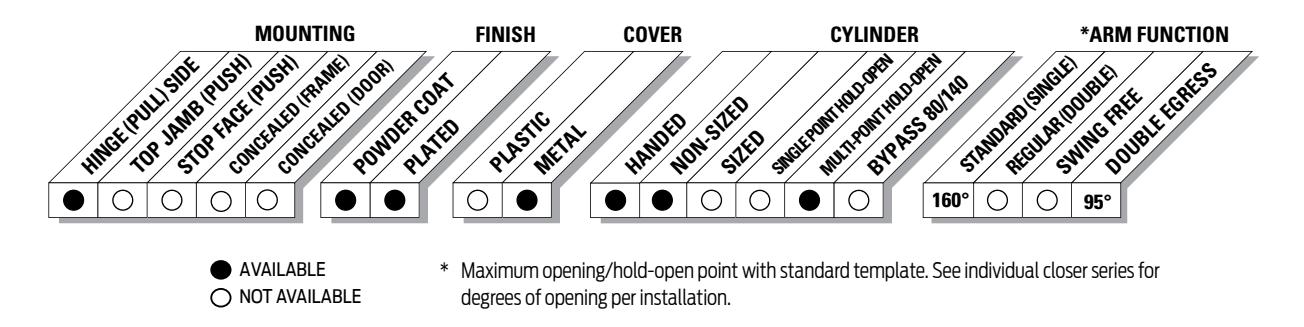

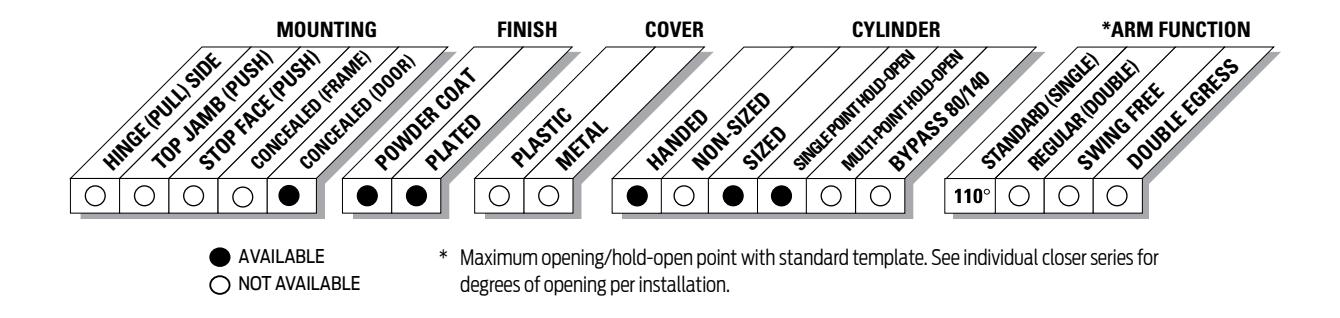

Product comparison

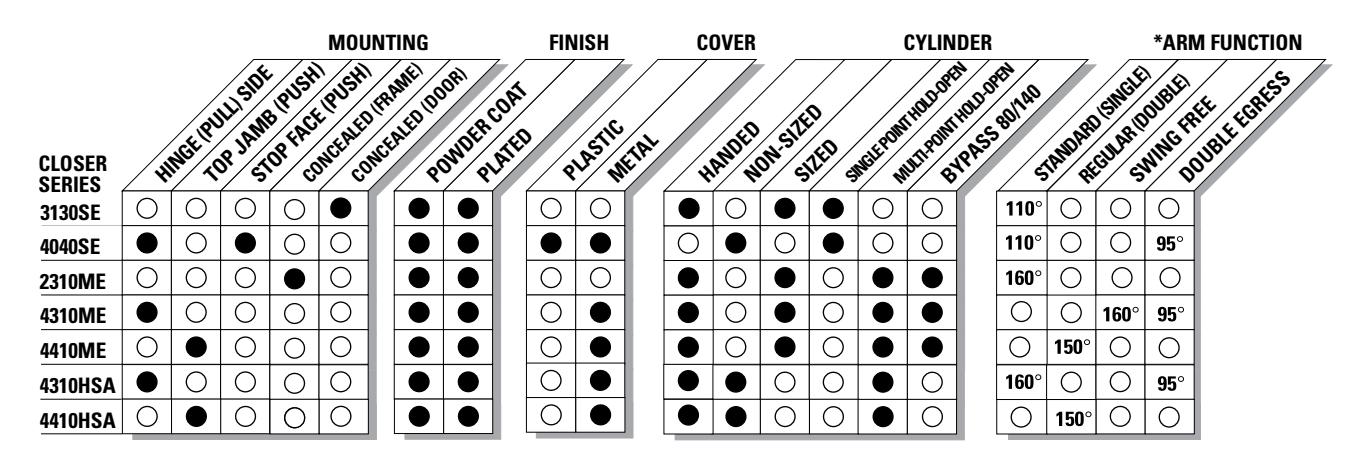

This chart shows a basic comparison of Sentronic closer/holders. Refer to the specific product chapter for complete details..

AVAILABLENOT AVAILABLE

^*** SEM 7800 Series are die cast.

^* Maximum hold-open with standard template. See individual closer series for degrees of opening and hold-open per installation.

Fire/Life Safety Closers/ Holders Series

SENTRONIC® CLOSER/HOLDERS

Automatic detection and containment of fire and smoke are the best ways to minimize danger to life and property. Patented Sentronic door closer/ holders are designed to hold swinging doors open in normal use and release and automatically close the doors under fire conditions. Conforms to major building codes, life safety codes (eg. NFPA 101) and ANSI A156.15.

SINGLE POINT HOLD-OPEN (SE)

SE Series offers adjustable single point hold-open function controlled by solenoid assembly located in the SE track.

MULTI-POINT HOLD-OPEN (ME)

ME Series offers infinitely adjustable, multi-point hold-open function controlled by solenoid on the cylinder assembly.

HOLDER SCANNER ACTIVATED (HSA)

Electronically controlled closer/ holder designed to provide easy passage for groups of pedestrians through high traffic doors. Best suited for high traffic emergency exit doors.

MAGNETS (SEM) - ELECTROMAGNETIC DOOR HOLDERS

SEM Series magnets work with manual door closers to provide single point hold-open. Now available in new tri-voltage with 35 lbs. of holding force.

APPLICATIONS

ⁿ For fire and smoke barrier doors.
ⁿ Integrated into larger system.
ⁿ Surface and concealed mountings.
ⁿ Remote control hold-open function of executive and conference area doors.
ⁿ Adapter plates and other installation accessories available for unusual conditions.

GENERAL NOTES

Note 1: For installations where 120V AC input voltage is supplied, 120V/24V transformer, 4040SE-3210, is required to reduce line voltage for 24V holding solenoid. Units are available in either 24V or 120V input, please specify.

Note 2: Transformer 4040SE-3210 mounted on cover plate to fit 4˝ (102 mm) x 4˝ x 2-1/8˝ (54 mm) junction box (by others).

Note 3: SE track quick-connector is required for 1/2˝ conduit.

Note 4: SE test switch assembly includes fuse to protect solenoid. Works with ionization, photoelectric and heat sensing detectors (by others).

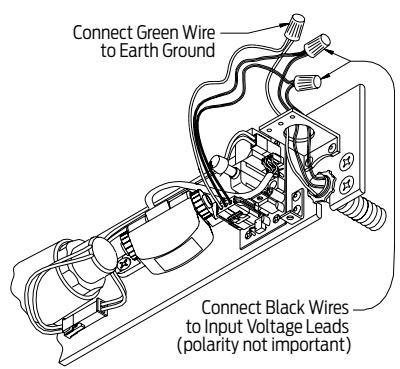

SE WIRING DIAGRAM

LISTINGS AND APPROVALS

Sentronic closer/holders are listed by Underwriters Laboratories, Inc. in the following product categories under FIRE DOORS (GSNV), Combination Door Closers and Holders (GTIS) file R7050. SEM 7800 Series magnets are listed under Door Holders (GTPR) file R8327.

Consult the factory for other listings, such as; cUL, Department of Labor and Industry of the Commonwealth of Pennsylvania, The Board of Standards and Appeals of the City of New York, Fire and Panic Safety Standards of the California State Fire Marshal.

HOLDING SOLENOIDS CURRENT DRAW

SE/ME

24V AC/DC (+10% -15%) @ 90 mA max. 120V AC/DC (+10% -15%) @ 30 mA max.

SEM (TRI-VOLT)

12V DC (+10% -15%) @ 30 mA max. 24V AC/DC (+10% -15%) @ 20 mA max. 120V AC (+10% -15%) @ 20 mA max.

HSA

24V AC/DC (+10% -15%) @ 120 mA max.

TRANSFORMER DATA

120V AC 50-60 Hz (primary); 24V AC @ 400 mA max. (secondary) An LCN supplied transformer will power (recommended) 2 SE, 3 SE/ME, and 15 SEM.

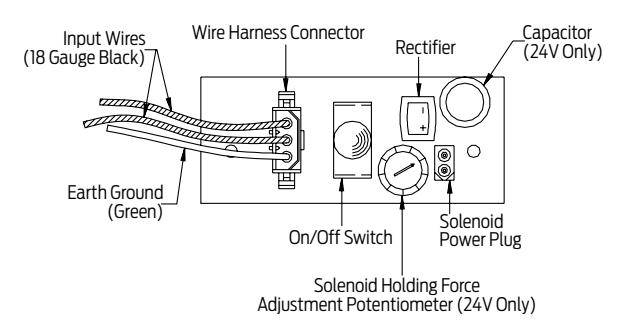

ME WIRING

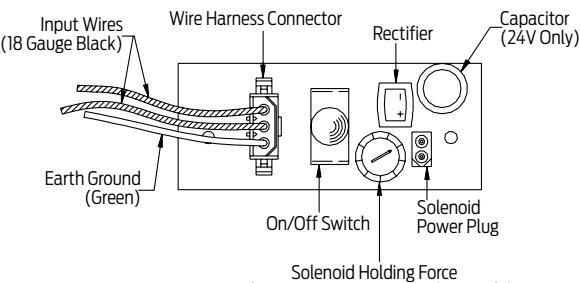

ME "ON/OFF" switch assembly includes trim pot to adjust pull out force and fuse to protect solenoid.

ME (4310, 4410) WIRING DIAGRAM (24V only)

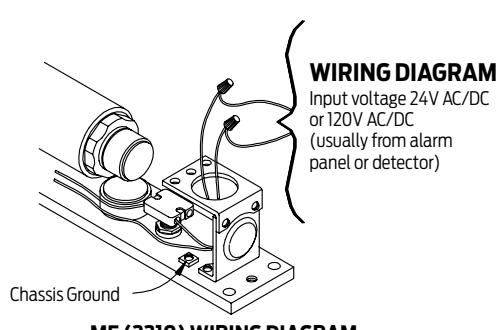

ME (2310) WIRING DIAGRAM

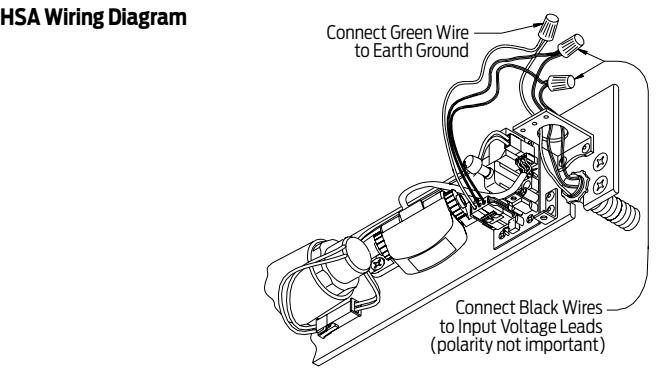

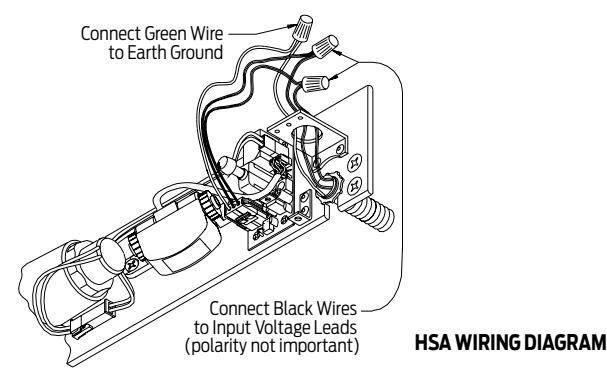

HSA WIRING

HSA "On/Off" switch assembly includes trim pot to adjust hold-open time and fuse to protect solenoid.

FEATURES COMMON TO FIRE/LIFE SAFETY CLOSERS

ⁿ 24V AC/DC or 120V AC input, please specify for SE or ME.
ⁿ When current is interrupted, hold-open releases and door closes.
ⁿ Adjustable hydraulic backcheck cushions opening swing prior to 90°.
ⁿ Separate regulation of general closing speed and latching speed.
ⁿ Available in a wide range of powder coated finishes to blend with door and frame. SEM magnets available in Aluminum and Dark Bronze only.
ⁿ Circuit automatically handles AC or DC input.
ⁿ Can be pushed safely and easily out of hold-open.
ⁿ Functions as a full rack and pinion door closer when hold-open is not engaged or current is interrupted.
ⁿ Works with ionization, photoelectric and heat sensing detectors (by others).

WARRANTY

2 year limited warranty. See General Information Section for complete warranty details..

SPECIFICATIONS

Refer to "SPECIFICATIONS" section for suggested architectural specifications.

DESIGN ASSISTANCE

LCN has been providing reliable solutions to unique door control problems since 1925.

Contact LCN for assistance or technical information at 877-671-7011 or FAX 800-248-1460 (order entry) , Fax 815-879-1495 for Application Engineering.

MATERIALS

ⁿ High strength cast iron cylinder.
n Forged steel main arm.
n One piece forged steel piston.
n All weather fluid eliminates seasonal adjustments.
n High efficiency, full complement , low friction bearings.
n Tamper resistant regulating screws.
n Quiet, low friction track and roller combination for all single lever arm closers.

n Available in six standard or a wide selection of optional custom powder coat finishes to blend with door and frame.
n LCN's powder coat finishes surpass 100 hours of salt spray which is over four times the ANSI standard for corrosion resistance.
n Plated finishes are available as an option to accent door and frame.

MAINTENANCE

Closers mounted according to LCN installation instructions require no periodic adjustments. Quarterly inspections are recommended. Refer to the installation instructions for complete, product specific details.

POSITIVE PRESSURE

LCN closers have been certified for three hours by UL to be in compliance with UL 10 C. Contact LCN for specific details on door closer fire ratings.

FASTENERS

Standard WOOD and MACHINE SCREW (WMS) pack contains phillips head wood and machine screws to install the closer. Thru Bolts and/or TORX® machine screws are available for most closers. LCN thru bolts (TB) can be installed on 1-3/4˝ thick doors with either the 1/4-20 machine screws or optional TORX screws supplied with the closer. Optional sizes are available for 1-5/8˝ or 1-3/8˝ door thicknesses, but this must be specified when ordering.

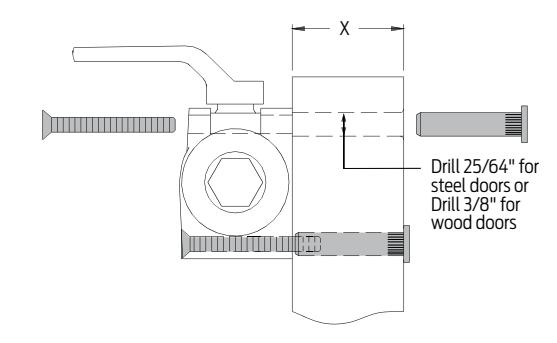

NOTE 1: For Thru Bolts, specify door thickness if other than 1-3/4˝ (44 mm). NOTE 2: Phillips head, metric machine screws are available on special order.

Notes

Magnets

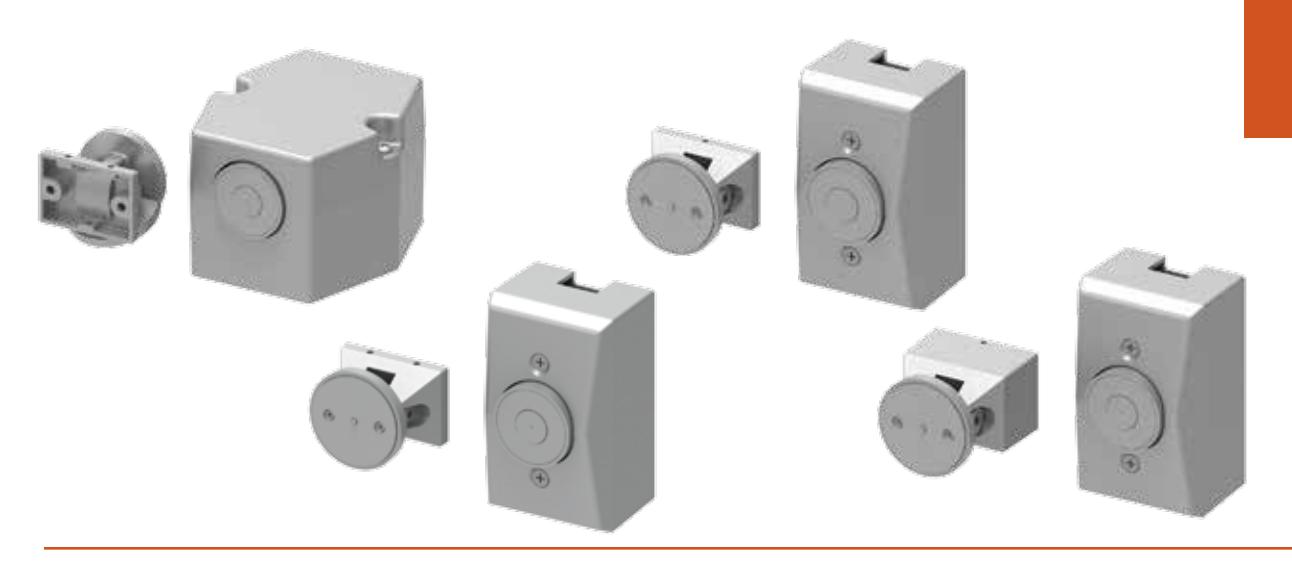

The Sentronic® SEM 7800 Series are heavy duty, electrically controlled door holding magnets. Magnets are fail safe and hold until the current is interrupted. A manual door closer is used to control and close the door. A choice of floor, recessed wall, or surface mounted wall magnets are available.


Certifications	Grade 1 - ANSI A156.15, UL 10C for metal smoke barrier or labeled door, ADA, Life Safety Code, NFPA 101, 100 Hour Salt Spray, Meets BAA - Buy American Act
Voltage	Tri-voltage design with 35 lbs. of holding force
Housing	Die cast
Fasteners	Wood and machine screw pack
Finishes/Colors/ Powder Coat	Available in Aluminum and Dark Bronze only
Options	Now available with armature extensions (see page 11)

Magnets

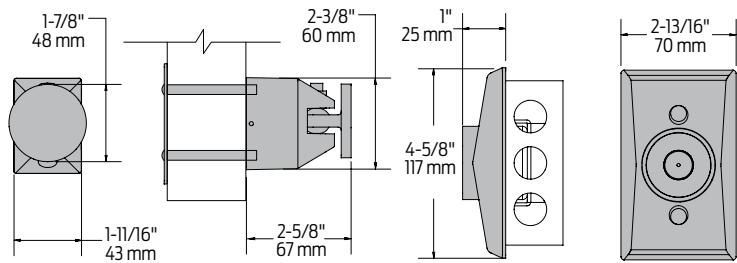

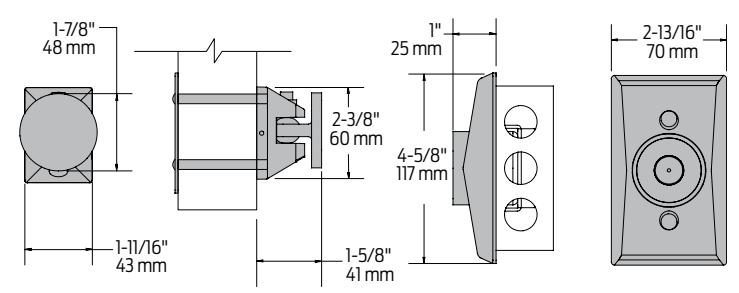

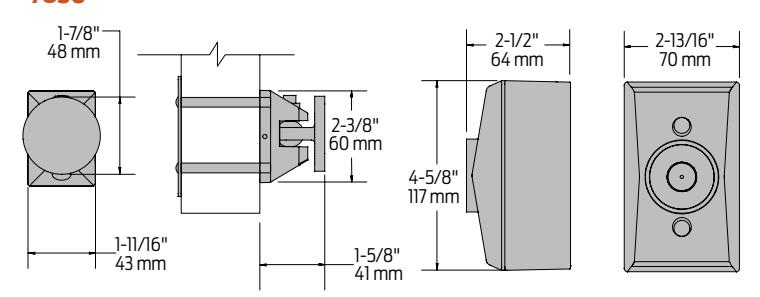

Features and mounting details

4-9/16" 116 mm 1-7/8" 48 mm 1-5/8" 41 mm 1-11/16" 43 mm 2-3/8" 60 mm 3-7/16" 87 mm 2-1/8" 54 mm 5-1/8" 130 mm 7820

Mounting Floor mounted Total Projection 6-3/4˝ (171 mm)

7830

Mounting Surface wall mounted Total Projection 4-1/8˝ (105 mm)

ⁿ Suitable for use in pocket door installations

7840

Mounting ⁿ Low profile recessed wall mount
- ⁿ 2˝ (51 mm) x 4˝ (102 mm) x 1-1/2˝ (38 mm)

Total Projection 2-5/8˝ (67 mm)

ⁿ Suitable for use in pocket door installations

Note:

Outlet box not included.

7850

Mounting ⁿ Standard profile recessed wall mount
- ⁿ 2˝ (51 mm) x 4˝ (102 mm) x 1-1/2˝ (38 mm)

Total Projection 3-5/8˝ (92 mm)

ⁿ Suitable for use in pocket door installations

Note:

Outlet box not included.

Electrical data

Voltage input

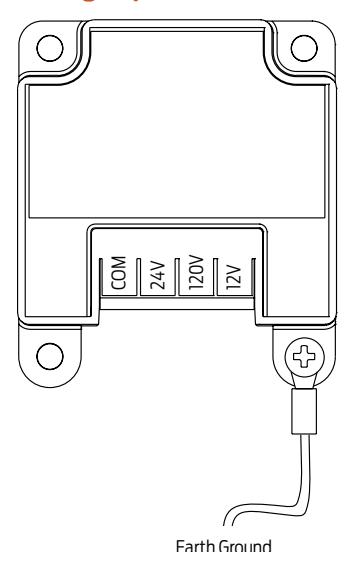

Electrical schematic

Operation:

Electromagnets are typically used with fire alarm systems. Doors are held open in the non-alarm condition. When the fire alarm panel enters the alarm condition, power to the electromagnets is removed, the doors close under door closer control, and function as a manual door. When the fire alarm panel returns to the non-alarm condition, power is reapplied to the electromagnets and the doors can be held open again.

Fig. 1 24V AC/DC Wiring Polarity is inimportant

Fig. 2 120V AC Wiring

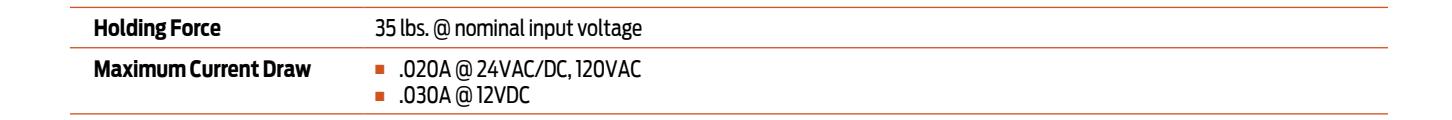

Electrical Specifications Max. Current Draw .030A @ 12VDC .020A @ 24VAC/DC .020A @ 120VAC

Accessories

Magnets

SEM7820-516

Floor Magnet

ⁿ Magnet coil
ⁿ Standard

SEM7830-516 SEM7840-516 SEM7850-516

Wall Magnet

ⁿ Magnet coil
ⁿ Standard

Armatures

SEM7820-825 SEM7830-825 SEM7840-825

Door Armature

ⁿ Die cast low profile armature
ⁿ Standard

SEM7850-828

Door Armature

ⁿ Die cast armature
ⁿ Standard

Cover Box

SEM7830-72 SEM7840-72 SEM7850-72

Standard Cover

ⁿ Die cast cover
ⁿ Standard

SEM7830-268

Wall Box

ⁿ Die cast surface wall mount box
ⁿ Standard

Accessories

Extensions

SEM7810-514

Coupler Assembly Kit

ⁿ Required for each door needing extension(s)
ⁿ Kit includes coupler link and ball pivot (alone serves as a 1-1/2˝ extension)

SEM7810-E050

Extension - 1/2˝

ⁿ Metal
ⁿ Standard

SEM7810-E075

Extension - 3/4˝

ⁿ Metal
ⁿ Standard

Extension, SEM7810-E100

Extension - 1˝

ⁿ Metal
ⁿ Standard

Extension - 2˝

ⁿ Metal
ⁿ Standard

Extension, SEM7810-E400

Extension - 4˝

ⁿ Metal
ⁿ Standard

SEM7810-517

Extension kit

Extension kit includes:

ⁿ 10..........7810SEM-E050
ⁿ 5............7810SEM-E200
ⁿ 20.............7810SEM-514

ⁿ 10...........7810SEM-E075 ⁿ 10...........7810SEM-E100

Note: Using just the Coupler Assembly Kit (SEM7810-514) will create a 1-1/2˝ link. Extension Links are available in different lengths and can be combined together to achieve the desired length. Max. recommended length = 12˝

Ordering Information

How-to-order sem 7800 series magnets

Select magnet series

SEM7820

SEM7830

SEM7840 SEM7850

Specify finish

Standard Powder Coat __________ Aluminum, Dark Bronze

Magnets will be shipped with:

Die cast housing
Cover
Armatures
WMS screw pack

How-to-order sem 7810 extensions

Select magnet series

SEM7810-514 (qty.) _______________ SEM7810-E050 (qty.) _______________ SEM7810-E075 (qty.) _______________ SEM7810-E100 (qty.) _______________ SEM7810-E200 (qty.) _______________ SEM7810-E400 (qty.) _______________ SEM7810-517 (qty.) _______________

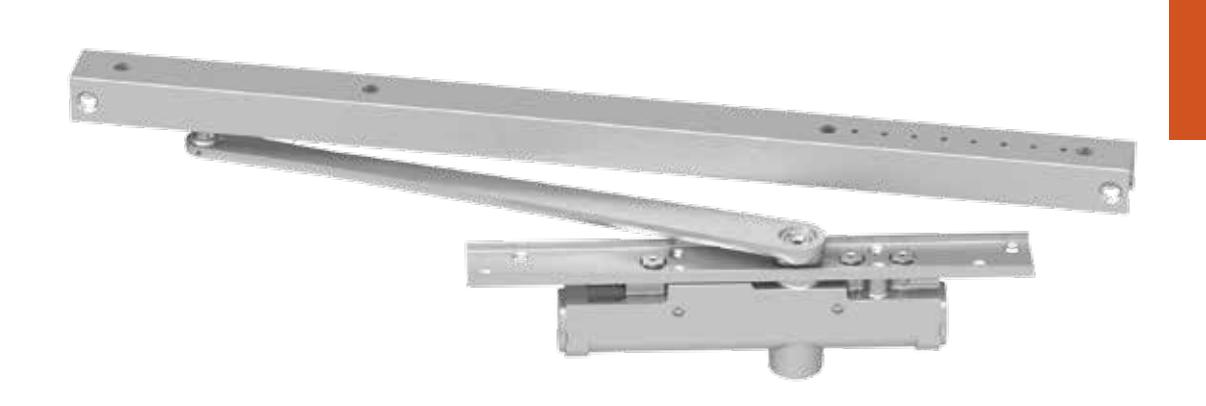

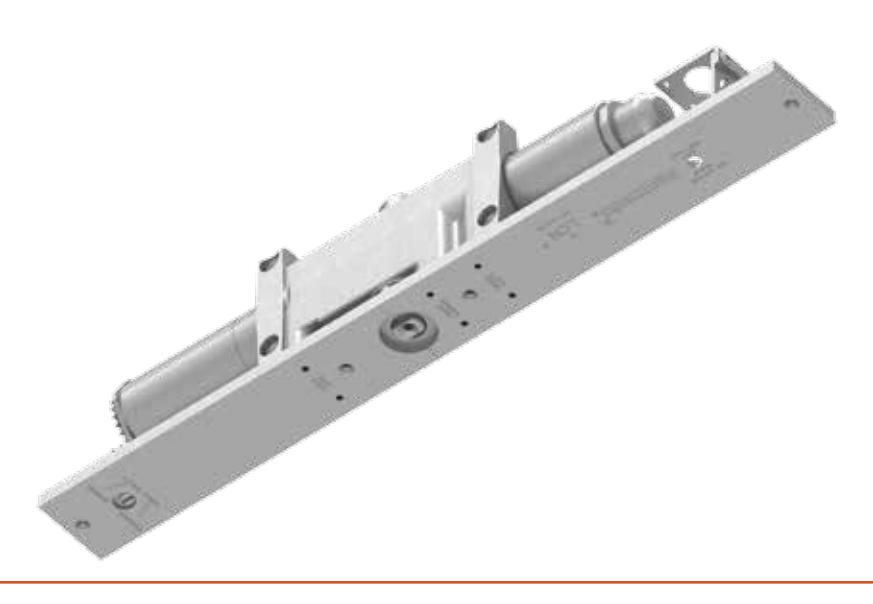

The 3130SE SENTRONIC® is a concealed in the door, closer/ holder designed to provide single point hold-open for fire and smoke barrier doors. Door is held open until current interruption releases the holding mechanism and the door closes. Single lever (track) arm closer is specifically designed for interior doors.

Certifications	Grade 1 - ANSI A156.15, UL/for metal smoke barrier or labeled door, ADA, Life Safety Code, NFPA 101, 100 Hour Salt Spray, Meets BAA - Buy American Act
Body Construction	Cast Iron Body Full Complement Bearing 1-1/8" Diameter Piston 9/16" Diameter Double Heat Treated Pinion Journal
Fluid	All Weather Fluid
Handing	Handed
Size	Size 3 or 4, non-adjustable
Warranty	2 years

Fasteners	Wood and machine screw pack
Mounting	Concealed (in door) for interior smoke barrier and labeled doors
Arms	Standard, handed arm and non-handed track
Finishes/Colors/ Powder Coat	Aluminum (689) Statuary Bronze (690) Light Bronze (691) Black (693) Dark Bronze (695) Brass (696) Custom colors optional
	Optional SRI primer - powder coat only Optional plated finishes

Special Templates

Customized installation templates or products may be available to solve unusual applications. Contact LCN Product Support for assistance.

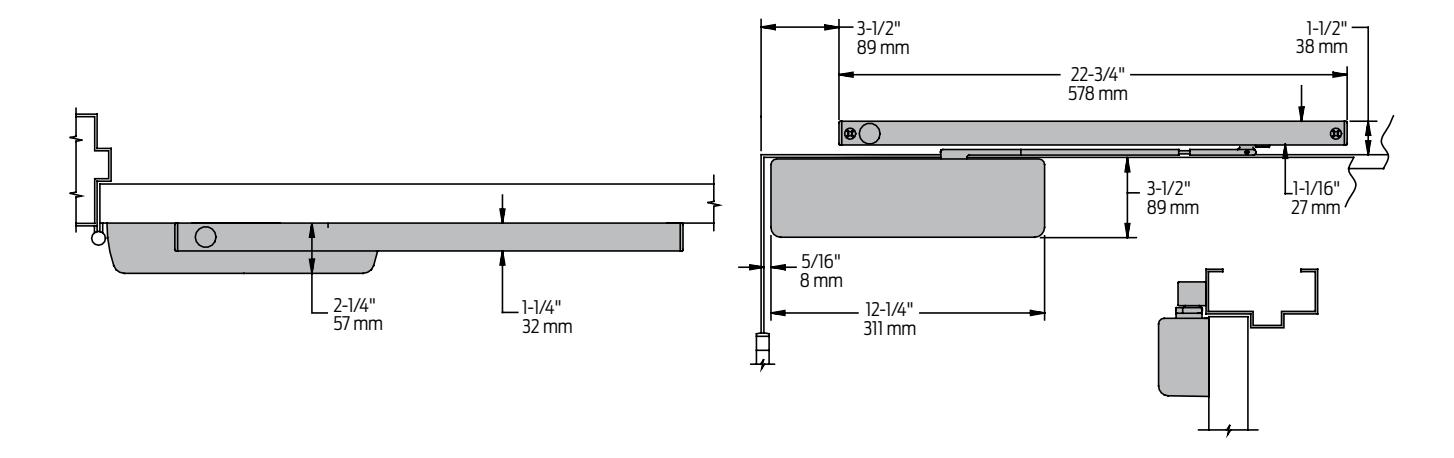

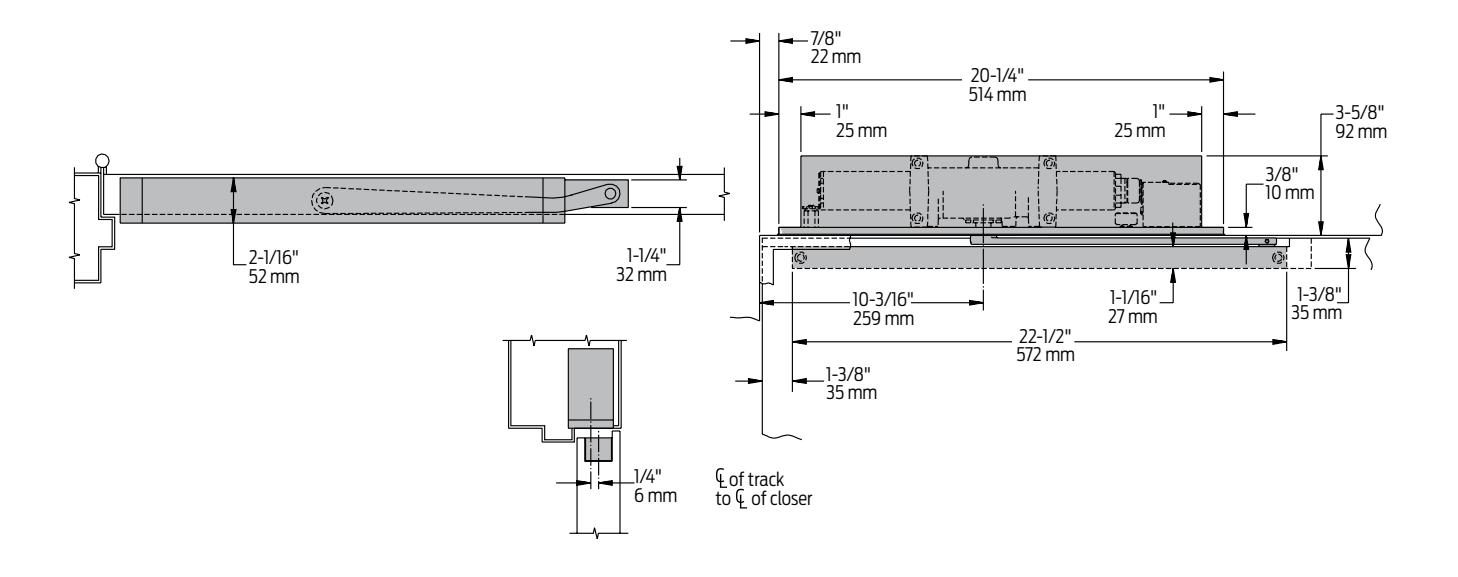

Mounting details

Concealed Mounting

Butt Hinges	n Should not exceed 5˝ (127 mm) in width n Consult factory for pivot hung installations
Auxiliary Stop	Recommended at hold-open point
Top Rail	Minimum 4˝ (102 mm)
Door Thickness	n 1-3/4˝ (44 mm) minimum n Please consult the door manufacturer to assure that the door integrity and warranty is maintained after installing the 3130SE Series door closer in 1-3/4˝ (44 mm) thickness wood doors
Door Width	n 2´4˝ (711 mm) minimum for single door with SE n 2´8˝ (813 mm) minimum for door with SEL
Maximum Opening	n Templating allows 110° n Hold-open points between 85° and 110° in approximately 3° increments n SEL arm and track locate hold-open at 110°, 120° and 130°
SE, SEL Electrical Options	n These track assemblies require a single power circuit for the holding solenoid n SE or SEL holding solenoid is either 24V or 120V input, please specify n An optional 4040SE-3210 or 8310-824 TRANSFORMER reduces 120V AC line voltage to 24V AC n Circuitry accepts either AC or DC input
Options	n Long (SEL) track and arm n 24V or 120V input, please specify

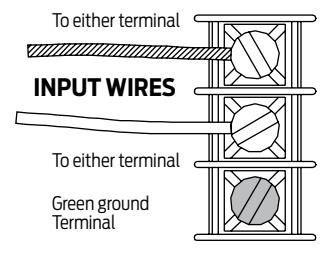

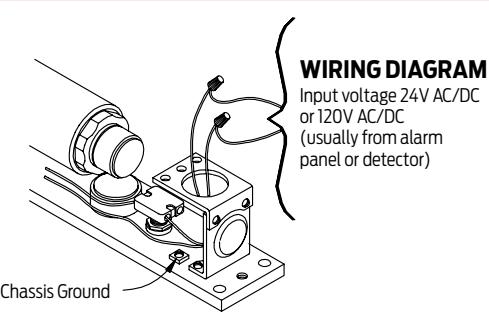

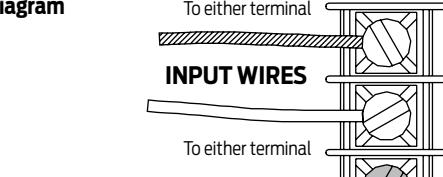

SE Wiring Diagram	To either terminal

Green ground Terminal

ⁿ For interior smoke barrier and labeled fire doors
ⁿ Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted
ⁿ Interfaces with fire alarm system

Cylinder

3130SE-3071

SE Cylinder Assembly

Handed
Cast iron
For various applications see "Table of Sizes" on 3130SE Series page 16
Standard

Arms

3130SE-3077T

Standard Arm

Handed
Adjustable to select hold-open point
Standard

3130SEL-3077T

Long Arm

Handed
Provides hold-open point from 110° to 130°, determined by track templating
Used with SEL TRACK 3130SEL-3038 only
Optional

Tracks

3130SE-3038

SE Track

Non-handed
Circuitry accepts either AC or DC input
24V holding solenoid (24) or 120V holding solenoid (120), please specify
Standard

3130SEL-3038

SEL Long Track

Non-handed
Used with LONG ARM, 3130SEL-3077T, only
Provides hold open point from 110° to 130°, determined by templating. Circuitry accepts either AC or DC input
24V holding solenoid (24) or 120V holding solenoid (120), please specify
Optional

Installation Accessories

3130SE-81

Conduit Quick-Connector

Two piece connector for use with 1/2" conduit
See page 21 for illustration

3130SE-3034SE

Track Roller & Track Slider

Quiet, low friction roller assembly
Shoulder dimension "X" = 1/8" (3 mm)
Alloy metal slider for use in SE series tracks only

4040SE-3210

Transformer

Reduces line voltage from 120V to 24V AC
Mounted on plate for 4" (102 mm) x 4" x 2-1/8" (54 mm) junction box (by others)

Switch

3130SE-3436

Test Switch

Ordering Information

How-to-order 3130SE Series closers

Select cylinder size

3133SE

3134SE

Select hand

Voltage

24V AC/DC

120V AC/DC

Specify finish

Standard Powder Coat __________

Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass

Closer will be shipped with:

Standard arm
Track roller and slider
Standard track
Wood & machine screw pack unless options listed below are selected.

Closer options

Arm

Long Arm* (LONG)

* use with SEL track only

Finishes

Custom Powder Coat (RAL) ___________ Plated Finish, US ___________

Installation accessories

Transformer, 4040SE-3210

Screw pack

TORX Machine Screw (TORX)

Special template

ST- ________

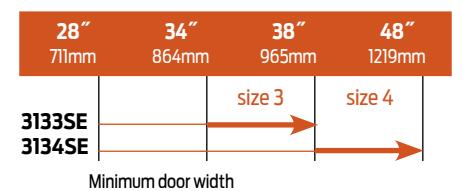

Table of sizes

ⁿ Select closer based on width of door
ⁿ Sized 3130SE series cylinders available in size 3 or 4
ⁿ Closing power of all 3130SE Series closers is not adjustable

Interior door width

Indicates recommended range of door width for closer size.

NOTE: For SE, minimum door width 28˝ (711mm) For SEL, minimum door width 32˝ (813mm)

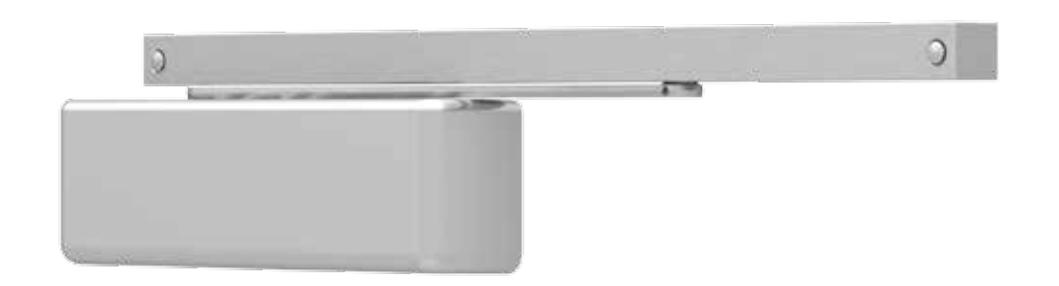

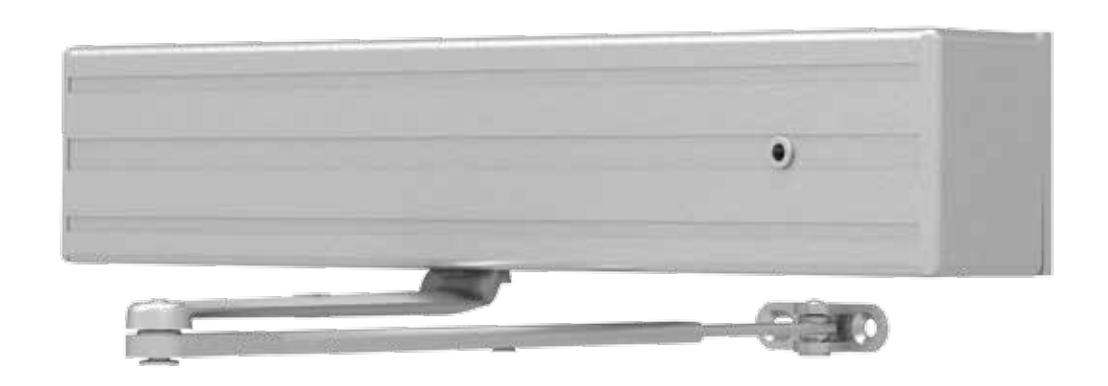

The 4040SE SENTRONIC® is a heavy duty, non-handed, nonsized closer/holder designed to provide single point hold-open for fire and smoke barrier doors. The door is held open until current interruption releases the holding mechanism and the door closes. Single lever (track) arm closer is specifically designed for interior doors. Choice of finishes, track functions, and installation accessories meet virtually all life safety requirements.

Certifications	Grade 1 - ANSI A156.15, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act,	Cover	Clip-on plastic, standard Metal, optional
	NFPA 101	Fasteners	Wood and machine screw pack

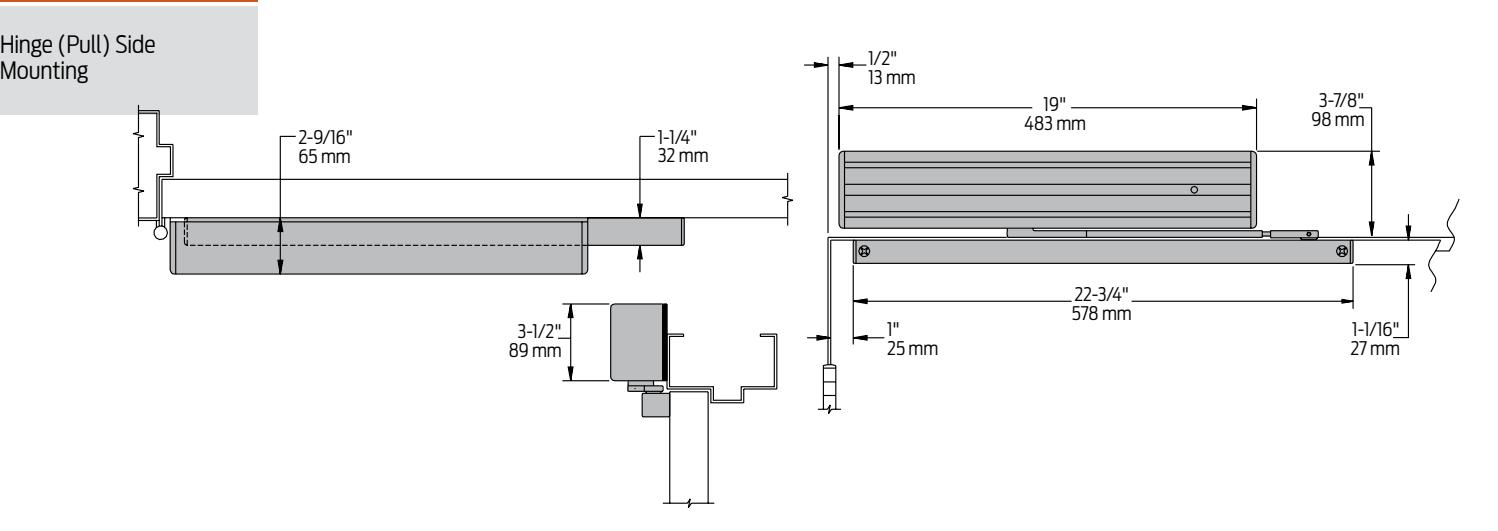

		Mounting	Hinge (Pull Side), Stop Face (Push Side)
Body Construction	Cast Iron Body Full Complement Bearing 1-1/2" Diameter Piston 3/4" Diameter Double Heat Treated Pinion Journal	Arms	Standard arm and SE track, standard Double egress arm and SEL track, optional
Body Construction		Finishes/Colors/ Powder Coat	Aluminum (689) Statuary Bronze (690) Light Bronze (691) Black (693) Dark Bronze (695) Brass (696) Custom colors optional
Fluid	All Weather Fluid
Handing	Non-Handed		Optional SRI primer - powder coat only Optional plated finishes
Size	Adjustable Spring Size, up to 4	Wiring	Concealed or surface, interfaces with fire
Warranty	rranty 2 years		alarm systems

Special Templates

Customized installation templates or products may be available to solve unusual applications. Contact LCN Product Support for assistance.

AVAILABLENOT AVAILABLE

Maximum opening/hold-open point with standard template. See individual closer series for degrees of opening per installation.

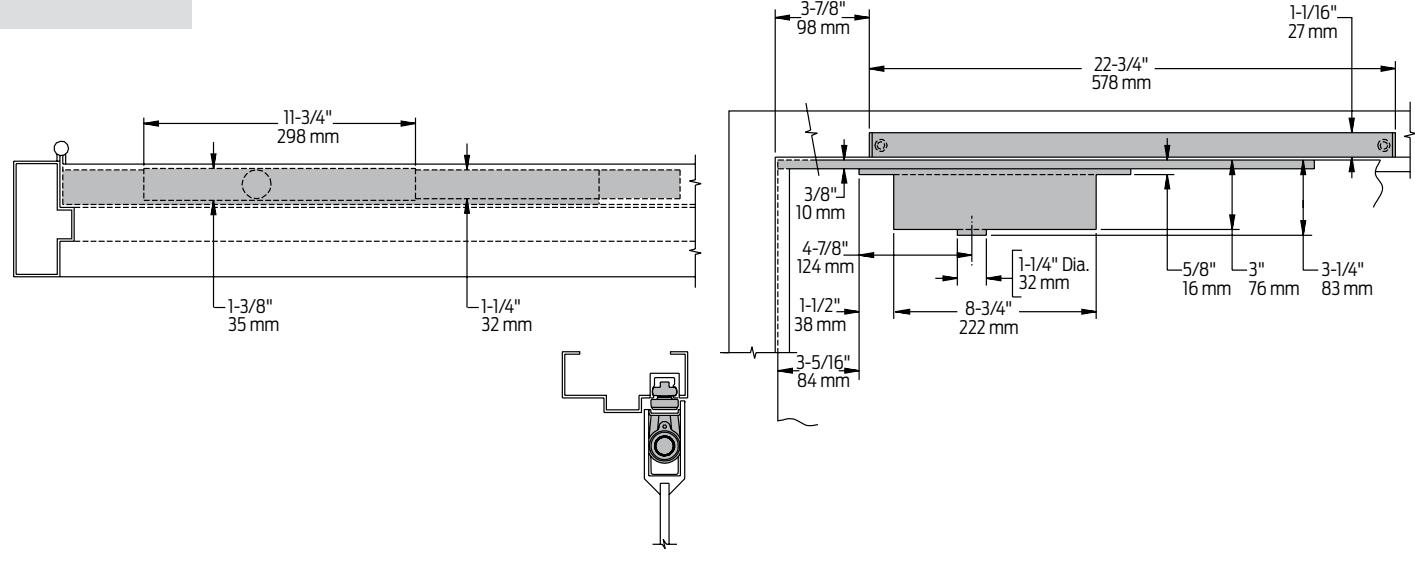

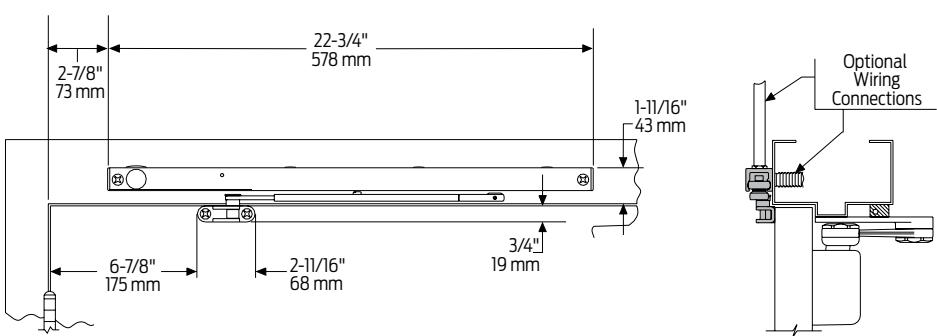

Mounting details

Hinge (Pull) Side Mounting

Butt Hinges	Should not exceed 5˝ (127 mm) in width
Swing Clear Hinges	Consult factory
Auxiliary Stop	Recommended at hold-open point
Reveal	n Should not exceed 1/8˝ (3 mm) for standard arm n Should not exceed 2-11/16˝ (68 mm) for double egress arm
Top Rail	n Minimum 3-1/2˝ (89 mm) n Installation with PLATE, 4040SE-18 requires SPECIAL TEMPLATE and 1-3/4˝ (44 mm) minimum top rail
Head Frame	Requires 2˝ (51 mm) minimum
Flush Ceiling	2˝ (51 mm) head frame does not require special templating
Door Width	n 2´4˝ (711 mm) minimum for single door with SE n 4´8˝ (1422 mm) minimum for paired doors with SE
Flush Ceiling	2-3/8˝ (60 mm) behind door required for 90° installation
Maximum Opening	n Templating allows 110° n Hold-open points between 85° and 110° in approximately 3° increments n Pull side mounting on a double egress frame requires a handed double egress arm n Maximum hold-open to 95° n 2-11/16˝ (67 mm) maximum reveal on pull side n SEL track provides hold-open points between 90° and 120°' in approximately 3° increments
SE, SEL Electrical Options	n These track assemblies require a single power circuit for the holding solenoid n SE or SEL holding solenoid is either 24V or 120V input, please specify n An optional 4040SE-3210 or 8310-824 TRANSFORMER reduces 120V AC line voltage to 24V AC. n Circuitry accepts either AC or DC input
Options	n Long (SEL) track n Handed double egress arm for reveal under 2-11/16˝ (67 mm)
SE Wiring Diagram	See "FIRE/LIFE SAFETY" section page 19 for typical wiring and electrical diagram

Notes:

Information applies to 4040 SE unless otherwise specified
Hold-open force is adjustable
Momentary on/off switch board assembly for testing door release also provides over-voltage protection. Field replaceable
Functions as a full rack and pinion closer when hold-open is not engaged or current is interrupted

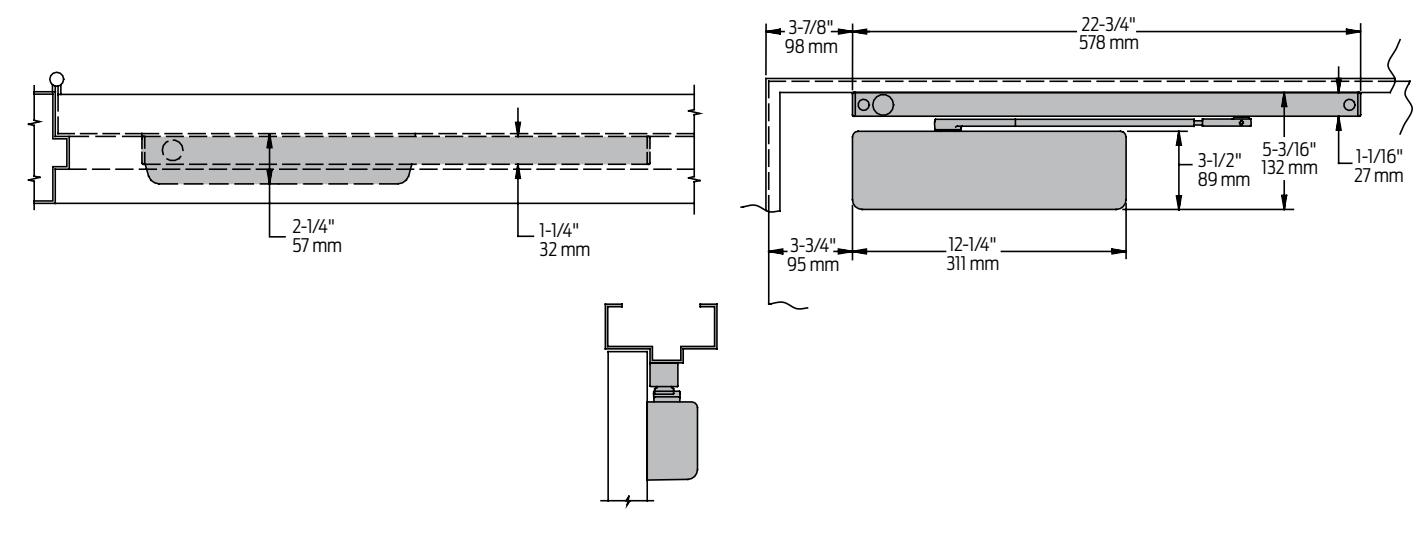

Mounting details

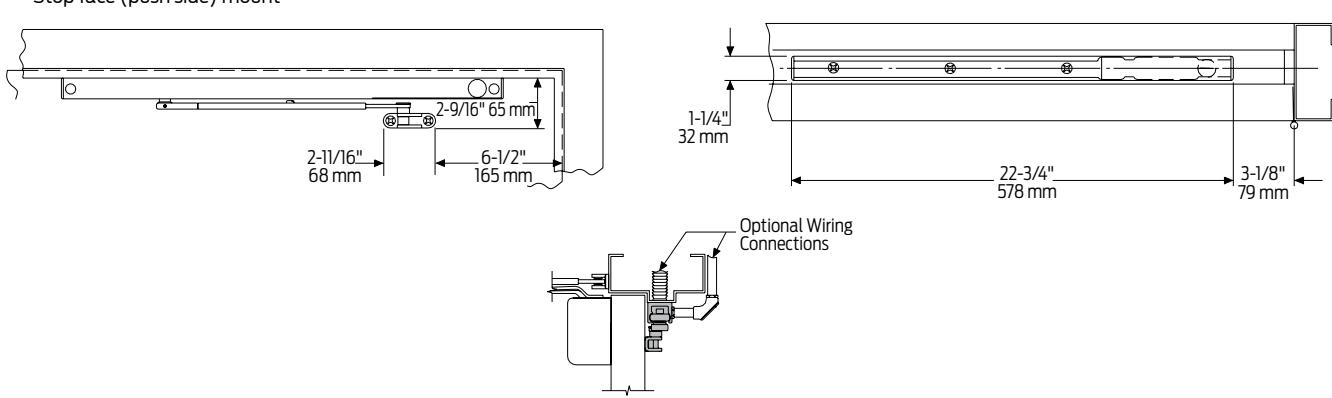

Stop Face (Push Side) Mounting

Butt Hinges	Should not exceed 5˝ (127 mm) in width
Auxiliary Stop	Recommended at hold-open point
Top Rail	n Minimum 5-3/4˝ (146 mm) n Installation with PLATE, 4040SE-18PA requires SPECIAL TEMPLATE and 2˝ (51 mm) minimum top rail
Stop Width	1-1/4˝ (32 mm) minimum
Door Width	n 2´4˝ (711 mm) minimum for single door with SE n 4´8˝ (1422 mm) minimum for paired doors with SE
Maximum Opening	n Templating allows 110° n Hold-open points between 85° and 110° in approximately 3° increments n SEL track provides hold-open points between 90° and 120°' in approximately 3° increments
SE, SEL Electrical Options	n These track assemblies require a single power circuit for the holding solenoid n SE or SEL holding solenoid is either 24V or 120V input, please specify n An optional 4040SE-3210 or 8310-824 TRANSFORMER reduces 120V AC line voltage to 24V AC n Circuitry accepts either AC or DC input
Options	n Long (SEL) track
SE Wiring Diagram	To either terminal INPUT WIRES To either terminal Green ground Terminal

Notes:

Information applies to 4040 SE closers unless otherwise specified
Momentary on/off switch board assembly for testing door release also provides over-voltage protection. Field replaceable
Functions as a full rack and pinion closer when hold-open is not engaged or current is interrupted

Accessories

Cylinder

4040SE-3071

Cylinder Assembly

ⁿ Non-handed
ⁿ Cast iron
ⁿ Standard

Covers

4040SE-72

Plastic Cover

ⁿ Non-handed
ⁿ Clip-on
ⁿ Standard

4040SE-72MC

Metal Cover

ⁿ Handed
ⁿ Required for plated finishes and custom powder coat finishes
ⁿ Optional

4040SE-3077T

Standard Arm

ⁿ Non-handed
ⁿ Adjustable to select hold-open point

4040SE-3077DE

Double Egress Arm

ⁿ Handed
ⁿ For pull side installations on double egress doors and frames
ⁿ Not required for push side mounting on double egress frames
ⁿ Optional

Arms Tracks

4040SE-3038

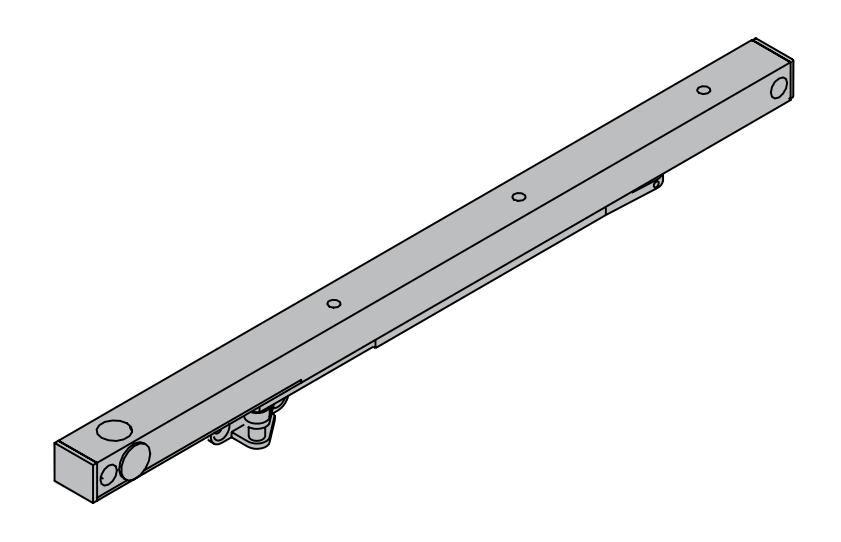

SE Track

ⁿ Non-handed
ⁿ For SE closers. Mounts on either head frame or stop
ⁿ 24V or 120V AC/DC input for holding solenoid, please specify.
ⁿ Includes test switch assembly with fuse
ⁿ Standard

4040SEL-3038

SEL Long Track ⁿ Non-handed
ⁿ Mounts on either head frame or stop
ⁿ 24V or 120V AC/DC input standard for holding solenoid, please specify
ⁿ Includes test switch assembly with fuse
ⁿ Optional

Switch

4040SE-3436 Test Switch

Installation Accessories

4040SE-18

Plate

ⁿ Required where top rail is less than 3-1/2˝ (89 mm)
ⁿ Requires minimum 2˝ (51 mm) top rail
ⁿ Installations require a SPECIAL TEMPLATE

4040SE-18PA

Plate

ⁿ Required where top rail is less than 5-3/4˝ (146 mm)
ⁿ Requires minimum 2˝ (51 mm) top rail
ⁿ Installations require a SPECIAL TEMPLATE

4040SE-81 Conduit Quick-Connector

ⁿ Two piece connector for use with 1/2˝ conduit

4040SE-3034SE

Track Roller & Track Slider

ⁿ Quiet, low friction roller assembly
ⁿ Shoulder dimension "X" = 1/8˝ (3 mm)
ⁿ Alloy metal slider for use in SE series tracks only

4040SE-3210

Transformer

ⁿ Reduces line voltage from 120V to 24V AC
ⁿ Mounted on cover for 4˝ (102 mm) x 4˝ x 2-1/8˝ (54 mm) junction box (by others)

Ordering Information

How-to-order 4040SE Series closers

Select cylinder size

SE SEL

Voltage

24V AC/DC 120V AC/DC

Specify finish

Standard Powder Coat __________ Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass.

Closer will be shipped with:

Standard cylinder
Standard clip-on cover
Standard arm
Standard track
Wood & machine screw pack unless options listed below are selected.

Closer options

Cover

Metal (MC) (please specify right or left hand)

Finishes

Custom Powder Coat (RAL) (handed metal cover required) Plated Finish, US ___________ (handed metal cover required)

Arm

Double Egress (DE) (please specify right or left hand)

Screw pack

TB*, Wood & Machine Screw (TBWMS)
TORX Machine Screw (TORX)
TB* & TORX Machine Screw (TBTRX)
* Specify door thickness if other than 1-3/4˝

Installation accessories

Plate, 4040SE-18
Plate, 4040SE-18PA
Transformer, 4040SE-3210

Special template

ST- ________

Table of sizes

ⁿ 4040SE series cylinders accommodate interior doors up to 48˝ (1219 mm) wide
ⁿ Closing power of 4040SE Series closers is adjustable through a range of sizes up to size 4

Interior door width

Indicates recommended range of door width for closer size.

NOTE: For SE on paired door, min. width 60˝ (1524 mm). For SE, minimum door width 28˝ (711 mm). For SEL, minimum door width 30˝ (762 mm). Details are listed on the MOUNTING DETAILS pages.

The 2310ME SENTRONIC® is a concealed heavy duty, electrically controlled closer/holder designed to provide infinitely adjustable hold-open for fire and smoke barrier doors. Door is held open until current interruption releases mechanism and the door closes. Single lever (track) arm closer is specifically designed for interior doors. Choice of finishes, cylinder functions, and installation accessories meet virtually all life safety requirements.

Certifications	Grade 1 - ANSI A156.15, UL 10C, ADA, 100 Hour	Fasteners	Wood and machine screw pack
	Salt Spray, Meets BAA - Buy American Act, NFPA 101	Mounting	Concealed (in frame)
	NI FA IOI	Arms	Standard handed arm and non-handed track ( two piece metal finish plate)
Body Construction	Cast iron Body Full Complement Bearing 1-1/2" Diameter Piston 11/16" Diameter Double Heat Treated Pinion Journal	Finishes/Colors/ Powder Coat	Aluminum (689) Statuary Bronze (690) Light Bronze (691) Black (693) Dark Bronze (695) Brass (696) Custom colors optional
Fluid	All Weather Fluid		Optional SRI primer - powder coat only Ooptional plated finishes
Handing	Handed	Wiring	Concealed or exposed
Size	Sized, 4 only		Built in on/off switch controls hold-open function
Warranty	2 years		Interfaces with fire alarm system

Special Templates

Customized installation templates or products may be available to solve unusual applications. Contact LCN Product Support for assistance.

Mounting details

Concealed Mounting


Butt Hinges	Should not exceed 5˝ (127 mm) in width
Top Rail	n 1-3/8˝ (35 mm) mortise required n 5/16˝ (8 mm) cutout required at top of door, stop face only
Door Thickness	1-3/4˝ (44 mm) minimum
Door Width	2´4˝ (711 mm) minimum
Hollow Metal Frame	n Requires minimum 4˝ (102 mm) x 4˝ frame n Consult factory or template for preparation details
Bypass	n (suffix "B80" or "B140") eliminates hold-open function up to a specified point of door swing n B80 cylinder from 0° to 80° n B140 cylinder from 0° to 140°
Maximum Opening	Templating allows 180° with hold-open points up to 160°
Options	n Hold-open bypass n 24V or 120 volt input, please specify

Me (2310) Wiring Diagram

Notes

For interior smoke barrier and labeled fire doors
Functions as full rack and pinion door closer when hold-open is not engaged or when current is interrupted

Accessories

Cylinders

2310ME-3971

ME Cylinder Assembly

ⁿ Handed
ⁿ Cast iron
ⁿ Specify 24V or 120V
ⁿ Standard

2310ME-3071

ME Cylinder/Plate Assembly

ⁿ Handed
ⁿ "On/Off" switch assembly controls the hold-open function.
ⁿ Circuitry accepts either AC or DC input. Specify 24V or 120V
ⁿ Standard

Arm

2310ME-3077T

Standard Arm

ⁿ Handed

Track

2310ME-3038

Standard Track

ⁿ Non-handed
ⁿ Standard

Switch

2310ME-3351

Switch

ⁿ "On/Off" switch assembly provides continuous hold-open function
ⁿ 24V or 120V, please specify

Installation Accessories

2310ME-420

Fire Shield

ⁿ 22 gauge steel liner mounts in the track mortise of the door's top rail for 20 minute labeled wood doors with hollow metal frames

2310ME-3210

Transformer

ⁿ Reduces line voltage from 120V to 24V AC
ⁿ Mounted on plate for 4˝ (102 mm) x 4˝ x 2-1/8˝ (54 mm) junction box (by others)

2310ME-3034

Track Roller

ⁿ Quiet, low friction roller assembly
ⁿ Shoulder dimension "X" = 1/16˝ (2 mm)

Ordering Information

How-to-order 2310ME Series closers

Select hand

RH LH

Voltage 24V AC/DC

120V AC/DC

Specify finish Standard Powder Coat __________

Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass.

Closer will be shipped with:

Finish plates
Standard arm
Standard track
Track roller
Wood & machine screw pack unless options listed below are selected.

Closer options

Cylinder function

Bypass 80° (B80)

Bypass 140° (B140)

Finishes

Custom Powder Coat (RAL) ___________

Plated Finish, US ___________

Screw pack

TORX Machine Screw (TORX)

Installation accessories

Fire Shield, 2310ME-420

Transformer, 2310ME-3210

Special template

ST- ________

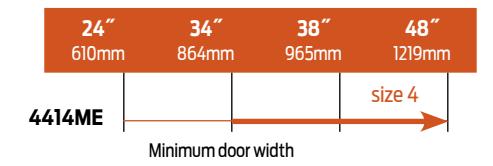

Table of sizes

ⁿ Closing power of 2314ME Series closers may be increased 15%

Interior door width

Indicates recommended range of door width for closer size.

NOTE: For SE, minimum door width 28˝ (711mm) For SEL, minimum door width 32˝ (813mm)

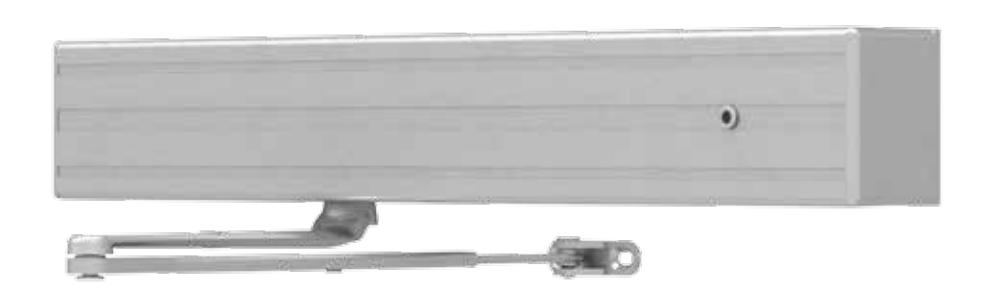

The 4310ME SENTRONIC® is a heavy duty, electrically controlled closer/holder designed to provide infinitely adjustable hold-open for fire and smoke barrier doors. Door is held open until current interruption releases mechanism and the door closes. Single lever (track) arm closer is specifically designed for interior doors. Choice of finishes, cylinder functions, and installation accessories meet virtually all life safety requirements. An ME provides only the closer / holder function.


Grade 1 - ANSI A156.15, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act, NFPA 101
Cast Iron Body Full Complement Bearing 1-1/2" Diameter Piston 11/16" Diameter Double Heat Treated Pinion Journal
All Weather Fluid
Handed
Sized, 4 only
2 years
Concealed or exposed electrical connectors Built in "On/Off" switch controls hold-open function Interfaces with fire alarm systems

Cover	Metal, Standard
Fasteners	Wood and machine screw pack
Mounting	Hinge (Pull Side)
Arms	Swing free arm, standard Double egress, optional
Finishes/Colors/ Powder Coat	Aluminum (689) Statuary Bronze (690) Light Bronze (691) Black (693) Dark Bronze (695) Brass (696) Custom colors optional Optional SRI primer - powder coat only Optional plated finishes

Special Templates

Customized installation templates or products may be available to solve unusual applications. Contact LCN Product Support for assistance.

AVAILABLE NOT AVAILABLE Maximum opening/hold-open point with standard template. See individual closer series for degrees of opening per installation.

Mounting details

Butt Hinges	Should not exceed 4-1/2˝ (114 mm) in width
Top Rail	1-1/16˝ (27 mm) minimum
Reveal	n Should not exceed 1/8˝ (3 mm) for Swing-Free arm n Should not exceed 2-11/16˝ (68 mm) for double egress arm
Head Frame	Requires 2˝ (51 mm) minimum
Clearance	1-1/4˝ (32 mm) behind door required for installation
Bypass	n (suffix "B80 or B140") eliminates hold-open function up to a specified point of the doors swing n B80 cylinder from 0° to 80° n B140 cylinder from 0° to 140°
Maximum Opening	n Templating allows 180° with hold-open points up to 160° n Optional double egress arm limited to 95° n Please note that many track style door closers are capable of allowing 180° of door swing. n Be aware that the majority of track style closers are at their weakest closing force in the 180° – 130° range n Consult factory for applications where exterior or large/heavy door must swing 180°
ME Electrical Options	n These assemblies have a single electrical circuit with a choice of voltages n A separate TRANSFORMER, 4040SE-3210, can be used to reduce line voltage to 24V AC n Circuitry accepts either AC or DC input n Please specify 24V or 120V
Options	n Hold-open bypass n 24V or 120 volt input, please specify
ME (4310, 4410)	Wire Harness Connector Capacitor Input Wires Rectifier

Solenoid Holding Force Adjustment Potentiometer (24V Only)

Notes:

Information applies to ME closer
Functions as full rack and pinion door closer when hold-open is not engaged or when current is interrupted with Swing-Free arm engaged
Swing free arm allows door to be moved without door closer resistance

Accessories

Cylinder

4310ME-3971

ME Cylinder Assembly

ⁿ Handed
ⁿ Cast iron
ⁿ Specify 24V or 120V
ⁿ Standard

4310ME-3071

ME Cylinder/Plate Assembly

ⁿ Handed
ⁿ "On/Off" switch assembly controls hold-open function
ⁿ Circuitry accepts either AC or DC input
ⁿ 24V or 120V, please specify
ⁿ Standard

Cover

4310ME-72MC

Metal Cover

ⁿ Handed
ⁿ Standard

4310ME-3077SF Swing-Free Arm

ⁿ Handed
n After door is placed in holdopen, secondary pivot point allows up to 160° swing without door closer resistance

4310ME-3077DE Double Egress Arm

ⁿ Handed
ⁿ For double egress doors and frames
ⁿ 2-11/16˝ (68 mm) maximum reveal
ⁿ Optional

Arms Track

4310ME-3038 Track

ⁿ Non-handed
ⁿ Standard

Accessories

Switch

4310ME-3351 Switch Assembly

ⁿ Provides continuous hold-open function
ⁿ 24V or 120V, please specify

4310ME-3034

Track Roller

ⁿ Quiet, low friction roller assembly
ⁿ Shoulder dimension "X" = 1/8˝ (3mm)

4310-3210 Transformer

ⁿ Reduces line voltage from 120V to 24V AC
ⁿ Mounted on cover for 4˝ (102 mm) x 4˝ x 2-1/8˝ (54mm) junction box (by others)

4310ME-3354

ME Wiring Harness

ⁿ Three wire harness with 6˝ (152 mm) leads for field wiring connections

Ordering Information

How-to-order 4310ME Series closers

Select hand

RH LH

Voltage

24V AC/DC

120V AC/DC

Specify finish Standard Powder Coat __________

Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass.

Closer will be shipped with:

Standard cover
Swing-free (sf) arm
Standard track
Track roller
Wood & machine screw pack unless options listed below are selected.

Closer options

Cylinder function

Bypass 80° (B80) BBypass 140° (B140)

Arm

Double Egress (DE)

Finishes

Custom Powder Coat (RAL) ___________ Plated Finish, US ___________

Screw pack

TB*, Wood & Machine Screw (TBWMS)

TORX Machine Screw (TORX)

TB* & TORX Machine Screw (TBTRX)

*Specify door thickness if other than 1-3/4˝.

Installation accessories

Transformer, 4310ME-3210

Special template

ST- ________

Table of sizes

ⁿ Closing power of 4314ME Series closers may be increased 15%

Interior door width

Indicates recommended range of door width for closer size.

Notes

The 4410ME SENTRONIC® is a heavy duty, electrically controlled closer/holder designed to provide infinitely adjustable hold-open for fire and smoke barrier doors. Door is held open until current interruption releases mechanism and the door closes. Double lever arm closer is specifically designed for interior doors. Choice of finishes, cylinder functions, and installation accessories meet virtually all life safety requirements.

Certifications	Grade 1 - ANSI A156.15, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act, NFPA 101
Body Construction	Cast iron Body Full Complement Bearing 1-1/2" Diameter Piston 11/16" Diameter Double Heat Treated Pinion Journal
Fluid	All Weather Fluid
Handing	Handed
Size	Sized, 4 only
Warranty	2 years

Cover	Metal, Standard
Fasteners	Wood and machine screw pack
Mounting	Top jamb (Push Side)
Arms	Regular arm
Finishes/Colors/ Powder Coat	Aluminum (689) Statuary Bronze (690) Light Bronze (691) Black (693) Dark Bronze (695) Brass (696) Custom colors optional
	Optional SRI primer - powder coat only Optional plated finishes
Wiring	Concealed or surface Interfaces with fire alarm systems

Special Templates

Customized installation templates or products may be available to solve unusual applications. Contact LCN Product Support for assistance.

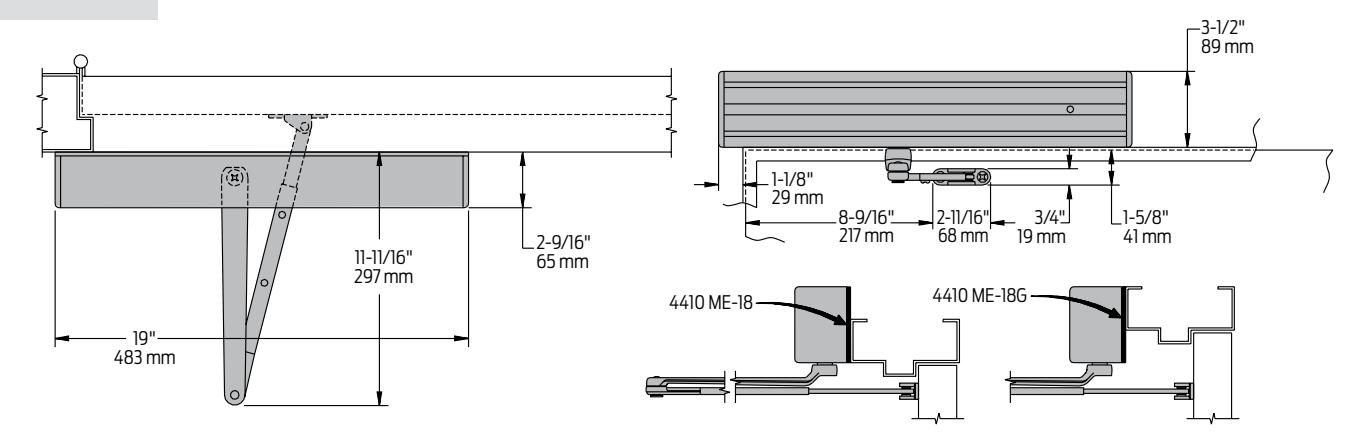

Mounting details

Top Jamb (Push Side) Mounting


Butt Hinges	Should not exceed 4-1/2" (114 mm) in width
Top Rail	1-3/4" (44 mm) minimum 3-3/4" (95mm) minimum with flush ceiling
Reveal	3-7/8" (98 mm) maximum regular or long arm For reveals greater than 3-7/8" consult factory
Head Frame	Requires 1-1/2" (38 mm) minimum 2" (51 mm) minimum with flush ceiling
Flush Ceiling	Requires PLATE, 4410ME-18G substituted for standard mounting plate
Bypass	(Suffix "B80" or "B140") eliminates hold-open function up to a specified point of door swing B80 cylinder from 0° to 80° B140 cylinder from 0° to 140°
Maximum Opening	Templating allows 160°, with hold-open points up to 150° Optional long arm allows 180°, hold-open points up to 170°
ME Electrical Options	These assemblies have a single electrical circuit with a choice of voltages A separate TRANSFORMER, 4040SE-3210, can be used to reduce line voltage to 24V AC. Circuitry accepts either AC or DC input Please specify 24V or 120V
Options	Hold-open bypass Optional long arm allows 180° with hold-open points up to 170° Optional –18G plate accommodates flush ceiling conditions 24V or 120V volt input, please specify
ME (4310, 4410) Wiring Diagram	Input Wires (18 Gauge Black) Earth Ground (Green) Solenoid Power Plug Solenoid Holding Force Adjustment Potentiometer (24V Only)

Accessories

Cylinders

4414ME-3971

ME Cylinder Assembly

ⁿ Handed
ⁿ Cast iron
ⁿ Specify 24V or 120V
ⁿ Standard

4414ME-3071

ME Cylinder/Plate Assembly

ⁿ Handed
ⁿ "On/Off" switch assembly controls hold-open function
ⁿ Circuitry accepts either AC or DC input
ⁿ Please specify 24V or 120V
ⁿ Standard

Cover

4410ME-72MC

Metal Cover

ⁿ Handed

Arms

4410ME-3077

Regular Arm

ⁿ Non-handed
ⁿ 3-7/8˝ (98 mm) maximum reveal

4410ME-3077L

Long Arm

ⁿ For increasing opening to 180°
ⁿ 3-7/8˝ (98 mm) maximum reveal
ⁿ Optional

Accessories

Switch

4410ME-3351 Switch Assembly

ⁿ Provides continuous hold-open function
ⁿ Available as 24V or 120V, please specify

Installation Accessories

4410ME-18

Mounting Plate

ⁿ Standard

4410ME-18G

Mounting Plate

ⁿ Substituted for standard plate on flush ceiling installations
ⁿ Optional

4410ME - 3210

Transformer

ⁿ Reduces line voltage from 120V to 24V AC
ⁿ Mounted on cover for 4˝ (102 mm) x 4˝ x 2-1/8˝ (54 mm) junction box (by others)

4410ME-3354

ME Wiring Harness

ⁿ Three wire harness with 6˝ (152 mm) leads for field wiring connections

Ordering Information

How-to-order 4410ME Series closers

Select hand

RH LH

Voltage

24V AC/DC

120V AC/DC

Specify finish

Standard Powder Coat __________ Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass.

Closer will be shipped with:

Standard cover
Regular arm
Wood & machine screw pack unless options listed below are selected.

Closer options

Cylinder function

Bypass 80° (B80) Bypass 140° (B140)

Arm

Long (LONG)

Finishes

Custom Powder Coat (RAL) Plated Finish, US

Screw pack

TB*, Wood & Machine Screw (TBWMS)

TORX Machine Screw (TORX)

TB* & TORX Machine Screw (TBTRX)

*Specify door thickness if other than 1-3/4˝

Installation accessories

Plate, 4410ME-18G (substituted for standard mounting plate)

Transformer, 4410ME-3210

Special template

ST- ________

Table of sizes

ⁿ Closing power of 4414ME Series closers may be increased 15%

Interior door width

Indicates recommended range of door width for closer size.

Notes

The 4310HSA SENTRONIC® is an electrically controlled closer/holder designed to provide easy passage for groups of pedestrians through high traffic doors. Pedestrians, moving through the doorway, trigger the built-in scanner. When the door is opened to 80° or more, the door is electrically held open to minimize wear and tear on applied door hardware. After the last pedestrian in a group passes through the doorway, the system timer releases the hold-open, closing the door under control of the heavy duty closer. Single lever (track) arm closer is specifically designed for pull side mounting. Choice of finishes and accessories meet virtually all high traffic installation requirements.

Certifications	Grade 1 - ANSI A156.4, ANSI 156.15, NFPA 101,	Cover	Metal, Standard
	UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act	Arms	Standard arm (with track) Double egress arm, optional
Body Construction	Cast Iron Body Full Complement Bearing 1-1/2" Diameter Piston 11/16" Diameter Double Heat Treated Pinion Journal	Finishes/Colors/ Powder Coat	Aluminum (689) Statuary Bronze (690) Light Bronze (691) Black (693) Dark Bronze (695) Brass (696) Custom colors optional
Fluid	All Weather Fluid		Optional SRI primer - powder coat only
Handing	Handed		Optional plated finishes
Size	Field adjustable, shipped at size 3	Wiring	Concealed or surface wiring 24V AC/DC input only 120V requires 4310HSA-3210 transformer
Warranty	2 years
Fasteners	Wood and machine screw pack		HSA features a scanner activated hold- open function, fixed 15 seconds or 30
Mounting	Hinge (Pull Side)interior doors		seconds

Special Customized installation templates or products may be available to solve unusual applications. Templates Contact LCN Product Support for assistance.

4310 HSA Series

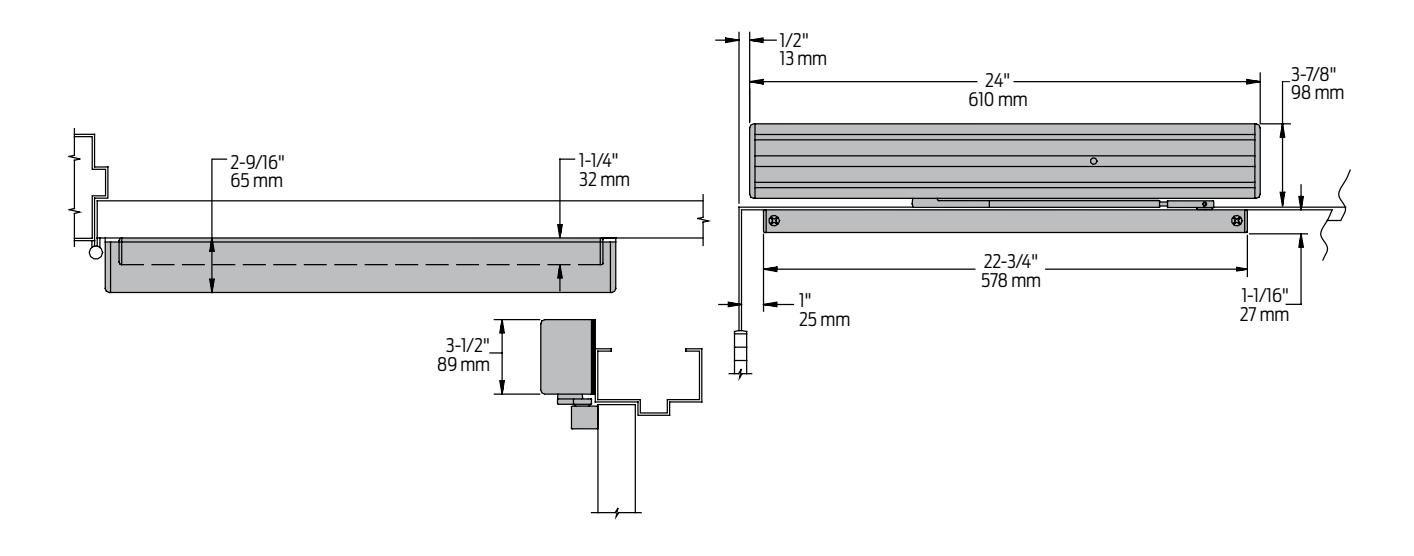

Mounting details

Hinge (Pull) Side Mounting


Butt Hinges	Should not exceed 4-1/2˝ (114 mm) in width
Top Rail	1-1/16˝ (27 mm) minimum
Reveal	n Should not exceed 1/8˝ (3 mm) for standard arm n Should not exceed 2-11/16˝ (68 mm) for double egress arm
Head Frame	Requires 2˝ (51 mm) minimum
Clearance	1-1/4˝ (32 mm) minimum.
Maximum Opening	n Templating allows 180° n Optional double egress arm limited to 95° n Infinite hold-open points from 80° up to 160°
Options	n 120 volt input requires 4310HSA-3210 transformer to change 120V AC to 24V AC

HSA (4310)Wiring Diagram

Notes:

Functions as full rack and pinion door closer when current is interrupted or continuous hold-open is not engaged
Built-in "On/Off" switch provides continuous hold-open function

Cylinders

4311HSA-3971

HSA Cylinder Assembly

ⁿ Handed
ⁿ Cast iron
ⁿ 24V AC/DC input only for holding solenoid
ⁿ Standard

4311HSA-3071

HSA Cylinder/Plate Assembly

ⁿ Handed
ⁿ Includes scanner module and system timer module
ⁿ "On/Off" switch assembly provides continuous hold-open function
ⁿ 24V AC/DC input only for holding solenoid and electronics modules
ⁿ Standard

Cover Track

4310HSA-72MC

Metal Cover

ⁿ Handed
ⁿ Standard

4310HSA-3038

Track

ⁿ Non-handed
ⁿ Standard

Arms

4310HSA-3077T

Standard Arm

ⁿ Handed

4310HSA-3077DE

Double Egress Arm

ⁿ Handed
ⁿ For double egress doors and frames
ⁿ 2 11/16˝ (67 mm) maximum reveal
ⁿ Optional

4310HSA-3448

Switch Assembly

ⁿ Provides continuous hold-open function
ⁿ Available in 24V only

Switch Scanner

4310HSA-3428 Scanner Module

Installation Accessories

4310HSA-3034

Track Roller

ⁿ Quiet, low friction roller assembly
ⁿ Shoulder dimension "X" = 1/8˝ (3 mm)

4310HSA-3210

Transformer

ⁿ Reduces line voltage from 120V to 24V AC
ⁿ Mounted on plate for 4˝ (102 mm) x 4˝ x 2-1/8˝ (54 mm) junction box (by others)

4310 HSA Series

Ordering Information

How-to-order 4310 HSA Series closers

Closer options Arm Double Egress (DE) Finishes Select hand RH LH Voltage 24V AC/DC Specify finish Standard Powder Coat __________ Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass.

Closer will be shipped with:

24 Ac/dc hsa cylinders
Metal cover
Standard arm
Standard track
Track roller
Wood & machine screw pack unless options listed below are selected.

Plated Finish, US ___________

Screw pack TB*, Wood & Machine Screw (TBWMS)

Custom Powder Coat (RAL) ___________

TORX Machine Screw (TORX)

TB* & TORX Machine Screw (TBTRX)

* Specify door thickness if other than 1-3/4˝

Installation accessories

Transformer, 4310HSA-3210

Special template

ST- ________ (if required)

Table of sizes

ⁿ Closing power of 4310 HSA Series closers is field adjustable, shipped at size 3

Interior door width

Indicates recommended range of door width for closer size.

The 4410HSA SENTRONIC® is an electrically controlled closer/holder designed to provide easy passage for groups of pedestrians through high traffic doors. Pedestrians, moving through the doorway, trigger the built-in scanner. When the door is opened to 80° or more, the door is electrically held open to minimize wear and tear on applied door hardware. After the last pedestrian in a group passes through the doorway, the system timer releases the hold-open, closing the door under control of the heavy duty closer. Double lever arm closer is specifically designed for push side mounting. Choice of finishes and accessories meet virtually all high traffic installation requirements.

Certifications	Grade 1 - ANSI A156.4, ANSI 156.16, NFPA 101, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA	Arms	Regular Arm Long arm, optional
Body Construction	Buy American Act Cast Iron Body Full Complement Bearing 1-1/2" Diameter Piston 11/16" Diameter Double Heat Treated	Finishes/Colors/ Powder Coat	Aluminum (689) Statuary Bronze (690) Light Bronze (691) Black (693) Dark Bronze (695) Brass (696) Custom colors optional
	Pinion Journal		Optional plated finishes
Fluid	All Weather Fluid	Wiring	Concealed or surface 24V AC/DC input only 120V AC input requires 4410HSA-3210 transformer HSA features a scanner activated hold-open function, adjustable 15 seconds or 30 seconds Built-in "On/Off" switch provides
Handing	Handed
Size	Field adjustable, shipped at size 3
Warranty	2 years
Fasteners	Wood and machine screw pack
Mounting	Top Jamb (Push Side)
Cover	Metal, Standard		continuous hold-open feature

Special Customized installation templates or products may be available to solve unusual applications. Templates Contact LCN Product Support for assistance.

4410 HSA Series

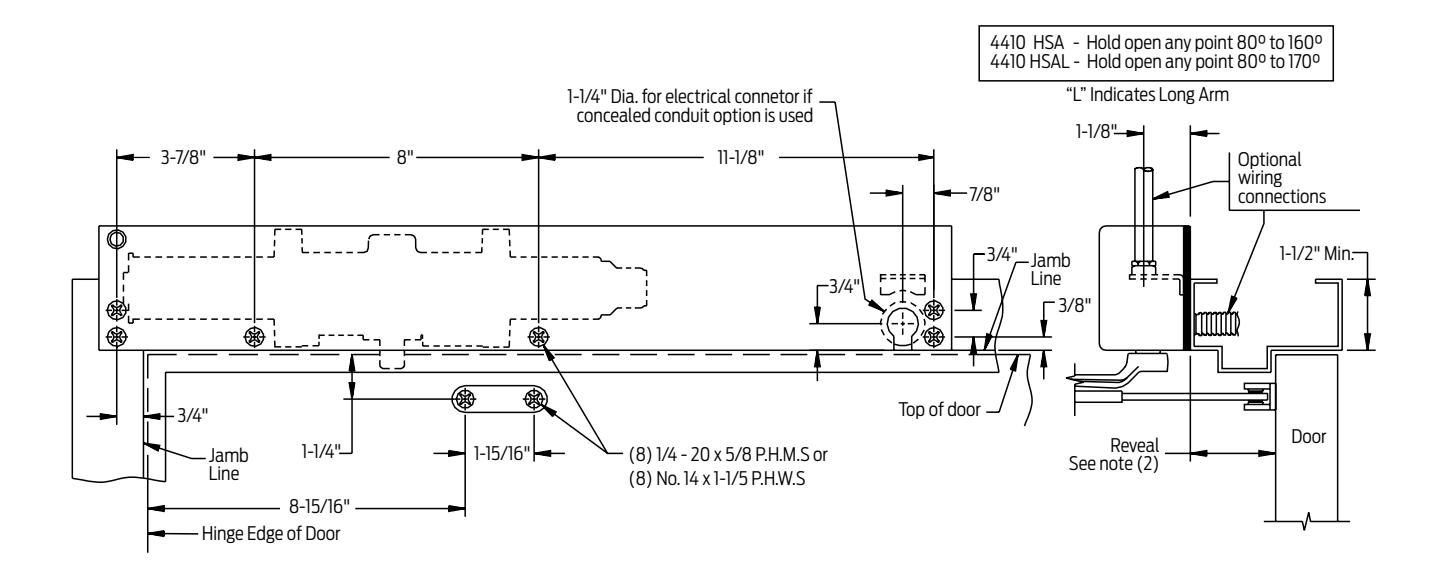

Mounting details

Top Jamb (Push) Side Mounting

Butt Hinges	Should not exceed 4-1/2˝ (114 mm) in width
Top Rail	n 1-3/4˝ (44 mm) minimum n 3-3/4˝ (95 mm) minimum with flush ceiling
Head Frame	n Requires 1-1/2˝ (38mm) minimum n 2˝ (51 mm) minimum with flush ceiling
Reveal	n 3-7/8˝ (98 mm) maximum for regular or long arm n For reveals greater than 3-7/8˝ consult factory
Maximum Opening	n Templating allows 160° n Infinite hold-open points from 80° up to 150° n Optional long arm allows 180°, hold-open points up to 170°
Options	n Optional long arm allows 180° with hold-open points up to 170° n Optional –18G plate accommodates flush ceiling conditions n 120 volt input requires 4410HSA–3210 transformer to change 120V AC to 24V AC

Cylinders

4412HSA-3971

ⁿ Handed
ⁿ Cast iron
ⁿ 24V AC/DC input only for holding solenoid
ⁿ Standard

4412HSA-3071

HSA Cylinder / Plate Assembly

ⁿ Handed
ⁿ Includes scanner module and system timer module
ⁿ "On/Off" switch assembly provides continuous hold-open function
ⁿ 24V AC/DC input only for holding solenoid and electronics modules
ⁿ Standard

Cover

4410HSA-72MC

Metal Cover

ⁿ Handed
ⁿ Standard

Arms

4410HSA-3077 Regular Arm

ⁿ Non-handed
ⁿ 3-7/8˝ (98 mm) maximum reveal

4410HSA-3077L

Long Arm

ⁿ For increased opening
ⁿ 3-7/8˝ (98 mm) maximum reveal
ⁿ Optional

Switch

4410HSA-3448

Switch Assembly

ⁿ Provides continuous hold-open function
ⁿ Available in 24V only

4410HSA-3428 Scanner Module

Scanner Installation Accessories

4410HSA-18

Mounting Plate

ⁿ Standard

4410HSA-18G

Transformer Mounting Plate

ⁿ Substituted on flush ceiling installations
ⁿ Optional

4410HSA-3210

Transformer

ⁿ Reduces line voltage from 120V to 24V AC
ⁿ Mounted on plate for 4˝ (102 mm) x 4˝ x 2-1/8˝ (54 mm) junction box (by others)

4410 HSA Series

Ordering Information

How-to-order 4410 HSA Series closers

Select hand

RH LH

Voltage

24V AC/DC

Specify finish

Standard Powder Coat __________

Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass.

Closer will be shipped with:

24 Ac/dc hsa cylinders
Metal cover
Regular arm
Wood & machine screw pack unless options listed below are selected.

Closer options

Arm

Long Arm (LONG)

Finishes

Custom Powder Coat (RAL) ___________ Plated Finish, US ___________

Screw pack

TB*, Wood & Machine Screw (TBWMS)
TORX Machine Screw (TORX)
TB* & TORX Machine Screw (TBTRX)
- * Specify door thickness if other than 1-3/4˝

Installation accessories

Plate, 4410HSA-18
Plate, 4410HSA-18G

(substituted for standard mounting plate)

Transformer,4410HSA-3210

Special template

ST- ________ (if required)

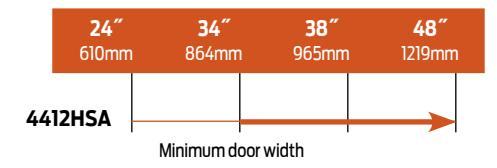

Table of sizes

ⁿ Closing power of 4410 HSA Series closers is field adjustable, shipped at size 3

Interior door width

Indicates recommended range of door width for closer size.

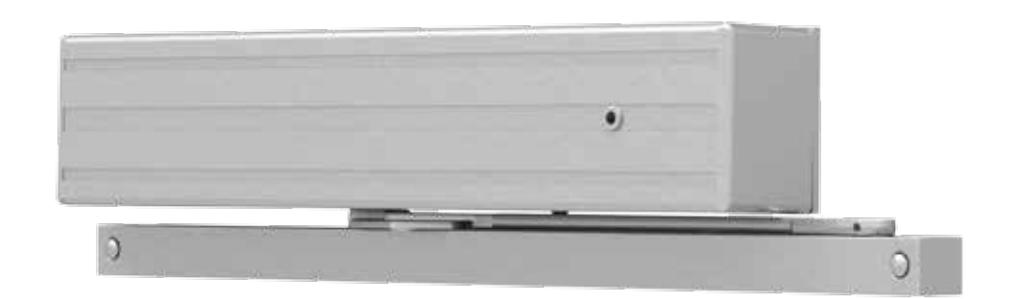

The SEH SENTRONIC® is a holder designed to provide single point hold-open for fire and smoke barrier doors that must be used with an opposite side mounted UL listed door closer. The door is held open until current interruption releases the holding mechanism and the door closes. Single lever (track) arm is specifically designed for interior doors. Choice of finishes, track functions, and installation accessories meet virtually all life safety requirements.


Certifications	Grade 1 - ANSI A156.15, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act, NFPA 101	Finishes/Colors/ Powder Coat	Aluminum (689) Statuary Bronze (690) Light Bronze (691)
Handing	Non-Handed		Black (693) Dark Bronze (695)
Templating	22 3/4″ x 1 1/4″		Brass (696)
Warranty	2 years		Custom colors optional
Fasteners	Wood and machine screw pack		Optional SRI primer - powder coat only Optional plated finishes
Mounting	Hinge (Pull Side)		- Optional placed liftisties
Arms	Standard, non-handed arm for any 4040SE Series Standard, non-handed track for SEH Specify 24V or 120V AC/DC input for holding solenoid Includes test switch assembly with fuse	Wiring	Concealed or surface 24V or 120V, please specify Interfaces with alarm system, please consult with factory for full details

Special Templates

Customized installation templates or products may be available to solve unusual applications. Contact LCN Product Support for assistance.

SEH Series

Mounting details

Hinge (pull) side & Stop face (push side) Mountings

Hinge (pull) side mount

Stop face (push side) mount


Butt Hinges	Should not exceed 5" (127 mm) in width
Swing Clear Hinges	Consult factory
Auxiliary Stop	Recommended at hold-open point
Reveal	Should not exceed 1/8" (3 mm) for standard arm
Head Frame	Requires 2" (51 mm) minimum
Stop Width	1-1/4″ (32 mm) minimum
Flush Ceiling	2" (51 mm) head frame does not require special templating
Door Width	2'4" (711 mm) minimum for single door with SEH 4'8" (1422 mm) minimum for paired doors with SEH
Maximum Opening	Templating allows 100° Hold-open points between 80° and 100° in approximately 3° increments
SEH Electrical Options	These track assemblies require a single power circuit for the holding solenoid SEH holding solenoid is either 24V or 120V input, please specify An optional 4040SE-3210 TRANSFORMER or 8310-824 reduces 120V AC line voltage to 24V AC. Circuitry accepts either AC or DC input
Options	24V or 120V volt input for SEH, please specify
Wiring Diagram	See "FIRE/LIFE SAFETY" section page 19 for typical wiring and electrical diagram
latas

· Information applies to SEH unless otherwise specified
· Standard SEH Series is a door holder that must be installed in conjunction with an opposite side mounted, UL listed door closer
· Hold-open force is adjustable
$\cdot \textit{Momentary on/off switch board assembly for testing door release also provides over-voltage protection. \textit{Field replaceable}}$
· All SEH type holders require a separate closer for fire or smoke barrier door applications

Arm

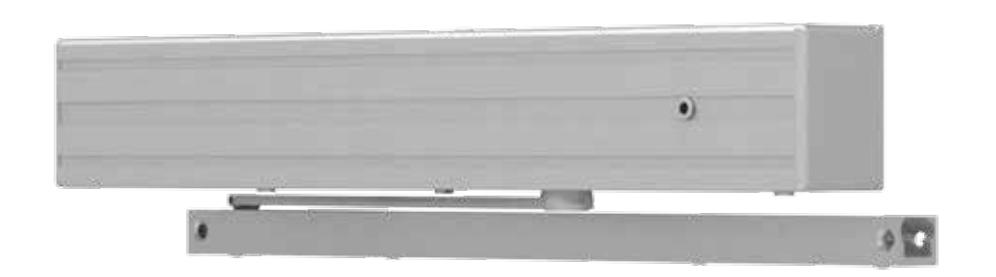

SEH-3077T Holder Arm

ⁿ Non-handed
ⁿ Can be combined with any 4040SE Series track to provide an electrically controlled holdopen function on either side of the door WIRING DIAGRAM
- ⁿ All SEH type holders require a separate closer for fire or smoke barrier door applications
