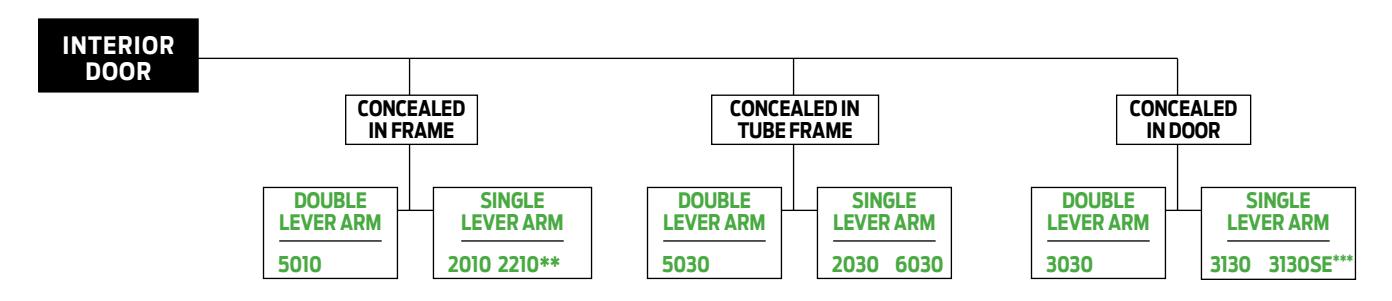

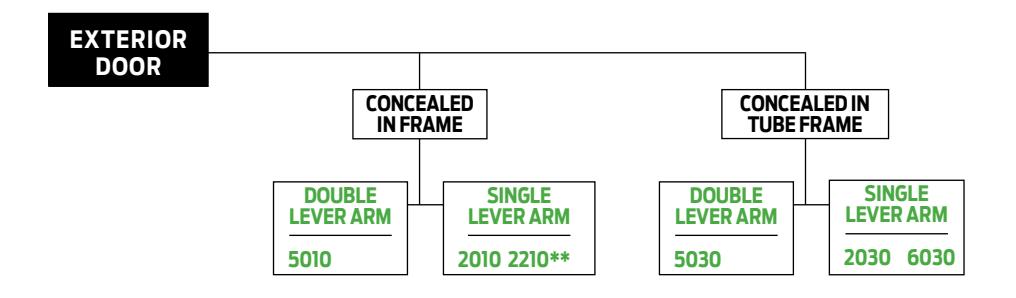

Product selection guide

The concealed LCN closers feature a modern design for concealment in either the head frame or top rail of the door. This guide is based on the desired mounting of the closer.

^** INDICATES HIGH SECURITY CLOSER, DOOR POSITION SWITCH OPTIONAL. REFER TO HIGH SECURITY SECTION OF THE CATALOG.

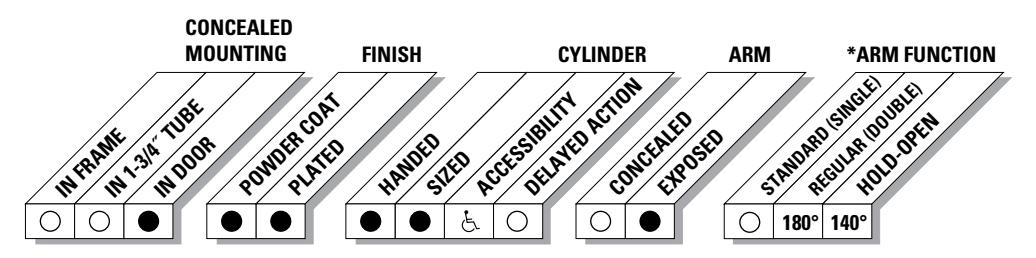

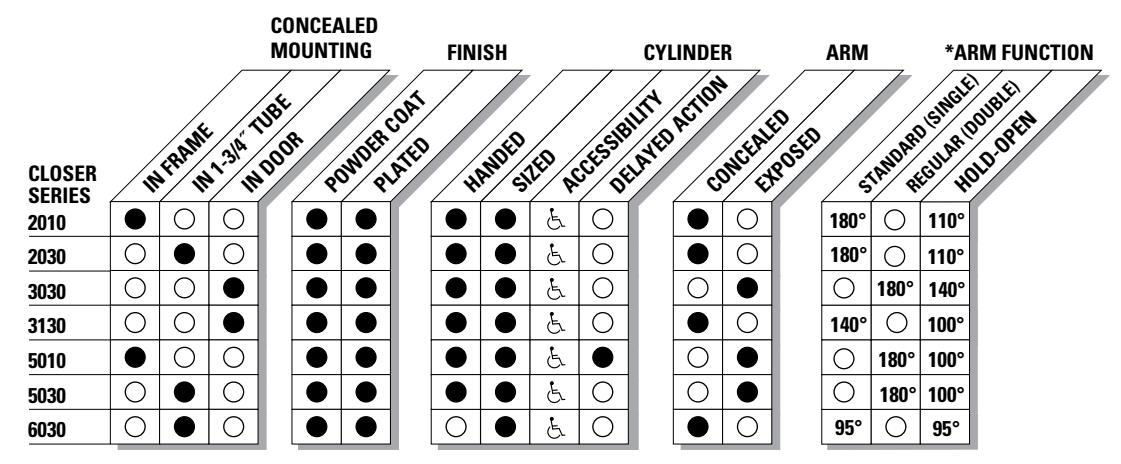

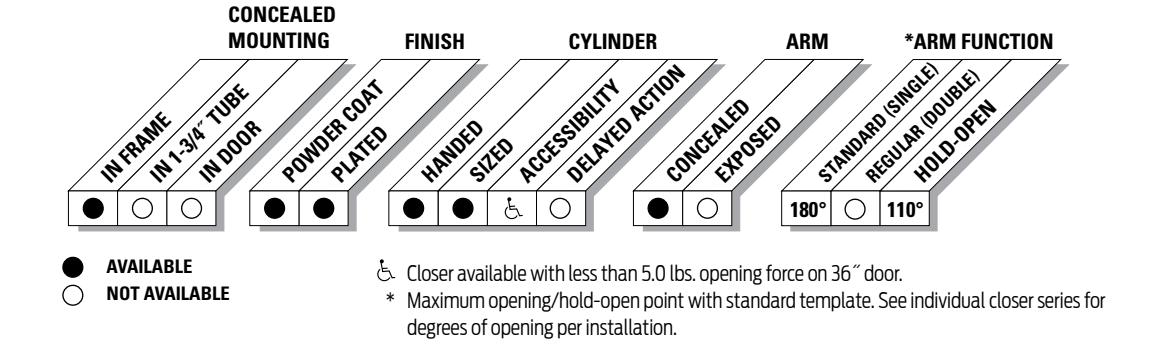

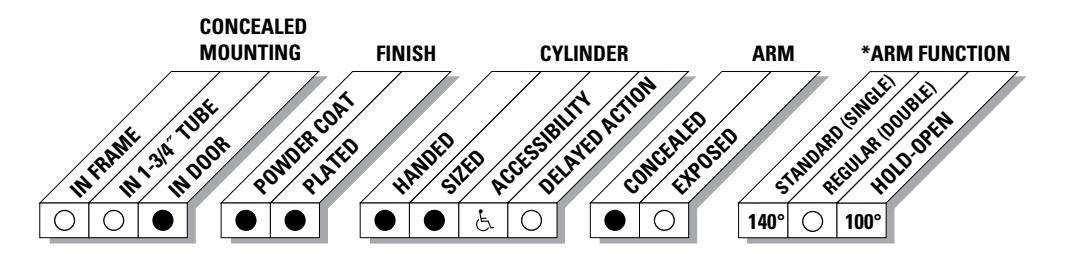

Product comparison

This chart shows a basic comparison of LCN concealed closers. Refer to the specific closer chapter for complete details.

AVAILABLENOT AVAILABLE

^* Maximum opening/hold-open point with standard template. See individual closer series for degrees of opening per installation.

^*** INDICATES FIRE LIFE SAFETY CLOSER. REFER TO FIRE LIFE SAFETY SECTION.

Closer available with less than 5.0 lbs. opening force on 36 "door.

Concealed closer series

APPLICATIONS

n For aluminum, hollow metal, or wood doors and frames.
n Can be used with hinge or pivot mounted door.
n Closers for 4˝ or minimum 1-3/4˝ head frame or 4˝ top rail.
n Mounting clips for wood frames and other installation accessories available for unusual conditions.
n For concealed in door closers consult factory for installations with pivots.

FEATURES COMMON TO CONCEALED CLOSERS

n Mountings for head frame or door top rail.
n Handed for right or left swinging doors. (except 6030)
n Closers to meet ADA reduced opening force requirements.
ⁿ Adjustable hydraulic backcheck cushions opening swing prior to 90°.
n Separate regulation of general closing speed and latching speed.
ⁿ Joints in arm and shoe adapt to uneven trim. (for double lever arms)

DESIGN ASSISTANCE

LCN has been providing reliable solutions to unique door control problems since 1925. Design and specification assistance are only a phone call away. Contact LCN for assistance or technical information at 877-671-7011 or FAX 800-248-1460 (Order Entry), Fax 815-879-1495 for Product Support.

WARRANTY

15 year limited warranty. See General Information Section for complete warranty details.

SPECIFICATIONS

Refer to "SPECIFICATIONS"section for suggested architectural specifications.

MATERIALS

(Closers concealed in the door or frame)

n High strength cast iron cylinder.
n Forged steel main arms (except 6030).
n One piece forged steel piston.
n All weather fluid in overhead concealed models performs to temperature ranges from 120°F (49°C) to -30°F (-35°C) without any seasonal adjustment.
n High efficiency, full complement , low friction bearings.
n Tamper resistant regulating screws.
n Full rack and pinion hydraulic action.
n Quiet, low friction track and roller combination for all single lever (standard) arm closers.

FINISHES

n Available in six standard or a wide selection of optional custom powder coat finishes to blend with door and frame.
n LCN's powder coat finishes surpass 100 hours of salt spray which is over four times the ANSI standard for corrosion resistance.
n For installations where a higher level of corrosive resistance is required, LCN offers an optional special rust inhibiting (SRI) pretreatment. Closers that combine the exclusive LCN powder coat finish and the SRI pre-treatment exceed the ANSI standard for corrosion resistance even further.
n Plated finishes are available as an option to accent door and frame. (SRI not available with plated finishes)

LISTINGS & APPROVALS

UL listed for self-closing doors without hold-open under "SWINGING DOOR CLOSERS" (GVEV) file R 1943.

Tested and certified under ANSI Standard A156.4. Consult factory for details.

Consult factory for other listings such as; cUL, California State Fire Marshal, Bureau of Standards and Appeals.

POSITIVE PRESSURE

LCN closers have been certified for three hours by UL to be in compliance with UL 10 C. Contact LCN for specific details on door closer fire ratings.

FASTENERS

Standard WOOD and MACHINE SCREW (WMS) pack contains phillips head wood and machine screws to install the closer.

TORX machine screws are available for some closers.

Note 1: Phillips head, metric machine screws are available, please specify.

MAINTENANCE

Closers mounted according to LCN installation instructions require no periodic maintenance or adjustments.

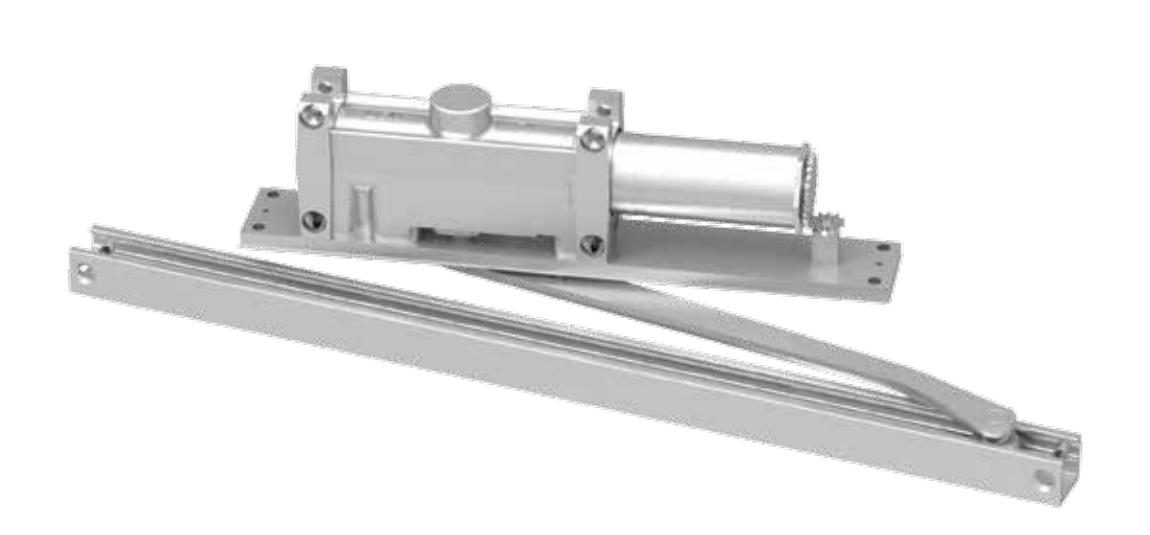

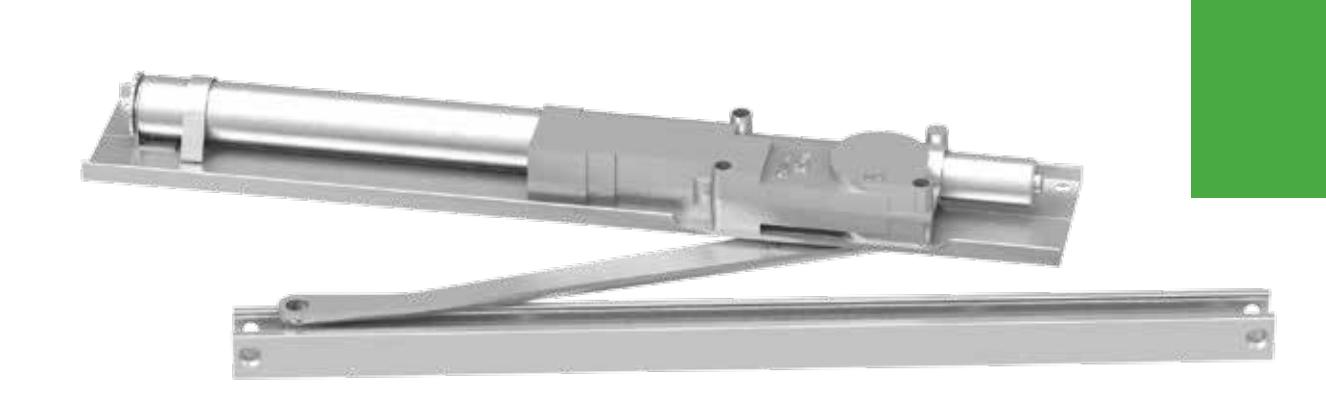

The concealed 2010 Series is a heavy duty closer designed to provide complete concealment. The single lever arm and roller assembly provide smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements.

Certifications	Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act
Body Construction	Cast Iron Body Full Complement Bearing 1-1/2" Diameter Piston 11/16" Diameter Double Heat Treated Pinion Journal
Fluid	All Weather Fluid
Handing	Handed
Size	Sized 1-6
Warranty	15 years

Fasteners	Wood and Machine Screw Pack
Mounting	Concealed (in frame); aluminum frame requires minimum $4^{\prime\prime}$ x $4^{\prime\prime}$ (102 mm) tube
Arms	Standard arm and track
Finishes/Colors/ Powder Coat	Aluminum (689) Statuary Bronze (690) Light Bronze (691) Black (693) Dark Bronze (695) Brass (696) Custom colors optional
	Optional SRI primer - powder coat only Optional plated finishes

Special Templates

Customized installation templates or products may be available to solve unusual applications. Contact LCN Product Support for assistance.

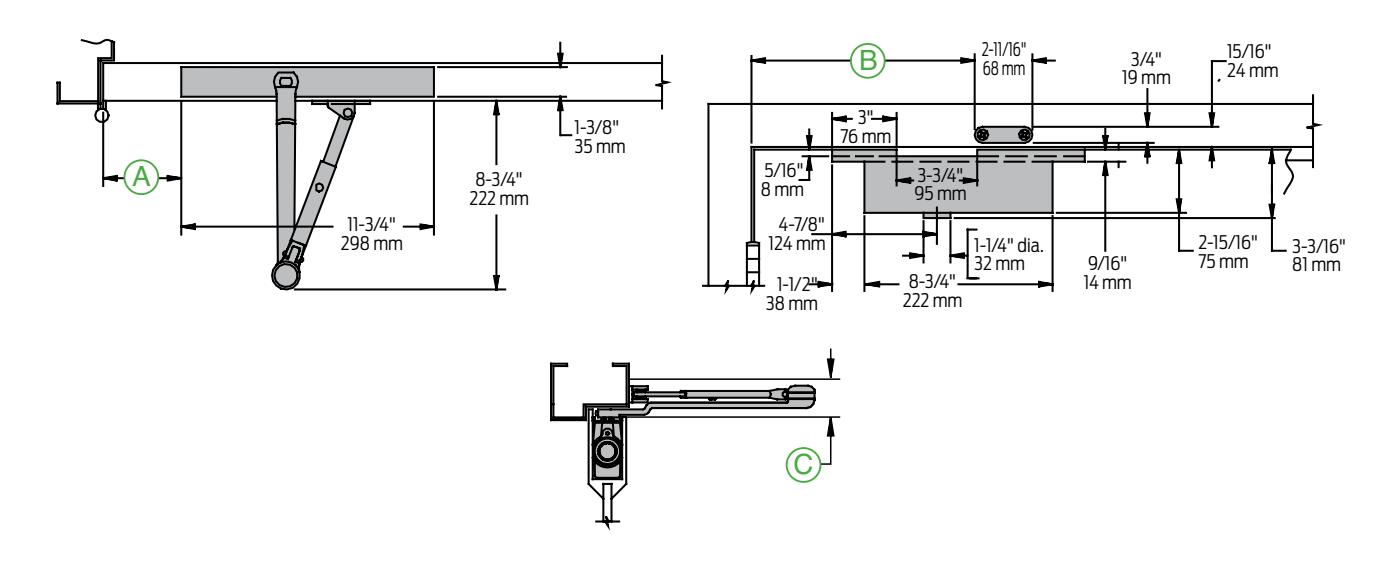

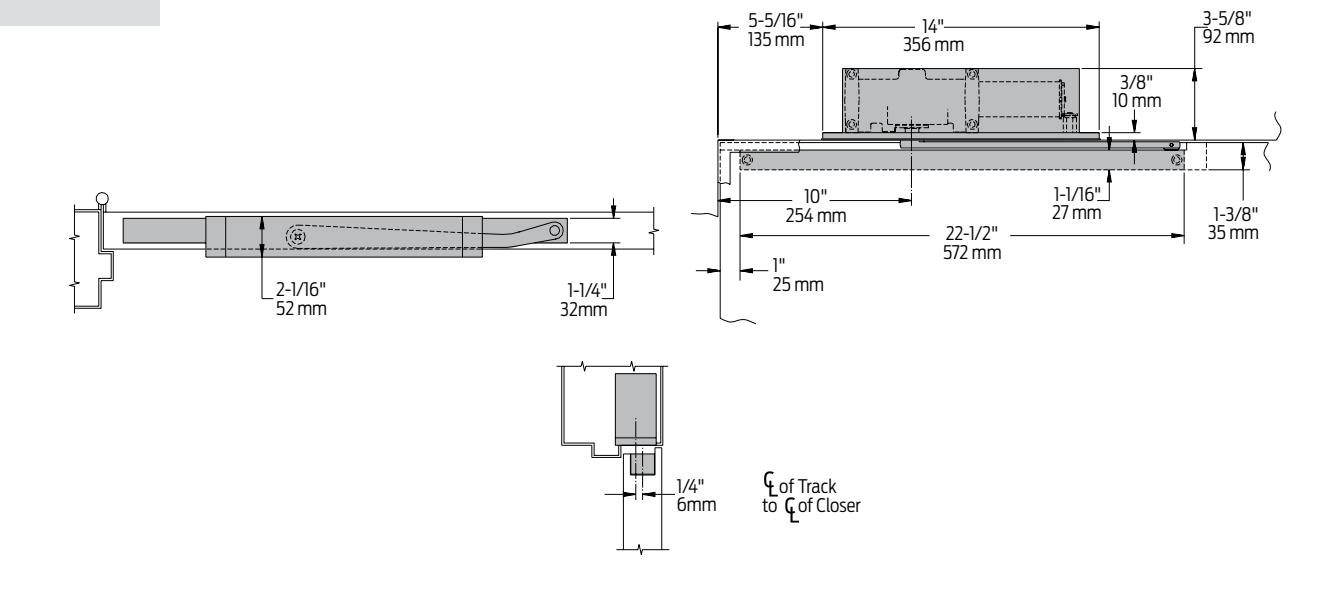

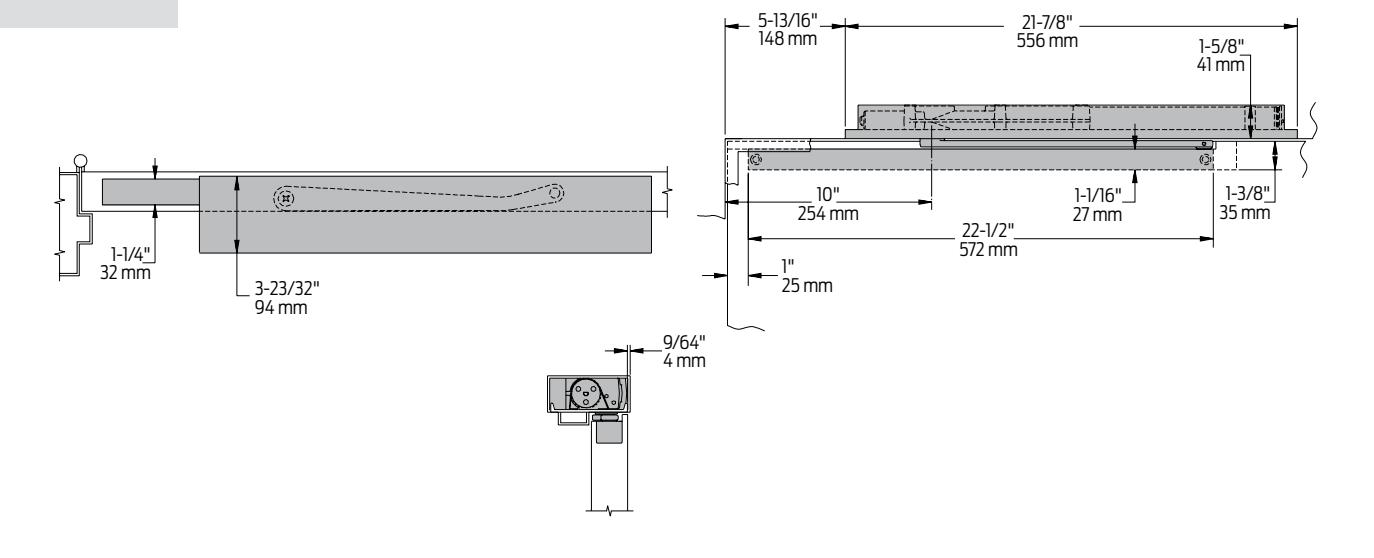

Mounting details

Concealed Mounting

Butt Hinges	Should not exceed 5˝ (127 mm)in width
Auxiliary Stop	n Recommended where a door cannot swing 180° n Optionaltrack bumper assembly assists backcheck in cushioning the opening swing ofthe door(notintended to replace an auxiliary stop).
Top Rail	n 1-3/8˝ (35 mm) mortise required n With Fire Shield, 1-13/32˝ (36 mm) mortise required n 5/16˝ (8 mm) cutoutrequired attop ofthe door, stop face only
Door Thickness	1-3/4˝ (44 mm) minimum
Hollow Metal Frame	Consult factory for installation instructions
Maximum opening	n Butt hinge template allows 180°,trim permitting n Limited to 110° when optional bumper is installed n Adjustable hold-open points from 85° to 110°, with hold-open track
	n Offset pivottemplate allows 110°,trim permitting n Limited to 95° when optional bumper is installed n Adjustable hold-open points from 75° to 95°, with hold-open track
	n Center pivottemplate allows 120°,trim permitting n Limited to 95° when optional bumper is installed n Adjustable hold-open points from 75° to 95°, with hold-open track

Notes:

• For interior or exterior doors
• Single acting cylinder in head frame
• Concealed arm and track in door top rail

Cylinders

2011(3)(4)(5)(6)-3071 Cast Iron Cylinder Assembly

ⁿ Handed
ⁿ With mounting plate
ⁿ Standard

2010-3077T Standard Arm

ⁿ Handed
ⁿ Track roller notincluded with arm

Cylinder Arm Installation Accessories

2010-420 Fire Shield

ⁿ 22 gauge steel liner mounts in the track mortise ofthe door's top rail for 20 minute labeled wood doors

2010-169 Track Bumper

ⁿ Mounts in track to assist backcheck
ⁿ Limits maximum opening
ⁿ Consists of bumper, bumper post, and mounting screw

NOTE: Track bumper does not replace auxiliary stop.

Tracks

2010-3038 Standard Track

ⁿ Non-handed
ⁿ Non hold-open
ⁿ Will accept hold-open clip and/or bumper assembly.
ⁿ Standard

2010-3038B

Standard Track with Bumper

ⁿ Non-handed
ⁿ Non hold-open
ⁿ Will accept hold-open clip
ⁿ Optional

2010-3054

Hold-Open Clip

ⁿ Mounts in track to provide holdopen function
ⁿ Hold-open point controlled by clip location
ⁿ Requires 2010-3034H

2010-3034

Track Roller

ⁿ Quiet, low friction roller assembly
ⁿ Shoulder dimension "X" = 1/16˝ (2mm)

2010-3038H Hold-Open Track

ⁿ Non-handed
ⁿ Will accept bumper assembly
ⁿ Optional

2010-3038HB

Hold-Open Track with Bumper

ⁿ Non-handed
ⁿ Optional

2010-3034H

Hold-Open Track Roller

ⁿ Quiet, low friction roller assembly
ⁿ Shoulder dimension "X" = 1/16˝ (2mm)

Ordering Information How-to-order 2010 Series closers

Table of sizes

ⁿ Select closer based on width of door.
ⁿ 2010 Series cylinders available in size 1, 3, 4, 5, or 6.
ⁿ Closing power of all 2010 Series closers may be increased 15%.
ⁿ Specify next higher size closer where strong drafts exist.

Closer will be shipped with:

Standard cylinder with finish plate
Standard arm
Standard track
Wood and machine screw pack unless options listed below are selected.

Select cylinder size	Select hand
2011	RH
2013	LH
2014

2015 2016 Specify finish

Standard Powder Coat__________ Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass.

Closer options

Tracks

Standard with Bumper(BUMPER)

Hold-open (H)

Hold-open with Bumper(HBUMPER)

Finishes

Custom Powder Coat(RAL)_____________

Plated Finish, US ______________

SRI primer(use with powder coatfinishes only)

Screw pack

TORX Machine Screw (TORX)

Installation accessories

Fire Shield, 2010-420

Special template

ST-________

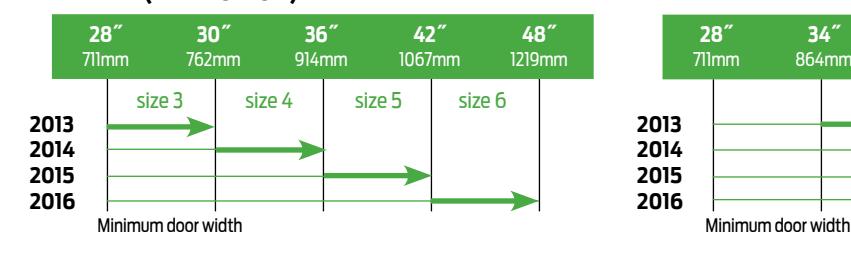

Exterior (and Vestibule) door width

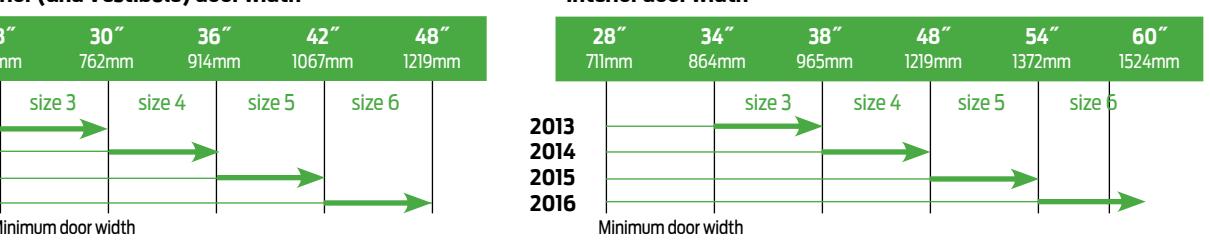

Interior door width

Indicates recommended range of door width for closer size.

Reduced opening force 2010 Series closers

CAUTION ! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4,thatis selected, installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient powerto reliably close and latch a door.

Referto POWER OPERATORS section for information on systems that meetreduced opening force requirements without affecting closing power.

* Maximum opening force.

DOOR WIDTH	36˝	42˝	48˝
8.5* lbs.	2014	2014	2015
5.0* lbs.	2011	2011	2013

The concealed 2030 Series PACER® is a heavy duty closer designed to fit in a narrow, minimum 1-3/4" aluminum transom. The single lever arm and roller assembly provide smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements.

Certifications	Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act
Body Construction	Cast Iron Body Full Complement Bearing 11/8" Diameter Piston 11/16" Diameter Double Heat Treated Pinion Journal
Fluid	All Weather Fluid
Handing	Handed
Size	Sized 1-5
Warranty	15 years

Fasteners	Wood and Machine Screw Pack
Mounting	Concealed (in tube); aluminum frame requires minimum 1-3/4″ (44 mm) x 4″ (102) mm) tube
Arms	Standard arm and track
Finishes/Colors/ Powder Coat	Aluminum (689) Statuary Bronze (690) Light Bronze (691) Black (693) Dark Bronze (695) Brass (696) Custom colors optional
	Optional SRI primer - powder coat only Optional plated finishes

Special Templates

Customized installation templates or products may be available to solve unusual applications. Contact LCN Product Support for assistance.

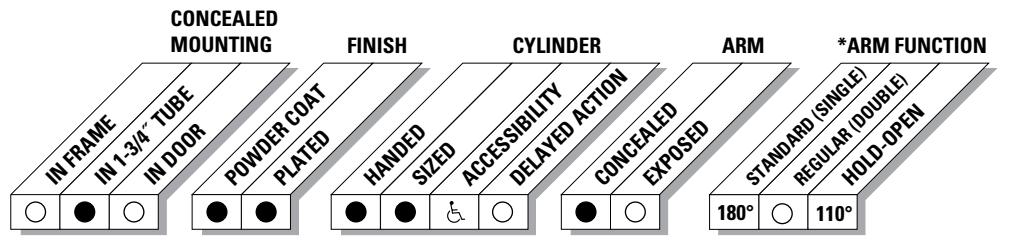

AVAILABLE
O NOT AVAILABLE
Closer available with less than 5.0 lbs. opening force on 36" door.
Maximum opening/hold-open point with standard template. See individual closer series for degrees of opening per

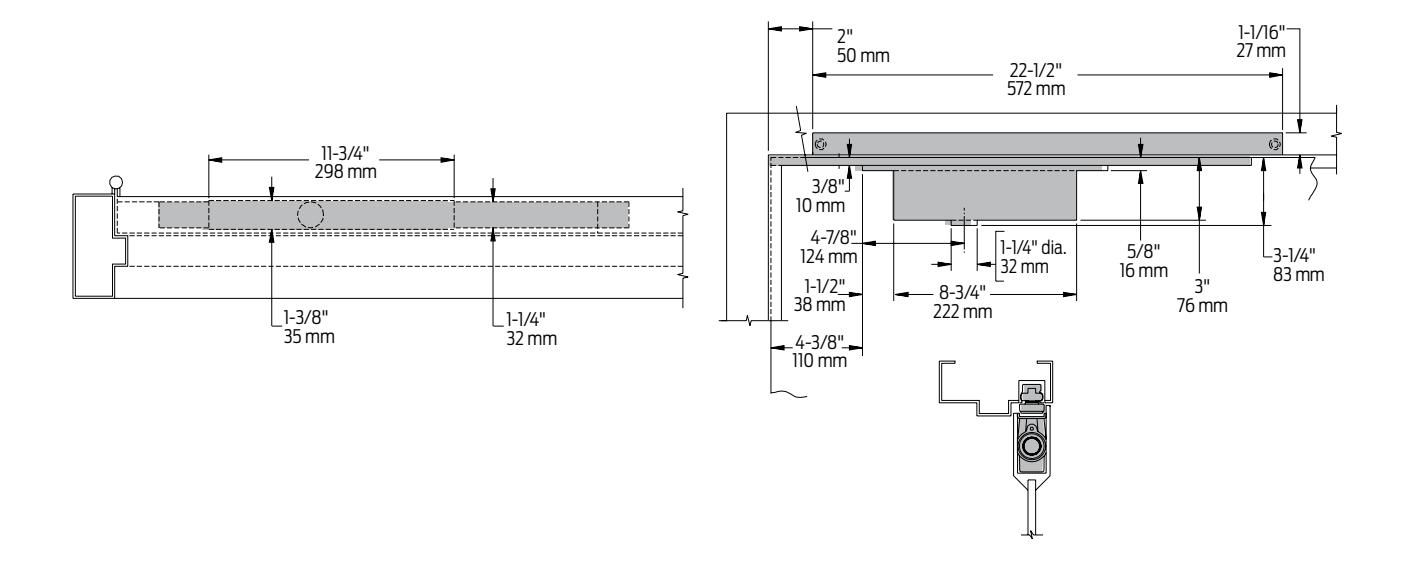

Mounting details

Concealed Mounting

Butt Hinges	Should not exceed 5" (127 mm) in width
Auxiliary Stop	Recommended where a door cannot swing 180° Optional track bumper assembly assists backcheck in cushioning the opening swing of the door (not intended to replace an auxiliary stop).
Top Rail	1-3/8" (35 mm) mortise required With Fire Shield, 1-13/32" (36 mm) mortise required 5/16" (8 mm) cutout required at top of the door, stop face only
Door Thickness	1-3/4" (44 mm) minimum
Hollow Metal Frame	Consult factory for installation instructions
Wood Frame	Installation simplified by WOOD MOUNTING CLIP SET 2030-416 for center pivoted or 2030-417 for offset pivoted and butt hung installations. Consult factory for preparation details.
Maximum opening	Butt hinge template allows 180°, trim permitting Limited to 110° when optional bumper is installed Adjustable hold-open points from 85° to 110°, with hold-open track
	Consult factory if door will be held open at 180°
	Offset pivot template allows 115°, trim permitting. Limited to 95° when optional bumper is installed Hold-open point from 85°, with hold-open track
	Center pivot template allows 120°, trim permitting Limited to 100° when optional bumper is installed Adjustable hold-open points from 85° to 100°, with hold-open track

Notes:

· For interior or exterior doors
· Single acting cylinder in head frame
$\boldsymbol{\cdot} \textit{Concealed arm and track in door top rail}$

Cylinders Cylinder

2031(2)(3)(4)(5)-3071 Cast Iron Cylinder Assembly

ⁿ Handed
ⁿ With mounting plate
ⁿ Standard

Arm

2030-3077T Standard Arm

ⁿ Handed
ⁿ Track roller notincluded with arm

Cylinders Tracks

2030-3038

Standard Track

ⁿ Non-handed
ⁿ Non hold-open
ⁿ Will accept hold-open clip and/or bumper assembly
ⁿ Standard

2030-3038B

Standard Track with Bumper

ⁿ Non-handed
ⁿ Non hold-open
ⁿ Will accept hold-open clip
ⁿ Optional

2030-3038H

Hold-Open Track

ⁿ Non-handed
ⁿ Will accept bumper assembly
ⁿ Optional

2030-3038HB

Hold-Open Track with Bumper

ⁿ Non-handed
ⁿ Optional

Installation Accessories

2030-420 Fire Shield

ⁿ 22 gauge steel liner mounts in the track mortise ofthe door's top rail for 20 minute labeled wood doors

2030-416

Wood Mounting Clip Set

ⁿ Simplifies mounting center pivoted 2030 closer in wood frame
ⁿ Includes latch stile clip, hinge stile clip, and cover
ⁿ For use with Ives Series center pivots
ⁿ Consult factory for special template

2030-417

Wood Mounting Clip Set

ⁿ Simplifies mounting offset pivoted or butt hung 2030 closer in wood frame
ⁿ Includes two clips
ⁿ For use with offset pivots
ⁿ Consult factory for special template

2030-169

Track Bumper

ⁿ Mounts in track to assist backcheck. Limits maximum opening.
ⁿ Consists of bumper, bumper post, and mounting screw

NOTE: Track bumper does not replace auxiliary stop

2030-3054

Hold-Open Clip

ⁿ Mounts in track to provide holdopen function
ⁿ Hold-open point controlled by clip location
ⁿ Requires 2030-3034H Hold-Open Track Roller

2030-3034

Track Roller

ⁿ Quiet, low friction roller assembly
ⁿ Shoulder dimension "X" = 1/16˝ (2mm)

2030-3034H

Hold-Open Track Roller

ⁿ Quiet, low friction roller assembly
ⁿ Shoulder dimension "X" = 1/16˝ (2mm)

How-to-order 2030 Series closers

Select cylinder size 2031 2032 2033 2034 2035

Specify finish

Standard Powder Coat__________ Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass

Closer will be shipped with:

Standard cylinder with mounting plate
Standard arm
Standard track
Wood and machine screw pack unless options listed below are selected.

Closer options

Select hand RH LH

Tracks Standard with Bumper(BUMPER) Hold-open (H) Hold-open with Bumper(HBUMPER) Finishes Custom Powder Coat(RAL)_ Plated Finish, US __ SRI primer(use with powder coatfinishes only)

Installation accessories

Fire Shield, 2030-420 Wood Clip Set, 2030-416 Wood Clip Set, 2030-417

Screw pack

TORX Machine Screw (TORX)

Special template

ST-________

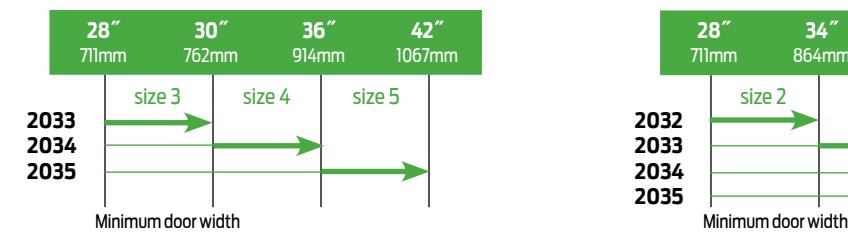

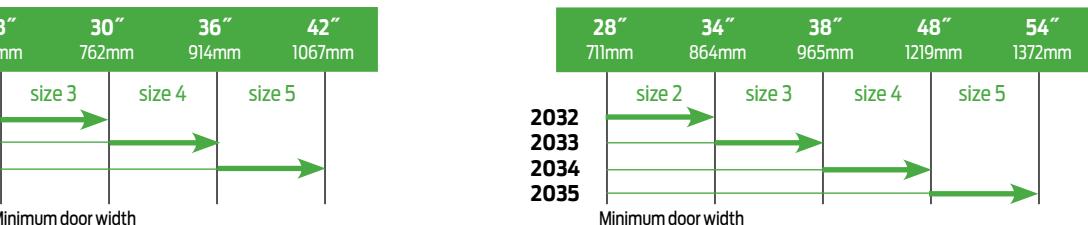

Table of sizes

ⁿ Select closer based on width of door.
ⁿ 2030 Series cylinders available in size 1, 2, 3, 4, or 5.
ⁿ Closing power of all 2030 Series closers may be increased 35%.
ⁿ Specify next higher size closer where strong drafts exist

Exterior (and Vestibule) door width

Interior door width

Indicates recommended range of door width for closer size.

Reduced opening force 2030 Series closers

Referto POWER OPERATORS section for information on systems that meetreduced opening force requirements without affecting closing power.

	* Maximum opening force.

DOOR WIDTH	36˝	42˝	48˝
8.5* lbs.	2033	2033	2034
5.0* lbs.	2031	2032	2032

Notes

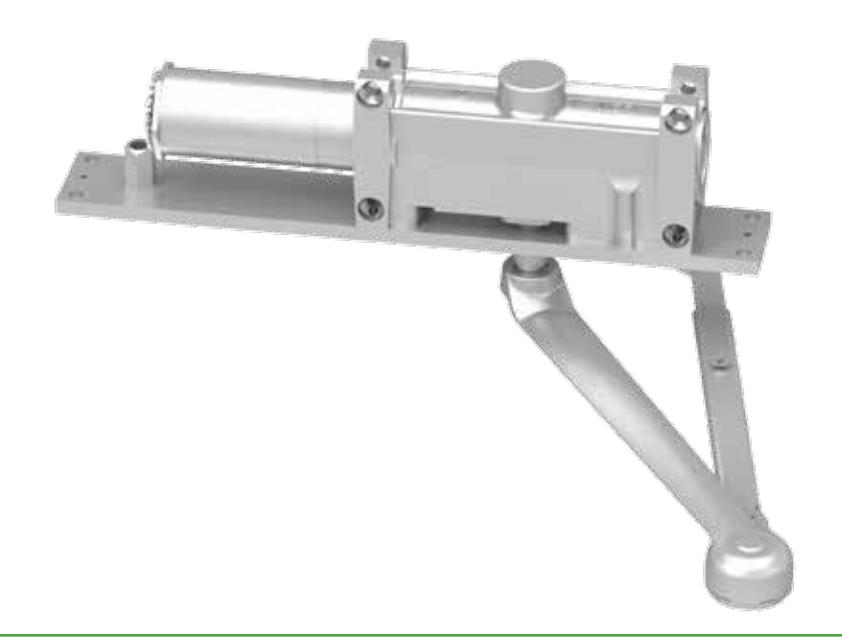

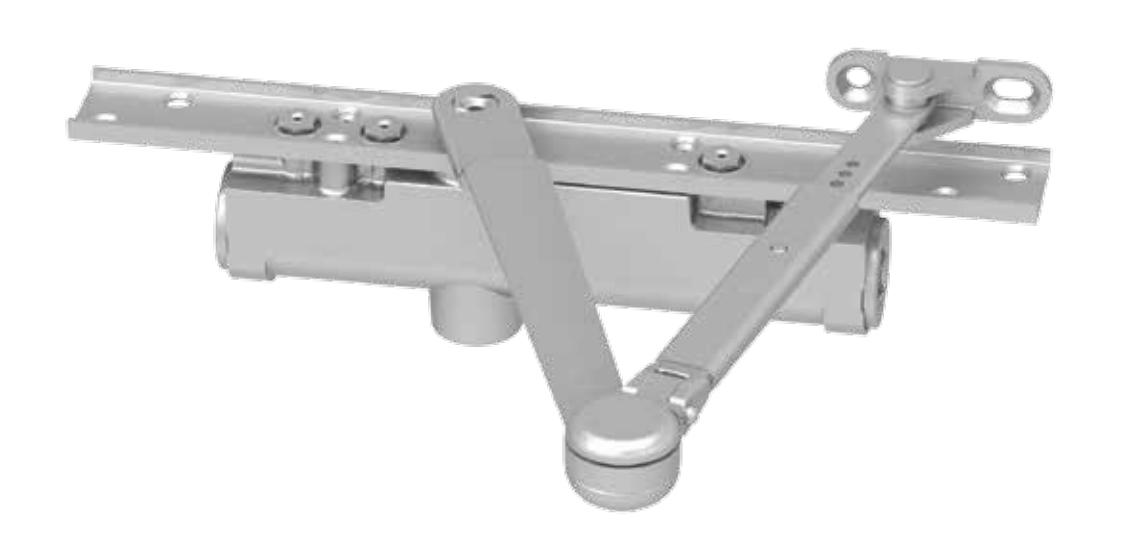

The concealed 3030 Series is designed to mount in a 1-3/4" interior door. The double lever arm provides superior door control and the choice of finishes and arm functions meet virtually all architectural requirements.

Certifications	Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act
Body Construction	Cast Iron Body Full Complement Bearing 1-1/8" Diameter Piston 1/2" Diameter Double Heat Treated Pinion Journal
Fluid	All Weather Fluid
Handing	Handed
Size	Sized 1-4
Warranty	15 years

Fasteners	Wood Screws and Torx Security Screws (optional)
Mounting	Concealed (in door); consult factory for installations with pivots
Arms	Regular arm
Finishes/Colors/ Powder Coat	Aluminum (689) Statuary Bronze (690) Light Bronze (691) Black (693) Dark Bronze (695) Brass (696) Custom colors optional
	Optional SRI primer - powder coat only Optional plated finishes

Special Templates

Customized installation templates or products may be available to solve unusual applications. Contact LCN Product Support for assistance.

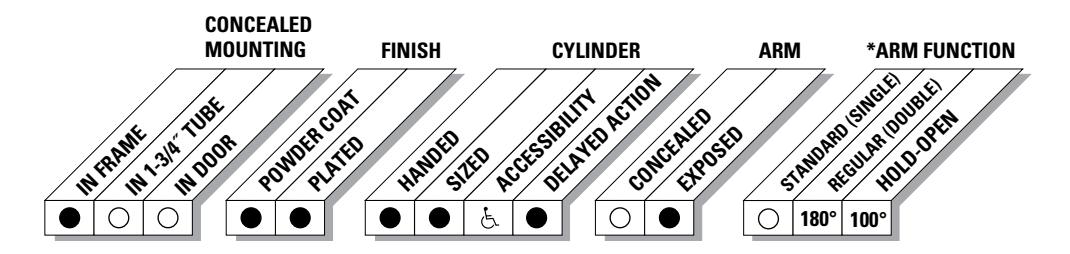

AVAILABLE
O NOT AVAILABLE
& Closer available with less than 5.0 lbs. opening force on 36" door.
* Maximum opening/hold-open point with standard template. See individual closer series for degrees of opening per installation.

D13

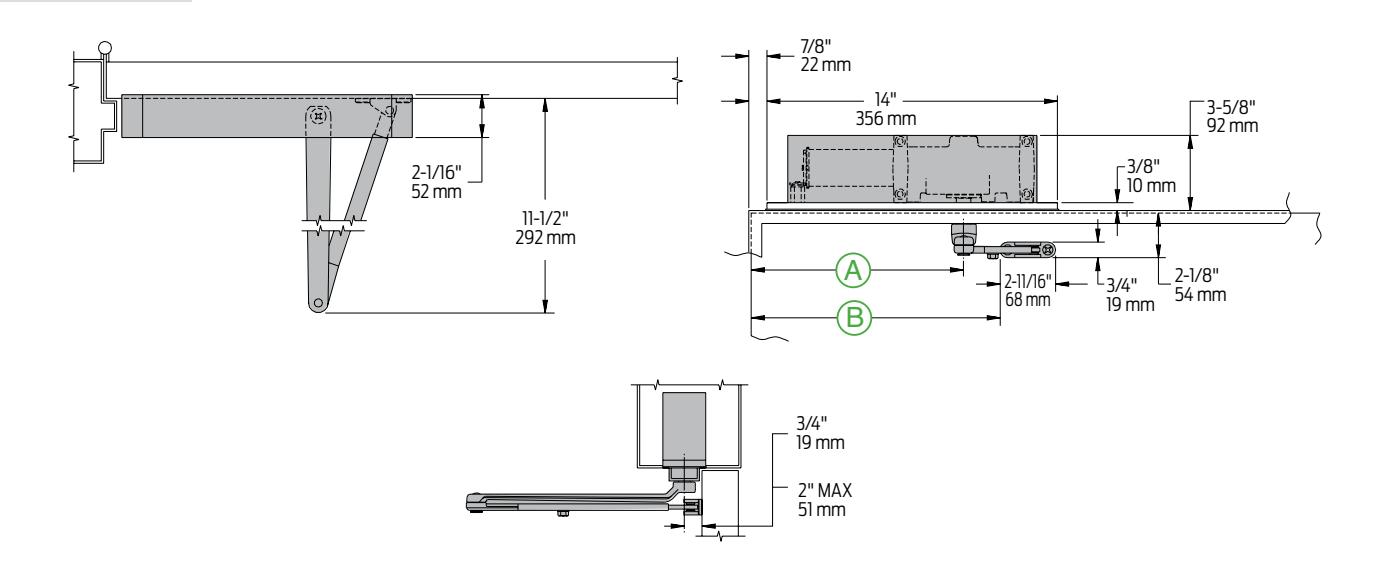

Mounting details

Concealed Mounting

Butt Hinges	Should not exceed 5" (127 mm) in width
Auxiliary Stop	Recommended at hold-open point or where a door cannot swing 180°
Top Rail	Minimum 4" (102 mm) required
Door Thickness	1-3/4" (44 mm) minimum Please consult the door manufacturer to assure that the door integrity and warranty is maintained after installing the 3030 Series door closer in a 1-3/4" thick wood door
Maximum opening	Can be templated for 100°: A = 3-5/8″ (92 mm) B = 10-1/4″ (260 mm)
	130°: A = 2-5/8″ (67 mm) B = 9-1/4″ (235 mm)
	180°: A = 1-5/8" (41 mm) B = 8-1/4" (210 mm)
	Hold-open points up to maximum opening or 140°, whichever is less, with hold-open arm.
	Arm clearance above door C = 1-1/4" (32 mm) minimum

Notes:

· For interior or exterior doors
· Single acting cylinder in top rail of door
· Exposed arm on hinge side of door

Cylinder Arms

3031(2)(3)(4)-3071 Cast Iron Cylinder Assembly

ⁿ Handed
ⁿ With mounting plate
ⁿ Standard

3030-3077 Regular arm

ⁿ Non-handed

3030-3049 Hold-open arm

ⁿ Handed

ⁿ Provides hold-open function, adjustable at elbow
ⁿ Optional

Ordering Information

How-to-order 3030 Series closers

Select cylinder size

3031

3032

3033

3034

Select hand

Specify finish

Standard Powder Coat__________

Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass.

Closer will be shipped with:

Standard cylinder with mounting bracket
Regular arm
Wood and machine screw pack unless options listed below are selected.

Closer options

Arm

Hold-open (H)

Finishes

Custom Powder Coat(RAL)___________

Plated Finish, US ______________

SRI primer(use with powder coatfinishes only)

Screw pack

TORX Machine Screw (TORX)

Special template

ST-________

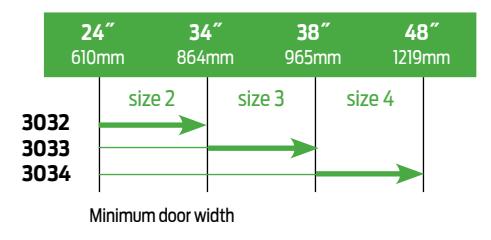

Table of sizes

ⁿ Select closer based on width of door
ⁿ 3030 Series cylinders available in size 1, 2, 3, or 4
ⁿ Closing power of all 3030 Series closers may be increased 15%

Interior door width

Indicates recommended range of door width for closer size.

Reduced opening force 3030 Series closers

Referto POWER OPERATORS section for information on systems that meetreduced opening force requirements without affecting closing power.

DOOR WIDTH	36˝	42˝	48˝
8.5* lbs.	N/A	N/A	N/A
5.0* lbs.	3031	3031	3032

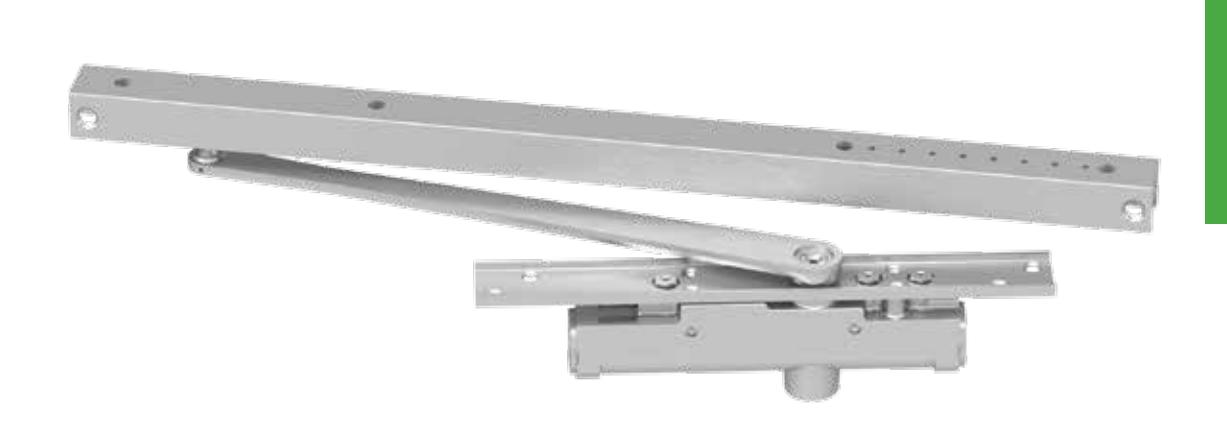

The concealed 3130 Series is designed to mount in a 1-3/4" interior door. The single lever arm and roller assembly provides complete concealment and the choice of finishes and track functions meet virtually all architectural requirements.

Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act
Cast Iron Body Full Complement Bearing 1-1/8" Diameter Piston 1/2" Diameter Double Heat Treated Pinion Journal
All Weather Fluid
Handed
Sized 1-3
15 years


Fasteners	Wood Screws and Torx Security Screws (optional)
Mounting	Concealed (in door); consult factory for installation with pivots
Arms	Standard arm and track
Finishes/Colors/ Powder Coat	Aluminum (689) Statuary Bronze (690) Light Bronze (691) Black (693) Dark Bronze (695) Brass (696) Custom colors optional
	Optional SRI primer - powder coat only Optional plated finishes

Special Templates

Customized installation templates or products may be available to solve unusual applications. Contact LCN Product Support for assistance.

AVAILABLENOT AVAILABLE
Closer available with less than 5.0 lbs. opening force on 36" door.
- * Maximum opening/hold-open point with standard template. See individual closer series for degrees of opening per installation.

Mounting details

Concealed Mounting


Should not exceed 5˝ (127 mm)in width
n Recommended at hold-open point or where a door cannot swing 140° n Optionaltrack bumper assembly assists backcheck in cushioning the opening swing ofthe door. Itis notintended to replace an auxiliary stop
Minimum 4˝ (102 mm)required
n 1-3/4˝ (44 mm) minimum. n Please consultthe door manufacturerto assure thatthe door integrity and warranty is maintained after installing the 3130 Series door closer in a 1-3/4˝ thick wood door
2´2˝ (660 mm) minimum
n Templating allows 140°,trim permitting. 100° with optional bumper installed n Adjustable hold-open points from 85° to 100°, with hold-open track

Notes:

• For interior doors
• Single acting cylinder and standard arm in top rail of door
• Concealed track in head frame
• Consult factory for installations with pivots.

Cylinder

3131(2)(3)-3071 Cast Iron Cylinder Assembly

ⁿ Handed
ⁿ With mounting plate
ⁿ Standard

Arm

3130-3077T

Standard Arm

ⁿ Handed
ⁿ Track roller notincluded with arm
ⁿ Standard

Tracks

3130-3038

Track

ⁿ Non-handed ⁿ Non hold-open
ⁿ Will accept hold-open clip and/ or bumper assembly
ⁿ Standard

3130-3038B

Standard Track with Bumper

ⁿ Non-handed
ⁿ Non hold-open
ⁿ Will accept hold-open clip
ⁿ Optional

3130-3038H

Hold-Open track ⁿ Non-handed

ⁿ Will accept bumper assembly
ⁿ Optional

3130-3038HB

Hold-Open Track with Bumper

ⁿ Non-handed
ⁿ Optional

Installation Accessories

3130-169

Track Bumper

ⁿ Mounts in track to assist backcheck, does notreplace auxiliary stop
ⁿ Limits maximum opening
ⁿ Consists of bumper, bumper post, and mounting screw

3130-3054

Hold-Open Clip

ⁿ Mounts in track to provide holdopen function
ⁿ Hold-open point controlled by clip location
ⁿ Requires 3130-3034H Hold-Open Track Roller

3130-3034

Track Roller

ⁿ Quiet, low friction roller assembly
ⁿ Shoulder dimension "X" = 1/8˝ (3mm)

3130-3034H

Hold-Open Track Roller

ⁿ Quiet, low friction roller assembly
ⁿ Shoulder dimension "X" = 1/8˝ (3mm)

Ordering Information

How-to-order 3130 Series closers

Select cylinder size

3131

3132

3133

Select hand

Specify finish

Standard Powder Coat__________

Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass.

Closer will be shipped with:

Standard cylinder with mounting bracket
Standard arm wtih finish plate
Standard track
Wood and machine screw pack unless options listed below are selected.

Closer options

Track

Standard with Bumper(BUMPER)

Hold-open (H)

Hold-open with Bumper(HBUMPER)

Finishes

				Custom Powder Coat(RAL)

Plated Finish, US ______________

SRI primer(use with powder coatfinishes only)

Screw pack

TORX Machine Screw (TORX)

Special template

ST-________

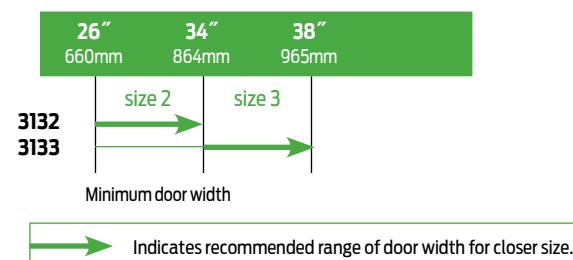

Table of sizes

ⁿ Select closer based on width of door.
ⁿ 3130 Series cylinders available in size 1, 2, or 3.
ⁿ Closing power of 3130 Series closers is not adjustable

Interior door width

Reduced opening force 3130 Series closers

Referto POWER OPERATORS section for information on systems that meetreduced opening force requirements without affecting closing power.

* Maximum opening force.

DOOR WIDTH	36˝	42˝	48˝
8.5* lbs.	N/A	N/A	N/A
5.0* lbs.	3131	3131	3132

The concealed 5010 Series is a heavy duty closer designed for institutional, high traffic, or other applications exposed to weather or abuse. The double lever arm provides superior door control and a choice of finishes, cylinder functions, and arm functions that meet virtually all architectural requirements.

Certifications	Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act
Body Construction	Cast Iron Body Full Complement Bearing 1-1/8" Diameter Piston 11/16" Diameter Double Heat Treated Pinion Journal
Fluid	All Weather Fluid
Handing	Handed
Size	Sized 1-6
Warranty	15 years

Fasteners	Wood Screws and Torx Security Screws (optional)
Mounting	Concealed (in frame); aluminum frame requires 4" (102 mm) x 4" tube
Arms	Regular Arm
Finishes/Colors/ Powder Coat	Aluminum (689) Statuary Bronze (690) Light Bronze (691) Black (693) Dark Bronze (695) Brass (696) Custom colors optional
	Optional SRI primer - powder coat only Optional plated finishes

Special Templates

Customized installation templates or products may be available to solve unusual applications. Contact LCN Product Support for assistance.

AVAILABLENOT AVAILABLE
& Closer available with less than 5.0 lbs. opening force on 36" door.
* Maximum opening/hold-open point with standard template. See individual closer series for degrees of opening per installation.

Mounting details

Concealed Mounting

Butt Hinges		Should not exceed 6˝ (152 mm)in width
Auxiliary Stop		Recommended at hold-open point or where a door cannot swing 180°
Top Rail		Minimum 2-1/8˝ (54 mm)required
Delay Action		n Add suffix "DEL"to selected cylinder(eg. 5014 DEL)(not available with 5016 cylinder) n Delays closing from maximum opening to approximately 70° n Delay time adjustable up to approximately 1 minute
Maximum opening	100°:	Butt hung doors can be templated for A = 10-3/16˝ (259 mm) B = 12˝ (305 mm)
	180°:	A = 5-1/2˝ (140 mm) B = 7-5/16˝ (186 mm)trim permitting
		n Hold-open points up to 100° only with hold-open arm n Center pivot mounting restricts opening to 140° n Offset pivot mounting allows up to 180°,trim permitting

Notes:

• For interior or exterior doors
• Single acting cylinder in head frame
• Exposed arm on hinge side of door

Cylinder Arms

5011(2)(3)(4)(5)(6)-3071 Cast Iron Cylinder Assembly

ⁿ Handed
ⁿ With mounting plate
ⁿ Standard

5010-3077 Regular Arm

ⁿ Non-handed

5010-3049 Hold-Open Arm

ⁿ Handed
ⁿ Provides hold-open function for 100° Template, adjustment at elbow
ⁿ Optional

Ordering information

How-to-order 5010 Series closers

Select cylinder size

5011
5012
5013
5014
5015

Select hand

5016 (DEL not available)

Specify finish

RH Standard Powder Coat__________
LH Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass

Closer options

Cylinder function

Delayed Action (DEL)

Arm

Hold-Open (H)

Finishes

Custom Powder Coat(RAL)_____________
Plated Finish, US ______________
SRI primer(use with powder coatfinishes only)

Screw pack

TORX Machine Screw (TORX)

Closer will be shipped with: - Standard cylinder with finish plate

- Wood and machine screw pack unless options listed below are selected.

- Standard arm - Regular arm

Special template

ST-________

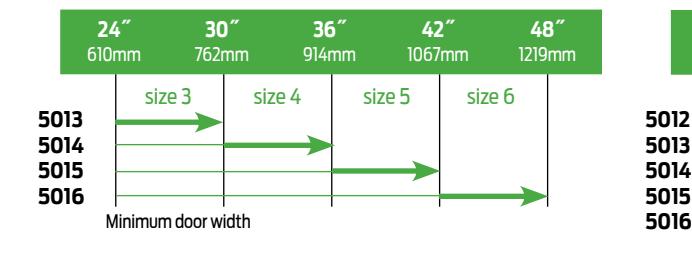

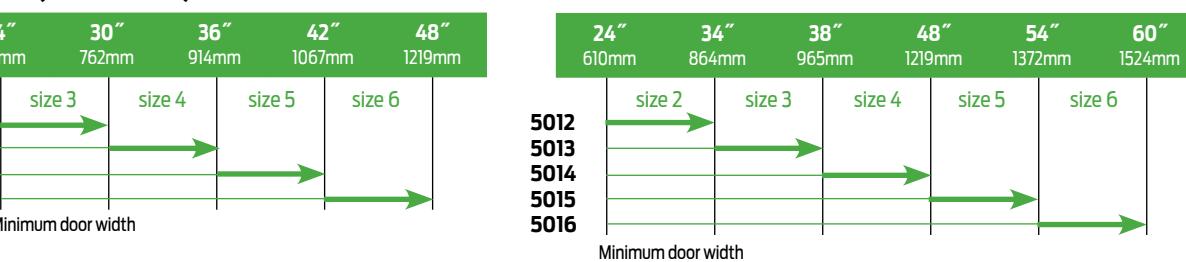

Table of sizes

ⁿ Select closer based on width of door
ⁿ Series cylinders available in size 1, 2, 3, 4, 5, or 6
ⁿ Closing power of all 5010 Series closers may be increased 50%
ⁿ Specify next higher size closer where strong drafts exist
ⁿ Delayed action not available with 5016 cylinder

Exterior (and Vestibule) door width

Interior door width

Indicates recommended range of door width for closer size.

Reduced opening force 5010 Series closers

Referto POWER OPERATORS section for information on systems that meetreduced opening force requirements without affecting closing power.

	* Maximum opening force.

DOOR WIDTH	36˝	42˝	48˝
8.5* lbs.	5012	5013	5013
5.0* lbs.	5011	5011	5012

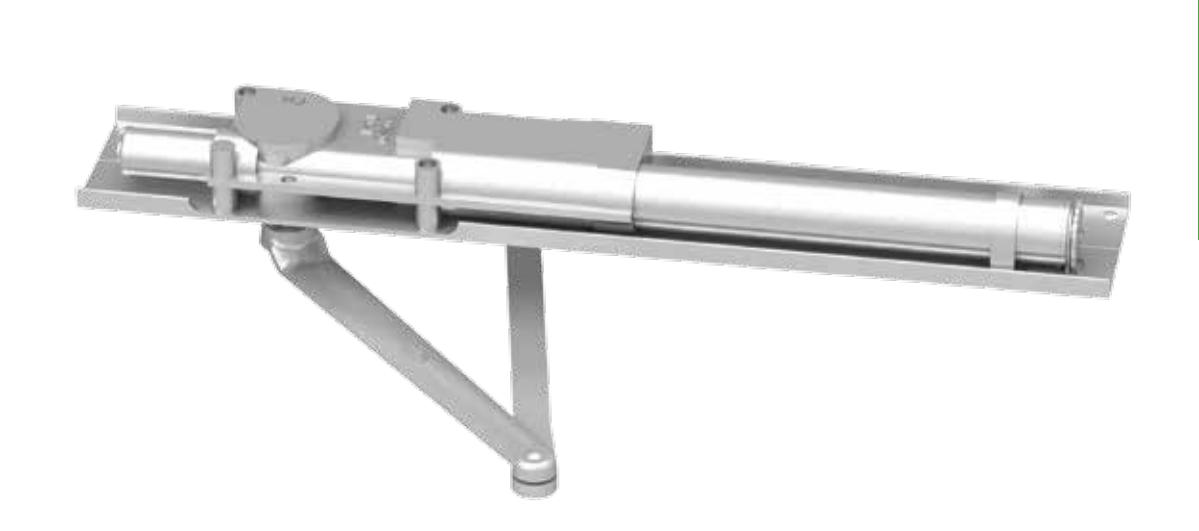

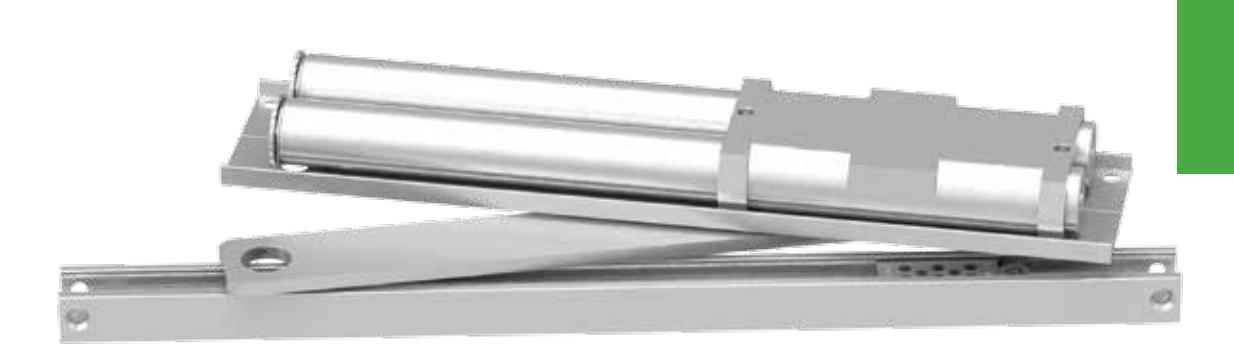

The concealed 5030 Series PACER® is a heavy duty closer designed to fit in a narrow, minimum 1-3/4" aluminum transom. The double lever arm provides superior door control and the choice of finishes and arm functions meet virtually all architectural requirements.

Certifications	Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act
Body Construction	Cast Iron Body Full Complement Bearing 1-1/8 Diameter Piston 11/16 Diameter Double Heat Treated Pinion Journal
Fluid	All Weather Fluid
Handing	Handed
Size	Sized 1; 3-6
Warranty	15 years

Fasteners	Wood Screws and Torx Security Screws (optional)
Mounting	Concealed (in tube); aluminum frame requires minimum 1-3/4" (44 mm) x 4-1/2" (114 mm) tube
Arms	Regular Arm
Finishes/Colors/ Powder Coat	Aluminum (689) Statuary Bronze (690) Light Bronze (691) Black (693) Dark Bronze (695) Brass (696) Custom colors optional
	Optional SRI primer - powder coat only Optional plated finishes

Special Templates

Customized installation templates or products may be available to solve unusual applications. Contact LCN Product Support for assistance.

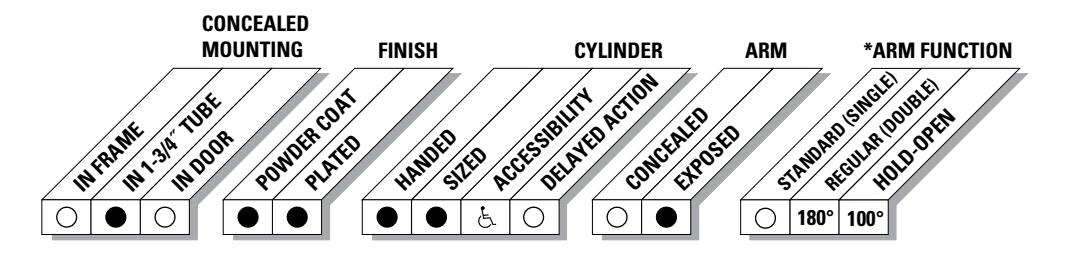

AVAILABLE
O NOT AVAILABLE
& Closer available with less than 5.0 lbs. opening force on 36" door.
Maximum opening/hold-open point with standard template. See individual closer series for degrees of opening per installation.

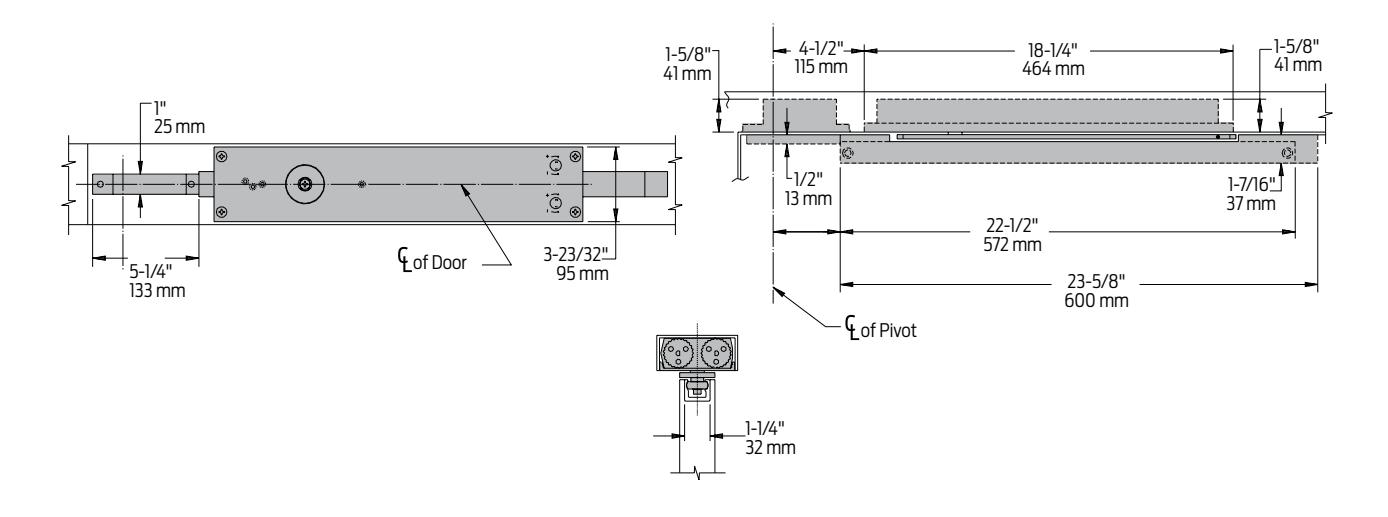

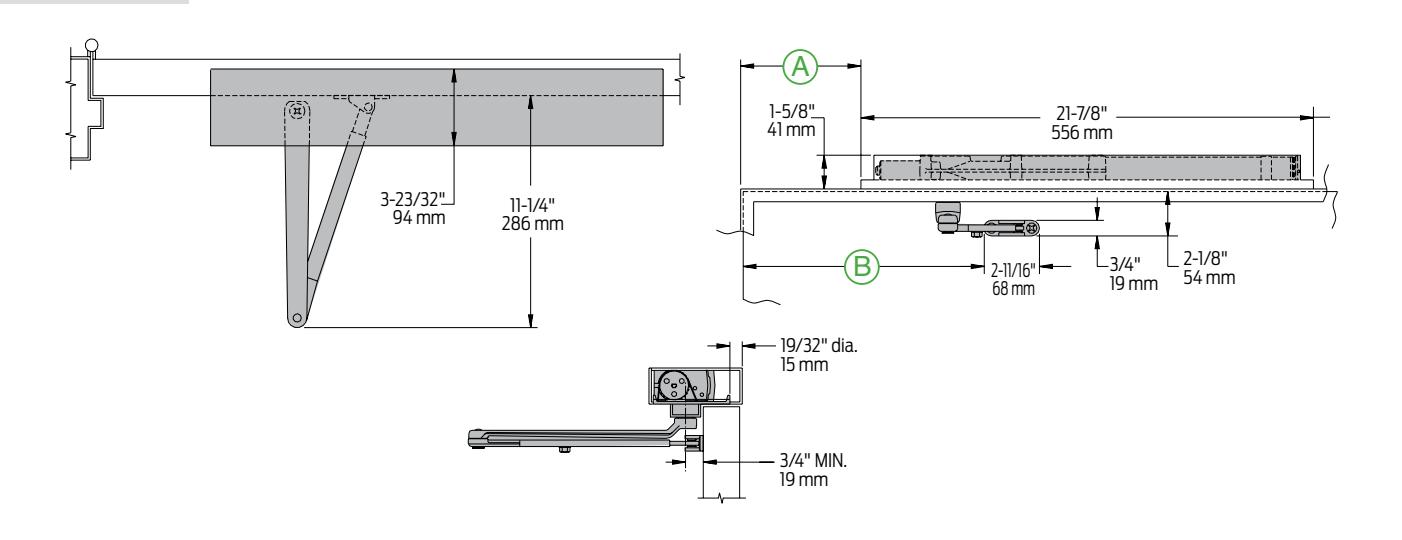

Mounting details

Concealed Mounting

Butt Hinges	Should not exceed 6" (152 mm) in width
Auxiliary Stop	Recommended at hold-open point or where the door cannot swing 180°
Wood Frame	Installation simplified by WOOD MOUNTING CLIP SET 5030-416 for center pivoted or 5030-417 for offset pivoted and butt hung installations Consult factory for preparation details
Top Rail	Minimum 2-1/8" (54 mm) required
Door Thickness	Maximum 1-3/4" (44 mm), for doors thicker than 1-3/4" consult factory
Maximum opening	Butt hung doors can be templated for 100°: A = 5-13/16" (148 mm) B = 11-13/16" (300 mm)
	180°: A = 2-1/16" (52 mm) B = 8-1/16" (205 mm) trim permitting
	Hold-open points up to 100° only with hold-open arm Center pivot mounting restricts opening to 120°. Hold-open up to 120° with hold-open arm Offset pivot mounting allows up to 115°, trim permitting. Hold-open up to 115° with hold-open arm

For interior or exterior doors
· Single acting cylinder in head frame
· Exposed arm on push side of door

Cylinder

5031(3)(4)(5)(6)-3071 Cast Iron Cylinder Assembly

ⁿ Handed
ⁿ With mounting plate
ⁿ Standard

Arms

5030-3077 Regular Arm

ⁿ Non-handed

5030-3049 Hold-Open Arm

ⁿ Handed
ⁿ Provides hold-open function for 100° template, adjustable at elbow
ⁿ Optional

Installation Accessories

5030-416

Wood Mounting Clip Set

ⁿ Simplifies mounting center pivoted 5030 closer in wood frame
ⁿ Includes latch stile clip, hinge stile clip, and cover.
ⁿ For use with Ives Series center pivots
ⁿ Consult factory for special template

5030-417

Wood Mounting Clip Set

ⁿ Simplifies mounting offset pivoted or butt hung 5030 closer in wood frame.
ⁿ Includes two clips.
ⁿ For use with offset pivots.
ⁿ Consult factory for special template.

Ordering information

How-to-order 5030 Series closers

Select cylinder size

5031
5033
5034
5035 5036

Select hand

RH LH

Specify finish

Standard Powder Coat__________

Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass

Closer options

Arm

Hold-Open (H)

Finishes

Custom Powder Coat(RAL)_____________

Plated Finish, US ______________

SRI primer(use with powder coatfinishes only)

Installation accessories

Wood Clip Set, 5030-416 Wood Clip Set, 5030-417

Closer will be shipped with:

- Wood and machine screw pack unless options listed below are selected.

- Regular arm

- Standard cylinder with mounting plate

Screw pack

TORX Machine Screw (TORX)

Special template

ST-________

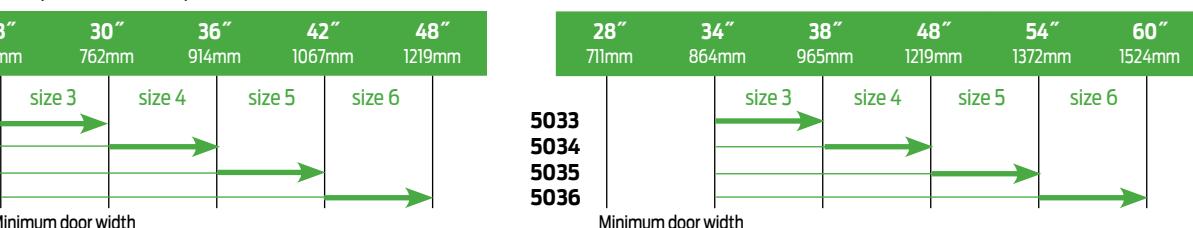

Table of sizes

ⁿ Select closer based on width of door
ⁿ 5030 Series cylinders available in size 1, 2, 3, 4, 5 or 6
ⁿ Closing power of all 5030 Series closers may be increased 50%
ⁿ Specify next higher size closer where strong drafts exist

Exterior (and Vestibule) door width

Interior door width

Indicates recommended range of door width for closer size. Note: Minimum door width 28˝ (711 mm).

Reduced opening force 5030 Series closers

Referto POWER OPERATORS section for information on systems that meetreduced opening force requirements without affecting closing power.

	* Maximum opening force.

	DOOR WIDTH	36˝	42˝	48˝
	8.5* lbs.	5033	5033	5033
	5.0* lbs.	5031	5031	5033

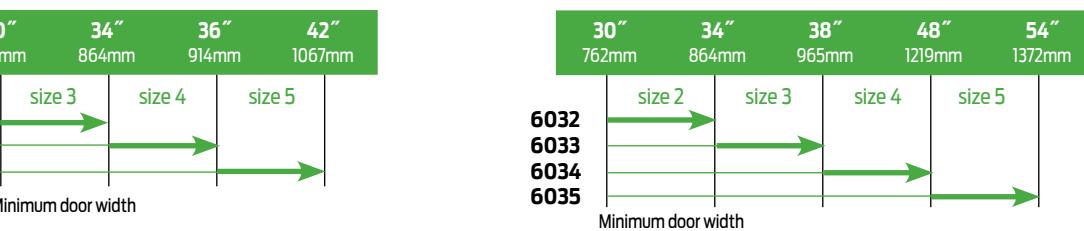

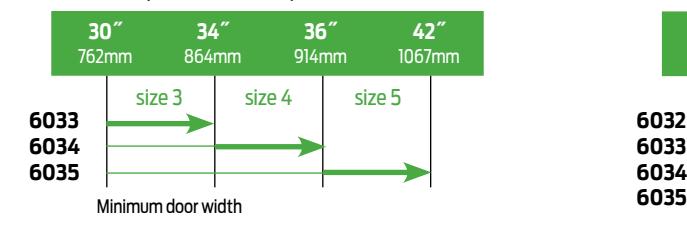

The concealed 6030 Series PACER® is a heavy duty, double acting closer designed to fit in a narrow, minimum 1-3/4" header. The single lever arm and roller assembly provides smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements. Installation at left illustrated with center pivot set (not included).


Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act	Fasteners	Wood Screws and Torx Security Screws (optional)
	Mounting	Concealed (in tube); double acting
Cast Iron Body Full Complement Bearing 1-1/8" Diameter Piston 11/16" Diameter Double Heat Treated Pinion Journal	Arms	Standard arm with track
	Finishes/Colors/ Powder Coat	Aluminum (689) Statuary Bronze (690) Light Bronze (691) Black (693)
All Weather Fluid		Dark Bronze (695) Brass (696)
Non-Handed		Custom colors optional
Sized 1-5		Optional SRI primer - powder coat only
15 years		Optional plated finishes
	Salt Spray, Meets BAA - Buy American Act Cast Iron Body Full Complement Bearing 1-1/8" Diameter Piston Il/16" Diameter Double Heat Treated Pinion Journal All Weather Fluid Non-Handed Sized 1-5	Salt Spray, Meets BAA - Buy American Act Mounting Cast Iron Body Full Complement Bearing 1-1/8" Diameter Piston 11/16" Diameter Double Heat Treated Pinion Journal All Weather Fluid Non-Handed Sized 1-5

Special Templates

Customized installation templates or products may be available to solve unusual applications. Contact LCN Product Support for assistance.

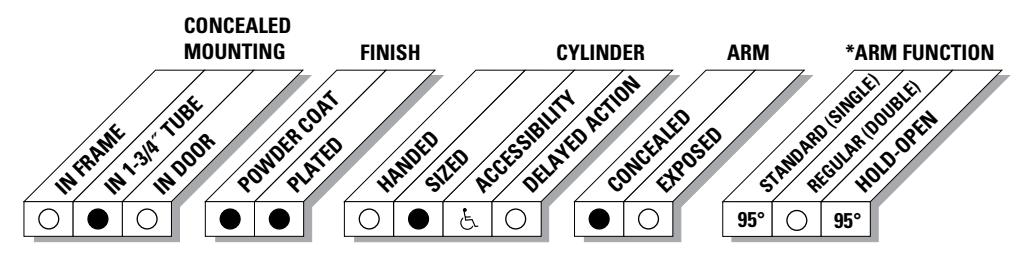

AVAILABLE O NOT AVAILABLE
& Closer available with less than 5.0 lbs. opening force on 36 " door.
Maximum opening/hold-open point with standard template. See individual closer series for degrees of opening per installation.

Mounting details

Concealed Mounting

Auxiliary Stop	Recommended where a door cannot swing 95°
Center Pivot Set	Must be used but ordered separately
Door Width	30˝ (762 mm) minimum with 1-3/4˝ (44 mm) pivot centers
Top Rail	n 1-7/16˝ (36 mm) mortise required n 3/8˝ (10 mm) cutoutrequired attop ofthe door, both sides.
Door Thickness	1-3/4˝ (44 mm) minimum
Centering Adjustment	Centering is provided by rotating the track rollerto centerthe door in the opening.
Wood Frame	n Installation simplified by WOOD MOUNTING CLIP SET, 6030-416 n Consult product support for special template
Maximum opening	n Center pivottemplate allows 95° n Adjustable hold-open points from 85° to 95°, with hold-open track
