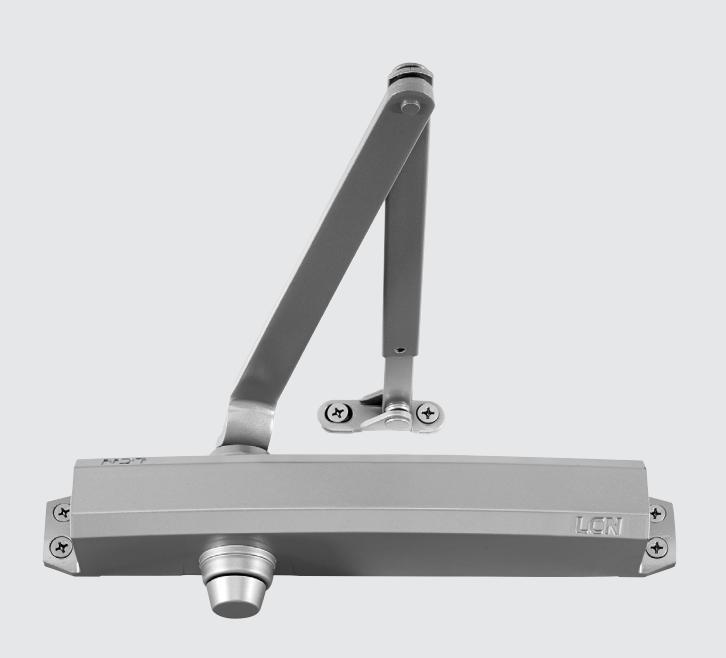

1450 Series
Medium duty cast aluminum door closer
LCN quality and value, backed by a 25-year warranty.
The 1450 Series cast aluminum closer was specially designed to deliver consistent, dependable, long-term performance in frequently-used, low-abusive traffic areas. The patent-pending LCN design, featuring the industry's most common hole pattern, is an excellent choice for a range of applications — from aftermarket replacement, to aluminum store fronts, to new construction projects — anywhere quality, reliability and value are important.
The 1450 Series also looks as good as it functions, with a standard slim line cover, optional full plastic cover or optional full metal cover, in six available standard finishes, as well as custom colors. The result is a great look with a long list of valuable features — plus LCN quality, engineering and service — all at a competitive price.
Key Features
- • Cast Aluminum Body
- • Patent Pending Design
- • Peel-n-Stick Templates
- • Universal Screw Pack
- • Full Complement Bearing
- • All Weather Fluid
- • Adjustable Spring Size 1-6
- • Non-Handed
- • 25 Year Warranty
With LCN, you get the great product features you need, plus so much more.
Every 1450 Series closer we make is backed by LCN's proven history of providing the highest-quality, most reliable performance in the industry. Plus, with LCN you get the most knowledgeable, responsive customer service and the best technical support team in the business – with more than 150 years of combined experience. That's the kind of added value you can count on to meet your needs, every single time.
|
1450 SERIES
CROSS REFERENCE |
|
|---|---|
| LCN | 1450 |
| Norton | 8000 |
| Sargent | 1430 |
| Yale | 3000 |
| Dorma | 8600 |
1450 Series Specifications
| 1450 Series S | specifications | |
|---|---|---|
| Certifications |
Grade 1 - ANSI A156.4, UL/cUL, ADA, 100 Hour Salt Spray,
Meets BAA - Buy American Act |
|
| Body Construction |
|
|
| Fluid | All Weather | |
| Handing | Non-Handed | |
| Templating | Peel-n-Stick Templates - 3/4" x 12" Mounting Hole Pattern | |
| Size | Adjustable Spring Size 1-6 | |
| Warranty | 25 Years | |
| Fasteners | Standard Universal Screw Pack includes Self Reaming and Tapping Screws (SRT), Machine Screws, Wood Screws and Thru Bolts (Torx security and longer thru bolts optional) | |
| Arms | Standard Tri-Pack includes arms for Regular Pull Side, Top Jamb or Parallel Arm Mounting Optional Arms: Hw/Pa - Hold Open w/62PA (3049; 62PA) LONG - Long Arm for Deep Reveal (3077; 79LR) HLONG - Hold Open Long Arm (3049; 3048L) EDA - Extra Duty Parallel Arm (3077EDA) EDA/62G - Extra Duty Parallel Arm - Extra Clearance (3077EDA/62G) HEDA - Hold Open Extra Duty Parallel Arm (HEDA) CUSH - Cush-n-Stop (3077CNS) HCUSH - Hold Open Cush-n-Stop (3049CNS) SCUSH - Spring Cush-n-Stop (3077SCNS) SHCUSH - Spring Hold Open Cush-n-Stop (3049SCNS) REG/62A - Regular Arm-Extra Clearance (3077; 62A) Hw/62A - Hold Open - Extra Clearance (3049; 62A) | |
| Finishes/Colors |
|
|
| Brackets |
|
|
| Accessories |
|
|
Contact us at 877-671-7011 to consult with an LCN Representative or Technical Advisor.
Visit us at us.allegion.com/brands/lcn for product information and additional resources.
