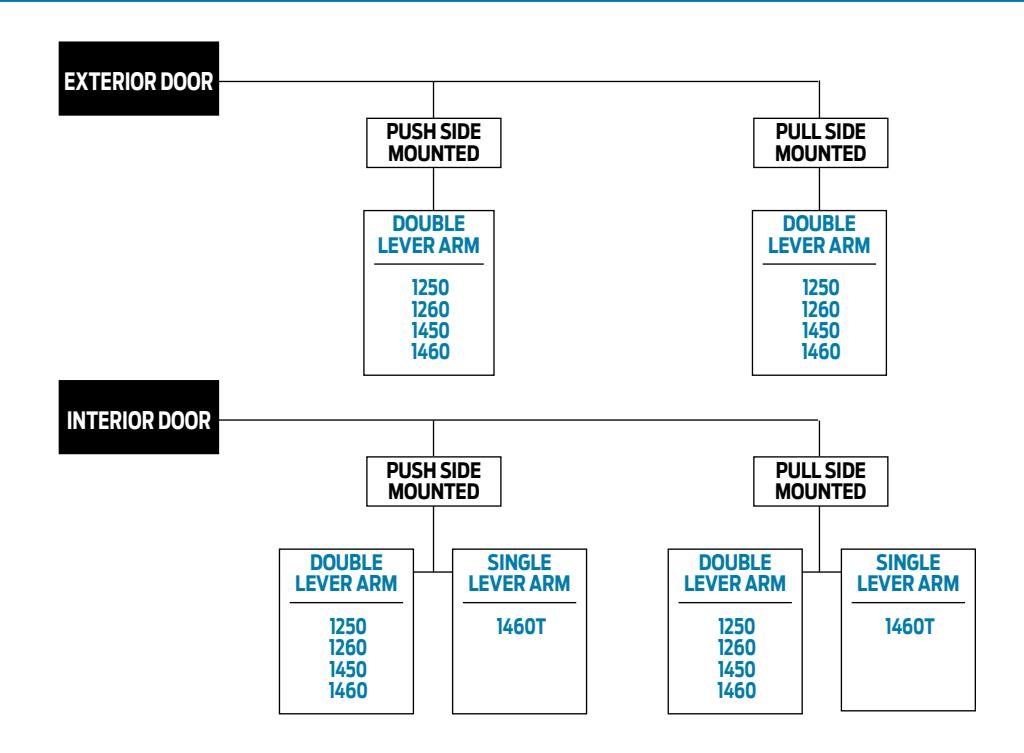

Product selection guide

Surface mounted 1000 Series LCN closers feature a modern slim line design for easy installation on narrow head frames and top rails. This guide is based on the desired mounting of the closer. NOTE: For parallel mounts order "P" version to also receive PA Shoe.

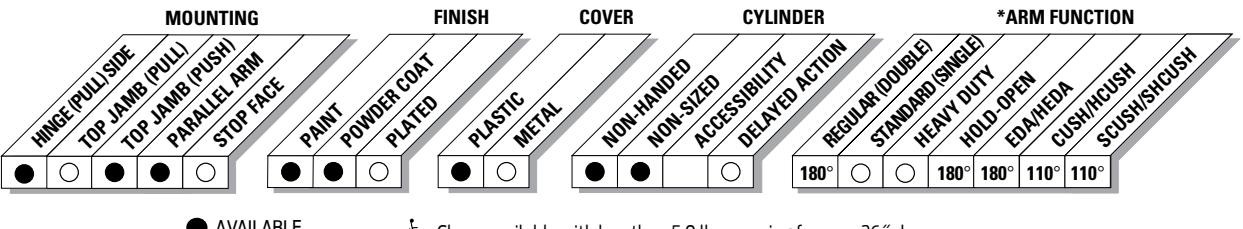

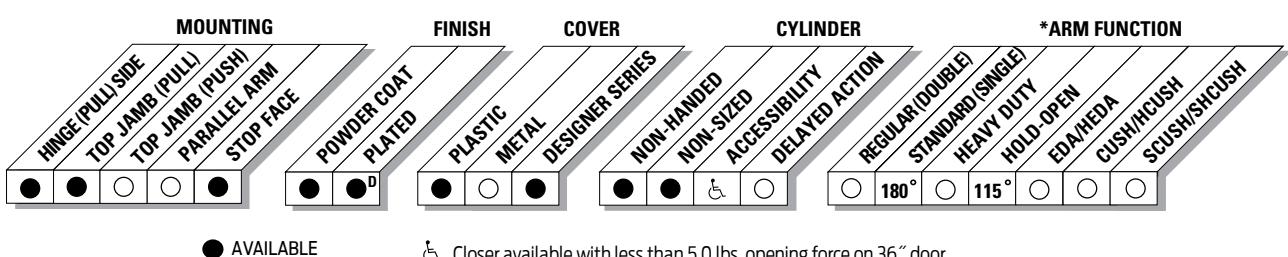

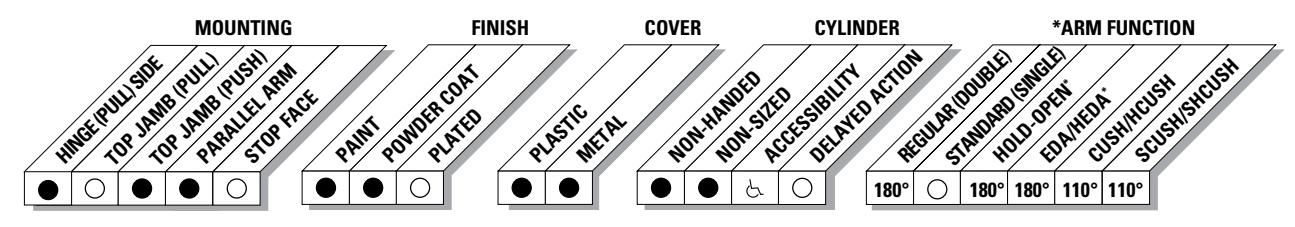

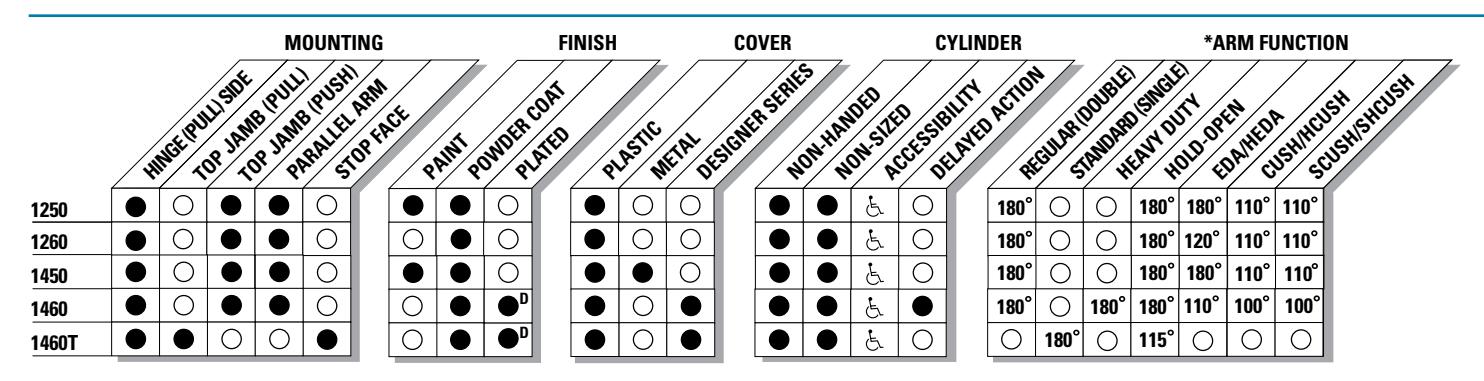

Product comparison

This chart shows a basic comparison of LCN 1000 Series closers. Refer to the specific closer chapter for complete details.

  • AVAILABLENOT AVAILABLE
  • Closer available with less than 5.0 lbs. opening force on 36 "door."
  • * Maximum opening/hold-open point with standard template. See individual closer series for degrees of opening per installation.
  • D = For designer series only.

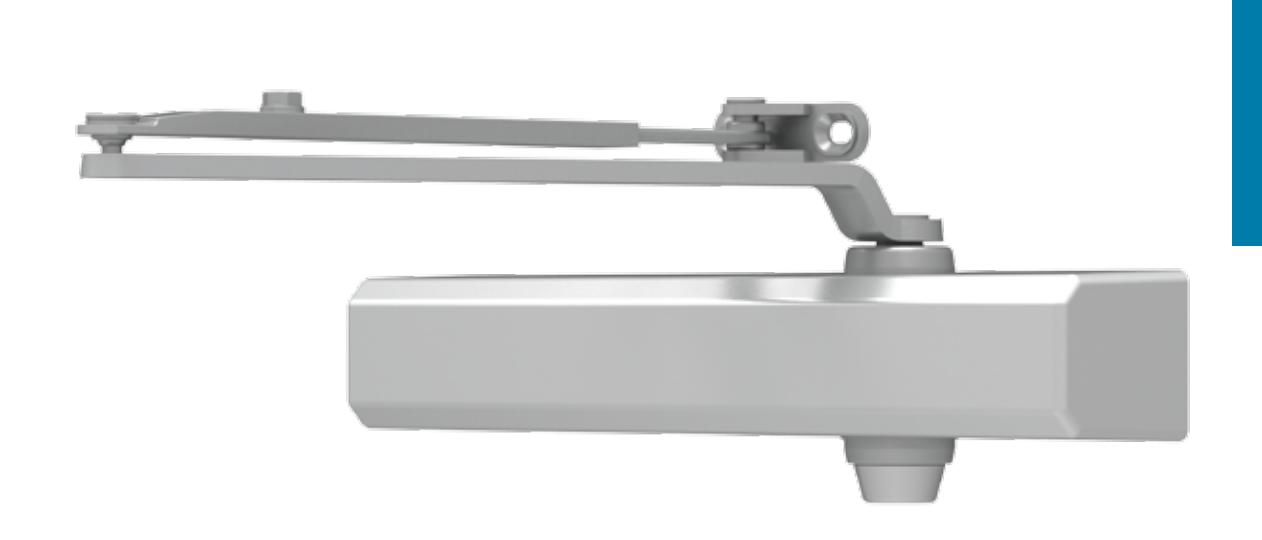

1000 Series surface mounted closers

APPLICATIONS

  • n For aluminum, hollow metal, or wood swinging doors and frames.
  • n Can be used with hinge or pivot mounted door.
  • n Mounts on 1-3/4˝ transom without adapter plates.
  • n Adapter plates and other installation accessories available for unusual conditions.

FEATURES COMMON TO 1000 SERIES

  • n 1000 series closers mount three ways. Closers with regular or holdopen arm mount hinge side or top jamb. Parallel arm, closers include - 62PA SHOE required for parallel arm mount. 1460T mounts hinge side, top jamb (pull side) and stop face.
  • n Non-handed for right and left swinging doors.
  • n Closers to meet ADA reduced opening force requirements.
  • n Adjustable hydraulic backcheck cushions opening swing prior to 90°.
  • n Separate regulation of general closing speed and latching speed.
  • n Joints in arm and shoe adapt to uneven trim.
  • n Reversible shoe to boost latching power on double lever arms.

DESIGN ASSISTANCE

LCN has been providing reliable solutions to unique door control problems since 1925. Design and specification assistance are only a phone call away. Contact LCN for assistance or technical information at 877-671-7011 or FAX 800-248-1460 (Order Entry) , Fax 815-879-1495 for Product Support.

WARRANTY

  • n 30 year limited warranty (1460 Series) and 20 year limited warranty (1260 Series) on cast iron closers.
  • n 15 year limited warranty (1250 series) and 25 year limited warranty (1450 series) on cast aluminum closers.

See General Information Section for complete warranty details.

SPECIFICATIONS

Refer to "SPECIFICATIONS" section for suggested architectural specifications.

MATERIALS

  • n High strength cast iron (1260, 1460, 1460T) or cast aluminum (1250, 1450) cylinder.
  • n Forged steel main arm for all EDA, Cush, 1460HD and 1460T Arms.
  • n One piece forged steel piston.
  • n Heat treated pinion.
  • n LCN's standard all weather fluid performs to temperature ranges from 120°F (49°C) to -30°F (-35°C).
  • n High efficiency, full complement , low friction bearings.
  • n Tamper resistant regulating screws.
  • n Full rack and pinion hydraulic action.
  • n Quiet, low friction track and roller combination for all single lever arm closers.

FINISHES

  • n Available in six standard or a wide selection of optional custom powder coat finishes to blend with door and frame.
  • n LCN's powder coat finish surpasses 100 hours of salt spray which is over four times the ANSI standard for corrosion resistance.

  • n Painted finishes on cast aluminum closers (1250, 1450).
  • n For installations where a higher level of corrosion resistance is required, LCN offers an optional special rust inhibiting (SRI) pretreatment (cast iron). Closers that combine the exclusive LCN powder coat finish and the SRI pre-treatment exceed the ANSI standard for corrosion resistance even further.
  • n Plated finishes are available as an option to accent door and frame for the 1460 Series closers.

LISTINGS & APPROVALS

UL listed for self-closing doors without hold-open under "SWINGING DOOR CLOSERS" (GVEV) file R 1943. Tested and certified under ANSI Standard A156.4 grade one. Consult factory for details. Consult factory for other listings such as; cUL, California State Fire Marshal, Bureau of Standards and Appeals.

POSITIVE PRESSURE

LCN closers have been certified for three hours by UL to be in compliance with UL 10 C. Contact LCN for specific details on door closer fire ratings.

FASTENERS

1260, 1460, 1460T series closers are shipped with: A standard SELF-REAMING and TAPPING SCREW (SRT) pack that contains Philips head SRT screws to install the closer. 1250 and 1450 series closers are shipped with: A universal screw pack to include self reaming and tapping screws (SRT), machine screws and wood screws. Standard LCN thru bolts (TB) can be installed on 1-3/4˝ (44 mm) thick doors with 1/4-20 machine screws. Optional thru bolt (TB) sizes are available for 1-5/8˝ (41 mm) or 1-3/8˝ (35 mm) door thickness, but this must be specified when ordering.

Notes:

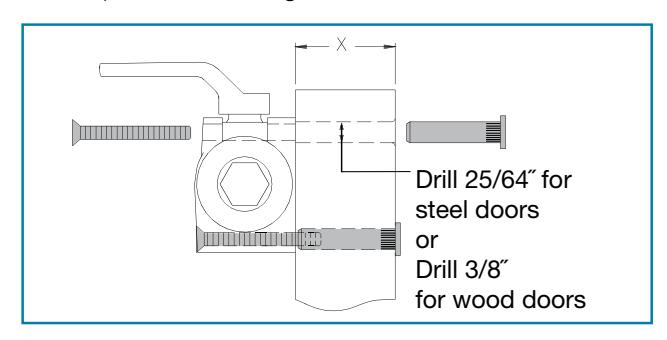

1. For Thru Bolts,specify door thicknessif other than 1-3/4˝ (44 mm). Represented in diagram as dimension "X".

2. Phillips head, metric machine screws are available, please specify.

3. LCN recommendsthe use of wood screwsin wood door applications.

MAINTENANCE

Closers mounted according to LCN installation instructions require no periodic maintenance or adjustments..

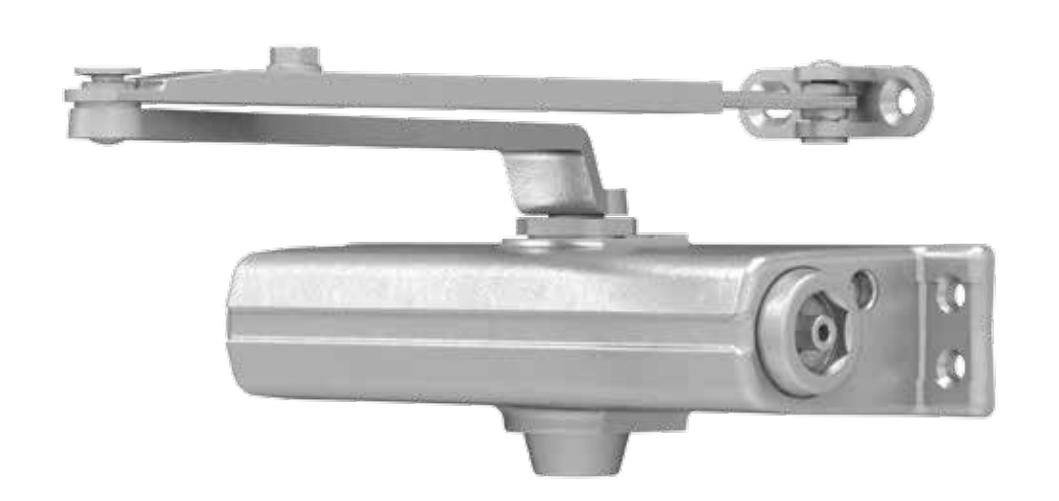

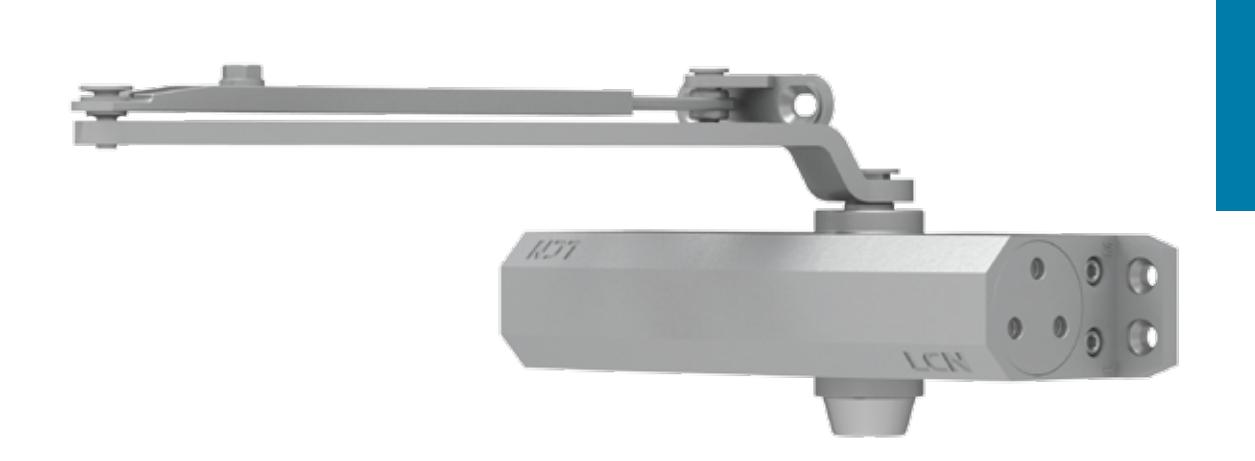

The 1250 Series cast aluminum closer is designed for low-frequency and low abusive traffic areas. This cast aluminum closer is ideal for aluminum storefronts, interior offices and many other applications. Combining dependable operation, low maintenance and a patented stylish look - with or without the optional slim line cover. And with the most common hole pattern in the industry, the 1250 Series is the perfect choice for easy aftermarket replacement.

Certifications Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour
Salt Spray, Meets BAA - Buy American Act
Body Construction
  • Cast Aluminum Body
  • Full Complement Bearing
  • 1-3/8" Diameter Piston
  • 5/8" Diameter Single Heat Treated
    Pinion Journal
Fluid All Weather Fluid
Handing Non-Handed
Templating Peel-n-Stick templates -
3/4″ x 9-1/16″ Mounting Hole Pattern
Size Adjustable Spring Size 1-5
Warranty 15 years
Cover
  • Slim Line Cover, Optional
Fasteners Universal Screw Pack (UNIV)
Mounting Hinge (Pull Side), Top Jamb (Push Side),
Parallel Arm (Push Side)
Arms Tripack includes Regular, Top Jamb, and Parallel Arm (Rw/PA)
Finishes/Colors/
Powder Coat
  • Aluminum (689)
  • Statuary Bronze (690)
  • Light Bronze (691)
  • Black (693)
  • Dark Bronze (695)
  • Brass (696)
  • Custom colors optional
  • Optional SRI primer - powder coat only

Special Templates

Customized installation templates or products may be available to solve unusual applications. Contact LCN Product Support for assistance.

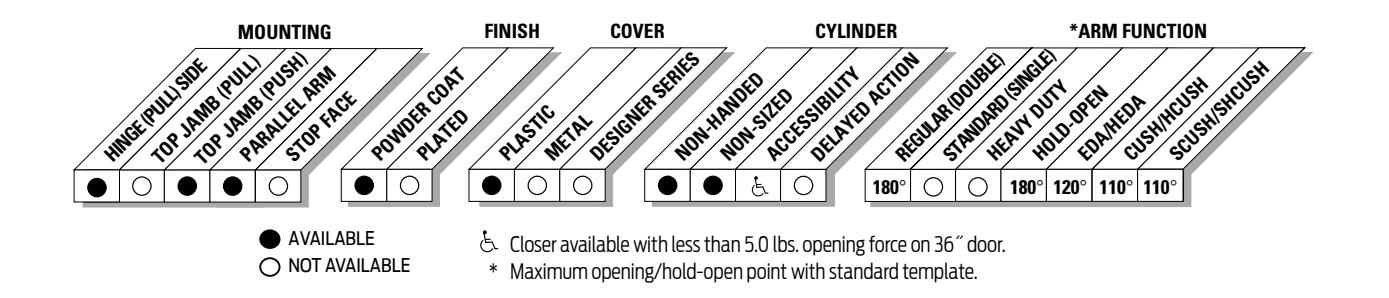

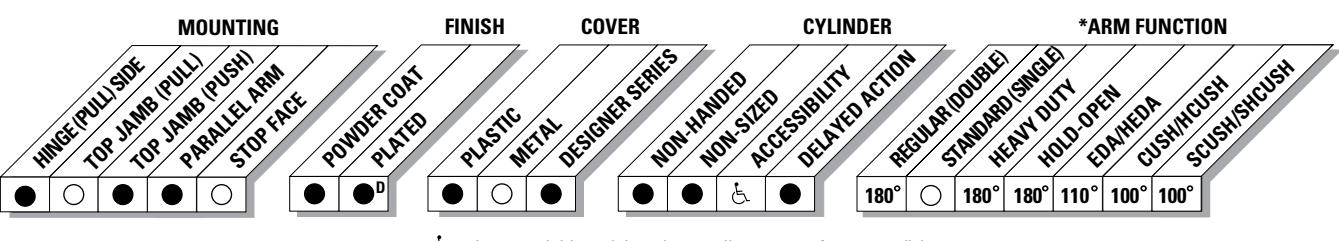

AVAILABLENOT AVAILABLE

  • & Closer available with less than 5.0 lbs. opening force on 36" door.
  • * Maximum opening/hold-open point with standard template.

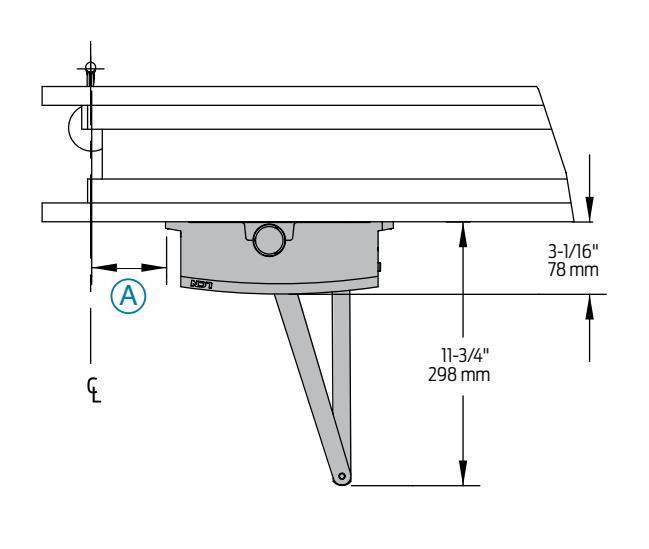

Mounting details

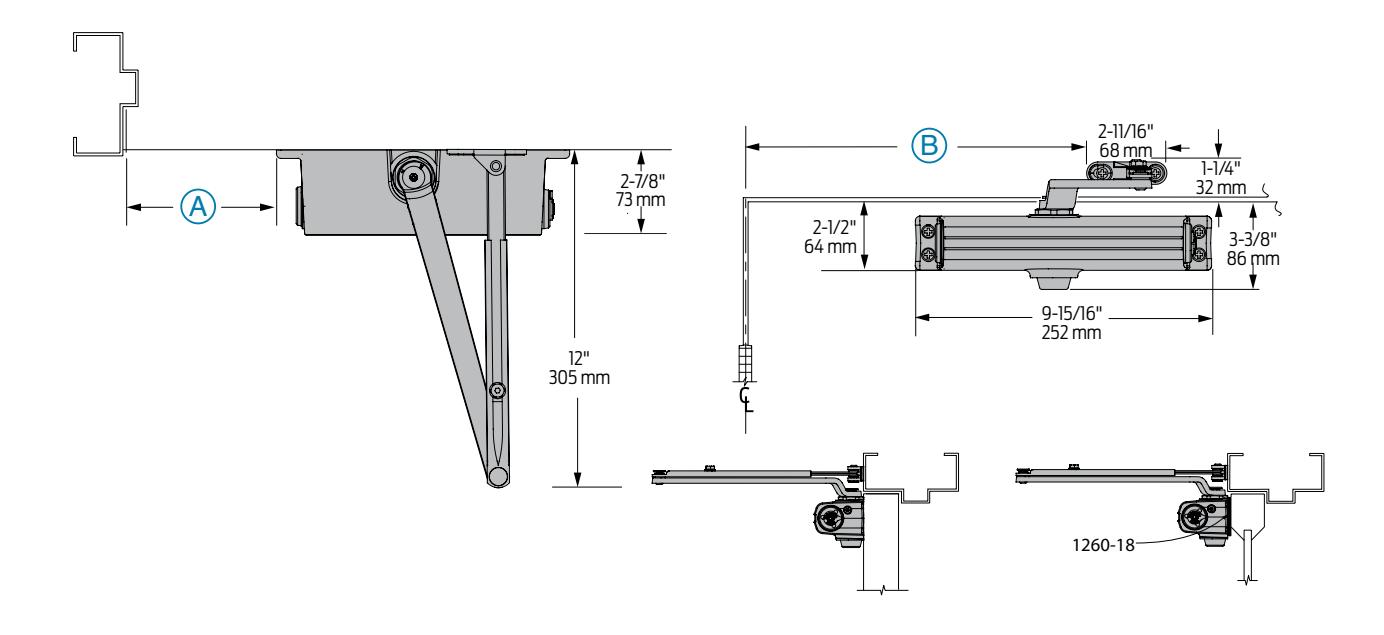

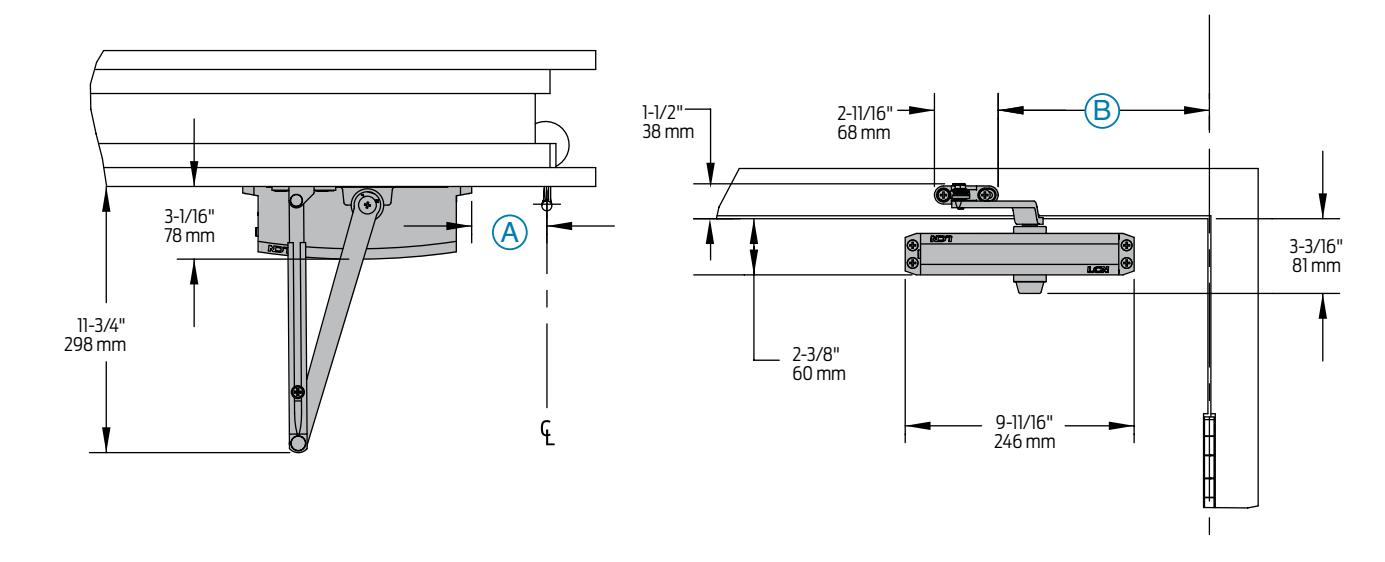

Hinge (Pull) Side Mounting

Butt Hinges Should not exceed 5˝ (127 mm)in width
Auxiliary Stop Recommended at hold-open point or where a door cannot swing 180°
Reveal Should not exceed 3/4˝ (19 mm)for regular arm or 1/2˝ (13 mm)for hold-open arm
Top Rail Less than 2-3/8˝ (60 mm)requires PLATE, 1250-18
Clearance 3-1/16˝ (78mm) behind door required for installation.
Maximum opening 100°:
A = 6-11/16˝ (170mm)
B = 12-7/16˝ (316 mm)
101° to 120°:
A= 5-11/16˝ (144mm)
B = 11-7/16˝ (291 mm)
or *121° to 180°: A= 3-1/16˝ (78 mm)
B = 8-15/16˝ (227 mm)
Hold-open points up to maximum opening with hold-open arm
*Frame and trim permitting.

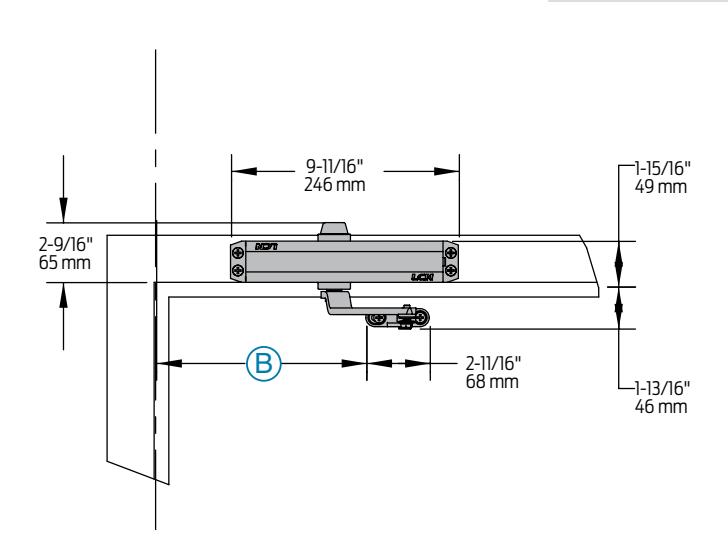

Mounting details

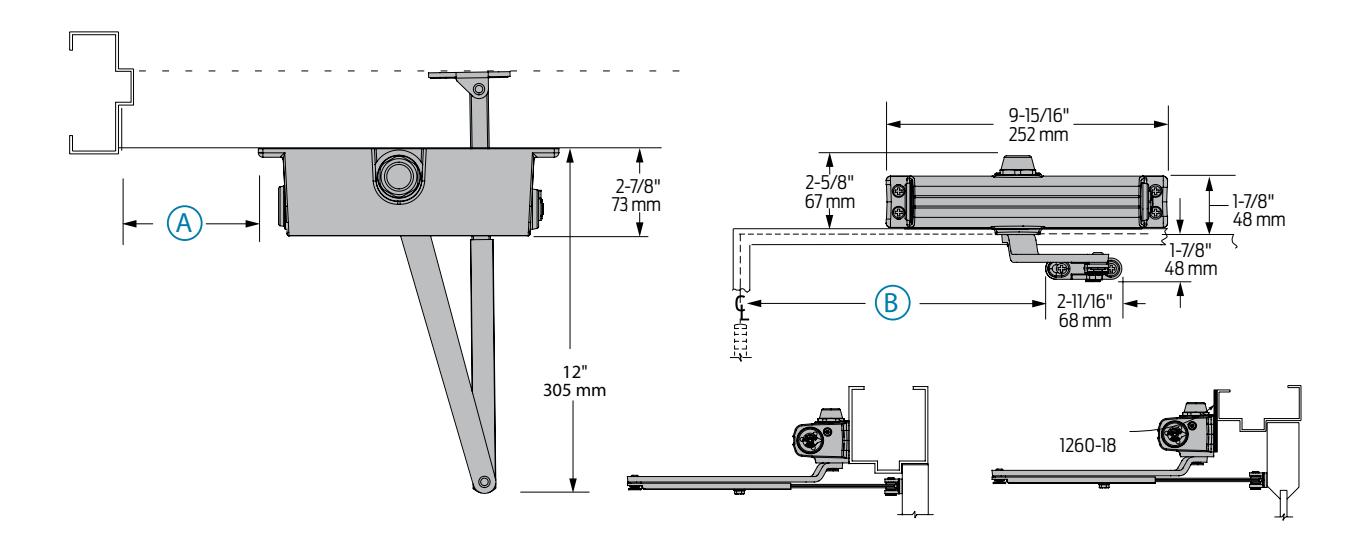

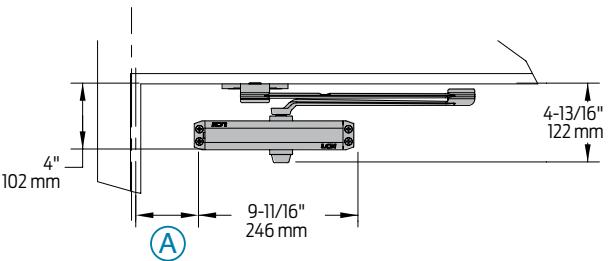

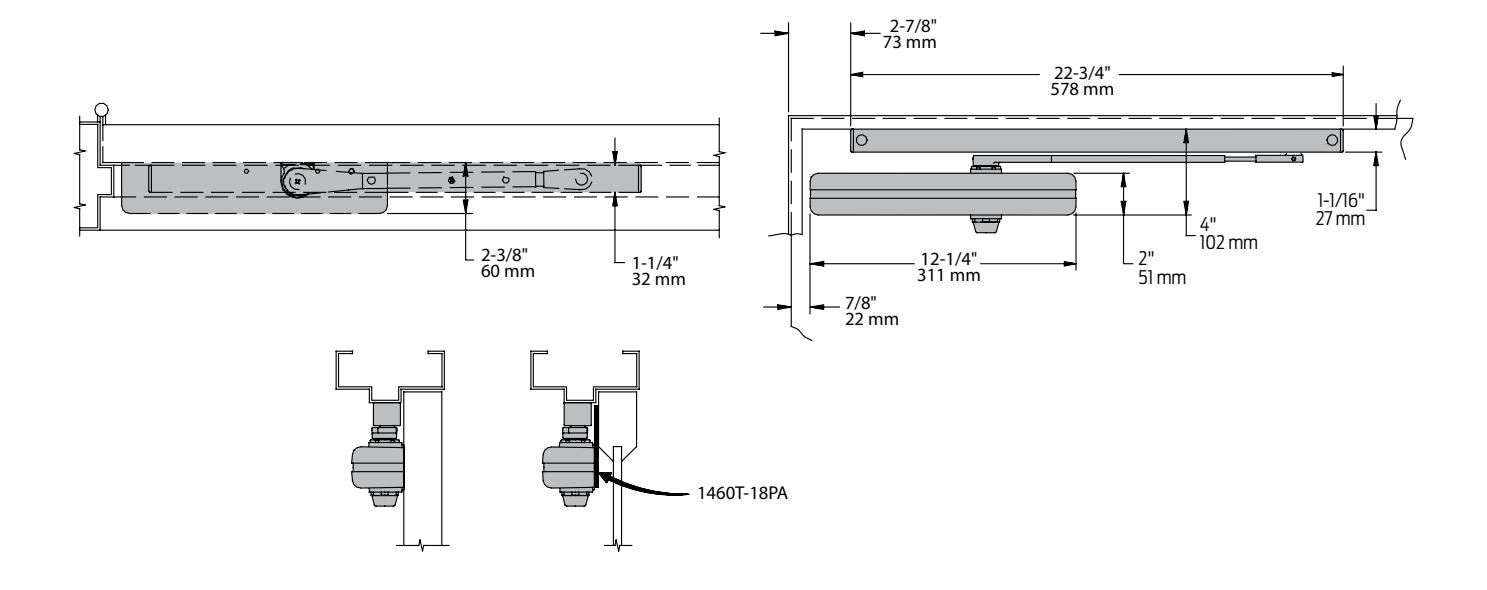

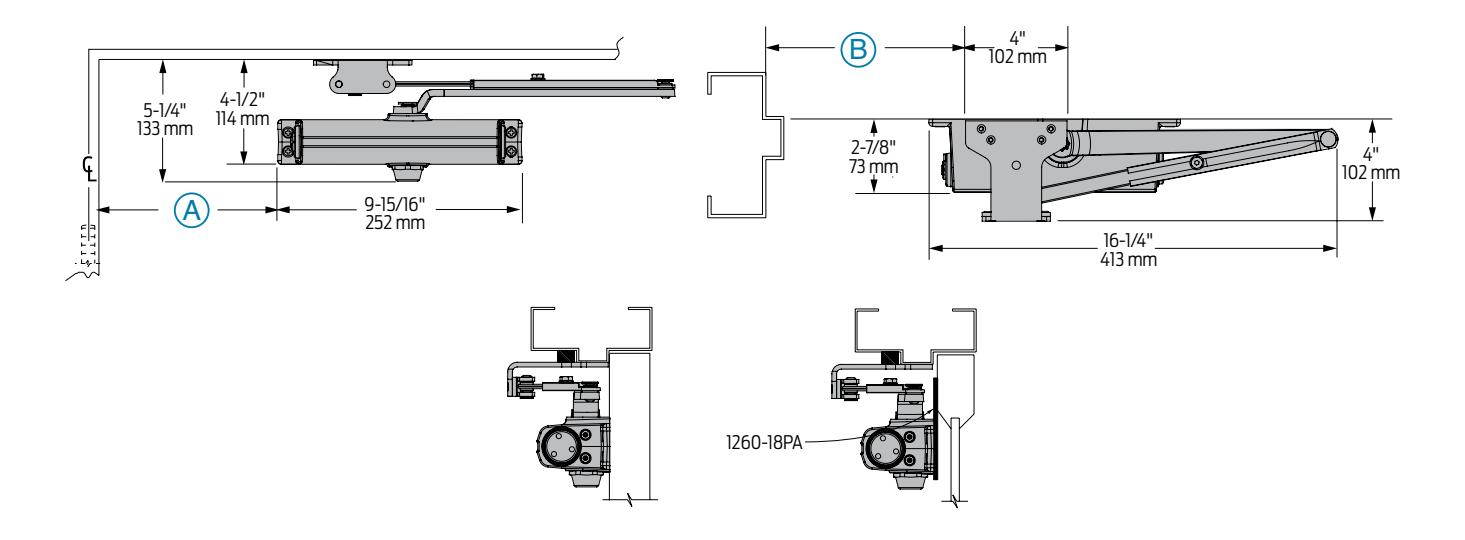

Top Jamb (Push Side) Mounting

Butt Hinges Should not exceed 5˝ (127 mm)in width
Auxiliary Stop Recommended at hold-open point or where a door cannot swing 180°
Reveal Arm Type Maximum Reveal Opening
Regular Arm 0˝ to 5˝ 180°
Long Arm 4˝ to 8˝ 165°
Hold-Open Arm 0˝ to 2-3/4˝ 180°
Long Hold-Open Arm 2˝ to 6-1/2˝ 180°
Top Rail Requires 1-3/4˝ (44 mm) minimum. 2-1/2˝ (64 mm) minimum with closer on PLATE, 1250-18
Head Frame Less than 1-3/4˝ (44 mm)requires PLATE, 1250-18. For flush ceiling condition with 2˝ (51 mm) head frame,
use PLATE, 1250-18.(Plate requires 1-3/8˝ (35 mm) minimum.)
Maximum opening 100°:
A = 7-3/16˝ (183 mm)
B = 12-15/16˝ (329 mm)
101° to 120°: A= 5-11/16˝ (144 mm)
B = 11-7/16˝ (291 mm)
or *121° to 180°: A= 3-1/16˝ (78 mm)
B = 8-15/16˝ (227 mm)
*Frame and trim permitting. Hold-open points up to maximum opening with hold-open arm

Mounting details

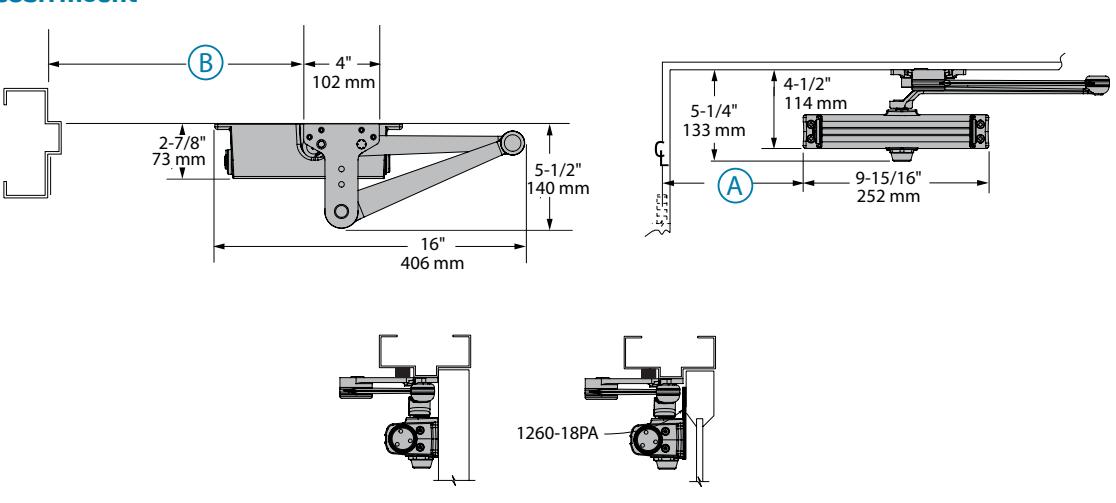

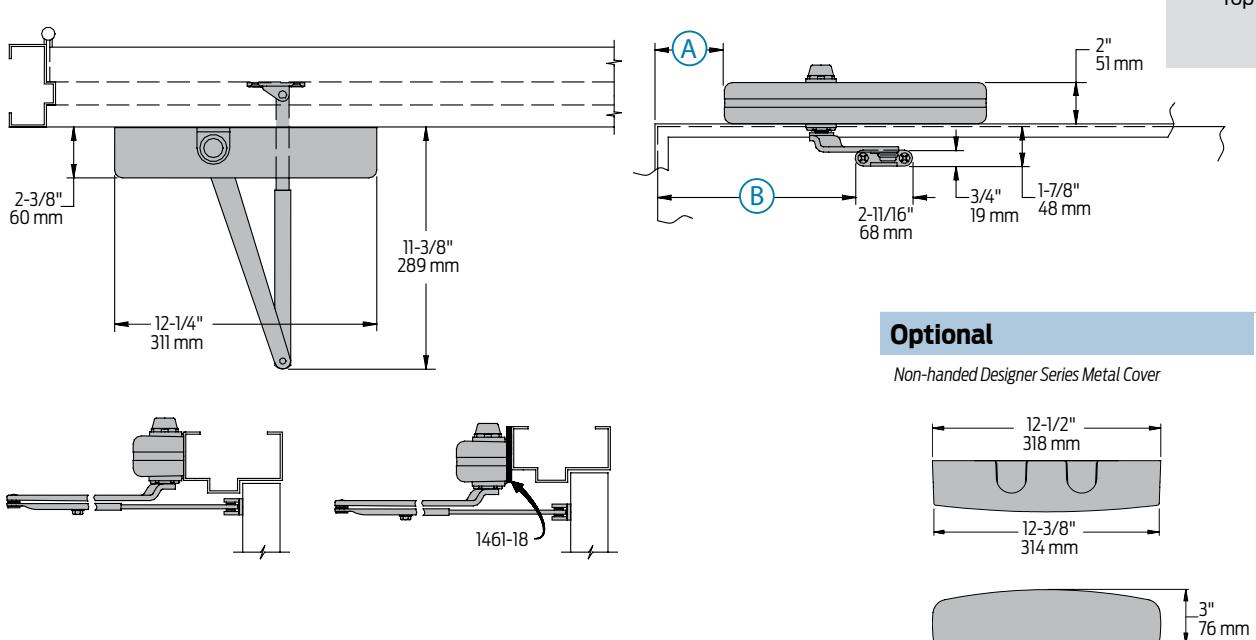

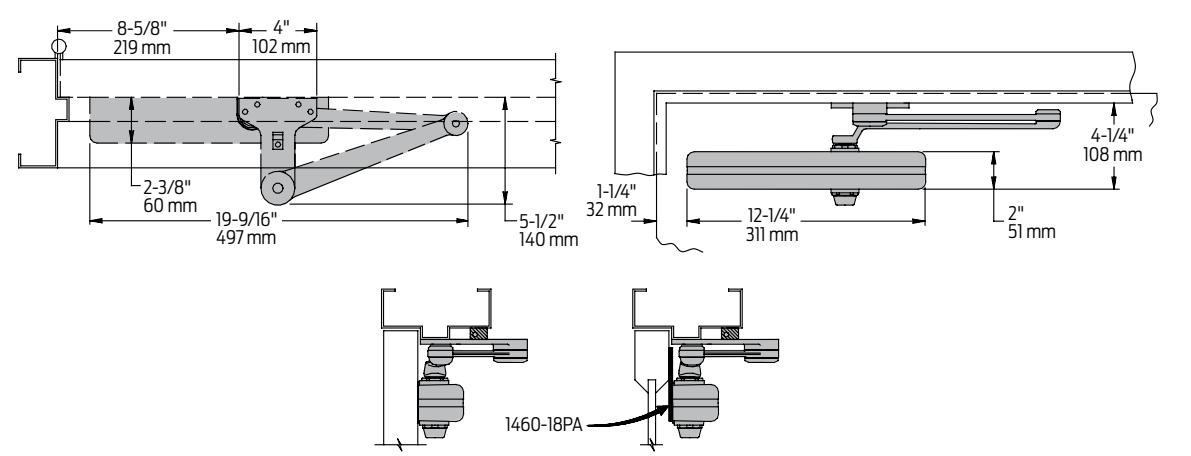

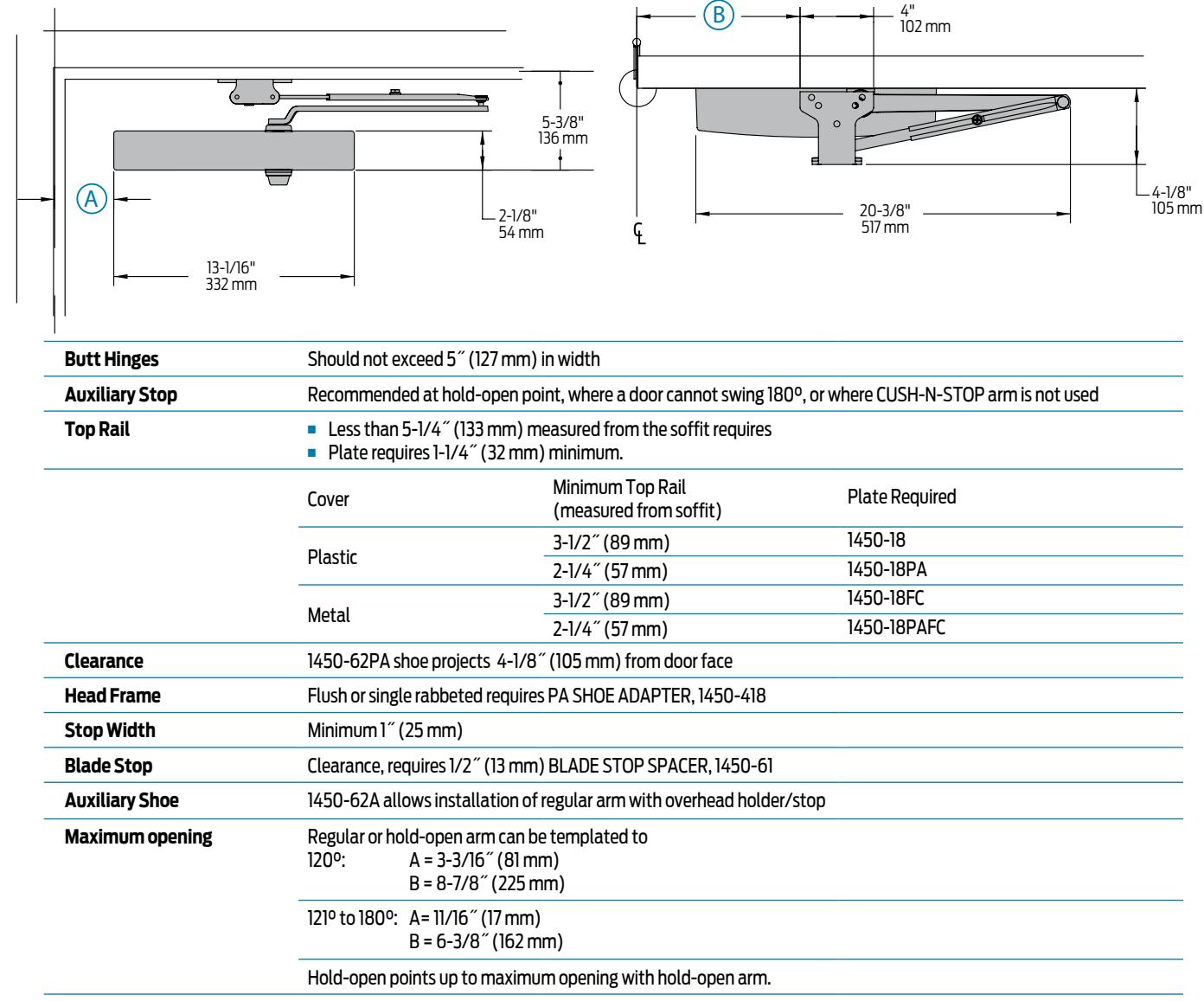

Parallel Arm (Push Side) Mounting

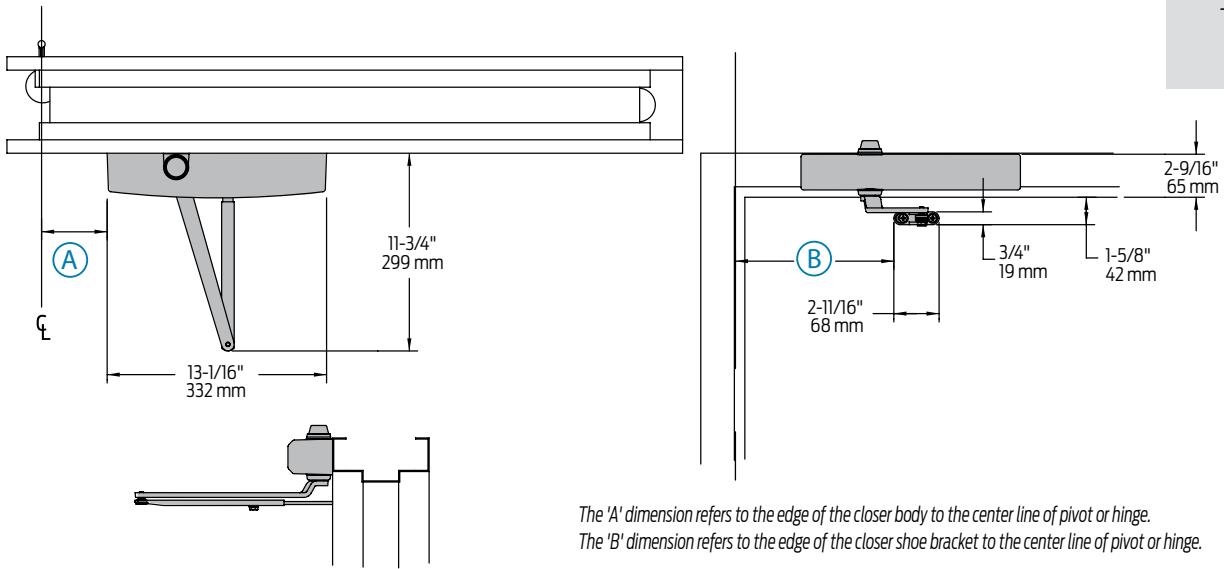

The 'A' dimension refersto the edge of the closer body to the center line of pivot or hinge. The 'B' dimension refersto the edge of the closershoe bracket to the center line of pivot or hinge.

Butt Hinges Should not exceed 5˝ (127 mm)in width
Auxiliary Stop Recommended at hold-open point, where a door cannot swing 180°, or where CUSH-N-STOP arm is not used
Top Rail Less than 4-1/2˝ (114 mm) measured from the stop requires PLATE, 1250-18PA
Clearance 1250-62PA shoe projects 4-1/8˝ (105 mm)from door face
Stop Width Minimum 1˝ (25 mm)
Blade Stop Clearance, requires 1/2˝ (13 mm) BLADE STOP SPACER, 1250-61
Auxiliary Shoe 1250-62A allows installation of regular arm with overhead holder/stop
Maximum opening Regular or hold-open arm can be templated to
100°:
A = 7-5/16˝ (186 mm)
B = 8-5/8˝ (219 mm)
or 101° to 130°:
A= 5-13/16˝ (148 mm)
B = 7-1/8˝ (181 mm)
or *131° to 180°: A= 3-13/16˝ (97 mm)
B = 5-1/8˝ (130 mm)
Hold-open points up to maximum opening with hold-open arm.
*Frame and trim permitting.

Note:

• 1250 Parallel arm closer includes1250-201 FIFTH HOLE SPACER to support PA SHOE

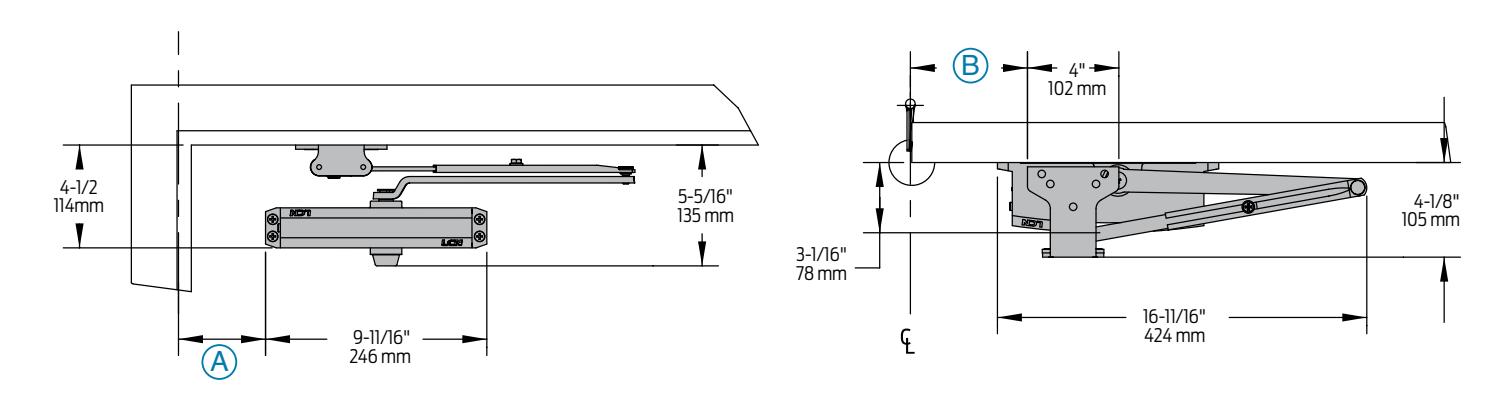

Mounting details

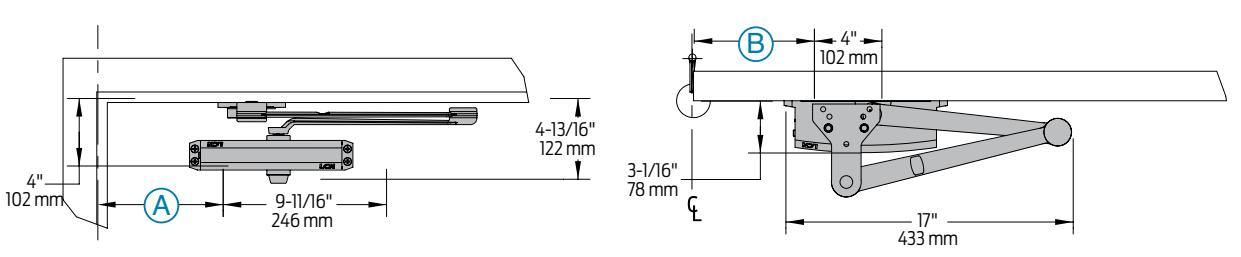

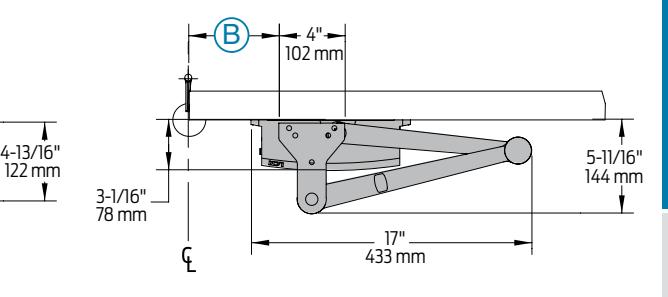

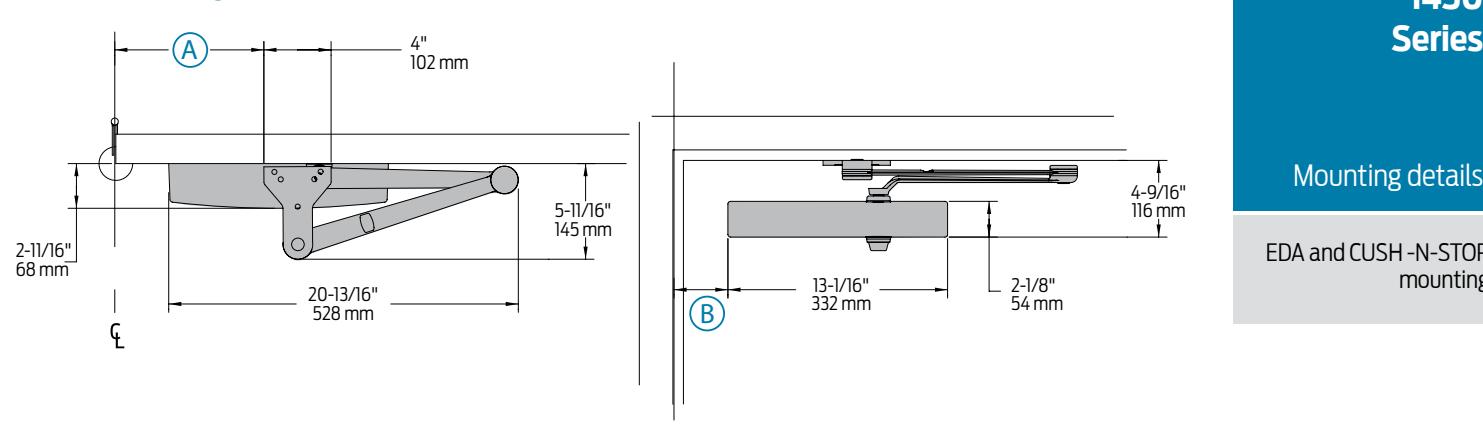

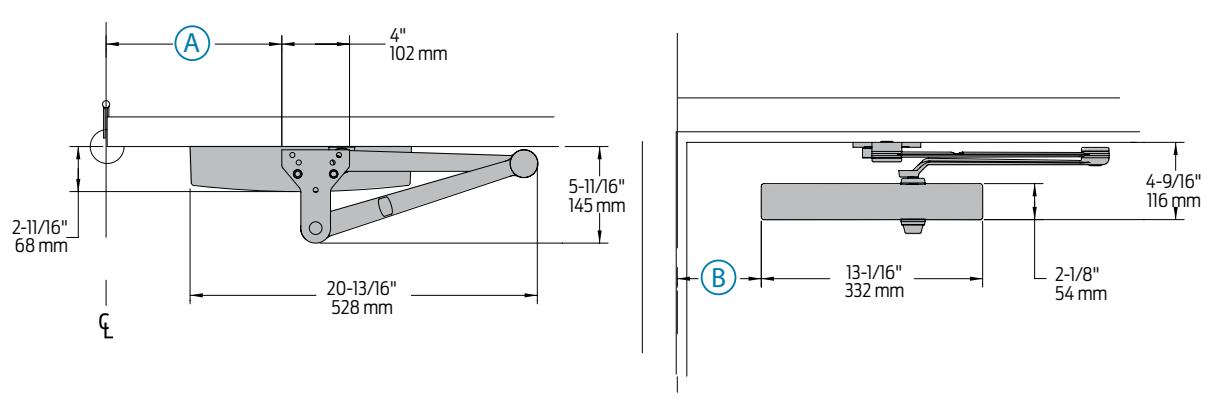

EDA and CUSH -N-STOP mounting

EDA mount

CUSH/SCUSH mount

The 'A' dimension refersto the edge of the closer body to the center line of pivot or hinge. The 'B' dimension refersto the edge of the closershoe bracket to the center line of pivot or hinge.

Clearance 1250-62EDA or CUSH shoe projects 5-11/16˝ (144mm)from door face
Head Frame Flush or rabbeted requires CUSH FLUSH PANEL ADAPTER, 1250-419
EDA or CUSH ARM Requires soffit SHOE SUPPORT, 1250-30 for fifth screw anchorage where reveal is less than 2-3/4˝ (70mm)
Spring CUSH Dead stop points are approximately 5° more than templated stop point.
Maximum opening EDA template allows 180°. Hold-open point
up to maximum opening 		CUSH arms can be templated for maximum opening/
hold-open point at 85°
100°:
A = 7-5/16˝ (186mm)
B = 9˝ (229 mm) 		85°: A = 8-13/16˝ (224 mm)
B = 10-1/2˝ (267 mm)
or 130°: A = 5-13/16˝ (148 mm)
B = 7-1/2˝ (191 mm) 		90°: A = 8-1/16˝ (205 mm)
B = 9-3/4˝ (248 mm)
or 180°: A = 3-13/16˝ (97 mm)
B = 5-1/2˝ (140 mm) 		100°: A = 6-11/16˝ (170 mm)
B = 8-3/8˝ (213 mm)
105°: A = 6-1/16˝ (154 mm)
B = 7-3/4˝ (197 mm)
110°: A = 5-7/16˝ (138 mm)
B = 7-1/8˝ (181 mm)

Note:

• 1250 closers ordered with EDA, CUSH or SPRING CUSH armsinclude 1250-201 FIFTH HOLE SPACER to support the shoe

Cylinders

1250-3071

Cast Aluminum Cylinder Assembly

  • n Non-handed
  • n Standard

Installation Accessories

1250-18 Plate

  • n Required for hinge side mount where top rail is less than 2-3/8˝ (60mm)
  • n Required fortop jamb mounting where head frame is less than 1-3/4˝ (44 mm) or flush ceiling condition exists
  • n Requires minimum 1-1/2˝ (38 mm) minimum top rail or 1-1/4˝ (32 mm) head frame

1250-18PA

Plate

  • n Required for parallel arm mounting where top rail is less than 4-1/2˝ (114mm), measured from the stop
  • n Requires 1-3/4˝ (44 mm) minimum top rail

Covers

1250-72

Slim Line Plastic Cover

  • n Non-handed
  • n Optional

1250-30

CUSH Shoe Support

n Provide anchorage for fifth screw used with CUSH arms where reveal is less than 2-3/4˝ (70mm)

1250-61

Blade Stop Spacer

n Lowers parallel arm shoe to clear 1/2˝ (13 mm) blade stop

1250-62A Auxiliary Shoe

n Requires a top rail of 7-1/8˝ (181mm). Optional shoe replaces -62PA for parallel arm mounting of regular arm with overhead holder/stop

1250-419 PA Flush Panel Adapter

n Provides horizontal mounting surface for PA, EDA or CUSH shoe on single rabbeted or flush frame

1250-62PA

PA Shoe

n Required for parallel arm mounting

Arms

1250-3077 Regular Arm w/PA

  • n Non-handed
  • n Mounts hinge side or top jamb
  • n Parallel Arm includes PA SHOE, 1250-62PA required for parallel arm mounting

1250-3077L

Long Arm

  • n Non-handed
  • n Includes LONG ROD AND SHOE, 1250-79LR fortop jamb mount with deep reveals
  • n Optional

1250-3077EDA Extra Duty Arm

  • n Non-handed
  • n Features solid forged steel main and forearm for potentially abusive installations
  • n Optional

1250-3049EDA

Hold-Open Extra Duty Arm

  • n Handed
  • n Provides hold-open function adjustable at shoe
  • n Optional

1250-3049

Hold-Open Arm w/ PA

  • n Non-handed
  • n Mounts hinge side, top jamb or parallel arm (62PA required)
  • n Hold-open adjustable at shoe
  • n Optional

1250-3049L

Long Hold-Open Arm

  • n Non-handed
  • n Includes LONG HEAD AND TUBE, 1250-3048L fortop jamb mount with deep reveals
  • n Optional

1250-3077CNS

Cush-n-Stop® Arm

  • n Non-handed
  • n Features solid forged steel main arm and forearm with stop in soffit shoe
  • n Optional

1250-3049CNS

HCUSH Arm

  • n Non-handed
  • n Provides hold-open function with templated stop/hold-open points.
  • n Handle controls hold-open function
  • n Optional

1250-3077SCNS

Spring CUSH Arm

  • n Non-handed
  • n For abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe
  • n Optional

1250-3049SCNS

Spring HCUSH Arm

  • n Non-handed
  • n For abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe
  • n Handle controls hold-open function
  • n Optional

Ordering Information

How-to-order 1250 Series closers

Select finish

☐ Standard Powder Coat Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass

Closer will be shipped with:

  • Standard cylinder
  • Tri pack arm (Rw/PA)
  • Universal screw pack unless options listed below are selected.

Closer options

Cover □ Slim line cover (SLIM) Finish □ Custom Powder Coat (RAL) □ SRI primer Arm Regular w/62PA (Rw/PA) Long (LONG) Regular w/62A (R/62A) Hold-Open w/62PA (Hw/PA) Long Hold-Open (HLONG) Extra Duty (EDA) Hold-Open Extra Duty (HEDA) - specificus (Cush-N-Stop (CUSH) HCush (HCUSH) Spring CUSH (SCUSH) Spring HCUSH (SHCUSH) fy handing
Optional screw packs ☐ TORX Machine Screw (TORX) ☐ TB* & TORX Machine Screw (TBTORX) Installation accessories □ Plate, 1250-18 □ Plate, 1250-18PA Special template □ ST
* Specify door thickness if other than 1-3/4" □ CUSH Shoe Support, 1250-30
□ Blade Stop Spacer, 1250-61
□ Auxiliary Shoe, 1250-62A
□ PA Flush Panel Adapter, 1250-419 		Meets Buy American Act
☐ BAA

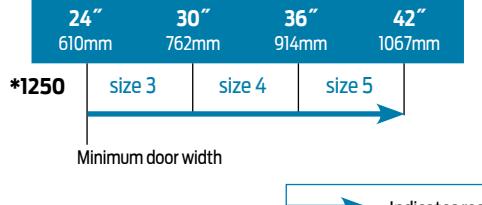

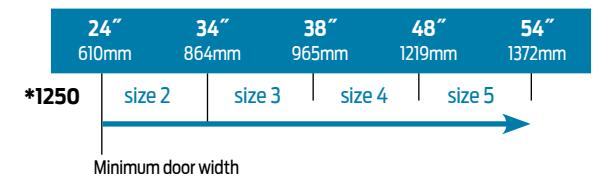

Table of sizes

  • Select closer based on width of door.
  • The spring power of a 1250 cylinder is field adjustable from size 1 through size 5 and is shipped adjusted to size 3.

Exterior (and Vestibule) door width

Interior door width

Indicates recommended range of door width for closer size. * Adjustable Size 1 thru 5.

Reduced opening force 1250 Series closers

CAUTION! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4, that is selected, installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door.

Refer to POWER OPERATORS section for information on systems that meet reduced opening force requirements without affecting closing power.

* Maximum openin g force
DOOR WIDTH 36″ 42″ 48"
Ė 8.5* lbs. 1250 1250 1250
5.0* lbs. 1250 1250 1250

C10

The 1260 is a light to medium duty cast iron closer designed to fit into the most common commercial foot print. The 1260 is adjustable for spring sizes 1-5. The 1260 also features a complete line of regular and extra duty arms, LCN's peel-n-stick installation templates, a convenient spring adjust pointer, and an optional Quick Fix^{\mathsf{T}} bracket kit.

Certifications Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour
Salt Spray, Meets BAA - Buy American Act
Body Construction
  • Cast Iron Body
  • Full Complement Bearing
  • 1-3/8" Diameter Piston
  • 5/8" Diameter Single Heat Treated
    Pinion Journal
Fluid All Weather Fluid
Handing Non-Handed
Templating Peel-n-Stick templates -
3/4″ x 9-1/16″ Mounting Hole Pattern
Size Adjustable Spring Size 1-5
Warranty 20 years
Cover
  • Slim Line Cover, Optional
Fasteners Self Reaming and Tapping Screws (SRT)
Mounting Hinge (Pull Side), Top Jamb (Push Side),
Parallel Arm (Push Side)
Arms Regular Arm
Finishes/Colors/
Powder Coat
  • Aluminum (689)
  • Statuary Bronze (690)
  • Light Bronze (691)
  • Black (693)
  • Dark Bronze (695)
  • Brass (696)
  • Custom colors optional
  • Optional SRI primer - powder coat only

Special Templates

Customized installation templates or products may be available to solve unusual applications. Contact LCN Product Support for assistance.

Mounting details

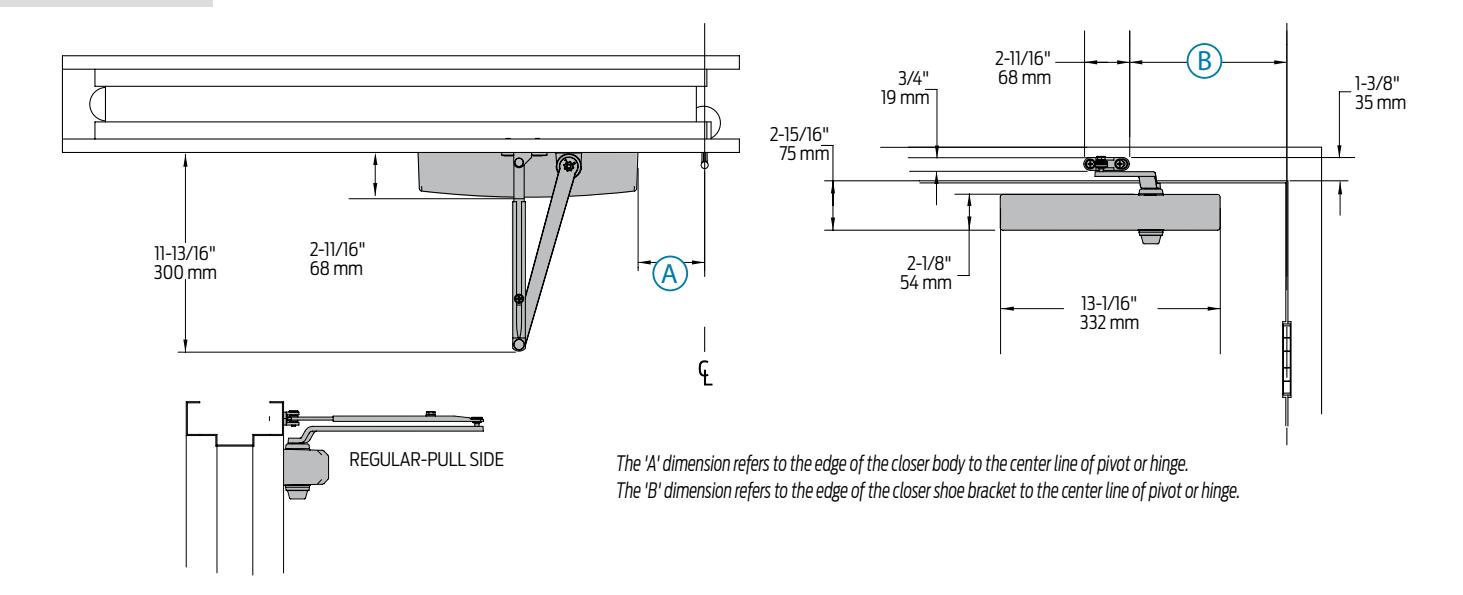

Hinge (Pull) Side Mounting

Butt Hinges Should not exceed 5˝ (127 mm)in width
Auxiliary Stop Recommended at hold-open point or where a door cannot swing 180°
Reveal Should not exceed 3/4˝ (19 mm)for regular arm or 1/2˝ (13 mm)for hold-open arm
Top Rail Less than 2-1/2˝ (64 mm)requires PLATE, 1260-18
Clearance 2-7/8˝ (73 mm) behind door required for installation
Maximum opening 110°:
A = 6-9/16˝ (167 mm)
B = 12-7/16˝ (316 mm)
101° to 120°:
A= 5-9/16˝ (141 mm)
B = 11-7/16˝ (291 mm)
or *121° to 180°: A= 3-1/16˝ (78 mm)
B = 8-15/16˝ (227 mm)
Hold-open points up to maximum opening with hold-open arm
*Frame and trim permitting.

Mounting details

Top Jamb (Push Side) Mounting

Butt Hinges Should not exceed 5˝ (127 mm)in width
Auxiliary Stop Recommended at hold-open point or where a door cannot swing 180°
Reveal Arm Type Maximum Reveal Opening
Regular Arm 3-1/2˝ Up to 120°
Regular Arm 2-1/4˝ 121° to 180°
Long Arm 7-1/2˝ Up to 120°
Long Arm 3-1/2˝ 121° to 180°
Hold-Open Arm 2˝ Up to 120°
Hold-Open Arm 2-1/4˝ 121° to 180°
Long Hold-Open Arm 4-1/2˝ Up to 120°
Long Hold-Open Arm 4-1/2˝ 121° to 160°
Top Rail 1-3/4˝ (44 mm) minimum. 2-1/2˝ (64 mm) minimum with closer on PLATE, 1260-18
Head Frame Less than 1-3/4˝ (44 mm)requires PLATE, 1260-18. For flush ceiling condition with 2˝ (51 mm) head frame,
use PLATE, 1260-18.(Plate requires 1-3/8˝ (35 mm) minimum.)
Maximum opening 110°: A = 7-1/16˝ (179 mm)
B = 12-15/16˝ (329 mm)
101° to 120°: A= 5-9/16˝ (141 mm)
B = 11-7/16˝ (291 mm)
or *121° to 180°: A= 3-1/16˝ (78 mm)
B = 8-15/16˝ (227 mm)
Hold-open points up to maximum opening with hold-open arm
*Frame and trim permitting.

Mounting details

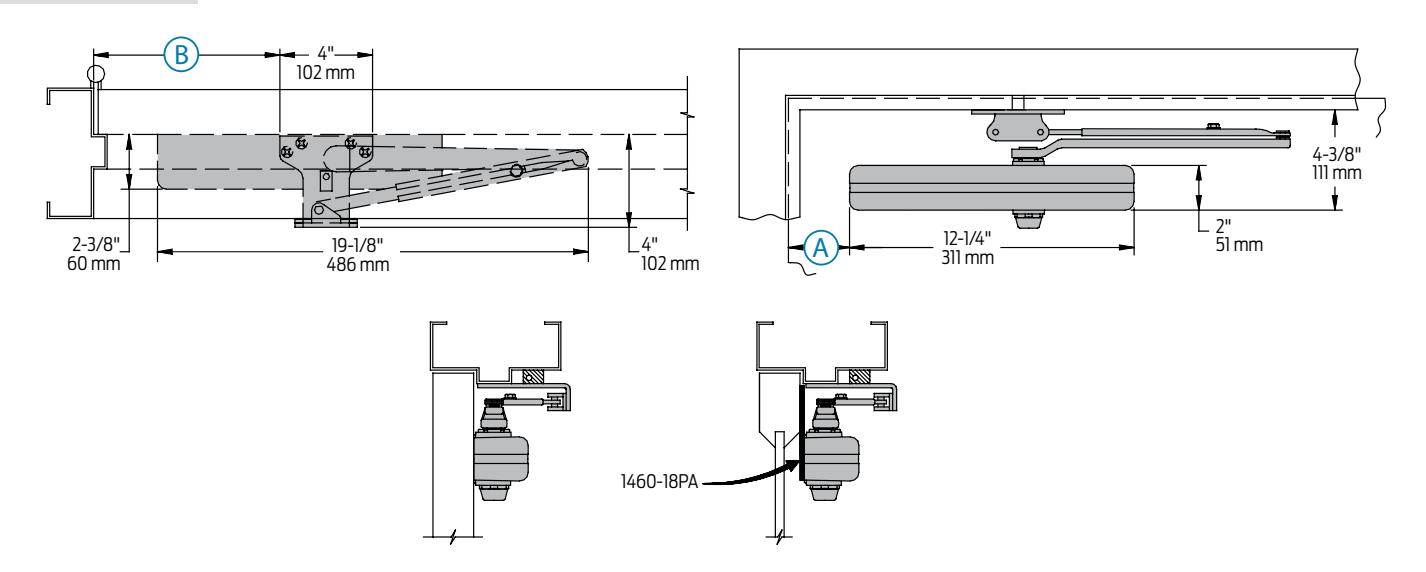

Parallel Arm (Push Side) Mounting

Butt Hinges Should not exceed 5" (127 mm) in width
Auxiliary Stop Recommended at hold-open point, where a door cannot swing 180°, or where CUSH-N-STOP arm is not used
Top Rail Less than 4-3/8" (111 mm) measured from the stop requires PLATE, 1260-18PA
Clearance 1260-62PA shoe projects 4" (102 mm) from door face
Stop Width Minimum1" (25 mm)
Blade Stop Clearance, requires 1/2" (13 mm) BLADE STOP SPACER, 1260-61
Auxiliary Shoe 1260-62A allows installation of regular arm with overhead holder/stop. Special templating required
Maximum opening Regular or hold-open arm can be templated to 100^{\circ} : A = 7 -3/16" (183 mm) B = 8 -5/8" (219 mm)
or 101° to 130°: A= 5-11/16" (144 mm)
B = 7-1/8" (181 mm)
or *131° to 180°: A= 3-11/16" (94 mm)
B = 5-1/8" (130 mm)
Hold-open points up to maximum opening with hold-open arm. *Frame and trim permitting.

Notes

  • · Optional mounting requires PA SHOE, 1260-62PA for REGULAR or HOLD-OPEN arms
  • · 1260 Parallel arm closer includes 1260-201 FIFTH HOLE SPACER to support PA SHOE

EDA mount B 102 mm 102 mm 14-1/2" 114 mm 133 mm 14-1/2" 133 mm 2-7/8" 140 mm 4-1/2" 1252 mm

CUSH mount

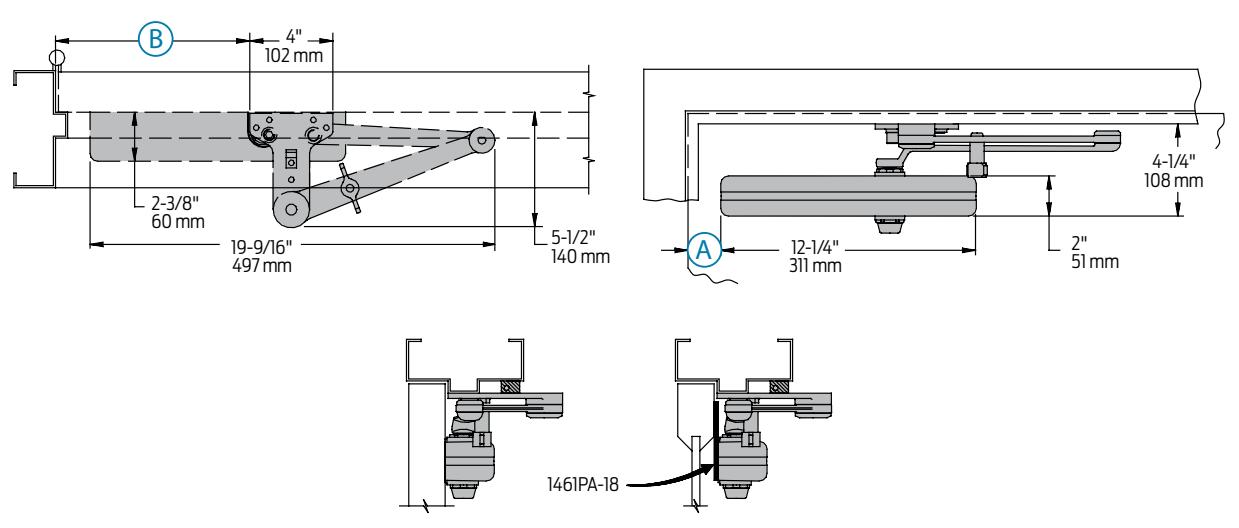

Clearance 1260-62EDA or CUSH shoe projects 5-1/2" (140 mm) from door face
Head Frame Flush or rabbeted requires CUSH FLUSH PANEL ADAPTER, 1260-419
EDA or CUSH ARM Requires SHOE SUPPORT, 1260-30 for fifth screw anchorage where reveal is less than 3-1/16" (78 mm)
Maximum opening EDA template allows 120°. Hold-open point up to maximum opening arms can be templated for maximum opening,
pen point at
90°: A = 4-13/16″ (122 mm)
B = 9-1/2″ (241 mm) 		85º: A = 5-5/16" (135 mm)
B = 10" (254 mm)
or 120°: A = 3-5/16" (84 mm)
B = 8" (203 mm) 		90°: A = 4-11/16" (119 mm)
B = 9-3/8" (238 mm)
Hold-open points up to maximum opening with HEDA arm 100°: A = 3-9/16" (90 mm)
B = 8-1/4" (210 mm)
110°: A = 2-13/16" (71 mm)
B = 7-1/2" (191 mm)

Note

• 1260 closers ordered with EDA, CUSH or SPRING CUSH arms include 1260-201 FIFTH HOLE SPACER to support the shoe.

Cylinders

1261(2)(3)(4)(5)-3071 Cast Iron Cylinder Assembly

  • n Non-handed
  • n Standard

Covers

1260-72 Slim Line Plastic Cover

  • n Non-handed
  • n Optional

Installation Accessories

1260-18 Plate

  • n Required for hinge side mount where top rail is less than 2-1/2˝ (64 mm)
  • n Required fortop jamb mounting where head frame is less than 1-3/4˝ (44 mm) or flush ceiling condition exists
  • n Requires minimum 1-1/2˝ (38 mm) minimum top rail or 1-1/4˝ (32 mm) head frame

1260-18PA

Plate

  • n Required for parallel arm mounting where top rail is less than 4-3/8˝ (111 mm), measured from the stop
  • n Requires 1-3/4˝ (44 mm) minimum top rail

1260-18QF

Quick Fix™ Bracket Kit

  • n Optional kitincludes retro-fit mounting plates for 1371 closer cylinder and shoe
  • n Useful in applications when previously drilled holes are damaged

1260-30

CUSH Shoe Support

n Provide anchorage for fifth screw used with CUSH arms where reveal is less than 3-1/16˝ (78 mm)

1260-61 Blade Stop Spacer

n Lowers parallel arm shoe to clear 1/2˝ (13 mm) blade stop

1260-62A Auxiliary Shoe

  • n Requires a top rail of 7˝ (178 mm)
  • n Optional shoe replaces-62PA for parallel arm mounting of regular arm with overhead holder/stop

1260-419

PA Flush Panel Adapter

n Provides horizontal mounting surface for PA, EDA or CUSH shoe on single rabbeted or flush frame

1260-62PA

PA Shoe

n Required for parallel arm mounting

Arms

1260-3077 Regular Arm

  • n Non-handed
  • n Mounts hinge side or top jamb
  • n Parallel Arm includes PA SHOE, 1260-62PA required for parallel arm mounting

1260-3049L Long Hold-open Arm

  • n Non-handed
  • n Includes LONG HEAD AND TUBE, 1260-3048L fortop jamb mount with deep reveals
  • n Optional

1260-3077CNS Cush-n-Stop® Arm

  • n Non-handed
  • n Features solid forged steel main arm and forearm with stop in soffit shoe
  • n Optional

1260-3077L Long Arm

  • n Non-handed
  • n Includes LONG ROD AND SHOE, 1260-79LR fortop jamb mount with deep reveals
  • n Optional

1260-3049 Hold-open Arm

  • n Non-handed
  • n Mounts hinge side, top jamb or parallel arm (62PA required)
  • n Hold-open adjustable at shoe
  • n Optional

1260-3077EDA

Extra Duty Arm

  • n Non-handed
  • n Features solid forged steel main and forearm for potentially abusive installations
  • n Optional 1260-3077EDA/G for blade stop clearance

1260-3077EDA/62G Extra Duty Arm w/ 62G

  • n Non-handed
  • n Features solid forged steel main and forearm for potentially abusive installations

1260-3049EDA

Hold-Open Extra Duty Arm

  • n Handed arm
  • n Provides hold-open function adjustable at shoe
  • n Optional

1260-3049CNS HCUSH Arm

  • n Non-handed
  • n Provides hold-open function with templated stop/hold-open points.
  • n Handle controls hold-open function
  • n Optional

Ordering Information How-to-order 1260 Series closers

Select finish

Standard Powder Coat__________ Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass

Closer will be shipped with:

  • Standard cylinder
  • Regular arm
  • Self-reaming and tapping screws unless options listed below are selected.

Closer options

Cover Slim line cover(SLIM) Finish Custom Powder Coat(RAL) SRI primer(for use with powder coatfinishes only)

Arm

  • Regular w/62PA (Rw/PA)
  • Long (LONG)
  • Regular w/62A (R/62A)
  • Hold-Open (H)
  • Hold-Open w/62PA (Hw/PA)
  • Long Hold-Open (HLONG)
  • Extra Duty (EDA)(optional-62G)
  • Hold-Open Extra Duty (HEDA)- specify handing (optional-62G)
  • Cush-N-Stop (CUSH)
  • HCush (HCUSH)

Optional screw packs

  • TB* w/Self-Reaming and Tapping Screws (TBSRT)
  • Wood & Machine Screw (WMS)
  • TB*, Wood & Machine Screw (TBWMS)
  • TORX Machine Screw (TORX)
  • TB* & TORX Machine Screw (TBTORX)
  • * Specify doorthickness if otherthan 1-3/4˝

Installation accessories

Plate, 1260-18

  • Plate, 1260-18PA
  • CUSH Shoe Support, 1260-30
  • Blade Stop Spacer, 1260-61
  • Auxiliary Shoe, 1260-62A
  • PA Flush Panel Adapter, 1260-419
  • Quick Fix™ Bracket Kit, 1260-18QF

Special template

ST- ________

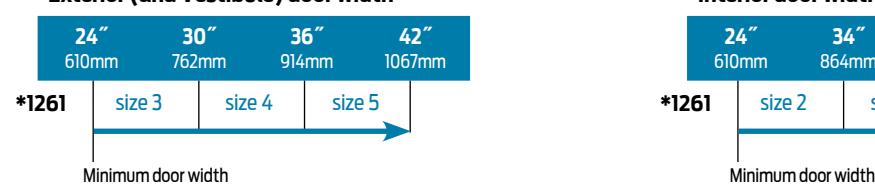

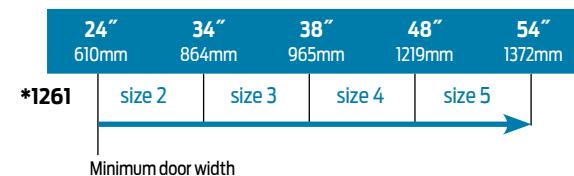

Table of sizes

  • n Select closer based on width of door.
  • n The spring power of a 1261 cylinder is field adjustable from size 1through size 5 and is shipped adjusted to size 3.

Exterior (and Vestibule) door width

Interior door width

Indicates recommended range of door width for closer size. * Adjustable Size 1 thru 5.

Reduced opening force 1260 Series closers

CAUTION ! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4,thatis selected, installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient powerto reliably close and latch a door.

Referto POWER OPERATORS section for information on systems that meetreduced opening force requirements without affecting closing power.

* Maximum opening force.
DOOR WIDTH 36˝ 42˝ 48˝
8.5* lbs. 1261 1261 1261
5.0* lbs. 1261 1261 1261

The 1450 Series cast aluminum closer was specially designed to deliver consistent, dependable, long-term performance in frequently-used, low-abusive traffic areas. The patented design, featuring the industry's most common hole pattern, is an excellent choice for a range of applications - from aftermarket replacement to aluminum store fronts, to new construction projects - anywhere quality, reliability and value are important.

Certifications Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour
Salt Spray, Meets BAA - Buy American Act
Body Construction
  • Cast Aluminum Body
  • Full Complement Bearing
  • 1-1/4" Diameter Piston
  • 5/8" Diameter Single Heat Treated
    Pinion Journal
Fluid All Weather Fluid
Handing Non-Handed
Templating Peel-n-Stick templates -
3/4″ x 12″ Mounting Hole Pattern
Size Adjustable Spring Size 1-6
Warranty 25 years
Cover
  • Slim Line Plastic, Standard
  • Full Plastic and Metal, Optional
Fasteners Universal Screw Pack (UNIV)
Mounting Hinge (Pull Side), Top Jamb (Push Side),
Parallel Arm (Push Side)
Arms Standard regular pull side, and top jamb
Finishes/Colors/
Powder Coat
  • Aluminum (689)
  • Statuary Bronze (690)
  • Light Bronze (691)
  • Black (693)
  • Dark Bronze (695)
  • Brass (696)
  • Custom colors optional
  • Optional SRI primer - powder coat only

Special Templates

Customized installation templates or products may be available to solve unusual applications. Contact LCN Product Support for assistance.

  • AVAILABLE
  • O NOT AVAILABLE
  • \dot{\&} Closer available with less than 5.0 lbs. opening force on 36 '' door.
  • * Maximum opening/hold-open point with standard template.
  • D = For designer series only.

Mounting details

Hinge (Pull) Side Mounting

Butt Hinges Should not exceed 5˝ (127 mm)in width
Auxiliary Stop Recommended at hold-open point or where a door cannot swing 180°
Reveal Should not exceed 3/4˝ (19 mm)for regular arm or 1/2˝ (13 mm)for hold-open arm
Top Rail n Less than 2-1/2˝ (64 mm)requires PLATE, 1450-18
n With Full cover, use PLATE, 1450-18FC. Plate requires 1-1/2˝ (38 mm) minimum
Clearance 2-3/8˝ (60 mm) behind door required for installation
Maximum opening 100°:
A = 7˝ (102 mm)
B = 12-3/8˝ (314 mm)
101° to 130°: A=5-1/2˝ (140 mm)
B = 10-7/8˝ (276 mm)
131° to 180°: A=4˝ (140 mm)
B = 9-3/8˝ (238 mm)
Hold-open points up to maximum opening with hold-open arm
*Frame and trim permitting.

Mounting details

Top Jamb (Push Side) Mounting

Butt Hinges Should not exceed 5" (127 mm) in width
Auxiliary Stop Recommended at hold-open point or where a door cannot swing 180°
Reveal Arm Type Reveal Max Opening
Regular Arm 5″ Up to 170°
Regular Arm 3-3/4″ Up to 180°
Long Arm 8″ Up to 155°
Hold-Open Arm 2-3/4″ Up to 180°
Long Hold-Open Arm 4-7/8″ Up to 140°
Top Rail Requires 2-1/8" (54 mm) minir num. 3-3/8" (86 mm) minimum v with closer on PLATE, 1450-18.
Head Frame Less than 1-3/4" (44 mm) requires PLATE, 1450-18. For flush ceiling condition with 1-3/4" (45 mm) head frame, use PLATE, 1450-18
Maximum opening 100°: A=7″ (102 mm)
B = 12-3/8″ (314 r 		nm)
101° to 130°: A= 5-1/2″ (140 m
B = 10-7/8″ (276
131° to 180°: A= 4″ (102 mm)
B = 9-3/8″ (238 r 		nm)
Hold-open points up to maxim *Frame and trim permitting. um opening with hold-open arm.

Mounting details

Parallel Arm (Push Side) Mounting

Notes:

  • · PA shoe is included with Rw/PA Arm
  • 1450 closer includes 1450-201 FIFTH HOLE SPACER to support PA SHOE

EDA/HEDA mount

Mounting details

EDA and CUSH -N-STOP mounting

CUSH/HCUSH/SCUSH /SHCUSH mount

The 'A' dimension refersto the edge of the closer body to the center line of pivot or hinge. The 'B' dimension refersto the edge of the closershoe bracket to the center line of pivot or hinge.

Clearance 1450-62EDA or CUSH shoe projects 5-11/16˝ (144mm)from door face
Head Frame Flush or rabbeted requires CUSH FLUSH PANEL ADAPTER, 1450-419
EDA or CUSH ARM Requires soffit SHOE SUPPORT, 1450-30 for fifth screw anchorage where reveal is less than 3-1/16˝ (78 mm)
Spring CUSH Dead stop points are approximately 5° more than templated stop points
EDA template allows 110°. Hold-open point
Maximum opening
up to maximum opening 		CUSH arms can be templated for maximum opening/
hold-open point at 85°
120°:
A = 8-7/8˝ (225 mm)
B = 3-3/16˝ (81 mm) 		85°:
A = 10-3/8˝ (279 mm)
B = 4-15/16˝ (140 mm)
over 120°: A = 6-3/8˝ (162 mm)
B = 11/16˝ (17 mm) 		90°:
A = 9-5/8˝ (244 mm)
B = 4-3/16˝ (106 mm)
95°:
A = 8-7/8˝ (225 mm)
B = 3-7/16˝ (87 mm)
100°:
A = 8-1/4˝ (210 mm)
B = 2-13/16˝ (71 mm)
105°:
A = 7-5/8˝ (194 mm)
B = 2-3/16˝ (56 mm)
110°:
A = 7˝ (178 mm)
B = 1-9/16˝ (40 mm)

Note:

• 1450 closers ordered with EDA, CUSH or SPRING CUSH armsinclude 1450-201 FIFTH HOLE SPACER to support the shoe.

Cylinders

1450-3071

Cast Aluminum Cylinder Assembly

  • n Non-handed
  • n Standard

1450-72

Slim Line Plastic Cover

  • n Non-handed
  • n Standard

1450-72FC

Full Plastic Cover

  • n Non-handed
  • n Optional

Left hand shown

1450-72MC

Metal Cover

  • n Handed
  • n Optional

Covers Alternate Cover

1450-72ALT

Alternate Cover

  • n Non-handed
  • n Optional, sold separately (not packed with closer)

Installation Accessories

1450-18 / 1450-18FC

Plate

  • n Required for hinge side mount where top rail is less than 2-1/2˝ (64 mm)
  • n Required fortop jamb mounting where head frame is less than 1-3/4˝ (44 mm) or flush ceiling condition exists
  • n Requires minimum 1-1/2˝ (38 mm) minimum top rail or 1-1/4˝ (32 mm) head frame
  • n With full cover, use PLATE, 1450-18FC

1450-18PA / 1450-18PAFC

Plate

  • n Required for parallel arm mounting where top rail is less than 4-3/8˝ (111mm), measured from the stop
  • n Requires 1-3/4˝ (44 mm) minimum top rail
  • n With full cover, use PLATE, 1450-18FC

1450-30

CUSH Shoe Support

n Provide anchorage for fifth screw used with CUSH arms where reveal is less than 3-1/16˝ (78mm)

1450-61

Blade Stop Spacer

n Lowers parallel arm shoe to clear 1/2˝ (13 mm) blade stop.

1450-62PA

PA Shoe

n Required for parallel arm mounting

1450-62A Auxiliary Shoe

n Requires a top rail of 7˝ (178mm). Optional shoe replaces -62PA for parallel arm mounting of regular arm with overhead holder/stop

1450-419

PA Flush Panel Adapter

n Provides horizontal mounting surface for PA, EDA or CUSH shoe on single rabbeted or flush frame

Arms

  • Regular Arm w/PA n Non-handed
  • n Mounts hinge side or top jamb
  • n Includes PA SHOE, 1450-62PA required for parallel arm mounting

1450-3077L Long Arm

  • n Non-handed
  • n Includes LONG ROD AND SHOE, 1450-79LR fortop jamb mount with deep reveals
  • n Optional

1450-3049

Hold-Open Arm w/PA

  • n Non-handed
  • n Mounts hinge side, top jamb or parallel arm (62PA required)
  • n Hold-open adjustable at shoe
  • n Optional

1450-3049L

Long Hold-Open Arm

  • n Non-handed
  • n Includes LONG HEAD AND TUBE, 1450-3048L fortop jamb mount with deep reveals
  • n Optional

1450-3077EDA

Extra Duty Arm

  • n Non-handed
  • n Features solid forged steel main and forearm for potentially abusive installations
  • n Optional 1450-3077EDA/G for blade stop clearance

1450-3077EDA/62G Extra Duty Arm w/ 62G

n Non-handed

  • n Features solid forged steel main and forearm for potentially abusive installations
  • n Optional 1450-3077EDA/G for blade stop clearance

1450-3049EDA

Hold-Open Extra Duty Arm

  • n Handed arm
  • n Provides hold-open function adjustable at shoe
  • n Optional

1450-3077CNS

Cush-n-Stop® Arm

  • n Non-handed
  • n Features solid forged steel main arm and forearm with stop in soffit shoe
  • n Optional

1450-3049CNS HCUSH Arm

  • n Non-handed
  • n Provides hold-open function with templated stop/hold-open points
  • n Handle controls hold-open function
  • n Optional

1450-3077SCNS Spring CUSH Arm

  • n Non-handed
  • n For abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe
  • n Optional

1450-3049SCNS Spring HCUSH Arm

  • n Non-handed
  • n For abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe
  • n Handle controls hold-open function
  • n Optional

Ordering Information How-to-order 1450 Series closers

Select finish

Standard Powder Coat__________ Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass

Closer will be shipped with:

  • Standard cylinder
  • Standard cover
  • Tri pack arm (Rw/PA)
  • Universal screw pack unless options listed below are selected.

Closer options

Cover Full Plastic (FC) Metal(specify right or left hand)(MC) Alternate Cover(ALT)(sold separately from product) Finish

  • Custom Powder Coat(RAL) (Metal cover required)
  • SRI primer

Arm

  • Regular w/62PA (Rw/PA)
  • Long (LONG)
  • Regular w/62A (Rw/62A)
  • Hold-Open w/62PA (Hw/PA)
  • Long Hold-Open (HLONG)
  • Extra Duty (EDA)(optional-62G)
  • Hold-Open Extra Duty (HEDA)- specify handing
  • Cush-N-Stop (CUSH)
  • HCush (HCUSH)
  • Spring Cush (SCUSH)
  • Spring HCush (SHCUSH)

Optional screw packs

  • TORX Machine Screw (TORX)
  • TB* & TORX Machine Screw (TBTORX)
  • * Specify doorthickness if otherthan 1-3/4˝

Installation accessories

  • Plate, 1450-18
  • Plate, 1450-18FC
  • Plate, 1450-18PA
  • Plate, 1450-18PAFC
  • CUSH Shoe Support, 1450-30
  • Blade Stop Spacer, 1450-61

PA Flush Panel Adapter, 1450-419

Auxiliary Shoe, 1450-62A

Special template

ST- ________

BAA

Meets Buy American Act

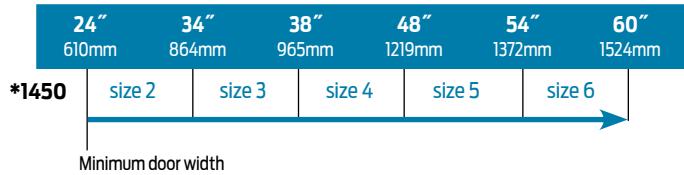

Table of sizes

  • n Select closer based on width of door.
  • n The spring power of a 1450 cylinder is field adjustable from size 1through size 6 and is shipped adjusted to size 3.

Exterior (and Vestibule) door width

*1450 *1450 Minimum door width Minimum door width 24˝ 610mm 30˝ 762mm 36˝ 914mm 42˝ 1067mm 48˝ 1219mm size 3 size 4 size 5 size 6

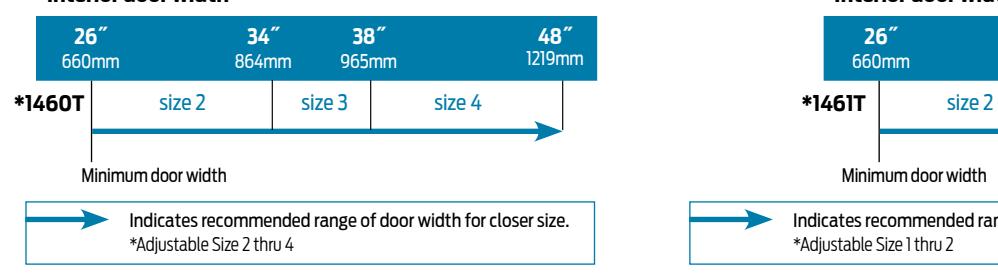

Interior door width

Indicates recommended range of door width for closer size. * Adjustable Size 1 thru 6.

Reduced opening force 1450 Series closers

CAUTION ! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4,thatis selected, installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient powerto reliably close and latch a door.

Referto POWER OPERATORS section for information on systems that meetreduced opening force requirements without affecting closing power.

DOOR WIDTH 36˝ 42˝ 48˝
8.5* lbs. 1450 1450 1450
5.0* lbs. 1450 1450 1450

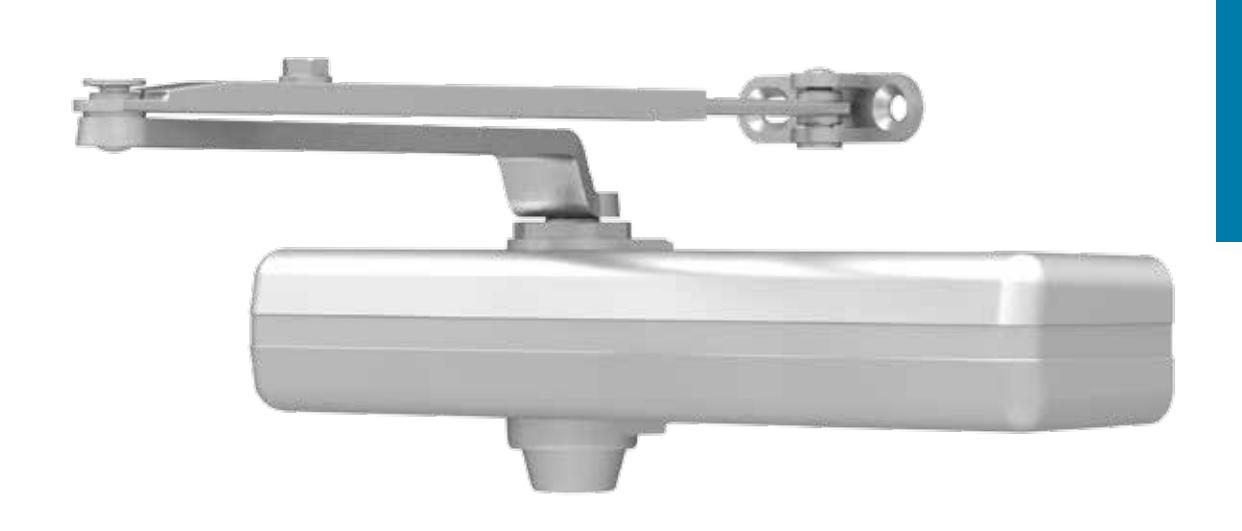

Designed for maximum versatility, the 1460, available with multiple cover options, can be used for both commercial and institutional applications. This fully universal closer offers a wide variety of options and fast and accurate installation.

Certifications Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour
Salt Spray, Meets BAA - Buy American Act 		Cover
  • Slim Line Plastic, Standard
  • Full Plastic and Metal Designer Series,
    Optional
Body Construction Cast Iron Body Total Consult Resident Fasteners Self Reaming and Tapping Screws (SRT)
  • Full Complement Bearing
  • 1-1/4" Diameter Piston
  • 3/4" Diameter Single Heat Treated
Mounting Hinge (Pull Side), Top Jamb (Push Side),
Parallel Arm (Push Side)
Pinion Journal Arms Standard regular pull side, and top jamb
Fluid All Weather Fluid Finishes/Colors/ Aluminum (689)
Handing Non-Handed Powder Coat
  • Statuary Bronze (690)
  • Light Bronze (691)
Templating Peel-n-Stick templates -
1″ x 7-1/2″ Mounting Hole Pattern
  • Black (693)
  • Dark Bronze (695)
  • Brass (696)
Size Adjustable Spring Size 1-6. Includes Patented
Green Dial
  • Custom colors optional
  • Optional SRI primer - powder coat only
Warranty 30 years
  • Optional plated finishes

Special Templates

Customized installation templates or products may be available to solve unusual applications. Contact LCN Product Support for assistance.

  • AVAILABLE
  • O NOT AVAILABLE
  • Closer available with less than 5.0 lbs. opening force on 36 door.
  • * Maximum opening/hold-open point with standard template.
  • D = For designer series only.

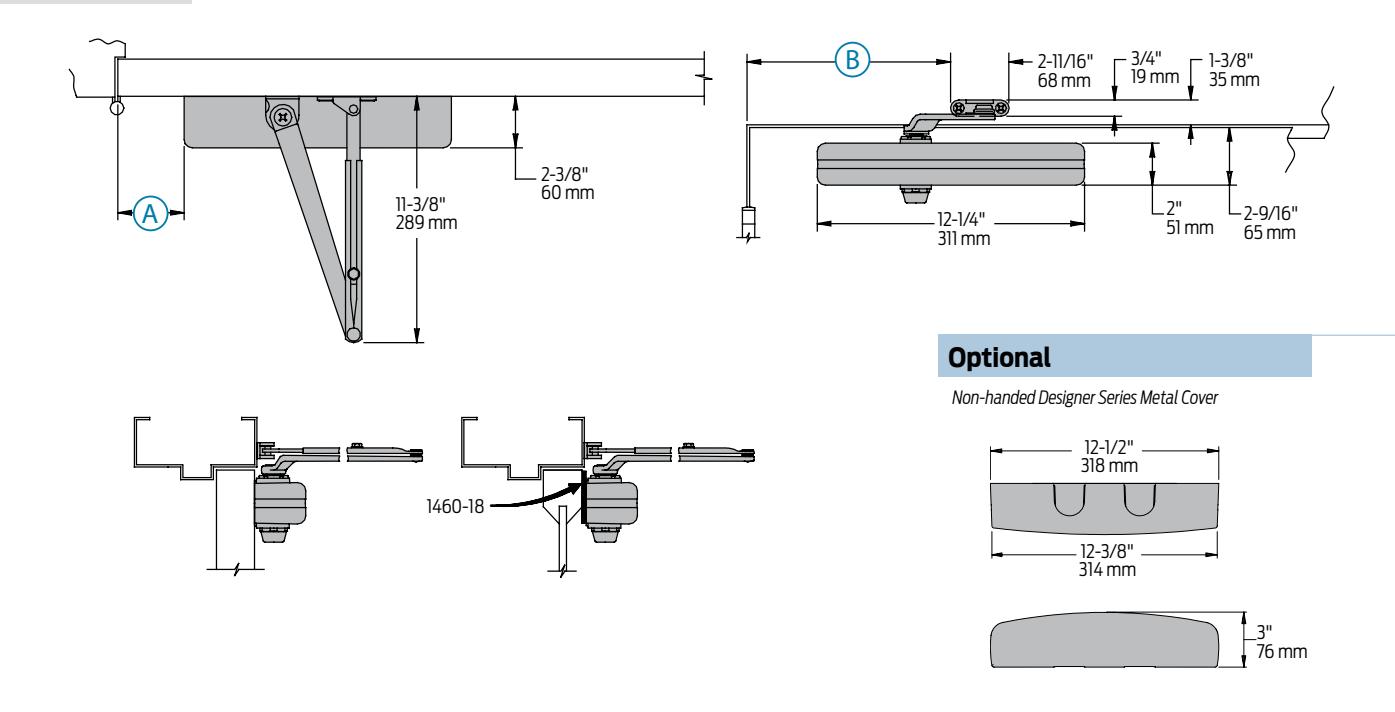

Mounting details

Hinge (Pull) Side Mounting

Butt Hinges Should not exceed 5" (127 mm) in width
Auxiliary Stop Recommended at hold-open point or where a door cannot swing 180°
Reveal Should not exceed 3/4" (19 mm) for regular arm or 1/2" (13 mm) for hold-open arm
Top Rail
  • Less than 2-1/2" (64 mm) requires PLATE, 1460-18
  • With Full cover, use PLATE, 1460-18FC. Plate requires 1-1/2" (38 mm) minimum
  • With Designer Series metal cover, use PLATE, 1460-18DS1
Clearance 2-3/8″ (60 mm) behind door required for installation
Delayed Action
  • Add suffix "DEL" to selected cylinder (eg. 1461 DEL)
  • Delays closing from:
    • 110° to 65° (using 110° template)
    • 160° to 75° (using 180° template)
  • Delay time adjustable up to approximately 1 minute
Maximum opening 110°: A = 5-7/8″ (149 mm)
B = 10-7/8″ (276 mm)
or *180° A= 2-7/8″ (73 mm)
B = 7-7/8″ (200 mm)
Hold-open points up to maximum opening with hold-open arm *Frame and trim permitting.

Mounting details

Top Jamb (Push Side) Mounting

Butt Hinges Should not exceed 5" (127 mm) in width
Auxiliary Stop Recommended at hold-open point or where a door cannot swing 180°
Reveal Arm Type Reveal Max Opening
Regular Arm 4-7/8″ Up to 140°
Regular Arm 3-1/2″ Up to 180°
Long Arm 7″ Up to 140°
Hold-Open Arm 2-1/2″ Up to 180°
Long Hold-Open Arm 4-7/8″ Up to 140°
Top Rail Requires 1-7/8" (48 mm) minimum. 2-3/4" (70 mm) minimum with closer on PLATE, 1460-18
Head Frame Less than 1-3/4" (44 mm) requires PLATE, 1460-18. For flush ceiling condition with 2" (51 mm) head frame, use PLATE, 1460-18
Delayed Action
  • Add suffix "DEL" to selected cylinder (eg. 1460 DEL).
  • Delays closing:
    • 110° to 75° (using 110° template)
    • 180° to 95° (using 180° template)
  • Delay time adjustable up to approximately 1 minute.
Maximum opening 110°: A= 6-3/4" (169
B = 11-1/4" (286 		•
101º to 120º: A= 3" (76 mm)
B = 7-1/2" (191 r 		nm)
Hold-open points up to maxim *Frame and trim permitting. num opening with hold-open arm.

Mounting details

Parallel Arm (Push Side) Mounting

Butt Hinges Should not exceed 5˝ (127 mm)in width
Auxiliary Stop Recommended at hold-open point, where a door cannot swing 180°, or where CUSH-N-STOP arm is not used
Top Rail n Less than 4-3/8˝ (111 mm) measured from the stop requires PLATE, 1460-18PA. With Full cover, use PLATE, 1460-
18PAFC
n Plate requires 1-3/4˝ (44 mm) minimum. Plate requires 1-1/4˝ (32 mm) minimum
n With Designer Series metal cover, use PLATE, 1460-18PADS1
Clearance 1460-62PA shoe projects 4˝ (102 mm)from door face
Head Frame Flush or single rabbeted requires PA SHOE ADAPTER, 1460-419
Stop Width Minimum 1˝ (25 mm)
Blade Stop Clearance, requires 1/2˝ (13 mm) BLADE STOP SPACER, 1460-61
Auxiliary Shoe n 1460-62A allows installation of regular arm with overhead holder/stop
n Specialtemplating required
Delayed Action n Add suffix "DEL"to selected cylinder(eg. P1460 DEL)
n Delays closing from maximum opening to approximately 75°
n Delay time adjustable up to approximately 1 minute
Maximum opening Regular or hold-open arm can be templated to
100°:
A = 4-1/4˝ (108 mm)
B = 9-1/4˝ (235 mm)
or 180°:
A= 1-3/4˝ (44 mm)
B = 6-3/4˝ (171 mm)
Hold-open points up to maximum opening with hold-open arm.

Notes:

  • • Optional mounting requires PA SHOE, 1460-62PA for REGULAR or HOLD-OPEN arms. Add prefix "P"to closer description (e.g. P1460)
  • P1460 closer includes1460-201 FIFTH HOLE SPACER to support PA SHOE.

EDA mount

Mounting details

EDA and CUSH mounting

CUSH mount

Hold open points are approximately 5º less than dead stop point
1460-62EDA or CUSH shoe projects 5-1/2" (140 mm) from door face
Flush or rabbeted requires PA FLUSH PANEL ADAPTER, 1460-419
Requires SHOE SUPPORT, 1460-30 for fifth screw anchorage where reveal is less than 3-1/16 ^{\prime\prime} (78 mm)
EDA template allows 110°
Hold-open point up to maximum opening 		CUSH arms can be templated for maximum opening/hold-open point at
85º: A = 2-3/8" (60 mm)
B = 9-9/16" (243 mm)
90°: A = 1-5/8″ (41 mm)
B = 9-1/16″ (230 mm)
100°: A = 5/8" (16 mm)
B = 8-1/16" (205 mm)
1460-62EDA or CUSH shoe projects 5-1/2" (140 mm
Flush or rabbeted requires PA FLUSH PANEL ADAP
Requires SHOE SUPPORT, 1460-30 for fifth screw a
EDA template allows 110° 		1460-62EDA or CUSH shoe projects 5-1/2" (140 mm) from door face Flush or rabbeted requires PA FLUSH PANEL ADAPTER, 1460-419 Requires SHOE SUPPORT, 1460-30 for fifth screw anchorage where EDA template allows 110° Hold-open point up to maximum opening CUSH a maximum 85°: 90°:

Note:

• 1460 closers ordered with EDA, CUSH or SPRING CUSH arms include 1460-201 FIFTH HOLE SPACER to support the shoe

C31

Cylinders

1461-3071

Cast Iron Cylinder Assembly

  • n Non-handed
  • n Standard

Covers

1460-72

Slim Line Plastic Cover

  • n Non-handed
  • n Standard

1460-72FC

Full Cover

  • n Non-handed
  • n Plastic cover
  • n Optional

1460-72DS

Designer Series Metal Cover

  • n Non-handed
  • n Provides complete enclosure with a stylish look
  • n Required for plating and custom powder coat option
  • n Optional

Installation Accessories

1460-18 Plate

1460-18DS1 Plate

1460-18FC

Plate

The following details pertain to the above plates:

  • n Required for hinge side mount where top rail is less than 2-1/2˝ (64 mm)
  • n Required fortop jamb mounting where head frame is less than 1-3/4˝ (44 mm) or flush ceiling condition exists
  • n Requires minimum 1-1/2˝ (38 mm) minimum top rail or 1-1/4˝ (32 mm) head frame
  • n With full cover, use PLATE, 1460-18FC
  • n With Designer Series metal cover, use PLATE, 1460-18DS1

Note: 18FC and 18DS will not work in top jamb application.

1460-30 Cush Shoe Support

n Provide anchorage for fifth screw used with CUSH arm where reveal is less than 3-1/16˝ (78 mm)

1460-30A Mounting Bracket

  • n Bracketto be used when installing cylinder body
  • n Included with cylinder when ordered

1460-61 Blade Stop Spacer

n Lowers parallel arm shoe to clear 1/2˝ (13 mm) blade stop

1460-62A Auxiliary Shoe

  • n Requires a top rail of 7˝ (178 mm)
  • n Optional shoe replaces -62PA for parallel arm mounting of regular arm with overhead holder/stop

1460-419

PA Flush Panel Adapter

n Provides horizontal mounting surface for PA, EDA, or CUSH shoe on single rabbeted or flush frame

1460-62PA

PA Shoe

n Required for parallel arm mounting

Plate

1460-18PADS1

1460-18PAFC Plate

The following details pertain to the above plates:

  • n Required for parallel arm mounting where top rail is less than 4-3/8˝ (111 mm), measured from the stop
  • n Requires 1-3/4˝ (44 mm) minimum top rail
  • n With full cover, use PLATE, 1460-18PAFC
  • n With Designer Series metal cover, use PLATE, 1460-18PADS1

Arms

1460-3077 Regular Arm

  • n Non-handed
  • n Mounts hinge side or top jamb
  • n P1460 closer includes PA SHOE, 1460-62PA required for parallel arm mounting

1460-3077HDL Heavy Duty Long Arm

  • n Non-handed
  • n Includes long rod and shoe, 1460- 79LR fortop jamb mounts with deep reveals
  • n Optional

1460-3077EDA Extra Duty Arm

  • n Non-handed
  • n Features solid forged steel main and forearm for potentially abusive installations
  • n Optional 1460-3077EDA/62G for blade stop clearance

1460-3049CNS HCUSH Arm

  • n Non-handed
  • n Provides hold-open function with templated stop/hold-open points
  • n Handle controls hold-open function
  • n Optional

1460-3077L Long Arm

  • n Non-handed
  • n Includes LONG ROD AND SHOE, 1460-79LR fortop jamb mount with deep reveals

n Mounts hinge side, top jamb or parallel arm (62PA required) n Hold-open adjustable at shoe

n Optional

1460-3049 Hold-Open Arm n Non-handed

n Optional

1460-3077HD

Heavy Duty Regular Arm

  • n Non-handed
  • n Mounts hinge side, top jamb or parallel arm
  • n Optional

1460-3049L

Long Hold-Open Arm

  • n Non-handed
  • n Includes LONG HEAD AND TUBE, 1460-3048L fortop jamb mount with deep reveals
  • n Optional

1460-3077EDA/62G Extra Duty Arm w/ 62G

  • n Non-handed
  • n Features solid forged steel main and forearm for potentially abusive installations

1460-3049EDA Hold-Open Extra Duty Arm

n Handed arm

  • n Provides hold-open function adjustable at shoe
  • n Optional

  • Cush-N-Stop® Arm n Non-handed
  • n Features solid forged steel main arm and forearm with stop in soffit shoe
  • n Optional

1460-3077SCNS Spring CUSH Arm

  • n Non-handed
  • n For abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe
  • n Optional

1460-3049SHCNS Spring HCUSH Arm

  • n Non-handed
  • n For abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe. Handle controls hold-open function
  • n Optional

Ordering Information How-to-order 1460 Series closers

Select finish

Standard Powder Coat__________ Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass

Closer will be shipped with:

  • Standard cylinder
  • Standard cover
  • Regular arm
  • Self-reaming and tapping screws unless options listed below are selected.

Closer options

Cylinder
Delayed Action (DEL)
Cover
Full cover(FC)
Designer series cover(DS)
Finish
Custom Powder Coat(RAL)
(DS cover required)
Plated Finish, US
(DS cover required)
SRI primer(for use with powder coatfinishes only)

Arm

Regular w/62PA (Rw/PA) Long (LONG)

Regular w/62A (Rw/62A)

Hold-Open (H)

Hold-Open w/62PA (Hw/PA)

Long Hold-Open (HLONG) Heavy Duty (HD)

Heavy Duty w/62A (HD/62A)

Heavy Duty w/62PA (HD/PA)

Heavy Duty Long (HDL)

Extra Duty Arm (EDA)(optional-62G)

Hold-Open Extra Duty (HEDA)

(specify handing),(optional-62G)

Cush-N-Stop (CUSH)

HCush (HCUSH) Spring Cush (SCUSH)

Spring HCush (SHCUSH)

Optional screw packs

TB* w/Self-Reaming and Tapping Screws (TBSRT)

Wood & Machine Screw (WMS)

TB*, Wood & Machine Screw (TBWMS)

TORX Machine Screw (TORX)

TB* & TORX Machine Screw (TBTORX)

* Specify doorthickness if otherthan 1-3/4˝

Installation accessories

Plate, 1460-18

Plate, 1460-18DS

Plate, 1460-18FC

Plate, 1460-18PA

Plate, 1460-18PADS

Plate, 1460-18PAFC

CUSH Shoe Support, 1460-30

Blade Stop Spacer, 1460-61

Auxiliary Shoe, 1460-62A

PA Flush Panel Adapter, 1460-419

Special template ST- ________

Table of sizes

  • n Select closer based on width of door
  • n The spring power of a 1461 cylinder is field adjustable from size 1through size 6 and is shipped adjusted to size 3

Exterior (and Vestibule) door width

*1461 *1461 Minimum door width Minimum door width 24˝ 610mm 30˝ 762mm 36˝ 914mm 42˝ 1067mm 48˝ 1219mm size 3 size 4 size 5 size 6

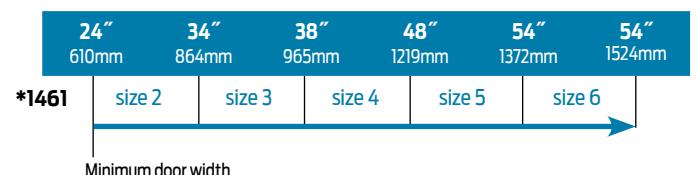

Interior door width

Indicates recommended range of door width for closer size. * Adjustable Size 1 thru 5.

Reduced opening force 1460 Series closers

CAUTION ! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4,thatis selected, installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient powerto reliably close and latch a door.

Referto POWER OPERATORS section for information on systems that meetreduced opening force requirements without affecting closing power.

* Maximum opening force.
DOOR WIDTH 36˝ 42˝ 48˝
8.5* lbs. 1461 1461 1461
5.0* lbs. 1461 1461 1461

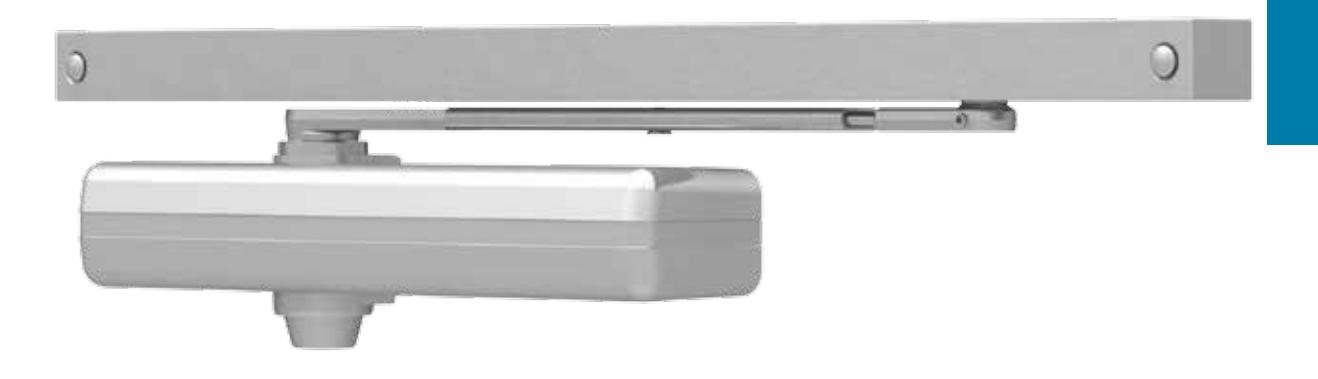

The 1460T is a fully universal slim line, single lever (track) arm closer designed for interior use on narrow head frames and top rails. The modern styling and small projection make it an excellent choice for interior doors.

Certifications Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour
Salt Spray, Meets BAA - Buy American Act 		Cover
  • Slim Line, Standard
  • Full Plastic or Full Metal Designers Series,
    Optional
Body Construction
  • Full Complement Bearing
  • 1-1/4" Diameter Piston
  • 5/8" Diameter Single Heat Treated Pinion Journal
  • Finisher
Fasteners Self Reaming and Tapping Screws (SRT)
Mounting Hinge pull side, top jamb, pull stop face
Arms Single level with track roller
Finishes/Colors/
  • Aluminum (689)
Fluid Powder Coat
  • Statuary Bronze (690)
  • Light Bronze (691)
  • Black (693)
Handing Non-Handed
Templating Peel-n-Stick templates -
1" x 7-1/2" Mounting Hole Pattern
  • Dark Bronze (695)
  • Brass (696)
  • Custom colors optional
Size
  • 1460T adjustable size 2-4
  • 1461T adjustable size 1-2
  • Optional SRI primer - powder coat only
  • Optional plated finishes
Warranty 30 years

Special Templates

Customized installation templates or products may be available to solve unusual applications. Contact LCN Product Support for assistance.

  • & Closer available with less than 5.0 lbs. opening force on 36" door. O NOT AVAILABLE
    • * Maximum opening/hold-open point with standard template.
    • D = For designer series only.

1460T Series

Mounting details

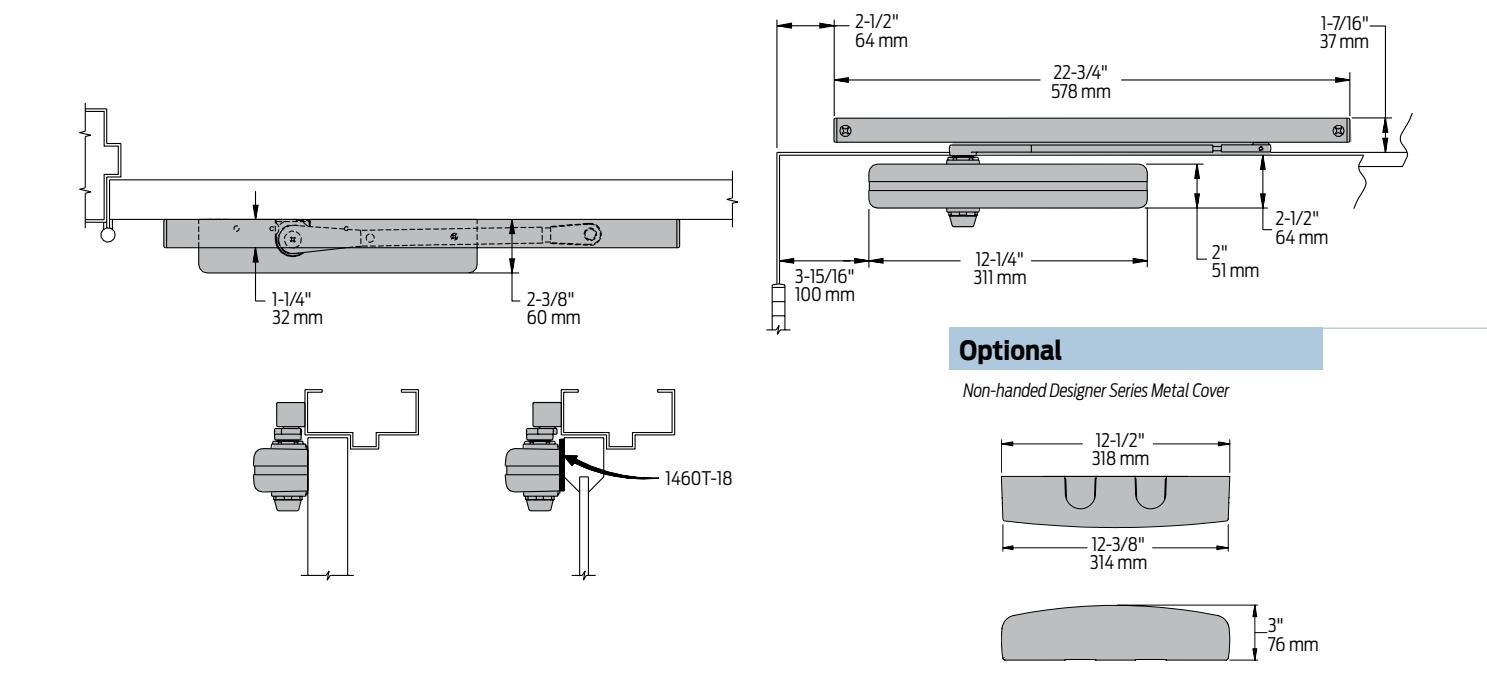

Hinge (Pull) Side Mounting

Butt Hinges Should not exceed 5˝ (127 mm)in width
n Recommended where a door cannot swing 180°
Auxiliary Stop
n Optionaltrack bumper assembly assists backcheck in cushioning the opening swing ofthe door.
Itis notintended to replace an auxiliary stop
Reveal Should not exceed 1/8˝ (3 mm)
Top Rail n Less than 2-1/2˝ (64 mm)requires PLATE, 1460T-18
n Plate requires 1-1/2˝ (38 mm) minimum
n With Full cover, use PLATE, 1460T-18FC
n With Designer Series metal cover, use PLATE, 1460T-18DS
Clearance 2-3/8˝ (60 mm) behind door required for installation
Maximum opening n Templating allows up to 180°,trim and frame permitting, limited to 115° when optional bumper is installed
n Consultfactory if door will be held open at180°
n Hold-open points at 85°, 90°, 95°, 100°, 110° or 115° with hold-open tracks
n Please note that many track style door closers are capable of allowing 180° of door swing
n Be aware thatthe majority oftrack style closers are attheir weakest closing force in the 180°-130° range
n Consultfactory for applications where an exterior or large/heavy door must swing 180°

Mounting details

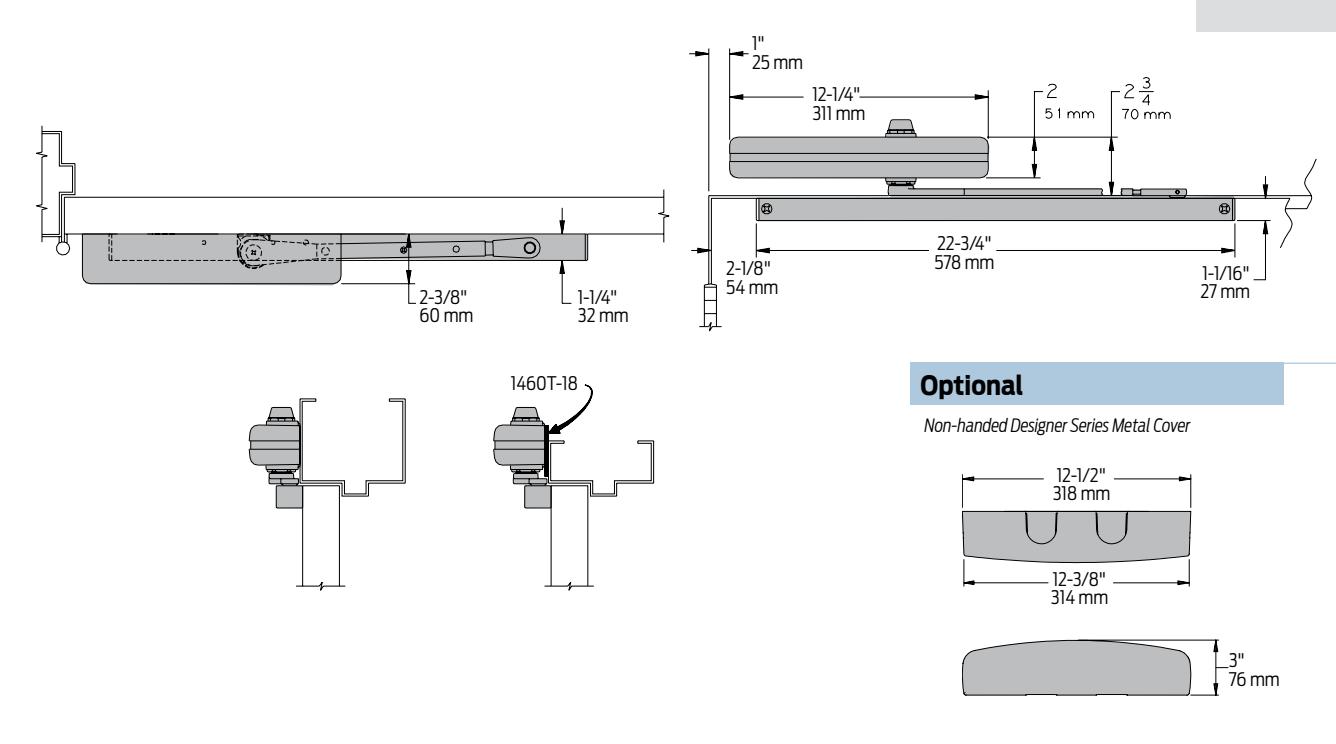

Top Jamb (Pull Side) Mounting

Butt Hinges Should not exceed 5" (127 mm) in width
Auxiliary Stop
  • Recommended where a door cannot swing 180°
  • Track bumper assembly assists backcheck in cushioning the opening swing of the door.
  • It is not intended to replace an auxiliary stop
Reveal Should not exceed 1/8" (3 mm)
Top Rail Minimum 1-1/4" (32 mm)
Head Frame
  • Less than 2-3/4" (70 mm) requires PLATE, 1460T-18
  • Plate requires 1-3/4" (44 mm) minimum
  • With full cover, use PLATE, 1460T-18FC
  • With Designer Series metal cover, use PLATE, 1460T-18DS
Clearance 1-1/4" (32 mm) behind door for installations
Maximum opening
  • Templating allows up to 180°, limited to 115° when optional bumper is installed
  • Consult factory if door will be held open at 180°
  • Hold-open points at 85°, 90°, 95°, 100°, 110° or 115° with hold-open tracks
  • Please note that many track style door closers are capable of allowing 180° of door swing
  • Be aware that the majority of track style closers are at their weakest closing force in the 180° – 130° range
  • Consult factory for applications where an exterior or large

1460T Series

Mounting details

Stop Face (Push Side) Mounting

Butt Hinges Should not exceed 5˝ (127 mm)in width
Auxiliary Stop n Recommended where a door cannot swing 110°
n Track bumper assembly assists backcheck in cushioning the opening swing ofthe door.
Itis notintended to replace an auxiliary stop
Top Rail n Less than 4˝ (102 mm) measured from the stop face requires PLATE, 1460T-18PA.
Plate requires 1-1/2˝ (38 mm) minimum
n With Full cover, use PLATE, 1460T-18PAFC
n With Designer Series metal cover, use PLATE, 1460T-18PADS
Clearance 1460T projects 2-3/8˝ (60 mm)from door face
Stop Width Minimum 1-1/4˝ (32 mm)
Maximum opening n Templating allows 110°, limited to 100° when optional bumper is installed
n Variable hold-open angles with infinite options

1460T Series

Accessories

Cylinders Arm

1460(1)T-3071

Cast Iron Cylinder Assembly

  • n Non-handed
  • n 1461T adjustable 1-2
  • n 1460T adjustable 2-4
  • n Standard

1460T-3077T

Single Lever Standard Arm

  • n Non-handed
  • n Mounts hinge side, top jamb, or stop face
  • n Track roller notincluded with arm

Covers

1460T-72

Slim Line Plastic Cover

  • n Non-handed
  • n Standard

1460T-72FC

Full Plastic Cover

  • n Non-handed
  • n Optional

1460T-72DS

Designer Series Metal Cover

  • n Non-handed
  • n Required for plating option and custom powder coat finishes
  • n Optional

Tracks

1460T-3038

Track

  • n Non-handed
  • n Non hold-open
  • n Mounts on either side ofthe door
  • n Will accept hold-open clip and/ or bumper assembly
  • n Standard

1460T-3038B

Track with Bumper

  • n Non-handed
  • n Non hold-open
  • n Mounts on either side ofthe door
  • n Will accept hold-open clip
  • n Optional

1460T-3038H

Track with Hold-Open

  • n Non-handed
  • n Hold-open
  • n Mounts on either side ofthe door
  • n Will accept bumper assembly
  • n Optional

1460T-3038HB

Hold-Open Track with Bumper

  • n Non-handed
  • n Hold-open
  • n Mounts on either side ofthe door
  • n Optional

Installation Accessories

1460T-18 Plate

1460T-18DS Plate

1460T-18FC Plate

The following details pertain to the above plates:

  • n Required for hinge side mount where top rail is less than 2-1/2˝ (64 mm)
  • n Required fortop jamb mount when head frame is less than 2-3/4˝ (70 mm)
  • n Requires minimum 1-1/2˝ (38 mm)top rail or 1-3/4˝ (44 mm) head frame minimum
  • n With Full cover, use PLATE, 1460T-18FC
  • n With Designer Series metal cover, use PLATE, 1460T-18DS1

1460T-18PA

Plate

1460T-18PADS Plate

1460T-18PAFC Plate

The following details pertain to the above plates:

  • n Required for stop face mounting where top rail is less than 4˝ (102 mm), measured from the stop
  • n Requires 1-1/2˝ (38 mm) minimum top rail
  • n With Full cover, use PLATE, 1460T-18PAFC
  • n With Designer Series metal cover, use PLATE, 1460T-18PADS1

1460T-30A

Mounting Bracket

  • n Used when installing cylinder body
  • n Included with cylinder when ordered

n Mounts in track to assist backcheck, does notreplace

n Limits maximum opening n Consists of bumper, bumper post, and mounting screw

auxiliary stop

1460T-169 Track Bumper

n Mounts in track to provide hold-open function n Hold-open point controlled by clip location

1460T-3054 Hold-Open Clip

1460T-3034

  • Track Roller
  • n Quiet, low friction roller assembly
  • n Shoulder dimension "X" = 1/8˝ (3 mm)

1460T-3034H Hold-Open Track Roller

  • n Hold-open roller
  • n Quiet, low friction roller assembly
  • n Shoulder dimension "X" = 1/8˝ (3 mm)
  • n Spring-loaded hold-open mechanism

How-to-order 1460T Series closers

1. Select cylinder size

1461T (adjustable from size 1to 2) 1460T (adjustable from size 2 to 4)

2. Select finish

Standard Powder Coat__________ Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass

Closer will be shipped with: Accessories

  • Standard cover
  • Standard arm
  • Standard track
  • Track roller
  • Self-reaming and tapping screws unless options listed below are selected.

Special template ST- ________

Closer options

Cover
Full cover(FC)
Designer Series metal cover(DS)
Finish
Custom Powder Coat(RAL)
(DS cover required)
Plated Finish, US
(DS cover required)
SRI primer(for use with powder coatfinishes only)
Track
Standard with Bumper(BUMPER)
Hold-Open (H)
Hold-Open with Bumper(HBUMPER)

Optional screw packs

  • TB* w/Self-Reaming and Tapping Screws (TBSRT)
  • Wood & Machine Screw (WMS)
  • TB*, Wood & Machine Screw (TBWMS)
  • TORX Machine Screw (TORX)
  • TB* & TORX Machine Screw (TBTRX)
  • * Specify door thickness if other than 1-3/4˝

Installation accessories

  • Plate, 1460T-18
  • Plate, 1460T-18DS1
  • Plate, 1460T-18FC
  • Plate, 1460T-18PA
  • Plate, 1460T-18PADS1
  • Plate, 1460T-18PAFC

Table of sizes

  • n Select closer based on width of door. The spring power of a 1460T cylinder is adjustable from size 2 to size 4 and is shipped adjusted to size 3
  • n The closing power of 1460T series cylinders may be increased 50%
  • n The spring power of a 1461T cylinder is adjustable from size 1to size 2 and is shipped adjusted to size 1

Interior door width

Interior door width

Indicates recommended range of door width for closer size. *Adjustable Size 1 thru 2

Reduced opening force 1460T Series closers

CAUTION ! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4,thatis selected, installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient powerto reliably close and latch a door.

Referto POWER OPERATORS section for information on systems that meetreduced opening force requirements without affecting closing power.

* Maximum opening force.
DOOR WIDTH 36˝ 42˝ 48˝
8.5* lbs. N/A N/A N/A
5.0* lbs. 1461T 1461T 1461T

Notes
