SUPPLYING THE GLOBAL SECURITY COMMUNITY SINCE 1956

Product Guide

PROVIDING THE SECURITY WORLD WITH QUALITY

• LOCK TUMBLER PINS • PINNING KITS • SECURITY TOOLS

"The #1 Choice of Security Professionals"

ISO Certified 9001: 2008

Table of Contents

Associations LAB International Security We Proudly Suppport	1
LAB Pin Packaging2
LAB Universal Pin Information3
LAB Pin Refill Packs4
LAB Cylinder Springs/Caps/Shims/Parts	5-7
LAB Original Pins 8-9

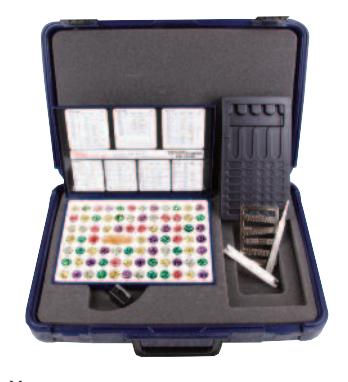

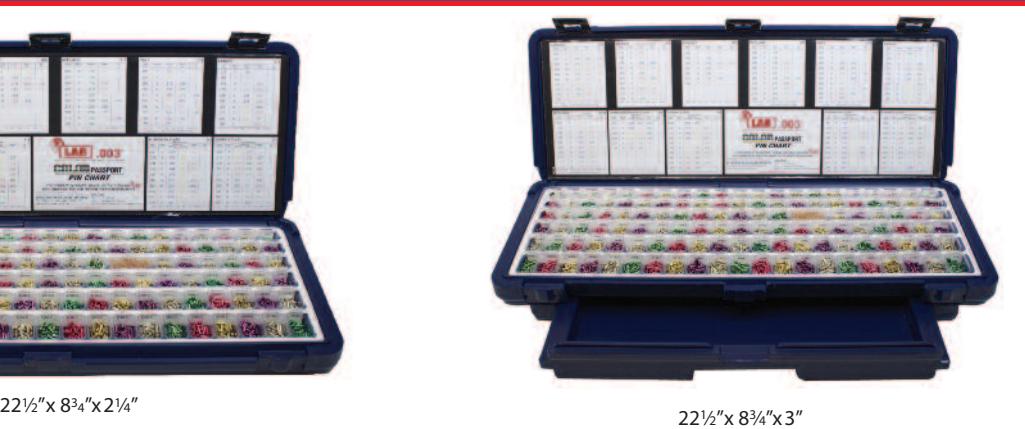

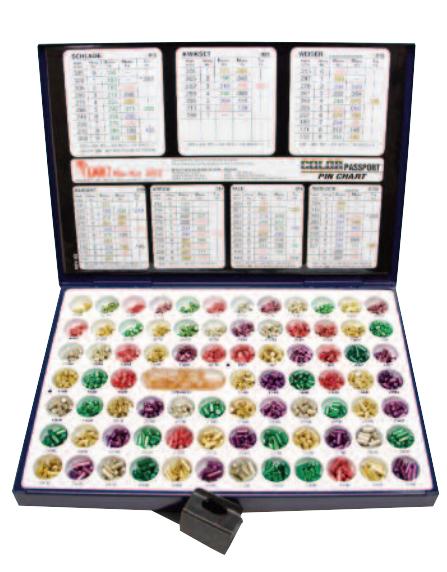

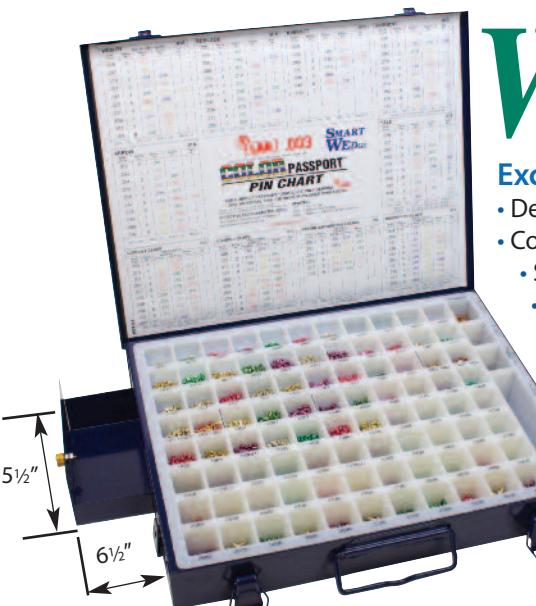

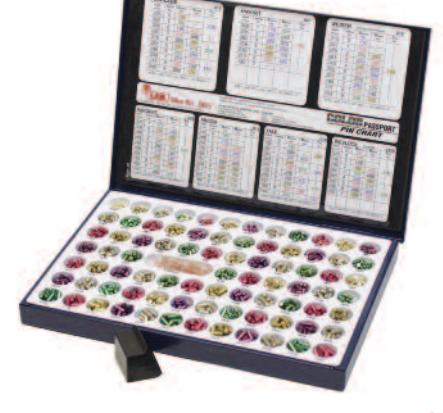

LAB Universal Pinning Kits10-12
LAB Original Lock Manufacturer's Pinning Kits	13-15

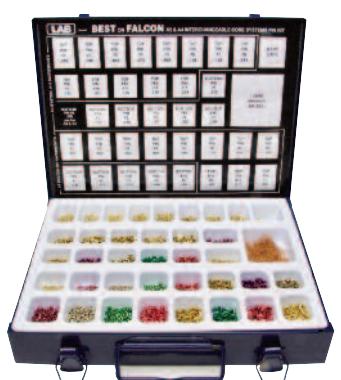

LAB Interchangeable Core Pinning Kits (Metal)	13-14

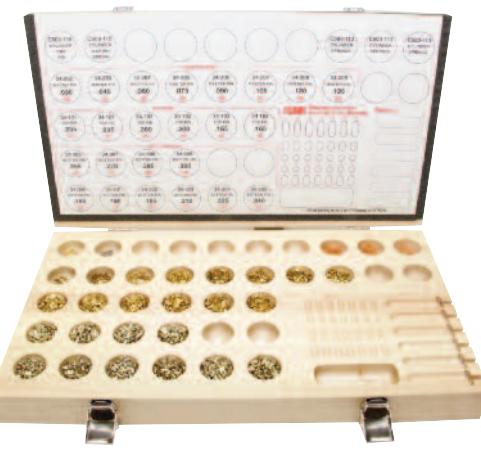

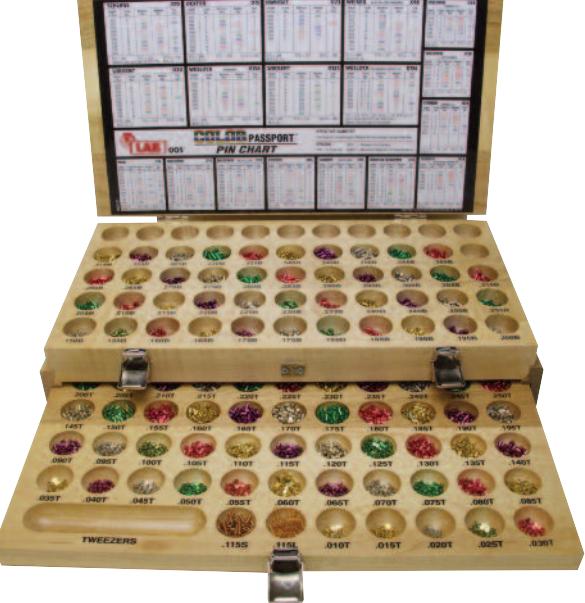

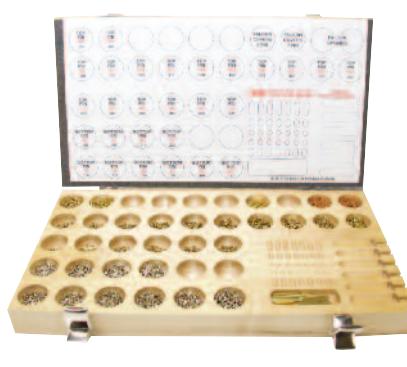

LAB Original Lock Manufacturer's Pinning Kits (Wood)	16

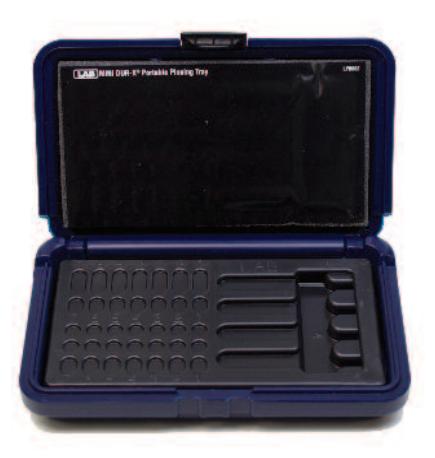

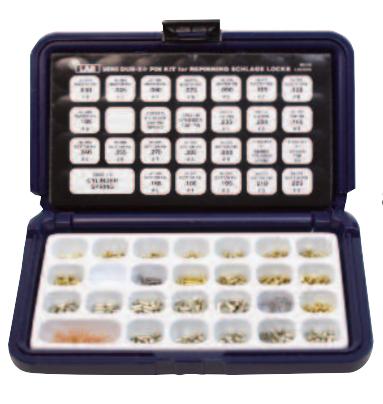

LAB Original Lock Manufacturer's Pinning Kits (Mini DUR-X)	17
LAB Custom Pinning Products 18

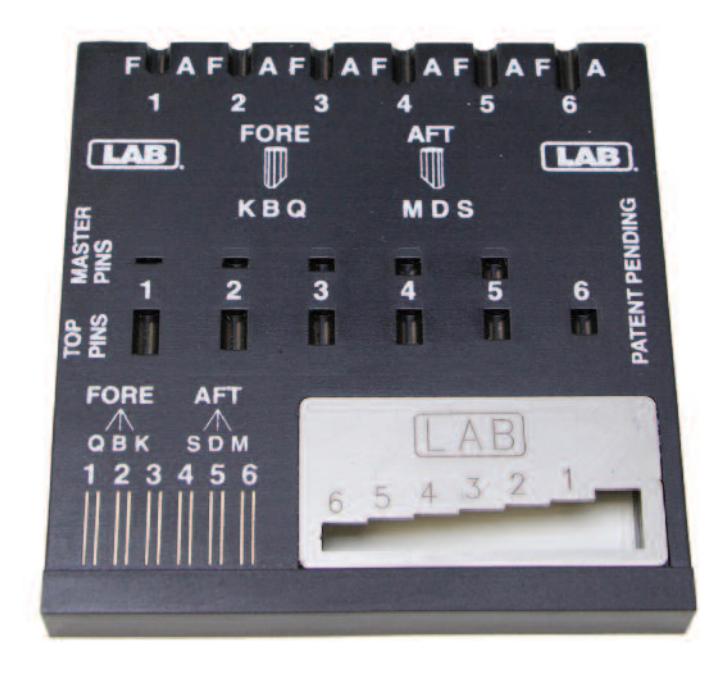

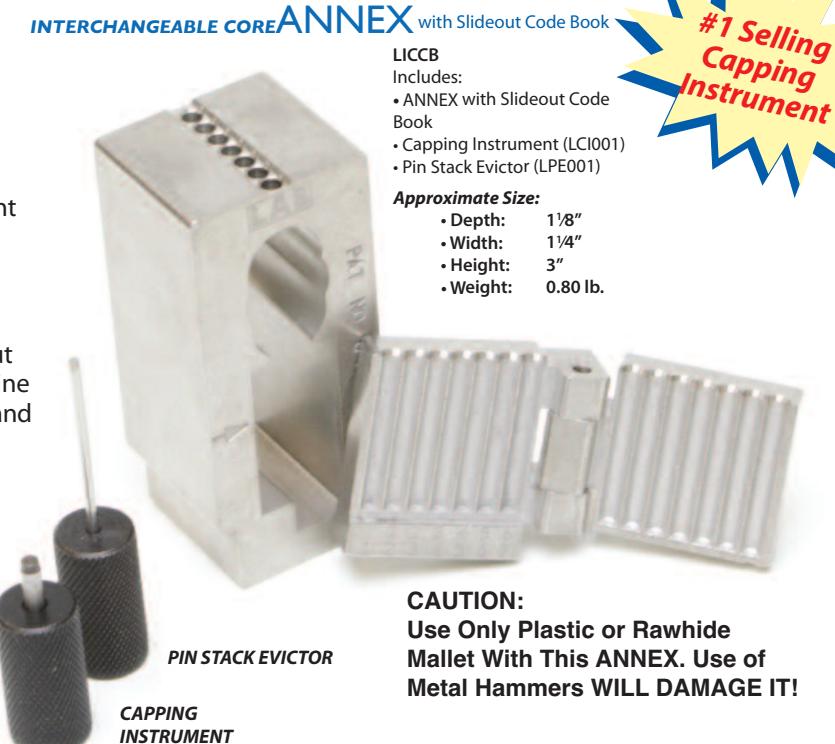

LAB Tools & Accessories19-22
LAB Brand Products for Best Interchangeable Cores23

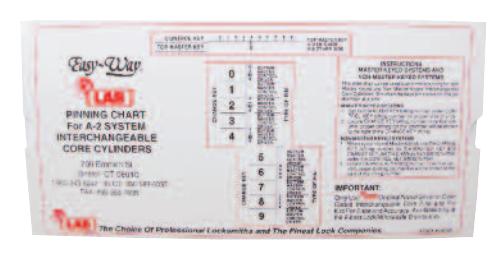

LAB Interchangeable Core Pin Reference Guide24

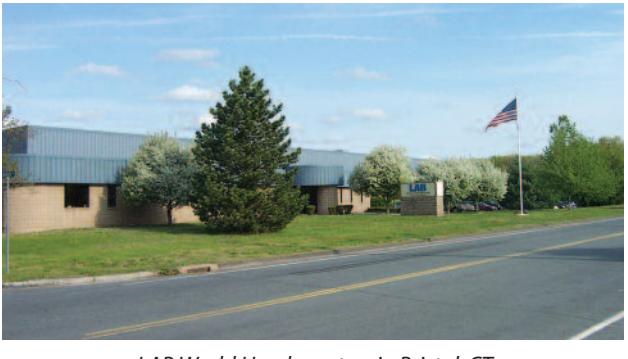

LAB World Headquartersin Bristol, CT

LAB isthe largest manufacturer of Swiss quality lock tumbler pins and pin kits. Servicing major lock manufacturers, the finest wholesale distributors and security professionals worldwide.

LAB provides precision lock tumbler pins, pin kits and LAB toolsto over 30 of the largest lock manufactures worldwide, all the leading lock wholesale distributors and contract hardware suppliers worldwide.

Premium Quality Lock Pins, Rekeying Kits and Locksmith Tools Phone: 1-800-243-8242, Fax: 860-583-7838

Since 1956 LAB has specialized in the manufacturing of lock pins. LAB is the largest manufacturer of lock pins and lock rekeying kits. LAB has the reputation of being the highest quality lock tumbler pin manufacturer. LAB lock tumbler pins, rekeying kits and locksmith tools are the only choice of the finest lock manufacturers, security professionals, all the leading lock wholesale distributors, and contract hardware suppliers worldwide.

Is proud to be a member of the following Associations:

Visit LAB's website www.labpins.com to get the latest information on the LAB product line in addition to:

• LAB Order Form
• Product Listing of LAB Kits
• Artwork for all LAB Products
• Locate a Distributor Near You
• Company Overview
• Downloadable Product Guide

Plus much more information required to answer all your product questions

Ace, Arrow, ASSA, BEST, Baldwin, CCL, Corbin Russwin, Dexter, Dorma, EVVA, Falcon, GEGE, Kwikset, Master, Medeco, Kaba, Keymark, Medeco Biaxial, National, RUKO, Sargent, Schlage, TrioVing, Weiser, Weslock, Yale and other trade names and trademarks used in this Product Guide are owned by the respective manufacturers ofsuch products.

Pin Packaging

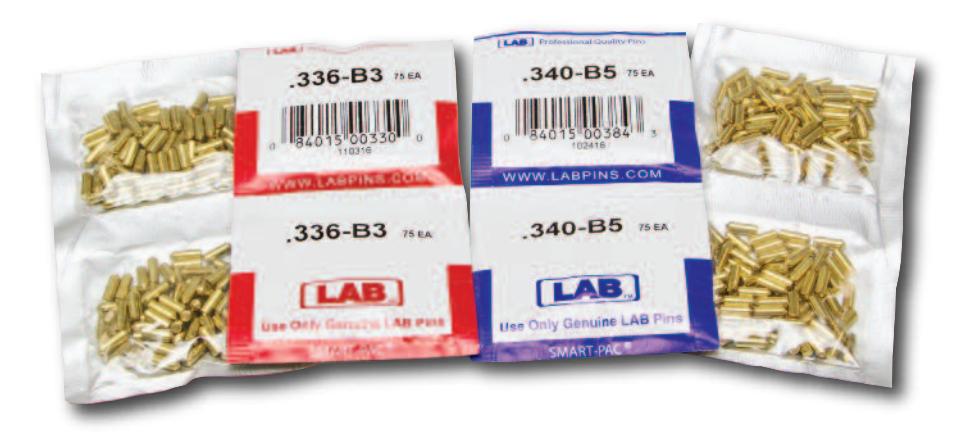

SMART PAC®

• The standard in pin packaging
• Separates pins into two tamper-proof, safety-sealed compartments
• 150 pins
• Increment identification
• Clear packaging allows view of contents
• Easy storage
• Packaging Code (S1)

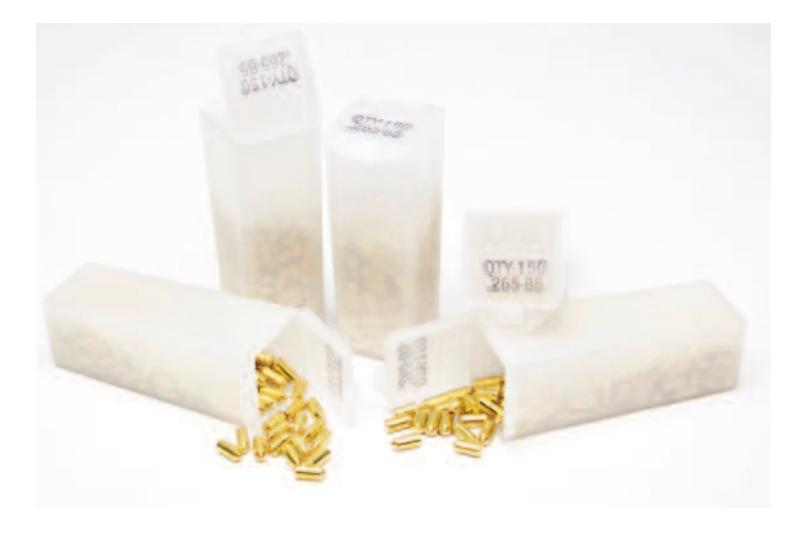

"Reusable" Flip Top Vial®

• The snaptop lid allows you to re-seal the container and store for easy inventory
• Packaging Code (V1)

Vial Stadium

LSS001

• Holds 35 LAB Vials
• Tie down feet for easy mounting on walls, benches or in vans
• Vials not included

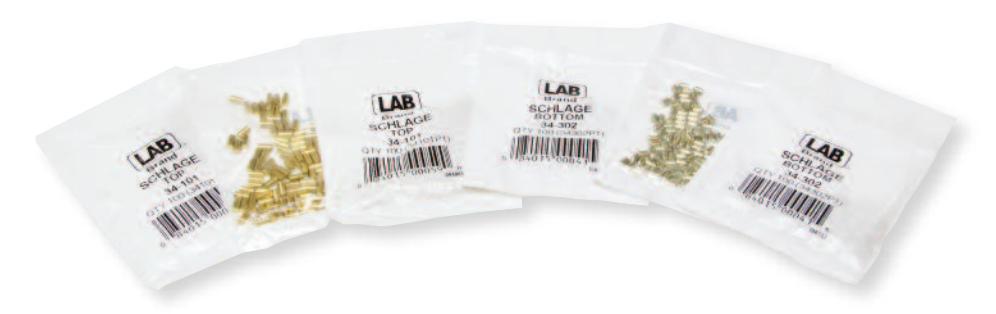

PolyBag

• The sealed Polybag is used for LAB Brand original lock manufacturer's cylinder pins and refill packs
• Packaging Code (P1)

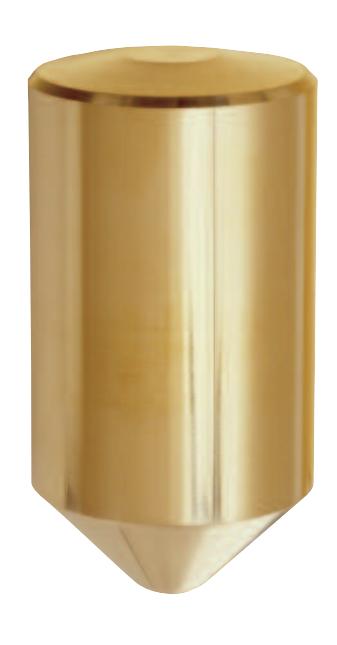

Quality Universal Pins

Use Only Genuine LAB Tumbler Pins for Guaranteed Accuracy

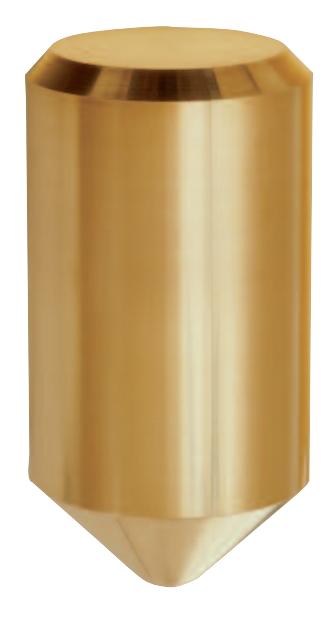

.003© System

"TheNewStandard"Created and designed for LAB by Robert A. Labbe, LAB President,CEO

The LAB Royal Crown Pin™ Design is a Registered Trademark of LAB Security Systems

• .115 Dia.
• The most accurate universal pin made
• Use with the confidence of Original Manufacturer's Pins
• LAB PRO-STAFF Choice Award
• COLOR-CODED (LAB Copyrighted System)
• RADIUS EDGES that blend into flat center so master pins will not tip or roll
• Nose designed to decrease key insertion force
• • Packaging Code 150(S4)(V4) or 200(V2) pins per pack
• • 150 or 200 pins per pack

Tops: .024-.141 Bottoms: .126 -.360

.005 System

• .115 Dia.
• FLAT CENTER with precision chamfer, nose, finish and length
• COLOR-CODED to Lock Industry Standards
• Precision machined to exceed industry standards
• • Packaging Code 150(S4)(V4) or 200(V2) pins per pack
• •150 or 200 pins per pack

Tops: .010 -.320 Bottoms: .115 -.360

NOTE: For COLOR-CODED Brass Universal Interchangeable Core Pins - See Page 18

Quality Refill Packs

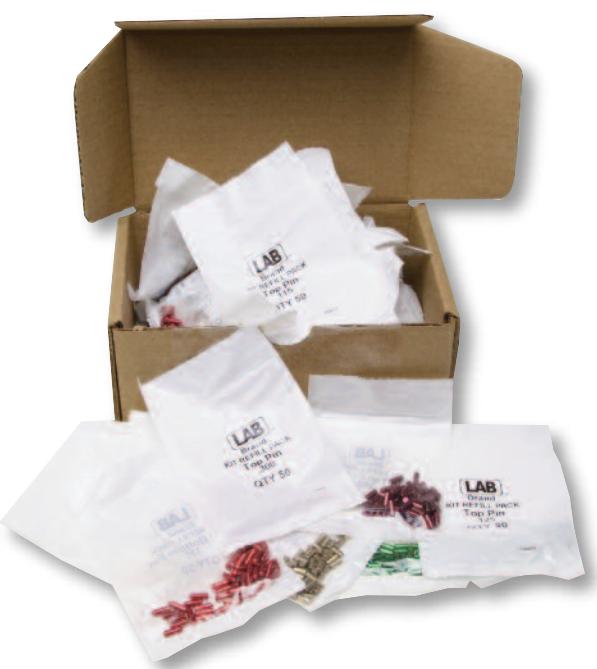

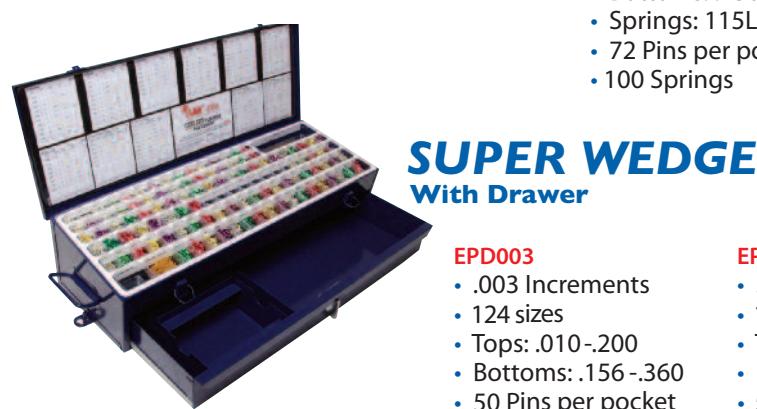

.003© Pin Kit Refill Pack

KRP003

• Contains 124 packs of LAB Universal Tumbler Pins
• Tops: .010 -.200
• Bottoms: .156 -.360
• 50 pins per size
• .115 Dia.

NOTE: Springs not included NOTE: Springs not included

.005 Pin Kit Refill Pack

KRP005

• Contains 102 packs of LAB Universal Tumbler Pins
• Tops: .010 -.300
• Bottoms: .150-.360
• 50 pins per size
• .115 Dia.

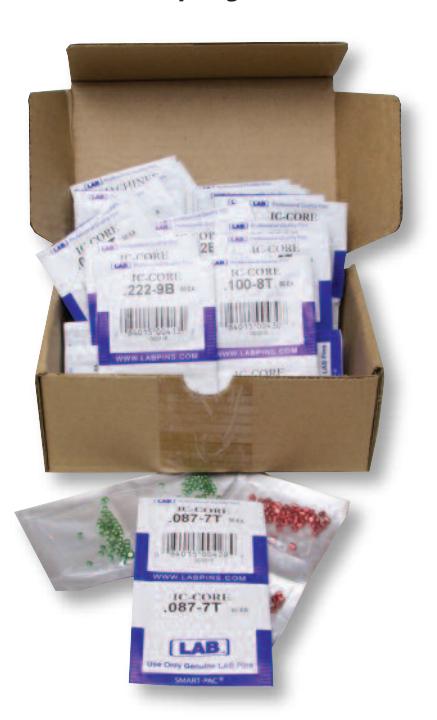

ICORE Refill Pack

KRPIC

• Contains 28 Packs (A2)
• COLOR-CODED Universal Brass
• 18 Brass Master Pins sizes 2-19
• 10 Bottom Pins sizes 0-9
• Brass Caps Stamped (100 per pack)
• 100 pins per size
• .108 Dia.

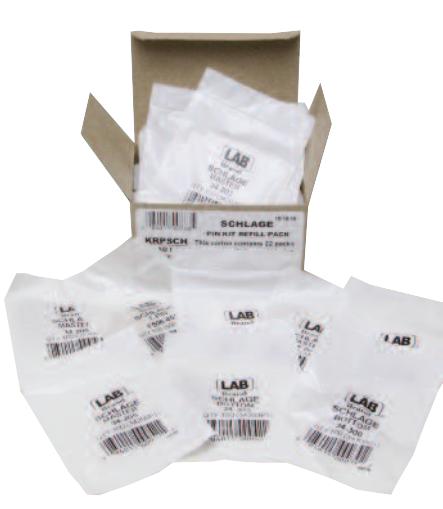

SCHLAGE Refill Pack

KRPSCH

• 22 packs of pins
• 1 Brass T-Pin Driver F506-451
• 8 Brass Master Pins sizes: 2-9
• 3 Brass Top Pins sizes: 1-3
• 10 Nickel Silver Bottom Pins sizes: 0-9
• .115 Dia.
• 100 pins persize
• Original Manufacturer's Specifications

KWIKSET Refill Pack

KRPKWK

• 16 packs of pins
• COLOR-CODED Brass
• 6 Brass Master Pins sizes 1-6
• 2 Brass Standard Top Pins (.160/.180)
• 2 Brass Spool Pins (.160/.180)
• 6 Brass Bottom Pins sizes 1-6
• .115 Dia.
• 100 pins persize
• Original Manufacturer's Specifications

Springs/Caps/Shims/Parts

SPRINGS PHOSPHOR BRONZE • 100 PER PACK EXCEPT WHERE NOTED Except BEST Original Springs

SPRINGS FOR INTERCHANGEABLE CORES .108

UNIVERSAL .115LT

• Long Tangle Resistant Part Number 115LTV1

ICORE Long

• Best Style

Part Number

108BV1

108BP1

108BP5 (500 Springs)

STANDARD UNIVERSAL .115L

• Long Part Number 115LV1 115LP1

115LTP1

ICORE Short

• Falcon, Arrow, Schlage small format, Medeco Keymark Part Number

108FV1 108FP1

STANDARD UNIVERSAL .115S

• Short Part Number 115SV1 115SP1

BEST ORIGINAL STAINLESS STEEL IC SPRINGS

Part Number 108SV1 108SP1 108SP5 (500 Springs)

PACKAGE IDENTIFICATION S1 = Smart Pac V1 = Vial P1 = Polybag

Springs/Caps/Shims/Parts

SPRINGS PHOSPHOR BRONZE • 100 PER PACK EXCEPT WHERE NOTED Except BEST Original Springs

ORIGINAL MANUFACTURER'S FACTORY SPRINGS AND PARTS

SCHLAGE( T) PIN SPRING

Part Number SPGSCHV1 (MFG# F506-453)

SCHLAGE/WEISER CYL. CAP SPRING

Part Number SP74V1 (MFG# C503-115)

KWIKSET STAINLESS STEEL

Part Number KWKSPGV1 (MFG# 1777)

KWKSPGP1

CORBIN RUSSWIN STANDARD

STAINLESS STEEL

Part Number 111SDV1 (MFG# 603F207)

CORBIN RUSSWIN INTERCHANGEABLE CORE

Part Number 111ICV1 (MFG# 172F217)

ACE SPRING

Part Number SPGACEV1 (MFG# AC8)

PACKAGE IDENTIFICATION S1 = Smart Pac V1 = Vial P1 = Polybag

MASTER PADLOCK, YALE, CCL/NATIONAL .095 Diameter Springs

Part Number SP95V1

ASSA/RUKO/TrioVing CLOSING PIN

NEW

Part Number ASCCP1

EVVA/KABA/GEGE PLUG PIN

Part Number EUPLP1

ASSA C-CLIPS

Part Number ASCLP1 (15pc per Polybag)

ASSA/RUKO/TrioVing SPRINGS

Part Number ASSPP1

EVVA/KABA/GEGE SPRINGS

Part Number EUSPGP1

Springs/Caps/Shims/Parts

ORIGINAL DESIGN BRASS PIN COVERS

6 Pin

25 per pack

Part Number FSC6V25

100 per pack

Part Number FSC6V100

7 Pin

25 per pack

Part Number FSC7V25

100 per pack

Part Number FSC7V100

CURVED SHIM

Length - 1.5" +/- 1/16"

• .0015 Stainless Steel
• Exceeds Industry Standard.

25 Pack

Part Number LSM0V25

100 Pack

Part Number LSM0V100

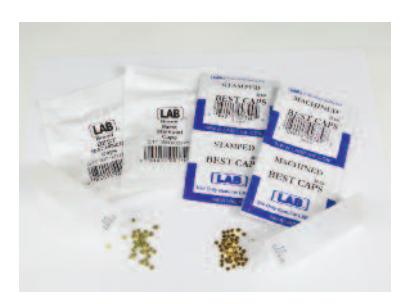

ORIGINAL DESIGN I CORE CAPS

Stamped Brass 100 per pack

Part Numbers

I027V1 I027S1

500 per pack 1027P5

Machined Brass

100 per pack

Part Numbers

I027MV1 I027MS1

500 per pack

Part Number I027MP5

LAB offers both a machined and stamped cap. The stamped caps are designed to original BEST specifications and are good for use on cores where the chambers have been comprimised from multiple repinning. The stamped cap is .1185 x .025.

The machined caps are designed for new cores where the chambers have not been comprimised from multiple repinning. The machined cap is .117 x .027

Original Manufacturer's Pins

ALL LAB Brand Original Pins are Packaged100 PER PACK EXCEPT WHERE NOTED

SEE PAGES 23-24 for More Product Information

LAB Brand Interchangeable Core Pins

LAB BEST ICORE Pins for A-2, A-3, A-4 Systems — (P1) for use with all BEST Interchangeable Cores

• • A-2 Master / Top Brass Pin sizes 2B -19B Bottom Nickel Silver Pin sizes 0A- 9A
• • A-3 Master / Top Brass Pin sizes 1D-13D Bottom Nickel Silver Pin sizes 0C - 6C

.108 Dia.

• A-4 Master / Top Brass Pin sizes 1F-11F Bottom Nickel Silver sizes 0E - 5E

LAB ORIGINAL ICORE Pins for A-2, A-3, A-4 Systems — (V1) (S1) for use with all ICORES using Brass Keys (Except BEST) ie; Falcon, Arrow, Schlage small format, Medeco Keymark

.108 Dia.

• • A-2 Master / Top Brass Pin sizes 2B -19B Bottom Brass Pin sizes 0A- 9A
• • A-3 Master / Top Brass Pin sizes 1D-13D Bottom Brass Pin sizes 0C-6C
• • A-4 Master / Top Brass Pin sizes 1F -11F Bottom Brass Pin sizes 0E- 5E

All ICore pins above packaged in polybag quantities of 100, 1,000, 5,000

LAB ORIGINAL ICORE Pins for A-2, A-3, A-4 Systems — (V1) (P1) for use with all ICORES usingNickel Silver Keys (Except BEST) ie; Falcon, Arrow, Schlage small format, Medeco Keymark

• • A-2 Master / Top Brass Pin sizes 2B -19B Bottom Nickel Silver Pin sizes 0A- 9A
• • A-3 Master / Top Brass Pin sizes 1D-13D Bottom Nickel Silver Pin sizes 0C-6C

.108 Dia.

• A-4 Master / Top Brass Pin sizes 1F -11F Bottom Nickel Silver Pin sizes 0E- 5E

All ICore pins above packaged in polybag quantities of 100, 1,000, 5,000

LAB Brand Pins For

SCHLAGE CYLINDERS (V1) (S1) (P1)

• 8 Brass Master Pins sizes: 2-9
• 3 Brass Driver Pins sizes: .165,.200, .235
• 10 Nickel Silver Bottom Pins sizes 0 9 .115 Dia.

LAB Brand Pins For

.115 Dia.

SCHLAGE T-Pin (V1) (S1) (P1)

• For use in all Schlage "F" Series Compressible Cylinders
• Made from Full Hard Brass Alloy 360
  • Schlage MFG# F506 451 506451V1, 506451S1, 506451P1

LAB Brand Pins For:

SCHLAGE Cap Retainer Pin (V1)

• Made from Full Hard Brass Alloy 360
• Schlage MFG# C503-116
• LAB Part# SCHCAP .115 Dia.

LAB Brand Pins For:

KWIKSET CYLINDERS (V1) (S1) (P1)

• COLOR-CODED to Industry Specifications
• 7 Brass Master Pins sizes: .023,.031, .046, .069, .092, .115, .138 .115 Dia.
  • 2 Brass Standard Driver Pins sizes: .160, .180
  • 2 Brass Anti-Pick Driver Pins sizes: .160, .180
  • 7 Brass Bottom Pins sizes: .172,.195, .218, .241, .264, .287 .310

LAB Brand Pins For:

DORMA Full-Size SKC CYLINDERS (P1)

.108 Dia.

• 4 Nickel Silver Top Pins -sizes (See Order Form)
• 10 Nickel Silver Bottom Pins sizes 0-9

LAB Brand Pins For:

WEISER CYLINDERS (V1) (S1) (P1)

• COLOR-CODED to Industry Specifications
• 8 Brass Master Pins sizes: 2-9
• .115 Dia.
• 1 Brass Driver Pin size: .186
• 10Brass Bottom Pins sizes: 0-9
• Cap Retainer Pin W425R0 (Vial Only)

LAB Brand Pins For:

CORBIN/RUSSWIN CYLINDERS (V1)

• 101 Brass Master/Top Pins Sizes: M028 - M320
• .115 Dia.
• 74 Nickel Silver Bottom Pins -

Sizes: L160 - L354

LAB Brand Pins For:

.0935 Dia.

MASTER PADLOCK

CYLINDERS (200 Pins per Pack) (P1)

• COLOR-CODED to Industry Specifications
• 7 Brass Master Pins sizes: 1-7
• 2 Brass Top Pins sizes: .120 & .136
• 8 Brass Bottom Pins sizes: 0-7

LAB Brand Pins For:

.115 Dia.

ARROW CYLINDERS (V1)

• 8 Brass Master Pins sizes: 2-9
• 1 Brass Driver Pin size: .155
• 10Brass Bottom Pins sizes: 0-9

Original Manufacturer's Pins

ALL LAB Brand Original Pins are Packaged100 PER PACK EXCEPT WHERE NOTED

LAB Brand Pins For:

YALE CYLINDERS (P1)

• 7 Brass Master Pins sizes: 2- 8
• 3 Brass Driver Pins sizes: .152, .190, .230

• 10 Brass Bottom Pins - sizes: 0-9 .077 Dia. .115 Dia.

LAB Brand Pins For:

ACE (V1)

• Original Design and Sizes
• 7 Brass Master Pins size: 1-7
• 3 Brass Bottom Pins size: 9-11
  • AC8 Springs SPGACEV1

.095 Dia.

LAB Brand Pins For:

CCL& NATIONAL CYLINDERS (V1)

Brass Master Pins

Brass Bottom Pins

• 8 NATIONAL sizes: 2- 9

• 10 NATIONAL

• 8 CCL sizes: X025 - X113 Brass Top Pins

sizes: 0-9 • 17 CCL

• 4 NATIONAL sizes: 1 - 4

sizes: W111- W223

• 2 CCL sizes: X115 - X171

.115 Dia.

LAB Brand Pins For:

• BALDWIN CYLINDERS (V1) (S1) (P1)
• 8 Brass Master Pins sizes 2-9
• 3 Brass Top Pins sizes 1-3
• 10 Nickel Silver Bottom Pins sizes 0-9

LAB Brand Pins For:

• SARGENT CYLINDERS (P1)
• 8 Brass Master Pins sizes: 2-9
• .115 Dia.

.115 Dia.

LAB Brand Pins For: DEXTER CYLINDERS (V1) (S1) (P1)

• 8 Brass Master Pins sizes 3-9
• 1 Brass Top Pins size 2
• 10 Nickel Silver Bottom Pins sizes 0-9

• 5 Brass Driver Pins-sizes: 10-14
• 10 Brass Bottom Pins sizes: 1-10

LAB Brand Pins For:

LOCKWOOD CYLINDERS (V1) (S1) (P1)

• COLOR-CODED
• 12 Brass Top Pins .030 .045 .060 .075 .090 .105 .115 Dia.
  • .120 .135 .165 .200 .220 .235
  • 11 Brass Bottom Pins .150 .165 .180 .195 .210 .225 .240 .255 .270 .285 .300

.115 Dia.

LAB Brand Pins For:

SARGENT HOLLOW DRIVER (P1)

• 8 Brass Hollow Drivers - sizes: 4-11

.115 Dia.

LAB Brand Pins For:

WESLOCK CYLINDERS (P1)

• 8 Brass Master Pins sizes: 2-9
• 5 Brass Driver Pins-sizes: 10-14

LAB Brand Pins For:

SPOOL PINS FOR INTERCHANGEABLE CORES

(.108 dia.) (P1)

.075 .084 .100 .125 .126 .168

Spool Pins .108 &.115 Dia.

LAB Brand Pins For:

ASSA 600 / RUKO / TrioVing Cylinders (P1)

• 8 Nickel Silver Master Pins

• 4 Stainless Steel Top Pins

2.9mm Dia.

• 9 Nickel Silver Bottom Pins

LAB Brand Pins For:

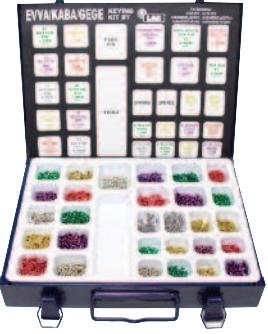

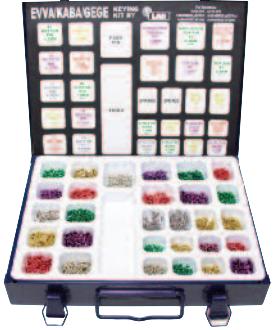

EVVA/KABA/GEGE CYLINDERS (P1)

• COLOR-CODED
• 8 Brass Master Wafers
• 3 Brass Top Pins 3.1mm Dia.
  • 3 Brass Grooved Top Pins
  • 3 Brass Spool Top Pins
  • 10 Brass Bottom Pins

STANDARD CYLINDERS (.115 dia.) (V1) (S1)

.155 .160 .165 .170 .172 .180 .187 .190 .200 .207 .220 .235 .240 .273 .320

LAB Brand Pins For:

SERRATED HIGH SECURITY(V1)

PICK RESISTANT

155 .165 .170 .172 .187 .190 .200 .207 .115 Dia.

.220 .235 .240 .273 .320

Universal Pinning Kits

Only LAB kits contain the most up-to-date, comprehensive pinning charts with technical data straight from the manufacturers. LAB's exclusive "eye saver" exploded view of information helps make pinning easy and accurate.

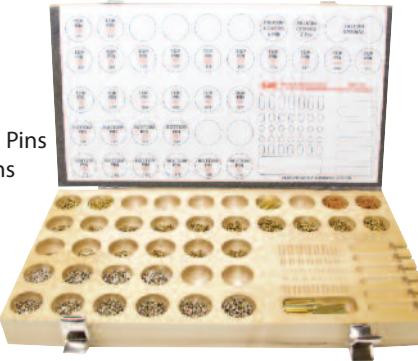

Woody Classic

LWK003

104 sizes Top/Master Pin sizes: .024 -.170 Bottom Sizes: .165 - .360 Springs 115L/115S 72 Pins per pocket

LWK005

92 sizes Top/Master Pin sizes: .010 - .250 Bottom Sizes: .150 - .360 Springs 115L/115S 72 Pins per pocket

Features

Beautifully handcrafted in maple by New England wood craftsmen. Protected in clear polyfinish to preserve its outstanding qualities.

• New larger printing under pin pockets
• New larger "finger pin pockets"
• Color Passport Pin Chart®
• Triple-latch protection
• Slide-out center drawer with Master Pins, Springs and Tool compartment

1- 1%" Drawer side-angled

Size:131/4" X 101/2" 2" F X 31/4" B

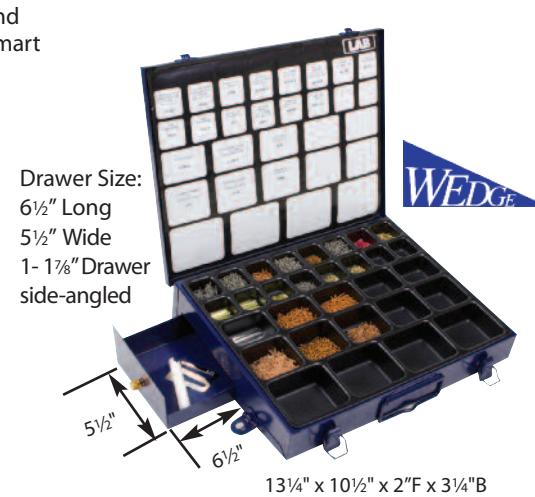

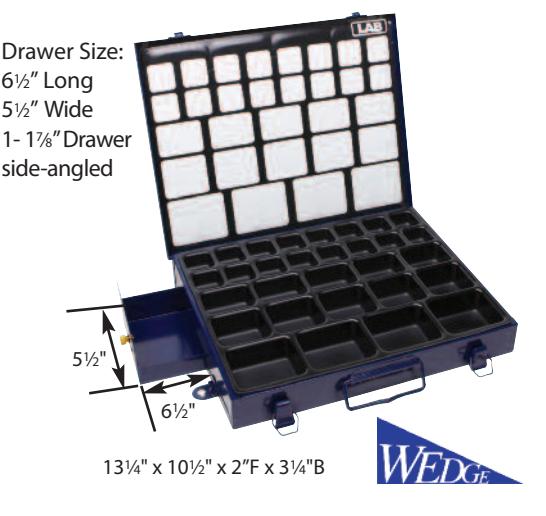

WEDGE

Exclusive Features

• Developed by locksmiths with confined workspace in mind.
• Color Passport Pinning Chart with up-to-date factory pinning data
  • Slide-out tool drawer
  • 3 deep spring pockets
    • .115 Long NEW Tangle Resistant Springs
      • .115 Short Short Springs
        • T-Pin Spring for Schlage® "F" Series Cylinders
        • Double-sized pin pockets (holds up to 200 pins per size)
        • Large tool pocket on top of tray
        • Injected Molded High-Impact Tray with pin sizes printed 100% larger
        • Contains 3 sizes of spool pins and the "F" Series T-Pin for Schlage® Cylinders
        • 72 Pins per pocket 100 Springs per pocket

LSW003

Pin Sizes:

• .003 Increments
• 92 Sizes
• Top Pins: .024 .200, .235
• Spool Pins: .160, .165, .180
• T-Pin: .170
• Bottom Pins: .159-.354*

LSW005

Pin Sizes:

• .005 Increments
• 86 Sizes
• Top Pins: .010-.200, .230, .235
• Spool Pins: .160, .165, .180
• T-Pin: .170
• Bottom Pins: .155-.360

* Contains the most commonly used sizes – No Dead Stock

FOR MORE DETAILS SEE WEBSITE www.labpins.com

Drawer Size: 61/2" Long

Universal Pinning Kits

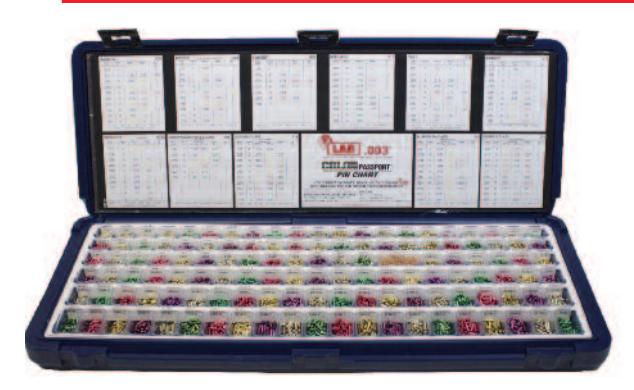

The LAB CLASSIC PRO, WEDGE PRO, SUPER WEDGE & SMART WEDGE PINNING KITS... feature exclusive designs that can only be found on LAB PINNING KITS - U.S. PATENT number: 5,482,159.

CLASSIC PRO SOLID METAL CONSTRUCTION

LPK003

• .003 Increments
• 124 Sizes
• Top Pins: .010 -.200
• Bottom Pins: .156 -.360
• Springs: 115L
• 72 Pins per pocket
• 100 Springs

LPK005

• .005 Increments
• 102 Sizes
• Top Pins: .010 -.300
• Bottom Pins: .150-.360

Features...

• Springs: 115L
• 72 Pins per pocket
• 100 Springs

215⁄8"x77⁄8" x15⁄8"

Size: 211⁄8"x 73⁄4" x 31⁄8" Internal Drawer Storage 12 1⁄2" x 7" x 25⁄15"

KIT PLATFORM WITH DRAWER EPD000

Retrofit your LAB Wedge Kit or LAB Classic Pro Kits onto the LAB Kit Platform (with drawer). It gives you the needed space for all your tools right at your fingertips. (Pin Block not included)

Seal-Tight cover, combined with traditional ultra-thin design. ALSO...

EXCLUSIVE Dual-View ® Pin Tray Pin sizes are enlarged and printed under the clear PETG tray, both above and inside the pin pockets for easy viewing at all angles.

All LAB Universal Kits feature one-piece steel construction with

WEDGE PRO

• EPK003 • .003 Increments
• 124 Sizes
• Tops: .010-.200
• Bottoms: .156 -.360
• Springs: 115L
• 72 Pins per pocket
• 100 Springs

EPK005

• .005 Increments
• 102 Sizes
• Tops: .010-.300
• Bottoms: .150-.360
• Springs: 115L
• 72 Pins per pocket
• 100 Springs

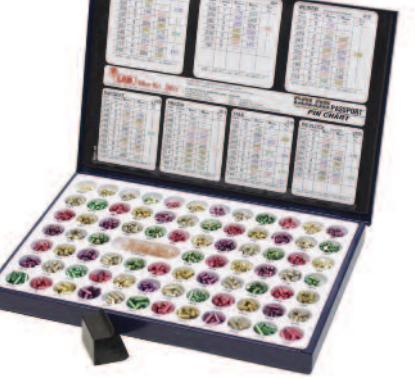

EXCLUSIVE Color Passport Pin Chart ®

Pin sizes printed on the chart are the same color as the actual pins.

EPD003

215⁄8"x77⁄8"x 2"F X 3"B

• .003 Increments
• 124 sizes
• Tops: .010-.200 Bottoms: .156 -.360
• 50 Pins per pocket
• 100 Springs

EPD005

• .005 Increments
• 102sizes
• Tops: .010-.300
• Bottoms: .150-.360
• 50 Pins per pocket
• 100 Springs

Features...

The LAB WEDGE PRO and SUPER

WEDGE Pin Kits are designed with a 10˚ angle. This allowsthe userto easily view the contents without leaning overthe kitto select pin sizes.

These WEDGE designed Kits are most commonly referred toby Security Professionals asthe "ULTIMATE"Pin Kits.

215⁄8"x 81⁄2"x 41⁄2F ^X 53⁄4"B InternalDrawer Storage 12 1⁄2" x 7" x 25⁄15"

Universal Pinning Kits

DUR-X SEMI PRO and DUR-X PRO are both light weight and made of super tough polyethylene. Both kits have triple-latch, double-snap protection with center lid carrying handle. Key slots under both kits make mounting in a van or on a work bench simple. Both feature full pin size ranges, Seal-Tight cover, Dual-View® Pin Tray and LAB's exclusive Color Passport Pin Chart® Features...

DUR-X SEMI PRO

LDKU3

• .003 Increments
• 124 Sizes
• Top Pins: .010 -.200
• Bottom Pins: .156 -.360
• Springs: 115L
• 50 Pins per pocket
• •100 Springs

LDKZ5

• .005 Increments
• 102 Sizes
• Top Pins: .010 -.300
• Bottom Pins: .150 -.360
• Springs: 115L
• 50 Pins per pocket
• •100 Springs

DUR-X PRO with Drawer

LDK003

• .003 Increments
• 124 Sizes
• Top Pins: .010 -.200
• Bottom Pins: .156 -.360
• Springs: 115L
• 72 Pins per pocket
• •100 Springs

LDK005

• .005 Increments
• 102 Sizes
• Top Pins: .010-.300
• Bottom Pins: .150-.360
• Springs: 115L
• 72 Pins per pocket
• •100 Springs

LMK003

• .003 Increments
• 81 Sizes
• Masters: .024 -.090
• Drivers: .093 -.235
• Bottoms: .156-.354 • Cylinder Springs: 115L
• Pins per pocket (size dependent) Tops: 18- 80 per pocket Bottoms: 18-35 per pocket

Features...

• Steel construction finished in LAB's Hard-Coat metallic paint. Mini kits come with Color Passport Pin Chart®
• NO UNNECESSARY SIZES

LMK005

• .005 Increments
• 81 Sizes
• Masters: .010 -.090
• Drivers: .095-.200
• Bottoms: .155 -.360
• Cylinder Springs: 115L
• Pins per pocket (size dependent) Tops: 20-150 per pocket Bottoms: 10-30 per pocket

Metal Pinning Kits

For Original Lock Manufacturer's Cylinders

All LAB Brand Original Lock Manufacturer's Metal Pinning Kits contain Genuine Original Pins in the specific sizes required to service the

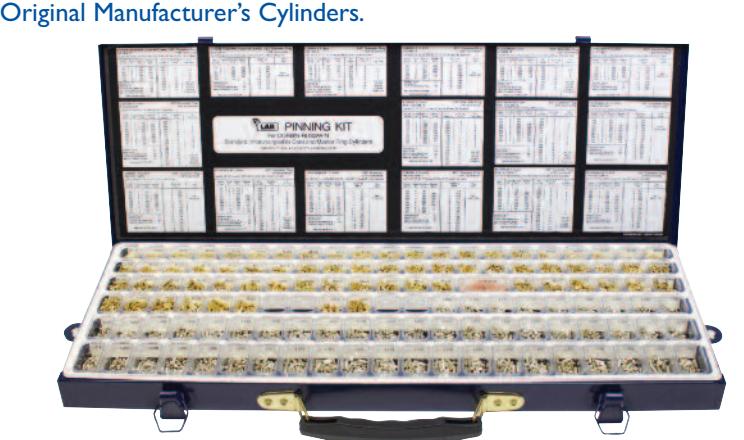

LAB Brand CORBIN RUSSWIN KITS LRCK6

• 67 Brass Top Pin sizes
• 51 Nickel Silver Bottom Pin sizes
• Spool Pins (standard) J172 & J320
• Cylinder Springs 115L
• Superior LAB construction with Seal-Tight Cover
• Dual-View® Pin Tray (pin sizes printed under clear tray)
• Heavy-duty steel box with ultra-thin features
• Pins per pocket 50

• Contains 12 Original Nickel Silver Bottom Pins Brass Tops and Masters
• Cylinder Springs 111IC / 111SD
• .028 pin depths
• .509 & .552 Diameter plugs
• Repinning system 70 DH & Z including ICore
• Pins per pocket -100

LAB BRAND Interchangeable Core Kits

• 10 COLOR-CODED Brass Bottom Pins, Sizes 0- 9

• 18 Brass Master/ Top Pins sizes 2-19

• Caps and both 6 & 7 Pin Spring Covers

• 2 different length Springs 108B- Long 108F - Short

For BESTIC See Page 23

For all Corbin Russwin keyways and all depth systems.Accommodates conventional, master ring and

ICore cylinders

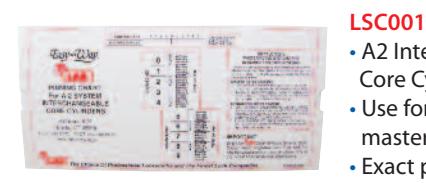

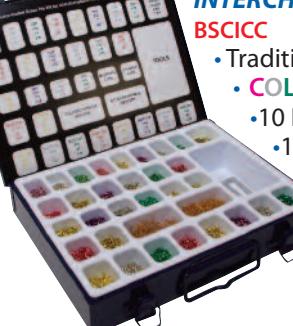

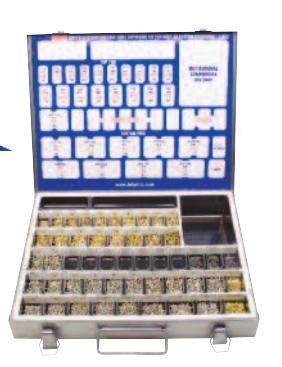

LAB Brand A-2 UNIVERSAL COLOR-CODED INTERCHANGEABLE CORE PIN KIT

• Traditional Non-Wedge Design
• COLOR-CODED Brass Pins
  • •10 Brass Bottom Pins sizes 0-9
    • •18 Brass Master/ Top Pins sizes 2-19
      • •Stamped Caps
      • 6 & 7 Pin Spring Covers
      • 2 different length Springs: 108B - Long 108F - Short
      • Pins per pocket 100

111⁄8"x81⁄4"x 2"F x 31⁄4"B

• 2 style caps (stamped and machined)
  • 3 in 1 (A2, A3, A4) Key Gauge
  • Caps and both 6 & 7 Pin Spring Covers
  • Deep Tool Pocket for LAB ANNEX®
  • COLOR-CODED Chart
  • Pins per pocket 100

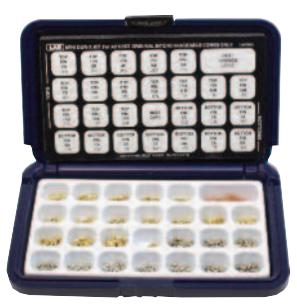

LAB Brand COLOR-CODED ICORE KIT (A3/A4 SYSTEM)

111⁄8"x81⁄4"x13⁄4"

A3BFK

A3

• 7 COLOR-CODED Brass Bottom Pins, Sizes 0- 6
• 13 Top Pins sizes 1-13

A4

• 15 COLOR-CODED Brass Bottom Pins sizes 1-15
• 11 COLOR-CODED Brass Top Pins sizes 1-11
• 2 different length Springs 108B Long 108F Short
• Stamped Caps
• Pins per pocket 100

111⁄8"x81⁄4"x 13⁄4"

Metal Pinning Kits For Original Lock Manufacturer's Cylinders

All LAB Brand Original Lock Manufacturer's Metal Pinning Kits contain Genuine Original Pins in the specific sizes required to service the Original Manufacturer's Cylinders.

LAB Brand

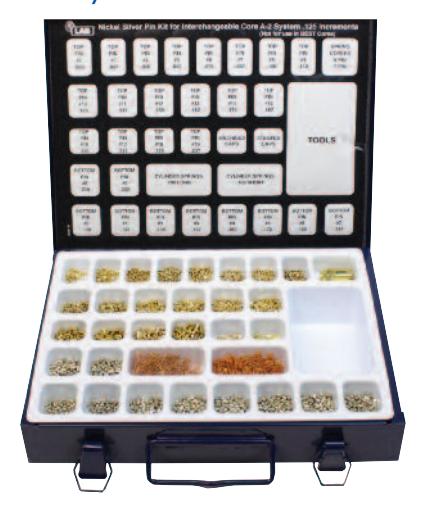

ORIGINAL ICORE (A-2 SYSTEM)

For: Falcon, Schlage small format, Medeco Keymark, etc.

NSK108

• 10 Nickel Silver Bottom Pin sizes 0-9
• 18 Brass Master/Top Pins sizes 2-19
• Caps and both 6 & 7 Pin Spring Covers
• 2 different length Springs 108B-Long 108F -Short
• Deep Tool Pocket for LAB ANNEX®
• Pins per pocket 100

LAB Brand SCHLAGE SPK115

• 10 Nickel Silver Bottom Pins

111⁄8"x81⁄4"x13⁄4"

• 8 Brass Master Pins
• 3 Brass Top Pins
• Cylinder Cap Spring & Pin SP74 / SCHCAP
• Cylinder Springs 115L
• SCHLAGE "F" Series T-Pins and Springs
• SCHLAGE Plug Follower
  • Pinning/Bitting Chart
    • Pins per pocket 100

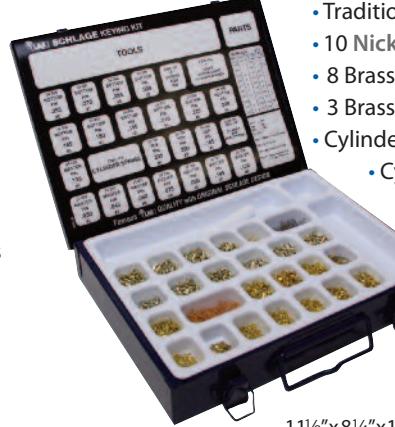

LAB Brand SCHLAGE

BSCSCH

• Traditional Non-Wedge Design
• 10 Nickel Silver Bottom Pins
• 8 Brass Master Pins
• 3 Brass Top Pins
• Cylinder Cap Spring & Pin SP74 / SCHCAP
  • Cylinder Springs 115L
• SCHLAGE "F" Series T-Pins and Springs
• SCHLAGE Plug Follower
• Pinning/Bitting Chart
  • Pins per pocket 100

111⁄8"x81⁄4"x13⁄4"

111⁄8"x81⁄4"x2"F x 31⁄4"B

LAB Brand KWIKSET KPK115

• 6 Brass Bottom Pins
• 2 Brass Top Pins
• 6 Brass Master Pins • Cylinder Springs KWKSPG
• COLOR-CODED to Industry Specifications
• Contains.160&.180 Kwikset Anti-Pick Pins
• Includes Cylinder Removal Tool (pickle fork)
  • Plug Follower

111⁄8"x81⁄4"x2"F x 31⁄4"B

14

• New Pinning/Bitting

LAB Brand KWIKSET

BSCKWK

• Traditional Non-Wedge Design
• 6 Brass Bottom Pins
• 2 Brass Top Pins
• 6 Brass Master Pins
• Cylinder Springs KWKSPG
• COLOR-CODED to Industry Specifications
• Contains.160&.180 Kwikset Anti-Pick Pins
• Includes Cylinder Removal Tool (pickle fork)
  • Plug Follower
    • New Pinning/Bitting

COLOR-CODED Information Chart

• Pins per pocket - 100

111⁄8"x81⁄4"x 13⁄4"

COLOR-CODED InformationChart • Pins per pocket - 100

Metal Pinning Kits

All LAB Brand Original Lock Manufacturer's Metal Pinning Kits contain Genuine Original Pins in the specific sizes required to service the Original Manufacturer's Cylinders.

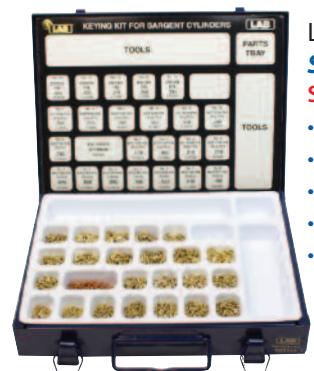

LAB Brand SARGENT SGT115

• 10 Brass Bottom Pins
• 8 Master Pins
• 5 Driver Pins
• Cylinder Springs 115S
• Pins per pocket -100

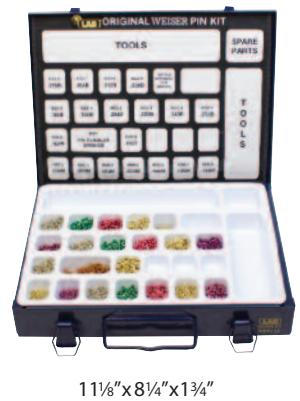

LAB Brand WEISER WSR115

• 10 Brass Bottom Pins
• 8 Brass Master Pins
• 1 Top Pin
• Cylinder Springs 115L
• COLOR-CODED to Industry Specifications
• Pins per pocket -100

111⁄8"x81⁄4"x13⁄4"

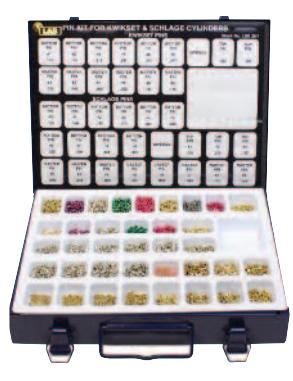

LAB Brand SCHLAGE & KWIKSET

LSK2N1

SCHLAGE SIZES

• 10 Nickel Silver Bottom Pins
• 8 Brass Master Pins
• 3 Brass Top Pins
• Cylinder Springs 115L
• Pins per pocket -100

111⁄8"x81⁄4"x13⁄4"

KWIKSET SIZES

• 6 Brass Bottom Pins
• 2 Brass Top Pins
• 6 Brass Master Pins
• Cylinder Springs KWKSPG
• COLOR-CODED to Industry Specifications
• Pins per pocket -100

111⁄8"x81⁄4"x13⁄4"

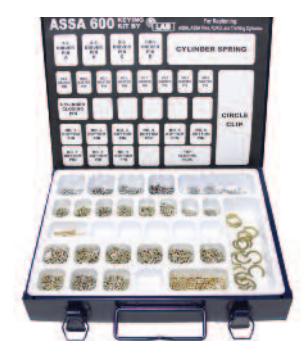

ASSA 600 KIT

For Re-Pinning: ASSA, RUKO, and TrioVing Cylinders

• 9 Nickel Silver Bottom Pins
• 4 Stainless Steel Top Pins
• 8 Nickel Silver Master Pins
• Cylinder Springs
• Top Closing Plugs
• Stopping Circle Clips 15PC Per Pocket
• Cylinder Closing Pins 15PC Per Pocket
• 100 Pins Per Pocket
• 100 Top Closing Plugs Per Pocket
• 100 Springs Per Pocket
• Compact Size : 11.125" x 8.250" x 1.750" 28.26cm x 20.96cm x 4.45cm

111⁄8"x81⁄4"x13⁄4"

EVVA/KABA/GEGE KIT

For Re-Pinning: EVVA DPS KABA/GEGE pEXTRA KABA/GEGE AP1000 KABA/GEGE pEXTRA+ KABA/GEGE AP2000

• 10 Brass Bottom Pins
• 3 Brass Spool Top Pins
• 3 Brass Grooved Top Pins
• 3 Standard Top Pins
• 8 Brass Master Wafers
• Cylinder Springs
• Plug Pins
• COLOR-CODED Pins
• 100 Pins Per Pocket
• 100 Springs Per Pocket
• Compact Size : 11.125" x 8.250" x 1.750" 28.26cm x 20.96cm x 4.45cm

Wood Pinning Kits For Original Lock Manufacturer's Cylinders

For Original Lock

Features... Beautifully Master-crafted quality construction in natural full-grain maple. Features large pockets for extra pins and easy pin selection. They make great benchmates for in-shop use.

LAB Brand A-2 UNIVERSAL COLOR-CODED INTERCHANGEABLE CORE PIN KIT

• COLOR-CODED Brass Pins
• 10 Brass Bottom Pins sizes 0-9
• 18 Brass Master/Top Pins sizes 2-19
• Stamped Caps
• 6 & 7 Pin Spring Covers
• 2 different length Springs: 108B Long 108F Short
• Pins per pocket 100

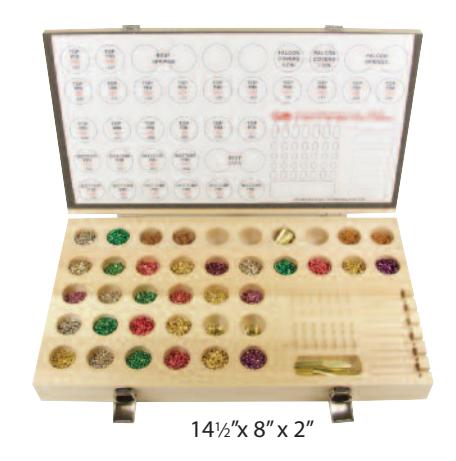

LAB Brand A-2 INTERCHANGEABLE CORE PIN KITS

141/2"x 8" x 2"

BWB108

For use in BEST ICORES

• 10 Nickel Silver Bottom Pins
• 18 Brass Master/Top Pins
• BEST Stamped Caps
• 108B Long Springs
• Pins per pocket 100

141/2"x 8" x 2"

BWF108

For use in all ICORE Systems (Except BEST) ie; Schlage small format, Falcon, Medeco, Keymark

• 10 Nickel Silver Bottom Pins
• 18 Brass Master/Top Pins
• 6 & 7 Pin Spring Covers
• 108F Short Springs
• Pins per pocket 100

141/5"x 8" x 2"

LAB Brand WOOD PIN KIT for SCHLAGE CYLINDERS SWK115

• 10 Nickel Silver Bottom Pins
• 8 Brass Master Pins
• 3 Brass Top Pins
• Cylinder Spring 115L
• Cylinder Cap Spring SP74
• Cylinder Cap Pin SCHCAP
• Pins per pocket 100

Mini DUR-X Pinning Kits

For Original Lock Manufacturer's Cylinders

* All kits contain approximately 25 Pins per pocket

Features

MINI DUR-X PIN KITS

"A unique and revolutionary departure from the plastic breakable pinning kits."

These very handy Mini DUR-X Pinning Kits contain only LAB BRAND PINS for original lock manufacturer's cylinders. Made of Super-Tough polyethylene, each kit features a platform insert with a reusable protective cover to protect contents. Contains location chart and only those size pins and springs required to re-pin specific lock companies' cylinders.

LAB Mini DUR-X Kit For: SCHLAGE CYLINDERS

• 8 Master Pins Brass
• 4 Driver Pins Brass
• 10 Bottom Pins Nickel Silver
• Cylinder Cap Pins and Springs
• Cylinder Springs 115L

LAB Mini DUR-X Kit For:

ACE CYLINDERS (Tubular)

• 7 Top Pins Brass
• 3 Bottom Pins Brass
• Cylinder Springs SPGACE

LAB Mini DUR-X Kit For: WEISER CYLINDERS

• 8 Master Pins
• 1 Driver Pin
• 10 Bottom Pins
• · Cylinder Springs 115S
• COLOR-CODED to Industry Specifications

LAB Mini DUR-X Kit For: .019 YALE CYLINDERS

I MDYLF

• 7 Master Pins Brass
• 3 Driver Pins Brass
• 10 Bottom Pins Brass
• Cylinder Springs 115S

LAB Mini DUR-X Kit For: KWIKSET CYLINDERS

LMDKWK

• 6 Master Pins
• · 2 Standard Driver Pins
• · 2 Anti-Pick Driver Pins
• 6 Bottom Pins
• Cylinder Springs KWKSPG
• COLOR-CODED to Industry Specifications

LAB Mini DUR-X Kit For: ARROW CYLINDERS

• 8 Master Pins Brass
• · 1 Driver Brass
• 10 Bottom Pins Brass
• Cylinder Springs 115L

LAB Mini DUR-X Kit For: MASTER PADLOCK

I MDMAS

• COLOR-CODED to Industry Specifications
• 7 Master Pins

CYLINDERS

• · 2 Top Driver Pins
• 8 Bottom Pins
• Cylinder Springs SP95

LAB Mini DUR-X Kit For:

SARGENT CYLINDERS

• 8 Master Pins Brass
• 5 Driver Pins Brass
• 10 Bottom Pins Brass
• Cylinder Springs 115S

LAB Mini DUR-X Kit For: WESLOCK CYLINDERS

• 8 Master Pins Brass
• 2 Top Pins Brass
• 11 Bottom Pins Brass
• Cylinder Springs 115L /115S

LAB Mini DUR-X

3•N•1 UNIVERSAL Kit

LMD3N1

This unique 3•N•1 Universal kit contains all the COLOR-CODED Universal pins required to re-pin Kwikset, Schlage and Weiser.

• 3 Top Pins
• 23 Bottom Pins
• Cylinder Springs 115L

LAB Mini DUR-X Kit For:

A2 INTERCHANGEABLE CORE CYLINDERS

IMDICC

• COLOR-CODED Brass Pins
• 15 Top/Master Pins
• 10 Bottom Pins
• · Long & Short Cylinder Springs 108B /108F
• Caps Stamped 1027

LAB Mini DUR-X Kit For-

A2 INTERCHANGEABLE CORE CYLINDERS

LMDOIC (Falcon, Schlage Smalll format, Medeco, Keymark etc.)

• 15 Top/Master Pins Brass
• 10 Nickel Silver Bottom Pins
• · Long & Short Cylinder Springs 108B/108F
• Caps Stamped 1027

8" x 51/8" x 13/4"

LAB Mini DUR-X Kit For: A2 INTERCHANGEABLE CORE BEST CYLINDERS

LMDBIC (BEST ONLY)

• 15 Top/Master Pins Brass
• 10 Nickel Silver Bottom Pins
• BEST Springs Long 108B
• BEST Caps Stamped 1027

BALDWIN CYLINDERS

• 8 Master Pins Brass
• 3 Top Pins Brass
• 10 Bottom Pins Nickel Silver
• · Cylinder Springs 115L

I AB Mini DUR-X Kit: SECURITY PLUS

• 13 Brass Spool Pins Brass
• 13 Brass Serrated Pins Brass
• Adds pick resistance to most standard Lock Cylinders using .115 Dia. pins
• Cylinder Springs 115S

LAB Mini DUR-X Kit For:

DEXTER CYLINDERS

• LMDDXT • 8 Master Pins Brass
• 1 Top Pin Brass
• 10 Nickel Silver Bottom Pins
• Cylinder Springs 115L

LAB Mini DUR-X Kit For:

LOCKWOOD CYLINDERS

I MDI WD

• COLOR-CODED Brass Pins
• 12 Brass Top Pins
• 11Brass Bottom Pins

Cylinder Springs 115L

LAB Mini DUR-X Kit For: CORBIN RUSSWIN LARGE FORMAT ICORE KIT

LMDCR

• · 20 Brass Master/Top/Build-Up Pins
• 6 Top Pins Brass
• Build Up Pins +1 to -4 Brass
• 5 Master Pins Brass
• 6 Nickel Silver Bottom Pins
• Corbin Russwin ICore Cylinder Springs 111IC

Custom Pinning Products

REPINNINGKIT

LREPIN

The LAB Repinning Kit was designed with the repinner in mind. Its unique insert has pocket depths unlike a normal pinning kit. The locksmith can customize their own repinning kit to accommodate their specific needs (ie. pins, clips, springs, cores, tools.)

• Smart Wedge Design
• Uniquely designed insert
• Sold empty
• Side drawer for tools
• Can accommodate approximately 2000 of the largest Schlage pin in the big pockets and upwards of 5000 of the smallest pin
• Leakproof Seal-Tight Cover
• Wedge Shape with 10° angle

STARTER KIT

The LAB Starter Kit is made of the same durable polyethylene material as the LAB DUR-X. The kit covers the needs of locksmith schools, training classes or seminars and those starting out in the industry. Tools are stored in a deep pocket under the Pinning Block.

KIT Includes:

• Polyethylene Case
• 11 Kit variations
• Molded Pinning Block
• Formed End Tweezers
• Key Gauge (Not in Sargent LSKSGT or Arrow LSKARW)
• Plug Follower (Not in ICore Kits)
• Kwikset Cylinder Removal Tool (LSKKWK Only)

*NOTE: Plug Follower notrequired in:

LSKICC, LSKOIC and LSKBIC

**NOTE: Key Gauge not in LSKSGT or LSKARW

11 Kit Variations:

Available in the following configurations;

LSK003 - .003 Mini Metal Universal

LSK005 - .005 Mini Metal Universal

LSKSCH - SCHLAGE Mini DUR-X

LSKSGT - SARGENT Mini DUR-X **

LSKKWK - KWIKSET Mini DUR-X LSKWSR - WEISER Mini DUR-X

LSKICC - A2 Brass ICore Mini DUR-X *

LSKOIC - A2 Nickel Silver ICore Mini DUR-X *

LSKBIC - BEST A2 ICore Mini DUR-X *

LSK3N1 - 3N1 KWIKSET/SCHLAGE/WEISER Mini DUR-X

LSKARW - ARROW Mini DUR-X **

Large tool storage pocket below Pinning Block

15" x 103⁄8" x 33⁄8"

Spring Kit

LSPGKIT

Loaded with every Spring LAB manufactures along with Shims, Covers and Caps plus Spool and T -Pins. There are ten pockets left empty allowing more custom filling by the locksmith. The Smart Wedge design includes a side drawer for tools.

Kit includes:

Springs: (125* to 250 springs**) Corbin Stainless ICore Springs: 111IC* Corbin Stainless Standard Springs: 111SD*

Master/Yale Springs: SP95*

Kwikset Stainless Springs: KWKSPG*

ACE Springs: SPGACE*

Schlage F Series T-Pin Springs: SPGSCH* Schlage Cylinder Cap Springs: SP74*

Universal .115 Long Tangle Resistant Springs: 115LT** Universal .115 Long Standard Springs: 115L** Universal .115 Short Standard Springs: 115S**

Falcon ICore Short Springs: 108F** Best ICore Long Springs: 108B**

* 125 Springs, **250 springs

Pins:

Kwikset .160 Spool Pins: LKJ160 Kwikset .180 Spool Pins: LKJ180 Schlage T-Pins: FS506-451 Interchangeable Core Caps: ICore Stamped: I027 ICore Machined: I027M

Shims / Covers: 100 Curved Shims: LSM0

50 Pin Covers: FSC6 (6 Pin) 50 Pin Covers: FSC7 (7 Pin)

Tools :

Universal Plug Follower: LFT001 Kwikset/Schlage Key Gauge: LKGKS

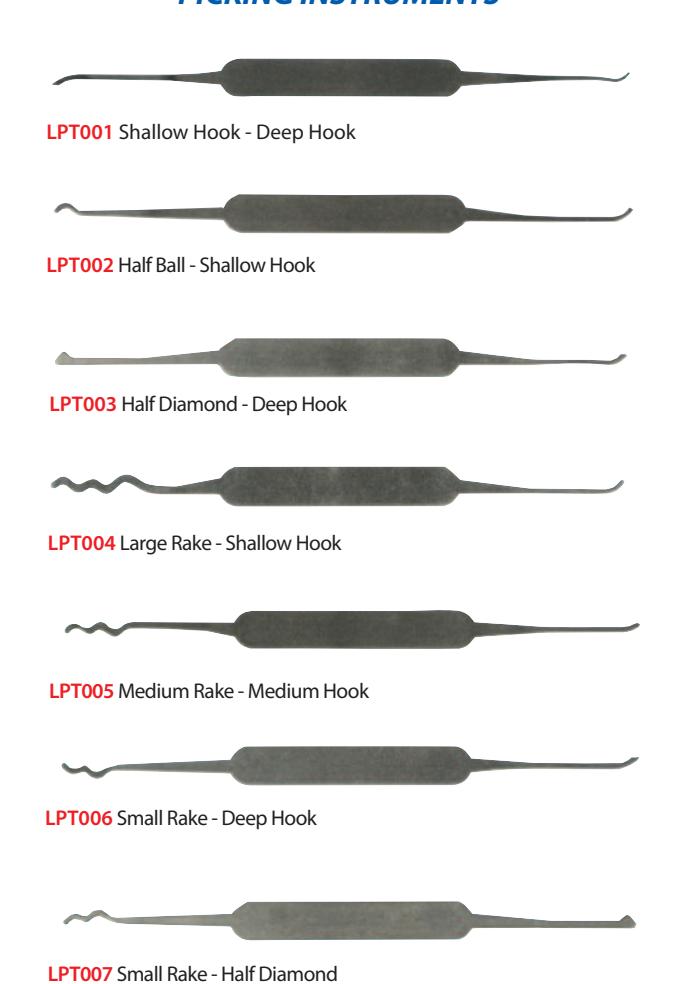

Picking Instruments designed by G.L. Finch

LPT013 17 Piece Set 4½" x 6"

LPT015 10 Piece Set 21/4" x 5"

	$	4
LPT001 Shallow Hook – Deep Hook		•
LPT002 Half Ball – Shallow Hook	•	•
LPT003 Half Diamond – Deep Hook	•	•
LPT004 Large Rake – Shallow Hook	•	•
LPT005 Medium Rake – Medium Hook	•	•
LPT006 Small Rake – Deep Hook	•	•
LPT007 Small Rake – Half Diamond	•	•
LTTM01 Medium Turning Tool (.075) Full Twist ONE END	•	•
LTTM02 Medium Turning Tool (.093) Full Twist ONE END	•	•
LTTM03 Medium Turning Tool (.125) Full Twist ONE END	•	•
LTT005 Auto Disc Turning Tool	•	•
Removable Handles	1	6

Pick Set Contents

Features

• Durable Nylon Case
• Velcro Closures
• Stainless Steel Picks
• Unique Designs
• Half and Full Twist designed Turning Tools

PICKING INSTRUMENTS

FOLLOWERS

LFT000

Schlage (.500) Dia. (For 3 types of cylinders

LFT001

Universal (.498) Dia.

LFT002

Weslock (.500) Dia.

LFT008 Kwikset (.500) Dia.

• · Light weight
• Very durable
• · White Delrin®
• Reflects light
• · Followers are not labeled

FOLLOWER SET ALSO AVAILABLE LFT005 - 5 Piece Set of All the Followers (except Kwikset)

TURNING TOOLS

LTT 005 Auto Disc Tool

LTTM01 .078 Tip - Medium Flex

LTTM02 .093 Tip - Medium Flex

LTTM03 .125 Tip - Medium Flex

All LAB Turning Tools are double-ended with standard and half-twist tips on each end Tools & Acces-

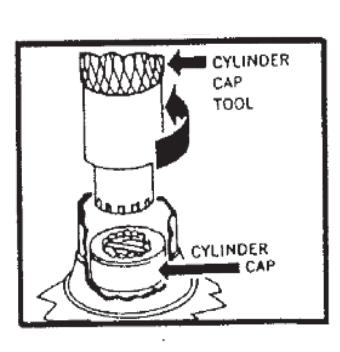

CYLINDER CAP REMOVAL TOOL

LCR005

At last there is a time saving tool to remove the cylinder caps from Schlage, Weiser, Arrow and Falcon cylinders. This tool has been modified to accommodate the extended tailpiece for Schlage cylinders.

LAB LUBE

1.0 oz.

LLT001

• Made of Polytetrafluoroethylene
• A micronized* powder lock lubricant that will not"cake-up" as graphite does
• A superior friction-fighting agent
• Used by most major lock manufacturers

*Material saftey data sheet available at labpins.com

FORMED END TWEEZERS

LZT001

• Formed Ends for Positive Grip
• Perfect size & weight
• Made of Stainless Steel
• Length 45⁄8"

Pin Tip

INTERCHANGEABLE CORE ANNEX

LICCB

The LAB Interchangeable Core Annex offers the simplest method for the loading of Interchangeable Core pins, springs and caps, using only one instrument for both functions. A second time saving feature is a Slideout Code Book below the area where the core is slid in place. This allows the user to unload the core pins, springs and caps into a confined area without spilling parts in or around the work area. This Slideout Code Book is also used to decode the core to determine the bitting of the control key when it is not available and also determine the top master key bitting.

MADE OF DURABLE STAINLESS STEEL

UNITED STATES PATENT 6,021,655

LCI001 CAPPING INSTRUMENT LPE001 PIN STACK EVICTOR

Tools are available separately.

(Both tools above are exclusively designed for use with the LAB I.C. ANNEX only)

LAB Pin Decoder

Decodes Medeco Biaxial Bottom Pins and MORE.

LPDMED

• Determine length, angle, skew for Medeco Biaxial Bottom Pins
• Measure/Identify master and driver pin lengths
• Determine key cut depths
• Identify fore and aft key cut positions

LAB EASY WAY PINNING CHART

LSC001

• A2 Interchangeable Core Cylinders
• Use for all levels of master keying
• Exact pin usage
• Instructions included

ICORE KEY GAUGE

LKGIC

• A2, A3, and A4 Systems
• .20 gauge thick 304 stainless steel
• Laser machined and engraved to maintain LAB's strict quality standards
• Measures 2.75" x 2.00"

2-N-1 GAUGE

LKGKS

• 2-N-1 Gauge for Kwikset, Schlage only
• Accurate
• Measures 1.375" x 2.125"

5-N-1 GAUGE

LKG001

• For Kwikset, Schlage, Weiser, Weslock, Master Lock
• Accurate
• Measures 2.125" x 3.375"

PORTABLE PINNING TRAY

LPB002

• Tough Polyethylene construction
• Platform insert
• Secure lid allows for pre-staging
• Holds 4 plugs
• Size: 8" x 51⁄8"x 13⁄4"

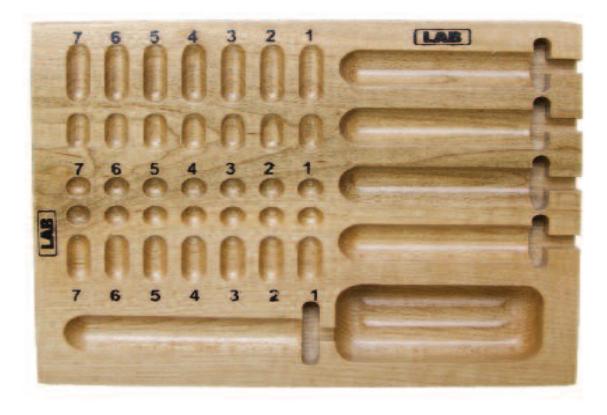

WOOD BLOCK PINNING TRAY

LPB001

• Made of maple
• Holds 5 plugs
• Great for repinning multiple cylinders, master and grand master pinning
• Measures 51⁄4" x 41⁄4"

LAB PIN/WORK MAT

KWIKSET CYLINDER REMOVAL TOOL

CRT001

• Used on Standard 400 Series cylinder assemblies
• Made from 0.080"thick cold rolled steel
• Yellow dichromate coated to resist corrosion
• Length 6 1⁄16"

LABMAT

• Approximate size 16" x 10"polyvinyl
• Pinning work mat retains hundreds of loose pins
• Molded in pin block area
• Great for vans or benches

LAB Pins, Kits & Tools for BEST A2, A3, A4 INTERCHANGEABLE CORES ONLY

LAB Brand IC Pins For BEST

LAB BEST IC Pins for A2, A3, A4 systems for use with all BEST ICORES

• A-2 Master / Top Brass Pin sizes 2B-19B Bottom Nickel Silver Pin sizes 0A-9A
• A-3 Master / Top Brass Pin sizes 1D-13D Bottom Nickel Silver Pin sizes 0C-6C
• A-4 Master / Top Brass Pin sizes 1F -11F Bottom Nickel Silver Pin sizes 0E-5E

BEST IC Springs 108SV1 "Stainless Steel" Package Qty - 100

BEST Pins & Caps

LAB Brand Kit For: BEST A2 IC

LIKIC

• Top Pins: 2B-19B Full Hard Brass Pins per pocket -100
• Bottom Pins: 0A 9A 200 Nickel Silver pins per pocket
• Caps Stamped / Machined
• Stainless Steel Springs 108S

111⁄8"x81⁄4"x 2"F x 31⁄4"B

141⁄2"x 8" x 2"

LAB Brand A2 BWB108

Wood Design

• For use with BEST ICORES • 10 Nickel Silver Bottom Pins
• 18 Brass Master/Top Pins
• BEST Springs 108B
• BEST Caps Stamped I027
• Pins per pocket 100

71⁄2" x 41⁄2" x 11⁄2"

LAB Mini DUR-X Kit For: BEST A2 INTERCHANGEABLE CORE LMDBIC

• 15 Brass Top/Master Pins
• 10 Nickel Silver Bottom Pins
• BEST Springs 108S
• BEST Caps Stamped I027
• Approx. 25 Pins per pocket

INTERCHANGEABLE CORE ANNEX with Slideout Code Book

LICCB Includes:

• ANNEX with Slideout Code Book
• Capping Instrument (LCI001)
• Pin Stack Evictor (LPE001)

Approximate Size:

Depth: 11⁄8" Width: 11⁄4" Height: 3" Weight: 0.80 lb.

PIN STACK EVICTOR

CAPPING INSTRUMENT

CAUTION:

Use Only Plastic or Rawhide Mallet With This ANNEX. Use of Metal Hammers WILL DAMAGE IT!

ICORE KEY GAUGE

LKGIC

• A2, A3, and A4 Systems
• .20 gauge thick 304 stainless steel
• Laser machined and engraved to maintain LAB's strict quality standards
• Measures 2.75" x 2.00"

• A2 Interchangeable Core Cylinders
• Use for all levels of master keying
• Exact pin usage
• Instructions included

(Both tools above are exclusively designed for use with the LAB I.C. ANNEX® only)

LAB EASY WAY PINNING CHART INTERCHANGEABLE CORE ANNEX ®

LICCB

The LAB Interchangeable Core Annex® offers the simplest method for the loading of Interchangeable Core pins, springs and caps, using only one instrument for both functions. See More on page 21

Scan here for More Information

BEST tradenames and trademarks used in this Product Guide are owned by the manufacturer ofsuch products

Interchangeable Core Pin Reference Guide

LAB Interchangeable Core .108 Dia. Bottom Pin Product Data Sheet

LAB BEST INTERCHANGEABLE CORE Bottom Pin Design:

• Available in sizes to meet A2, A3, A4 system requirements Note: Use Only Nickel Silver Bottom Pins with Nickel Silver Key Blanks.

Nickel Silver Material:

• For use with all BEST INTERCHANGEABLE CORE only
• Increased flat nose design to give positive key function

Packaging:

• Available in Polybag only (standard pack 100, economy pack 1000 or 5000)

LAB ORIGINAL INTERCHANGEABLE CORE Bottom Pin Design:

• Available in sizes to meet A2, A3, A4 system requirements Note: Use Only Nickel Silver Bottom Pins with Nickel Silver Key Blanks.

Nickel Silver Material:

• For use with all IC using Nickel Silver keys (Except BEST). Falcon, Schlage small format, Medeco Keymark, Arrow
• Radius to flat transition to decrease key/pin wear

Packaging:

• Available in Polybag only for (A3, A4), A2 is Vial (V1) or Polybag (P1), (standard pack 100, economy pack 1000 or 5000)

LAB UNIVERSAL INTERCHANGEABLE CORE Bottom Pin Design: UNIVERSAL BRASS FOR A2, A3 & A4 INTERCHANGEABLE CORE CYLINDERS

Use Brass Key Blanks with Brass Pins Only

• A2/A4 are COLOR-CODED , A3 is COLOR-CODED Bottom Pins only
• .108Dia. Pins

Packaging: (V1) (S1)

• (standard pack 100, economy pack 1000 or 5000)

A2 A3 A4 Tops: 2-19 1-13 1-11 Bottoms: 0- 9 0-6 0-5

Born on American pride and craftsmanship, Mr. Robert A. Labbe started LAB in 1956. The purpose, to provide the finest quality lock tumbler pins and pin kits to the locksmith trade and lock manufacturers.

Mr. Labbe and his team have made LAB the single largest company in the World dedicated to the manufacturing of lock tumbler pins. Mr Labbe has done this through his hard work, innovative design and craftsmanship. He has also built a team of dedicated LAB employees, LAB Sales Representatives, and a network of the finest Security Hardware Distributors in the Industry today.

LAB provides precision lock tumbler pins, pin kits and LAB tools to over 30 of the largest lock manufactures worldwide.

In today's economy value and quality mean everything. At LAB we stand by the fact that we can produce an American made product of unrivaled quality and be able to pass it on at fair value.

Mr. Labbe's ability to design and refine standard machine operations gave birth to what is the foundation of LAB today. The dedication to quality and the commitment to provide fine American made products for the locksmith trade and lock manufacturers will take LAB into the next 60 years.

1-800-243-8242 FAX 1-860-583-7838 www.labpins.com

Ace, Arrow, ASSA, BEST, Baldwin, CCL, Corbin Russwin, Dexter, Dorma, EVVA, Falcon, GEGE, Kwikset, Master, Medeco, Kaba, Keymark, Medeco Biaxial, National, RUKO, Sargent, Schlage, TrioVing, Weiser, Weslock, Yale and other trade names and trademarks used in this Product Guide are owned by the respective manufacturers ofsuch products. LAB Security Products is not responsible for typographical errors.LAB products are sold only through qualified Security Wholesale Distributors. Please log on to our website or call for a distributor in your area. 2017
