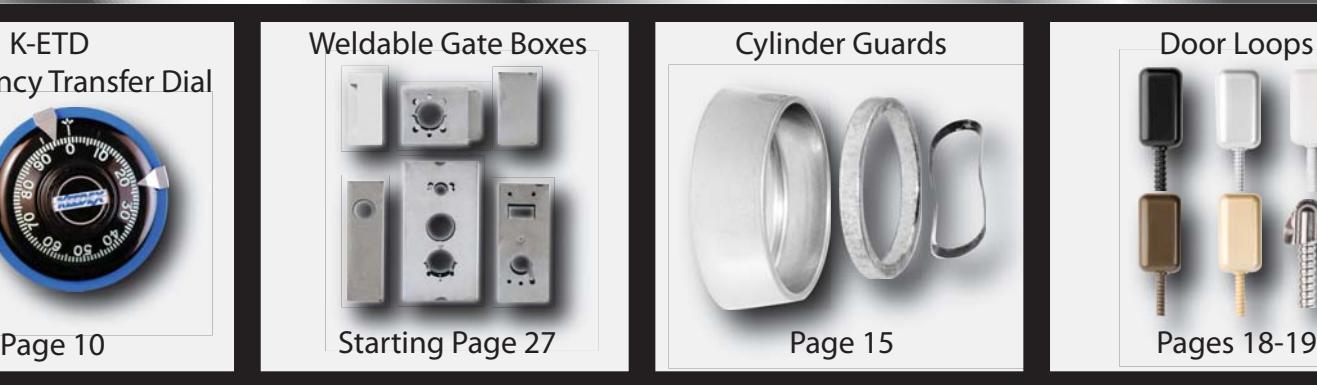

TABLE OF CONTENTS

Tools 3-9
Drill Bits 6
Roll Pins 7
Tamper Resistant Screws 8-9
Safe Products 10-13
Aluminum Door Security (Style Guards) 14

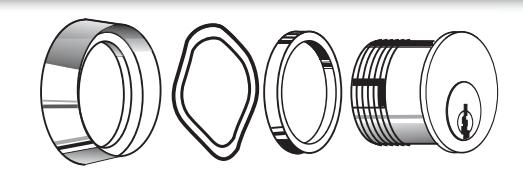

Cylinder Guards 15
Protect-A-Lok 16

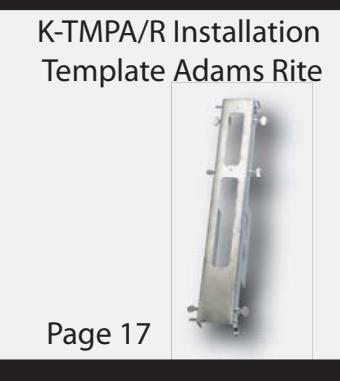

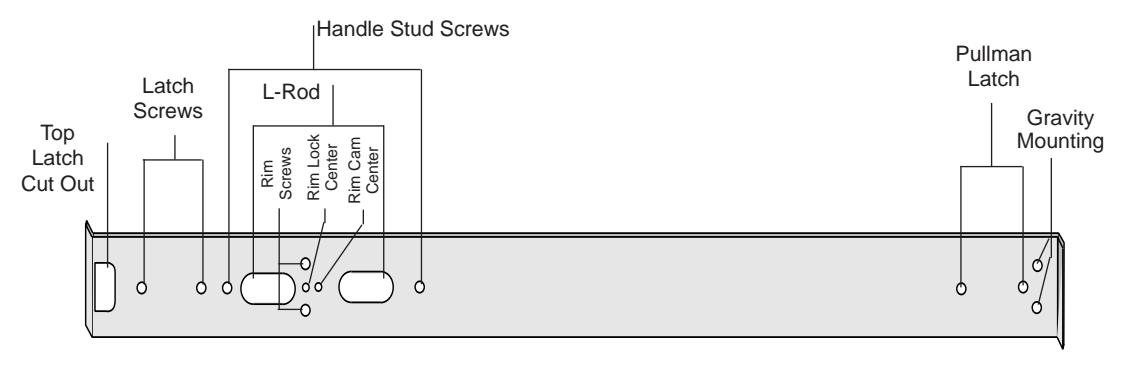

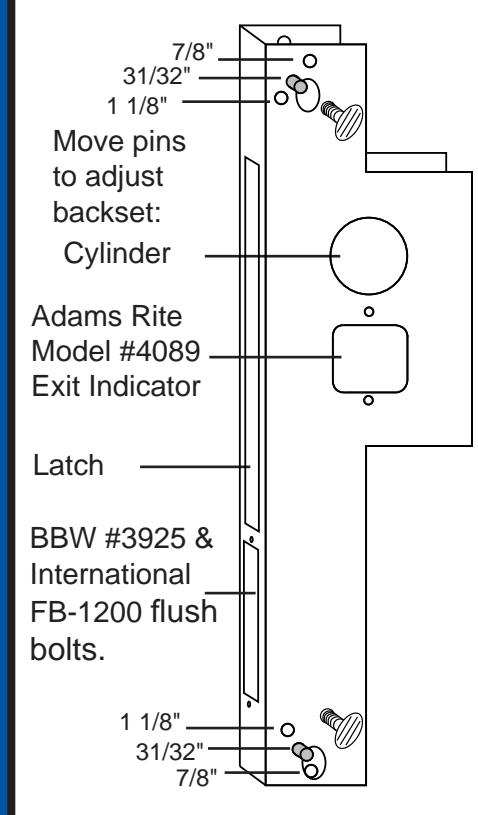

Installation Templates 17

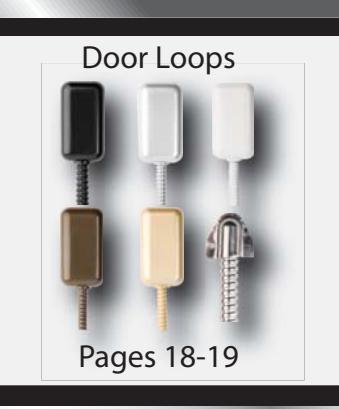

Door Loops 18-19
Automotive Tools 20-21
Retail Products 22-23
Gate Box Tools 24-25
Gate Box Related Products 26-27, 36

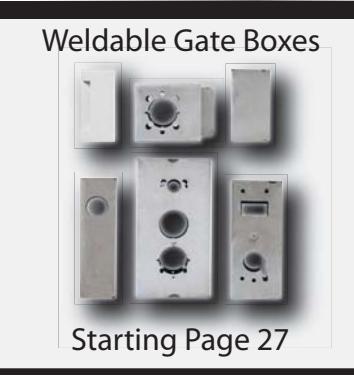

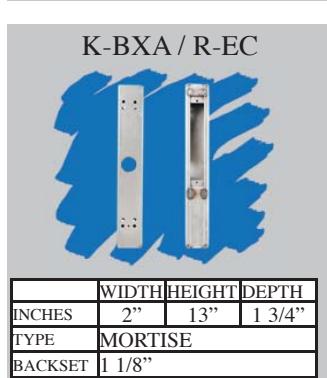

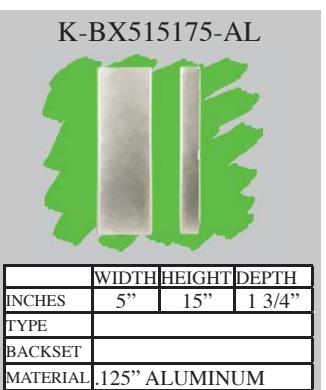

Blank Weldable and Universal Mortise Gate Boxes 36
Single and Double Cylindrical Gate Boxes 27
Understanding Gate Box Stock Numbers 36
Gate Box Cross Reference Guide 28-35

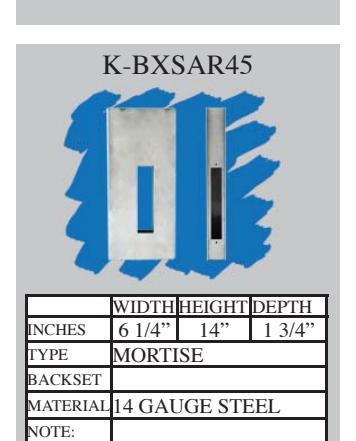

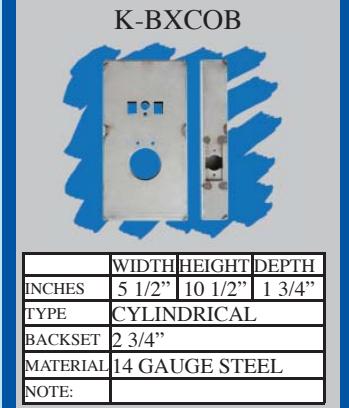

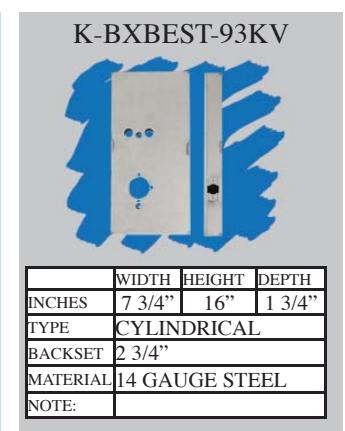

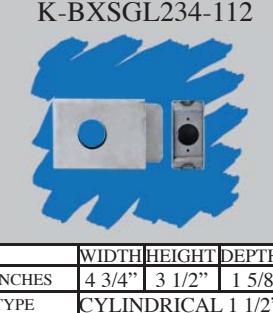

Gate Box Photo Reference Guide 37-47
Notes on ANSI Electric Strikes 47

At Keedex, "Ideas that Work" is our commitment to providing you with reliable and innovative products. Keedex Products are designed by security professionals who understand your needs. Keedex has established a reputation as a leading manufacturer of high quality products for the access control, safe, locksmith, and security hardware industries.

If your distributor is out of stock on an item, or if it is a new item that they do not have in inventory yet, please do not hesitate to place your order with them. We have very short lead times, and we impose no minimum order requirements on your distributor for drop shipments.

Keedex sells products exclusively through distribution.

Limited Warranty –

Keedex, Inc. warrants that its products will be free from defects in materials and workmanship (excluding oxidation or discoloration) for a period of one year from the date of sale to the user. Our only obligation will be to replace the defective product or parts upon inspection, together with proof of purchase from one of our agents dated within the warranty period.

We assume no liability for any labor charges regarding the removal or reinstallation of the products; nor will any freight, postage or handling expense relative to the product be covered. Damage caused by accident, misuse, abuse or improper installation are not covered by this warranty. Except as expressly stated herein, there is no warranty, whether expressed or implied, provided by Keedex, Inc. No other person has authority to assume any obligation or liability in addition to this warranty

This catalog is intended to be free from errors. However, should errors be contained within, Keedex is not responsible for any cost associated with regards to ordering the incorrect items based on typos.

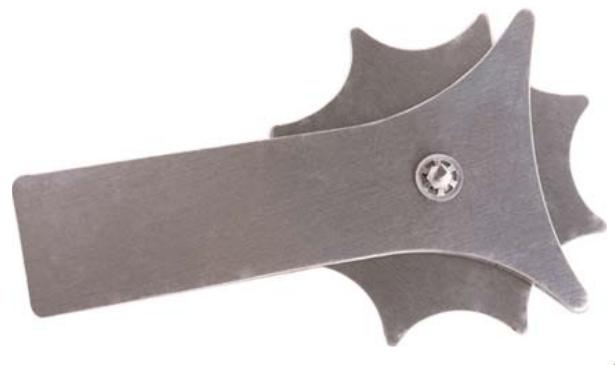

K-6 • MASTER FOLLOWER

This remarkable follower is a wise choice for either the newcomer or master locksmith. Made of solid brass, it will out last those made of plastic or aluminum. The capabilities of this machined follower far exceed any follower on the market today. It can be used as a regular follower, or as a master pin remover and follower on Schlage, Sargent, Kwikset, Weiser, and Almont padlocks and many others. Special taper allows smooth operation and better control over sticking pins.

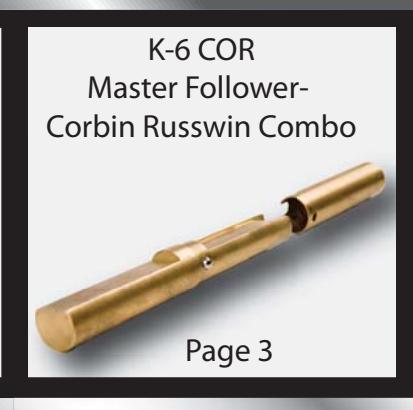

K-6-COR • MASTER FOL LOW ER FOR CORBIN RUSS WIN

Locksmiths have asked Keedex to provide a follower similar to our existing K-6, that is compatible with Corbin Russwin. The new K-6-COR is designed for Corbin Russwin locks. It is a two piece follower that can be used with both .500" & .550" plugs. Made of solid brass. It can be used as a regular follower, or as a master pin remover. Special taper allows smooth operation and better control over sticking pins.

K-19 • PROFILE CYLINDER FOL LOW ER

This segmented follower is a simple but effective solution to the frustration of servicing profi le cylinders. Special magnetic design for easy operation.

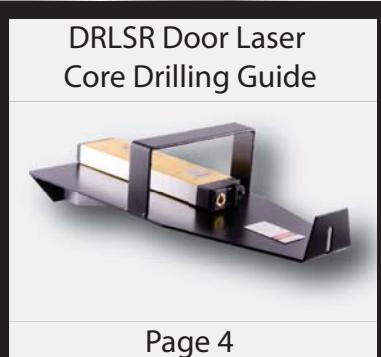

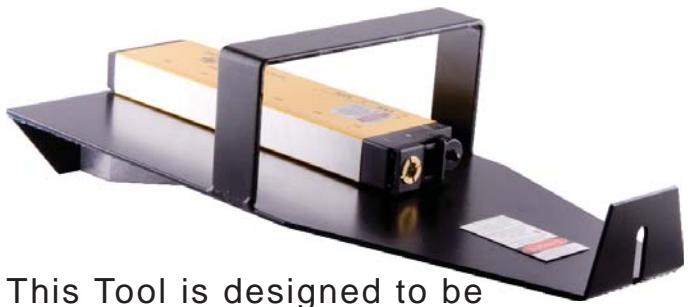

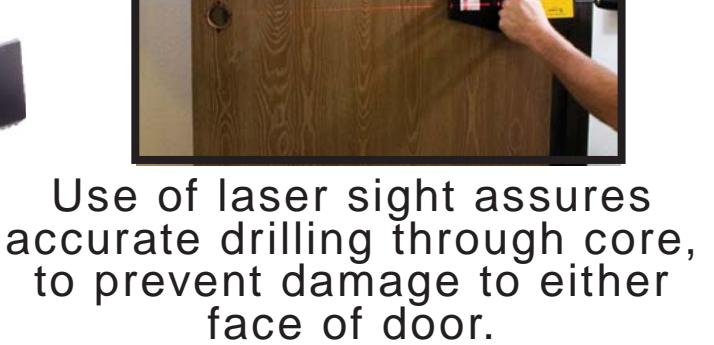

DRLSR • DOORLASER

The Affordable & Effective Tool For Core Drilling Doors.

used with 1 3/4" thick doors.

Includes 1/4" Bit For Drilling Pilot Hole.

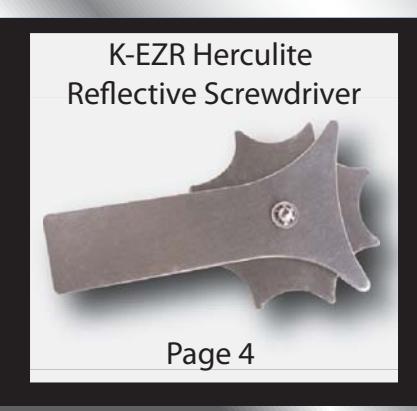

K-EZR • HERCULITE REFELECTIVE SET SCREW DRIVER

SIMPLE AND EFFECTIVE WAY OF SERVICING HERCULITE DOORS.

Made of highly polished stainless steel with interchangeable Allen and slotted screwdriver tips. The K-EZR is designed to slide under a Herculite door so you can service the cylinder without having to remove the door. Once placed under the door, you can view the set-screw with its reflective surface, you then turn the sprocket, loosing the set-screw. With the sprocket design there is no need to disconnect from the set-screw which saves you time.

Interchangeable slotted and Allen head tips are provided.

Parts EZR-A • 2mm Allen Insert Tip EZR-S • 1/4" Slotted Insert Tip

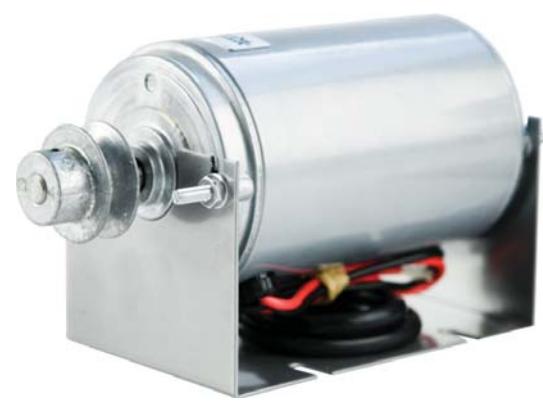

K-5 • SPEEDO II 12v. DC MOTOR

3800 R.P.M. high torque reversible 12 volt D.C. motor. This motor is engineered to work with a wide variety of key machines. The K-5 even out performs more expensive motors. Energy efficient permanent magnet design. Reversing power leads allows for reverse shaft rotation. Motor is capable of a full 1/4 h.p. Bronze bearings. Comes with pulley, mounting bracket and belt. Guaranteed for one year.

SPIN • "SPIN OUT" Screwdriver For Mortise Cylinders

How many times have you struggled, try ing to remove the cam screws on mor tise cyl in ders? The Spin Out is spe cial ly de signed to remove even the most stub born screws.

The "Spin Out" features a screw driv er with an over sized han dle for ex tra torque. Four sizes of interchangeable screw driv er bits – two slot ted and two Phillips.

Includes stand, with bronze bear ing, to pre vent the screw driv er from slip ping. Al lows you to pro vide con stant, even pres sure to the screws.

  • Prevents injuries to you and your em ploy ees hands,caused by a screw driv er slipping.
  • Prevents stripped out screw heads.
  • Allows you to remove even the most stub born screws.

Insert Bits

SPNBT1 • 1F-2R 1/4" Hex

SPNBT2 • 4F-5R STOT

SPNBT3 • #0 Phillips Bit

SPNBT4 • # 1 Phillips Bit

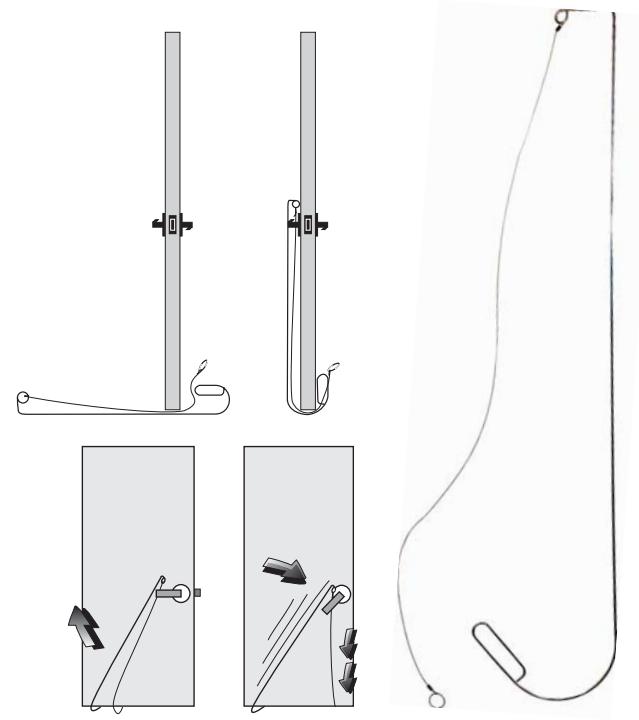

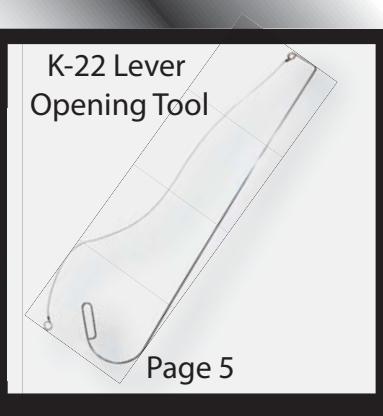

K-22 LEVER OPENING TOOL

IF YOU CAN SLIDE THIS TOOL UN DER THE DOOR, YOU WILL OPEN IT!

This tool is to be sold only to locksmiths and law en force ment agen cies.

This tool is not to be used un law ful ly. Kee dex will not be re spon si ble for the mis use of this tool.

Replacement Cable Available: Part# K-22CABLE

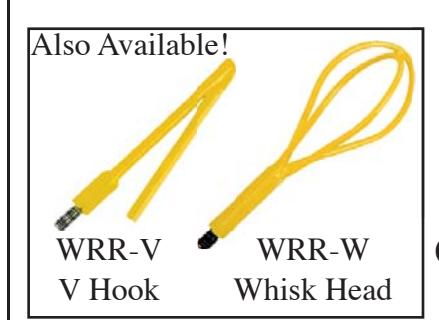

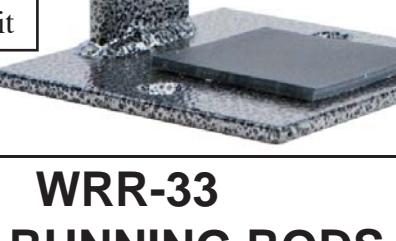

WIRE RUNNING RODS

These nonconductive fi berglass rods can be screwed together to form longer lengths for running through walls, attics, crawl spaces, sub-fl oors, and suspended ceilings.

Kit includes

  • •(10) 39" rods with threaded brass connectors,
  • •A 6-1/2" fl exible acrylic connection that can be set to any angle,
  • •A brass hook end for pulling,
  • •And a brass eye end for pushing.

Can be extended up to 33 feet!

VISIT OUR WEBSITE @ WWW.KEEDEX.COM ISIT Tel: 714-993-4300 • Fax: 714-993-4303 el: 5

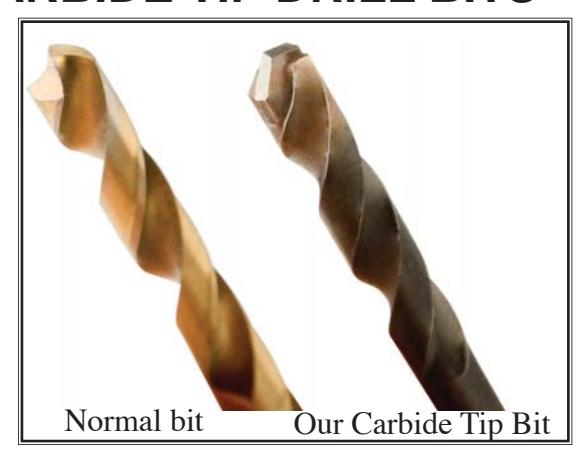

CARBIDE TIP DRILL BITS

These Carbide Tip Drill bits are specially designed for drilling through safes, hard plate, and other demanding metal work.

Sizes range from 1/8" to 5/16" in diameter, and from 3" to 30" in length. See complete product line-up to the right.

Stock numbers and Sizes

Stock
Number 		Diameter and Length
K-B18X3 1/8" x 3" Carbide Tip Safe Drill Bit
K-14X4 1/4" x 4" Carbide Tip Safe Drill Bit
K-14X6 1/4" x 6" Carbide Tip Safe Drill Bit
K-14X13 1/4" x 13" Carbide Tip Safe Drill Bit
K-316X4 3/16" x 4" Carbide Tip Safe Drill Bit
K-316X6 3/16" x 6" Carbide Tip Safe Drill Bit
K-38X4 3/8" x 4" Carbide Tip Safe Drill Bit
K-38X6 3/8" x 6" Carbide Tip Safe Drill Bit
K-B38X13 3/8" x 13" Carbide Tip Safe Drill Bit
K-38X30 3/8" x 30" Carbide Tip Safe Drill Bit
K-12X4 1/2" x 4" Carbide Tip Safe Drill Bit
K-12X6 1/2" x 6" Carbide Tip Safe Drill Bit
K-B12X13 1/2" x 13" Carbide Tip Safe Drill Bit
K-12X24 1/2" x 24" Carbide Tip Safe Drill Bit
K-516X4 5/16" x 4" Carbide Tip Safe Drill Bit
K-516X6 5/16" x 6" Carbide Tip Safe Drill Bit
K-516X13 5/16" x 13" Carbide Tip Safe Drill Bit
K-516X30 5/16" x 30" Carbide Tip Safe Drill Bit

The longer bits, such as the 24" & 30" bits, are ideal for access control & alarm work. With their sharpened tips, designed for opening safes, they are ideal for drilling through walls and especially helpful if you should encounter any rebar!

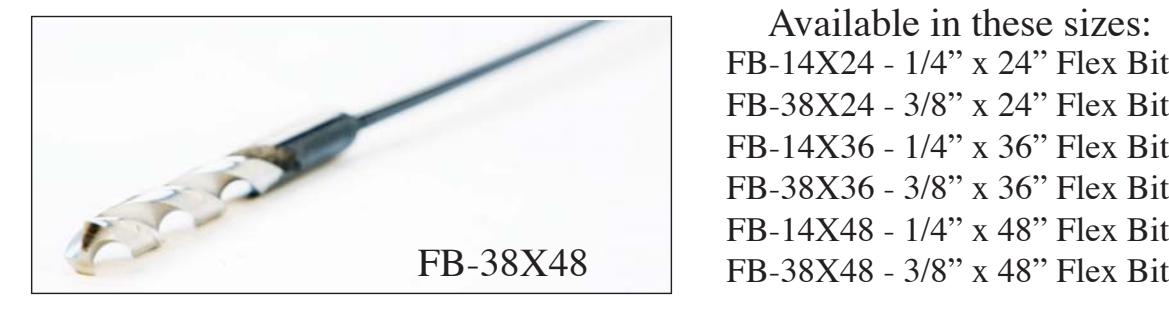

Keedex Flex Bits are a great new product available from Keedex. These bits are long enough for core drilling doors, drilling at (install) sites for running wiring in walls and crawl spaces.

Available in these sizes:

FB-14X24 - 1/4" x 24" Flex Bit

FB-38X24 - 3/8" x 24" Flex Bit

FB-14X36 - 1/4" x 36" Flex Bit

FB-38X36 - 3/8" x 36" Flex Bit

FB-14X48 - 1/4" x 48" Flex Bit

  • Designed to drill through steel plates as well as wood.
  • 118 degree point provides more gradual breakthrough and limits the grabbing that occurs when using a traditional 135 degree point.
  • Split point tip and slow spiral design improves bit self-cleaning and eases pull back.
  • 3/16" fl exible shaft allows you to easily align the bit along a stud for reference drilling.
  • Holes in drill bit head and chuck end for attaching wire.

! ALWAYS WEAR SAFTEY GOGGLES WHEN USING THIS PRODUCT! ! MADE IN CHINA

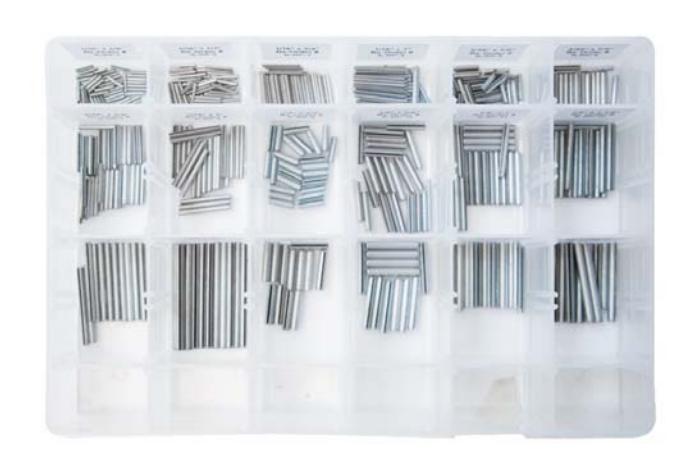

K-RP • ROLL PIN KIT

Contains an assortment of the zinc plated roll pins most com mon ly used by locksmiths.

Includes sizes 1/16 thru 5/32" in diameter and 3/8 thru 1 1/2" in length. 18 different sizes. 480 pins total. All packed in a durable, 18 compartment plastic box. Re-order numbers included. Made in the U.S.A.

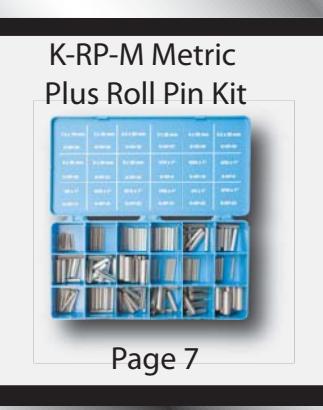

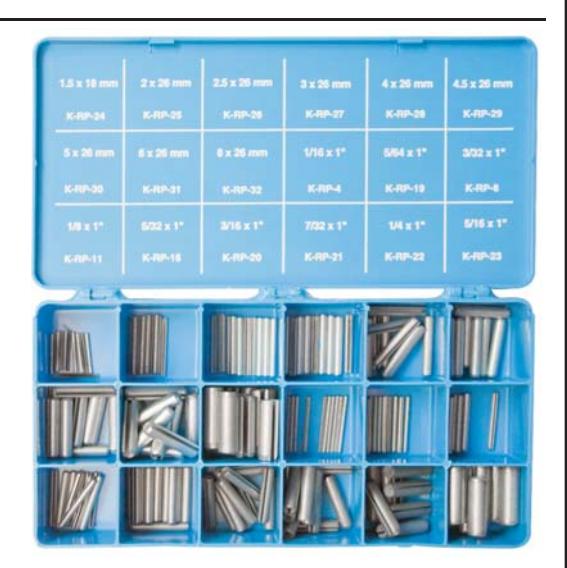

K-RP-M • METRIC PLUS ROLL PIN KIT

This kit contains an assortment of metric and fractional roll pins.

Metric sizes: 1.5mm x 18mm and the following sizes in 26mm length: 2mm, 2.5mm, 3mm, 4mm, 4.5mm, 5mm, 6mm & 8mm.

Fractional sizes: 1" lengths of the following sizes: 1/16", 5/64", 3/32", 1/8",5/32", 3/16", 7/32", 1/4" & 5/16". Quantity: 12 each of the above sizes. 216 pins total. Re-order numbers included. Made in the U.S.A.

PARTS LIST FOR ROLL PIN KITS

K-RP Roll Pin Kit K-RP-M Metric Plus Roll Pin Kit

Part# Description Pieces Per Package Part# Description Pieces Per Package
K-RP-1 Roll Pin 1/16 x 3/8" 54 K-RP-17 Roll Pin 5/32 x 1 1/4" 21
K-RP-2 Roll Pin 1/16 x 1/2" 51 K-RP-18 Roll Pin 5/32 x 1 1/2" 18
K-RP-3 Roll Pin 1/16 x 3/4" 46 K-RP-19 Roll Pin 5/64 x 1" 51
K-RP-4 Roll Pin 1/16 x 1" 41 K-RP-20 Roll Pin 3/16 x 1" 22
K-RP-5 Roll Pin 3/32 x 1/2" 45 K-RP-21 Roll Pin 7/32 x 1" 17
K-RP-6 Roll Pin 3/32 x 5/8" 43 K-RP-22 Roll Pin 1/4 x 1" 14
K-RP-7 Roll Pin 3/32 x 3/4" 41 K-RP-23 Roll Pin 5/16 x 1" 11
K-RP-8 Roll Pin 3/32 x 1" 31 K-RP-24 Roll Pin 1.5 x 18 mm 13
K-RP-9 Roll Pin 1/8 x 1/2" 35 K-RP-25 Roll Pin 2 x 26 mm 11
K-RP-10 Roll Pin 1/8 x 3/4" 28 K-RP-26 Roll Pin 2.5 x 26 mm 11
K-RP-11 Roll Pin 1/8 x 1" 33 K-RP-27 Roll Pin 3 x 26 mm 21
K-RP-12 Roll Pin 1/8 x 1 1/4" 26 K-RP-28 Roll Pin 4 x 26 mm 18
K-RP-13 Roll Pin 1/8 x 1 1/2" 22 K-RP-29 Roll Pin 4.5 x 26 mm 13
K-RP-14 Roll Pin 1/8 x 2" 17 K-RP-30 Roll Pin 5 x 26 mm 13
K-RP-15 Roll Pin 5/32 x 3/4" 32 K-RP-31 Roll Pin 6 x 26 mm 10
K-RP-16 Roll Pin 5/32 x 1" 25 K-RP-32 Roll Pin 8 x 26 mm 10

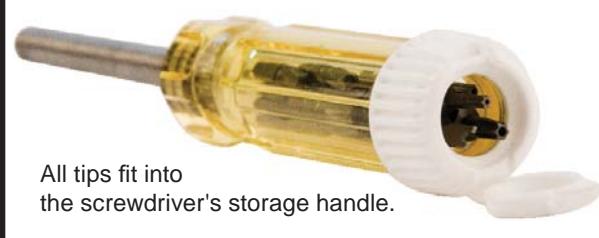

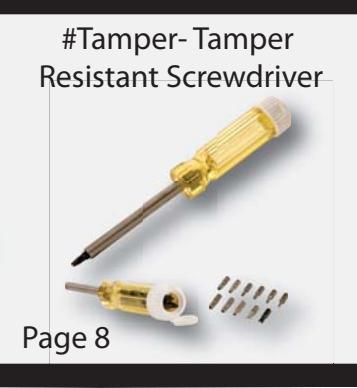

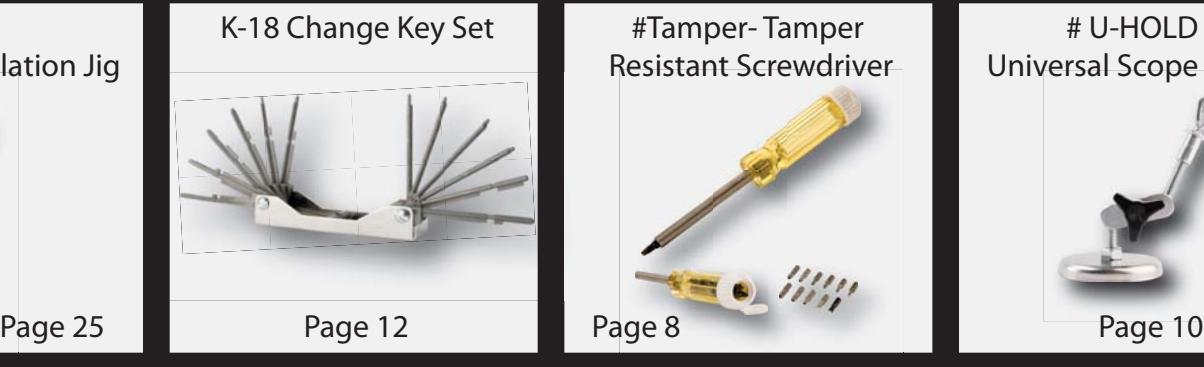

TAMPER • TAMPER RESISTANT SCREWDRIVER

Keedex has a new Tamper Resistant Screwdriver. This screwdriver comes with eleven interchangeable tips. Includes the following:

Six tamper resistant torx tips (T10, T15, T20, T25, T27 & T30).

Three tamper resistant hex tips (5/32", 3/16" & 7/32"). Two Spanner Tips (#6 & #8).

Invaluable For:

Commercial & Institutional Locksmithing

Automotive Work

Access Control

Keedex is your source for Tamper Resistant Screws!

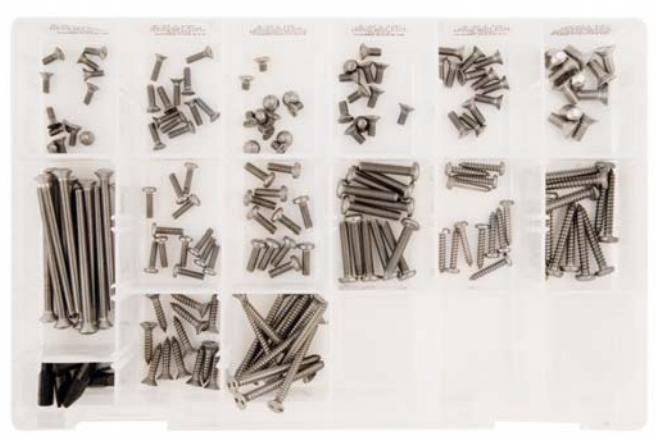

TAMPER RESISTANT SPANNER SCREW KIT SSKIT

This kit contains 12 each of the following 14 different sizes of machine and wood/metal tamper resistant stainless steel screws, specifically designed to suit the needs of locksmiths. REORDER NUMBERS CONVENIENTLY LOCATED ON LID TO MAKE REORDERS EASY!

168 screws total. Comes with tips!

Spanner flat head machine screw 6-32 x 3/8" Spanner flat head machine screw 6-32 x 1/2" Spanner flat head undercut machine screw 8-32 x 1/4" Spanner flat head machine screw 8-32 x 3/8" Spanner flat head machine screw 8-32 x 1/2" Spanner flat head undercut machine screw 12-24 x 1/2" Spanner oval head machine screw 10-32 x 2 1/2" Spanner pan head machine screw 6-32 x 1/2" Spanner pan head machine screw 8-32 x 1/2" Spanner pan head machine screw 10-32 x 1" Spanner pan head sheet metal screw #6 x 3/4" Spanner pan head sheet metal screw #10 x 1 1/4" Spanner flat head sheet metal screw #8 x 3/4" Spanner flat head sheet metal screw #8 x 2"

SECURITY SCREWS

KEEDEX STAINLESS STEEL TAMPER RESISTANT SCREWS

Many of the locksmiths and installers, who have purchased the Keedex Tamper Resistant Screwdriver, have asked us if we carry the Tamper Resistant Screws. Here is a list of the screws that we are stocking. All of the screws are made of stainless steel. Each package contains twenty-fi ve screws. We will be adding to this list, according to your customers needs.

PART# DESCRIPTION PK DEALER LIST
SHMF632X12 Hex Tamper Flat Head Machine Screw 6-32 x 1/2" 25 14.67 24.45
SHMF832X12 Hex Tamper Flat Head Machine Screw 8-32 x 1/2" 25 14.67 24.45
SHMF832X200 Hex Tamper Flat Head Machine Screw 8-32 x 2" 25 14.67 24.45
SHMF1024X12 Hex Tamper Flat Head Machine Screw 10-24 x 1/2" 25 14.67 24.45
SHMF1024X100 Hex Tamper Flat Head Machine Screw 10-24 x 1" 25 14.67 24.45
SHMF1032X12 Hex Tamper Flat Head Machine Screw 10-32 x 1/2" 25 14.67 24.45
SHMF1420X58 Hex Tamper Flat Head Machine Screw 1/4-20 x 5/8" 25 14.67 24.45
SHMB832X12 Hex Tamper Button Head Machine Screw 8-32 x 1/2" 25 14.67 24.45
SHMB832X34 Hex Tamper Button Head Machine Screw 8-32 x 3/4" 25 14.67 24.45
SHMB1024X12 Hex Tamper Button Head Machine Screw 10-24 x 1/2" 25 14.67 24.45
SHMB1032X12 Hex Tamper Button Head Machine Screw 10-32 x 1/2" 25 14.67 24.45
SHMB1032X34 Hex Tamper Button Head Machine Screw 10-32 x 3/4" 25 14.67 24.45
SHMB1420X58 Hex Tamper Button Head Machine Screw 1/4-20 x 5/8" 25 19.90 33.18
SMHMB4X12MM Metric Hex Tamper Button Head Machine Screw 4 x 12mm 25 14.67 24.45
SSMFU440X14 Spanner Flat Head Undercut Machine Screw 4-40 x 1/4" 25 7.92 13.20
SSMF632X38 Spanner Flat Head Machine Screw 6-32 x 3/8" 25 7.92 13.20
SSMF632X12 Spanner Flat Head Machine Screw 6-32 x 1/2" 25 7.92 13.20
SSMF632X34 Spanner Flat Head Machine Screw 6-32 x 3/4" 25 7.92 13.20
SSMF632X100 Spanner Flat Head Machine Screw 6-32 x 1" 25 7.92 13.20
SSMF632X112 Spanner Flat Head Machine Screw 6-32 x 1 1/2" 25 8.22 13.70
SSMFU832X14 Spanner Flat Head Undercut Machine Screw 8-32 x 1/4" 25 8.22 13.70
SSMF832X38 Spanner Flat Head Machine Screw 8-32 x 3/8" 25 8.22 13.70
SSMF832X12 Spanner Flat Head Machine Screw 8-32 x 1/2" 25 8.22 13.70
SSMF832X34 Spanner Flat Head Machine Screw 8-32 x 3/4" 25 8.22 13.70
SSMF1032X114 Spanner Flat Head Machine Screw 10-32 x 1 1/4" 25 11.00 18.34
SSMFU1224X12 Spanner Flat Head Undercut Machine Screw 12-24 x 1/2" 25 13.50 22.51
SSMO1032X212
SSMP632X12 		Spanner Oval Head Machine Screw 10-32 x 2 1/2"
Spanner Pan Head Machine Screw 6-32 x 1/2" 		25
25 		14.00
7.92 		13.34
13.20
SSMP632X114 Spanner Pan Head Machine Screw 6-32 x 1 1/4" 25 8.34 13.89
SSMP832X12 Spanner Pan Head Machine Screw 8-32 x 1/2" 25 8.34 13.89
SSMP832X114 Spanner Pan Head Machine Screw 8-32 x 1 1/4" 25 9.87 16.45
SSMP1024X12 Spanner Pan Head Machine Screw 10-24 x 1/2" 25 9.87 16.45
SSMP1032X100 Spanner Pan Head Machine Screw 10-32 x 1" 25 9.87 16.45
SSSP6X34 Spanner Pan Head Sheet Metal Screw #6 x 3/4" 25 7.92 13.20
SSSP10X114 Spanner Pan Head Sheet Metal Screw #10 x 1 1/4" 25 11.04 18.40
SSSF8X34 Spanner Flat Head Sheet Metal Screw #8 x 3/4" 25 9.00 15.01
SSSF8X200 Spanner Flat Head Sheet Metal Screw #8 x 2" 25 10.95 18.26
STMB632X34 Torx Tamper Button Head Machine Screw 6-32 x 3/4" 25 11.85 19.76
STMB832X38 Torx Tamper Button Head Machine Screw 8-32 x 3/8" 25 11.64 19.40
STMB832X34 Torx Tamper Button Head Machine Screw 8-32 x 3/4" 25 12.22 20.37
STMB1420X12 Torx Tamper Button Head Machine Screw 1/4-20 x 1/2" 25 17.99 29.98
STMB1420X34 Torx Tamper Button Head Machine Screw 1/4-20 x 3/4" 25 18.25 30.43
STMB1428X12 Torx Tamper Button Head Machine Screw 1/4-28 x 1/2" 25 20.54 34.24
STMB51618X34 Torx Tamper Button Head Machine Screw 5/16-18 x 3/4" 25 28.74 47.91
STMF1024X34 Torx Tamper Flat Head Machine Screw 10-24 x 3/4" 25 12.94 21.56
STMFU1224X12 Torx Tamper Flat Head Undercut Machine Screw 12-24 x 1/2" 25 14.99 24.98
STMFU1420X12 Torx Tamper Flat Head Undercut Machine Screw 14-20 x 1/2" 25 17.99 29.98
STMF1420X34 Torx Tamper Flat Head Machine Screw 1/4-20 x 3/4" 25 18.25 30.43
STMF1420X100 Torx Tamper Flat Head Machine Screw 1/4-20 x 1" 25 20.54 34.34
STMF1420X114 Torx Tamper Flat Head Machine Screw 1/4-20 x 1 1/4" 25 21.20 35.35
STSB8X12 Torx Tamper Button Head Sheet Metal Screw #8 x 1/2" 25 11.64 19.40
STSB8X34 Torx Tamper Button Head Sheet Metal Screw #8 x 3/4" 25 12.25 20.43
STSB10X12 Torx Tamper Button Head Sheet Metal Screw #10 x 1/2" 25 15.45 25.76
STSB10X34 Torx Tamper Button Head Sheet Metal Screw #10 x 3/4" 25 12.50 20.84
STSF10X114 Torx Tamper Flat Head Sheet Metal Screw #10 x 1 1/4" 25 16.87 28.12

* prices subject to change without warning

SAFE PRODUCTS

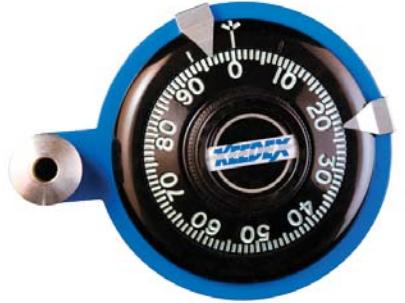

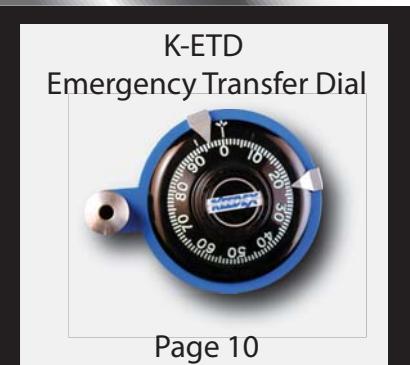

K-ETD • EMERGENCY TRANSFER DIAL

The Keedex K-ETD Emergency Transfer Dial is an effi cient tool designed to attach to a safe in a manner in which not to obscure the view of the internal lock after penetration of a safe for opening, thus allowing viewing and dialing at the same time. The transfer dial has two movable indexes to facilitate the transfer of combination numbers.

  • Parts
  • K-ETD-BELT Timing Belt ETD-MTI-PK • Magnetic Transfer Index pack
  • Allows dialing of a safe away from the drill point
  • Easy transfer of gate to any position fast and accurately
  • Precise one to one ratio between dial and spindle
  • Easy to read large format dial
  • Attaches strongly with the use of very strong magnets and set screw.

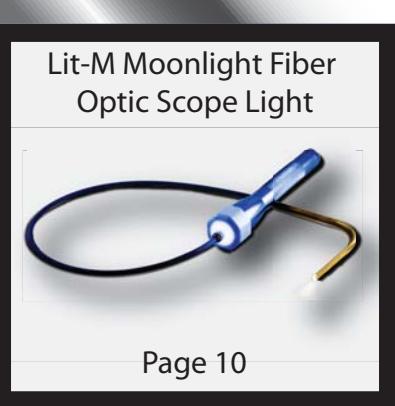

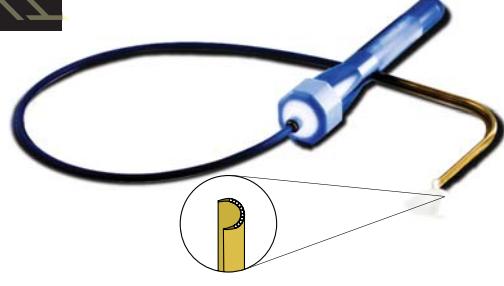

LIT-M • Moonlight

The Keedex Moonlight attaches to any Mini-Maglite® fl ashlight and is designed to fi t into a 1/4" opening for viewing inside of a drilled hole. By inserting the Moonlight into the hole it lights up the inside (of a safe) using 11 fi ber-optic elements. The crescent shape "moon" design covers only 20% of the viewing area allowing an 80% non-obstructed view inside the hole with a highintensity light beam.

The stronger your light source the brighter the Moonlight. Maglite® makes 1 and 3 watt bulbs. We highly suggest the 3-watt LED fl ashlight Maglite® features a fast-focus beam that adjusts from spotto-fl ood, use the spot light focus.

The Moonlight needs no batteries and has no light bulbs to break. It is made of a highly researched fl exible tubing which uses over 22 feet of fi ber-optic cable.

Keedex is in the process of developing a whole new line of fi ber-optic products for locksmiths. Visit http://www.keedex.com to see our advances. WARNING: NOT FOR MEDICAL USE

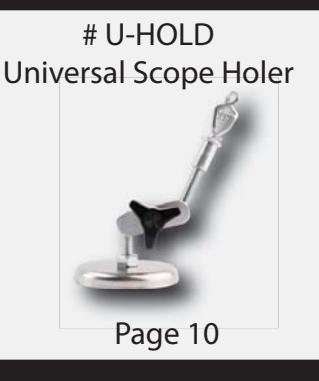

U-HOLD • Universal Scope Holder

The base of the U-HOLD is a large 2" diameter magnet that secures strongly to safes or other metal surfaces. Extending from the base is an arm with 2 ball bearing pivot points, that allows the user to position the clip into thousands of positions to hold a scope or tool and aim the light where it is needed, keeping both of the users hands free for drilling and working on the surface. The arm can be tightened easily with the twist of the easy turning knob to keep the light or tool in the position it is desired, keeping the light in correct spot.

Where the U-HOLD differs from other scope holders is the clip that holds the tubing itself. Rather than clamping down on the scope or tool, the U-HOLD clips to it, preventing any damage to expensive scopes or other tools that can occur from other similar devices.

SAFE PRODUCTS

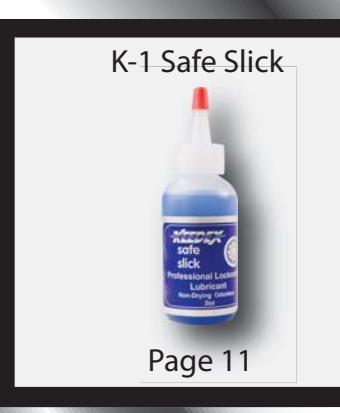

K-1 • SAFE SLICK

Safe slick is a specially formulated gel lubricant for the professional locksmith. Use on locking bolts, pivot points, sliding parts, panic hardware and safes. Will not dry out like white grease or become gritty like black grease. Safe Slick is non-penetrating and odorless. Handy 2 oz. size. Made in U.S.A.

Makes safes work SLICK.

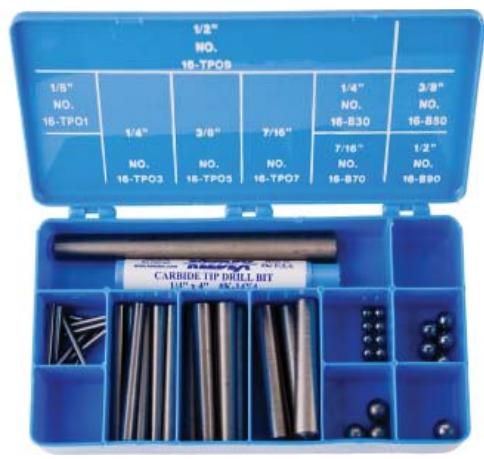

K-16 • SAFE REPAIR KIT

Developed specifically for locksmiths and safe men, these steel taper pins and corresponding ball bearings will prove invaluable when repairing safes that have been drilled open.

Five sizes of taper pins milled from bar steel to help you repair drill holes from 1/8" to 1/2". Four sizes of corresponding ball bearings to complete a professional repair. Reorder numbers included. Made in the U.S.A.

The following is a list of available ball bearings & taper pins, including some sizes that do not come with the kit. Keedex can furnish you with any size of taper pin.

Part# Description Number of Pieces in Re-Order Pack
K-16-B30 Ball Bearing 1/4" 10
K-16-B50 Ball Bearing 3/8" 10
K-16-B70 Ball Bearing 7/16" 10
K-16-B90 Ball Bearing 1/2" 5
K-16-TP01 Taper Pin 178" 10
K-16-TP02 Taper Pin 3/16" 10
K-16-TP03 Taper Pin 1/4" 10
K-16-TP04 Taper Pin 5/16" 10
K-16-TP05 Taper Pin 3/8" 10
K-16-TP07 Taper Pin 7/16" 10
K-16-TP09 Taper Pin 1/2" 2

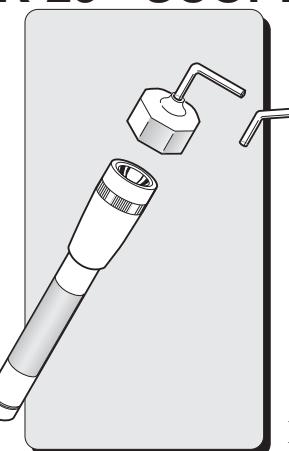

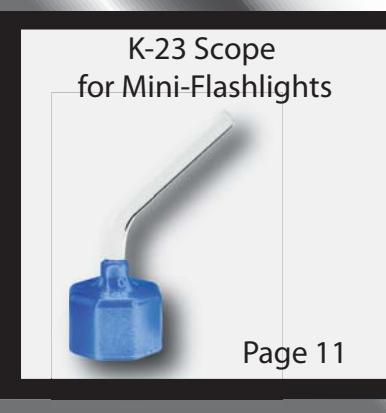

K-23 • SCOPE

The K-23 Scope for mini flashlights transforms your mini-flashlight into a powerful inspection device. Works with Mini-Mag Lite®, Brinkman® and many other "AA" battery flashlights.

The K-23 consists of a 1" diameter polypropylene cap and two interchangeable, fiber optic rods, one 45° and one 90°.

Mini-Maglite® not included

SAFE PRODUCTS

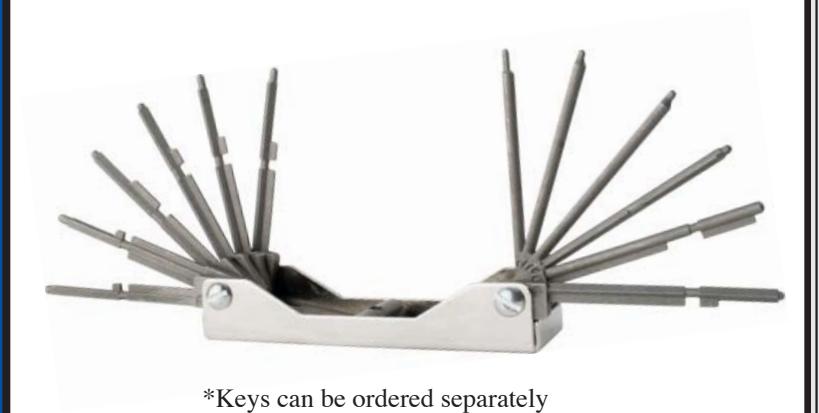

K-18 • Change Key Set

CONTAINS THE FOLLOWING KEYS
KEY# DESCRIPTION
K-18-1 Mosler-35-4 Wheel
K-18-2 Mosler-302-3 Wheel
K-18-3 S&G Amsec 3 Wheel
K-18-4 S&G-6720-3 Wheel
K-18-5 Diebold-180-3 Wheel
K-18-6 Diebold-177-4 Wheel
K-18-7 S&G Padlock-3-Wheel
K-18-8 S&G-4163
K-18-9 La Gard-1R-3 Wheel
K-18-10 La Gard 3 Wheel
K-18-11 La Gard 4 Wheel
K-18-12 La Gard-Amsec-3 Wheel

How many times have you searched and searched for a particular change key at the bottom of your tool box? Keedex has the solution. The K-18 Change Key Set is a set of the twelve most common change keys, all in a handy case. Keys fold out "knife style" to select the proper tool. Case is engraved with description of uses. Keys are made of stainless steel. Made in U.S.A.

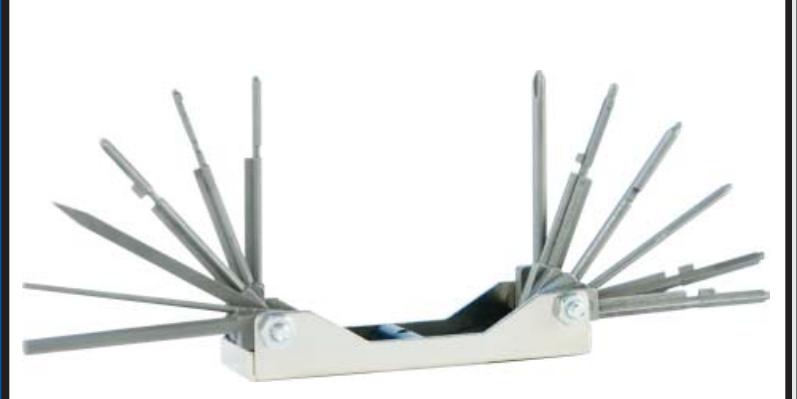

K-GSA • GSA Type Change Key Set

*Keys can be ordered separately

CONTAINS THE FOLLOWING KEYS

K-18-16 Phillips Head
K-18-2 Mosler 302
K-18-10 LaGard - Metal Wheel
K-18-9 LaGard - Plastic Wheel
K-18-15 S&G 4 Wheel (8400)
K-18-4 S&G 3 Wheel (Std)
K-18-13 8077 Reset
K-18-14 8077 Reset
K-18-7 8077 Change Key
K-18-17 Flat Screwdriver
K-18-19 Center Spline Allen Wrench
K-18-18 Mosler Attaching Allen Wrench

The new Keedex K-GSA, GSA type change key set, is de signed for those in di vid u als work ing in the GSA en vi ron ment. Con tains the keys need ed for ser vic ing GSA rat ed con tain ers. Keys are made of cast stainless steel. Case is engraved with de scrip tion of uses. Made in USA.

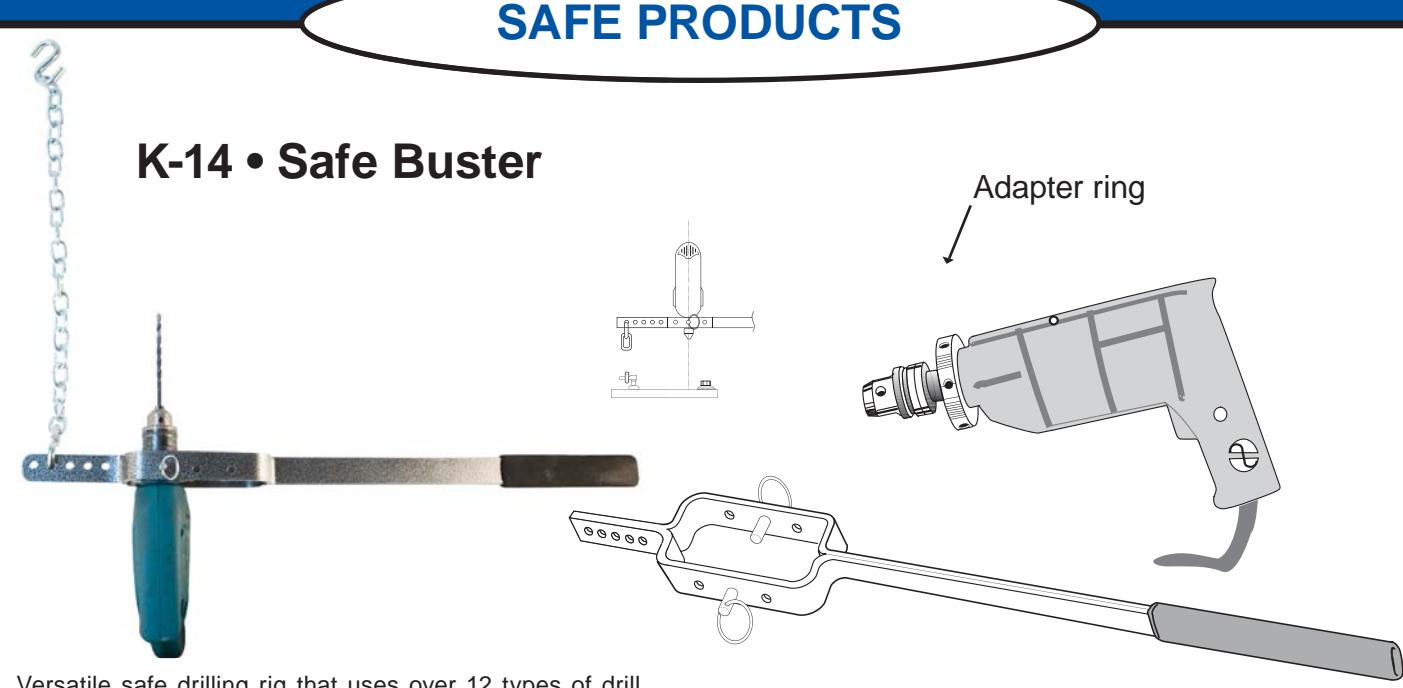

Versatile safe drilling rig that uses over 12 types of drill motors. Bosch, AEG, etc. The most affordable in its class. You won't be afraid of any safe with this innovative Keedex product.

*Can be used with many makes & models of drill motors.

  • * Precision made from quality ma te ri al.
  • * Large, comfortable handle grip.
  • * Minimum time for setup & take down.
  • * 35 lbs of pressure on handle exerts 500 lbs on drill tip.

An adapter ring is used to mount your drill motor to the K-14 (please refer to the above drawing). This adapter ring mounts to the front end of your drill housing, just behind the chuck. The adapter ring that is provided with the K-14, is designed to work with a housing that has a diameter of approximately 1.69" to 1.72".

K-14-MIL • Safe Buster with Milwaukee Collar

We also have an adapter ring available for Milwaukee drill motors, that have a housing with a diameter of approximately 1.8". Please specify if you would like us to ship your K-14 with the Milwaukee adapter, instead of the standard adapter.

This tool is used to drill through hardplate. You can apply over 500 lbs of pressure at the drill tip with about 35 lbs. of pressure at the handle. Penetrates most hardplate in minutes instead of hours. Drill Motor Not Included.

  • * Quick release pins.
  • * Drills at almost any angle.
  • * 12" chain included.
  • * Allows drill motor to be used for other purposes.
  • * Portable & built to last a lifetime.
  • * Designed to prevent dangerous ro ta tion of drill motor.

PARTIAL LIST OF DRILL MOTORS COMPATIBLE WITH THE K-14 SAFE BUSTER

MFG MODEL RPM
BOSCH 1194AVSRK 0-2600
HITACHI DV20VB2-1/2 0-3000
HITACHI DV16V-5/8 0-2900
HITACHI FDVB2-5/8 0-3000
JEPSON 2219 0-2800

Aluminum Door Security

K-9, K-21 • STYLE GUARD - CENTER HUNG

Made of 12 gauge steel, Style Guard reinforces or repairs aluminum-stile doors. K-9 is designed for standard, center hung doors, with 4" jambs. K-21 is for 4 1/2" jambs. Designed with a "knock out" to accommodate either the W&F or the Adams Rite Bolt. Baked on powder coat finish.

K-9A 4" Aluminum Finish Dimensions: 8"x 4" x 1 1/2"
K-9B 4" Duranodic Finish Dimensions: 8"x 4" x 1 1/2"
K-9BLK 4" Black Finish Dimensions: 8"x 4" x 1 1/2"
K-21A 4 1/2" Alum. Finish Dimensions: 8"x 4.5" x 1 1/4"
K-21B 4 1/2" Dura Finish Dimensions: 8"x 4.5" x 1 1/4"

K-15 • DOUBLE DOOR STYLE GUARD

Finally a better way to secure a set of double aluminum doors. 12 gauge steel increases security and can repair doors that have already been attacked. Designed with a "knock out" to accommodate either the W&F or the Adams Rite Bolt. Baked on powder coat finish.

K-15A K-15B Double Door Duranodic Finish Dim: 7 3/4" x 1 3/4" x 1 3/4"

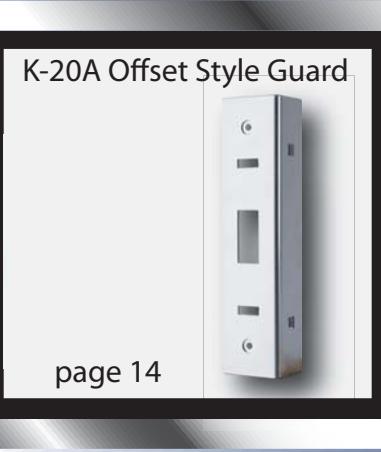

K-20 • OFFSET STYLE GUARD

Use the K-20 to reinforce or repair jambs with offset hung aluminum doors. This nonhanded guard is easy to install and includes pop rivets and carriage bolts. Baked on powder coat finish.

K-20A Offset Style Aluminum Finish Dim: 8" x 1 3/4" x 1 3/8" K-20B Offset Style Duranodic Finish Dim: 8" x 1 3/4" x 1 3/8"

K-17 • SECURITY GUIDE & BOLT

The K-17 Security Guide & Bolt replaces the flimsy plastic guides and flush bolts provided by many manufacturers with quality steel. With a relatively simple installation, you eliminate the possibility of a burglar breaking in by merely snapping the plastic bolts.

Made of steel, cadmium plated to prevent rust, the K-17 works with the Builders Brass Works & Slide-Co flush bolts.

Use the short side to replace the BBW Guide. Use the long side to replace the Slide-Co & W&F Guides Replaces plastic pin with steel bolt. Self-Tapping screws included.

Cylinder Guards

When installed, these free spinning Cylinder Guard rings prevent would-be burglars or intruders from forcibly unscrewing the lock cylinder with channel locks, vise grips, or other burglary tools.

K-24A Aluminum Powder coat Six Pack

K-24LA Aluminum Powder coat

K-24B Duranodic Powder coat Six Pack

K-24LB Duranodic Powder coat

K-24-3 Bright Brass

K-24L-3 Bright Brass

K-24-4 Satin Brass

K-24L-4 Satin Brass

K-24-10 Satin Bronze

K-24L-10 Satin Bronze

K-24-19 Black Powder coat

K-24-26D Satin Chrome

K-24L-26D Satin Chrome

K-24-26 Bright Chrome

K-24L-26 Bright Chrome

PROTECTORS FOR LOCKS & OTHER HARDWARE

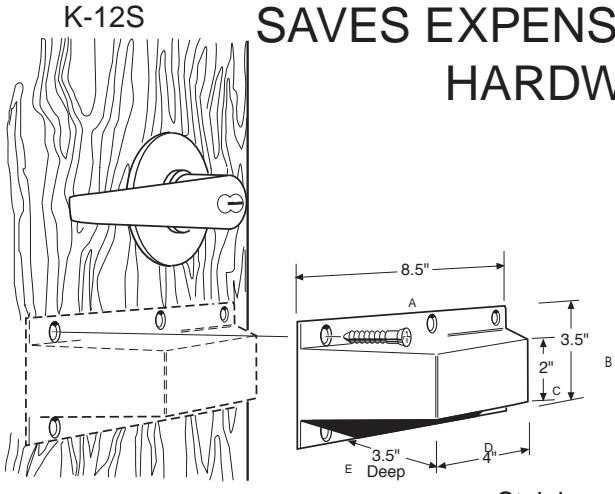

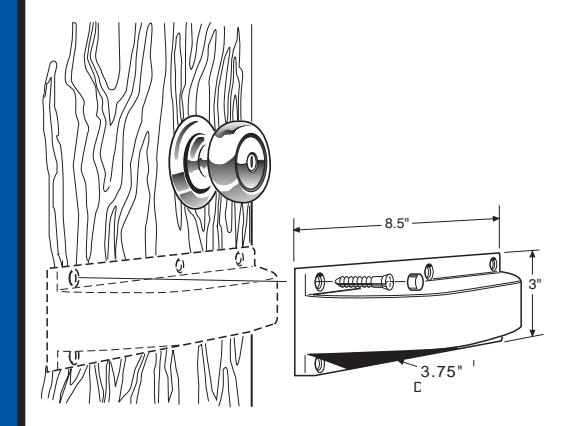

K-12, K-12D • PROTECT-A-LOK

Finally a product designed to protect locks and other hardware from impact damage. The Keedex K-12 Protect-A-Lok, made from Lexan polycarbonate, is virtually indestructible. Designed for use in areas where locks may have a chance of getting hit by carts, forklifts or vehicles. Can be used with levers, knobs, panic hardware and more. Installs in minutes. Guaranteed for 5 years. Available in Cream (K-12) and Duranodic (K-12D).

SAVES EXPENSIVE LOCKS, LEVERS AND OTHER HARDWARE, AGAIN AND AGAIN!

Stainless Steel Versions Available!

Keedex offers a stainless steel version of our popular K-12 Protect-A-Lok, for your customers who prefer stainless steel. There are ten different sizes of the Stainless Steel Protect-A-Lok. All are made from 18 gauge stainless steel.

Stainless Steel Stainless Steel Large Stainless Steel Large Stainless Steel

Extra Large 24" Stainless Steel Extra Large 34" Stainless Steel Extra Large 41" Stainless Steel

Replacement End Cap For Corbin Russwin Exit Devices Replacement End Cap For Sargent Exit Device Replacement End Cap For Von Duprin Exit Device Replacement End Cap For Yale Exit Device

Part# А В С D Е
el K-12S 8.50" 3.50" 2.00" 4.00" 3.50"
el K-12S-212 8.50" 3.50" 2.00" 5.10" 2.60"
el K-12S-L 10.00" 3.50" 2.00" 5.50" 4.25"
el K-12S-L512 11.95" 3.50" 2.00" 5.00" 5.50"
el K-12S-XL24 24.00" 3.50" 2.00" 12.50" 4.25"
el K-12S-XL34 34.00" 3.50" 2.00" 22.50" 4.25"
el K-12S-XL41 41.00" 3.50" 2.00" 29.25" 4.25"
s K-12S-COR 2.875" 4" 2.5" 2" 2.875"
е K-12S-SGT 8.00" 3.75" 2.30" 6.15" 2.08"
е K-12S-VON 8.00" 3.75" 2.30" 6.15" 2.82"
е K-12S-YALE 8.00" 3.95" 2.30" 6.15" 2.82"

Used in:

  • Hospitals
  • •Restaurants
  • Super Markets
  • •And More
  • •Hotels
  • Schools
  • Warehouses

Use for Protecting:

  • Locks
  • •Levers
  • Panic Hardware
  • Safe Dials and Handles
  • •Fire Alarm Equipment
  • Access Control Equipment

INSTALLATION TEMPLATES

This template is designed to be used with a 1/2" router guide with a 1/4" bit.

K-TMPA/R INSTALLATION TEMPLATE FOR ADAMS RITE

  • This tool allows you to make pre cise installation of Adams Rite 1850S, 4530, 4710 & 4711 se ries locks. Also works with the In ter na tion al DH 1822 & DL4511. Covers the fol low ing back sets: 7/8", 31/32" & 1 1/8".
  • Includes guide for Adams Rite exit in di ca tor #4089.
  • Has cutout for BBW #3925 & In ter na tion al FB-1200 fl ush bolts.

Manufacturer 1/2" Template Guide# Nut
Black &
Decker 		62946-00 62942-00
Bosch 82988
Bosch RA1109 (Model# 1613, 1613EVS, 1614 & 1614EVS)
Craftsman Use 5/8" guide (25082 is part# for 3 piece set which includes a 5/8"
guide) with a 3/8" bit. • Craftsman does not make a 1/2" guide.
Hitachi 303351
Makita 323449-0 (Fits Model#3601B
Makita 164776-4 (Model# 3606, 3612B, 3612BR & 3620)
Milwaukee Use 5/8" guide (49-54-0530) with a 3/8" bit. Milwaukee does not
make a 1/2" guide.
Porter Cable 42033 42237
Ryobi 6072083
Skil 91805

K-TMPDOR • INSTALLATION TEMPLATE FOR DOR-O-MATIC® 990/1990 & 1090/2090 SERIES EXIT DEVICES.

WARNING: Wear Eye Protection

Door Loops

Use these door loops when you need to transfer low-voltage electrical current from the door frame to the door.

ARMORED DOOR LOOPS

•Entire assembly has an attractive and durable powder coat finish.

Aluminum

K-DLA 1/4" x 18" Flexible Conduit
K-DLA12 1/4" x 12" Flexible Conduit
K-DLA24 1/4" x 24" Flexible Conduit
K-DLA30 1/4" x 30" Flexible Conduit
K-DLA45 1/4" x 45" Flexible Conduit
K-DLA49 1/4" x 49" Flexible Conduit
K-DLA60 1/4" x 60" Flexible Conduit
K-DLA72 1/4" x 72" Flexible Conduit
K-DL38A 3/8" x 18" Flexible Conduit
K-DL38A24 3/8" x 24" Flexible Conduit
K-DL38A30 3/8" x 30" Flexible Conduit
K-DL38A36 3/8" x 36" Flexible Conduit
K-DL38A49 3/8" x 49" Flexible Conduit
K-DL38A60 3/8" x 60" Flexible Conduit

Duranodic

K-DLB 1/4" x 18" Flexible Conduit
K-DLB12 1/4" x 12" Flexible Conduit
K-DLB24 1/4" x 24" Flexible Conduit
K-DLB30 1/4" x 30" Flexible Conduit
K-DL38B 3/8" x 18" Flexible Conduit
K-DL38B24 3/8" x 24" Flexible Conduit
K-DL38B30 3/8" x 30" Flexible Conduit
K-DL38B36 3/8" x 36" Flexible Conduit
K-DL38B49 3/8" x 49" Flexible Conduit

White

K-DLW 1/4" x 18" Flexible Conduit K-DL38W 3/8" x 18" Flexible Conduit

<u>Gold</u>

K-DLG 1/4" x 18" Flexible Conduit K-DLG24 1/4" x 24" Flexible Conduit K-DL38G 3/8" x 18" Flexible Conduit

<u>Black</u>

K-DLBLK 1/4" x 18" Flexible Conduit K-DL38BLK 3/8" x 18" Flexible Conduit

Polished Chrome

K-DL-US26 1/4" x 18" Flexible Conduit

STAINLESS STEEL ARMORED DOOR LOOPS

K-DS38 <sub>ALL</sub> K-DS STAINLESS STEEL DESIGN.

FLEXIBLE STAINLESS STEEL CONDUIT AND STAINLESS STEEL END PIECES AND MOUNTING SCREWS

Available with 1/4" or 3/8" ID

Stainless Steel Armored Door Loops

K-DS 1/4" x 18" Flexible Conduit
K-DS-12 1/4" x 12" Flexible Conduit
K-DS-24 1/4" x 24" Flexible Conduit
K-DS-30 1/4" x 30" Flexible Conduit
K-DS-36 1/4" x 36" Flexible Conduit
K-DS-60 1/4" x 60" Flexible Conduit
K-DS-72 1/4" x 72" Flexible Conduit
K-DS38 3/8" x 18" Flexible Conduit
K-DS38-24 3/8" x 24" Flexible Conduit
K-DS38-36 3/8" x 36" Flexible Conduit
K-DS38-48 3/8" x 48" Flexible Conduit
K-DS38-60 3/8" x 60" Flexible Conduit

Powder Coated Stainless Steel Armored Door Loops

1/4" x 18" Duranodic Flex
1/4" x 12" Duranodic Flex
3/8" x 18" Duranodic Flex
1/4" x 18" Black Flex
1/4" x 12" Black Flex

THE NATURE OF POWDER COATED FLEX

IT IS INEVITABLE THAT PORTIONS WILL REMAIN UNFINISHED, SUCH AS LOCATIONS WHERE IT WAS HUNG FOR COATING AND THE AREAS WITHIN THE FLEX (BENDS) -THIS IS NOT A DEFECT-

Costs no more than most Door Loops that have fragile plastic end pieces!

Door Loops

BUILD-A-DOOR LOOP

Whether you have specific needs for a custom Door Loop set-up, or need parts to have on hand at all times to create exactly what you need for each job, Keedex has you covered.

If you are putting together a single door loop set up, pick your flex conduit type from group A, the corresponding sized connector base from group B^1 or B^2 , and the cover color you desire from group C.

(if you select the Stainless Steel End Caps in B<sup>2</sup> you do NOT need to pick a product from group C)

Flex Conduit Bulk

  • A) K-FLX......1/4" Steel 50'-250'* (USA)
  • B) K-FLX38......3/8" Steel 50'-250'* (USA)
  • C) K-DS-FLX......1/4" x 18'Stainless Steel (CHINA)
  • D) K-USS-FLX.....1/4" Stainless Steel (USA) 50'-250'*
  • E) K-DS-FLX38...3/8"x 18' Stainless Steel (CHINA)
  • F) K-USS-FLX38..3/8" Stainless Steel (USA) 50'-250'*
  • G) K-FLX-A ......1/4" Aluminum sold per foot
  • H) K-FLX38-A..... 3/8" Aluminum sold per foot
  • I) K-FLX-B ......1/4" Duranodic sold per foot**
  • J) K-FLX-BLK......1/4" Black sold per foot**
  • K) K-FLX-G.....1/4" Gold sold per foot**

*50' Increments up to 250'

All powder-coated flex noted above is made from U.S. Steel (K-FLX & K-FLX38)

A,
G,
I,
J,
K, 		D.
В, E.
C. F.

K-DLCK K-DLCK38

Finish: bare aluminum

Set of 2 Stainless Steel End Caps with stainless screws

K-DS-EC K-DS38-EC

POWDER COAT DURANODIC

K-DS-EC-B K-DS38-EC-B

POWDER COAT BLACK

K-DS-EC-BLK K-DS38-EC-BLK

Door Loop Covers

** not pictured

Choose only if you select from group B1

K-DLACOVER-Powder coated Aluminum K-DLBCOVER-Powder coated Duranodic

K-DL3COVER- Bright Brass

K-DL26COVER- Bright Chrome

K-DLGCOVER- Gold

K-DLBLKCOVER- Black

K-DLWCOVER-White

VISIT OUR WEBSITE @ WWW.KEEDEX.COM Tel: 714-993-4300 • Fax: 714-993-4303

Automotive Tools

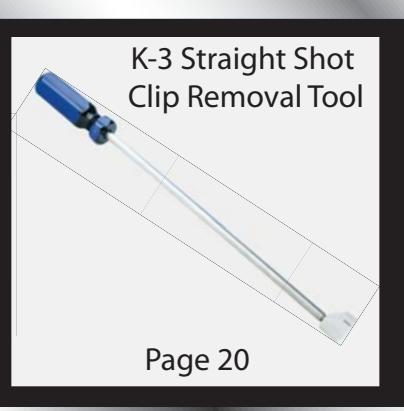

K-3 • STRAIGHT SHOT

"The ultimate Corvette tool." Use where you have a "straight shot" at the clip. SPECIAL FEATURE - ball bearing holds clip in tool until YOU want it removed.

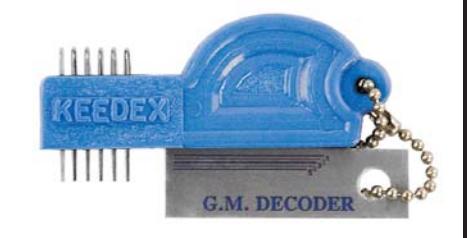

K-4 • G.M. DECODER

Decodes all tumblers in one step without complete disassembly of the lock. Pick sidebar down. Press the K-4 firmly into the six chambers of the lock. Read cuts with gauge provided. Made of Lexan. Guaranteed for life. Stainless steel fingers. Durable aluminum card. Instructions and case included.

K-7 • G.M./FORD LOCK BLOCK K-7-10C • G.M. 10 CUT LOCK BLOCK

The K-7 G.M./Ford Lock Block is truly a versatile tool. One end accommodates all G.M. side bar locks, as well as older AMC and Chrysler side bar ignitions. The other end, accepts Ford side bar ignitions. Ball bearing action holds lock firmly. A practical tool for service truck or shop use.

The K-7-10C is designed to be used with the 10 cut G.M. Lock.

K-8 • IMPRESSIONING PLATE

Specialized plate that holds locks as if they were still in the vehicle. The K-8 Impressioning Plate works with your vise to hold Chrysler, Ford, American Motors, Toyota, Nissan and all standard cam locks.

K-8B • IMPRESSIONING PLATE II

Made of stainless steel, The New K-8B works with Honda, Mazda, Nissan 1982+, Toyota 83+ & DD cam locks and will hold all of the above locks firmly, without crushing the outside casing. A must for every shop.

K-10 • G.M. COMPRESSOR

This pocket size tool compresses the lock plate spring on AMC, Chrysler tilt, G.M. tilt, telescopic, metric and standard steering columns. The tool is designed to use the same Phillips screwdriver needed to tear down the column.

Automotive Tools

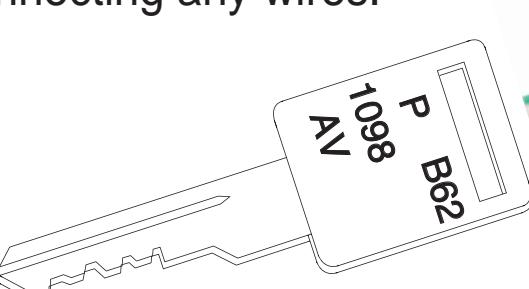

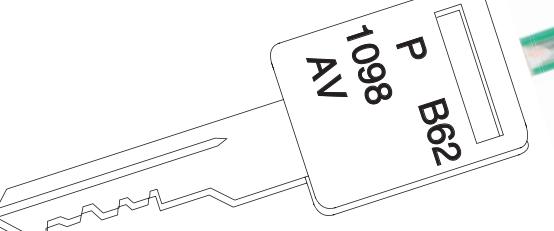

K-VATS Micro V.A.T.S. Interrogator

The new Micro V.A.T.S. lets you interrogate the sys tem without dis con nect ing any wires.

First cut a functional mechanical key for the ig ni tion. Then insert the key into the ig ni tion. Next slide the Micro V.A.T.S. unit over the head of the key.

Use the selector switch on the Micro V.A.T.S., to determine which of the fi fteen values, is the cor rect one that will start the engine. It is necessary to wait the required amount of reset time (approximately 3 1/2 - 4 minutes) be tween at tempts. The num bers on the Micro V.A.T.S. cor re spond to the fi fteen val ues of the VATS key blanks.

Included are charts that allow you to use your OHM meter as a key inden ti fi er.

The smallest interrogator.

KEEDEX

MICRO V. A. T. S.

  • The simplest interrogator.
  • The most affordably priced in ter ro ga tor.

. . . . . . . . . . . . . . . . 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 KEEDEX MICRO V. A. T. S. K-VATS-DBL Double-Sided Adapter For the Micro V.A.T.S. Interrogator Allows you to use your K-VATS with double-sided ig ni tions. Also Available K-VATS-DBL Adapter K-VATS * not included with K-VATS-DBL

RETAIL PRODUCTS

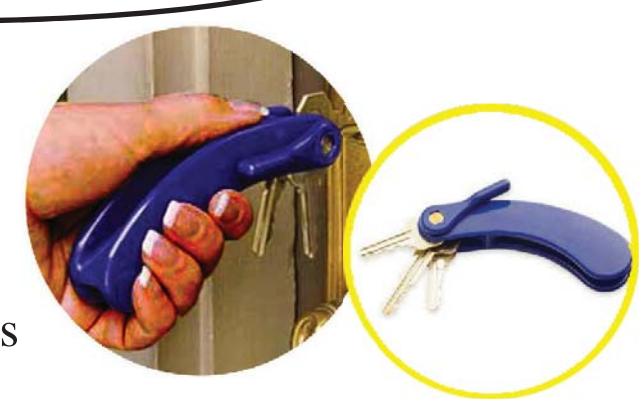

KEE EZ

Comfort Twist Key Assist

  • * Elderly
  • * Arthritis or Carpal Tunnel Sufferers
  • * Disabled Persons

Helps to grip keys comfortably, making locks easier to open

Keys fold into handle when not in use

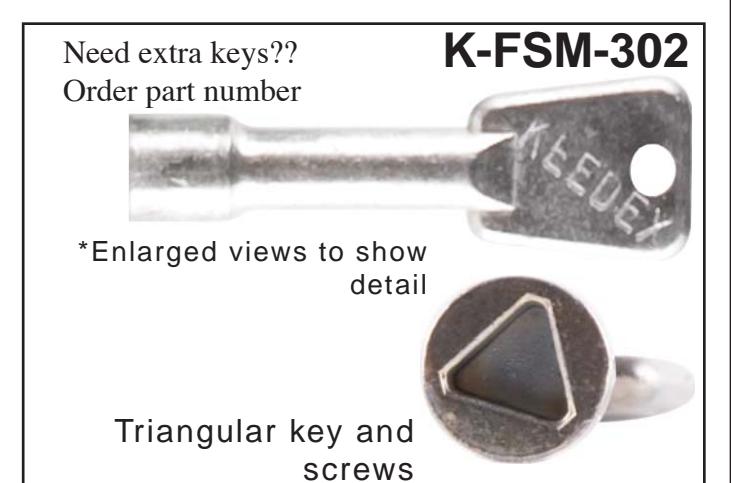

K-FSM-300C SECURITY SLIDING WINDOW LOCK

Secures sliding windows and doors Attaches to track edge May be used on both vertical or horizontal tracks

  • 3 Security window locks
  • 1 Unique Security tool key

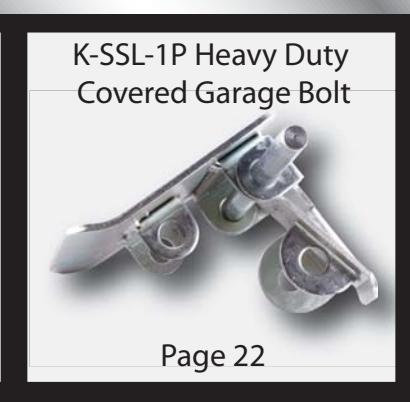

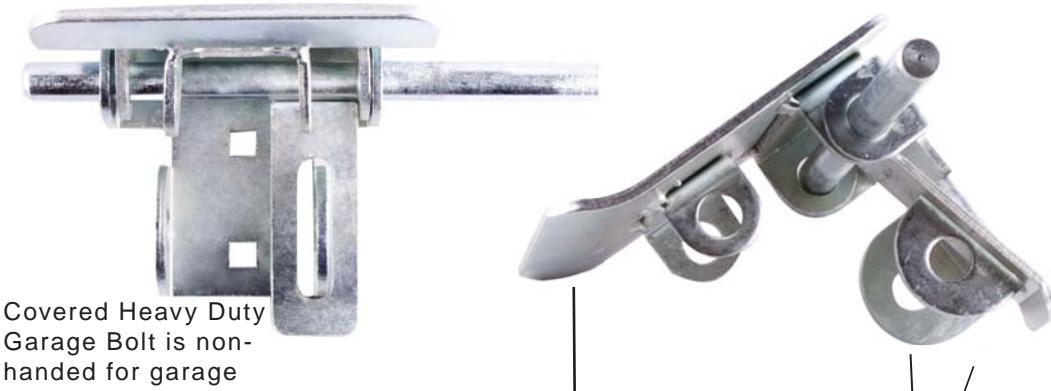

K-SSL-1P • COVERED GARAGE BOLT

Garage Bolt is nonhanded for garage doors, gates, or warehouses.

Included accessories

Front plate protects padlock, making it difficult to cut with boltcutters

Extra lock padlock hole allows for adding second padlock for extra security or lockouts

K-SSL-1P Comes packaged for retail and includes:

  • *heavy duty garage bolt
  • *2 carriage bolts
  • *2 washers
  • *2 nuts
  • *ferrule
  • *retainer for flush mounting

RETAIL PRODUCTS

K-BXMOUNT

The K-BXMOUNT is a display mount for any Keedex box. The standard box mounted is the K-BXSIM and the standard fi nish is a black powder-coat, but can be ordered with ANY Keedex box and any other powder-coat color, including the popular Silver Vein.

K-Q4-2P Standard Garage Bolt

Standard Garage/Gate Bolt. Available in black. Standa Avail

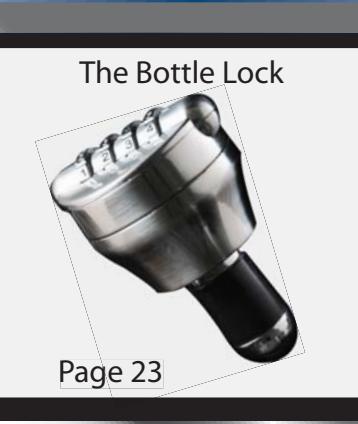

BOT LOC

TM

Tamper evident Bottle Lock is the perfect solution to securing your fi ne wines, liquors, and beverages, from any and all you don't want drinking them! Just set your combination, Twist the top to secure, and know your liquids are safe from children, house guests, friends, or family!

Prevent children from consuming alcohol or too much soda!

Secure your fi ne wines and liquors!

Tamper evident design eliminates guessing!

Customizeable combination!

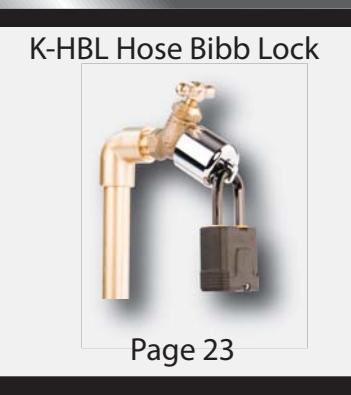

K-HBL

With water prices soaring, locking access to your outside water supply is now an important part of security.

Here's how it works: The cover, padlock eye and padlock spin freely around the fi tting. The fi tting cannot be unscrewed and will not leak when the Hose Bibb is locked.

Hose Bibb Lock Uses:

  • Stop water theft, waste, and misuses.
  • Stop Leaky hose bibb.
  • Outside or inside hose connections.
  • Water heater drain valve.
  • Gray water irrigation safety.
  • Homeowner, boat, R.V.
  • Rental, apartment, condo.
  • Golf Course, park, marina.
  • •Municipal buildings, housing.

K-FB4 FOUR DRAWER FILING CABINET BAR LOCK

Lock your fi ling cabinets and important document storage system with our all new Filing Cabinet Bar Lock!

Unique design protects mounting screws from being tampered with. Accepts up to large padlock for locking (not included) Will not block drawers or cabinets adjacent to this one.

GATE BOX TOOLS

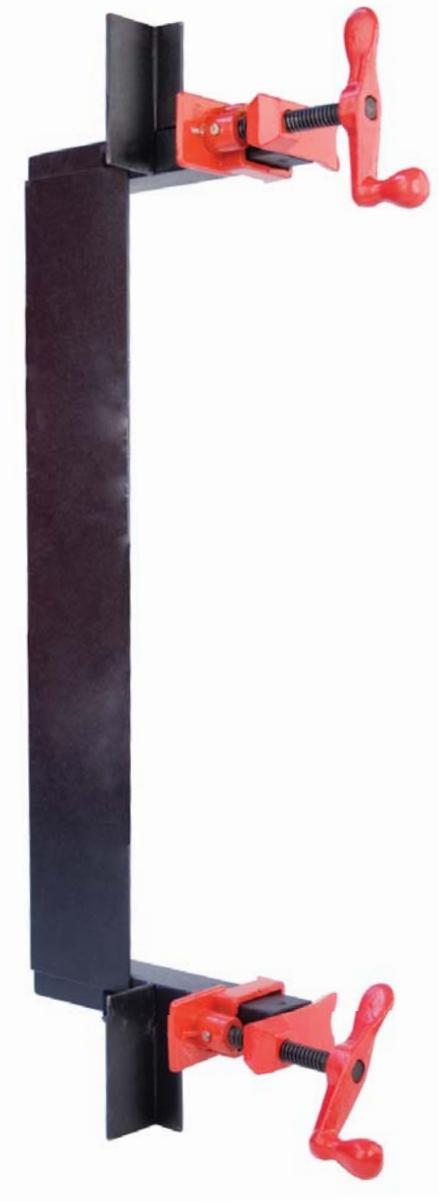

STR CUT STRAIGHT CUT INSTALLATION TOOL

The new Keedex Straight Cut Tool is designed to work with most all gate tubing up to 2" thick, this tool clamps down on the gate frame. The slot allows for a reciprocating saw blade to be inserted and used to cut completely through the frame. Hardened steel guides ensure you don't cut the tool itself.

Now Simply remove the tool, put it to the other mark to complete cutting the section of the fence out, and you are done! You are ready to install your gate box!

Easy turn clamps, and a powder coated finish.

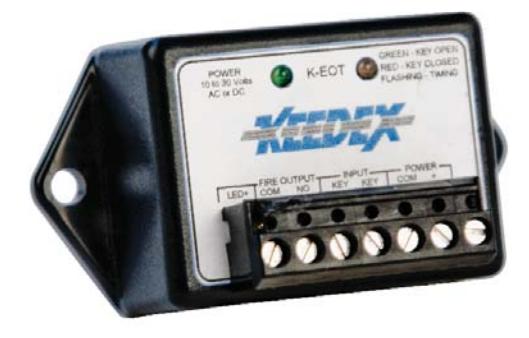

K-EOT EMERGENCY OVERRIDE TIMER

Ever been to a "gate stuck open" call, just to find the only problem was the Fire Dept. switch was engaged?

With the New Keedex K-EOT Emergency Override Timer installed, the gate will close and reset 2 hours after fire switch is activated, reducing the calls you get about gates that won't close (K-EOT still allows 24/7 access for emergency personnel).

Easy to install (fail safe) Power -10 to 30 volts accordingly

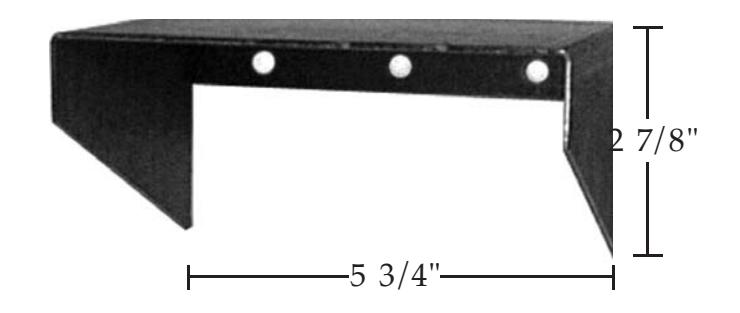

K-BXCOV • PROTECTIVE LOCK COVER

  • 4 Inch Projection
  • Protects Keypads, Knobs and Levers
  • Weather Cover
  • Spy Shield
  • Sun Shield for Digital Locks

CAN EITHER BE WELDED OR FASTENED

GATE BOX TOOLS

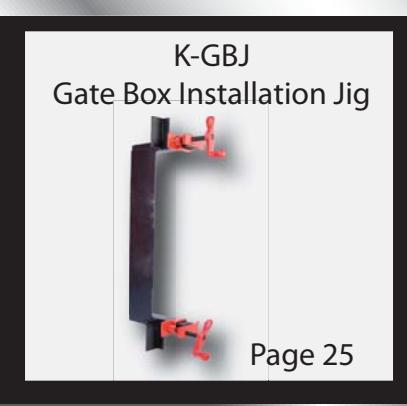

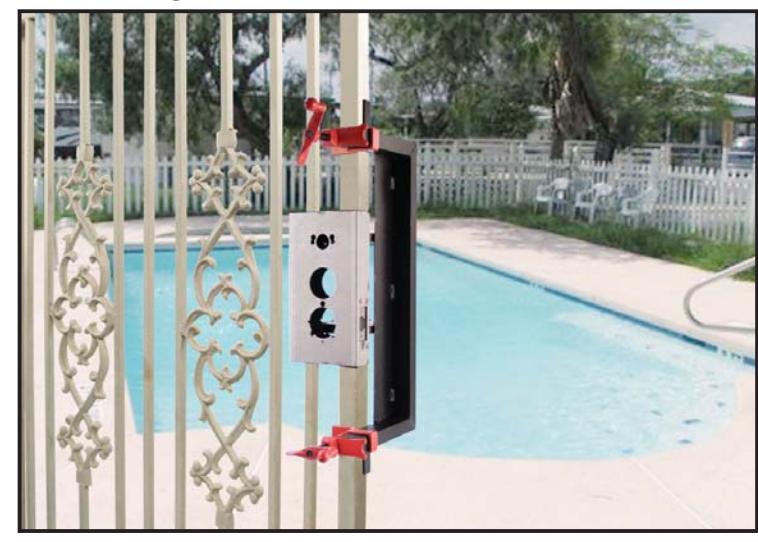

K-GBJ GATE BOX INSTALLATION JIG

Accommodates All Keedex Boxes

The Gate Box Installation Jig will quickly become the must have tool for technicians who spend any amount of their work day installing gate-boxes. The jig attaches to the edge of the gate with 2 clamps. Then using the magnet squares included, you can hold your gate box in place, making it easy to put in to exact position and nudging it to precisely where it is desired. Now with the gate box in place, your hands are left free to weld, bolt or attach the gate box, minimizing the hassle of trying to hold and weld straight.

Make your gate box install jobs look clean, precise and professional, and minimize the time necessary to complete the job, with the new Keedex Gate Box Installation Jig!

Check out our video on Keedex.com or search for Keedex on Youtube.com

Free your hands! Work more efficiently, and make your work more precise!

Includes welders magnets!

GATE BOX RELATED PRODUCTS

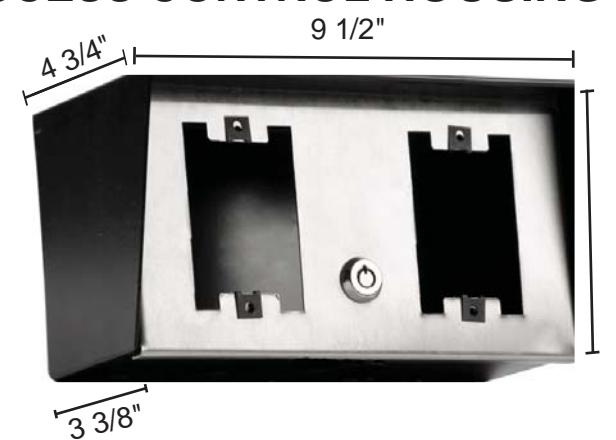

iCAN

ACCESS CONTROL HOUSING

5"

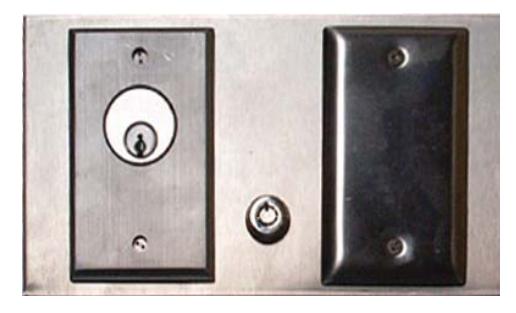

Install a keyswitch & blank plate.

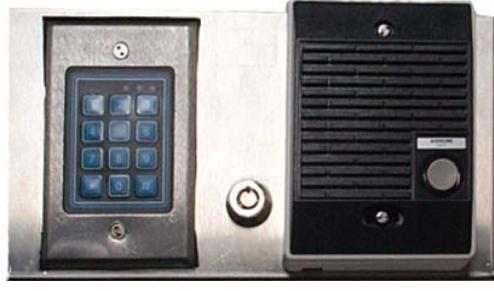

Install a keypad & intercom.

The iCAN from Keedex allows you to install up to, two single gang devices. Use it to install an intercom & keypad, prox reader & key switch or a keypad & key switch for Fire, Police or Utility access. Can be used with a single device and a blank plate, allowing for future expansion. The iCAN allows you to install the hardware that you want to use.

  • 14 GAUGE WELDED STEEL ENCLOSURE
  • DURABLE POWDER COAT FINISH
  • STAINLESS STEEL FACE PLATE WITH TUBULAR KEY LOCK
  • ACCEPTS TWO SINGLE GANG DEVICES

Specifi cations:

Dimensions: 9 1/2" wide, 5" high, 3 3/8" deep Box: 14 gauge steel.

Finish: Powder Coat - Black (other colors available upon request) Face Plate: 18 gauge stainless steel. US32D fi nish

Lock: Tubular Key Lock

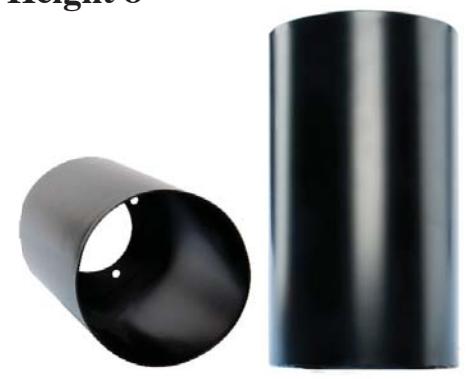

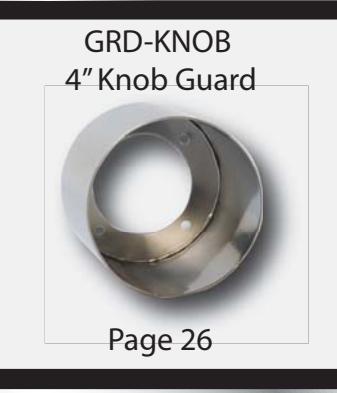

GRD-KNOB GRD-8A GRD-8BLK

Knob Guard for gates. Helps protect knobs on gates. Installs without removing lock.

Durable Aluminum powder coat fi nish.

Diameter: 4 17/32" Height 3 1/2"

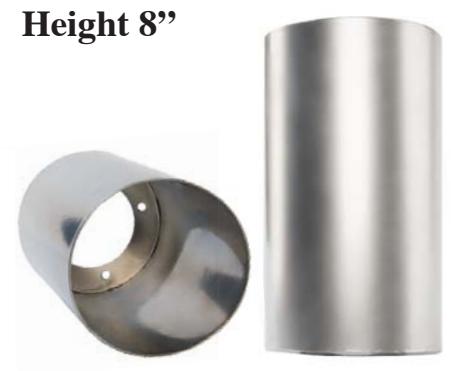

8" Knob Guard for gates. Helps prevent reaching around to access the knob. Durable Aluminum powder coat fi nish.

Diameter: 4 17/32"

8" Knob Guard for gates. Helps prevent reaching around to access the knob. Black powder coat fi nish

Diameter: 4 17/32"

Height 8"

VISIT OUR WEBSITE @ WWW.KEEDEX.COM ISIT 26 Tel: 714-993-4300 • Fax: 714-993-4303 el:

GATE BOX RELATED PRODUCTS

High

Wide

Doon

WHAT IS A RHO PREP? 2 1/8" Cylindrical Hole with 6 Thru-Bolt Holes Around It 2 3/4"

K-BXRHO

Weldable Gate Boxes Single and Double Cylindrical Boxes Part Number Specialty/Material Backset Hole 23/4" 21/8"

Part Number Specialty/Material Backset Hole High Wide Deep
K-BXRHO 2 3/4" 2 1/8" 4 1/8" 4 3/4" 1 3/4"
K-BXRHO-1012 Oversized Center
+/Stop 		2 3/4" 2 1/8" 12" 10"
+ 1 1/2" 		1 3/4"
K-BXRHO-8155 Oversized Offset 2 3/4" 2 1/8" 15 1/2" 8" 1 3/4"
K-BXRHO-925 Oversized Offset 2 3/4" 2 1/8" 9 1/4" 5 1/2" 1 3/4"
K-BXRHO-AL Aluminum 2 3/4" 2 1/8" 4 1/8" 4 3/4" 1 3/4"
K-BXRHO-SS Stainless Steel 2 3/4" 2 1/8" 4 1/8" 4 3/4" 1 3/4"
Part Number Specialty/Material Backset Hole High Wide Deep
K-BXSGL 23/8" 2 1/8" 3 1/2" 4 1/4" 11/2"
K-BXSGL-NS No Stop 23/8" 2 1/8" 3 1/2" 4 3/4" 15/8"
K-BXSGL234 23/4" 2 1/8" 3 1/2" 4 3/4" 15/8"
ľ K-BXSGL234-2D 2" box that accepts 23/4" 2 1/8" 3 1/2" 4 3/4" 2"
K-BXSGL234-10SP standard 1 3/4" hardware
Heavy Duty
Reinforced 		23/4" 2 1/8" 5 1/2" 5 1/2" 2"
K-BXSGL234-112 Temporeed 23/4" 1 1/2" 3 1/2" 4 3/4" 15/8"
K-BXSGL234-2W 23/4" 2 1/8" 3 1/2 " 4 3/4" 2"
K-BXSGL234-925 Oversize -No Stop 23/4" 2 1/8" 9 1/4" 5 1/2" 13/4"

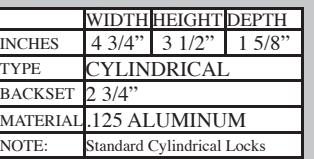

K-BXSGL234-AL Aluminum 23/4" 2 1/8" 3 1/2" 4 3/4" 15/8"

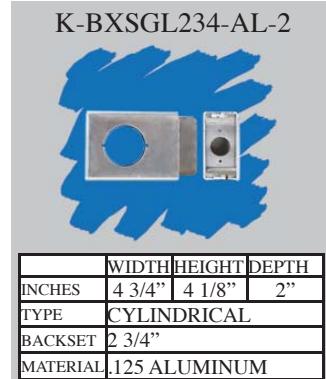

K-BXSGL234-AL-2 Aluminum 23/4" 2 1/8" 3 1/2" 4 3/4" 2"

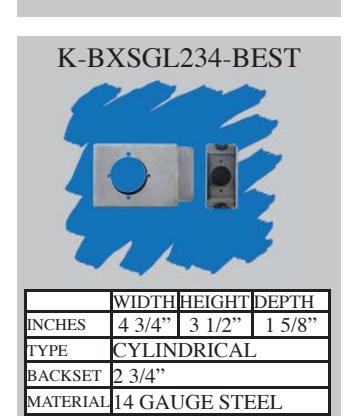

K-BXSGL234-BEST Best 9K 23/4" 2 1/8" 3 1/2" 4 3/4" 15/8"
K-BXSGL234-NH No Holes,
Latch Hole Only. 		23/4" 3 1/2" 4 3/4" 15/8"
K-BXSGL234-NS No Stop 23/4" 2 1/8" 3 1/2" 4 3/4" 15/8"
K-BXSGL234-SS Stainless Steel 23/4" 2 1/8" 3 1/2" 4 3/4" 15/8"
K-BXSGL500 5" 2 1/8" 3 1/2" 7" 15/8"

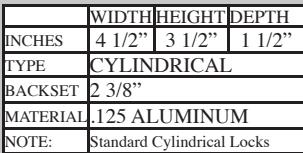

K-BXSGL-AL Aluminum 23/8" 2 1/8" 3 1/2" 4 3/4" 15/8"

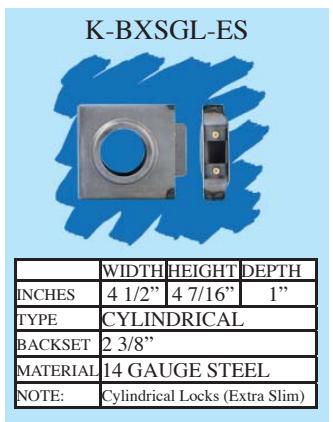

K-BXSGL-ES Extra Slim 23/8" 2 1/8" 3 1/2" 4 1/2" 1"
K-BXSGL-S Slim 23/8" 2 1/8" 3 1/2" 4 1/4" 1 1/4"
Part Number Specialty/Material Backset Hole High Wide Deep
K-BXDBL 23/8" 2 1/8" 6 7/8" 4 1/2" 15/8"
K-BXDBL234 Holes, 4" Center
Schlage H Series 		23/4" 2 1/8" 8 5/8" 4 3/4" 15/8"
K-BXDBL234-2D 2" box that accepts standard 1 3/4" hardware 23/4" 2 1/8" 8 5/8" 4 3/4" 2"

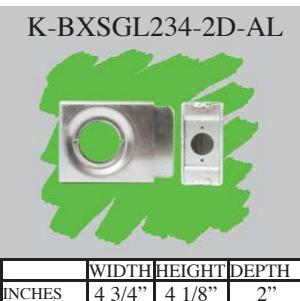

K-BXDBL234-2D-AL 2" box that accepts standard 1 3/4" hardware 23/4" 2 1/8" 8 5/8" 4 3/4" 2"
K-BXDBL234-2W Holes, 4" Center
Schlage H Series 		23/4" 2 1/8" 8 5/8" 4 3/4" 2"
K-BXDBL234-AL Aluminum
Holes 4" Center 		23/4" 2 1/8" 8 5/8" 4 3/4" 15/8"
K-BXDBL234-AL-2 Aluminum
Holes, 4" Center 		23/4" 2 1/8" 8 5/8" 4 3/4" 2"
) K-BXDBL234-NH No Cyl. Holes,
2 Latch Holes Only 		NONE NONE 8 5/8" 4 3/4" 15/8"
K-BXDBL234-SS Holes, 4" Center 23/4" 2 1/8" 8 5/8" 4 3/4" 15/8"

K-BXSGL

K-SGL234-2D

K-BXDBL234-2D

Schlage H Series

LOCK MANUFACTURE PART NUMBER OUR BOX PART # OTHER MATERIALS
ADAMS RITE ALUMINUM STAINLESS
4511 -31/32" K-BXA/R-31/32"
4511-1 1/2" K-BXA/R-1 1/2"
4511-1 1/8" K-BXA/R AL
4710 -31/32" K-BXA/R-31/32"
4710-1 1/2" K-BXA/R-1 1/2"
4710-1 1/8" K-BXA/R AL
4711 -31/32" K-BXA/R-31/32"
4711-1 1/2" K-BXA/R-1 1/2"
4711-1 1/8" K-BXA/R AL

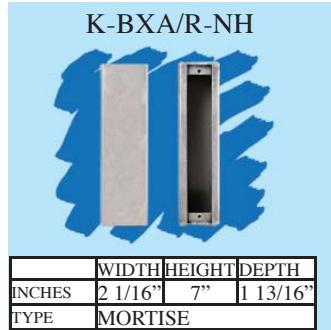

1850S-1 1/2" NO HOLES K-BXA/R-NH
1850S-1 1/8" NO HOLE K-BXA/R-NH
1850S-31/32" K-BXA/R-31-32"
1850S-1 1/2" K-BXA/R-1 1/2"
1850S-1 1/8" K-BXA/R AL
1851S-31-32" K-BXA/R-31/32"
1851S-1 1/2" K-BXA/R-1 1/2"
1851S-1 1/8" K-BXA/R AL
1851S-1 1/2" NO HOLES K-BXA/R-NH
1851S-1 1/8' NO HOLES K-BXA/R-NH
ADAMS RITE ELECTIRC STRIKES
7100, 7101 K-BXES3A AL
7140 K-BXES3A AL
7160 K-BXES3A AL
7170 K-BXES2 AL
7240 K-BXES3A AL
7270 K-BXES2 AL
ALARM LOCK
DL1250 with 1 1/8"BS K-BXA/R-E 1 1/8" Backset
DL2700(T2) W/MINOR MODIFICATION K-BXSIM AL SS
DL3000(3T) W/MINOR MODIFICATION K-BXSIM AL SS
DL5200, Dl5300 and PDL 5300 K-BXSIM AL SS
ETPDL W/ VON DURPIN 99 EXIT K-BXED-ETPDLV99
ANSI STRIKE
WELDABLE BRACKET
ANSI LARGE STRIKE K-BXSTR SS
BOX 1 1/2" DEEP K-BXES16
ARROW
N40 DEADLOCK W/MOD DRILL THUMB ONLY K-BXMOR-CDL-4000
N41 DEADLOCK W/MOD DRILL THUMB ONLY K-BXMOR-CDL-4000
N43 DEADLOCK W/MOD DRILL THUMB ONLY K-BXMOR-CDL-4000
N44 DEADLOCK W/MOD DRILL THUMB ONLY K-BXMOR-CDL-4000
ASSA/ABLOY HOSPITALITY
VINGCARD K-BXVING AL
BALDWIN
ALL K-BMOR5
BATON
1900 K-BXMOR5
BEST/STANLEY
BEST 93KV K-BXEST-93KV
63K, 73K, 83K, 93K, LB, 2 3/4"BS - 2 1/8" HOLE K-BXSGL234-BEST
3H4, 37H, 45H, 47H MORTISE LOCKS K-BXMOR2
38HM DEADBOLT MORTISE LOCK K-BXMOR-BES38HM
CAL- ROYAL EXIT DEVICES
F2200 W/ENT-00L K-BXEDCR
F2200 W/STR-05L K-BXEDCR
F2200 W/PAS-30L TRIM K-BXEDCR
F2260V W/ENT-00L K-BXEDCR
F2260V W/STR-05L K-BXEDCR
F2260V W/PAS-30L TRIM K-BXEDCR
CODELOCKS
100 K-BXULT
200
300 		K-BXULT
K-BXULT
410 2 3/8" Backset K-BXDIG23 AL
415 2 3/8" Backset K-BXDIG23 AL
460 1 1/8" Backest K-BXA/R-EC
465 1 1/8" Backset K-BXA/R-EC
500, 510, 515 W/ 2 3/4" Backset K-BXCL500
2000W/LBFR70 Latch 2 3/4" Backset K-BXCL4000
4000 W/LBFR70 Latch 2 3/4" Backset K-BXCL4000
5000 K-BXSIM AL SS
COMPUTERIZED SECURITY SYSTEM/SAFLOK
CONFIDANT K-BXSAF-4
L CLASS K-BXSAF-R22330 AL

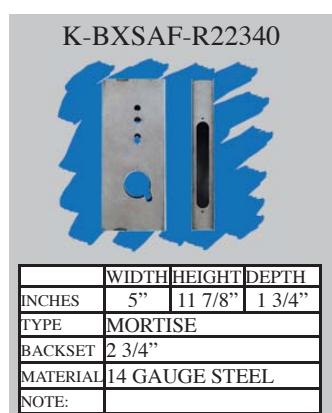

M CLASS K-BXSAF-R22340 AL
MICRO CARD K-BXSAF-MICRO AL
MT K-BXSAF-MT
SAFLOK 2500 CLASSIC K-BXSAF-2500 AL
SAFLOK 2500 CLASSIC K_BXSAF-2500-2W AL
SAFLOC SRS K-BXSAF-MICRO AL
SAFLOK V (ROMAN NUMBERAL 5) K-BXSAF-V
CORBIN/RUSSWIN
5000 MORTISE SERIES K-BXMOR2
ML2000 MORTISE LOCKS K-BXMOR2
DIGITAL SYSTEM
2210 2 3/8" Backset K-BXDIG 23 AL
2230 2 3/8" Backset K-BXDIG 23 AL
2330 2 3/8" Backset K-BXDIG 23 AL
3235 2 3/8" Backset K-BXDIG 23 AL
EFF ELECTRIC STRIKES
11BS K-BXES1
33 K-BXES1
41 K-BXES1
51 K-BXES1
53 K-BXES1
3314 K-BXES1
7114 K-BXES1
FALCON
M SERIES K-BXMOR2
FOLGER ADAMS ELECTRIC STRIKES

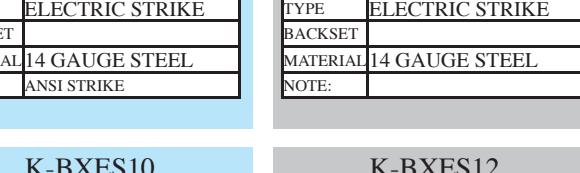

310-2 K-BXES10

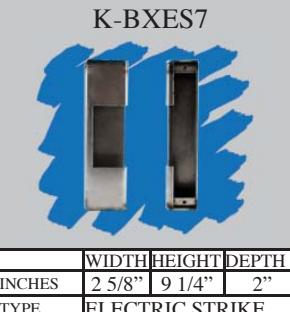

310-2 3/4" (1/8" THICK STEEL) KBXES7
640 K-BXES12
712 K-BXES4 AL

712-75 K-BXES4 AL
H.E.S ELECTRIC STRIKES
1003 K-BXES5
1006 K-BXES5
4500 K-BXES45
5000U W/501 OPTION K-BXES3A AL
5900 K-BXES16
7001 W/ 701 OPTION K-BXES6
7501 K-BXES9
IEI

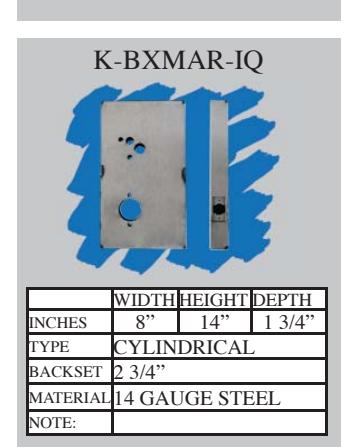

DOOR GUARD LS1 K-BXMAR-IQ AL
CM5196 K-BXMAR-IQ AL
CM5100 K-BXMAR-IQ AL
LS-2PM, LS-2PD MORTISE K-BXIEI-LS
INTELLIKEY

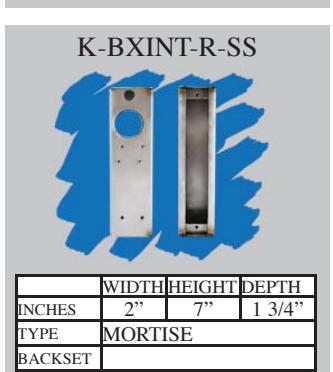

LEFT HAND K-BXINT-L SS
RIGHT HAND K-BXINT-R SS
F81/F82 (100106, 101306, 100108) K-BXRHO AL SS
F86 (100097, 100088, 101305) K-BXRHO AL SS
KABA ILCO
200 SERIES 904 2 3/8" BS K-BXSIM-200 AL
200 SERIES 905 2 3/8" BS K-BXSIM-200 AL
200 SERIES 918 2 3/8" BS K-BXSIM-200 AL
200 SERIES 919 2 3/8" BS K-BXSIM-200 AL
1000 K-BXSIM AL SS
1000EE K-BXSIM-EE AL SS
E2000 CYLINDRICAL K-BXE2000
E2000 MORTISE K-BXIL
4000 *DRILL HOLE FOR (710-850-950) K-BXSIM-4000 AL
5000 K-BXSIM AL SS
E-PLEX 5X00 CYLINDRICAL K-BXSIM AL SS
6000 SERIES 2 3/4" BS K-BXSIM-6000
6200 SERIES 2 3/8" BS K-BXSIM-6218
7004 2 3/4" BS K-BXSIM-7004 AL
7014 2 3/4" BS K-BXSIM-7004 AL
7104 2 3/4" BS K-BXSIM-7004 AL
700II MORTISE K-BXIL
710 SOLITRE MORTISE K-BXIL-710

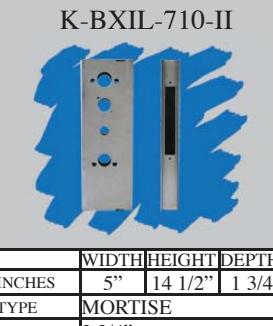

710-II MORTISE K-BXIL-710II
E760 MORTISE K-BXIL
E760 CYLINDRICAL K-BXE2000
E770 MORTISE K-BXIL
ORACODE K-BXIL
KABA/ILCO EXIT DEVICE
721 W/ARROW RIM EXIT DEVICE K-BIL-721
KABA MAS(MAS-HAMILTON)
POWER LEVER K-BXMAS
LOCKNETICS
KC9111 K-BXA/R-E 1 1/8" BS
CM 5196 K-BXMAR-IQ AL
LS-1 DOOR GUARD K-BXMAR-IQ AL
KC9111 NARROW MORTISE K-BXA/R-E 1 1/8" BS

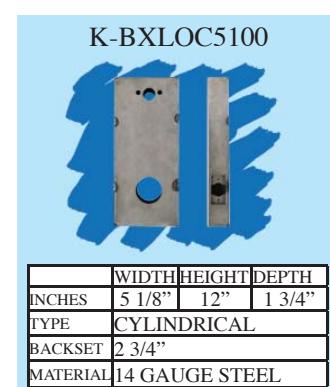

PRO5100 CYLINDRICAL K-BXLOC5100
MPC K-BXCOB AL
MARKS
IQUE IQ1K CYLINDRICAL K-BXMAR-IQ AL
22AC MORTISE K-BXMOR6
ML2000 MORTISE K-BXMOR2-MR3000M
3000M MORTISE K-BXMOR2-MR3000M
IQ2K MORTISE K-BXIEI-LS
MISCELLANEOUS
BLANK BOXES FOR MOUNTING PANICS
K-BX453525 5 1/2" X 3 1/2" X 2 1/2"
K-BX458175 4 1/2" X 8" X 1 3/4"
K-BX515175 5' X 15" X 1 3/4"
K-BX711150 7' X 11" X 1 1/2"
MONUMENT
2210 K-BXMON
NUTONE
DR-1 K-BXES8
ONITY/TESA
READER EXIT DEVICE K-BX95552 AL
CYLINDRICAL K-BXTESA-CYL AL

MORTISE K-BXTESA-MOR AL
OMNIA
N41 W/MOD.DRILL THUMB TURN ONLY K-BXMOR-CDL-4000
OSI
OMI00 K-BXOMNI-CYL
OM300 K-BXOMNI-CYL
OM500 K-BXOMNI-CYL
OM2000
WALL MOUNT BRACKET K-BXOMNI-WM
OVERSIZED CYLINDERICAL BOXES
5 1/2" X 9 1/4" X 1 3/4" PREP NR BOTTOM K-BXRHO-925
5 1/2" X 9 1/4" X 1 3/4" PREP NR BOTTOM K-BXRHO-925
10" X 12" LEVER PREP CENTERED 2 3/4" BS K-BXRHO-1012
8" X 15 1/2" LEVER PREP NEAR BOTTOM K-BXRHO-8155
5 1/2" X 9 1/4" X 1 3/4" LATCH PREP K-BXSIM-NH (NO HOLES)
OVERSIZED MORTISE BOXES
8" X 15 1/2" MORTISE PREP CENTER K-BXMOR8155
8" X 15 1/2" MORTISE PREP OFFSET K-BXMOR8155F
PRESTO-MATIC LOCK
WELDABLE GATE BOX K-BXPRES
RCI
4104 K-BXES2
4304 K-BXES2
S6514 K-BXES6
7104 K-BXES2
7304 K-BXES2
SALTO SYSTEMS

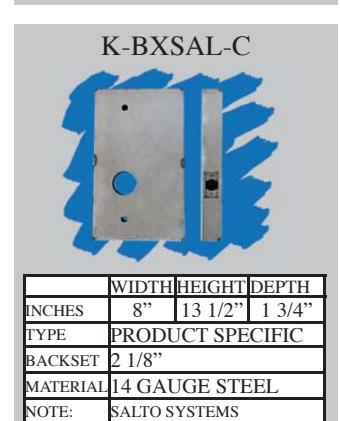

CYLINDRICAL K-BXSAL-C AL

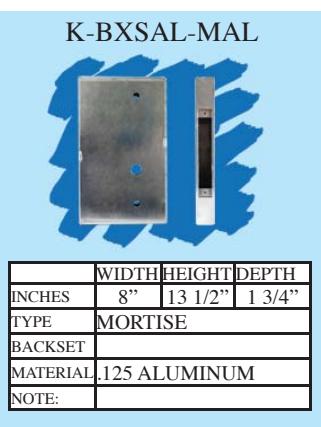

MORTISE K-BXSAL-M AL
SARGENT
45 SERIES K-BXSAR45
4874 MORTISE K-BXMOR-SGT4874
7700 MORTISE K-BXMOR1 AL
7700 HEAVY DUTY MORTISE K-BXMOR1-10G
8100 MORTISE K-BXMOR1 AL
8100 HEAVY DUTY MORTISE K-BXMOR1-10G
SCHLAGE
LEVERSETS CYLINDRICAL ND SERIES K-BXRHO AL SS
FE475 K-BXRHO1012 w/Modication
H LOCKS INTERCONNECTED - 4" C to C K-BXDBL234 AL SS
H LOCKS INTERCONNECTED - 4" C to C K-BXDBL234-2W AL
L SERIES MORTISE K-BXMOR1 AL
L SERIES 10 GUAGE MORTISE K-BXMOR1-10G
L SERIES W/ESCUTION K-BXSAR45
WA5296 K-BXRHO8155 w/Modication
SECURTON
SABL K-BXSABL
ROFU ELECTRIC STRIKES
1106 K-BXES1
1402 K-BXES2 AL
1702 K-BXES2 AL
3402 K-BXES2 AL
TESA/ONITY
CYLINDRICAL K-BXTESA-CYL AL
MORTISE K-BXTESA-MOR AL
TRINE ELECTRIC STRIKES
OO1 K-BXES8
OO5 K-BXES1
ULTRA
PUSH BUTTON LOCK 44760 K-BXULT
PUSH BUTTON LOCK 44765 K-BXULT
PUSH BUTTON LOCK 44770 K-BXULT
VING LOCK K-BXVING AL
VINGCARD
VING LOCK K-BXVING AL
VON DUPRIN ELECTRIC STRIKES
3140 K-BXES4 AL
5100 K-BXES51
6112 K-BXES14
6211 K-BXES4 AL
6214 K-BXES7
6215 K-BXES10
6224 K-BXES7
6226 K-BXES10
VON DUPRIN EXIT DEVICES
99 EXIT DEVICE W/ ALARM LOCK ETPDL K-BXED-ETPDLV99
99 EXIT DEVICE W/990NL TRIM K-BXED-V990NL
99 EXIT DEVICE W/992L & 996L TRIM K-BXED-V992L
99 EXIT DEVICE W/994L & 996L TRIM K-BXED-V992L
WINFIELD MICROKEY
TUBULAR 1000 SERIES K-BXWIN
YALE
46 / ALSO HEAVY DUTY 10G K-BXMOR1
46 / ALSO HEAVY DUTY 10G K-BXMOR1
4800LN (INTERCONNECTED - 4" C to C) K-BXDBL234 AL SS
4800LN ( INTERCONNECTED - 4" C to C) K-BXDBL234-2W AL

GATE BOX INFORMATION

BLANK WELDABLE BOXES

Part Number Specialty/Material Α В С
K-BX246 w/Removable Lid 6'' 4'' 2"
K-BX453525 4 1/2" 3 1/2" 2 1/2"
K-BX458175 Oversized 8'' 4 1/2" 1 3/4"
K-BX515175 Oversized 15 1/2" 5'' 1 3/4"
K-BX711150 Oversized 11" 7" 1 1/2"

Great for mounting panic hardware! Oversize compensates for access keypads or lever hardware

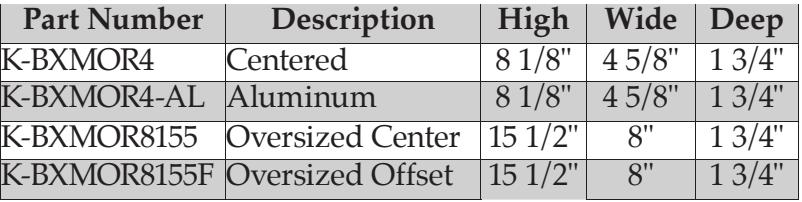

UNIVERSAL MORTISE GATE BOXES

Blank mortise boxes were designed to accommodate just about any type of stand alone access or push button mortise lock. With a standard side mortise preparation (1 1/16" x 6 11/16") only drilling the mounting holes is necessary on the face of the box. The boxes are wide enough for lever applications.

Centered

TOP SELLERS BY COLOR

While Keedex offers over 180 weldable gate boxes, all of exceptional quality, we have indicated some of our most commonly sought after boxes with the coloring system shown below.

Understanding Gate Box Stock Numbers

How to use the gate box guide:

If you know the manufacturer and stock number of the lock or electric strike you are trying to install, use the cross reference. The cross reference uses the lock or strike manufacturers numbers and then tells you which of our weldable boxes is best for that application. Keedex com has the most current cross reference and notes. If you still cannot find an appropriate box, call us @ (714) 993-4300 and we will be glad to

l SGL 1- 2 1/8" Cylindrical Hole NH No Holes
DBL 2- Cylindrical 2 1/8" Holes 2W/-2 2" Wide Box
, RHO 2 1/8" Cylindrical Hole With 6 Thru-
Bolt Holes Around 2 3/4" Backset 		-2D 2" Wide Box With Cylindrical Hole Sunken To
Accept A Standard 1 3/4" Lock
MOR Mortise Side Pocket A/R Narrow Style Mortise Lock
AL .125 Gauge Aluminum CYL Cylindrical Prep
SS 16 Gauge Stainless Steel -925 9 1/4" High
234 2 3/4" Backset -8155 8" X 15 1/2"
S Slim 1 1/4" Wide -1012 10" X 12"
-ES Extra Slim 1" Wide BXES Electric Strike Prep
NS No Stop BXED Exit Device

All Boxes Are 14 Gauge Steel Unless Otherwise Noted

For boxes in materials other than 14 gauge steel add a dash and the suffix for the material ex: The K-BXMOR1, in 10 gauge steel would be K-BXMOR1-10G, Aluminum would be K-BXMOR1-AL

Depth = thickness, as in thickness of a door

assist you!

Photograph and Size Reference Guide

WIDTH HEIGHT DEPTH
INCHES 4 " 6" 2"
TYPE
BACKSET
MATERIAL14 GAUGE STEEL
NOTE: WELDABLE BOX W/ REMOVEABLE LID

WIDTH HEIGHT DEPTH
INCHES 4 1/2" 8" 1 3/4"
TYPE
BACKSET
MATERIAL14 GAUGE STEEL
NOTE: BLANK BOX

WIDTH HEIGHT DEPTH
INCHES 5" 15" 1 3/4"
TYPE
BACKSET
MATERIAL14 GAUGE STEEL
NOTE: BLANK BOX

WIDTH HEIGHT DEPTH
INCHES 7" 11" 1 1/2"
TYPE
BACKSET
MATERIAL14 GAUGE STEEL
NOTE: BLANK BOX

2"
MATERIAL14 GAUGE STEEL
SWITCH ON BACK
4 1/2" WIDTH HEIGHT DEPTH
8"
READER

WIDTH HEIGHT DEPTH
INCHES 4 1/2" 8" 2"
TYPE READER
BACKSET
MATERIAL.125" ALUMINUM
NOTE: SWITCH ON BACK

NOTE: BLANK BOX

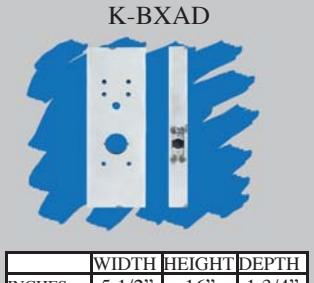

WIDTH HEIGHT DEPTH
INCHES 5 1/2" 16" 1 3/4"
TYPE CROSS PLATFORM
BACKSET 2 3/4"
MATERIAL14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 2 7/16" 8" 1 13/16"
TYPE MORTISE
BACKSET 1 1/8"
MATERIAL .125 ALUMINUM
NOTE: NARROW STYLE

WIDTH HEIGHT DEPTH
INCHES 2 7/16" 7" 1 13/16"
TYPE MORTISE
BACKSET 1 1/2"
MATERIAL 14 GAUGE STEEL
NOTE: NARROW STYLE

WIDTH HEIGHT DEPTH
INCHES 2 7/16" 8" 1 13/16"
TYPE MORTISE
BACKSET 31/32"
MATERIAL14 GAUGE STEEL
NOTE: NARROW STYLE

WIDTH HEIGHT DEPTH
INCHES 2" 16" 1 3/4"
TYPE MORTISE
BACKSET 1 1/8"
MATERIAL 14 GAUGE STEEL
NOTE: NARROW STLYE

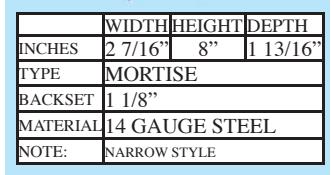

MATERIAL14 GAUGE STEEL NOTE: NARROW STYLE

NOTE: NO HOLES

MATERIAL14 GAUGE STEEL

BACKSET

WIDTH HEIGHT DEPTH
INCHES 5 1/2" 7 1/2" 1 3/4"
TYPE
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE: USE LBFR70 LATCH

WIDTH HEIGHT DEPTH
INCHES 5 1/2" 8 1/2" 1 3/4"
TYPE PRODUCT SPECIFIC
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 5 1/2" 8 1/2" 1 3/4"
TYPE PRODUCT SPECIFIC
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 5 1/2" 10 1/2" 1 3/4"
TYPE CYLINDRICAL
BACKSET 2 3/4"
MATERIAL .125 ALUMINUM
NOTE:

WIDTH HEIGHT DEPTH
INCHES 5 3/4" 2 7/8" 4"
MATERIAL 14 GAUGE
NOTES: CAN BE BOLTED, SCREWED
OR WELDED. PROTECTS AGAINST
WIND, RAIN, VANDALISM.

WIDTH HEIGHT DEPTH
INCHES 4 1/2" 6 7/8" 1 1/2"
TYPE 2 1/8"CYLINDRICAL
BACKSET 2 3/8"
MATERIAL 14 GAUGE
NOTE: center to center 3 1/2"

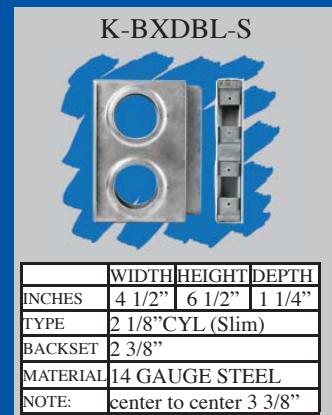

WIDTH HEIGHT DEPTH
INCHES 4 1/2" 7 1/2" 1"
TYPE 2 1/8"CYL (Extra Slim)
BACKSET 2 3/8"
MATERIAL 14 GAUGE STEEL
NOTE: center to center 3 3/8"

WIDTH HEIGHT DEPTH
INCHES 4 3/4" 8 5/8" 1 1/2"
TYPE 2 1/8"CYLINDRICAL
BACKSET 2 3/4"
MATERIAL 14 GAUGE
NOTE: center to center 4"

WIDTH HEIGHT DEPTH
INCHES 4 3/4" 8 5/8" 2"
TYPE 2 1/8"CYLINDRICAL
BACKSET 2 3/4"
MATERIAL 14 GAUGE
NOTE: 1/4" INSET/ center to center 4"

WIDTH HEIGHT DEPTH
INCHES 4 3/4" 8 5/8" 2"
TYPE 2 1/8"CYLINDRICAL
BACKSET 2 3/4"
MATERIAL .125" ALUMINUM
NOTE: 1/4" INSET/ center to center 4"

WIDTH HEIGHT DEPTH
INCHES 4 3/4" 8 5/8" 2"
TYPE 2 1/8"CYLINDRICAL
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE: center to center 4"

WIDTH HEIGHT DEPTH
INCHES 4 3/4" 8 5/8" 1 1/2"
TYPE 2 1/8"CYLINDRICAL
BACKSET 2 3/4"
MATERIAL .125" ALUMINUM
NOTE: center to center 4"

K-BXDBL234-AL-2

WIDTH HEIGHT DEPTH
INCHES 4 3/4" 8 5/8" 2"
TYPE 2 1/8"CYLINDRICAL
BACKSET 2 3/4"
MATERIAL .125" ALUMINUM
NOTE: center to center 4"

K-BXDBL234-NH

WIDTH HEIGHT DEPTH
INCHES 4 3/4" 8 5/8" 1 5/8"
TYPE "CYLINDRICAL
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE: NO HOLES, ACCESS CONTROL

WIDTH HEIGHT DEPTH
INCHES 4 3/4" 8 5/8" 1 5/8"
TYPE 2 1/8"CYLINDRICAL
BACKSET 2 3/4"
MATERIAL 16 GAUGE STAINLESS STEEL
NOTE: center to center 4"

WIDTH HEIGHT DEPTH
INCHES 4" 13" 1 3/4"
TYPE MORTISE
BACKSET
MATERIAL 8 GAUGE STEEL
NOTE: NARROW STYLE

WIDTH HEIGHT DEPTH
INCHES 4 3/4" 8 1/2" 1 3/4"
TYPE CYINDRICAL
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 4 3/4" 8 1/2" 1 3/4"
TYPE CYINDRICAL
BACKSET 2 3/8"
MATERIAL .125" ALUMINUM
NOTE:

WIDTH HEIGHT DEPTH
INCHES 4 3/4" 6 1/2" N/A
TYPE
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 4 3/4" 7 5/8" 1 3/4"
TYPE
BACKSET 2 3/8"
MATERIAL 14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 4 3/4" 7 5/8" 1 3/4"
TYPE READER
BACKSET
MATERIAL .125" ALUMINUM
NOTE:

WIDTH HEIGHT DEPTH
INCHES 5 1/2" 10" 1 3/4"
TYPE CYLINDRICAL
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE:

K-BXEDCR

WIDTH HEIGHT DEPTH
INCHES 5 1/2" 8" 1 3/4"
TYPE EXIT DEVICE
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 8" 6 1/2" 1 3/4"
TYPE EXIT DEVICE
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE:

K-BXED-ETPDLV99

WIDTH HEIGHT DEPTH
INCHES 5" 15" 1 3/4"
TYPE EXIT DEVICE
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE:

K-BXED-V22

WIDTH HEIGHT DEPTH
INCHES 5 1/2" 8" 1 3/4"
TYPE EXIT DEVICE
BACKSET
MATERIAL .14 GAUGE STEEL
NOTE: 2 1/8" HOLE

K-BXED-V990NL

WIDTH HEIGHT DEPTH
INCHES 5" 15" 1 3/4"
TYPE EXIT DEVICE
BACKSET
MATERIAL .14 GAUGE STEEL
NOTE:

K-BXED-V990L-AL

WIDTH HEIGHT DEPTH
INCHES 5" 15" 1 3/4"
TYPE EXIT DEVICE
BACKSET
MATERIAL .125" ALUMINUM
NOTE:

K-BXED-V992L

WIDTH HEIGHT DEPTH
INCHES 5" 15" 1 3/4"
TYPE EXIT DEVICE
BACKSET
MATERIAL .14 GAUGE STEEL
NOTE:

K-BXED-V992L-AL

WIDTH HEIGHT DEPTH
INCHES 5" 15" 1 3/4"
TYPE EXIT DEVICE
BACKSET
MATERIAL .125" ALUMINUM
NOTE:

WIDTH HEIGHT DEPTH
INCHES 5 1/2" 20 1/2" 1 3/4"
TYPE Exit Device
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 3 3/4" 3 1/4" 1 9/16"
TYPE ELECTRIC STRIKE
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 2 3/8" 5 1/16" 1 3/4"
TYPE ELECTRIC STRIKE
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE: ANSI STRIKE

WIDTH HEIGHT DEPTH
INCHES 2 3/8" 5 1/16" 1 3/4"
TYPE ELECTRIC STRIKE
BACKSET
MATERIAL .125 ALUMINUM
NOTE: ANSI STRIKE

WIDTH HEIGHT DEPTH
INCHES 2 3/8" 5 1/16" 1 3/4"
TYPE ELECTRIC STRIKE
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE: ANSI STRIKE

WIDTH HEIGHT DEPTH
INCHES 2 3/8" 5 1/16" 1 3/4"
TYPE ELECTRIC STRIKE
BACKSET
MATERIAL .125 ALUMINUM
NOTE: ANSI STRIKE

WIDTH HEIGHT DEPTH
INCHES 2 3/8" 6 9/16" 2"
TYPE ELECTRIC STRIKE
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 2 3/8" 6 9/16" 2"
TYPE ELECTRIC STRIKE
BACKSET
MATERIAL 11 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 2 3/8" 6 9/16" 2"
TYPE ELECTRIC STRIKE
BACKSET
MATERIAL .125 ALUMINUM
NOTE:

WIDTH HEIGHT DEPTH
INCHES 2 3/8" 5 1/16" 1 3/4"
TYPE ELECTRIC STRIKE
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE: ANSI STRIKE

WIDTH HEIGHT DEPTH
INCHES 1 3/4" 5 1/2" 2 3/8"
TYPE ELECTRIC STRIKE
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE: ANSI STRIKE

WIDTH HEIGHT DEPTH
INCHES 1 1/2" 6 1/8" 2"
TYPE ELECTRIC STRIKE
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 2 3/8" 5 1/16" 1 3/4"
TYPE ELECTRIC STRIKE
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE: ANSI

WIDTH HEIGHT DEPTH
INCHES 2" 12" 2 7/16"
TYPE ELECTRIC STRIKE
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 2" 5" 3 1/4"
TYPE ELECTRIC STRIKE
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 2 1/2" 9 1/2" 2 3/4"
TYPE ELECTRIC STRIKE
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 1 1/2" 5" 1 3/4"
TYPE ELECTRIC STRIKE
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE: ANSI STRIKE

WIDTH HEIGHT DEPTH
INCHES 2 3/8" 5 1/16" 1 1/2"
TYPE ELECTRIC STRIKE
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE: ANSI

WIDTH HEIGHT DEPTH
INCHES 2 3/8" 5 1/16" 1 1/2"
TYPE ELECTRIC STRIKE
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE: ANSI

WIDTH HEIGHT DEPTH
INCHES 2 3/8" 5 1/8" 1 3/4"
TYPE ELECTRIC STRIKE
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE: Trine Specifi c

WIDTH HEIGHT DEPTH
INCHES 5" 11 7/8" 1 3/4"
TYPE PRODUCT SPECIFIC
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 5" 10" 1 3/4"
TYPE MORTISE
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 5" 10" 1 3/4"
TYPE MORTISE
BACKSET 2 3/4"
MATERIAL .125 ALUMINUM
NOTE:

WIDTH HEIGHT DEPTH
INCHES 5" 14 1/2" 1 3/4"
TYPE MORTISE
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 5" 14 1/2" 1 3/4"
TYPE MORTISE
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 5" 14 1/2" 1 3/4"
TYPE MORTISE
BACKSET 2 3/4"
MATERIAL .125 ALUMINUM
NOTE:

INCHES 2" 7" 1 3/4"
TYPE MORTISE
BACKSET
MATERIAL 16 GAUGE STAINLESS STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 2" 7" 1 3/4"
TYPE MORTISE
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE:

MATERIAL 16 GAUGE STAINLESS STEEL

NOTE:

NOTE:

WIDTH HEIGHT DEPTH
INCHES 8" 14" 1 3/4"
TYPE CYLINDRICAL
BACKSET 2 3/4"
MATERIAL .125 ALUMINUM
NOTE:

K-BXMAR-IQ-SS

WIDTH HEIGHT DEPTH
INCHES 8" 14" 1 3/4"
TYPE CYLINDRICAL
BACKSET 2 3/4"
MATERIAL 16 GAUGE STAINLESS STEEL
NOTE:

K-BXMAS

WIDTH HEIGHT DEPTH
INCHES 5 1/2" 12 3/8" 1 3/4"
TYPE CYLINDRICAL
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 1 3/4" 7 1/8" 1 3/4"
TYPE CYLINDRICAL
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 4 5/8" 8 1/8" 1 3/4"
TYPE MORTISE
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 4 5/8" 8 1/8" 1 3/4"
TYPE MORTISE
BACKSET 2 3/4"
MATERIAL 10 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 4 5/8" 8 1/8" 1 3/4"
TYPE MORTISE
BACKSET 2 3/4"
MATERIAL .125 ALUMINUM
NOTE:

WIDTH HEIGHT DEPTH
INCHES 4 5/8" 8 1/8" 1 3/4"
TYPE MORTISE
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE:

K-BXMOR3

WIDTH HEIGHT DEPTH
INCHES 4 5/8" 8 1/8" 1 3/4"
TYPE MORTISE
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE:

K-BXMOR3-10G

WIDTH HEIGHT DEPTH
INCHES 4 5/8" 8 1/8" 1 3/4"
TYPE MORTISE
BACKSET 2 3/4"
MATERIAL 10 GAUGE STEEL
NOTE:

K-BXMOR4

WIDTH HEIGHT DEPTH
INCHES 4 5/8" 8 1/8" 1 3/4"
TYPE MORTISE
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE:

K-BXMOR4-AL

WIDTH HEIGHT DEPTH
INCHES 4 5/8" 8 1/8" 1 3/4"
TYPE MORTISE
BACKSET
MATERIAL .125 ALUMINUM
NOTE:

K-BXMOR5

WIDTH HEIGHT DEPTH
INCHES 4 5/8" 8 1/8" 1 3/4"
TYPE MORTISE
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE:

K-BXMOR6

WIDTH HEIGHT DEPTH
INCHES 5" 7 7/8" 1 1/4"
TYPE MORTISE
BACKSET 2 1/2"
MATERIAL 14 GAUGE STEEL
NOTE:

K-BXMOR8155

WIDTH HEIGHT DEPTH
INCHES 8" 15 1/2" 1 3/4"
TYPE MORTISE
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE: UNIVERSAL APPLICATIONS

K-BXMOR8155F

WIDTH HEIGHT DEPTH
INCHES 8" 15 1/2" 1 3/4"
TYPE MORTISE
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE: UNIVERSAL APPLICATIONS

WIDTH HEIGHT DEPTH
INCHES 8" 15 1/2" 1 3/4"
TYPE MORTISE
BACKSET
MATERIAL .125 ALUMINUM
NOTE: UNIVERSAL APPLICATIONS

K-BXMOR-CDL4000

WIDTH HEIGHT DEPTH
INCHES 4 1/4" 4 1/2" 1 3/4"
TYPE MORTISE
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE:

K-BXMOR-BST38HM

WIDTH HEIGHT DEPTH
INCHES 4 5/8" 5 5/8" 1 3/4"
TYPE MORTISE
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE:

K-BXMOR-MR3000M

WIDTH HEIGHT DEPTH
INCHES 4 3/8" 4 7/8" 1 3/4"
TYPE MORTISE
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE:

K-BXMOR-SGT4874

WIDTH HEIGHT DEPTH
INCHES 4 1/2" 4 7/8" 1 3/4"
TYPE MORTISE
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE:

K-BXOMNI-CYL

WIDTH HEIGHT DEPTH
INCHES 5 1/2" 10 3/4" 1 3/4"
TYPE PRODUCT SPECIFIC
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE: UNIVERSAL APPLICATIONS

K-BXOMNI-WM

WIDTH HEIGHT DEPTH
INCHES 5 3/4" 11 1/2" 1 3/4"
TYPE CYLINDRICAL
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE:

K-BXPRES

WIDTH HEIGHT DEPTH
INCHES 4 3/4" 7" 1 3/4"
TYPE
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE:

K-BXRHO

WIDTH HEIGHT DEPTH
INCHES 4 3/4" 4 1/8" 1 3/4"
TYPE CYLINDRICAL
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE: Leversets with thru-bolts

K-BXRHO-1012

WIDTH HEIGHT DEPTH
INCHES 12" 10" 1 3/4"
TYPE CYLINDRICAL
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE: Leversets with thru-bolts

K-BXRHO-8155

WIDTH HEIGHT DEPTH
INCHES 8" 15 1/2" 1 3/4"
TYPE CYLINDRICAL
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE: Leversets with thru-bolts

K-BXRHO-925

WIDTH HEIGHT DEPTH
INCHES 5 1/2" 9 1/4" 1 3/4"
TYPE CYLINDRICAL
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE: Leversets with thru-bolts

K-BXRHO-AL

1 3/4"
MATERIAL .125 ALUMINUM
Leversets with thru-bolts
4 3/4"
BACKSET 2 3/4" 		WIDTH HEIGHT DEPTH
4 1/8"
CYLINDRICAL

K-BXRHO-SS

WIDTH HEIGHT DEPTH
INCHES 4 3/4" 4 1/8" 1 3/4"
TYPE CYLINDRICAL
MATERIAL 16 GAUGE STAINLESS STEEL
Leversets with thru-bolts
BACKSET 2 3/4"
NOTE:

K-BXSABL

WIDTH HEIGHT DEPTH
INCHES 5 1/2" 13 1/2" 1 3/4"
TYPE PRODUCT SPECIFIC
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE:

K-BXSAF

WIDTH HEIGHT DEPTH
INCHES 4 5/8" 11" 1 3/4"
TYPE MORTISE
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 5" 11 7/8" 1 3/4"
TYPE PRODUCT SPECIFIC
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE:

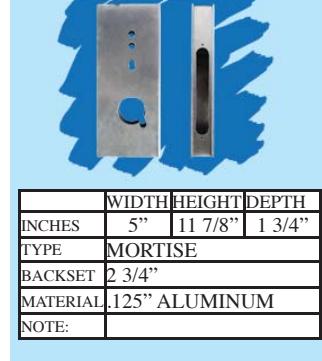

WIDTH HEIGHT DEPTH
INCHES 5" 11 7/8" 1 3/4"
TYPE
BACKSET 2 3/4"
MATERIAL .125 ALUMINUM
NOTE:

WIDTH HEIGHT DEPTH
INCHES 5" 11 7/8" 1 3/4"
TYPE
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 4 1/2" 9 3/4" 1 3/4"
TYPE
BACKSET 2 3/4"
MATERIAL .125 ALUMINUM
NOTE:

WIDTH HEIGHT DEPTH
INCHES 4 1/2" 9 3/4" 1 3/4"
TYPE
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 4 1/2" 9 3/4" 1 3/4"
TYPE MORTISE
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE:

K-BXSAF-R22440

WIDTH HEIGHT DEPTH
INCHES 5" 11 7/8" 1 3/4"
TYPE
BACKSET 2 3/4"
MATERIAL .125" ALUMINUM
NOTE:

WIDTH HEIGHT DEPTH
INCHES 8" 13 1/2" 1 3/4"
TYPE CYLINDRICAL
BACKSET 2 1/8"
MATERIAL .125 ALUMINUM
NOTE:

WIDTH HEIGHT DEPTH
INCHES 8" 13 1/2" 1 3/4"
TYPE MORTISE
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 4 1/2" 3 1/2" 1 1/2"
TYPE CYLINDRICAL
BACKSET 2 3/8"
MATERIAL 14 GAUGE STEEL
NOTE: Standard Cylindrical Locka

WIDTH HEIGHT DEPTH
1 5/8"
BACKSET 5"
7" 3 1/2"
CYLINDRICAL
MATERIAL 14 GAUGE STEEL
Standard Cylindrical Locks

WIDTH HEIGHT DEPTH
INCHES 4 1/4" 3 1/2" 1 1/4"
TYPE CYLINDRICAL
BACKSET 2 3/8"
MATERIAL 14 GAUGE STEEL
NOTE: Cylindrical Locks (Slim)

WIDTH HEIGHT DEPTH
INCHES 4 3/4" 3 1/2" 1 5/8"
TYPE CYLINDRICAL
BACKSET 2 3/8"
MATERIAL 14 GAUGE STEEL
NOTE: NO STOP

WIDTH HEIGHT DEPTH
INCHES 4 3/4" 3 1/2" 1 5/8"
TYPE CYLINDRICAL
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE: Standard Cylindrical Locks

WIDTH HEIGHT DEPTH
INCHES 5 1/2" 5 1/2" 2"
TYPE CYLINDRICAL
BACKSET 2 3/4"
MATERIAL 10 GAUGE STEEL
NOTE: Standard Cylindrical Locks

WIDTH HEIGHT DEPTH
INCHES 4 3/4" 3 1/2" 1 5/8"
TYPE CYLINDRICAL 1 1/2"
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE: 1 1/2" Cylindrical Lock

4 3/4" 4 1/8" 2"
MATERIAL 14 GAUGE STEEL
BACKSET 2 3/4" WIDTH HEIGHT DEPTH
CYLINDRICAL
Standard Cylindrical Locks

K-BXSGL234-925

WIDTH HEIGHT DEPTH
INCHES 4 3/4" 4 1/8" 2"
TYPE CYLINDRICAL
BACKSET 2 3/4"
MATERIAL .125 ALUMINUM
NOTE: Standard Cylindrical Locks

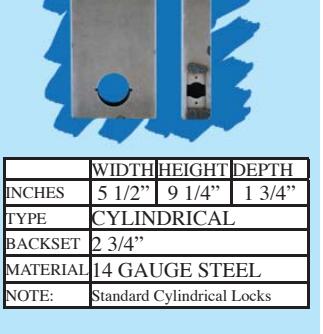

2"
MATERIAL 14 GAUGE STEEL
Standard Cylindrical Locks
4 3/4"
BACKSET 2 3/4" 		WIDTH HEIGHT DEPTH
4 1/8"
CYLINDRICAL

NOTE: Standard Cylindrical Locks

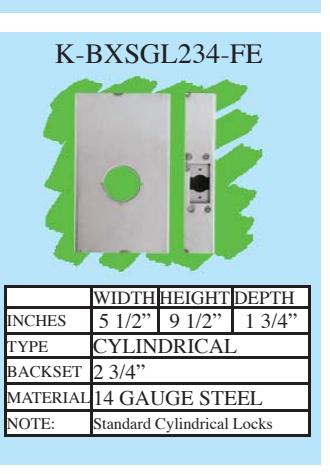

NOTE: Standard Cylindrical Locks

WIDTH HEIGHT DEPTH
INCHES 4 3/4" 3 1/2" 1 5/8"
TYPE No Holes
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE: For latch w/ electric strikes

K-BXSGL234-NS

WIDTH HEIGHT DEPTH
INCHES 4 3/4" 3 1/2" 1 5/8"
TYPE CYLINDRICAL
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE: Standard Cylindrical Locks

WIDTH HEIGHT DEPTH
INCHES 4 3/4" 3 1/2" 1 5/8"
TYPE CYLINDRICAL
BACKSET 2 3/4"
MATERIAL 16 GAUGE STAINLESS STEEL
NOTE: Standard Cylindrical Locks

WIDTH HEIGHT DEPTH
INCHES 5 1/2" 10 1/4" 1 3/4"
TYPE CYLINDRICAL
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 5 1/2" 9 1/4" 1 3/4"
TYPE CYLINDRICAL
BACKSET 2 3/4"
MATERIAL .125 ALUMINUM
NOTE:

WIDTH HEIGHT DEPTH
INCHES 5 1/2" 9 1/4" 1 3/4"
TYPE CYLINDRICAL
BACKSET 2 3/4"
MATERIAL 16 GAUGE STAINLESS STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 4" 5 1/2" 1 3/4"
TYPE
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 4" 5 1/2" 1 3/4"
TYPE
BACKSET
MATERIAL .125 ALUMINUM
NOTE:

WIDTH HEIGHT DEPTH
INCHES 8" 14" 1 3/4"
TYPE CYLINDRICAL
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE:

K-BXSIM-4000-AL

WIDTH HEIGHT DEPTH
INCHES 8" 14" 1 3/4"
TYPE CYLINDRICAL
BACKSET 2 3/4"
MATERIAL .125 ALUMINUM
NOTE:

WIDTH HEIGHT DEPTH
INCHES 5 1/2" 6 1/2" 1 3/4"
TYPE CYLINDRICAL
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE:

K-BXSIM-6218

WIDTH HEIGHT DEPTH
INCHES 4 3/4" 6 1/2" 1 3/4"
TYPE CYLINDRICAL
BACKSET 2 3/8"
MATERIAL 14 GAUGE STEEL
NOTE:

K-BXSIM-7004

WIDTH HEIGHT DEPTH
INCHES 4 3/4" 6 1/2" 1 3/4"
TYPE CYLINDRICAL
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE:

K-BXSIM-7004-AL

WIDTH HEIGHT DEPTH
INCHES 4 3/4" 6 1/2" 1 3/4"
TYPE CYLINDRICAL
BACKSET 2 3/4"
MATERIAL .125 ALUMINUM
NOTE:

K-BXSIM-EE

WIDTH HEIGHT DEPTH
INCHES 5 1/2" 9 1/4" 1 3/4"
TYPE CYLINDRICAL
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE:

K-BXSIM-EE-AL

WIDTH HEIGHT DEPTH
INCHES 5 1/2" 9 1/4" 1 3/4"
TYPE CYLINDRICAL
BACKSET 2 3/4"
MATERIAL .125 ALUMINUM
NOTE:

WIDTH HEIGHT DEPTH
INCHES 5 1/2" 9 1/4" 1 3/4"
TYPE CYLINDRICAL
BACKSET 2 3/4"
MATERIAL 16 GAUGE STAINLESS STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 5 1/2" 9 1/4" 1 3/4"
TYPE CYLINDRICAL
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 7/16" 5 1/16" 3/8"
TYPE
BACKSET
MATERIAL 14 GAUGE STEEL
NOTE: ANSI STRIKE PREPARATION

WIDTH HEIGHT DEPTH
INCHES 1 3/4" 5 1/8" 3/8"
TYPE
BACKSET
MATERIAL 16 GAUGE STAINLESS STEEL
NOTE: ANSI STRIKE PREPARATION

WIDTH HEIGHT DEPTH
INCHES 8" 14" 1 3/4"
TYPE CYLINDRICAL
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 8" 14" 1 3/4"
TYPE CYLINDRICAL
BACKSET 2 3/4"
MATERIAL .125 ALUMINUM
NOTE:

WIDTH HEIGHT DEPTH
INCHES 8" 14" 1 3/4"
TYPE MORTISE
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 8" 14" 1 3/4"
TYPE MORTISE
BACKSET 2 3/4"
MATERIAL .125 ALUMINUM
NOTE:

WIDTH HEIGHT DEPTH
INCHES 4 3/4" 8 1/4" 1 3/4"
TYPE CYLINDRICAL
BACKSET 2 3/8"
MATERIAL 14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 8" 13" 1 3/4"
TYPE MORTISE
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE:

WIDTH HEIGHT DEPTH
INCHES 8" 13" 1 3/4"
TYPE MORTISE
BACKSET 2 3/4"
MATERIAL .125 ALUMINUM
NOTE:

WIDTH HEIGHT DEPTH
INCHES 5 1/8" 10 1/2" 1 3/4"
TYPE CYLINDRICAL
BACKSET 2 3/4"
MATERIAL 14 GAUGE STEEL
NOTE:

Note on Electric Strikes

Part Number Inches Millimeters
K-BXES3A 0.656 16.5
K-BXES2 0.92 23.3
K-BXES5 1.73 43.9
K-BXES6 1.21 30.7
K-BXES9 1.5 38.1
K-BXES45 1 25
K-BXES51 1.05 26.7

O u r A NSI si z ed st r i k e boxe s were m a d e s p e c i f i c a l l y f o r n a m e b r a n d manufacturers electric strikes, however there are many obscure manufacturers of electric strikes. The Keedex ANSI electric strike boxes noted here are all 2 3/8" W x 5 1/16"H x 1 3/4"D, the difference in each box is the cut out a l on g t h e f a c e sid e . T h i s c h a r t i s designed to help you match our box w i t h y o u r n o n- b r a n d n a m e A N S I electric strikes.

K-12SL Protect-A-LOK

510 Cameron Street, Placentia, CA 92870 Phone: 714-993-4300 • Fax: 714-993-4303 www.keedex.com
