Kaba Gemini Cylinders Pricebook 2022
Open the original PDF document
View PDF
Kaba® Gemini® Cylinders, Cores and Keys MSRP List Price
June 13, 2022
| Gemini® Product Information - Cylinders Cores and Keys 2 | |
|---|---|
| How to Order/Product Listing | |
| Key Blanks and Cut Keys 3 | |
| Control Keys for Gemini® Cores 3 | |
| 4700 Series | |
| Conventional Mortise, Rim and Schlage Tubular Cylinders 3 | |
| Key-In-Knob/Lever Cylinders4-5 | |
| Cores Only 6 | |
| 4800 Series | |
| RCores Only 6 | |
| RCores Mortise and Rim Cylinders 6 | |
| RCore Key-In-Knob/Lever Assemblies 7 | |
| Parts 7-11 | |
| Tools and Kits11 | |
| Authorization and Key Record Supplies11 | |
| Sales Policy 12 |
Ordering Information
Keying Charges, Services and Bitting List
- · Letter of Authorization is needed for Cut Keys and combinated cylinders/cores orders
- · Specify key system number & keying when ordering cut keys and combinated cylinders/cores
- · Cores and 4730 Series Key-In-Knob cylinders available in 04 and 26D finish only
- Standard mortise collars and rim cylinder accessories (see Brass Cylinders and Storefront Hardware price book)
- · 6 week lead time on all orders
- · 2 change keys per combinated cylinder/core
- · Add 5.00 per cylinder for master keying
- · Add 5.00 per key for random serialization
- · Add 0.70 for non-standard key stamping per character
- · Add 200.00 for New Master Key bitting list without a cylinder order
1 Model - See appropriate page for product number required (1st four digits)
2 Key Control Levels
з Кеyways

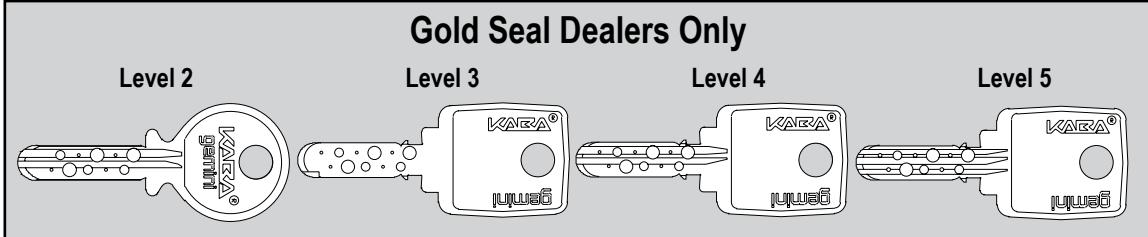

Level 1 No Keyway Level 2 1K, 2K, 3K, 4K Level 3 No Keyway Level 4 1J, 2J, 3J, 4J
Level 5 1L, 2L, 3L, 4L, 5L, 6L, 7L, 8L
Finishes
| Code | Description | US# | BHMA |
|---|---|---|---|
| 03 | Polished Brass | 03 | 605 |
| 04 | Satin Brass | 04 | 606 |
| 05 | Antique Brass | 05 | 609 |
| 10 | Satin Bronze | 10 | 612 |
| 10B | Oil Rubbed Bronze | 10B | 613 |
| 26 | Bright Chrome | 26 | 625 |
| 26D | Satin Chrome | 26D | 626 |
4 Cams & Tailpieces
| Standard #1 | Adams Rite #2 |
Schlage L
#15 |
Sargent/Yale #16 | Cloverleaf Corbin/ Russwin/Best #19 |
|---|---|---|---|---|
|
Adams Rite
4070 #20 |
Ilco Lori Deadbolt
#18 |
Segal/Emhart/
Corbin/Russwin #17 |
Falcon Clover
#23 |
#9 |
6 Combination
10 Uncombinated 12 Combinated
Type - See appropriate page for product required.
8 Handing
LHE=Left Hand Even (Master Key Systems) RHO=Right Hand Odd (Stock Systems)
4 7 2 0 - 1 K - 4 4 8 0 How To Order Example
1
3
Key Blanks and Cut Keys
Replace 'XX' with your preferred keyway (refer to page 2) MODEL KEYWAY KEY BLANK
| Product Number | Description | PKG | MSRP | |
|---|---|---|---|---|
| 4710-00-4000 | Level 1 Key Blank | 50 | $496.60 | ^ |
| 4710-00-4005 | Level 1 Cut Key | 1 | $19.55 | ^ |
| 4720-XX-4480 | Level 2 Key Blank | 50 | $496.60 | ^ |
| 4720-XX-4485 | Level 2 Cut Key | 1 | $19.55 | ^ |
| 4730-00-4520 | Level 3 Key Blank | 50 | $496.60 | ^ |
| 4730-00-4525 | Level 3 Cut Key | 1 | $19.55 | ^ |
| 4740-XX-4580 | Level 4 Key Blank | 50 | $496.60 | ^ |
| 4740-XX-4585 | Level 4 Cut Key | 1 | $19.55 | ^ |
| 4750-XX-4610 | Level 5 Key Blank | 50 | $496.60 | ^ |
| 4750-XX-4615 | Level 5 Cut Key | 1 | $19.55 | ^ |
Control Keys for Gemini® Cores
Replace 'XX' with your preferred keyway (refer to page 2)
| Product Number | Description | PKG | MSRP | |
|---|---|---|---|---|
| 4810-00-5475 | Level 1 Control Key (Cut) | 1 | $115.85 | ^ |
| 4820-XX-5485 | Level 2 Control Key (Cut) | 1 | $115.85 | ^ |
| 4830-00-5525 | Level 3 Control Key (Cut) | 1 | $115.85 | ^ |
| 4840-XX-5585 | Level 4 Control Key (Cut) | 1 | $115.85 | ^ |
| 4850-XX-5615 | Level 5 Control Key (Cut) | 1 | $115.85 | ^ |
4700 Series - Conventional Mortise, Rim and Schlage Tubular Cylinders
Replace XXXX with level and keyway, XX with cam, XXX with finish, and XXX with handing
How To Order Example
1 2 3 4 5 6 7 8 4 7 3 1 - L 5 1 L - 1 6 - 2 6 D - 1 0 1 2 - L H E MODEL LEVEL KEYWAY CAM FINISH TYPE UNCOMBINATED HANDING
| Product Number | Description | PKG | MSRP | |
|---|---|---|---|---|
| 4731-XXXX-XX-XXX-1010-XXX 1" Mortise cylinder, Uncombinated | 1 | $112.85 | ^ | |
| 4731-XXXX-XX-XXX-1210-XXX 1" Mortise cylinder, Combinated | 1 | $132.40 | ^ | |
| 4731-XXXX-XX-XXX-1012-XXX | 1 1⁄2" Mortise cylinder, Uncombinated | 1 | $189.60 | ^ |
| 4731-XXXX-XX-XXX-1212-XXX | 1 1⁄2" Mortise cylinder, Combinated | 1 | $210.60 | ^ |
| 4731-XXXX-XX-XXX-1014-XXX | 1 1⁄4" Mortise cylinder, Uncombinated | 1 | $120.35 | ^ |
| 4731-XXXX-XX-XXX-1214-XXX | 1 1⁄4" Mortise cylinder, Combinated | 1 | $141.40 | ^ |
| 4731-XXXX-XX-XXX-1018-XXX | 1 1⁄8" Mortise cylinder, Uncombinated | 1 | $120.35 | ^ |
| 4731-XXXX-XX-XXX-1218-XXX | 1 1⁄8" Mortise cylinder, Combinated | 1 | $141.40 | ^ |
| 4732-XXXX-9-XXX-1010-XXX | Standard Rim Cylinder, Uncombinated | 1 | $130.90 | ^ |
| 4732-XXXX-9-XXX-1210-XXX | Standard Rim Cylinder, Combinated | 1 | $150.45 | ^ |
| 4732-XXXX-9-XXX-1012-XXX | Sargent Exit Device Rim Cylinder, Uncombinated | 1 | $139.90 | ^ |
| 4732-XXXX-9-XXX-1212-XXX | Sargent Exit Device Rim Cylinder, Combinated | 1 | $159.50 | ^ |
| 4733-XXXX-XXX-1060-XXX | Schlage single cylinder (B100, B400, B600, E and H), Uncombinated | 1 | $129.35 | ^ |
| 4733-XXXX-XXX-1260-XXX | Schlage single cylinder (B100, B400, B600, E and H), Combinated | 1 | $148.95 | ^ |
| 4733-XXXX-XXX-1062-XXX | Schlage inside cylinder (B100, B400, B600), Uncombinated | 1 | $129.35 | ^ |
| 4733-XXXX-XXX-1262-XXX | Schlage inside cylinder (B100, B400, B600), Combinated | 1 | $148.95 | ^ |
| 4733-XXXX-XXX-1063-XXX | Schlage double cylinder (B162, B462, B662) Inside/Outside pair, Uncombinated | 1 | $273.80 | ^ |
| 4733-XXXX-XXX-1263-XXX | Schlage double cylinder (B162, B462, B662) Inside/Outside pair, Combinated | 1 | $297.95 | ^ |
4700 Series - Key-In-Knob /Lever Cylinders
Replace XXXX with level and keyway, XX with cam, XXX with finish, and XXX with handing
How To Order Example
4 7 3 0 - L 4 1 J - 26D - 12 06 - L H E MODEL LEVEL KEYWAY FINISH COMBINATED TYPE HANDING 1 2 3 5 6 7 8
| Product Number | Description | PKG | MSRP | |
|---|---|---|---|---|
| 4730-XXXX-XXX-1003-XXX | Alarm lock Trilogy 2700 lever, Uncombinated | 1 | $109.85 | ^ |
| 4730-XXXX-XXX-1203-XXX | Alarm lock Trilogy 2700 lever, Combinated | 1 | $132.40 | ^ |
| 4730-XXXX-XXX-1060-XXX | Arrow deadlocks with K-I-K cylinder (single cylinder), Uncombinated | 1 | $109.85 | ^ |
| 4730-XXXX-XXX-1260-XXX | Arrow deadlocks with K-I-K cylinder (single cylinder), Combinated | 1 | $132.40 | ^ |
| 4730-XXXX-XXX-1009-XXX | Arrow H and L all designs, M Series non-ball, Uncombinated | 1 | $109.85 | ^ |
| 4730-XXXX-XXX-1209-XXX | Arrow H and L all designs, M Series non-ball, Combinated | 1 | $132.40 | ^ |
| 4730-XXXX-XXX-1019-XXX | Arrow M Ball, Uncombinated | 1 | $109.85 | ^ |
| 4730-XXXX-XXX-1219-XXX | Arrow M Ball, Combinated | 1 | $132.40 | ^ |
| 4730-XXXX-XXX-1006-XXX |
Cylinder kit (Schlage A, C, D, and Arrow H, L, M, Falcon, except Hana Knobs), Uncombi
nated |
1 | $109.85 | ^ |
| 4730-XXXX-XXX-1206-XXX | Cylinder kit (Schlage A, C, D, and Arrow H, L, M, Falcon, except Hana Knobs) Combinated | 1 | $132.40 | ^ |
| 4730-XXXX-XXX-1039-XXX | Corbin/Russwin CL3900 leversets, Uncombinated | 1 | $109.85 | ^ |
| 4730-XXXX-XXX-1239-XXX | Corbin/Russwin CL3900 leversets, Combinated | 1 | $132.40 | ^ |
| 4730-XXXX-XXX-1034-XXX | Corbin 6600, CK4400, Russwin 3400 except Classroom Function, Uncombinated | 1 | $109.85 | ^ |
| 4730-XXXX-XXX-1234-XXX | Corbin 6600, CK4400, Russwin 3400 except Classroom Function, Combinated | 1 | $132.40 | ^ |
| 4730-XXXX-XXX-1004-XXX | Corbin/Russwin CK4200, UT5200, Uncombinated | 1 | $109.85 | ^ |
| 4730-XXXX-XXX-1204-XXX | Corbin/Russwin CK4200, UT5200, Combinated | 1 | $132.40 | ^ |
| 4730-XXXX-XXX-1040-XXX | Corbin 6600, CK4400, Russwin 3400 Classroom Function, Uncombinated | 1 | $109.85 | ^ |
| 4730-XXXX-XXX-1240-XXX | Corbin 6600, CK4400, Russwin 3400 Classroom Function, Combinated | 1 | $132.40 | ^ |
| 4730-XXXX-XXX-1056-XXX | Corbin 1400/5600 Russwin 4300/3300, Uncombinated | 1 | $109.85 | ^ |
| 4730-XXXX-XXX-1256-XXX | Corbin 1400/5600 Russwin 4300/3300, Combinated | 1 | $132.40 | ^ |
| 4730-XXXX-XXX-1011-XXX | Corbin/Russwin CL3400 and CL3600 levers, Uncombinated | 1 | $109.85 | ^ |
| 4730-XXXX-XXX-1211-XXX | Corbin/Russwin CL3400 and CL3600 levers, Combinated | 1 | $132.40 | ^ |
| 4730-XXXX-XXX-1021-XXX | Falcon older X Series and Grade 1 with capless knobs, Uncombinated | 1 | $109.85 | ^ |
| 4730-XXXX-XXX-1221-XXX | Falcon older X Series and Grade 1 with capless knobs, Combinated | 1 | $132.40 | ^ |
| 4730-XXXX-XXX-1002-XXX | Falcon F Series levers, LSDA LH 1000 Grade 1 knobs, Uncombinated | 1 | $109.85 | ^ |
| 4730-XXXX-XXX-1202-XXX | Falcon F Series levers, LSDA LH 1000 Grade 1 knobs, Combinated | 1 | $132.40 | ^ |
| 4730-XXXX-XXX-1023-XXX | Falcon LY imported levers and PDQ Grade 1 imported levers, Uncombinated | 1 | $109.85 | ^ |
| 4730-XXXX-XXX-1223-XXX | Falcon LY imported levers and PDQ Grade 1 imported levers, Combinated | 1 | $132.40 | ^ |
| 4730-XXXX-XXX-1012-XXX | Falcon X knobs, except Hana, Uncombinated | 1 | $109.85 | ^ |
| 4730-XXXX-XXX-1212-XXX | Falcon X knobs, except Hana, Combinated | 1 | $132.40 | ^ |
| 4730-XXXX-XXX-1013-XXX | Falcon S knobs, except Hana, Uncombinated | 1 | $109.85 | ^ |
| 4730-XXXX-XXX-1213-XXX | Falcon S knobs, except Hana, Combinated | 1 | $132.40 | ^ |
| 4730-XXXX-XXX-1041-XXX | Kaba and New Standard padlocks, Uncombinated | 1 | $109.85 | ^ |
| 4730-XXXX-XXX-1241-XXX | Kaba and New Standard padlocks, Combinated | 1 | $132.40 | ^ |
| 4730-XXXX-XXX-1015-XXX | LSDA Grade 2 Knobs, Uncombinated | 1 | $109.85 | ^ |
| 4730-XXXX-XXX-1215-XXX | LSDA Grade 2 Knobs, Combinated | 1 | $132.40 | ^ |
| 4730-XXXX-XXX-1001-XXX | Master ProSeries padlock, Marks deadlock, Uncombinated | 1 | $109.85 | ^ |
| 4730-XXXX-XXX-1201-XXX | Master ProSeries padlock, Marks deadlock, Combinated | 1 | $132.40 | ^ |
| 4730-XXXX-XXX-1029-XXX | Master 29 padlock (use AD1 adapter), Uncombinated | 1 | $109.85 | ^ |
| 4730-XXXX-XXX-1229-XXX | Master 29 padlock (use AD1 adapter), Combinated | 1 | $132.40 | ^ |
4700 Series - Key-In-Knob /Lever Cylinders (continued)
Replace XXXX with level and keyway, XX with cam, XXX with finish, and XXX with handing
| Product Number | Description | PKG | MSRP |
|---|---|---|---|
| 4730-XXXX-XXX-1080-XXX* | PDQ SV Series knobs, Uncombinated | 1 | $109.85 |
| 4730-XXXX-XXX-1280-XXX* | PDQ SV Series knobs, Combinated | 1 | $132.40 |
| 4730-XXXX-XXX-1083-XXX |
PDQ SX Series knobs and FRE lever, Falcon LY lever and PDQ prior to 1993, Uncombi
nated |
1 | $109.85 |
| 4730-XXXX-XXX-1283-XXX | PDQ SX Series knobs and FRE lever, Falcon LY lever and PDQ prior to 1993, Combinated | 1 | $132.40 |
| 4730-XXXX-XXX-1016-XXX | PDQ SK, SP, and ST levers (USA), Uncombinated | 1 | $109.85 |
| 4730-XXXX-XXX-1216-XXX | PDQ SK, SP, and ST levers (USA), Combinated | 1 | $132.40 |
| 4730-XXXX-XXX-1022-XXX | PDQ SV knobs with Ilco/Lori cylinders, Uncombinated | 1 | $109.85 |
| 4730-XXXX-XXX-1222-XXX | PDQ SV knobs with Ilco/Lori cylinders, Combinated | 1 | $132.40 |
| 4730-XXXX-XXX-1065-XXX* | Sargent 6 Line and 6500 except Keso, Uncombinated | 1 | $109.85 |
| 4730-XXXX-XXX-1265-XXX* | Sargent 6 Line and 6500 except Keso, Combinated | 1 | $132.40 |
| 4730-XXXX-XXX-1076-XXX* | Sargent 7600 IntegraLock, Uncombinated | 1 | $109.85 |
| 4730-XXXX-XXX-1276-XXX* | Sargent 7600 IntegraLock, Combinated | 1 | $132.40 |
| 4730-XXXX-XXX-1008-XXX* | Sargent 7, 8, and 9 Line knobs except Keso, Uncombinated | 1 | $109.85 |
| 4730-XXXX-XXX-1208-XXX* | Sargent 7, 8, and 9 Line knobs except Keso, Combinated | 1 | $132.40 |
| 4730-XXXX-XXX-1010-XXX* | Sargent 10 Line levers except Keso, Uncombinated | 1 | $109.85 |
| 4730-XXXX-XXX-1210-XXX* | Sargent 10 Line levers except Keso, Combinated | 1 | $132.40 |
| 4730-XXXX-XXX-1060-XXX | Schlage deadlocks with K-I-K cylinder (single cylinder except B500), Uncombinated | 1 | $109.85 |
| 4730-XXXX-XXX-1260-XXX | Schlage deadlocks with K-I-K cylinder (single cylinder except B500), Combinated | 1 | $132.40 |
| 4730-XXXX-XXX-1062-XXX | Schlage deadlocks with K-I-K cylinder (double cylinder except B500), Uncombinated | 1 | $109.85 |
| 4730-XXXX-XXX-1262-XXX | Schlage deadlocks with K-I-K cylinder (double cylinder except B500), Combinated | 1 | $132.40 |
| 4730-XXXX-XXX-1005-XXX | Schlage A, Old Style 5-pin knob, Uncombinated | 1 | $109.85 |
| 4730-XXXX-XXX-1205-XXX | Schlage A, Old Style 5-pin knob, Combinated | 1 | |
| 4730-XXXX-XXX-1007-XXX | Schlage A, Orbit knob, Uncombinated | 1 | |
| 4730-XXXX-XXX-1207-XXX | Schlage A, Orbit knob, Combinated | 1 | $132.40 |
| 4730-XXXX-XXX-1017-XXX | Schlage C and D knobs, Omnilock and Trilogy knob bypass, Uncombinated | 1 | $109.85 |
| 4730-XXXX-XXX-1217-XXX | Schlage C and D knobs, Omnilock and Trilogy knob bypass, Combinated | 1 | $132.40 |
| 4730-XXXX-XXX-1018-XXX | Schlage C and D lever, Omnilock and Trilogy knob bypass, Uncombinated | 1 | $109.85 |
| 4730-XXXX-XXX-1218-XXX | Schlage C and D lever, Omnilock and Trilogy knob bypass, Combinated | 1 | $132.40 |
| 4730-XXXX-XXX-1014-XXX | Schlage A, 6-pin non Orbit knobs, Uncombinated | 1 | $109.85 |
| 4730-XXXX-XXX-1214-XXX | Schlage A, 6-pin non Orbit knobs, Combinated | 1 | $132.40 |
| 4730-XXXX-XXX-1020-XXX | Schlage AL leversets, Uncombinated | 1 | $109.85 |
| 4730-XXXX-XXX-1220-XXX | Schlage AL leversets, Combinated | 1 | $132.40 |
| 4730-XXXX-XXX-1054-XXX* | Yale 5300, 5400, 5500, and 6200 6-pin knobs, Uncombinated | 1 | $109.85 |
| 4730-XXXX-XXX-1254-XXX* | Yale 5300, 5400, 5500, and 6200 6-pin knobs, Combinated | 1 | $132.40 |
| 4730-XXXX-XXX-1055-XXX* | Yale 5400L levers, Uncombinated | 1 | $109.85 |
| 4730-XXXX-XXX-1255-XXX* | Yale 5400L levers, Combinated | 1 | $132.40 |
* Grade 1 requires reaming of knob; Grade 2 requires drifting of knob.
4700 Series - Cores Only
Replace XXXX with level and keyway, XX with cam, XXX with finish, and XXX with handing
| Product Number | Description | PKG | MSRP | |
|---|---|---|---|---|
| 4730-XXXX-XXX-1000-XXX | Core only for Key-In-Knob/Lever cylinders, Uncombinated | 1 | $85.75 | ٨ |
| 4730-XXXX-XXX-1200-XXX | Core only for Key-In-Knob/Lever cylinders, Combinated | 1 | $106.80 | ٨ |
| 4731-XXXX-XXX-1000-XXX | Core only for Mortise, Rim, and Schlage tubular cylinders, Uncombinated | 1 | $85.75 | ٨ |
| 4731-XXXX-XXX-1200-XXX | Core only for Mortise, Rim, and Schlage tubular cylinders, Combinated | 1 | $106.80 | ٨ |
4800 Series - RCores Only
Replace XXXX with level and keyway, XX with cam, XXX with finish, and XXX with handing
| Product Number | Description | PKG | MSRP | |
|---|---|---|---|---|
| 4831-XXXX-XXX-1000-XXX | RCore, Uncombinated | 1 | $99.30 | ٨ |
| 4831-XXXX-XXX-1200-XXX | RCore, Combinated | 1 | $118.80 | ٨ |
4800 Series - RCores Mortise and Rim Cylinders
Replace XXXX with level and keyway, XX with cam, XXX with finish, and XXX with handing
| Product Number | Description | PKG | MSRP | |
|---|---|---|---|---|
| 4831-XXXX-XX-XXX-1012-XXX | 1 1/2" RCore Mortise cylinder, Uncombinated | 1 | $164.00 | ٨ |
| 4831-XXXX-XX-XXX-1212-XXX | 1 1/2" RCore Mortise cylinder, Combinated | 1 | $183.60 | ٨ |
| 4832-XXXX-9-XXX-1010-XXX | RCore with standard rim cylinder, Uncombinated | 1 | $164.00 | ٨ |
| 4832-XXXX-9-XXX-1210-XXX | RCore with Standard rim cylinder, Combinated | 1 | $183.60 | ٨ |
| 4832-XXXX-9-XXX-1012-XXX | RCore with Sargent Exit Device rim cylinder, Uncombinated 1 Pc | 1 | $203.10 | ٨ |
| 4832-XXXX-9-XXX-1212-XXX | RCore with Sargent Exit Device rim cylinder, Combinated 1 Pc | 1 | $222.65 | ٨ |
4800 Series - RCore Key-In-Knob/Lever Cylinders
Replace XXXX with level and keyway, XX with cam, XXX with finish, and XXX with handing
4 8 3 0 - L 4 1 J - 26D - 12 06 - L H E MODEL NO LEVEL KEYWAY FINISH TYPE COMBINATION HANDING How To Order Example 1 2 3 5 6 7 8
| Product Number | Description | PKG | MSRP | |
|---|---|---|---|---|
| 4830-XXXX-XXX-1004-XXX | RCore for standard Corbin/Russwin CK4200 and UT5200, Uncombinated | 1 | $167.05 | ^ |
| 4830-XXXX-XXX-1204-XXX | RCore for standard Corbin/Russwin CK4200 and UT5200, Combinated | 1 | $186.60 | ^ |
| 4830-XXXX-XXX-1006-XXX | RCore for standard Schlage C and D knobs, Omnilock and Trilogy knob bypass, Uncombinated | 1 | $135.45 | ^ |
| 4830-XXXX-XXX-1206-XXX | RCore for standard Schlage C and D knobs, Omnilock and Trilogy knob bypass, Combinated | 1 | $154.95 | ^ |
| 4830-XXXX-XXX-1007-XXX | RCore for standard Schlage A, Orbit knob, Uncombinated | 1 | $135.45 | ^ |
| 4830-XXXX-XXX-1207-XXX | RCore for standard Schlage A, Orbit knob, Combinated | 1 | $154.95 | ^ |
| 4830-XXXX-XXX-1008-XXX* | RCore for standard Sargent 7, 8, and 9 Line, Uncombinated | 1 | $167.05 | ^ |
| 4830-XXXX-XXX-1208-XXX* | RCore for standard Sargent 7, 8, and 9 Line, Combinated | 1 | $186.60 | ^ |
| 4830-XXXX-XXX-1010-XXX* | RCore for standard Arrow H levers, Sargent 10 levers, Uncombinated | 1 | $167.05 | ^ |
| 4830-XXXX-XXX-1210-XXX* | RCore for standard Arrow H levers, Sargent 10 levers, Combinated | 1 | $186.60 | ^ |
| 4830-XXXX-XXX-1016-XXX | RCore for standard Arrow H knobs, Uncombinated | 1 | $135.45 | ^ |
| 4830-XXXX-XXX-1216-XXX | RCore for standard Arrow H knobs, Combinated | 1 | $154.95 | ^ |
| 4830-XXXX-XXX-1026-XXX* | RCore for standard Arrow M and Sargent 6 Line non-ball knobs, Uncombinated | 1 | $167.05 | ^ |
| 4830-XXXX-XXX-1226-XXX* | RCore for standard Arrow M and Sargent 6 Line non-ball knobs, Combinated | 1 | $186.60 | ^ |
| 4830-XXXX-XXX-1027-XXX* | RCore for standard Arrow M and Sargent 6 Line ball knobs, Uncombinated | 1 | $167.05 | ^ |
| 4830-XXXX-XXX-1227-XXX* | RCore for standard Arrow M and Sargent 6 Line ball knobs, Combinated | 1 | $186.60 | ^ |
| 4830-XXXX-XXX-1050-XXX | RCore for standard Schlage C and D levers, Omnilock and Trilogy knob bypass, Uncombinated | 1 | $135.45 | ^ |
| 4830-XXXX-XXX-1250-XXX | RCore for standard Schlage C and D levers, Omnilock and Trilogy knob bypass, Combinated | 1 | $154.95 | ^ |
| 4830-XXXX-XXX-1053-XXX | RCore for standard Schlage A, 6-pin non-Orbit knobs, Uncombinated | 1 | $135.45 | ^ |
| 4830-XXXX-XXX-1253-XXX | RCore for standard Schlage A, 6-pin non-Orbit knobs, Combinated | 1 | $154.95 | ^ |
* Grade 1 requires reaming of knob; Grade 2 requires drifting of knob.
Parts
Adapters - Order in Package Quantity Only.
| Product Number | Description | PKG | MSRP | |
|---|---|---|---|---|
| 4700-00-3104 | Corbin/Russwin CK4200, UT5200 | 10 | $14.30 | ^ |
| 4700-00-3105 | Schlage A Orbit (and old style 5-pin knobs) | 10 | $14.30 | ^ |
| 4700-00-3140 | Corbin/Russwin 3400 and 6655 | 10 | $14.30 | ^ |
| 4700-00-3154 | Yale 5300, 5400, 6200 Series and PDQ SV Series (Requires 4700-00-4003 clip) | 10 | $14.30 | ^ |
| 4700-00-3176 | Sargent 7600 IntegraLock | 10 | $14.30 | ^ |
| 4700-00-5106 | Tailpiece adapter - most Arrow, Falcon, and Schlage knobs | 10 | $14.30 | ^ |
| 4700-00-5108 | Sargent 7, 8, and 9 Line | 10 | $14.30 | ^ |
| 4700-82-3160 | Lazy tailpiece adapter | 10 | $14.30 | ^ |
Parts (continued)
Bibles - Order in Package Quantity Only.
| Product Number | Description | PKG | MSRP | |
|---|---|---|---|---|
| 4700-00-3004 | Corbin/Russwin CK4200, UT 5200 | 10 | $109.85 | ^ |
| 4700-00-3005 | Schlage A Series old style 5-pin knobs | 10 | $109.85 | ^ |
| 4700-00-3006 | 6-pin Standard | 10 | $109.85 | ^ |
| 4700-00-3008 | Sargent 7, 8, and 9 Line | 10 | $109.85 | ^ |
| 4700-00-3017 | Schlage D Orbit knob (only required for levels 3-5) | 10 | $109.85 | ^ |
| 4700-00-3034 | Corbin/Russwin 3400 and 6600 | 10 | $109.85 | ^ |
| 4700-00-3076 | Sargent 7600 IntegraLock | 10 | $109.85 | ^ |
Cams - Order in Package Quantity Only. (Refer to page 2 for images)
| Product Number | Description | PKG | MSRP | |
|---|---|---|---|---|
| 4400-00-3000 | (#17) Segal/Corbin/Russwin/Emhart | 10 | $46.60 | ^ |
| 4400-00-3001 | (#2) Adams Rite | 10 | $46.60 | ^ |
| 4400-00-3002 | (#1) Standard | 10 | $46.60 | ^ |
| 4400-00-3003 | (#19) Cloverleaf for Corbin/Russwin, Best | 10 | $46.60 | ^ |
| 4400-00-3004 | (#16) Sargent and Yale | 10 | $46.60 | ^ |
| 4400-00-3008 | (#20) Adams Rite 4070 | 10 | $46.60 | ^ |
| 4400-00-3009 | (#15) Schlage L Series | 10 | $46.60 | ^ |
| 4400-00-3010 | (#23) Falcon Clover | 10 | $46.60 | ^ |
| 4400-00-2004 | (#18) Ilco® Lori® Deadbolt | 10 | $46.60 | ^ |
Cams Drivers - Order in Package Quantity Only.
| Product Number | Description | PKG | MSRP | |
|---|---|---|---|---|
| 4701-00-3010 | Rim and 1" Mortise | 10 | $144.45 | ^ |
| 4701-00-3012 | 1 1⁄2" Mortise | 10 | $212.10 | ^ |
| 4701-00-3014 | 1 1⁄4" Mortise | 10 | $144.45 | ^ |
| 4701-00-3018 | 1 1⁄8" Mortise | 10 | $144.45 | ^ |
| 4703-00-3160 | Lazy Tailpiece | 10 | $144.45 | ^ |
Tailpieces - Order in Package Quantity Only.
| Product Number | Description | PKG | MSRP | |
|---|---|---|---|---|
| 1410-82-2000 | "P" Kaba 1411 padlock | 10 | $8.30 | ^ |
| 1590-80-2000 | "SD" for Schlage D and Arrow | 10 | $8.30 | ^ |
| 3425-80-3012 | Yale 5400L | 10 | $19.55 | ^ |
| 4700-80-2001 | "SA" Schlage A and Arrow Ball | 10 | $8.70 | ^ |
| 4700-80-2003 | "FX" Falcon X | 10 | $8.70 | ^ |
| 4700-80-2004 | "FS" Falcon S | 10 | $8.70 | ^ |
| 4700-80-2005 | "E" Corbin/Russwin Old Grade 2 (requires 4700-00-4004 washer) | 10 | $8.70 | ^ |
| 4700-80-2007 | "83" PDQ SX, FRE lever (requires 4700-80-4007 washer) | 10 | $8.70 | ^ |
| 4700-80-5105 | Schlage A Old Style 5-pin knob | 10 | $19.55 | ^ |
| 4700-80-5107 | "O" Schlage A Orbit knob (requires (2) 4700-00-4008 washers) | 10 | $19.55 | ^ |
| 4702-80-2009 | Rim cylinder #9 | 10 | $27.05 | ^ |
| 4703-80-4262 | Schlage B462N | 10 | $49.65 | ^ |
Parts (continued)
Screws - Order in Package Quantity Only.
| Product Number | Description | PKG | MSRP | |
|---|---|---|---|---|
| 4700-98-4002 | Bible screw | 100 | $72.20 | ^ |
| 4701-80-4003 | Core retaining screw | 10 | $21.10 | ^ |
| 4701-98-4110 | 1" Cam driver screw | 100 | $72.20 | ^ |
| 4701-98-4114 | 1 1⁄4" Cam driver screw | 100 | $72.20 | ^ |
| 4701-98-4118 | 1 1⁄8" Cam driver screw | 100 | $72.20 | ^ |
| 4703-80-4060 | 4733 Series tailpiece driver screw | 100 | $72.20 | ^ |
Sleeves & Plug Retainers - Order in Package Quantity Only.
| Product Number | Description | PKG | MSRP | |
|---|---|---|---|---|
| 4700-00-4009 | Plug retainer (E-ring) | 50 | $38.40 | ^ |
| 4701-04-3006 | Sleeve, Brass (non-IC) | 10 | $49.65 | ^ |
| 4701-25-3006 | Sleeve, Chrome (non-IC) | 10 | $49.65 | ^ |
Conventional Housings
Replace 'XX' with your preferred finish code. (Refer to page 2 for finishes)
| Product Number | Description | PKG | MSRP | |
|---|---|---|---|---|
| 4701-xx-5110 | 1" Mortise cylinder | 1 | $48.15 | ^ |
| 4701-xx-5112 | 1 1⁄2" Mortise cylinder | 1 | $64.75 | ^ |
| 4701-xx-5114 | 1 1⁄4" Mortise cylinder | 1 | $48.15 | ^ |
| 4701-xx-5118 | 1 1⁄8" Mortise cylinder | 1 | $48.15 | ^ |
| 4702-xx-5110 | Standard rim cylinder | 1 | $48.15 | ^ |
| 4702-xx-5112 | Standard exit device rim cylinder | 1 | $58.70 | ^ |
| 4703-xx-5160 | Schlage B160, 460, 660, E, H Series single cylinder | 1 | $56.45 | ^ |
| 4703-xx-5162 | Schlage B162, 462, 662, Series inside cylinder | 1 | $56.45 | ^ |
| 4703-xx-5163 | Schlage B162, 462, 662, Series pair of cylinders | 1 | $109.85 | ^ |
Washers & Miscellaneous Parts - Order in Package Quantity Only.
Replace 'XX' with your preferred finish code. (Refer to page 2 for finishes)
| Product Number | Description | PKG | MSRP | |
|---|---|---|---|---|
| 4000-00-3000 | Cash box nut for Mortise cylinders | 10 | $6.80 | ^ |
| 4000-xx-3004 | Standard collar for Mortise cylinder ( 5⁄32" spacer) | 10 | $38.40 | ^ |
| 4700-00-4003 | Key-in-Knob/Lever adapter retainer clip | 100 | $82.75 | ^ |
| 4700-00-4004 | Security washer for "E" tailpiece | 10 | $5.25 | ^ |
| 4700-00-4006 | Tailpiece retainer ring for 4700-00-5106 adapter | 10 | $9.75 | ^ |
| 4700-80-4007 | Metal security washer for PDQ SX Series, FRE lever | 10 | $8.30 | ^ |
| 4700-00-4008 | Nylon washer for Schlage A Orbit tailpiece (2 required) | 10 | $8.30 | ^ |
| 4702-00-3106 | Rim cylinder tailpiece retainer | 10 | $82.75 | ^ |
| 4703-82-2160 | Washer for 4733 Series Lazy tailpiece adapter | 10 | $5.25 | ^ |
| 4800-00-4005 | R Core Plug Retainer E-Ring | 50 | $20.85 | ^ |
Parts (continued)
Large Format Interchangeable Cores, Adaptors - Order in Package Quantity Only.
| Product Number | Description | PKG | MSRP | |
|---|---|---|---|---|
| 4800-00-3104 | Corbin/Russwin CK4200, UT5200 | 10 | $14.30 | ^ |
| 4800-00-5106 | Short tailpiece | 10 | $14.30 | ^ |
| 4800-00-5107 | Long tailpiece | 10 | $14.30 | ^ |
| 4800-00-5108 | Sargent 7, 8, and 9 Line | 10 | $14.30 | ^ |
Large Format Interchangeable Cores, Bibles
| Product Number | Description | PKG | MSRP | |
|---|---|---|---|---|
| 4800-00-5004 | Corbin/Russwin CK4200, UT5200 | 1 | $45.15 | ^ |
| 4800-00-5006 | Schlage D Series all knobs | 1 | $31.60 | ^ |
| 4800-00-5007 | Schlage A Series Orbit knob only | 1 | $31.60 | ^ |
| 4800-00-5008 | Sargent 7, 8, and 9 Line | 1 | $45.15 | ^ |
| 4800-00-5010 | Sargent 10 Line, Arrow H Series levers | 1 | $14.30 | ^ |
| 4800-00-5016 | Arrow H Series knobs | 1 | $31.60 | ^ |
| 4800-00-5026 | Arrow M Series, all knobs | 1 | $31.60 | ^ |
| 4800-00-5050 | Schlage D Series levers | 1 | $14.30 | ^ |
| 4800-00-5053 | Schlage A Series non-Orbit | 1 | $31.60 | ^ |
Large Format Interchangeable Cores, Housing - Replace 'XX' with your preferred finish code. (Refer to page 2 for finishes)
| Product Number | Description | PKG | MSRP | |
|---|---|---|---|---|
| 4801-xx-5112 | 11⁄2" Mortise cylinder | 1 | $64.65 | ^ |
| 4802-xx-5110 | Standard rim cylinder | 1 | $64.65 | ^ |
| 4802-xx-5112 | Sargent exit device rim cylinder | 1 | $78.25 | ^ |
Miscellaneous Parts - Order in Package Quantity Only.
| Product Number | Description | PKG | MSRP | |
|---|---|---|---|---|
| 4700-00-4003 | Standard adapter retainer clip | 100 | $248.25 | ^ |
| 4701-98-4110 | Cam screw | 100 | $57.95 | ^ |
| 4800-04-3000 | Large Format Interchangeable Cores sleeve, Brass | 10 | $25.60 | ^ |
| 4800-25-3000 | Large Format Interchangeable Cores sleeve, Chrome | 10 | $25.60 | ^ |
| 4800-00-4003 | Adapter retainer ring for Sargent 7, 8, and 9 Line | 100 | $28.60 | ^ |
| 4801-28-1003 | Collar, aluminum door outside (tapered) | 1 | $12.75 | ^ |
| 4801-28-1004 | Collar, aluminum door inside (straight) | 1 | $9.75 | ^ |
Parts (continued)
Pins and Springs - Order in Package Quantity Only.
| Product Number | Description | PKG | MSRP | |
|---|---|---|---|---|
| 4700-00-4010 | Tubular spring | 1000 | $49.65 | ^ |
| 4700-00-4211 | #1 SIDE bottom pin, regular | 100 | $57.95 | ^ |
| 4700-00-4011 | #1 SIDE bottom pin, mushroom | 100 | $57.95 | ^ |
| 4700-00-4012 | #2 SIDE bottom pin, regular | 100 | $57.95 | ^ |
| 4700-00-4212 | #2 SIDE bottom pin, mushroom | 100 | $57.95 | ^ |
| 4700-00-4013 | #3 SIDE bottom pin | 100 | $57.95 | ^ |
| 4700-00-4014 | #4 SIDE bottom pin | 100 | $57.95 | ^ |
| 4700-00-4021 | #1 EDGE bottom pin | 100 | $57.95 | ^ |
| 4700-00-4022 | #2 EDGE bottom pin | 100 | $57.95 | ^ |
| 4700-00-4023 | #3 EDGE bottom pin | 100 | $57.95 | ^ |
| 4700-00-4031 | #1 Top pin | 100 | $57.95 | ^ |
| 4700-00-4032 | #2 Top pin | 100 | $57.95 | ^ |
| 4700-00-4033 | #3 Top pin | 100 | $57.95 | ^ |
| 4700-00-4034 | #4 Top pin | 100 | $57.95 | ^ |
| 4700-00-4016 | Blind bottom pin, for levels 3, 4, and 5 | 100 | $57.95 | ^ |
| 4700-00-4026 | Patent bottom pin, for levels 3, 4, and 5 | 100 | $57.95 | ^ |
| 4700-00-4037 | Patent top pin, for levels 3, 4, and 5 | 100 | $57.95 | ^ |
| 4700-00-4038 | Blind Top Pin | 100 | $57.95 | ^ |
Tools
| Product Number | Description | PKG | MSRP | |
|---|---|---|---|---|
| 3600-00-4022 | Key Gauge | 1 | $27.05 | ^ |
| 4700-00-4200 | Cylinder Pinning Fixture | 1 | $1,107.45 | ^ |
| 4700-00-4203 | Reaming tool for Grade 1 knobs and levers | 1 | $203.10 | ^ |
| 4700-00-4204 | Drifting tool for Grade 2 knobs | 1 | $248.25 | ^ |
| 4700-00-4202 * | Poxylube spray lubricant, 4.5 oz. can (12 cans/case) | 1 | $37.60 | ^ |
Kits
| Product Number | Description | PKG | MSRP | |
|---|---|---|---|---|
| 4730-30-5318 | Gold Seal Gemini® Pin Kit | 1 | $743.30 | ^ |
| 4700-00-5324 | Key-In-Knob/Lever Parts Kit | 1 | $374.65 | ^ |
| 4701-00-5324 | Mortise & Rim Parts Kit | 1 | $374.65 | ^ |
Authorization & Key Record Supplies
| Product Number | Description | PKG | MSRP | |
|---|---|---|---|---|
| 0001-10-8047 | Bitting List Form | 25 | $19.55 | ^ |
| 0001-10-8087 | Signature Card | 100 | $45.15 | ^ |
| 0001-10-8088 | Manual and Key Gage | 1 | $167.00 | ^ |
NOTE: Gemini® Levels 2, 3, 4, and 5 products must be purchased through Gold Seal Dealers/Distributors, unless the Gold Seal Dealer/Distributor no longer supplies the Gemini product line. If this occurs contact the factory for new dealer/distributor information.
| Notes: | |
|---|---|
Kaba Ilco designs and manufactures replacement key blanks compatible with Original Equipment Manufacturer (OEM) key brands. Kaba Ilco Corporation is not affiliated with, connected to, associated with, or sponsored by the various OEM key brands displayed. Each OEM brand is a trademark of the respective brand owners and are not manufactured or sold by the respective brand owners.
20180101
