Instructions for Installing 1431 Series Door Closers (with Fusible Link Holder Arms ‘F’-FZ-FZA-PF9)
Open the original PDF document
View PDFINSTALLATION INSTRUCTIONS 1420 / 1421 Door Closers with Eucible
1430 / 1431 Door Closers with Fusible Link Holder Arms
1430 ADJUSTABLE FROM SIZE 3 THRU 6 1431 ADJUSTABLE FROM SIZE 1 THRU 4 . ERDUCED OPENING FORCE FOR PHYSICALLY HANDICAPPED
•
ASSA ABLOY
SARGENT
NOTE: DOOR CLOSER SERIES, WEEK AND YEAR OF PRODUCTION ARE STAMPED ON END CAP.
1400 - DESIGNATE DOOR CLOSERS ADJUSTABLE SIZES 3 THRU 6. 1401 - DESIGNATE DOOR CLOSERS ADJUSTABLE SIZES 1 THRU 4.
FOR INSTALLATION ASSISTANCE CALL SARGENT AT 1-800-727-5477 • www.sargentlock.com
ASSA ABLOY, the global leader in door opening solutions

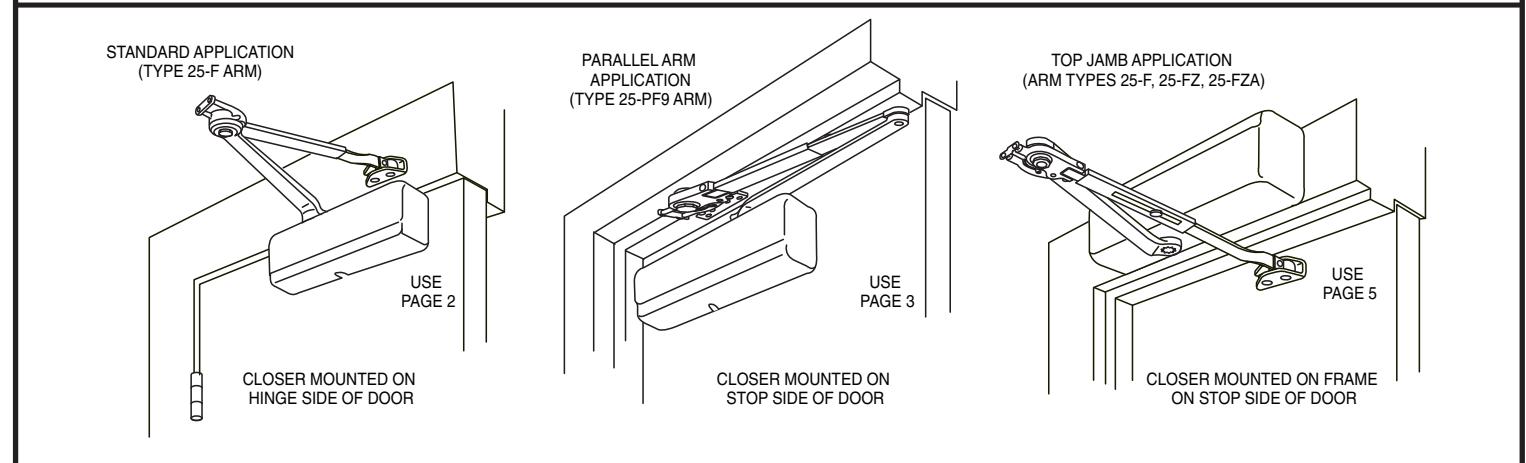

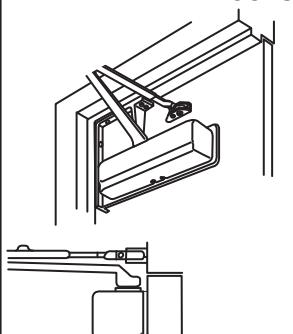

SELECT PROPER APPLICATION FROM ILLUSTRATIONS BELOW AND FOLLOW INSTRUCTIONS ON GIVEN PAGE
STANDARD APPLICATION
INSTALLATION INSTRUCTIONS

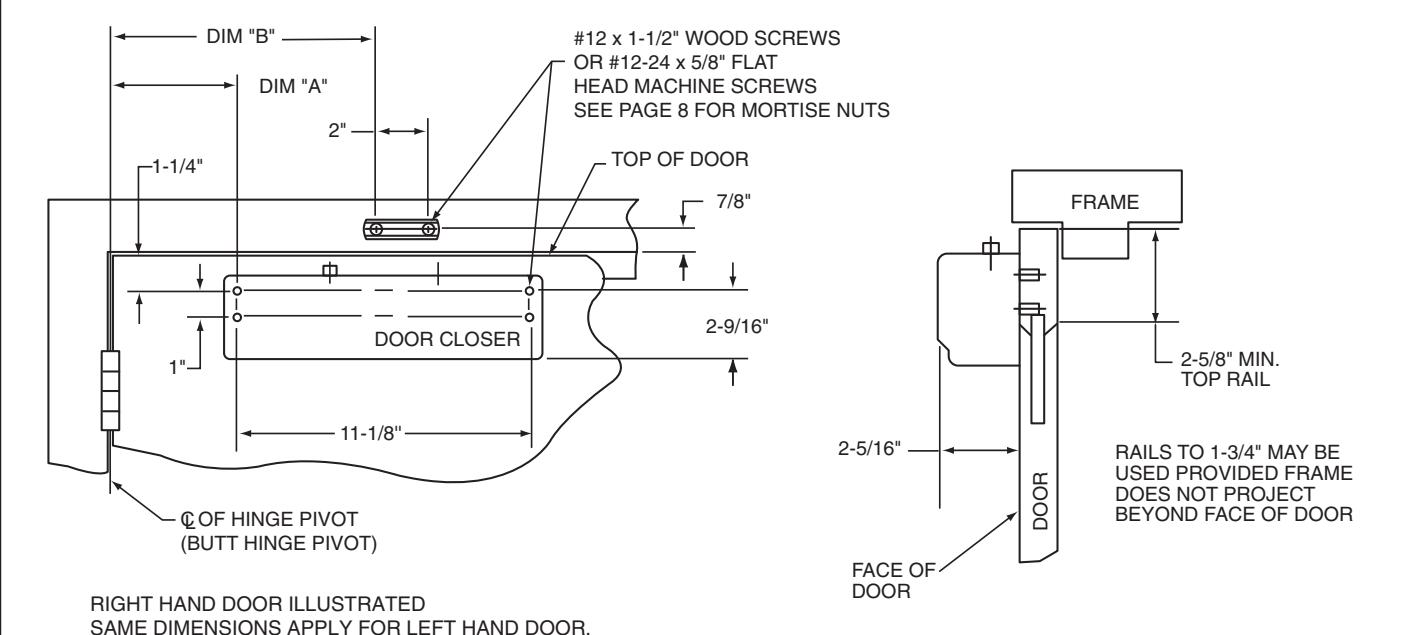

MAX DOOR OPENING DIM. A DIM. B 120° 6 3/4" 12 1/8" 160°** 4 3/4" 10 1/8"
**IF BUTT, FRAME AND WALL CONDITIONS PERMIT DOOR WILL OPEN 180°
CLOSER MOUNTED ON HINGE SIDE OF A DOOR
Copyright © 2009, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

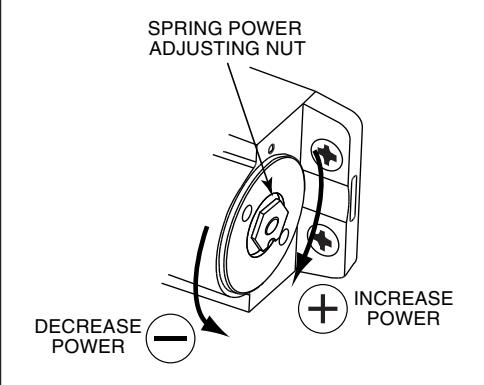

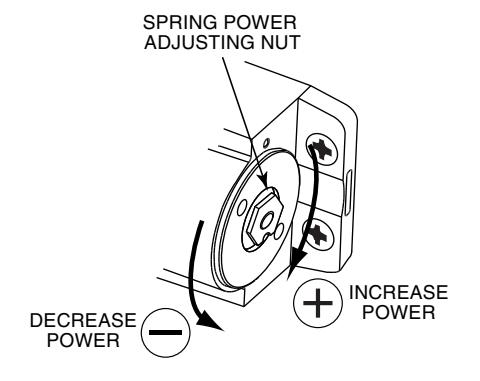

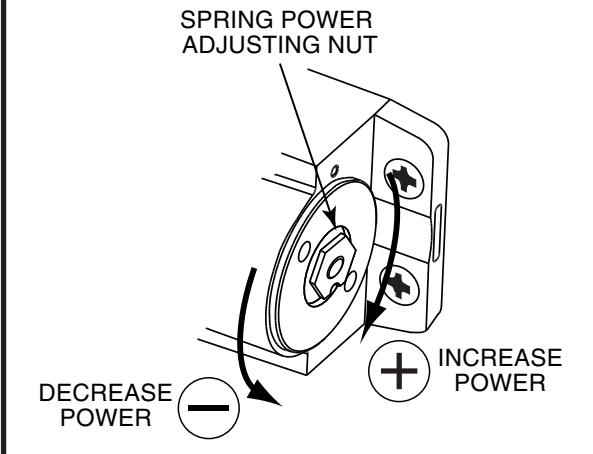

SPRING ADJUSTMENT ADJUST SPRING POWER ACCORDING TO CHART.
○ CW-CLOCKWISE
| NUMBER OF TURNS OF SPRING POWER ADJUSTING NUT* USE CHART AS GUIDE ONLY | |||
|---|---|---|---|
|
DOOR
WIDTH (INCHES) |
APPROXIMATE
DOOR WEIGHT (POUNDS) |
1430
DOOR CLOSERS |
L 1431*
DOOR CLOSERS |
| 24 | 80 | ||
| 30 | 110 | 1-3 CCW | 1-3 CCW |
| 32 | 115 | FACTORY** | |
| 36 | 130 | FACTORY** | SET |
| 40 | 150 | SET | 4-7 CW |
| 42 | 155 | 1-3 | 7-10 CW |
| 44 | 165 | CW | |
| 46 | 170 | 4-7 | |
| 48 | 180 | CW | |
| OVER 48 | 7-10 CW | ||
- * FOR EXTERIOR DOORS USE 1430 CLOSERS ONLY.
- ** CLOSERS ARE FACTORY SET FOR INTERIOR DOORS.
FOR EXTERIOR DOORS AND WHERE STRONG DRAFT EXISTS INCREASE SPRING POWER AS NEEDED BY TURNING SPRING ADJUSTING NUT CLOCKWISE. IF NECESSARY, DECREASE SPRING POWER TO MEET REQUIREMENTS BY TURNING SPRING ADJUSTING NUT COUNTER CLOCKWISE.
- A USING ILLUSTRATION ON A PAGE 1 SELECT DEGREE OF DOOR OPENING DESIRED AND ATTACH CLOSER TO DOOR WITH SHORT END TOWARD HINGE

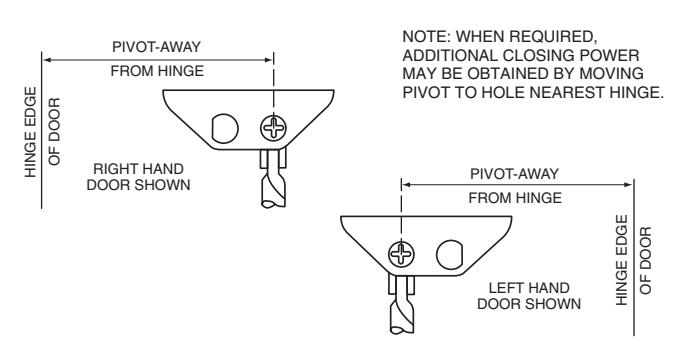

- ATTACH FOOT TO FRAME WITH PIVOT AWAY FROM HINGE AS ILLUSTRATED BELOW.

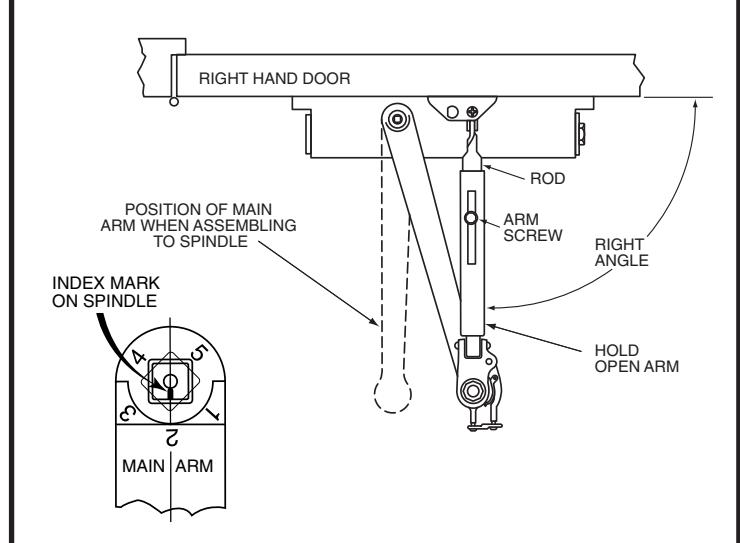

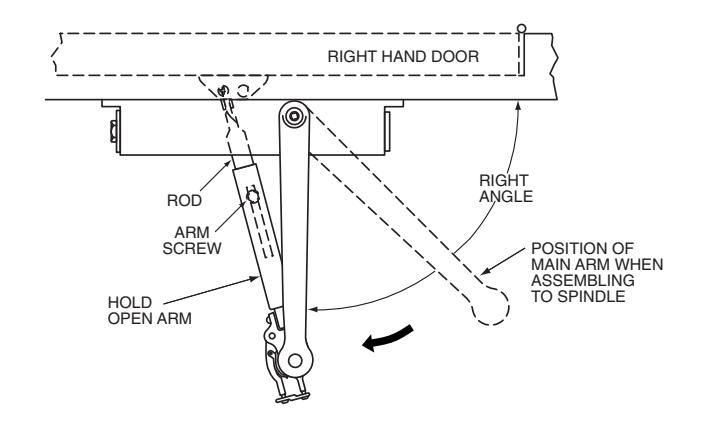

OPEN DOOR AND INSERT RECTANGULAR ROD INTO HOLD OPEN ARM THEN CLOSE THE DOOR AND TIGHTEN ARM SCREW SECURELY WHEN HOLD OPEN ARM IS AT RIGHT ANGLE TO DOOR.

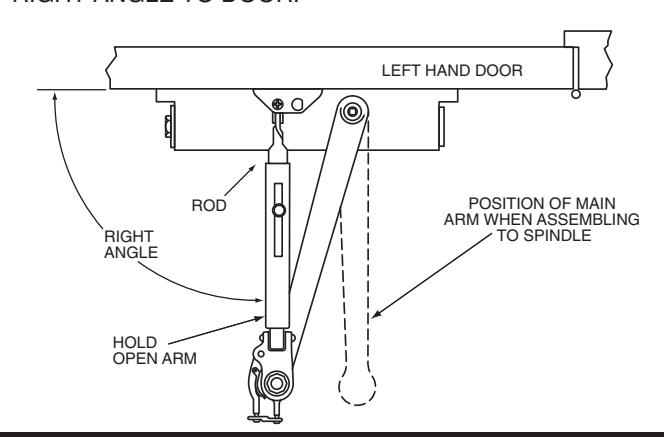

ASSEMBLE MAIN ARM TO CLOSER WITH INDEX MARK ON SPINDLE ALIGNED AS SHOWN BELOW. ATTACH ARM WITH WASHER AND SCREW.
Copyright © 2009, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
A7141B
PAGE
ADJUST AND REGULATE DOOR CLOSER AS DIRECTED ON PAGE 7
ACCESSORIES INFORMATION

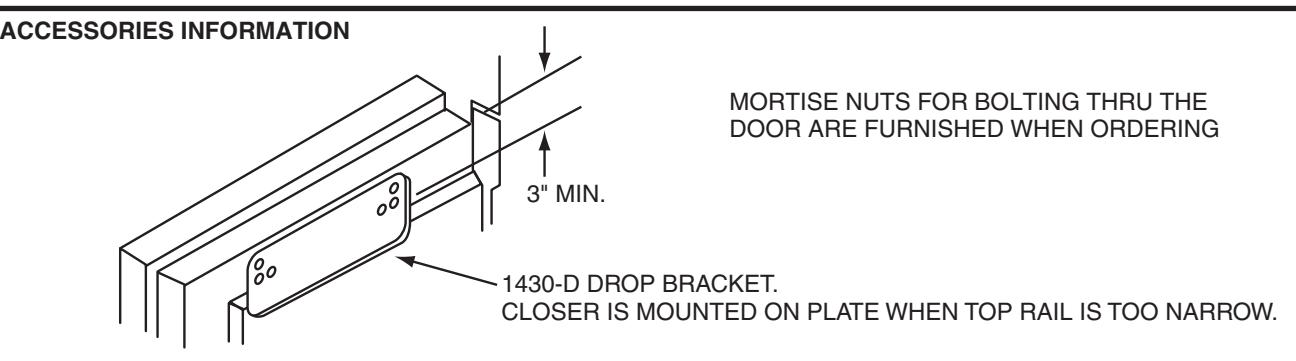

1430-W CORNER BRACKET CLOSER IS MOUNTED ON BRACKET WHICH IS ATTACHED TO DOOR JAMB ON STOP SIDE OF DOOR. USE THIS APPLICATION FOR EXTERIOR DOORS TO KEEP THE CLOSER INSIDE OF BUILDING ALSO MAY BE USED TO OBTAIN FULL 180° DOOR OPENING
#8 MORTISE FOOT FOR USE WHERE THE STANDARD SUBFACE APPLIED FOOT CANNOT BE ATTACHED TO THE TOP CASING OR WHERE APPEARANCE IS A MAJOR FACTOR

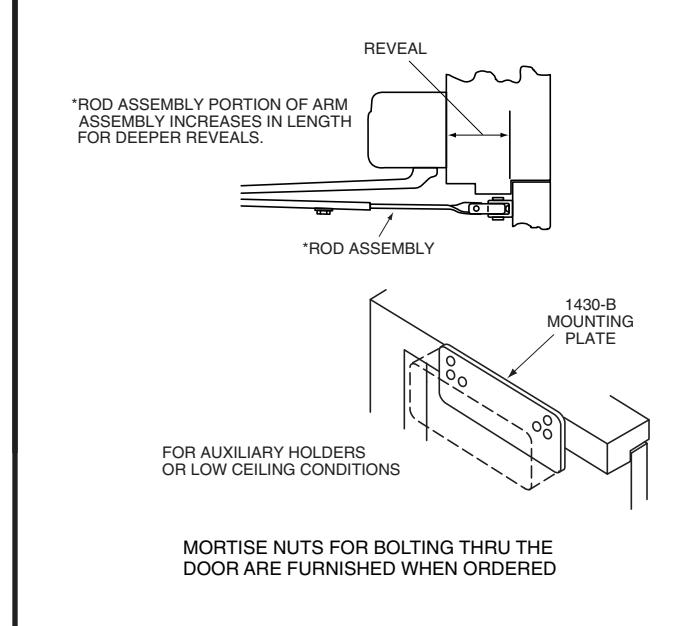

1430-J COVER PLATE MAY BE USED WHEN CLOSER IS MOUNTED ON A NARROW RAIL TO IMPROVE APPEARANCE WHEN CLOSER IS VIEWED THRU GLASS
MORTISE NUTS FOR BOLTING THRU THE DOOR ARE FURNISHED WHEN ORDERED
ASSA ABLOY, the global leader in door opening solutions
PARALLEL ARM APPLICATION
INSTALLATION INSTRUCTIONS
|
MAX DOOR
OPENING |
DIM. A | DIM. B |
|---|---|---|
| 110° | 4" | 9 1/2" |
| 180° | 1 1/4" | 6 3/4" |
CLOSER MOUNTED ON STOP SIDE OF A DOOR

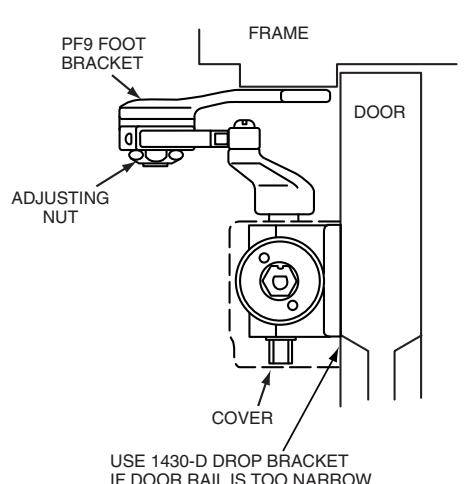

IF DOOR RAIL IS TOO NARROW (SEE ACCESSORIES ON THE NEXT PAGE)
SPRING ADJUSTMENT ADJUST SPRING POWER ACCORDING TO CHART.
FOR EXTERIOR DOORS AND WHERE STRONG DRAFT EXISTS INCREASE SPRING POWER AS NEEDED BY TURNING SPRING ADJUSTING NUT CLOCKWISE. IF NECESSARY, DECREASE SPRING POWER TO MEET REQUIREMENTS BY TURNING SPRING ADJUSTING NUT COUNTER CLOCKWISE.
in door opening solutions
→ CW-CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE → CCW-COUNTER CLOCKWISE
| NUMBER OF TURNS OF SPRING POWER ADJUSTING NUT* USE CHART AS GUIDE ONLY. | |||
|---|---|---|---|
|
DOOR
WIDTH (INCHES) |
APPROXIMATE
DOOR WEIGHT (POUNDS) |
1430
DOOR CLOSERS |
L 1431*
DOOR CLOSERS |
| 24 | 80 | 1-3 CCW | |
| 30 | 110 | FACTORY** | FACTORY** |
| 32 | 115 |
FACTORY**
SET |
SET |
| 36 | 130 | OLI | 4-7 CW |
| 40 | 150 | 1-3 CW | 4-7 CW |
| 42 | 155 | 1-3 CW | 7-10 CW |
| 44 | 165 | 4-7 CW | |
| 46 | 170 | 4-7 CW | |
| 48 | 180 | 7-10 CW | |
| OVER 48 | 7-10 CW | ||
- * FOR EXTERIOR DOORS USE 1430 CLOSERS ONLY.
- ** CLOSERS ARE FACTORY SET FOR INTERIOR DOORS.

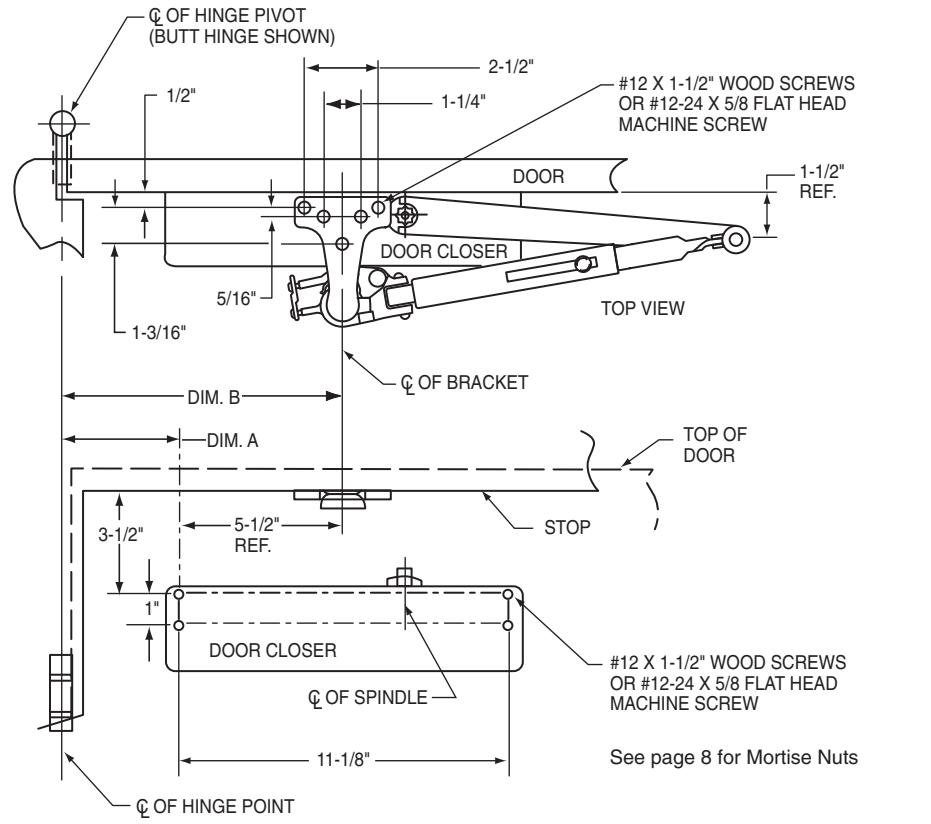

A SELECT DEGREE OF DOOR OPENING REQUIRED AND ATTACH DOOR CLOSER BODY TO DOOR (LONG END TOWARD HINGE) AND FOOT BRACKET TO FRAME ACCORDING TO ILLUSTRATION ON PAGE 3.

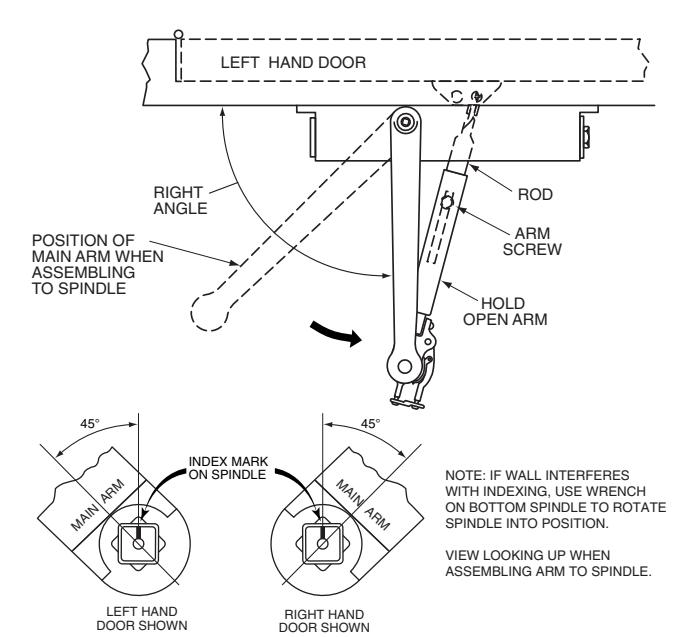

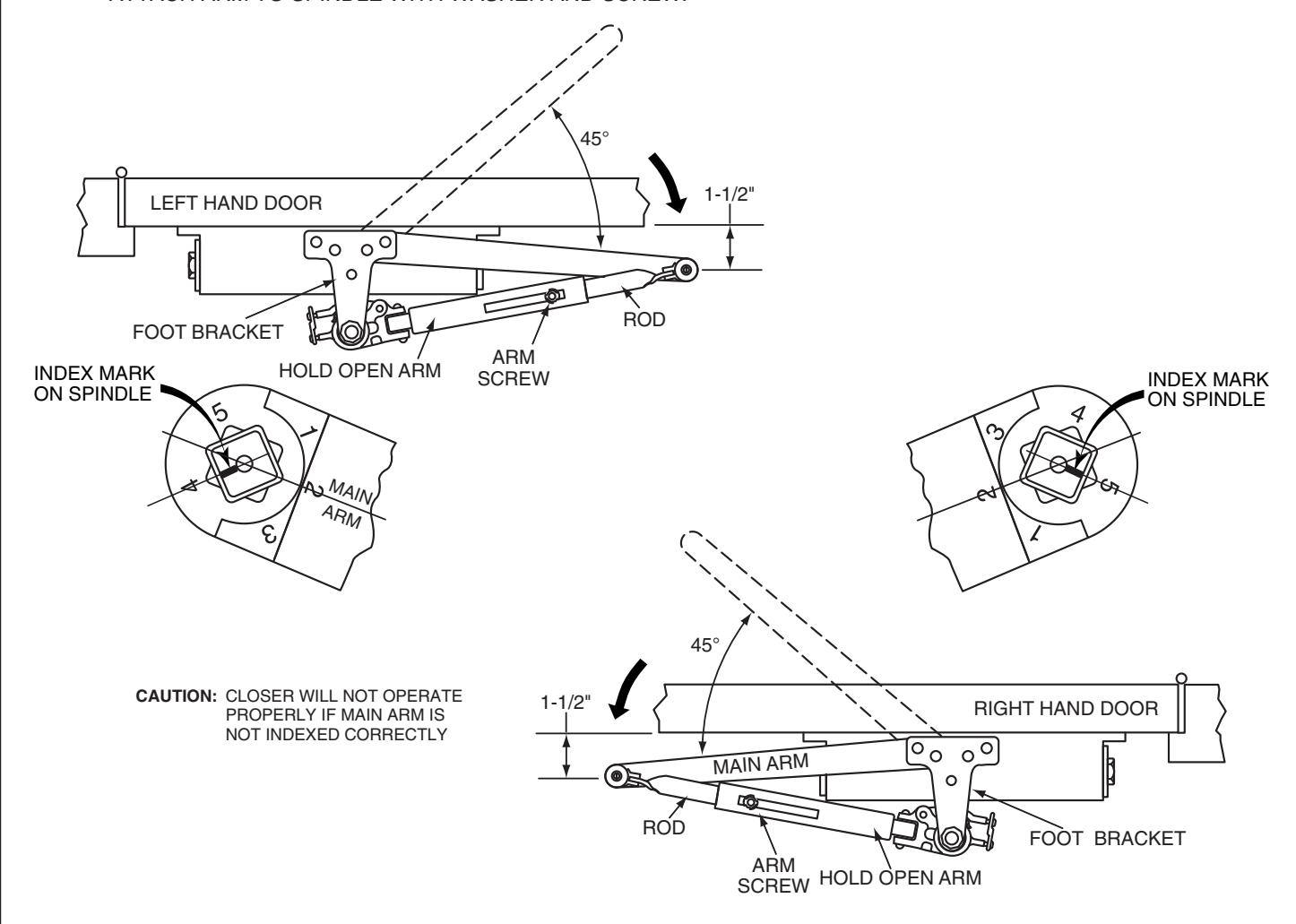

B – ASSEMBLE MAIN ARM TO CLOSER SPINDLE WITH INDEX MARK ON END OF SPINDLE 45° FROM ARM AXIS, AS ILLUSTRATED BELOW.
USE WRENCH ON THE BOTTOM END OF SPINDLE TO ROTATE IT INTO POSITION.
– ATTACH ARM TO SPINDLE WITH WASHER AND SCREW.
-
C OPEN DOOR AND INSERT RECTANGULAR ROD INTO HOLD OPEN ARM.
- CLOSE DOOR AND TIGHTEN ARM SCREW SECURELY WHEN END OF MAIN ARM IS POSITIONED 1-1/2" AWAY FROM DOOR. SEE ILLUSTRATION ABOVE.
D ADJUST AND REGULATE DOOR CLOSER AS DIRECTED ON PAGE 7
PAGE 4
Copyright © 2009, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
TOP JAM APPLICATION
INSTALLATION INSTRUCTIONS CLOSER MOUNTED ON FRAME ABOVE STOP SIDE OF A DOOR

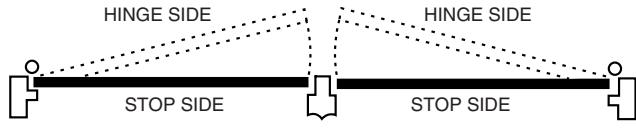

LEFT HAND DOOR ILLUSTRATED SAME DIMENSIONS APPLY FOR RIGHT HAND DOOR MEASURE FROM HINGE CL

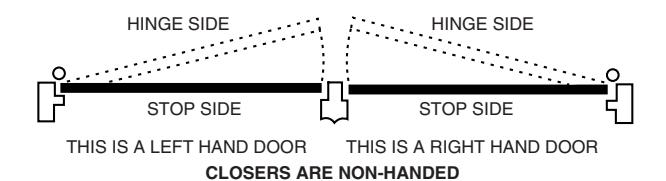

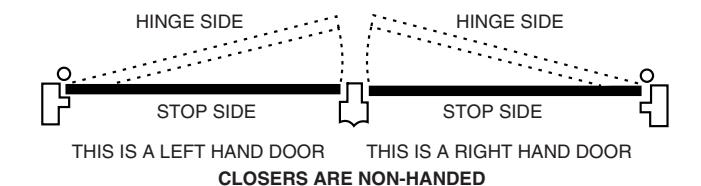

THIS IS A LEFT HAND DOOR THIS IS A RIGHT HAND DOOR CLOSERS ARE NON-HANDED
|
ARM ASSEMBLY
TYPE |
REVEAL DEPTH | DIM. A |
MAX DOOR
OPENING |
RANGE OF
HOLD OPEN |
|---|---|---|---|---|
| "F" ARM | 0" TO 2" | 6" | ||
| "FZ" ARM | 2-1/8" TO 5" | 6-3/4" | 140° | 80° - 130° |
| "FZA" ARM | 5-1/8" TO 8" | 7-1/2" |
ADJUST SPRING POWER ACCORDING TO CHART.
FOR EXTERIOR DOORS AND WHERE STRONG DRAFT EXISTS INCREASE SPRING POWER AS NEEDED BY TURNING SPRING ADJUSTING NUT CLOCK-WISE. IF NECESSARY, DECREASE SPRING POWER TO MEET REQUIREMENTS BY TURNING SPRING ADJUSTING NUT COUNTER CLOCKWISE.
CW-CLOCKWISE CCW-COUNTER CLOCKWISE SPRING ADJUSTMENT
|
NUMBER OF TURNS OF SPRING POWER ADJUSTING NUT*
USE CHART AS GUIDE ONLY. |
|||
|---|---|---|---|
|
DOOR
WIDTH (INCHES) |
APPROXIMATE
DOOR WEIGHT (POUNDS) |
1430
DOOR CLOSERS |
1431*
DOOR CLOSERS |
| 24 | 80 | ||
| 30 | 110 | 1-3 CCW | 1-3 CCW |
| 32 | 115 |
FACTORY**
SET |
|
| 36 | 130 | FACTORY** | |
| 40 | 150 | SET | 4-7 CW |
| 42 | 155 | 1-3 | 7-10 CW |
| 44 | 165 | CW | |
| 46 | 170 | 4-7 | |
| 48 | 180 | CW | |
| OVER 48 | 7-10 CW | ||
- * FOR EXTERIOR DOORS USE 1430 CLOSERS ONLY.
- ** CLOSERS ARE FACTORY SET FOR INTERIOR DOORS.

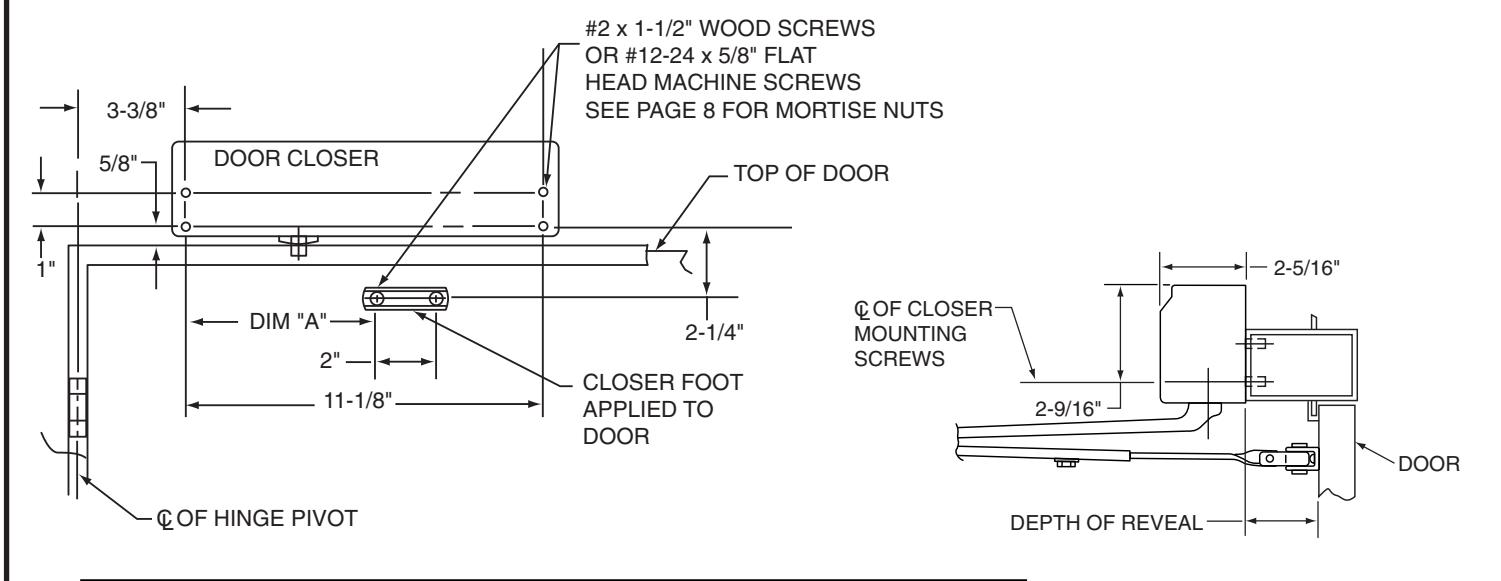

USING ILLUSTRATION ON A PAGE 5 SELECT DEGREE OF DOOR OPENING DESIRED AND ATTACH CLOSER TO DOOR WITH SHORT END TOWARD HINGE

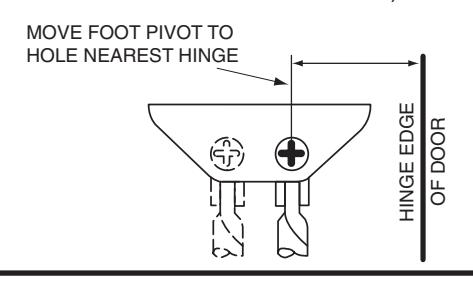

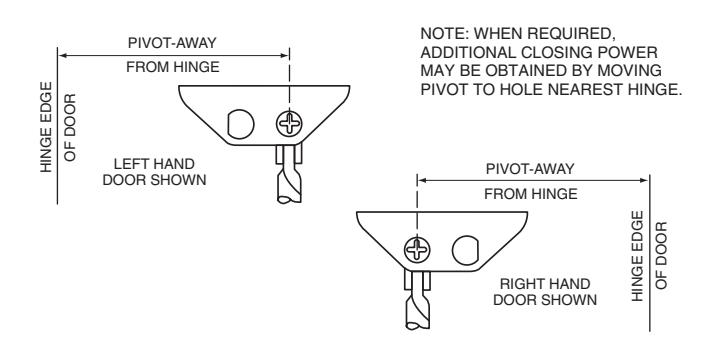

ATTACH FOOT TO DOOR WITH PIVOT AWAY FROM HINGE AS ILLUSTRATED BELOW.
OPEN DOOR AND INSERT RECTANGULAR ROD INTO HOLD OPEN ARM THEN CLOSE THE DOOR AND TIGHTEN ARM SCREW SECURELY WHEN MAIN ARM IS AT RIGHT ANGLE TO DOOR.
ASSEMBLE MAIN ARM TO CLOSER WITH INDEX MARK ON SPINDLE ALIGNED AS SHOWN BELOW. ATTACH ARM WITH SCREW AND WASHER.
CAUTION: CLOSER WILL NOT OPERATE PROPERLY IF MAIN ARM IS NOT INDEXED CORRECTLY
ADJUST AND REGULATE DOOR CLOSER AS DIRECTED ON PAGE 7
ACCESSORIES INFORMATION

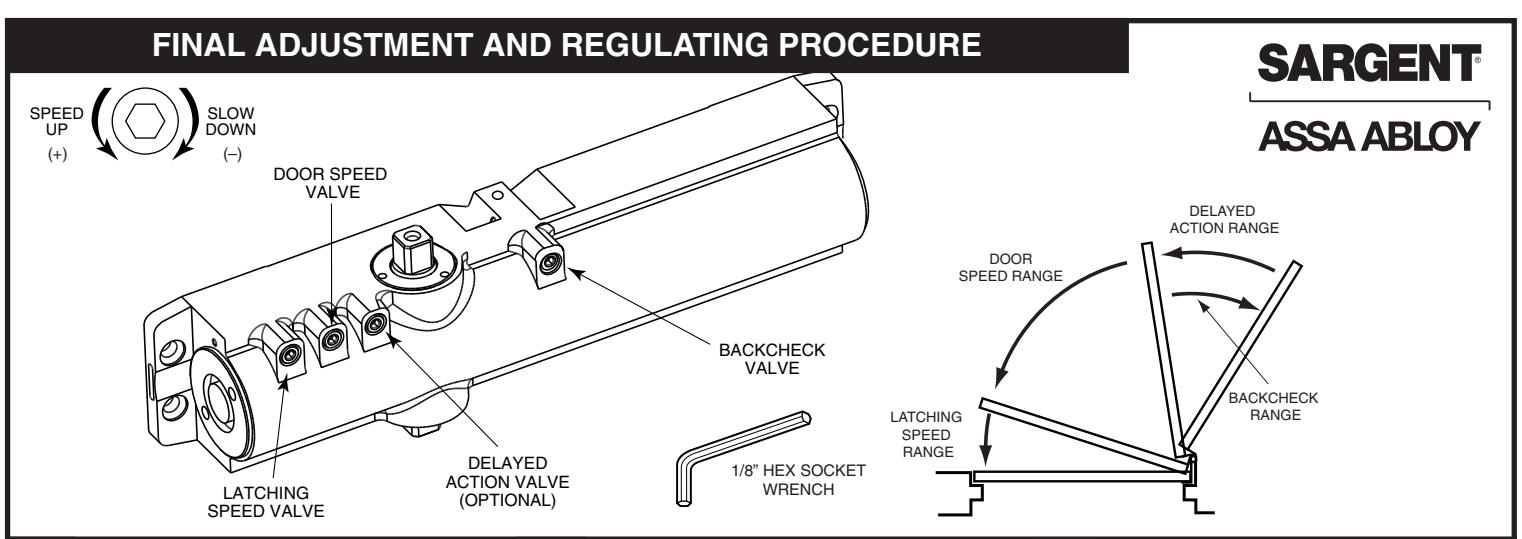

A REGULATING DOOR SPEED AND LATCHING SPEED
USE HEX SOCKET (ALLEN) WRENCH AND TURN VALVE CLOCKWISE TO SLOW DOWN OR COUNTER CLOCK-WISE TO SPEED UP DOOR MOVEMENT AS ILLUSTRATED ABOVE.
B REGULATING BACKCHECK
TO REGULATE THE INTENSITY OF BACKCHECK ACTION, TURN VALVE CLOCKWISE TO INCREASE OR COUNTER CLOCKWISE TO DECREASE CHECKING.
CAUTION:
SET VALVE FOR SLIGHT CUSHIONING EFFECT. IT IS DAMAGING TO THE CLOSER IF THE CHECKING ACTION IS TOO ABRUPT.
FOR MODELS WITH OPTIONAL DELAYED ACTION FEATURE
"DELAYED ACTION" PROVIDE SLOW DOOR CLOSING THROUGH DELAYED ACTION RANGE (SEE ILLUSTRATION ABOVE).
TURN VALVE CLOCKWISE TO SLOW DOWN OR COUNTER CLOCKWISE TO SPEED UP DOOR MOVEMENT.
ADJUSTING FOOT FOR ADDITIONAL CLOSING POWER
(FOR STANDARD AND TOP JAMB APPLICATIONS ONLY)

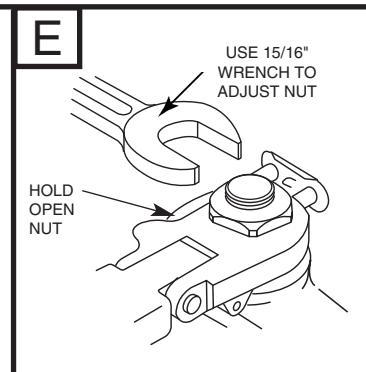

ADJUSTMENT HOLD OPEN ARM
SLIGHT TIGHTENING OR LOOSENING OF HOLD OPEN NUT CHANGES HOLDING POSITION OF DOOR.
NOTE: TO PROTECT WALL, TRIM AND CLOSER. USE A DOOR STOP, LOCATED 10° BEYOND HOLD OPEN POSITIONS BY NOT BEYOND THE MAX. DOOR OPENING SHOWN ON INSTRUCTIONS.

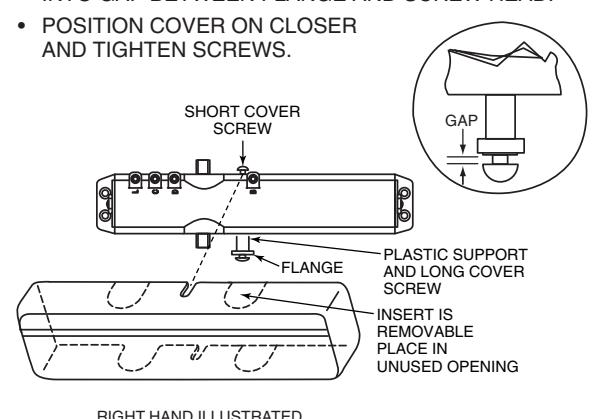

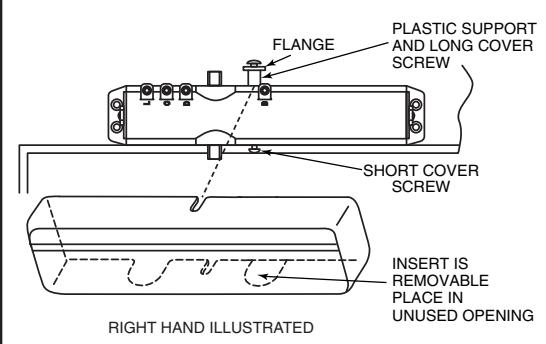

INSTALL COVER AS FOLLOWS
FOR STANDARD AND PARALLEL ARM APPLICATION
- SCREW SHORT COVER SCREW (#8-32 x 5/16") INTO TOP OF CASE APPROXIMATELY 2 TURNS.
- ASSEMBLE PLASTIC SUPPORT AND LONG COVER SCREW (#8-32 x 1-1/4") INTO BOTTOM OF CASE APPROXIMATELY 2 TURNS.
- HOLD SUPPORT AGAINST CASE AND SLIDE COVER INTO GAP BETWEEN FLANGE AND SCREW HEAD.
FOR TOP JAMB APPLICATION
- ASSEMBLE PLASTIC SUPPORT AND LONG COVER SCREW (#8-32 x 1-1/4") INTO BOTTOM OF CASE APPROXIMATELY 2 TURNS.
- SCREW SHORT COVER SCREW (#8-32 x 5/16") INTO BOTTOM OF CASE APPROXIMATELY 2 TURNS.
- SLIDE COVER INTO GAP BETWEEN FLANGE AND SCREW HEAD. POSITION COVER ON CLOSER AND TIGHTEN SCREWS.
ASSA ABLOY, the global leader in door opening solutions
Copyright © 2009, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

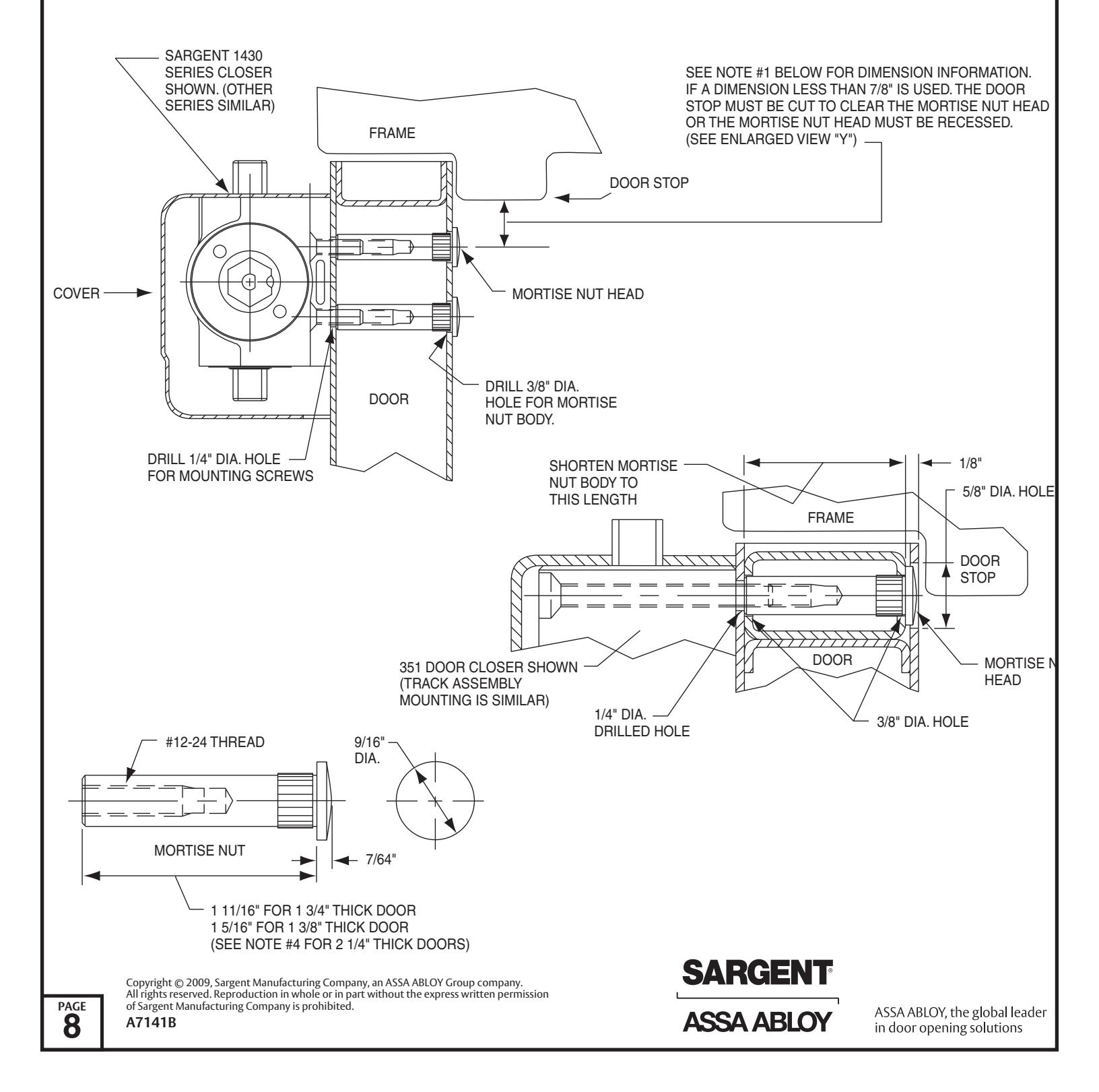

USING MORTISE NUTS WITH SARGENT DOOR CLOSERS
- 1. SEE INSTRUCTIONS OR DATA SHEET PACKED WITH DOOR CLOSER FOR DIMENSIONS LOCATING THE CLOSER BODY AND FOOT ON DOOR AND FRAME
- 2. MORTISE NUT SHOWN IS DESIGNED FOR AN UNREINFORCED METAL DOOR.
- 3. FOR TOP JAMB AND CORNER BRACKET APPLICATIONS: THE DOOR CLOSER FOOT WILL BE ATTACHED TO THE DOOR IN A MANNER SIMILAR TO THAT SHOWN FOR MOUNTING THE CLOSER BODY.
- 4. FOR DOORS 2 1/4" THICK: MORTISE NUT SHOWN FOR 1 3/4" THICK DOORS WILL BE FURNISHED ALONG WITH APPORPRIATE LENGTH THRU-BOLTS. DOOR CONSTRUCTION MUST PROVIDE A BRIDGE TYPE REINFORCEMENT TO PREVENT THE DOOR RAIL FROM COLLAPSING WHEN THRU-BOLTS ARE TIGHTENED.
