Installation Instructions for 579 Replacement Spindle Kit

SARGENT

INSTALLATION INSTRUCTIONS Replacement Spindle Kit 579

ASSA ABLOY

FOR INSTALLATION ASSISTANCE CALL SARGENT AT 1-800-727-5477 • www.sargentlock.com

TOOLS REQUIRED

• 1. 3/32° PUNCH
• 2. 1/4" PUNCH
• 3. BALL PIEN HAMMER

STEP

PLACE OLD LEVER ASSEMBLY ON SOLID (1) SURFACE, USE RAG OR PAD TO PREVENT MARRING FINISH.

STEP (2)

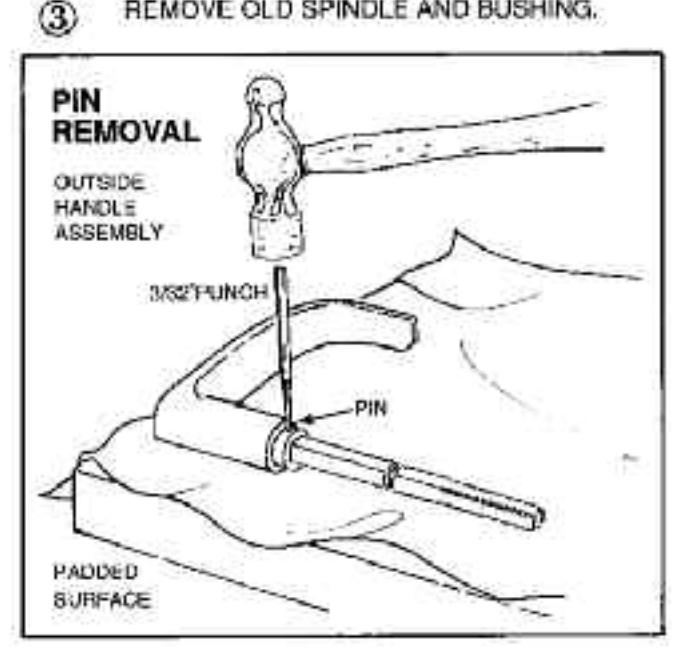

DRIVE OUT ROLL PIN USING 3/32" PUNCH. DISCARD PIN.

STEP

REMOVE OLD SPINDLE AND BUSHING.

STEP

INSTALL NEW SPINDLE ASSEMBLY INTO 4 LEVER OPENING... ALIGN PIN HOLE IN LEVER SHANK.

STEP (5)

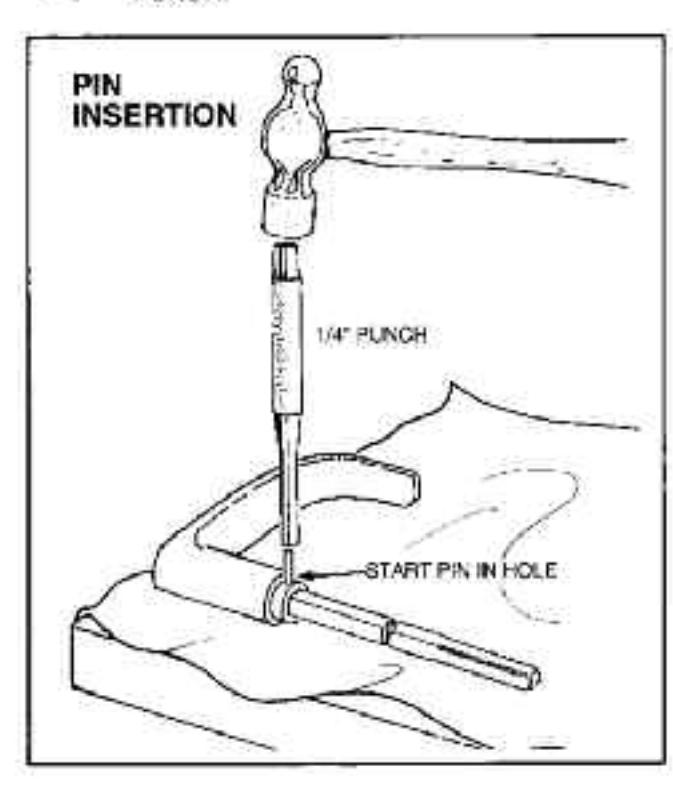

PLACE NEW ROLL PIN IN HOLE OF LEVER.

STEP (6)

DRIVE PIN FLUSH WITH LEVER USING 1/4" PUNCH.

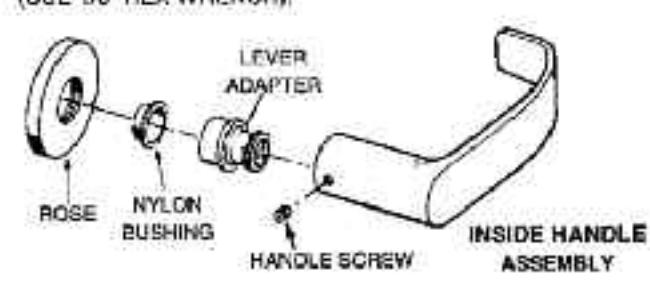

APPLY HANDLES

• 1. FROM OUTSIDE FACE OF DOOR APPLY NYLON BUSHING AND INSERT OUTSIDE HANDLE ASSEMBLY.
• 2. SCREW LEVER ADAPTER ONTO INSIDE SPINDLE UNTIL BOTTOMED ON NYLON BUSHING.
• 3. SLIDE INSIDE HANDLE OVER LEVER ADAPTER AND INSIDE SPINDLE, LOCK IN PLACE WITH HANDLE SCREW (USE 1/8" HEX WRENCH).

OUTSIDE HANDLE ASSEMBLY 0 NYLON BUSHING STEP (7) REASSEMBLE SPINDLE AND LEVERS TO DOOR USING NEW PARTS FURNISHED. PLEASE NOTE: AFTER THE LEVER ADAPTER IS SCHEMED ONTO THE SPINDLE. AND BOTTOMED ON THE NYLCH BLEVENIX A MINIMUM OF POUR SENDLE THELADS SHOULD BE EXPOSED. THIS WILL ALLOW PROPER ENVIAGEMENT IN THIS LEVER HANDLE BROACH.
