Brass Cylinders Storefront & Replacement Hardware MSRP List Price

June 13, 2022

Storefront Hardware Section:

Mortise Cylinder Deadbolts	2-5	How to Order	21

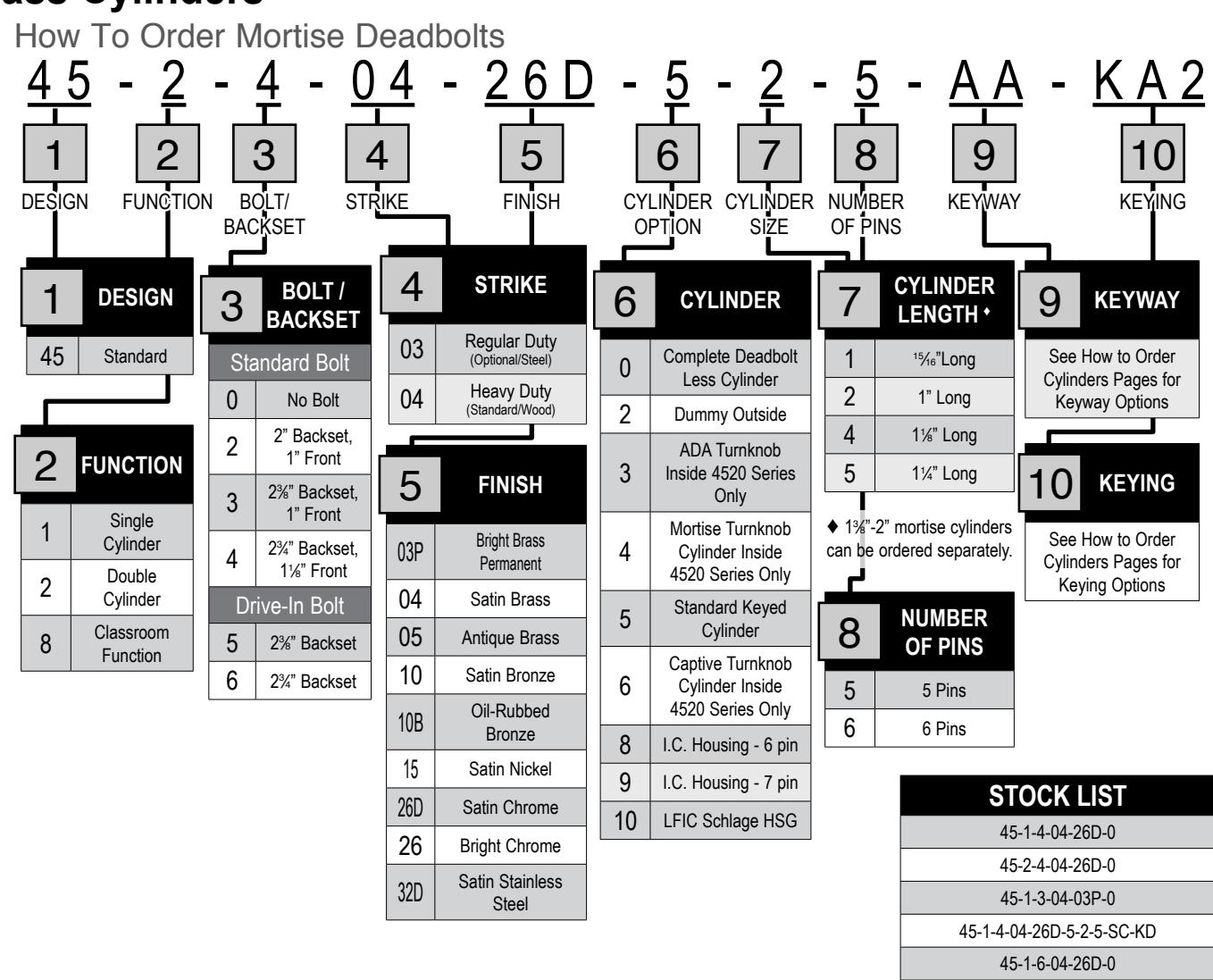

How to Order and Models	2-3	Mortise Locks - For Aluminum Site Doors	22-25
Bolts, Components, Accessories, Cylinders	4-5	Deadbolt, Hookbolt, Deadlatch
How to Order Cylinders	6-12	Faceplates, Strikes
Mortise Cylinders, Parts, Accessories	8-10	Lever Handles and Push/Pull Paddles	26-27
Rim Cylinders, Parts, Accessories	10
KIK Universal and Specialty Cylinders	11-12	Threshold, Header and Flush Bolts

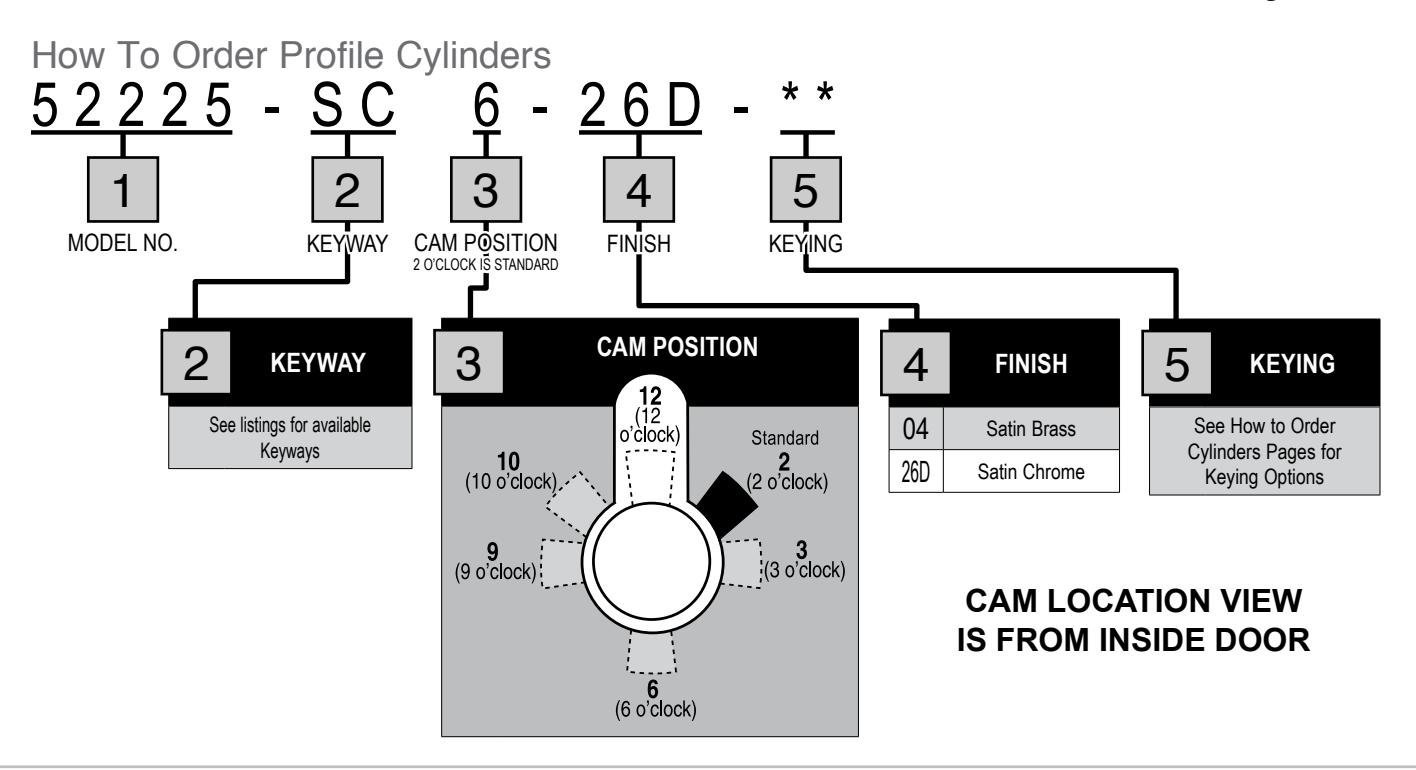

Euro Profile Cylinders	13	Flushbolts, Header Bolts, Threshold Bolt
How to Order, Models	13	Lock Indicator Set, Bottom Locks

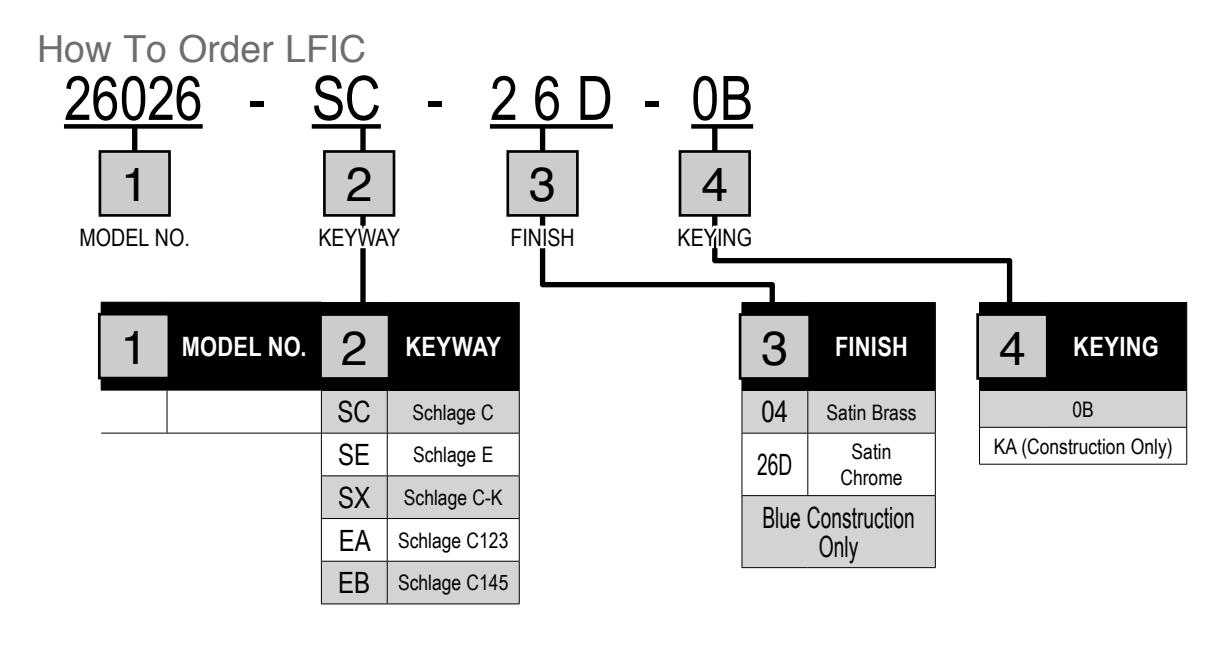

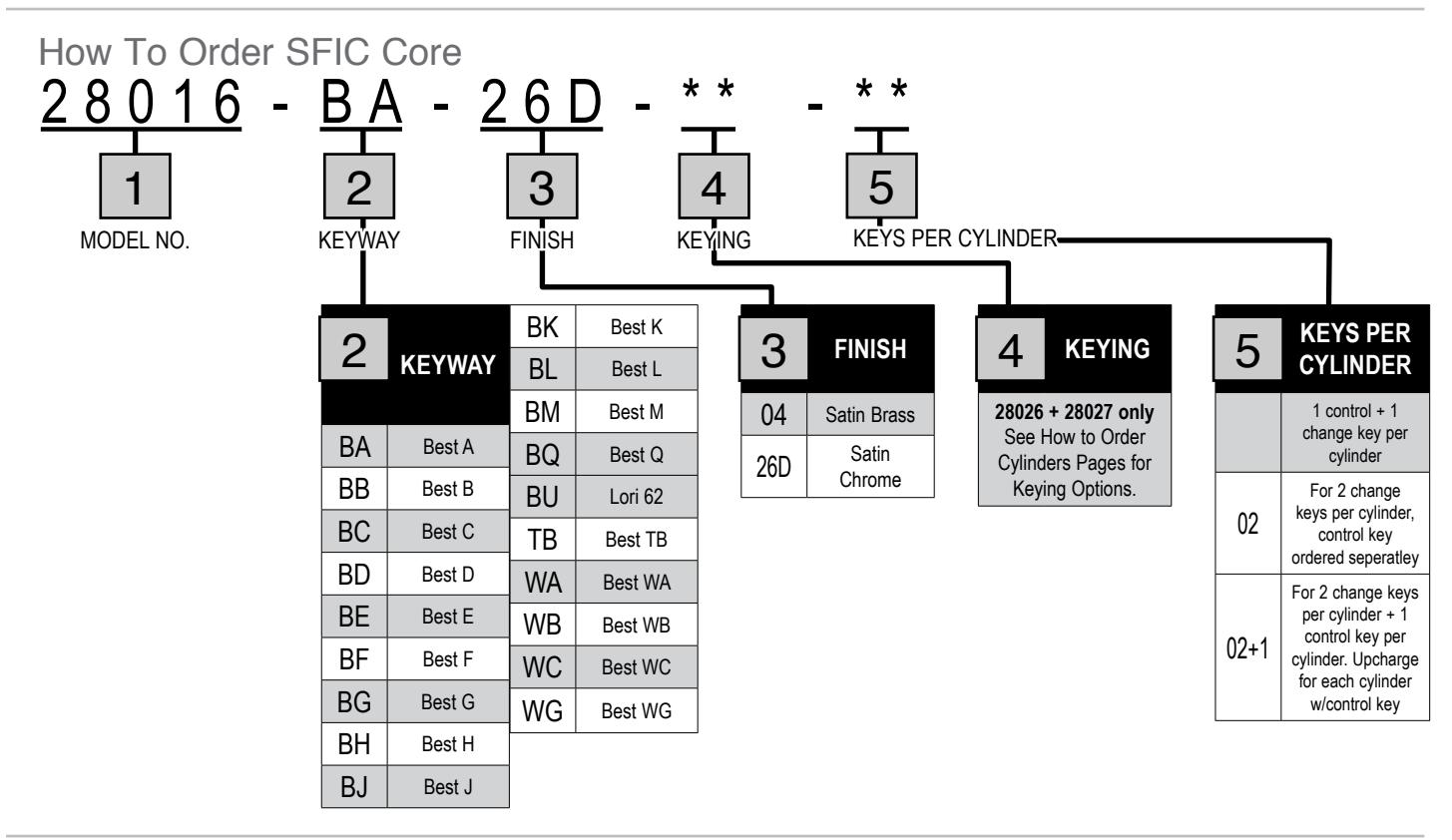

SFIC / LFIC Core	14-18	Dust Proof Strikes
Small Format, How to Order, Models		Offset Pivots
Large Format, How to Order, Models		IL-OP Series

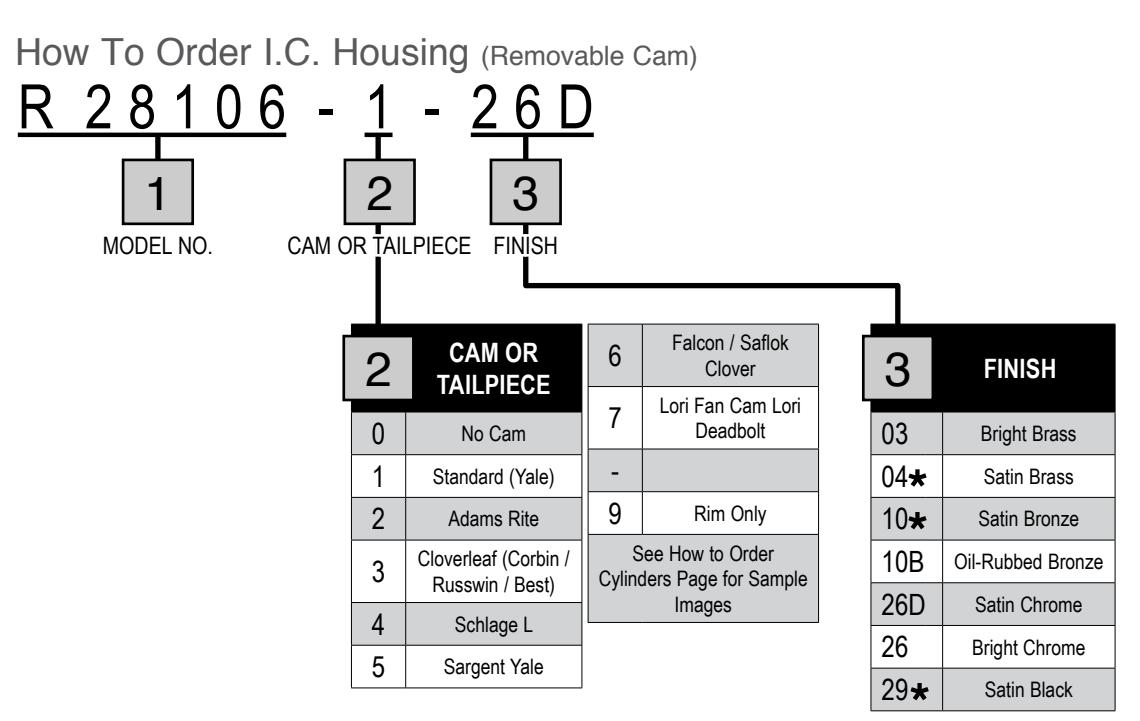

IC Housings, How to Order, Models		IP-10, 12, 22 Series	30
		Door Stops	30
USPS Box Cylinders		Zinc Cylinders	31
Cylinder Kits	18
Brass Cylinder Stock List	19
Brass Cylinder Replacement Keys	20
			1
		West of the second
Replacement Hardware:
Auxilary Locks		Sliding Door Locks	3
Replacement Rim Cylinders	32	Filing Cabinet Locks	3!
Replacement Door Knobs and Accessories		Switch Locks	3
Window and Door Locks	33	Show Case Locks	3
Cam Lock Kits	33	Disc Tumbler Kit	3
Thumbturn and Latching Locks		Picks and Wrenches	30
Tubular Cam Lock Kits	33	Pick Gun
Specialty Locks	33-34	Pick Kits
Key Accessories and Assortments	34	Locksmith Tools	•
Desk and Drawer Locks		Key Stamps
Removable Core Locks	34
		Pins (Colored) and Pinning Kit Spindles
		Strikes
		JUINES

Brass Cylinders:

Mortise Cylinder Deadbolts

Product Number	Description	MSRP
4510	Single Complete Deadbolts
	04 Finish	$71.95
	03P, 05, 10, 15, & 26D Finish	$76.30
	10B, 26, & 32D Finish	$91.40
4520	Double Complete Deadbolts
	04 Finish	$83.95
	03P, 05, 10, 15, & 26D Finish	$88.95
	10B, 26, & 32D Finish	$97.90
4580	Classroom Function Complete Deadb	olts
	04 Finish	$87.85
	03P, 05, 10, & 26D Finish	$93.40
	10B, 26, & 32D Finish	$102.35
Deadbolt Deductions
Less Cyl Single Deadbolt		$7.25
Less Cyl Double Deadbolt		$14.50
Less Cyl Classroom Deadbolt		$7.25
Less Bolt $5.		$5.00

2 Brass Cylinders June 13, 2022

Deadbolt Upcharges

Upcharges	MSRP
Add Mortise Turnknob Inside - Double Deadbolt Only	$4.45
Add ADA Mortise Turnknob Inside - Double Deadbolt Only	$7.00
Add Mortise Turnknob Double Deadbolt	$3.00
Add One Captive Turnknob All Models	$30.00
Add 6 Pin SFIC Housing Single & Classroom Deadbolt	$7.10
Add 7 Pin SFIC Housing Single & Classroom Deadbolt	$7.30
Add 6 Pin SFIC Housing Double Deadbolt	$14.20
Add 7 Pin SFIC Housing Double Deadbolt	$14.60
Add 6 Pin Schlage LFIC Housing Single & Classroom Deadbolt	$9.50
Add 6 Pin Schlage LFIC Housing Double Deadbolt	$19.00
6 Pin Standard Cylinder Single Deadbolt	$2.00
6 Pin Standard Cylinder Double Deadbolt	$4.00
Keyway Upcharges	$2.75
Non-Stock KA Combination Upcharge	$2.75

4510 Deadbolt Component Pricing

XX = Finish

Component	Description	MSRP
4510-xx-1-00-900	04 Finish	$40.15	^
4510-xx-1-00-900	03P, 05, 10, 15, & 26D Finish	$44.50	^
4510-xx-1-00-900	10B, 26, 32D Finish	$59.55	^

4520 Deadbolt Component Pricing

XX = Finish

Component	Description	MSRP
4520-xx-1-00-900	04 Finish	$39.00 ^
4520-xx-1-00-900	03P, 05, 10, 15, & 26D Finish	$44.00 ^
4520-xx-1-00-900	10B, 26, 32D Finish	$53.40 ^

Bolts

XX = Finish ( Choose from 03 or 26D only )

Component	Description	MSRP
4540-xx-5014	Drive In 2 3/8" Backset	$23.00	^
4550-xx-5001	Drive In 2 3/4" Backset	$23.00	^
4500-xx-5000	Standard 2 3/8" Backset	$18.35	^
4510-xx-5001	Standard 2 3/4" Backset	$18.35	^
4900-xx-5008	Special 2" Backset Bolt & Hsg	$36.75	^
4900-xx-5004	Special 2" Backset Bolt Only	$18.35	^
4900-xx-5005	Special 2" Backset Hsg Only	$18.35	^

Front/Faceplate

XX = Finish

Component	Description	MSRP
4500-xx-5012	1" For 2" & 2 3/8" Bolts	$4.60	^
4510-xx-5012	1 1/8" For 2 3/4" Bolts	$4.60	^

Strikes

XX = Finish

Component	Description	MSRP
4500-xx-5011	For Wood Jam With Reinforcer	$10.00	^
4500-xx-5013	For Steel Jam With Dust Box	$6.75	^
4500-83-2000	Dust Box Only	$2.05	^

Brass Cylinders 3 June 13, 2022

Housing for Bolts

Component	Description	MSRP
4500-84-5003	For 2 3/8" & 2 3/4" Backsets	$19.40	^
4900-84-5005	For 2" Backsets	$19.40	^

Thumbturn Lever /Rose Assembly

XX = Finish

Component	Description	MSRP
4500-xx-5016	Thumbturn Lever Assembly For 4500 Series	$22.30	^
4500-82-2007	Thumbturn Tailpiece Only	$0.80	^
4500-82-2008	Long Thumbturn Tailpiece (1 1/4")	$1.60	^
702-00-10	Thumbturn/Tailpiece C Retainer	$1.70	^

Screws

XX = Finish

Component	Description	MSRP
4500-82-4014	Housing Screw (8/32 X 1")	$0.65	^
4500-xx-4018	Thumbturn Lever Rose Assembly Screws	$0.65	^
4500-xx-4025	Long Rose Screws For Thick Doors	$0.65	^
4500-99-4015	Set Screw	$0.65	^
4500-80-1017	3" Screw For HD Strike	$1.50	^
4500-xx-1036	3/4" Screw For standard Strike/Front	$0.65	^

Collars & Roses

XX = Finish

Component	Description	MSRP
4500-xx-5017	Outside Rose - See "How To Order Mortise Deadbolts" For Available Finishes	$15.95	^
861E-xx-10	5/32" Aluminum Collar - For Available Finishes See Collar Section	$3.00	^
4500-81-4020	Wave Washer	$1.50	^
4500-xx-5025	Spacer - For Use With SFIC & Schlage LFIC - 3 Finishes 03, 10B, 26D	$4.45	^

Miscellaneous

XX = Finish

Component	Description	MSRP
4500-80-4016	5/64" Long Shank Allen Wrench	$1.30	^
863R-00-10	Deadbolt Fan Cam For Mortise Cylinder	$1.75	^
4500-80-2013	Security Cover For Cam/Keyway	$0.65	^
4500-82-1012	Steel Strike Reinforcer Less Screws	$1.50	^
4500-xx-5050	2 1/4" Thick Door Kit For 4510 - Use With 1 1/4" Cylinder	$19.40	^

4 Brass Cylinders June 13, 2022

Cylinder Upcharges - Mortise, Rim, and KIK

Charge	MSRP
Keyway Upcharge *	$2.75
MK	$6.25
GMK	$6.90
Extra Keys	$5.30
Construction MK Keying	$7.90
Add Construction Prep	$2.50
Finish Upcharge	$1.25
Non-Stock KA Combo	$2.75

^* Keyways that are upcharged: CC, CD, RA, UB, UE, and UD

Brass Cylinders 5 June 13, 2022

How to Order Cylinders

Example: Standard 1 inch, 5 pin mortise cylinder, Arrow keyway with Adams Rite cam, satin chrome finish, keyed alike in pairs.

Product Numbers

		adol Ivai	11001
		Mortise Cyli	nders		Turn Knob Mortise Cylinders
Model		Des	cription		Model		Desc	ription
7124	3⁄4"	(19 mm)	4 Pin		7151	15 ⁄16"	(23.8 mm)	Turn Knob
7155	15 ⁄16"	(23.8 mm)	5 Pin		7161	1"	(25.4 mm)	Turn Knob
7165	1"	(25.4 mm)	5 Pin	diadaya	7181	11/8"	(28.6 mm)	Turn Knob
7185	1½"	(28.6 mm)	5 Pin	Drilled 6 Pin	7201	1¼"	(31.7 mm)	Turn Knob
7186	1½"	(28.6 mm)	6 Pin		7221	1 3 ⁄6"	(34.9 mm)	Turn Knob
7205	1¼"	(31.7 mm)	5 Pin	Drilled 7 Pin	7241	1 1 /2"	(38.1 mm)	Turn Knob
7206	1¼"	(31.7 mm)	6 Pin	Drilled 7 Pin	7261	1 5 ⁄8"	(41.2 mm)	Turn Knob
7207	1¼"	(31.7 mm)	7 Pin		7281	1 3 ⁄4"	(44.4 mm)	Turn Knob
7225	1 3 ⁄8"	(34.9 mm)	5 Pin	Drilled 7 Pin	7301	1 7 ⁄8"	(47.6 mm)	Turn Knob
7226	1 3 ⁄8"	(34.9 mm)	6 Pin	Drilled 7 Pin	7321	2"	(50.8 mm)	Turn Knob
7227	1 3 ⁄8"	(34.9 mm)	7 Pin		ADA7151	15 ⁄16"	(23.8 mm)	ADA Turn Knob
7245	1 1 /2"	(38.1 mm)	5 Pin	Drilled 7 Pin	ADA7161	1"	(25.4 mm)	ADA Turn Knob
7246	1 1 /2"	(38.1 mm)	6 Pin	Drilled 7 Pin	ADA7181	11⁄8"	(28.6 mm)	ADA Turn Knob
7247	1 1 /2"	(38.1 mm)	7 Pin	SC Keyway Only	ADA7201	1¼"	(31.7 mm)	ADA Turn Knob
7265	1 5 ⁄8"	(41.2 mm)	5 pin	SC Keyway Only	ADA7221	1 3 ⁄8"	(34.9 mm)	ADA Turn Knob
7266	1 5 ⁄8"	(41.2 mm)	6 pin	SC Keyway Only	ADA7241	1 1 /2"	(38.1 mm)	ADA Turn Knob
7285	1 3 ⁄4"	(44.4 mm)	5 pin	SC Keyway Only	ADA7261	1 5 ⁄8"	(41.2 mm)	ADA Turn Knob
7286	1 3 ⁄4"	(44.4 mm)	6 pin	SC Keyway Only	ADA7281	1 3 ⁄4"	(44.4 mm)	ADA Turn Knob
7305	1 7 ⁄8"	(47.6 mm)	5 pin	SC Keyway Only	ADA7301	1 7 ⁄8"	(47.6 mm)	ADA Turn Knob
7306	1 7 ⁄8"	(47.6 mm)	6 pin	SC Keyway Only	ADA7321	2"	(50.8 mm)	ADA Turn Knob
7325	2"	(50.8 mm)	5 pin	SC Keyway Only	41651	15 ⁄16"	(23.8 mm)	Captive Turn Knob
7326	2"	(50.8 mm)	6 pin	SC Keyway Only	41671	1½"	(28.6 mm)	Captive Turn Knob

	Key-In-Knob Cylinders Rim Cylinders					ers
Model		Descrip	otion	Model	Model Description
15395	5 Pin	UniversalLocks	set/Leverset/Padlock	7075		5 Pin Cylind	er with screw cap
15396	6 Pin	UniversalLocks	set/Leverset/Padlock	7076			er with screw cap
15495	5 Pin	Cylindrical Dea	adbolt		Dum	my Martina	Culindara
15496	6 Pin	Cylindrical De	adbolt		Dum	my Mortise (
15685	5 Pin	Emtek Cylindri	ical Deadbolts	Model	45		ription
15795	5 Pin	Sargent 6 Line	e, 10 Line, T Zone	7150	15 ⁄16"	(23.8 mm)	Dummy
15796	6 Pin	Sargent 6 Line	e, 10 Line, T Zone	7160	1"	(25.4 mm)	Dummy
15985	5 Pin	Combination k		7180	1½"	(28.6 mm)	Dummy
15995	5 Pin	Combination K		7200	1¼"	(31.7 mm)	Dummy
15996	6 Pin	Combination k		7220	1 3 /8"	(34.9 mm)	Dummy
15550	01111	Combination	(10b/Deadboil	7240	1 1 /2"	(38.1 mm)	Dummy
	Turn	Knob Rim Cyli	inders	7260	1 5 ⁄8"	(41.2 mm)	Dummy
Model		Descri	otion	7280	1 3 ⁄4"	(44.4 mm)	Dummy
7011		Turnknob Ri	m Cylinder	7305	1 7 ⁄6"	(47.6 mm)	Dummy
	Dur	nmy Rim Cylii	nders	7325 2" (50.8 mm) Dummy			Dummy
Model		Desci	ription
7010	11/8"	(28.6 mm)	Dummy Rim

Cylinder

KEYWAY MODEL NO. CAM OR FINISH KEYING TAILPIECE Keyways Schlage Arrow Sargent LA-LC SX AA GB 1179 LA-LC C-K, 1145 ILCO® Corbin 60 Sargent RA-RC CA UΑ GC 1001EH X1054K RA-RC Lori L100 * Eagle 11929 Harloc 700 Corbin 67 Kwikset CB KS 1001EN 1176 UB Corbin 77 🖈 Lockwood Lori 90 🖈 6 pin only CC LA UD R1001EN 1004 Centric 90 Corbin * Composite Lori 80 🖈 CD 5 pin NA UE 59A1-A2 R1064E Lori 80 Corbin/ Composite Russwin Weiser E CE Falcon NB WA HR1 1054WB 1054WC Do min on Russwin 🖈 1054F RA Weiser DA 5981R S54F N1011P WE Schlage P1555 Russwin D1 Everest Yale 8 EΑ RB C123 1011D1 YA Schlage 999 Schlage C Everest Yale EB SC C145 1145 YG Yale GA Segal 9 Schlage E FA SE (1022)1145E Sargent LA Schlage F GA 1007LA 1145F * Add 2.75 to Sugg. List for these keyways

<u>2</u> - <u>2 6 D</u> - <u>K A 2</u>

<u> 165</u>

6 Brass Cylinders June 13, 2022

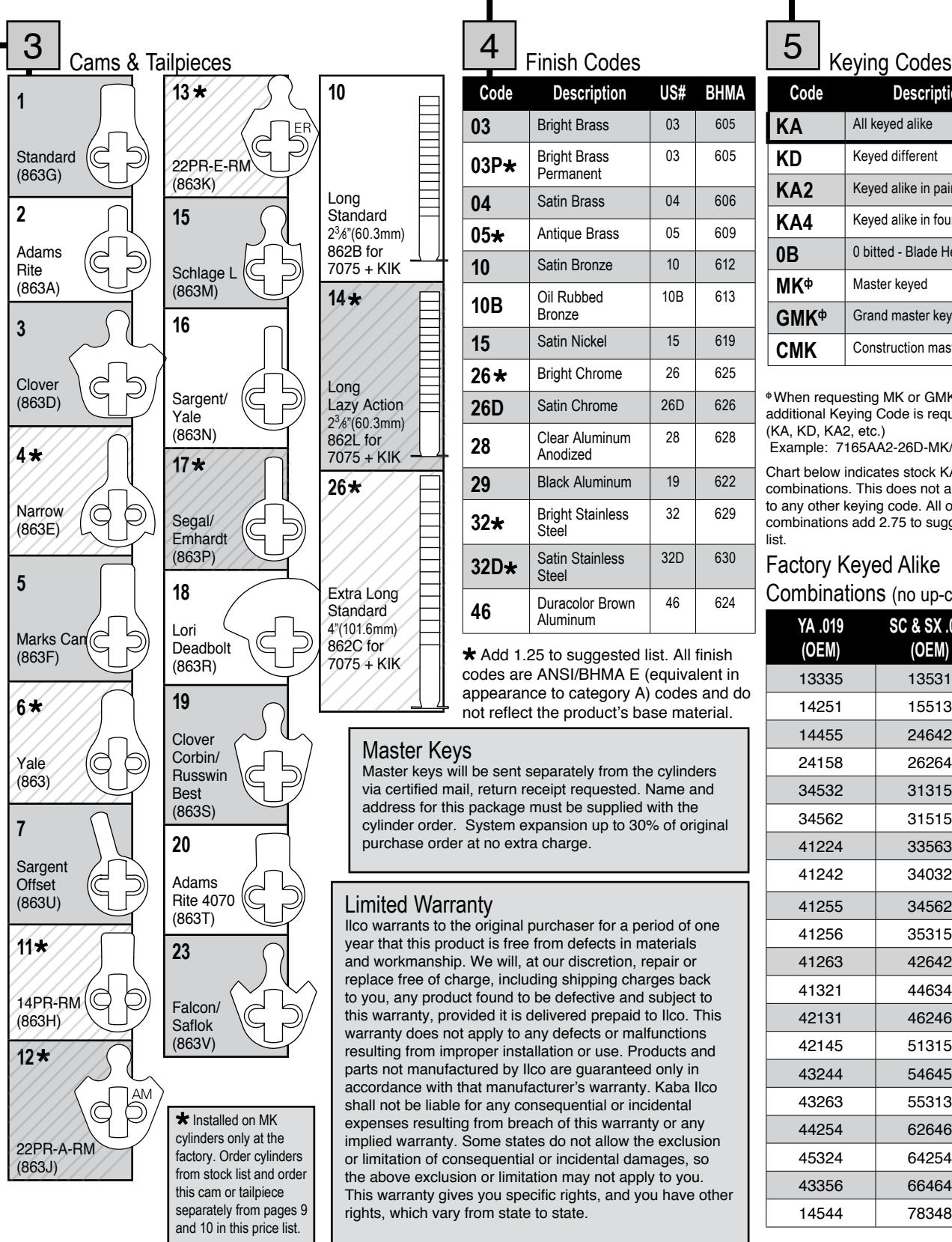

Less Keys

^& quot;All cylinders are OB to Blade Height"

^* Kwikset keyway only available in 5 pin

Code	Description	US#	BHMA
03	Bright Brass	03	605
03P	Bright Brass Permanent	03	605
04	Satin Brass	04	606
05	Antique Brass	05	609
10	Satin Bronze	10	612
10B	Oil Rubbed Bronze	10B	613
15	Satin Nickel	15	619
26	Bright Chrome	26	625
26D	Satin Chrome	26D	626
28	Clear Aluminum Anodized	28	628
29	Black Aluminum	19	622
32	Bright Stainless Steel	32	629
32D	Satin Stainless Steel	32D	630
46	Duracolor Brown Aluminum	46	624

Add 1.25 to suggested list. All finish codes are ANSI/BHMA E (equivalent in appearance to category A) codes and do not reflect the product's base material.

Master Keys

Master keys will be sent separately from the cylinders via certified mail, return receipt requested. Name and address for this package must be supplied with the cylinder order. System expansion up to 30% of original purchase order at no extra charge.

Limited Warranty

Ilco warrants to the original purchaser for a period of one year that this product is free from defects in materials and workmanship. We will, at our discretion, repair or replace free of charge, including shipping charges back to you, any product found to be defective and subject to this warranty, provided it is delivered prepaid to Ilco. This warranty does not apply to any defects or malfunctions resulting from improper installation or use. Products and parts not manufactured by Ilco are guaranteed only in accordance with that manufacturer's warranty. Kaba Ilco shall not be liable for any consequential or incidental expenses resulting from breach of this warranty or any implied warranty. Some states do not allow the exclusion or limitation of consequential or incidental damages, so the above exclusion or limitation may not apply to you. This warranty gives you specific rights, and you have other rights, which vary from state to state.

Code	Description
KA	All keyed alike
KD	Keyed different
KA2	Keyed alike in pairs
KA4	Keyed alike in fours
0B	0 bitted - Blade Height
MKф	Master keyed
GMKф	Grand master keyed
CMK	Construction master keyed

^ф When requesting MK or GMK, an additional Keying Code is required (KA, KD, KA2, etc.) Example: 7165AA2-26D-MK/KA2

Chart below indicates stock KA bitting combinations. This does not apply to any other keying code. All other combinations add 2.75 to suggested list.

Factory Keyed Alike Combinations (no up-charge)

YA .019 (OEM)	SC & SX .015 (OEM)
13335	13531
14251	15513
14455	24642
24158	26264
34532	31315
34562	31515
41224	33563
41242	34032
41255	34562
41256	35315
41263	42642
41321	44634
42131	46246
42145	51315
43244	54645
43263	55313
44254	62646
45324	64254
43356	66464
14544	78348

Brass Cylinders 7 June 13, 2022

Mortise Cylinders

Product Number	Description	Length	Pinning	MSRP
7124	Keyed Mortise	3/4" (19mm)	4 Pin (LA & YA Keyways Only)	$18.25	^
7155	Keyed Mortise	15/16" (23.8mm)	5 Pin	$16.55	^
7165	Keyed Mortise	1" (25.4mm)	5 Pin	$16.60	^
7185	Keyed Mortise	1 1/8" (28.6mm)	5 Pin Drilled 6	$16.65	^
7186	Keyed Mortise	1 1/8" (28.6mm)	6 Pin	$17.50	^
7205	Keyed Mortise	1 1/4" (31.7mm)	5 Pin Drilled 7	$16.70	^
7206	Keyed Mortise	1 1/4" (31.7mm)	6 Pin Drilled 7	$17.75	^
7207	Keyed Mortise	1 1/4" (31.7mm)	7 Pin	$19.05	^
7225	Keyed Mortise	1 3/8" (34.9mm)	5 Pin Drilled 7	$31.70	^
7226	Keyed Mortise	1 3/8" (34.9mm)	6 Pin Drilled 7	$33.25	^
7227	Keyed Mortise	1 3/8" (34.9mm)	7 Pin	$34.70	^
7245	Keyed Mortise	1 1/2" (38.1mm)	5 Pin Drilled 7	$32.10	^
7246	Keyed Mortise	1 1/2" (38.1mm)	6 Pin Drilled 7	$33.60	^
7247	Keyed Mortise	1 1/2" (38.1mm)	7 Pin	$35.05	^
7265*	Keyed Mortise	1 5/8" (41.2mm)	5 Pin Drilled 6	$65.15	^
7266*	Keyed Mortise	1 5/8" (41.2mm)	6 Pin	$69.10	^
7285*	Keyed Mortise	1 3/4" (44.4mm)	5 Pin Drilled 6	$66.80	^
7286*	Keyed Mortise	1 3/4" (44.4mm)	6 Pin	$70.75	^
7305*	Keyed Mortise	1 7/8" (47.6mm)	5 Pin Drilled 6	$72.20	^
7306*	Keyed Mortise	1 7/8" (47.6mm)	6 Pin	$76.40	^
7325*	Keyed Mortise	2" (50.8mm)	5 Pin Drilled 6	$80.50	^
7326*	Keyed Mortise	2" (50.8mm)	6 Pin	$84.55	^
7365*	Keyed Mortise	2 1/4" (57.2mm)	5 Pin Drilled 6	$94.10	New
7366*	Keyed Mortise	2 1/4" (57.2mm)	6 Pin	$98.15	New
7405*	Keyed Mortise	2 1/2" (63.5mm)	5 Pin Drilled 6	$107.75	New
7406*	Keyed Mortise	2 1/2" (63.5mm)	6 Pin	$111.85	New
7120	Dummy Mortise	3/4" (19mm)	N/A	$10.00	^
7150	Dummy Mortise	15/16" (23.8mm)	N/A	$10.15	^
7160	Dummy Mortise	1" (25.4mm)	N/A	$10.20	^
7180	Dummy Mortise	1 1/8" (28.6mm)	N/A	$10.25	^
7200	Dummy Mortise	1 1/4" (31.7mm)	N/A	$10.30	^
7220	Dummy Mortise	1 3/8" (34.9mm)	N/A	$12.85	^
7240	Dummy Mortise	1 1/2" (38.1mm)	N/A	$15.35	^
7260	Dummy Mortise	1 5/8" (41.2mm)	N/A	$17.75	^
7280	Dummy Mortise	1 3/4" (44.4mm)	N/A	$20.15	^
7300	Dummy Mortise	1 7/8" (47.6mm)	N/A	$22.55	^
7320	Dummy Mortise	2" (50.8mm)	N/A	$24.95	^
7121	Turnknob Mortise	3/4" (19mm)	N/A	$18.25	^
7151	Turnknob Mortise	15/16" (23.8mm)	N/A	$16.35	^
7161	Turnknob Mortise	1" (25.4mm)	N/A	$16.45	^
7181	Turnknob Mortise	1 1/8" (28.6mm)	N/A	$16.50	^
7201	Turnknob Mortise	1 1/4" (31.7mm)	N/A	$16.55	^
7221	Turnknob Mortise	1 3/8" (34.9mm)	N/A	$39.25	^
7241	Turnknob Mortise	1 1/2" (38.1mm)	N/A	$39.95	^
7261		1 5/8" (41.2mm)	N/A	$40.85	^
	Turnknob Mortise
7281	Turnknob Mortise	1 3/4" (44.4mm)	N/A	$41.55	^

Mortise Cylinders ( continued )

XX = Finish ADA turnknobs below only available in 03, 26D, 10B and 29 finishes

Product Number	Description	Length	Pinning	MSRP
7321	Turnknob Mortise	2" (50.8mm)	N/A	$43.10	^
4135	Classroom Turnknob Mortise	15/16" (23.8mm)	5 Pin	$20.30	^
4136	Classroom Turnknob Mortise	1" (25.4mm)	5 Pin	$21.30	^
4137	Classroom Turnknob Mortise	1 1/8" (28.6mm)	5 Pin Drilled 6	$22.30	^
4138	Classroom Turnknob Mortise	1 1/4" (31.7mm)	5 Pin Drilled 6	$23.30	^
ADA-4135	ADA-Classroom TK Mortise	15/16" (23.8mm)	N/A	$23.00	New
ADA-4136	ADA-Classroom TK Mortise	1" (25.4mm)	N/A	$23.05	New
ADA-4137	ADA-Classroom TK Mortise	1 1/8" (28.6mm)	N/A	$23.10	New
ADA-4138	ADA-Classroom TK Mortise	1 1/4" (31.7mm)	N/A	$23.20	New
41651	Captive Turnknob Mortise	15/16" (23.8mm)	5 Pin	$37.25	^
41661	Captive Turnknob Mortise	1" (25.4mm)	5 Pin	$37.25	^
41671	Captive Turnknob Mortise	1 1/8" (28.6mm)	5 Pin Drilled 6	$37.25	^
4165-xx-5001	Captive Turnknob Key Blank	N/A	N/A	$25.10	^
4165-xx-5002	Captive Turnknob Cut Key	N/A	N/A	$30.65	^
4165-82-2001	Flat Steel Release Key	N/A	N/A	$2.25	^
ADA-7151	ADA Turnknob Mortise	15/16" (23.8mm)	N/A	$22.05	^
ADA-7161	ADA Turnknob Mortise	1" (25.4mm)	N/A	$22.10	^
ADA-7181	ADA Turnknob Mortise	1 1/8" (28.6mm)	N/A	$22.25	^
ADA-7201	ADA Turnknob Mortise	1 1/4" (31.7mm)	N/A	$22.30	^
ADA-7221	ADA Turnknob Mortise	1 3/8" (34.9mm)	N/A	$39.25	^
ADA-7241	ADA Turnknob Mortise	1 1/2" (38.1mm)	N/A	$39.95	^
ADA-7261	ADA Turnknob Mortise	1 5/8" (41.2mm)	N/A	$40.80	^
ADA-7281	ADA Turnknob Mortise	1 3/4" (44.4mm)	N/A	$41.55	^
ADA-7301	ADA Turnknob Mortise	1 7/8" (47.6mm)	N/A	$42.50	^
ADA-7321	ADA Turnknob Mortise	2" (50.8mm)	N/A	$43.10	^

Mortise Parts & Accessories

XX = Finish

XX = Finish Product Number	Description	# In Cylinder Description	MSRP
863G-00-10	Standard Cam	1	$1.90	^
863A-00-10	Adams Rite Cam	2	$1.90	^
863D-00-10	Lockwood/Marks Cloverleaf Cam	3	$1.90	^
863E-00-10	Narrow Cam	4	$1.90	^
863F-00-10	Marks Cam	5	$1.90	^
863-00-10	Yale Cam	6	$1.90	^
863U-00-10	Sargent Offset Cam	7	$1.90	^
863H-00-10	Dominion 14PR-RM Cam	11	$1.90	^
863J-00-10	Dominion 22PR-A-RM Cam	12	$1.90	^
863K-00-10	Dominion 22PR-E-RM Cam	13	$1.90	^
863M-00-10	Schlage L Cam	15	$1.90	^
863N-00-10	Sargent/Yale Straight Cam	16	$1.90	^
863P-00-10	Segal/Emhart C/R DL4000 Cam	17	$1.90	^
863R-00-10	Lori Deadbolt Cam	18	$1.90	^
863S-00-10	Corbin/Russwin/Best Clover Cam	19	$1.90	^
863T-00-10	Adams Rite 4070 cam	20	$1.90	^
863V-00-10	Falcon/Saflok Clover Cam	23	$1.90	^
861A-03-10	Bright Brass Finish, Solid Brass Spring Collar	5/16"-13/32" (7.9-20.6mm)	$8.60	^
861A-26D-10	Satin Chrome Finish, Solid Brass Spring Collar	5/16"-13/32" (7.9-20.6mm)	$8.60	^

Brass Cylinders 9 June 13, 2022

Mortise Parts & Accessories ( continued )

XX = Finish Finishes 03,04,10,10B 26, 26D, 28, 29, or 46.

Product Number	Description	# In Cylinder Description	MSRP
861A-26-10	Bright Chrome Finish, Solid Brass Spring Collar	5/16"-13/32" (7.9-20.6mm)	$8.60	^
861V-xx-10	03,10B,26D,26,28 Finishes, Steel Spring Collar	7/64"-1/4" (2.8-6.35mm)	$4.50	^
861B-03-10	Bright Brass Finish, Steel Tapered Collar	1/4" (6.4mm)	$9.20	^
861B-26D-10	Satin Chrome Finish, Steel Tapered Collar	1/4" (6.4mm)	$9.20	^
861B-46-10	Duro Color Finish, Steel Tapered Collar	1/4" (6.4mm)	$9.20	^
861C-xx-10	Aluminum Collar	3/32" (2.4mm)	$3.00	^
861D-xx-10	Aluminum Collar	1/8" (3.2mm)	$3.00	^
861E-xx-10	Aluminum Collar	5/32" (4.0mm)	$3.00	^
861F-xx-10	Aluminum Collar	1/4" (6.4mm)	$3.00	^
861K-xx-10	Aluminum Collar	3/16" (4.8mm)	$3.00	^
861L-xx-10	Aluminum Collar	7/32" (5.6mm)	$3.00	^
861M-xx-10	Aluminum Collar	9/32" (7.1mm)	$3.10	^
861N-xx-10	Aluminum Collar	5/16" (7.9mm)	$3.10	^
861P-xx-10	Aluminum Collar	11/32" (8.7mm)	$3.10	^
861Q-xx-10	Aluminum Collar	3/8" (9.5mm)	$3.50	^
861R-xx-10	Aluminum Collar	1/2" (12.7mm)	$3.50	^
861T-xx-10	Aluminum Collar	5/8" (15.9mm)	$3.50	^
861K-00-10	Vinyl Collar	3/16" (4.8mm)	$3.50	^
861X-28-10	Stamped Aluminum Collar	13/64" (5.2mm)	$1.05	^
861X-10B-10	Stamped Aluminum Collar	13/64" (5.2mm)	$1.05	^
861X-26D-10	Stamped Aluminum Collar	13/64" (5.2mm)	$2.25	^
861X-26-10	Stamped Aluminum Collar	13/64" (5.2mm)	$2.25	^
869-00-10	Cash Box Nut	N/A	$5.00	^
866B-00-100	Mortise Cam Screws (Bag Of 100)	3 X 48	$10.50	^
704-04-11	Standard Throw TK Disc	N/A	$27.80	^
705-04-11	Long Throw TK Disc	N/A	$27.80	^
7000BH-00-10	Mortise & Rim Bump Halt Kit	N/A	$17.15	^

Brass Rim Cylinders

861S-29-10	Rim Trim Ring	N/A	N/A	$2.50	^
861S-32-10	Rim Trim Ring	N/A	N/A	$2.50	^
861S-32D-10	Rim Trim Ring	N/A	N/A	$2.50	^
861S-46-10	Rim Trim Ring	N/A	N/A	$2.50	^

Product Number	Description	Length	Pinning	MSRP
7075	Keyed Rim	1 1/8" (28.6mm)	5 Pin Drilled 6	$17.80	^
7076	Keyed Rim	1 1/8" (28.6mm)	6 Pin	$18.70	^
7010	Dummy Rim	1 1/8" (28.6mm)	N/A	$13.40	^
7011	Turnknob Rim	1 1/8" (28.6mm)	N/A	$32.80	^
ADA-7011	ADA Turnknob Rim	1 1/8" (28.6mm)	N/A	$32.80	^
749-22-10	Universal Mounting Plate	N/A	N/A	$2.50	^
750B-00-10	Standard Mounting Plate	N/A	N/A	$2.50	^
864-00-10	Standard Break-Off Cylinder Mounting Screw	12-24 X 1 3/4"	N/A	$1.85	^
794-19	Standard Break-Off Cylinder Mounting Screw	12-24 X 2 3/8"	N/A	$2.20	^
862B-00-10	Rigid Tailpiece For 7075/7076	2 3/8" (60.3mm)	N/A	$2.30	^
862C-00-10	Rigid Tailpiece For 7075/7076	4"	N/A	$2.30	^
862L-00-10	Lazy Tailpiece For 7075/7076	2 3/8" (60.3mm)	N/A	$2.30	^

^• EA + EB keyway cylinders are OB to Blade height, Less Keys

10 Brass Cylinders June 13, 2022

Brass Rim Cylinders ( continued )

Product Number	Description	Length	Pinning	MSRP
861S-03-10	Rim Trim Ring	N/A	N/A	$2.50	^
861S-10-10	Rim Trim Ring	N/A	N/A	$2.50	^
861S-10B-10	Rim Trim Ring	N/A	N/A	$2.50	^
861S-26D-10	Rim Trim Ring	N/A	N/A	$2.50	^
861S-29-10	Rim Trim Ring	N/A	N/A	$2.50	^
861S-32-10	Rim Trim Ring	N/A	N/A	$2.50	^
861S-32D-10	Rim Trim Ring	N/A	N/A	$2.50	^
861S-46-10	Rim Trim Ring	N/A	N/A	$2.50	^
1599SW-00-10	Split Washer For Lazy Tailpieces	N/A	N/A	$1.65	^
1599LP-00-10	Screw Cap Lock Pin	N/A	N/A	$0.80	^
1599LPS-00-10	Screw Cap Lock Pin Spring	N/A	N/A	$0.80	^
1599SN-00-10	Screw Cap/Nut	N/A	N/A	$2.50	^

Brass KIK/KIL Universal Cylinders

Product Number	Description	Pinning	MSRP
15395SC-KS-YA	Keyed KIK/KIL Cylinder (0B & KD Only)	5 Pin Drilled 6	$15.05	^
15395 Other	Keyed KIK/KIL Cylinder	5 Pin Drilled 6	$18.35	^
15396	Keyed KIK/KIL Cylinder	6 Pin	$19.35	^
702LA-00-10	"0" Ring Tailpiece Retainer	N/A	$1.65	^
702LB-00-10	Snap Ring Tailpiece Retainer	N/A	$1.65	^
702LD-00-10	Plug "E" Ring Retainer	N/A	$1.65	^
1539AA-00-10	Standard Short Tailpiece	N/A	$2.90	^
1539AB-00-10	Standard Medium Tailpiece	N/A	$2.90	^
1539AC-00-10	Standard Long Tailpiece	N/A	$2.90	^
1539BA-00-10	Sargent Short Tailpiece	N/A	$3.00	^
1539BB-00-10	Sargent Long Tailpiece	N/A	$3.00	^
1539DA-00-10	Anderson French & Sliding Door Tailpiece	N/A	$2.70	^
1539GA-00-10	Marks Knob Locks (Same As 1903-L9)	N/A	$2.40	^
1539GB-00-10	Marks lever Locks (Same As 1903-SL9)	N/A	$2.40	^

Brass KIK/KIL/KID Universal Cylinders W/ Screwcap

Product Number	Description	Length	Pinning	MSRP
15985	Keyed KIK/KIL/KID Cylinder (5 Pin Only Length)		5 Pin Only	$20.35	^
15995SC-KS-YA	Keyed KIK/KIL/KID Cylinder (0B & KD Only)		5 Pin Drilled 6	$15.55	^
15995 All Others	Keyed KIK/KIL/KID Cylinder		5 Pin Drilled 6	$20.35	^
15996	Keyed KIK/KIL/KID Cylinder		6 Pin	$21.25	^
1599DL-00-10	Double Deadbolt Long Lazy Tailpiece	N/A	N/A	$2.30	^
1599DS-00-10	Double Deadbolt Short Lazy Tailpiece	N/A	N/A	$2.30	^
1599LM-00-10	Single Deadbolt Long Lazy Tailpiece	N/A	N/A	$2.30	^
1599RL-00-10	KIK/KIL Long Tailpiece	N/A	N/A	$2.30	^
1599RM-00-10	KIK/KIL Medium Tailpiece	N/A	N/A	$2.30	^
1599RS-00-10	KIK/KIL Short Tailpiece	N/A	N/A	$2.30	^
1599FT-00-10	Falcon T Series Tailpiece	N/A	N/A	$2.30	^
1599CL-00-10	CL3900 Corbin Russwin Tailpiece	N/A	N/A	$2.30	^

Brass KIK/KIL/KID Universal Cylinders W/ Screwcap ( continued )

Product Number	Description	Length	Pinning	MSRP
1599LP-00-10	Screw Cap Lock Pin	N/A	N/A	$0.80	^
1599LPS-00-10	Screw Cap Lock Pin Spring	N/A	N/A	$0.80	^
1599SN-00-10	Screw Cap/Nut	N/A	N/A	$2.50	^
1599SW-00-10	Split Washer For Lazy Tailpieces	N/A	N/A	$1.65	^
1599PSW-00-10	Plastic Spacer Washer	N/A	N/A	$0.75	^
1599TPK-00-10	Standard 6 Piece 1599 Cylinder Tailpiece Kit	N/A	N/A	$12.05	^
862B-00-10	Rigid Tailpiece For Rim + KIK	2 3/8" (60.3mm)	N/A	$2.30	^
862C-00-10	Long Rigid Tailpiece For Rim + KIK	4" (101.6mm)	N/A	$2.30	^
862L-00-10	Lazy Tailpiece For Rim + KIK	2 3/8" (60.3mm)	N/A	$2.30	^

Brass KIK/KIL/KID Specialty Cylinders W/ Screwcap

Product Number	Description	Length	Pinning	MSRP
15495	Keyed Cylinder For C/R & Yale Deadbolts	N/A	5 Pin Drilled 6	$20.35	^
15496	Keyed Cylinder For C/R & Yale Deadbolts	N/A	6 Pin	$21.25	^
1549CRYD	Standard Tailpiece	N/A	N/A	$2.30	^
1549FA	Standard Female Adapter	N/A	N/A	$2.30	^
15685	Keyed Cylinder For Emtek Products	N/A	5 Pin Only	$20.35	^
1569EKDH	Double Deadbolt Horizontal Tailpiece (Black)	N/A	N/A	$2.30	^
1569EKDV	Double Deadbolt Verticle Tailpiece (Chromate)	N/A	N/A	$2.30	^
1569EKS	Single Deadbolt tailpiece	N/A	N/A	$2.30	^
1569FA	Knob & Lever Female Adapter	N/A	N/A	$2.30	^
15795	Sargent 6 Line, 10 Line, 11 Line (T-Zone)	N/A	5 Pin Drilled 6	$20.35	^
15796	Sargent 6 Line, 10 Line, 11 Line (T-Zone)	N/A	6 Pin	$21.25	^
1579WDTPK	For Use With Weiser Deadbolts	N/A	N/A	$2.30	^
1579SGT6	6 Line Tailpiece	N/A	N/A	$2.30	^
1599RS	10 Line Tailpiece	N/A	N/A	$2.30	^
1579TZ	11 Line ( T-Zone) Tailpiece	N/A	N/A	$2.30	^
1500BH	All KIK/KIL/KID Cylinders Bump Halt Kit	N/A	N/A	$17.15	^
862B-00-10	Rigid Tailpiece For Rim + KIK	2 3/8" (60.3mm)	N/A	$2.30	^
862C-00-10	Long Rigid Tailpiece For Rim + KIK	4" (101.6mm)	N/A	$2.30	^
862L-00-10	Lazy Tailpiece For Rim + KIK	2 3/8" (60.3mm)	N/A	$2.30	^

^• EA + EB keyway cylinders are OB to Blade height, Less Keys

12 Brass Cylinders June 13, 2022

Euro Profile Cylinders

Product Number	Description	Length	Pinning	MSRP
51221	Double Turnknob	28mm X 10mm X 28mm	N/A	$80.80	^
5222E	Turnknob Inside - Privacy/Emergency Slot On Outside	28mm X 10mm X 28mm	N/A	$80.80	^
52225	Turnknob Inside - SC,SE,SF,SX,CD,KS (Composite),WA (Composite) Keyways	28mm X 10mm X 28mm	5 Pin	$76.90	^
52885	Turnknob Inside - SC,SE,SF,SX,CD,KS (Composite),WA (Composite) Keyways	25mm X 10mm X 25mm	5 Pin	$93.25	^
52336	Turnknob Inside - SC,SE,SF,SX, Keyways	30mm X 10mm X 30mm	6 Pin	$83.90	^
523A6	Turnknob Inside - GA,GC Keyways	30mm X 10mm X 32mm	6 Pin	$93.25	^
53225	Keyed Both Sides - SC,SE,SF,SX,CD,KS (Composite),WA (Composite) Keyways	28mm X 10mm X 28mm	5 Pin	$77.05	^
53226	Keyed Both Sides - SC,SE,SF,SX Keyways	28mm X 10mm X 28mm	6 Pin	$83.90	^
53885	Keyed Both Sides - SC,SE,SF,SX,CD,KS (Composite),WA (Composite) Keyways	25mm X 10mm X 25mm	5 Pin	$93.25	^
53025	Keyed Outside Half Cylinder - SC,SE,SF,SX Keyways	28mm X 10mm	5 Pin	$36.15	^
53026	Keyed Outside Half Cylinder - SC,SE,SF,SX Keyways	28mm X 10mm	6 Pin	$44.50	^
52021	Turnknob Inside - Half Profile	28mm X 10mm	N/A	$37.80	^
5300-04-4014	Set Screws	M4-0.70 X 6mm	N/A	$0.45	^
Custom Profile 1-50	Turnknob Inside or Keyed Both Sides - SC,SE,SF,SX, Keyways	Custom Length 4 3/8" or Less	Any	$310.00
Custom Profile 51-100	Turnknob Inside or Keyed Both Sides - SC,SE,SF,SX, Keyways	Custom Length 4 3/8" or Less	Any	$233.45
Custom Profile 101-+	Turnknob Inside or Keyed Both Sides - SC,SE,SF,SX, Keyways	Custom Length 4 3/8" or Less	Any	$155.00
Non-Stock KA Combo Upcharge				$2.75
Add Upcharge For Finishes Not Listed				$10.00

Brass Cylinders 13 June 13, 2022

Brass SFIC Cylinders

Product Number	Description	Pinning	MSRP
28016	6 Pin Uncombinated	N/A	$17.45	^
28016 W	6 Pin W Series Uncombinated	N/A	$18.60	^
28017	7 Pin Uncombinated	N/A	$18.00	^
28017 W	7 Pin W Series Uncombinated	N/A	$19.00	^
28026	6 Pin Combinated	ANY	$37.20	^
28026 W	6 Pin W Series Combinated	ANY	$45.50	^
28027	7 Pin Combinated	ANY	$39.00	^
28027 W	7 Pin W Series Combinated	ANY	$46.05	^
C28026-26D	26D Finish Combinated Construction Core - Includes 2 Change Keys & 1 Control Key Per Cylinder	Construction Standard	$29.15	^
C28026-Blue	Blue Painted Combinated Construction Core - Includes 2 Change Keys & 1 Control Key Per Cylinder	Construction Standard	$29.15	^
C28026-Red	Red painted Combinated Construction Core - Includes 2 Change Keys & 1 Control Key Per Cylinder	Construction Standard	$29.15	^
C28026-Marketing-Black	Black painted Combinated Marketing Construction Core - Includes 2 Change Keys & 1 Control Key Per Cylinder	Ilco Marketing Combination	$9.15	^
Extra Cut Keys			$5.30
HID or VID			$5.00

All uncombinated cores + construction cores are stock items available immediatley. No upcharge for MK on SFIC.

14 Brass Cylinders June 13, 2022

Brass Schlage® LFIC Core Cylinders

Product Number	Description	MSRP
26026	6 Pin Blade Height Combinated with Control Key-No Key Blanks Included	$31.60	٨
C26026-SC-BLUE-KA-02+1	Keyed Alike Combinated Construction Core - Blue Scalp-Includes 2 Change Keys & 1 Control Key Per Cylinder	$43.10	٨
C26026-SC-26D-KA-02+1	Keyed Alike Combinated Construction Core - 26D Scalp-Includes 2 Change Keys & 1 Control Key Per Cylinder	$43.10	۸
2600FP-00-10	Control Finger Pin	$1.90	٨
HID or VID		$5.00

Brass Schlage® LFIC Core Cylinders - Stock List

Product Number	Description
26026-SC-04-0B	Schlage C Keyway-04 Finish-Pinned Blade Height
26026-SC-26D-0B	Schlage C Keyway-26D Finish-Pinned Blade Height
26026-SX-04-0B	Schlage C-K Keyway-04 Finish-Pinned Blade Height
26026-SX-26D-0B	Schlage C-K Keyway-26D Finish-Pinned Blade Height
26026-EA-04-0B	Schlage C123 Keyway-04 Finish-Pinned Blade Height
26026-EA-26D-0B	Schlage C123 Keyway-26D Finish-Pinned Blade Height
26026-EB-04-0B	Schlage C145 Keyway-04 Finish-Pinned Blade Height
26026-EB-26D-0B	Schlage C145 Keyway-26D Finish-Pinned Blade Height
26026-SE-04-0B	Schlage E Keyway-04 Finish-Pinned Blade Height
26026-SE-26D-0B	Schlage E Keyway-26D Finish-Pinned Blade Height
C26026-SC-BLUE-KA	Schlage C Keyway-Blue Finish-Pinned KA Construction Combination
C26026-SC-26D-KA	Schlage C Keyway-26D Finish-Pinned KA Construction Combination

June 13, 2022 Brass Cylinders 15

Not available for S2600 Series

Brass SFIC Cylinder Housings + Accessories

Product Number	Description	Core That Fits	Length	MSRP
R28106	Thin Head Mortise	6 Pin	1 1/4" (31.7mm)	$19.35	^
R28107	Thin Head Mortise	6 & 7 Pin	1 3/8" (34.9mm)	$19.35	^
R28507	Thin Head Mortise	6 & 7 Pin	1 1/2" (38.1mm)	$20.55	^
R28607	Thin Head Mortise	6 & 7 Pin	1 5/8" (41.2mm)	$21.00	^
R28206	Thin Head Rim	6 Pin	1 1/4" (31.7mm)	$20.20	^
R28207	Thin Head Rim	6 & 7 Pin	1 3/8" (34.9mm)	$20.20	^
R28406	Tapered Head Mortise	6 Pin	15/16" (23.8mm)	$19.65	^
R28407	Tapered Head Mortise	6 & 7 Pin	1" (25.4mm)	$19.65	^
R2800 Rim Cyl Kit	Mortise To Rim Cylinder Kit	N/A	N/A	$3.90	^
R2800-00-8X	Assorted Parts & Accessories Kit	N/A	N/A	$146.00	^
R2800SP-00-10	Plastic Spacer Used When Putting A 6 Pin Core In A 7 Pin Housing	N/A	N/A	$1.80	^
R2800CS-00-100	Cam Screws (Bag Of 100)	N/A	N/A	$10.50	^
R2800G#1-00-10	Standard IC Cam	N/A	N/A	$1.90	^
R2800A#2-00-10	Adams Rite IC Cam	N/A	N/A	$1.90	^
R2800S#3-00-10	Clover IC Cam	N/A	N/A	$1.90	^
R2800M#4-00-10	Schlage L IC Cam	N/A	N/A	$1.90	^
R2800N#5-00-10	Sargent/Yale IC Cam	N/A	N/A	$1.90	^
R2800V#6-00-10	Falcon/Saflok IC Cam	N/A	N/A	$1.90	^
R2800R#7-00-10	Lori Mortise Deadbolt IC Cam	N/A	N/A	$1.90	^
862A-00-10	Rim Cylinder Tailpiece (2 3/8")	N/A	N/A	$2.20	^
R2800RR-00-10	Retaining Ring - Rim Cylinder Adapter	N/A	N/A	$1.25	^
R2800TR-00-10	Retaining Ring - Rim Tailpiece	N/A	N/A	$1.25	^
R2800TE-00-10	Thread Extender	N/A	N/A	$9.10	^
R2800AP-00-10	Plastic Housing Tool	N/A	N/A	$0.90	^

16 Brass Cylinders June 13, 2022

Brass SFIC Cylinder Housings - Stock List

Product Number	Description	Core That Fits	Length
R28106-0-03	Thin Head Mortise-No Cam-03 Finish	6 Pin	1 1/4" (31.7mm)
R28106-0-04	Thin Head Mortise-No Cam-04 Finish	6 Pin	1 1/4" (31.7mm)
R28106-0-10	Thin Head Mortise-No Cam-10 Finish	6 Pin	1 1/4" (31.7mm)
R28106-0-10B	Thin Head Mortise-No Cam-10B Finish	6 Pin	1 1/4" (31.7mm)
R28106-0-26	Thin Head Mortise-No Cam-26 Finish	6 Pin	1 1/4" (31.7mm)
R28106-0-26D	Thin Head Mortise-No Cam-26D Finish	6 Pin	1 1/4" (31.7mm)
R28106-1-26D	Thin Head Mortise-Standard Cam-26D Finish	6 Pin	1 1/4" (31.7mm)
R28106-2-26D	Thin Head Mortise-AR Cam-26D Finish	6 Pin	1 1/4" (31.7mm)
R28106-3-26D	Thin Head Mortise-Best Clover Cam-26D Finish	6 Pin	1 1/4" (31.7mm)
R28107-0-03	Thin Head Mortise-No Cam-03 Finish	6 & 7 Pin	1 3/8" (34.9mm)
R28107-0-04	Thin Head Mortise-No Cam-04 Finish	6 & 7 Pin	1 3/8" (34.9mm)
R28107-0-10	Thin Head Mortise-No Cam-10 Finish	6 & 7 Pin	1 3/8" (34.9mm)
R28107-0-10B	Thin Head Mortise-No Cam-10B Finish	6 & 7 Pin	1 3/8" (34.9mm)
R28107-0-26	Thin Head Mortise-No Cam-26 Finish	6 & 7 Pin	1 3/8" (34.9mm)
R28107-0-26D	Thin Head Mortise-No Cam-26D Finish	6 & 7 Pin	1 3/8" (34.9mm)
R28107-1-26D	Thin Head Mortise-Standard Cam-26D Finish	6 & 7 Pin	1 3/8" (34.9mm)
R28107-1-10B	Thin Head Mortise-Standard Cam-10B Finish	6 & 7 Pin	1 3/8" (34.9mm)
R28107-2-26D	Thin Head Mortise-AR Cam-26D Finish	6 & 7 Pin	1 3/8" (34.9mm)
R28107-2-10B	Thin Head Mortise-AR Cam-10B Finish	6 & 7 Pin	1 3/8" (34.9mm)
R28107-3-26D	Thin Head Mortise-Best Clover Cam-26D Finish	6 & 7 Pin	1 3/8" (34.9mm)
R28107-4-26D	Thin Head Mortise-Schlage L Cam-26D Finish	6 & 7 Pin	1 3/8" (34.9mm)
R28107-5-26D	Thin Head Mortise-Sargent/Yale Cam-26D Finish	6 & 7 Pin	1 3/8" (34.9mm)
R28107-6-26D	Thin Head Mortise-Falcon/Saflok Cam-26D Finish	6 & 7 Pin	1 3/8" (34.9mm)
R28206-9-26D	Thin Head Rim-26D Finish	6 Pin	1 1/4" (31.7mm)
R28207-9-26D	Thin Head Rim-26D Finish	6 & 7 Pin	1 3/8" (34.9mm)
R28207-9-10B	Thin Head Rim-10B Finish	6 & 7 Pin	1 3/8" (34.9mm)
R28406-0-10B	Tapered Head Mortise-No Cam-10B Finish	6 Pin	15/16" (23.8mm)
R28406-0-26D	Tapered Head Mortise-No Cam-26D Finish	6 Pin	15/16" (23.8mm)
R28407-0-10B	Tapered Head Mortise-No Cam-10B Finish	6 & 7 Pin	1" (25.4mm)
R28407-0-26D	Tapered Head Mortise-No Cam-26D Finish	6 & 7 Pin	1" (25.4mm)
R28407-1-26D	Tapered Head Mortise-Satandard Cam-26D Finish	6 & 7 Pin	1" (25.4mm)
R28407-2-26D	Tapered Head Mortise-AR Cam-26D Finish	6 & 7 Pin	1" (25.4mm)

Brass Schlage Size LFIC Cylinder Housings + Accessories

Product Number	Description	Length	MSRP
S26506	Mortise Cylinder	1 1/2" (38.1mm)	$25.55	^
S26206	Rim Cylinder	1 1/2" (38.1mm)	$29.35	^
S2600 Rim Conv. Kit	Mortise To Rim Cylinder Kit	N/A	$3.90	^
R2800CS-00-100	Cam Screws (Bag Of 100)	N/A	$10.50	^
R2800G#1-00-10	Standard IC Cam	N/A	$1.90	^
R2800A#2-00-10	Adams Rite IC Cam	N/A	$1.90	^
R2800S#3-00-10	Clover IC Cam	N/A	$1.90	^
R2800M#4-00-10	Schlage L IC Cam	N/A	$1.90	^
R2800N#5-00-10	Sargent/Yale IC Cam	N/A	$1.90	^
R2800V#6-00-10	Falcon/Saflok IC Cam	N/A	$1.90	^
R2800R#7-00-10	Lori Mortise Deadbolt IC Cam	N/A	$1.90	^
862A-00-10	Rim Cylinder Tailpiece (2 3/8")	N/A	$2.20	^

Brass Cylinders 17 June 13, 2022

Brass Schlage Size LFIC Cylinder Housings + Accessories ( continued )

Product Number	Description	Length	MSRP
R2800RR-00-10	Retaining Ring - Rim Cylinder Adapter	N/A	$1.25	^
R2800TR-00-10	Retaining Ring - Rim Tailpiece	N/A	$1.25	^
R2800TE-00-10	Thread Extender	N/A	$8.60	^
S2600AS-26D-10	Storefront Collar For Schlage Hsg	N/A	$8.05	^
S2600AS-10B-10	Storefront Collar For Schlage Hsg	N/A	$8.05	^

Brass Schlage Size LFIC Cylinder Housings - Stocklist

Product Number	Description	Length
S26506-0-03	Mortise - No Cam - 03 Finish	1 1/2" (38.1mm)
S26506-0-26D	Mortise - No Cam - 26D Finish	1 1/2" (38.1mm)
S26506-0-10B	Mortise - No Cam - 10B Finish	1 1/2" (38.1mm)
S26506-0-26	Mortise - No Cam - 26 Finish	1 1/2" (38.1mm)
S26506-1-26D	Mortise - Standard Cam - 26D Finish	1 1/2" (38.1mm)
S26506-2-26D	Mortise - Adams Rite Cam - 26D Finish	1 1/2" (38.1mm)
S26506-3-26D	Mortise - Clover Cam - 26D Finish	1 1/2" (38.1mm)
S26506-4-26D	Mortise - Schlage L Cam - 26D Finish	1 1/2" (38.1mm)
S26506-5-26D	Mortise - Sargent/Yale Cam - 26D Finish	1 1/2" (38.1mm)
S26206-9-03	Rim - 03 Finish	1 1/2" (38.1mm)
S26206-9-26D	Rim - 26D Finish	1 1/2" (38.1mm)
S26206-9-10B	Rim - 10B Finish	1 1/2" (38.1mm)
S26206-9-26	Rim - 26 Finish	1 1/2" (38.1mm)

USPS Box Cylinders and Accessories

Product Number	Description MSRP
7835YA-04-KD	USPS PO Box Cylinder - Yale 8 Keyway	$39.90	^

Cylinder Kits

Product Number	Description	MSRP
876-00-8X	Cylinder Cam Kit	$121.70	^
870-00-8X	Cylinder Collar Kit	$251.95	^
R2800-00-8X	SFIC Housing Accessory Kit - Includes adapters to convert mortise SFIC hsg to a rim hsg, assorted cams, cam screws, assorted rim trim rings, and 6 pin core in 7 pin hsg spacers	$153.25	^

SFIC Capping Press

Product Number	Description
9840-00-9150	Capping Press (.150 spacing only)	$2,950.00	^

18 Brass Cylinders June 13, 2022

			Ilco Stock List Brass Cylinders 2020			Brass Cylinders
Arrow 1179 (AA)	Segal 9 (FA)	Kwikset 1176 (KS)	Schlage C (SC)	Schlage C-K (SX)	Weiser 1555 (WE)	Dummys
7165AA2-03-KA2	7165FA2-03-KA2	7165KS2-03-KA2	7155SC2-26D-KA2	7165SX2-26D-KD	7165WE2-26D-KA2	7150DC-03
7165AA2-26D-KA2	7165FA2-26D-KA2	7165KS2-26D-KA2	7165SC2-10B-KA2	7165SX2-03-KA2	7165WE2-26D-KD	7150DC-10B
7165AA2-46-KA2	7165FA2-46-KA2	7165KS2-46-KA2	7165SC2-03-KA2	7165SX2-26D-KA2	7185WE1-26D-KD	7150DC-26D
7185AA1-03-KD	7185FA1-03-KD	7185KS1-03-KD	7165SC2-26D-KA2	7165SX2-46-KA2	7185WE1-26D-KA2	7160DC-03
7185AA1-26D-KD	7185FA1-26D-KD	7185KS1-26D-KD	7165SC2-26D-KD	7165SX2-46-KD	7075WE10-26D-KD	7160DC-10B
7185AA1-03-KA2	7185FA1-03-KA2	7185KS1-03-KA2	7165SC2-46-KA2	7185SX1-03-KD	15995WE-26D-0B	7160DC-26D
7185AA1-26D-KA2	7185FA1-26D-KA2	7185KS1-26D-KA2	7185SC1-03-KD	7185SX1-26D-KD	15995WE-26D-KD	7160DC-46
7205AA1-03-KD	7185FA1-03-TE6060	7205KS1-03-KD	7185SC1-26D-KD	7185SX1-03-KA2	Yale 8 (YA)	7180DC-03
7205AA1-26D-KD	7205FA1-03-KD	7205KS1-03-KA2	7185SC2-26D-KD	7185SX1-26D-KA2	7165YA2-03-KA2	7180DC-10B
7205AA1-03-KA2	7205FA1-26D-KD	7075KS10-03-KD	7185SC1-10B-KA2	7185SX1-46-KA2	7165YA2-26D-KA2	7180DC-26D
7205AA1-26D-KA2	7205FA1-03-KA2	7075KS10-26D-KD	7185SC1-03-KA2	7205SX1-03-KD	7165YA2-46-KA2	7180DC-46
7075AA10-03-KD	7205FA1-26D-KA2	7075KS10-03-KA2	7185SC1-26D-KA2	7205SX1-26D-KD	7185YA1-03-KD	7200DC-03
7075AA10-26D-KD	7205FA1-03-TE6060	7075KS10-26D-KA2	7185SC1-46-KA2	7205SX1-03-KA2	7185YA1-26D-KD	7200DC-26D
7075AA10-03-KA2	7075FA10-03-KD	15395KS-04-0B	7185SC2-26D-KA2	7205SX1-26D-KA2	7185YA1-03-KA2	7200DC-46
7075AA10-26D-KA2	7075FA10-26D-KD	15395KS-04-KD	7205SC1-03-KD	7075SX10-03-KD	7185YA1-26D-KA2	7010DC-03
15395AA-04-0B	7075FA10-03-KA2	15395KS-26D-0B	7205SC1-26D-KD	7075SX10-26D-KD	7205YA1-03-KD	7010DC-10B
15395AA-04-KD	705FA10-26D-KA2	15395KS-26D-KD	7205SC1-03-KA2	7075SX10-03-KA2	7205YA1-26D-KD	7010DC-26D
15395AA-26D-0B	Sargent LA (GA)	15995KS-04-0B	7205SC1-26D-KA2	7075SX10-26D-KA2	7205YA1-03-KA2	7010DC-46
15395AA-26D-KD	7185GA1-03-KD	15995KS-04-KD	7075SC10-03-KD	15395SX-04-0B	7205YA1-26D-KA2	Schlage C145 (EB)
15995AA-04-0B	7185GA1-26D-KD	15995KS-26D-0B	7075SC10-26D-KD	15395SX-04-KD	7075YA10-03-KD	7186EB1-03-0B-00
15995AA-04-KD	7185GA1-03-KA2	15995KS-26D-KD	7075SC10-46-KD	15395SX-26D-0B	7075YA10-26D-KD	7186EB1-10B-0B-00
15995AA-26D-0B	7185GA1-26D-KA2	1004 Lockwood (LA)	7075SC10-03-KA2	15395SX-26D-KD	7075YA10-03-KA2	7186EB1-26D-0B-00
15995AA-26D-KD	15395GA-04-0B	7185LA1-03-KD	7075SC10-26D-KA2	15995SX-04-0B	7075YA10-26D-KA2	7186EB1-46-0B-00
Corbin 60 (CA)	15395GA-04-KD	7205LA1-03-KD	7075SC10-46-KA2	15995SX-04-KD	15395YA-04-0B	7206EB1-10B-0B-00
7185CA1-03-KD	15395GA-26D-0B	Russwin D1 (RB)	15395SC-04-0B	15995SX-26D-0B	15395YA-04-KD	7206EB1-26D-0B-00
7185CA1-26D-KD	15395GA-26D-KD	7165RB2-03-KA2	15395SC-04-KD	15995SX-26D-KD	15395YA-26D-0B	7206EB1-46-0B-00
7185CA1-03-KA2	15995GA-04-0B	7165RB2-26D-KA2	15395SC-26D-0B	Weiser/Falcon E (WA)	15395YA-26D-KD	7076EB10-03-0B-00
7185CA1-26D-KA2	15995GA-04-KD	7165RB2-46-KA2	15395SC-26D-KD	7165WA2-03-KA2	15995YA-04-0B	7076EB10-10B-0B-00
15395CA-26D-0B	15995GA-26D-0B	7185RB1-03-KD	15995SC-04-0B	7165WA2-26D-KA2	15995YA-04-KD	7076EB10-26D-0B-00
15395CA-26D-KD	15995GA-26D-KD	7185RB1-26D-KD	15995SC-04-KD	7165WA2-46-KA2	15995YA-26D-0B	7076EB10-46-0B-00
15995CA-26D-KD	Schlage C123 (EA)	7185RB1-03-KA2	15995SC-26D-0B	7185WA1-03-KD	15995YA-26D-KD	15996EB-04-0B-00
15995CA-26D-0B	7186EA1-03-0B-00	7185RB1-26D-KA2	15995SC-26D-KD	7185WA1-26D-KD	Yale GA (YG)	15996EB-26D-0B-00
Corbin/Russwin L4 (CE)	7186EA1-10B-0B-00	7205RB1-03-KD	Schlage E (SE)	7185WA1-03-KA2	7185YG1-26D-0B	Turnknobs
15395CE-26D-0B	7186EA1-26D-0B-00	7205RB1-26D-KD	7165SE2-26D-KA2	7185WA1-26D-KA2	7185YG1-26D-KA2	7151TK2-26D
15395CE-26D-KD	7186EA1-46-0B-00	7205RB1-03-KA2	7185SE1-03-KA2	7075WA10-03-KD	7185YG1-26D-KD	7161TK1-03
15995CE-26D-0B	7206EA1-10B-0B-00	7205RB1-26D-KA2	7185SE1-26D-KA2	7075WA10-26D-KD	7186YG2-26D-KA2	7161TK2-03
15995CE-26D-KD	7206EA1-26D-0B-00	15395RB-04-0B	7185SE1-26D-KD	7075WA10-03-KA2	7205YG1-26D-0B	7161TK2-10B
	7206EA1-46-0B-00	15395RB-04-KD	7205SE1-26D-KA2	7075WA10-26D-KA2	7205YG1-26D-KA2	7161TK2-26D
	7076EA10-03-0B-00	15395RB-26D-0B	7205SE1-26D-KD	15395WA-04-0B	7075YG10-26D-KA2	7161TK2-46
	7076EA10-10B-0B-00	15395RB-26D-KD	15395SE-04-0B	15395WA-04-KD	7075YG10-26D-KD	7181TK1-03
	7076EA10-26D-0B-00	15995RB-04-0B	7075SE10-26D-KA2	15395WA-26D-0B	15395YG-26D-KD	7181TK1-26D
	7076EA10-46-0B-00	15995RB-04-KD	7075SE10-26D-KD	15395WA-26D-KD	15395YG-26D-0B	7181TK1-46
	15996EA-04-0B-00	15995RB-26D-0B	15395SE-04-KD	15995WA-04-0B	15995YG-26D-KD	7181TK2-26D
	15996EA-26D-0B-00	15995RB-26D-KD	15395SE-26D-0B	15995WA-04-KD	15995YG-26D-0B	7201TK1-26D
		Sargent LA-LC (GB)	15395SE-26D-KD	15995WA-26D-0B
		15395GB-26D-0B	15995SE-04-0B	15995WA-26D-KD
		15395GB-26D-KD	15995SE-04-KD	Ilco X1054K (UA)
		15995GB-26D-0B	15995SE-26D-0B	7205UA1-03-KD
		15995GB-26D-KD	15995SE-26D-KD	7075UA10-03-KD
		Sargent RA-RC (GC)	Mortise Deadbolts	Lori L100 (UB)
		15395GC-26D-0B	45-1-4-04-26D-0	7075UB10-03-KD
		15395GC-26D-KD	45-2-4-04-26D-0
		15995GC-26D-0B	45-1-3-04-03P-0
		15995GC-26D-KD	45-1-6-04-26D-0

Replacement Keys for Cylinders

	Keyway	Order Code	ILCO®	5 Pin ILCO-EZ®	Look- Alike®	ILCO®	6 Pin ILCO-EZ®	Look- Alike®			Keyway	Order Code	ILCO®	5 Pin ILCO-EZ®	Look- Alike®	ILCO®	6 Pin ILCO-EZ®	Look- Alike®
	Arrow	AA	1179	AR1	K2-A	1179A	AR4	K7			Russwin D1	RB	1011D1	RU45	5D1R	A1011D1	RU46	6D1R
	Composite	NA	R1064E	NA25	4295	pinr	ay accepts a	et &	_		Russwin 981R	RA	N1011P	RU52	5981R	A1011P	RU16	-
	) Composite	NB	1014C	HR1	_	This keyw repinned	/Falcon 1st pir	nd can be alcon G,	(		Sargent LA-LC	GB	1007LA	S22½	275LA	01007LA	S22	6275LA
						& U, and V	-1, Lori L200, Weslock 1 st pi	n @ .216"			Sargent RA-RC	GC	1007RA	-	-	01007RA	-	-
	Corbin 60	CA	1001EH	CO87	Z1-60-5	A1001EH	CO88	Z1-60-6	؍ ا		,
	Corbin 67	CB	1001EN	C07	-	1001EG	CO36	-			Sargent LA	GA	1007LA	S22½	275LA	01007LA	S22	6275LA
	Corbin 77	CC	R1001EN	SK1	-	R1001EG	CO62	-				00
	Corbin /	CE	1011L-4		_	A1011-L4	RU101	_	/		Schlage C	SC	1145	SC1	100-C	1145A	SC4	101-C
	Russwin L4		101112-4	_	_	AIVII-L4	KOTOT	_	)	h A	Schlage E	SE	1145E	SC8	100-E	A1145E	SC9	101-E
	Corbin 59	CD	1001AH			A1001AH	CO91	Z1-			Schlage F	SF	1145F	SC7	_	A1145F	SC10	101-F
U	Corbin 59	CD	IUUIAN	_	_	AIUUIAN	COST	59A1-6			Schlage C-K	SX	Accepts	all Schlage ke	ys C to L
	)llco X1054K	UA	X1054K	IN3	-	-	-	-	$|\backslash langle$		Segal 9	FA	1022	SE1	K9- Segal	1022AB	-	-
	Kwikset 1176	KS	1176	KW1	1063KW	A1176	KW5	-		\ \∎	Weiser Ez/ Falcon	WA	1054WB	WR3	1555	A1054WB	WR4	-
	Lockwood 1004	LA	1004	L1	B308	1004A	-	B310			Weiser 1555	WE	N1054WB	WR5	P1555	-	-	-
	Lori L100, Harloc 700, Eagle 11929	UB	X1014F	EA27	Harloc	-	-	-			Yale 8 (999)	YA	999	Y1	8-Yale	999A	Y2	-
	Lori Locksmith 80	UE	5 pin on 80 Lor	nly, order icentric	-	-	-	-			Yale GA	YG	999GA	-	-	998GA	Y78	-
	Loricentric 90	UD	-	-	-	6 pin on 90 Lori	ly, order centric	-			Supp	ly keyiı	ng inforr	nation o	n comb	ined cyli	nder

20 Brass Cylinders June 13, 2022

For complete product and ordering information, please refer to the catalog.

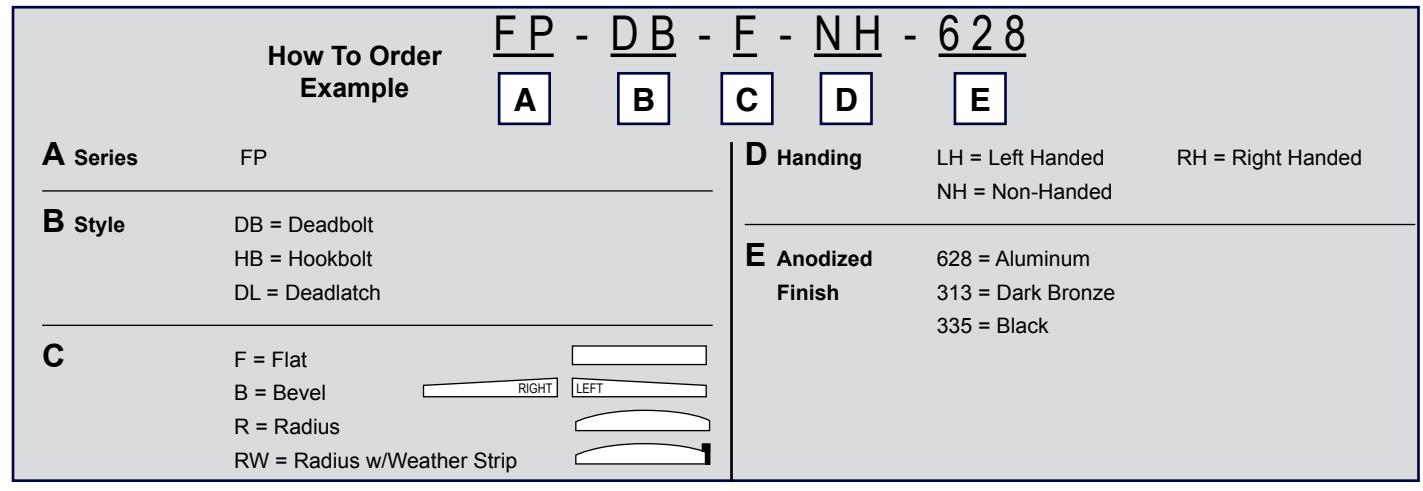

How to Order Faceplates:

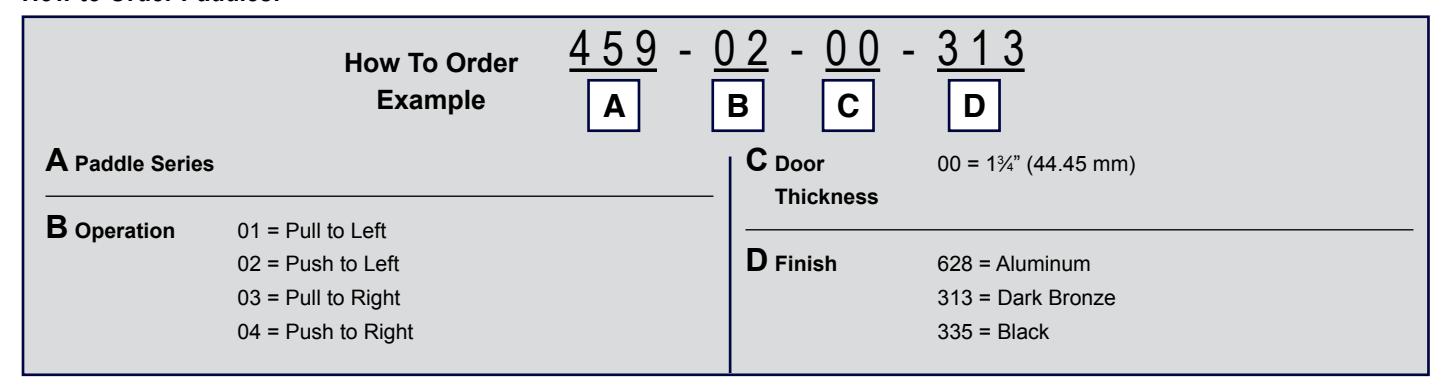

How to Order Paddles:

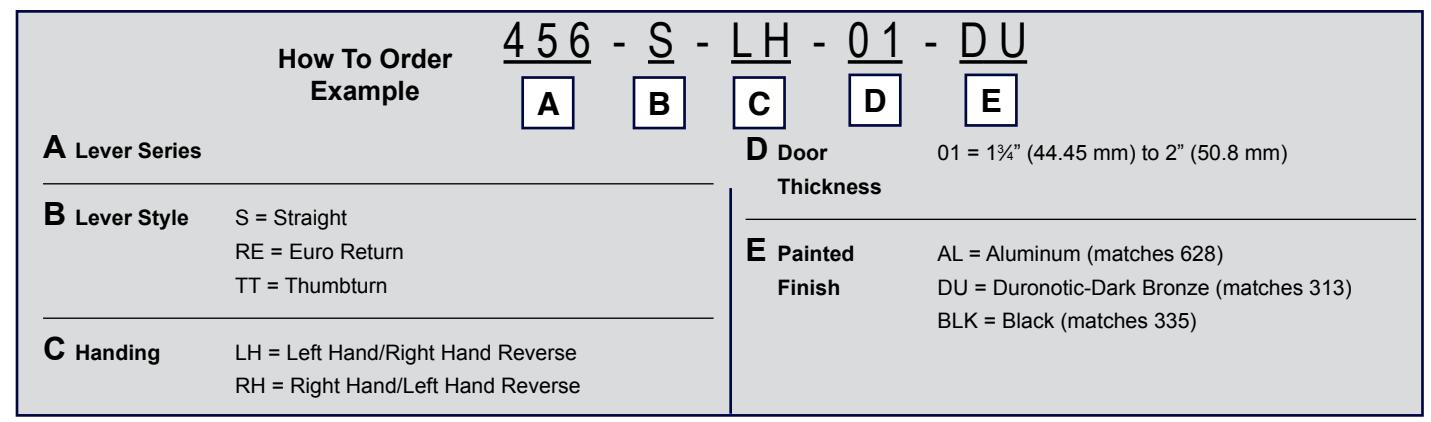

How to Order Levers:

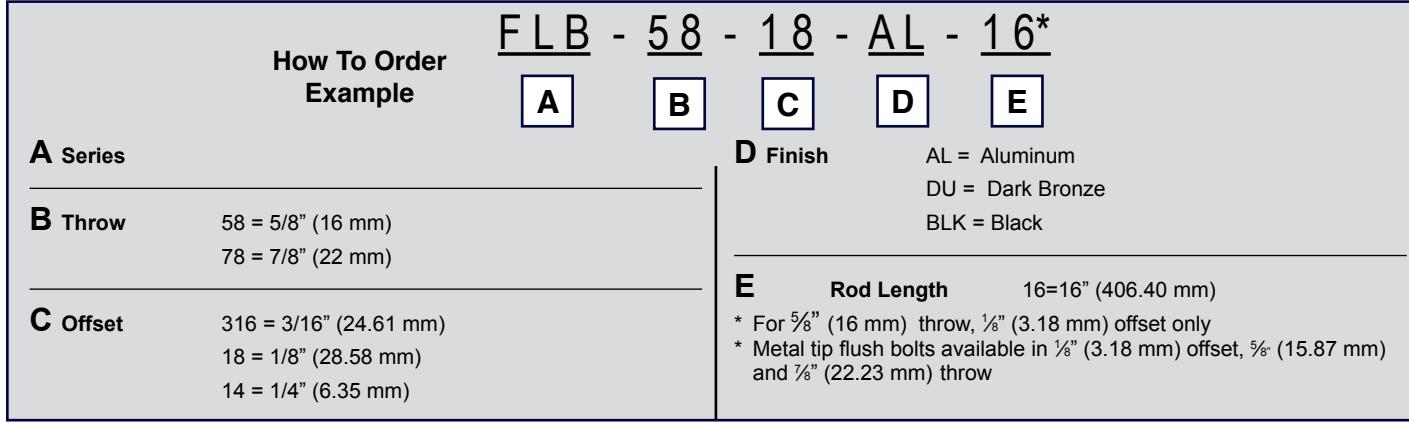

How to Order Flush Bolts:

Storefront Hardware 21 June 13, 2022

Pricing, terms and conditions are subject to Kaba Ilco Corp. Sales Policy. A copy of this policy is available on our private site or from your sales representative.

Mortise Locks - For Aluminum Stile Doors

Deadbolt - 185 Series

Product Number	Description	STD PKG	MSRP
185-2-NH-SINGLE-PC	DEADBOLT, 31/32" BACKSET	1	$24.20	^
185-3-NH-SINGLE-PC	DEADBOLT, 1 1/8" BACKSET	1	$24.20	^
185-4-NH-SINGLE-PC	DEADBOLT, 1 1/2" BACKSET	1	$25.40	^
185-F-2-NH-SINGLE-628/313-PC	DEADBOLT, 31/32" BACKSET, NH FLAT CLEAR/DARK BRONZE FP	1	$28.05	^
185-F-3-NH-SINGLE-628/313-PC	DEADBOLT, 1 1/8" BACKSET, NH FLAT CLEAR/DARK BRONZE FP	1	$28.05	^
185-F-4-NH-SINGLE-628/313-PC	DEADBOLT, 1 1/2" BACKSET, NH FLAT CLEAR/DARK BRONZE FP	1	$29.45	^

Hookbolt - 185 Series

Product Number	Description	STD PKG	MSRP
HB185-2-NH-SINGLE-PC	HOOKBOLT, 31/32" BACKSET	1	$24.20	^
HB185-3-NH-SINGLE-PC	HOOKBOLT, 1 1/8" BACKSET	1	$24.20	^
HB185-4-NH-SINGLE-PC	HOOKBOLT, 1 1/2" BACKSET	1	$25.40	^
HB185-F-2-NH-SINGLE-628/313-PC	HOOKBOLT, 31/32" BACKSET, NH FLAT CLEAR/DARK BRONZE FP	1	$28.05	^
HB185-F-3-NH-SINGLE-628/313-PC	HOOKBOLT, 1 1/8" BACKSET, NH FLAT CLEAR/DARK BRONZE FP	1	$28.05	^
HB185-F-4-NH-SINGLE-628/313-PC	HOOKBOLT, 1 1/2" BACKSET, NH FLAT CLEAR/DARK BRONZE FP	1	$29.45	^

Deadlatch - 451 Series

Product Number	Description	STD PACK	MSRP
451-2-RH-SINGLE-PC	DEADLATCH, 31/32" BACKSET, RH	1	$29.00	^
451-3-RH-SINGLE-PC	DEADLATCH, 1 1/8" BACKSET, RH	1	$29.00	^
451-4-RH-SINGLE-PC	DEADLATCH, 1 1/2" BACKSET, RH	1	$30.50	^
451-2-LH-SINGLE-PC	DEADLATCH, 31/32" BACKSET, LH	1	$29.00	^
451-3-LH-SINGLE-PC	DEADLATCH, 1 1/8" BACKSET, LH	1	$29.00	^
451-4-LH-SINGLE-PC	DEADLATCH, 1 1/2" BACKSET, LH	1	$30.50	^
451-F-2-RH-628/313-PC	DEADLATCH, 31/32" BACKSET, RH FLAT CLEAR/DARK BRONZE FP	1	$36.65	^
451-F-2-LH-628/313-PC	DEADLATCH, 31/32" BACKSET, LH FLAT CLEAR/DARK BRONZE FP	1	$36.65	^
451-F-3-RH-628/313-PC	DEADLATCH, 1 1/8" BACKSET, RH FLAT CLEAR/DARK BRONZE FP	1	$36.65	^
451-F-3-LH-628/313-PC	DEADLATCH, 1 1/8" BACKSET, LH FLAT CLEAR/DARK BRONZE FP	1	$36.65	^
451-F-4-RH-628/313-PC	DEADLATCH, 1 1/2" BACKSET, RH FLAT CLEAR/DARK BRONZE FP	1	$38.45	^
451-F-4-LH-628/313-PC	DEADLATCH, 1 1/2" BACKSET, LH FLAT CLEAR/DARK BRONZE FP	1	$38.45	^
451-F-2-LH-1-01-628/313-PC	DEADLATCH, 31/32" BACKSET, LH FLAT CLEAR/DARK BRONZE FP, CLEAR/DARK BRONZE LONG STD STRIKE	1	$45.40	^
451-F-2-LH-2-01-628/313-PC	DEADLATCH, 31/32" BACKSET, LH FLAT CLEAR/DARK BRONZE FP, CLEAR/DARK BRONZE SHORT STD STRIKE	1	$45.40	^
451-F-2-RH-1-01-628/313-PC	DEADLATCH, 31/32" BACKSET, RH FLAT CLEAR/DARK BRONZE FP, CLEAR/DARK BRONZE LONG STD STRIKE	1	$45.40	^
451-F-2-RH-2-01-628/313-PC	DEADLATCH, 31/32" BACKSET, RH FLAT CLEAR/DARK BRONZE FP, CLEAR/DARK BRONZE SHORT STD STRIKE	1	$45.40	^
451-F-3-LH-1-01-628/313-PC	DEADLATCH, 1 1/8" BACKSET, LH FLAT CLEAR/DARK BRONZE FP, CLEAR/DARK BRONZE LONG STD STRIKE	1	$45.40	^
451-F-3-LH-2-01-628/313-PC	DEADLATCH, 1 1/8" BACKSET, LH FLAT CLEAR/DARK BRONZE FP, CLEAR/DARK BRONZE SHORT STD STRIKE	1	$45.40	^
451-F-3-RH-1-01-628/313-PC	DEADLATCH, 1 1/8" BACKSET, RH FLAT CLEAR/DARK BRONZE FP, CLEAR/DARK BRONZE LONG STD STRIKE	1	$45.40	^
451-F-3-RH-2-01-628/313-PC	DEADLATCH, 1 1/8" BACKSET, RH FLAT CLEAR/DARK BRONZE FP, CLEAR/DARK BRONZE SHORT STD STRIKE	1	$45.40	^
451-F-4-LH-1-01-628/313-PC	DEADLATCH, 1 1/2" BACKSET, LH FLAT CLEAR/DARK BRONZE FP, CLEAR/DARK BRONZE LONG STD STRIKE	1	$47.65	^

22 Storefront Hardware June 13, 2022

Deadlatch - 451 Series ( continued )

Product Number	Description	STD PACK	MSRP
451-F-4-LH-2-01-628/313-PC	DEADLATCH, 1 1/2" BACKSET, LH FLAT CLEAR/DARK BRONZE FP, CLEAR/DARK BRONZE SHORT STD STRIKE	1	$47.65	^
451-F-4-RH-1-01-628/313-PC	DEADLATCH, 1 1/2" BACKSET, RH FLAT CLEAR/DARK BRONZE FP, CLEAR/DARK BRONZE LONG STD STRIKE	1	$47.65	^
451-F-4-RH-2-01-628//313-PC	DEADLATCH, 1 1/2" BACKSET, RH FLAT CLEAR/DARK BRONZE FP, CLEAR/DARK BRONZE SHORT STD STRIKE	1	$47.65	^

Deadlatch - Reversible 452 Series

Product Number	Description	STD PKG	MSRP
452-3-LH-SINGLE-PC	REVERSIBLE DEADLATCH, 1 1/8" BACKSET, LH	1	$42.70	^
452-3-RH-SINGLE-PC	REVERSIBLE DEADLATCH, 1 1/8" BACKSET, RH	1	$42.70	^
452-F-3-LH-628/313	REVERSIBLE DEADLATCH, 1 1/8" BACKSET, LH FLAT CLEAR/DARK BRONZE FP	1	$51.85	^
452-F-3-RH-628/313	REVERSIBLE DEADLATCH, 1 1/8" BACKSET, RH FLAT CLEAR/DARK BRONZE FP	1	$51.85	^
452-F-3-LH-1-01-628/313	REVERSIBLE DEADLATCH, 1 1/8" BACKSET, LH FLAT CLEAR/DARK BRONZE FP, LONG STD STRIKE	1	$65.10	^
452-F-3-LH-2-01-628/313	REVERSIBLE DEADLATCH, 1 1/8" BACKSET, LH FLAT CLEAR/DARK BRONZE FP, SHORT STD STRIKE	1	$65.10	^
452-F-3-RH-1-01-628/313	REVERSIBLE DEADLATCH, 1 1/8" BACKSET, RH FLAT CLEAR/DARK BRONZE FP, LONG STD STRIKE	1	$65.10	^
452-F-3-RH-2-01-628/313	REVERSIBLE DEADLATCH, 1 1/8" BACKSET, RH FLAT CLEAR/DARK BRONZE FP, SHORT STD STRIKE	1	$65.10	^

Faceplates

Product Number	Description	STD PKG	MSRP
FP-DB-F-NH-628	FACEPLATE - DEADBOLT - FLAT NH CLEAR	1	$3.85	^
FP-DB-F-NH-313	FACEPLATE - DEADBOLT - FLAT NH DARK BRONZE	1	$3.85	^
FP-DB-F-NH-335	FACEPLATE - DEADBOLT - FLAT NH BLACK	1	$3.85	^
FP-DB-B-RH-628	FACEPLATE - DEADBOLT - BEVEL RH CLEAR	1	$3.58	^
FP-DB-B-LH-628	FACEPLATE - DEADBOLT - BEVEL LH CLEAR	1	$3.85	^
FP-DB-B-RH-313	FACEPLATE - DEADBOLT - BEVEL RH DARK BRONZE	1	$3.85	^
FP-DB-B-LH-313	FACEPLATE - DEADBOLT - BEVEL LH DARK BRONZE	1	$3.85	^
FP-DB-B-RH-335	FACEPLATE - DEADBOLT - BEVEL RH BLACK	1	$3.85	^
FP-DB-B-LH-335	FACEPLATE - DEADBOLT - BEVEL LH BLACK	1	$3.85	^
FP-DB-R-NH-628	FACEPLATE - DEADBOLT - RADIUS NH CLEAR	1	$3.85	^
FP-DB-R-NH-313	FACEPLATE - DEADBOLT - RADIUS NH DARK BRONZE	1	$3.85	^
FP-DB-R-NH-335	FACEPLATE - DEADBOLT - RADIUS NH BLACK	1	$3.85	^
FP-DB-RW-NH-628	FACEPLATE - DEADBOLT - RADIUS NH CLEAR W/ WEATHERSTRIP	1	$6.15	^
FP-DB-RW-NH-313	FACEPLATE - DEADBOLT - RADIUS NH DARK BRONZE W/ WEATHERSTRIP	1	$6.15	^
FP-DB-RW-NH-335	FACEPLATE - DEADBOLT - RADIUS NH BLACK W/ WEATHERSTRIP	1	$6.15	^
FP-DB-B-RH-628 (BULK)	FACEPLATE - DEADBOLT - BEVEL RH CLEAR (BULK)	25	$2.80	^
FP-DB-B-LH-628 (BULK)	FACEPLATE - DEADBOLT - BEVEL LH CLEAR (BULK)	25	$2.80	^
FP-DB-B-RH-313 (BULK)	FACEPLATE - DEADBOLT - BEVEL RH DARK BRONZE (BULK)	25	$2.80	^
FP-DB-B-LH-313 (BULK)	FACEPLATE - DEADBOLT - BEVEL LH DARK BRONZE (BULK)	25	$2.80	^
FP-DB-B-RH-335 (BULK)	FACEPLATE - DEADBOLT - BEVEL RH BLACK (BULK)	25	$2.80	^
FP-DB-B-LH-335 (BULK)	FACEPLATE - DEADBOLT - BEVEL LH BLACK (BULK)	25	$2.80	^
FP-DB-R-NH-628 (BULK)	FACEPLATE - DEADBOLT - RADIUS NH CLEAR (BULK)	25	$2.80	^
FP-DB-R-NH-313 (BULK)	FACEPLATE - DEADBOLT - RADIUS NH DARK BRONZE (BULK)	25	$2.80	^
FP-DB-R-NH-335 (BULK)	FACEPLATE - DEADBOLT - RADIUS NH BLACK (BULK)	25	$2.80	^
FP-DB-RW-NH-628 (BULK)	FACEPLATE - DEADBOLT - RADIUS NH CLEAR W/ WEATHERSTRIP (BULK)	25	$5.55	^
FP-DB-RW-NH-313 (BULK)	FACEPLATE - DEADBOLT - RADIUS NH DARK BRONZE W/ WEATHERSTRIP (BULK)	25	$5.55	^
FP-DB-RW-NH-335 (BULK)	FACEPLATE - DEADBOLT - RADIUS NH BLACK W/ WEATHERSTRIP (BULK)	25	$5.55	^
FP-HB-F-NH-628	FACEPLATE - HOOKBOLT - FLAT NH CLEAR	1	$3.85	^
FP-HB-F-NH-313	FACEPLATE - HOOKBOLT - FLAT NH DARK BRONZE	1	$3.85	^

Storefront Hardware 23 June 13, 2022

Faceplates ( continued )

Product Number	Description	STD PKG	MSRP
FP-HB-F-NH-335	FACEPLATE - HOOKBOLT - FLAT NH BLACK	1	$3.85	^
FP-HB-B-RH-628	FACEPLATE - HOOKBOLT - BEVEL RH CLEAR	1	$3.85	^
FP-HB-B-LH-628	FACEPLATE - HOOKBOLT - BEVEL LH CLEAR	1	$3.85	^
FP-HB-B-RH-313	FACEPLATE - HOOKBOLT - BEVEL RH DARK BRONZE	1	$3.85	^
FP-HB-B-LH-313	FACEPLATE - HOOKBOLT - BEVEL LH DARK BRONZE	1	$3.85	^
FP-HB-B-RH-335	FACEPLATE - HOOKBOLT - BEVEL RH BLACK	1	$3.85	^
FP-HB-B-LH-335	FACEPLATE - HOOKBOLT - BEVEL LH BLACK	1	$3.85	^
FP-HB-R-NH-628	FACEPLATE - HOOKBOLT - RADIUS NH CLEAR	1	$3.85	^
FP-HB-R-NH-313	FACEPLATE - HOOKBOLT - RADIUS NH DARK BRONZE	1	$3.85	^
FP-HB-R-NH-335	FACEPLATE - HOOKBOLT - RADIUS NH BLACK	1	$3.85	^
FP-HB-RW-NH-628	FACEPLATE - HOOKBOLT - RADIUS NH CLEAR W/ WEATHERSTRIP	1	$6.15	^
FP-HB-RW-NH-313	FACEPLATE - HOOKBOLT - RADIUS NH DARK BRONZE W/ WEATHERSTRIP	1	$6.15	^
FP-HB-RW-NH-335	FACEPLATE - HOOKBOLT - RADIUS NH BLACK W/ WEATHERSTRIP	1	$6.15	^
FP-HB-F-NH-628-AN	FACEPLATE - HOOKBOLT - FLAT ANSI CLEAR	1	$6.15	^
FP-HB-F-NH-313-AN	FACEPLATE - HOOKBOLT - FLAT ANSI DARK BRONZE	1	$6.15	^
FP-HB-R-NH-628-AN	FACEPLATE - HOOKBOLT - RADIUS ANSI CLEAR	1	$6.15	^
FP-HB-R-NH-313-AN	FACEPLATE - HOOKBOLT - RADIUS ANSI DARK BRONZE	1	$6.15	^
FP-HB-B-RH-628 (BULK)	FACEPLATE - HOOKBOLT - BEVEL RH CLEAR (BULK)	25	$2.80	^
FP-HB-B-LH-628 (BULK)	FACEPLATE - HOOKBOLT - BEVEL LH CLEAR (BULK)	25	$2.80	^
FP-HB-B-RH-313 (BULK)	FACEPLATE - HOOKBOLT - BEVEL RH DARK BRONZE (BULK)	25	$2.80	^
FP-HB-B-LH-313 (BULK)	FACEPLATE - HOOKBOLT - BEVEL LH DARK BRONZE (BULK)	25	$2.80	^
FP-HB-B-RH-335 (BULK)	FACEPLATE - HOOKBOLT - BEVEL RH BLACK (BULK)	25	$2.80	^
FP-HB-B-LH-335 (BULK)	FACEPLATE - HOOKBOLT - BEVEL LH BLACK (BULK)	25	$2.80	^
FP-HB-R-NH-628 (BULK)	FACEPLATE - HOOKBOLT - RADIUS NH CLEAR (BULK)	25	$2.80	^
FP-HB-R-NH-313 (BULK)	FACEPLATE - HOOKBOLT - RADIUS NH DARK BRONZE (BULK)	25	$2.80	^
FP-HB-R-NH-335 (BULK)	FACEPLATE - HOOKBOLT - RADIUS NH BLACK (BULK)	25	$2.80	^
FP-HB-RW-NH-628 (BULK)	FACEPLATE - HOOKBOLT - RADIUS NH CLEAR W/ WEATHERSTRIP (BULK)	25	$5.55	^
FP-HB-RW-NH-313 (BULK)	FACEPLATE - HOOKBOLT - RADIUS NH DARK BRONZE W/ WEATHERSTRIP (BULK)	25	$5.55	^
FP-HB-RW-NH-335 (BULK)	FACEPLATE - HOOKBOLT - RADIUS NH BLACK W/ WEATHERSTRIP (BULK)	25	$5.55	^
FP-DL-F-NH-628	FACEPLATE - DEADLATCH - FLAT NH CLEAR	1	$3.85	^
FP-DL-F-NH-313	FACEPLATE - DEADLATCH - FLAT NH DARK BRONZE	1	$3.85	^
FP-DL-F-NH-335	FACEPLATE - DEADLATCH - FLAT NH BLACK	1	$3.85	^
FP-DL-B-RH-628	FACEPLATE - DEADLATCH - BEVEL RH CLEAR	1	$3.85	^
FP-DL-B-LH-628	FACEPLATE - DEADLATCH - BEVEL LH CLEAR	1	$3.85	^
FP-DL-B-RH-313	FACEPLATE - DEADLATCH - BEVEL RH DARK BRONZE	1	$3.85	^
FP-DL-B-LH-313	FACEPLATE - DEADLATCH - BEVEL LH DARK BRONZE	1	$3.85	^
FP-DL-B-RH-335	FACEPLATE - DEADLATCH - BEVEL RH BLACK	1	$3.85	^
FP-DL-B-LH-335	FACEPLATE - DEADLATCH - BEVEL LH BLACK	1	$3.85	^
FP-DL-R-NH-628	FACEPLATE - DEADLATCH - RADIUS NH CLEAR	1	$3.85	^
FP-DL-R-NH-313	FACEPLATE - DEADLATCH - RADIUS NH DARK BRONZE	1	$3.85	^
FP-DL-R-NH-335	FACEPLATE - DEADLATCH - RADIUS NH BLACK	1	$3.85	^
FP-DL-RW-NH-628	FACEPLATE - DEADLATCH - RADIUS NH CLEAR W/ WEATHERSTRIP	1	$6.15	^
FP-DL-RW-NH-313	FACEPLATE - DEADLATCH - RADIUS NH DARK BRONZE W/ WEATHERSTRIP	1	$6.15	^
FP-DL-RW-NH-335	FACEPLATE - DEADLATCH - RADIUS NH BLACK W/ WEATHERSTRIP	1	$6.15	^
FP-DL-B-RH-628 (BULK)	FACEPLATE - DEADLATCH - BEVEL RH CLEAR (BULK)	25	$2.80	^
FP-DL-B-LH-628 (BULK)	FACEPLATE - DEADLATCH - BEVEL LH CLEAR (BULK)	25	$2.80	^

24 Storefront Hardware June 13, 2022

Faceplates ( continued )

Product Number	Description	STD PKG	MSRP
FP-DL-B-RH-313 (BULK)	FACEPLATE - DEADLATCH - BEVEL RH DARK BRONZE (BULK)	25	$2.80	^
FP-DL-B-LH-313 (BULK)	FACEPLATE - DEADLATCH - BEVEL LH DARK BRONZE (BULK)	25	$2.80	^
FP-DL-B-RH-335 (BULK)	FACEPLATE - DEADLATCH - BEVEL RH BLACK (BULK)	25	$2.80	^
FP-DL-B-LH-335 (BULK)	FACEPLATE - DEADLATCH - BEVEL LH BLACK (BULK)	25	$2.80	^
FP-DL-R-NH-628 (BULK)	FACEPLATE - DEADLATCH - RADIUS NH CLEAR (BULK)	25	$2.80	^
FP-DL-R-NH-313 (BULK)	FACEPLATE - DEADLATCH - RADIUS NH DARK BRONZE (BULK)	25	$2.80	^
FP-DL-R-NH-335 (BULK)	FACEPLATE - DEADLATCH - RADIUS NH BLACK (BULK)	25	$2.80	^
FP-DL-RW-NH-628 (BULK)	FACEPLATE - DEADLATCH - RADIUS NH CLEAR W/ WEATHERSTRIP (BULK)	25	$5.55	^
FP-DL-RW-NH-313 (BULK)	FACEPLATE - DEADLATCH - RADIUS NH DARK BRONZE W/ WEATHERSTRIP (BULK)	25	$5.55	^
FP-DL-RW-NH-335 (BULK)	FACEPLATE - DEADLATCH - RADIUS NH BLACK W/ WEATHERSTRIP (BULK)	25	$5.55	^
FP-RDL-F-NH-628	FACEPLATE - REVERSIBLE DEADLATCH - FLAT NH CLEAR	1	$3.85	^
FP-RDL-F-NH-313	FACEPLATE - REVERSIBLE DEADLATCH - FLAT NH DARK BRONZE	1	$3.85	^
FP-RDL-F-NH-335	FACEPLATE - REVERSIBLE DEADLATCH - FLAT NH BLACK	1	$3.85	^
FP-RDL-R-NH-628	FACEPLATE - REVERSIBLE DEADLATCH - RADIUS NH CLEAR	1	$3.85	^
FP-RDL-R-NH-313	FACEPLATE - REVERSIBLE DEADLATCH - RADIUS NH DARK BRONZE	1	$3.85	^
FP-RDL-R-NH-335	FACEPLATE - REVERSIBLE DEADLATCH - RADIUS NH BLACK	1	$3.85	^
FP-RDL-RW-NH-628	FACEPLATE - REVERSIBLE DEADLATCH - RADIUS NH CLEAR W/ WEATHERSTRIP	1	$5.20	^
FP-RDL-RW-NH-313	FACEPLATE - REVERSIBLE DEADLATCH - RADIUS NH DARK BRONZE W/ WEATHERSTRIP	1	$5.20	^
FP-RDL-RW-NH-335	FACEPLATE - REVERSIBLE DEADLATCH - RADIUS NH BLACK W/ WEATHERSTRIP	1	$5.20	^

Strikes

Product Number	Description	STD PKG	MSRP
4501-01	1.87" LONG LIP STANDARD	1	$11.05	^
4501-01-DU	1.87" LONG LIP STANDARD - DARK BRONZE	1	$11.05	^
4501-02	1.87" LONG LIP RADIUS	1	$11.05	^
4501-02-DU	1.87" LONG LIP RADIUS - DARK BRONZE	1	$11.05	^
4502-01	1.87" SHORT LIP STANDARD	1	$11.05	^
4502-01-DU	1.87" SHORT LIP STANDARD - DARK BRONZE	1	$11.05	^
4502-02	1.87" SHORT LIP RADIUS	1	$11.05	^
4502-02-DU	1.87" SHORT LIP RADIUS - DARK BRONZE	1	$11.05	^
4501-17	2.90" LONG STRIKE EXTENDED LIP FOR CENTER HUNG DOORS 4" FRAME	1	$12.00	^
4501-21	3.13" LONG STRIKE EXTENDED LIP FOR CENTER HUNG DOORS 4.5" FRAME	1	$12.00	^
4502-17	2.90" SHORT STRIKE EXTENDED LIP FOR CENTER HUNG DOORS 4" FRAME	1	$12.00	^
4502-21	3.13" SHORT STRIKE EXTENDED LIP FOR CENTER HUNG DOORS 4.5" FRAME	1	$12.00	^

Lever Handles and Push / Pull Paddles

Push / Pull Paddles - 459 Series

Product Number	Description	STD PKG	MSRP
459-01-00-313	PADDLE - PULL TO LEFT, DARK BRONZE	1	$61.00	^
459-01-00-335	PADDLE - PULL TO LEFT, BLACK	1	$61.00	^
459-01-00-628	PADDLE - PULL TO LEFT, CLEAR	1	$61.00	^
459-02-00-313	PADDLE - PUSH TO LEFT, DARK BRONZE	1	$61.00	^
459-02-00-335	PADDLE - PUSH TO LEFT, BLACK	1	$61.00	^
459-02-00-628	PADDLE - PUSH TO LEFT, CLEAR	1	$61.00	^
459-03-00-313	PADDLE - PULL TO RIGHT, DARK BRONZE	1	$61.00	^
459-03-00-335	PADDLE - PULL TO RIGHT, BLACK	1	$61.00	^
459-03-00-628	PADDLE - PULL TO RIGHT, CLEAR	1	$61.00

Storefront Hardware 25 June 13, 2022

Push / Pull Paddles - 459 Series ( continued )

459-04-00-313	PADDLE - PUSH TO RIGHT, DARK BRONZE	1	$61.00	^
459-04-00-335	PADDLE - PUSH TO RIGHT, BLACK	1	$61.00	^
459-04-00-628	PADDLE - PUSH TO RIGHT, CLEAR	1	$61.00	^
SS-26-39	3/8-24 BRASS SET SCREW W/NYLOC (459 PADDLE-PK OF 5)	5	$15.75	^
9160	PADDLE SPRING KIT	5	$5.75	^

Push Paddles - 457 Series

Product Number	Description	STD PKG	MSRP
457-02-00-313	TREND PADDLE - PUSH TO LEFT, DARK BRONZE	1	$68.55	^
457-02-00-335	TREND PADDLE - PUSH TO LEFT, BLACK	1	$68.55	^
457-02-00-628	TREND PADDLE - PUSH TO LEFT, CLEAR	1	$68.55	^
457-04-00-313	TREND PADDLE - PUSH TO RIGHT, DARK BRONZE	1	$68.55	^
457-04-00-335	TREND PADDLE - PUSH TO RIGHT, BLACK	1	$68.55	^
457-04-00-628	TREND PADDLE - PUSH TO RIGHT, CLEAR	1	$68.55	^

Lever Handles - 456 Series

Product Number	Description	STD PKG	MSRP
456S-LH-01-AL	LEVER HANDLE, LH, STRAIGHT, CLEAR	1	$29.80	^
456S-RH-01-AL	LEVER HANDLE, RH, STRAIGHT, CLEAR	1	$29.80	^
456S-LH-01-DU	LEVER HANDLE, LH, STRAIGHT, DARK BRONZE	1	$29.80	^
456S-RH-01-DU	LEVER HANDLE, RH, STRAIGHT, DARK BRONZE	1	$29.80	^
456RE-LH-01-AL	LEVER HANDLE, LH, RETURN END, CLEAR	1	$31.60	^
456RE-RH-01-AL	LEVER HANDLE, RH, RETURN END, CLEAR	1	$31.60	^
456RE-LH-01-DU	LEVER HANDLE, LH, RETURN END, DARK BRONZE	1	$31.60	^
456RE-RH-01-DU	LEVER HANDLE, RH, RETURN END, DARK BRONZE	1	$31.60	^
456RE-LH-01-BLK	LEVER HANDLE, LH, RETURN END, BLACK	1	$31.60	^
456RE-RH-01-BLK	LEVER HANDLE, RH, RETURN END, BLACK	1	$31.60	^
456TT-LH-01-BLK	THUMB TURN, LH, BLACK	1	$29.80	^
456TT-RH-01-BLK	THUMB TURN, RH, BLACK	1	$29.80	^
456TT-LH-01-AL	THUMB TURN, LH, CLEAR	1	$29.80	^
456TT-RH-01-AL	THUMB TURN, RH, CLEAR	1	$29.80	^
456TT-LH-01-DU	THUMB TURN, LH, DARK BRONZE	1	$29.80	^
456TT-RH-01-DU	THUMB TURN, RH, DARK BRONZE	1	$29.80	^
CP456-RH	CAM PLUG, 1 3/4" PADDLE OR 2" LEVER DOOR THICKNESS, RH	1	$7.15	^
CP456-LH	CAM PLUG, 1 3/4" PADDLE OR 2" LEVER DOOR THICKNESS, LH	1	$7.15	^
CP456-RH-1	CAM PLUG, 1 13/16"- 2" PADDLE OR 2 1/4"- 2 1/2" LEVER DOOR THICKNESS, RH	1	$7.15	^
CP456-LH-1	CAM PLUG, 1 13/16"- 2" PADDLE OR 2 1/4"- 2 1/2" LEVER DOOR THICKNESS, LH	1	$7.15	^
CP456-RH-2	CAM PLUG, 2 1/4"- 2 1/2" PADDLE OR 2 3/4"- 3" LEVER DOOR THICKNESS, RH	1	$7.15	^
CP456-LH-2	CAM PLUG, 2 1/4"- 2 1/2" PADDLE OR 2 3/4"- 3" LEVER DOOR THICKNESS, LH	1	$7.15	^

Threshold, Header and Flush Bolts

Flushbolts - FLB Series

Product Number	Description	STD PKG	MSRP
FLB-58-316-AL	FLUSH BOLT 5/8" THROW, 3/16" OFFSET, CLEAR	1	$12.60	^
FLB-58-316-DU	FLUSH BOLT 5/8" THROW, 3/16" OFFSET, DARK BRONZE	1	$12.60	^
FLB-58-18-AL	FLUSH BOLT 5/8" THROW, 1/8" OFFSET, CLEAR	1	$12.60	^
FLB-58-18-DU	FLUSH BOLT 5/8" THROW, 1/8" OFFSET, DARK BRONZE	1	$12.60	^
FLB-58-18-BLK	FLUSH BOLT 5/8" THROW, 1/8" OFFSET, BLACK	1	$12.60	^

26 Storefront Hardware June 13, 2022

Flushbolts - FLB Series ( continued )

FLB-58-14-AL	FLUSH BOLT 5/8" THROW, 1/4" OFFSET, CLEAR	1	$12.60	^
FLB-58-14-DU	FLUSH BOLT 5/8" THROW, 1/4" OFFSET, DARK BRONZE	1	$12.60	^
FLB-78-316-AL	FLUSH BOLT 7/8" THROW, 3/16" OFFSET, CLEAR	1	$12.60	^
FLB-78-316-DU	FLUSH BOLT 7/8" THROW, 3/16" OFFSET, DARK BRONZE	1	$12.60	^
FLB-78-18-AL	FLUSH BOLT 7/8" THROW, 1/8" OFFSET, CLEAR	1	$12.60	^
FLB-78-18-DU	FLUSH BOLT 7/8" THROW, 1/8" OFFSET, DARK BRONZE	1	$12.60	^
FLB-78-14-AL	FLUSH BOLT 7/8" THROW, 1/4" OFFSET, CLEAR	1	$12.60	^
FLB-78-14-DU	FLUSH BOLT 7/8" THROW, 1/4" OFFSET, DARK BRONZE	1	$12.60	^
FLB-58-18-AL-16"	FLUSH BOLT 5/8" THROW, 1/8" OFFSET, CLEAR - 16" ROD	1	$12.60	^
FLB-58-18-DU-16"	FLUSH BOLT 5/8" THROW, 1/8" OFFSET, DARK BRONZE - 16" ROD	1	$12.60	^
FLB-GUIDE PACK	GUIDE PACK (FOR FLUSHBOLTS)	1	$1.50	^
FLUSHBOLT STEEL ROD	FLUSHBOLT STEEL ROD 20-3/8"	1	$1.80	^

2 Point Flush Bolts

Product Number	Description	STD PKG	MSRP
IL1880-1-84-AL	TWO POINT FLUSH BOLT, CYLINDER HEIGHT UP TO 37", 84" DOORS, CLEAR	1	$74.35	^
IL1880-1-84-DU	TWO POINT FLUSH BOLT, CYLINDER HEIGHT UP TO 37", 84" DOORS, DARK BRONZE	1	$74.35	^
IL1880-1-84-BLK	TWO POINT FLUSH BOLT, CYLINDER HEIGHT UP TO 37", 84" DOORS, BLACK	1	$74.35	^
IL1880-1-96-AL	TWO POINT FLUSH BOLT, CYLINDER HEIGHT UP TO 37", 96" DOORS, CLEAR	1	$74.35	^
IL1880-1-96-DU	TWO POINT FLUSH BOLT, CYLINDER HEIGHT UP TO 37", 96" DOORS, DARK BRONZE	1	$74.35	^
IL1880-1-96-BLK	TWO POINT FLUSH BOLT, CYLINDER HEIGHT UP TO 37", 96" DOORS, BLACK	1	$74.35	^
IL1880-2-96-AL	TWO POINT FLUSH BOLT, CYLINDER HEIGHT UP TO 42", 96" DOORS, CLEAR	1	$78.60	^
IL1880-2-96-DU	TWO POINT FLUSH BOLT, CYLINDER HEIGHT UP TO 42", 96" DOORS, DARK BRONZE	1	$78.60	^
IL1880-2-96-BLK	TWO POINT FLUSH BOLT, CYLINDER HEIGHT UP TO 42", 96" DOORS, BLACK	1	$78.60	^
IL1880-AL	TWO POINT FLUSH BOLT, LOCK ONLY, NO RODS, CLEAR	1	$59.35	^
IL1880-DU	TWO POINT FLUSH BOLT, LOCK ONLY, NO RODS, DARK BRONZE	1	$59.35	^
IL1880-BLK	TWO POINT FLUSH BOLT, LOCK ONLY, NO RODS, BLACK	1	$59.35	^
IL-285-1 TWO POINT LOCK	TWO POINT LOCK FOR ROLLING GRILL DOORS	1	$30.30	^

Header Bolts - 4016 / 4085 Series - Threshold Bolt - 4015 Series

Product Number	Description	STD PKG	MSRP
HDB-4016 - 31/32"	HEADER BOLT - 31/32" BACKSET	1	$45.70	^
HDB-4016 - 1 1/8"	HEADER BOLT - 1 1/8" BACKSET	1	$45.70	^
HDB-4016 - 1 1/2"	HEADER BOLT - 1 1/2" BACKSET	1	$45.70	^
HDB-4016 - 31/32" BULK	HEADER BOLT - 31/32" BACKSET (BULK)	25	$38.55	^
HDB-4016 - 1 1/8" BULK	HEADER BOLT - 1 1/8" BACKSET (BULK)	25	$38.55	^
HDB-4016 - 1 1/2" BULK	HEADER BOLT - 1 1/2" BACKSET (BULK)	25	$38.55	^
HDB-4085-2	HEADER BOLT - 79" - 92" CYLINDER HEIGHT	1	$43.10	^
HDB-4085	HEADER BOLT - 30" - 53" CYLINDER HEIGHT	1	$43.10	^
HDB-4085-1	HEADER BOLT - 55" - 78" CYLINDER HEIGHT	1	$43.10	^
THB-4015	THRESHOLD BOLT	1	$30.60	^
THB-4015 BULK	THRESHOLD BOLT (BULK)	25	$30.60	^

Storefront Hardware 27 June 13, 2022

Lock Indicator Set

Product Number	Description	Std Pkg.	MSRP
LI-408-AL	LOCK INDICATOR - CLEAR	1	$26.70	٨
LI-408-DU	LOCK INDICATOR - DARK BRONZE	1	$26.70	٨

Glass Door Bottom Rail Locks - BR Series

Product Number	Description	Std Pkg.	MSRP
BRL-03	BOTTOM RAIL LOCK 1 - 9/16"	1	$45.70	٨
BRL-01	BOTTOM RAIL LOCK 1 - 7/8"	1	$45.70	٨

Dust Proof Strikes

Product Number	Description	STD PKG	MSRP
DPS-DU	DUST PROOF STRIKE DU FINISH	1	$24.80	٨
DPS-26D	DUST PROOF STRIKE 26D FINISH	1	$24.80	۸
DPS-BLK	DUST PROOF STRIKE BLACK FINISH	1	$24.80	۸
DPS-US3	DUST PROOF STRIKE US3 FINISH	1	$24.80	٨
DPS-32	DUST PROOF STRIKE US14 (32) FINISH	1	$24.80	۸
DPS-US32D	DUST PROOF STRIKE US15 (32D) FINISH	1	$24.80	۸
DPS-US4	DUST PROOF STRIKE US4 FINISH	1	$24.80	۸
DPS-AL	DUST PROOF STRIKE 628 FINISH	1	$24.80	۸
DPS-26	DUST PROOF STRIKE 26 FINISH	1	$24.80	۸

Offset Pivots

IL-OP-10 Series - Vista Wall and Old Castle Style Doors

Product Number	Description	STD PKG	MSRP
IL-OP-10-LH-AL SETS	FLUSH PIVOT SET - LH CLEAR	1	$24.35	٨
IL-OP-10-LH-DU SETS	FLUSH PIVOT SET - LH DARK BRONZE	1	$24.35	٨
IL-OP-10-RH-AL SETS	FLUSH PIVOT SET - RH CLEAR	1	$24.35	٨
IL-OP-10-RH-DU SETS	FLUSH PIVOT SET - RH DARK BRONZE	1	$24.35	٨
IL-OP-10-LH-AL-18 SETS	1/8" RECESSED PIVOT SET - LH CLEAR	1	$24.35	٨
IL-OP-10-LH-DU-18 SETS	1/8" RECESSED PIVOT SET - LH DARK BRONZE	1	$24.35	٨
IL-OP-10-RH-AL-18 SETS	1/8" RECESSED PIVOT SET - RH CLEAR	1	$24.35	٨
IL-OP-10-RH-DU-18 SETS	1/8" RECESSED PIVOT SET - RH DARK BRONZE	1	$24.35	٨
IL-OP-10 SCREW PACK - AL	SCREW PACK - AL	1	$1.65	٨
IL-OP-10 SCREW PACK - DU	SCREW PACK - DU	1	$1.65	٨

IL-OP-12 Series - Armalite and Trulite Style Doors

Product Number	Description	STD PKG	MSRP
IL-OP-12-RH-AL SETS	1/8" RECESSED PIVOT SET - RH CLEAR	1	$22.70	٨
IL-OP-12-LH-AL SETS	1/8" RECESSED PIVOT SET - LH CLEAR	1	$22.70	٨
IL-OP-12-RH-DU SETS	1/8" RECESSED PIVOT SET - RH DARK BRONZE	1	$22.70	٨
IL-OP-12-LH-DU SETS	1/8" RECESSED PIVOT SET - LH DARK BRONZE	1	$22.70	٨
IL-OP-12 SCREW PACK - AL	SCREW PACK - AL	1	$1.65	٨
IL-OP-12 SCREW PACK - DU	SCREW PACK - DU	1	$1.65	٨

IL-OP-13 Series - YKK Style Doors

Product Number	Description	STD PKG	MSRP
IL-OP-13-LH-AL SETS	1/8" RECESSED PIVOT SET - LH CLEAR	1	$37.65	٨
IL-OP-13-LH-DU SETS	1/8" RECESSED PIVOT SET - LH DARK BRONZE	1	$37.65	٨
IL-OP-13-RH-AL SETS	1/8" RECESSED PIVOT SET - RH CLEAR	1	$37.65	٨
IL-OP-13-RH-DU SETS	1/8" RECESSED PIVOT SET - RH DARK BRONZE	1	$37.65	٨
IL-OP-13 SCREW PACK - AL	SCREW PACK - AL	1	$2.20	٨
IL-OP-13 SCREW PACK - DU	SCREW PACK - DU	1	$2.20	٨

28 Storefront Hardware June 13, 2022

IL-OP-14 Series - US Aluminum and Arcadia Style Doors

Product Number	Description	STD PKG	MSRP
IL-OP-14-LH-AL SETS	FLUSH PIVOT SET - LH CLEAR	1	$24.80	^
IL-OP-14-LH-DU SETS	FLUSH US PIVOT SET - LH DARK BRONZE	1	$24.80	^
IL-OP-14-RH-AL SETS	FLUSH PIVOT SET - RH CLEAR	1	$24.80	^
IL-OP-14-RH-DU SETS	FLUSH PIVOT SET - RH DARK BRONZE	1	$24.80	^
IL-OP-14 SCREW PACK - AL	SCREW PACK - AL	1	$1.65	^
IL-OP-14 SCREW PACK - DU	SCREW PACK - DU	1	$1.65	^

IL-OP-15 Series - Pittco and Efco Style Doors

Product Number	Description	STD PKG	MSRP
IL-OP-15-LH-AL SETS	31/32" PIVOT SET - LH CLEAR	1	$24.80	^
IL-OP-15-LH-DU SETS	31/32" PIVOT SET - LH DARK BRONZE	1	$24.80	^
IL-OP-15-RH-AL SETS	31/32" PIVOT SET - RH CLEAR	1	$24.80	^
IL-OP-15-RH-DU SETS	31/32" PIVOT SET - RH DARK BRONZE	1	$24.80	^
IL-OP-15 SCREW PACK - AL	SCREW PACK - AL	1	$1.65	^
IL-OP-15 SCREW PACK - DU	SCREW PACK - DU	1	$1.65	^

IL-OP-18 Series - Kawneer Style Doors

Product Number	Description	STD PKG	MSRP
IL-OP-18-AL TOP PIVOT SET	1/8" RECESSED KAWNEER TOP PIVOT SET CLEAR	1	$16.75	^
IL-OP-18-DU TOP PIVOT SET	1/8" RECESSED KAWNEER TOP PIVOT SET DARK BRONZE	1	$16.75	^
IL-OP-18-LH-AL BOTTOM SET	1/8" RECESSED KAWNEER BOTTOM PIVOT SET CLEAR - LH	1	$27.75	^
IL-OP-18-LH-DU BOTTOM SET	1/8" RECESSED KAWNEER BOTTOM PIVOT SET DARK BRONZE - LH	1	$27.75	^
IL-OP-18-RH-AL BOTTOM SET	1/8" RECESSED KAWNEER BOTTOM PIVOT SET CLEAR - RH	1	$27.75	^
IL-OP-18-RH-DU BOTTOM SET	1/8" RECESSED KAWNEER BOTTOM PIVOT SET DARK BRONZE - RH	1	$27.75	^
IL-OP-18 SCREW PACK - AL	SCREW PACK - AL	1	$2.30	^
IL-OP-18 SCREW PACK - DU	SCREW PACK - DU	1	$2.30	^

IL-OP-19 Series - Aldora Style Doors

Product Number	Description	STD PKG	MSRP
IL-OP-19-LH-AL SETS	1/8" RECESSED BOTTOM PIVOT SET CLEAR - LH	1	$35.25	^
IL-OP-19-LH-DU SETS	1/8" RECESSED BOTTOM PIVOT SET DARK BRONZE - LH	1	$35.25	^
IL-OP-19-RH-AL SETS	1/8" RECESSED BOTTOM PIVOT SET CLEAR - RH	1	$35.25	^

IP-10 Series

Product Number	Description	STD PKG	MSRP
IP-10-LH-AL	INTERMEDIATE PIVOT SET - LH CLEAR	1	$42.15	^
IP-10-RH-AL	INTERMEDIATE PIVOT SET - RH CLEAR	1	$42.15	^
IP-10-LH-DU	INTERMEDIATE PIVOT SET - LH DARK BRONZE	1	$42.15	^
IP-10-RH-DU	INTERMEDIATE PIVOT SET - RH DARK BRONZE	1	$42.15	^
IP-10-LH-DU-2	INTERMEDIATE PIVOT SET - LH BLACK	1	$42.15	^
IP-10-RH-DU-2	INTERMEDIATE PIVOT SET - RH BLACK	1	$42.15	^
IP-10 STEEL BACKING PLATE	STEEL BACKING PLATE For This Pivot Series	1	$6.25	^

Storefront Hardware 29 June 13, 2022

IP-22 Series

Product Number	Description	STD PKG.	MSRP
IP-22-RH-AL	INTERMEDIATE PIVOT - RH CLEAR	1	$25.95	٨
IP-22-RH-DU	INTERMEDIATE PIVOT - RH DARK BRONZE	1	$25.95	٨
IP-22-LH-AL	INTERMEDIATE PIVOT - LH CLEAR	1	$25.95	۸
IP-22-LH-DU	INTERMEDIATE PIVOT - LH DARK BRONZE	1	$25.95	٨

Door Stops

IL-KDDH Series 4" and 5"

Product Number	Description	STD PKG	MSRP
IL-KDDH-4-AL	4" KICK DOWN DOOR HOLDER - CLEAR	1	$9.10	٨
IL-KDDH-4-DU	4" KICK DOWN DOOR HOLDER - DARK BRONZE	1	$9.10	٨
IL-KDDH-4-BLK	4" KICK DOWN DOOR HOLDER - BLACK	1	$9.10	٨
IL-KDDH-4-26D	4" KICK DOWN DOOR HOLDER - 26D	1	$9.10	٨
IL-KDDH-5-AL	5" KICK DOWN DOOR HOLDER - CLEAR	1	$9.10	٨
IL-KDDH-5-26D	5" KICK DOWN DOOR HOLDER - 26D	1	$9.10	٨

IL-PDDH Series

Product Number	Description	STD PKG	MSRP
IL-PDDH-AL	PUSH DOWN DOOR HOLDER - CLEAR	1	$23.10	٨
IL-PDDH-DU	PUSH DOWN DOOR HOLDER - DARK BRONZE	1	$23.10	٨
IL-PDDH-BLK	PUSH DOWN DOOR HOLDER - BLACK	1	$23.10	٨
IL-PDDH-26D	PUSH DOWN DOOR HOLDER - 26D	1	$23.10	٨
IL-PDDH-REPLACEMENT TIP	PUSH DOWN REPLACEMENT TIP	1	$2.20	٨

Zinc Cylinders

Product Number	Description	STD PKG	MSRP
MDC-AL-DUMMY	1" DUMMY - CLEAR	1	$4.20	٨
MDC-DU-DUMMY	1" DUMMY - DARK BRONZE	1	$4.20	۸
MDC-BLK-DUMMY	1" DUMMY - BLACK	1	$4.20	۸
MKC-SC-2-AL-KD	1" SCHLAGE C KEYWAY AR CAM - CLEAR - KEYED DIFFERENT	1	$8.55	۸
MKC-SC-2-DU-KD	1" SCHLAGE C KEYWAY AR CAM - DK BRONZE (ANODIZED) KEYED DIFFERENT	1	$8.55	۸
MKC-SC-2-BLK-KD	1" SCHLAGE C KEYWAY AR CAM - BLACK - KEYED DIFFERENT	1	$8.55	۸
MKC-SC-2-AL-KA2	1" SCHLAGE C KEYWAY AR CAM - CLEAR - KEYED ALIKE	2	$17.20	٨
MKC-SC2-DU-KA2	1" SCHLAGE C KEYWAY AR CAM - DARK BRONZE (ANODIZED) KEYED ALIKE	2	$17.20	٨
MKC-SC-2-BLK-KA2	1" SCHLAGE C KEYWAY AR CAM - BLACK - KEYED ALIKE	2	$17.20	٨
MKC-SC-2-AL-KA25	1" SCHLAGE C KEYWAY AR CAM - CLEAR - KEYED ALIKE	1	$8.55	٨
MKC-SC-2-DU-KA25	1" SCHLAGE C KEYWAY AR CAM - DARK BRONZE (ANODIZED) KEYED ALIKE	1	$8.55	٨
MKC-SC-2-BLK-KA25	1" SCHLAGE C KEYWAY AR CAM - BLACK - KEYED ALIKE	1	$8.55	٨
MKC-SC-2-AL-KA50	1" SCHLAGE C KEYWAY AR CAM - CLEAR - KEYED ALIKE	1	$8.55	۸
MKC-SC-2-DU-KA50	1" SCHLAGE C KEYWAY AR CAM - DARK BRONZE (ANODIZED) KEYED ALIKE	1	$8.55	٨
MKC-SC-2-BLK-KA50	1" SCHLAGE C KEYWAY AR CAM - BLACK - KEYED ALIKE	1	$8.55	٨
RKC-RIM-SC-AL-KD	5 PIN - CLEAR - KEYED DIFFERENT	1	$10.05	٨
RKC-RIM-SC-DU-KD	5 PIN - DARK BRONZE - KEYED DIFFERENT	1	$10.05	٨

30 Storefront Hardware June 13, 2022

Zinc Cylinders

Product Number	Description	STD PKG	MSRP
RKC-RIM-SC-BLK-KD	5 PIN - BLACK - KEYED DIFFERENT	1	$10.05	^
MTC-TK-2-AL	1" TURN KNOB AR CAM - CLEAR	1	$6.75	^
MTC-TK-2-DU	1" TURN KNOB AR CAM - DARK BRONZE	1	$6.75	^
MTC-TK-2-BLK	1" TURN KNOB AR CAM - BLACK	1	$6.75	^

Cylinder Guards

Product Number	Description	STD PKG	MSRP
CL-404-AL	CYLINDER GUARD POWDER COAT FINISH - CLEAR	1	$11.45	^
CL-404-DU	CYLINDER GUARD POWDER COAT FINISH - DARK BRONZE	1	$11.45	^
CL-404-BLK	CYLINDER GUARD POWDER COAT FINISH - BLACK	1	$11.45	^

Butt Hinges

Product Number	Description	STD PKG	MSRP
IL-4540NRP2BB-AL	Butt Hinges 4.5" X 4" X .134" (114.3mm X 101.6mm X 3.4mm) Clear (32D) Finish	1	$18.60	^
IL-4540NRP2BB-DU	Butt Hinges 4.5" X 4" X .134" (114.3mm X 101.6mm X 3.4mm) Dk Bronze (DU) Finish	1	$20.35	^

Storefront Hardware 31 June 13, 2022

Replacement Hardware

Auxilary Locks

Product Number	Description	STD PKG	MSRP
AD4605	Mortise Lockset	1	$175.40	^
220-53-41	Night Latch - Box Pack	10	$16.00	^
220-53-41 Less Cyl	Night latch - less Cylinder - Box Pack	10	$12.10	^
220NHB Less Cyl	Night latch - No Hold Back - less Cylinders - Box Pack	10	$12.10	^
220-53-51	Night Latch - Clam Shell Pack	5	$18.00	^
530-53-41	Single Jimmy Proof - Box Pack	10	$21.65	^
530-53-41 Less Cyl	Single Jimmy Proof - Less Cylinder - Box Pack	10	$17.10	^
530-53-51	Single Jimmy Proof - Clam Shell Pack	5	$23.60	^
535-53-41	Double Jimmy Proof - Box Pack	10	$27.05	^
535SC-53-41	Double Jimmy Proof SC Keyway - Box Pack	10	$27.05	^
535-53-51	Double Jimmy Proof - Clam Shell Pack	5	$29.20	^
539-53-41 Less Cyl	Single Jimmy Proof - Less Cylinder - Flat Strike - Box Pack	10	$17.05	^
545-53-41	Surface Deadlock - Box Pack	10	$16.00	^
545-53-51	Surface Deadlock - Clam Shell Pack	5	$18.00	^
590-04-51	Rim Lockset - Verticle Mount Function	5	$30.55	^
591-04-51	Rim Lockset - Horizontal Mount Function	5	$30.55	^
1800-28-41	Garage Door Lock - Less Cylinder	10	$16.80	^

Replacement Rim Cylinders

Product Number	Description	STD PKG	MSRP
605KW-04-51	5 Pin Zinc Rim Cylinder - Kwikset Keyway - 04 Finish - Keyed Different - Clam Shell Packed	5	$7.85	^
605KW-04-41	5 Pin Zinc Rim Cylinder - Kwikset Keyway - 04 Finish - Keyed Different - Box Packed	10	$7.35	^
605KW-04-41 KA2	5 Pin Zinc Rim Cylinder - Kwikset Keyway - 04 Finish - Keyed Alike X 2 - Box Packed	10	$7.35	^
605KW-04-41 KA10	5 Pin Zinc Rim Cylinder - Kwikset Keyway - 04 Finish - Keyed Alike X 10 - Box Packed	10	$7.35	^
605KW-04-41 KA12412	5 Pin Zinc Rim Cylinder - Kwikset Keyway - 04 Finish - All Keyed Alike - Box Packed	10	$7.35	^
605KW-28-41	5 Pin Zinc Rim Cylinder - Kwikset Keyway - 28 Finish - Keyed Different - Box Packed	10	$7.35	^
605SC-04-51	5 Pin Zinc Rim Cylinder - Schlage Keyway - 04 Finish - Keyed Different - Clam Shell Packed	5	$7.85	^
605SC-04-41	5 Pin Zinc Rim Cylinder - Schlage Keyway - 04 Finish - Keyed Different - Box Packed	10	$7.35	^
605SC-04-41 KA2	5 Pin Zinc Rim Cylinder - Schlage Keyway - 04 Finish - Keyed Alike X 2 - Box Packed	10	$7.35	^
605SC-04-41 KA12412	5 Pin Zinc Rim Cylinder - Schlage Keyway - 04 Finish - All Keyed Alike - Box Packed	10	$7.35	^
605SC-04-41 KA13514	5 Pin Zinc Rim Cylinder - Schlage Keyway - 04 Finish - All Keyed Alike - Box Packed	10	$7.35	^
605SC-28-41	5 Pin Zinc Rim Cylinder - Schlage Keyway - 28 Finish - Keyed Different - Box Packed	10	$7.35	^
605SC-28-41 KA12415	5 Pin Zinc Rim Cylinder - Schlage Keyway - 28 Finish - All Keyed Alike - Box Packed	10	$7.35	^

Replacement Door Knobs & Accessories

Product Number	Description	STD PKG	MSRP
197-03-51	REPLACEMENT KNOBS SOLID BRASS, BLISTER CARDED	5	$17.85	^
198-04-51	REPLACEMENT KNOBS BRASS PLATED, BLISTER CARDED	5	$8.40	^
199A-03-51	REPLACEMENT KNOBS CLEAR, BRIGHT BRASS HARDWARE	5	$16.25	^
AG30A	REPLACEMENT KNOBS CLEAR, BLISTER CARDED, BRIGHT BRASS HARDWARE	5	$16.25	^
A403P	REPLACEMENT KNOBS SOLID BRASS, BOX PACK	5	$18.65	^
A410	REPLACEMENT KNOBS BRASS PLATED, BOX PACK	5	$9.35	^
211-03-51	ROSES FOR 198, 199, A410, KNOBS, BRIGHT BRASS	5	$4.45	^
212-03-51	ROSES FOR 197 AND A403P KNOBS, BRIGHT BRASS	5	$7.05	^

Replacement Door Knobs & Accessories (continued)

Product Number	Description	STD PKG	MSRP
213-04-51	TRIM PLATES, SATIN BRASS	5	$8.90	^
214-04-51	BIT KEY LOCK, SATIN BRASS	5	$14.40	^
215-04-51	BIT KEY MORTISE LOCKSET	5	$33.30	^
216-03-51	REPLACEMENT LATCH FOR TUBULAR LOCKS	5	$15.00	^
218A-03-51	CLEAR DESIGN TUBULAR LATCHSET, BRIGHT BRASS - 2 3/8" BACKSET	5	$23.25	^

Window and Door Locks

Product Number	Description	STD PKG	MSRP
203-03-11	Keyed Window Sash Lock, Bright Brass	5	$18.35	^
300-59-51	Heavy Duty Keyed Patio Door Lock, Satin Silver	5	$25.35	^
201-03-51	Chain Door Guard, Bright Brass	5	$11.95	^

Cam Locks Kits

Product Number	Description	STD PKG	MSRP
3380-14-11 KD	Cam Lock Kit 3/8" (10 mm)	10	$9.55	^
3120-14-11 KD	Cam Lock Kit 1/2" (13 mm)	10	$9.55	^
3580-14-11 KD	Cam Lock Kit 5/8" (16 mm)	10	$9.55	^
3780-14-11 KD	Cam Lock Kit 7/8" (22 mm)	10	$9.55	^
3110-14-11 KD	Cam Lock Kit 1 1/8" (29 mm)	10	$10.25	^
3130-14-11 KD	Cam Lock Kit 1 3/8" (35 mm)	10	$10.25	^

Thumbturn & Latch Cam Locks / Offset Cams available - Additional $.75 added to List Price

Product Number	Description	STD PKG	MSRP
A5800	Thumbturn Cam Lock 5/8 (16 mm)	10	$5.80	^
A7800-14-KD	Thumbturn Cam Lock 7/8 (22 mm)	10	$5.80	^

Tubular Cam Lock Kits

Product Number	Description	STD PKG	MSRP
1580-26-11	Tubular Cam Lock Kit 5/8 (16 mm)	10	$38.30	^
1780-26-11	Tubular Cam Lock Kit 7/8 (22 mm)	10	$25.55	^
1110-26-11	Tubular Cam Lock Kit 1 1/8 (29 mm)	10	$25.55	^

Speciality Locks (Master keying available for 1700 series - Add $2.50 per lock) - (Also available KA)

Product Number	Description	STD PKG	MSRP
113-14-51	Mail Box Lock with Spring Clip	5	$11.20	^
114-14-51	Mail Box Lock with Threaded Barrel	5	$11.20	^
247-14-51	Showcase Lock	5	$16.25	^
GSW-CUT KEYS	Keys for Swith Lock	-	$0.90	^
1600-04-11	Letter box lock for Auth., United, Florence Boxes	10	$11.60	^
1625-04-11	Letter box lock with 1⁄2" bolt for Cole, Columbia, Amalgamated	10	$12.70	^
1650-04-11	Letter box lock with Long ear for Cole, Columbia, Amalgamated	10	$12.70	^
1675-04-11	Letter box lock for Couch Boxes	10	$23.25	^
980-03-51	Cabinet/Drawer Lock	5	$10.50	^
984-03-51	Cabinet/Drawer Lock Mortise Mount, Spring Latch	5	$20.25	^
985-03-51	Cabinet/Drawer Lock Mortise Mount	5	$20.25	^
990-14-51	Sliding Door Lock	5	$20.25	^

Speciality Locks (Master keying available for 1700 series - Add $2.50 per lock) - (Also available KA) (continued)

Product Number	Description	STD PKG	MSRP
1701-04-11 KD	Drawer Lock with 3/4" Horizontal Mount	10	$14.55	^
1701-14-11 KD	Drawer Lock with 3/4" Horizontal Mount	10	$14.55	^
1702-04-11 KD	Drawer Lock with 7/8" Horizontal Mount	10	$14.55	^
1702-14-11 KD	Drawer Lock with 7/8" Horizontal Mount	10	$14.55	^
1703-04-11 KD	Drawer Lock with 1 1/8" Horizontal Mount	10	$14.55	^
1703-14-11 KD	Drawer Lock with 1 1/8" Horizontal Mount	10	$14.55	^
1751-04-11 KD	Drawer Lock with 3/4" Vertical Mount	10	$14.55	^
1751-14-11 KD	Drawer Lock with 3/4" Vertical Mount	10	$14.55	^
1752-04-11 KD	Drawer Lock with 7/8" Vertical Mount	10	$14.55	^
1752-14-11 KD	Drawer Lock with 7/8" Vertical Mount	10	$14.55	^
1753-04-11 KD	Drawer Lock with 1 1/8" Vertical Mount	10	$14.55	^
1753-14-11 KD	Drawer Lock with 1 1/8" Vertical Mount	10	$14.55	^
EXTRA MASTER KEYS	EXTRA 1700 MASTER KEYS	10	$3.50
EXTRA MASTER KEYS	EXTRA 1700 MASTER KEYS	10	$3.50

Key Accessories & Assortments

Product Number	Description	STD PKG	MSRP
1KRA	KEY RING IDENTIFICATION ASST- 8 Colors - 200/Box	1	$69.85	^
232-00-51	MAGNETIC KEY CASE LG	5	$5.00	^
261-00-8X	KEY RING (16MM) 100/Box	1	$10.75	^
262-00-8X	KEY RING (20MM) 100/Box	1	$13.10	^
263-00-8X	KEY RING (22MM) 100/Box	1	$15.10	^
264-00-8X	KEY RING (25MM) 100/Box	1	$16.95	^
265-00-8X	KEY RING (30MM) 100/Box	1	$23.60	^
266-00-8X	KEY RING (32MM) 50/Box	1	$14.30	^
267-00-8X	KEY RING (38MM) 50/Box	1	$19.95	^
268-00-8X	KEY RING (51MM) 50/Box	1	$37.70	^
765G-00-8X	KEY RING (7051A) (15MM) 1000/Box	1	$25.75	^

Desk and Drawer Locks / Master Keying available - Additional $2.50 added to List Price

Product Number	Description	STD PKG	MSRP
974-14-11	DESK LOCK	10	$9.60	^
975-14-11	DESK LOCK - ROMOVABLE CORE	10	$9.60	^
984-03-11	HALF MORTISE LOCK - SPRING LOCK	10	$13.35	^
985-03-11	DRAWER LOCK - MORTISE MOUNT,DB	10	$13.60	^
980-03-11	7/8 DRAWER LOCK WITH 620 CAM	10	$9.40	^
980-03-51	7/8 DRAWER LOCK WITH 620 CAM	10	$10.80	^
980-14-11	7/8 DRAWER LOCK WITH 620 CAM	10	$9.40	^
982-03-11	7/8 DRAWER LOCK WITH 608 CAM	10	$9.40	^
982-14-11	7/8 DRAWER LOCK WITH 608 CAM	10	$9.40	^
986-14-11	1-1/8 DRAWER LOCK WITH 620 CAM	10	$9.40	^

Removable Core Lock/ Master Keying available - Additional $2.50 added to List Price Offset Cams Avilable - Additional $.75 added to List Price

Product Number	Description	STD PKG	MSRP
970-14-11 KD	DRAWER LOCK 13/16 (21mm)	10	$8.80	^

Sliding Door Lock / Master Keying available - Additional $2.50 added to List Price

Product Number	Description	STD PKG	MSRP
990-04-11 KD	SLIDING DOOR LOCK - SATIN BRASS	10	$13.60	^
990-14-11 KD	SLIDING DOOR LOCK - SATIN NICKEL	10	$13.60	^

Filing Cabinet Locks

Product Number	Description	STD PKG	MSRP
4700-14-11 KD	Filing Cabinet Lock - 1 3/4" (44 mm) - Round Bolt	10	$14.05	^
4701-14-11 KD	Filing Cabinet Lock - 2" (51 mm) - Rectangular Bolt	10	$14.05	^

Switch Locks

Product Number	Description	STD PKG	MSRP
GSW1201-26-11	Switch Lock – 1 position key removal	10	$32.80	^
GSW1203-26-11	Switch Lock – 2 position key removal	10	$32.80	^
GSW1211-26-11	Switch Lock – Spring back momentary contact	10	$32.80	^

Show Case Locks / Master Keying available - Additional $2.50 added to List Price

Product Number	Description	STD PKG	MSRP
247-14-11 KD	Show Case Lock	10	$15.80	^

Disc Tumbler Kit

Product Number	Description	STD PKG	MSRP
SL18602-01-65-8X	Disc Tumbler #1	100	$17.20	^
SL18602-03-65-8X	Disc Tumbler #3	100	$15.90	^
SL18602-04-65-8X	Disc Tumbler #4	100	$17.20	^
SL18602-05-65-8X	Disc Tumbler #5	100	$17.20	^
PD1001-00-8X	Disc Tumber Spring	100	$5.80	^
818-11	Plastic Case	1	$13.95	^
824-01	#1 Wafer	1	$1.80	^
824-02	#2 Wafer	1	$1.80	^
824-04	#4 Wafer	1	$1.80	^
824-05	#5 Wafer	1	$1.80	^

Picks and Wrenches

Product Number	Description	STD PKG	MSRP
901-01	BALL PICK (NO HANDLE)	5	$2.70	^
901-02	BALL PICK (NO HANDLE)	5	$2.70	^
901-03	BALL PICK (NO HANDLE)	5	$2.70	^
901-04	BALL PICK (NO HANDLE)	5	$2.70	^
901-05	RAKE PICK (NO HANDLE)	5	$2.70	^
901-06	RAKE PICK (NO HANDLE)	5	$2.70	^
901-07	HOOK PICK (NO HANDLE)	5	$2.70	^
901-08	HOOK PICK (NO HANDLE)	5	$2.70	^
901-09	DIAMOND PICK (NO HANDLE)	5	$2.70	^
901-10	DIAMOND PICK (NO HANDLE)	5	$2.70	^
901-11	DIAMOND PICK (NO HANDLE)	5	$2.70	^
901-12	EXTRACTOR PICK (NO HANDLE)	5	$2.70	^
901-13	RAKE PICK (NO HANDLE)	5	$2.70	^
901-14	RAKE PICK (NO HANDLE)	5	$2.70	^
901-15	RAKE PICK (NO HANDLE)	5	$2.70	^
901-16	COMBINATION PICK (NO HANDLE)	5	$2.70	^
901-17	COMBINATION PICK (NO HANDLE)	5	$2.70	^
901-19	DIAMOND PICK (NO HANDLE)	5	$2.70	^
901-20	BALL PICK (NO HANDLE)	5	$2.70	^
901-21	RAKE PICK (NO HANDLE)	5	$2.70	^
901-22	HOOK PICK (NO HANDLE)	5	$2.70	^
901-23	READER PICK (NO HANDLE)	5	$2.70	^
901-24	EXTRACTOR PICK (AVAILABLE IN WOOD HDLE. ONLY)	5	$5.55	^
902-01	TENSION WRENCH (WISHBONE)	5	$6.50	^
902-02	TENSION WRENCH (DOUBLE SIDED)	5	$3.30	^
902-03	MEDIUM TENSION WRENCH 5 3/8 X 1/8	5	$3.30	^
902-04	LIGHT TENSION WRENCH 5 3/8 X 3/32	5	$3.80	^
902-05	MEDIUM TENSION WRENCH 4 1/2 X 1/8	5	$3.80	^
902-06	LIGHT TENSION WRENCH 4 1/2 X 3/32	5	$3.80	^
902-07	MEDIUM TENSION WRENCH 3 1/4 X 1/8	5	$3.80	^
902-08	LIGHT TENSION WRENCH 3 1/4 X 3/32	5	$3.80	^
902-09	MEDIUM TENSION WRENCH 3 1/4 X 1/8	5	$3.80	^
902-10	TENSION WRENCH (LETTER BOX)	5	$3.80	^
902-11	TENSION WRENCH (LETTER BOX)	5	$3.80	^
902-13	TW-18 HEAVY TENISON WRENCH	5	$3.80	^
903-01	PACK OF 5 UNIPIX HANDLES	5	$3.80	^

Pick Gun

Product Number	Description	STD PKG	MSRP
827-00-8X	PISTOL PICK. INCLUDES (2) COMPLETE SETS OF EXTRA SPRINGS, (3) STRAIGHT PICKS, (3) ANGLE PICKS, (2) TENSION WRENCH	1	$80.15	^
827-01	REPLACEMENT STRAIGHT PICK	5	$2.90	^
827-02	REPLACMENT ANGLE PICK	5	$2.90	^

Pick Kits

Product Number	Description	STD PKG	MSRP
825	THE EXPERT. CONTAINS (17) PICKS AND (11) TENSION WRENCHES, (2) 903-01 HANDLES. LEATHER CASE	1	$117.90	^
825B	THE MASTER. CONTAINS (11) PICKS, (5) TENSION WRENCHES, (1) 903-01 HANDLE AND CASE	1	$76.10	^
825D	THE ARTISAN. CONTAINS (9) PICKS, (5) TENSION WRENCHES, (1) 903-01 HANDLE AND CASE	1	$45.15	^
825E	EXTRACTOR KIT. CONTAINS (2) EXTRACTOR PICKS, (1) 903-01 HANDLE AND CASE	1	$16.25	^
825F	THE MAGNUM. CONTAINS ALL ILCO (24) PICKS AND (13) TENSION WRENCHES, AND (2) 903-01 HANDLES. LEATHER CASE	1	$131.75	^

Locksmith Tools

Product Number	Description	STD PKG	MSRP
898-00-51	PLUG HOLDER/FOLLOWER SET	1	$299.60	^
888-00-51	FOLLOWING TOOL (.495)	1	$19.15	^
889-00-51	FOLLOWING TOOL (.395)	1	$18.20	^
890-00-51	FOLLOWING TOOL (.550)	1	$23.45	^
895-00-51	PLUG HOLDER (.405)	1	$35.05	^
896-00-51	PLUG HOLDER (.550)	1	$35.05	^
899-00-51	PIN TUMBLER TWEEZER	1	$20.85	^
830-00-11	PLUG HOLDER, ALUMINUM (FOR STANDARD .510 PLUGS)	1	$6.45	^
880-00-51	KEY DEBURRER	1	$118.55	^
879-00-51	PIN & PLUG DEBURRING TOOL	1	$45.40	^
815-00-51	BRUSH (6 IN.)	1	$81.15	^
816-00-51	BRUSH (4 IN.)	1	$25.00	^
ESP PP-1004 PUNCH MARKER	910 PUNCH MARKER	1	$5.30	^
PA249-00-8X	STARTER KIT - INCLUDES A 797 COLOR PIN KIT, LOCK PICKING SET, KEY EXTRACTORS, PLUG HOLDER AND FOLLOWER SET, SHIM STOCK AND KEY DEPTH GAUGE	1	$748.75	^
PA249	KEY DEPTH GAUGE	1	$12.00	^
746-00-8X	KIK TUMBLER SPRINGS	BAG	$7.75	^
746A-00-8X	MORTISE AND RIM TUMBLER SPRINGS	BAG	$7.75	^

Key Stamps

Product Number	Description	STD PKG	MSRP
802DND	"DO NOT DUPLICATE" STAMP	1	$336.90	^

Colored Pins and Pinning Kit

Product Number	Description	STD PKG	MSRP
797-00-8X	.003 INCREMENT COLOR PIN KIT INCLUDES 40 TOP PINS AND 79 BOTTOM PINS	1	$462.10	^
T.010 thru T.200	.005 INCREMENT REPLACEMENT TOP PINS	150/bag	$4.25	^
B.165 thru B360	.005 INCREMENT REPLACEMENT BOTTOM PINS	150/bag	$4.25	^
T.024 thru T.141	.003 INCREMENT REPLACEMENT TOP PINS	150/bag	$4.25	^
B.126 thru B360	.003 INCREMENT REPLACEMENT BOTTOM PINS	150/bag	$4.25	^

Spindles

Product Number	Description	STD PKG	MSRP
760-01	SPINDLE CAP	10	$28.75	^
760-02	HEADLESS SCREW, BRASS - 1/4 - 20 x 5/16 (8mm x 6mm-20)	100	$139.50	^
760-03	HEADLESS SCREW, BRASS PLATED STEEL - 1/4 - 20 x 3/8 (10mm x 6mm-20)	100	$139.50	^
760-04	OVAL HEAD SCREW, BRASS PLATED - STEEL (10mm x 9-24)	100	$25.80	^
760-05	STRAIGHT SPINDLE 9/32 x 3 5/8 #20 (7mm x 92mm)	10	$16.55	^
760-06	STRAIGHT SPINDLE 9/32 x 4 1/2 #20 (7mm x 114mm)	10	$5.25	^
760-07	SWIVEL SPINDLE 9/32 x 4 1/2 #20 (7mm x 114mm)	10	$8.70	^
760-08	STRAIGHT SPINDLE 9/32 x 4 1/2 #20 (7mm x 114mm)	10	$8.70	^
760-09	SWIVEL SPINDLE 9/32 x 5 #20 (7mm x 127mm)	10	$13.05	^
760-10	SWIVEL SPINDLE 9/32 x 5 1/4 #20 (7mm x 133mm)	10	$13.05	^
760-11	SPLIT SPINDLE 9/32 x 3 1/4 x 20 (7mm X 83mm)	10	$8.15	^
760-12	UNIVERSAL SPINDLE 9/32 x 5 #20 WITH SPINDLE CAPS FOR 3/8 CENTER (7mm x 127mm)	10	$13.05	^
760-13	STRAIGHT SPINDLE 9/32 x 3 5/8 #18 (7mm x 92mm)	10	$8.75	^
760-14	STRAIGHT SPINDLE 9/32 x 4 1/2 #18 (7mm x 114mm)	10	$8.75	^
760-15	SWIVEL SPINDLE 9/32 x 4 1/2 #18 (7mm x 114mm)	10	$13.05	^
760-16	SWIVEL SPINDLE 9/32 x 5 #18 (7mm x 127mm)	10	$13.05	^
760-17	SWIVEL SPINDLE 9/32 x 5 1/4 #18 (7mm x 133mm)	10	$13.05	^
760-18	SPLIT SPINDLE 9/32 x 3 1/4 #18 (7mm X 83mm)	10	$12.10	^
760-19	UNIVERSAL SPINDLE 9/32 x 5 #18 WITH SPINDLE CAPS FOR 3/8 CENTER (7mm x 127mm)	10	$13.05	^
760-20	HEADLESS SCREW, BRASS PLATED - STEEL 1/4 - 28 x 5/16	100	$47.50	^

Strikes

Product Number	Description	STD PKG	MSRP
774F-03-11	MORTISE LOCK STIKE	10	$25.00	^
774G-67-40	NIGHT LATCH STRIKE (220 SERIES)	10	$7.65	^
733-03-11	BIT KEY LOCK STRIKE	1	$5.55	^
744-03-11	BIT KEY LOCK STRIKE (ILCO 215)	10	$5.15	^
774-03-11	TUBULAR AND CYLINDRICAL STRIKE	1	$2.25	^

Miscellaneous Parts

Product Number	Description	STD PKG	MSRP
1402-04	FRANGIBLE SHACKLE PADLOCK - ONE KEY FITS ALL	1	$22.15

Standard Terms & Conditions of Sale

USA After Market Sales | Effective May 1, 2022 | All Currency in U.S. Dollars

All Sales by Kaba Ilco Corp. (hereinafter "Kaba Ilco") are expressly conditioned on these Standard Terms & Conditions of Sale (the "Terms"). By accepting an offer contained in a Kaba Ilco quotation to which these Terms are attached, or by otherwise purchasing goods from Kaba Ilco, the customer (hereafter "Buyer") creates a legally binding agreement based upon the terms and conditions contained herein (the "Order"). Any terms or conditions included by Buyer in an acceptance of a Kaba Ilco offer and/or included with any purchase order for goods and/or services to be purchased by Buyer (the "Products") shall not apply and are hereby rejected in their entirety. Acceptance of and/or performance by Kaba Ilco of a purchase order from Buyer for purchase of the Products shall not constitute acceptance of Buyer's added terms and conditions, if any, unless Kaba Ilco's acceptance specifically states otherwise.

• 1) PRICES. Prices are subject to change without notice and are not guaranteed. All orders will be invoiced at net prices in effect on date of shipment.
• 2) TAXES . Prices do not include any federal, state, municipal, or other governmental taxes, duties, levies, or other charges, including any sales, documentary, use, excise, purchase, turnover and/or import taxes, consular fees, and customs duties. The amount of any such taxes and fees will be added to the purchase price paid by Buyer.
• 3) TERMS . Standard payment terms are net 30 days. Kaba Ilco reserves the right to add a 1½% per month carrying charge on all invoices 30 days past due. For example: an invoice dated April 15th will be considered past due on May 16th and the carrying charge will be added to the May 30th statement.
• 4) ORDER ACCEPTANCE . Kaba Ilco reserves the right to refuse any orders which may be received and will not be bound to fill any order until it has been accepted. If the order is declined, notification will be provided within 14 working days of receipt of the order. Kaba Ilco makes an effort to identify and correct invalid product numbers. However, orders must contain valid, complete Kaba Ilco product number to avoid delays and assure that the item(s) will be shipped correctly.
• 5) CREDIT . Kaba Ilco retains a purchase money security interest in all goods and materials which have been or are hereafter acquired by Buyer with credit granted by Kaba Ilco ("Collateral"). Upon any default by Buyer, Kaba Ilco shall have the rights of a secured party under the Uniform Commercial Code as adopted by the State of North Carolina, as amended. Kaba Ilco may require Buyer to assemble the Collateral at a place designated by Kaba Ilco. Buyer shall reimburse Kaba Ilco for all costs (including reasonable attorney's fees) incurred in collecting any amounts due to Kaba Ilco or executing its interest hereunder. In addition to any other right or remedy hereunder, Kaba Ilco shall have at all times the right to offset any obligation of Buyer to Kaba Ilco against any obligation of Kaba Ilco to Buyer. If in Kaba Ilco's sole judgement any doubt arises at any time as to the ability of the Buyer to pay for the products, or if the Buyer at any time is past due in payment of any amount owing to Kaba Ilco, Kaba Ilco may (without liability and without prejudice to any other remedies, and regardless of any schedule of shipment or payment to the contrary), delay production, postpone any shipment or stop any product in transit until Kaba Ilco shall have received payment in full of all amounts, whether or not then due, owing to it by the Buyer. In case of any such postponement, the price of the products affected shall be the price in effect on the date of final shipment when released, orders are subject to standard lead times which will be calculated from the release date.
• 6) MINIMUM ORDERS . Orders with a value of $100.00 or less may be accepted for processing or not at Kaba Ilco's option.
• 7) ORDER MODIFICATIONS . Kaba Ilco will accept changes to purchase orders until they have been entered into our order processing system. Once an order has been entered, changes are permissible only with approval.
• 8) DELIVERY; FAILURE TO ACCEPT DELIVER Y. Shipping schedule estimates are based on our best judgment and are not guaranteed, nor can these estimates be considered legally binding. Kaba Ilco will notify Buyer if for any reason it is unable to deliver the Products as scheduled, and Kaba Ilco cannot be held liable for any damages of any nature resulting from these delays. If Buyer fails to accept delivery at the scheduled time, the purchase price shall become due and payable in accordance with the payment terms set forth herein, and all risks associated with the Products or parts of the Products to be delivered, shall be borne by the Buyer. Buyer shall be responsible for all storage and handling costs incurred and to be incurred as a result thereof.
• 9) FREIGHT ALLOWANCE . All shipments are F.O.B. Rocky Mount. NC, USA. The risk of loss related to the Products shall transfer to Buyer when the Products are accepted by the carrier. Any cartage, inside delivery or handling charges between freight destination and customer warehouse are to be paid by the customer. Freight will be prepaid on orders for $1750 or more net to one destination within the 48 contiguous states and Canada by the routing of our choice. If customer specifies other routing, the difference will be invoiced. Priority shipments are not prepaid and may be subject to special handling charges. Should Buyer request a shipping method or carrier different than Kaba Ilco's standard, then the full amount of the shipping cost will be invoiced to the Buyer.

• 10) TITLE . Ownership of the Products shall remain with Kaba Ilco until full payment of the sale price has been received. Until complete payment has been received, Buyer undertakes to warrant and keep the goods free and clear of all liens, other charges or encumbrances.
• 11) DROP SHIP POLICY FOR KEY CUTTING MACHINES . This policy applies to both mechanical and electronic key cutting machine models:
  • a) Kaba Ilco Corp., if requested, will drop ship key cutting machines. Provided the value of the machine(s) meets the minimum prepaid shipping policy of $1,750 there will be NO freight charges added. If the value of the machine(s) is less than $1,750 the freight charges will be added to the invoice.
  • b) Drop shipped machines will be priced at WDN with no additional special pricing or discounts.
  • c) This policy applies to key cutting machines ONLY. Other Ilco, Silca, or Advanced Diagnostics branded products cannot be included.
  • d) Due to documentation requirements that include invoice pricing to cross the US Border, no machines or products will be drop shipped outside the United States.
• 12) CLAIMS . All claims for shipping and invoicing differences must be submitted within 10 working days after receipt of shipment. Upon request, Kaba Ilco will provide the customer with information necessary to secure Proof of Delivery from carrier.
• 13) RETURNS . All requests to return goods must be approved in advance by Kaba Ilco and must be made within six months from date of invoice. No merchandise is to be returned without a Return Goods Authorization number from Kaba Ilco. A Return Goods Number will be assigned and a label will be sent from the factory for the returnable merchandise only. This number must be marked clearly on the outside of the carton(s) to assure proper handling. Return Goods Numbers are valid for only 60 days from day of issue. All components must be included in one package even if broken or defective. All returns are to be shipped prepaid and are subject to a handling charge. Product(s) made to order are not returnable. The issuance of a Return Goods Number does not imply that credit will be issued. All credits issued will be based on our acceptance after inspection of the returned item(s).
• 14) MINIMUM ANNUAL SALES VOLUME . Kaba Ilco reserves the right to discontinue direct sales to any customer who does not meet the minimum annual sales volumes. The minimum annual sales volumes are set at the time an account is opened with Kaba Ilco and are based on markets served and other relevant factors.
• 15) PROMOTION OF PRODUCTS . Buyer shall sell and promote the Products in a manner which will enhance the image and good will of Kaba Ilco. The use of Kaba Ilco's trademarks and name is strictly prohibited without prior written consent of Kaba Ilco.
• 16) SOFTWARE AND PRODUCT DOCUMENTATION . Certain of Kaba Ilco's products may have software and/or firmware either included with or embedded in the products (the "Software") and may include product documentation. This Software and Product Documentation section applies to those Products that include either Software or product documentation.
  • a) LICENSE: Subject to Buyer's timely payment in full of all amounts owed to Kaba Ilco pursuant to the Order, as of the date of receipt of the applicable Products, Kaba Ilco grants to Buyer a non-exclusive, non-transferable, revocable (as permitted herein) license to use the Software solely in connection with the Products, and to use the product documentation in connection with the operation of the Products; in each case, solely in the course of Buyer's normal business operations. Kaba Ilco shall retain all title, right and interest, including all intellectual property rights, in and to all of the Software and product documentation except for the express license rights granted to Buyer in these Terms. Subject to Buyer's timely payment in full of all amounts owed to Kaba Ilco pursuant to the Order and compliance with the terms of this Section, Buyer shall have the right to use the Software in perpetuity so long as the Software is used only in connection with the Products. In no event may Buyer use the Software to establish a duplicate system at any other location. Notwithstanding any other provision of these terms, except as necessary to fulfill Kaba Ilco's warranty obligations under these Terms, Buyer is not entitled to receive any update, upgrade or other release of the Software other than the Software embedded in or included with the product when shipped. Any update, upgrade or other release of the Software not included at the time of shipping of a product may be subject to additional charges. b)RESTRICTIONS: Buyer shall not, and shall not permit any third party to: (i) copy, modify, or create derivative works or improvements of the Software or

marks, copyright notices, or other intellectual property rights notices of Kaba Ilco or its licensors, if any, from the Software or product documentation; (iv) rent, lease, lend, sell, sublicense, assign, distribute, publish, transfer, or otherwise make the Software or product documentation available to any person or entity; or (v) reverse engineer, disassemble, decompile, decode, adapt, or otherwise attempt to derive or gain access to the source code of the Software, in whole or in part. c)LICENSE TERMINATION: Kaba Ilco has the right to terminate any or all of the rights granted to Buyer pursuant to this Section, upon notice to Buyer, if Buyer breaches any of the terms of this Section.

17) WARRANTY .

a) Kaba Ilco's standard Limited Warranty for the Products that is in effect as of the date of the order shall apply to Buyer's purchase of the Products. A copy of the applicable Limited Warranty is available upon request and is available for download on Kaba Ilco's website at the following address:

http://www.ilco.us/literature-support/1448648/kaba-ilco-corp-product-warranties.html

• b) DISCLAIMER OF WARRANTIES: EXCEPT AS EXPRESSLY SET FORTH HEREIN AND IN KABA ILCO'S STANDARD LIMITED WARRANTY FOR THE PRODUCTS, KABA ILCO MAKES NO WARRANTIES OF ANY KIND OR NATURE FOR ANY PRODUCTS, SOFTWARE, OR SERVICES, INCLUDING WITHOUT LIMITATION, ANY WARRANTIES OF QUALITY, CONDITION, DESCRIPTION, COMPLIANCE WITH SAMPLE, PERFORMANCE, MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND NON-INFRINGEMENT, WHETHER ARISING BY LAW, COURSE OF DEALING, COURSE OF PERFORMANCE, USE, OR TRADE, WHETHER EXPRESS, IMPLIED, STATUTORY, OR OTHERWISE, TO THE FULLEST EXTENT PERMITTED BY LAW.
• 18) LIMITATION OF LIABILITY . The total liability of Kaba Ilco for all claims of any kind whether in contract, tort or otherwise, arising out of, connected with, or resulting from Kaba Ilco's performance or breach of these Terms, or Products or services furnished hereunder, shall in no event exceed the total purchase price for the Products or services in the Order giving rise to the claim. Kaba Ilco shall not under any circumstances be held liable for loss of profits or revenues, loss or use of product or any other product software, system, or facility, loss of data or information, lack or loss of productivity, interest charges or cost of capital, cost of substitute product, software, systems or services, cost of purchases or replacement power, downtime costs, special damages, incidental damages, liquidated damages, special damages, or consequential damages.
• 19) ASSIGNMENT . Buyer may not assign any rights or obligations under the Order without prior written consent of Kaba Ilco. Kaba Ilco may assign or transfer all of its rights and obligations under the Order without Buyer's consent to any successor or entity pursuant to a merger, spin-off, conversion, or other corporate reorganization or restructuring, a change of control, or the sale of all or substantially all of its assets, so long as the assignee assumes all obligations of Kaba Ilco under the Order. For all permitted assignments these terms shall bind and insure to the benefit of the parties and their successors and assigns. This section will survive the expiration or termination of the Order.
• 20) TERMINATION . If Buyer does not fulfill its obligations or is in default or breach of these Terms, Kaba Ilco may then terminate the Order by notice in writing. Kaba Ilco has the right to claim compensation for any loss it incurs as a result of Buyer's default, in addition to any other rights or recourse available to Kaba Ilco at law or

• in equity.
• 21) MODIFICATIONS, AMENDMENTS, AND WAIVERS . These Terms may not be modified or amended, including by custom, usage of trade, or course of dealing, except by an instrument in writing signed by duly authorized representatives of both Buyer and Kaba Ilco. Performance of any obligation required of a party under these Terms may be waived only by a written waiver signed by a duly authorized representative of the other party, which waiver shall be effective only with respect to the specific obligation described therein. The waiver by either party of a breach of any obligation of the other shall not operate or be construed as a waiver of any subsequent breach of the same provision or any other provision of these Terms.
• 22) FORCE MAJEURE . Should a delay in performance (including production and/or delivery) be caused by a Force Majeure event, the time of performance shall be extended by a reasonable amount of time with regard to all applicable circumstances. Upon mutual agreement, the parties shall set a new date for performance. Except as to payments due hereunder, neither party shall be liable for failure to perform hereunder for the duration of and to the extent such failure is occasioned by a Force Majeure event which is defined as follows: are, riots, insurrections, fire, flood, extreme weather, explosions, strikes and other labor or industrial disturbances, accidents, Government, State, Provincial or Municipal regulations and/or ordinances, an act of God, embargos, blockades, delay in obtaining materials, legal restrictions, currency regulations, or any cause or condition beyond the reasonable control of the parties. Where such conditions continue for more than three (3) months, either party shall be free to terminate the Order. In the case of termination, Kaba Ilco shall be paid the value proportionate to the Order price for any finished Products and work-in-progress, if any, along with additional costs incurred as of the date of termination.
• 23) APPLICABLE LAW . These Terms and all Orders shall be governed by and construed in accordance with the laws of the State of North Carolina, USA, without regard to the conflict of law provisions thereof. For the purposes of all legal proceedings, the state and federal courts of Rocky Mount, North Carolina, USA, shall have the exclusive jurisdiction to entertain any action arising under these Terms and all Orders. Each party hereto hereby irrevocably attorns to the jurisdiction of the courts of Rocky Mount, North Carolina, USA.
• 24) WAIVER OF JURY TRIAL .
  • a) WAIVER OF JURY TRIAL: EACH PARTY HEREBY IRREVOCABLY WAIVES ITS RIGHTS TO TRIAL BY JURY IN ANY ACTION OR PROCEEDING ARISING OUT OF OR RELATING TO THESE TERMS OR THE TRANSACTION OR TRANSACTIONS RELATING TO ITS SUBJECT MATTER, INCLUDING ANY AND ALL ORDERS.
• 25) SEVERABILITY . Any term, condition or provision of these Terms, or any part thereof, which is or may be found to be prohibited or unenforceable in any jurisdiction shall, as regards such jurisdiction and to the extent of such prohibition or unenforceability, be deemed to be severed from these Terms, and the remaining terms, conditions and provisions of these Terms shall remain in full force and effect.
• 26) ENTIRE AGREEMENT . These Terms and any related quotations constitute the entire understanding and contract between the parties and supersede any and all prior and contemporaneous, oral or written representations, communications, understandings, and agreements between the parties with respect to the subject matter hereof. The parties acknowledge and agree that neither of the parties is entering into the Order, on the basis of any representations or promises not expressly contained in these Terms and any related quotation(s).
• 27) EXPORT LAW ASSURANCES . The parties acknowledge that neither the Products or any included Software will be exported except as authorized by law in the relevant jurisdictions.

Kaba Ilco designs and manufactures replacement key blanks compatible with Original Equipment Manufacturer (OEM) key brands.

Kaba Ilco Corporation is not affiliated with, connected to, associated with, or sponsored by the various OEM key brands displayed. Each OEM brand is a trademark of the respective brand owners and are not manufactured or sold by the respective brand owners.

ML0170XXXX
