Thresholds & Weatherstripping

Hager Companies offers a complete line of thresholds & weatherstripping products for virtually any type of door application. What's more, each meets or exceeds ANSI-grade quality, durability, and performance levels. For enhanced levels of safety and security, we also offer intumescent products for positive pressure solutions, including edge sealing and smoke control systems. All of which make Hager threshold, weatherstripping, and door bottom products an excellent choice for standard or custom applications in schools, hospitals, office buildings, and more.

General Information 2
Thresholds
Saddle 6
Thermal Barrier Saddle 8
Half Saddle 9
Elevator and Bumper Strips 10
Residential and Carpet 11
Bumpers and ADA Ramps 12
Floor Plate Assembly 13
Panic 14
Thermal Barrier Panic 15
Interlocking 16
Abrasive Cast Aluminum 17
Floor Closer 18
Cover Plate and Anchors 19

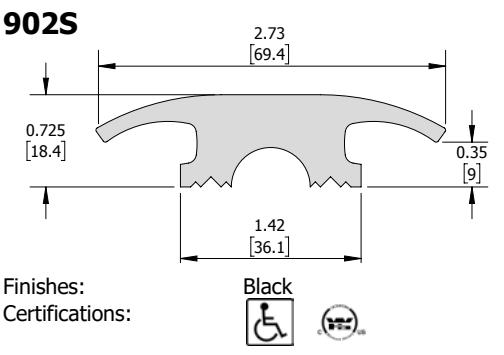

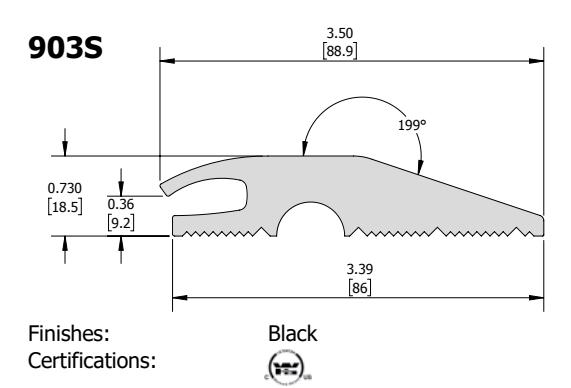

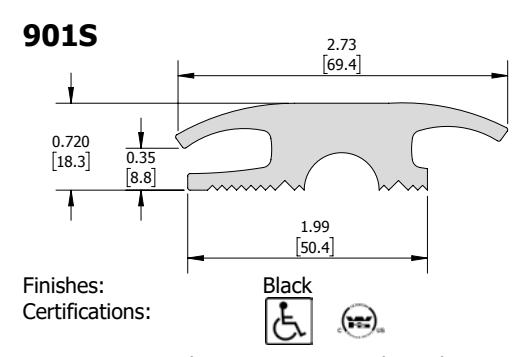

Vinyl Thresholds 19
Weatherstripping
Interlocking/Overhead Drip Guards 20
Press-On Gasketing 21
Door Bottoms 23
Automatic Door Bottoms 25
Door Bottom Sweeps 26
Adjustable Jamb Weatherstripping 29
Jamb Weatherstripping 30
Astragals/Meeting Stiles 35

PRODUCT PRESENTATION

Dimensions on bronze and stainless steel extrusions may differ slightly than those detailed. Questions regarding any dimensions should be directed to Hager Companies Customer Service.

Drawings or illustrations used in the catalog are subject to change without notice. Questions on any dimensions should be obtained by contacting Hager Companies Customer Service.

FABRICATION OPTIONS

Bevel one edge of threshold
Rip one edge width of threshold
L-notch both ends of threshold
U-notch both ends of threshold
Tack weld one line of threshold
Pan for water return of threshold
Sure Step Non-Slip Abrasive Coating A rugged, durable coating that can be applied to all Hager Companies' metal thresholds. Ideal for thresholds being used in wet, oily or corrosive environments.

MATERIALS & FINISHES Metals

All aluminum extrusions are of alloy 6063-T5. All bronze extrusions are of alloy CDA385 brass specified as Architectural Bronze in the industry.

For stock finishes, refer to the code listed below each individual item throughout the catalog. Please inquire for the availability on nonstock finishes.

MIL - mill finish aluminum

CAL - cast aluminum

GYP - primed steel grey

DBA - dark bronze anodized aluminum

SCA - Hager Sure Step on aluminum

32D - stainless steel (non-extruded)

GLD - gold anodized aluminum

CLR - clear anodized aluminum

LBA - light bronze anodized aluminum

SCB - Hager Sure Step on bronze

WHP - white paint on aluminum

USP - prime coat

Notes: Threshold profiles shown refer to aluminum material only, dimensions may vary for mill finish bronze

thresholds.

Gaskets

Gasketing is available in a wide variety of materials. Vinyl is an economical choice and remains flexible down to -40°F (-40°C). EPDM gasketing is supplied both as a solid (dense) and as a closed cell sponge with a tough outer skin. It remains flexible down to -50°F (-49°C). Silicone gasketing provides the best resistance to cold by remaining flexible down to -70°F (-57°C). Refer to the price book for a list of available replacement gaskets. Gasketing codes are listed below.

B - nylon brush

N - neoprene

S - silicone

V - vinyl

W - pile (thread may be removed to allow expansion)

ORDERING INFORMATION

When ordering, please specify by product number, length, quantity, finish and fasteners required. Thresholds & weatherstripping are fabricated in standard sizes with 1/2" (12.7 mm) extra on thresholds 50" (1270 mm) and under. Thresholds over 50" (1270 mm) are supplied with 1" (25 mm) extra length for fitting. Exact lengths are available upon request (specify CTEL).

Example: 891S V 36 x 84 MIL

Item #	Gasketing	Size	Finish
516S	W-pile	36" (914 mm)	MIL -	mill finish aluminum
599S	V-vinyl	48" (1219 mm)	DBA -	dark bronze anodized aluminum
750S	S-silicone	36" (914 mm)	32D -	matte stainless steel
870S	N-neoprene	36" x 84" (914 mm x 2133 mm)	CLR -	clear anodized aluminum

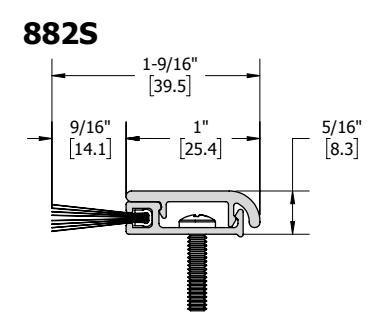

882S	B-nylon Brush	48" x 96" (1219 mm x 2438 mm)	OOO -	gasket only
881S	N-neoprene	48" x 84" (914 mm x 2133 mm)	MIB -	mill finish bronze

FASTENERS

Standard

All products are furnished with appropriate fasteners as listed, except where noted. Most thresholds are furnished with mounting holes and #10 x 1-1/2" flat head sheet metal screws. Most weatherstripping products are furnished with slotted holes and #6 x 5/8" pan head sheet metal screws.

Optional

Thresholds

#10 wood screws and plastic anchors
#10 wood screws and lead anchors
#10 machine screws and lead anchors
#10 stainless steel wood screws
#10 stainless steel wood screws and plastic anchors
#10 stainless steel wood and lead anchors
1/4-20 stainless steel machine screws and lead anchors
1/4-20 machine screws and lead anchors
1/4-20 x 2" flat head sleeve anchor
#10 torx sheet metal screws
#10 stainless steel torx wood screws
#10-24 x 1-1/2" stainless steel torx machine screw with lead anchor
#10-stainless steel spanner head wood screw with lead anchor
Cast-on anchors (cast products only)
Tap-con type (1/4" x 1-3/4")

Weatherstripping

#6 x 5/8" pan-head stainless steel screws
#6 x 5/8" self-drilling (TEK) screws (Steel-zinc plated)
#6 x 5/8" pan-head torx sheet metal screws
#6 x 5/8" stainless steel self-drilling (TEK) screws
1/4 20 x 1-1/4" sex bolts
Two-way self-adhesive tape

GENERAL INSTALLATION INSTRUCTIONS FOR PRESS-ON PRODUCTS:

Product returnable within first 6 months after purchase date
Installation should take place after construction has been completed, and final cleaning has taken place
The frame should be cleaned; isopropyl alcohol is recommended
Not recommended for unsealed or porous applications
Do not store these products in extreme heat/cold or for prolonged periods of time

CERTIFICATIONS

Handicap Accessibility

Products denoted by this symbol are designed for applications where handicap accessibility is specified. These products are no greater than

1/2" (12.7 mm) in height and have no more than 1/4" (6.3 mm) vertical rise or with slope proportions no greater than 1:2 slope. Offset floor conditions greater than 1/2" (12.7 mm) require a 1:12 slope.

Air Infiltration

Products denoted by this symbol have been tested with air/smoke infiltration, all within the (0.500 cfm/ sq. ft. for double doors and .300 cfm for single doors) maximum allowable leakage at a pressure of a 25 mph wind (1.56 psf). The tests were conducted in accordance with ASTM test procedures and meet ASTM: E283.

Sound Tested

Products denoted by this symbol have been sound tested and received the appropriate STC rating. The tests were conducted in accordance with ASTM test procedures and meet ASTM: E90 & ASTM: E413.

STC Rating Static Door	STC Rating Operable Door	Perimeter Door Seal Bottom		Corner Pad	Thresh old
49	41	737 & 866S	743S	709	417S
49	37	738 & 737	743S	709	417S
44	40	726	743S		520S
42	40	738 & 737	774S	709	417S
42	40	737 & 866S	774S	709	417S
41	39	726(2)	743S		520S
36	35	738 & 737	774S	709	417S
36	35	726 & 736	774S	709	417S

BHMA Certified

BHMA Certification Program was developed as a means for manufacturers of builders hardware

to indicate compliance with American National Standards sponsored by BHMA. Participating manufacturers certify compliance with the standards based on a continuing program of passing the prescribed tests.

Underwriter's Laboratories

Products denoted by this symbol are classified and labeled by Underwriter's Laboratories, Inc.® as gasket material for use on listed steel frames and/

or classified swinging type fire doors of the hollow metal or steel covered composite type rated up to 3 hours, or wood core fire doors rated up to 1-1/2 hours. Test results show these products do not adversely affect the fire resistance of the door or frame according to its UL rating. All products are regularly checked under a labeling and listing service. The clearance between the door and the frame and between the meeting edges of doors swinging in pairs shall be 1/8" + 1/16" (3.18 mm + 1.59 mm) for steel doors and shall not exceed 1/8" (3.2 mm) for wood doors.

UL 10C (Positive Pressure) complies with IBC, NFPA 80 and NFPA 252 for hollow metal fire doors rated up to 3 hours and wood fire doors rated up to 90 minutes.
UL 10B complies with NFPA 80 and NFPA 252 for hollow metal fire doors rated up to 3 hours and wood fire doors rated up to 90 minutes.

Notes: Ratings on some items may vary and are noted on the individual products. For a more complete look at classifications on individual products, please visit www.ul.com/database and reference R13647.

THE INTERNATIONAL BUILDING CODE (IBC)

The International Building Code (IBC) requires swinging fire doors to be tested in accordance with ANSI/UL 10C or NFPA 252, with the neutral pressure level established at 40 inches or less above the sill. This causes "positive pressure" forces against the door assembly above 40 inches.

The result is hot gases and smoke leak out between the door and frame above this level, posing a serious threat to lifesafety; and on wood doors rapidly deteriorating the integrity of the door edges, requiring either a built-in or supplemental "edge sealing system" to pass the test.

Fire door assemblies in corridors and smoke barrier walls are required to be smoke and draft control assemblies tested in accordance with UL1784 allowing a maximum air leakage of 3 cubic feet per minute per square foot of door opening at ambient temperature (75°F) and elevated temperature (400°F). These assemblies require the letter "S" on the fire rating label of the door indicating compliance "when listed or labeled gasketing is also installed."

Fire doors are classified based upon their construction and edge sealing sysem requirements. Fire-rated gasketing is classified as follows:

Category G - Edge-sealing system

Category H - Smoke and draft control gasketing Category J - Gaskets other than category G or H

Gaskets that are edge-sealing systems. Category "G" - edgesealing systems are for use with fire doors requiring an edge seal to meet positive pressure code requirements. These systems are surface-applied to either the perimeter of the door frame or meeting edges of door pairs. Category "G" gaskets are usually intumescent material; this material will swell many times its original size during a fire and help contain the spread of fire by sealing the edges of the door.

Fire Test - Category J

Products that are positive pressure tested to determine that they do not contribute to flaming during a fire; they do not provide an edge-sealing system. Examples are gaskets used for sound, draft control or automatic door bottoms.

Smoke and Draft Control Test - Category H

This is a separate second test that does not involve fire. All gaskets being tested for smoke must initially be fire tested under the requirements of UL 10C and receive a category "G" or "J" rating before being smoke tested.

Below are some key phrases that indicate positive pressure requirements:

IBC 2003 (and later) International Building Code
UL 10-C Positive Pressure Fire Test
ASTME-2074-00 Fire Test of Door Assemblies
Shall meet positive pressure requirements
Intumescent seals imply positive pressure

The www.iccsafe.org web site of the International Code Council (ICC) has a map of code adoption by state. This site is frequently updated and by clicking on a state, you can see what codes they have adopted.

New and existing fire doors are classifed/labeled by one of the following designation systems:

Hourly rating designation Alphabetical letter designation A combination of both

Common Applications for Hager Positive Pressure Edge Sealing & Smoke Seal Systems

Wall Rating	Door and Frame Rating	Door Application and Use	Door Types		Fire Doors Edge Sealing System	Smoke Doors "S" Label Smoke Seal	Fire & Smoke Doors Combination Seal
4 Hr.	3 Hour (A Label)	Openings in fire walls and walls that	Hollow Metal	Pairs	—	721, 726, 736, 737	—
	180 Minute	divide a single building into fire areas	Hollow Metal	Singles	—	721, 726, 736, 737	—

Openings to stairwells and elevator shafts; Wood Composite 2 Hr. 11/2 Hour (B Label) vertical communication or egress through 90 minute a building, including 2-hr. rated partitions Wood Composite providing horizontal fire separations	Pairs Hollow Metal Pairs Singles Hollow Metal Singles	724, 729 — 724, 729 —	721, 726, 736, 737 721, 726, 736, 737 721, 726, 736, 737	721, 726, 736, 737 719, 720, 722, 734 — 719, 720, 722, 734 —


	£illi e
	$por_2$

2 Hr.	11/2 Hour (D Label)	Opening where there is a chance of severe	Hollow Metal	Pairs	—	721, 726, 736, 737	—
	90 minute	fire exposure from the exterior of the building	Hollow Metal	Singles	—	721, 726, 736, 737	—

1 Hr.	*1 Hour (B Label) 60 Minutes	Doors that divide occupancies in a building (building less than 4 stories tall)	Wood Wood	Pairs Singles	724, 729 724, 729		721, 726, 736, 737 719, 720, 722, 734 721, 726, 736, 737 719, 720, 722, 734

^* Currently rating only applies to wood doors.

1 Hr.	3/4 Hour (E Label)	Opening in an exterior wall with the	Hollow Metal	Pairs	—	721, 726, 736, 737	—
	45 Minute	potential to be exposed to moderate to	Hollow Metal	Singles	—	721, 726, 736, 737	—
		light fire from the outside of the building

1 Hr.	3/4 Hour (C Label)	Openings in walls or partitions between	Wood Composite	Pairs	724, 729	721, 726, 736, 737	719, 720, 722, 734
	45 Minute	rooms and corridors	Wood Composite	Singles	724, 729		721, 726, 736, 737 719, 720, 722, 734

1 Hr.	*1/3 Hour 20 Minute	Openings in corridors where smoke and draft control is required *Does not have letter designation	Wood/Particle Core Pairs Wood/Particle Core Singles	724, 729 724, 729	721, 726, 736, 737	719, 720, 722, 734 721, 726, 736, 737 719, 720, 722, 734

^* All of the labels listed above have the capability of being both fire and smoke barrier openings. However, not all openings require a smoke label. Openings requiring smoke labels are detailed either by the fire authority having jurisdiction, local code, NFPA 101 or NFPA 5000.

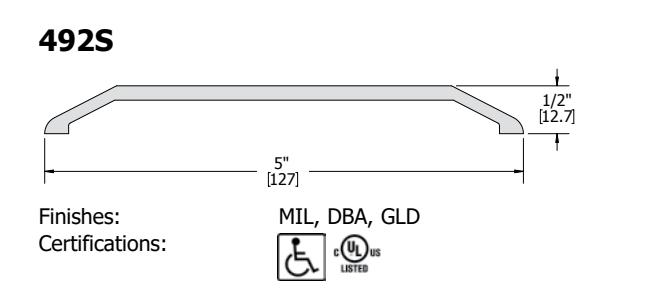

THRESHOLDS - SADDLE

To effectively seal out the elements, use in conjunction with a door bottom, sweep, shoe, or bumper strip.

Fasteners: #10 x 1-1/2" sheet metal screws, other screw types

and anchors available upon request

Available with Sure Step Non-Slip Abrasive Coating Options: Notes:

• MIL finish thresholds are supplied with zinc

plated screws

• Color anodized thresholds are supplied with screws plated to match

• Stainless steel thresholds are supplied with stainless

401S

Finishes: Certifications:

MIL, DBA, GLD

402S

Finishes: Certifications:

403S

Finishes:

MIL, DBA, GLD

Certifications:

404S

Finishes:

MIL, DBA, GLD

Certifications:

410S

Finishes: Certifications:

411S

412S

Finishes: Certifications:

413S

Finishes: Certifications:

MIL, DBA, GLD, US32D

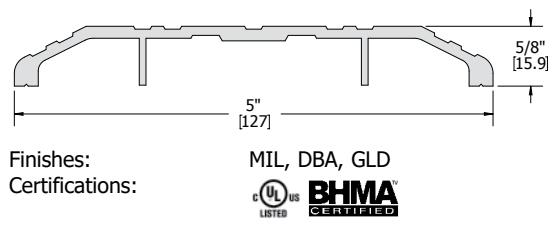

414S

415S

Finishes: Certifications:

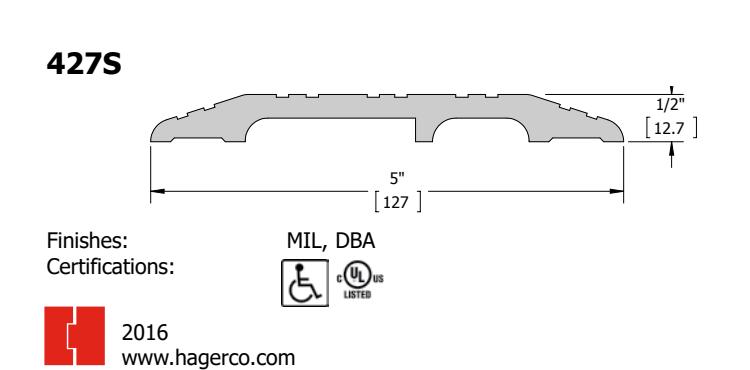

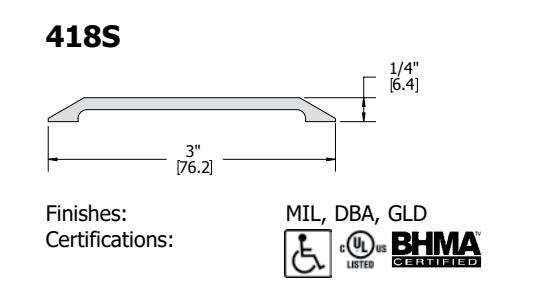

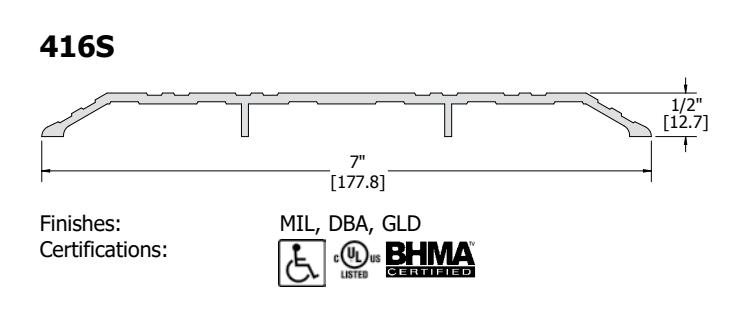

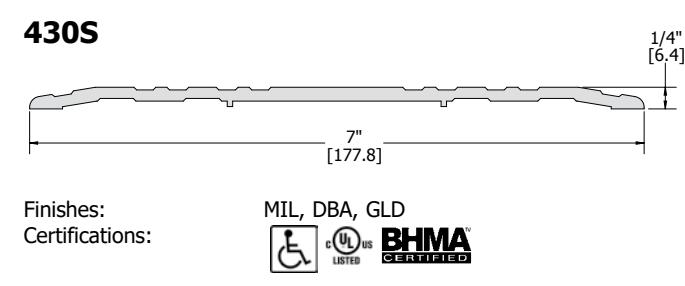

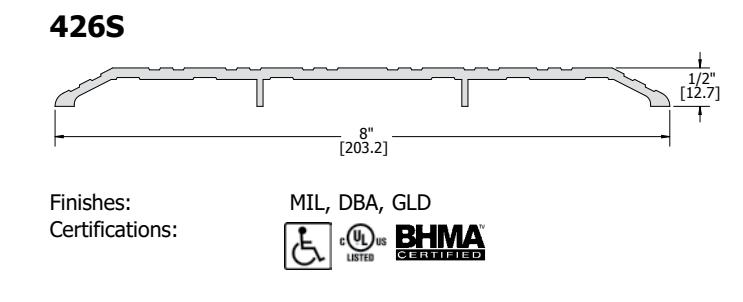

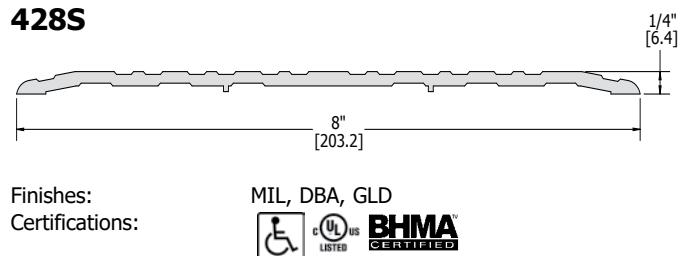

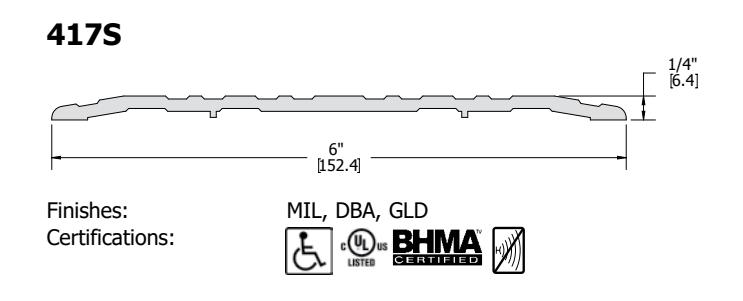

THRESHOLDS - SADDLE

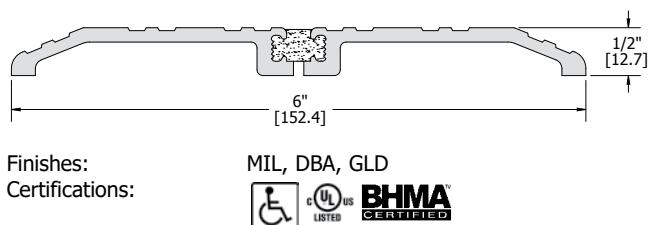

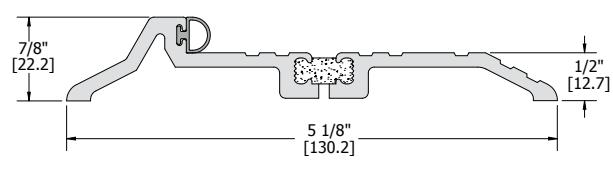

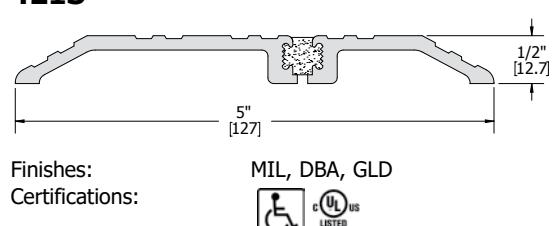

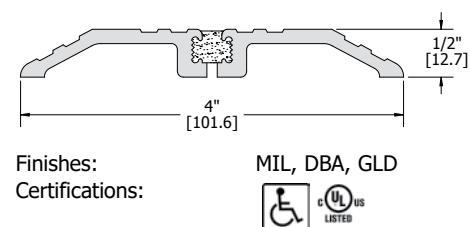

THRESHOLDS - THERMAL BARRIER SADDLE

High strength thermal barrier is permanently bonded in place to block the transfer of heat or cold. To provide a seal, use in conjunction with a door bottom, sweep, shoe or bumper strip.

Fasteners: #10 x 1-1/2" sheet metal screws, other screw types

and anchors available upon request

Options: Available with Sure Step non-slip abrasive coating

Notes: • MIL finish thresholds are supplied with zinc

plated screws

• Color anodized thresholds are supplied with screws

plated to match

424S

Finishes: Certifications:

MIL, DBA, GLD

420S

451S

Finishes: Certifications:

421S

452S

Finishes: Certifications:

MIL, DBA, GLD

422S

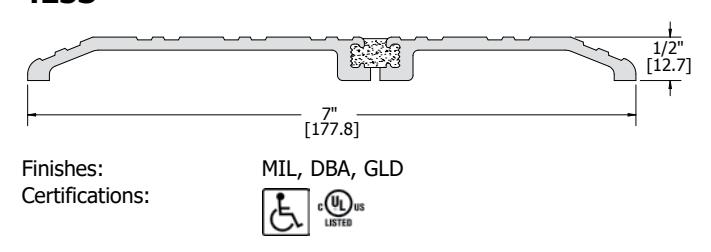

423S

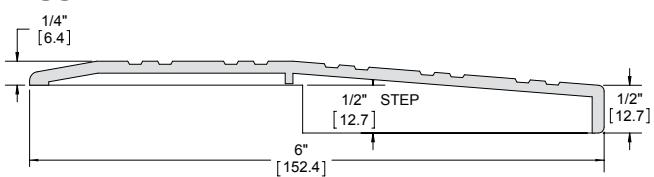

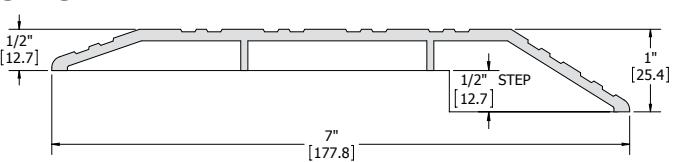

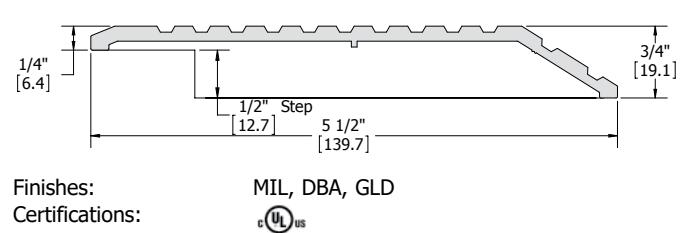

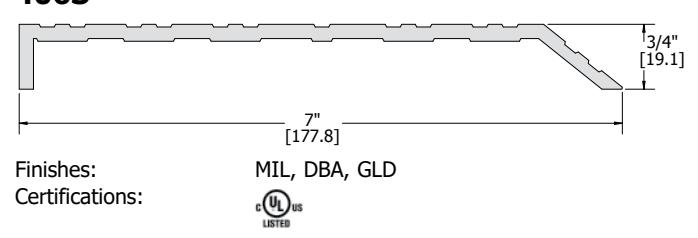

THRESHOLDS - HALF SADDLE

#10 x 1-1/2" sheet metal screws, other screw types Fasteners:

and anchors available upon request

Options: Available with Sure Step non-slip abrasive coating Notes: • MIL finish thresholds are supplied with zinc

plated screws

• Color anodized thresholds are supplied with

screws plated to match

406S

407S

431S

Finishes: Certifications:

MIL, DBA, GLD, MIB

432S

Finishes:

Certifications:

433S

Finishes: Certifications:

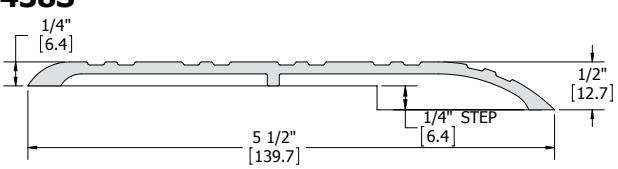

438S

Finishes: Certifications:

MIL, DBA

572S

Finishes: Certifications:

MIL, DBA, GLD

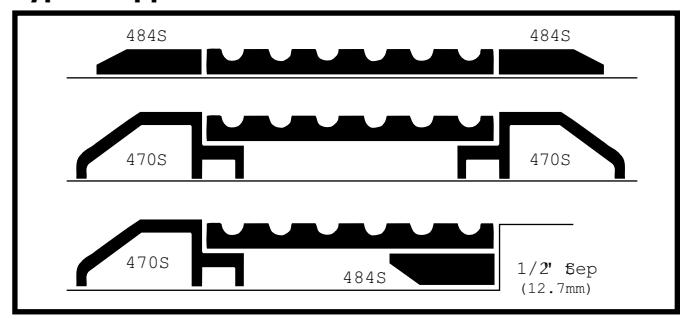

THRESHOLDS - ELEVATOR AND BUMPER STRIPS

Use in conjunction with a threshold Fasteners: #10 - 24 x 5/8" flat head self-tapping screws to

attach bumper strip directly to an existing threshold

481S

Finishes: Insert: Certifications:

MIL, DBA, GLD V, N, S, W c(UL)us

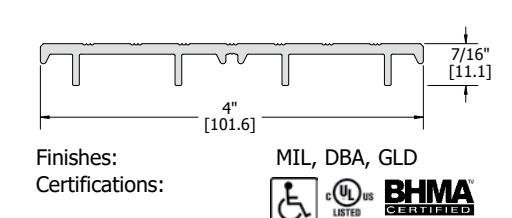

484S

Finishes: Certifications:

MIL, DBA, GLD

THRESHOLDS - RESIDENTIAL

All thresholds appearing in this column are available with Sure Step Non-Slip Abrasive Coating.

400S

Finishes: MIL, DBA, GLD Insert: V

Certifications:

Notes: Vinyl gasket eliminates the need for

door shoe or sweeps

408S

Finishes: MIL, DBA, GLD Certifications:

419S

Finishes: MIL, DBA, GLD Certifications:

THRESHOLDS - CARPET

Fasteners: #10 x 1-1/2" sheet metal screws, other screw types and anchors available upon request Options: Available with Sure Step non-slip abrasive coating

Notes: • MIL finish thresholds are supplied with zinc plated screws

Color anodized thresholds are supplied with screws plated to match

503S

Finishes: MIL, DBA, GLD Certifications:

504S

Finishes: MIL, DBA, GLD Certifications:

505S

Finishes: MIL, DBA, GLD Certifications: MIL, DBA, GLD LISTE BHMA CERTIFIED

506S

508S

THRESHOLDS - BUMPER

For use with outswinging doors to seal out the elements

$#10 \times 1-1/2$ " sheet metal screws, other screw Fasteners:

types and anchors available upon request

Options: Available with Sure Step non-slip abrasive coating

• MIL finish thresholds are supplied with zinc

plated screws

· Color anodized thresholds are supplied with

screws plated to match

434S

Notes:

MIL, DBA, GLD Finishes: V, N, S, W Insert: Certifications:

435S

MIL, DBA, GLD Finishes: Insert: V, N, S, W Certifications: :@us <u>BHMA</u>

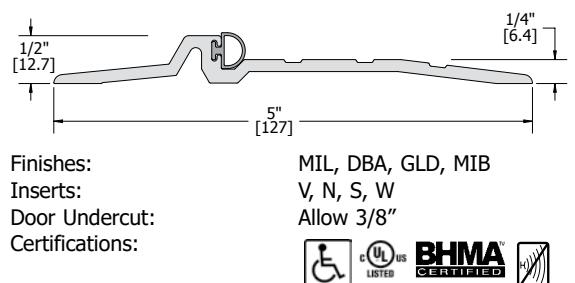

MIL, DBA, GLD Finishes: V, N, S, W Insert: Certifications: eWus <u>BHMA</u>

478S

Finishes: MIL, DBA, GLD V, N, S, W Insert: Certifications: c UL us

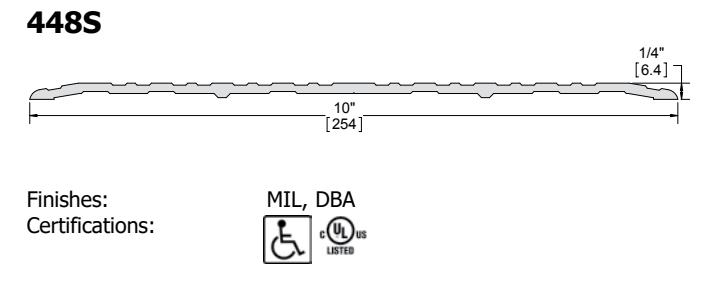

THRESHOLDS - ADA RAMPS

Ramp threshold that provides a 1:12 slope to meet the requirements of the Americans With Disabilities Act

Order: To create a ramp that is a combination of the

442S and 443S, order 444S

Fasteners: #10 x 1-1/2" Flat head wood screws

Options: Available with Sure Step non-slip abrasive coating Notes:

• MIL finish thresholds are supplied with zinc

plated screws

• Color anodized thresholds are supplied with screws plated to match

442S

MIL, DBA, GLD Finishes: Certifications:

443S

Finishes: MIL, DBA, GLD Certifications:

444 S

MIL, DBA, GLD Finishes: Certifications:

THRESHOLDS - FLOOR PLATE ASSEMBLY

Floor plate components for modular threshold system. Used primarily for extra wide door frames or to cover expansion joints or floor joists

Plates and plate supports are furnished without Fasteners:

holes and fasteners unless specified

Options: • Available with Sure Step non-slip abrasive coating

• Beveled Edges are available

Plates may be used fluted or smooth side up Notes:

455 S

Finishes: MIL, DBA, GLD

Certifications:

Typical Applications

460S

MIL, DBA, GLD Finishes:

Certifications:

440S

Finishes:

MIL, DBA, GLD

Certifications:

465S

Finishes: MIL, DBA, GLD

Certifications:

445S

Certifications:

470S

Finishes: Certifications:

450S

Finishes: Certifications:

484S

Finishes: Certifications:

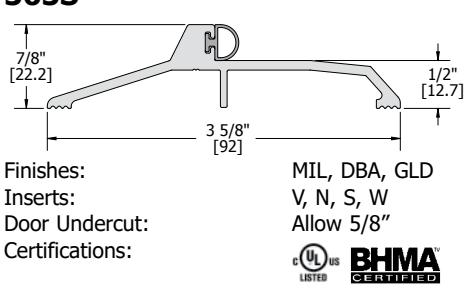

THRESHOLDS - PANIC

Use in conjunction with surface applied vertical rod exit device

Fasteners:

$\#10 \times 1-1/2"$ flat head sheet metal screws, other screw

types and anchors available upon request

Options: Available with Sure Step non-slip abrasive coating Notes: • MIL finish thresholds are supplied with zinc

plated screws

Color anodized thresholds are supplied with screws plated to match
· Special under cuts may be required

541S

Finishes: MIL, DBA, GLD Inserts: V, N, S, W Door Undercut: Allow 5/8" Certifications:

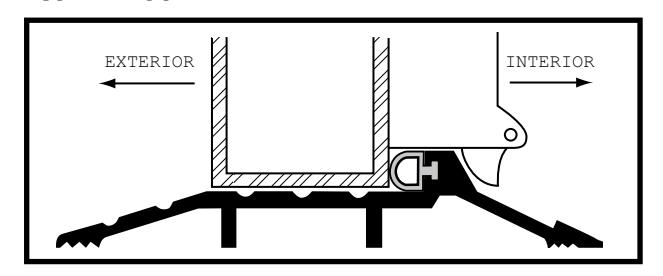

Typical Applications

552S

520S

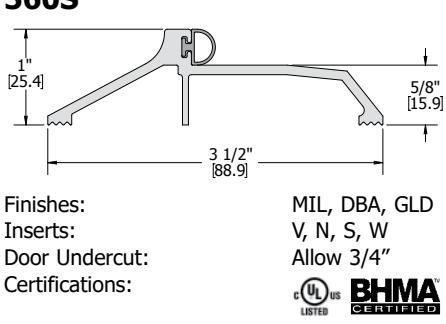

560S

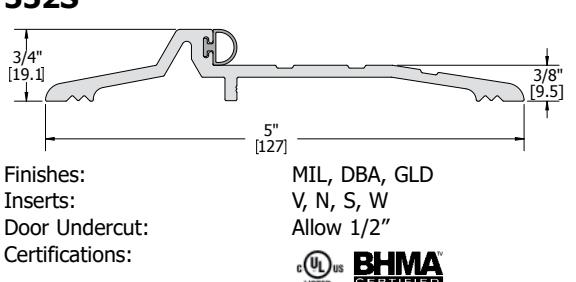

532S

565S

THRESHOLDS - PANIC

THRESHOLDS - THERMAL BARRIER PANIC

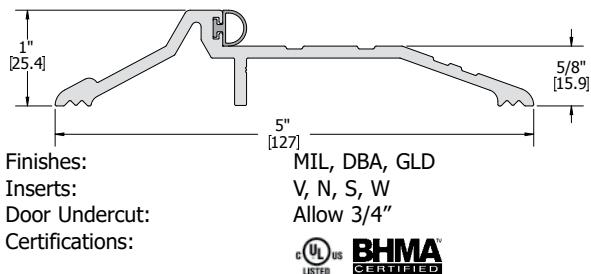

575S [25.4] 9/16" [14.3] 5" [127] MIL, DBA, GLD Finishes: V, N, S, W Inserts: Door Undercut: Allow 11/16" Certifications:

Threshold for latching panic devices that have a thermal barrier permanently bonded in place to effectively block the transfer of heat or cold. Use in conjunction with surface applied vertical rod exit device. #10 x 1-1/2" Flat head sheet metal screws, other screw Fasteners:

types and anchors available upon request Options: Available with Sure Step non-slip abrasive coating

• MIL finish thresholds are supplied with zinc Notes: plated screws

Color anodized thresholds are supplied with screws plated to match

580S

Finishes: Inserts: Door Undercut: Certifications:

MIL, DBA, GLD V, N, S, W Allow 5/8"

516S

Finishes: MIL, DBA, GLD Inserts: V, N, S, W Certifications: c(UL)us

599S

Finishes: Inserts: Door Undercut: Certifications:

MIL, DBA, GLD V, N, S, W Allow 5/8"

c UL us BHM

518S

MIL, DBA, GLD Finishes: Inserts: Certifications:

V, N, S, W

THRESHOLDS - INTERLOCKING

Threshold interlocks with hook on the bottom of the door for a superior seal against wind and rain

Fasteners: $\#10 \times 1-1/2"$ Flat head sheet metal screws, other

screw types and anchors available upon request

Options: Available with Sure Step non-slip abrasive coating Notes:

• MIL finish thresholds are supplied with zinc plated screws

Color anodized thresholds are supplied with screws plated to match
Thresholds are supplied with the 701S J-Hook
Metal doors must have flush bottom for proper

J-hook installation

600S

701S

Finishes: MIL

#6 x 7/8" nail Fasteners:

Certifications:

J-Hook interlocks with threshold to seal Notes:

against wind and rain

604S

Finishes: MIL, DBA Certifications:

THRESHOLDS - ABRASIVE CAST ALUMINUM

A heavy duty aluminum threshold with silicon carbide granules integrally cast into the surface. Ideal for high traffic areas where maximum durability is required. The abrasive, skid resistant surface works well under wet, dry or oily conditions.

Fasteners: #1/4" flat head zinc plated sheet metal screws with

lead anchor

Options: Cast-on anchors available upon request Notes: • Furnished with countersunk holes

Cut with a reinforced abrasive plain surface disk, 1/8" thick, either aluminum oxide or silicon carbide

• Maximum length available is 8 feet, not available for floor closers

• Available in 4", 5" and 6" widths

626S

Finishes: Certifications:

627S

Finishes: Certifications:

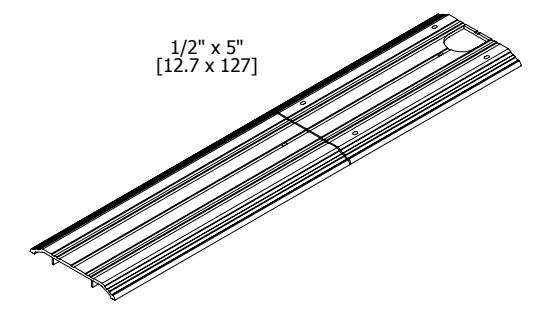

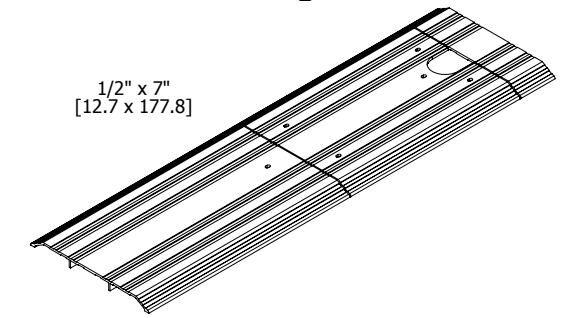

THRESHOLDS - FLOOR CLOSER

Used with floor closers on center or offset hung door applications.

Fasteners: #10 x 1-1/2" flat head sheet metal screws, other screw

types and anchors available upon request

Options: Available with Sure Step non-slip abrasive coating Order: Specify closer manufacturer, offset, closer model

number, thickness of door, width of door opening

and handing

Notes: • MIL finish thresholds are supplied with zinc

plated screws

• Color anodized thresholds are supplied with

screws plated to match

651S - Center Hung

Finishes: MIL, DBA

Certifications: BHM

Notes: • Center hung

Without mitered ends

652S - Center Hung

Finishes: MIL, DBA

Certifications: BHM CERTIFIE

Notes: • Center hung

· Without mitered ends

THRESHOLDS - COVER PLATES AND VINYL THRESHOLDS

Cover Plates are used primarily to cover expansion joints and for situations requiring extra width or strength. Manufactured from solid cold rolled aluminum for extra durability.

Furnished without holes and fasteners unless Fasteners:

specified

• Available to 96" in length Notes:

· Furnished with both edges beveled

676S

Finishes: Certifications:

677S

Finishes: Certifications:

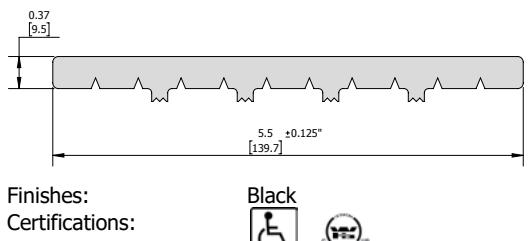

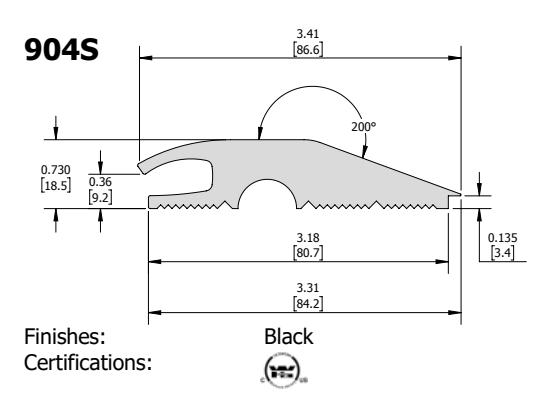

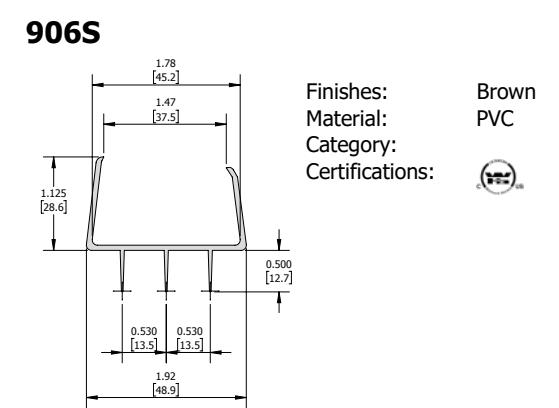

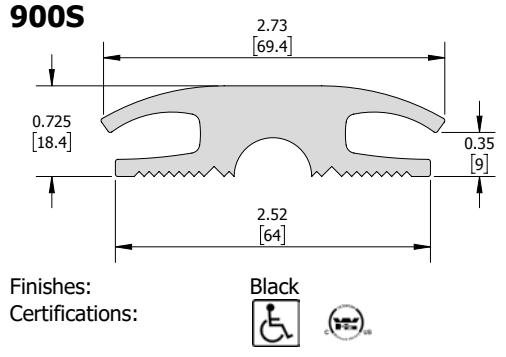

Vinyl Thresholds Transition between different floor types.

Notes: Transition between carpet to carpet applications.

Notes: Transition between carpet to tile applications.

Notes: Transition between tile to tile applications.

Notes: Transition to carpet.

Notes: Transition between carpet to tile applications.

Notes: Transition between communicating door frames.

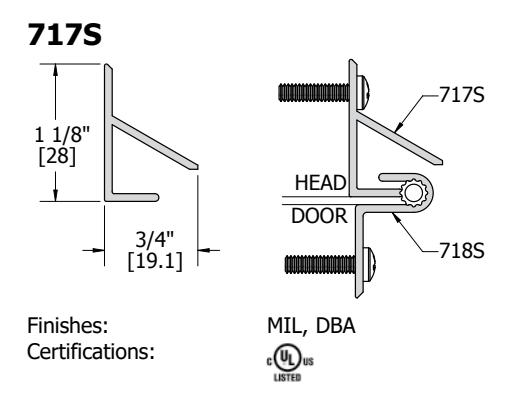

WEATHERSTRIPPING - INTERLOCKING/OVERHEAD DRIP GUARDS

Fasteners: #6 x 5/8" pan head sheet metal screws

Finishes: MIL, DBA, GLD Inserts: V Certifications: (1) Inserts:

Finishes: MIL, DBA, GLD Inserts: B, V, or without insert Category: H, J (with insert) Certifications:

Finishes: MIL, DBA, GLD Certifications: BHMA CERTIFIED

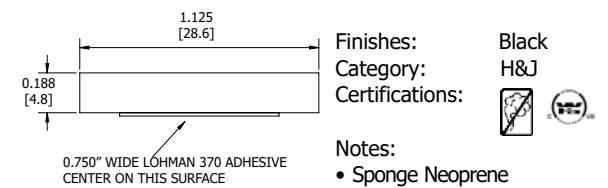

Finish: Black Certifications:

WEATHERSTRIPPING - PRESS-ON GASKETING

Adhesive Mullion Seal

710S

Combination Edge-Sealing System with Smoke Control

Field applied edge-sealing system gaskets with integrated smoke fin. Add to the frame of a B, C or 1/3 hour labeled fire door.

719

Finishes: Charcoal, Brown

Category: H, G, J Certifications:

Notes:

Requires 1/8" clearance
· Not recommended for door frames with 1/2" stop or less
Recommend 3/16" backset door side hinge
Intumescent material
Thermoplastic Elastomer (TPE) material

720

Finishes: Charcoal, Brown, White

Category: H, G, J Certifications:

Notes:

Thin design for doors and frames with tight tolerances
· Intumescent material
Thermoplastic Elastomer (TPE) material

722

Charcoal, Brown Finishes:

H, G, J Category: Certifications:

Requires 1/8" clearance.
Recommend 3/16" backset door side hinge
Intumescent material
Thermoplastic Elastomer (TPE) material

734

Finishes: Charcoal, Brown

Category: H, G, J

Certifications:

Notes:

Intumescent material
Thermoplastic Elastomer (TPE) material

Edge-Sealing Systems

Field applied edge-sealing system gaskets. Add to the frame of a B, C or 1/3-hour labeled fire doors to comply with positive pressure requirements.

Finishes: Charcoal, Brown, Gray, White

Category: H, J

Certifications:

Thermoplastic Elastomer (TPE) material Notes:

724

Finishes: Charcoal, Brown

Category: Certifications:

COL OR (

Notes:

• Intumescent material

• Thermoplastic Elastomer (TPE) material

Charcoal, Brown, White Finishes:

Category: G

Certifications:

Notes: · Intumescent material
- Thermoplastic Elastomer (TPE) material

WEATHERSTRIPPING - PRESS-ON GASKETING

Smoke Seal Systems

Add to the frame of a smoke rated opening to comply with the requirements of NFPA 80, 105, and UL1784. The addition of a smoke seal is necessary to complete installation instructions and validate the "S" label of a smoke control door.

726

Charcoal, Brown, Tan, White Finishes:

Category: H, J Certifications: c(nr)ns

Notes: Silicone material

736

Finishes: Charcoal, White

Category: Certifications:

H, J

Notes: Silicone material

737

Finishes: Charcoal Category: H, J

Certifications: CULUSTED

Notes: Silicone material

Draft Control Gaskets

725

Finishes: Charcoal Category: Certifications:

Notes: Sponge neoprene material

727

Finishes: Charcoal Category:

Certifications: c (UL) us

Notes: Thermoplastic Elastomer (TPE) material

728

Finishes: Charcoal Category:

Certifications: շՄ Մ սո

Notes: Silicone material

738

Finishes: Charcoal Category:

Certifications:

Notes: Silicone material

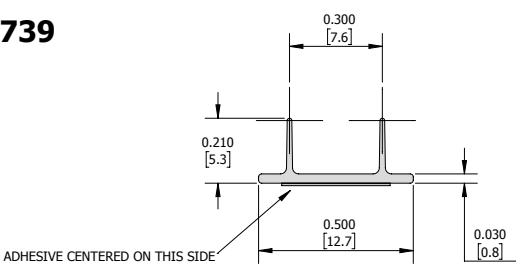

739

Finishes: Brown, Clear Category: H, J Certifications: (<del>---</del>)

Notes: Silicone material

WEATHERSTRIPPING - DOOR BOTTOMS

Provides a seal against weather. For best results, use in conjunction with a threshold.

Fasteners:

#6 x 5/8" pan head sheet metal screws

Notes:

Lengths up to 48" are supplied 1/2" over their stated size to allow for fitting
Lengths over 48" are supplied 1" over size
"Cut to exact length," may be specified
Constructed of strong extruded 6063-T5 aluminum

Finishes: MIL, DBA, GLD

Inserts: V, N Category: H, J Certifications:

Finishes: MIL, DBA Inserts: V, N

Category: H, J Certifications:

776S

Finishes: CLR, DBA, GLD

Category: H, J Certifications:

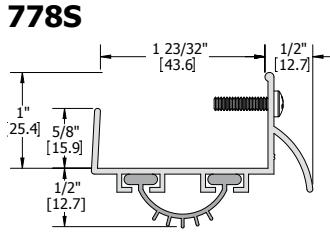

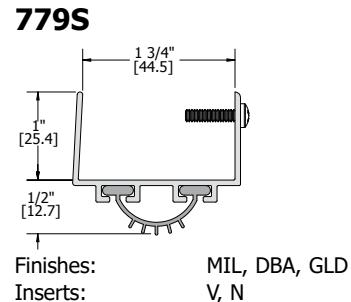

Finishes: MIL, DBA, GLD

Inserts: V, N Category: H, J Certifications:

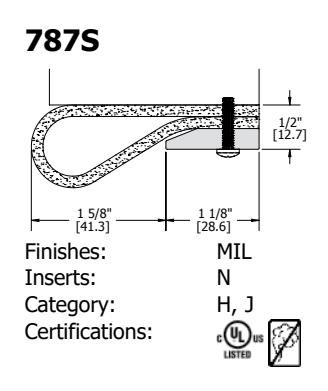

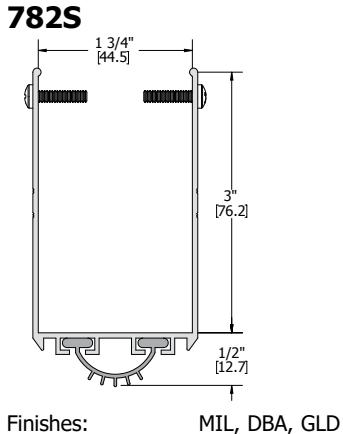

WEATHERSTRIPPING - DOOR BOTTOMS

Inserts: V, N Category: H, J Certifications:

780S 1 1/16"

Finishes: MIL, DBA, GLD Inserts: V, N Category: H, J Certifications:

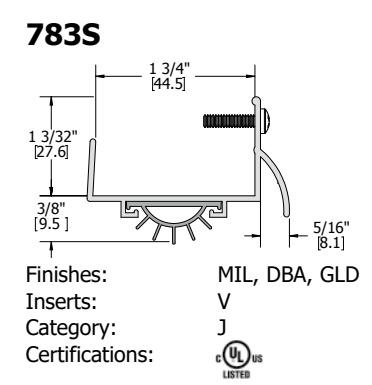

Inserts: WIL, DBA, G Category: H, J

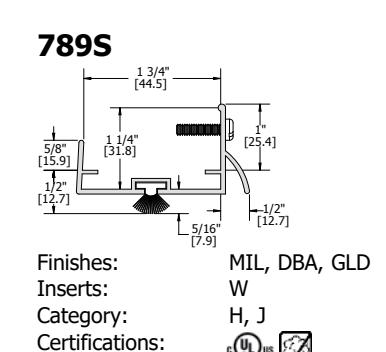

Category: H, J Certifications:

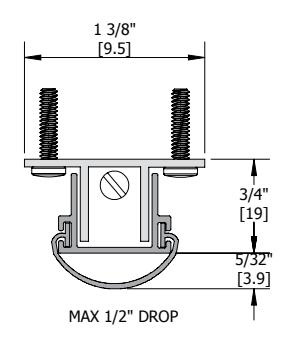

WEATHERSTRIPPING - AUTOMATIC DOOR BOTTOMS

Provides an outstanding seal against drafts, light, smoke and sound. For best results, use in conjunction with a threshold. When door fully closes, the gasket extends downward to provide a seal. Gasket retracts when door is opened.

Fasteners:

#8 x 1-1/4" pan head sheet metal screws furnished with surface mount types
#6 x 5/8" Pan head sheet metal screws furnished with mortise types

Notes:

Furnished exact length as stated. May be trimmed for fitting (2" maximum).
Furnished with end cover and strike plates
DBA/GLD end caps available on MIL or CLR devices (Not available on 742S)

742S - Mortise

Finishes: MIL Inserts: V Category: J Certifications:

Notes: For use on hollow metal door

730S - Mortise

Finishes: MIL Inserts: N, S Category: H, J

Category. Certifications:

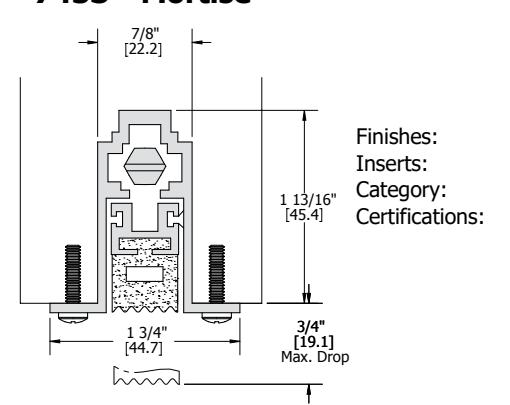

743S - Mortise

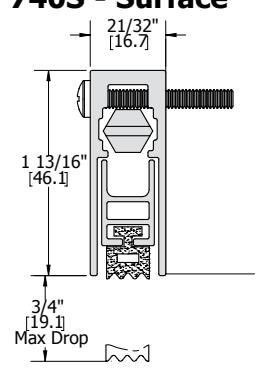

740S - Surface

Finishes: DBA, GLD, CLR

Inserts: N, S Category: H, J

Certifications:

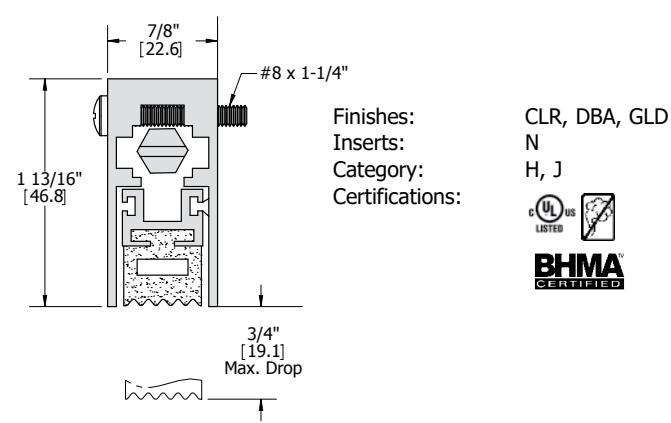

747S - Surface

WEATHERSTRIPPING - DOOR BOTTOM SWEEPS

Typically door bottom sweeps are used on the exterior of an outswing door Fasteners: $\#6 \times 5/8$ " pan head sheet metal screws furnished with mortise

types

Notes: • MIL finish weatherstripping is supplied with zinc plated screws

Color anodized weatherstripping is supplied with screws plated to match
Stainless steel weatherstripping is supplied with stainless steel screws

Finishes: DBA, GLD, CLR, US32D

Inserts: N, S

Category: H, J Certifications: H, J BHM

#6 x 5/8" PAN HEAD SHEET METAL SCREWS (FACTORY PROVIDED)

Finishes: MIL, DBA, GLD

Inserts: V Category: H, J Certifications:

753S

Finishes: MIL, DBA, GLD

Inserts: N Category: H, J

Certifications:

754S

Finishes: DBA, GLD, CLR

Inserts: N

Category: H, J

Certifications:

756S

Finishes: MIL, DBA, GLD

Inserts: V

Category: H, J Certifications:

WEATHERSTRIPPING - DOOR BOTTOM SWEEPS

759S

Finishes: MIL, DBA, GLD

Inserts: V Category: H, J Certifications:

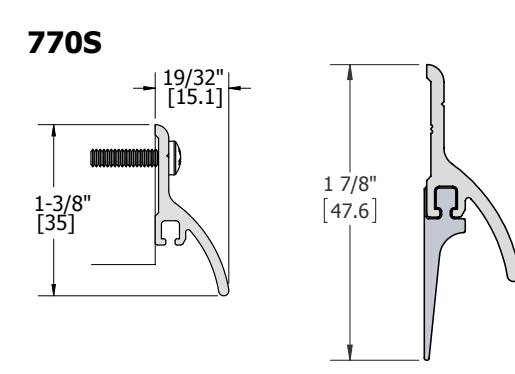

770S

Finishes: MIL, DBA, GLD Inserts: B, V

Category: H, J Certifications:

801S

Finishes: MIL, DBA, GLD

Inserts: B Category: H, J Certifications:

802S

Finishes: MIL, DBA, GLD

Inserts: B

Category: H. J Certifications: BHM

806S

Finishes: MIL, DBA, GLD

Inserts: B Category: H, J Certifications:

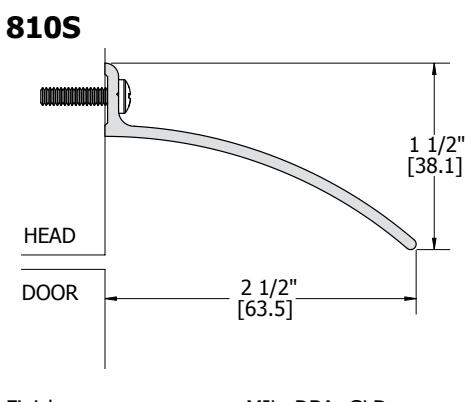

872S

Finishes: DBA, GLD, CLR

Inserts: N Category: H, J Certifications:

WEATHERSTRIPPING - DOOR BOTTOM SWEEPS

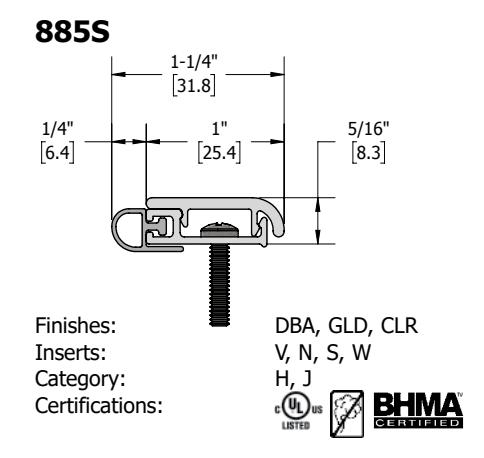

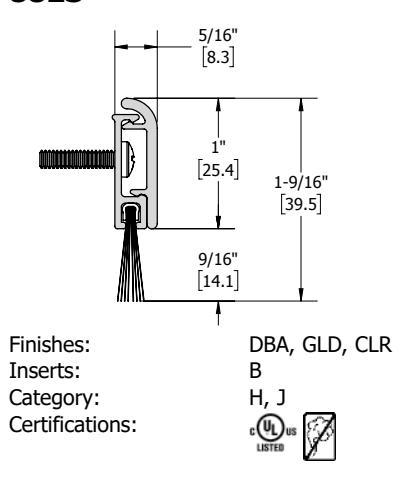

882S

884S

Finishes: DBA, GLD, CLR Inserts: V

Category: H, Certifications:

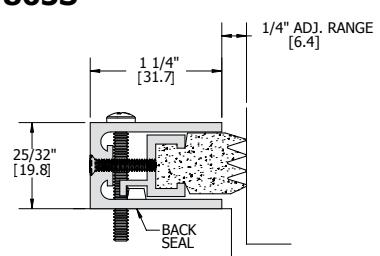

WEATHERSTRIPPING - ADJUSTABLE JAMB WEATHERSTRIPPING

Fasteners: Notes:

$\#6 \times 5/8"$ pan head sheet metal screws

MIL finish weatherstripping is supplied with zinc plated screws
Color anodized weatherstripping is supplied with screws plated to match
Stainless steel weatherstripping is supplied with stainless steel screws

860S

Finishes: MIL, DBA, GLD Inserts: V, N, S, W

Category: H, J Certifications:

Notes: Adjustable

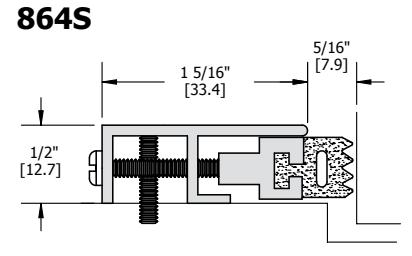

___

Finishes: DBA, GLD, CLR

Inserts: N Category: H, J

Certifications: LUSTES Notes: Adjustable

865S

Finishes: MIL, DBA, GLD Inserts: N

Category: H, J Certifications:

Notes: Adjustable

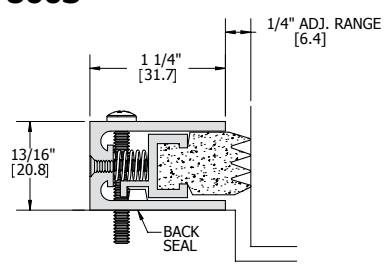

866S

Finishes: MIL, DBA Inserts: N

Category: H, J Certifications:

Notes: Spring adjustable

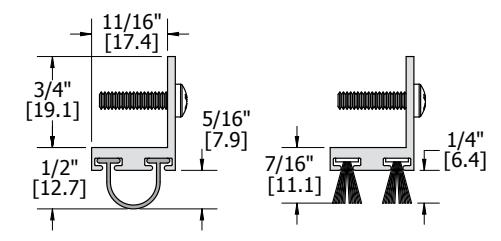

Fasteners: 8-32 x 1" pan head phillips machine screws

8-18 x 1" undercut flat head phillips sheet metal screws

Notes: • MIL finish weatherstripping is supplied

with zinc plated screws

Color anodized weatherstripping is supplied with screws plated to match

• Stainless steel weatherstripping is supplied with

stainless steel screws

785S

800S

Finishes: MIL, DBA, GLD Inserts: B Category: H, J Certifications:

802S

Finishes: MIL, DBA, GLD

Inserts: B Category: H, J

Certifications:

803S

Finishes: MIL, DBA, GLD

Inserts: B Category: H, J Certifications:

808S

Finishes: MIL, DBA, GLD

Inserts: B Category: H, J Certifications:

Finishes: Category: Certifications:

MIL, DBA H, J

CUL US

Notes: Magnetic

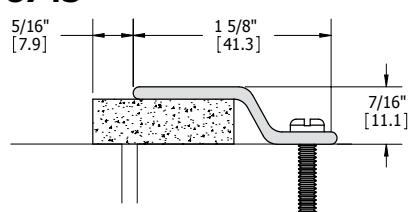

863S

DBA, GLD, CLR Finishes:

Inserts: Category:

H, J Certifications:

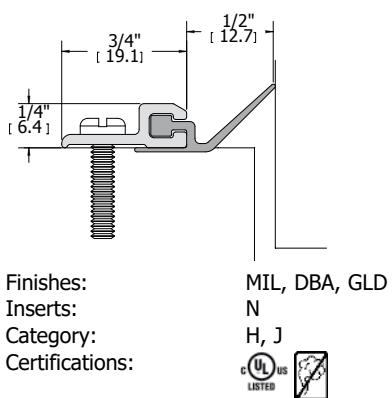

861S

Finishes: Inserts:

MIL, DBA, GLD Ν

Category:

Certifications:

H, J

870S

Finishes: DBA, GLD, CLR

Inserts: Ν

Category: H, J

Certifications:

Adjustable Notes:

862S

DBA, GLD, CLR Finishes:

Inserts: Ν

Category: Certifications:

871S

Finishes: MIL, DBA, GLD

Inserts: H, J Category:

Certifications:

873S

MIL, DBA, GLD Finishes:

Inserts: Category: H, J

Certifications:

874S

Finishes: MIL, DBA, GLD, US32D

Inserts:

Category: H, J

Certifications:

877S

Finishes: MIL, DBA, GLD

Inserts: Ν H, J Category: Certifications:

878S

Finishes: DBA, GLD, CLR

Inserts:

Category: H, J Certifications:

875S

Finishes:

Inserts: N, S Category: H, J

Certifications:

DBA, GLD, CLR

880S

Finishes: MIL, DBA, GLD

Inserts: Ν Category: H, J Certifications:

Finishes: DBA, GLD, CLR Inserts: B

Category: H, J Certifications:

Finishes: DBA, GLD, CLR Inserts: B

Category: Certifications:

H, J

Finishes: MIL, DBA, GLD Inserts: V, N, S

Category: H, J

Certifications:

881S

Finishes: MIL, DBA, GLD Inserts: V, N, S, W Category: H, J

Certifications:

H, J •••• BHMA

891S

Finishes: MIL, DBA, GLD Inserts: V N S

Inserts: V, N, S Category: H, J

Certifications: BHMA

892S

MIL, DBA, GLD Finishes:

Inserts: H, J Category:

Certifications:

893S

Finishes: MIL, DBA, GLD

Inserts: Category:

Certifications:

896S

Finishes: MIL, DBA, GLD Inserts: V, N, S

Category:

H, J Certifications: BHMA

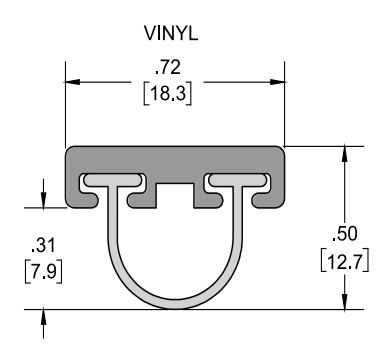

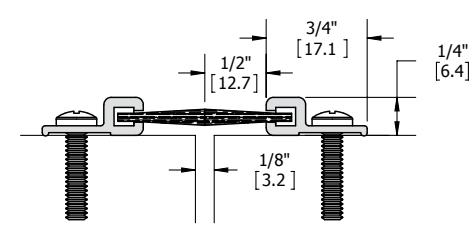

Fire labeled Astragals & Meeting Stiles should only be mounted on pairs of doors with a gap that meets NFPA 80 2-3.1.7 (1/8" +/- 1/16" for steel doors and not exceeding 1/8" for wood doors)

Fasteners:

#6 x 5/8" Pan head sheet metal screws

Notes:

• MIL finish weatherstripping is supplied

with zinc plated screws

· Color anodized weatherstripping is supplied with screws plated to match

• Stainless steel weatherstripping is supplied with

stainless steel screws

771S

Finishes: MIL, DBA V, W, N, S Inserts:

Category:

Certifications: c Uus BHMA

Order two (2) for a set Notes:

751S

Finishes: MIL, DBA, GLD Inserts: N, V, W

Category: H, J

Certifications:

Order two (2) for a set Notes:

772S

Finishes: MIL, DBA, GLD Inserts: V, N, W

Category: H, J Certifications:

756S

Finishes: MIL, DBA, GLD

Inserts: Category: H, J

Certifications:

Notes: Order two (2) for a set

Finishes: MIL, DBA Inserts: V, N

Category: Certifications:

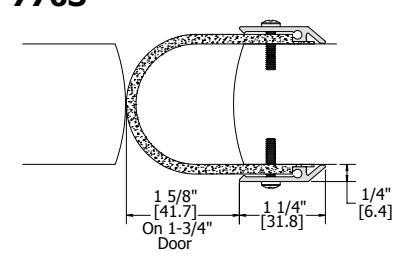

776S

Finishes: Inserts:

Inserts: Category: Certifications:

DBA, GLD, CLR

N H, J

c UL us

836S

Finishes:

Category: Certifications:

MIL, DBA, GLD

н, ј Г

802S

Finishes:

Inserts: Category: Certifications:

MIL, DBA, GLD B

H, J

Notes:

Order two (2) for a set

837S

Finishes: Inserts:

Category: Certifications:

MIL, DBA, GLD W, V, N, S

vv, v, iv, s H, J

BHM

835S

Finishes: MIL, DBA, GLD, US32D, USP

Category: Certifications:

BHMA

Notes: • Maximum length = 10 feet

Available with thrubolts

839S

Finishes: MIL Inserts: W Category: J Certifications: c(1) users

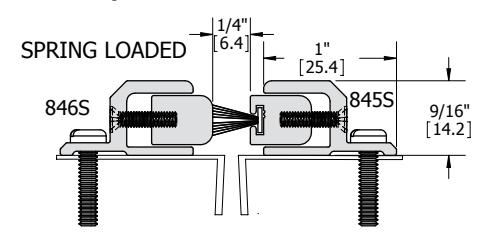

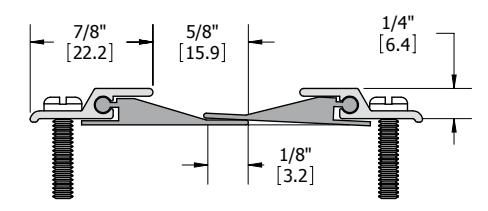

845S | 846S

Finishes: MIL, DBA, GLD Inserts: W Category: J Certifications: MIL, DBA, GLD W Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Us Ull Ull

Notes: • Adjustable

• Order two (2) for a set

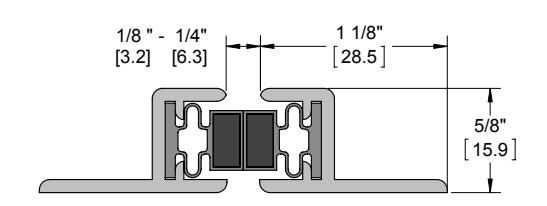

849S

Finishes: MIL, DBA Notes: • Magnetic

• 96" maximum door height

• Designed for use on 80" to 96" doors only

Sets shorter than 80" may not work properly

872S

Finishes: DBA, GLD, CLR

Inserts: N Category: H, J Certifications:

Notes: • Order two (2) for a set

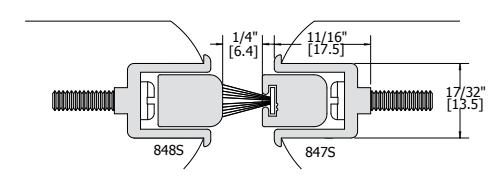

847S | 848S

Finishes: MIL, DBA, GLD

Inserts: W Category: J Certifications: U U\nus

Notes: • Adjustable

• Spring loaded

• Mortise depth = 21/32"

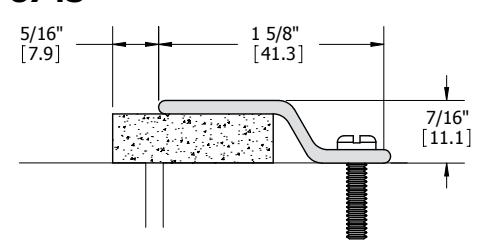

874S

Finishes: MIL, DBA, GLD, US32D

Inserts: N

Category: H, J Certifications: H, J

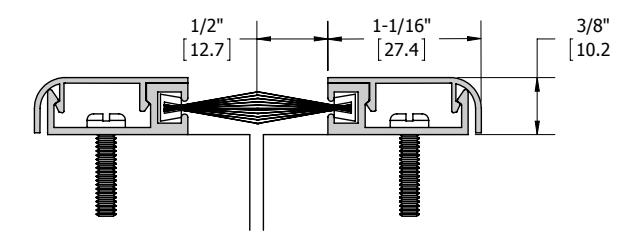

882S

Finishes: DBA, GLD, CLR

Inserts: B Category: H, J Certifications:

Notes: Order two (2) for a set

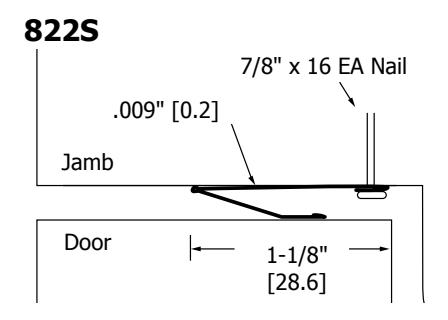

Spring Bronze

Notes:

"V" or cushion bronze weatherstrip, for wood or metal doors
Supplied with fasteners, specify wood or metal application
Fasteners should be 3" on center

Hager 2016 Thresholds & Weatherstripping Catalog

Thresholds & Weatherstripping

Table of Contents

PRODUCT PRESENTATION

FABRICATION OPTIONS

MATERIALS & FINISHES Metals

Gaskets

ORDERING INFORMATION

FASTENERS

Standard

Optional

Thresholds

Weatherstripping

GENERAL INSTALLATION INSTRUCTIONS FOR PRESS-ON PRODUCTS:

CERTIFICATIONS

Handicap Accessibility

Air Infiltration

Sound Tested

BHMA Certified

Underwriter's Laboratories

THE INTERNATIONAL BUILDING CODE (IBC)

Fire Test - Category J

Smoke and Draft Control Test - Category H

New and existing fire doors are classifed/labeled by one of the following designation systems:

Common Applications for Hager Positive Pressure Edge Sealing & Smoke Seal Systems

THRESHOLDS - SADDLE

401S

402S

403S

404S

410S

411S

412S

413S

414S

415S

THRESHOLDS - SADDLE

THRESHOLDS - THERMAL BARRIER SADDLE

424S

420S

451S

421S

452S

422S

423S

THRESHOLDS - HALF SADDLE

406S

407S

431S

432S

433S

438S

572S

THRESHOLDS - ELEVATOR AND BUMPER STRIPS

481S

484S

THRESHOLDS - RESIDENTIAL

400S

408S

THRESHOLDS - CARPET

503S

504S

505S

506S

508S

THRESHOLDS - BUMPER

434S

435S

478S

THRESHOLDS - ADA RAMPS

442S

443S

444 S

THRESHOLDS - FLOOR PLATE ASSEMBLY

455 S

Typical Applications

460S

440S

465S

445S
