ENGINEERING EVALUATION
REPORT NUMBER: 100378137MID-002 ORIGINAL ISSUE DATE: April 26th, 2011 REVISION AND DATE: Original
EVALUATION CENTER
Intertek 8431 Murphy Drive Middleton, WI 53562
RENDERED TO
Hanchett Entry Systems, Inc. 22630 N. 17th Ave. Phoenix, AZ 85027 ATTN: MR. JOSH PEABODY EMAIL: jpeabody@hes-faedc.com
PRODUCT EVALUATED: Model 8500 electric strike EVALUATION PROPERTY: Fire Resistance
Engineering Evaluation of Hanchett Model 8500 Electric Strike for compliance with the applicable requirements of the following criteria: NFPA 80-10 Standard for Fire Doors and Other Opening Protectives.
This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program.
1 Table of Contents
| 1 | Table of Contents | 2 |
|---|---|---|
| Introduction | ||
| Product and Assembly Description | ||
| 3.1. Product Description: | 3 | |
| 3.2. Product Certification: | ||
| Reference Documents | ||
| 5 | Evaluation Method | 4 |
| Conclusion | ||
| APPENDIX | ||
| LAST PAGE & REVISION SUMMARY | ||
2 Introduction
Intertek is conducting an engineering evaluation for Hanchett Entry Systems, Inc. on Model 8500 Electric Strike, to evaluate Fire Resistance. The evaluation is being conducted to determine if use in an assembly to protect openings against the spread of fire and smoke will comply with NFPA 80-10 Standard for Fire Doors and Other Opening Protectives .
3 Product and Assembly Description
3.1.Product Description:
The 8500 series is an electric strike for use with mortise latches having ¾ inch latch bolts, when such latches are mounted in single swing doors up to 4'0" wide x 8'0" high.
See 8500 Series Electric Strike installation instructions for details.
3.2.Product Certification:
Hanchett Model 8500 Electric Strike is a UL Listed Electric Strike for compliance with applicable requirements of the following standards: UL10B Fire Tests of Door Assemblies , UL 10C Positive Pressure Fire Tests of Door Assemblies and UBC7-2 (1997). Model 8500 Electric UL Listing information states listing for use with mortise latches having ¾ inch latch bolts. Listing information is not by Intertek and has not been confirmed by review of test data and is mentioned here for informational purposes only.
Authorities Having Jurisdiction (AHJ) should be consulted in all cases as to the particular requirements covering the installation and use of Intertek certified products, equipment, systems, devices and materials. The AHJ should be consulted before construction. Fire resistance assemblies and products are developed by the design submitter and have been investigated by Intertek for compliance with specific requirements. The published information (product and design listings) cannot always address every construction nuance encountered in the field. When field issues arise, it is recommended the first contact for assistance be the technical service staff provided by the product manufacturer noted for the design. Users of fire resistance assemblies are advised to consult the test standard referenced for each Intertek certified product. The test standard includes specifics concerning alternate materials and alternate methods of construction. Only products which bear Intertek's Mark are considered as certified. The appearance of a company's name or product in Intertek Directory of Listed Building Products does not in itself assure that products so identified have been manufactured under Intertek's Follow-Up Service. Only those products bearing the Intertek Mark should be considered to be Listed and covered under Intertek's Follow-Up Service. Always verify the Mark on the product before using it.
4 Reference Documents
As part of this evaluation, Intertek has directly or indirectly used the following referenced documents:
- -UL Directory of Listed products, summary information GXAY.R9483
- -NFPA 80 (2010) "Standard for Fire Doors and Other Opening Protectives"
- -HES 8500 Series Electric Strike Product Information.
5 Evaluation Method
This evaluation is being conducted solely for the above italicized referenced project or use or both. Due to the variables that exist from project to project and the fact that each evaluation requires review of the most current existing data and information, this evaluation is not to be used as justification for any other opinion nor used for any other project, without the express written consent of Intertek. This report should serve as Intertek's opinion regarding the use of the certified product in the conditions described herein. The materials used on the project, which are applied in compliance with Intertek Design Listings, must bear the Intertek listing mark. All certified products must be installed in accordance with the details contained in Intertek's Directory of Listed Building Products .
The product assembly and use was evaluated against requirements in NFPA 80 that would make the use of HES Model 8500 Strike compliant with NFPA 80.
A review of NFPA 80 finds:
- - Electric strikes are defined per section 3.3.121.1 as strikes that, when activated, either releases or retains a projected latch or dead bolt.
- - Strike plates are defined in section 3.3.122 as wear plates for projecting hardware or a wear plate and keeper for a latch bolt.
- - Per Section 6.4.4.11 electric strikes are permitted in lieu of conventional strikes in single swinging doors and pairs of doors where provided for in the published listings. Typical electric strikes are illustrated in annex A. figure A.6.4.4.11.
- - Section 6.4.4.8 requires Strike plates are secure to frame with steel screws or other types of screws as indicated by the manufacturer's published listing or label service procedure.
- - Section 6.4.4.9 requires Strike plates for doors swinging in pairs to be secured to reinforcements in the inactive leaf with machine screws.
- - Section 6.4.4.9.1 requires pilot holes to be drilled prior to strike plate installation, in accordance with manufacturer's installation instructions.
An examination of the product and Listed use found that HES Model 8500 falls within the definition of electric strikes and complies with the above NFPA 80 criteria. The strike releases or retains a projected latch bolt when activated and includes a strike plate acting as a wear plate for and keeper for a latch bolt. The 8500 strike is fire rated per UL report GXAY.R9483, allowing it to be used in place of conventional strikes. The strike plate is secured to the frame with steel screws installed into pilot holes drilled into the frame prior to installation, as indicated by the attached installation instructions. Section 6.4.4.9 does not apply to the 8500 strike as it is only to be installed into a single swing frame.
6 Conclusion
Intertek is conducting an engineering evaluation for Hanchett Entry Systems, Inc. on Model 8500 Electric Strike, to evaluate Fire Resistance. The evaluation is being conducted to determine if use in an assembly to protect openings against the spread of fire and smoke will comply with NFPA 80-10 Standard for Fire Doors and Other Opening Protectives .
Based on the information contained and referenced herein, it is Intertek's professional judgment based on sound engineering principles that the following is true: Listed use of Model 8500 Electric Strike complies with NFPA 80-10.
INTERTEK
Reported by: ______________________
Jesse Peterson
Project Engineer, BP-Safety
Reviewed by: _____________________
Mike Puls
Engineering Team Leader, BP-Safety
7 APPENDIX

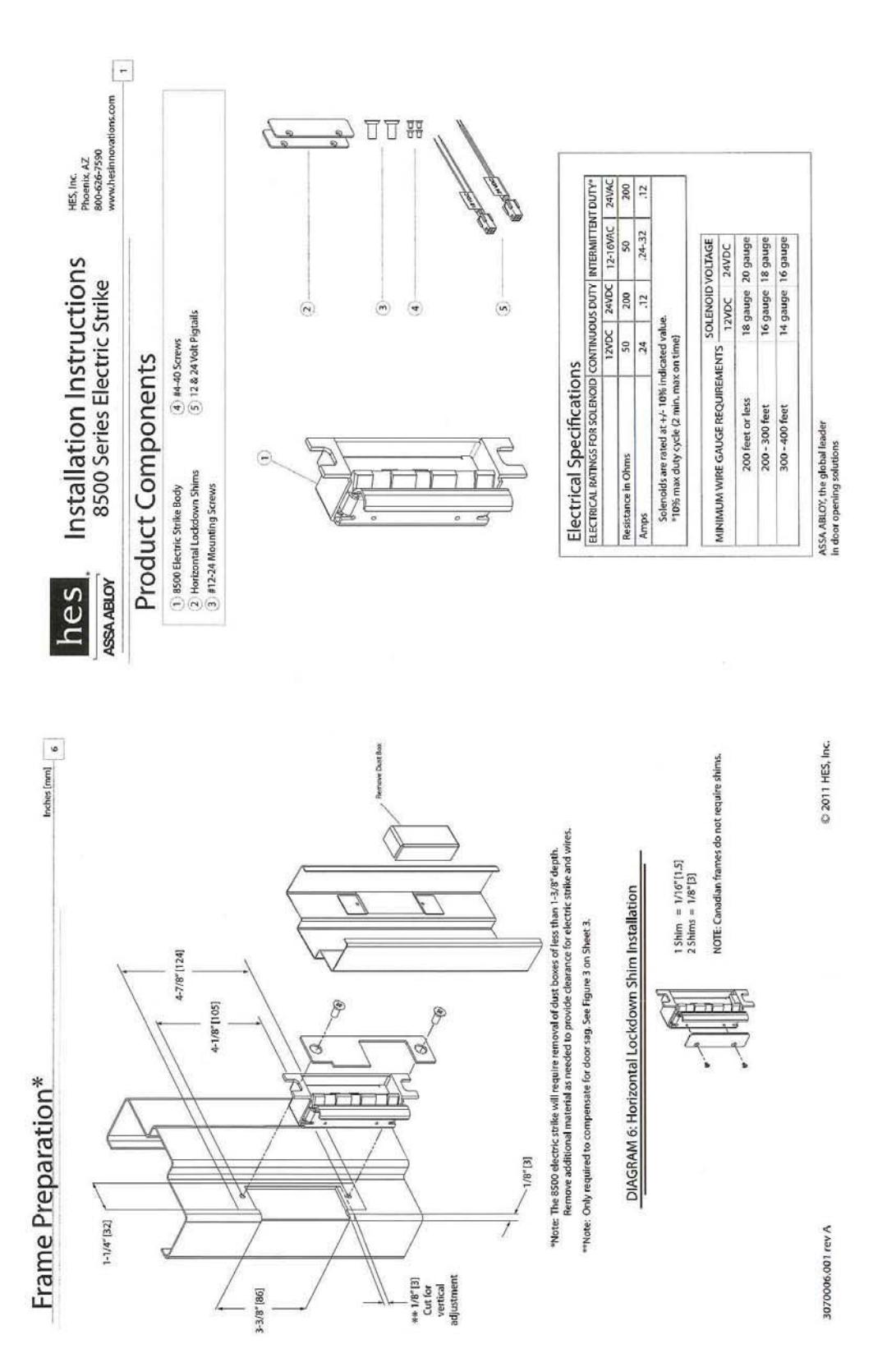

-HES 8500 Installation Instructions

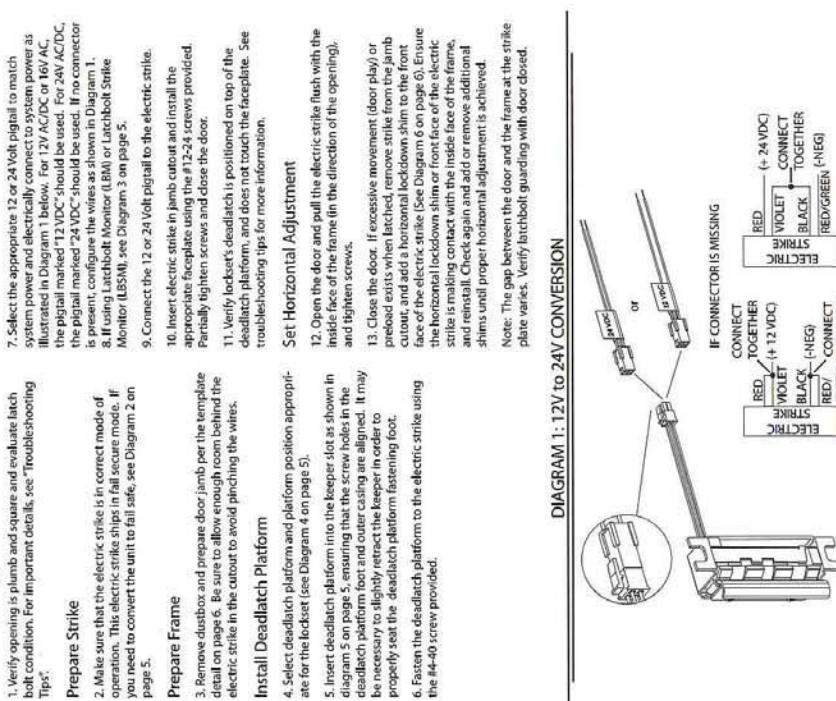

Installation Directions
CAUTION Before connecting any device at the installation site, verify input voltage using a multimeter. Many power supplies and low voltage transformers operate in higher levels that listed. Evy input voltage exceeding 10% of the solenoid rating may cause serere change to the unit and will vold the varianty.

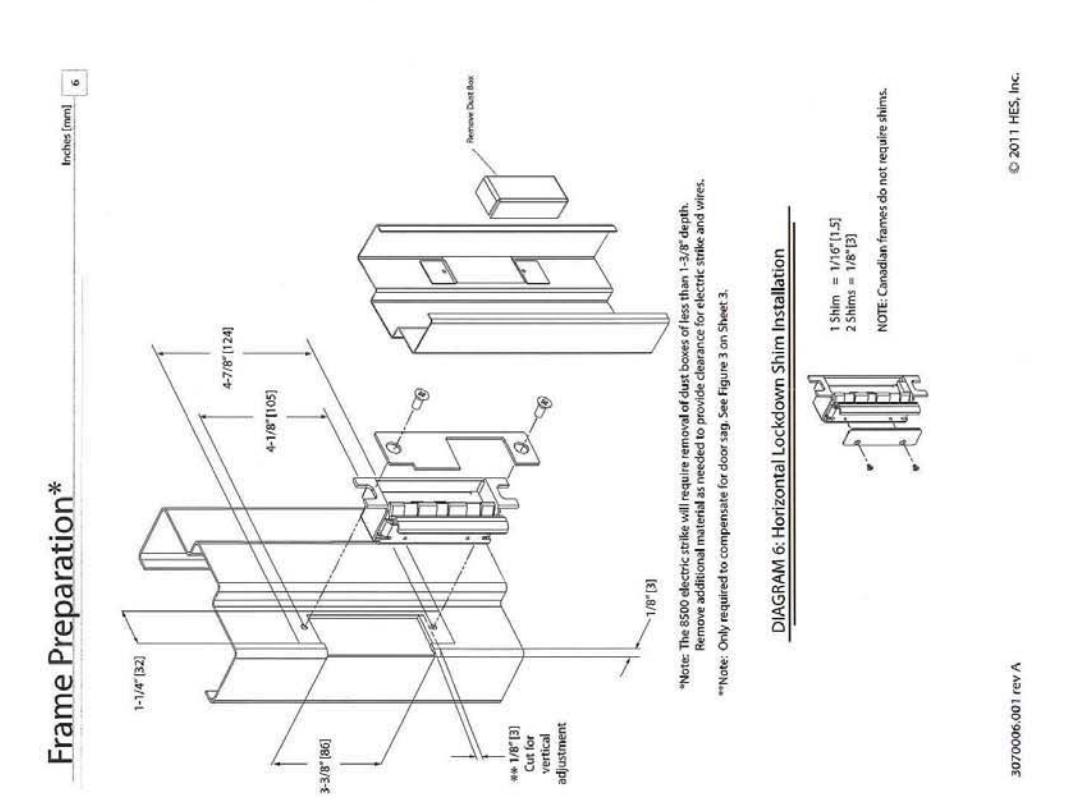

Install Strike in Frame
Evaluate Opening
Verify opening is plumb and square and evaluate latch bolt condition. For important details, see "Iroubleshoorin
Make sure that the electric strike is in correct mode of operation. This electric strike ships in fall secure mode. If you need to convert the unit to fall stafe, see Diagram 2 on page 5. Prepare Strike
Prepare Frame
Install Deadlatch Platform
5. Insert deadlatch platform into the keeper slot as shown in
~
Installation Diagrams
N)
DIAGRAM 3: LBM & LBSM
White Normally Closed LBSM WIRING DIAGRAM 2: Fail Safe Conversion Move screws to the Fail Safe position as shown Loosen screws, but do not remove them (b) Move screws to to position as show (c) Tighten screws (9)

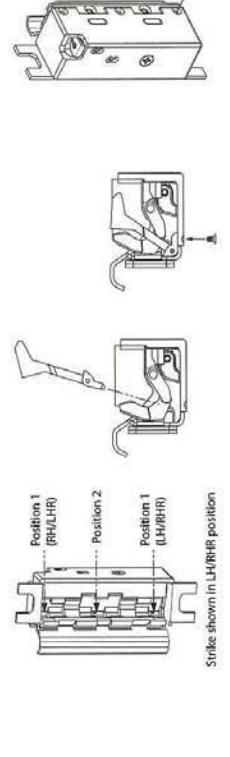

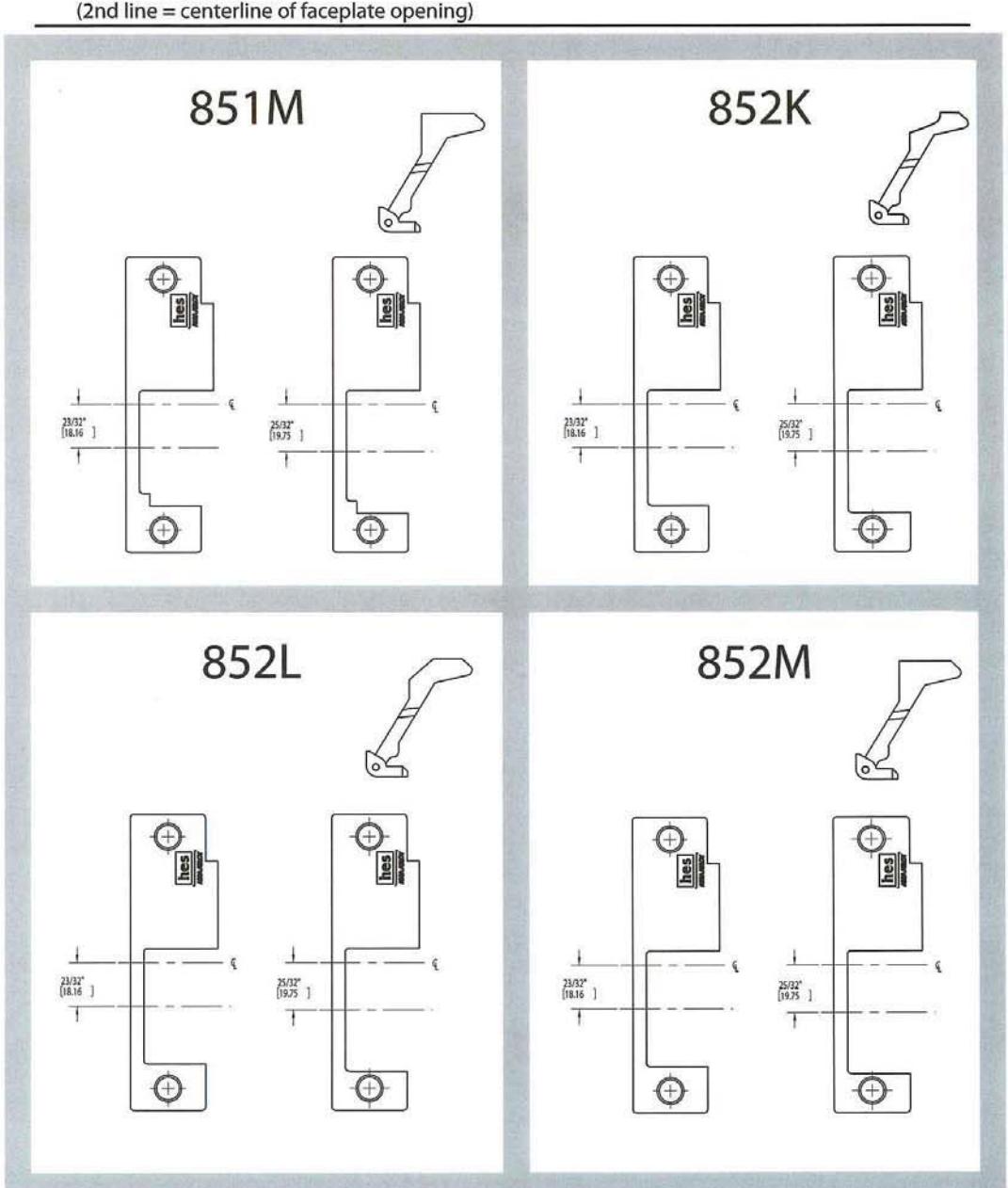

DIAGRAM 4: Deadlatch Platform Selection
ion 2
| Platform Positi | Platform Positi | ||
|---|---|---|---|
|
Platform
Style |
M | 7 | |
| Lockset | Yale 8700 | Schlage L9000 | |
| Platform Position 1 | |||
| Platform | Z | Z × | |
| Lockset | Sargent 8100, 8200, 9200 Yale 8800 Accurate Falcon Kaba Ilco/Unkan |
Corbin Russwin
ML 2000 |
|
80
DIAGRAM 5: Deadlatch Platform Installation
3
Hanchett Entry Systems, Inc. Report Number: 100378137MID-002
Important Trouble Shooting Tips
NOTE! The 8500 electric strike requires that the opening be plumb and square to ensure proper catch and release of the latchbolt.
Door sag and latchbolt wear are two common conditions that may prevent an electric strike from working properly. Here are some quick tips to ensure the HES 8500 performs at its best:
EVALUATING LATCH BOLT CONDITION

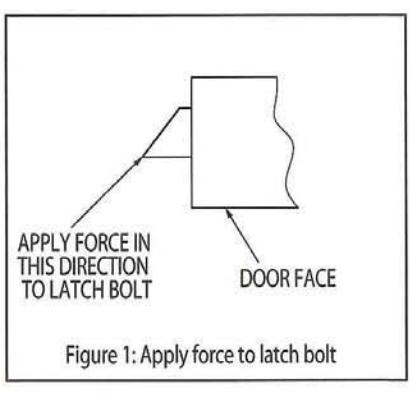

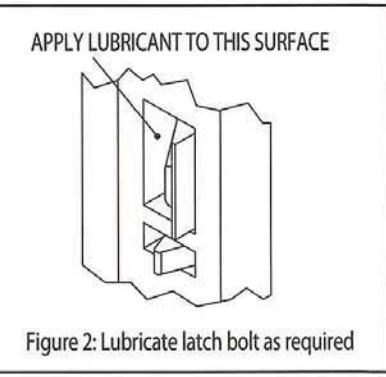

Poorly constructed, worn or damaged latchbolts may not interact properly with the ramp of an electric strike. To check the condition of your latchbolt, lightly depress the tip of the latchbolt at a 45 degree angle to the door face — (see Figure 1). The latchbolt should be easily pushed into the door. If abnormal resistance is encountered, apply a lubricant to the inside of the latchbolt opening with the latchbolt depressed. (See Figure 2) Check manufacturer for proper maintenance and approved lubricants. If this does not correct the friction, additional maintenance on the latchbolt may be required.
ACCOMMODATING DOOR SAC
Most doors experience some sagging over time. To check for door sag, look at the location of the dead latch in relation to the strike faceplate and Deadlatch Platform. The deadlatch should rest fully on the deadlatch platform. If the deadlatch contacts the faceplate or edge of the strike body, the latchbolt may not be fully released when the strike is activated.

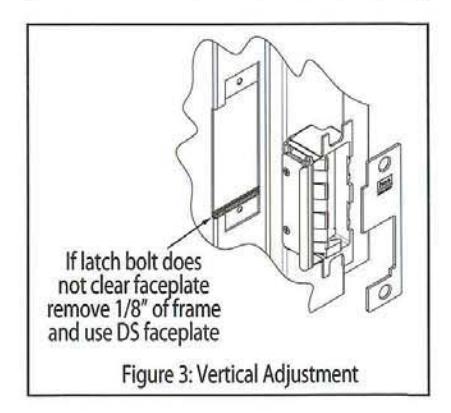

To correct this condition, uninstall the strike and remove 1/8" of material from the bottom edge of the frame opening, making sure to retain the mounting hole on the lower mounting tab. Reinstall the strike, using the SD faceplate instead of the standard faceplate.
If this does not correct the issue, additional maintenance on the door may be necessary.
STRIKE LUBRICATION
Lubrication of the 8500 electric strike is not necessary.
8 LAST PAGE & REVISION SUMMARY
| DATE | SUMMARY |
|---|---|
| April 26th, 2011 | Original |
