Glynn Johnson SensaGuard 280 Series Installation Instructions 108149

Open the original PDF document

View PDF

  • 9-VOLT BATERY. THE RED LED SHOULD NOW FLASH ONCE EVERY SECOND AND THE MOTOR WILL RUN BRIEFLY.
  • 2. REINSTALL THE BATTERY COVER AND ATTACH WITH BOTH SCREWS. THE RED LED SHOULD STOP FLASHING 3 SECONDS AFTER SECURING 2ND SCREW. THE RED LED WILL NOW BEGIN FLASHING ONCE EVERY 40 SECONDS.
  • 3. WAIT 15 SECONDS.
  • 4. PRESS AND HOLD THE "RESET" BUTTON FOR 2 YOU SHOULD HEAR THE MOTOR RUN SECONDS. BRIEFLY. IF YOU DO NOT HEAR THE MOTOR RUN, WAIT 15 SECONDS AND TRY AGAIN.
  • 5. SELECT PROPER "B" DIMENSION FROM TABLE 1.

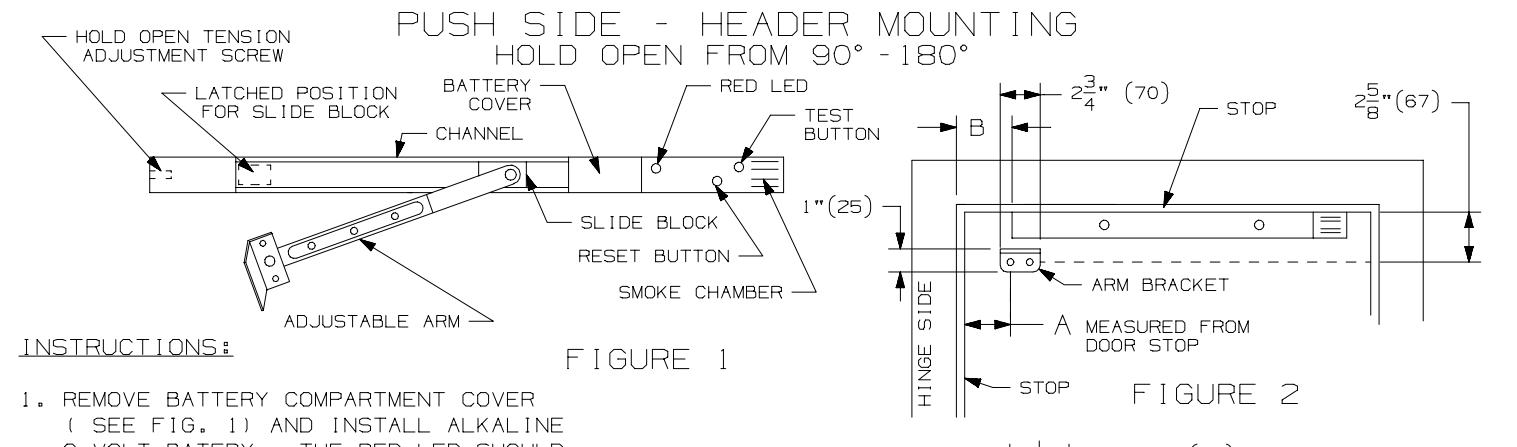

  • 6. CLOSE THE DOOR AND PLACE UNIT AGAINST BOTTOM OF STOP (SEE FIG. 2)

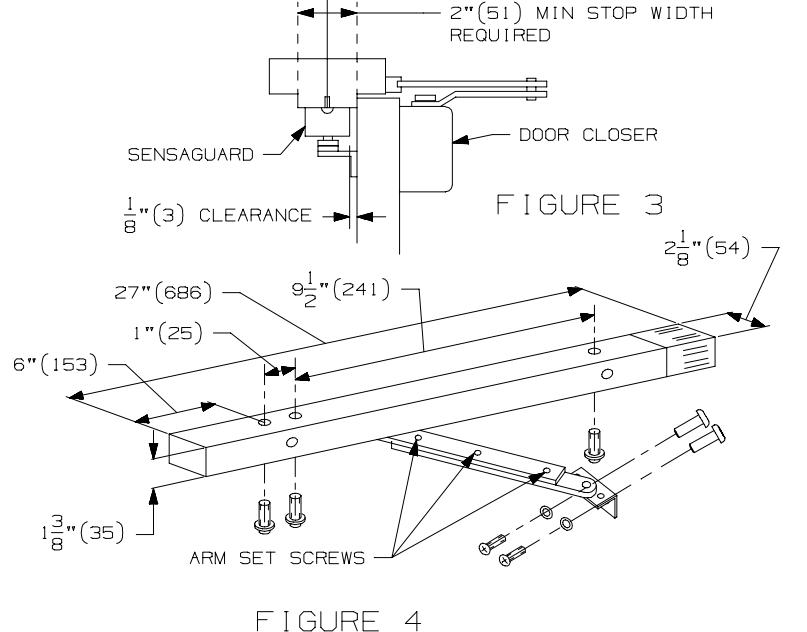

  • LEAVE A 1/8" GAP BETWEEN THE DOOR AND THE UNIT (SEE FIG.3)
  • 8. USING THE UNIT AS A TEMPLATE, MARK THE LOCATION OF THE 3 MOUNTING HOLES IN THE STOP.
  • 9. DRILL THE 3 MOUNTING HOLES WITH A 13/64" BIT AND TAP 1/4-20.
  • 10. INSTALL THE UNIT ONTO THE STOP WITH THE 3 MACHINE SCREWS AND LOCK WASHERS.
  • 11.SELECT PROPER "A" DIMENSION FROM TABLE 1.
  • 12.MARK THE BRACKET HOLE LOCATIONS ON THE DOOR (SEE FIG.2)
  • 13.LOOSEN ARM SET SCREWS (SEE FIG. 4)
  • 14.FOR 180° HOLD OPEN, MOVE THE ARM TO THE BRACKET HOLE CLOSEST TO THE HINGE. OTHERWISE, LEAVE ARM IN CENTER BRACKET HOLE. INSTALL ARM BRACKET USING SEX BOLTS, LOCK WASHERS, AND SEX NUTS (SEE FIG 4)
  • 15.MOVE THE SLIDE BLOCK TO THE LATCHED POSITION (SEE FIG 1)
  • 16. OPEN THE DOOR TO THE DESIRED HOLD OPEN ANGLE.
  • 17.TIGHTEN ARM SET SCREWS (SEE FIG 4) THE DOOR SHOULD NOW BE HELD OPEN.
  • 18. MANUALLY OPEN AND CLOSE THE DOOR SEVERAL TIMES TO CHECK THE HOLD OPEN POSITION.
  • 19. MANUALLY MOVE THE DOOR INTO HOLD OPEN POSITION.
  • 20.PRESS THE "TEST" BUTTON TO SIMULATE A FIRE CONDITION. DOOR SHOULD RELEASE FROM HOLD OPEN.
  • 21.WAIT 15 SECONDS.
  • 22. PRESS THE "RESET" BUTTON TO RESET THE UNIT.
  • 23.MANUALLY MOVE THE DOOR INTO HOLD OPEN POSITION. DOOR SHOULD NOW BE HELD OPEN.

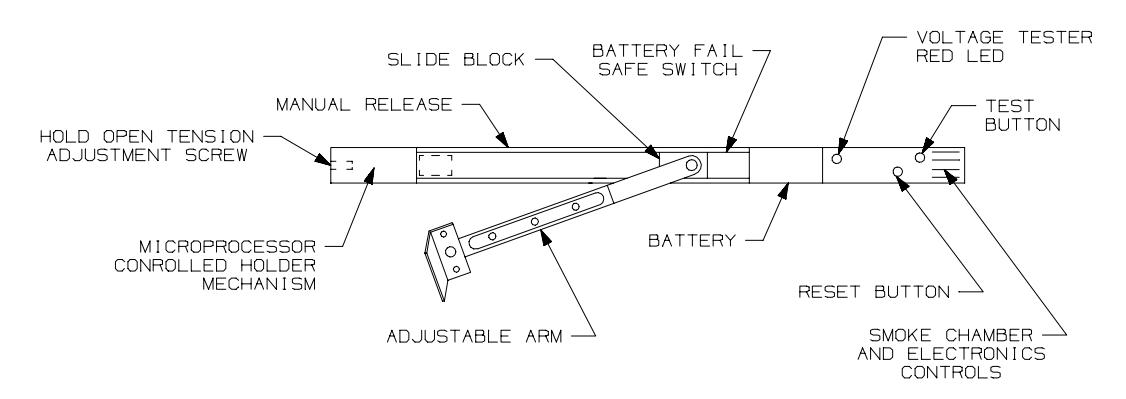

  • 24. IF DESIRED, ADJUST HOLD OPEN TENSION BY TURNING ADJUSTMENT SCREW CLOCKWISE TO INCREASE OR COUNTERCLOCKWISE TO DECREASE (SEE FIG 1)

TABLE 1

DEGREES
HOLD OPEN 		90° -130° 130° -180°
Α 4 1/2"(114) 1/2"(13)
В 5"(127) 3"(76)
SCREW DETAILS
QTY DESCRIPTION
PUSH SIDE CHANNEL 3 1/4-20 × 1/2" PHMS
TOSH SIDE CHANGE 3 1/4" SPLIT LOCK WASHER
PULL SIDE CHANNEL 2 1/4-20 × 1/2" SHCS
2 1/4-20 × 3/4" TRUSS PHMS
ARM BRACKET* 2 1/4-20 SEX BOLTS
2 1/4" SPLIT LOCK WASHER
CHANNEL HOLE PLUGS PAINTED PLASTIC HOLE PLUGS
*THE SCREW COMES INSTALLED IN SEX BOLT

GLYNN-JOHNSON

SENSAGUARD™ 280 INSTALLATION TEMPLATE

TEMPLATE NUMBER:

INSTRUCTIONS:

  • 1. REMOVE BATTERY COMPARTMENT COVER ( SEE FIG. 1) AND INSTALL ALKALINE 9-VOLT BATERY. THE RED LED SHOULD NOW FLASH ONCE EVERY SECOND AND THE MOTOR WILL RUN BRIEFLY.
  • 2. REINSTALL THE BATTERY COVER AND ATTACH WITH BOTH SCREWS. THE RED LED SHOULD STOP FLASHING 3 SECONDS AFTER SECURING 2ND SCREW. THE RED LED WILL NOW BEGIN FLASHING ONCE EVERY 40 SECONDS.
  • 3. WAIT 15 SECONDS.
  • 4. PRESS AND HOLD THE "RESET" BUTTON FOR 2 SECONDS. YOU SHOULD HEAR THE MOTOR RUN BRIEFLY. IF YOU DO NOT HEAR THE MOTOR RUN, WAIT 15 SECONDS AND TRY AGAIN.

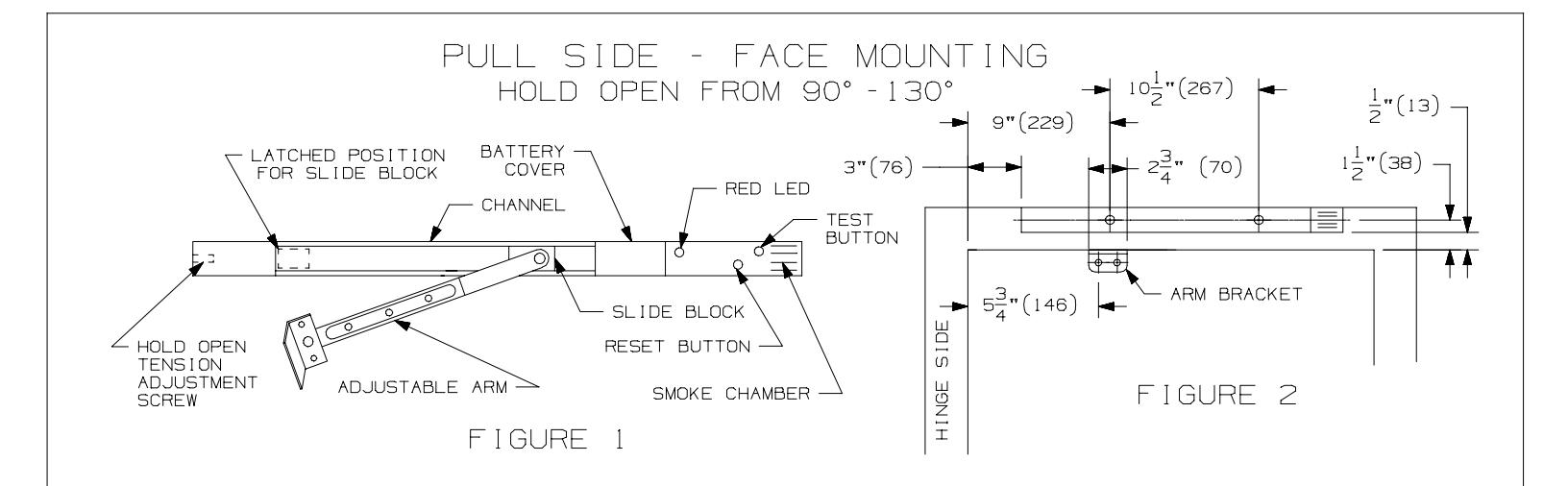

  • 5. PLACE UNIT AGAINST FRAME. (SEE FIG. 2 & 3)
  • 6. USING THE UNIT AS A TEMPLATE, MARK THE LOCATION OF THE 2 CHANNEL MOUNTING HOLES.
  • 7. DRILL THE 2 MOUNTING HOLES WITH A 13/64" BIT AND TAP 1/4-20.
  • 8. INSTALL THE UNIT ONTO THE FRAME WITH THE 2 SOCKET HEAD CAP SCREWS.
  • 9. MARK THE BRACKET HOLE LOCATIONS ON THE DOOR (SEE FIG.2)

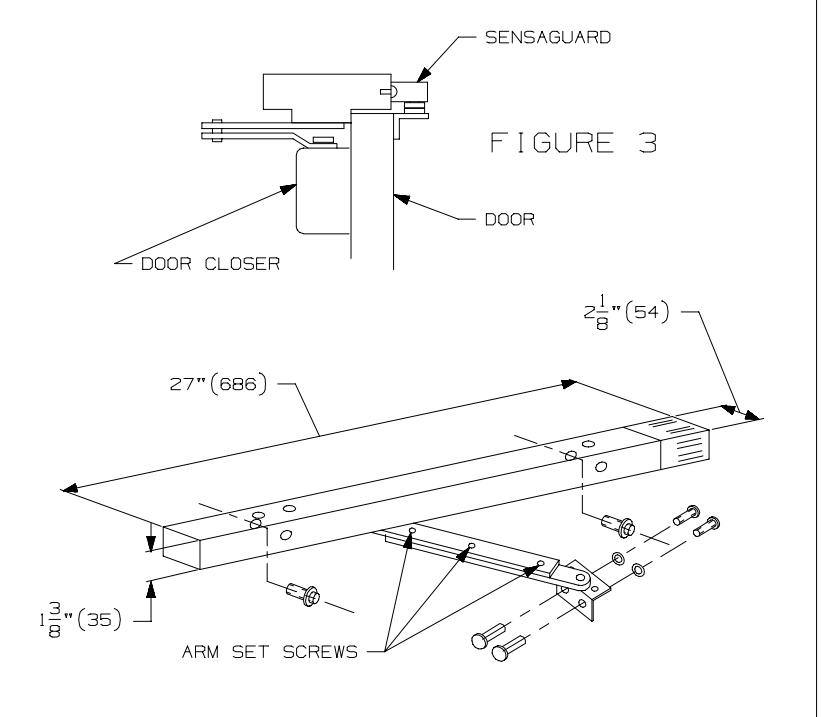

  • 10.LOOSEN ARM SET SCREWS (SEE FIG. 4)
  • 11.INSTALL ARM BRACKET USING SEX BOLTS, LOCK WASHERS, AND SEX NUTS (SEE FIG 4)
  • 12.MOVE THE SLIDE BLOCK TO THE LATCHED POSITION (SEE FIG 1)
  • 13. OPEN THE DOOR TO THE DESIRED HOLD OPEN ANGLE.
  • 14.TIGHTEN ARM SET SCREWS (SEE FIG 4) THE DOOR SHOULD NOW BE HELD OPEN.
  • 15.MANUALLY OPEN AND CLOSE THE DOOR SEVERAL TIMES TO CHECK THE HOLD OPEN POSITION.
  • 16.MANUALLY MOVE THE DOOR INTO HOLD OPEN POSITION.
  • 17.PRESS THE "TEST" BUTTON TO SIMULATE A FIRE CONDITION. DOOR SHOULD RELEASE FROM HOLD OPEN.
  • 18.WAIT 15 SECONDS.
  • 19. PRESS THE "RESET" BUTTON TO RESET THE UNIT.
  • 20.MANUALLY MOVE THE DOOR INTO HOLD OPEN POSITION. DOOR SHOULD NOW BE HELD OPEN.
  • 21.IF DESIRED, ADJUST HOLD OPEN TENSION BY TURNING ADJUSTMENT SCREW CLOCKWISE TO INCREASE OR COUNTERCLOCKWISE TO DECREASE (SEE FIG 1)

FIGURE 4

SCREW DETAILS
QTY DESCRIPTION
PUSH SIDE CHANNEL 3 1/4-20 × 1/2" PHMS
TOSH SIDE CHANGE 3 1/4" SPLIT LOCK WASHER
PULL SIDE CHANNEL 2 1/4-20 x 1/2" SHCS
2 1/4-20 × 3/4" TRUSS PHMS
ARM BRACKET* 2 1/4-20 SEX BOLTS
2 1/4" SPLIT LOCK WASHER
CHANNEL HOLE PLUGS PAINTED PLASTIC HOLE PLUGS
*THE SCREW COMES INSTALLED IN SEX BOLT

GLYNN-JOHNSON

SENSAGUARD™ 280 INSTALLATION TEMPLATE

TEMPLATE NUMBER: INST.280 B.PG2

DATE: 05-29-15

PROBLEM COMMENTS
DOOR WILL NOT
HOLD OPEN 		1. CHECK IF 9-VOLT ALKALINE BATTERY IS INSTALLED AND BATTERY COVER IS ATTACHED WITH BOTH SCREWS. 2. DOES RED LED FLASH WHEN "TEST" BUTTON IS PUSHED AND HELD? IF YES, CONTINUE, IF NO, CALL GJ TECHNICAL SUPPORT AT (888)371-7331. 3. WAIT 15 SECONDS. 4. PUSH AND HOLD "RESET BUTTON FOR 2 SECONDS. 5. MOVE DOOR TO DESIRED HOLD OPEN ANGLE AND SEE IF HOLD OPEN MECHANISM CATCHES. IF NO, CONTINUE. 6. DOES SLIDE BLOCK INSIDE CHANNEL TRAVEL COMPLETELY TO THE END OF TRACK WHEN THE DOOR IS FULLY OPEN? IF NOT, ADJUST (SHORTEN) THE ARM LENGTH. NOTE: THE SLIDE BLOCK MUST TRAVEL TO THE END OF THE CHANNEL TO ENGAGE THE LATCH MECHANISM. 7. IF UNIT STILL WILL NOT HOLD OPEN, CALL GJ TECHNICAL SUPPORT AT (888)371-7331.
DOOR WILL NOT
RELEASE WHEN
"TEST" BUTTON
IS PUSHED 		1. WAIT 15 SECONDS. 2. PUSH AND HOLD "TEST" BUTTON FOR 2 SECONDS. 3. IF UNIT DOES NOT RELEASE, MAKE SURE DOOR IS NOT HUNG UP ON FRAME OR THE FLOOR AND THAT THE CLOSER IS WORKING PROPERLY. IF UNIT STILL DOES NOT RELEASE, CALL GJ TECHNICAL SUPPORT AT (888) 371-7331.
DOOR IS
DIFFICULT TO
RELEASE FROM
HOLD OPEN
MANUALLY 		1. ADJUST TENSION BY TURNING HOLD OPEN TENSION ADJUSTMENT SCREW. 2. CHECK TO SEE IF UNIT IS SECURELY ATTACHED TO THE DOOR AND FRAME. IF THE UNIT ROCKS ON THE FRAME, THE RELEASE MECHANISM MAY BIND UP DURING MANUAL RELEASE.
DOOR WILL NOT
Shut completely 		1. CHECK IF ADJUSTABLE ARM RUBS OR CONTACTS ANY PART OF THE CHANNEL. IF IT DOES, THE ARM MAY BE ADJUSTED TOO LONG, THE DOOR BRACKET MAY BE MOUNTED TOO HIGH, OR THE CHANNEL IMPROPERLY LOCATED. VERIFY TEMPLATE DIMENSIONS.
DOOR WILL NOT
HOLD OPEN AFTER
"SMOKE TEST" 		1. AS LONG AS SMOKE IS IN THE DETECTION CHAMBER, THE RED LED WILL BE FLASHING. WAIT FOR ALL SMOKE TO DISSIPATE, THEN PRESS "RESET" BUTTON, WAIT 15 SECONDS, AND TRY AGAIN.

SENSAGUARD™ 280 INSTALLATION TEMPLATE

SENSAGUARD™ 280 INSTALLATION TEMPLATE

TEMPLATE

NUMBER: INST.280_B.PG4
