INST.450JP
Surface Overhead Holder Hinge (Pull Side)
Installation Instructions
OVERHEAD HOLDERS OR STOPS MUST BE INSTALLED BEFORE CLOSERS.
-
1. A. DETERMINE THE MOUNTING BEING USED FROM THE ILLUSTRATIONS BELOW.
- B. SELECT MOUNTING GROUP NUMBER FROM THE CHART BELOW. MOST CONTINUOUS HINGES ARE GROUPED WITH 4 1/2" WIDE BUTT OR 4 1/2" SWING CLEAR HINGE.
- C. USING THE MOUNTING GROUP NUMBER AND THE OVERHEAD HOLDER OR STOP SIZE AND THE DEGREE OF OPENING DESIRED, FIND "A", "B", AND "C" DIMENSIONS FROM THE CHART ON PAGE 3. FOR DEAD STOP ADD 9/16" (14mm) TO THE "A" DIMENSION FROM THE CHART. SEE NOTE D FOR INFORMATION ABOUT DEAD STOP.
NOTES:
- A. HOLLOW METAL FRAMES SHOULD BE PROPERLY REINFORCED WITH A 3/16" (5) MINIMUM THICKNESS BY 12" (305) MINIMUM WIDTH PLATE.
- MINIMUM WIDTH PLATE. HOLLOW METAL DOORS SHOULD BE PROPERLY REINFORCED WITH A 3/16" (5) MINIMUM THICKNESS PLATE BY 2 1/2" (64) MINIMUM WIDTH PLATE. STOP ONLY UNITS ARE PERMITTED ON MANY FIRE DOOR APPLICATIONS. HOWEVER, MECHANICAL HOLD-OPEN DEVICES THAT REQUIRE MANUAL RELEASE ARE NOT PERMITTED FOR USE ON ANY FIRE DOOR AS OUTLINED ON NFPA80 (B) OF NFPA101 (B). CONTACT GLYNN-JOHNSON OR YOUR LOCAL REPRESENTATIVE FOR ASSISTANCE. DEAD STOP (DS) TEMPLATING MAY BE USED ON HOLD-OPEN, FRICTION STOP AND STOP ONLY MODELS, BUT SHOULD NOT BE USED ON "SE" MODELS. THE DS POSITION IS REACHED WHEN THE SHOCK SPRING IS FULLY COMPRESSED. WHEN DS TEMPLATING IS USED, THE INITIAL DEGREE OF STOP WILL BE 5°-7° LESS THAN THE DS OPENING. FOR USE ON DOORS OPENING BACK TO BACK, AGAINST A WALL OR OBSTRUCTION.
450 ADJUSTMENTS:
HOLD-OPEN TENSION ADJUSTMENT (HOLD-OPEN UNIT ONLY) USING A PHLLIPS SCREWDRIVER, TURN SCREW IN THE END OF SLIDER CLOCKWISE TO INCREASE THE HOLD-OPEN TENSION AND COUNTERCLOCKWISE TO DECREASE THE HOLD-OPEN TENSION.
FRICTION TENSION ADJUSTMENT (FRICTION UNIT ONLY) USING A 3/32" ALLEN WRENCH, TURN SET SCREW IN THE MIDDLE OF THE SLIDER CLOCKWISE TO INCREASE THE FRICTION TENSION AND TURN COUNTERCLOCKWISE TO DECREASE THE FRICTION TENSION.
| SCREW DETAILS | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| QTY | WOOD | METAL | ||||||||
| ANGLE | 4 |
10-32 × 1/2"
FPHMS |
10-32 × 1/2"
FPHMS |
|||||||
| JAMB | 4 |
#10 × 1 1/2"
FPHSMS |
10-32 x 1/2"
FPHMS |
|||||||
| DOOR | 2 |
10-24 × 1 1/2"
PPHMS |
10-24 × 1 1/2"
PPHMS |
|||||||
| BOOK | 2 |
10-24 × 1 9/16"
SEX BOLT |
10-24 × 1 9/16"
SEX BOLT |
|||||||
| _ | |||||||||
|---|---|---|---|---|---|---|---|---|---|
|
DOOR
THICKNESS |
HINGE & TYPE SHOWN |
MOUNT I NO
GROUP |
|||||||
|
1 3/8"
(35mm) |
3 1/2" BUTT | 2 | |||||||
| (35mm) | 3/4" OFFSET PIVOT | 2 | |||||||
| 4" WIDE BUTT | 1 | ||||||||
| 4 1/2" WIDE BUTT | 1 | ||||||||
|
1 3/4"
(44mm) |
3/4" OFFSET PIVOT | 2 | |||||||
| 4 1/2" SWINGCLEAR | 1 | ||||||||
| 5" SWINGCLEAR | 2 | ||||||||
| 4 1/2" WIDE BUTT | 1 | ||||||||
| 5" WIDE BUTT | 2 | ||||||||
| 2" | 3/4" OFFSET PIVOT | 2 | |||||||
| (51mm) | 4 1/2" SWINGCLEAR | 1 | |||||||
| (51mm) | 5" SWINGCLEAR | 2 | |||||||
| SOSS 220 | 1 | ||||||||
| 5" WIDE BUTT | 1 | ||||||||
|
2 1/4"
(57mm) |
4 1/2" SWINGCLEAR | 1 | |||||||
| SOSS 220 | 1 | ||||||||
| - DIMENSIONS IN ( ) ARE IN AULI INSTERS | |||||||||
NOTE: DIMENSIONS IN ( ) ARE IN MILLIMETERS
-

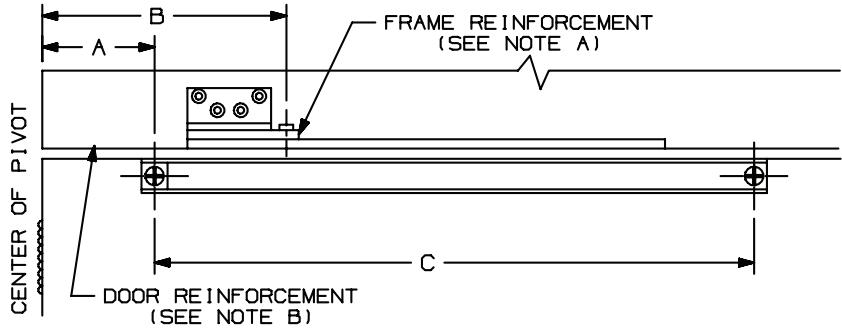

2. A. LOCATE "B" DIMENSION ON THE FACE OF THE FRAME. NOTE THAT THE "B" DIMENSION IS MEASURED FROM THE CENTERLINE OF THE HINGE AS SHOWN.
- B. FOR METAL FRAMES, USE #21 DRILL AND 10-32 TAP IN 4 PLACES. FOR WOOD FRAMES DRILL 1/8" PILOT HOLES IN 4 PLACES. MOUNTING HOLES SHOULD BE PREPARED IN THE FIELD.
-

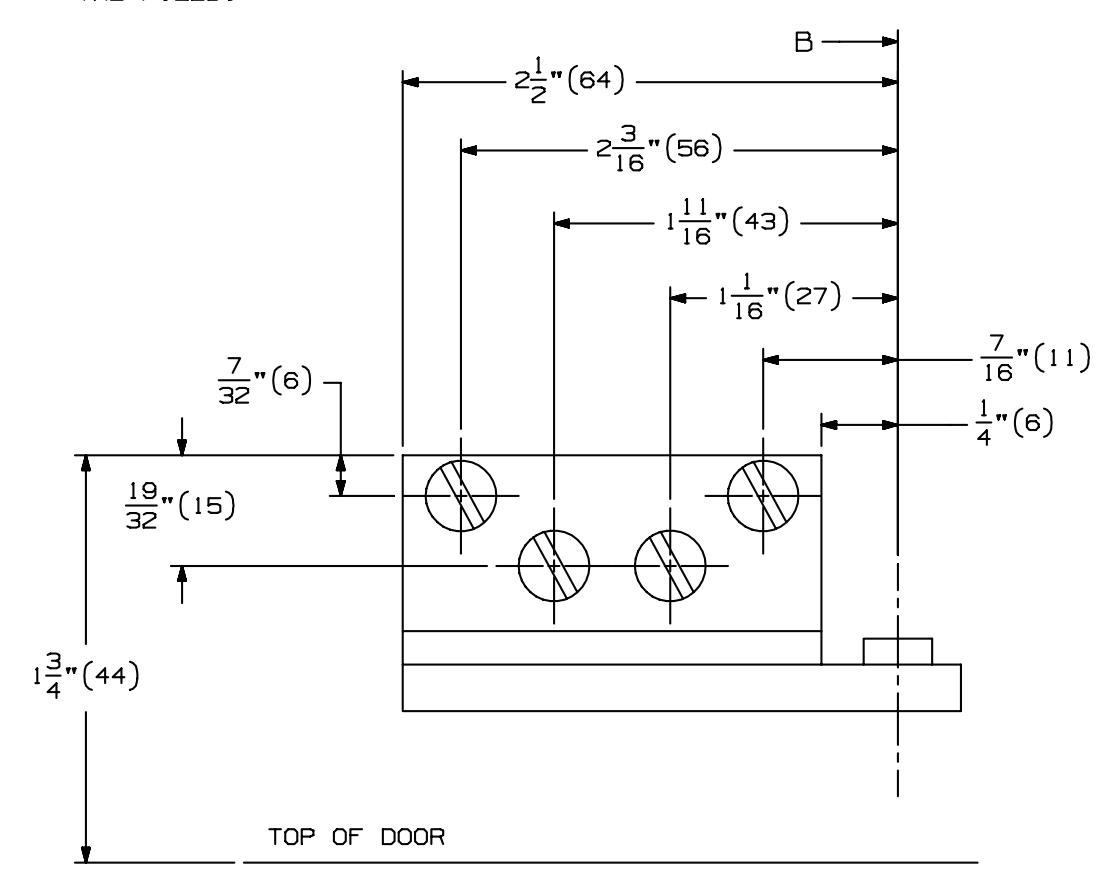

3. A. LOCATE "A" & "C" DIMENSION ON THE DOOR. NOTE THAT THE "A" DIMENSION IS MEASURED FROM THE CENTERLINE OF HINGE AS SHOWN.
- B. DRILL THE 1/4" (6) DIAMETER THROUGH HOLES DOWN 3/8" (10) FROM THE TOP OF THE DOOR IN TWO PLACES. ON THE PULL SIDE OF DOOR, DRILL 13/32" (10) DIAMETER HOLE, 1 5/8" (41) DEEP FOR SEX BOLT. MOUNTING HOLES SHOULD BE PREPARED IN THE FIELD.
-
4. A. INSTALL ANGLE BRACKET ONTO STANDARD JAMB BRACKET WITH 10-32
1/2" FPHMS PROVIDED WITH THE ANGLE BRACKET.
- B. INSTALL THE CHANNEL ON THE DOOR WITH THE SHOCK SPRING TOWARDS THE HINGE EDGE OF DOOR.
- C. INSTALL THE ANGLE BRACKET TO THE FACE OF THE FRAME.
NOTE: DIMENSIONS IN ( ) ARE IN MILLIMETERS
& HOLDER SERIES SURFACE OVERHEAD STOP ⋖ŏ MOUNTING GROUPS 1 450

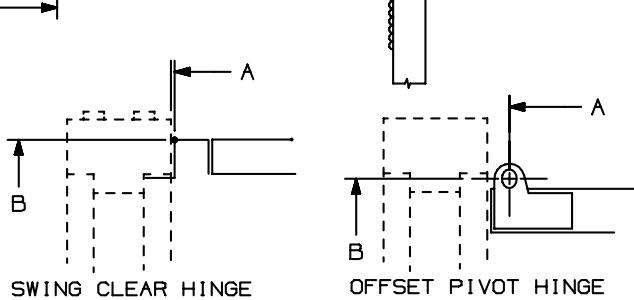

CAUTION: "A" & "B" DIMENSIONS ARE MEASURED FROM THE CENTERLINE OF PIVOT, NOT EDGE OF DOOR
* NOT TO BE USED WITH SWINGCLEAR HINGES FOR DEAD STOP ADD 9/16" (14mm) TO THE "A" DIMENSION FOR SE STOPS USE HOLD-OPEN MOUNTING DIMENSION HO-HOLD-OPEN FOR HOLDERS, OPENING FOR STOPS I=ARM LENGTH FROM PIVOT CENTERLINE TO PIVOT CENTERLINE (FOR REFERENCE ONLY)
