Glynn Johnson 450 Series Surface Overhead Holder H F S SE Installation Instructions 101342
Open the original PDF document
View PDFВі
SWING CLEAR
HINGE
В
OFFSET PIVOT
HINGE
В
INST.450
Surface Overhead Holder Installation Instructions
OVERHEAD HOLDERS OR STOPS MUST BE INSTALLED BEFORE CLOSERS
-

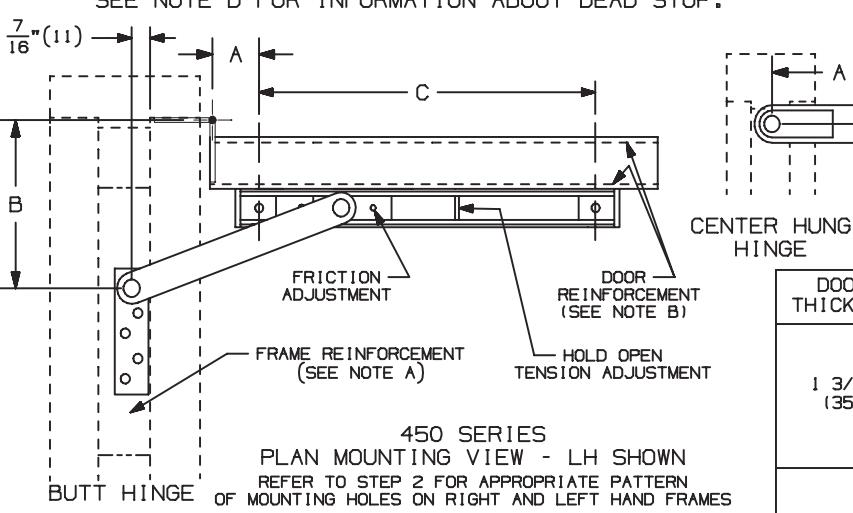

1. A. DETERMINE THE MOUNTING BEING USED FROM ILLUSTRATION BELOW.
- B. SELECT MOUNTING GROUP NUMBER FROM THE CHART BELOW. MOST CONTINUOUS HINGES ARE GROUPED WITH 4 1/2" WIDE BUTT OR 4 1/2" SWING CLEAR HINGE.
- C. USING THE MOUNTING GROUP NUMBER AND THE OVERHEAD HOLDER OR STOP SIZE AND THE DEGREE OF OPENING DESIRED, FIND "A" & "B" DIMENSIONS FROM CHARTS ON PAGES 3, 4, & 5. FOR DEAD STOP ADD 9/16"(14) TO THE "A" DIMENSION FROM THE CHART. SEE NOTE D FOR INFORMATION ABOUT DEAD STOP.
NOTES:
- A. HOLLOW METAL FRAMES SHOULD BE PROPERLY REINFORCED WITH A 3/16"(5) MINIMUM THICKNESS BY 12"(305) MINIMUM LENGTH PLATE.
- B. HOLLOW METAL DOORS SHOULD BE PROPERLY REINFORCED WITH A 3/16"(5) MINIMUM THICKNESS BY 2 1/2" (64) MINIMUM WIDTH PLATE.
- C. STOP ONLY UNITS ARE PERMITTED ON MANY FIRE DOOR APPLICATIONS. HOWEVER, MECHANICAL HOLD-OPEN DEVICES THAT REQUIRE MANUAL RELEASE ARE NOT PERMITTED FOR USE ON ANY FIRE DOOR AS OUTLINED ON NFPABO (R) OR NFPA101 (R). CONTACT GLYNN-JOHNSON OR YOUR LOCAL REPRESENTATIVE FOR ASSISTANCE.
- D. DEAD STOP (DS) TEMPLATING MAY BE USED ON HOLD OPEN, FRICTION AND STOP ONLY MODELS, BUT SHOULD NOT BE USED ON "SE" MODELS, THE DS POSITION IS REACHED WHEN THE SHOCK SPRING IS FULLY COMPRESSED. WHEN DS TEMPLATING IS USED, THE INITIAL DEGREE OF STOP WILL BE 5° -7° LESS THAN THE DS OPENING. FOR USE ON DOORS OPENING BACK-TO-BACK, AGAINST A WALL OR OBSTRUCTION.
450 ADJUSTMENTS:
HOLD-OPEN TENSION ADJUSTMENT (HOLD-OPEN UNIT ONLY) -USING A 5/32" BALL-END ALLEN WRENCH, TURN SCREW INSIDE "LONG" END OF CAM CLOCKWISE TO DECREASE HOLD-OPEN TENSION AND COUNTERCLOCKWISE TO INCREASE HOLD-OPEN TENSION. TENSION SET TO MINIMUM AT FACTORY.
FRICTION TENSION ADJUSTMENT (FRICTION UNIT ONLY) -USING A 3/32" ALLEN WRENCH, TURN SCREW SHOWN CLOCKWISE TO INCREASE FRICTION TENSION AND TURN COUNTERCLOCKWISE TO DECREASE THE FRICTION TENSION.
DIMENSIONS IN ( ) ARE IN MILLIMETERS
|
DOOR
THICKNESS |
HINGE TYPE & STYLE |
MOUNTING
GROUP |
|---|---|---|
| 3" WIDE BUTT | 4 | |
| 1 3/8" | 3 1/2" BUTT | 3 |
| (35) | 3/4" OFFSET PIVOT | 3 |
| SOSS 216 | 4 | |
| 4" WIDE BUTT | 2 | |
| 4 1/2" WIDE BUTT | 2 | |
| 5" WIDE BUTT | 1 | |
| 1 3/4" | 3/4" OFFSET PIVOT | 2 |
| (44) | 4" SWINGCLEAR | 1 |
| 4 1/2" SWINGCLEAR | 1 | |
| 5" SWINGCLEAR | 1 | |
| SOSS 220 | 2 | |
| CENTERHUNG PIVOT | 5 | |
| 4 1/2" WIDE BUTT | 2 | |
| 5" WIDE BUTT | 1 | |
| 2" | 3/4" OFFSET PIVOT | 1 |
| (51) | 4 1/2" SWINGCLEAR | 1 |
| 5" SWINGCLEAR | 1 | |
| SOSS 220 | 2 | |
| CENTERHUNG PIVOT | 5 | |
| 4 1/2" WIDE BUTT | 2 | |
| 2 1/4" | 5" WIDE BUTT | 1 |
| 2 1/4" (57) | 4 1/2" SWINGCLEAR | 1 |
| SOSS 220 | 1 | |
| CENTERHUNG PIVOT | 5 |
| SCREW DETAILS | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| QTY | WOOD | METAL | |||||||
| JAMB | 4 | #10 x 1 1/2" FPHSMS | 10-32 x 1/2" FPHMS | ||||||
| DOOR | 2 |
10-24 × 1 9/16"
SEX BOLTS |
10-24 × 1 9/16"
SEX BOLTS |
||||||
| 2 | 10-24 × 1 1/2" PPHMS | 10-24 × 1 1/2" PPHMS | |||||||
-

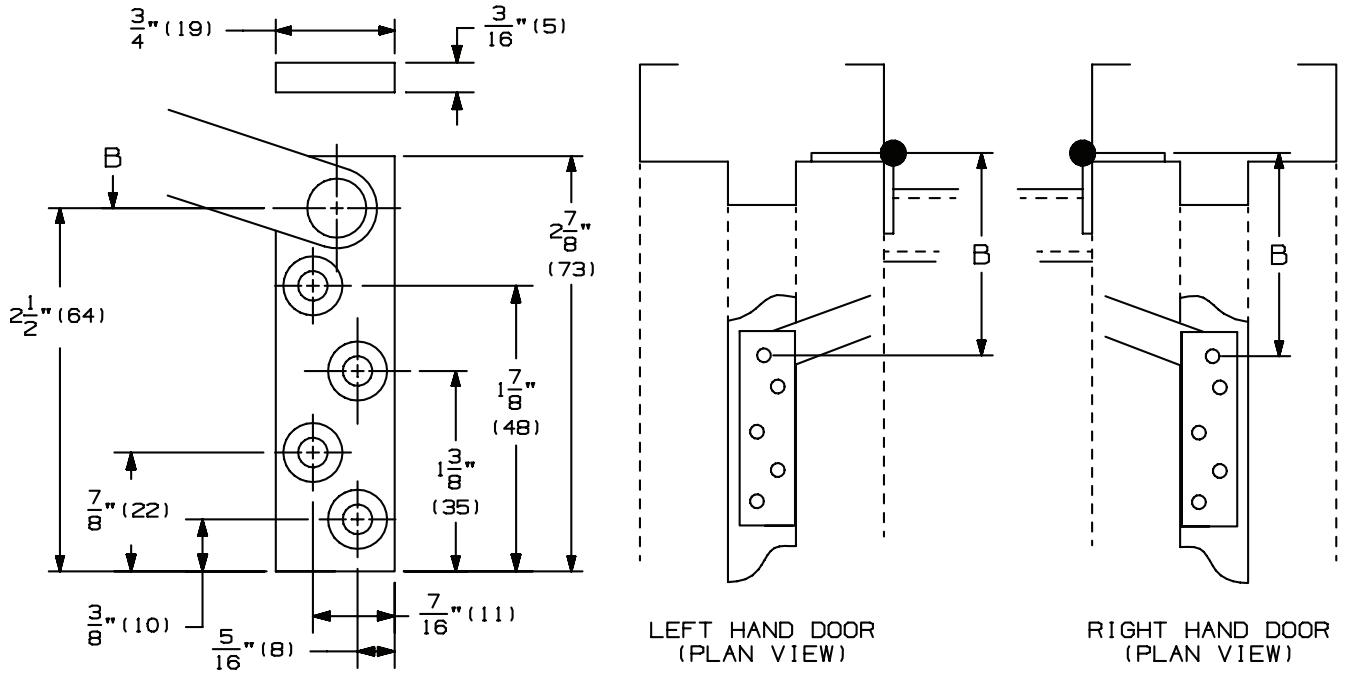

2. A. LOCATE "B" DIMENSION ON THE FRAME. NOTE THAT THE "B" DIMENSION IS MEASURED FROM THE CENTERLINE OF THE HINGE AS SHOWN.
- C. FOR METAL FRAMES, USE A #21 DRILL AND 10-32 TAP IN 4 PLACES. FOR WOOD FRAMES, DRILL 1/8" PILOT HOLE IN 4 PLACES. REFER TO LEFT AND RIGHT PLAN VIEWS FOR APPROPRIAE HOLE PATTERN.
-

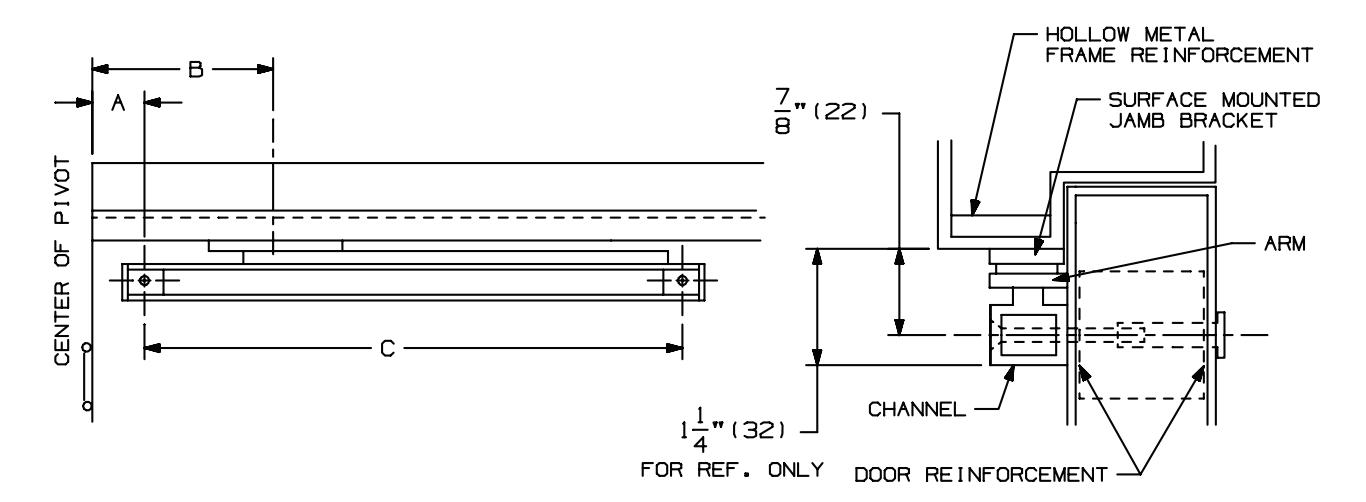

3. A. LOCATE "A" AND "C" DIMENSIONS ON THE DOOR. NOTE THAT THE "A" DIMENSION IS MEASURED FROM THE CENTERLINE OF THE HINGE AS SHOWN.
- B. DRILL THE 1/4" (6) DIAMETER THROUGH HOLES DOWN 7/8" (22) DOWN FROM STOP IN TWO PLACES. ON THE PULL SIDE OF THE DOOR, DRILL 13/32" (10) DIAMETER HOLE, 1 5/8" (41) DEEP FOR SEX BOLT. MOUNTING HOLES SHOULD BE PREPARED IN THE FIELD.
- 4. A. INSTALL JAMB BRACKET ON THE STOP.
- B. INSTALL THE CHANNEL ON THE DOOR WITH THE SHOCK SPRING TOWARDS THE HINGE EDGE OF THE DOOR. NOTE: DIMENSIONS IN ( ) ARE MILLIMETERS.
MOUNTING GROUPS 1, 2, 3, & 4 450 SERIES SURFACE OVERHEAD STOP & HOLDER
CAUTION: "A" & "B" DIMENSIONS ARE MEASURED FROM THE CENTERLINE OF PIVOT, NOT EDGE OF DOOR
FOR DEAD STOP ADD 9/16" (14) TO THE "A" DIMENSION FOR SE STOPS USE HOLD-OPEN MOUNTING DIMENSION HO=HOLD-OPEN FOR HOLDERS, OPENING FOR STOPS 1=ARM LENGTH FROM PIVOT CENTERLINE TO PIVOT CENTERLINE (FOR REFERENCE ONLY)
* NOT TO BE USED WITH SWINGCLEAR HINGES
| TOR REFERENCE | , , , , , , , , , , , , , , , , , , , | · | ı | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DEGREE | 85 | но | 90 | НО | 95 | НО | 100 | но | 105 | но | 110 | HO | 1 | ||||
| DIM. |
DOOR
OPENING |
A | В | ٨ | В | A | В | A | В | ٨ | В | ^ | В | С | I | ||
| 45. | IN. | 18-23 | - | - | - | - | - | - | - | - | - | - | - | - | 14 3/4 | 8 1/4 | |
| 451 | mm | 457-584 | - | - | - | - | - | - | - | - | - | - | - | - | 375 | 210 | |
| No. | 452 | IN. | 23 1/16-27# | 2 15/16 | 4 15/16 | 2 9/16* | 4 9/16* | - | - | - | - | - | - | - | - | 16 3/8 | 10 |
| MOUNTING | 452 | mm | 585-686 | 75 | 125 | 65 | 116 | - | - | - | - | - | - | - | - | 416 | 254 |
| IN. | 27 1/16-33 | 6 7/8 | 6 1/16 | 6 7/16 | 5 11/16 | 6 1/8 | 5 5/16 | 5 13/16 | 5 | - | - | - | - | 17 5/8 | 14 | ||
| GROUP | 454 | mm | 687-838 | 175 | 154 | 164 | 144 | 156 | 135 | 148 | 127 | - | - | - | - | 448 | 356 |
| IN. | 33 1/16-39 | 10 3/4 | 7 5/8 | 10 1/4 | 7 3/16 | 9 13/16 | 6 3/4 | 9 7/16 | 6 3/8 | 9 1/8 | 6 | 8 13/16 | 5 13/16 | 19 3/8 | 18 | ||
| * | 454 | mm | 839-991 | 273 | 194 | 260 | 183 | 249 | 171 | 240 | 162 | 232 | 152 | 224 | 148 | 492 | 457 |
| 455 | IN. | 39 1/16-45 | 14 5/16 | 9 | 13 3/4 | 8 7/16 | 13 1/4 | 8 | 12 7/8 | 7 1/2 | 12 1/2 | 7 1/8 | 12 3/16 | 6 13/16 | 20 7/8 | 21 3/4 | |
| 455 | mm | 992-1143 | 364 | 229 | 349 | 214 | 337 | 203 | 327 | 191 | 318 | 181 | 310 | 173 | 530 | 552 | |
|
|
IN. | 18-23* | 1 1/2* | 3 5/8* | ı | ı | - | • | ı | - | • | 1 | - | - | 14 3/4 | 8 1/4 | |
| 101 | mm | 457-584* | 38 | 92 | - | - | - | - | - | - | - | - | - | - | 375 | 210 | |
| M | 452 | IN. | 23 1/16-27 | 3 1/8 | 5 1/8 | 2 13/16* | 4 3/4* | 2 1/2* | 4 1/2* | - | - | - | - | - | - | 16 3/8 | 10 |
| MOUNTING | mm | 585-686 | 79 | 130 | 71 | 121 | 64 | 114 | - | - | - | - | - | - | 416 | 254 | |
| 453 | IN. | 27 1/16-33 | 7 1/16 | 6 5/16 | 6 11/16 | 5 13/16 | 6 5/16 | 5 1/2 | 6 | 5 3/16 | 5 3/4 | 4 15/16 | - | - | 17 5/8 | 14 | |
| GROUP | mm | 687-838 | 179 | 160 | 170 | 148 | 160 | 140 | 152 | 132 | 146 | 125 | - | - | 448 | 356 | |
| - 1 | 454 | IN. | 33 1/16-39 | 10 7/8 | 7 7/8 | 10 7/16 | 7 3/8 | 10 | 6 15/16 | 9 5/8 | 6 9/16 | 9 5/16 | 6 3/16 | 9 1/16 | 5 15/16 | 19 3/8 | 18 |
| $ | 10 1 | mm | 839-991 | 276 | 200 | 265 | 187 | 254 | 176 | 244 | 167 | 237 | 157 | 230 | 151 | 492 | 457 |
| 455 | IN. | 39 1/16-45 | 14 9/16 | 9 3/16 | 13 15/16 | 8 11/16 | 13 1/2 | 8 1/16 | 13 | 7 11/16 | 12 11/16 | 7 5/16 | 12 5/16 | 7 1/16 | 21 3/4 | ||
| mm | 992-1143 | 370 | 233 | 354 | 221 | 343 | 205 | 330 | 195 | 322 | 186 | 313 | 179 | 530 | 552 | ||
| 451 | IN. | 18-23* | 1 13/16 | 3 15/16 | 1 9/16 | 3 3/8 | - | - | - | - | - | - | - | - | 14 3/4 | 8 1/4 | |
| mm | 457-584* | 46 | 100 | 40 | 92 | - | - | - | - | - | - | - | - | 375 | 210 | ||
| ĕ | 452 | IN. | 23 1/16-27 | 3 5/16 | 5 5/16 | 3 | 5 | 2 3/4 | 4 3/4 | 2 1/2 | 4 1/2 | 2 1/4 | 4 1/4 | - | - | 16 3/8 | 10 |
| MOUNT ING | mm | 585-686 | 84 | 135 | 76 | 127 | 70 | 121 | 64 | 114 | 57 | 108 | - | - | 416 | 254 | |
| 453 | IN. | 27 1/16-33 | 7 1/4 | 6 1/2 | 6 7/8 | 6 1/8 | 6 1/2 | 5 3/4 | 6 1/4 | 5 7/16 | 6 | 5 3/16 | 5 3/4 | 5 | 17 5/8 | 14 | |
| GROUP | 1 | mm | 687-838 | 184 | 165 | 175 | 156 | 165 | 146 | 159 | 138 | 152 | 132 | 146 | 127 | 448 | 356 |
| £ 43 | IN. | 33 1/16-39 | 11 1/8 | 8 1/16 | 10 5/8 | 7 9/16 | 10 3/16 | 7 1/8 | 9 13/16 | 6 13/16 | 9 1/2 | 6 7/16 | 9 1/4 | 6 1/8 | 19 3/8 | ||
| lω | mm | 839-991 | 283 | 205 | 270 | 192 | 259 | 181 | 249 | 173 | 241 | 164 | 235 | 156 | 492 | 457 | |
| IN. | 39 1/16-45 | 14 3/4 | 9 1/2 | 14 1/8 | 8 13/16 | 13 5/8 | 8 5/16 | 13 3/16 | 7 15/16 | 12 7/8 | 7 1/2 | 12 1/2 | 7 1/4 | 21 3/4 | |||
| mm | 992-1143 | 375 | 241 | 359 | 224 | 346 | 211 | 335 | 202 | 327 | 191 | 318 | 184 | 530 | 552 | ||
| 451 | IN. | 18-23* | 2 | 4 1/8 | 1 3/4 | 3 7/8 | 1 1/2 | 3 5/8 | - | - | - | - | - | - | 14 3/4 | 8 1/4 | |
| mm |
457-584
*
23 1/16-27 |
51 | 105 | 44 | 98 | 38 | 92 | - | - | 375 | 210 | ||||||
| MOUNTING | 452 | IN. | 585-686 | 3 1/2 | 5 1/2 | 3 3/16 | 5 1/8 | 2 7/8 | 4 7/8 | 2 11/16 | 4 5/8 | 2 7/16 | 4 7/16 | 2 1/4 | 4 1/4 |
16 3/8
416 |
10
254 |
| 1 | Н | mm | 27 1/16-33 | 89 | 140 | 81 | 130 | 73 | 124 | 68 | 117 | 62 | 113 | 57 | 108 | 17 5/8 | |
| 453 | IN. | 7 7/16 | 6 11/16 | 178 | 6 1/4 | 6 11/16 | 6 3/8 | 5 9/16 |
6 1/8
156 |
5 5/16 |
5 7/8
149 |
5 1/8 | 448 | 356 | |||
| GROUP | H | mm | 687-838 | 189 | 170 | 1/8 |
159
7 3/4 |
170
10 5/16 |
151
7 1/4 |
162
9 15/16 |
141
6 15/16 |
9 5/8 |
135
6 5/8 |
9 5/16 | 6 5/16 | 19 3/8 | |
| * | 454 | IN. |
33 1/16-39
839-991 |
286 |
8 1/4
210 |
273 | 262 | 184 | 252 | 176 | 244 | 168 | 237 | 160 | 492 | 457 | |
| | " | IN. | 39 1/16-45 | 9 9/16 | 14 1/4 |
197
9 |
13 3/4 | 8 1/2 | 13 5/16 | 13 | 7 5/8 | 12 5/8 | 7 5/16 | 21 3/4 | ||||
| 455 | mm | 992-1143 | 378 | 243 | 362 | 229 | 349 | 216 | 338 | 203 | 330 | 194 | 321 | 186 | 530 | 552 | |
| Н | IN. | 23 1/16-27 | 2 3/8 | 4 1/2 | 2 1/8 | 4 1/4 | 1 7/8 | 4 | 1 11/16 | 1 9/16 | 3 11/16 | 3 1/2 | 14 3/4 | ||||
| 451 | EE | 585-687 | 60 | 114 | 54 | 108 | 48 | 102 | 43 | 97 | 40 | 94 | 35 | 89 | 375 | 210 | |
| | | IN. | 27 1/16-33 | 3 3/4 | 5 3/4 | 3 1/2 | 5 1/2 | 3 1/4 | 5 1/4 | 3 | 5 | 2 3/4 | 4 3/4 | 2 5/8 | 4 5/8 | 16 3/8 | ||
| MOUNTING | 452 | mm | 688-838 | 95 | 146 | 89 | 140 | 83 | 133 | 76 | 127 | 70 | 121 | 67 | 117 | 416 | 254 |
| Į. | IN. | 33 1/16-39 | 7 3/4 | 7 | 7 3/8 | 6 5/8 | 7 | 6 1/4 | 6 11/16 | 5 15/16 | 5 11/16 | 5 7/16 | 17 5/8 | ||||
| 453 | mm | 839-991 | 197 | 178 | 187 | 168 | 178 | 159 | 170 | 151 | 164 | 144 | 157 | 138 | 448 | 356 | |
| GROUP | IN. | 39 1/16-45 | 11 9/16 | 8 9/16 | 11 | 8 | 10 5/8 | 7 5/8 | 10 1/4 | 7 1/4 | 9 15/16 | 6 5/8 | 19 3/8 | ||||
| ð | 454 | mm | 992-1143 | 294 | 217 | 279 | 203 | 270 | 194 | 260 | 184 | 252 | 176 | 244 | 168 | 492 | 457 |
| IN. | 45 1/16-51 | 15 1/4 | 10 | 14 5/8 | 9 3/8 | 14 1/8 | 8 7/8 | 13 5/8 | 8 3/8 | 13 1/4 | 8 | 12 7/8 | 7 5/8 | 21 3/4 | |||
| 455 | mm | 1144-1295 | 387 | 254 | 371 | 238 | 359 | 225 | 346 | 213 | 337 | 203 | 327 | 194 | 530 | 552 | |
| Ш | 1230 | 3/1 | 5.0 | Je / | .97 | ||||||||||||
