100ADJ
GLYNN-JOHNSON
INST.100ADJ
Concealed Overhead Holder Installation Instructions
OVERHEAD HOLDERS OR STOPS MUST BE INSTALLED BEFORE CLOSERS
-

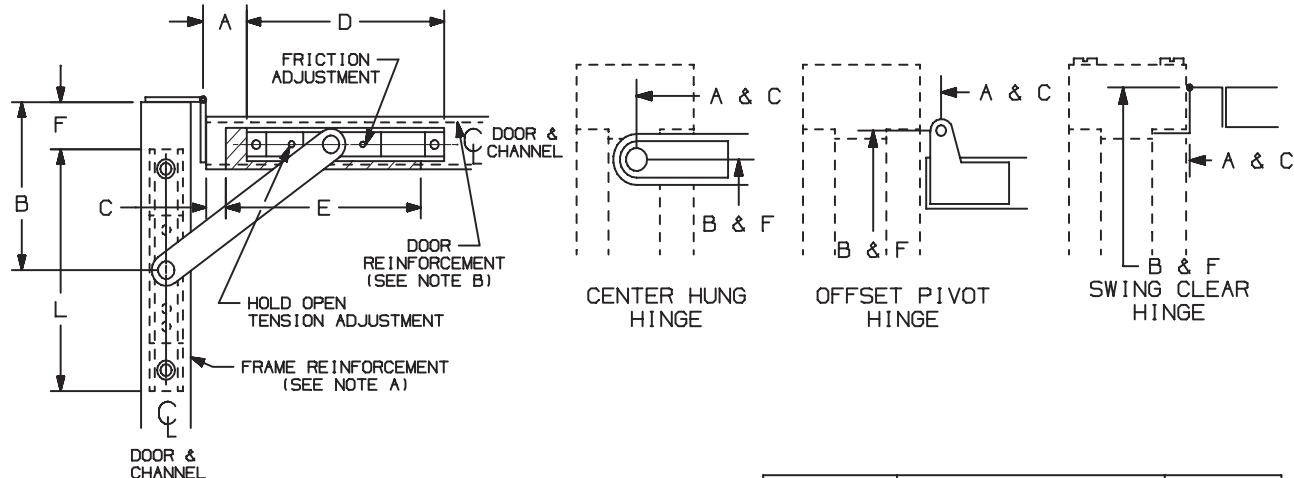

1. A. DETERMINE THE MOUNTING BEING USED FROM ILLUSTRATION BELOW.
- B. SELECT MOUNTING GROUP NUMBER FROM THE CHART BELOW. MOST CONTINUOUS HINGES ARE GROUPED WITH 4 1/2" WIDE BUTT OR 4 1/2" SWING CLEAR HINGE.
- C. USING THE MOUNTING GROUP NUMBER AND THE OVERHEAD HOLDER OR STOP SIZE, FIND "A","C", "D","E", AND "L" DIMENSIONS FROM CHART ON PAGE 3. FOR DEAD STOP ADD 9/16"(14) TO THE "A" DIMENSION FROM THE CHART. SEE NOTE D FOR INFORMATION ABOUT DEAD STOP.
NOTES:
- A. HOLLOW METAL FRAMES SHOULD BE PROPERLY REINFORCED WITH A 3/16"(5) MINIMUM THICKNESS BY 18"(457) MINIMUM LENGTH PLATE.
- B. HOLLOW METAL DOORS SHOULD BE PROPERLY REINFORCED WITH A 3/16"(5) MINIMUM THICKNESS PLATE.
- C. STOP ONLY UNITS ARE PERMITTED ON MANY FIRE DOOR APPLICATIONS. HOWEVER, MECHANICAL HOLD-OPEN DEVICES THAT REQUIRE MANUAL RELEASE ARE NOT PERMITTED FOR USE ON ANY FIRE DOOR AS OUTLINED ON NFPABO (**) OR NFPAIO! (**). CONTACT GLYNN-JOHNSON OR YOUR LOCAL REPRESENTATIVE FOR ASSISTANCE.
- D. DEAD STOP (DS) TEMPLATING MAY BE USED ON HOLD OPEN, FRICTION AND STOP ONLY MODELS, BUT SHOULD NOT BE USED ON "SE" MODELS. THE DS POSITION IS REACHED WHEN THE SHOCK SPRING IS FULLY COMPRESSED. WHEN DS TEMPLATING IS USED, THE INITIAL DEGREE OF STOP WILL BE 5°-7° LESS THAN THE DS OPENING. FOR USE ON DOORS OPENING BACK-TO-BACK, AGAINST A WALL OR OBSTRUCTION.
100 ADJUSTMENTS:
HOLD-OPEN TENSION ADJUSTMENT (HOLD-OPEN UNIT ONLY)-USING A 1/8" BALL END ALLEN WRENCH, TURN SCREW SHOWN IN BOTTOM OF CHANNEL CLOCKWISE TO INCREASE HOLD-OPEN TENSION AND COUNTERCLOCKWISE TO DECREASE HOLD-OPEN TENSION.
FRICTION TENSION ADJUSTMENT (FRICTION UNIT ONLY) - USING A 1/8" ALLEN WRENCH, HOLD SCREW SHOWN IN PLACE WHILE USING A 7/16" WRENCH TO TURN JAMB NUT COUNTERCLOCKWISE UNTIL LOOSE. TURN SCREW CLOCKWISE TO INCREASE FRICTION TENSION AND TURN COUNTERCLOCKWISE TO DECREASE THE FRICTION TENSION.
WHILE HOLDING THE SCREW IN PLACE, TURN THE JAMB NUT CLOCKWISE UNTIL TIGHT.
DIMENSIONS IN ( ) ARE IN MILLIMETERS
| DOOR | MOUNTING | |
|---|---|---|
| THICKNESS | HINGE TYPE & STYLE | GROUP |
| 4" WIDE BUTT | 2 | |
| 4 1/2" WIDE BUTT | 2 | |
| 5" WIDE BUTT | 1 | |
| 1 3/4" | 3/4" OFFSET PIVOT | 2 |
| (44mm) | 4" SWINGCLEAR | 1 |
| 4 1/2" SWINGCLEAR | 2 | |
| 5" SWINGCLEAR | 2 | |
| CENTERHUNG PIVOT | 3 | |
| 4 1/2" WIDE BUTT | 2 | |
| 5" WIDE BUTT | 1 | |
| 2" | 3/4" OFFSET PIVOT | 1 |
| (51mm) | 4 1/2" SWINGCLEAR | 2 |
| 5" SWINGCLEAR | 2 | |
| SOSS 220 | 2 | |
| CENTERHUNG PIVOT | 3 | |
| 4 1/2" WIDE BUTT | 2 | |
| 5" WIDE BUTT | 1 | |
| 3 1 / 4 17 | 3/4" OFFSET PIVOT | 1 |
|
2 1/4"
(57mm) |
4 1/2" SWINGCLEAR | 1 |
| 5" SWINGCLEAR | 1 | |
| SOSS 220 | 2 | |
| CENTERHUNG PIVOT | 3 |
| SCREW DETAILS | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| QTY | WOOD | METAL | ||||||||
| DOOR | 2 | #18 × 3" PPHWS | 5/16"-18 x 1 1/2" PPHMS | |||||||
| JAMB | 2 | #14 × 1 1/2" FPHSMS | 1/4"-20 x 3/4" FPHMS | |||||||
-

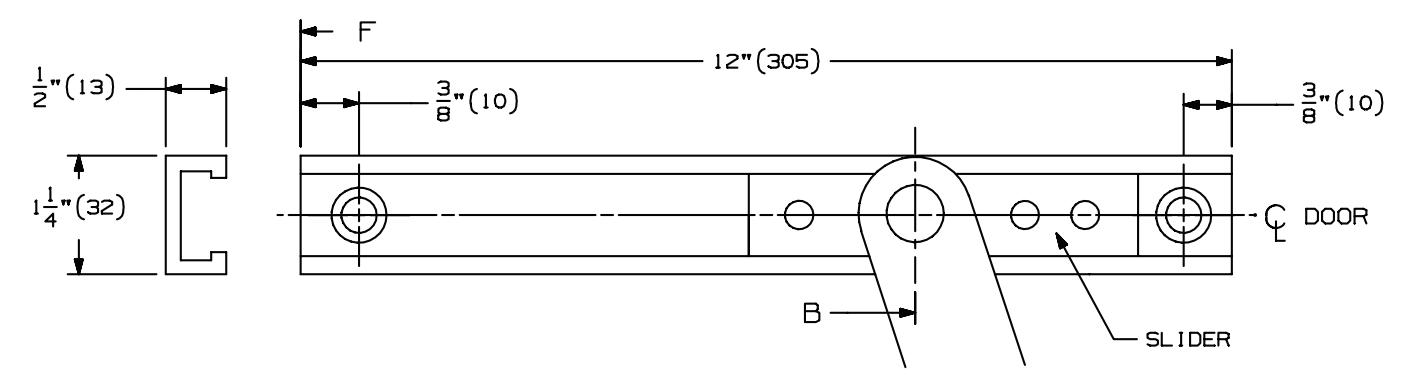

2. A. LOCATE "F" AND "L" DIMENSIONS ON THE FRAME. NOTE THAT THE "F" DIMENSION IS MEASURED FROM THE CENTERLINE OF THE HINGE AS SHOWN.
- B. MORTISE FOR THE JAMB BRACKET TRACT AS SHOWN.
- C. FOR METAL FRAMES, USE A #7 DRILL AND A 1/4"-20 TAP IN 2 PLACES. FOR WOOD FRAMES, DRILL 3/16" PILOT HOLE IN 2 PLACES.
REFER TO ILLUSTRATION BELOW AND ON SHT 1 FOR THE FOLLOWING NOTES:
-

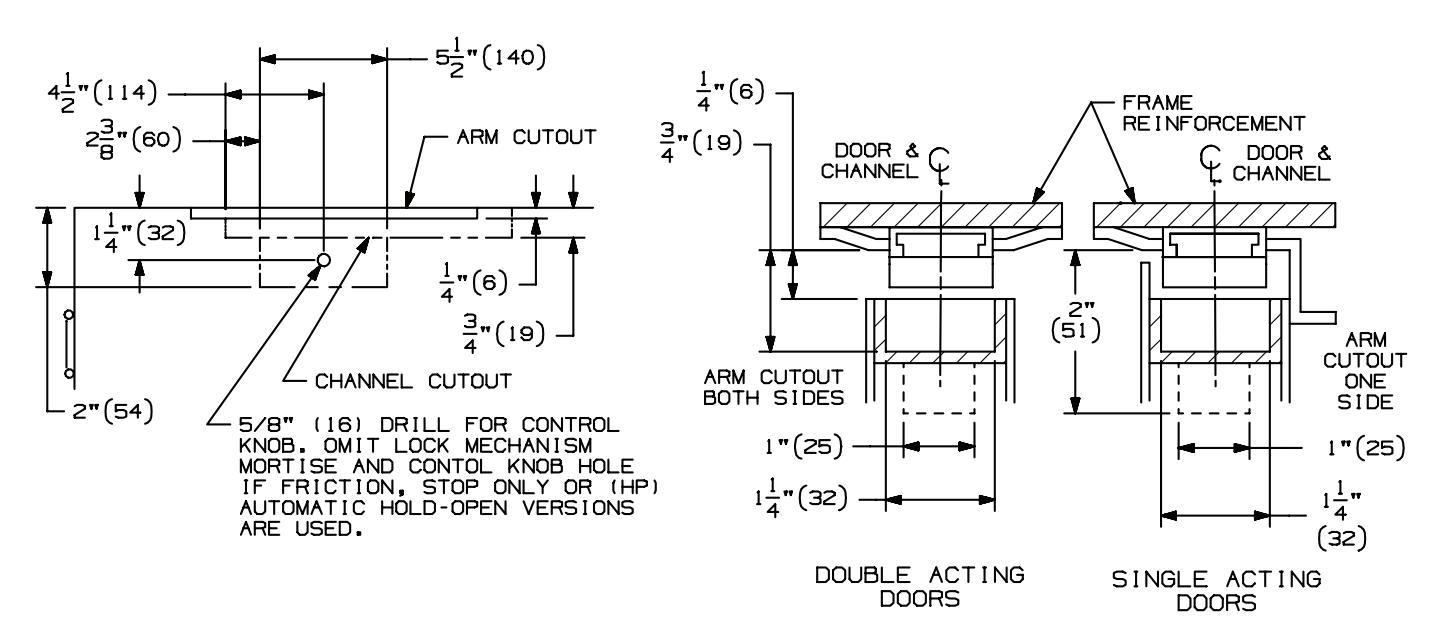

3. A. LOCATE "A" AND "D" DIMENSIONS ON THE CENTERLINE OF THE DOOR. NOTE THAT THE "A" DIMENSION IS MEASURED FROM THE CENTERLINE OF THE HINGE AS SHOWN.
- B. MORTISE FOR THE CHANNEL AS SHOWN IF REQUIRED. FOR 100H HOLD-OPEN VERSION, MORTISE FOR HOLD-OPEN LOCK MECHANISM AND DRILL 5/8" (16) DIAMETER HOLE FOR CONTROL KNOB AS SHOWN. (WHEN HP HOLD-OPEN, F FRICTION OR S STOP UNIT IS SUPPLIED, ADDITIONAL MORTISE FOR HOLD-OPEN MECHANISM AND CONTROL KNOB HOLE ARE NOT REQUIRED.)
- C. LOCATE "C" AND "E" DIMENSIONS ON THE TOP OF THE DOOR. NOTE THAT THE "C" DIMENSION IS MEASURED FROM THE CENTERLINE OF THE HINGE AS SHOWN.
- D. MORTISE FOR ARM CUTOUT AS SHOWN.
- E. FOR METAL DOORS, USE A F DRILL AND 5/16-18 TAP IN 2 PLACES. FOR WOOD DOORS, DRILL 1/4" PILOT HOLES IN 2 PLACES. MOUNTING HOLES SHOULD BE PREPARED IN THE FIELD.
-
4. A. INSTALL THE CHANNEL IN THE DOOR WITH THE SHOCK SPRING TOWARDS THE HINGE EDGE OF DOOR.
- B. INSTALL JAMB BRACKET TRACT IN FRAME.
- C. FOR 100H HOLD-OPEN VERSION ONLY, EPOXY (NOT PROVIDED) EYELET IN 5/8" (16) HOLE.
- D. FOR 100H HOLD-OPEN VERSION ONLY, PLACE SERRATED KNOB AND KNOB SPACER OVER CAP SCREW AS SHOWN. THREAD ASSEMBLY THROUGH 5/8" (16) HOLE IN DOOR ONTO LOCK MECHANISM.
- E. ADJUST THE SLIDER IN THE JAMB BRACKET TRACT TO THE DESIRED DEGREE OF OPENING ("B" DIMENSION) AND TIGHTEN THE SET SCREWS.
DIMENSIONS IN ( ) ARE IN MILLIMETERS
DIMENSION "C" MUST BE LESS THAN "B" TO PREVENT ARM FROM HITTING DOOR
| 1/4 | m | 4 | 1/4 | 1/4 | m | _ | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H | 13 | 330 | 16 1, | 413 | 20 | 508 | 33 | 584 | 13 | 330 | 16 1, | 413 | 8 | 508 | 23 | 584 | 13 | 330 | 1 91 | 413 | 20 | 508 | 23 | 584 | |
| L | 12 | 305 | 12 | 305 | 12 | 305 | 12 | 305 | 12 | 305 | 12 | 305 | 12 | 305 | 12 | 305 | 12 | 305 | 12 | 305 | 12 | 305 | 12 | 305 | |
| F | 2 3/4 | 70 | 4 3/4 | 121 | 4 1/4 | 108 | 5 7/8 | 149 | 2 3/4 | 70 | 4 3/4 | 121 | 4 1/4 | 108 | 4 7/8 | 124 | 3 3/8 | 98 | 4 | 102 | 4 | 102 | 5 1/2 | 140 | |
| Е | 271 22 | 572 | 26 1/4 | 667 | 28 | 711 | 30 1/2 | 775 | 27 175 | 572 | 26 1/4 | 667 | 88 | 711 | 30 1/2 | 775 | 22 1/2 | 572 | 26 1/4 | 667 | 58 | 711 | 30 1/2 | 775 | |
| • | O | 2/1 22 | 572 | 26 5/16 | 668 | 28 | 711 | 30 1/2 | 775 | 22 1/2 | 572 | 26 5/16 | 668 | 88 | 711 | 30 1/2 | 775 | 22 1/2 | 572 | 26 5/16 | 668 | 28 | 711 | 30 1/2 | 775 |
| • | C | 8// | 22 | 3 1/8 | 79 | 8// 9 | 175 | 7 | 178 | 1 | 25 | 3 1/8 | 79 | 7 | 178 | 9 | 152 | 2 | 51 | 4 5/8 | 117 | 9 | 152 | 7 | 178 |
| 110 HO | 5 | 127 | 7 | 178 | 7 1/8 | 181 | 89 | 203 | 5 3/16 | 132 | 7 1/4 | 184 | 7 1/4 | 184 | 7 | 178 | - | ı | 6 1/16 | 154 | 7 | 178 | 8 | 203 | |
| • | 105 HO | 5 11/16 | 144 | 7 3/4 | 197 | 8 1/16 | 205 | б | 229 | 5 13/16 | 148 | 8 | 203 | 8 3/16 | 208 | 7 15/16 | 202 | - | - | 6 3/4 | 171 | 7 13/16 | 198 | 8 15/16 | 227 |
| ONLY) | 100 HO | 6 7/16 | 164 | 8 11/16 | 221 | 9 3/16 | 233 | 10 1/4 | 260 | 6 9/16 | 167 | 8 7/8 | 225 | 9 1/4 | 235 | 9 3/16 | 233 | 6 1/16 | 154 | 91/6 / | 192 | 8 3/4 | 222 | 10 1/16 | 256 |
| (REFERENCE | 95 HO | 7 3/8 | 187 | 9 3/4 | 248 | 10 1/2 | 267 | 11 3/4 | 298 | 7 7/16 | 189 | 9 15/16 | 252 | 10 9/16 | 268 | 10 5/8 | 270 | 6 13/16 | 173 | 8 1/2 | 216 | 9 15/16 | 252 | 11 3/8 | 289 |
| B (R | 90 HO | 8 7/16 | 214 | 10 15/16 | 278 | 12 | 305 | 13 1/2 | 343 | 8 7/16 | 214 | 11 1/16 | 281 | 12 | 305 | 12 11/16 | 322 | 7 5/8 | 194 | 9 9/16 | 243 | 11 1/4 | 286 | 12 15/16 | 329 |
| 85 HO | 91/6 6 | 243 | 12 1/4 | 311 | 13 11/16 | 348 | 15 7/16 | 392 | 9 1/2 | 241 | 12 5/16 | 313 | 13 11/16 | 348 | 14 3/8 | 365 | 8/9 | 219 | 91/81 01 | 275 | 12 13/16 | 325 | 14 11/16 | 373 | |
| ٧ | 8/E E | 98 | 5 5/8 | 143 | 9 3/8 | 238 | 12 | 305 | 3/1/5 | 89 | 5 5/8 | 143 | 9 1/2 | 241 | 12 3/4 | 324 | 4 1/2 | 114 | 8/1 / | 181 | 7/1 01 | 267 | 13 | 330 | |
| DEGREE |
DOOR
OPENING |
27 1/16-33 | 687-838* | 33 1/16-39 | 839-991 | 39 1/16-45 | 992-1143 | 45 1/16-54 | 1144-1372 | 27 1/16-33 | 687-838* | 33 1/16-39 | 839-991 | 39 1/16-45 | 992-1143 | 45 1/16-54 | 1144-1372 | 33 1/16-39 | 839-991 | 39 1/16-45 | 992-1143 | 45 1/16-51 | 1144-1295 | 51 1/16-57 | 1296-1448 |
| DIM. | N. | Æ | z. | mm | N. | Æ | ĸ. | Æ | NI | E | z. | E | z. | m | N. | E | IN. | mm | N. | mm | NI. | mm | NI | E | |
| 100 102 103 | 1001 | 103 | 104 | - | • | ||||||||||||||||||||
| MOUNTING GROUP #1 | MOUNTING GROUP #2 | MOUNTIN | GR | UUP | #3 | ||||||||||||||||||||
