Falcon K Series
- 4 Overview
- 5 Features and specifications
- 6 Designs and finishes
- 7 Functions
- 8 Cylinders
- 9 Competitive keyways
- 10 Options and accessories
- 11 Competitive cross-reference
- 11 How to order
- 11 Warranty
The Falcon K Series will be available through ProExpressTM in August 2015, and through standard orders in fourth quarter 2015. Please reference the ProExpressTM and Falcon price books for product availability.
For more information about Falcon visit www.falconlock.com
Product related questions? Contact 877.671.7011

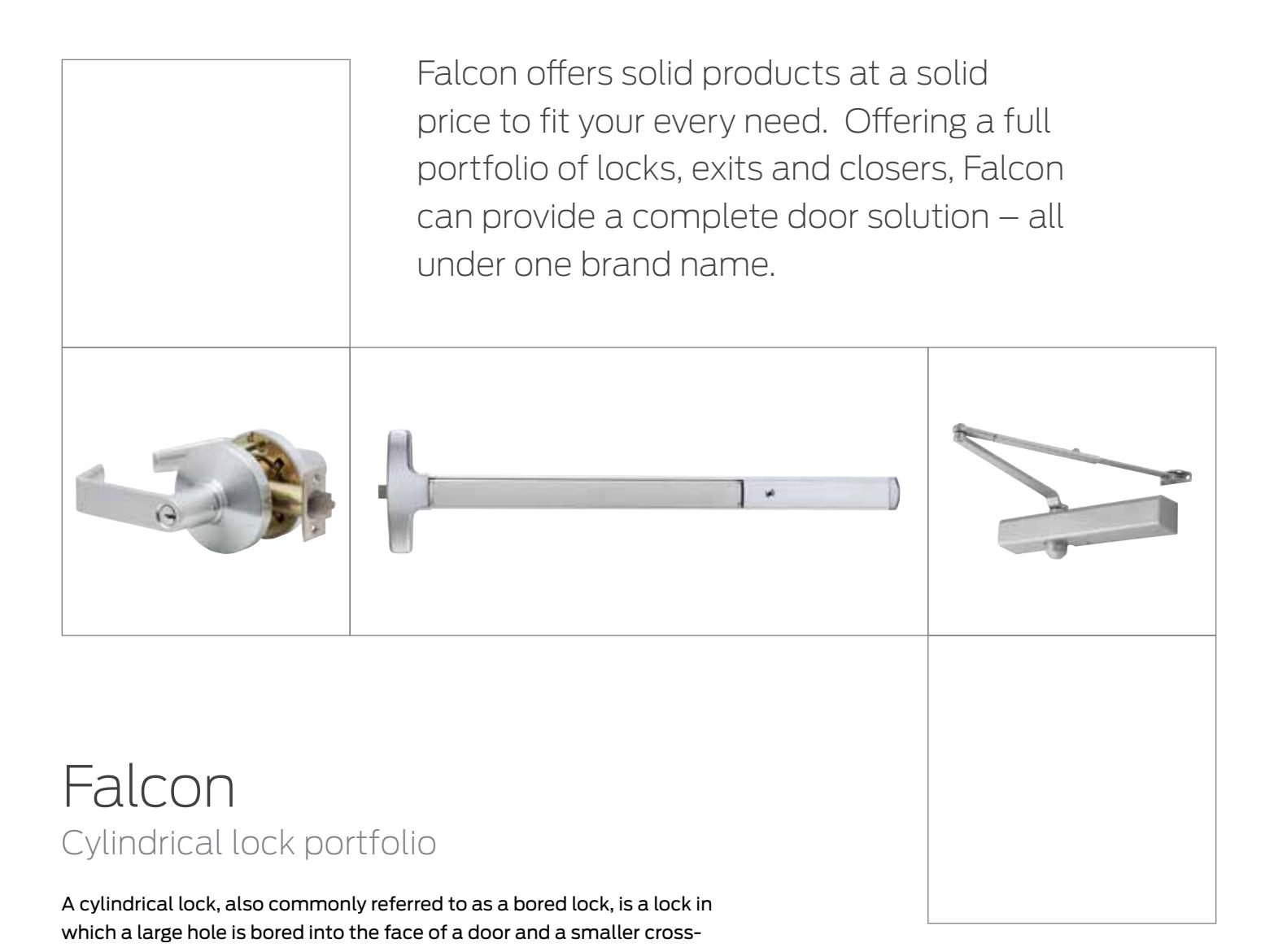

bore hole is bored into the door edge. When purchasing a lock, it is important to consider all of the variables. Outside of the standard considerations such as door type, door
thickness, frame size, and backset, it is also important to consider the
lock's application.
High traffic, high abuse door openings demand a Grade 1 lock in order to keep doors secure. The Falcon K Series was designed for applications such as interior office doors or busy public restrooms. When quality and reliability are needed but cost is a concern, the certified ANSI/BHMA Grade 1 Falcon K Series can do the job.
High traffic, high abuse door openings demand a Grade 1 quality lock to keep doors secure. When quality and reliability are needed but cost is a concern, the certified ANSI/BHMA Grade 1 Falcon K Series can do the job. The Falcon K Series gets back to basics by offering the most common functions, lever styles and finishes at an affordable price. The K Series features conventional cylinders and small format interchangeable cores that are compatible with SFIC products from other manufacturers. Our conventional cylinders are available in all Falcon conventional key sections, as well as Schlage C keyway, which is now masterkeyed across the complete Falcon product line.

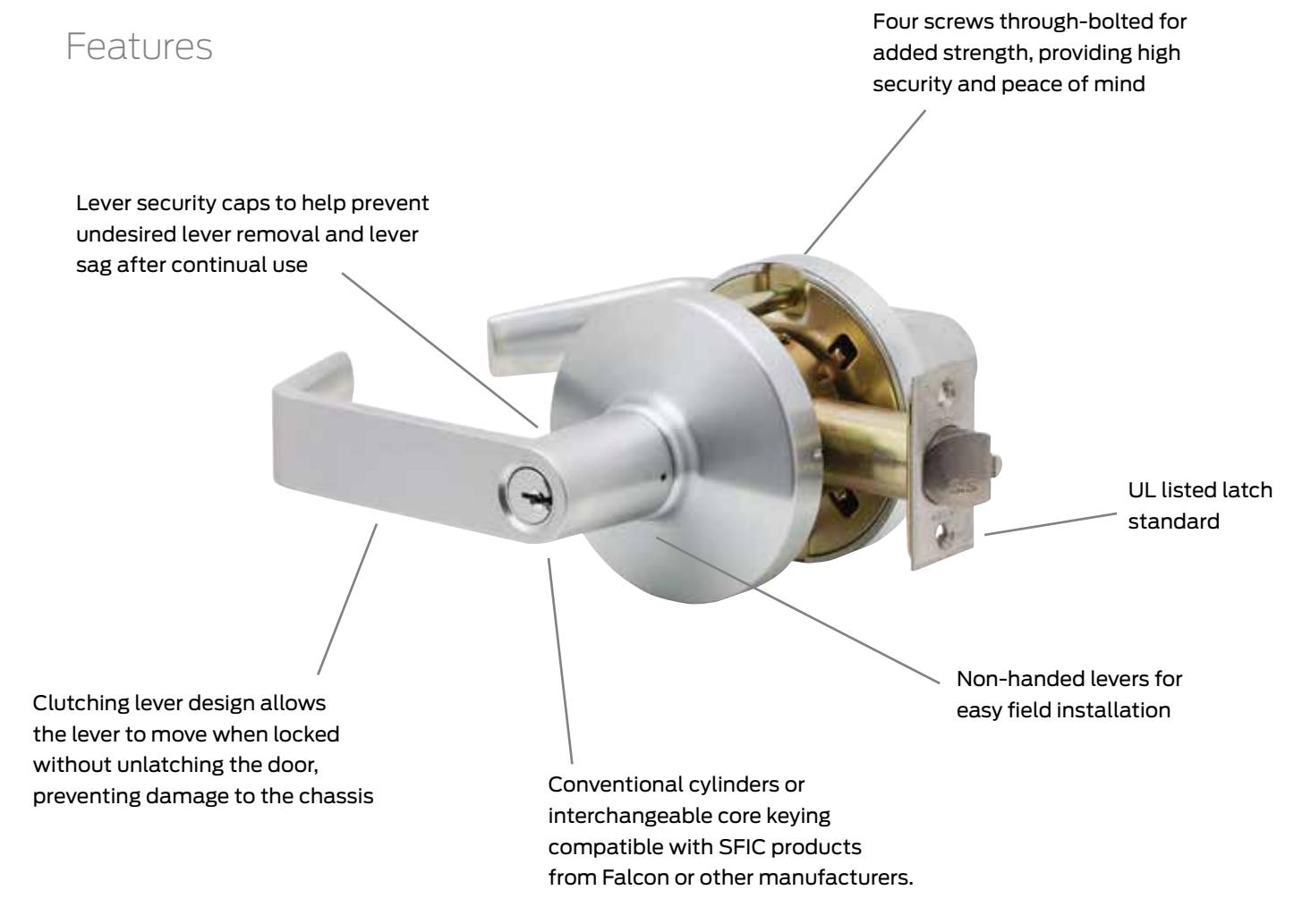

Features
ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 1.
UL: UL10C 3 hour A label.
Door thickness: Adjustable 1 3⁄8" to 2 1 ⁄4". Comes set for a
1 3⁄4" thick door standard.
Backset: 2 3⁄4" standard. 2 3⁄8" optional.
Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
Attachment: Lock chassis secured to door by threaded mounting screws. Completely preassembled outer trim and inner spindle assembly are through-bolted both through and over chassis using four (4) screws to provide strength and resistance to loosening. Adding rose and lever to inner spindle assembly completes installation.
Handing: Locks are non-handed.
Cylinders: Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available when specified, at no cost. Cylinder assemblies removable to rekey. Also available with 6 or 7-pin small format interchangeable core (SFIC) cylinders. Cylinder housings and plugs machined from solid brass. Springs are stainless steel. Two nickel silver keys furnished standard.
Keyways: "G" keyway standard on conventional cylinders. "A" keyway standard on I/C core cylinders. Also available with some optional keyways.
Trim: Roses are heavy wrought brass or bronze, installed over pressure cast rose inserts which are through-bolted through door. Levers are pressure cast (solid levers–no inserts) material finished to match mating parts.
Latches: 2 1 ⁄4" x 1 1 ⁄8" square corner with 2 3⁄4" backset comes standard; 2 3⁄8" backset option available if specified. Radius corners for both 2 3⁄8" and 2 3⁄4" backsets available if specified. All latches are UL listed and conform to both beveled and non-beveled doors.

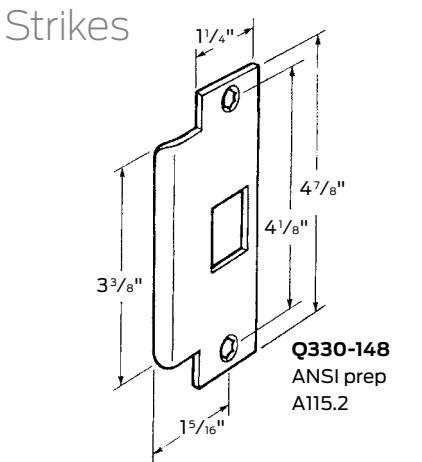

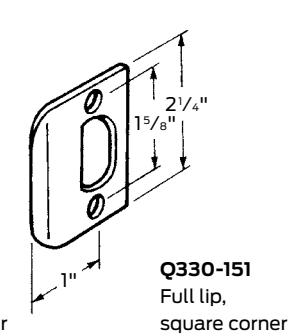

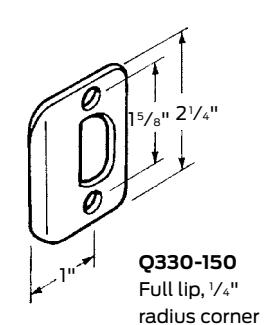

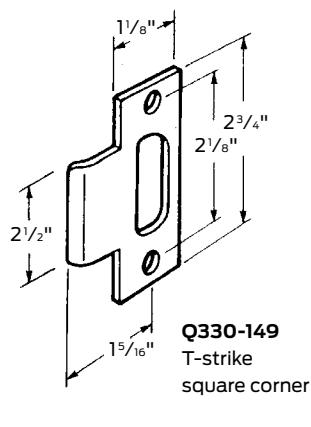

Strikes: 4 7 ⁄8" x 1 1 ⁄4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard.
Screws: Furnished with combination screws for use in wood or metal doors and frames.
Specifications
Key-in-lever cylindrical locksets shall be Falcon lock K Series or equal and meet the following requirements:
- § All locks shall meet the new ANSI/BHMA A156.2, Series 4000, Grade 1 for key-in-lever locksets.
- § Locksets shall be UL Listed (3 hour A Label).
- § Locksets shall be provided standard with a clutching lever design. When outside lever is locked, it is not rigid but will move freely without operating the latch bolt.
- § Lever trim shall have individual torsion springs behind rose for lever return and to prevent lever sag. Trim shall be through bolted with four (4) screws to provide strength and resistance to loosening. Inner and outer trim shall "bottom out" to prevent door collapse. Roses shall be minimum of 3 1 ⁄2" diameter.
- § All lever designs shall be solid and meet the federal ADA and state disability requirements. Inside levers shall be attached by allen-head set and lever catch to prevent tampering or vandalism.
- § Locksets shall adjust to fit door thickness from 1 3⁄8" to 2 1 ⁄4".
- § All locksets shall be non-handed and not require field disassembly for re-handing.
- § Preparation for door must be non-handed.
- § Cylinders to be secured by a dual retainer.
Acceptable manufacturer: Falcon Lock
Designs and finishes

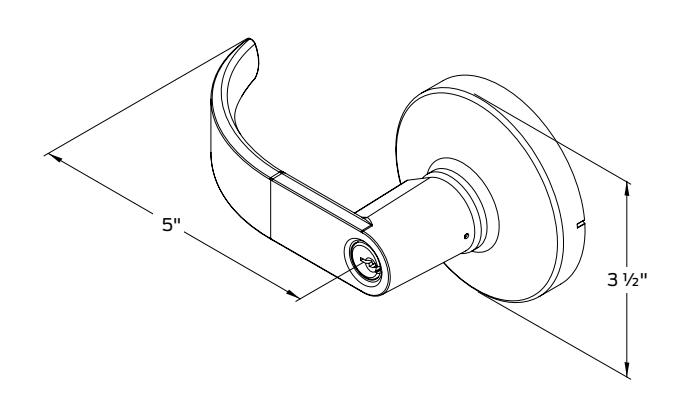

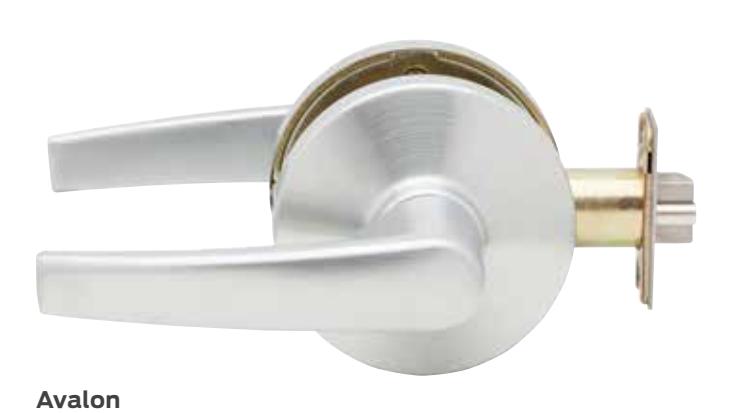

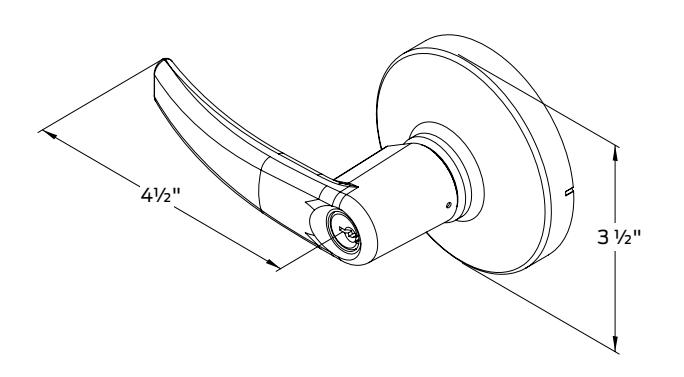

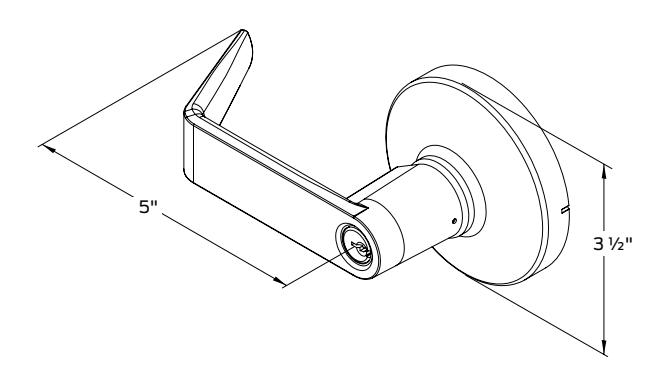

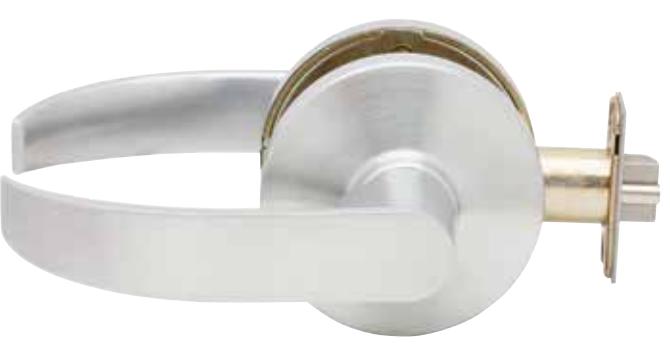

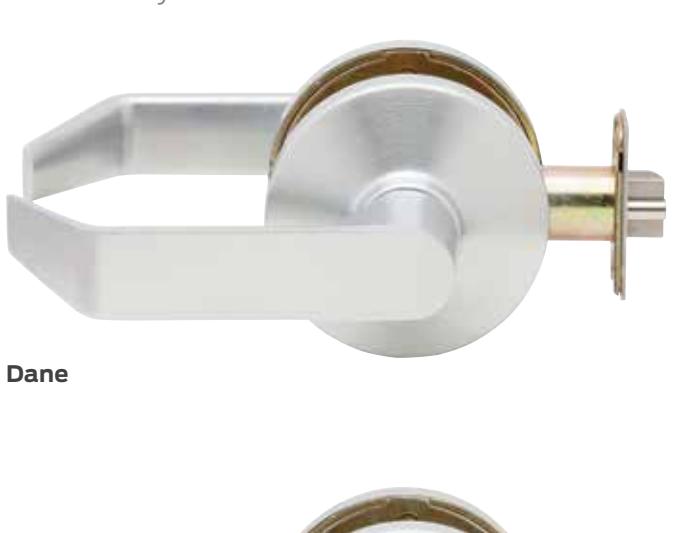

Lever styles
Finishes
Quantum
Oil rubbed bronze
626 Satin chrome
Functions
The Falcon K Series offers the industry's most common cylindrical lock functions to cover all of your basic door requirements. Consult page 11 for ordering information and assistance.
Indicates interchangeable core available.
|
Catalog
number |
Function | Name | Description |
ANSI no. &
grade |
|---|---|---|---|---|
| K101 |
Passage/closet
latchset |
Latch bolt by levers at all times. | F75-1 | |
| K301 | Privacy lock |
Latch bolt by levers. Outside lever locked by push button in inside lever. Rotating
inside lever or closing door releases push button. Emergency release in outside lever unlocks door. |
F76-1 | |
| K501 | Entry lock |
Push button locking. Button on inside locks outside lever until unlocked by key or
by rotating inside lever. Inside lever always free. Deadlocking latch bolt. |
F82-1 | |
| K511 |
Entry/office
lock |
Turn/push button locking. Pushing and turning button locks outside lever
requiring use of key until button is manually unlocked. Push button locking. Pushing button locks outside lever until unlocked by key or by rotating inside lever. Inside lever always free. Deadlocking latch bolt. |
F109-1 | |
| K561 | Classroom lock |
Deadlocking latch bolt by levers. Outside lever is locked by key in outside lever.
Inside lever is always free. |
F84-1 | |
| K571 | Corridor lock |
Deadlocking latch bolt by levers except when locked by push button in inside
lever. Key in outside lever locks or unlocks outside lever and releases button. Closing door releases push button. Inside lever always free. |
F90-1 | |
| K581 | Storeroom lock |
Deadlocking latch bolt by lever inside or key outside. Outside lever is inoperable.
Inside lever always free. |
F86-1 | |
| K12 | Dummy trim | Single trim-surface mounted rigid lever. |
Cylinders
Standard cylinders - 6-pin
| Description |
|---|
| Falcon cylinder, G keyway, 6 pin |
| Falcon cylinder, G keyway, 6 pin to 5 pin |
| Falcon cylinder, G keyway, 6 pin, K571 |
| Falcon cylinder, G keyway, 6 pin to 5 pin, K571 |
| Schlage cylinder, C keyway, 6 pin |
| Schlage cylinder, C keyway, 6 pin, K571 |
Note: Specify finish: 606 or 626

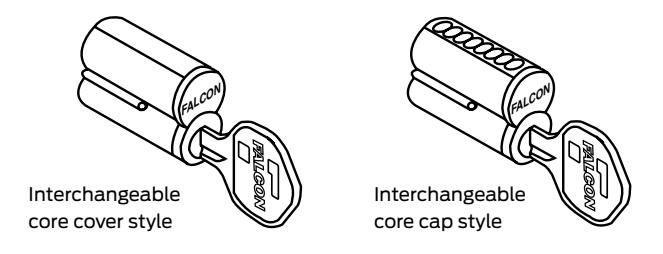

Small format interchangeable core
| Catalog number | Description | ||
|---|---|---|---|
| C606 (6-pin), C607 (7-pin) | For use in all I/C keyed locks (cover style) | ||
| CB806 (6-pin), CB807 (7-pin) | For use in all I/C keyed locks (cap style) | ||
Note: Specify finish: 606 or 626
Specify keyway: A (standard) or other keyway

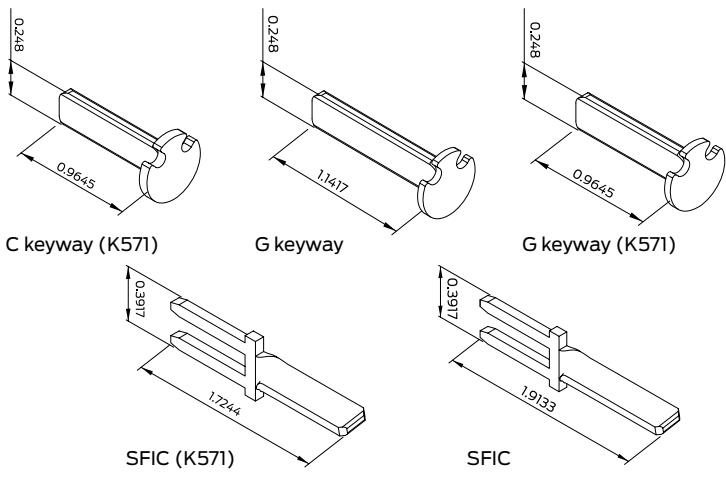

Tailpieces
| Catalog | Description |
|---|---|
| number | |
| Q630-289 | SFIC tailpiece (K501, K511, K561, & K581) |
| Q330-392 | SFIC tailpiece (K571) |
| Q330-393 | Tailpiece, Falcon G-K501, K511, K561, K581 |
| Q330-394 | Tailpiece, Falcon G-K571 |
| Q630-312 | Tailpiece, Schlage C-K501, K511, K561, K581 |
| Q630-288 | Tailpiece, Schlage C-K571 |
Competitor keyways
Standard cylinders with other keyways - 6-pin
| Catalog number | Description |
|---|---|
| Catalog Hombel | Description |
| Q330-152 | Schlage C |
| Q330-166 | Corbin 60 (0 bit or KD only) |
| Q330-210 | Russwin D1 (0 bit or KD only) |
| Q330-158 | Cor/Russ L4 (0 bit or KD only) |
| Q330-160 | Sargent LA (0 bit or KD only) |
| Q330-156 | Yale 8 (0 bit or KD only) |
Note: Construction keying available. Reference page 9 for more information.
Construction keying
Falcon offers two different construction key systems depending on the size of and application within the project. Both systems permit the installation and use of regular door locks during construction, yet completely preserve the security of the keying system for the ultimate building owner. The Master, Grand Master and change keys are never with the locks during the construction phase of a building. Only the "construction" keys are sent to the job site. Where the job permits, we will utilize the "Lost pin system" as our standard system for construction keying. Larger or more complicated jobs may require the use of our "Blockokey® System" for construction keying.
"Disposable construction" interchangeable cores
This newly designed disposable construction core (1408) is an inexpensive alternative to interior keyed construction cores. This core should be used on interior door applications or where security on a site is not a concern. No keys need to be issued. The disposable core is inserted in the lever or knob and is operated by a thumb turn, which retracts the latch bolt. Please use either brass or permanent construction cores on exterior doors or secured areas.

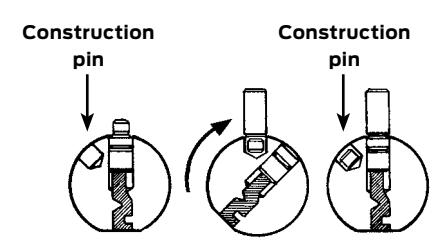

Locks with "Lost pin system"
Our "lost" pin construction key system consists of one construction pin and a shallow hole in the side of the plug.
Construction key—KB566
When the "construction" key is used, the construction pin is always in the cylinder plug, sitting on top of the bottom pin.
Master key—KB578
When the Master key is inserted, the construction pin is pushed up into the cylinder housing. As the Master key is rotated to the right, the construction pin will drop into the hole in the plug, thereby eliminating any future use of the construction key.

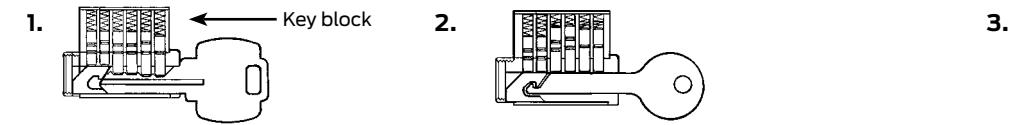

Locks with Blockokey® cylinders
All lock cylinders on a specific project are operable by a special "project key." Duplicates of this key may be assigned by the building contractor to workmen and subcontractors as required. No regular change keys or Master keys are needed on the job. This eliminates the possibility of subsequent exposure from lost or stolen keys.
How to order locks with Blockokey® cylinders
Blockokey® locksets are ordered by adding the word "Blockokey" after the balance of the ordering information. Example: 72 Each B511 D 626 1AA-72AA (Blockokey)
Project key—KB531
Lock cylinder is operated by the special "project key." The last two pins in the cylinder are held inoperative by the key block.
Removal tool – KB536
The special "project key" is canceled out by removal of the key block. A key block removal tool is furnished with the Master keys for the locks. Simply push the removal tool into the keyway, then withdraw it to remove the block. Thereafter, the "project key" will no longer operate the lock cylinder.
Change or master key—KB578
Cylinder is now only operable by the regular change key or Master key.
Options and accessories
Latches
Deadlatch
Deadlatches
| Catalog number | Description | Faceplate size | Corner | Projection |
|---|---|---|---|---|
| Q630-385 | 2 ³/4" Backset with deadlatching | 2 1/4" X 1 1/8" | Square | 1/2" |
| Q630-387 | 2 ³/₄" Backset with deadlatching | 2 1/4" X 1 1/8" | Radius | 1/2" |
| Q630-386 | 2 ³/8" Backset with deadlatching | 2 1/4" X 1 1/8" | Square | 1/2" |
| Q630-388 | 2 ³/8" Backset with deadlatching | 2 1/4" X 1 1/8" | Radius | 1/2" |
| Q630-302 | 2 ³/4" Backset with deadlatch, non-restoring | 2 1/4" X 1 1/8" | Square | 1/2" |
| Q630-274 | 2 ³/4" Backset with deadlatch, non-restoring | 2 1/4" X 1 1/8" | Radius | 1/2" |
| Q630-301 | 2 3 / 8 " Backset with deadlatch, non-restoring | 2 1/4" X 1 1/8" | Square | 1/2" |
| Q630-275 | 2 3 / 8 " Backset with deadlatch, non-restoring | 2 1/4" X 1 1/8" | Radius | 1/2" |
Springlatch
Springlatches
| Catalog number | Description | Faceplate size | Corner | Projection |
|---|---|---|---|---|
| Q630-270 | 2 ³/4" Backset with springlatch | 2 1/4" X 1 1/8" | Square | 1/2" |
| Q630-272 | 2 3 / 4 " Backset with springlatch | 2 1/4" X 1 1/8" | Radius | 1/2" |
| Q630-271 | 2 3 / 8 " Backset with springlatch | 2 1/4" X 1 1/8" | Square | 1/2" |
| Q630-273 | 2 3 / 8 " Backset with springlatch | 2 1/4" X 1 1/8" | Radius | 1/2" |
| Q630-266 | 2 3 / 4 " Backset with springlatch, non-restoring | 2 1/4" X 1 1/8" | Square | 1/2" |
| Q630-268 | 2 3 / 4 " Backset with springlatch, non-restoring | 2 1/4" X 1 1/8" | Radius | 1/2" |
| Q630-267 | 2 3 / 8 " Backset with springlatch, non-restoring | 2 1/4" X 1 1/8" | Square | 1/2" |
| Q630-269 | 2 3 / 8 " Backset with springlatch, non-restoring | 2 1/4" X 1 1/8" | Radius | 1/2" |
Note: All latches are UL listed and conform to both beveled and non-beveled doors.
Other accessories
Faceplates
| Catalog number | Description |
|---|---|
| Q630-279 | Faceplate, dead latch, round corner |
| Q630-278 | Faceplate, dead latch, square corner |
| Q630-277 | Faceplate, spring latch, round corner |
| Q630-276 | Faceplate, spring latch, square corner |
Screw packs
| Catalog number | Description |
|---|---|
| Q630-254 | Screw pack, standard |
| Q330-399 | Screw pack, dummy |
Competitive cross-reference
| ANSI | Function | Falcon | Hager |
Stanley
Commercial |
Yale | PDQ | Cal Royal | Arrow |
|---|---|---|---|---|---|---|---|---|
| K Series |
3400
Series |
QCL 100 Series |
4700LN
Series |
GT Series |
Calypso
Series |
QL Series | ||
| F75 | Passage lock | K101 | 3410 | QCL130 | 4701LN | GT126 | CAL30 | QL01 |
| F76 | Privacy lock | K301 | 3440 | QCL140 | 4702LN | GT176 | CAL20 | QL02/72 |
| F82 | Entry lock | K501 | 3450 | - | 4704LN | GT182 | - | - |
| F109 | Entry/office lock | K511 | 3453 | QCL150 | 4707LN | GT116 | CAL00 | QL11/81 |
| F84 | Classroom lock | K561 | 3470 | QCL160 | 4708LN | GT148 | CAL03 | QL17/87 |
| F90 | Corridor lock | K571 | 3473 | QCL154 | 4722LN | GT165 | CAL101 | QL19/89 |
| F86 | Storeroom lock | K581 | 3480 | QCL170 | 4705LN | GT115 | CAL05 | QL12/82 |
| Single dummy trim | K12 | 3417 | QCL120 | 4755LN | GT211 | CAL40 | QL08 |
How to order
Two simple ways to place your Falcon K Series order!
ProExpressTM
Product available: August 2015
E-Mail: Order.Pro.Express@allegion.com
Fax: 1.800.924.3551
Note: ProExpress offers a limited amount of Falcon K Series configurations. Please consult the ProExpress price book for details.
Standard Falcon order
Product available: Fourth quarter 2015
E-Mail: Order_Entry_Schlage_Commercial@allegion.com
Fax: 1.800.452.0665
Note: The entire Falcon K Series offering will be available via a standard Falcon order in Fourth quarter 2015. Please consult the Falcon price book for details.
| Order example | ||||||||
|---|---|---|---|---|---|---|---|---|
| Line item | Qty | Product | Design | Finish | Latch | Strike | Door thickness | |
| 1 | 10 | K511PD | DAN | 626 |
Note: Only specify latch, strike and door thickness if item is not standard
Warranty
The Falcon K Series lock has a limited 10 year warranty. Please reference www.us.allegion.com for Falcon product warranty details.
