MA-Series Service manual
Contents
- Introduction
- Lock assembly drawing index
- Lock Assemblies
- MA101 Passage or Closet Latch
- MA161 Exit or Communicating Lock
- MA301 Privacy, Bedroom/Bath
- MA311 Privacy, Bedroom/Bath
- MA321 Privacy, Bedroom/Bath
- MA371 Store Door Lock
- MA381 Apartment, Exit
- MA411 Asylum or Institutional Lock
- MA431 Classroom Security Lock with Deadbolt
- MA441 Classroom Security Lock
- MA451 Hotel Guest Lock
- MA521 Entry/Office Lock
- MA531 Apartment Corridor Door Lock
- MA541 Entry/Office Lock
- MA551 Holdback Lock
- MA561 Classroom Lock
- MA571 Dormitory or Exit Lock
- MA581 Storeroom / Closet Lock
- MA621 Front Door / Apartment Corridor
- MA641 Dormitory Lock
- MA851 Electrified Fail Safe (EL) 12 & 24V, with or without RX
- MA881 Electrified Fail Secure (EU) 12 & 24V, with or without RX
- MA911 Classroom Dead Lock
- MA921 Dead Lock
- MA931 Dead Lock
- MA941 Dead Lock
- MA12 Single Dummy
- MA18 Double Dummy
- Parts and Accessories
- Knob and Lever Designs
- Screw Packs
- Cams
- Mortise, rim and cam lock for standard cylinders
- Strikes
- Cylinder collars
- Escutcheon Trim Rings
- Sectional Trim Rings
- Trim Rings & Collars
- Ordering Procedures
- Finishes

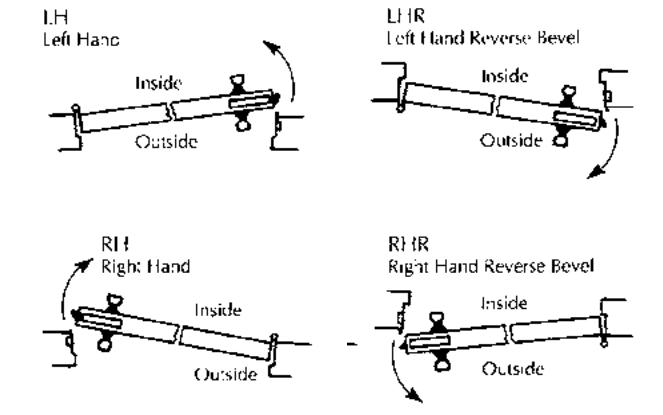

- Door Handing
Introduction
This manual contains a complete listing of parts and assemblies for MA-Series mortise locks manufactured by Falcon Lock Company. This edition lists components of MA-Series locks manufactured after February, 2011. All lock case covers are labeled with dates to identify year of manufacture. Example: 2311 = the 23rd week of 2011.
Exploded views of each lock function and trim assembly are provided with accompanying charts to identify parts for replacement purposes. Exploded views of trim are shown with parts for standard size doors. In addition, this manual provides lock trim ordering procedures, cylinder length charts by door range, and all auxiliary components of the MA-Series mortise locks.
Standard Features*
| Certifications | ANSI A156 .13, Series 1000, Grade 1 Operation and Security, UL Listed for 3-hour fire door |
|---|---|
| Latch | 2-piece brass mechanical anti-friction bolt, 3/4" projection |
| Strike | 1¼" x 4¾", ANSI, Square corner, with dust box |
| Cylinder | 6-Pin solid brass, keyed 5-pin, Falcon G keyway, keyed different (KD) |
| Door Range | 1¾" standard |
| Keys | Two, nickel silver cut keys per lock, Falcon G keyway |
| Backset | 2¾" |
* Locks are furnished with standard features unless otherwise specified.

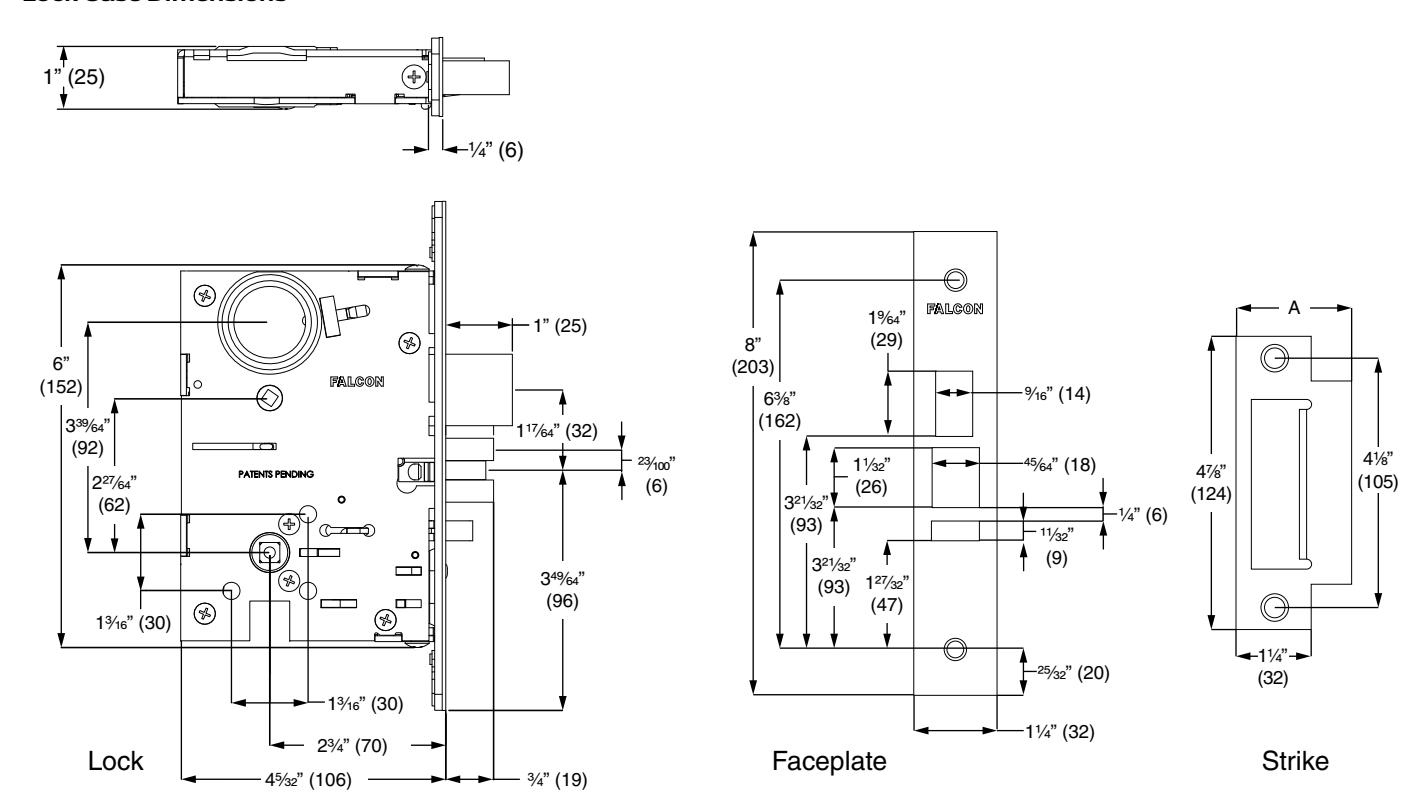

Lock Case Dimensions
| Strike | |
|---|---|
| (A) Door Thickness | Lip Size |
| 13/4" - 17/8" | 1¼" (32 mm) |
| 2" - 21/8" | 1½16" (37 mm) |
| 21/4" - 23/8" | 1%16" (40 mm) |
| 2½" - 25/8" | 111/16" (43 mm) |
Lock assembly drawing index

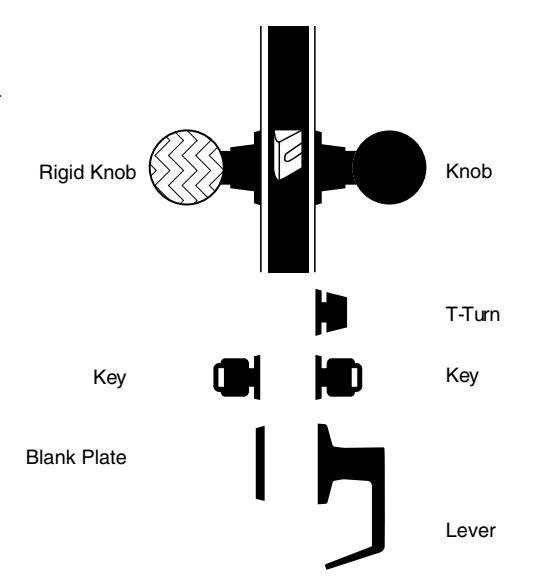

The Lock Assembly Drawing Index provides visual representations and textual descriptions of available functions. Page numbers for full trim and chassis drawings are referenced.
To order Falcon MA Series locksets, please consult page 5 for ordering information and assistance.
Catalog Number Prefixes: Add the following prefix for the appropriate trim style.
Î Note: If a special function is required and not listed here, please contact the factory for assistance.
| Function | ANSI A156.13, 2005 | Page | ||||
|---|---|---|---|---|---|---|
| Falcon | ANSI | Description | Function | |||
| MA101 | F01 | Passage/Closet Latchset | Latch bolt by knob/levers at all times. | 9 | ||
| MA161 | F31 | Connecting Room/Exit Latch | Latch bolt operated by knob/lever from inside. No trim outside. Auxiliary dead latch. | 10 | ||
| MA301 |
F02
Privacy Lock Latch bolt by knobs/levers either side, dead bolt by turn inside or emergency release 11 outside. |
|||||
| MA311 | F19 | Privacy, Bedroom or Bath Lock |
Latch bolt by knobs/levers. Deadbolt by turn from inside and emergency release
outside. Rotating inside knob/lever retracts both bolts. |
|||
| MA321 | F22 | Privacy Lock |
Latch bolt operated by knob/lever from either side except when outside knob/lever
is locked by inside T-turn. Operating inside knob/lever, closing door or operating outside emergency release unlocks outside knob/lever. |
13 | ||
| MA371 | F14 | Store Door Lock | Latch bolt by knobs/levers. Deadbolt by key from either side. | 14 | ||
| MA381 | F09 | Apartment, Exit Lock |
Latch bolt operated by knob/lever from either side, except when outside knob/lever
is locked by key from inside. When outside knob/lever is locked, latch bolt is retracted by key from outside or by operating inside lever. Auxiliary dead latch. |
15 | ||
| MA411 | F30 | Asylum Lock |
Latch bolt operated by key from either side. Both knobs/levers always inoperative.
Auxiliary dead latch. |
16 |
|---|---|---|---|---|
| MA431 | F34 |
Classroom Security Lock with
Deadbolt |
Latch bolt operated by knob/lever from either side except when outside knob/lever
is locked from inside or outside by key. Dead bolt retracted by key from inside or outside. Operating inside knob/lever retracts both bolts and unlocks outside. Latch bolt dead locked when dead bolt is thrown. |
17 |
| MA441 | F32 | Classroom Security Lock |
Latch bolt operated by knob/lever from either side except when outside knob/lever
is locked from inside or outside by key. When outside knob/lever is locked, latch bolt is retracted by key from inside or outside or by operating inside knob/lever. Auxiliary dead latch. |
18 |
| MA451 | F15 | Hotel/Guest Lock |
Latch bolt operated by key from outside or by operating inside knob/lever. Outside
knob/lever is always inoperative. Dead bolt projected by turn from inside and all keys except emergency key are shut out. Operating inside knob/lever retracts both bolts. Auxiliary dead latch. |
19 |
| MA521 | F04 | Entry/Office Lock |
Latch bolt operated by knob/lever from either side except when outside knob/lever
is made inoperative by buttons in face. When outside knob/lever is locked, latch bolt is retracted by key from outside or by operating inside knob/lever. Auxiliary dead latch. When dead bolt is retracted, knob/lever is unlocked by buttons in face. |
20 |
| MA531 | F20 | Apartment Corridor Door Lock |
Latch bolt operated by knob/lever from either side, except when outside knob/lever
is made inoperative by buttons in face. Dead bolt operated by key outside or turn inside. Key outside operates both bolts. Operating inside knob/lever retracts both bolts and outside remains locked. Latch bolt is deadlocked when outside knob/ lever is made inoperative or when the dead bolt is projected. When dead bolt is retracted, knob/lever is unlocked by buttons in face. |
21 |
| MA541 | F21 | Entry/Office Lock | Latch bolt by knobs/levers either side. Deadbolt by key outside or turn inside. | 22 |
| MA551 | F06 | Holdback Lock |
Latch bolt operated by lever from either side except when outside lever is locked
from outside by key. Latch bolt can be locked in a retracted position by key. When outside lever is locked, latch bolt is retracted by key from outside or by operating inside lever unless latch bolt has been locked in a retracted position. Auxiliary dead latch. Note: Chassis is handed. |
23 |
| MA561 | F05 | Classroom Lock |
Latch bolt operated by knob/lever from either side except when outside knob/lever
is locked by key. WHen outside knob/lever is locked, latchbolt is retracted by key from outside or by operating inside knob/lever. Auxiliary latch deadlocks latch bolt when door is closed. Inside knob/lever always free for immediate use. |
24 |
| MA571 | F13 | Dormitory or Exit Lock |
Latch bolt operated by knob/lever from either side. Dead bolt projected by key from
outside and turn from inside. Operating inside knob/lever retracts both bolts and unlocks outside. |
25 |
| MA581 | F07 | Storeroom Lock |
Latch bolt operated by key from outside or by operating inside knob/lever. Otuside
knob/lever is always inoperative. Auxiliary dead latch. |
26 |
| MA621 | F08/F10 |
Front Door/Apartment
Corridor |
Latch bolt is operated by knob/lever from either side except when outside knob/
lever is made inoperative by buttons in face. Dead bolt is operated by turn inside. Key outside operates both bolts. |
27 |
|---|---|---|---|---|
| MA641 | - | Dormitory Lock |
Latch bolt by knob/lever inside and key outside. Inside knob/lever free. Outside
knob/lever rigid. Dead bolt by key outside or T-turn inside. Rotating inside knob/ lever retracts both bolts. Deadlocking latch. |
28 |
| MA851 | - |
Storeroom - Fail Safe (EL),
with or without RX |
Latch bolt operated by knob/lever from either side except when outer knob/lever is
electrically locked. When outer knob/lever is locked latch bolt retracted by key in cylinder outside. Deadlocking latch. |
29 |
| MA881 | - |
Storeroom - Fail Secure (EU),
with or without RX |
Latch bolt operated by knob/lever from either side except when outer knob/lever is
electrically unlocked, then latch bolt from either side. When locked key in cylinder outside retracts latch bolt. Deadlocking latch. |
30 |
| MA911 | F29 | Classroom Deadlock |
Key from outside operates deadbolt. Turn from inside retracts but does not project
dead bolt. |
31 |
| MA921 | F18 | Deadlock | Deadbolt by key outside only. | 32 |
| MA931 | F16 | Deadlock | Deadbolt by key from either side. | 33 |
| MA941 | F17 | Deadlock | Deadbolt by key outside or turn inside. | 34 |
| MA12/MA18 | - | Dummy Trim |
Single or double available.
SIngle (MA12). Double (MA18). |
35
36 |
Lock Assemblies
- MA101 Passage or Closet Latch
- MA161 Exit or Communicating Lock
- MA301 Privacy, Bedroom/Bath
- MA311 Privacy, Bedroom/Bath
- MA321 Privacy, Bedroom/Bath
- MA371 Store Door Lock
- MA381 Apartment, Exit
- MA411 Asylum or Institutional Lock
- MA431 Classroom Security Lock with Deadbolt
- MA441 Classroom Security Lock
- MA451 Hotel Guest Lock
- MA521 Entry/Office Lock
- MA531 Apartment Corridor Door Lock
- MA541 Entry/Office Lock
- MA551 Holdback Lock
- MA561 Classroom Lock
- MA571 Dormitory or Exit Lock
- MA581 Storeroom / Closet Lock
- MA621 Front Door / Apartment Corridor
- MA641 Dormitory Lock
- MA851 Electrified Fail Safe (EL) 12 & 24V, with or without RX
- MA881 Electrified Fail Secure (EU) 12 & 24V, with or without RX
- MA911 Classroom Dead Lock
- MA921 Dead Lock
- MA931 Dead Lock
- MA941 Dead Lock
- MA12 Single Dummy
- MA18 Double Dummy

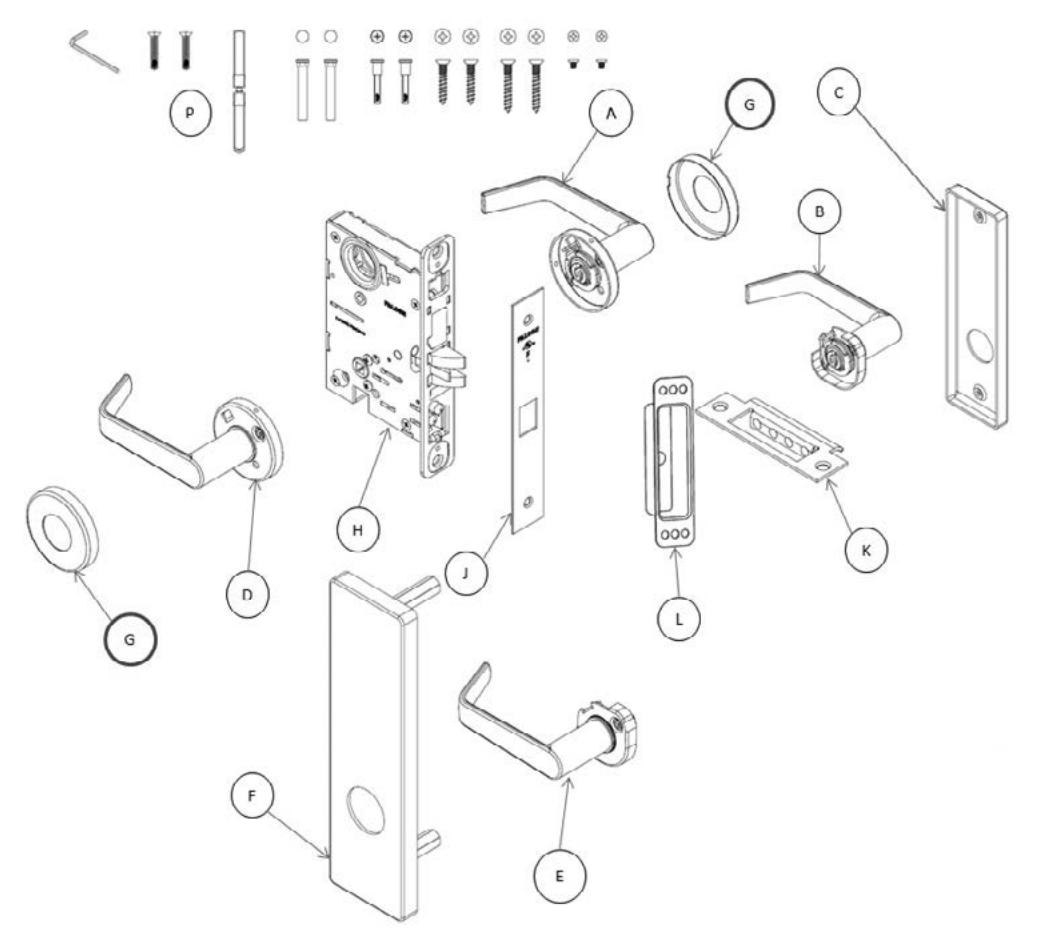

MA101 - Passage or Closet Latch
| Levers | Knobs | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Ltr. | Description | Dane | Sutro | Avalon | Quantum | Hana | |||
| A | Inside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 | ||
| B | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | |||
| C | Escutcheon | E77012-IP | |||||||
| D | Outside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 | ||
| E | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | |||
| F | Escutcheon | AE77012-0P | |||||||
| G | Rose (2 req'd) | S76012 | |||||||
| H | Assy, lock unit | A7801 | |||||||
| J | Faceplate | S77801 | |||||||
| K | Strike assy | A8737-X | |||||||
| L | Strike box | PE1396 | |||||||
| P | Screw pack | See page 37 | |||||||

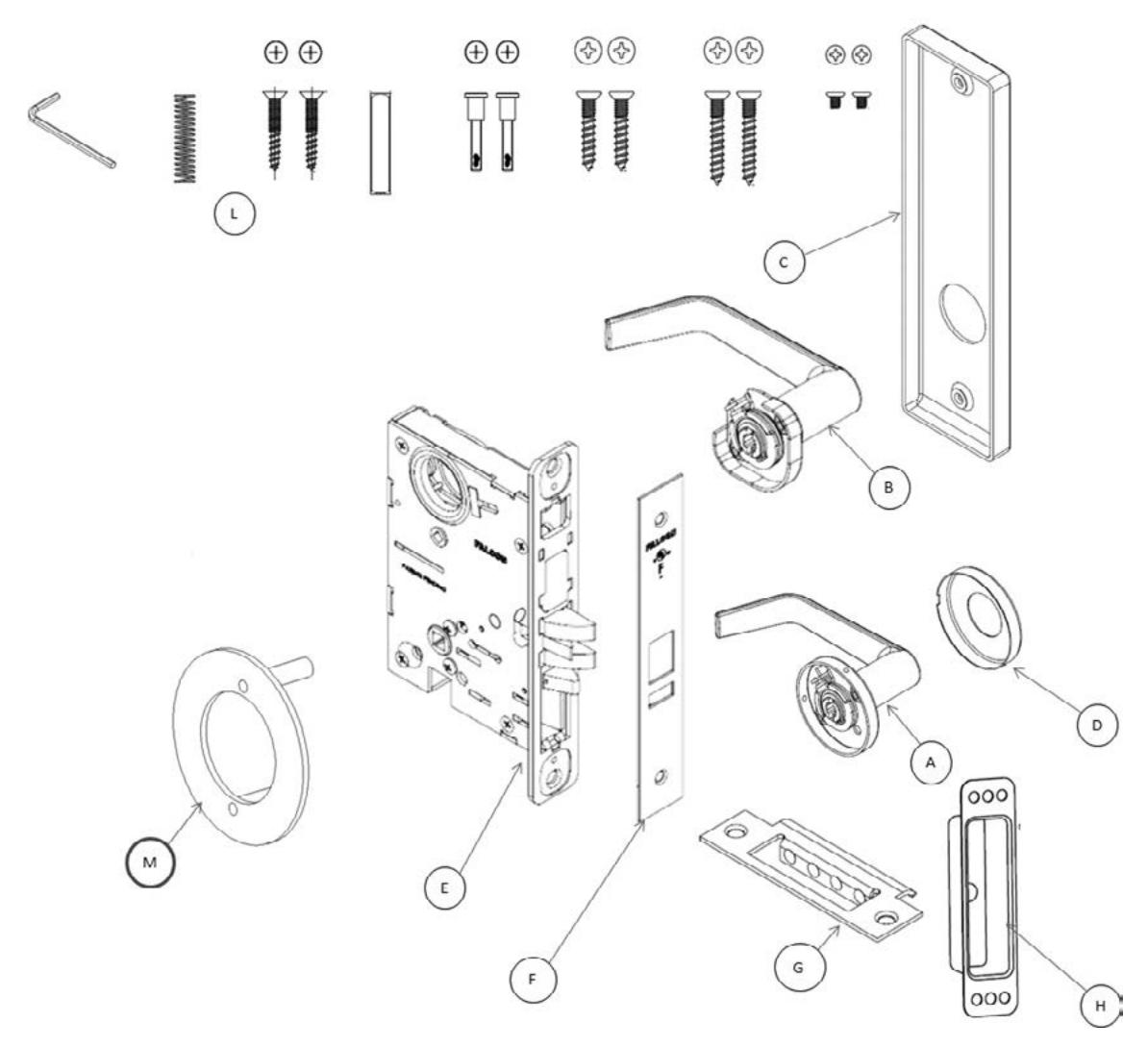

MA161 - Exit or Communicating Lock
| Levers | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Ltr. | Description | Dane | Sutro | Avalon | Quantum | Hana | |||
| A | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 | |||
| B | Inside trim | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | ||
| C | Escutcheon | E77012-IP | |||||||
| - | Knob/lever sectional | N/A | N/A | N/A | N/A | N/A | |||
| - | Outside trim | Knob/lever escutcheon | N/A | N/A | N/A | N/A | N/A | ||
| - | Escutcheon | N/A | |||||||
| D | Rose | S76012 | |||||||
| E | Assy, lock unit | A7831 | |||||||
| F | Faceplate | S77805 | |||||||
| G | Strike assy | A8737-X | |||||||
| H | Strike box | PE1396 | |||||||
| L | Screw pack | See page 37 | |||||||
| M | Plate for use with no outside trim | AS5813 | |||||||

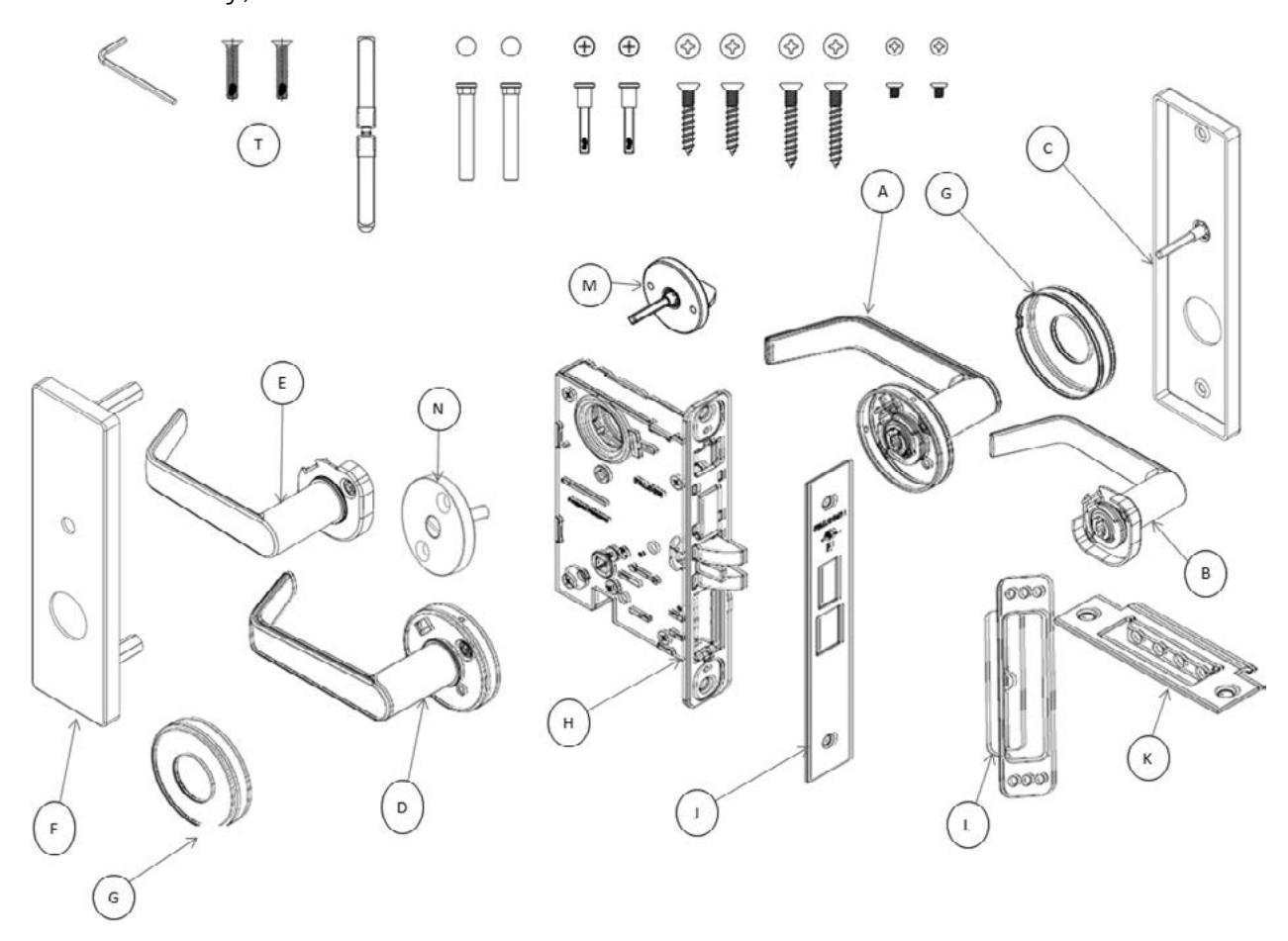

MA301 - Privacy, Bedroom/Bath
| Levers | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Ltr. | Description | Dane | Sutro | Avalon | Quantum | Hana | |||
| A | Inside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 | ||
| B | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | |||
| C | Escutcheon | AE77012-IT | |||||||
| D | Outside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 | ||
| E | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | |||
| F | Escutcheon | AE77012-OT | |||||||
| G | Rose (2 req'd) | S76012 | |||||||
| H | Assy, lock unit | A7802 | |||||||
| J | Faceplate | S77819 | |||||||
| K | Strike assy | A8737-X | |||||||
| L | Strike box | PE1396 | |||||||
| M | Thumb turn | AS75319 | |||||||
| N | Emergency turn | AS76853 | |||||||
| T | Screw pack | See page 37 | |||||||
Lock Assemblies

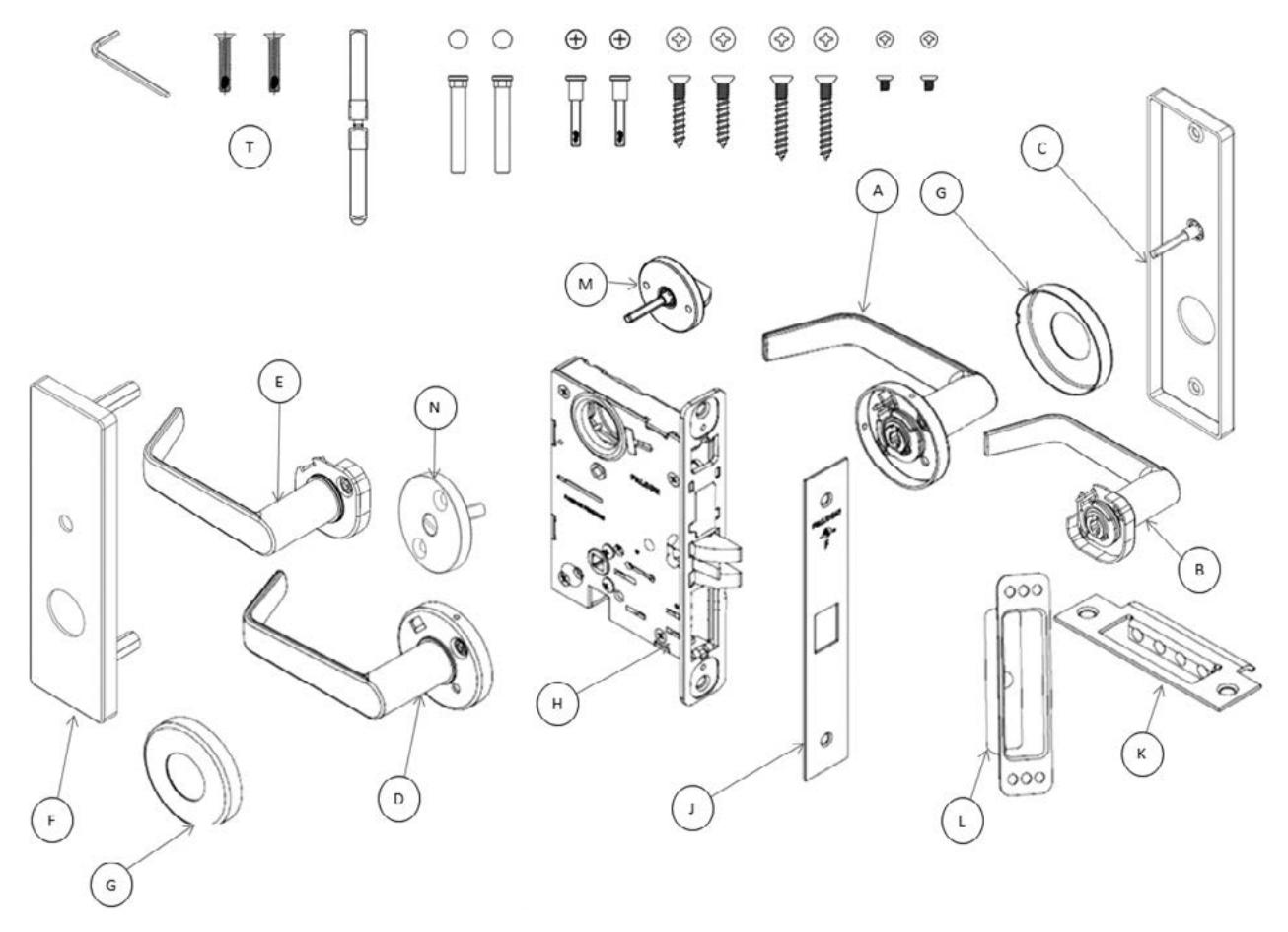

MA311 - Privacy, Bedroom/Bath
| Description | Levers | Knobs | ||||||
|---|---|---|---|---|---|---|---|---|
| Ltr. | Dane | Sutro | Avalon | Quantum | Hana | |||
| A | Inside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 | |
| B | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | ||
| C | Escutcheon | AE77012-IT | ||||||
| D | Outside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 | |
| E | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | ||
| F | Escutcheon | AE77012-OT | ||||||
| G | Rose (2 req'd) | S76012 | ||||||
| H | Assy, lock unit | A7819 | ||||||
| J | Faceplate | S77819 | ||||||
| K | Strike assy | A8737-X | ||||||
| L | Strike box | PE1396 | ||||||
| M | Thumb turn | AS75319 | ||||||
| N | Emergency turn | AS76853 | ||||||
| T | Screw pack | See page 37 | ||||||

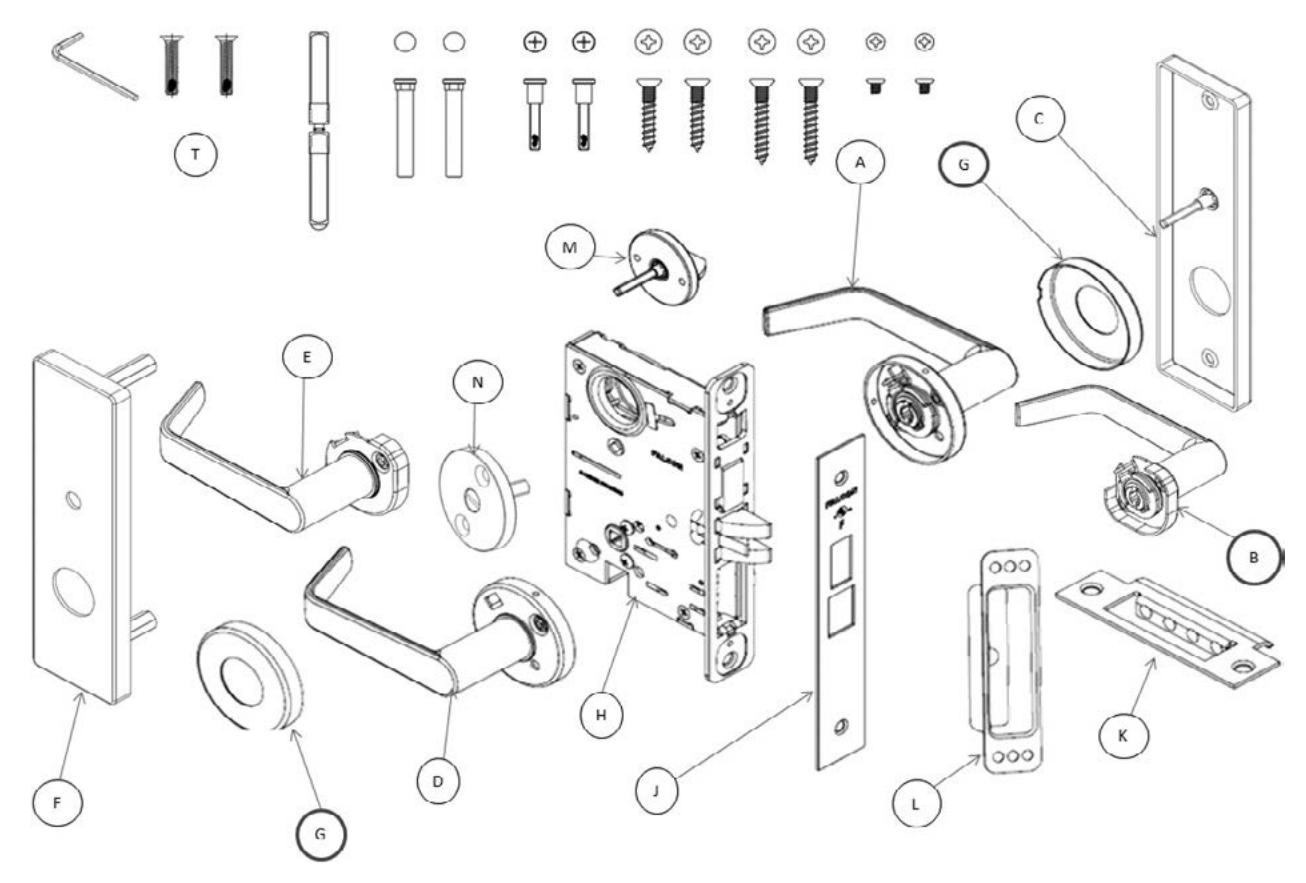

MA321 - Privacy, Bedroom/Bath
| Levers | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Ltr. | Description | Dane | Sutro | Avalon | Quantum | Hana | |||
| A | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 | |||
| B | Inside trim | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | ||
| C | Escutcheon | AE77012-IT | |||||||
| D | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 | |||
| E | Outside trim | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | ||
| F | Escutcheon | AE77012-OT | |||||||
| G | Rose (2 req'd) | S76012 | |||||||
| H | Assy, lock unit | A7822 | |||||||
| J | Faceplate | S77801 | |||||||
| K | Strike assy | A8737-X | |||||||
| L | Strike box | PE1396 | |||||||
| M | Thumb turn | AS75319 | |||||||
| N | Emergency turn | AS76853 | |||||||
| T | Screw pack | See page 37 | |||||||

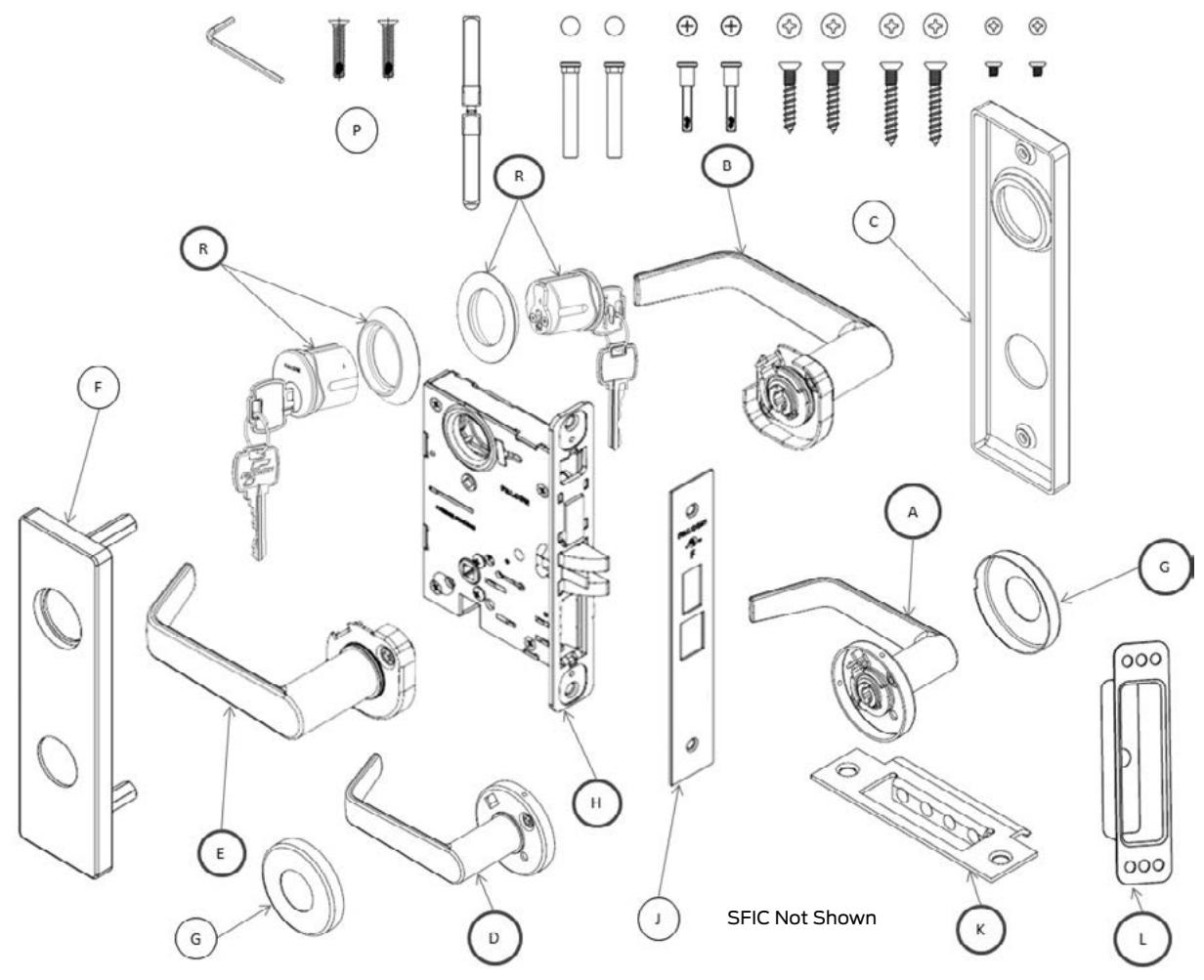

MA371 - Store Door Lock
| Levers | Knobs | |||||||
|---|---|---|---|---|---|---|---|---|
| Ltr. | Description | Dane | Sutro | Avalon | Quantum | Hana | ||
| A | Inside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 | |
| B | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | ||
| C | Escutcheon | E77012-IC | ||||||
| D | Outside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 | |
| E | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | ||
| F | Escutcheon | AE77012-OC | ||||||
| G | Rose (2 req'd) | S76012 | ||||||
| H | Assy, lock unit | A7814 | ||||||
| J | Faceplate | S77819 | ||||||
| K | Strike assy | A8737-X | ||||||
| L | Strike box | PE1396 | ||||||
| P | Screw pack | See page 37 | ||||||
| R | Cylinder, conventional (2 req'd) | Q005-064 | ||||||
| Cylinder, SFIC (2 req'd) | Q005-065 | |||||||

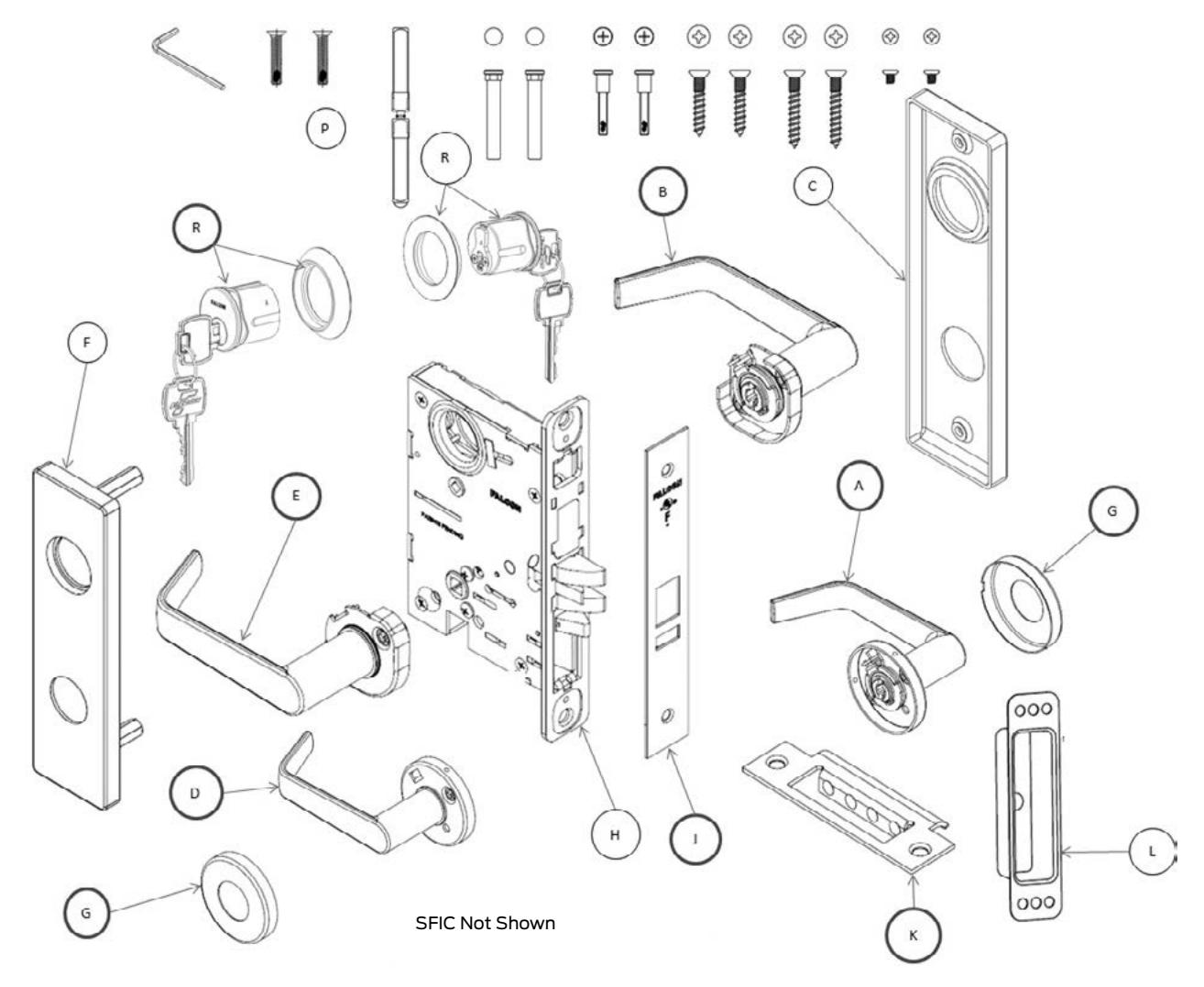

MA381 - Apartment, Exit
| Levers | Knobs | |||||||
|---|---|---|---|---|---|---|---|---|
| Ltr. | Description | Dane | Sutro | Avalon | Quantum | Hana | ||
| A | Inside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 | |
| B | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | ||
| C | Escutcheon | E77012-IC | ||||||
| D | Outside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 | |
| E | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | ||
| F | Escutcheon | AE77012-OC | ||||||
| G | Rose (2 req'd) | S76012 | ||||||
| H | Assy, lock unit | A7809 | ||||||
| J | Faceplate | S77805 | ||||||
| K | Strike assy | A8737-X | ||||||
| L | Strike box | PE1396 | ||||||
| P | Screw pack | See page 37 | ||||||
| R | Cylinder, conventional (2 req'd) | Q005-064 | ||||||
| Cylinder, SFIC (2 req'd) | Q005-065 | |||||||

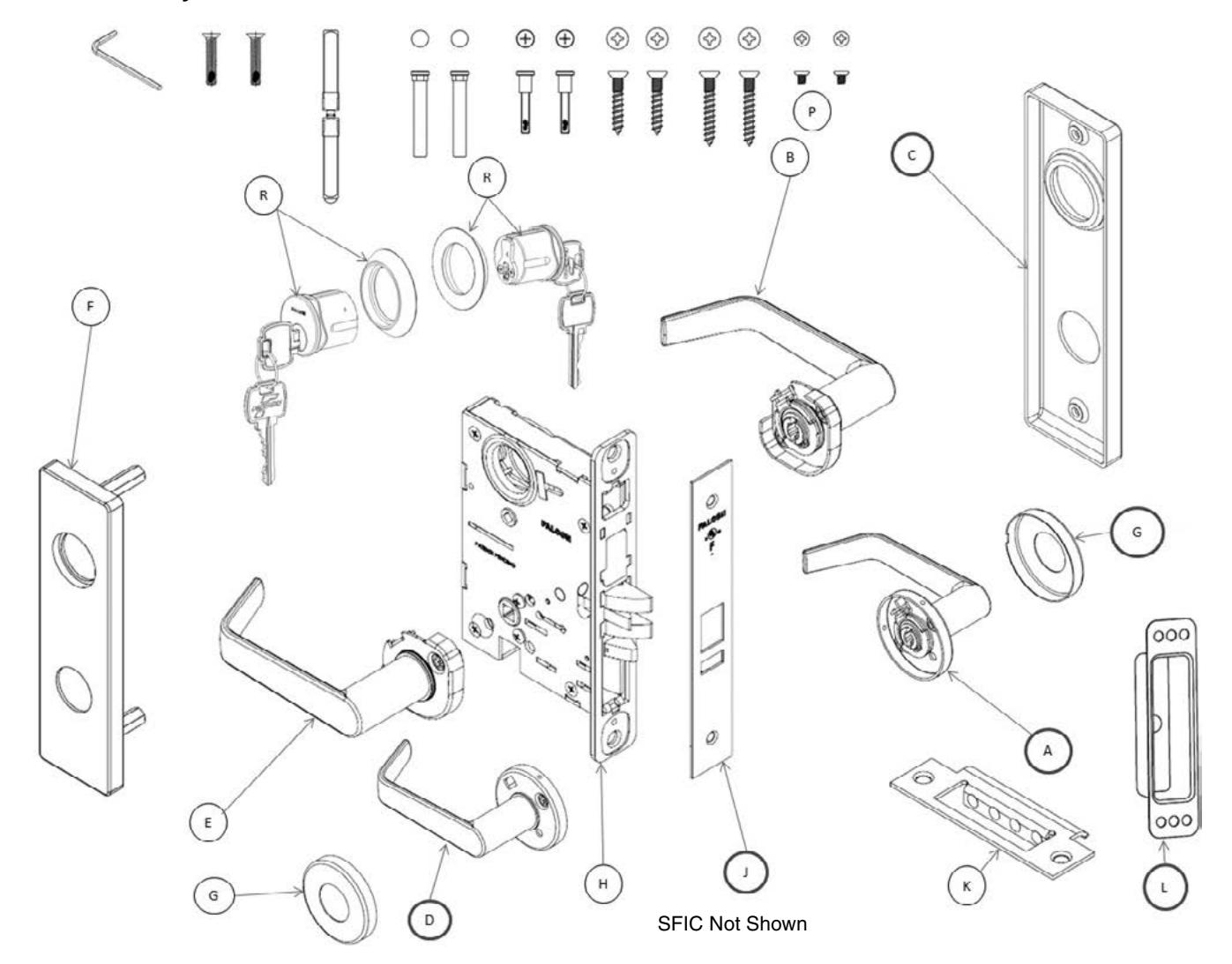

MA411 - Asylum or Institutional Lock
| Levers | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Ltr. | Description | Dane | Sutro | Avalon | Quantum | Hana | |||
| A | Inside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 | ||
| B | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | |||
| C | Escutcheon | E77012-IC | |||||||
| D | Outside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 | ||
| E | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | |||
| F | Escutcheon | AE77012-OC | |||||||
| G | Rose (2 req'd) | S76012 | |||||||
| H | Assy, lock unit | A7814 | |||||||
| J | Faceplate | S77819 | |||||||
| K | Strike assy | A8737-X | |||||||
| L | Strike box | PE1396 | |||||||
| P | Screw pack | See page 37 | |||||||
| Cylinder, conventional (2 req'd) | Q005-064 | ||||||||
| R | Cylinder, SFIC (2 req'd) | Q005-065 | |||||||

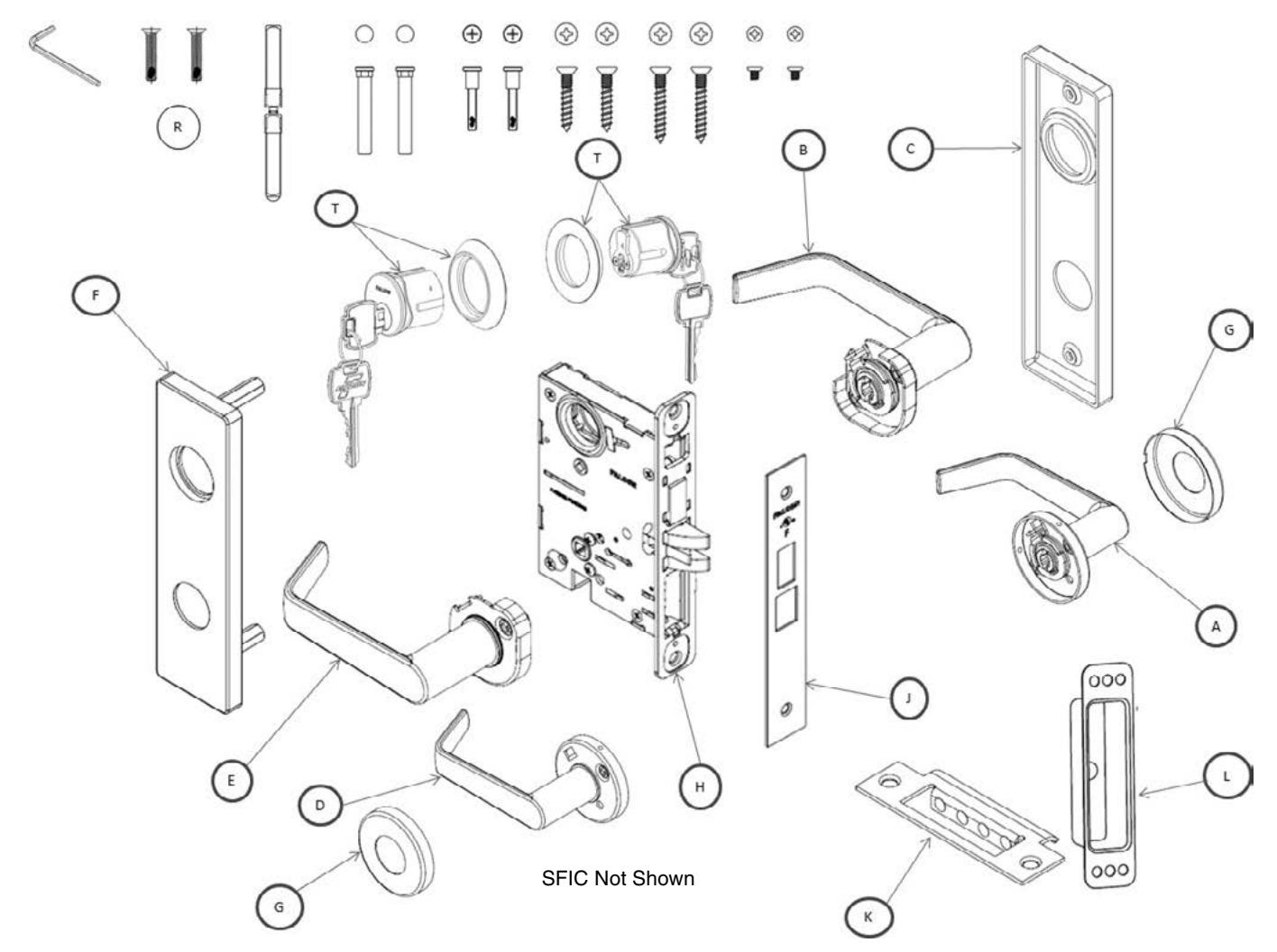

MA431 - Classroom Security Lock with Deadbolt
| Levers | Knobs | ||||||
|---|---|---|---|---|---|---|---|
| Ltr. | Description | Dane | Sutro | Avalon | Quantum | Hana | |
| A | Inside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 |
| B | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | |
| C | Escutcheon | E77012-IC | |||||
| D | Outside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 |
| E | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | |
| F | Escutcheon | AE77012-OC | |||||
| G |
Rose (2 req'd)
S76012 |
||||||
| H | Assy, lock unit | A7813 | |||||
| J | Faceplate | S77819 | |||||
| K | Strike assy | A8737-X | |||||
| L | Strike box | PE1396 | |||||
| R | Screw pack | See page 37 | |||||
| T | Cylinder, conventional (2 req'd) | Q005-064 | |||||
|
Cylinder, SFIC (2 req'd)
Q005-065 |
|||||||

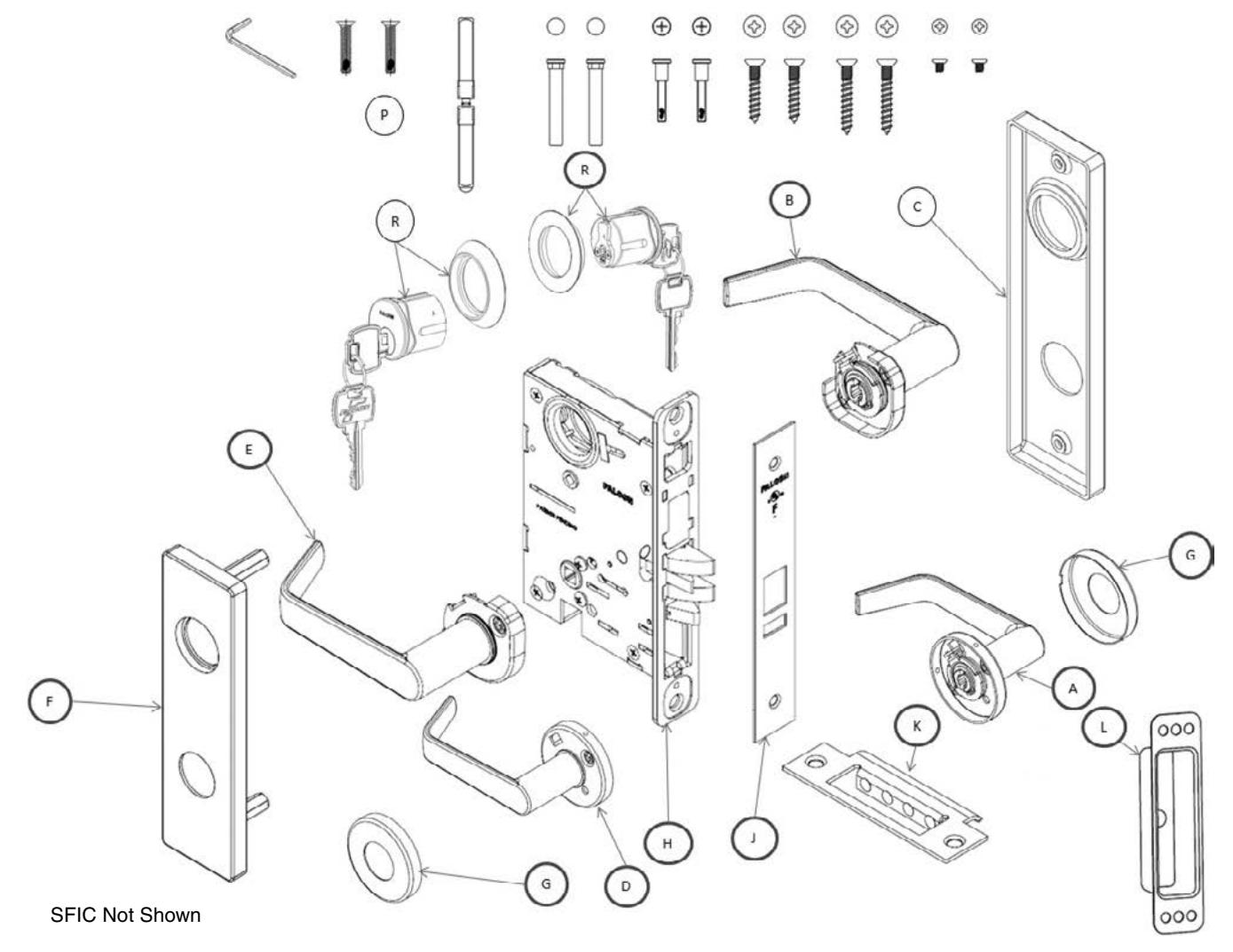

MA441 - Classroom Security Lock
| Levers | Knobs | ||||||
|---|---|---|---|---|---|---|---|
| Ltr. | Description | Dane | Sutro | Avalon | Quantum | Hana | |
| A | Inside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 |
| B | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | |
| C | Escutcheon | E77012-IC | |||||
| D | Outside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 |
| E | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | |
| F | Escutcheon | AE77012-OC | |||||
| G | Rose (2 req'd) | S76012 | |||||
| H | Assy, lock unit | A7805 | |||||
| J | Faceplate | S77805 | |||||
| K | Strike assy | A8737-X | |||||
| L | Strike box | PE1396 | |||||
| P | Screw pack | See page 37 | |||||
| Cylinder, conventional (2 req'd) | Q005-064 | ||||||
| R | Cylinder, SFIC (2 req'd) | Q005-065 |

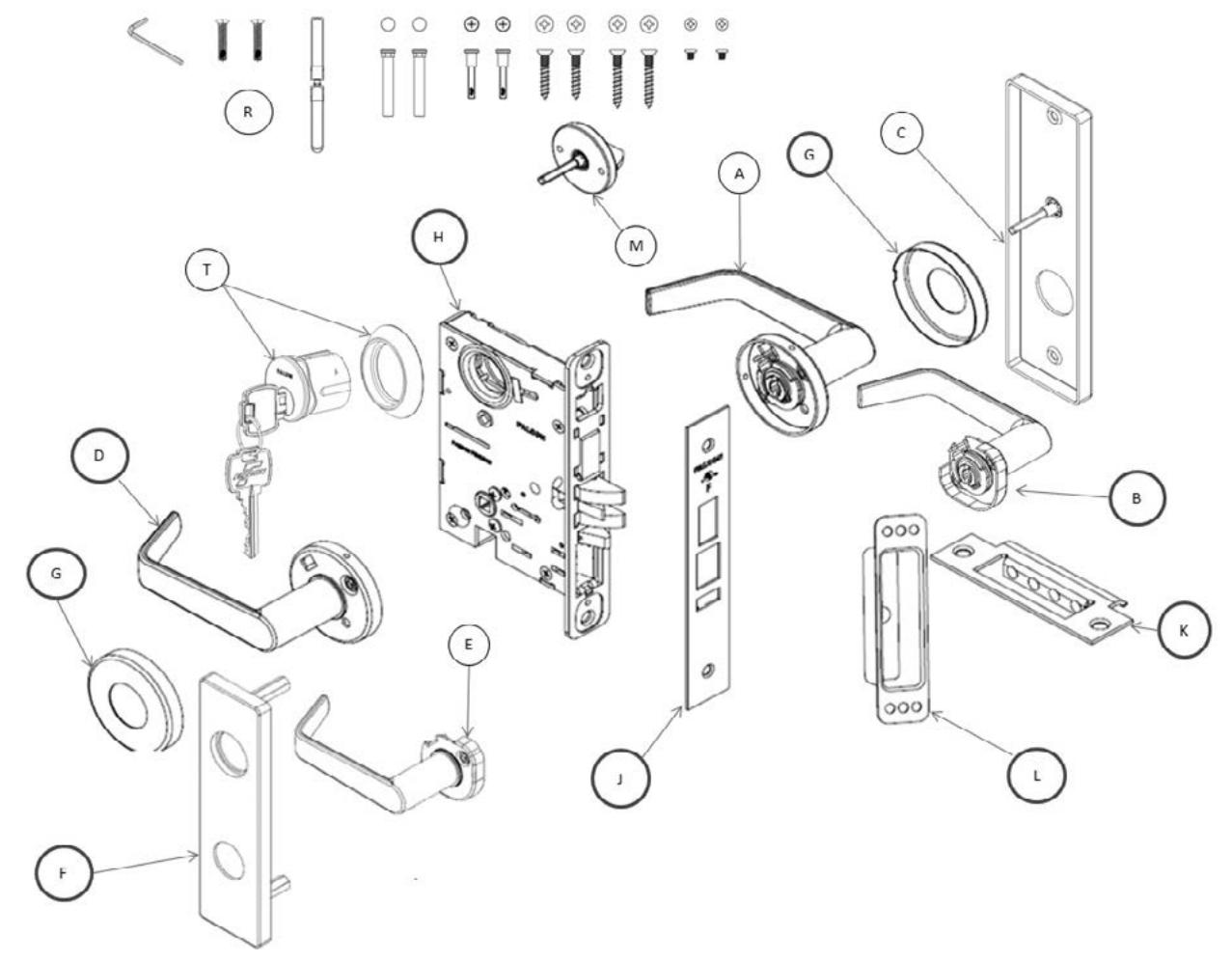

MA451 - Hotel Guest Lock
| Levers | Knobs | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Ltr. | Description | Dane | Sutro | Avalon | Quantum | Hana | ||||
| A | Inside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 | |||
| B | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | ||||
| C | Escutcheon | AE77012-IT | ||||||||
| D | Outside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 | |||
| E | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | ||||
| F | Escutcheon | AE77012-OC | ||||||||
| G | Rose (2 req'd) | S76012 | ||||||||
| H | Assy, lock unit | A7815 | ||||||||
| J | Faceplate | S77815 | ||||||||
| K | Strike assy | A8737-X | ||||||||
| L | Strike box | PE1396 | ||||||||
| M | Thumb turn | AS76319 | ||||||||
| R | Screw pack | See page 37 | ||||||||
| T | Cylinder, conventional | Q005-064 | ||||||||
| Cylinder, SFIC | Q008-065 | |||||||||

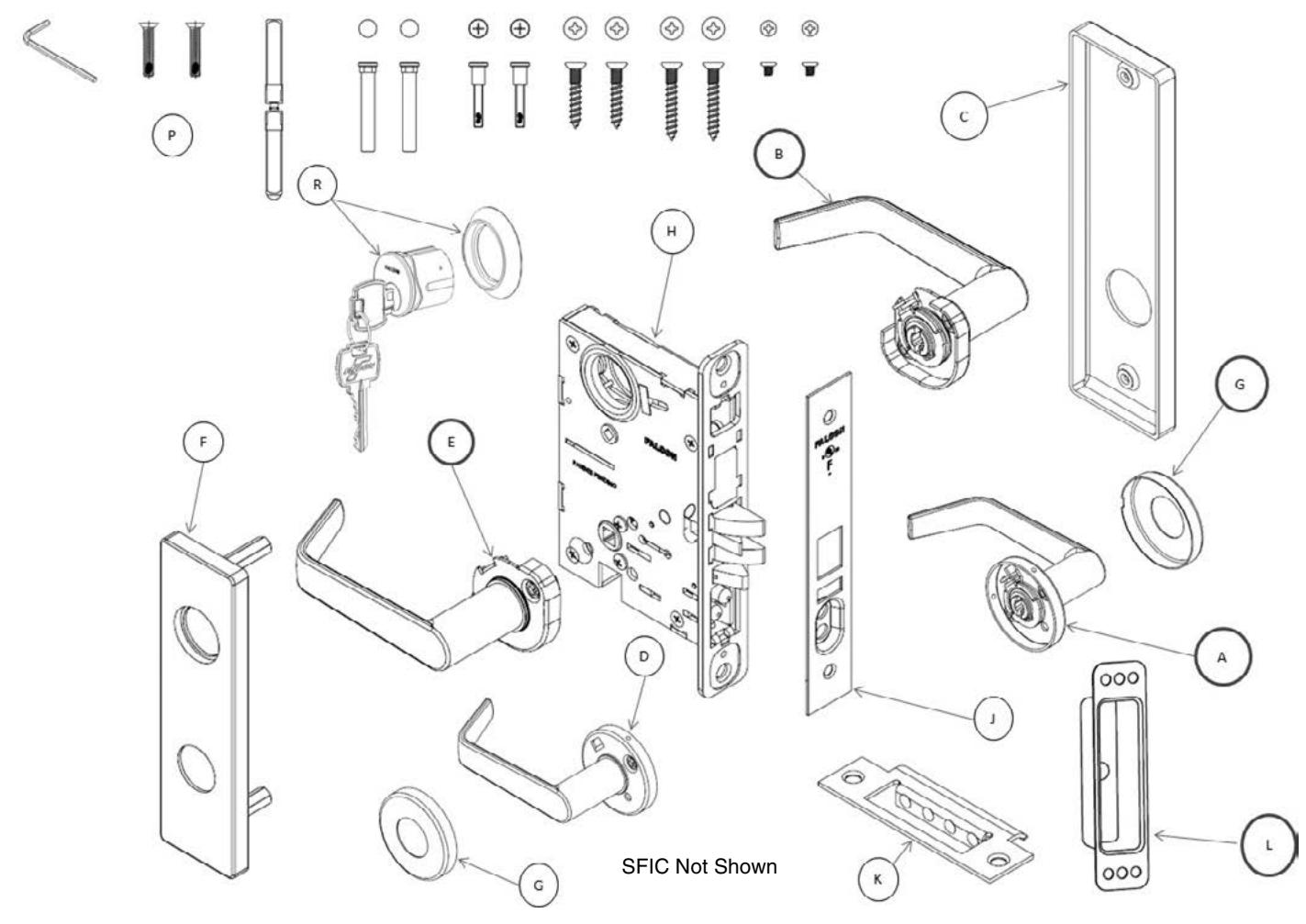

MA521 - Entry/Office Lock
| Levers | Knobs | ||||||
|---|---|---|---|---|---|---|---|
| Ltr. | Description | Dane | Sutro | Avalon | Quantum | Hana | |
| A | Inside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 |
| B | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | |
| C | Escutcheon | E77012-IP | |||||
| D | Outside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 |
| E | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | |
| F | Escutcheon | AE77012-OC | |||||
| G | Rose (2 req'd) | S76012 | |||||
| H | Assy, lock unit | A7804 | |||||
| J | Faceplate | S77804 | |||||
| K | Strike assy | A8737-X | |||||
| L | Strike box | PE1396 | |||||
| P | Screw pack | See page 37 | |||||
| R | Cylinder, conventional | Q005-064 | |||||
| Cylinder, SFIC | Q005-065 |

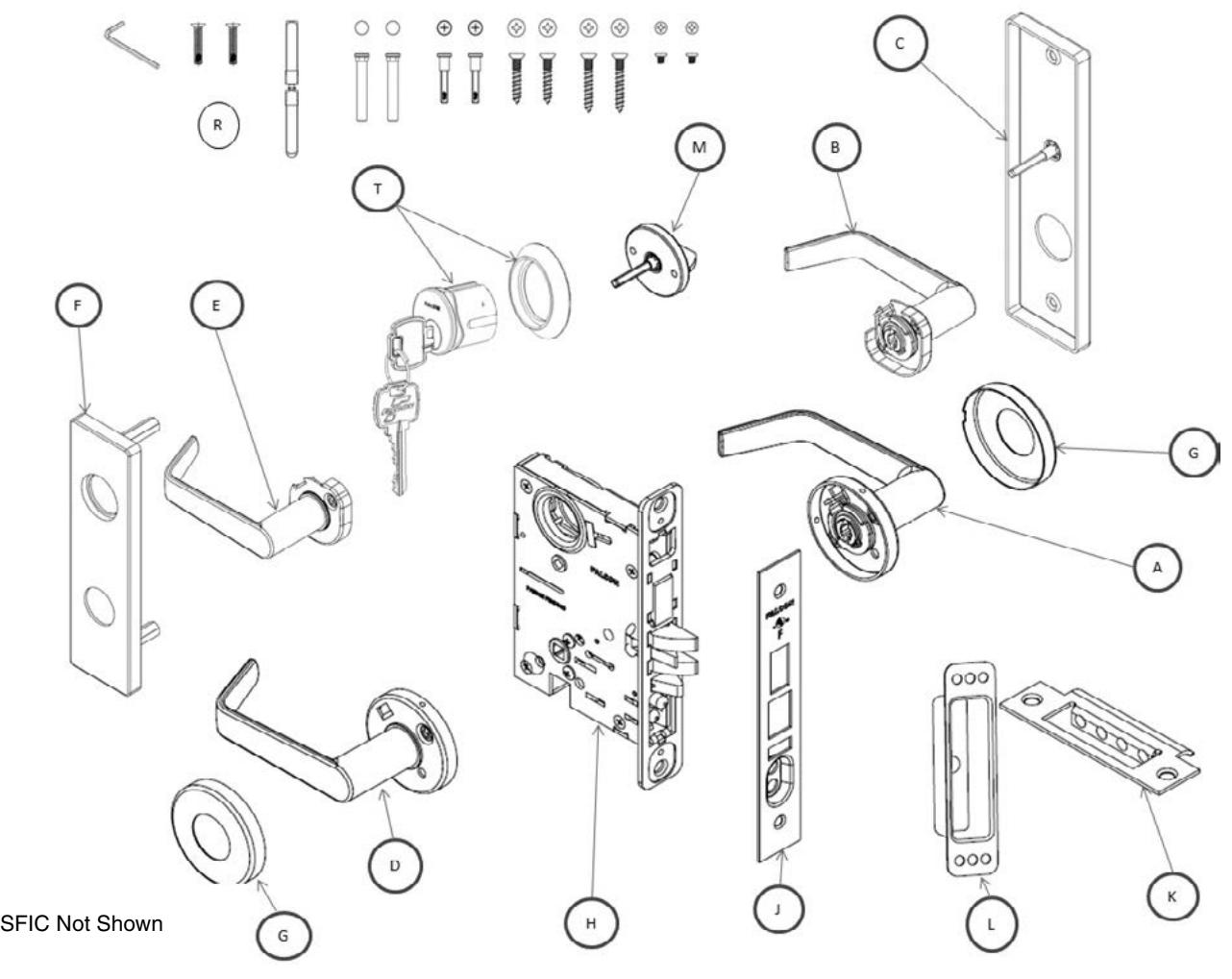

MA531 - Apartment Corridor Door Lock
| Levers | Knobs | ||||||
|---|---|---|---|---|---|---|---|
| Ltr. | Description | Dane | Sutro | Avalon | Quantum | Hana | |
| A | Inside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 |
| B | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | |
| C | Escutcheon | AE77012-IT | |||||
| D | Outside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 |
| E | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | |
| F | Escutcheon | AE77012-OC | |||||
| G | Rose (2 req'd) | S76012 | |||||
| H | Assy, lock unit | A7820 | |||||
| J | Faceplate | S77820 | |||||
| K | Strike assy | A8737-X | |||||
| L | Strike box | PE1396 | |||||
| M | Thumb turn | AS76319 | |||||
| R | Screw pack | See page 37 | |||||
| T | Cylinder, conventional | Q005-064 | |||||
| Cylinder, SFIC | Q005-065 | ||||||

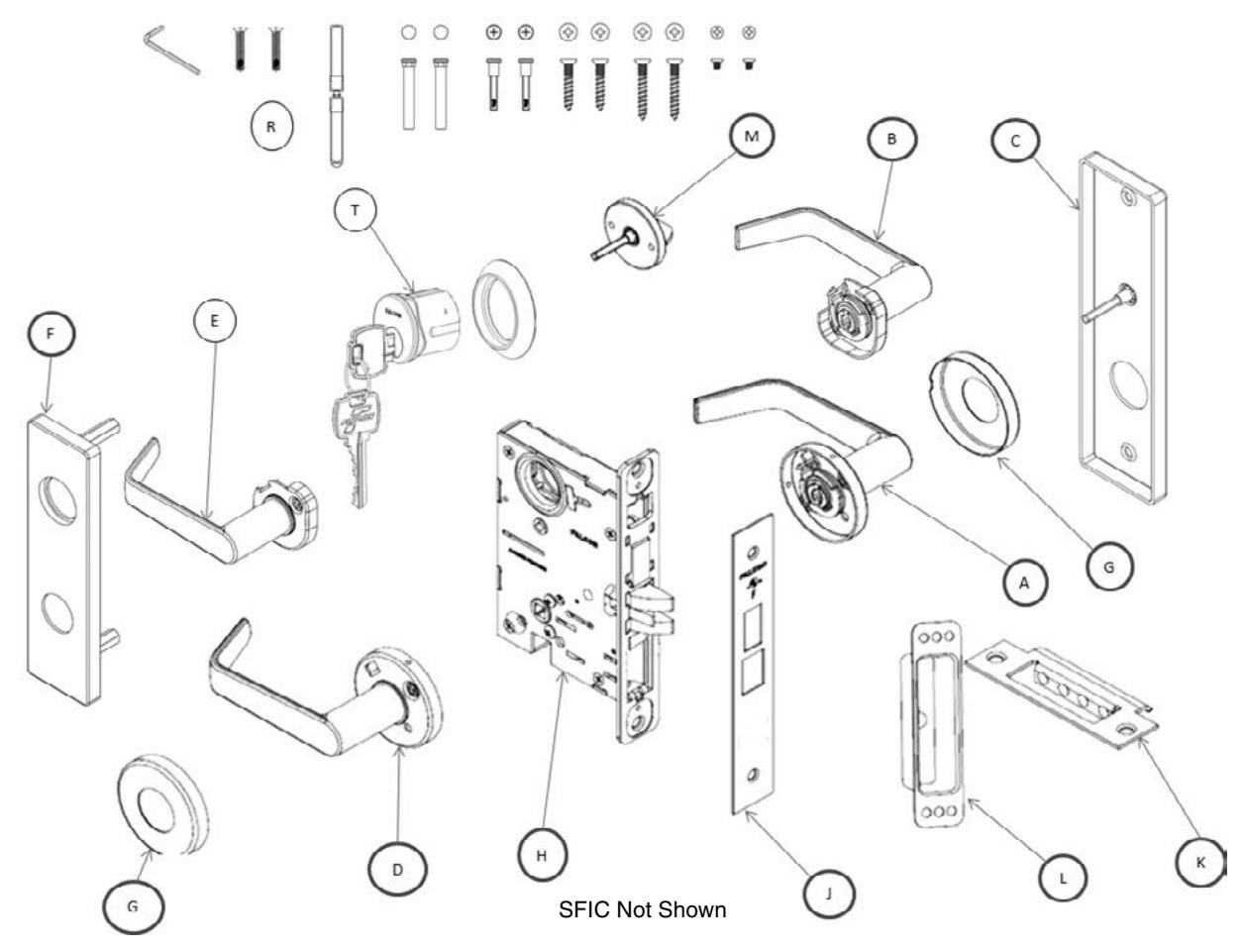

MA541 - Entry/Office Lock
| Levers | Knobs | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Ltr. | Description | Dane | Sutro | Avalon | Quantum | Hana | |||
| A | Inside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 | ||
| B | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | |||
| C | Escutcheon | AE77012-IT | |||||||
| D | Outside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 | ||
| E | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | |||
| F | Escutcheon | AE77012-OC | |||||||
| G | Rose (2 req'd) | S76012 | |||||||
| H | Assy, lock unit | A7820 | |||||||
| J | Faceplate | S77820 | |||||||
| K | Strike assy | A8737-X | |||||||
| L | Strike box | PE1396 | |||||||
| M | Thumb turn | AS76319 | |||||||
| R | Screw pack | See page 37 | |||||||
| T | Cylinder, conventional | Q005-064 | |||||||
| Cylinder, SFIC | Q005-065 | ||||||||

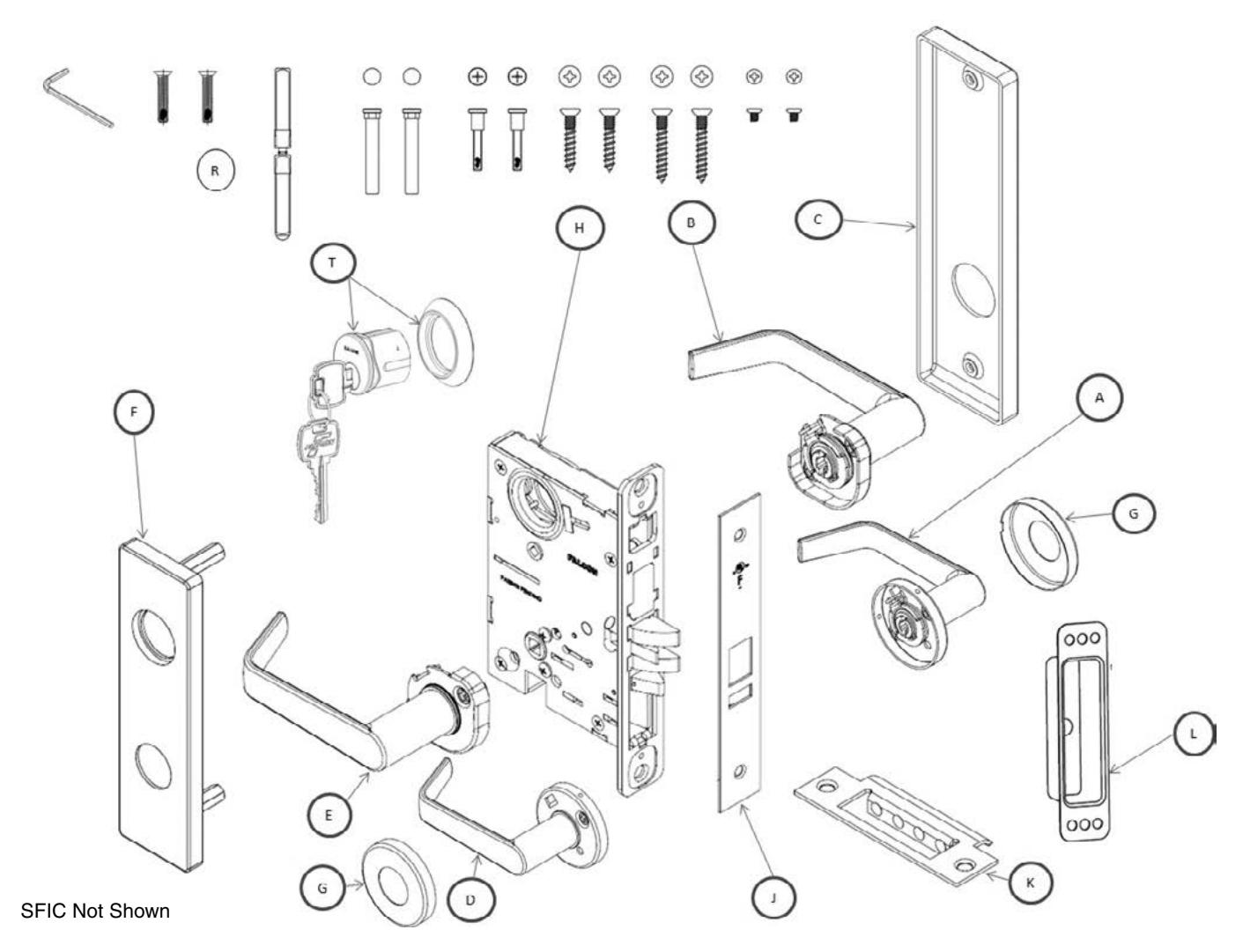

MA551 - Holdback Lock
| Levers | Knobs | ||||||
|---|---|---|---|---|---|---|---|
| Ltr. | Description | Dane | Sutro | Avalon | Quantum | Hana | |
| A | Inside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 |
| B | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | |
| C | Escutcheon | E77012-IP | |||||
| D | Outside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 |
| E | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | |
| F | Escutcheon | AE77012-OC | |||||
| G |
Rose (2 req'd)
S76012 |
||||||
| H | Assy, lock unit | A7806 | |||||
| J | Faceplate | S77805 | |||||
| K | Strike assy | A8737-X | |||||
| L | Strike box | PE1396 | |||||
| P | Handing instruction sheet | Q513-069 | |||||
| R |
Screw pack
See page 37 |
||||||
| T | Cylinder, conventional | Q005-064 | |||||
| Cylinder, SFIC | Q005-065 | ||||||
MA561 - Classroom Lock
| Levers | Knobs | |||||||
|---|---|---|---|---|---|---|---|---|
| Ltr. | Description | Dane | Sutro | Avalon | Quantum | Hana | ||
| A | Inside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 | |
| B | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | ||
| C | Escutcheon | E77012-IP | ||||||
| D | Outside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 | |
| E | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | ||
| F | Escutcheon | AE77012-OC | ||||||
| G | Rose (2 req'd) | S76012 | ||||||
| H | Assy, lock unit | A7805 | ||||||
| J | Faceplate | S77805 | ||||||
| K | Strike assy | A8737-X | ||||||
| L | Strike box | PE1396 | ||||||
| P | Screw pack | See page 37 | ||||||
| R | Cylinder, conventional | Q005-064 | ||||||
| Cylinder, SFIC | Q005-065 | |||||||
MA571 - Dormitory or Exit Lock
| Levers | Knobs | |||||||
|---|---|---|---|---|---|---|---|---|
| Ltr. | Description | Dane | Sutro | Avalon | Quantum | Hana | ||
| A | Inside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 | |
| B | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | ||
| C | Escutcheon | AE77012-IT | ||||||
| D | Outside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 | |
| E | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | ||
| F | Escutcheon | AE77012-OC | ||||||
|
G
Rose (2 req'd) S76012 |
||||||||
| H | Assy, lock unit | A7813 | ||||||
| J | Faceplate | S77819 | ||||||
| K | Strike assy | A8737-X | ||||||
| L | Strike box | PE1396 | ||||||
| M | Thumb turn | AS76319 | ||||||
| R | Screw pack | See page 37 | ||||||
| T |
Cylinder, conventional
Q005-064 |
|||||||
| Cylinder, SFIC | Q005-065 | |||||||
MA581 - Storeroom / Closet Lock
| Levers | Knobs | |||||||
|---|---|---|---|---|---|---|---|---|
| Ltr. | Description | Dane | Sutro | Avalon | Quantum | Hana | ||
| A | Inside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 | |
| B | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | ||
| C | Escutcheon | E77012-IP | ||||||
| D | Outside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 | |
| E | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | ||
| F | Escutcheon | AE77012-OC | ||||||
| G | Rose (2 req'd) | S76012 | ||||||
| H | Assy, lock unit | A7807 | ||||||
| J | Faceplate | S77805 | ||||||
| K | Strike assy | A8737-X | ||||||
| L | Strike box | PE1396 | ||||||
| P |
Screw pack
See page 37 |
|||||||
| R | Cylinder, conventional | Q005-064 | ||||||
| Cylinder, SFIC | Q005-065 | |||||||
MA621 - Front Door / Apartment Corridor
| Levers | Knobs | ||||||
|---|---|---|---|---|---|---|---|
| Ltr. | Description | Dane | Sutro | Avalon | Quantum | Hana | |
| A | Inside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 |
| B | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | |
| C | Escutcheon | AE77012-IT | |||||
| D | Outside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 |
| E | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | |
| F | Escutcheon | AE77012-OC | |||||
| G | Rose (2 req'd) | S76012 | |||||
| H | Assy, lock unit | A7808 | |||||
| J | Faceplate | S77811 | |||||
| K | Strike assy | A8737-X | |||||
| L | Strike box | PE1396 | |||||
| M | Thumb turn | AS76319 | |||||
| R | Screw pack | See page 37 | |||||
| T | Cylinder, conventional | Q005-064 | |||||
| Cylinder, SFIC | Q005-065 | ||||||

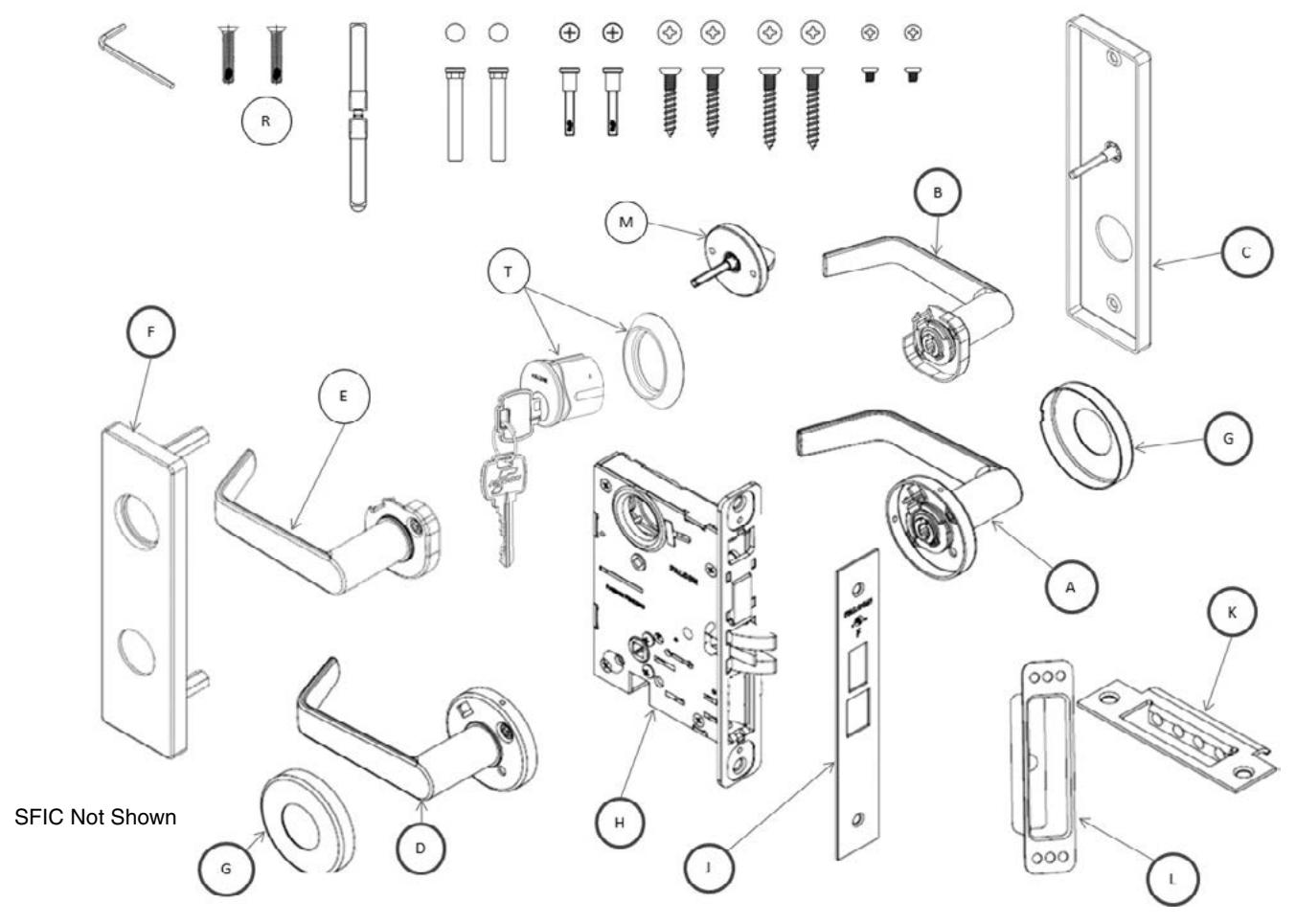

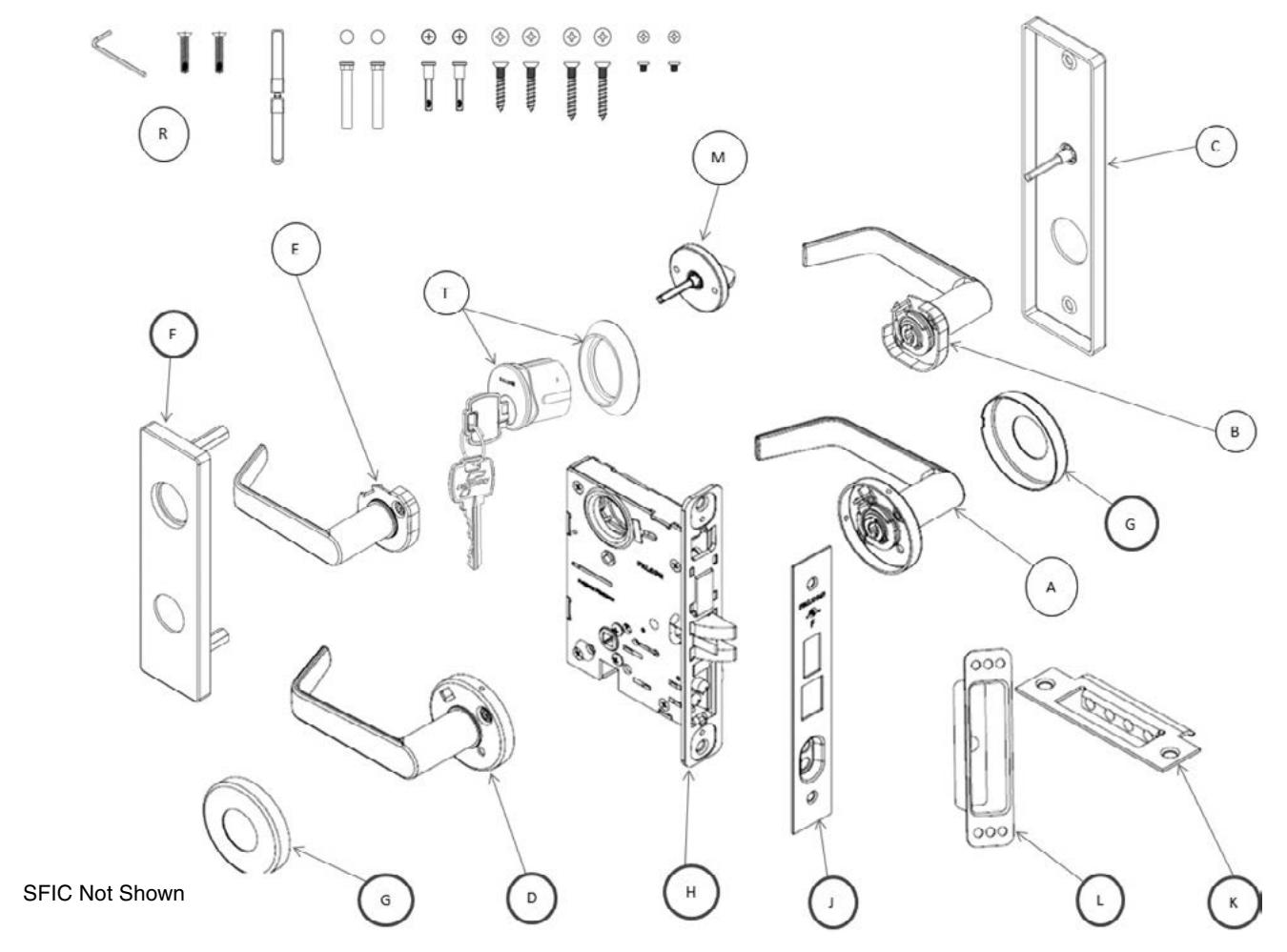

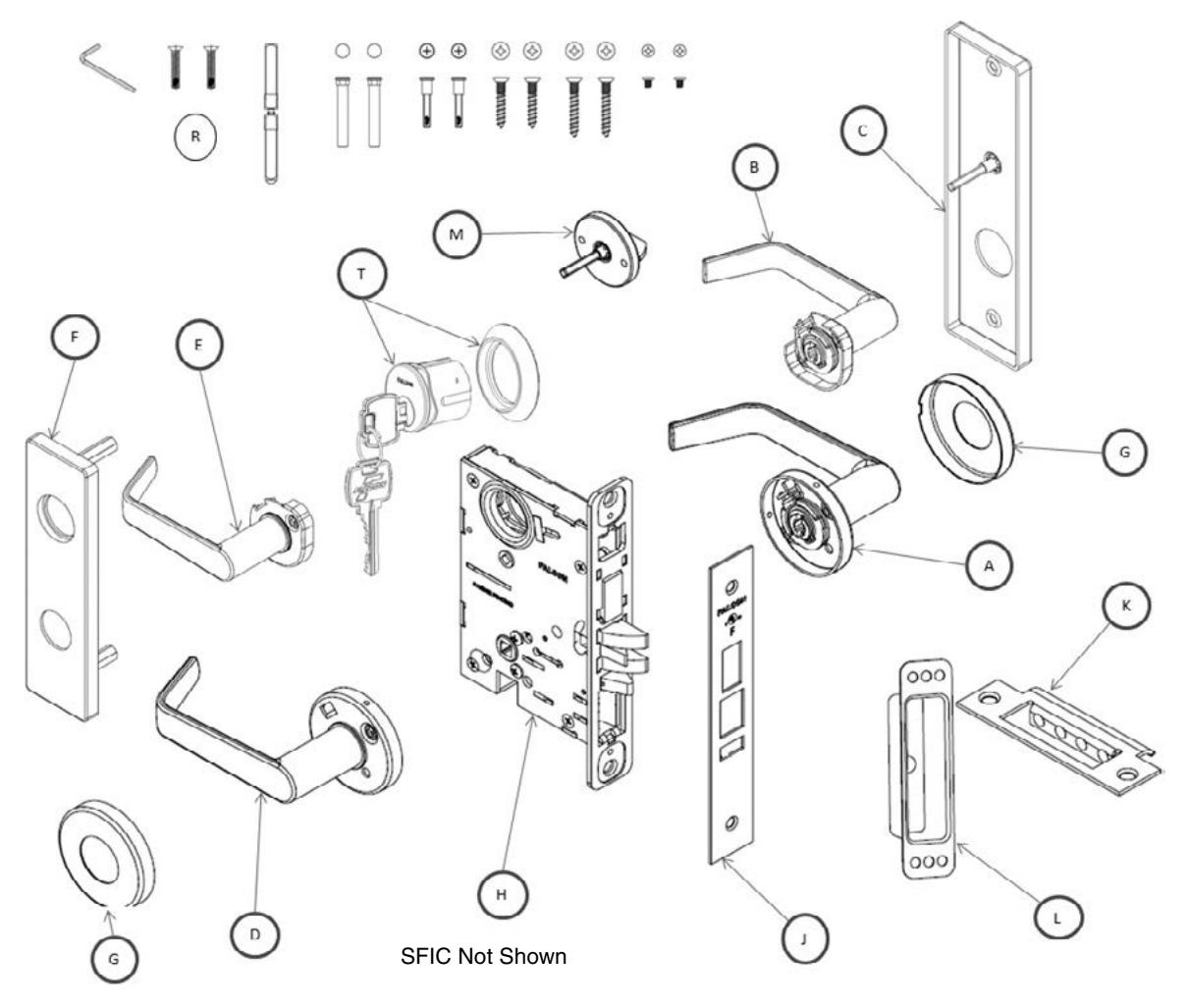

MA641 - Dormitory Lock
| Levers | Knobs | ||||||
|---|---|---|---|---|---|---|---|
| Ltr. | Description | Dane | Sutro | Avalon | Quantum | Hana | |
| A | Inside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 |
| B | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | |
| C | Escutcheon | AE77012-IT | |||||
| D | Outside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 |
| E | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | |
| F | Escutcheon | AE77012-OC | |||||
| G | Rose (2 req'd) | S76012 | |||||
| H | Assy, lock unit | A7815 | |||||
| J | Faceplate | S77815 | |||||
| K | Strike assy | A8737-X | |||||
| L | Strike box | PE1396 | |||||
| M | Thumb turn | AS76319 | |||||
| R | Screw pack | See page 37 | |||||
| Cylinder, conventional | Q005-064 | ||||||
| T | Cylinder, SFIC | Q005-065 |

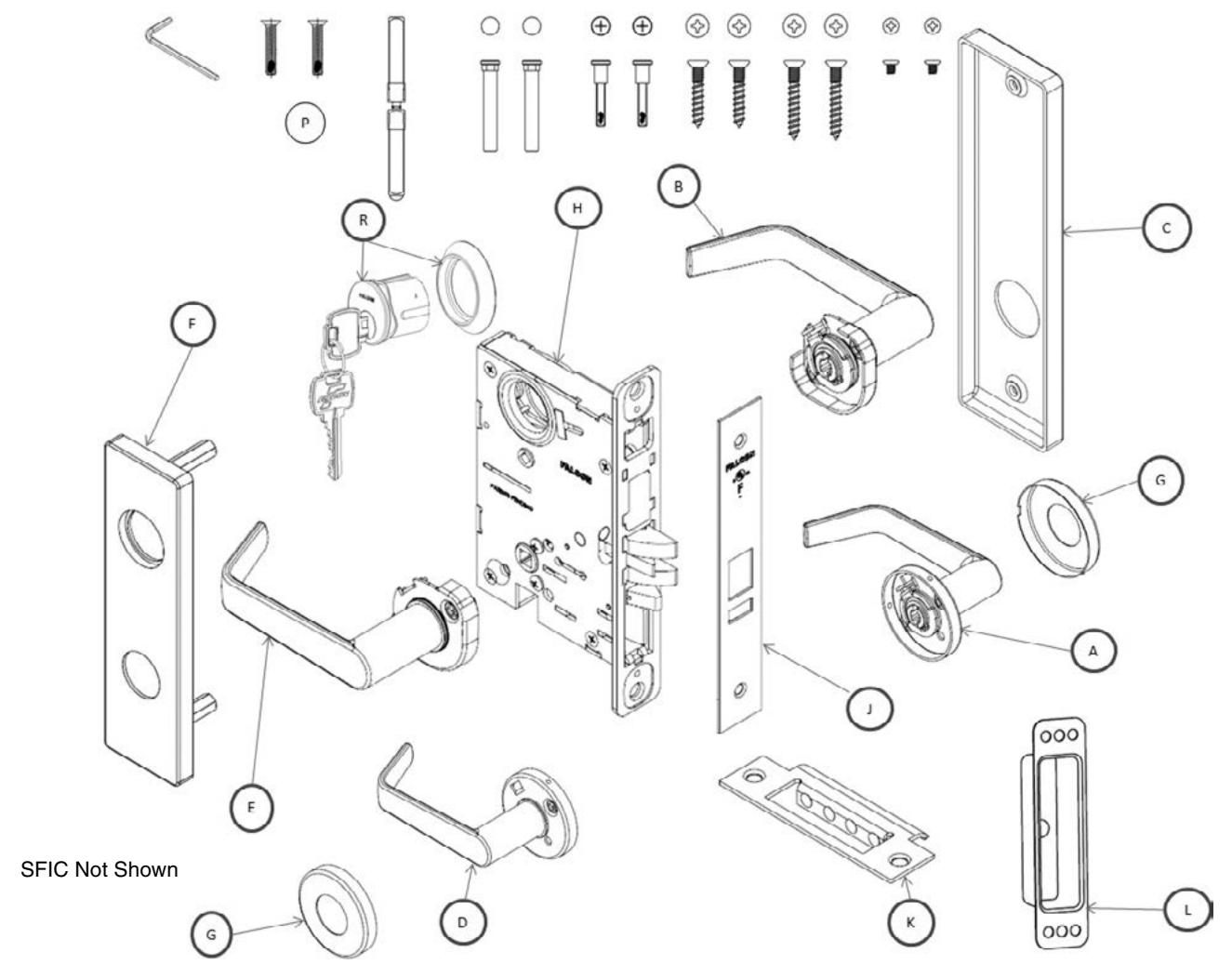

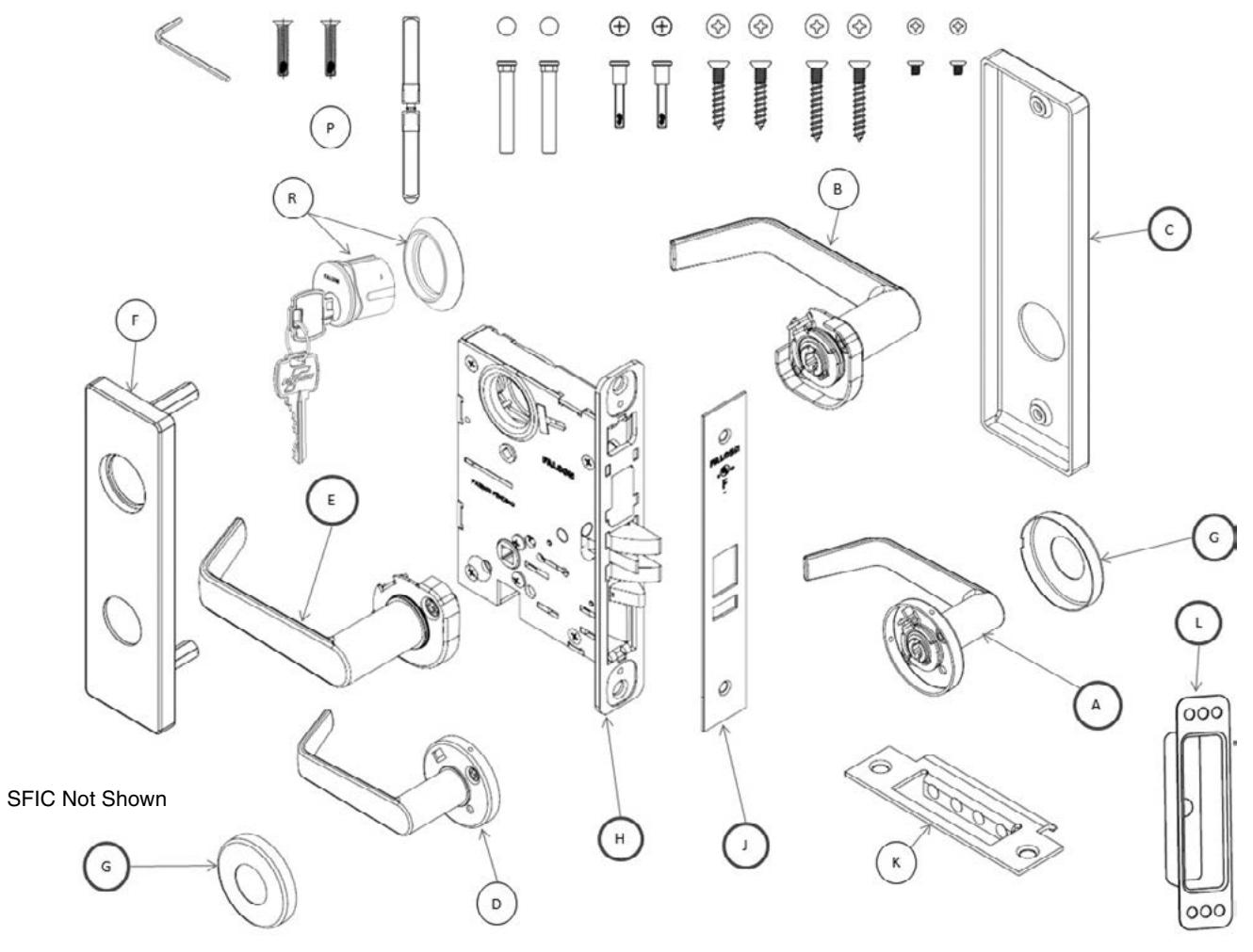

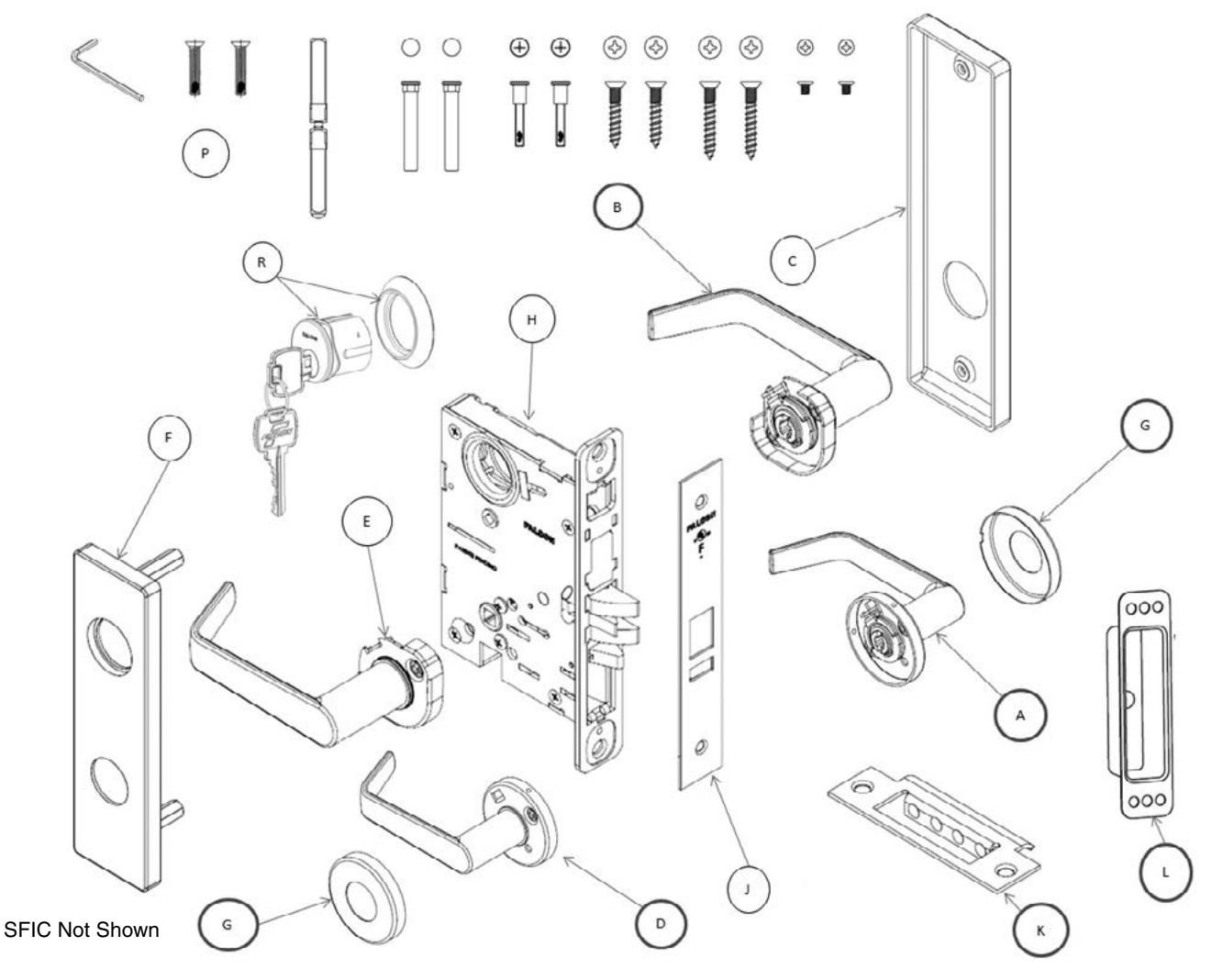

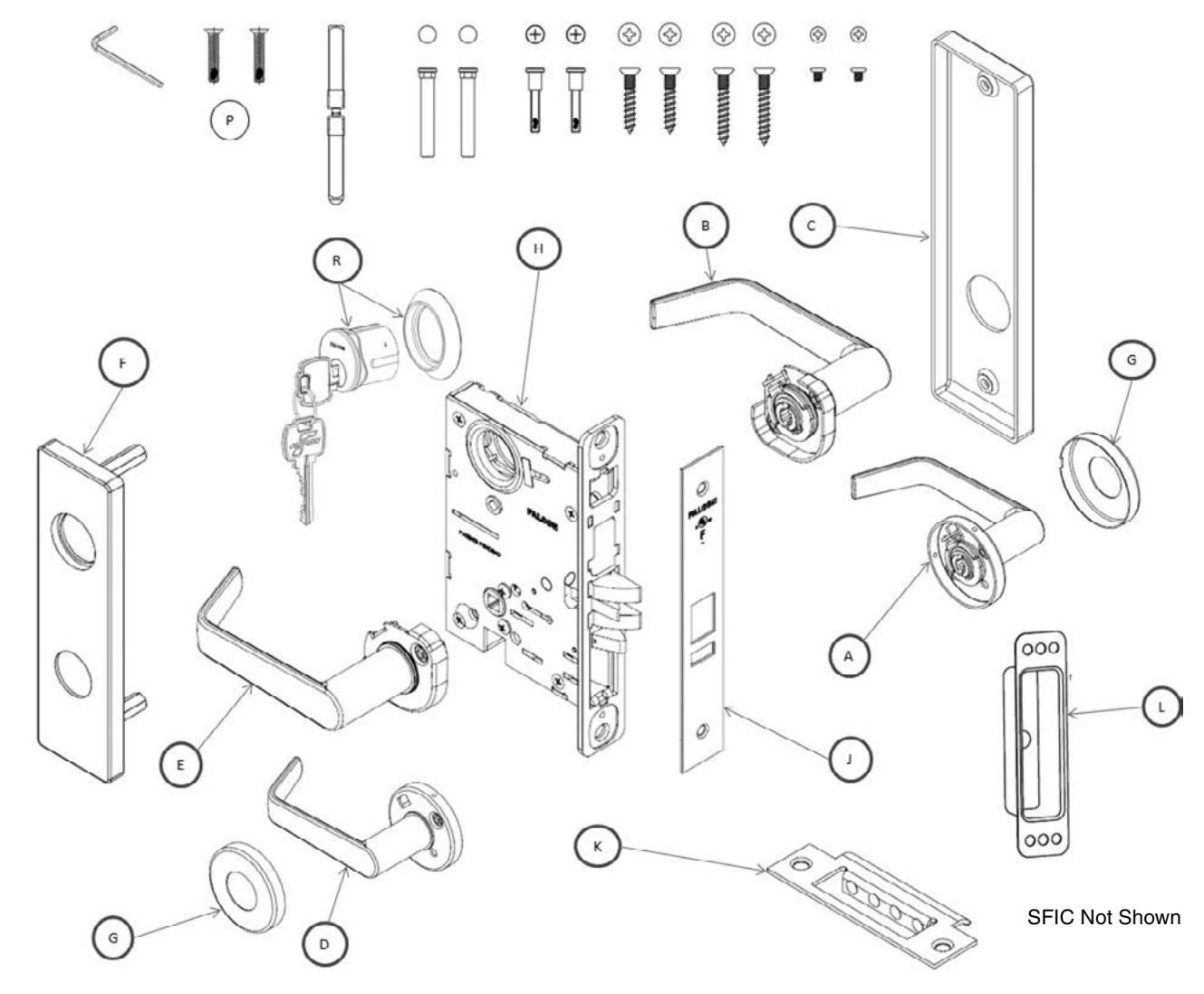

MA851 - Electrified Fail Safe (EL) - 12 & 24V, with or without RX
| Levers | Knobs | ||||||
|---|---|---|---|---|---|---|---|
| Ltr. | Description | Dane | Sutro | Avalon | Quantum | Hana | |
| A | Inside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 |
| B | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | |
| C | Escutcheon | E77012-IP | |||||
| D | Outside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 |
| E | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | |
| F | Escutcheon | AE77012-OC | |||||
| G | Rose (2 req'd) | S76012 | |||||
| H | Assy, lock unit | A7851-12, A7851-12RX, A7851-24, A7851-24RX | |||||
| J | Faceplate | S77805 | |||||
| K | Strike assy | A8737-X | |||||
| L |
Strike box
PE1396 |
||||||
| P |
Screw pack
See page 37 |
||||||
| R | Cylinder, conventional | Q005-064 | |||||
| Cylinder, SFIC | Q005-065 | ||||||
MA881 - Electrified Fail Secure (EU) - 12 & 24V, with or without RX
| Levers | Knobs | ||||||
|---|---|---|---|---|---|---|---|
| Ltr. | Description | Dane | Sutro | Avalon | Quantum | Hana | |
| A | Inside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 |
| B | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | |
| C | Escutcheon | E77012-IP | |||||
| D | Outside trim | Knob/lever sectional | AS76280 | AS76526 | AS76029 | AS76140 | AS76100 |
| E | Knob/lever escutcheon | AE77280 | AE77526 | AE77029 | AE77140 | AE77100 | |
| F | Escutcheon | AE77012-OC | |||||
| G | Rose (2 req'd) | S76012 | |||||
| H | Assy, lock unit | A7881-12, A7881-12RX, A7881-24, A7881-24RX | |||||
| J | Faceplate | S77805 | |||||
| K | Strike assy | A8737-X | |||||
| L | Strike box | PE1396 | |||||
| R |
Screw pack
See page 37 |
||||||
| T | Cylinder, conventional | Q005-064 | |||||
| Cylinder, SFIC | Q005-065 | ||||||
MA911 - Classroom Dead Lock
| Levers | Knobs | ||||||
|---|---|---|---|---|---|---|---|
| Ltr. | Description | Dane | Sutro | Avalon | Quantum | Hana | |
| - | Inside trim | Knob/lever sectional | N/R | N/R | N/R | N/R | N/R |
| - | Knob/lever escutcheon | N/R | N/R | N/R | N/R | N/R | |
| A | Escutcheon | AE77012-IE | |||||
| - | Outside trim | Knob/lever sectional | N/R | N/R | N/R | N/R | N/R |
| - | Knob/lever escutcheon | N/R | N/R | N/R | N/R | N/R | |
| B | Escutcheon | AE77012-OK | |||||
| C | Assy, lock unit | A7829 | |||||
| D | Faceplate | S77816 | |||||
| E | Strike assy | A8737-X | |||||
| F | Strike box | PE1396 | |||||
| G | Thumb turn | AS76319 | |||||
| K | Screw pack | See page 37 | |||||
| L | Cylinder, conventional | Q005-064 | |||||
| Cylinder, SFIC | Q005-065 | ||||||
Lock Assemblies

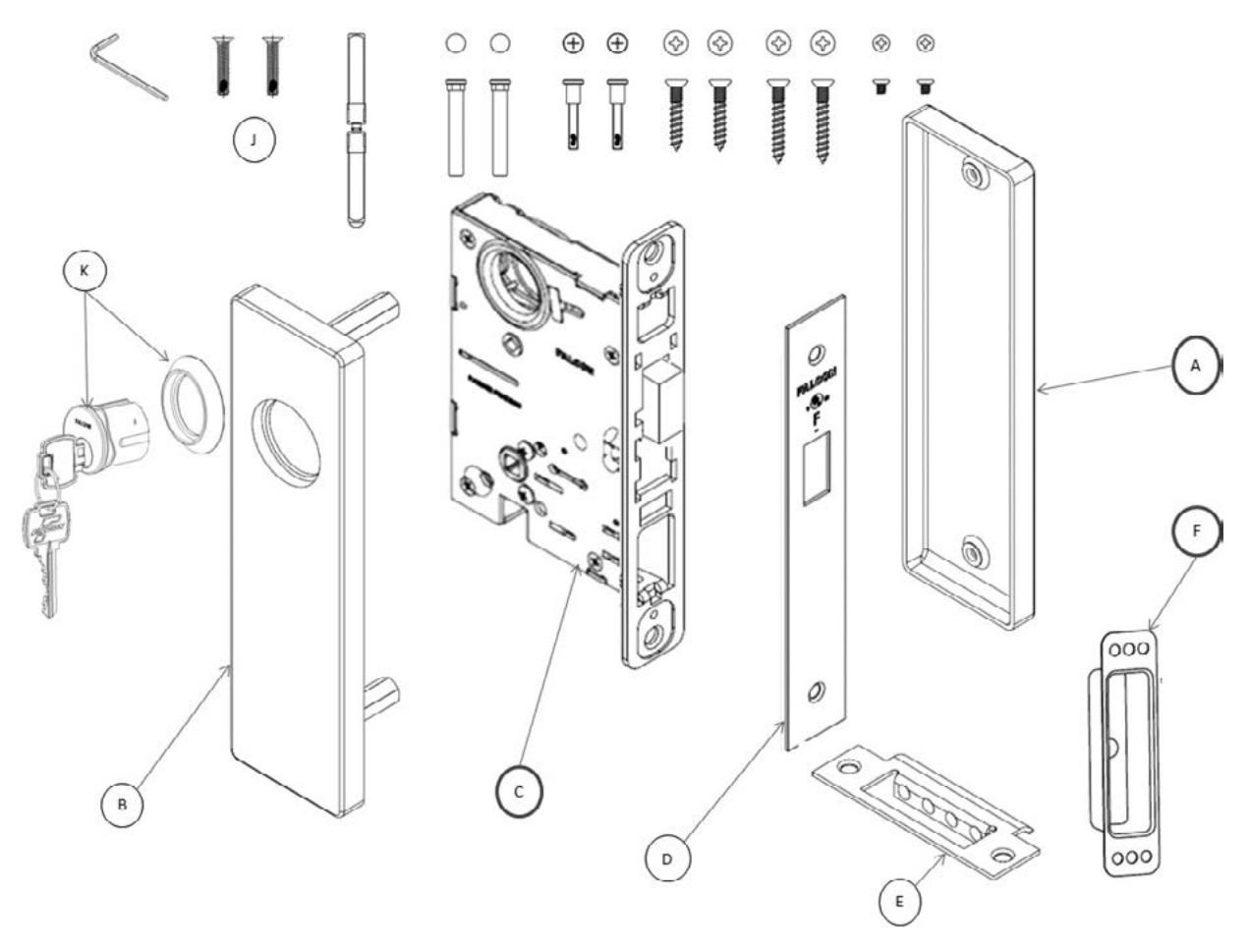

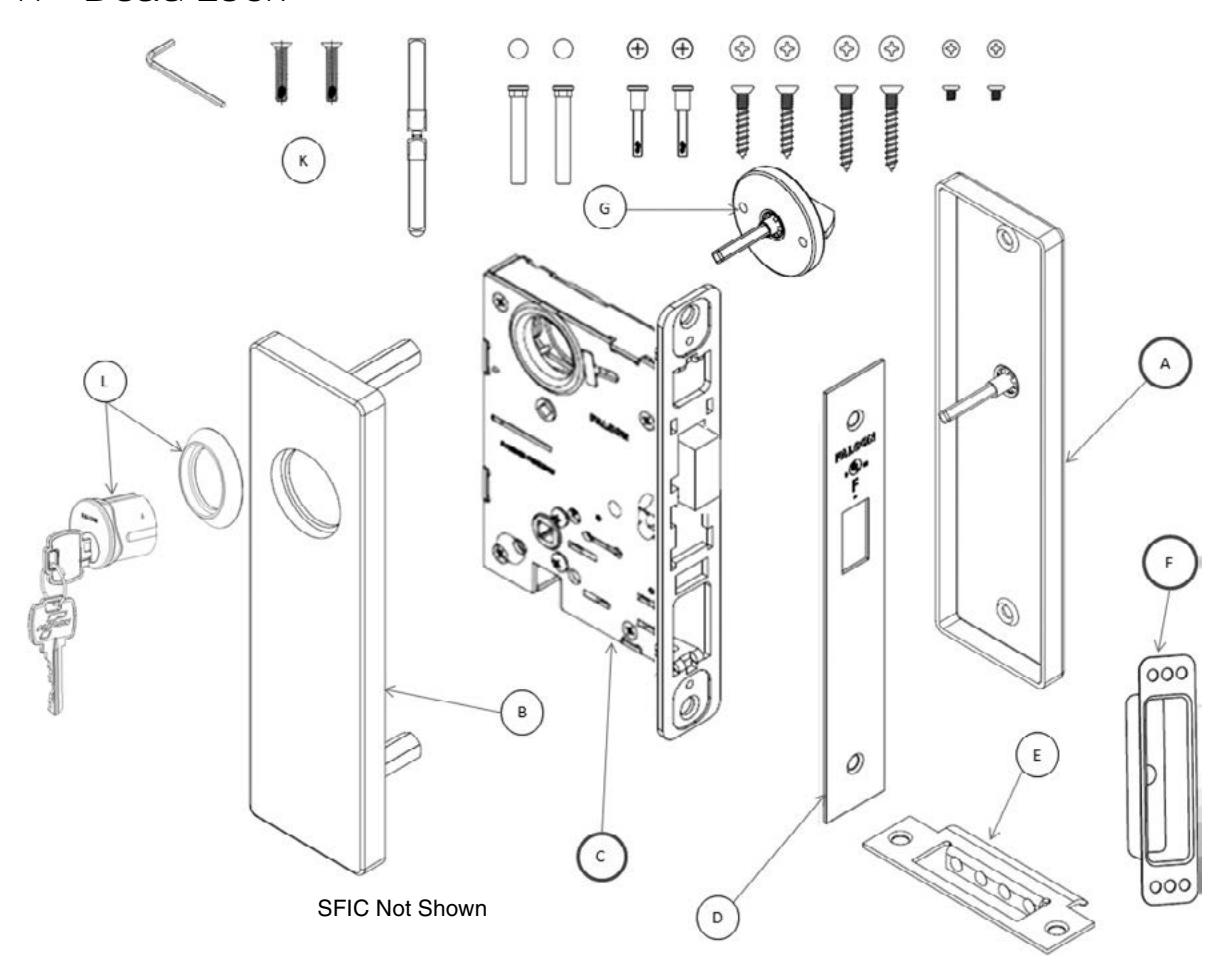

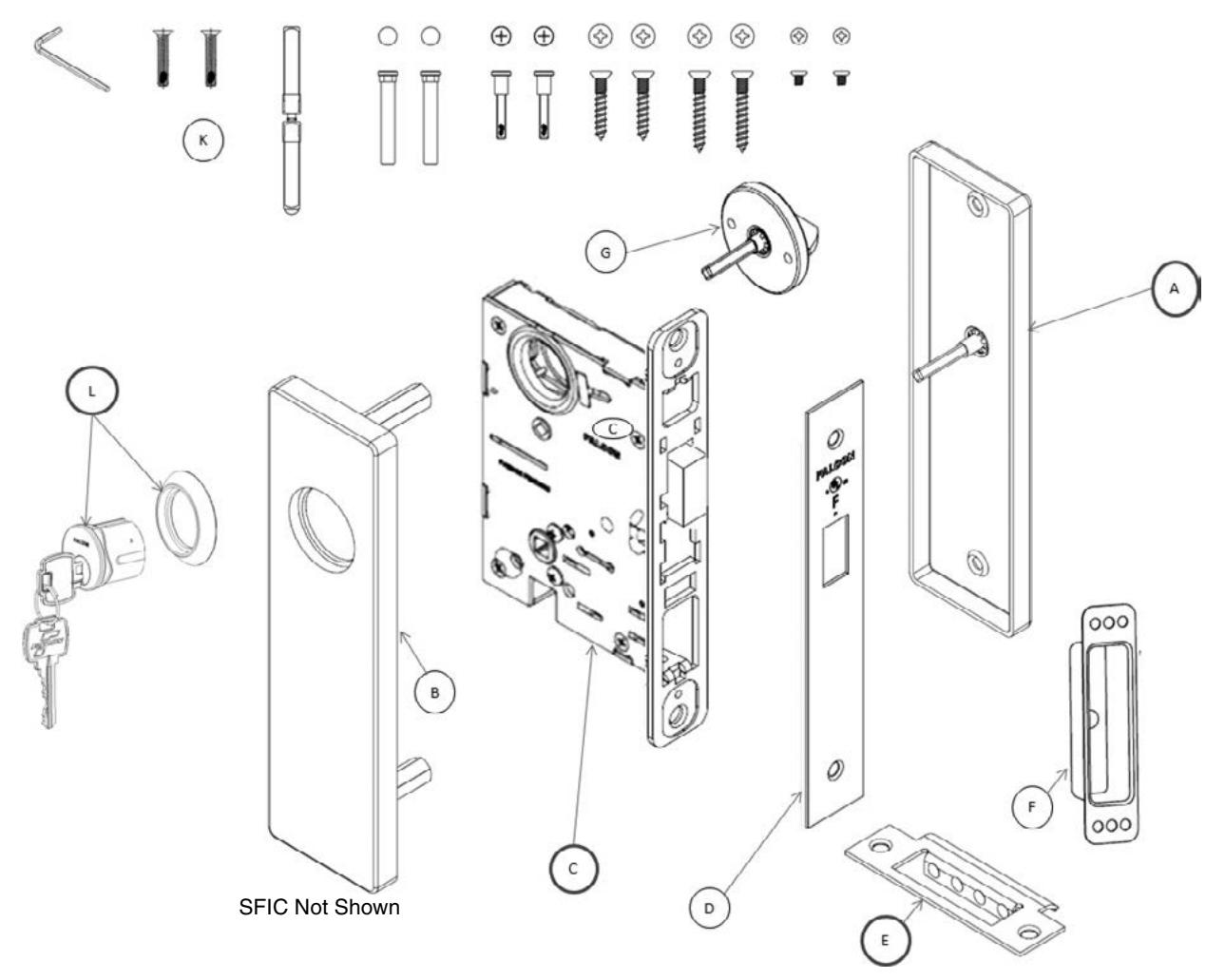

MA921 - Dead Lock
| Levers | Knobs | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Ltr. | Description | Sutro | Avalon | Quantum | Hana | ||||
| - | Inside trim | Knob/lever sectional | N/R | N/R | N/R | N/R | N/R | ||
| - | Knob/lever escutcheon | N/R | N/R | N/R | N/R | N/R | |||
| A | Escutcheon | E77012-IB | |||||||
| - | Outside trim | Knob/lever sectional | N/R | N/R | N/R | N/R | N/R | ||
| - | Knob/lever escutcheon | N/R | N/R | N/R | N/R | N/R | |||
| B | Escutcheon | AE77012-OK | |||||||
| C | Assy, lock unit | A7816 | |||||||
| D | Faceplate | S77816 | |||||||
| E | Strike assy | A8737-X | |||||||
| F | Strike box | PE1396 | |||||||
| J | Screw pack | See page 37 | |||||||
| K | Cylinder, conventional | Q005-064 | |||||||
| Cylinder, SFIC | Q005-065 | ||||||||

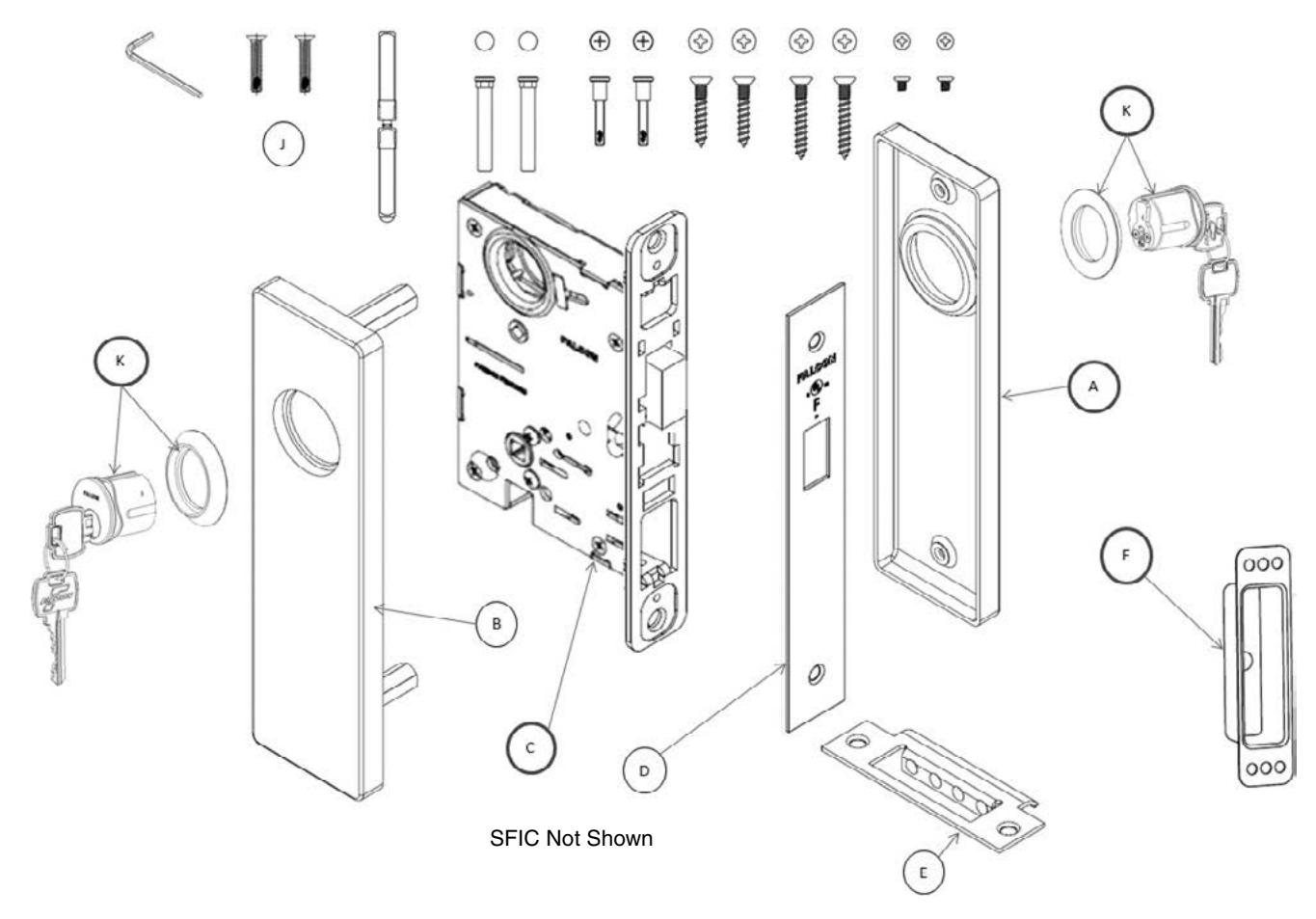

MA931 - Dead Lock
| Levers | Knobs | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Ltr. | Description | Dane | Sutro | Avalon | Quantum | Hana | |||
| - | Inside trim | Knob/lever sectional | N/R | N/R | N/R | N/R | N/R | ||
| - | Knob/lever escutcheon | N/R | N/R | N/R | N/R | N/R | |||
| A | Escutcheon | E77012-IK | |||||||
| - | Outside trim | Knob/lever sectional | N/R | N/R | N/R | N/R | N/R | ||
| - | Knob/lever escutcheon | N/R | N/R | N/R | N/R | N/R | |||
| B | Escutcheon | AE77012-OK | |||||||
| C | Assy, lock unit | A7816 | |||||||
| D | Faceplate | S77816 | |||||||
| E | Strike assy | A8737-X | |||||||
| F | Strike box | PE1396 | |||||||
| J | Screw pack | See page 37 | |||||||
| K | Cylinder, conventional (2 req'd) | Q005-064 | |||||||
| Cylinder, SFIC (2 req'd) | Q005-065 | ||||||||
Lock Assemblies
MA941 - Dead Lock
| Levers | Knobs | |||||||
|---|---|---|---|---|---|---|---|---|
| Ltr. | Description | Dane | Sutro | Avalon | Quantum | Hana | ||
| - | Inside trim | Knob/lever sectional | N/R | N/R | N/R | N/R | N/R | |
| - | Knob/lever escutcheon | N/R | N/R | N/R | N/R | N/R | ||
| A | Escutcheon | E77012-IK | ||||||
| - | Outside trim | Knob/lever sectional | N/R | N/R | N/R | N/R | N/R | |
| - | Knob/lever escutcheon | N/R | N/R | N/R | N/R | N/R | ||
| B | Escutcheon | AE77012-OK | ||||||
| C | Assy, lock unit | A7816 | ||||||
| D | Faceplate | S77816 | ||||||
| E | Strike assy | A8737-X | ||||||
| F | Strike box | PE1396 | ||||||
| J | Screw pack | See page 37 | ||||||
| K | Cylinder, conventional (2 req'd) | Q005-064 | ||||||
| Cylinder, SFIC (2 req'd) | Q005-065 | |||||||

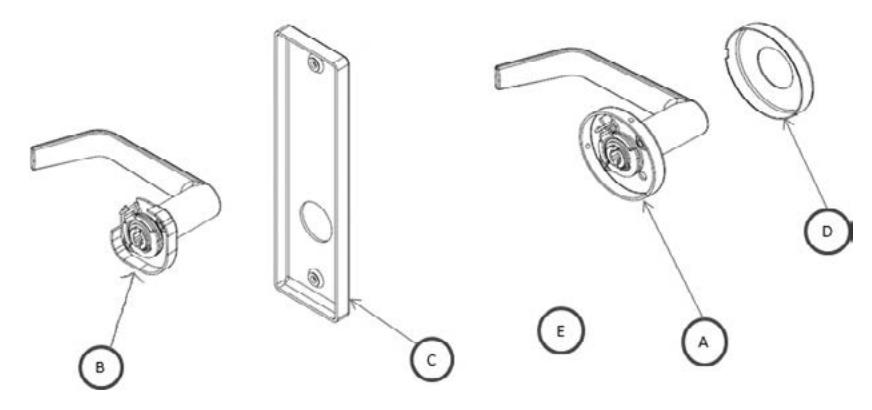

MA12 - Single Dummy
| Knobs/Levers on One Side Fixed | Levers | |||||||
|---|---|---|---|---|---|---|---|---|
| Ltr. | Description | Dane | Sutro | Avalon | Quantum | Hana | ||
| A | Trim | Knob/lever sectional | AS76280-D | AS76526-D | AS76029-D | AS76140-D | AS76100-D | |
| B | Knob/lever escutcheon | AE77280-D | AE77526-D | AE77029-D | AE77140-D | AE77100-D | ||
| C | Escutcheon | E77012-IP | ||||||
| D | Rose | S76012 | ||||||
| F | Screw pack | S76331 | ||||||
| Torx screw pack (optional) | E77308 | |||||||
| H | Band | S66915 | ||||||
Lock Assemblies

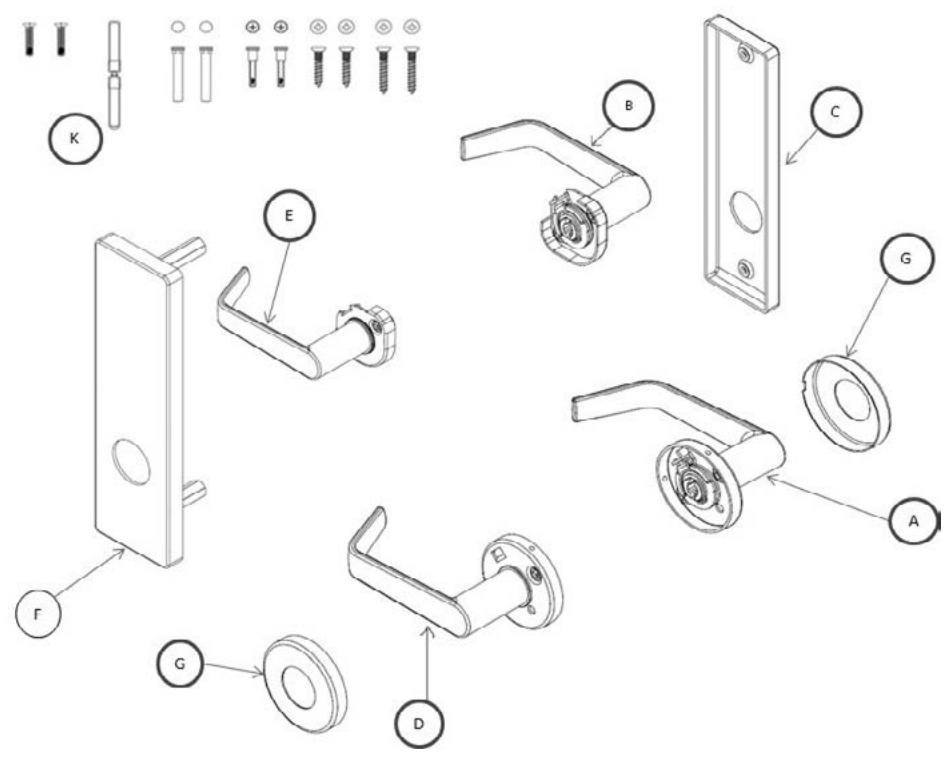

MA18 - Double Dummy
| Knobs/Levers on Both Sides Fixed | Levers | Knobs | |||||
|---|---|---|---|---|---|---|---|
| Ltr. | Description | Sutro | Avalon | Quantum | Hana | ||
| A | Inside trim | Knob/lever sectional | AS76280-D | AS76526-D | AS76029-D | AS76140-D | AS76100-D |
| B | Knob/lever escutcheon | AE77280-D | AE77526-D | AE77029-D | AE77140-D | AE77100-D | |
| C | Escutcheon | E77012-IP | |||||
| D | Outside trim | Knob/lever sectional | AS76280-D | AS76526-D | AS76029-D | AS76140-D | AS76100-D |
| E | Knob/lever escutcheon | AE77280-D | AE77526-D | AE77029-D | AE77140-D | AE77100-D | |
| F | Escutcheon | AE77012-0P | |||||
| G | Rose (2 req'd) | S76012 | |||||
| K | Screw pack | See page 37 | |||||
| L | Band | S66915 | |||||
Parts and Accessories
Knob and Lever Designs
Levers
Gala
Napa
Knobs
Screw Packs
| Part No. | Description | Use |
|---|---|---|
| S76300 | #8-32 x Z\v" L Machine Screw | 1C"-1M" door |
|
#12-12/ #12-24 x 1Z\x" L Wood/machine
Combination Screw |
thickness,
sectional trim with levers |
|
|
#12-12/ #12-24 x 1Z\v" L Wood/machine
Combination Screw |
||
| #8-32 x 1Z\v" L Mounting Screw | ||
| ø Z\v" x 1ZZ\zn" L Post | ||
| B\zn" x 1>\zn" L x 2 pcs STD Sindle Assembly | ||
| C\cx" Allen Wrench |
| Part No. | Description | Use |
|---|---|---|
| S76301 | #8-32 x Z\v" L Machine Screw | Over 1M"-2Z\x" |
|
#12-12/ #12-24 x 1Z\x" L Wood/machine
Combination Screw |
door thickness,
sectional trim with levers |
|
|
#12-12/ #12-24 x 1Z\v" L Wood/machine
Combination Screw |
||
| #8-32 x 1Z\x" L Mounting Screw | ||
| ø Z\v" x 2Z\v" L Post | ||
| B\zn" x 1M" L x 2 pcs EXT Sindle Assembly | ||
| C\cx" Allen Wrench |
| Part No. | Description | Use | |
|---|---|---|---|
| S76302 | #8-32 x 1/4" L Machine Screw | 13/8"-17/8" door | |
|
#12-12/ #12-24 x 1½" L Wood/machine
Combination Screw |
thickness,
sectional trim with knobs |
||
|
#12-12/ #12-24 x 11/4" L Wood/machine
Combination Screw |
|||
| #8-32 x 1¼" L Mounting Screw | |||
| ø ¼" x 1¹¹/₁6" L Post | |||
| 5/16" x 11/4" L x 2 pcs STD Sindle Assembly | |||
| 3/32" Allen Wrench | |||
| S76303 | #8-32 x ¼" L Machine Screw | Over 17/8"-21/2" | |
|
#12-12/ #12-24 x 1½" L Wood/machine
Combination Screw |
door thickness,
sectional trim with knobs |
||
|
#12-12/ #12-24 x 11/4" L Wood/machine
Combination Screw |
|||
| #8-32 x 1½" L Mounting Screw | |||
| ø ¼" x 2¼" L Post | |||
| 5/16" x 19/16" L x 2 pcs EXT Sindle Assembly | |||
| 3/32" Allen Wrench | |||
| S76306 | #8-32 x 1/4" L Torx Head Machine Screw | Torx screw | |
|
#12-12/ #12-24 x 1½" L Torx Head Wood/
machine Combination Screw |
pack, sectional
trim, no turn |
||
| S76307 | #8-32 x 1/4" L Torx Head Machine Screw | Torx screw | |
|
#12-12/ #12-24 x 1½" L Torx Head Wood/
machine Combination Screw |
pack, sectional trim, with turn | ||
| #6 x ½" Torx Head Sheet Metal Screw | |||
| S76331 | #8-32 x ¼" L Machine Screw |
Single Dummy
Screw Pack |
|
|
#12-12/ #12-24 x 1½" L Wood/machine
Combination Screw |
Screw Pack | ||
|
#12-12/ #12-24 x 11/4" L Wood/machine
Combination Screw |
|||
| #8-32 x 1¼" L Mounting Screw | |||
| 5/16" x 19/16" L STD Spindle | |||
| ø 0.027" Wire, OD; ø 5/16" x 1%" L Spring | |||
| 3/32" Allen Wrench | |||
| E77300 | #8-32 x 1/4" L Machine Screw |
1%"-1%" door
thickness, |
|
|
#12-12/ #12-24 x 11/2" Wood/machine
Combination Screw |
escutcheon
trim with levers |
||
|
#12-12/ #12-24 x 11/4" L Wood/machine
Combination Screw |
|||
| #8-32 x 11/4" L Mounting Screw | _ | ||
| Ø ¼" x 111/16" L Post | |||
| 5/16" x 19/16" L x 2 pcs STD Sindle Assembly | |||
| #10-24 x 1¼" Machine Screw | |||
| 3/32" Allen Wrench | |||
| E77301 | #8-32 x ¼" L Machine Screw |
Over 1%"-2½"
door thickness. |
|
|
#12-12/ #12-24 x 1½" L Wood/machine
Combination Screw |
escutcheon
trim with levers |
||
|
#12-12/ #12-24 x 11/4" L Wood/machine
Combination Screw |
|||
| #8-32 x 1½" L Mounting Screw | _ | ||
| ø ¼" x 2¼" L Post | _ | ||
| 5/16" x 17%" L x 2 pcs EXT Sindle Assembly | _ | ||
| #10-24 x 2" Machine Screw | _ | ||
| 3/32" Allen Wrench | |||
| Part No. | Description | Use | |
|---|---|---|---|
| E77302 | #8-32 x 1/4" L Machine Screw | 1%"-1%" door | |
|
#12-12/#12-24 x 1½" L Wood/machine
Combination Screw |
thickness,
escutcheon trim with knobs |
||
|
#12-12/#12-24 x 11/4" L Wood/machine
Combination Screw |
|||
| #8-32 x 11/4" L Mounting Screw | |||
| ø ¼" x 1¹¹/₁6" L Post | ] | ||
|
5/16" x 11/4" L x 2 pcs STD Knob Spindle
Assembly |
|||
| #10-24 x 11/4" L Machine Screw | |||
| 3/32" Allen Wrench | |||
| E77303 | #8-32 x 1/4" L Machine Screw | Over 17/8"-21/2" | |
|
#12-12/#12-24 x 1½" L Wood/machine
Combination Screw |
door thickness,
escutcheon trim with knobs |
||
|
#12-12/#12-24 x 11/4" L Wood/machine
Combination Screw |
|||
| #8-32 x 1½" L Trim Screw | |||
| ø ¼" x 1¹¹/₁6" L Post | |||
| 5/16" x 19/16" L x 2 pcs EXT Spindle Assembly | |||
| #10-24 x 2" L Machine Screw | |||
| 3/32" Allen Wrench | |||
| E77306 | #8-32 x 1/4" L Torx Head Machine Screw |
1%"-1%" Thick
Torx screw pack, escutcheon |
|
|
#12-12/#12-24 x 1½" L Torx Head Wood/
machine Combination Screw |
|||
| #10-24 x 11/4" L Torx Head, Machine Screw |
trim, standard
door thickness |
||
| E77307 | #8-32 x 1/4" L Torx Head Machine Screw | Over 17/8"-21/2" | |
|
#12-12/#12-24 x 1½" L Torx Head Wood/
machine Combination Screw |
Thick Torx
screw pack, escutcheon |
||
| #10-24 x 2" L Torx Head Machine Screw | trim, extended door thickness | ||
| E77308 | #8-32 x 1/4" L Torx Head Machine Screw | Torx screw | |
|
#12-12/#12-24 x 1½" L Torx Head Wood/
machine Screw |
pack, rose
escutcheon connection |
||
|
#10-24/#10 x 11/4" L Torx Head Wood/
machine Screw |
door | ||
| E77331 | #8-32 x 1/4" LMachine Screw | Screw pack, | |
|
#12-12/#12-24 x 1½" L Wood/machine
Combination Screw |
escutcheon
connecting door |
||
|
#12-12/#12-24 x 11/4" L Wood/machine
Combination Screw |
|||
| #8-32 x 11/4" L Mounting Screw | |||
| 5/16" x 19/16" L STD Spindle | ] | ||
|
#10-24/#10 x 11/4" L Wood/machine
Combination Screw |
|||
| ø 0.027 Wire, ø 5/16" O.D. x 13%" L Spring | ] | ||
| 3/32" Allen Wrench | |||
Non torx screw packs contain armor front screws, strike screws, trim screws, mortise screws, spindle, mounting posts
Torx screw packs contain armor front, strike, and trim screws only
Cams
Cams for Falcon cylinders
The Falcon MA Series requires a different cam for keyed functions than its predecessor, the Falcon M Series. For all keyed functions except the MA381 function, the MA Series uses a single cam for all standard mortise cylinders and a single cam for all interchangeable core mortise cylinders. The chart below lists the cam required.
| Door handing | Cam part number |
Outside
Inside |
For cylinder | |
|---|---|---|---|---|
| All | 5644-STD (F1) |
MA371, MA411, MA431, MA441, MA451, MA521, MA531, MA541,
MA551, MA561, MA571, MA581, MA621, MA641, MA851, MA881, MA911, MA921, MA931, MA941 |
MA371, MA411, MA431,
MA441, MA931 |
Standard |
| All | 5622-IC (F2) |
MA371, MA411, MA431, MA441, MA451, MA521, MA531, MA541,
MA551, MA561, MA571, MA581, MA621, MA641, MA851, MA881, MA911, MA921, MA931, MA941 |
MA371, MA411, MA431,
MA441, MA931 |
Interchangeable
core |
The new Falcon MA Series MA381 function uses unique cams to operate the lock. Different cams are required, depending on the handing of the lock. The charts on the next page indicate which cams are to be used for each configuration.
Cams for Schlage cylinders
The Schlage Classic cylinders (C, E, and CE keyways) will also operate the Falcon MA Series locks using the 5622-STD cam.
5622-STD 5622-IC

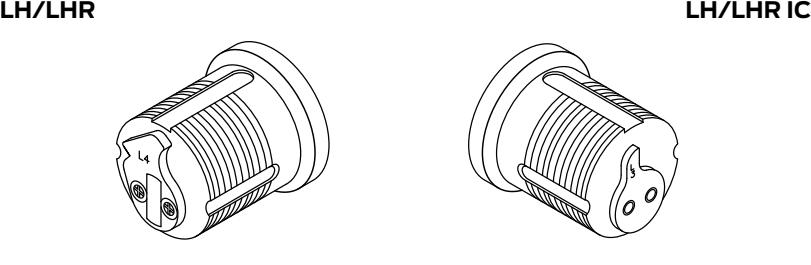

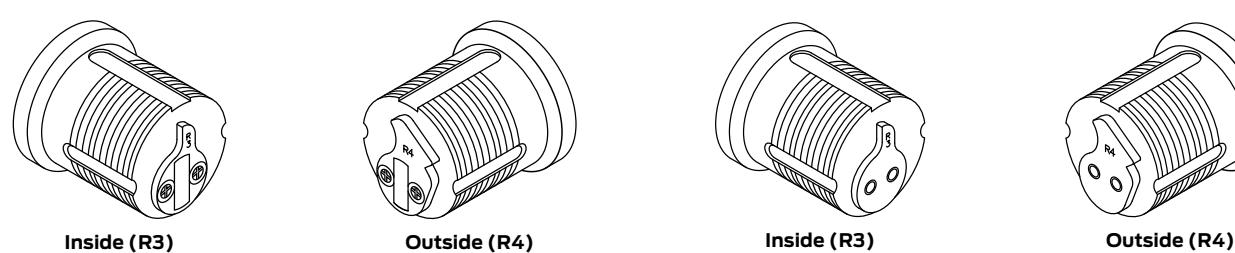

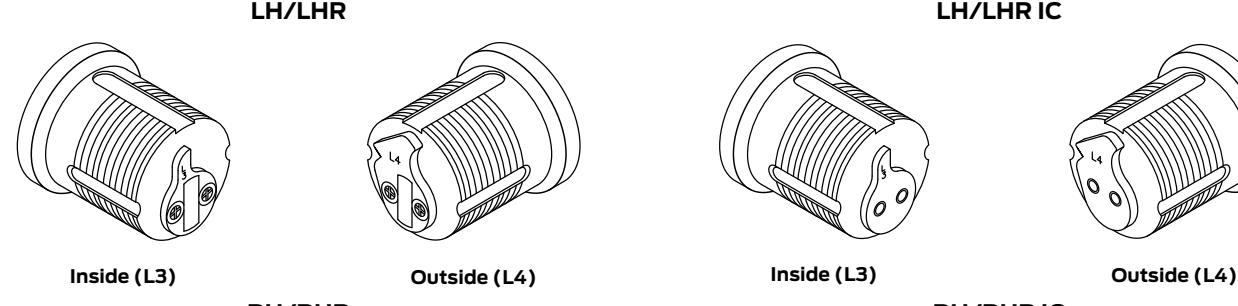

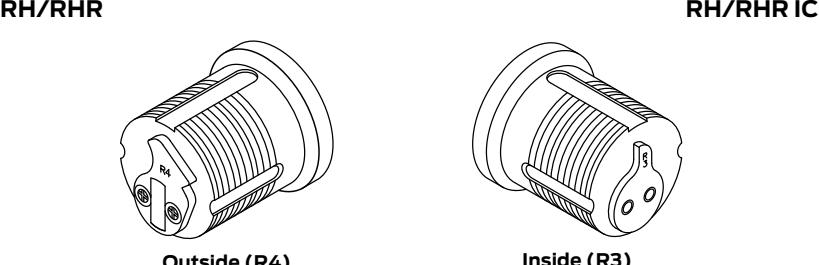

| Falcon MA381 cylinder cam configuration chart | |||||
|---|---|---|---|---|---|
|
Door hand
inside cyl. cam Outisde cyl. cam |
|||||
|
RH/RHR
5620-STD (R3) 5621-STD (R4) |
|||||
| LH/LHR | 5620-STD (L3) | 5621-STD (L4) | |||
|
Falcon MA381 cylinder cam configuration chart
(interchangeable core) |
||||||
|---|---|---|---|---|---|---|
|
Door hand
inside cyl. cam Outisde cyl. cam |
||||||
| RH/RHR |
5620-IC (R3)
5621-IC (R4) |
|||||
|
LH/LHR
5620-IC (L3) 5621-IC (L4) |
||||||
Complete cylinders can also be ordered for the MA381 function that will include the correct cam (the door hand must be specified when ordering cylinders for the MA381).
Mortise, rim and cam lock for standard cylinders
Mortise Cylinder
900 Series Cylinders are furnished with #4 straight cam and 250 Series with #1 cloverleaf cam unless otherwise specified.
See table for product numbers.
See page page 39 for optional cams and page 42 for collars.
Note: Specify finish: 605, 606, 612, 613, 626, 629, 630

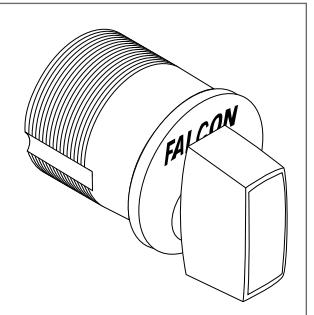

Thumbturn Cylinder
Furnished with #4 straight cam except 970 Series furnished with #1 cloverleaf cam unless otherwise specified.
See table for product numbers.
See page page 39 for optional cams and page 42 for collars.
Note: Specify finish: 605, 606, 612, 613, 626, 629, 630
Dummy Cylinder
Used to plug hole in door where lock remains but cylinder operation is no longer needed.
984 1" 985 1Z\,"
Note: Specify finish: 605, 606, 612, 613, 626, 629, 630
Keyed Mortise Cylinders Catalog no. Length Pins Application 985 1Z\," 5 or 6 Generic 986 1Z\v" 5 or 6 Generic 987 1C\," 6 or 7 Generic 988 1Z\x" 6 or 7 Generic 990 1C\v" 6 or 7 Generic 992 2" 6 or 7 Generic 250 1Z\," 6 M451 hotel function 251 1Z\v" 6 M451 hotel function 252 1C\," 6 M451 hotel function 253 1C\," 7 M451 hotel function
| Thumbturn Mortise Cylinders | ||||||
|---|---|---|---|---|---|---|
| Catalog no. | Length | Pins | Application | |||
| 985T | 1Z" | - | Generic | |||
| 986T | 1Z\v" | - | Generic | |||
| 973 | 1Z" | - |
M911 Classroom Thumbturn,
RH (CCW) |
|||
| 974 | 1Z" | - |
M911 Classroom thumbturn,
LH (CW) |
|||
Specify cylinder number, keyway, and finish when ordering.
Strikes
| Strike | Lip Length (x) | Lip |
|---|---|---|
| A8737-1 | 1Z\v" | Curved Lip |
| A8737-2 | 1M\zn" | Curved Lip |
| A8737-3 | 1>\zn" | Curved Lip |
| A8737-4 | 1ZZ\zn" | Curved Lip |
| A8737-5 | M" | Straight Lip |

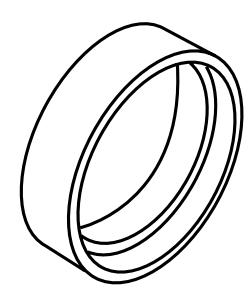

Cylinder collars
Standard collars for cylinders ordered separately
| Length | Cylinder | Non-AR Cams | AR Cam |
|---|---|---|---|
| 1" | 984D | A08794-000 | - |
| 1Z" | 250, 965, 966, 973, 974, 985 Series | A08794-000 | 008876-002 |
| 1Z\v" | 251, 986 Series | A08794-001 | 008876-003 |
| 1C" | 252, 253, 987, C987, C997 | A08794-002 | 008876-004 |
| Longer | C260 Series, (C)988, (C)990, (C)992 | A08794-000 | 008876-000 |
Escutcheon Trim Rings
|
Door
Function Thickness |
985
1Z" |
986
1Z\v" |
(C) 987
1C" |
(C) 988
1Z\x" |
||
|---|---|---|---|---|---|---|
| 1Z\x" | Single cylinder | - | A08790-000 | A08790-001 | A08790-002 | |
| 1Z\x" | Double cylinder | A08790-000 | - | - | - | |
| 1C\v" | Single cylinder | - | - | A08790-000 | A08790-001 | |
| 1C\v" | Double cylinder | - | A08790-000 | A08790-001 | A08790-002 | |
| 2" | Single cylinder | - | - | A08790-000 | A08790-001 | |
| 2" | Double cylinder | - | - | A08790-000 | A08790-001 | |
| 2Z\v" | Single cylinder | - | - | - | A08790-000 | |
| 2Z\v" | Double cylinder | - | - | - | - | |
| 2Z\x" | Single cylinder | - | - | - | - | |
| 2Z\x" | Double cylinder | - | - | - | - | |
Sectional Trim Rings
|
Door
Thickness |
Function |
985
1Z" |
986
(C) 987 1Z\v" 1C" |
(C) 988
1Z\x" |
|
|---|---|---|---|---|---|
| 1Z\x" | Single cylinder | A08794-001 | A08794-002 | - | - |
| 1Z\x" | Double cylinder | A08794-002 | A08794-003 | - | - |
| 1C\v" | Single cylinder | A08794-000 | A08794-001 | - | - |
| 1C\v" | Double cylinder | A08794-001 | A08794-002 | A08794-002 | - |
| 2" | Single cylinder | - | A08794-000 | A08794-001 | A08794-002 |
| 2" | Double cylinder | A08794-000 | A08794-001 | A08794-002 | A08794-003 |
| 2Z\v" | Single cylinder | - | - | A08794-000 | A08794-001 |
| 2Z\v" | Double cylinder | - | A08794-000 | A08794-001 | A08794-002 |
| 2Z\x" | Single cylinder | - | - | - | A08794-000 |
| 2Z\x" | Double cylinder | - | - | A08794-000 | A08794-001 |
Specify part number and finish when ordering. (e.g. A08790-000-626)
Parts and Accessories
Trim Rings & Collars
Dim. A Dim. B Part No. C\cx" >\cx" A08790-000 M\cx" 1C\cx" A08790-001 ZZ\cx" 1M\cx" A08790-002 ZB\cx" XZ\cx" A08790-003 VC\nv" BB\nv" A08790-004 C\cx" >\cx" A08794-000 M\cx" 1C\cx" A08794-001 ZZ\cx" 1M\cx" A08794-002 ZB\cx" XZ\cx" A08794-003 Z\," - 008876-000 C\zn" - 008876-005 Z\v" - 008876-001 C\," - 008876-002 Z\x" - 008876-003 B\," - 008876-004
Wave washer included. To order separately, specify 008789-001-60.
Blocking Rings
Specify part number and finish when ordering. (e.g. A08790-000-626)
Ordering Procedures
For correct ordering, and to ensure no delays in shipment of your order, the following descriptive data must be listed in the sequence shown. Necessary information can be found in other parts of this manual. The example below shows an order for 16 each MA locksets in the 521 Entry function, DG (Dane-Gala) trim design in a 626 (satin chrome) finish, 8 RH (right hand) and 8 LH (left hand) to accommodate doors 1C\v" thick with AA1-AA16 keying.
Quantity: Indicate the quantity required.
Catalog Number: Select catalog number.
Trim Design: Indicate letter of knob or lever design followed by letter of rose or escutcheon design.
Example: DG-D for Dane lever followed by G for Gala rose.
Finish: When the finish is the same for the outside and inside trim, it is shown once (626). For split finishes, the outside is designated first, then the inside (626 x 625).
Latch: Two-piece mechanical anti-friction standard. All catalog numbers shown in this manual indicated 2C\v" backset.
Strike: 4M\," x 1Z\v" x 1Z\v" lip-to-center with curved lip standard. Optional strikes with shorter or longer lip lengths available.
Cylinder Type: For 6-Pin, add 6-Pin. For 7-Pin, add 7-Pin.
Door Hand: See chart.
Keying Detail: We suggest using the standard terms developed by the A.H.C. (Consult Factory).
Example: AA1 - Grand Master keyed, Master keyed, change key 1.
Interchangeable Core: To order product capable of accepting an interchangeable core, add "B" less SFIC (for interchangeable core). To order product with an interchangeable core, add "SFIC" (with interchangeable core). Ex: "G" with Falcon SFIC core.
Keyway: "G" is standard on regular cylinders, "A" is standard on interchangeable cores. Other keyways available. See price book.
Additional Keys: Note the total number of keys required.
Large Bow Keys: Add - "with large bow keys".
Example
| Qty. | Catalog | Trim | Finish | Latch | Strike | Cylinder | Door Hand | Detail | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Number | Design | RH | LH | RHR | LHR | ||||||
| 8 | MA521P | DG | 626 | STD | STD | 6-PIN | X | AA1-AA8 1C\v" DR | |||
| 8 | MA521P | DG | 626 | STD | STD | 6-PIN | X | AA9-AA16 1C\v" DR | |||
Finishes
Falcon offers several finish choices to compliment the design elements of most any project. Falcon applies the best available protective plating or coating to the surface of our products to minimize the exposure to weather, pollution, perspiration, extremes of climate, frequency of us and other factors. Please consult with us if your building is subjected to chemical or corrosive conditions, as some finishes would not be recommended for these areas. Falcon recommends chrome plated or stainless steel finishes for high corrosive environments.
Trim Finishes
| Description | ANSI No. | Available on | |
|---|---|---|---|
| Bright Brass | 605 | US 3 | All trim |
| Satin Brass | 606 | US 4 | All trim |
| Satin Bronze Oil Rubbed | 613 | US 10B | All trim |
| Bright Chrome | 625 | US 26 | All trim |
| Satin Chrome | 626 | US 26D | All trim |
| Satin Stainless Steel | 630 | US 32D | All trim |
Door Handing
About Allegion
Allegion (NYSE: ALLE) creates peace of mind by pioneering safety and security. As a $2 billion provider of security solutions for homes and businesses, Allegion employs more than 7,800 people and sells products in more than 120 countries across the world. Allegion comprises 23 global brands, including strategic brands CISA®, Interflex®, LCN®, Schlage® and Von Duprin®.
For more, visit www.allegion.com .
