M Series Service Manual

Extra Heavy Duty, Grade 1 Mortise Lever and Knob Locks

M-Series Service Manual

Table of Contents

Introduction 1-2
Functions 3-5
Replacement Parts for Early LM Series Lever
Trim 6
Trim Assemblies 7-11
Falcon LM Series Mortise Trim 7
Falcon L-900 Series Mortise Trim 8
Falcon MM Series Mortise Trim 9
M Series Lever Trim Springs 10
LM12 Single Dummy Trim 11
Lock Case Assemblies 12-28
M101 Passage Latchset 12
M161 Connecting Room/Exit Latch 13
M301 Privacy Lock 14
M311 Privacy Lock 15
M321 Privacy Lock 16
M371/M541
Store Door Lock/Entry/Offi ce Lock 17
M381/M441/M561 Entry/Restroom Lock/
Classroom Security/Classroom Lock 18
M411 Asylum Lock 19
M431/M571 Classroom Security and Deadbolt/
Dormitory Lock 20
M451/M641/M711 Hotel/Motel Lock/Dormitory Lock/Privacy Lock
w/ Cylinder 21
M521 Entry/Offi ce Lock 22
M531 Apartment Lock 23
M581 Storeroom/Exit Lock 24
M621 Front Door Lock 25
M851 26
M881 27
M911/921/931/941 Deadbolt 28
Lock Functions and Accessories 29-34
Mortise Locking Units 29
Electrifi ed Mortise Chassis - Maxim w/

030173-004 Screws	30
Levers	31

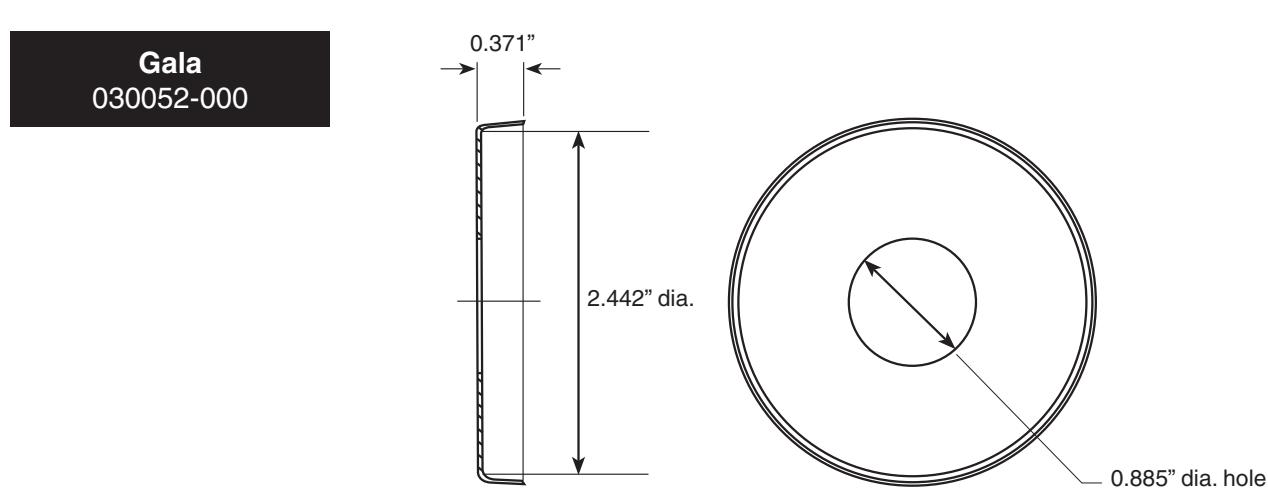

Roses	31

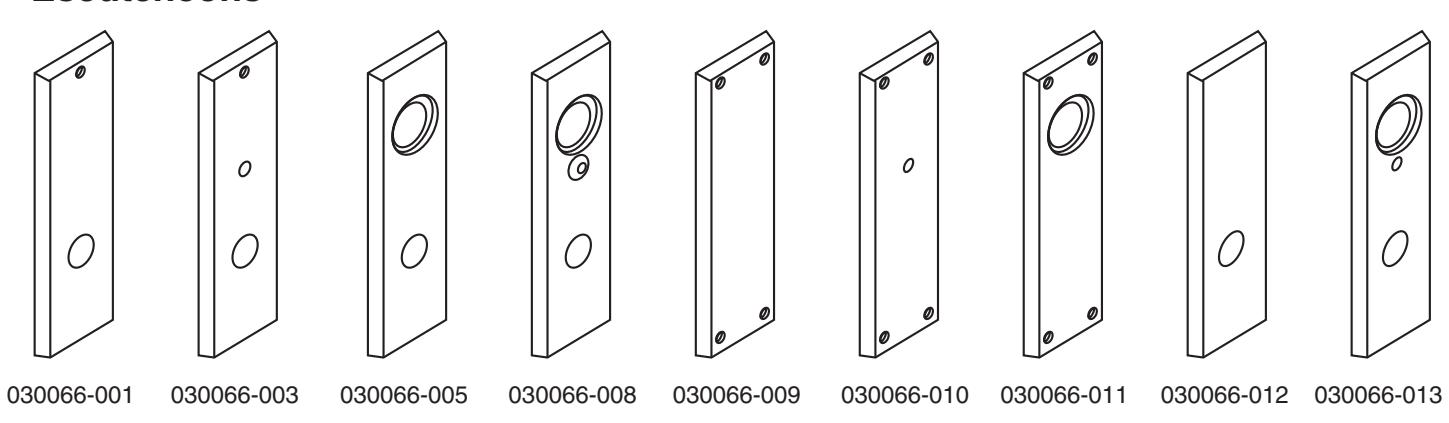

Escutcheons	32

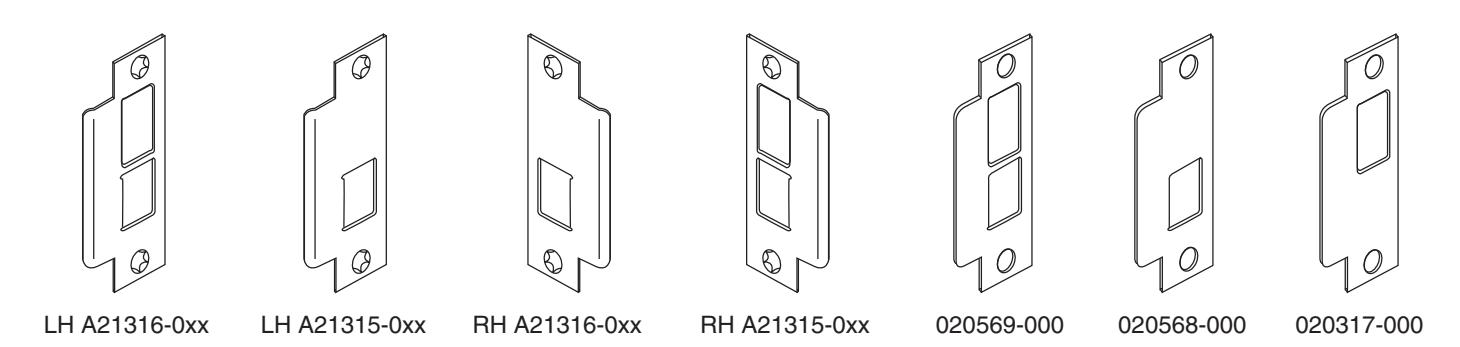

Strikes	33
Armored Fronts/Faceplates/Sclops	34
Mortise Cylinders	35-39
Mortise, Rim and Cam Lock	35
Cams	36-37
Cylinder Collars	38-39
Instructions	40-42

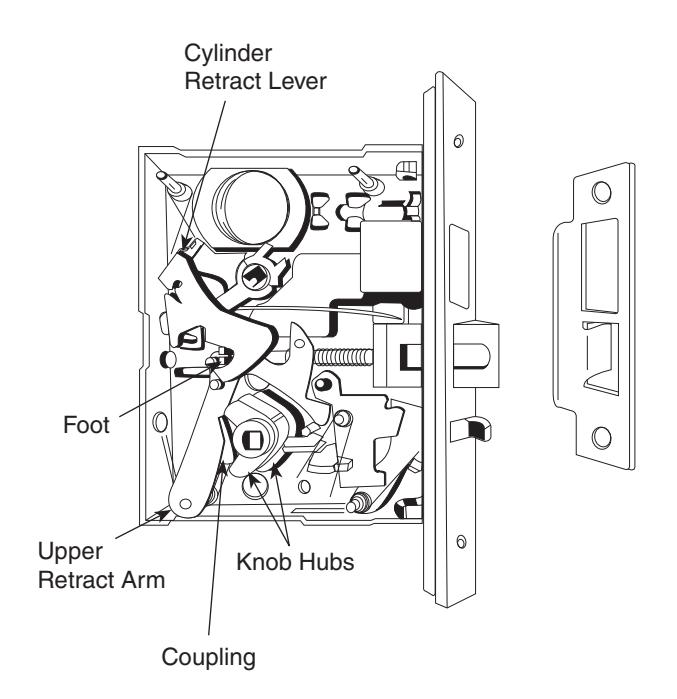

Reversing Hand of Locks	40

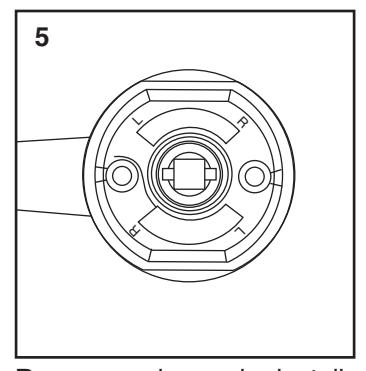

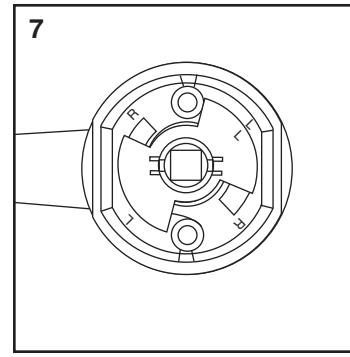

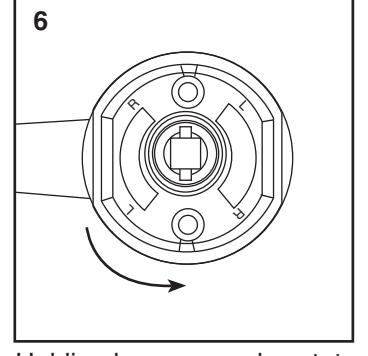

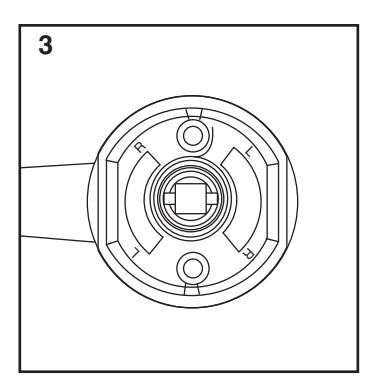

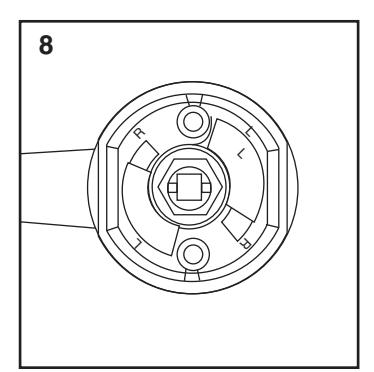

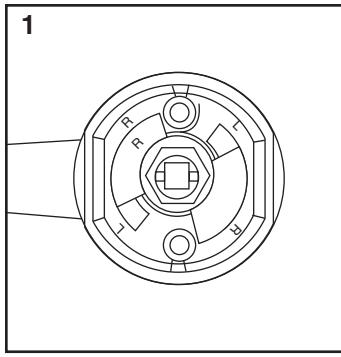

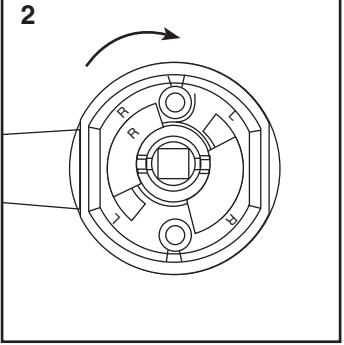

Re-Handing Instructions for Lock Trim	41

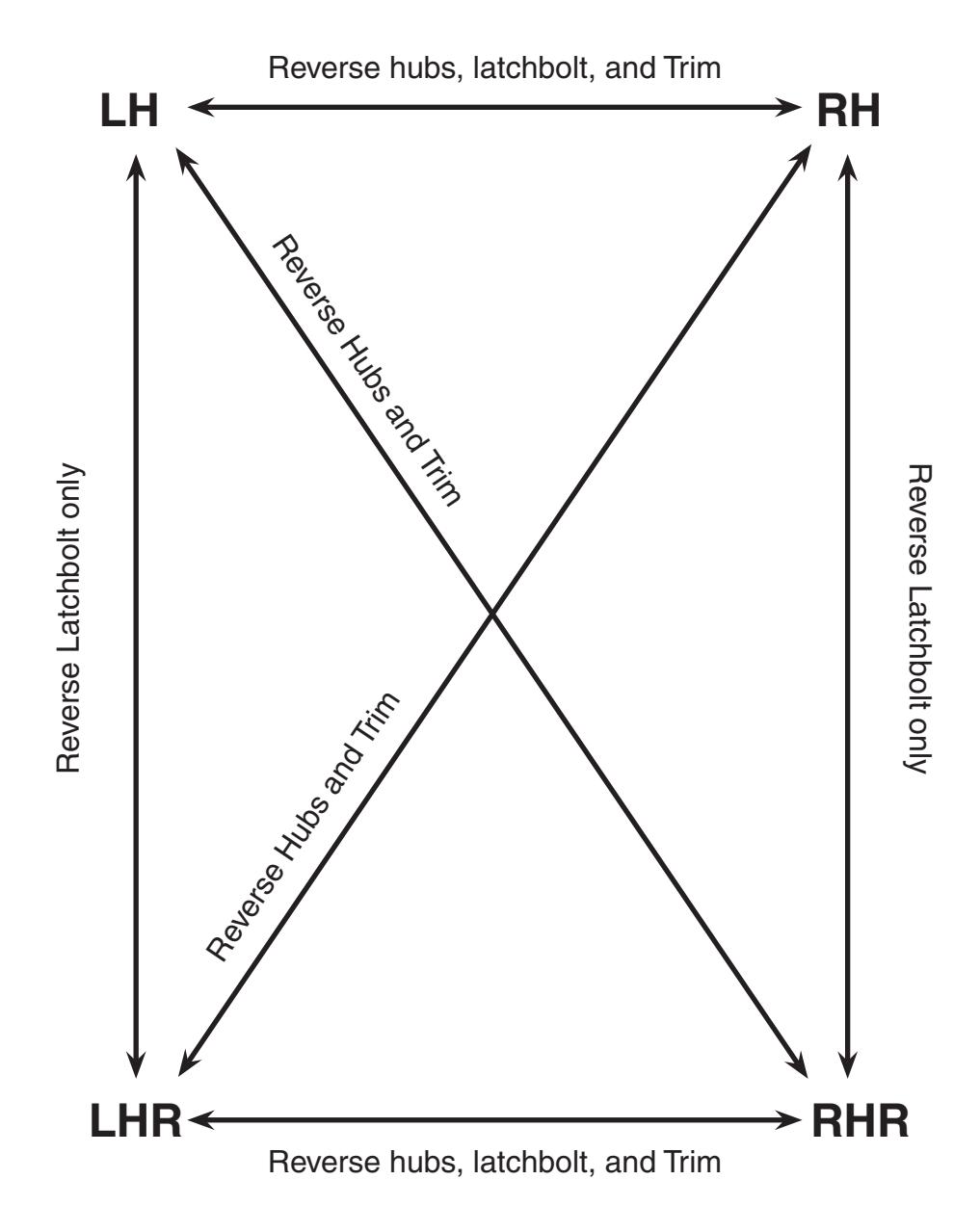

Lock Re-Handing Guide	42

i

Introduction

This manual contains a complete listing of parts and assemblies for M-Series mortise locks manufactured by Falcon Lock Company. This edition lists components of M-Series locks manufactured after June, 2001. All lock case covers are labeled with dates to identify year of manufacture. Example: 12507 = the 125th day of 2007.

Exploded views of each lock function and trim assembly are provided with accompanying charts to identify parts for replacement purposes. Exploded views of trim are shown with parts for standard size doors. In addition, this manual provides lock trim ordering procedures, cylinder length charts by door range, and all auxiliary components of the M-Series mortise locks.

Standard Features*

Certifi cations	ANSI A156 .13, Series 1000, Grade 1 Operation, Grade 2 security, UL Listed for 3-hour fi re door.
Latch	2-piece brass mechanical anti-friction bolt, ³⁄₄" projection.
Strike	1¹⁄₄" x 4⁷⁄₈", ANSI, Square corner, no box.
Cylinder	6-Pin solid brass, keyed 5-pin, Falcon G keyway, keyed different (KD)
Door Range	1³⁄₄" – 2¹⁄₄" standard
Keys	Two, nickel silver cut keys per lock, Falcon G keyway

^* Locks are furnished with standard features unless otherwise specifi ed.

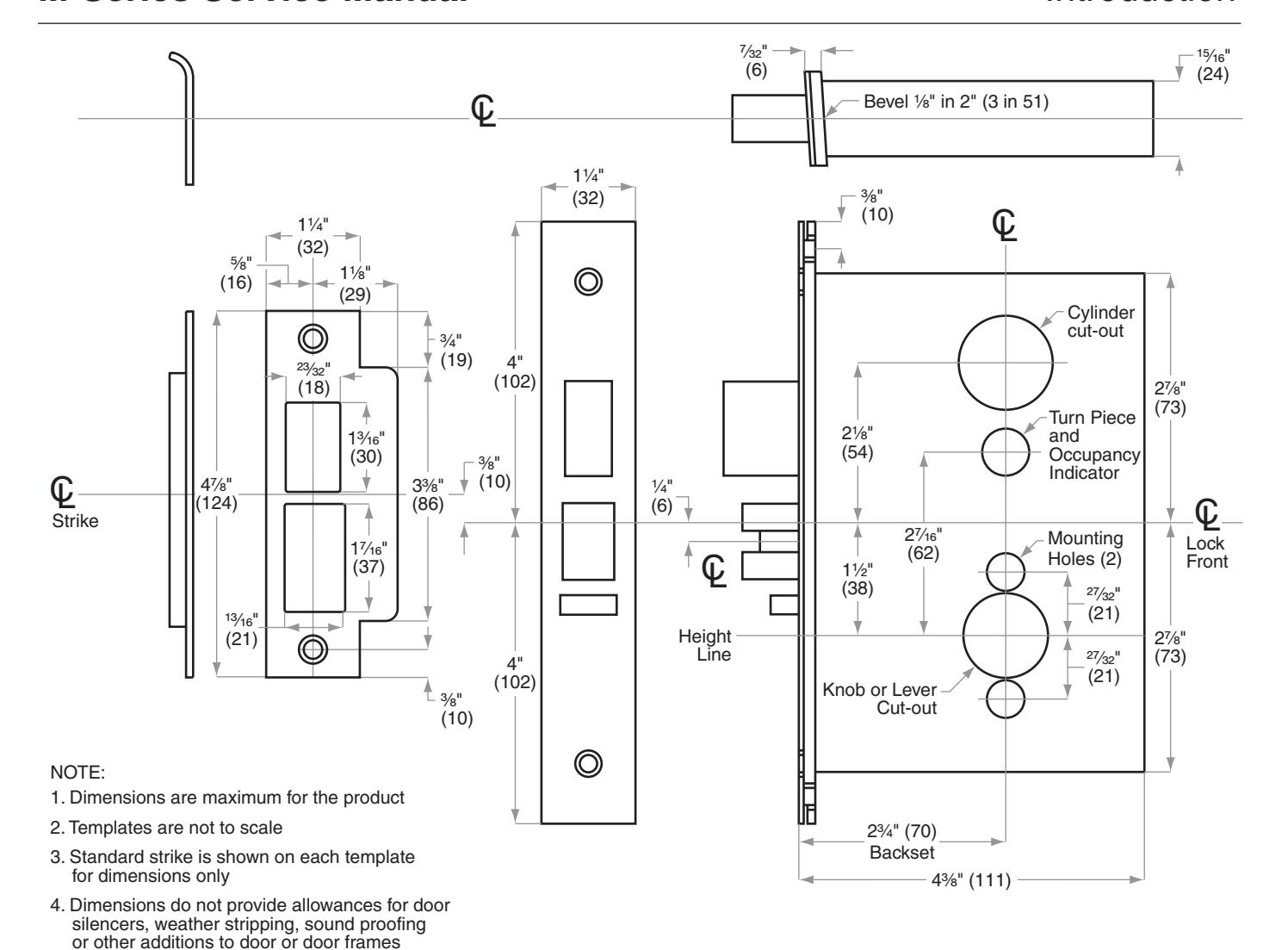

Lock Assembly Drawing Index

The Lock Assembly Drawing Index provides visual representations and textual descriptions of available functions. Page numbers for full trim and chassis drawings are referenced.

ANSI Standards: M-Series locks meet all requirements for installations in doors and frames prepared in accordance with

ANSI specifications A156.13, 2005

Metal Doors: Suitable reinforcement is required to support lock case in center of door and to prevent door from compressing

when trim is tightened. (See ANSI A115.1)

Thick Doors: Locks for non-standard door thickness may require special instructions

Lead Lining: When M-Series locks are ordered with lead lining, add 1/8" (3) to the width of the mortise cut-out on the lock case cover side of

installation

Electrified Locks: Provisions must be made to route low voltage wire to the lock. Attach wires to the 6" (152) pigtail of the solenoid.

Power transfer unit and low voltage wiring are not furnished

Functions

To order Falcon M Series locksets, please consult page 19 for ordering information and assistance.

Indicates interchangeable core available.

Catalog Number Prefi xes: Add the following prefi x for the appropriate trim style.

MM (example: MM521) = Knob Trim LM (example: LM521) = Lever Trim

Note: If a special function is required and not listed here, please contact the factory for assistance.

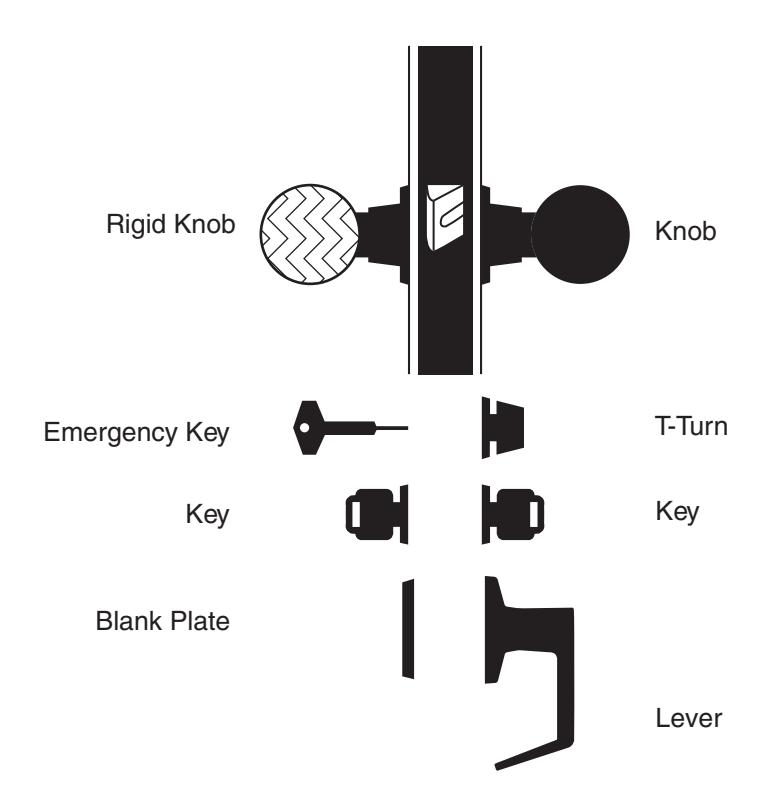

Function				ANSI A156.13, 2005		Page
SCHLAGE	ANSI	DESCRIPTION	OUTSIDE FUNCTION		INSIDE FUNCTION
M101	F01-1 F01-2	Passage/Closet Latchset	Latch bolt by levers at all times.		Latch bolt by levers at all times.	11
M161	-	Connecting Room/Exit Latch	Non-removable blank plate.		Deadlocking latch bolt by inside knob/lever.	12
M301	F02-1 F02-2	Privacy Lock	Latch bolt by knobs/levers, emergency key (012727- 000-30).		Latch bolt by knobs/levers. Deadbolt by turn.	13
M311	F19-1 F19-2	Privacy, Bedroom or Bath Lock	Latch bolt by knobs/levers. Deadbolt by emergency key (012727-000-30).		Latch bolt by knobs/levers. Deadbolt by turn. Rotating inside knob/lever retracts both bolts.	14
M321	F22-1 F22-2	Privacy Lock	Latch bolt operated by knob/ lever from either side except when outside knob/lever is locked by inside T-turn. Emergency key (012727- 000-30) furnished with lock.		Operating inside knob/lever, closing door or operating outside emergency release unlocks outside knob/lever.	15
M371	F14-1 F14-2	Store Door Lock	Latch bolt by knobs/levers. Deadbolt by key from either side.		Latch bolt by knobs/levers. Deadbolt by key from either side.	16
M381	F09-1 F09-2	Entry/Restroom Lock	Deadlocking latch bolt by knobs/levers except when outside knob/lever is locked by key inside, then by key outside.		-	17
M411	-	Asylum Lock	Deadlocking latch bolt by key from either side. Both knobs/levers rigid.		Deadlocking latch bolt by key from either side. Both knobs/levers rigid.	18
M431	-	Classroom Security Lock with Deadbolt	Retracted by knob/lever from either side, except when outside lever is locked; latch bolt then retracted by key outside.		Retracted by knob/lever from either side, except when outside lever is locked; latch bolt then retracted by rotating lever inside. Deadbolt thrown or retracted by key only.	19

Functi	on		ANSI A15	6.13, 2005			Page
SCHLAGE	ANSI	DESCRIPTION	OUTSIDE FUNCTION			INSIDE FUNCTION
M441	-	Classroom Security Lock	Deadlocking latch bolt by levers from either side except when outer lever is locked by key from either side. Outer lever is unlocked by key from either side.		8	Deadlocking latch bolt by levers from either side except when outer lever is locked by key from either side. Inside lever is always free.	17
M451	F15-1 F15-2	Hotel/Guest Lock	Deadlocking latch bolt by key. Outside knob/ lever rigid. Deadbolt by emergency key outside. Projecting deadbolt displays occupancy indicator and shuts out all keys except emergency.		8	Deadlocking latch bolt by inside knob/ lever. Deadbolt by turn. Rotating inside knob/ lever retracts both bolts. Must use button to unlock outside.	20
M521	F04-1 F04-2	Entry/Office Lock	Deadlocking latch bolt by knobs/levers except when outside knob/lever is locked by buttons in face, then by key outside.		8	Deadlocking latch bolt by knobs/levers except when outside knob/lever is locked by buttons in face, then by key outside. Must use button to unlock outside.	21
M531	F10-1 F10-2 F12-1 F12-2 F20-1	Apartment	Latch bolt by knobs/levers except when outside knob/lever is made inoperative by buttons in face. Deadbolt by key outside. Deadlocking latch.		8	Deadbolt by turn. Rotating inside knob/ lever retracts both bolts.	22
M541	F21-1 F21-2	Entry/Office Lock	Latch bolt by knobs/ levers. Deadbolt by key.		8	Latch bolt by knobs/ levers. Deadbolt by turn.	16
M561	F05-1 F05-2	Classroom Lock	Deadlocking latch bolt by knobs/levers. Outside knob/lever locked by key outside.		8	Deadlocking latch bolt by knobs/levers. Inside knob/lever always free.	17
M571	F13-1 F13-2	Dormitory Lock	Latch bolt by knobs/levers except when knob/lever is locked by projecting deadbolt. Key retracts deadbolt and unlcoks knob/lever.		8	Latch bolt by knobs/ levers except when knob/lever is locked by projecting deadbolt. Rotating knob/lever retracts both bolts.	19
M581	F07-1	Storeroom Lock	Deadlocking latch bolt by key. Outside knob/lever always rigid.		8	Deadlocking latch bolt by knob/lever.	23
M621	F08	Entry Lock	Latch bolt is operated by knob/lever from either side except when outside knob/lever is made inoperative by a stop or mechanical means other than key. Key outside operates both bolts.		8	Deadbolt is operated by turn. Must use button to unlock outside.	24

M-Series Service Manual

Function				ANSI A156.13, 2005		Page
SCHLAGE	ANSI	DESCRIPTION	OUTSIDE FUNCTION		INSIDE FUNCTION
M641	-	Dormitory Lock	Latch bolt by key. Outside knob/lever rigid. Deadbolt by key. Deadlocking latch.		Latch bolt by knob/ lever. Inside knob/ lever free. Deadbolt by T-turn. Rotating knob/ lever retracts both bolts. Deadlocking latch.	20
M711	-	Privacy Lock (Special)	Latch bolt operated by key. Outside knob/lever is always in operative. Deadbolt operated by emergency release. Key outside does not operate deadbolt. Deadlocking latch.		Latch bolt operated by operating knob/lever. Deadbolt operated by T-turn. Operating inside knob/lever retracts both bolts.	20

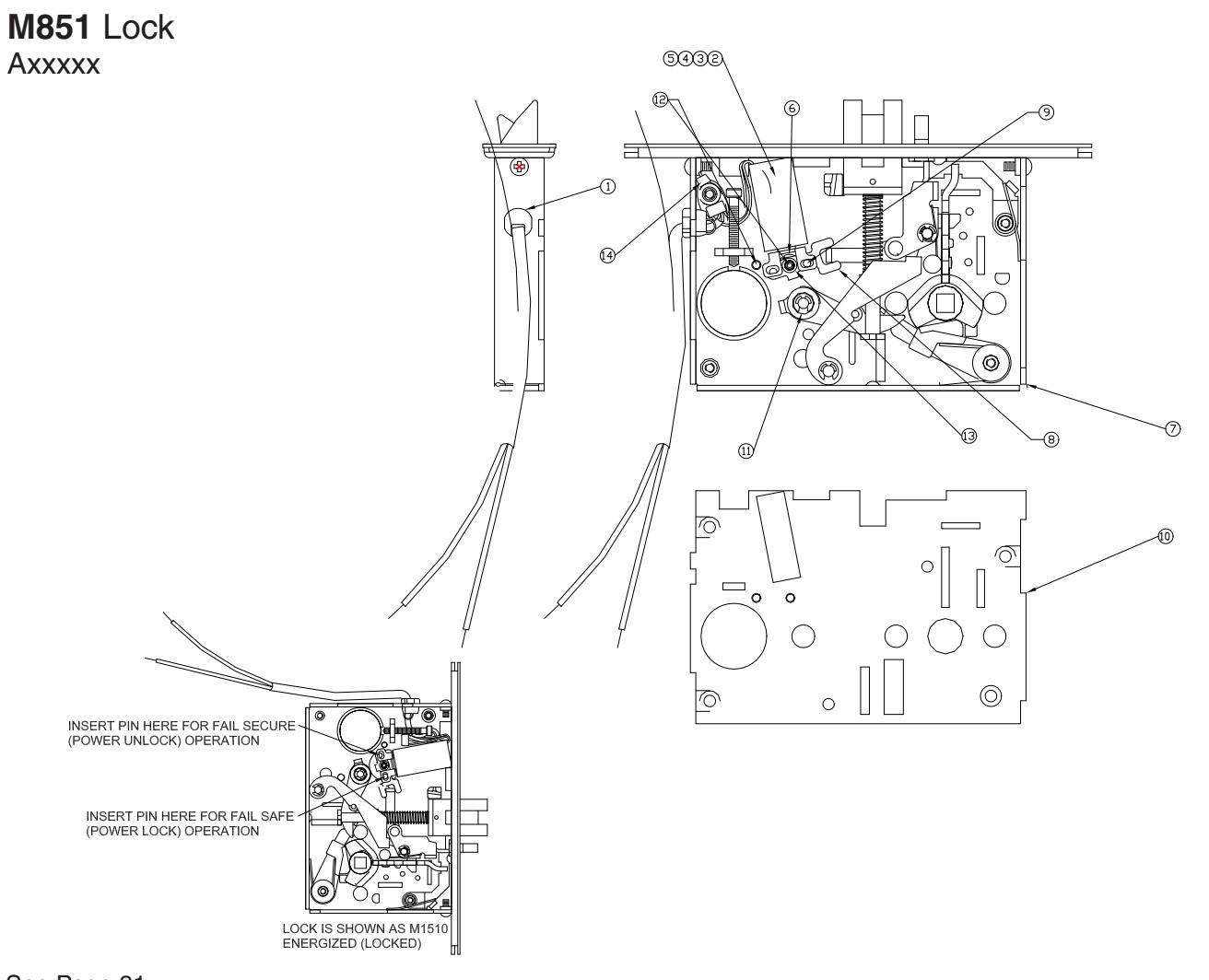

M851	-	Storeroom - Fail Safe EL	Latch bolt operated by knob/lever from either side except when outer knob/lever is electrically locked. When outer knob/lever is locked latch bolt retracted by key in cylinder outside. Deadlocking latch.		Auxiliary latch deadlocks latchbolt when door is closed. Inside knob/ lever is always free for immediate exit.	25
M881	-	Storeroom - Fail Secure EU	When locked, key in cylinder outside retracts latch bolt.		Latch bolt operated by knob/lever from inside except when outer knob/lever is electrically unlocked, then latch bolt from either side.	26
M911	-	Classroom Safety Deadlock	Deadbolt retracted by key. Deadbolt projected by key.		Deadbolt retracted by turn.	27
M921	F18-1 F18-2	Deadlock	Deadbolt by key.		-	27
M931	F16-1 F16-2	Deadlock	Deadbolt by key.		Deadbolt by key.	27
M941	F17-1 F17-2	Deadlock	Deadbolt by key.		Deadbolt by turn.	27
M12/M18	-	Dummy Trim	Single or double available.		-

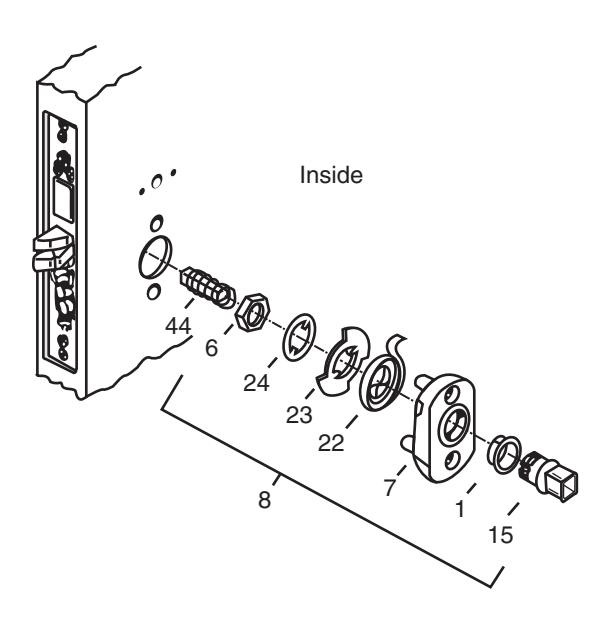

Replacement Parts for Early LM Series Lever Trim

Call Out Number	Description	Part Number
8	Inner Insert Assy, All Other Levers
15	Inner Trim Shank	030053-001-30

Number	Description	Part Number	Call Out Number	Description	Part Number
1	Bushing	030067-000-50	22	Lever Return Spring, Green	030057-002-30
6	Hex Nut	030282-000-30	23	Lever Stop	030054-001-30
7	Inner Insert	030051-001-55	24	Lock Washer	030284-000-60
8	Inner Insert Assy, All Other Levers	A30073-003-00	44	Spindle & Spring Assembly	A21245-000-00

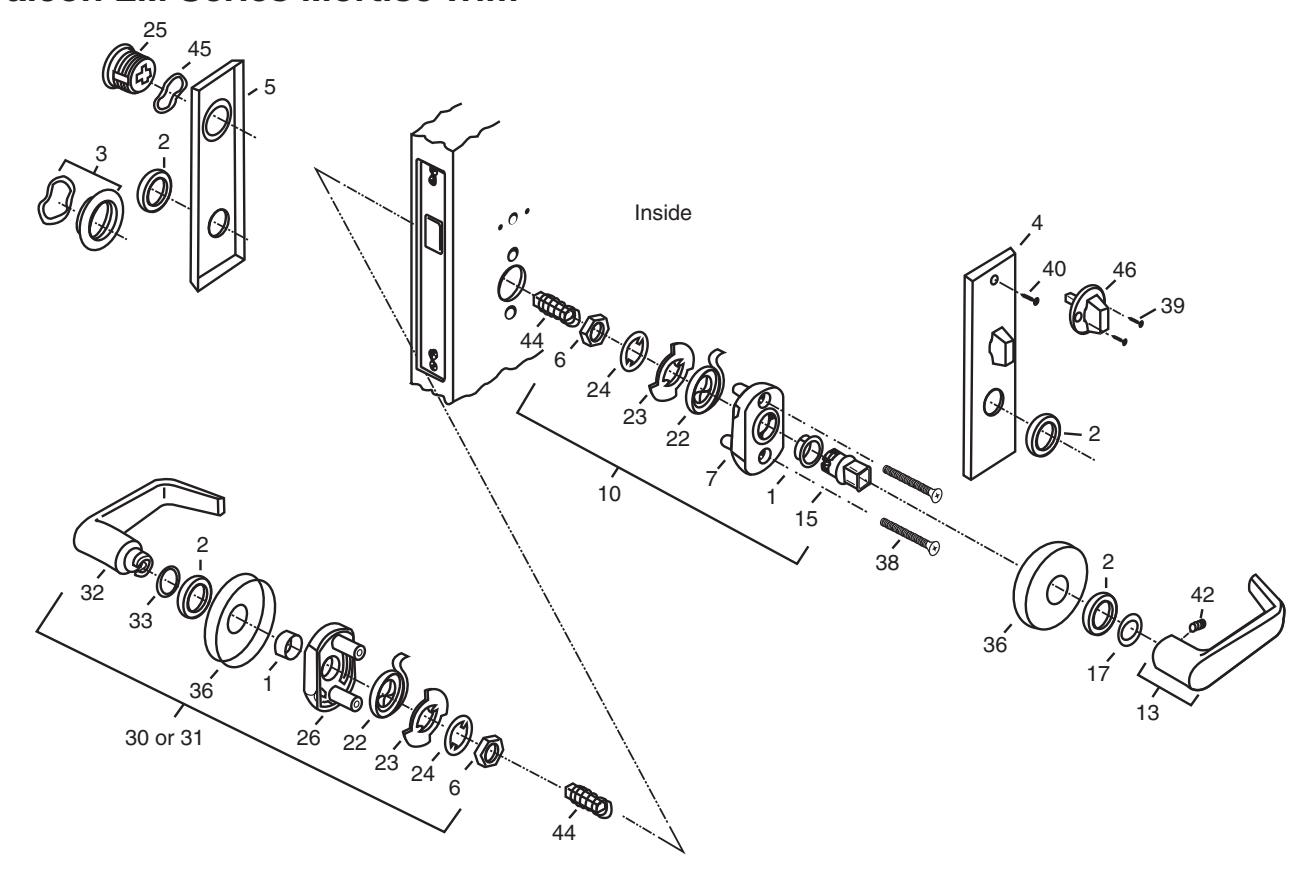

Falcon LM Series Mortise Trim

Call Out Number	Description	Part Number	Call Out Number	Description	Part Number
1	Bushing	030067-000-50	25	Mortise Cylinder w/9894-1 Cam	985 w/9894-1
2	Collar	030059-000 *	26	Outer Insert, Tapped	030051-000-55
3	Collar Assy, Sectional	A08794-000 *	30	Outer Lever Assy, Dane Gala	A30068-00D *
4	Escutcheon w/T-Turn, Napa	A30203-000 *	31	Outer Lever Assy, Dane Napa	A30072-05D *
5	Escutcheon, Napa	030066-005 *	32	Outer Lever, Dane	021280-000 *
6	Hex Nut	030282-000-30	33	Outer Washer	030205-002-50
7	Inner Insert	030051-001-55	36	Rose	030052-000 *
10	Inner Insert Assy	A30073-001-00	38	Screw, 10-32 x 2 FHMS	030069-032-30
13	Inner Lever Assy, Dane (shown)**	A30202-00D *	39	Screw, 6 x 1/2 FHSMS	002073-000 *
15	Inner Trim Shank	030053-001-30	40	Screw, 6 x 3/4 OHSMS	002074-012 *
17	Inner Washer	030205-001-50	42	Set Screw, 1/4-28 x 1/4	030283-004-30
22	Lever Return Spring	030057-002-30	44	Spindle & Spring Assembly	A21245-000-00
23	Lever Stop	030054-001-30	45	Spring Washer, Cylinder	008789-001-60
24	Lock Washer	030284-000-60	46	T-Turn Assy, Sectional	A20336-000 *

Call Out Number	Description	Part Number	Call Out Number	Description	Part Number
1	Bushing	030067-000-50	25	Mortise Cylinder w/9894-1 Cam	985 w/9894-1
2	Collar	030059-000 *	26	Outer Insert, Tapped	030051-000-55
3	Collar Assy, Sectional	A08794-000 *	30	Outer Lever Assy, Dane Gala	A30068-00D *
4	Escutcheon w/T-Turn, Napa	A30203-000 *	31	Outer Lever Assy, Dane Napa	A30072-05D *
5	Escutcheon, Napa	030066-005 *	32	Outer Lever, Dane	021280-000 *
6	Hex Nut	030282-000-30	33	Outer Washer	030205-002-50
7	Inner Insert	030051-001-55	36	Rose	030052-000 *
10	Inner Insert Assy	A30073-001-00	38	Screw, 10-32 x 2 FHMS	030069-032-30
13	Inner Lever Assy, Dane (shown)**	A30202-00D *	39	Screw, 6 x 1/2 FHSMS	002073-000 *
15	Inner Trim Shank	030053-001-30	40	Screw, 6 x 3/4 OHSMS	002074-012 *
17	Inner Washer	030205-001-50	42	Set Screw, 1/4-28 x 1/4	030283-004-30
22	Lever Return Spring	030057-002-30	44	Spindle & Spring Assembly	A21245-000-00
23	Lever Stop	030054-001-30	45	Spring Washer, Cylinder	008789-001-60
24	Lock Washer	030284-000-60	46	T-Turn Assy, Sectional	A20336-000 *

M-Series Service Manual

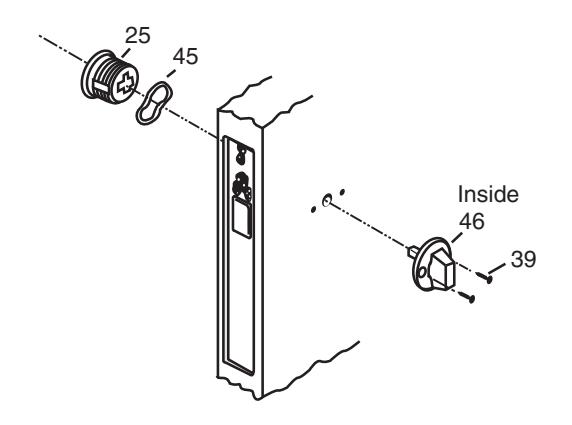

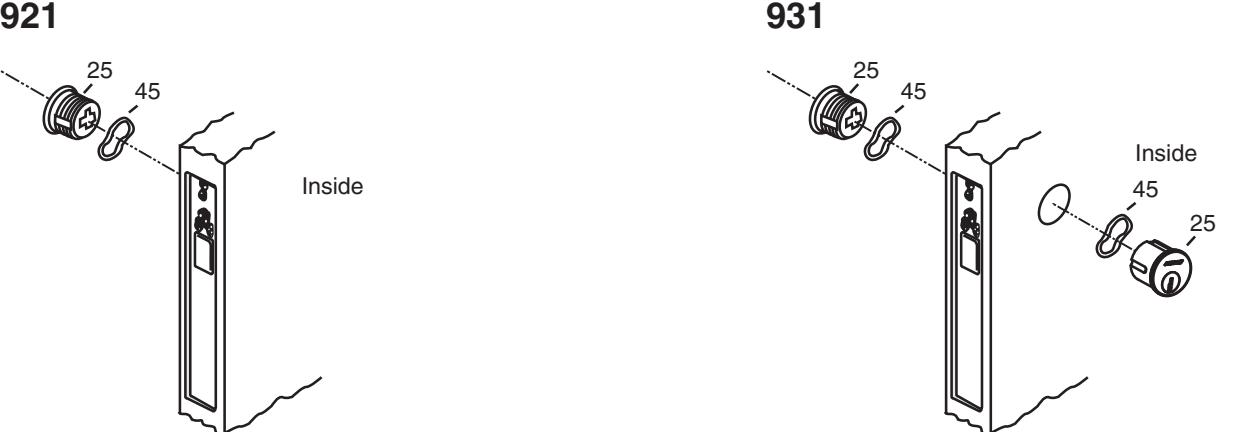

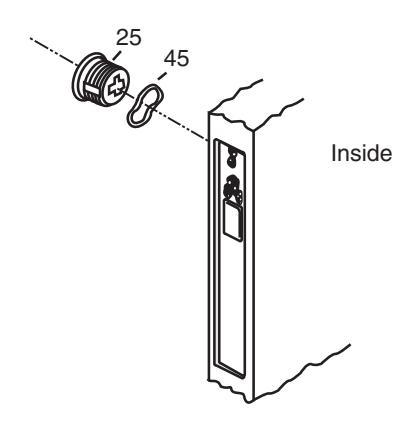

Falcon L-900 Series Mortise Trim 941

Call Out Number	Description	Part Number
25	Mortise Cylinder w/9894-1 Cam	985 w/9894-1
39	Screw, 6 x 1/2 FHSMS	002073-000 *
45	Spring Washer, Cylinder	008789-001-60
46	T-Turn Assy, Sectional	A20336-000 *

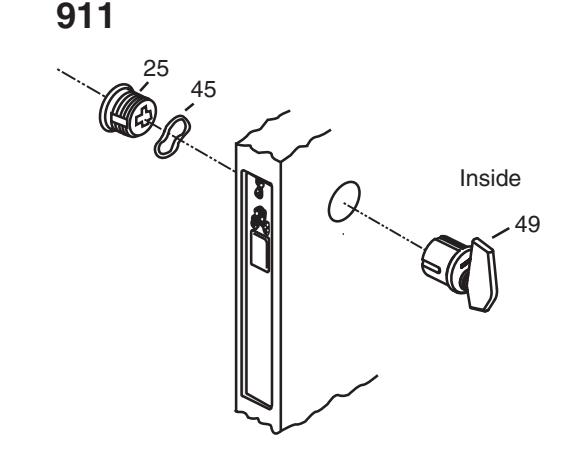

49	M911 Classroom Thumbturn	973 (RH) 974 (LH)

^*= Finish or Specify Finish on All

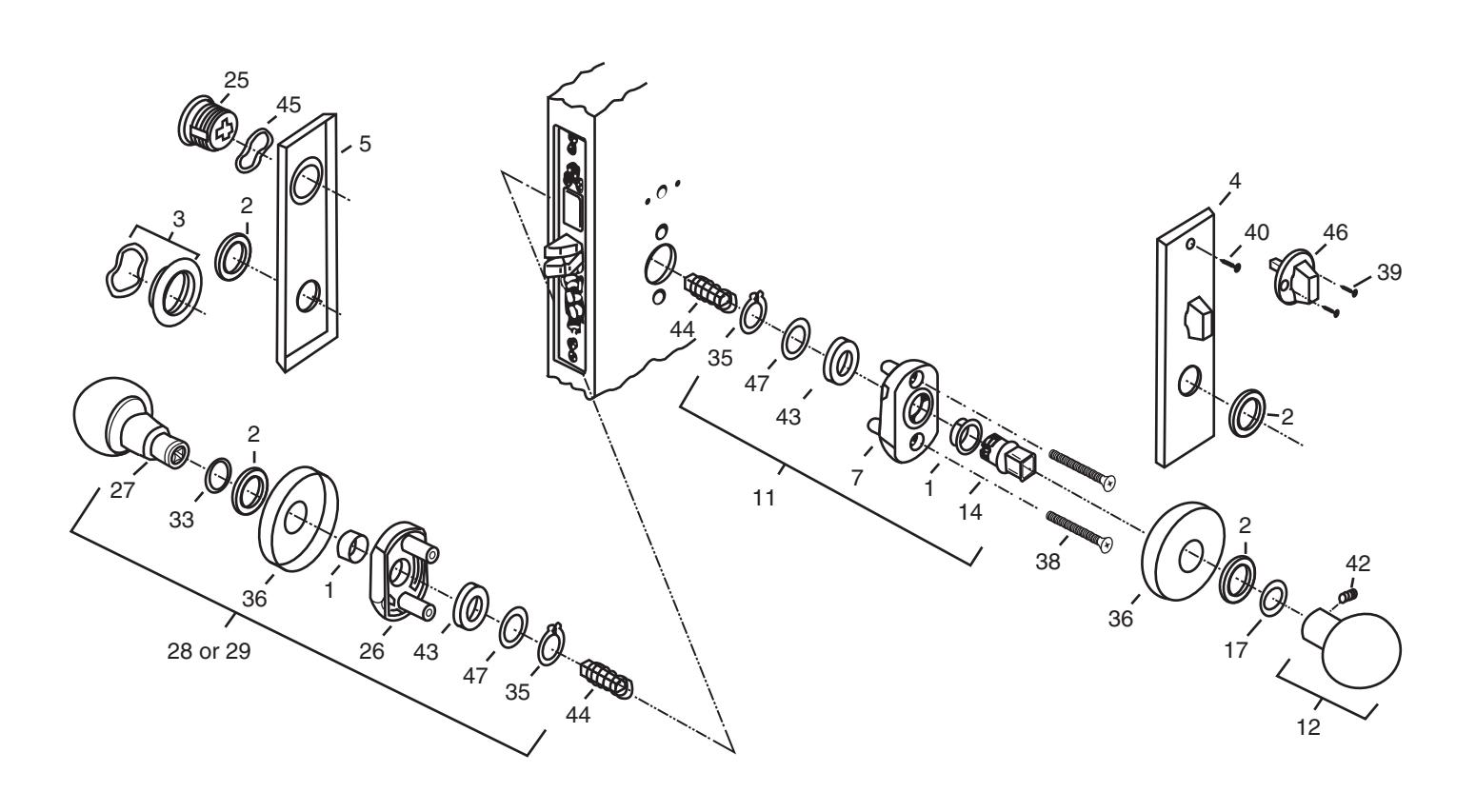

Falcon MM Series Mortise Trim

Call Out Number	Description	Part Number	Call Out
28	Outer Knob Assy, Hana Gala	A30077-00H *		*= Finish or Specify Finish on All

Call Out Number	Description	Part Number	Call Out Number	Description	Part Number
1	Bushing	030067-000-50	29	Outer Knob Assy, Hana Napa	A30074-05H *
2	Collar	030059-000 *	33	Outer Washer	030205-002-50
3	Collar Assy, Sectional	A08794-000 *	35	Retainer Ring	002939-000-30
4	Escutcheon w/T-Turn, Napa	A30203-000 *	36	Rose	030052-000 *
5	Escutcheon, Napa	030066-005	38	Screw, 10-32 x 2 FHMS	030069-032-30
7	Inner Insert	030051-001-55	39	Screw, 6 x 1/2 FHSMS	002073-000 *
11	Inner Insert Assy, Knob	A30078-000-00	40	Screw, 6 x 3/4 OHSMS	002074-012 *
12	Inner Knob Assy, Hana	A30065-00H *	42	Set Screw, 1/4-28 x 1/4	030283-004-30
14	Inner Trim Shank	030053-000-30	43	Spacer	030063-000-30
17	Inner Washer	030205-001-50	44	Spindle & Spring Assembly	A21245-000-00
25	Mortise Cylinder w/9894-1 Cam	985 w/9894-1	45	Spring Washer, Cylinder	008789-001-60
26	Outer Insert, Tapped	030051-000-55	46	T-Turn Assy, Sectional	A20336-000 *
27	Outer Knob Assy, Hana	A30138-00H *	47	Washer	030163-000-60

M-Series Lever Trim Springs

030057-002-30 Yellow Color (.052 Thick Wire)

Replacement for Green Springs

Used on: Avalon All Materials

Dane All Materials Quantum All Materials

Sutro All Materials First used in July 1995

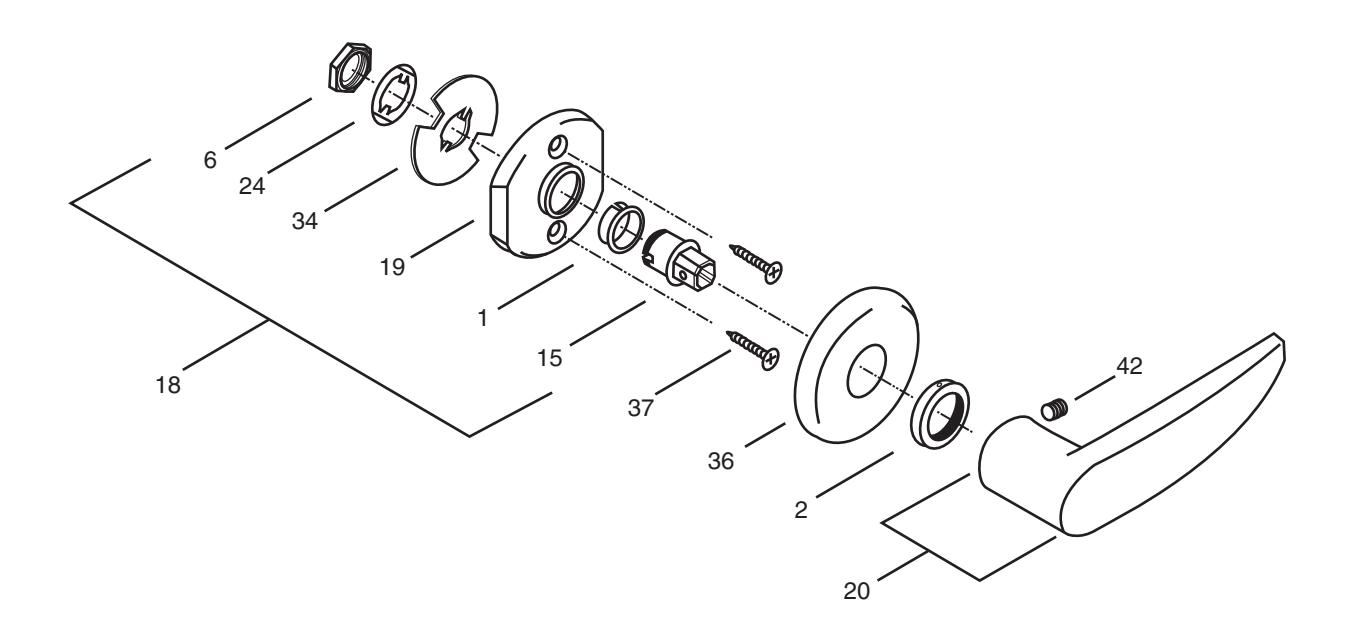

LM12 Single Dummy Trim

Parts List - LM12 AG

Call Out Number	Description	Part Number

Call Out Number	Description	Part Number	Call Out Number	Description	Part Number
1	Bushing	030067-000-50	20	Lever Assembly, Avalon**	A30202-00A *
2	Collar	030059-000 *	24	Lock Washer	030284-000-60
6	Hex Nut	030282-000-30	34	Plate, Dummy	030054-002-30
15	Inner Trim Shank	030053-001-30	36	Rose	030052-000 *
18	Insert Assembly	A30257-04L-00	37	Screw, 10 x 1 FHSM (2)	030220-016-30
19	Insert, Dummy	030051-004-55	42	Set Screw, 1/4-28 x 1/4	030283-004-30

^*= Finish or Specify Finish on All

^** For other lever options, see page 25

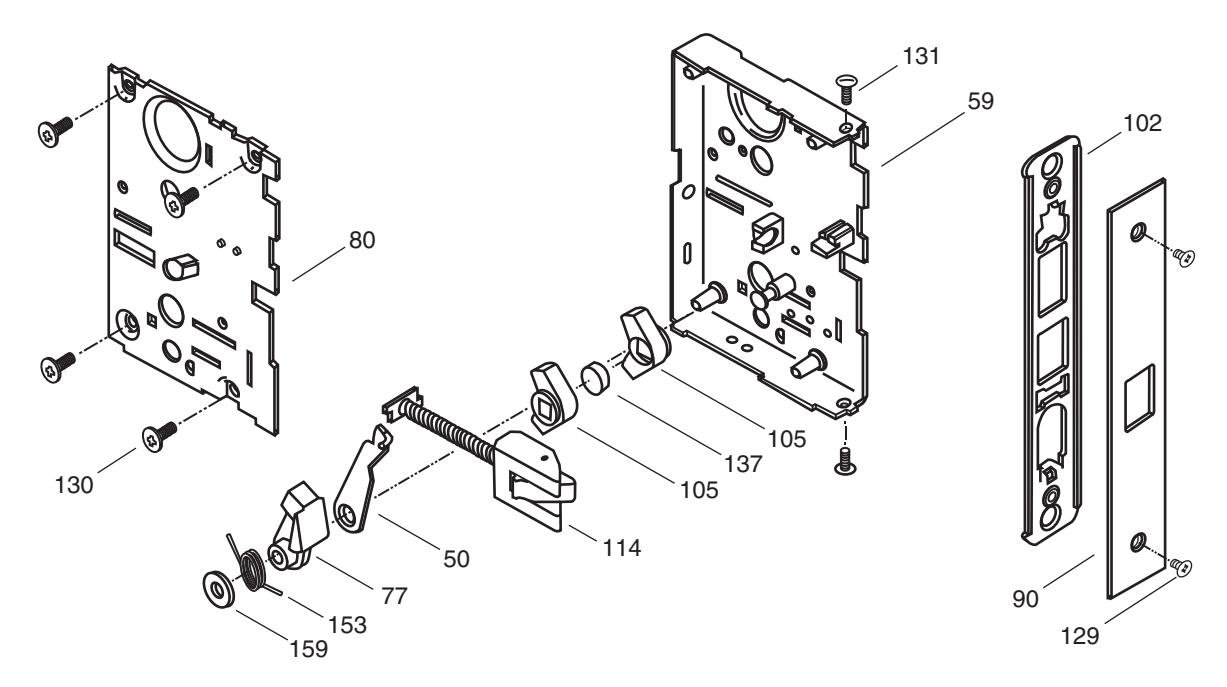

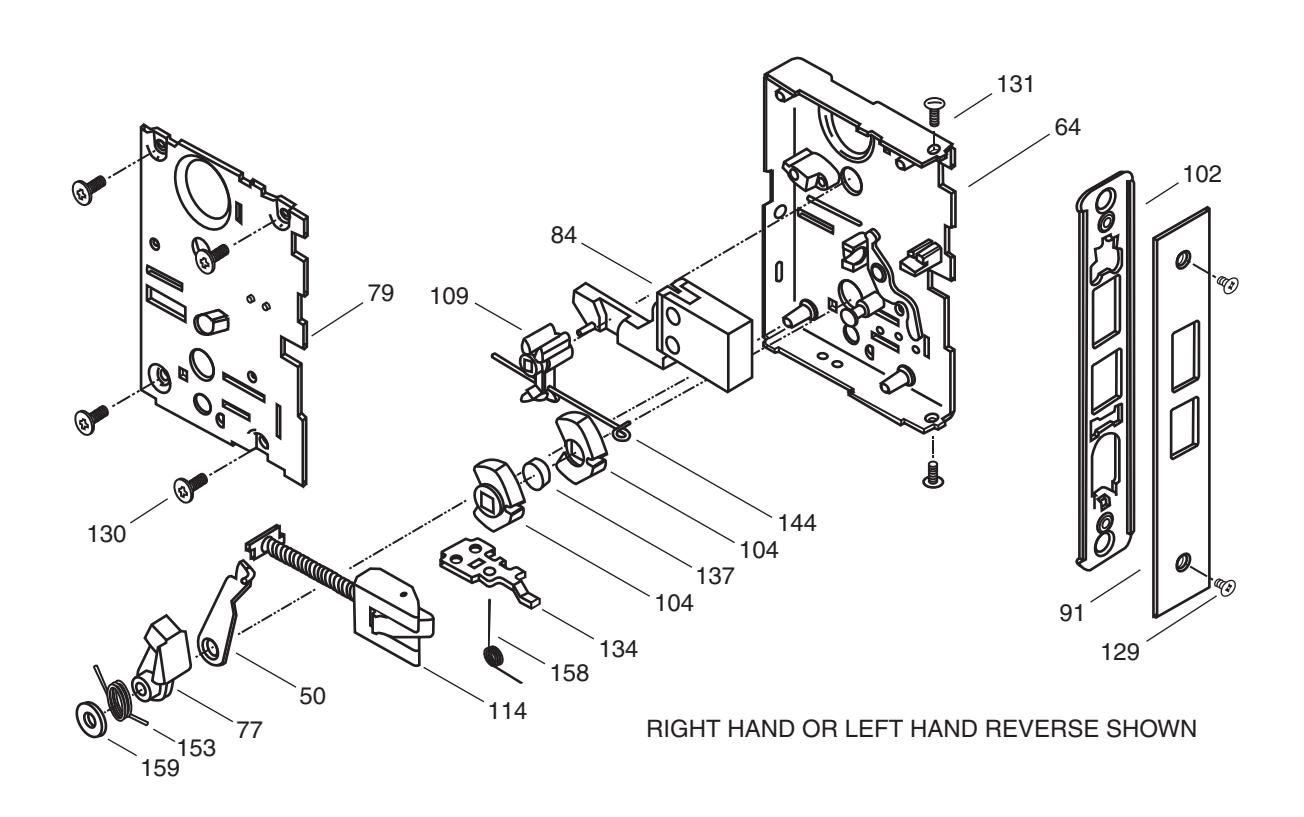

M101 Passage Latchset A20800-000-626

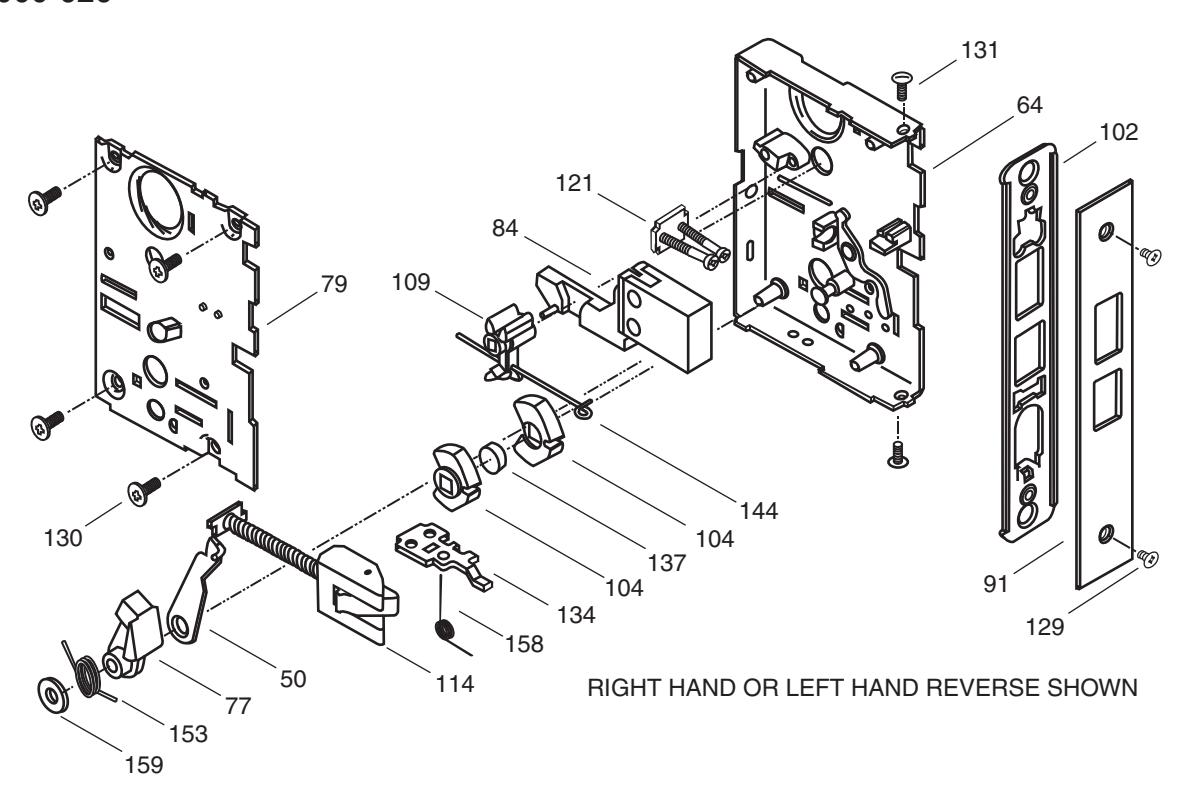

RIGHT HAND OR LEFT HAND REVERSE SHOWN

Parts List - A20800-30F * Locking Unit M101

Call Out Number	Description	Part Number

^*= Finish or Specify Finish on All

Call Out Number	Description	Part Number	Call Out Number	Description	Part Number
50	Arm, Lower Retract	020645-000-30	114	Latch Bolt Assy	A20639-004-626
59	Case Assy	A20580-001-00	129	Screw 8-32 x 1/4	K110-020
77	Coupling	020646-000-30	130	Screw 8-32 x 3/8 (4)	002801-006-30
80	Cover Assy, Not Tapped	A30875-000-00	131	Screw 8-32 x 3/8 (2)	002932-000-30
90	Faceplate	020100-000 *	137	Spacer Hub	020674-000-30
102	Front Plate 1-1/4" Wide	021349-000-30	153	Spring, Retract Arm	020666-000-60
105	Hub, Non-Locking (2)	020642-000-30	159	Washer, Flat	002900-000-30

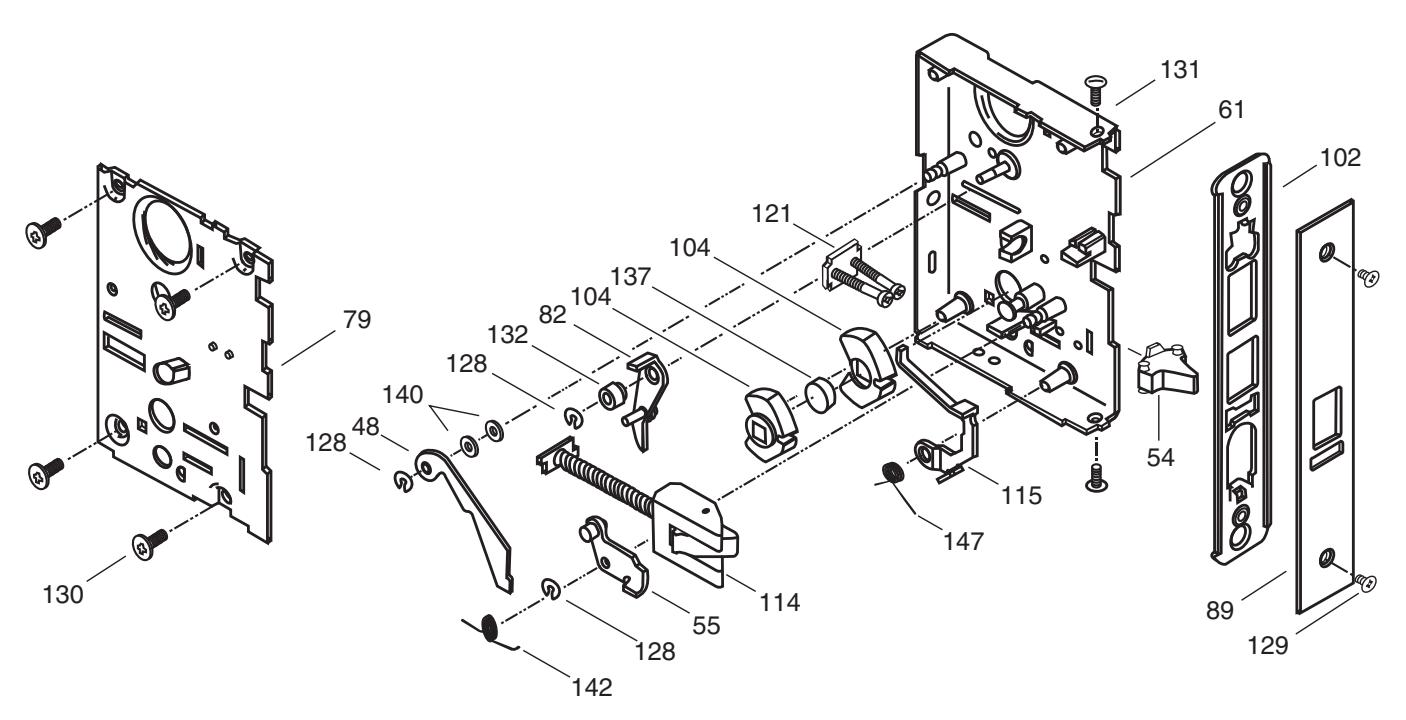

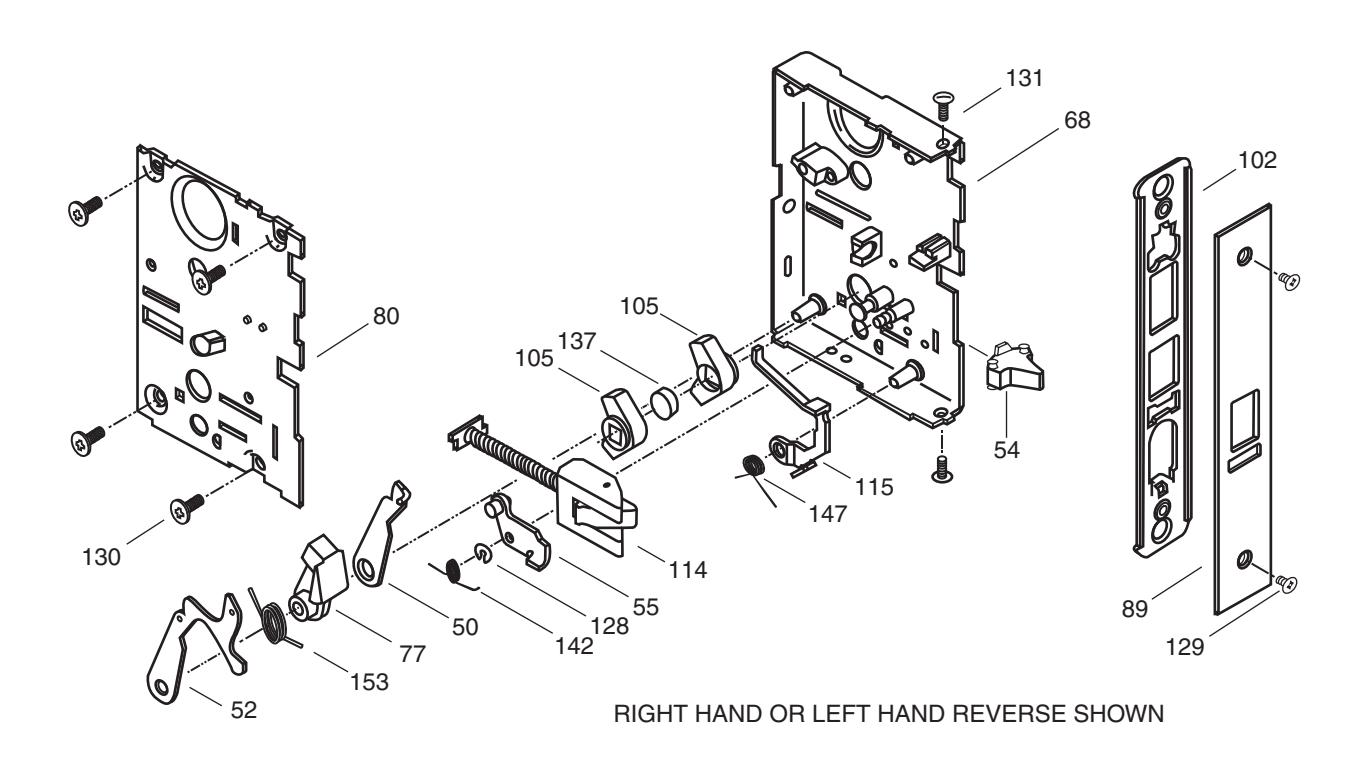

M161 Connecting Room/Exit Latch A30842-000-626

Parts List - A30842-30F* Locking Unit M161

Call Out Number	Description	Part Number	Call Out Number	Description	Part Number
50	Arm, Lower Retract	020645-000-30	114	Latch Bolt Assy	A20639-004-626
52	Arm, Upper Retract	020633-000-30	115	Lever	020575-000-30
54	Bar, Deadlocking	020579-000-630	128	Ring, Truarc	005347-000-30
55	Blocker Assy	A20957-000-00	129	Screw 8-32 x 1/4 (2)	K110-020
68	Case Assy	A30877-00-00	130	Screw 8-32 x 3/8 (4)	002801-006-30
77	Coupling	020646-000-30	131	Screw 8-32 x 3/8 (2)	002932-000-30
80	Cover Assy, Not Tapped	A30875-000-00	137	Spacer Hub	020674-000-30
89	Faceplate	020099-01U *	142	Spring, Blocker	020492-000-60
102	Front Plate 1-1/4" Wide	021349-000-30	147	Spring, DL	020595-001-60
105	Hub, Non-Locking (2)	020642-000-30	153	Spring, Retract Arm	020666-000-60

^*= Finish or Specify Finish on All

Call Out Number	Description	Part Number	Call Out Number	Description	Part Number
50	Arm, Lower Retract	020645-000-30	114	Latch Bolt Assy	A20639-004-626
52	Arm, Upper Retract	020633-000-30	115	Lever	020575-000-30
54	Bar, Deadlocking	020579-000-630	128	Ring, Truarc	005347-000-30
55	Blocker Assy	A20957-000-00	129	Screw 8-32 x 1/4 (2)	K110-020
68	Case Assy	A30877-00-00	130	Screw 8-32 x 3/8 (4)	002801-006-30
77	Coupling	020646-000-30	131	Screw 8-32 x 3/8 (2)	002932-000-30
80	Cover Assy, Not Tapped	A30875-000-00	137	Spacer Hub	020674-000-30
89	Faceplate	020099-01U *	142	Spring, Blocker	020492-000-60
102	Front Plate 1-1/4" Wide	021349-000-30	147	Spring, DL	020595-001-60
105	Hub, Non-Locking (2)	020642-000-30	153	Spring, Retract Arm	020666-000-60

M301 Privacy Lock A20806-000-XXX

Parts List - A20806-000-626 Locking Unit M301

Call Out Number	Description	Part Number
114	Latch Bolt Assy	A20639-004-626

^*= Finish or Specify Finish on All

Call Out Number	Description	Part Number	Call Out Number	Description	Part Number
50	Arm, Lower Retract	020645-000-30	129	Screw 8-32 x 1/4 (2)	K110-020
64	Case Assy	A20588-001-00	130	Screw 8-32 x 3/8 (4)	002801-006-30
77	Coupling	020646-000-30	131	Screw 8-32 x 3/8 (2)	002932-000-30
79	Blocker Assy	A23204-000-00	134	Slide, Locking Hub	020572-000-30
84	Deadbolt 1"	030147-000-626	137	Spacer Hub	020674-000-30
91	Faceplate UL	020109-000 *	144	Spring, Deadbolt	020641-000-30
102	Front Plate 1-1/4" Wide	021349-000-30	153	Spring, Retract Arm	020666-000-60
104	Hub, Locking	020643-000-30	158	Torsion Spring	021111-001-60
109	Hub, T-Turn	020652-001-30	159	Washer, Flat	002900-000-30

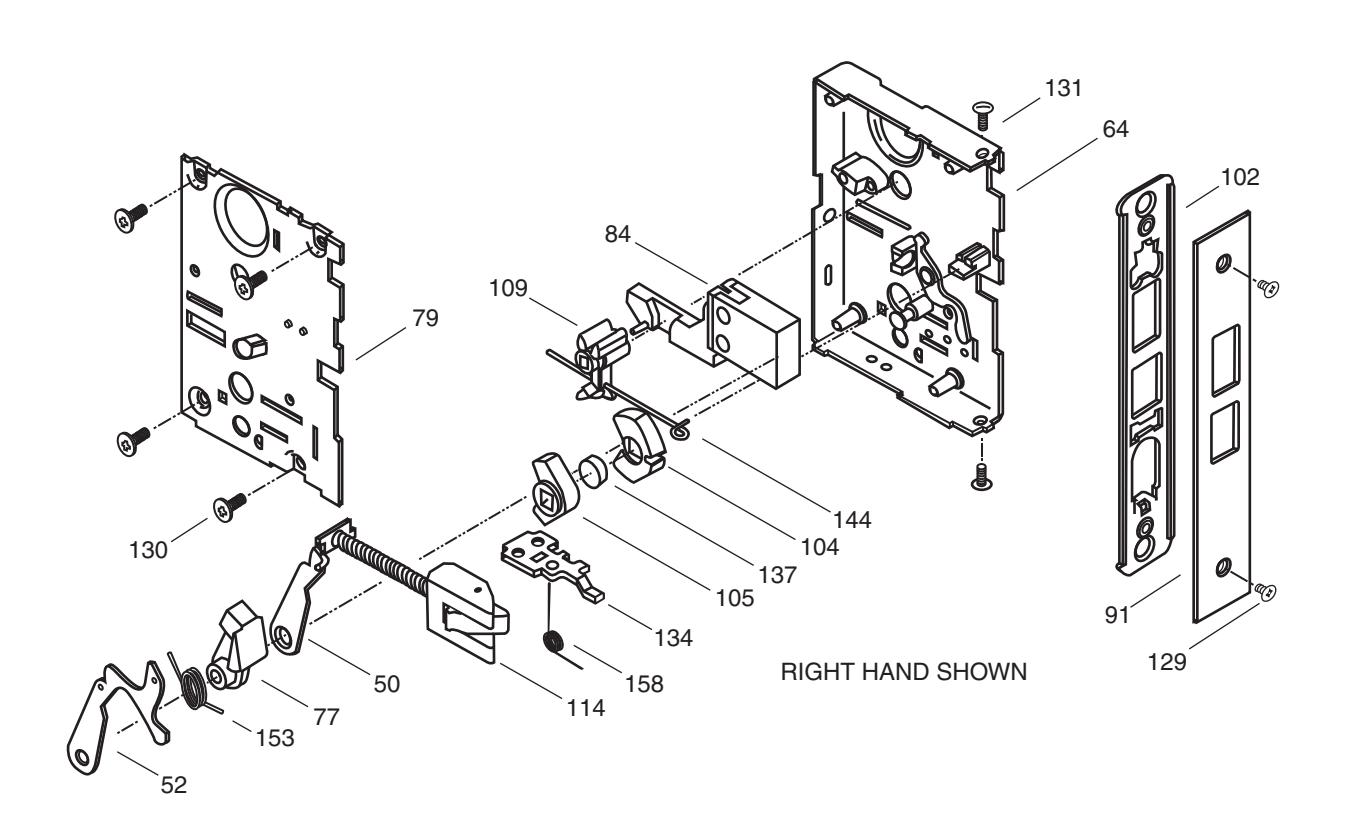

M311 Privacy Lock A21841-000-626

Parts List - A21863-30F * Locking Unit M311

Call Out Number	Description	Part Number

^*= Finish or Specify Finish on All

Call Out Number	Description	Part Number	Call Out Number	Description	Part Number
50	Arm, Lower Retract	020645-000-30	109	Hub, T-Turn	020652-001-30
52	Arm, Upper Retract	020633-000-30	114	Latch Bolt Assy	A20639-004-626
64	Case Assy, Not Tapped	A20588-001-00	129	Screw 8-32 x 1/4 (2)	K110-020
77	Coupling	020646-000-30	130	Screw 8-32 x 3/8 (4)	002801-006-30
79	Cover Assy, Threaded	A23204-000-00	131	Screw 8-32 x 3/8 (2)	002932-000-30
84	Deadbolt 1"	030147-000-626	134	Slide, Locking Hub	020572-000-30
91	Faceplate UL	020109-000 *	137	Spacer Hub	020674-000-30
102	Front Plate 1-1/4" Wide	021349-000-30	144	Spring, Deadbolt	020641-000-30
104	Hub, Locking	020643-000-30	153	Spring, Retract Arm	020666-000-60
105	Hub, Non-Locking	020642-000-30	158	Torsion Spring	021111-001-60

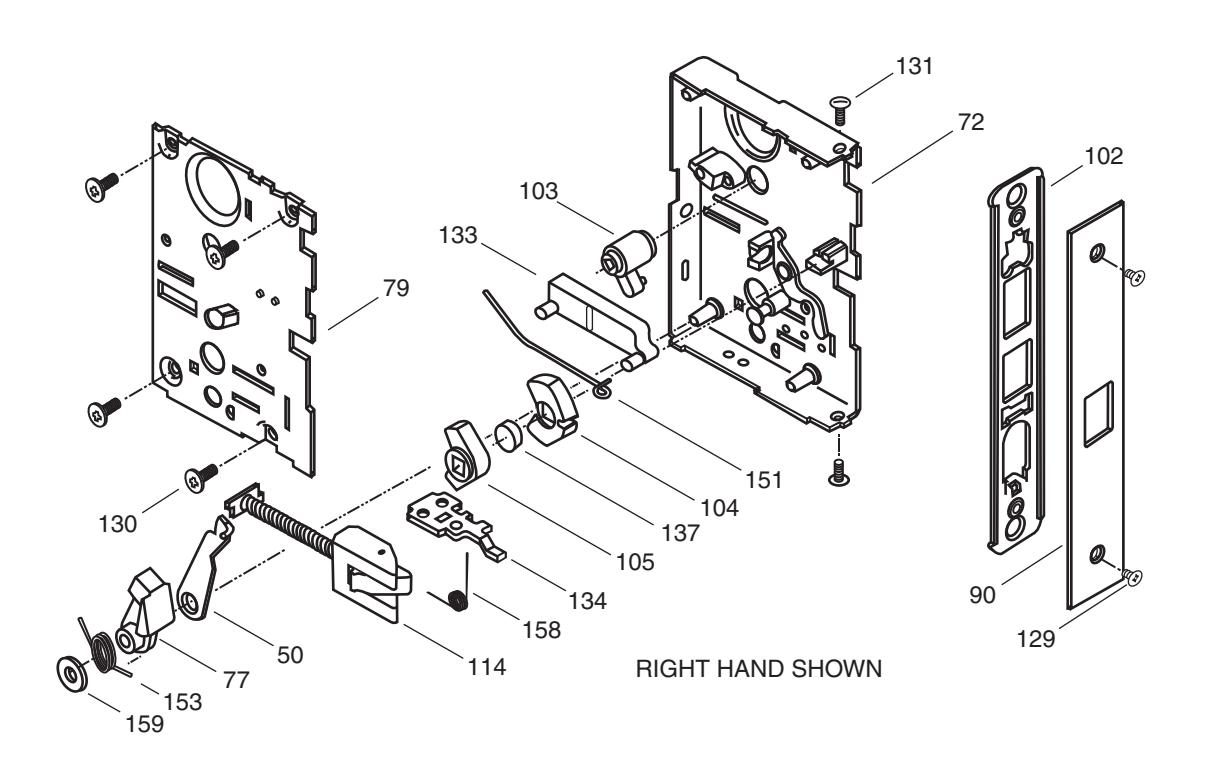

M321 Privacy Lock A30539-000-626

Parts List - A30539-30F * Locking Unit M321

Call Out Number	Description	Part Number	Call Out Number	Description	Part Number
50	Arm, Lower Retract	020645-000-30	129	Screw 8-32 x 1/4 (2)	K110-020
72	Case Assy, Not Tapped	A30544-000-00	130	Screw 8-32 x 3/8 (4)	002801-006-30
77	Coupling	020646-000-30	131	Screw 8-32 x 3/8 (2)	002932-000-30
79	Cover Assy, Not Tapped	A23204-000-00	133	Slide, Locking	030535-000-55
90	Faceplate	020100-000 *	134	Slide, Locking Hub	020572-000-30
102	Front Plate 1-1/4" Wide	021349-000-30	137	Spacer Hub	020674-000-30
103	Hub & Pin Assy	A30534-000-00	151	Spring, Locking Slide	030382-000-30
104	Hub, Locking	020643-000-30	153	Spring, Retract Arm	020666-000-60
105	Hub, Non-Locking	020642-000-30	158	Torsion Spring	021111-001-60
114	Latch Bolt Assy	A20639-004-626	159	Washer, Flat	002900-000-30

^*= Finish or Specify Finish on All

Call Out Number	Description	Part Number	Call Out Number	Description	Part Number
50	Arm, Lower Retract	020645-000-30	129	Screw 8-32 x 1/4 (2)	K110-020
72	Case Assy, Not Tapped	A30544-000-00	130	Screw 8-32 x 3/8 (4)	002801-006-30
77	Coupling	020646-000-30	131	Screw 8-32 x 3/8 (2)	002932-000-30
79	Cover Assy, Not Tapped	A23204-000-00	133	Slide, Locking	030535-000-55
90	Faceplate	020100-000 *	134	Slide, Locking Hub	020572-000-30
102	Front Plate 1-1/4" Wide	021349-000-30	137	Spacer Hub	020674-000-30
103	Hub & Pin Assy	A30534-000-00	151	Spring, Locking Slide	030382-000-30
104	Hub, Locking	020643-000-30	153	Spring, Retract Arm	020666-000-60
105	Hub, Non-Locking	020642-000-30	158	Torsion Spring	021111-001-60
114	Latch Bolt Assy	A20639-004-626	159	Washer, Flat	002900-000-30

M371 Store Door Lock M541 Entry/Offi ce Lock A20809-000-626

Parts List - A20809-000-626 Locking Unit M371/541

Call Out
Number	Description	Part Number

^*= Finish or Specify Finish on All

Call Out Number	Description	Part Number	Call Out Number	Description	Part Number
50	Arm, Lower Retract	020645-000-30	121	Retainer Assy, Cyl	A21209-000-00
64	Case Assy	A20588-001-00	129	Screw 8-32 x 1/4 (2)	K110-020
77	Coupling	020646-000-30	130	Screw 8-32 x 3/8 (4)	002801-006-30
79	Cover Assy	A23204-000-00	131	Screw 8-32 x 3/8 (2)	002932-000-30
84	Deadbolt 1"	030147-000-626	134	Slide, Locking Hub	020572-000-30
91	Faceplate	020109-000 *	137	Spacer Hub	020674-000-30
102	Front Plate 1-1/4" Wide	021349-000-30	144	Spring, Deadbolt	020641-000-30
104	Hub, Locking (2)	020643-000-30	153	Spring, Retract Arm	020666-000-60
109	Hub, T-Turn	020652-001-30	158	Torsion Spring	021111-001-60
114	Latch Bolt Assy	A20639-004-626	159	Washer, Flat	002900-000-30

M381 Entry/Restroom Lock

M441 Classroom Security

M561 Classroom Lock

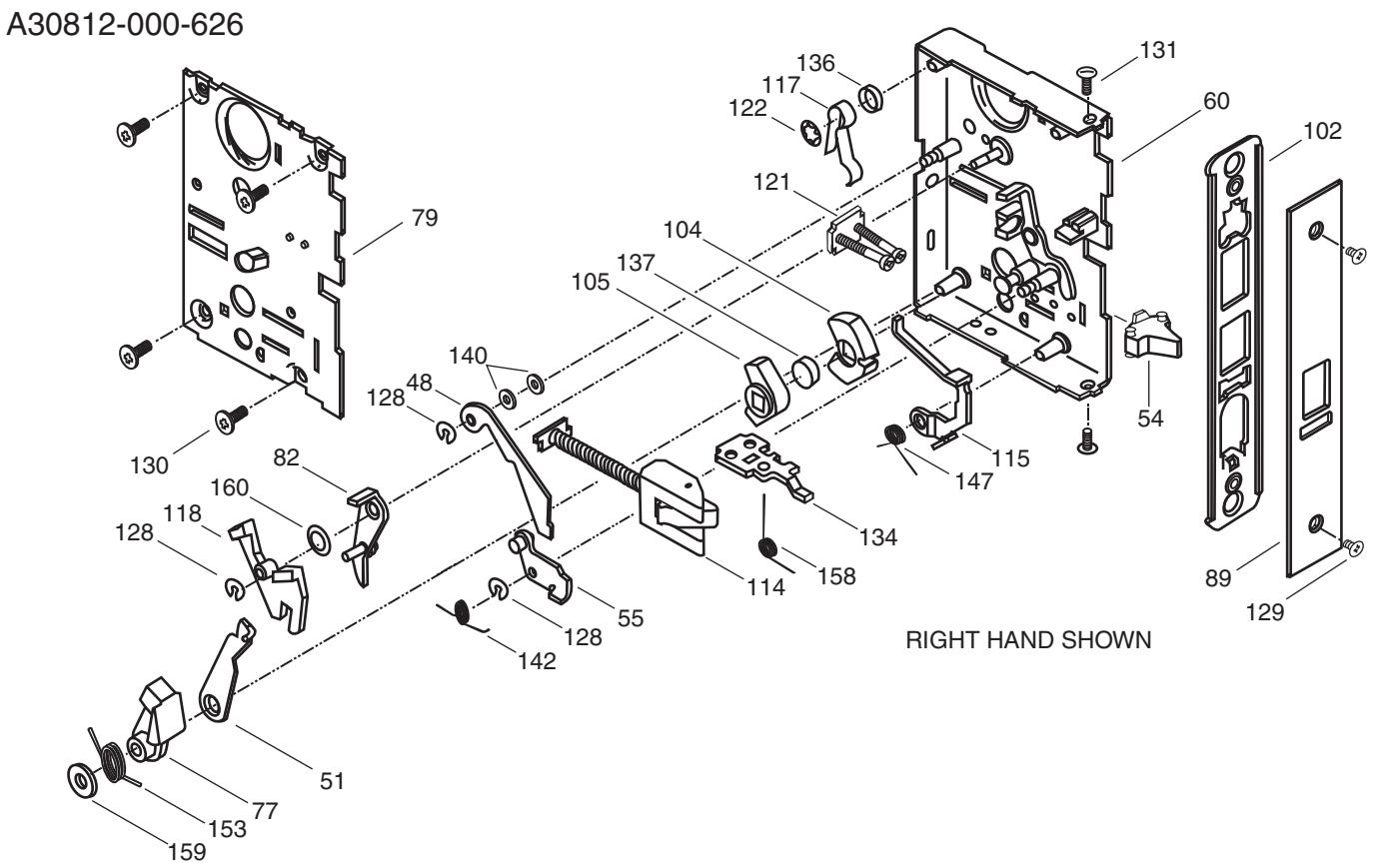

Parts List - A30812-30F * Locking Unit M381/561

Call Out Number	Description	Part Number
48	Arm, Blocker Release	020491-000-30
51	Arm, Lower Retract	021185-000-30
54	Bar, Deadlocking	020579-000-630
55	Blocker Assy	A20957-000-00
60	Case Assy	A20583-002-00
77	Coupling	020646-000-30
79	Cover Assy	A23204-000-00
82	Cylinder Lever Assy	A20598-000-00
89	Faceplate	020099-01U *
102	Front Plate 1-1/4" Wide	021349-000-30
104	Hub, Locking	020643-000-30
105	Hub, Non-Locking	020642-000-30
114	Latch Bolt Assy	A20639-004-626
115	Lever	020575-000-30
117	Lever Spring	020086-000-30
118	Lever, Cyl	020660-000-30

Call Out Number	Description	Part Number
121	Retainer Assy, Cyl	A21209-000-00
122	Retaining Ring	002975-000-30
128	Ring, Truarc (3)	005347-000-30
129	Screw 8-32 x 1/4 (2)	K110-020
130	Screw 8-32 x 3/8 (4)	002801-006-30
131	131 Screw 8-32 x 3/8 (2)
134	Slide, Locking Hub	020572-000-30
136	Spacer, Spring	021026-000-10
137	Spacer Hub	020674-000-30
140	Spacer, Washer (2)	020447-000-10
142	Spring, Blocker	020492-000-60
147	Spring, DL	020595-001-60
153	Spring, Retract Arm	020666-000-60
158	Torsion Spring	021111-001-60
159	159 Washer, Flat
160	Washer, Flat	004315-000-60

^*= Finish or Specify Finish on All

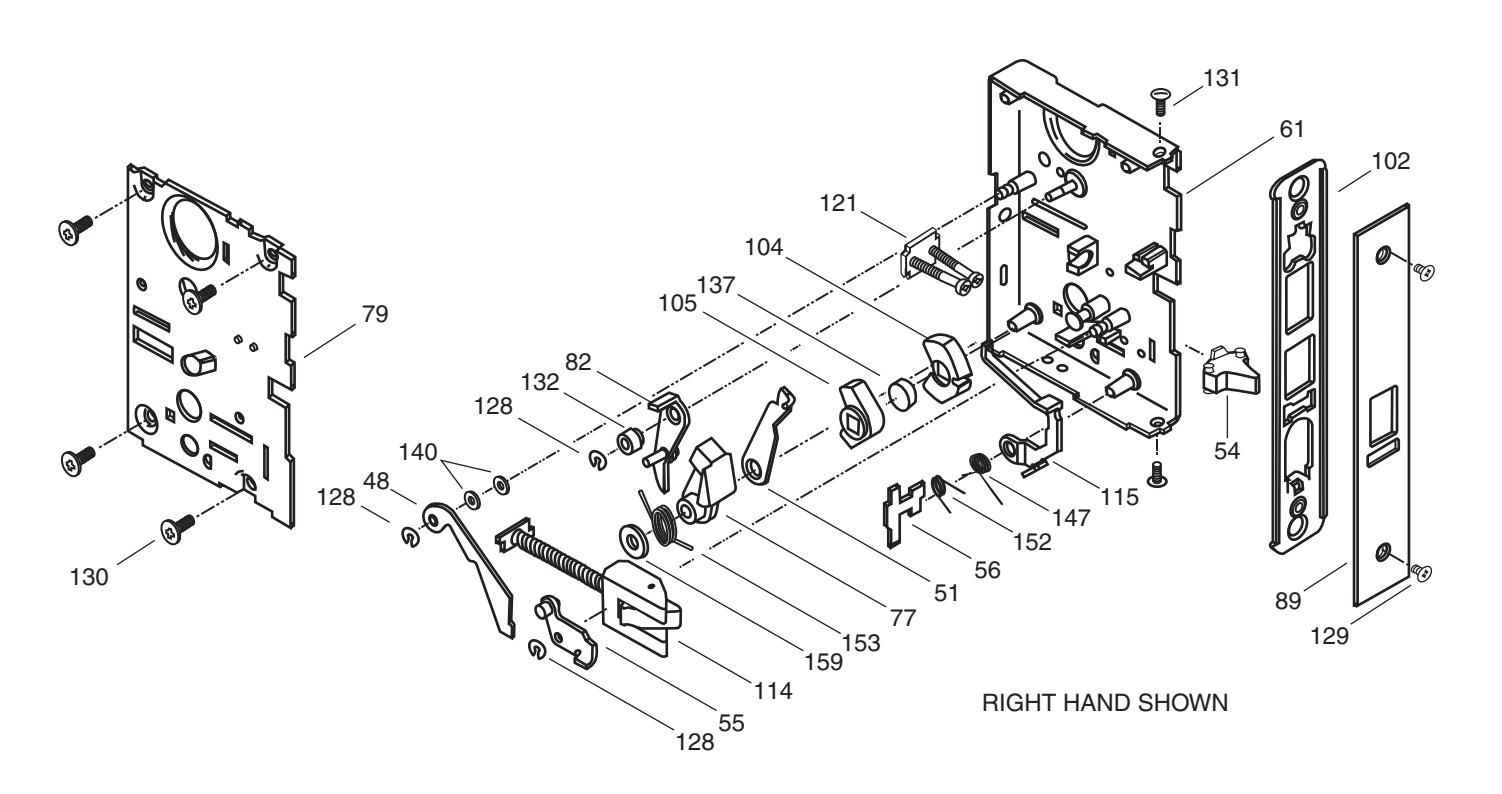

M411 Asylum Lock A30815-000-626

RIGHT HAND OR LEFT HAND REVERSE SHOWN

Parts List - A30815-30F * Locking Unit M411

Call Out Number	Description	Part Number
115	Lever	020575-000-30

	*= Finish or Specify Finish on All

Call Out Number	Description	Part Number	Call Out Number	Description	Part Number
48	Arm, Blocker Release	020491-000-30	121	Retainer Assy. Cyl	A21209-000-00
54	Bar, Deadlocking	020579-000-630	128	Ring, Truarc (3)	005347-000-30
55	Blocker Assy	A20957-000-00	129	Screw 8-32 x 1/4 (2)	K110-020
61	Case Assy	A20584-002-00	130	Screw 8-32 x 3/8 (4)	002801-006-30
79	Cover Assy	A23204-000-00	131	Screw 8-32 x 3/8 (2)	002932-000-30
82	Cylinder Lever Assy	A20598-000-00	132	Sleeve, Lever Post	020659-000-10
89	Faceplate	020099-01U *	137	Spacer Hub	020674-000-30
102	Front Plate 1-1/4" Wide	021349-000-30	140	Spacer, Washer (2)	020447-000-10
104	Hub, Locking (2)	020643-000-30	142	Spring, Blocker	020492-000-60
114	Latch Bolt Assy	A20639-004-626	147	Spring, DL	020595-001-60

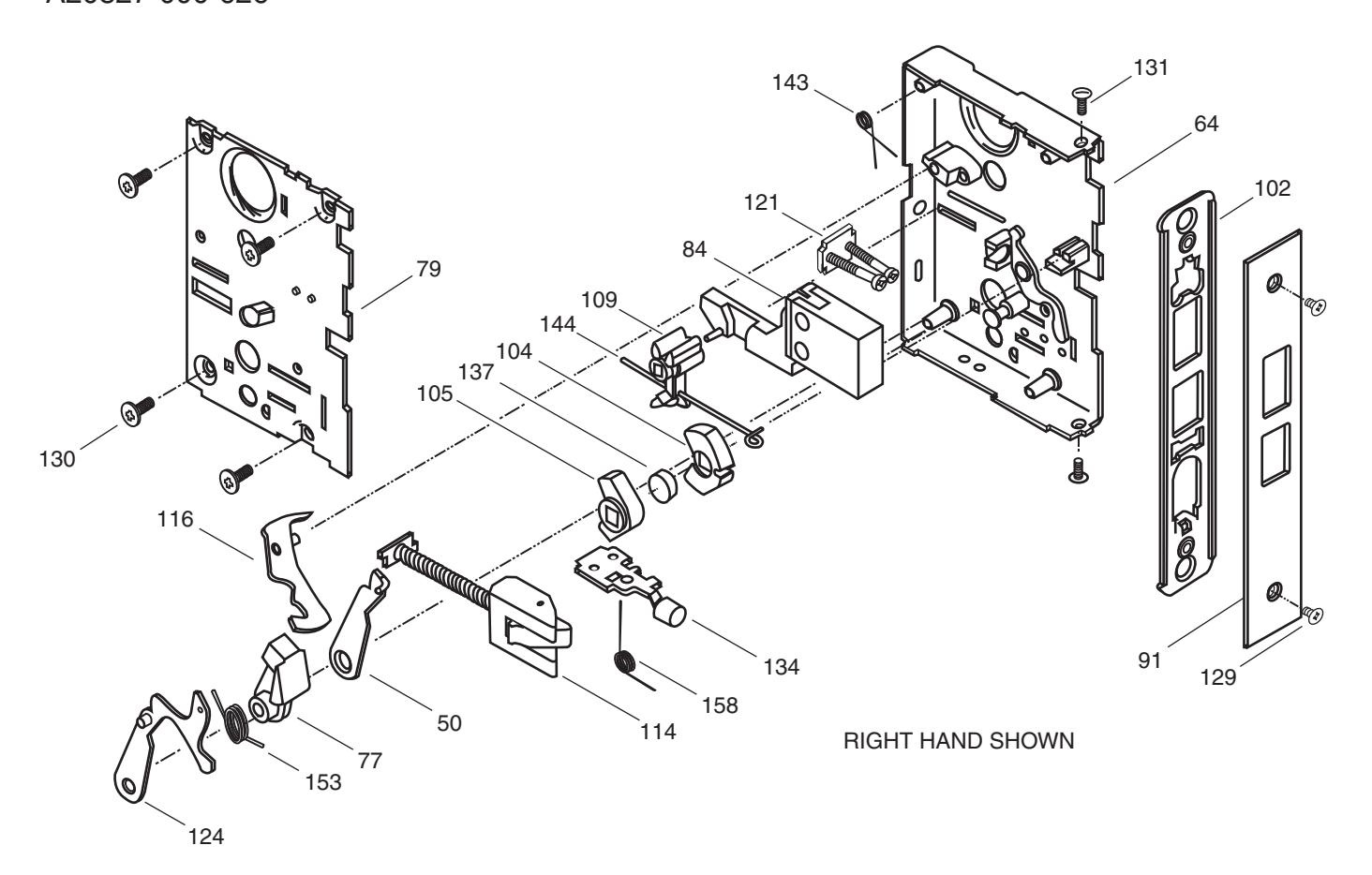

M431 Classroom Security and Deadbolt M571 Dormitory Lock A20827-000-626

Parts List - A20827-000-626

Call Out Number	Description	Part Number	Call Out Number	Description	Part Number
50	Arm, Lower Retract	020645-000-30	121	Retainer Assy, Cyl	A21209-000-00
64	Case Assy	A20588-001-00	124	Retract Arm Assy	A20601-002-00
77	Coupling	020646-000-30	129	Screw 8-32 x 1/4 (2)	K110-020
79	Cover Assy	A23204-000-00	130	Screw 8-32 x 3/8 (4)	002801-006-30
84	Deadbolt 1"	030147-000-626	131	Screw 8-32 x 3/8 (2)	002932-000-30
91	Faceplate	020109-000 *	134	Slide, Locking Hub	020572-000-30
102	Front Plate 1-1/4" Wide	021349-000-30	137	Spacer Hub	020674-000-30
104	Hub, Locking	020643-000-30	143	Spring, Cyl Lever	021011-000-60
105	Hub, Non-Locking	020642-000-30	144	Spring, Deadbolt	020641-000-30
109	Hub, T-Turn	020652-001-30	153	Spring, Retract Arm	020666-000-60
114	Latch Bolt Assy	A20639-004-626	158	Torsion Spring	021111-001-60
116	Lever & Pin Assy	A20602-000-00

^*= Finish or Specify Finish on All

Call Out Number	Description	Part Number	Call Out Number	Description	Part Number
50	Arm, Lower Retract	020645-000-30	121	Retainer Assy, Cyl	A21209-000-00
64	Case Assy	A20588-001-00	124	Retract Arm Assy	A20601-002-00
77	Coupling	020646-000-30	129	Screw 8-32 x 1/4 (2)	K110-020
79	Cover Assy	A23204-000-00	130	Screw 8-32 x 3/8 (4)	002801-006-30
84	Deadbolt 1"	030147-000-626	131	Screw 8-32 x 3/8 (2)	002932-000-30
91	Faceplate	020109-000 *	134	Slide, Locking Hub	020572-000-30
102	Front Plate 1-1/4" Wide	021349-000-30	137	Spacer Hub	020674-000-30
104	Hub, Locking	020643-000-30	143	Spring, Cyl Lever	021011-000-60
105	Hub, Non-Locking	020642-000-30	144	Spring, Deadbolt	020641-000-30
109	Hub, T-Turn	020652-001-30	153	Spring, Retract Arm	020666-000-60
114	Latch Bolt Assy	A20639-004-626	158	Torsion Spring	021111-001-60

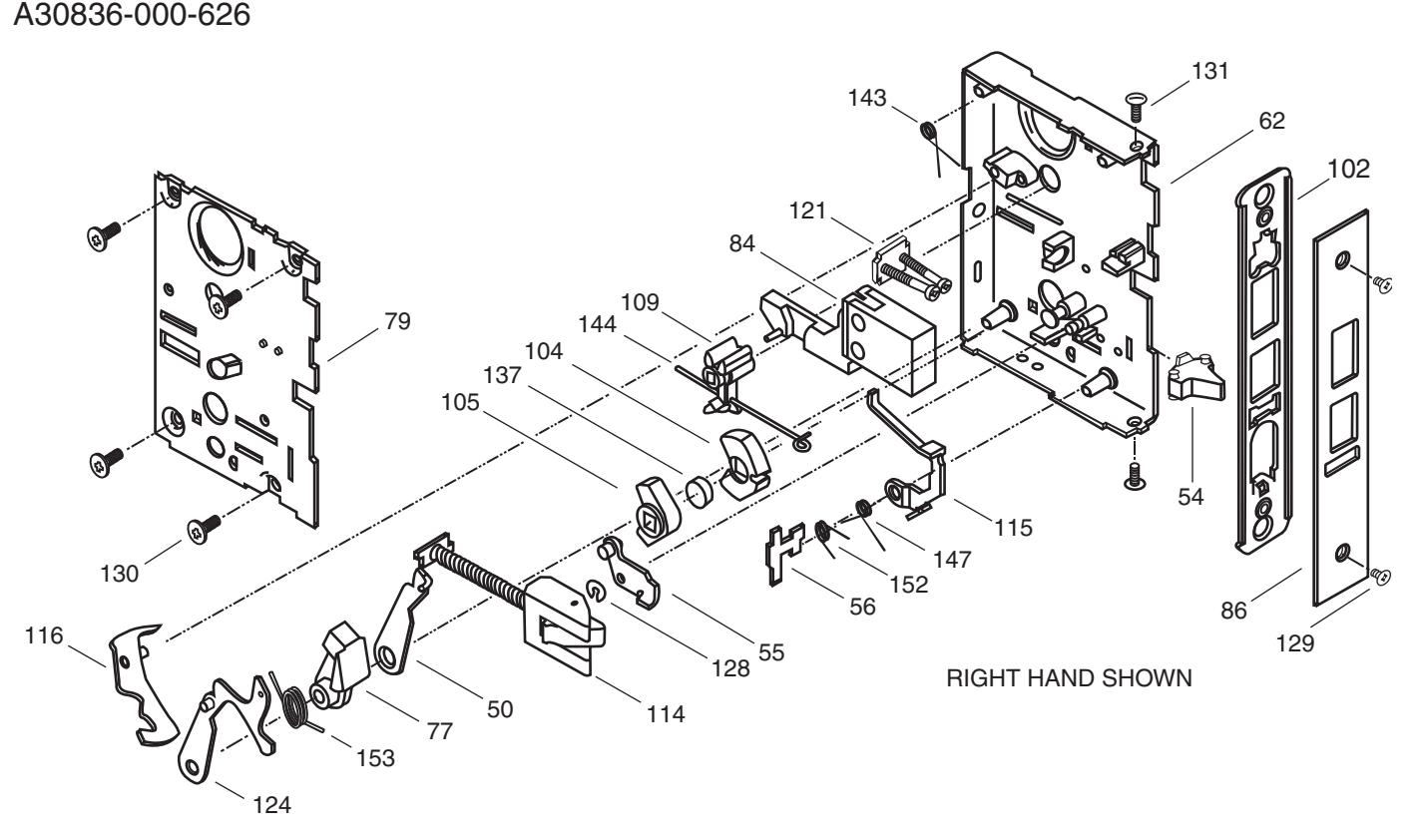

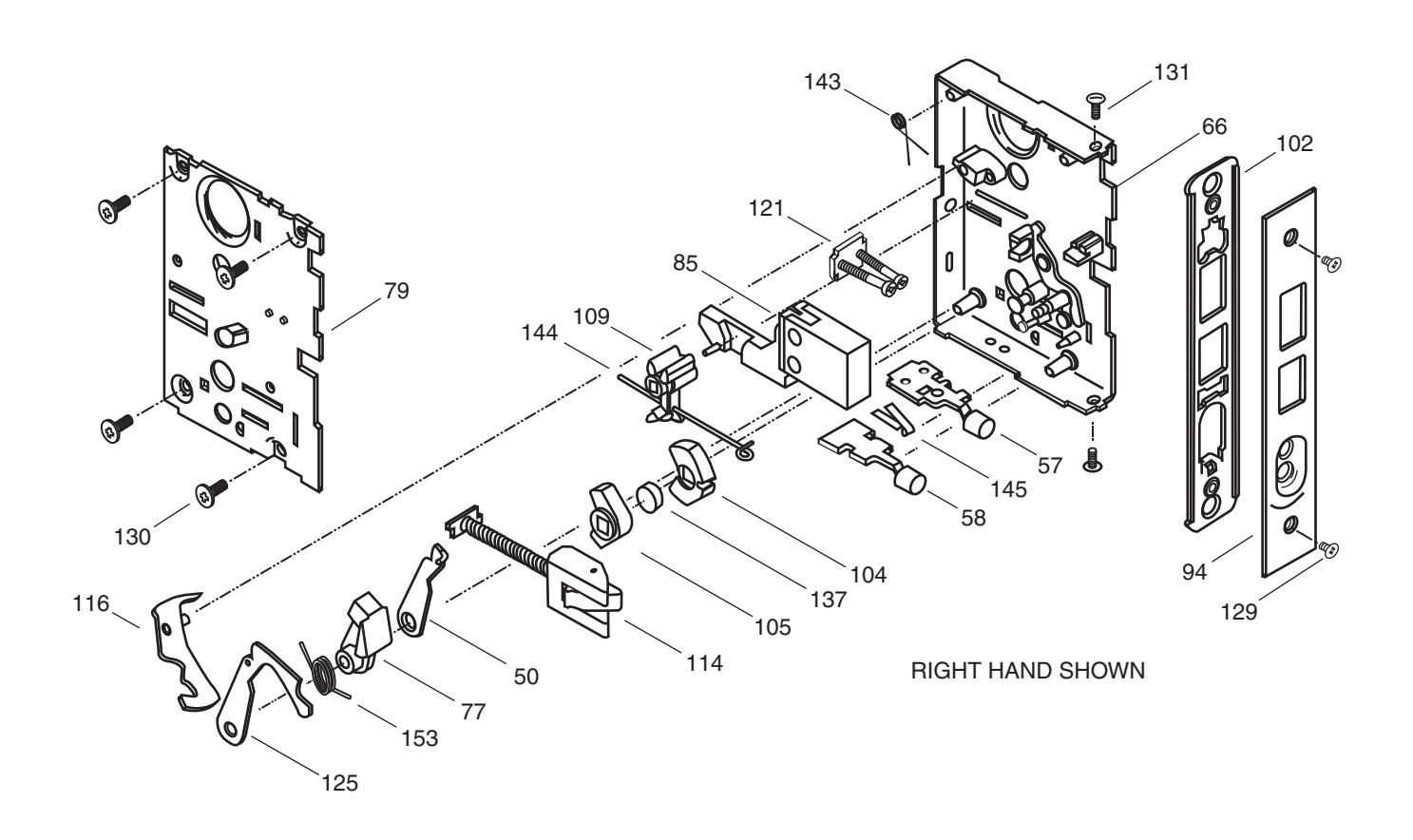

M451 Hotel/Motel Lock M641 Dormitory Lock M711 Privacy Lock w/Cyl

Parts List - A30836-30F * Locking Unit M451/631/641/711

Call Out Number	Description	Part Number

Call Out Number	Description	Part Number	Call Out Number	Description	Part Number
50	Arm, Lower Retract	020645-000-30	115	Lever	020575-000-30
54	Bar, Deadlocking	020579-000-630	116	Lever & Pin Assy	A20602-000-00
55	Blocker Assy	A20957-000-00	121	Retainer Assy. Cyl	A21209-000-00
56	Blocker, Button	020577-000-30	124	Retract Arm Assy	A20601-002-00
62	Case Assy	A20586-002-00	128	Ring, Truarc	005347-000-30
77	Coupling	020646-000-30	129	Screw 8-32 x 1/4 (2)	K110-020
79	Cover Assy	A23204-000-00	130	Screw 8-32 x 3/8 (4)	002801-006-30
84	Deadbolt 1"	030147-000-626	131	Screw 8-32 x 3/8 (2)	002932-000-30
86	Faceplate	014548-01U *	137	Spacer Hub	020674-000-30
102	Front Plate 1-1/4" Wide	021349-000-30	143	Spring, Cyl Lever	021011-000-60
104	Hub, Locking	020643-000-30	144	Spring, Deadbolt	020641-000-30
105	Hub, Non-Locking	020642-000-30	147	Spring, DL	020595-001-60
109	Hub, T-Turn	020652-001-30	152	Spring, Low Blocker	020978-000-60
114	Latch Bolt Assy	A20639-004-626	153	Spring, Retract Arm	020666-000-60

^*= Finish or Specify Finish on All

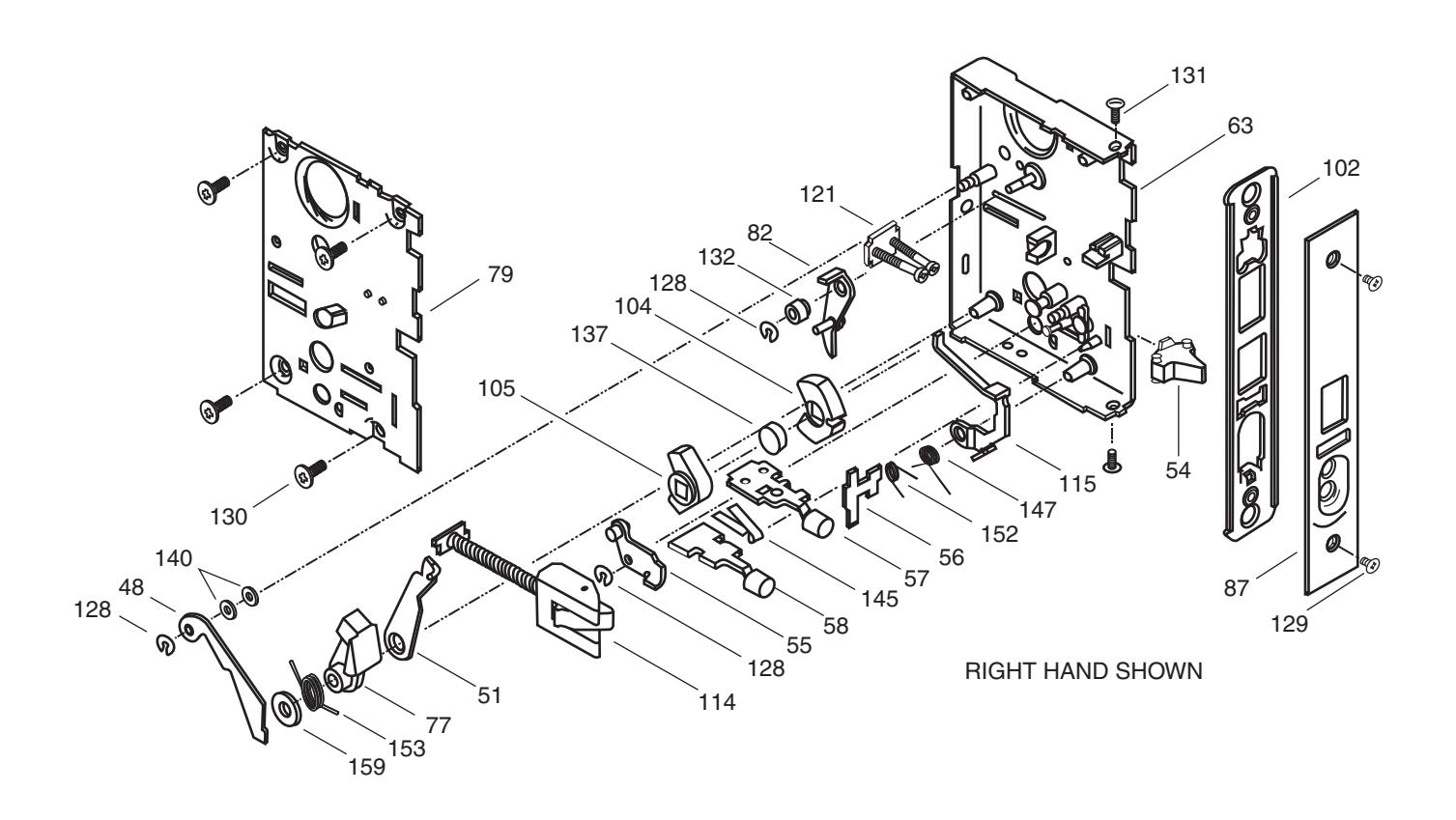

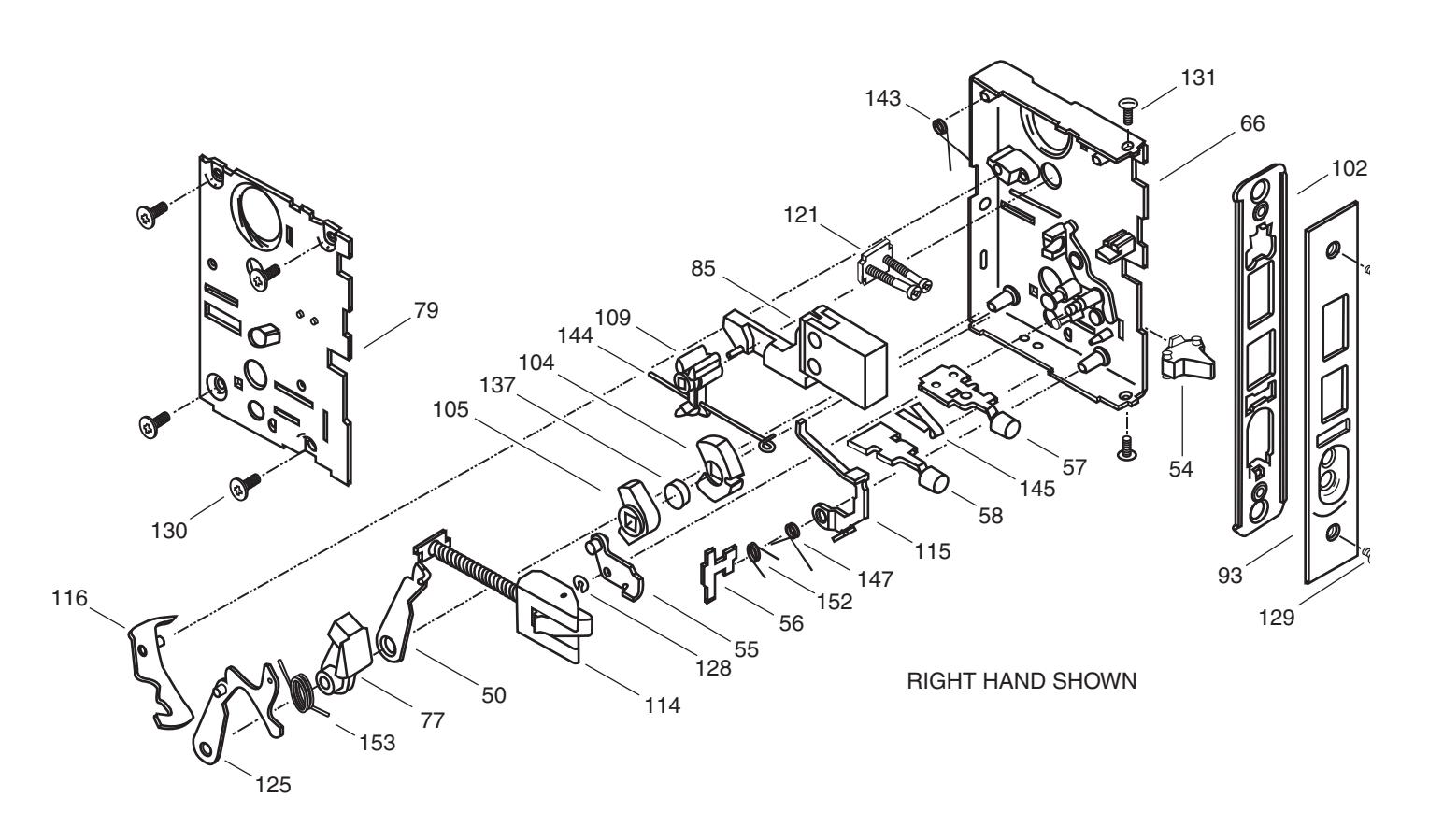

M521 Entry/Offi ce Lock A30824-000-626

Parts List - A30824-30F * Locking Unit M521

Call Out Number	Description	Part Number

Call Out Number	Description	Part Number	Call Out Number	Description	Part Number
48	Arm, Blocker Release	020491-000-30	114	Latch Bolt Assy	A20639-004-626
51	Arm, Lower Retract	021185-000-30	115	Lever	020575-000-30
54	Bar, Deadlocking	020579-000-630	121	Retainer Assy. Cyl	A21209-000-00
55	Blocker Assy	A20957-000-00	128	Ring, Truarc (3)	005347-000-30
56	Blocker, Button	020577-000-30	129	Screw 8-32 x 1/4 (2)	K110-020
57	Button Assy, Locking	A20958-000-626	130	Screw 8-32 x 3/8 (4)	002801-006-30
58	Button Assy, Non-Lock	A20915-000-626	131	Screw 8-32 x 3/8 (2)	002932-000-30
63	Case Assy	A20587-002-00	132	Sleeve, Lever Post	020659-000-10
77	Coupling	020646-000-30	137	Spacer Hub	020674-000-30
79	Cover Assy	A23204-000-00	140	Spacer, Washer (2)	020447-000-10
82	Cylinder Lever Assy	A20598-000-00	145	Spring, Detent	021162-000-30
87	Faceplate	020098-01U *	147	Spring, DL	020595-001-60
102	Front Plate 1-1/4" Wide	021349-000-30	152	Spring, Low Blocker	020978-000-60
104	Hub, Locking	020643-000-30	153	Spring, Retract Arm	020666-000-60
105	Hub, Non-Locking	020642-000-30	159	Washer, Flat	002900-000-30

M531 Apartment Lock A21019-001-626

Parts List - A21308-30F * Locking Unit M361/531

Call Out Number	Description	Part Number	Call Out
114	Latch Bolt Assy	A20639-004-626		*= Finish or Specify Finish on All

Call Out Number	Description	Part Number	Call Out Number	Description	Part Number
50	Arm, Lower Retract	020645-000-30	115	Lever	020575-000-30
54	Bar, Deadlocking	020579-000-630	116	Lever & Pin Assy	A20602-000-00
55	Blocker Assy	A20957-000-00	121	Retainer Assy, Cyl	A21209-000-00
56	Blocker, Button	020577-000-30	125	Retract Arm Assy	A20601-002-00
57	Button Assy, Locking	A20958-000-626	128	Ring, Truarc	005347-000-30
58	Button Assy, Non-Lock	A20915-000-626	129	Screw 8-32 x 1/4 (2)	K110-020
66	Case Assy	A20956-001-00	130	Screw 8-32 x 3/8 (4)	002801-006-30
77	Coupling	020646-000-30	131	Screw 8-32 x 3/8 (2)	002932-000-30
79	Cover Assy	A23204-000-00	137	Spacer Hub	020674-000-30
85	Deadbolt 1"	030147-002-626	143	Spring, Cyl Lever	021011-000-60
93	Faceplate	020576-01U *	144	Spring, Deadbolt	020641-000-30
102	Front Plate 1-1/4" Wide	021349-000-30	145	Spring, Detent	021162-000-30
104	Hub, Locking	020643-000-30	147	Spring, DL	020595-001-60
105	Hub, Non-Locking	020642-000-30	152	Spring, Low Blocker	020978-000-60
109	Hub, T-Turn	020652-001-30	153	Spring, Retract Arm	020666-000-60

M581 Storeroom/Exit Lock A30830-000-626

Parts List - A30830-30F * Locking Unit M581

Call Out Number	Description	Part Number	Call Out
114	Latch Bolt Assy	A20639-004-626		*= Finish or Specify Finish on All

Call Out Number	Description	Part Number	Call Out Number	Description	Part Number
48	Arm, Blocker Release	020491-000-30	115	Lever	020575-000-30
51	Arm, Lower Retract	021185-000-30	121	Retainer Assy, Cyl	A21209-000-00
54	Bar, Deadlocking	020579-000-630	128	Ring, Truarc (3)	005347-000-30
55	Blocker Assy	A20957-000-00	129	Screw 8-32 x 1/4 (2)	K110-020
56	Blocker, Button	020577-000-30	130	Screw 8-32 x 3/8 (4)	002801-006-30
61	Case Assy	A20584-002-00	131	Screw 8-32 x 3/8 (2)	002932-000-30
77	Coupling	020646-000-30	132	Sleeve, Lever Post	020659-000-10
79	Cover Assy	A23204-000-00	137	Spacer Hub	020674-000-30
82	Cylinder Lever Assy	A20598-000-00	140	Spacer, Washer (2)	020447-000-10
89	Faceplate	020099-01U *	147	Spring, DL	020595-001-60
102	Front Plate 1-1/4" Wide	021349-000-30	152	Spring, Low Blocker	020978-000-60
104	Hub, Locking	020643-000-30	153	Spring, Retract Arm	020666-000-60
105	Hub, Non-Locking	020642-000-30	159	Washer, Flat	002900-000-30

M621 Front Door Lock A30821-000-626

Parts List - A30821-30F * Locking Unit M621

Call Out Number	Description	Part Number

^*= Finish or Specify Finish on All

Call Out			Call Out
Number	Description	Part Number	Number	Description	Part Number
50	Arm, Lower Retract	020645-000-30	114	Latch Bolt Assy	A20639-004-626
57	Button Assy, Locking	A20958-000-626	116	Lever & Pin Assy	A20602-000-00
58	Button Assy, Non-Lock	A20915-000-626	121	Retainer Assy, Cyl	A21209-000-00
66	Case Assy	A20956-001-00	125	Retract Arm Assy	A20601-003-00
77	Coupling	020646-000-30	129	Screw 8-32 x 1/4 (2)	K110-020
79	Cover Assy	A23204-000-00	130	Screw 8-32 x 3/8 (4)	002801-006-30
85	Deadbolt 1"	030147-002-626	131	Screw 8-32 x 3/8 (2)	002932-000-30
94	Faceplate	030281-00U *	137	Spacer Hub	020674-000-30
102	Front Plate 1-1/4" Wide	021349-000-30	143	Spring, Cyl Lever	021011-000-60
104	Hub, Locking	020643-000-30	144	Spring, Deadbolt	020641-000-30
105	Hub, Non-Locking	020642-000-30	145	Spring, Detent	021162-000-30
109	Hub, T-Turn	020652-001-30	153	Spring, Retract Arm	020666-000-30

Parts List - Axxxx * Locking Unit M851 See Page 31

Call Out Number	Description	Part Number	Call Out
1	Heyco Strain Relief	08-06-02
2	24V DC Solenoid Ass'y	315-158-01
3	12V DC Solenoid Ass'y	315-158-02
4	24V AC Solenoid Ass'y	315-158-03
5	12V AC Solenoid Ass'y	315-158-04
6	#8 Flat Washer	89-04-25
7	Case	408-57-01
8	Pivot Link	415-463-01
9	PIN	415-217-01
10	Mortise Lid	422-410-01
11	Spacer - Key Retractor	410-14-01
12	Post	422-386-01
13	Spacer	407-24-01
14	Cable Tie	08-01-02		*= Finish or Specify Finish on All

Call Out Number	Description	Part Number

See Page 31

Parts List - Axxxx * Locking Unit M881

Call Out Number	Description	Part Number
1	Heyco Strain Relief	08-06-02
2	24V DC Solenoid Ass'y	315-158-01
3	12V DC Solenoid Ass'y	315-158-02
4	24V AC Solenoid Ass'y	315-158-03
5	12V AC Solenoid Ass'y	315-158-04
6	#8 Flat Washer	89-04-25
7	Case	408-57-01
8	Pivot Link	415-463-01
9	PIN	415-217-01
10	Mortise Lid	422-410-01
11	Spacer - Key Retractor	410-14-01
12	Post	422-386-01
13	Spacer	407-24-01
14	Cable Tie	08-01-02

Call Out Number	Description	Part Number

^*= Finish or Specify Finish on All

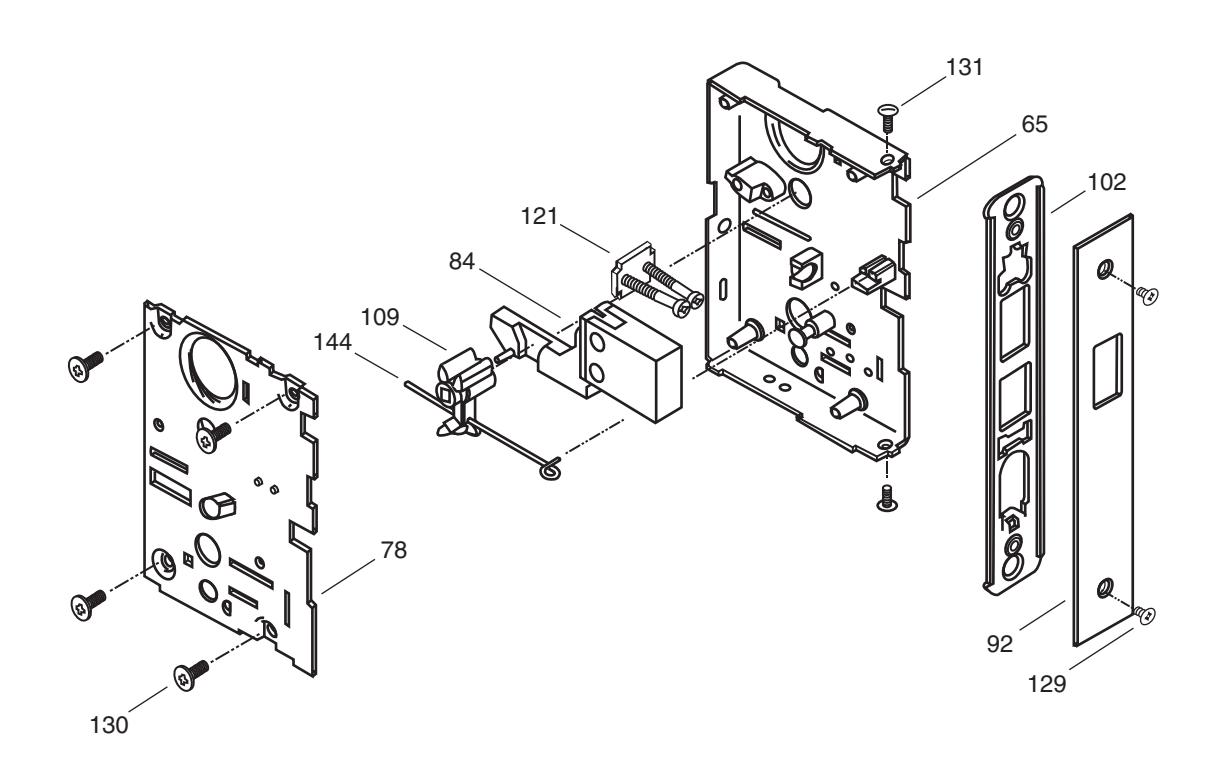

M911/921/931/941 Deadbolt

A20839-000-626

Parts List - A20839-30F * Locking Unit Deadbolt

Call Out Number	Description	Part Number	Call Out Number	Description	Part Number
65	Case Assy	A20591-000-00	109	Hub, T-Turn	020652-001-30
78	Cover	020854-000-30	121	Retainer Assy, Cyl	A21209-000-00
84	Deadbolt 1"	030147-000-626	129	Screw 8-32 x 1/4 (2)	K110-020
92	Faceplate	020432-000 *	130	Screw 8-32 x 3/8 (4)	002801-006-30
102	Front Plate 1-1/4" Wide	021349-000-30	144	Spring, Deadbolt	020641-000-30

^*= Finish or Specify Finish on All

Call Out Number	Description	Part Number	Call Out Number	Description	Part Number
65	Case Assy	A20591-000-00	109	Hub, T-Turn	020652-001-30
78	Cover	020854-000-30	121	Retainer Assy, Cyl	A21209-000-00
84	Deadbolt 1"	030147-000-626	129	Screw 8-32 x 1/4 (2)	K110-020
92	Faceplate	020432-000 *	130	Screw 8-32 x 3/8 (4)	002801-006-30
102	Front Plate 1-1/4" Wide	021349-000-30	144	Spring, Deadbolt	020641-000-30

Mortise Locking Units

FUNCTION	W/ FACEPLATE	FACEPLATE
101	A20800-3xx-*	020100-000-*
161	A30842-3xx*	020099-01U-*
301	A20806-3xx-*	020109-000-*
311	A21863-3xx-*	020109-000-*
321	A30539-3xx-*	020100-000-*
531	A21308-3xx-*	020576-01U-*
371/541	A20809-3xx-*	020109-000-*
381/441/561	A30812-3xx-*	020099-01U-*
411	A30815-3xx-*	020099-01U-*
451/641/711	A30836-3xx-*	014548-01U-*
521	A30824-3xx-*	020098-01U-*
431/571	A20827-3xx-*	020109-000-*
581	A30830-3xx-*	020099-001-*
621	A30821-3xx-*	030281-00U-*
851	A38816-xSA-*	020099-01U-*
881	A38816-xSE-*	020099-01U-*
911/921/931/941	A20839-30F-* (not handed)	020432-000-*
M12 M18

^* Specify fi nish 606, 612, 613, 630

xx = RH - Right Hand LH - Left Hand xxx = 0RH - Right Hand 0LH - Left Hand

RR - Right Hand Reverse LR - Left Hand Reverse RHR - Right Hand Reverse LHR - Left Hand Reverse

NOTE: Chassis for M101, M161, M301, M371/541, M411, M551 are Left Hand or Right Hand ONLY

Electrifi ed Mortise Chassis - Maxim W/ 030173-004-* Screws

FUNCTION	W/ FACEPLATE	FACEPLATE	W/O FACEPLATE
M851 Fail Safe 12 VAC/DC	A38816-1SA-*	020099-01U-*	A38812-1SA-626
M851 Fail Safe 24 VAC/DC	A38816-2SA-*	020099-01U-*	A38812-2SA-626	Made from
M881 Fail Secure 12 VAC/DC	A38816-1SE-*	020099-01U-*	A38812-1SE-626	A30812-000-626
M881 Fail Secure 24 VAC/DC	A38816-2SE-*	020099-01U-*	A38812-2SE-626

^* Finish 606, 612, 613, 630

Levers

Inside		Outside	Outer	Inner
	Dane		021280-000	A30202-00D
	Avalon		030029-000	A30202-00A
	Quantum		030140-000	A30202-00Q
	Sutro		030526-000	A30202-00S

For Knurled Lever identify as

Roses

Escutcheons

									Lo	ck C	ase i	Asse	embl	ies
Description (Part Number)	101/161	301/311/321	361/371/381	411	451	521	531/541	561	571	581	621	631	641	711	771	811/821	851	881	911	921	931	941
Napa Passage (030066-001)	•					• (i)		• (i)		• (i)		• (i)			• (i)		• (i)	• (i)
Napa T-Turn Prep (030066-003)		•			• (i)		• (i)		• (i)		• (i)		• (i)	• (i)
Napa Cyl (030066-005)			•	•		• (0)	• (0)	• (0)	• (0)	• (0)	• (0)	• (0)	• (0)		• (0)	•	• (0)	• (0)
Napa w/ Indicator Hole (030066-008)					• (0)
(030066-009)																				• (i)
(030066-010)																						• (i)
(030066-011)																			•	• (0)	•	• (0)
(030066-012)
Napa w/cyl/ emergency hole (030066-013)														• (0)

⁽ i) = inside

^{* -002, -004, -006, -007} escutcheons are used on the RW-series retrofit

⁽ o) = outside

Strikes

		Standard Strikes (Lip Length)			Optional Strikes	(Lip Length)		Strikes Sold Separate (Lip Length)
Description	020569 (1-1/8")*	020568 (1-1/8")*	021317 (1-1/4")	21315 (1-1/4")	21316 (1-1/4")	20318 (1-1/4")*	20319 (1-1/8")*	A21315-0xx (1-1/4")*	A21316-0xx (1-1/4")*	021317-000 (1-1/4")	020568-000 (1-1/8")	020569-000 (1-1/8")	020318-0xx (1-1/8")*	020319-0xx (1-1/8")*
Strike for latchbolt only M101, 161, 321, 381, 411, 441, 521, 561, 581, 851, 881	•			•				•			•
Strike for deadbolt and latch M301, 311, 371, 431, 451, 531, 541, 571, 621, 641, 711		•			•				•			•
Strike for deadbolt only			•							•
Strike for smoke seal or tight fi tting doors latchbolt only						•							•
Strike for smoke seal or tight fi tting doors latch and deadbolt only							•							•

^* Specify hand for all curved lip strikes

014548-01U	M431 M451 M631 M641 M711	020109-000
020098-01U	M521	020432-000
020099-01U	M381 M411 M441 M561 M581 M851 M881	020576-01U
020100-000	M101 M321	030281-00U

Part Number	Description	Part Number	Description
014548-01U	M431 M451 M631 M641 M711	020109-000	M301 M311 M371 M541 M571
020098-01U	M521	020432-000	M911 M921 M931 M941
020099-01U	M381 M411 M441 M561 M581 M851 M881	020576-01U	M531
020100-000	M101 M321	030281-00U	M621

Finishes: 606, 613, 630

Notes: Screws supplied at no charge when requested.

Mortise, Rim and Cam Lock for Standard Cylinders

Note: Specify fi nish: 605, 606, 612, 613, 626, 629, 630

Mortise Cylinder

900 Series Cylinders are furnished with #4 straight cam and 250 Series with #1 cloverleaf cam unless otherwise specifi ed. See table for product numbers. See pages 32-33 for optional cams and 34-35 for collars.

Note: Specify fi nish: 605, 606, 612, 613, 626, 629, 630

Thumbturn Cylinder

Furnished with #4 straight cam except 970 Series furnished with #1 cloverleaf cam unless otherwise specifi ed.

See table for product numbers. See pages 32-33 for optional cams and 34-35 for collars.

Note: Specify fi nish: 605, 606, 612, 613, 626, 629, 630

Dummy Cylinder

Used to plug hole in door where lock remains but cylinder operation is no longer needed.

984 1" 985 1-1/8"

Keyed Mortise Cylinders

Catalog Number	Length	Pins	Application
985	1-1/8"	5 or 6	Generic
986	1-1/4"	5 or 6	Generic
987	1-3/8"	6 or 7	Generic
988	1-1/2"	6 or 7	Generic
990	1-3/4"	6 or 7	Generic
992	2"	6 or 7	Generic
250	1-1/8"	6	M451 hotel function
251	1-1/4"	6	M451 hotel function
252	1-3/8"	6	M451 hotel function
253	1-3/8"	7	M451 hotel function

Thumbturn Mortise Cylinders

Catalog Number	Length	Pins	Application
985T	1-1/8"	-	Generic
986T	1-1/4"	-	Generic
973	1-1/8"	-	M911 Classroom Thumbturn, RH (CCW)
974	1-1/8"	-	M911 Classroom thumbturn, LH (CW)

Specify cylinder number, keyway, and fi nish when ordering.

Cams

	Lock	Ref. Number	Part Number	For Cylinder
Falcon
1, 2, 3 10	Falcon M Series deadbolt functions	1 2 3 10	A09894-001-00 A09894-002-00 A09894-003-00 A12667-007-00	Falcon, Ilco, Lori, Schlage Arrow, Sargent & Yale Corbin Russwin Falcon I/C
4 5	Falcon M Series non-deadbolt functions. Most old black cast iron locks. C/R ML2255 & ML2242 inside.	4 5	A09897-000-00 A12667-003-00	Conventional I/C Most Exit Devices
14 15	Falcon M381 outside	14 15	A20065-00-00 A20278-000-00	Conventional I/C
Monarch
5 24	Monarch Dogging cylinder. Install cam upside down.	24 5	A09897-024-00 A12667-003-00	Conventional I/C
21, 22, 23 20	Monarch Delta trim for 17C concealed vertical rod	21 22 23 20	A09894-021-00 A09894-022-00 A09894-023-00 A12667-020-00	Falcon, Ilco, Lori, Schlage Arrow, Sargent & Yale Corbin Russwin I/C
Schlage
13 12	Schlage L Series	13 12	A09888-000-00 A12667-008-00	Conventional I/C

Each part number indicates a package of 10 cams.

Mortise Cylinders

	Lock	Ref. Number	Part Number	For Cylinder
Other Manufacturers
1, 2, 3 10	Adams Rite MS, 4500 and 4700 Series	6 8	A09899-000-00 A12667-001-00*	Conventional I/C
4 5	Adams Rite 4070 deadlock	16 9	A09898-000-00 A12667-002-00	Conventional I/C
14 15	Arrow, Corbin Russwin ML2200 except ML2255 and ML2242	- 11	A20069-000-00 A12667-001-00	Conventional I/C
Other Manufacturers
24	Corbin Russwin DL4000 Series	27	A12667-013-00	I/C
20	Corbin Russwin master ring black cast iron locks only. Requires brushing A09890-000-00	25	A12667-006-00	Conventional I/C Most exit devices
13 12	Sargent & Yale	26 7	A08867-000-00 A12667-000-00	Conventional I/C
	Sargent 7737	-	A12667-03A-00*	I/C

Each part number indicates a package of 10 cams.

Cam Assortment Kits

1396 Standard Cylinders

Contains ten each #1, 4, and 13; fi fteen #6 and fi ve each #2, 3 and 14 cams, plus 50 cam screws and a plug follower.

1397 I/C Mortise Cylinders

Contains ten each #5, 7, 10, 11 and 12, twenty #8 and fi ve #15 cams, a supply of throw member pins and plates, and one #1402 staking puncyh,.

Cylinder Collars

Standard Collars for Cylinders Ordered Separately

Length	Cylinder	Non-AR Cams	AR Cam
1"	984D	A08794-000	-
1-1/8"	250, 965, 966, 973, 974, 985 Series	A08794-000	008876-002
1-1/4"	251, 986 Series	A08794-001	008876-003
1-3/8"	252, 253, 987, C987, C997	A08794-002	008876-004
Longer	C260 Series, (C)988, (C)990, (C)992	A08794-000	008876-000

Escutcheon Trim Rin

Door Thickness	Function	985 1-1/8"	986 1-1/4"	(C)987 1-3/8"	(C)988 1-1/2"
1-1/2"	Single cylinder	-	A08790-000	A08790-001	A08790-002
1-1/2"	Double cylinder	A08790-000	-	-	-
1-3/4"	Single cylinder	-	-	A08790-000	A08790-001
1-3/4"	Double cylinder	-	A08790-000	A08790-001	A08790-002
2"	Single cylinder	-	-	A08790-000	A08790-001
2"	Double cylinder	-	-	A08790-000	A08790-001
2-1/4"	Single cylinder	-	-	-	A08790-000
2-1/4"	Double cylinder	-	-	-	-
2-1/2"	Single cylinder	-	-	-	-
2-1/2"	Double cylinder	-	-	-	-

Sectional Trim Rin

Door Thickness	Function	985 1-1/8"	986 1-1/4"	(C)987 1-3/8"	(C)988 1-1/2"
1-1/2"	Single cylinder	A08794-001	A08794-002	-	-
1-1/2"	Double cylinder	A08794-002	A08794-003	-	-
1-3/4"	Single cylinder	A08794-000	A08794-001	-	-
1-3/4"	Double cylinder	A08794-001	A08794-002	A08794-002	-
2"	Single cylinder	-	A08794-000	A08794-001	A08794-002
2"	Double cylinder	A08794-000	A08794-001	A08794-002	A08794-003
2-1/4"	Single cylinder	-	-	A08794-000	A08794-001
2-1/4"	Double cylinder	-	A08794-000	A08794-001	A08794-002
2-1/2"	Single cylinder	-	-	-	A08794-000
2-1/2"	Double cylinder	-	-	A08794-000	A08794-001

Specify part number and finish when ordering. (e.g. A08790-000-626)

Trim Rings & Collars

Dim. A	Dim. B	Part No.
3/32"	9/32"	A08790-000
7/32"	13/32"	A08790-001
11/32"	17/32"	A08790-002
15/32"	21/32"	A08790-003
43/64"	55/64"	A08790-004
3/32"	9/32"	A08794-000
7/32"	13/32"	A08794-001
11/32"	17/32"	A08794-002
15/32"	21/32"	A08794-003
1/8"	-	008876-000
3/16"	-	008876-005
1/4"	-	008876-001
3/8"	-	008876-002
1/2"	-	008876-003

008876-004

Wave washer included. To order separately, specify 008789-001-60.

008862-000

5/8"

For all rim cylinders and cam locks.

Note: Specify finishes: 605, 606, 612, 613, 625, 626

Specify part number and finish when ordering. (e.g. A08790-000-626)

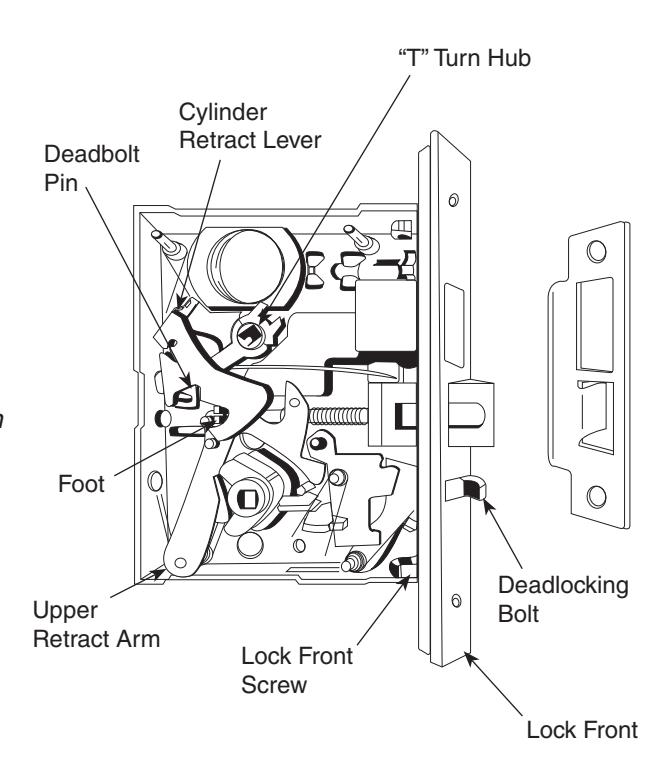

Reversing Hand of Falcon M-Series Mortise Locks

If it is necessary to reverse the hand of a Falcon M-Series Mortise lock, it is quickly and easily accomplished by the following steps.

Note:

If the lock has a deadbolt, it must be in the retracted position when reversing hand.

1. REMOVE COVER

Remove the 4 Cover fastening screws and slowly lift off cover from case.

2. REVERSE LATCH BOLT ASSEMBLY

A. Lift out Cylinder Retract Lever, if included.

B. Lift out Upper Retract Arm, if included.

C. Compress Latch Bolt Spring toward Faceplate to clear Latch Bolt Guide seat. Lift out and invert Latch Bolt Assembly. Place Latch Bolt Spring into Latch Bolt Guide seat.

Note:

Lower Retract Arm must be between Latch Bolt Foot & Latch Bolt Guide.

3. REVERSE KNOB HUBS

Note:

Knob hub reversing is required only on locks that contain two differently shaped hubs.

A. To reverse, pull Coupling toward rear of case.

B. Lift out both Hubs together, invert as an assembly and replace.

C. Ease coupling back into hubs.

4. REASSEMBLE RETRACT ARM AND LEVER

A. Replace Upper Retract Arm so that arm fi ts into space between Latch Bolt Foot and Coupling.

B. Replace Cylinder Retract Lever so that it straddles the Dead Bolt Pin.

C. Replace Cover guiding "T" Turn Hub into cover hole. Depress Latch Bolt to clear Foot.

Note:

A Phillips head screwdriver inserted through cover into "T" Turn Hub will retain hub and Cylinder Retract Lever in proper location while replacing cover.

D. Replace Cover fastening screws.

5. ADJUST BEVEL

Set Bevel of lock front to match door Bevel and securely tighten screws.

6. STRIKE

Replace Strike with Proper Hand condition if necessary.

Re-Handing Instructions for Falcon M-Series Lock Trim

Example shown is right hand being changed to left hand. Reverse sequence to change from left to right hand.

Note: Inside trim is always opposite the outside trim.

Holding lever as shown, bend tab of lockwasher back fl at. Remove nut.

Holding lever securely, rotate rose assembly clockwise slightly, and remove plate and lockwasher.

Using caution, allow rose assembly to rotate counterclockwise to relieve spring tension.

Remove spring and reinstall with spring hook on opposite side of post.

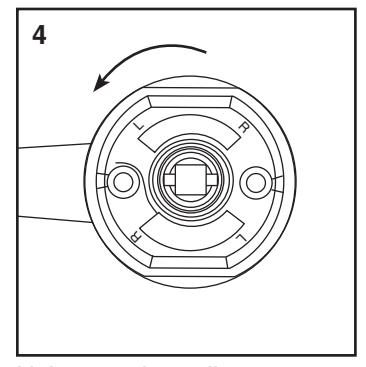

Holding lever securely, rotate rose assembly counterclockwise slightly past 90°.

Reinstall plate with "L" side up and in line with "L" on rose assembly.

Reinstall lockwasher and nut. Tighten nut and then back off slightly until rose assembly rotates freely under plate. Bend up two tabs of lockwasher against nut.

Falcon Mortise Lock Re-Handing Guide

M-Series Service Manual

www.falcon.ingersollrand.com
