Overview

The FME-2000 is a standalone electronic function lock that provides RFID (Radio-Frequency Identification) technology integrated with an ANSI Grade 1 heavy duty mortise lockset for greater security, RFID technology simplifies the management of the system and provides ease of use. Maximum keycard capacity includes 1 program keycard, 1 clear keycard, 1 register keycard, and 250 user and office keycards. The FME- 2000 is quick and easy to program.

Features

• Heavy duty standalone RFID mortise lock
• Easy programming of multiple locks
• Extended two years battery life, with low battery warning
• Easy firmware update
• Non-volatile memory (Setting is not deleted even if power off)
• · Mechanical key override
• Encrypted keycard
• · Mifare technology with NFC tag
• Tamper resistant mounting screws
• Vandal resistant RFID reader

Electronic Specifications

Without Deadbolt, Outside Without Deadbolt Inside

Application Full indoor and outdoor

User keycards Up to 250

Keycard verification time less than 0.5 second

Keycard maximum working distance

Communication Multi-colored LED and Sound

Power supply 4AA battery Battery life Up to 2yrs

Operating temperature-exterior -31° to 151°F (-35° to 66°C) Certifications FCC Part 15, UL 10C, A156.13

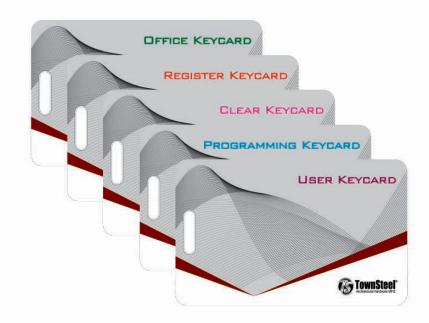

2 User and 1 Office keycards standard Keycard

Program Pack One each Program, Clear and Register keycard standard

Mechanical Specifications

With Deadbolt Inside

Chassis A156.13 certified grade 1 mortise Handing Handed, easy field reversible Door thickness 1-3/4" standard, others upon request

2-3/4" Backset

Latch bolt Stainless steel, anti-friction split, 3/4" throw

1-1/8" X 8" standard, 1-1/16" x 8" narrow style available Faceplate Escutcheon Wrought steel or zinc alloy, plated to match finish symbols

Levers Forged brass or cast zinc, plated to match finish symbols

Lever Style Sentinel (S), Quest (Q) and Gala (G). Designer lever upon request

Strike ANSI strike, 1-1/4" X 4-7/8", stainless steel or steel plated

to match finish symbol

FME-2000

Grade 1 Mortise Lockset with RFID Technology

Lead line Available Clutching Available

Cylinder and keys 6 pin brass, schlage "C" keyway standard, 2 brass keys

per each cylinder

SFIC Small format IC available, 6 or 7 pin, Best "A" keyway

Schlage® LFIC Schlage® Large Format I.C. housing available

Corbin® LFIC Corbin® Large Format I.C. housing available, for 6pin core

High Security Cylinder Available, TownSteel "L" keyway, Regular 6 pin, SFIC 7 pin

Finish US26D and US10B stock finishes, other upon request

Warranty 1 year limited for electronic, 10 year limited for mechanical,

5 year limited for finish

Code Compliance

• ANSI/BHMA A156.13: Chassis A156.13-2005 Grade 1 certified

• ANSI/BHMA A156.25: Meets or exceeds applicable requirements

• UL/ULC: UL10C 3-hour rated

• BAA: Meets guidelines of the Buy American Act

• ADA: Meets requirements of the Americans with Disabilities Act

• RoHS: Meets requirements of EU RoHS Directive 2002/95/EC

• FCC: FCC part 15 certified

How to order

FME-2010: Mortise RFID, Rigid FME-2020: Mortise RFID, Clutched FME-2030: Mortise RFID, High Security Cylinder, Rigid FME-2040: Mortise RFID, High Security Cylinder, Clutched FME-2050: Mortise RFID, Rigid, With Deadbolt FME-2060: Mortise RFID, Clutched, With Deadbolt FME-2070: Mortise RFID, High Security Cylinder, Rigid, With Deadbolt FME-2080: Mortise RFID, High Security Cylinder, Clutched, With Deadbolt	Series	Lever Style	Finish	Keying/Cylinder
	FME-2020: Mortise RFID, Clutched FME-2030: Mortise RFID, High Security Cylinder, Rigid FME-2040: Mortise RFID, High Security Cylinder, Clutched FME-2050: Mortise RFID, Rigid, With Deadbolt FME-2060: Mortise RFID, Clutched, With Deadbolt FME-2070: Mortise RFID, High Security Cylinder, Rigid, With Deadbolt FME-2080: Mortise RFID, High Security Cylinder, Clutched,	Q: Quest		Specify when ordering

Example:

FME-2010 - S - US26D FME-2010: Mortise, RFID, Rigid S: Sentinel Lever US26D: Satin Chrome
