Ctables TENTS
| TERMS & CONDITIONS ANODIZED FINISHES STANDARD AND CUSTOM FINISHES | ii |
|---|---|
|
2
3 4 5 |

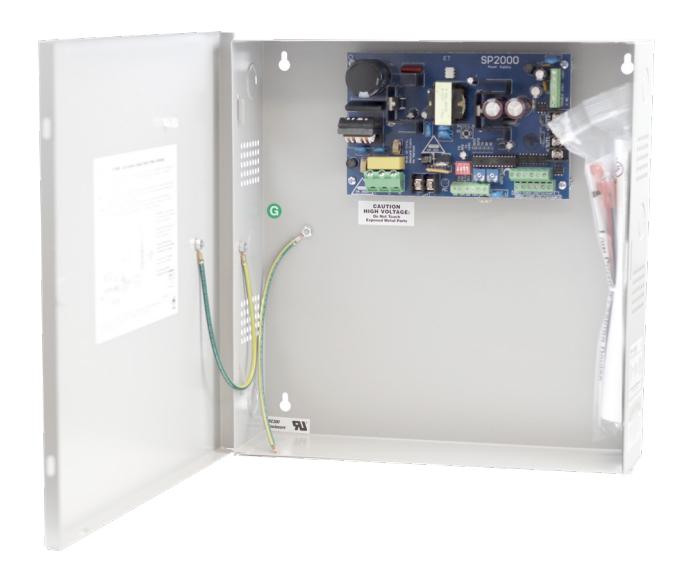

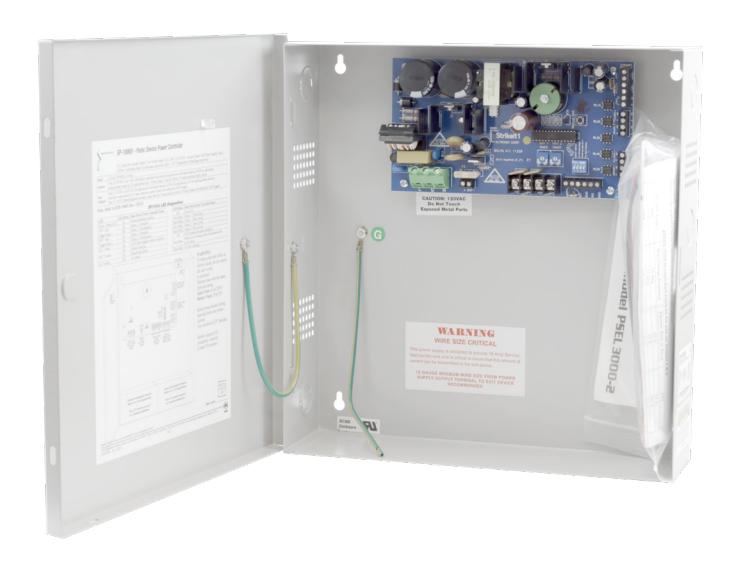

| POWER SUPPLY PSMEL-1500 Power Supply PSMEL-2000 Power Supply | |
| ELECTRICAL MODIFICATIONS | |
| QC-CAB QUICK CONNECT CABLES • QC-CAB-001 • QC-CAB-002 • QC-CAB-003 • QC-CAB-004 • QC-CAB-005 • QC-CAB-006 • QC-CAB-007 • QC-CAB-008 • QC-CAB-009 |
9
9 9 9 9 9 |

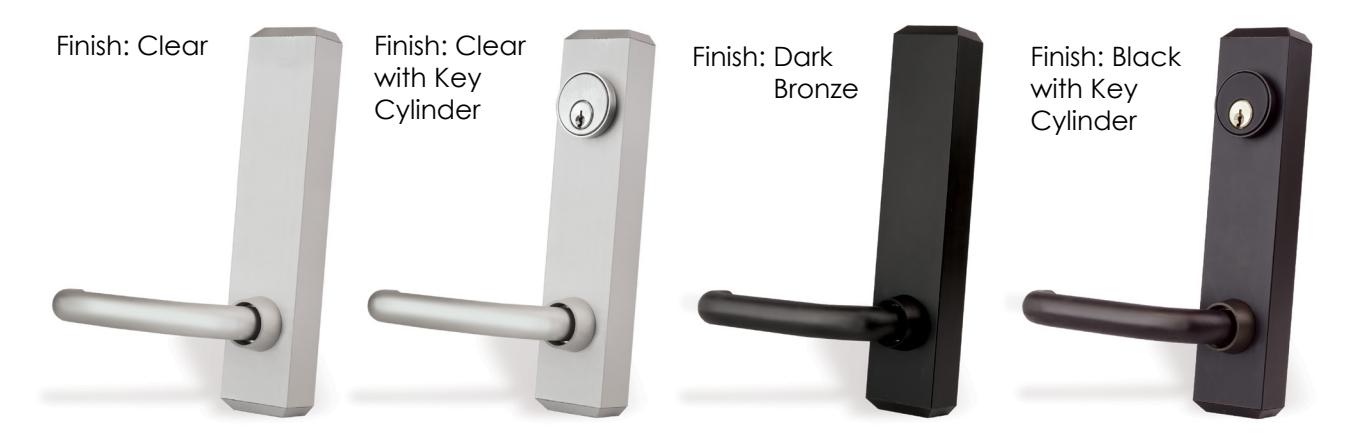

| L3 SERIES LEVER TRIM RM370 SERIES - REMOVABLE MULLIONS KRM370 SERIES KEYED REMOVABLE MULLION KIT CYLINDER DOGGING RETROFIT KITS & CYLINDERS HANDING DIAGRAM |
11
12 |
TERMS AND CONDITIONS
1. Contact Us - sale s@fcbp.com
Send all inquiries to this email for a prompt response, Including: Purchase Orders, Quote Requests, Customer Service related items, RMA requests, etc.
2. Prices
- List prices are effective on the date appearing on the cover and are subject to change without notice.
- Prices shown herein are subject to discounts in effect at the time orders are acknowledged in writing.
- Errors or omissions are subject to correction.
- All quoted jobs must clearly reference quote number on purchase order in order to receive special quoted prices.
3. Freight
• All orders are shipped F.O.B. Factory.
4. Terms
- All invoices are due Net 30. Discounts may be allowed, if previously arranged with FCBP.
- No discount allowed on freight.
- 1-1/2% may be charged on all accounts 30 days past due (18% annually).
5. Order Entry
- Any order received by 12 noon CST will be entered the same day, provided all required details are included when order is received.
- You will receive an order acknowledgment via email or fax the following morning with expected ship date for your review.
6. Minimum Orders
• No minimum order requirements.
7. Order Cancellations & Revision Requests
- Standard lead time orders that are canceled or revised after 2 days of order entry will incur a restock fee determined by FCBP.
- Expedited, made-to-order or special orders cannot be canceled or revised after order has been entered.
8. Returns
- All RMA requests must be submitted to FCBP in writing within 4 months from date of invoice.
- All return shipments must be accompanied by a copy of the FCBP-issued RMA to serve as a packing list.
- Freight costs to return goods must be prepaid by customer, unless previously authorized by FCBP.
- Any freight prepaid by FCBP on the original order will be subtracted from the total amount to be credited to customer.
-
All goods must be returned to FCBP within
60 days
from RMA authorization date in the same condition the original order left the FCBP factory.
- Any RMA received after the 60 days is subject to reevaluation of replacement and/or restocking charge.
- Credit for RMA will be applied to customer's account. No cash or checks will be issued.
- For all RMAs where a replacement is requested, FCBP will invoice the replacement in full and the customer will be held responsible for the invoice. Once the RMA product is received and inspected by FCBP, the appropriate credit will be issued.
9. Claims
• All claims as to defects, errors or shortages shall be reported in writing within 10 days from receipt of order.
10. Product Changes
• FCBP reserves the right to make changes or improvements in design, material, parts or specifications; as well as to discontinue products at any time.
11. Limited Warranty
- FCBP warrants its products sold in the United States of America are free from defects in material or workmanship under normal use and service for a minimum period of one year from date of shipment.
- See website for specific product warranty details.
- Repair or replacement of defective products during this period shall be the only remedy under this warranty.
- Does not cover defects or damage as a result of improper use or maintenance, vandalism, abuse, accident, ordinary wear and tear or shipping and handling.
Standard and Custom Finishes
FCBP PRODUCTS
| _ | FUD | CL | 9 | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S - St
C - C |
tandard
Custom |
ANSI | Color Name | Door Pulls & Custom Pulls | Rescue Hardware | Electrical Power Transfers | Locking Ladder Pulls | Custom Strikes | Electromagnetic Door Holders |
Surface Bolts, Slide Bolts, Vertical
Rod Protectors & Covers |
Roller Latches | Coordinators | Flush Bolts |
Wall Stops, Floor Stops,
Applied Stops, Pipe Stops |
Overhead Holders & Stops | Hospital Push/Pulls | Cam Lift Hinges & Specialty Hinges | Custom Slim Line Pivots | Pivots & Pivot Sets | Stainless Steel Door Edge Guards |
Stainless Steel Pin & Barrel
Continuous Hinges |
Aluminum Geared Hinges | |
| S | US3 | 605/632 | BRIGHT BRASS | • | • | • | • | • | • | • | • | • | • | • | • | • | • | ||||||
| S | US4 | 606/633 | SATIN BRASS | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | |||||
| С | US5 | 609/638 | SATIN BRASS OXIDIZED | • | • | • | • | • | • | • | • | • | | • | | • | • | ||||||||
| S | US9 | 611 | BRIGHT BRONZE - CLEAR COATED | • | • | • | • | • | • | • | • | • | | • | | • | • | • | |||||||
| S | US10 | 612/639 | SATIN BRONZE | • | • | • | • | • | • | • | • | • | • | • | | • | | • | • | • | |||||
| С | US10A | 641 | ANTIQUE BRONZE LACQUERED | • | • | • | • | • | • | • | • | • | • | • | • | • | |||||||
| FINISHES | S | US10B | 613/640 | DARK BRONZE | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | ||||
| N S | С | US14 | 618 | BRIGHT NICKEL (US32) | • | • | • | • | • | • | • | • | • | | • | | • | • | |||||||
| С | US14B | - | BRIGHT BLACK NICKEL | • | • | • | • | • | • | • | • | • | • | • | • | ||||||||
| С | US15 | 619/646 | SATIN NICKEL | • | • | • | • | • | • | • | • | • | | • | | • | • | ||||||||
| PLATED | С | US15A | 620/647 | SATIN NICKEL ANTIQUE OXIDIZED | • | • | • | • | • | • | • | • | • | | • | | • | • | |||||||
| С | US17A | 621 | SATIN BLACK NICKEL CLEAR COAT | • | • | • | • | • | • | • | • | • | | • | | • | • | ||||||||
| С | US26 | 625/651 | BRIGHT CHROME (US32) | • | • | • | • | • | • | • | • | • | • | • | • | ||||||||
| С | US26D | 626/652 | SATIN CHROME (US32D) | • | • | • | • | • | • | • | • | • | • | | • | | • | • | |||||||
| S | US32D | 630 | SATIN STAINLESS STEEL | • | • | • | • | • | • | • | • | • | • | • | | • | | • | • | • | • | ||||
| S | US32 | 629 | BRIGHT STAINLESS | • | • | • | • | • | • | • | • | • | • | • | | • | | • | • | • | • | ||||
| S | USP | 600 | PRIME COAT | • | • | • | • | • | • | • | • | • | • | • | • | • | |||||||
| S | S | $1 | 689 | PAINTED ALUMINUM | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | |||
| 黒 | S | S2 | 695 | PAINTED BRASS | • | • | • | • | • | • | • | • | • | • | | • | | • | • | • | • | • | |||
| Ž | S | $3 | 694 | PAINTED SATIN BRONZE | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | |||
| COATED FINISHES | S | S4/BSP | 693 | BLACK SUEDE POWDER COAT | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • |
| S | $5 | 695 | PAINTED DARK BRONZE | • | • | • | • | • | • | • | • | • | • | | • | | • | • | • | • | • | ||||
| O. | S | S8/WSP | - | WHITE SUEDE POWDER COAT | • | • | • | • | • | • | • | • | • | • | • | | • | | • | • | • | • | • | ||
| O | S | AM | - | CRYSTAL CLEAR - ANTI -MICROBIAL | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | |||
| S | С | 628 | CLEAR ANODIZED (US28) | • | • | • | • | • | |||||||||||||||
| ES | С | FCBP | - | CHAMPAGNE ANODIZED | • | • | |||||||||||||||||
| SE | С | FCBP | 311 | LIGHT BRONZE ANODIZED | • | • | |||||||||||||||||
| 몶 | С | FCBP | 312 | MEDIUM BRONZE ANODIZED | • | • | |||||||||||||||||
| E | С | D | 313 | DARK BRONZE ANODIZED | • | • | |||||||||||||||||
| ANODIZED FINISHES | S | FCBP | - | STAT BRONZE ANODIZED | • | • | |||||||||||||||||
| 9 | S | В | 315 | BLACK ANODIZED | • | • | |||||||||||||||||
| Ā | С | FCBP | - | GOLD ANODIZED | • | ||||||||||||||||||
| С | FCBP | - | CUSTOM ANODIZED FINISHES | • |
* Custom Finishes Available - Contact Factory
FCBP® reserves the right to make changes or improvements in design, material, parts or specifications, and "discontinue" without notice.
www.fcbp.com
iii

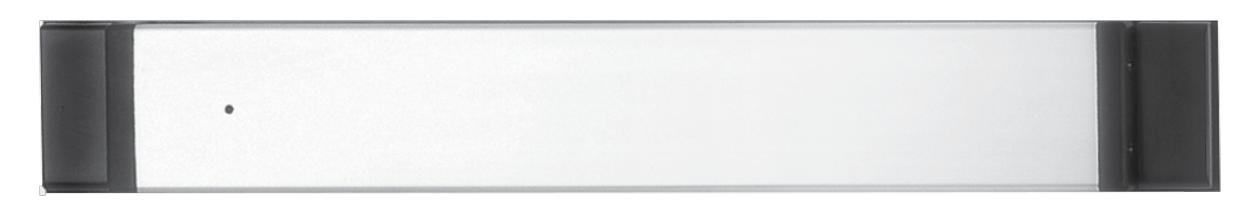

3100 SERIES - MID RAIL CONCEALED VERTICAL ROD CROSSBAR
| 3190* - MID RAIL CONCEALED VERTICAL ROD | List Price | |
|---|---|---|
| BASE PRICE | 3190 MID RAIL CONCEALED VERTICAL ROD | $950 |
| PART NUMBER | A/31/B/C-D-E | - |
| SAMPLE NUMBER | MEL319224NH-CL96 | - |
| A = ACCESSORIES | ADD | |
| MEL | Electric Latch Retraction by Motor Drive | $2,975 |
| SW | Signal Switch | $311 |
| AL | Alarm Function | $476 |
| SWMEL | Electric Latch Retraction by Motor Drive with Signal Switch | $3,285 |
| B = FUNCTION | ADD | |
| 90 | Exit Only, No Trim | Included |
| 92 | Prepped for Exterior Key Cylinder (No Cylinder) | $126 |
| 93 | Prepped for Exterior Key Cylinder (With Cylinder) | $234 |
| C = SIZE | ADD | |
| 24 |
36" DO Width 36"- 48" Muntin Length = Specify Door Opening Width Filler Bar Length
(Standard) |
Included |
| XX | Special Width | Consult Factory |
| D = FINISH - (End Caps are always Black Enamel) | ||
| CL | Clear Anodized | Included |
| BR | Dark Bronze Anodized | $62 |
| BL | Black Anodized | $77 |
| SP | Special | Consult Factory |
| E = SPECIAL HEIGHT | ADD | |
| XX | Special Height (Max. 120" Tall) (For Doors Other Than 7 Feet) | $101 |
| INACTIVE DOORS | ADD | |
| Muntin Material | Up to 48" Clear or Dark Bronze | $75 |
| Push Bar | Filler Bar Material - Up to 48" Long | $75 |
| SPECIAL LATCHES (Comes with Standard Top & Bottom) | ADD | |
| H | Hex Bottom | N/C |
| P3100B | Pullman Style Bottom | $76 |
| P3100T | Pullman Style Top | $194 |

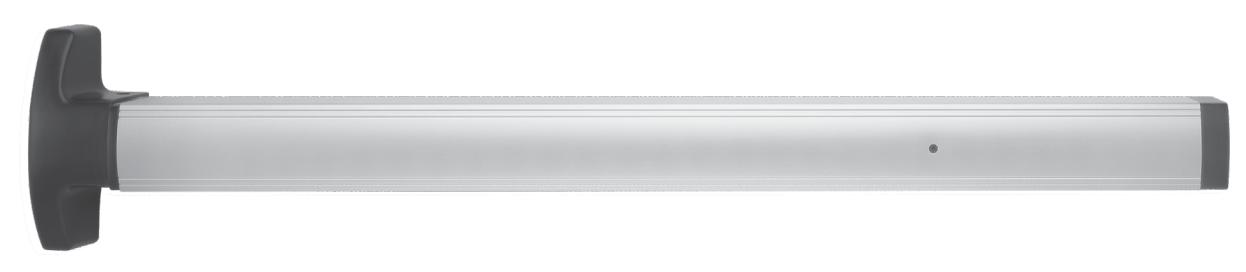

3600 SERIES - CONCEALED VERTICAL ROD CROSSBAR
| 3690* - CONCEALED VERTICAL ROD | List Price | |
|---|---|---|
| BASE PRICE | 3690 CONCEALED VERTICAL ROD | $512 |
| PART NUMBER | A/36/B/C-D/E | - |
| SAMPLE NUMBER | MEL369236-CL96 | - |
| A = ACCESSORIES | ADD | |
| MEL | Electric Latch Retraction by Motor Drive | $2,975 |
| SW | Signal Switch | $311 |
| SWMEL | Electric Latch Retraction by Motor Drive with Signal Switch | $3,285 |
| CD | Interior Dogging by Key Cylinder | $194 |
| AL | Alarm Function | $476 |
| CDAL | Alarm Function with Cylinder Off/On | $670 |
| D | Dummy (Inactive) Device | <-$30> |
| FL | Impact Rated Device | $48 |
| FLX | Enhanced Impact Rated Device | $599 |
| B = FUNCTION | ADD | |
| 90 | Exit Only, No Trim | Included |
| 91 | With 1" Round Offset Pull (10" Centers) | $300 |
| 92 | Prepped for Exterior Key Cylinder (No Cylinder) | $52 |
| 93 | Prepped for Exterior Key Cylinder (With Cylinder) | $160 |
| C = SIZE | ADD | |
| 30 | 30" Door Width | N/C |
| 36 | 36" Door Width (Standard) | Included |
| 42 | 42" Door Width | $23 |
| 48 | 48" Door Width | $46 |
| XX | Special Width | $46 |
| XX (MEL) | Special Width | Consult Factory |
| D = FINISH - NOTE: (End Caps are always Black Enamel) | ||
| CL | Clear Anodized | Included |
| BR | Dark Bronze Anodized | $48 |
| BL | Black Anodized | $61 |
| SP | Special | Consult Factory |
| E = SPECIAL HEIGHT | ADD | |
| XX | Special Height (Max. 120" Tall) (For Doors Other Than 7 Feet) | $68 |
| SPECIAL LATCHES (Comes with Standard Top & Bottom) | ADD | |
| H | Hex Bottom | N/C |
| P3600B | Pullman Style Bottom | $76 |
| P3600T | Pullman Style Top | $194 |

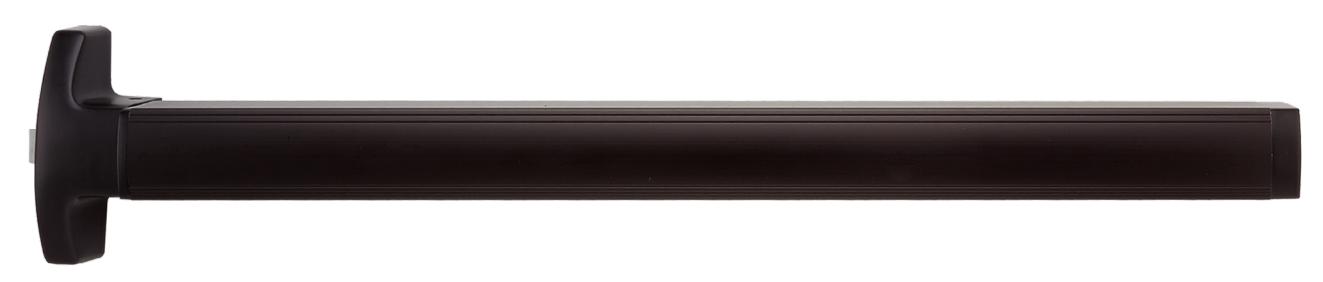

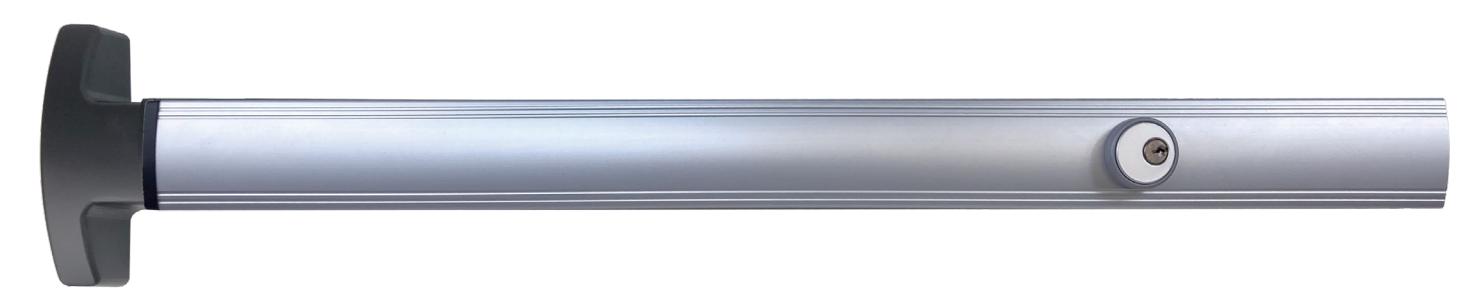

3700 SERIES - RIM CROSSBAR
| 3790* - RIM | List Price | |
|---|---|---|
| BASE PRICE | 3790 RIM | $467 |
| PART NUMBER | A/37/B/C-D | - |
| SAMPLE NUMBER | MEL379236-CL | - |
| A = ACCESSORIES | ADD | |
| MEL | Electric Latch Retraction by Motor Drive | $2,975 |
| SW | Signal Switch | $311 |
| SWMEL | Electric Latch Retraction by Motor Drive with Signal Switch | $3,285 |
| CD | Interior Dogging by Key Cylinder | $194 |
| AL | Alarm Function | $476 |
| CDAL | Alarm Function with Cylinder Off/On | $670 |
| FL | Impact Rated Device | Contact Factory |
| B = FUNCTION | ADD | |
| 90 | Exit Only, No Trim | Included |
| 91 | With 1" Round Offset Pull (10" Centers) | $300 |
| 92 | Prepped for Exterior Key Cylinder (No Cylinder) | $52 |
| 93 | Prepped for Exterior Key Cylinder (With Cylinder) | $160 |
| C = SIZE | ADD | |
| 30 | 30" DO Width | N/C |
| 36 | 36" Door Width (Standard) | Included |
| 42 | 42" Door Width | $23 |
| 48 | 48" Door Width | $46 |
| XX | Special Width | $46 |
| XX (MEL) | Special Width | Consult Factory |
| D = FINISH | ADD | |
| CL | Clear Anodized | Included |
| BR | Dark Bronze Anodized | $48 |
| BL | Black Anodized | $61 |
| SP | Special | Consult Factory |

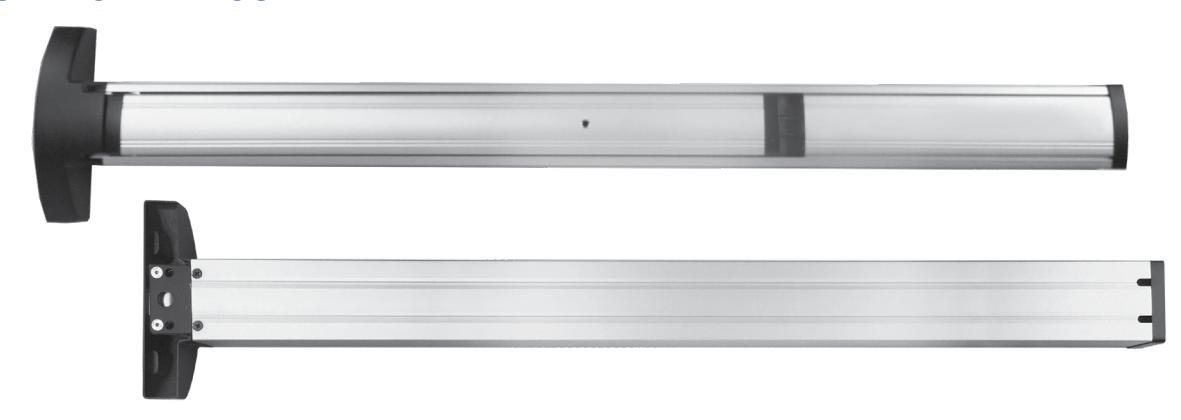

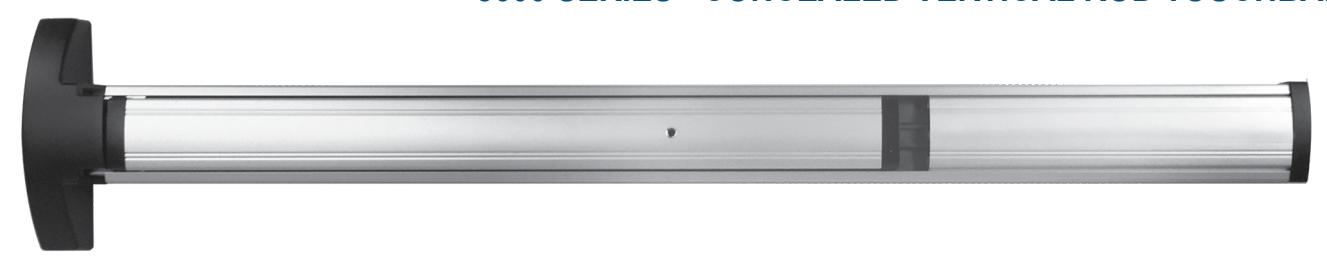

8600 SERIES - CONCEALED VERTICAL ROD TOUCHBAR
| 8660* - CONCEALED VERTICAL ROD | List Price | |
|---|---|---|
| BASE PRICE | 8660 CONCEALED VERTICAL ROD | $715 |
| PART NUMBER | A/86/B/C-D-E | - |
| SAMPLE NUMBER | MEL866036-CL-96 | - |
| A = ACCESSORIES | ADD | |
| MEL | Electric Latch Retraction by Motor Drive | $2,975 |
| SW | Signal Switch | $311 |
| SWMEL | Electric Latch Retraction by Motor Drive with Signal Switch | $3,285 |
| CD | Interior Dogging by Key Cylinder | $194 |
| AL | Alarm Function | $481 |
| CDAL | Alarm Function with Cylinder Off/On | $670 |
| D | Dummy (Inactive) Device | <-$136> |
| FLX | Enhanced Impact Rated Device | $599 |
| B = FUNCTION | ADD | |
| 60 | Exit Only, No Trim | Included |
| 61 | With 1" Round Offset Pull (10" Centers) | $300 |
| 62 | Prepped for Exterior Key Cylinder (No Cylinder) | $53 |
| 63 | Prepped for Exterior Key Cylinder (With Cylinder) | $161 |
| C = SIZE | ADD | |
| 30 | 30" Door Width | N/C |
| 36 | 36" Door Width (Standard) | Included |
| 42 | 42" Door Width | $23 |
| 48 | 48" Door Width | $46 |
| XX | Special Width | $46 |
| XX (MEL) | Special Width | Consult Factory |
| D = FINISH | ADD | |
| CL | Clear Anodized | Included |
| BR | Dark Bronze Anodized | $53 |
| BL | Black Anodized | $69 |
| SP | Special | Consult Factory |
| E = SPECIAL HEIGHT | ADD | |
| XX | Special Height (Max. 120" Tall) (For Doors Other Than 7 Feet) | $68 |
| SPECIAL LATCHES (Comes with Standard Top & Bottom) | ADD | |
| H | Hex Bottom | N/C |
| P8600B | Pullman Style Bottom | $70 |
| P8600T | Pullman Style Top | $178 |
8700 SERIES - RIM TOUCHBAR
| 8760* - RIM | List Price | |
|---|---|---|
| BASE PRICE | 8760 RIM | $700 |
| PART NUMBER | A/87/B/C-D | - |
| SAMPLE NUMBER | MEL876036-CL | - |
| A = ACCESSORIES | ADD | |
| MEL | Electric Latch Retraction by Motor Drive | $2,975 |
| SW | Signal Switch | $311 |
| SWMEL | Electric Latch Retraction by Motor Drive with Signal Switch | $3,285 |
| CD | Interior Dogging by Key Cylinder | $194 |
| AL | Alarm Function | $481 |
| CDAL | Alarm Function with Cylinder Off/On | $670 |
| B = FUNCTION | ADD | |
| 60 | Exit Only, No Trim | Included |
| 61 | With 1" Round Offset Pull (10" Centers) | $300 |
| 62 | Prepped for Exterior Key Cylinder (No Cylinder) | $53 |
| 63 | Prepped for Exterior Key Cylinder (With Cylinder) | $161 |
| C = DOOR WIDTH | ADD | |
| 30 | 30" Door Width | N/C |
| 36 | 36" Door Width (Standard) | Included |
| 42 | 42" Door Width | $23 |
| 48 | 48" Door Width | $46 |
| XX | Special Width | $46 |
| XX (MEL) | Special Width | Consult Factory |
| D = FINISH | ADD | |
| CL | Clear Anodized | Included |
| BR | Dark Bronze Anodized | $53 |
| BL | Black Anodized | $69 |
| SP | Special | Consult Factory |
8800 SERIES - MORTISE TOUCHBAR
| 8860* - MORTISE | List Price | |
|---|---|---|
| BASE PRICE | 8860 MORTISE | $840 |
| PART NUMBER | A/88/B-C-D/E/F | - |
| SAMPLE NUMBER | MEL886036-CL01S1 | - |
| A = ACCESSORIES | ADD | |
| MEL | Electric Latch Retraction by Motor Drive | $2,975 |
| SW | Signal Switch | $311 |
| SWMEL | Electric Latch Retraction by Motor Drive with Signal Switch | $3,285 |
| CD | Interior Dogging by Key Cylinder | $194 |
| AL | Alarm Function | $481 |
| CDAL | Alarm Function with Cylinder Off/On | $670 |
| LL | Less Mortise Lock | <-$58> |
| B = FUNCTION | ADD | |
| 60 | Exit Only, No Trim | Included |
| 63 | Exterior Key Cylinder | $160 |
| C = DOOR WIDTH | ADD | |
| 30 | 30" Door Width | N/C |
| 36 | 36" Door Width (Standard) | Included |
| 42 | 42" Door Width | $23 |
| 48 | 48" Door Width | $46 |
| XX | Special Width | $46 |
| XX (MEL) | Special Width | Consult Factory |
| D = FINISH | ||
| CL | Clear Anodized | Included |
| BR | Dark Bronze Anodized | $53 |
| BL | Black Anodized | $69 |
| SP | Special | Consult Factory |
| E = BACKSET | ||
| 01 | 31/32" | $70 |
| 02 | 1-1/8" | Included |
| 03 | 1-1/2" | $70 |
| F = STRIKE | ||
| S1 |
2" Standard
3" Extended |
Included
$166 |
|
S2
S3 |
4" Tall Strike | $166 |
PSMEL-1500 1 AMP POWER SUPPLY
| PSMEL-1500 1 AMP POWER SUPPLY | ADD | ||
|---|---|---|---|
| PART NUMBER | PSMEL-1500 |
Input 115VAC 60Hz, 7 amp., 1 NO trigger
input., 1 24VDC filtered regulated auxiliary output rated @ .5 amp continuous supply current. Total combined current for 24VDC outputs may not exceed 1 amp., Maximum charge current .3 amp. |
$1,437 |
PSMEL-2000 1 AMP POWER SUPPLY
| PSMEL-2000 1 AMP POWER SUPPLY | ADD | ||
|---|---|---|---|
| PART NUMBER | PSMEL-2000 |
Two Door 1 Amp Power Supply
Input 115VAC, 60Hz, 2.5 amps, or 230VAC 1 N.O. Trigger Input, 13"H x 12.5"W x 3.5"D |
$2,165 |
LATCH RETRACTION RETROFIT KITS, SIGNAL SWITCH, ALARM KIT
3000 SERIES LATCH RETRACTION RETROFIT KIT
| MEL3000-1 LATCH RETRACTION RETROFIT KIT | List Price | ||
|---|---|---|---|
| PART NUMBER | MEL3000-1 |
Electric Latch Retraction by Motor (24V
DC X 1 Amp Draw) Suitable for 3690 CVR or 3790 Rim Latching Devises |
$2,975 |
| PART NUMBER | FLMEL3000-1 |
Electric Latch Retraction by Motor
for Impact Devices (24V DC X 1 Amp Draw) Suitable for FL3690 or FL3790 Exit Device |
$2,975 |
8000 SERIES LATCH RETRACTION RETROFIT KIT
| MEL8000-1 LATCH RETRACTION RETROFIT KIT | List Price | |||
|---|---|---|---|---|
| PART NUMBER | MEL8000-1 |
Electric Latch Retraction by Motor for
ALL Standard and Impact Devices (24V DC X 1 Amp Draw) Suitable for 8560, 8660, 8760, 8860 Exit Device |
$2,975 |
SW300-2CA BRACKET MOUNTED SIGNAL SWITCH
| SW300-2CA BRACKET MOUNTED SIGNAL SWITCH | List Price | |||
|---|---|---|---|---|
| PART NUMBER | SW300-2CA | Signal Switch | $466 |
AL36 ALARM KIT
| AL36 ALARM KIT | List Price | |||
|---|---|---|---|---|
| PART NUMBER | AL36 |
Retrofit Kit fits any stock size First
Choice/ABH 3600 or 3700 Series Device |
$712 |
QC-CAB QUICK CONNECT CABLES
| QC-CAB-001 | ADD |
|---|---|
|
22/12 Dual Cable Connecting Cable for Motor Electric Latch Retraction 44" Length
(2-8 Pin Female Connector, 2-4 Pin Male) |
$130 |
| QC-CAB-002 | ADD |
|---|---|
|
22/12 Frame to Ceiling Connecting Cable for Motor Electric Latch Retraction 180" Length
(2-8 Pin Female, 2-4 Pin Male) |
$260 |
| QC-CAB-003 | ADD |
|---|---|
|
22/2 Door Side Connecting Cable for Signal Switch Shipped with 2 Wires 36" Length
(1-8 Pin Female Connector) |
$106 |
| QC-CAB-004 | ADD |
|---|---|
|
22/3 Field Wire Splice Kit (loose wires) 14" Length,
(Micro-Fit 3, 1 Plug Connector) |
$110 |
| QC-CAB-005 | ADD |
|---|---|
|
22/12 Dual Cable Connecting Cable for Electric Strike/Mullion 52" Length
(2-4 Pin Male Connector, 2-Micro-Fit, Plug Connector) |
$133 |
| QC-CAB-006 | ADD |
|---|---|
|
22/12 Frame to Ceiling Connecting Cable for FC500 Electric Strike/Mullion 52" Length
(1-8 Pin Female Connector, 1-4 Pin Male, 2 Micro-Fit Connector) |
$140 |
| QC-CAB-007 | ADD |
|---|---|
|
22/8 Door Side Connecting Cable for EPT and EMT Pre-Wire 26" Length
(2-4 Pin Male Connector, 2-Micro-Fit, Plug Connector) |
$146 |
| QC-CAB-008 | ADD |
|---|---|
|
22/3 Door Side PAC-Wire Signal Switch 18" Length
(1 Male Connector, 3 Connection Pins) |
$106 |
| QC-CAB-009 | ADD |
|---|---|
|
22/3 QC Cable for HES* 9400 Strike, 6" Length
(1-8 Pin Female Connector, 1-4 Pin Male, 2 Micro-Fit Connector) |
$106 |
* Brand names are trademarks or registered trademarks of their respective companies.
L3 SERIES LEVER TRIM
| L3 SERIES LEVER TRIM | List Price | |
|---|---|---|
| BASE PRICE | L3 LEVER TRIM | $1,425 |
| PART NUMBER | L3AB-CC-DD | - |
| SAMPLE NUMBER | L3610-M1-CL | - |
| A = EXIT DEVICE TYPE | ADD | |
| 6 | CVR | Included |
| 7 | Rim Latch | Included |
| B = HANDING | ADD | |
| 10 | LHRB (From outside, Pull with Left Hand/From Inside Push with Right Hand) | Included |
| 20 | RHRB (From outside, Pull with Right Hand/From Inside Push with Left Hand) | Included |
| 13 | LHRB with Key Cylinder (From outside, Pull with Left Hand/From Inside Push with Right Hand) | $108 |
| 23 | RHRB with Key Cylinder (From outside, Pull with Right Hand/From Inside Push with Left Hand) | $108 |
| C = LOCKING FUNCTION | A ADD DD | |
| M0 | Inactive (Dummy) | Included |
| M1* | Night Latch/Storeroom (Key Always Required) | Included |
| M2 | Passage (Always Active) | Included |
| M3* | Hold Open - Holdback/Classroom | Included |
| EL* | Electric (Lever Handle Released by Signal or Key) | $154 |
| D = FINISH | A ADD DD | |
| 28 | CL/Clear Anodized | Included |
| 13 | BR/Dark Bronze Anodized | Included |
| 35 | BL/Black Anodized | Included |
* Key Cylinder Lever for thes Functions only
RM370 SERIES REMOVABLE MULLIONS
| RM370 SERIES - REMOVABLE MULLION | List Price | ||
|---|---|---|---|
| BASE PRICE |
RM370 SERIES - REMOVABLE
MULLIONS |
$1,494 | |
| PART NUMBER | RM370-A/B/C | - | |
| SAMPLE NUMBER | RM370-8CL-51010 | - | |
| A = SIZE | ADD | ||
| 7 | 7'0" Door Opening Height | Included | |
| 8 | 8'0" Door Opening Height | $80 | |
| 9 | 9'0" Door Opening Height | $160 | |
| XX | Special Door Height | Consult Factory | |
| B = FINISH | ADD | ||
| CL | Clear Anodized | Included | |
| BR | Dark Bronze Anodized | $58 | |
| BL | Black Anodized | $87 | |
| SP | Special | Consult Factory | |
|
C = STRIKE & CLIP
thing different please consult factory. |
The following are common examples for Strikes & Clips if you need some | ADD | |
| 01010 | STANDARD - Roller Strike with Clips & Location | Included | |
| 20100 | No Strikes or Preps with Security Clips | $74 | |
| 20200 | Blank - No Prep and No Security Clips or Clip Prep | $100 | |
|
The following preps enable installation of a surface mounted electric strike. The exit device
mounting location will have to be modified to provide proper clearance. Single Side Prep for Electric Strike (No Strike) Handing Required |
|||
| 31010 L | Right Hand Reverse | $301 | |
| 41010 R | Left Hand Reverse | $301 | |
| 51010 | Both Sides Prep for Electric Strike | $406 | |
| Single Side Prep and Mounted Electric Strike (With Strike) Handing Required | |||
| 61011 L | Right Hand Reverse | $1,863 | |
| 71011 R | Left Hand Reverse | $1,863 | |
| 81010 | Both Sides Prep for Electric Strike (with Strikes) | $3,530 | |
KRM370 SERIES KEYED REMOVABLE MULLION KIT
Installed Front view, Top Bracket without Lock Strike
Installed Front view, Top Bracket with Lock Strike
| KRM370 SERIES - KEYED REMOVABLE MULLION KIT | List Price | |
|---|---|---|
| BASE PRICE | KRM370 SECURITY SERIES - KEYED REMOVABLE MULLION KIT | $321 |
| PART NUMBER | KRM370 | - |
| SAMPLE NUMBER | KRM370-CL | - |
| A-FINISH | ADD | |
| KRM370-CL | Keyed Removable Mullion Kit, Clear | N/C |
| KRM370-BR | Keyed Removable Mullion Kit, Dark Bronze | N/C |
Back View
CYLINDER DOGGING, RETROFIT KIT & CYLINDER SERIES
| CYLINDER DOGGING KIT | List Price | ||
|---|---|---|---|
| PART NUMBER | CD3000UK-A-B | - | |
| SAMPLE NUMBER | CD3000-CL-36 | - | |
| CD3000UK-XX-XX |
XX=Finish: CL-Clear, BR-Dark Bronze, BL-Black-XX,
Nominal Door Width |
Interior Key Dogging with machined push
bar |
$691 |
| PPCD3000-XX | XX=Finish: CL-Clear, BR-Dark Bronze, BL-Black | Cylinder Dogging Upgrade Kit 3000 Series | $462 |
| CD8000UK-XX-XX |
XX=Finish: CL-Clear, BR-Dark Bronze, BL-Black-XX,
Nominal Door Width |
Interior Key Dogging with machined push
bar |
$621 |
| PPCD8000-XX | XX=Finish: CL-Clear, BR-Dark Bronze, BL-Black | Cylinder Dogging Upgrade Kit 8000 Series | $412 |
841-T Cylinder
M100 Cylinder
M100-IC Small Format Interchangeable Core Housing
841-IC Small Format Interchangeable Core Housing
| CYLINDER SERIES | List Price | ||
|---|---|---|---|
| 841 | Finish: CL-Clear, BL-Black | The 841 is a standard rim type cylinder. | $108 |
| 841-IC | Finish: CL-Clear, BL-Black |
Small Format Interchangeable Core Housing
rim cylinder, Less Core |
$108 |
| 841-T | Finish: CL-Clear, BL-Black |
The 841-T is a standard rim type cylinder with
a thumbturn. |
$200 |
| M100 | Finish: CL-Clear, BL-Black | The M100 is a standard mortise type cylinder. | $118 |
| M100-IC | Finish: CL-Clear, BL-Black |
Small Format Interchangeable Core Housing
mortise cylinder, Less Core |
$118 |
HANDING DIAGRAM
