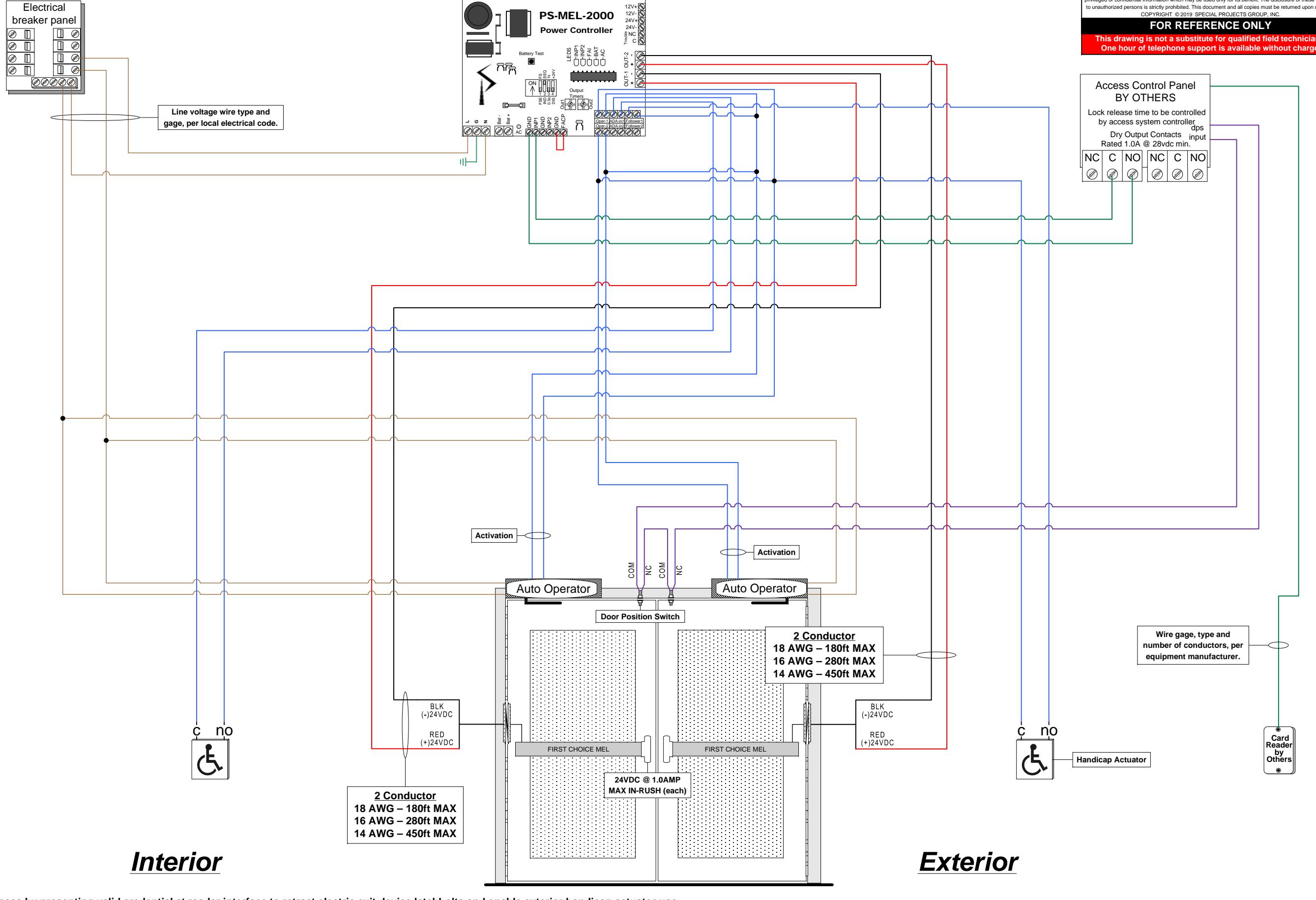

FCBP MEL Exit Device For 1 Pair of Doors with Both Active and Power Supply PSMEL2000 and ADA Compliant Wiring Diagram

NOTES:

• 1) Verify that each component requiring or supplying power has been configured for proper system voltage before applying power.
• 2) All wires to be 18 awg 100' max unless otherwise noted on drawing. Refer to manufacturers instructions for proper wire gauge on any power supply, electric device or electrified lock hardware. Manufacturers requirements take precedence.
• 3) All line voltage power to be I/A/W local electrical code.
• 4) All low voltage wires to be stranded copper unless superseded by local electrical code or electric device manufacturer.
• 5) It is considered good electrical practice to run spare wires at any location that may be difficult to access after construction.

Violet = Monitoring/Supervisory Brown = AC High Voltage

Electrical Circuit Legend

Black = (-) VDC Power Green = Signaling

Function Statement:

From exterior - locked condition: Access by presenting valid credential at reader interface to retract electric exit device latchbolts and enable exterior handicap actuator use. From exterior - unlocked condition: Door to remain locked unless electric exit device held retracted by access control system. When unlocked, exterior handicap actuator to be available. From interior - locked condition: Free egress at all times by means of exit device or by pressing interior handicap actuator to retract electric exit device latchbolts and initiate automatic operators. From interior - unlocked condition: Free egress at all times by means of exit device or by pressing interior handicap actuator to retract electric exit device latchbolts and initiate automatic operators. General: Fail-secure electric latch retraction exit device to remain locked during utility power-loss event.

Title: Pair MEL_Operators PS-MEL-2000.vsd					Project: Example
HWSET: Example					Door: EXT-1
Date:	5/17/2019	Date Printed:		5/16/2019	Last Revised: 5/16/2019		2:53:47 PM
Drawn By: Eric Norton F			For:	Special Pro	ects Group	SO: n/a	Pg: 1 OF 1
