Emtek Hinges Dimensions Specifications

Open the original PDF document

View PDF

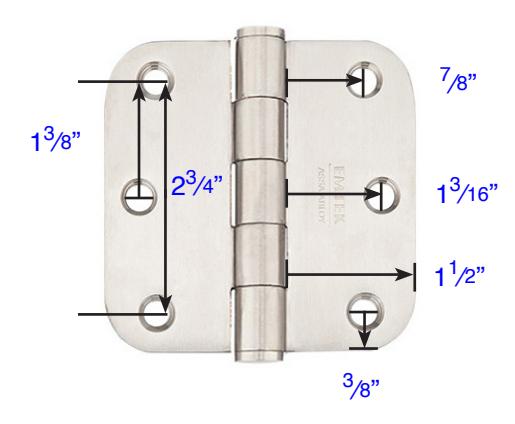

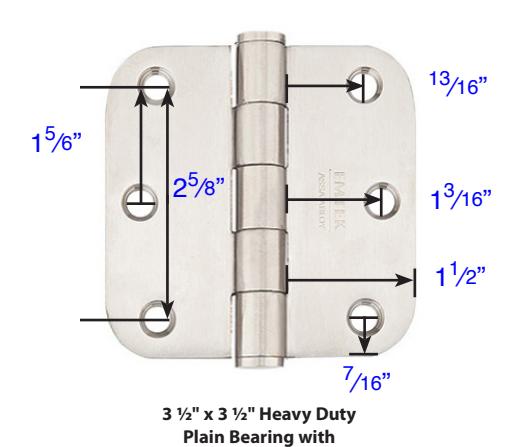

3 1/2" x 3 1/2" Residential Duty Plain Bearing with 5/8" Radius Corners

Residential Duty Hinges

Plain Bearing, 304 Grade, 0.093" - 0.096" Thick

Description Product Code
3 1/2" x 3 1/2" with Square Corners 9811332D
3 1/2" x 3 1/2" with 1/4" Radius Corners 9812332D
3 1/2" x 3 1/2" with 5/8" Radius Corners 9813332D

3" 1" 1" 1" 1" 11 ⁄4" 13 ⁄4" 1 ⁄2"

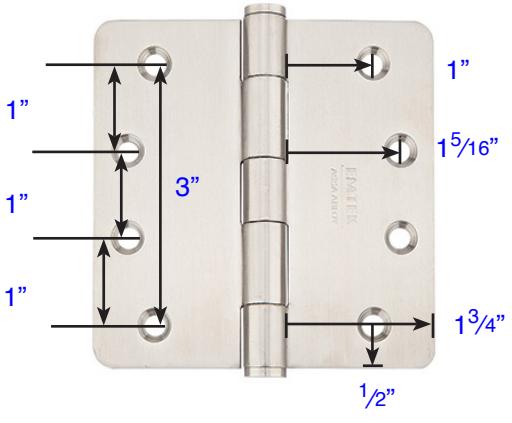

4" x 4" Residential Duty Plain Bearing with 1/4" Radius Corners

Residential Duty Hinges

Plain Bearing, 304 Grade, 0.093" - 0.096" Thick

Description Product Code
4" x 4" with Square Corners 9811432D
4" x 4" with 1/4" Radius Corners 9812432D
4" x 4" with 5/8" Radius Corners 9813432D

5/8" Radius Corners

Heavy Duty Hinges

Plain Bearing, 304 Grade, 0.113" - 0.135" Thick

Description Product Code
3 1/2" x 3 1/2" with Square Corners 9821332D
3 1/2" x 3 1/2" with 1/4" Radius Corners 9822332D
3 1/2" x 3 1/2" with 5/8" Radius Corners 9823332D

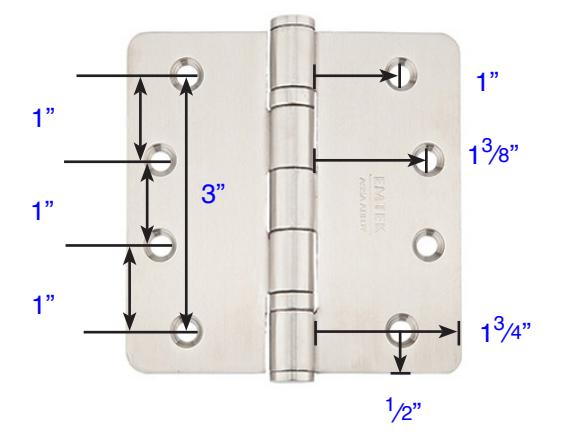

4" x 4" Heavy Duty Plain Bearing with 1/4" Radius Corners

Heavy Duty Hinges

Plain Bearing, 304 Grade, 0.113" - 0.135" Thick

Description Product Code
4" x 4" with Square Corners 9821432D
4" x 4" with 1/4" Radius Corners 9822432D
4" x 4" with 5/8" Radius Corners 9823432D

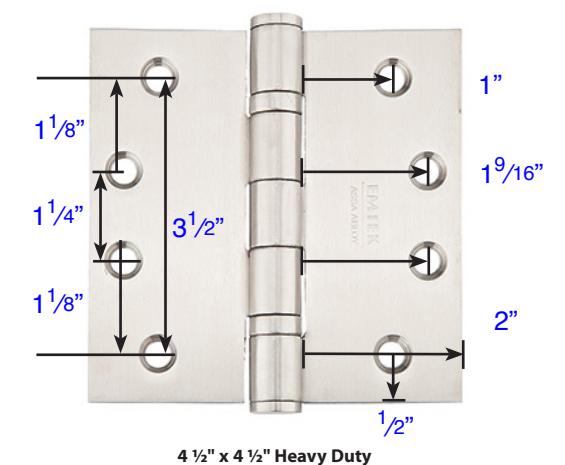

4 1/2" x 4 1/2" Heavy Duty Plain Bearing with Square Corners

Heavy Duty Hinges

Plain Bearing, 304 Grade, 0.113" - 0.135" Thick

Description Product Code
4 1/2" x 4 1/2" with Square Corners 9821532D

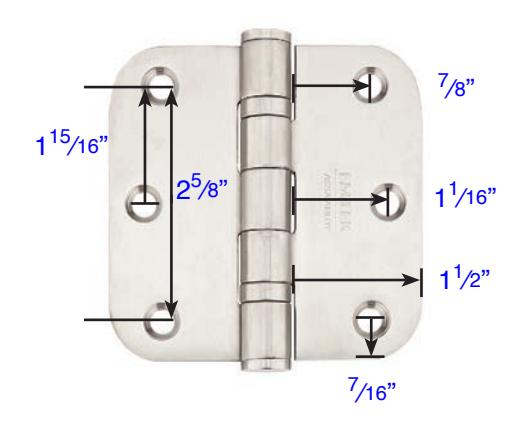

3 1/2" x 3 1/2" Heavy Duty Ball Bearing with 5/8" Radius Corners

Heavy Duty Hinges

Ball Bearing, 304 Grade, 0.113" - 0.132" Thick

Description Product Code
3 1/2" x 3 1/2" with Square Corners 9841332D
3 1/2" x 3 1/2" with 1/4" Radius Corners 9842332D
3 1/2" x 3 1/2" with 5/8" Radius Corners 9843332D

4" x 4" Heavy Duty Ball Bearing with 1/4" Radius Corners

Heavy Duty Hinges

Ball Bearing, 304 Grade, 0.113" - 0.132" Thick

Description Product Code
4" x 4" with Square Corners 9841432D
4" x 4" with 1/4" Radius Corners 9842432D
4" x 4" with 5/8" Radius Corners 9843432D

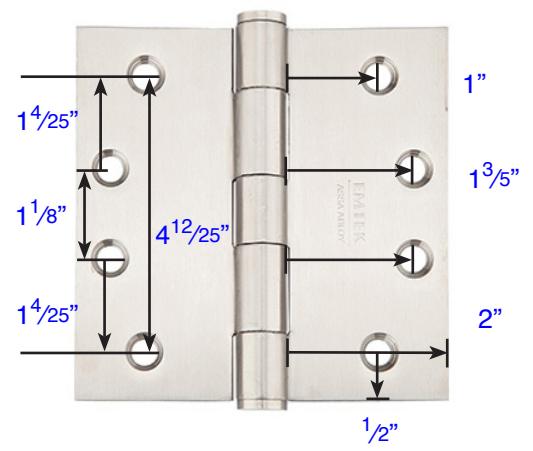

Ball Bearing with Square Corners

Heavy Duty Hinges

Ball Bearing, 304 Grade, 0.113" - 0.132" Thick

Description Product Code
4 1/2" x 4 1/2" with Square Corners 9841532D

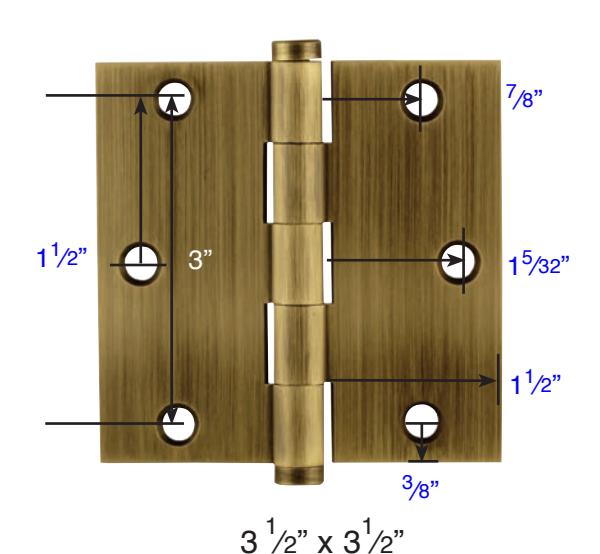

Brass Residential Duty Square Corner: 96113 <sup>1</sup>/<sub>4</sub>" Radius: 96123 <sup>5</sup>/<sub>8</sub>": 96133

Brass Heavy Duty, Plain Bearing Square Corner: 96213

1/4" Radius: 96223 5/8": 96233

Brass Heavy Duty, Ball Bearing Square Corner: 96413

Steel Residential Duty Square Corner: 91013

1/4" Radius: 91023 5/8": 91033

Steel Heavy Duty, Plain Bearing

Square Corner: 92013 1/4" Radius: 92023

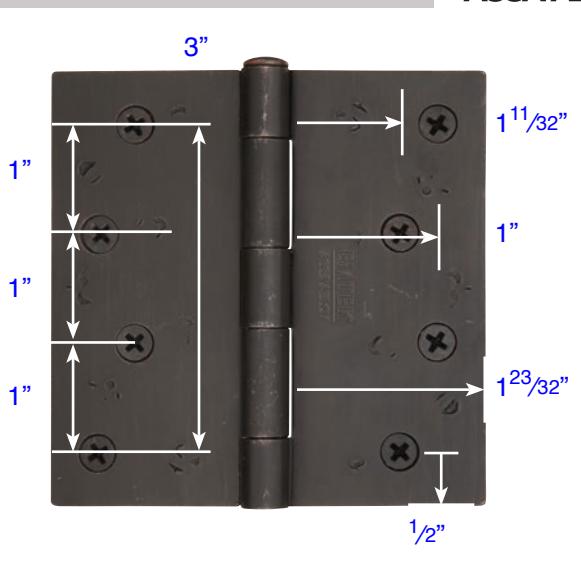

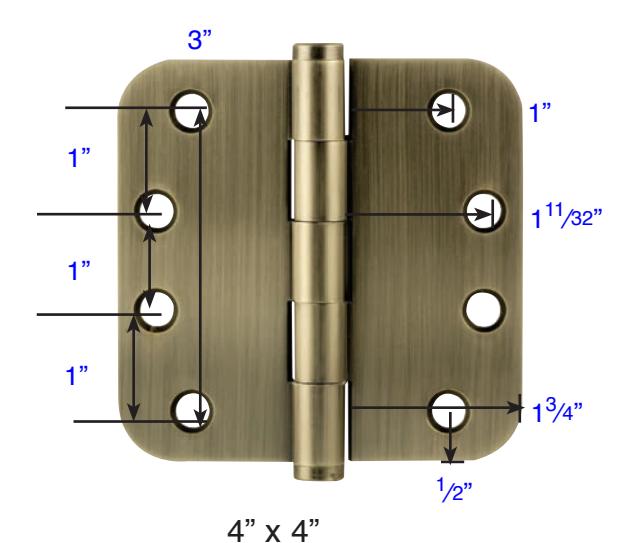

4" x 4"

<u>Steel Residential Duty</u> Square Corner: 91014

<sup>1</sup>/<sub>4</sub>" Radius: 91024

<sup>5</sup>/8" : 91034

Brass Residential Duty Square Corner: 96114 1/4" Radius: 96124

<sup>5</sup>/8": 96134

Brass Heavy Duty, Plain Bearing Square Corner: 96214 1/4" Radius: 96224

<sup>5</sup>/8" : 96234

Brass Heavy Duty, Ball Bearing Square Corner: 96414

Steel Heavy Duty, Plain Bearing Square Corner: 92014 1/4" Radius: 92024

Steel Heavy Duty, Ball Bearing Square Corner: 94014 1/4" Radius: 94024

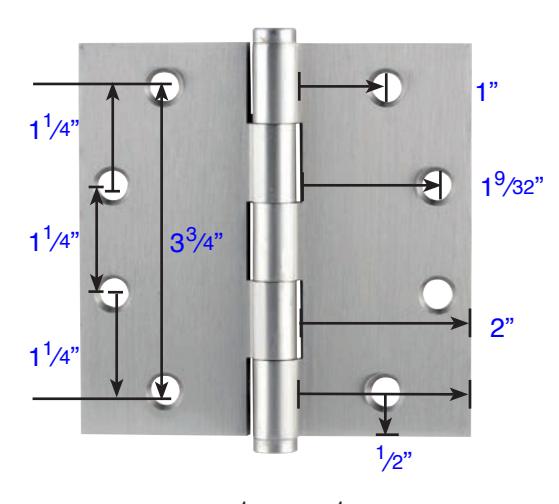

4<sup>1</sup>/2" x 4<sup>1</sup>/2"

Brass Heavy Duty, Plain Bearing Square Corner: 96215 1/4" Radius: 96225

Brass Heavy Duty, Ball Bearing Square Corner: 96415

<sup>1</sup>/<sub>4</sub>" Radius: 96425

Steel Heavy Duty, Plain Bearing Square Corner: 92015 1/4" Radius: 92025

Steel Heavy Duty, Ball Bearing Square Corner: 94015 1/4" Radius: 94025

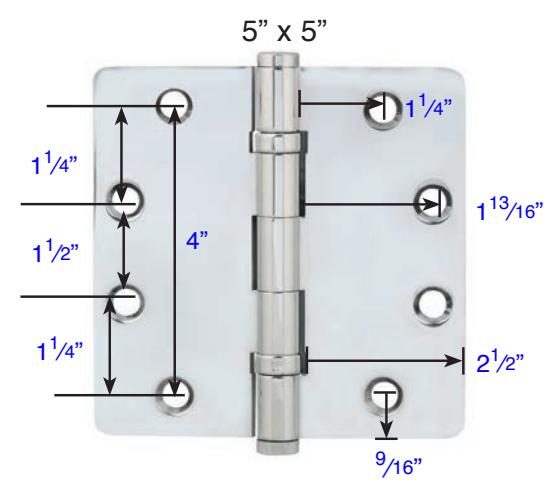

BALL BEARING, EXTRUDED

3 ½" x 3 ½", 4" x 4", 4 ½" x 4 ½", 5" x 5"

Brass Heavy Duty, Ball Bearing Square Corner: 96416

Brass Hinges

Hinges #
96113
96123
96133 		Description 3 1/2"x 3 1/2" Residential Duty Plain Bearing Screw Dimensions
#9 x 3 /4"
96114
96124
96134 		4"x 4"
Residential Duty
Plain Bearing 		#9 x 3 /4"
96213
96223
96233 		3 ½"x 3 ½"
Heavy Duty
Plain Bearing 		#10 x 1"
96214
96224
96234 		4"x 4"
Heavy Duty
Plain Bearing 		#12 x 1 1 / 4 "
96215
96225 		41/2"x 4 1/2"
Heavy Duty
Plain Bearing 		#12 x 1 1 / 4 "
96413 3 1/2"x 3 1/2"Ball Bearing #10 x 1"
96414 4"x 4" Ball Bearing #12 x 1 1 / 4 "
96415
96425 		4 1 / 2 "x 4 1 / 2 "
Ball Duty 		#12 x 1 1 / 4 "
96416 5"x 5"
Ball Bearing 		#12 x 1 1 /4"

Steel Plated Hinges

Hinges # Description Screw Dimensions
91013 3 ½" x 3 ½" #9 x ¾"
91023 Residential Duty
91033 Plain Bearing
91014 4" x 4" #9 x ¾"
91024 Residential Duty
91034 Plain Bearing
92013 3 ½" x 3 ½" #10 x 1"
92023 Heavy Duty
Plain Bearing
92014 4" x 4" #12 x 1¼"
92024 Heavy Duty
Plain Bearing
92015 4½" x 4 ½" #12 x 1¼"
92025 Heavy Duty
Plain Bearing
94033 3 ½"x 3 ½" Ball Bearing #10 x 1"
94014 4"x 4" Ball Bearing #12 x 1¼"
94024 -
94015 4 ½"x 4 ½" #12 x 1¼"
94025 Ball Duty

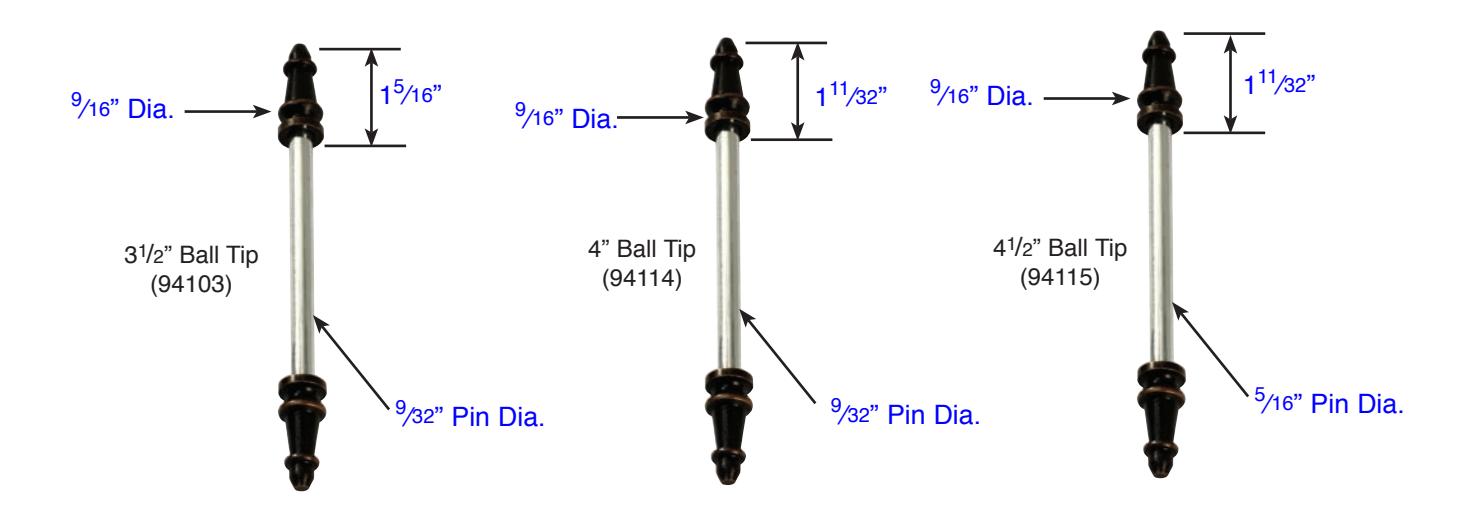

31/2" & 4" Residential Duty (97203 & 97204)

1 ⁄2" Dia.

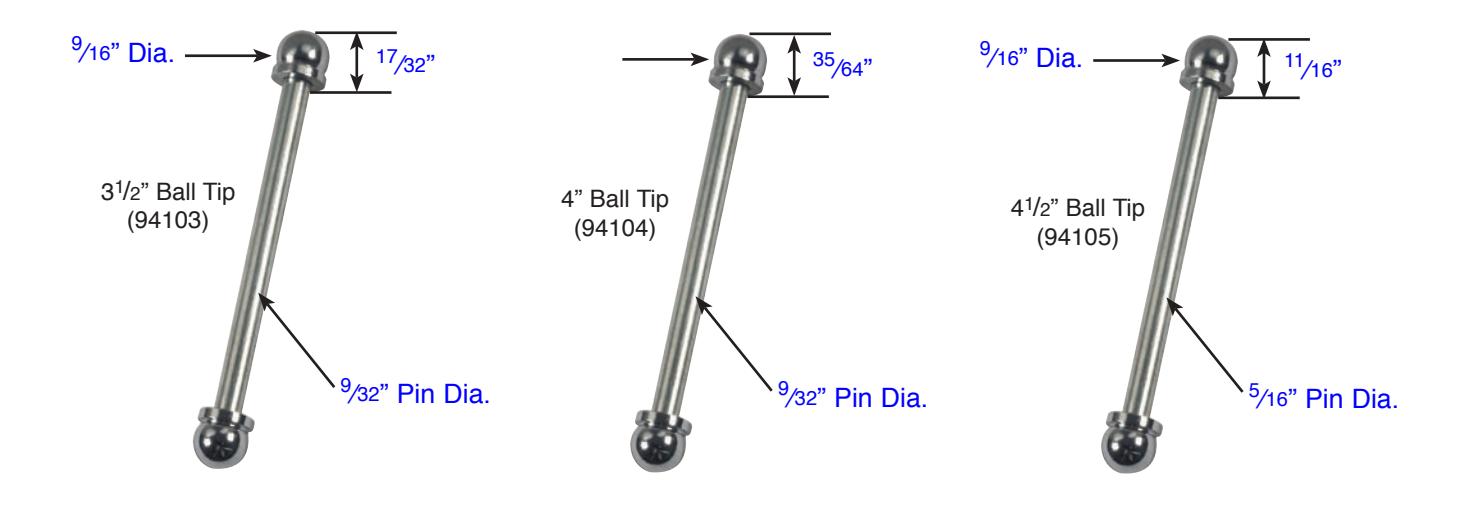

Threading is the same for all solid brass hinge tips

31/2" H.D & B.B

Threading is the same for all solid brass hinge tips

TS-H REV17A 10/20/2017

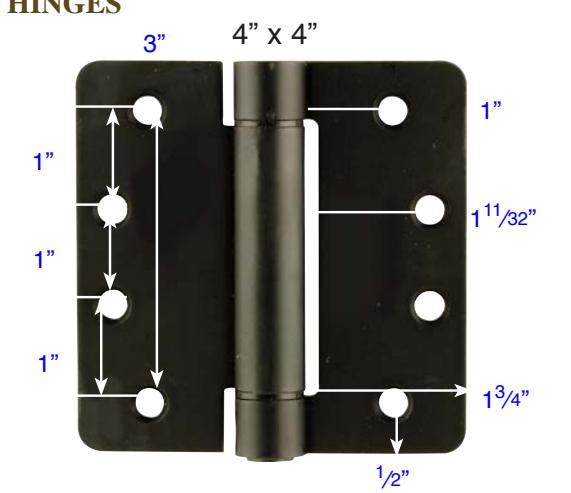

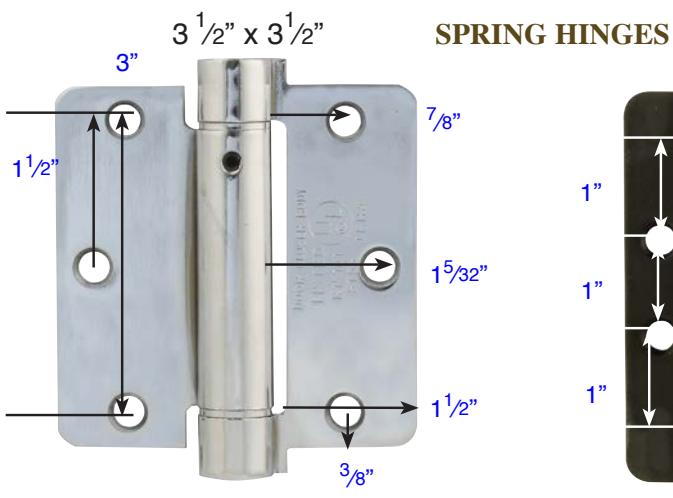

SPRING

CAUTION:

(A)DONOT EXCEED THRE(3)HOLES TENSION FOR 180° DOOR OPENING, OR FOUR(4)HOLES TENSION FOR 90° OPENING. (B)ALWAYS ROTATE THE HEX WRENCH TO THE CLOCKWISE REGARDLESS OF RIGHT ORLEFT HAND DOOR APPLICATION. 1. HINGE INSTALLATION: INSTALL HINGE IN NORMAL MANNER WITH THE ADJUSTMENT END OF HINGE UP. AS SHOWN ABOVE.

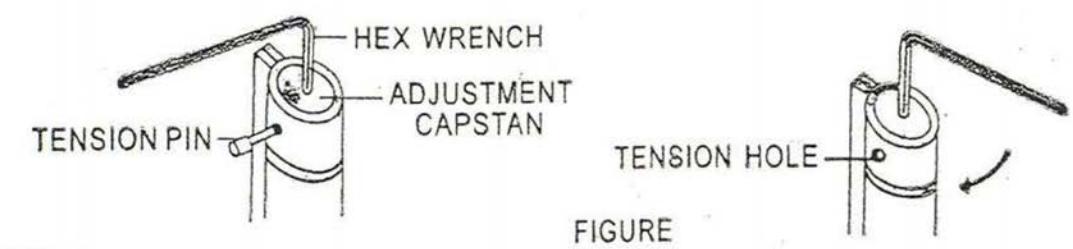

2. ADJUSTING SPRING TORQUE:

(A) ADJUST TORQUE ONLY AFTER TO HINGE IN INSTALLED AND WITH DOOR CLOSED.

(B) ROTATE ADJUSTMENT CAPSTAN TO THE CLOCKWISE BY HEX WRENCH TO ADJUST PROPER SPRING TENSION AND INSERT TENSION PIN INTO TENSION HOLE WITH TENSIONING HEX WRENCH AS SHOWN ON FIGURE.

(C) REMOVE HEX WRENCH, AND TRY DOOR FOR CLOSING. TO ACHIEVE PROPER CLOSING PORCE. CHANGE ADJU-STMENT FORM ONE HOLE TO THE NEXT INEITHER DIRECTION BY HEX WRENCH AS TENSION PIN IS REMOVED AND RESET.

RECOMMENDED MAXIMUM
DOOR WEIGHT(LBS.)
3.5 x 3.5 4 × 4 4.5 x 4.5 SPRING HINGES BUTT HINGES
50 60 70 1 EACH 2 EACH
70 85 115 2 EACH 1 EACH
90 110 150 3 EACH NONE

NOTES:

  • 1) Wind conditions, excessive air pressure on one side of an opening, weather stripping, or other adverse job conditions may require the use of all spring hinges.
  • 2) For maximum versatility, use all spring hinges.
