Emtek Dimensions Door Thickness Specifications for Tubular Entrance Handlesets

Open the original PDF document

View PDF

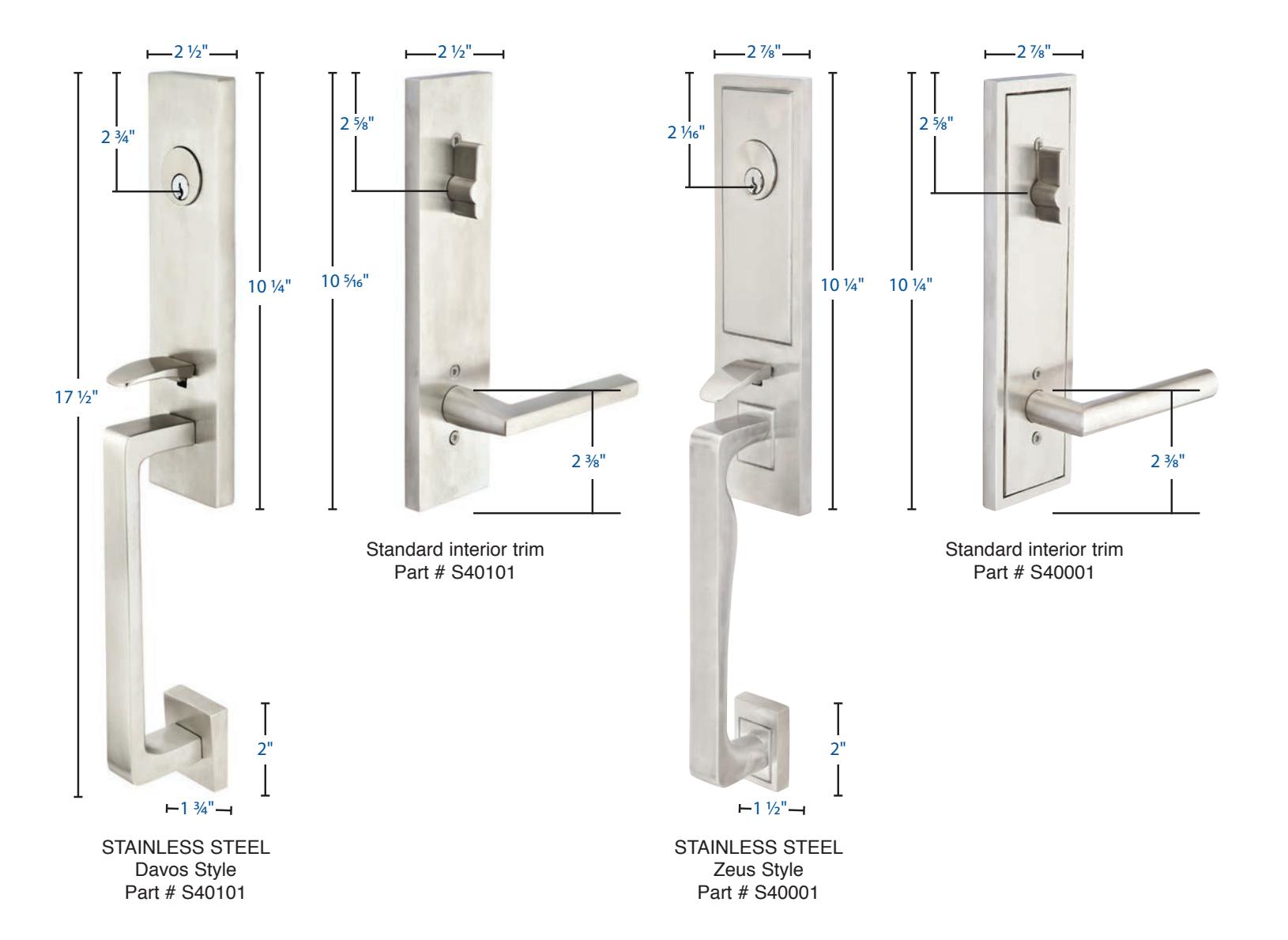

Additional Dimensions: (Part # S40101)

  • Exterior Projection is 2 3⁄4"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1"
  • Clearance between door & grip is 1"- 1 3⁄4"
  • Plates thickness: 1/2"

1

Same Dimensions for Dummy Function

Additional Dimensions: (Part # S40001)

  • Exterior Projection is 2 1/2"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1 1⁄16"
  • Clearance between door & grip is 1"- 1 3⁄8"
  • Plates thickness: 7⁄16"

Stainless Steel Tubular Entryset Monolithic, Single Cylinder

STAINLESS STEEL Davos (S40101), STAINLESS STEEL Zeus (S40001)

  • Standard Door Thickness: 13⁄4"- 21⁄8" Standard Components:
  • 11⁄2" Rosette Screws
  • Single Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 21⁄4" Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

  • Extended Door Thickness: 21⁄4"- 21⁄2" Extended Components:
  • 2" Rosette Screws
  • Long Single Cylinder Tailpiece
  • Long Outside Entry Spindle
  • Long Inside Passage Half Spindle
  • 3" Deadbolt Mounting Screws
  • Spindle Extensions
  • Extended Full-Lip Strike Plate
  • Deadbolt Strike Plate

  • Extended Door Thickness: 21⁄2"- 3" Extended Components:
  • 21⁄2" Rosette Screws
  • Extra Long Single Cylinder Tailpiece
  • Long Outside Entry Spindle
  • Extra Long Inside Passage Half Spindle
  • 3" Deadbolt Mounting Screws
  • Spindle Extensions
  • Extended Full-Lip Strike Plate
  • Deadbolt Strike Plate

Stainless Steel Entryset Monolithic, Double Cylinder

STAINLESS STEEL Zeus (S40002)

  • Standard Door Thickness: 13⁄4"- 2" Standard Components:
  • 11⁄2" Rosette Screws
  • Double Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 21⁄4" Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

  • Extended Door Thickness: 2"- 25⁄8" Extended Components:
  • 2" Rosette Screws
  • Long Double Cylinder Tailpiece
  • Long Outside Entry Spindle
  • Long Inside Passage Half Spindle
  • 3" Deadbolt Mounting Screws
  • Spindle Extensions
  • Extended Full-Lip Strike Plate
  • Deadbolt Strike Plate

  • Extended Door Thickness: 25⁄8"- 27⁄8" Extended Components:
  • 21⁄2" Rosette Screws
  • Long Double Cylinder Tailpiece
  • Long Outside Entry Spindle
  • Extra Long Inside Passage Half Spindle
  • 31⁄2" Deadbolt Mounting Screws
  • Spindle Extensions
  • Extended Full-Lip Strike Plate
  • Deadbolt Strike Plate

TS-TE REV18 01/03/2019

2

* Part # DB4-COLLAR32 Available for 13⁄8" Thick Doors

BRASS TUBULAR ENTRANCE HANDLESETS

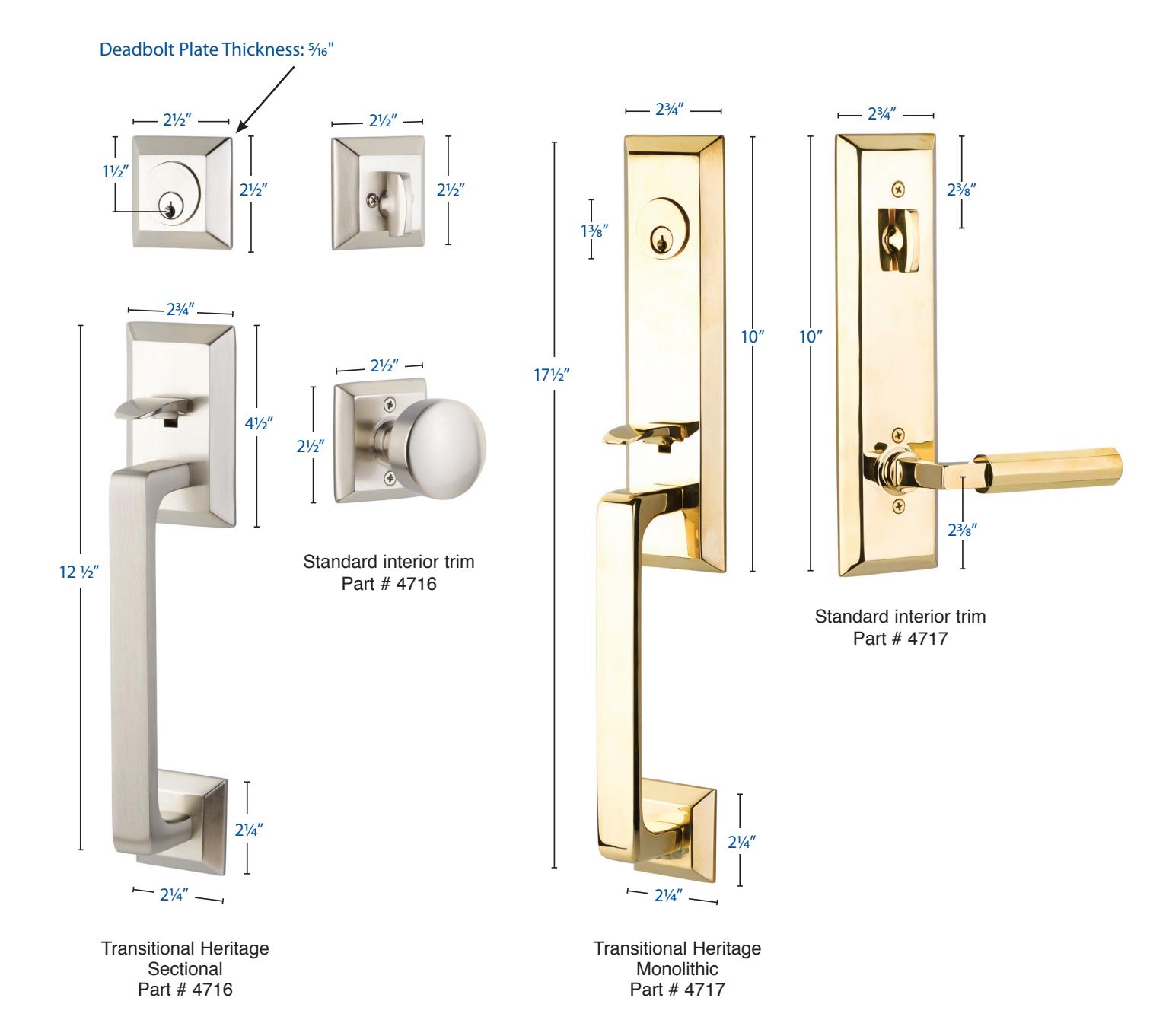

Transitional Heritage Style

Additional Dimensions: (Part # 4716)

  • Exterior Projection is 211/16"
  • Interior Projection Depends on Handle Style
  • Interior Deadbolt Projection 11/4"
  • Overall Grip thickness: 15/16"
  • Clearance between door & grip is 19/16"
  • Plates thickness: 1/2"

Same Dimensions for Double Cylinder & Dummy Function

Additional Dimensions: (Part # 4717)

  • Exterior Projection is 211/16"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 15/16"
  • Clearance between door & grip is 19/16"
  • Plates thickness: 1/2"

Same Dimensions for Double Cylinder & Dummy Function

3 4

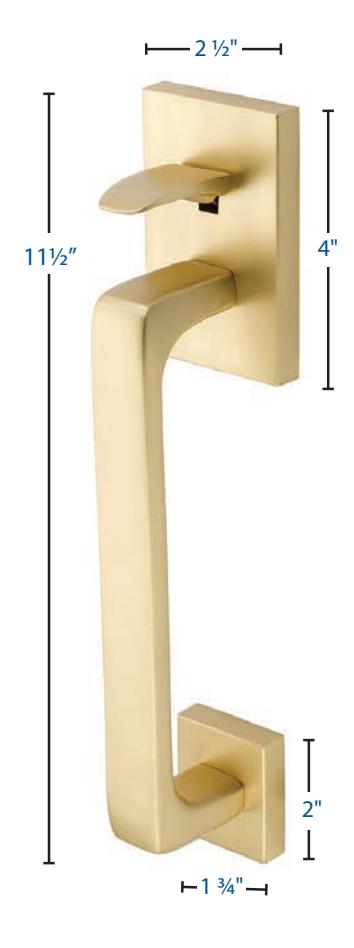

Baden Style BRASS TUBULAR ENTRANCE HANDLESETS

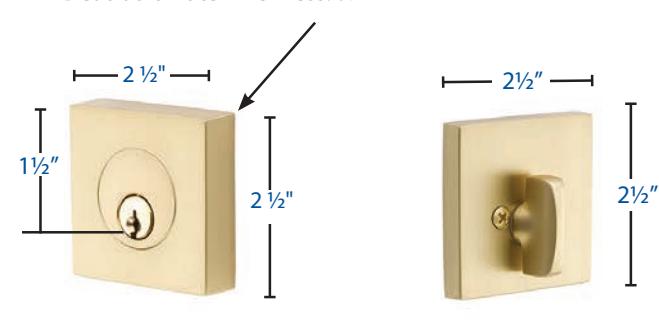

Deadbolt Plate Thickness: 5/8"

Standard interior trim Part # 4820

Baden Style Part # 4820

Additional Dimensions: (Part # 4820)

  • Exterior Projection is 2 1⁄2"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1"
  • Clearance between door & grip is 1 7/8"
  • Plates thickness: 1/2"

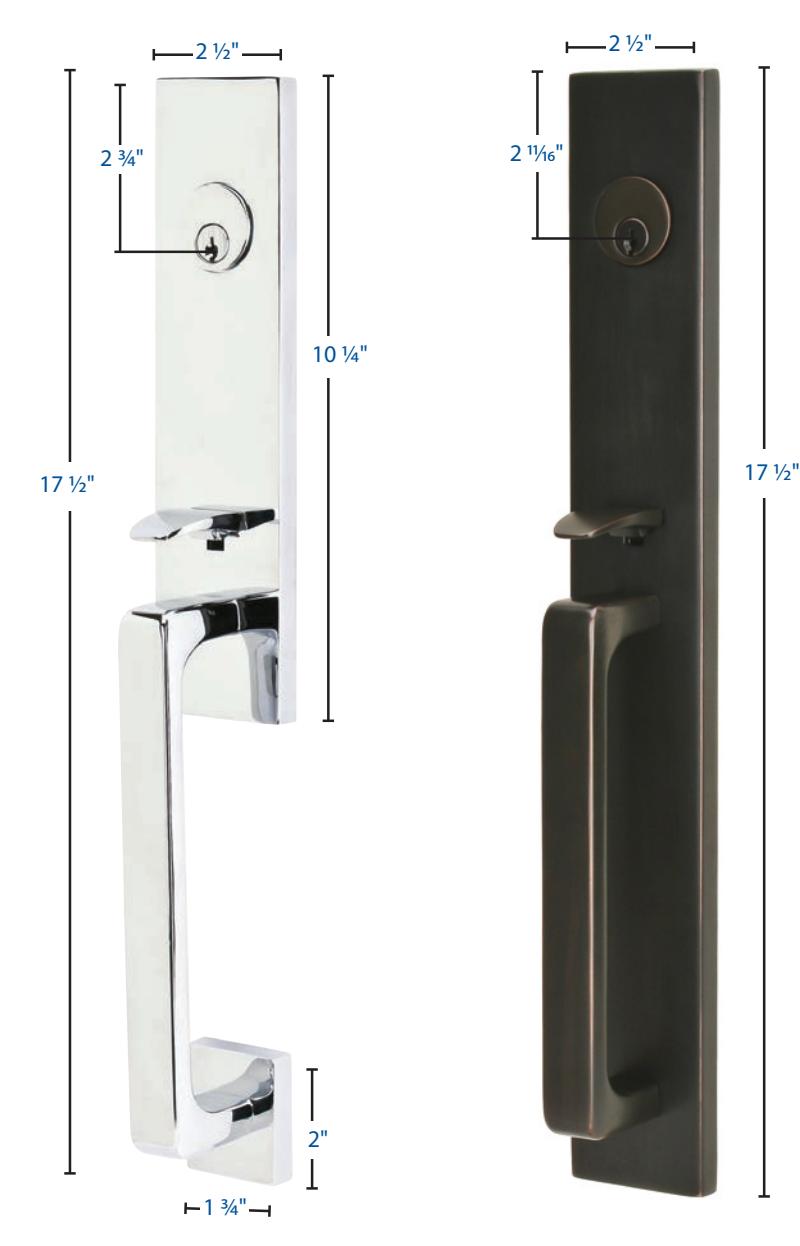

Davos & Lausanne Styles BRASS TUBULAR ENTRANCE HANDLESETS BRASS TUBULAR ENTRANCE HANDLESETS

Davos Style Part # 4818

2 1/2" 2 5/8" 10 5/16" 2 3/8"

Standard interior trim Part # 4818 & 4819

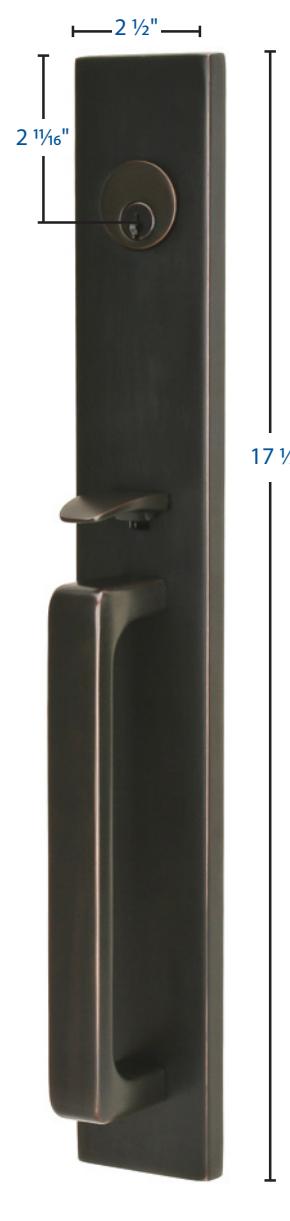

Lausanne Style Part # 4819

Additional Dimensions: (Part # 4818)

  • Exterior Projection is 2 3⁄4"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1"
  • Clearance between door & grip is 1"- 1 3⁄4"
  • Plates thickness: 1/2"

Same Dimensions for Double Cylinder & Dummy Function

Additional Dimensions: (Part # 4819)

  • Exterior Projection is 2 3⁄4"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1"
  • Clearance between door & grip is 17/16"
  • Plates thickness: 1/2"

Same Dimensions for Double Cylinder & Dummy Function

6

7

BRASS TUBULAR ENTRANCE HANDLESETS CONTEMPORARY

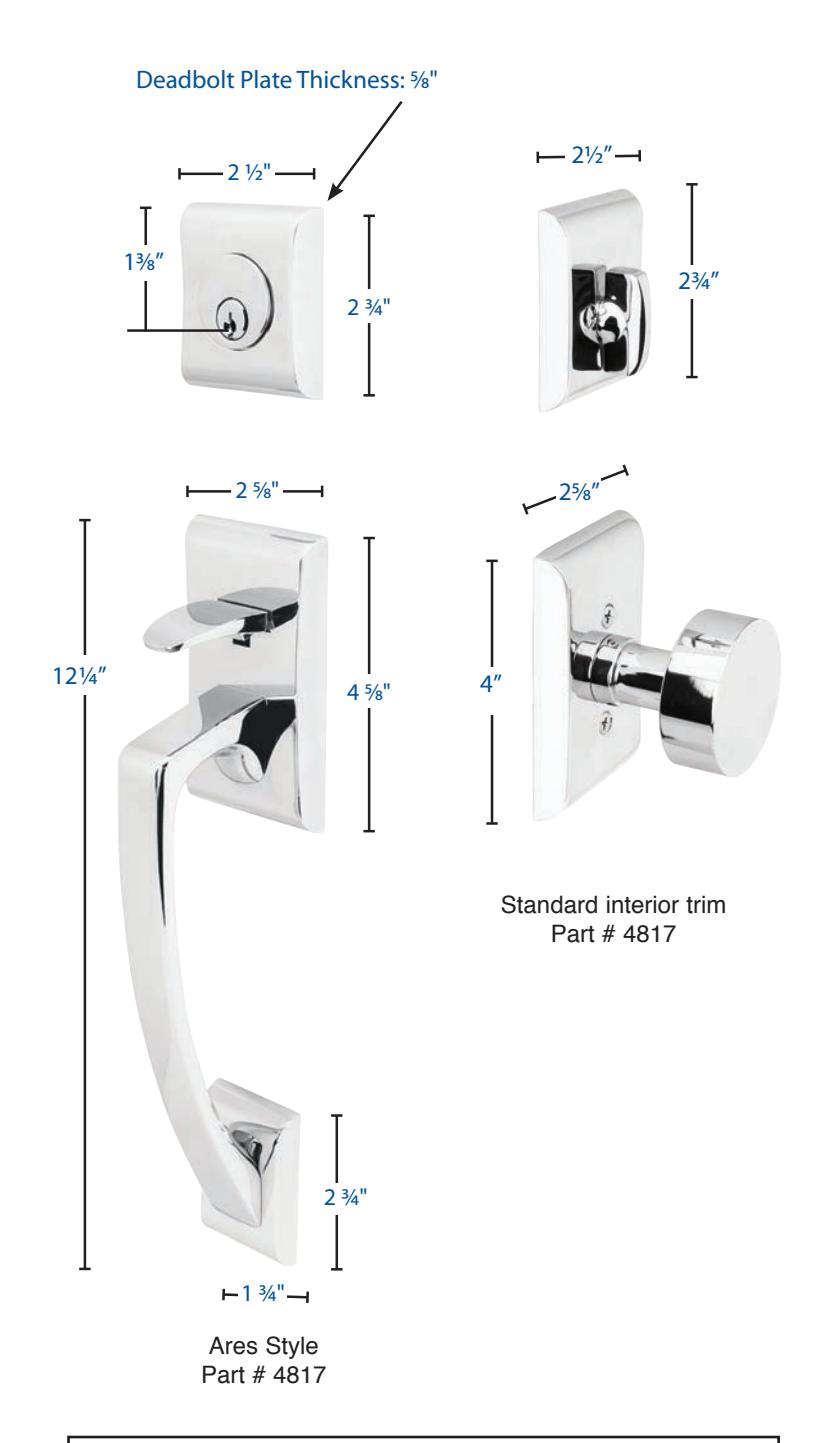

Additional Dimensions: (Part # 4817)

  • Exterior Projection is 2 3⁄4"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1 1⁄16"
  • Clearance between door & grip is 1"- 1 3⁄8"
  • Plates thickness: 7⁄16"

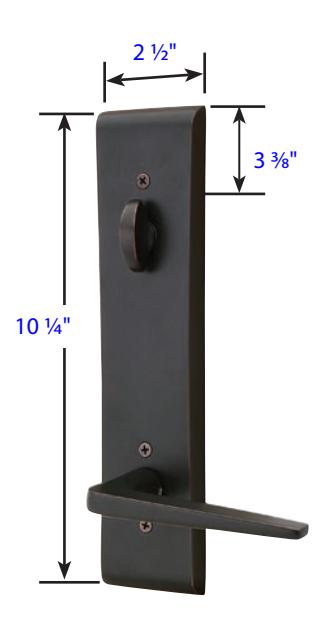

Standard interior trim Part # 4815 & 4816

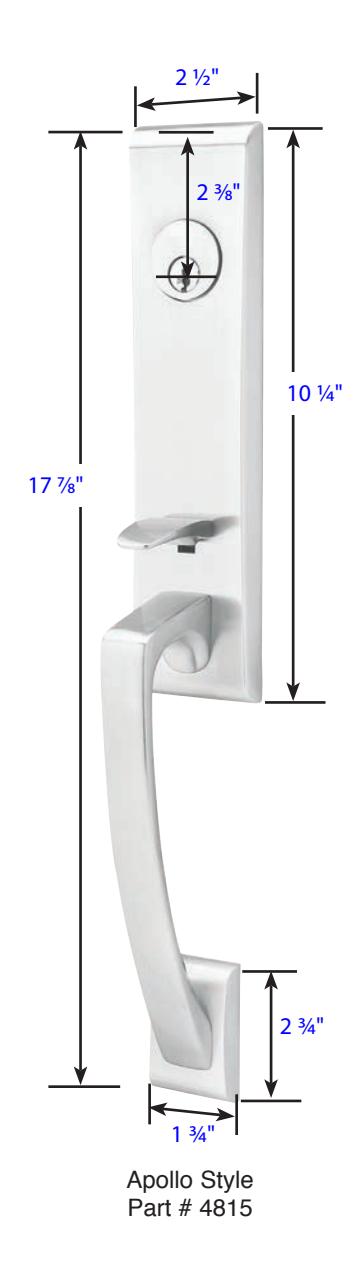

Additional Dimensions: (Part # 4815)

  • Exterior Projection is 2 3⁄4"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1"
  • Clearance between door & grip is 2 1/4"
  • Plates thickness: 1/2"

Same Dimensions for Double Cylinder & Dummy Function

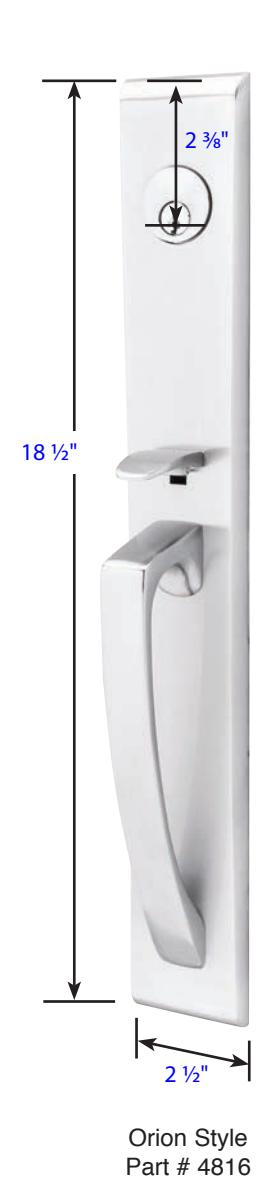

Additional Dimensions: (Part # 4816)

  • Exterior Projection is 2 3⁄4"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1"
  • Clearance between door & grip is 1"- 1 3⁄4"
  • Plates thickness: 1/2"

Same Dimensions for Double Cylinder & Dummy Function

8

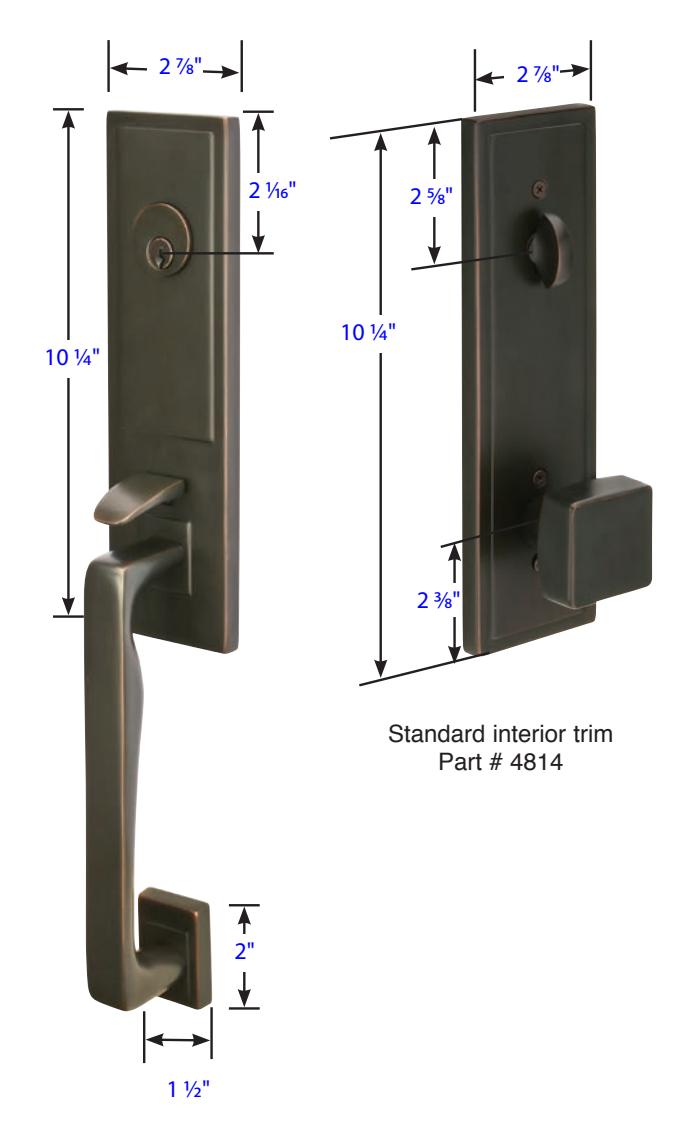

Zeus Style Part # 4814

Additional Dimensions: (Part # 4814)

  • Exterior Projection is 2 1/2"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1 1⁄16"
  • Clearance between door & grip is 1"- 1 3⁄8"
  • Plates thickness: 7⁄16"

Brass Tubular Entryset Sectional, Single Cylinder

Transitional Heritage (4716), Baden (4820), Ares (4817)

• Standard Door Thickness: 1-3⁄4"- 2-1⁄8"

Standard Components:

  • 1-1⁄2" Rosette Screws
  • Single Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2-1⁄4" Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

• Extended Door Thickness: 2-1⁄4"- 2-5⁄8" • Extended Door Thickness: 2-5⁄8"- 3"

Extended Components:

  • 2" Rosette Screws
  • Long Single Cylinder Tailpiece
  • Long Outside Entry Spindle
  • Long Inside Passage Half Spindle
  • 3" Deadbolt Mounting Screws
  • Spindle Extensions
  • Extended Full-Lip Strike Plate
  • Deadbolt Strike Plate

Extended Components:

  • 2-1⁄2" Rosette Screws
  • Extra Long Single Cylinder Tailpiece
  • Long Outside Entry Spindle
  • Extra Long Inside Passage Half Spindle
  • 3-1⁄2" Deadbolt Mounting Screws
  • Spindle Extensions
  • Extended Full-Lip Strike Plate
  • Deadbolt Strike Plate

Brass Tubular Entryset Sectional, Double Cylinder

Transitional Heritage (4726), Baden (4830), Ares (4827),

• Standard Door Thickness: 1-5⁄8"- 2-1⁄8"

Standard Components:

  • 1-1⁄2" Rosette Screws
  • Double Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2-1⁄4" & 2-1⁄2 Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

• Extended Door Thickness: 2-1⁄4"- 2-5⁄8"

Extended Components:

  • 2" Rosette Screws
  • Long Double Cylinder Tailpiece
  • Long Outside Entry Spindle
  • Long Inside Passage Half Spindle
  • 3" Deadbolt Mounting Screws
  • Spindle Extensions
  • Extended Full-Lip Strike Plate
  • Deadbolt Strike Plate

Extended Components:

  • 2-1⁄2" Rosette Screws
  • Extra Long Double Cylinder Tailpiece

• Extended Door Thickness: 2-5⁄8"- 2-7⁄8"

  • Long Outside Entry Spindle
  • Extra Long Inside Passage Half Spindle
  • 3-1⁄2" Deadbolt Mounting Screws
  • Spindle Extensions
  • Extended Full-Lip Strike Plate
  • Deadbolt Strike Plate

Brass Tubular Entryset Monolithic & Full Length, Single Cylinder

Transitional Heritage (4717), Davos (4818), Lausanne (4819), Apollo (4815), Orion (4816), Zeus (4814)

  • Standard Door Thickness: 13⁄4"- 21⁄8" Standard Components:
  • 11⁄2" Rosette Screws
  • Single Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 21⁄4" Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

  • Extended Door Thickness: 21⁄4"- 21⁄2" Extended Components:
  • 2" Rosette Screws
  • Long Single Cylinder Tailpiece
  • Long Outside Entry Spindle
  • Long Inside Passage Half Spindle
  • 3" Deadbolt Mounting Screws
  • Spindle Extensions
  • Extended Full-Lip Strike Plate
  • Deadbolt Strike Plate

  • Extended Door Thickness: 21⁄2"- 3" Extended Components:
  • 21⁄2" Rosette Screws
  • Extra Long Single Cylinder Tailpiece
  • Long Outside Entry Spindle
  • Extra Long Inside Passage Half Spindle
  • 3" Deadbolt Mounting Screws
  • Spindle Extensions
  • Extended Full-Lip Strike Plate
  • Deadbolt Strike Plate

Brass Tubular Entryset Monolithic & Full Length, Double Cylinder

Transitional Heritage (4727), Davos (4828), Lausanne (4829), Apollo (4825), Orion (4826), Zeus (4824)

  • Standard Door Thickness: 13⁄4"- 2" Standard Components:
  • 11⁄2" Rosette Screws
  • Double Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 21⁄4" Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

  • Extended Door Thickness: 2"- 25⁄8" Extended Components:
  • 2" Rosette Screws
  • Long Double Cylinder Tailpiece
  • Long Outside Entry Spindle
  • Long Inside Passage Half Spindle
  • 3" Deadbolt Mounting Screws
  • Spindle Extensions
  • Extended Full-Lip Strike Plate
  • Deadbolt Strike Plate

  • Extended Door Thickness: 25⁄8"- 27⁄8" Extended Components:
  • 21⁄2" Rosette Screws
  • Long Double Cylinder Tailpiece
  • Long Outside Entry Spindle
  • Extra Long Inside Passage Half Spindle
  • 31⁄2" Deadbolt Mounting Screws
  • Spindle Extensions
  • Extended Full-Lip Strike Plate
  • Deadbolt Strike Plate

TS-TE REV18 09/20/2019

9

* Part # DB4-COLLAR32 Available for 13⁄8" Thick Doors

TUBULAR ENTRANCE HANDLESETS CONTEMPORARY

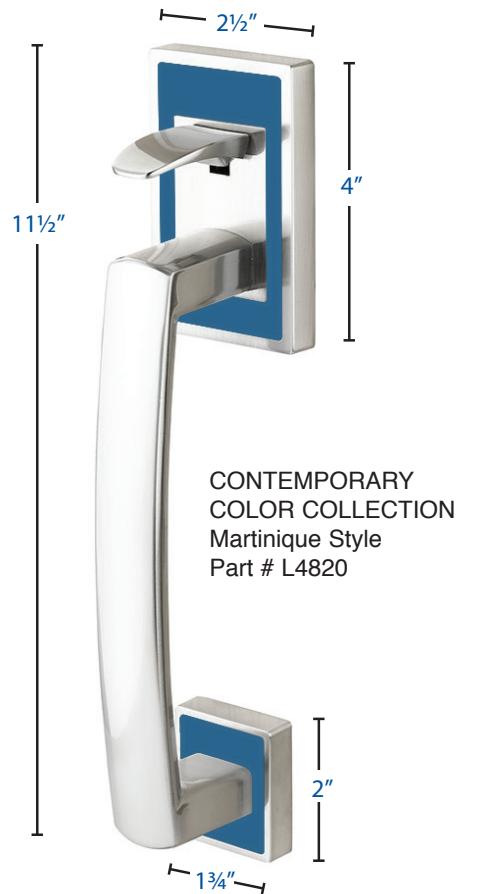

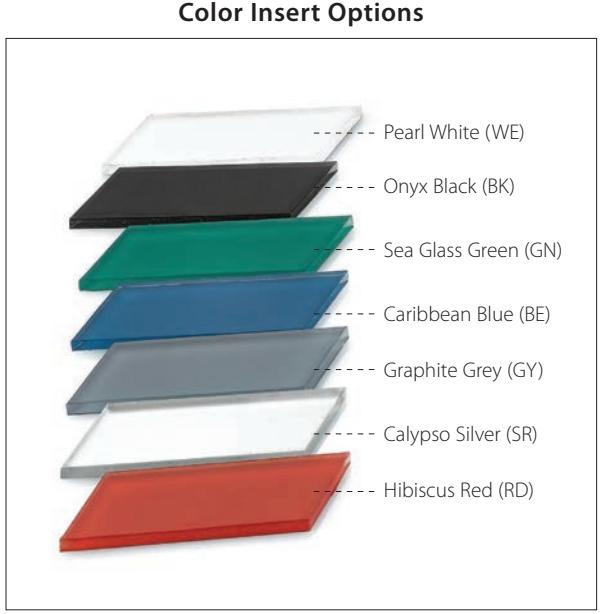

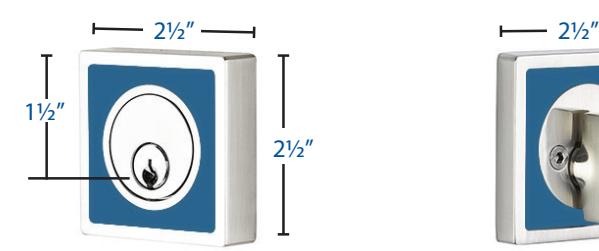

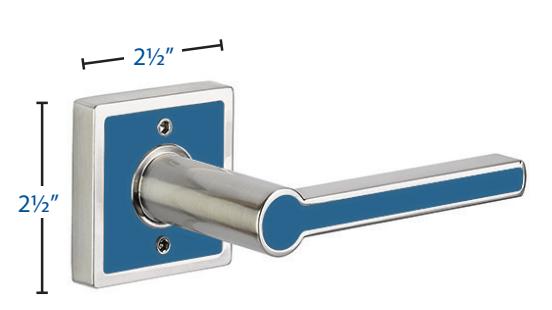

Contemporary Color Collection - Martinique Style

Deadbolt Plate Thickness: 5/8"

Standard interior trim Part # L4820

Additional Dimensions: (Part # L4820)

  • Exterior Projection is 2 1⁄2"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1"
  • Clearance between door & grip is 1 7/8"
  • Plates thickness: 1/2"

3

Tubular Entryset Sectional, Single Cylinder

Martinique (L4820)

• Standard Door Thickness: 1-3⁄4"- 2-1⁄8"

Standard Components:

  • 1-1⁄2" Rosette Screws
  • Single Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2-1⁄4" Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

• Extended Door Thickness: 2-1⁄4"- 2-5⁄8"

Extended Components:

  • 2" Rosette Screws
  • Long Single Cylinder Tailpiece
  • Long Outside Entry Spindle
  • Long Inside Passage Half Spindle
  • 3" Deadbolt Mounting Screws
  • Spindle Extensions
  • Extended Full-Lip Strike Plate
  • Deadbolt Strike Plate

• Extended Door Thickness: 2-5⁄8"- 3"

Extended Components:

  • 2-1⁄2" Rosette Screws
  • Extra Long Single Cylinder Tailpiece
  • Long Outside Entry Spindle
  • Extra Long Inside Passage Half Spindle
  • 3-1⁄2" Deadbolt Mounting Screws
  • Spindle Extensions
  • Extended Full-Lip Strike Plate
  • Deadbolt Strike Plate

Tubular Entryset Sectional, Double Cylinder

Martinique (L4830)

• Standard Door Thickness: 1-5⁄8"- 2-1⁄8"

Standard Components:

  • 1-1⁄2" Rosette Screws
  • Double Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2-1⁄4" & 2-1⁄2 Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

• Extended Door Thickness: 2-1⁄4"- 2-5⁄8"

Extended Components:

  • 2" Rosette Screws
  • Long Double Cylinder Tailpiece
  • Long Outside Entry Spindle
  • Long Inside Passage Half Spindle
  • 3" Deadbolt Mounting Screws
  • Spindle Extensions
  • Extended Full-Lip Strike Plate
  • Deadbolt Strike Plate

• Extended Door Thickness: 2-5⁄8"- 2-7⁄8"

Extended Components:

  • 2-1⁄2" Rosette Screws
  • Extra Long Double Cylinder Tailpiece
  • Long Outside Entry Spindle
  • Extra Long Inside Passage Half Spindle
  • 3-1⁄2" Deadbolt Mounting Screws
  • Spindle Extensions
  • Extended Full-Lip Strike Plate
  • Deadbolt Strike Plate

TS-TE REV18 01/03/2019

4

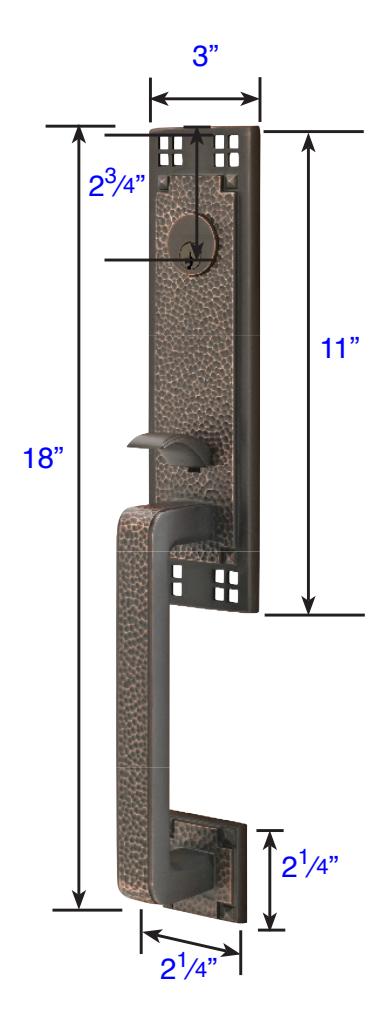

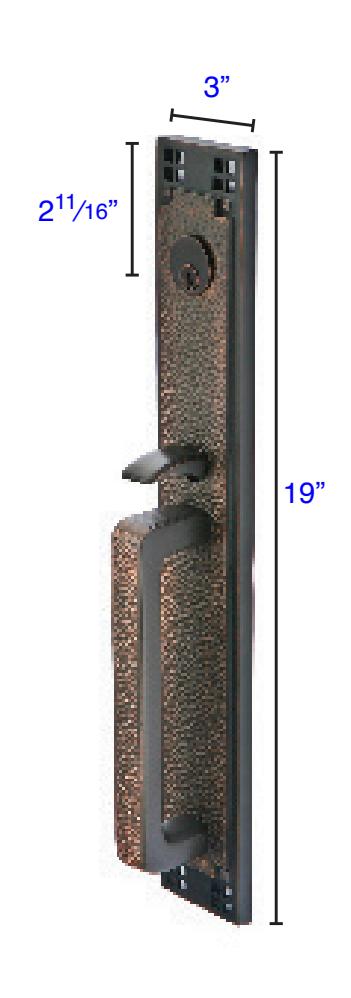

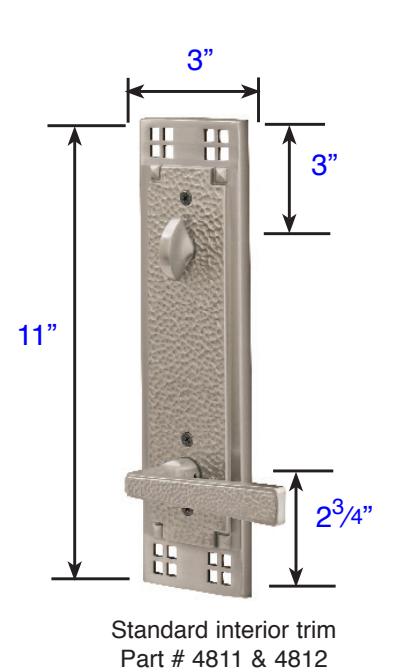

Arts & Crafts Style Part # 4811

Arts & Crafts Full Length Style Part # 4812

Additional Dimensions: (Part # 4811 & 4812)

  • Exterior Projection is 2<sup>5</sup>/8"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1<sup>1</sup>/<sub>4</sub>"
  • Clearance between door & grip is 1<sup>1</sup>/2" Plates thickness: <sup>1</sup>/2"

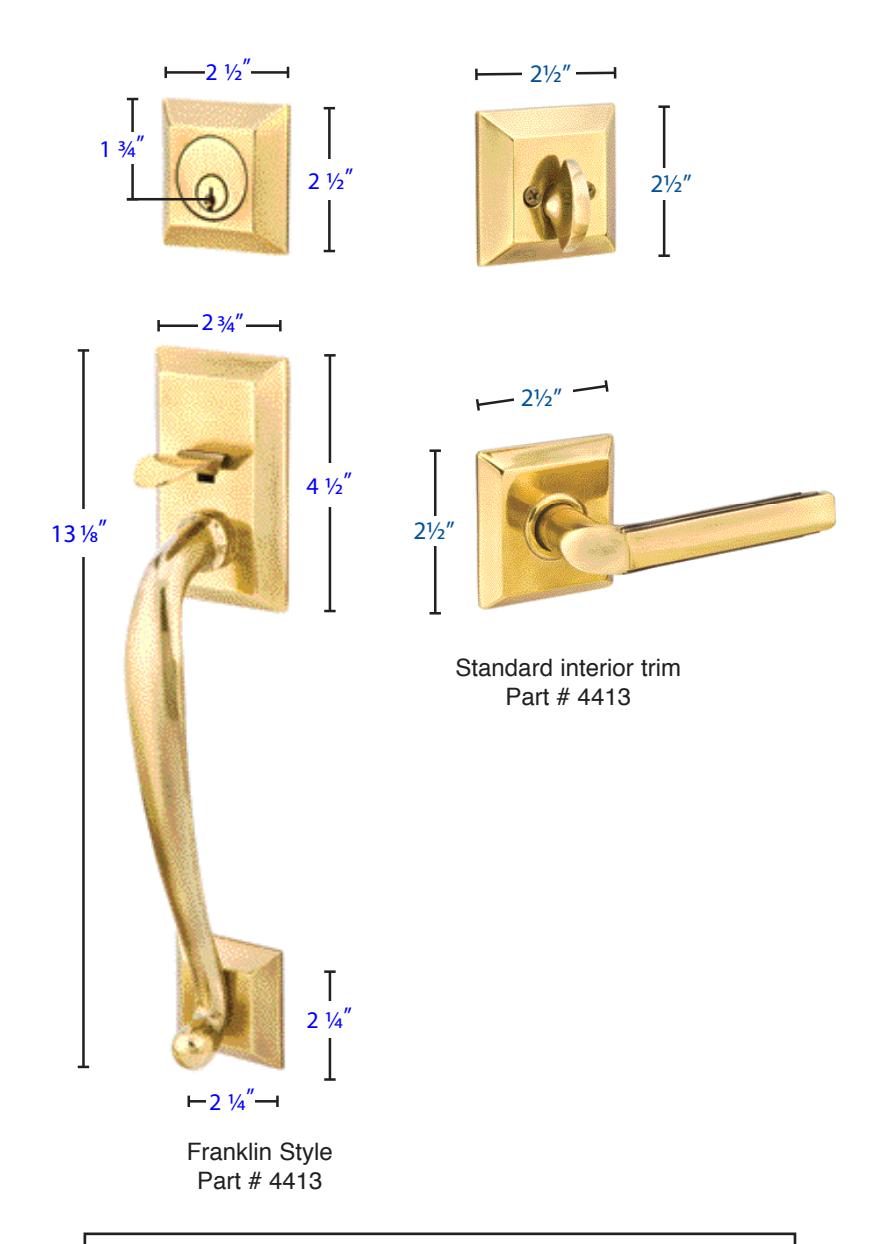

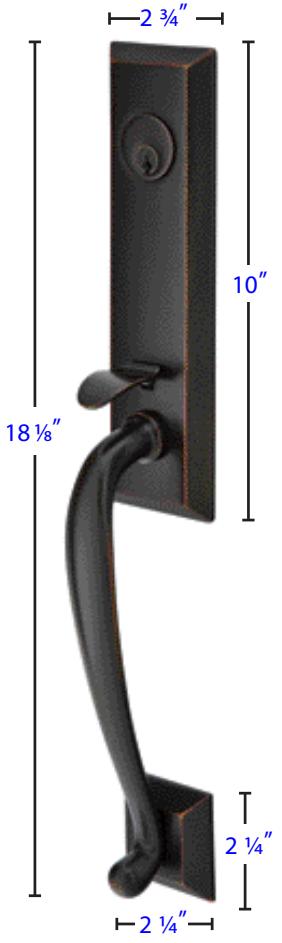

Additional Dimensions: (Part # 4413)

  • Exterior Projection is 2<sup>11</sup>/<sub>16</sub>"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1<sup>5</sup>/16"
  • Clearance between door & grip is 19/16"
  • Plates thickness: 1/2"

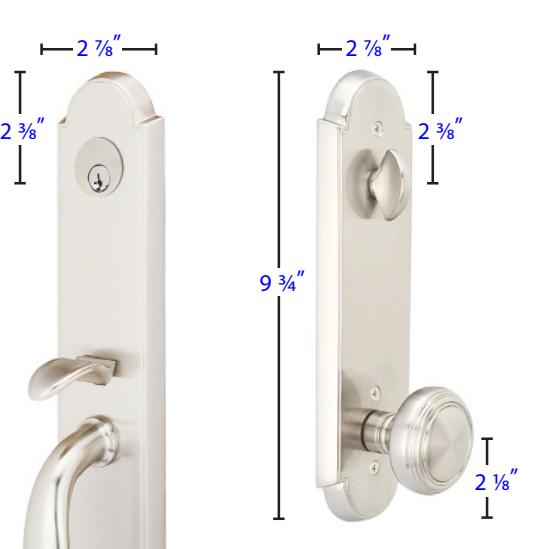

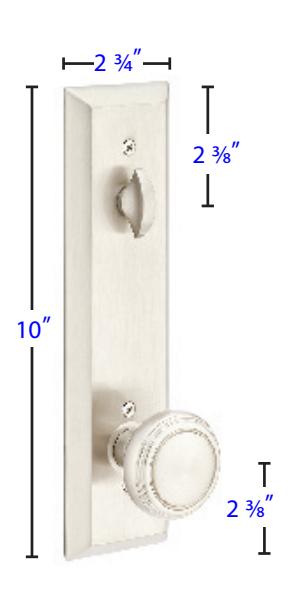

Standard interior trim Part # 4414 & 4415

Jefferson Trim Style Part # 4415

Additional Dimensions: (Part # 4414)

  • Exterior Projection is 2<sup>11</sup>/16"
  • · Interior Projection Depends on Handle Style
  • Overall Grip thickness: 15/16"
  • Clearance between door & grip is 19/16"
  • Plates thickness: 1/2"

Same Dimensions for Double Cylinder & Dummy Function

Additional Dimensions: (Part # 4415)

  • Exterior Projection is 2 <sup>3</sup>/<sub>4</sub>"
  • · Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1 1/4"
  • · Clearance between door & grip is 2"
  • Plates thickness: 1/2"

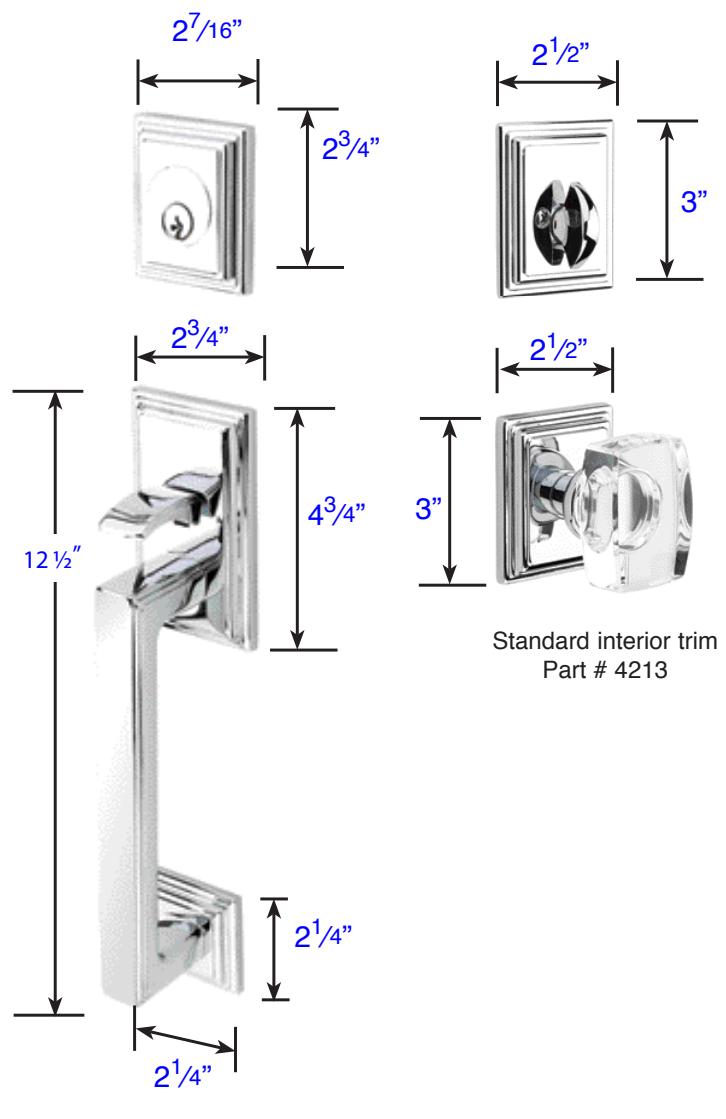

BRASS TUBULAR ENTRANCE HANDLESETS Hamden Style

Hamden Style Part # 4213

Additional Dimensions: (Part # 4213)

  • Exterior Projection is 2<sup>5</sup>/8"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1"
  • Clearance between door & grip is 13/8"
  • Plates thickness: 1/2"

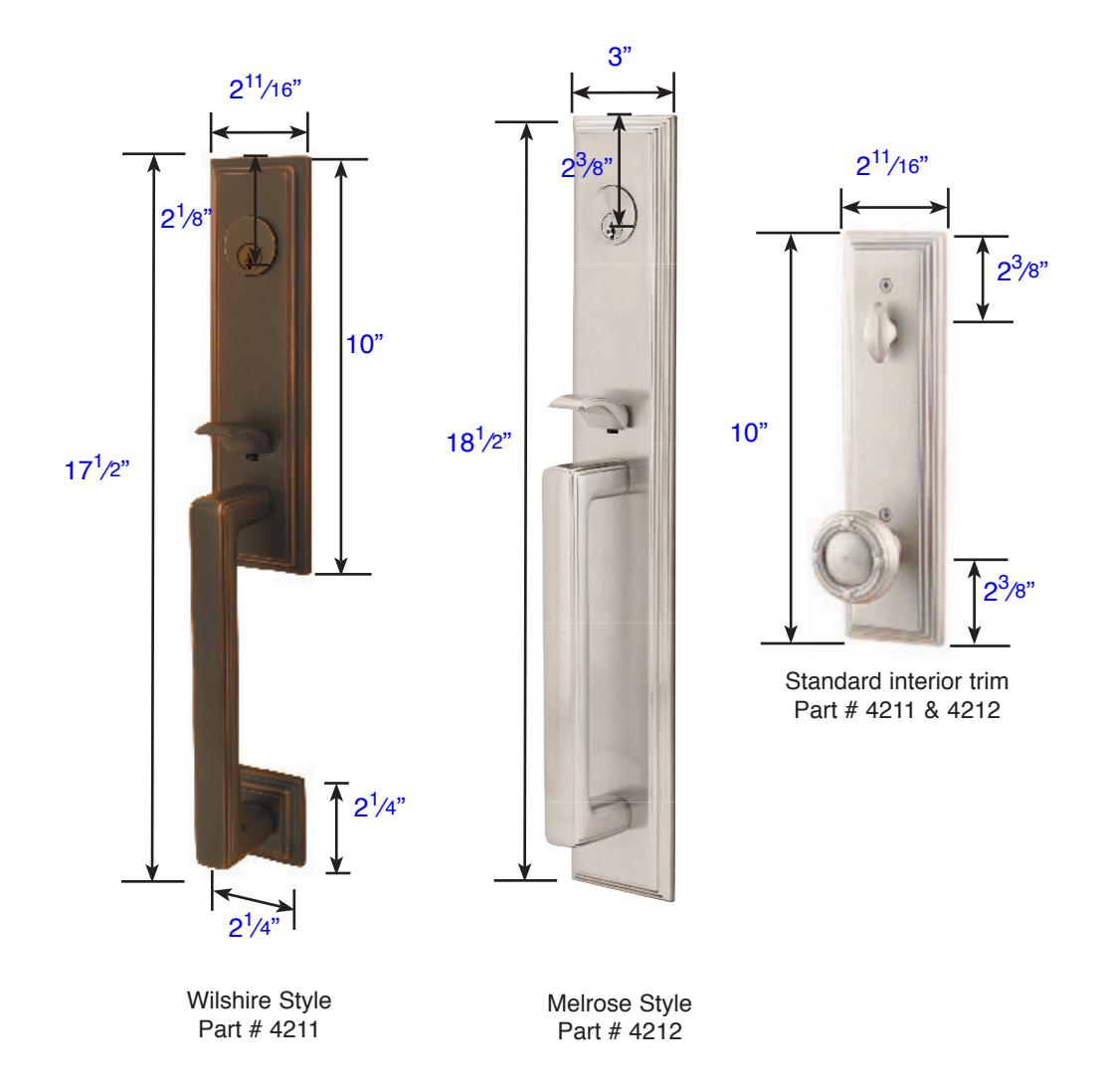

Additional Dimensions: (Part # 4211 & 4212)

  • Exterior Projection is 2<sup>5</sup>/8"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1"
  • Clearance between door & grip is 1<sup>3</sup>/8" Plates thickness: <sup>1</sup>/<sub>2</sub>"

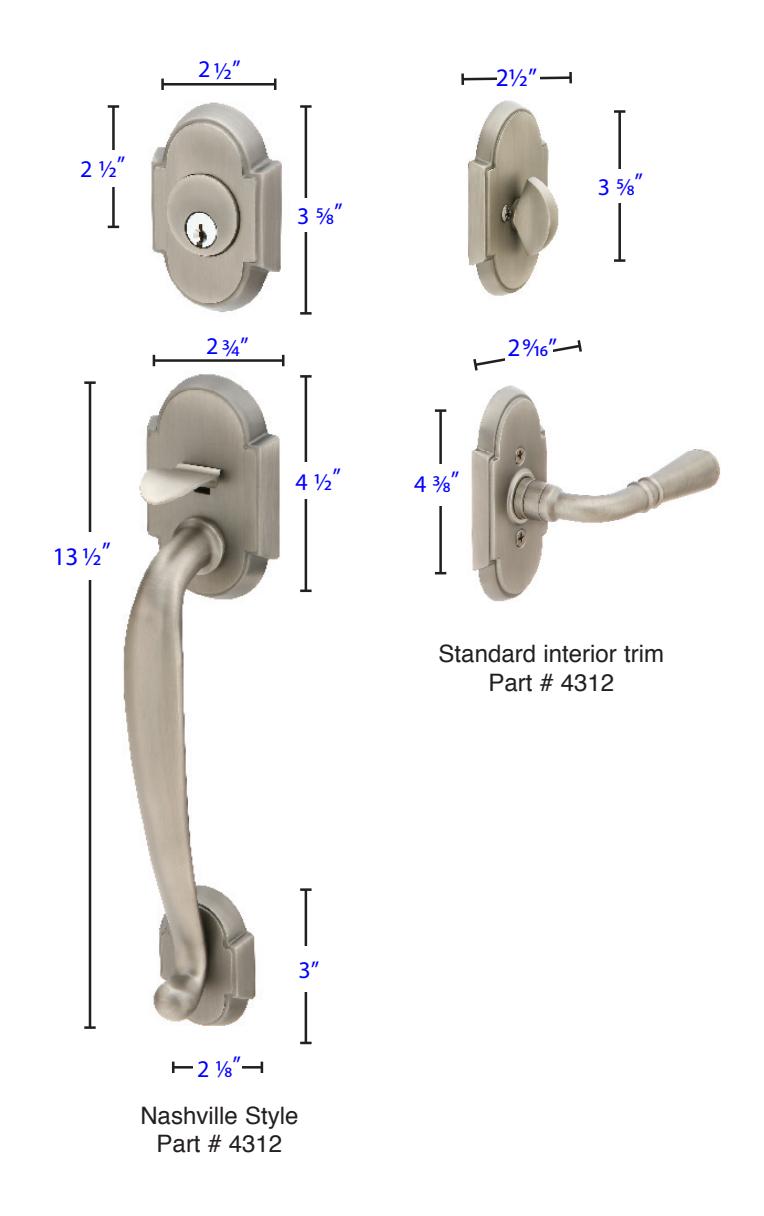

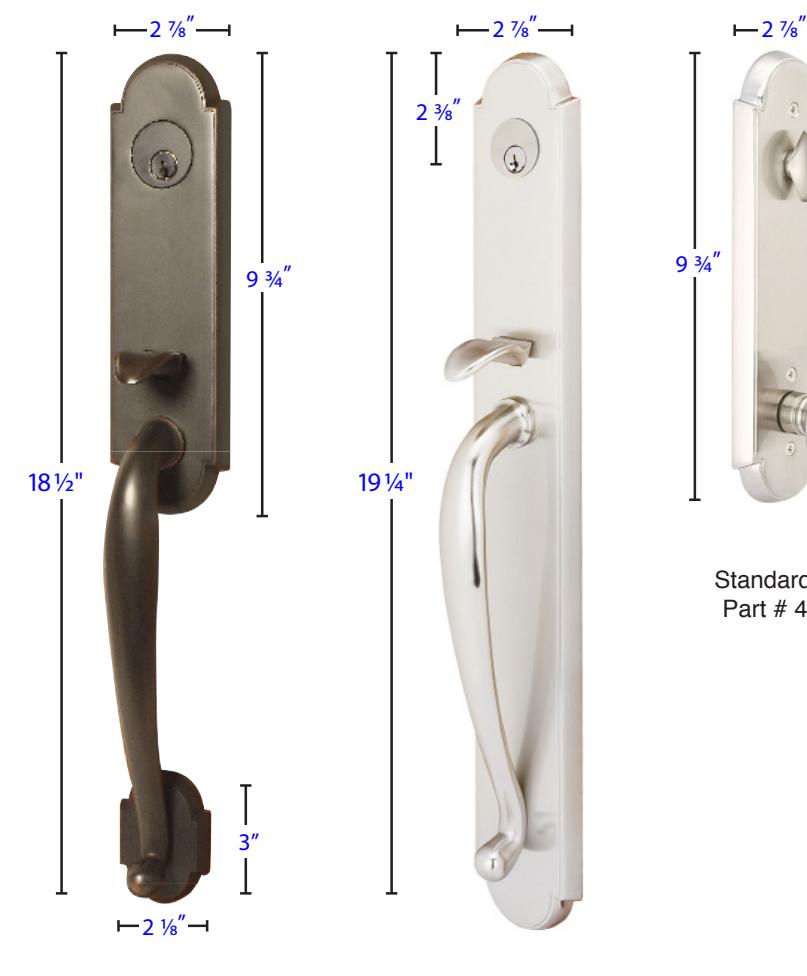

Additional Dimensions; (Part # 4312)

  • Exterior Projection is 2<sup>11</sup>/16"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1<sup>1</sup>/<sub>4</sub>"
  • Clearance between door & grip is 1<sup>15</sup>/16"
  • Plates thickness: 1/2"

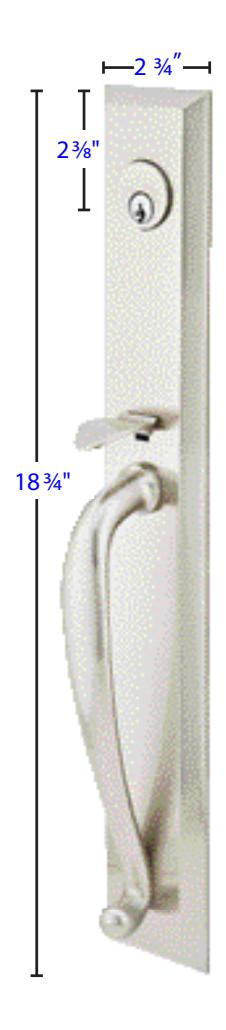

BRASS TUBULAR ENTRANCE HANDLESETS AMERICAN HERITAGE

Richmond & Wilmington Styles

Standard interior trim Part # 4313 & 4314

Richmond Style Part # 4313

Wilmington Style Part # 4314

Additional Dimensions: (Part # 4313)

  • Exterior Projection is 211⁄16"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 11⁄4"
  • Clearance between door & grip is 2"
  • Plates thickness: 1⁄2"

Same Dimensions for Double Cylinder & Dummy Function

Additional Dimensions: (Part # 4314)

  • Exterior Projection is 2 3⁄4"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1"
  • Clearance between door & grip is 1 7 ⁄16"
  • Plates thickness: 1/2"

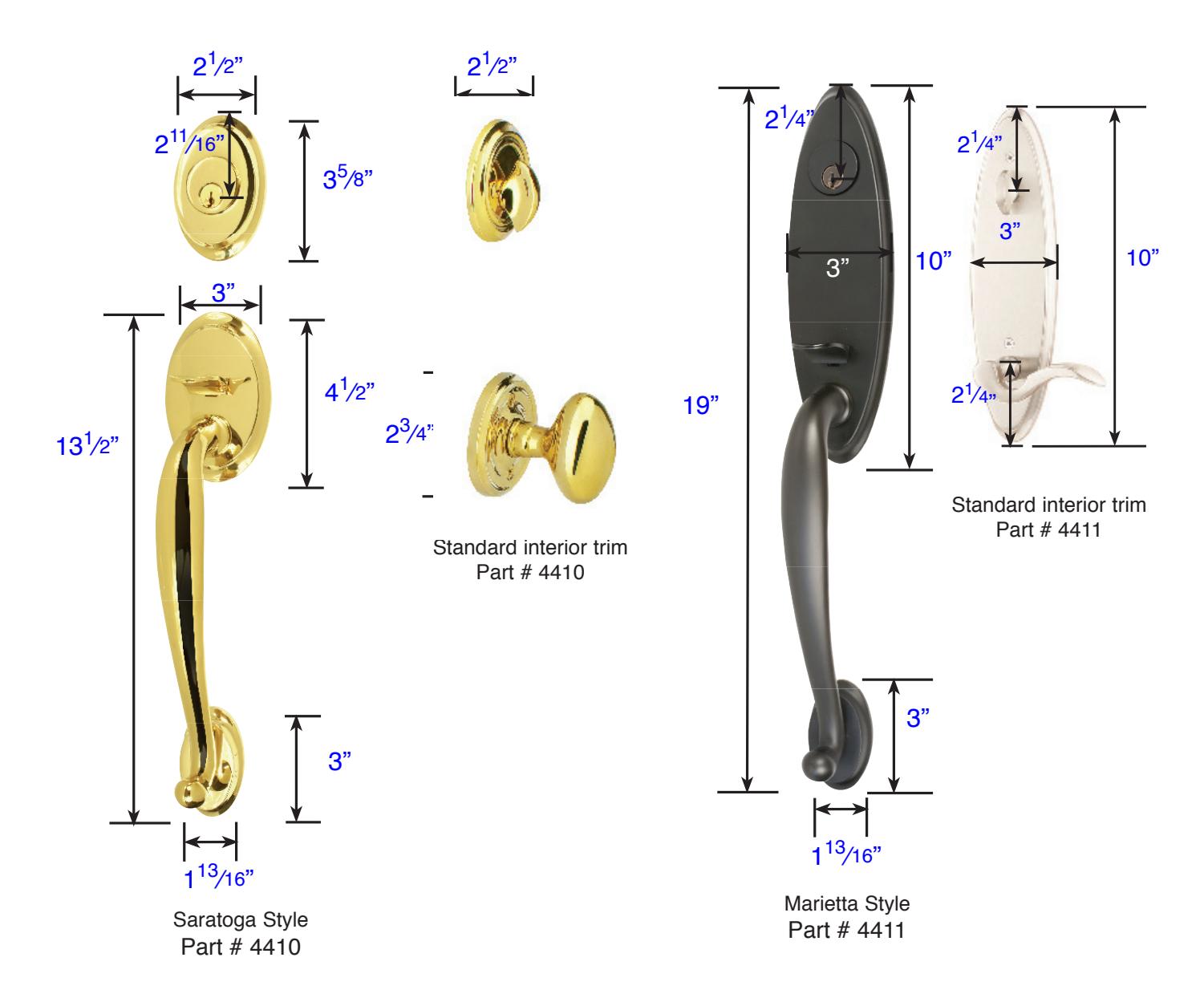

Additional Dimensions: (Part # 4410)

  • Exterior Projection is 211⁄16"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 11⁄4"
  • Clearance between door & grip is 115⁄16"
  • Plates thickness: 7⁄16"

Same Dimensions for Double Cylinder & Dummy Function

Additional Dimensions: (Part # 4411)

  • Exterior Projection is 23⁄4"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 13⁄4"
  • Clearance between door & grip is 2"
  • Plates thickness: 1⁄2"

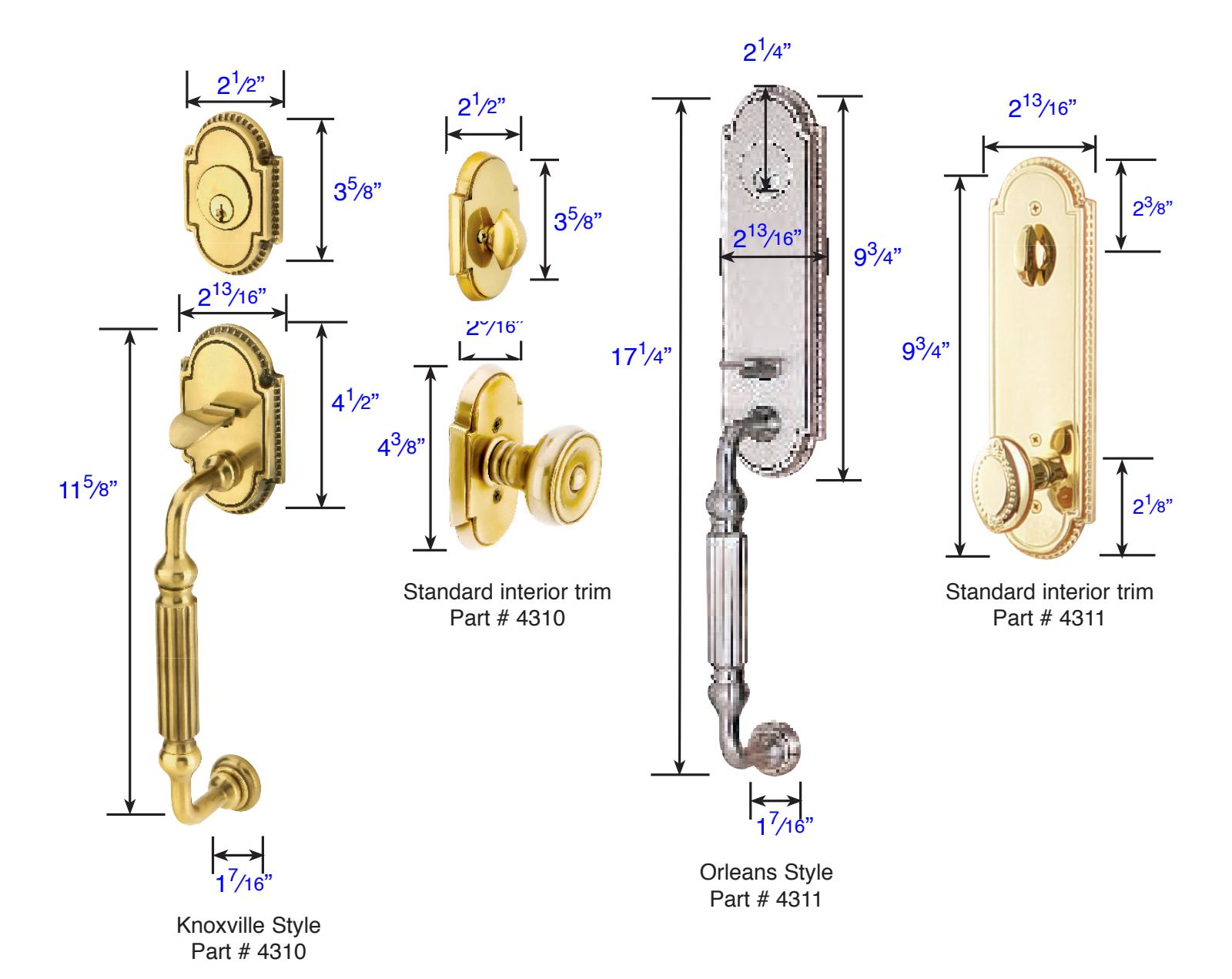

Additional Dimensions: (Part # 4310)

  • Exterior Projection is 3"
  • · Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1"
  • Clearance between door & grip is 1<sup>1</sup>/2" Plates thickness: <sup>1</sup>/2"

Same Dimensions for Double Cylinder & Dummy Function

Additional Dimensions: (Part # 4311)

  • Exterior Projection is 3"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1"
  • Clearance between door & grip is 1<sup>1</sup>/2" Plates thickness: <sup>1</sup>/2"

BRASS TUBULAR ENTRANCE HANDLESETS

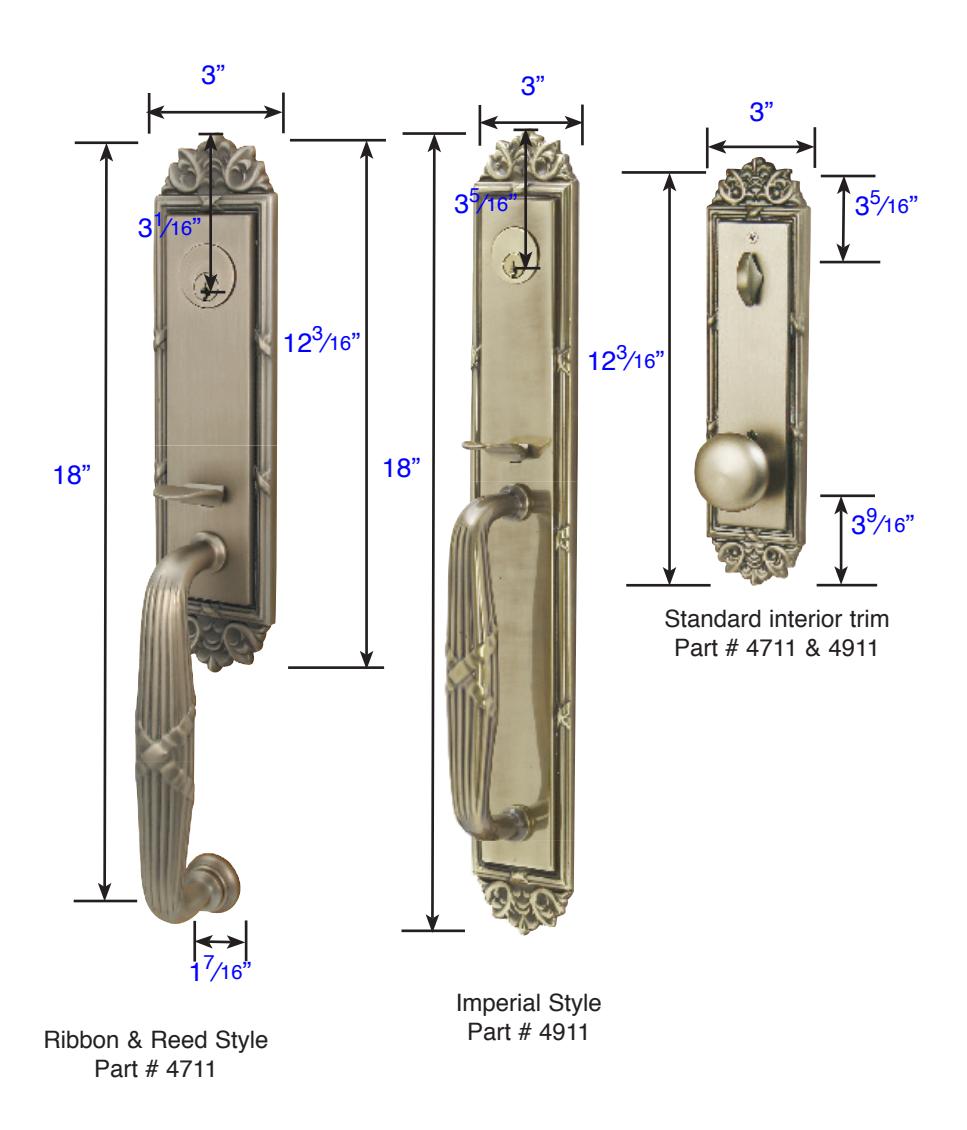

Ribbon & Reed and Imperial Styles

Additional Dimensions: (Part # 4711 & 4911) • Exterior Projection is 2<sup>11</sup>/16"

  • Interior Projection Depends on Handle Style Overall Grip thickness: 1<sup>5</sup>/16"
  • Clearance between door & grip is 1<sup>9</sup>/16" Plates thickness: <sup>1</sup>/<sub>2</sub>"

Brass Tubular Entryset Sectional, Single Cylinder

Saratoga (4410), Knoxville (4310), Hamden (4213), Nashville (4312), Franklin (4413)

  • Standard Door Thickness: 1<sup>3</sup>/4"- 2<sup>1</sup>/8" Standard Components:
  • 1<sup>1</sup>/2" Rosette Screws
  • Single Cylinder Tailpiece
  • Outside Entry Spindle
  • · Inside Passage Half Spindle
  • 2<sup>1</sup>/4" Deadbolt Mounting Screws

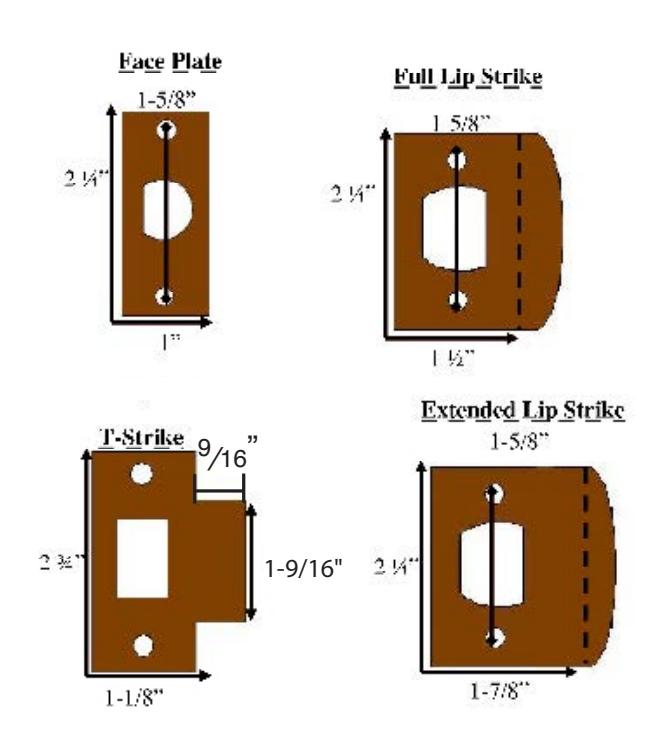

  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

  • Extended Door Thickness: 2^{1/4} "- 2^{5/8} " Extended Components:
  • 2" Rosette Screws
  • · Long Single Cylinder Tailpiece
  • · Long Outside Entry Spindle
  • · Long Inside Passage Half Spindle
  • · 3" Deadbolt Mounting Screws
  • Spindle Extensions
  • · Extended Full-Lip Strike Plate
  • · Deadbolt Strike Plate

  • Extended Door Thickness: 2<sup>5</sup>/8"- 3" Extended Components:
  • 2<sup>1</sup>/2" Rosette Screws
  • Extra Long Single Cylinder Tailpiece
  • · Long Outside Entry Spindle
  • Extra Long Inside Passage Half Spindle
  • 3<sup>1</sup>/2" Deadbolt Mounting Screws
  • Spindle Extensions
  • Extended Full-Lip Strike Plate
  • Deadbolt Strike Plate

Brass Tubular Entryset Sectional, Double Cylinder

Saratoga (4420), Knoxville (4320), Hamden (4223), Nashville (4322), Franklin (4423)

  • Standard Door Thickness: 1<sup>5</sup>/8"- 2<sup>1</sup>/8" Standard Components:
  • 1<sup>1</sup>/2" Rosette Screws
  • Double Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2<sup>1</sup>/4" & 2<sup>1</sup>/2 Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

  • Extended Door Thickness: 2^{1/4} "- 2^{5/8} " Extended Components:
  • 2" Rosette Screws
  • · Long Double Cylinder Tailpiece
  • · Long Outside Entry Spindle
  • · Long Inside Passage Half Spindle
  • 3" Deadbolt Mounting Screws
  • · Spindle Extensions
  • Extended Full-Lip Strike Plate
  • · Deadbolt Strike Plate

  • Extended Door Thickness: 2^{5/8} "- 2^{7/8} " Extended Components:
  • 2<sup>1</sup>/2" Rosette Screws
  • Extra Long Double Cylinder Tailpiece
  • · Long Outside Entry Spindle
  • Extra Long Inside Passage Half Spindle
  • 3<sup>1</sup>/2" Deadbolt Mounting Screws
  • Spindle Extensions
  • Extended Full-Lip Strike Plate
  • · Deadbolt Strike Plate

* Part # DB4-COLLAR32 Available for 13/8" Thick Doors

Brass Tubular Entryset Monolithic & Full Length, Single Cylinder

Marietta (4411), Orleans (4311), Arts & Crafts (4811), Wilshire (4211), Wilmington (4314), Melrose (4212), Ribbon & Reed (4711), Imperial (4911), Richmond (4313), Adams (4414), Jefferson (4415)

  • Standard Door Thickness: 1<sup>3</sup>/<sub>4</sub>"- 2<sup>1</sup>/<sub>8</sub>" Standard Components:
  • 1<sup>1</sup>/2" Rosette Screws
  • Single Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2<sup>1</sup>/4" Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

  • Extended Door Thickness: 2^{1/4} "- 2^{1/2} " Extended Components:
  • · 2" Rosette Screws
  • · Long Single Cylinder Tailpiece
  • · Long Outside Entry Spindle
  • · Long Inside Passage Half Spindle
  • 3" Deadbolt Mounting Screws
  • Spindle Extensions
  • · Extended Full-Lip Strike Plate
  • Deadbolt Strike Plate

  • Extended Door Thickness: 2<sup>1</sup>/2"- 3" Extended Components:
  • 2<sup>1</sup>/2" Rosette Screws
  • Extra Long Single Cylinder Tailpiece
  • · Long Outside Entry Spindle
  • · Extra Long Inside Passage Half Spindle
  • 3" Deadbolt Mounting Screws
  • · Spindle Extensions
  • Extended Full-Lip Strike Plate
  • · Deadbolt Strike Plate

Brass Tubular Entryset Monolithic & Full Length, Double Cylinder

Marietta (4421), Orleans (4321), Arts & Crafts (4821), Wilshire (4221), Wilmington (4324), Melrose (4212), Ribbon & Reed (4721), Imperial (4921), Richmond (4323), Adams (4424), Jefferson (4425)

  • Standard Door Thickness: 1<sup>3</sup>/4"- 2" Standard Components:
  • 1 1/2" Rosette Screws
  • Double Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2<sup>1</sup>/4" Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

  • Extended Door Thickness: 2"- 2<sup>5</sup>/8" Extended Components:
  • · 2" Rosette Screws
  • · Long Double Cylinder Tailpiece
  • Long Outside Entry Spindle
  • · Long Inside Passage Half Spindle
  • 3" Deadbolt Mounting Screws
  • Spindle Extensions
  • Extended Full-Lip Strike Plate
  • · Deadbolt Strike Plate

  • Extended Door Thickness: 2^{5/8} "- 2^{7/8} " Extended Components:
  • 2<sup>1</sup>/2" Rosette Screws
  • Long Double Cylinder Tailpiece
  • · Long Outside Entry Spindle
  • · Extra Long Inside Passage Half Spindle
  • 3<sup>1</sup>/2" Deadbolt Mounting Screws
  • Spindle Extensions
  • Extended Full-Lip Strike Plate
  • · Deadbolt Strike Plate

* Part # DB4-COLLAR32 Available for 13/8" Thick Doors

TS-TE REV17A 01/03/2019

SANDCAST BRONZE TUBULAR ENTRANCE HANDLESETS RUSTIC LIVING

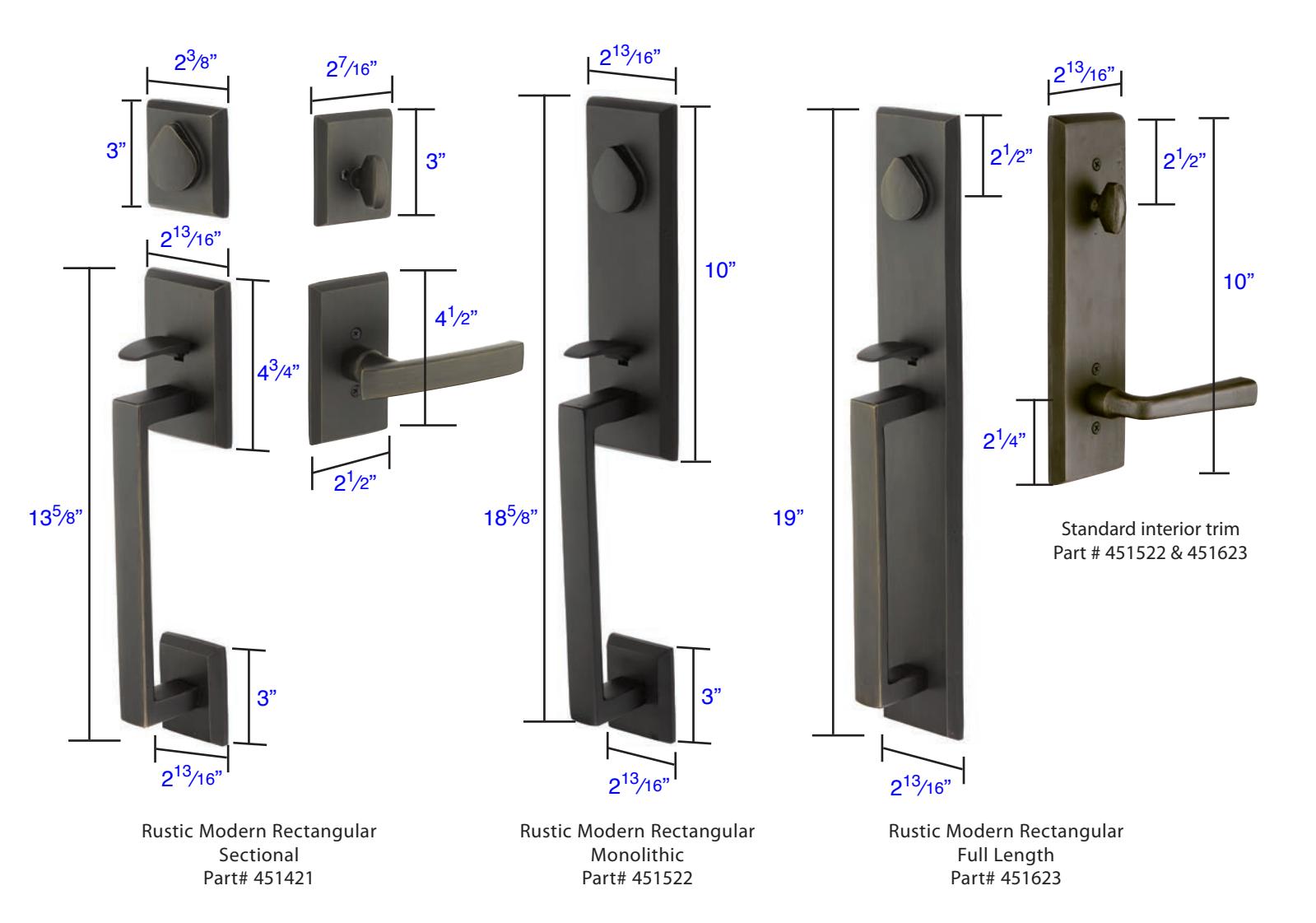

Rustic Modern Rectangular Entry Sets

Additional Dimensions: (Part # 451421)

  • Exterior Projection is 3"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 111⁄16"
  • Clearance between door & grip is 17⁄8"
  • Plates thickness: 1⁄2"

Same Dimensions for Double Cylinder & Dummy Function

Additional Dimensions: (Part # 451522 & 451623)

  • Exterior Projection is 3"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 111⁄16"
  • Clearance between door & grip is 17⁄8"
  • Plates thickness: 1⁄2"

Same Dimensions for Double Cylinder & Dummy Function

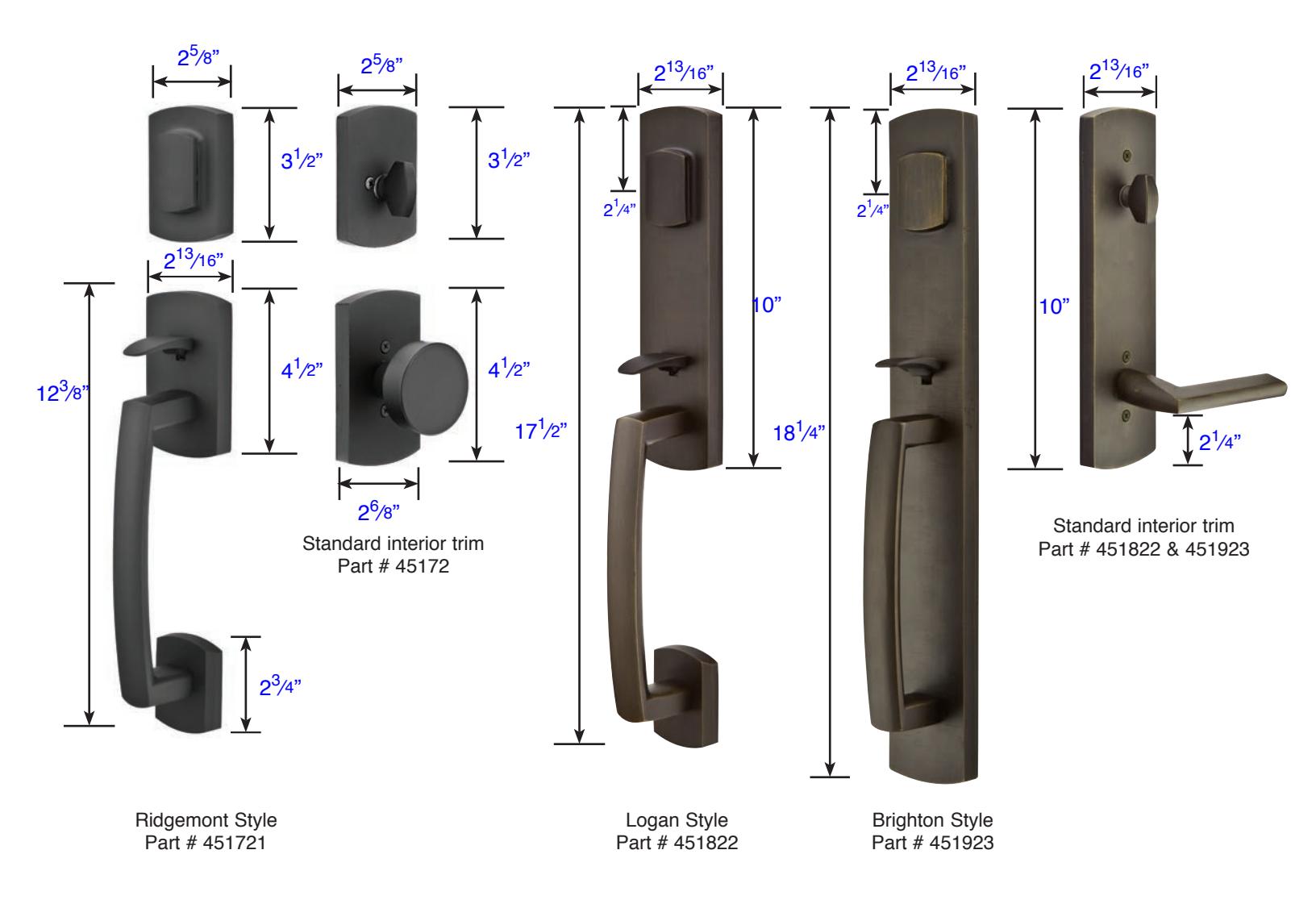

Additional Dimensions: (Part # 451721)

  • Exterior Projection is 2 7/8"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1 1/16"
  • Clearance between door & grip: 2"
  • Plates thickness: 1/2"

Same Dimensions for Double Cylinder & Dummy Function

Additional Dimensions: (Part # 451822 & 451923)

  • Exterior Projection is 2 7/8"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1 1/16"
  • Clearance between door & grip: 1 1/2"
  • Plates thickness: 1/2"

Same Dimensions for Double Cylinder & Dummy Function

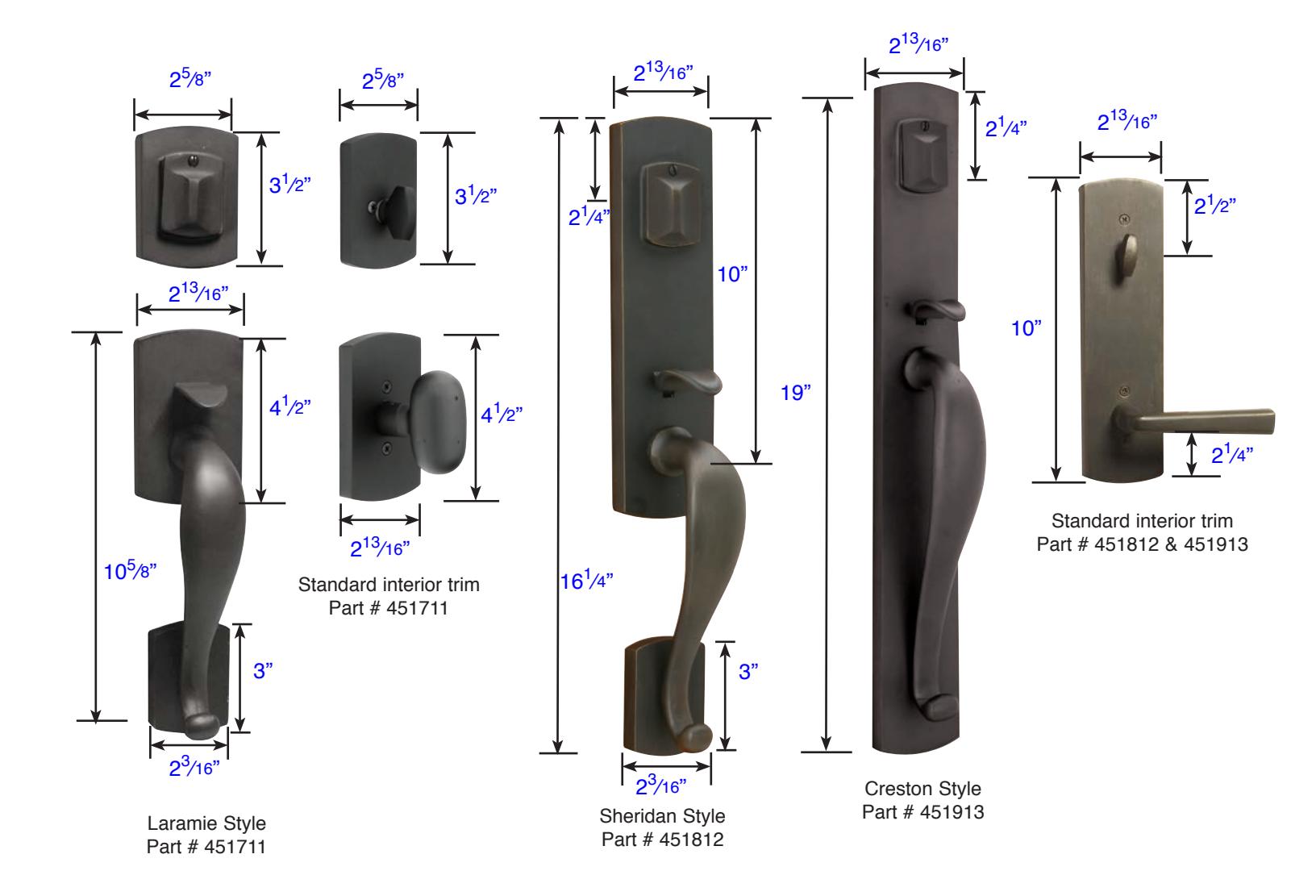

Additional Dimensions: (Part # 451711)

  • Exterior Projection is 3"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1 11/16"
  • Clearance between door & grip is 1<sup>7</sup>/8"
  • Plates thickness: 1/2"

Same Dimensions for Double Cylinder & Dummy Function

Additional Dimensions: (Part # 451812/451913)

  • Exterior Projection is 3"
  • Interior Projection Depends on Handle Style Overall Grip thickness: 1<sup>11</sup>/16"
  • Clearance between door & grip is 1<sup>7</sup>/8"
  • Plates thickness: <sup>1</sup>/<sub>2</sub>"

Same Dimensions for Double Cylinder & Dummy Function

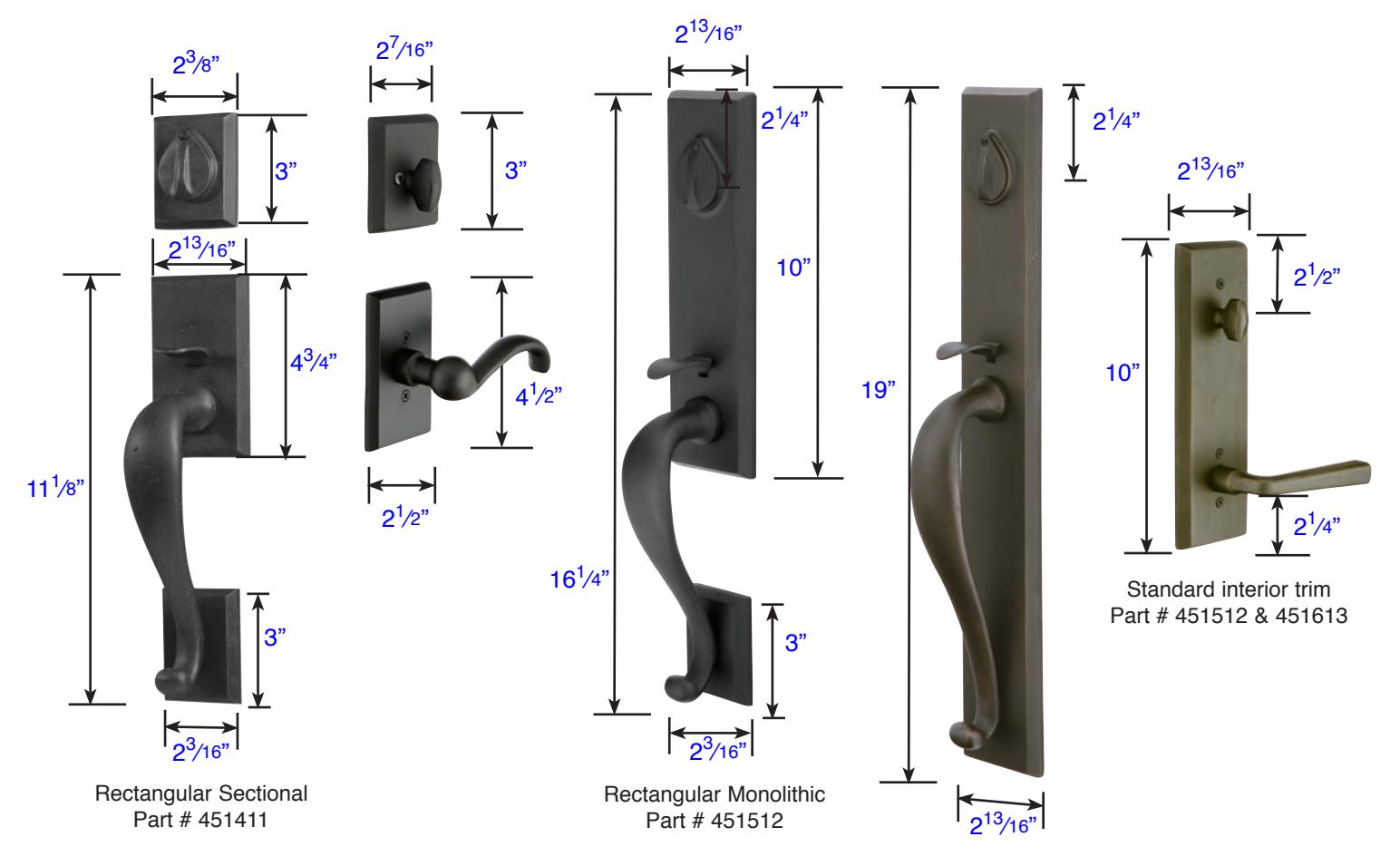

Rectangular Full Length Part # 451613

Additional Dimensions: (Part # 451411)

  • Exterior Projection is 3"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 111⁄16"
  • Clearance between door & grip is 17⁄8"
  • Plates thickness: 1⁄2"

Same Dimensions for Double Cylinder & Dummy Function

Additional Dimensions: (Part # 451512 & 451613)

  • Exterior Projection is 3"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 111⁄16"
  • Clearance between door & grip is 17⁄8"
  • Plates thickness: 1⁄2"

Same Dimensions for Double Cylinder & Dummy Function

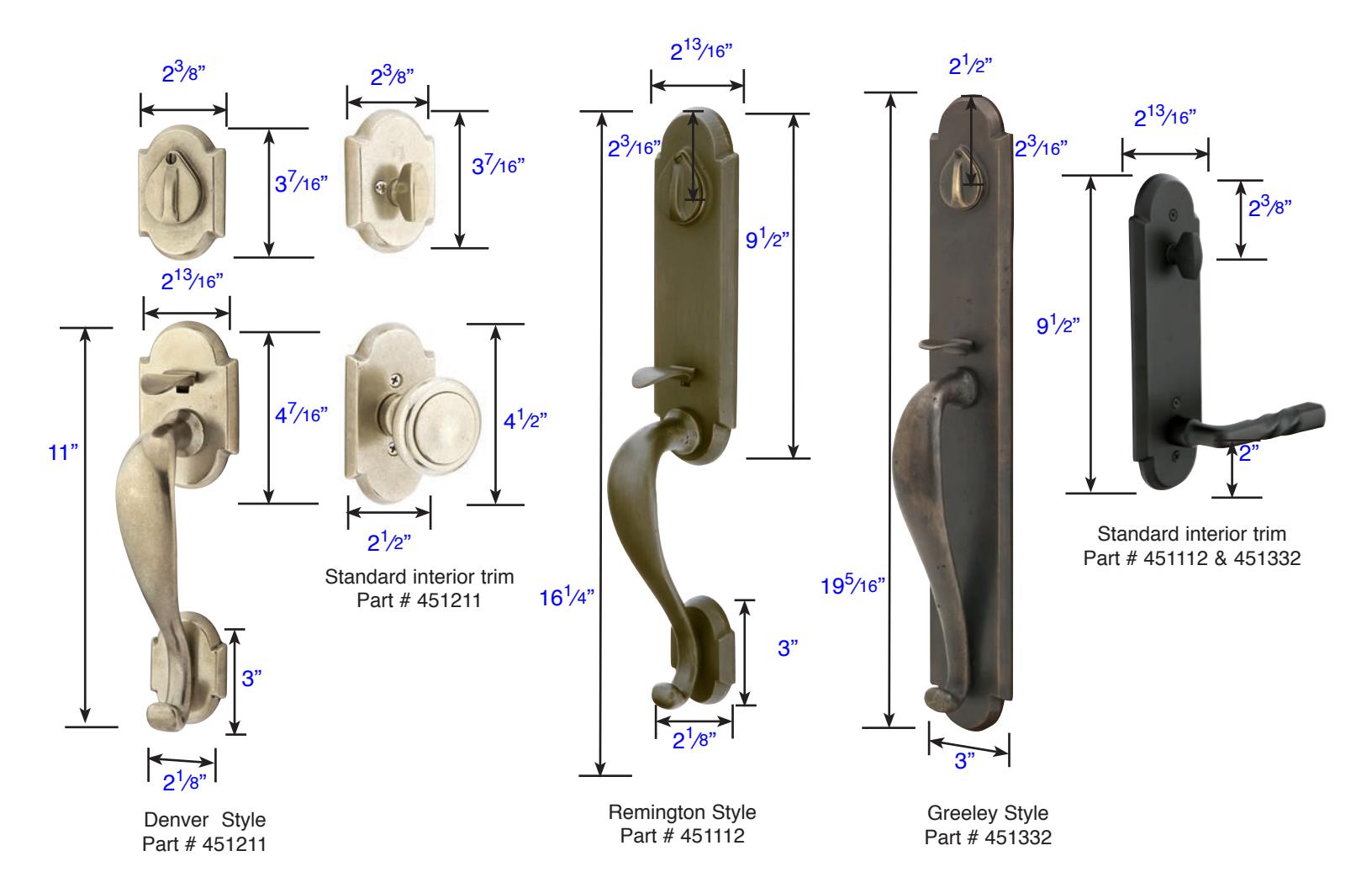

Additional Dimensions: (Part # 451211)

  • Exterior Projection is 3"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 111/16"
  • Clearance between door & grip is 17/8"
  • Plates thickness: 1/2"

Same Dimensions for Double Cylinder & Dummy Function

Additional Dimensions: (Part # 451112 & 451332)

  • Exterior Projection is 3"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 111/16"
  • Clearance between door & grip is 1%"
  • Plates thickness: 1/2"

Same Dimensions for Double Cylinder & Dummy Function

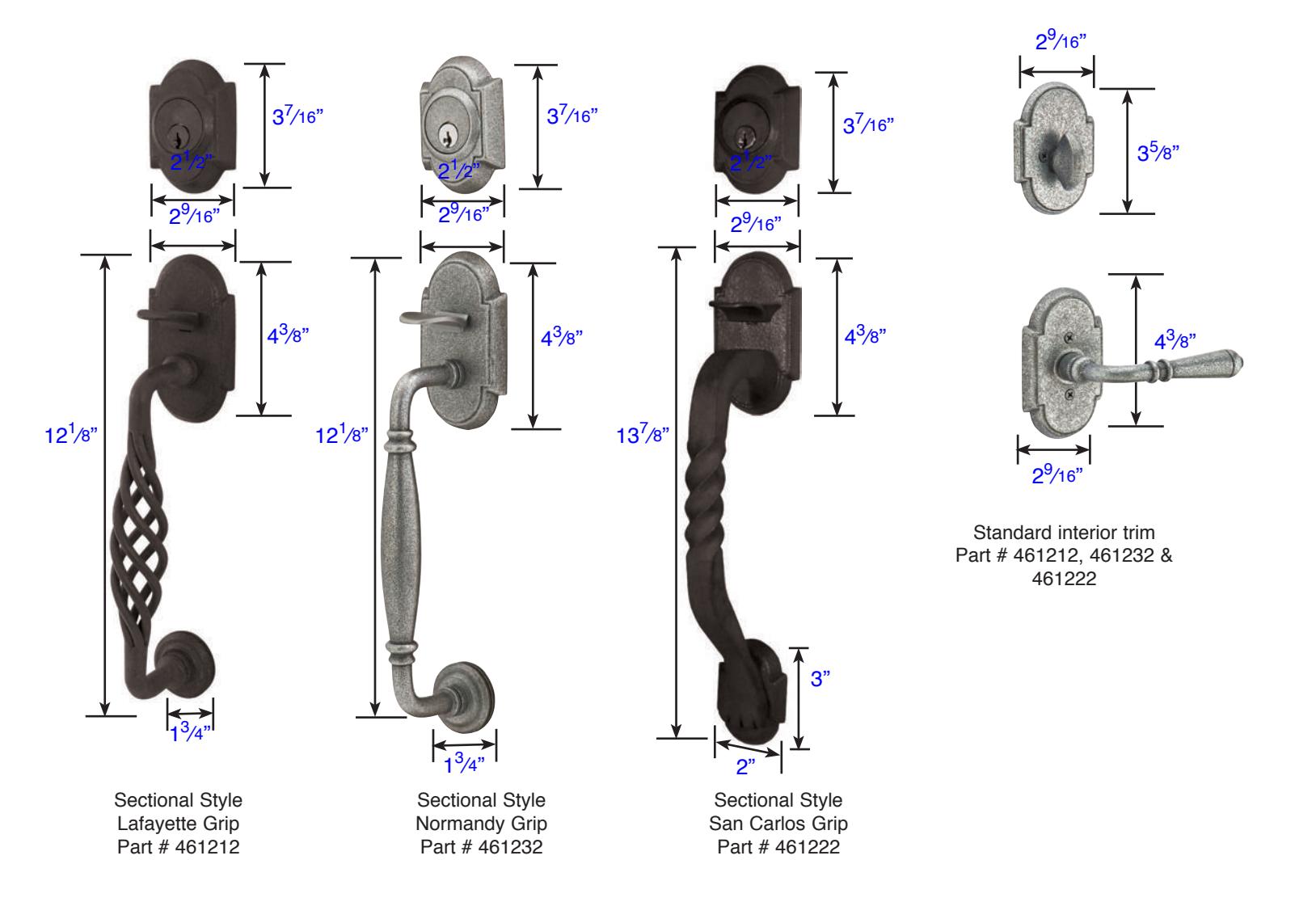

Additional Dimensions: (Part # 461212 & 461232)

  • Exterior Projection is 3"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 3⁄4"
  • Clearance between door & grip is 15⁄8"
  • Plates thickness: 1⁄2"

Same Dimensions for Double Cylinder & Dummy Function

Additional Dimensions: (Part # 461222)

  • Exterior Projection is 31⁄2"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 3⁄4"
  • Clearance between door & grip is 2"
  • Plates thickness: 1⁄2"

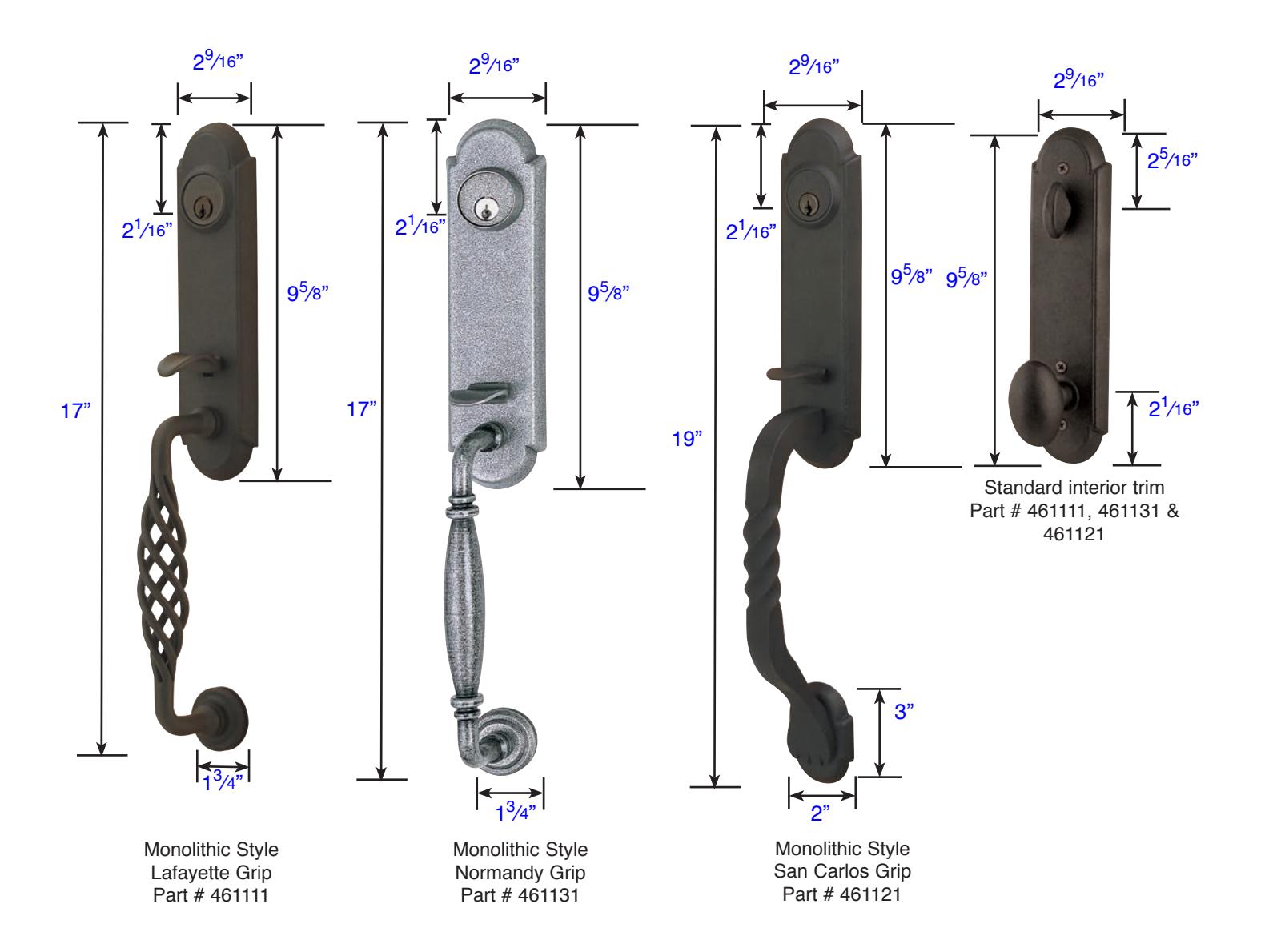

Additional Dimensions: (Part # 461111 & 461131)

  • Exterior Projection is 3"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 3/4"
  • Clearance between door & grip is 15%"
  • Plates thickness: 1/2"

Same Dimensions for Double Cylinder & Dummy Function

Additional Dimensions: (Part # 461121)

  • Exterior Projection is 31/2"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 3/4"
  • Clearance between door & grip is 2"
  • Plates thickness: 1/2"

Cast Bronze Tubular Entryset Sectional, Single Cylinder

Denver (451211), Laramie (451711), Rectangular Sectional (451411), Rustic Modern Rectangular (451421)

  • Standard Door Thickness: 1<sup>3</sup>/4"- 2" Standard Components:
  • 1 1/2" & 2" Rosette Screws
  • Single Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2<sup>1</sup>/2" Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

  • Extended Door Thickness: 2"- 2<sup>1</sup>/2" Extended Components:
  • 2" Rosette Screws
  • · Long Single Cylinder Tailpiece
  • · Long Outside Entry Spindle
  • · Long Inside Passage Half Spindle
  • 3" Deadbolt Mounting Screws
  • Spindle Extensions
  • Extended Full-Lip Strike Plate
  • · Deadbolt Strike Plate

  • Extended Door Thickness: 2^{1/2} "- 2^{7/8} " Extended Components:
  • 2<sup>1</sup>/2" Rosette Screws
  • · Extra Long Single Cylinder Tailpiece
  • · Long Outside Entry Spindle
  • · Extra Long Inside Passage Half Spindle
  • 3<sup>1</sup>/2" Deadbolt Mounting Screws
  • Spindle Extensions
  • Extended Full-Lip Strike Plate
  • · Deadbolt Strike Plate

Cast Bronze Tubular Entryset Sectional, Double Cylinder

Denver (452211), Laramie (452711), Rectangular Sectional (452411), Rustic Modern Rectangular (451421)

  • Standard Door Thickness: 1<sup>3</sup>/4"- 2" Standard Components:
  • 1<sup>1</sup>/2" Rosette Screws
  • Double Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2<sup>1</sup>/2" Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

  • Extended Door Thickness: 2^{1/4} "- 2^{5/8} " Extended Components:
  • 2" & 2<sup>1</sup>/2" Rosette Screws
  • · Long Double Cylinder Tailpiece
  • · Long Outside Entry Spindle
  • · Long Inside Passage Half Spindle
  • 3" & 3<sup>1</sup>/2" Deadbolt Mounting Screws
  • Spindle Extensions
  • · Extended Full-Lip Strike Plate
  • · Deadbolt Strike Plate

Cast Bronze Tubular Entryset Monolithic & Full Length, Single Cylinder

Remington (451112), Greeley (451332), Rectangular Monolithic (451512) or Full Length (451613), Sheridan (451812), Creston (451913), Rustic Modern Rectangular Monolithic (451522) or Full Length (451623)

  • Standard Door Thickness: 1<sup>3</sup>/4"- 2" Standard Components:
  • 1<sup>1</sup>/2" & 2" Rosette Screws
  • Single Cylinder Tailpiece
  • Outside Entry Spindle
  • Long Inside Passage Half Spindle
  • 2<sup>1</sup>/2" Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

  • Extended Door Thickness: 2"- 2<sup>1</sup>/2" Extended Components:
  • · 2" Rosette Screws
  • · Long Single Cylinder Tailpiece
  • Long Outside Entry Spindle
  • Long Inside Passage Half Spindle
  • 3" Deadbolt Mounting Screws
  • Spindle Extensions
  • Spiritie Exterisions
  • Extended Full-Lip Strike Plate
  • · Deadbolt Strike Plate

  • Extended Door Thickness: 2^{1/2} "- 2^{7/8} " Extended Components:
  • 2<sup>1</sup>/2" Rosette Screws
  • Extra Long Single Cylinder Tailpiece
  • · Long Outside Entry Spindle
  • Extra Long Inside Passage Half Spindle
  • 3<sup>1</sup>/<sub>2</sub>" Deadbolt Mounting Screws
  • · Spindle Extensions
  • Extended Full-Lip Strike Plate
  • · Deadbolt Strike Plate

Cast Bronze Tubular Entryset Monolithic & Full Length, Double Cylinder

Remington (452112), Greeley (452332), Rectangular Monolithic (452512) or Full Length (452613), Sheridan (452812), Creston (452913), Rustic Modern Rectangular Monolithic (452522) or Full Length (452623)

  • Standard Door Thickness: 1<sup>3</sup>/4"- 2" Standard Components:
  • 1<sup>1</sup>/2" Rosette Screws
  • Double Cylinder Tailpiece
  • Outside Entry Spindle
  • Long Inside Passage Half Spindle
  • 2<sup>1</sup>/2" Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

  • Extended Door Thickness: 2"- 2<sup>5</sup>/8" Extended Components:
  • 2" & 2<sup>1</sup>/2"Rosette Screws
  • · Long Double Cylinder Tailpiece
  • Long Outside Entry Spindle
  • Long Inside Passage Half Spindle
  • 3" & 3<sup>1</sup>/2"Deadbolt Mounting Screws

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: 800.356.2741 Fax: 800.577.5771 www.emtek.com

  • Spindle Extensions
  • Extended Full-Lip Strike Plate
  • Deadbolt Strike Plate

Grip-By-Grip Tubular Entryset Sectional, Monolithic & Full Length, Single Cylinder

Ridgemont (453727), Logan (453828), Brighton (453929), Denver (453212), Remington (453111), Greeley (453333), Rectangular Sectional (453414) or Monolithic (453515) or Full Length (453636), Rustic Modern Rectangular Sectional (453424) or Monolithic (453525) or Full Length (453646).

  • Standard Door Thickness: 1<sup>3</sup>/4"- 2" Standard Components:
  • 1<sup>1</sup>/<sub>2</sub>" & 2" Rosette Screws
  • Single Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2<sup>1</sup>/2" Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

  • Extended Door Thickness: 2"- 2<sup>1</sup>/2" Extended Components:
  • 2" & 2<sup>1</sup>/2" Rosette Screws
  • Long Single Cylinder Tailpiece
  • · Long Outside Entry Spindle
  • 3" Deadbolt Mounting Screws
  • Extended Full-Lip Strike Plate
  • · Deadbolt Strike Plate

  • Extended Door Thickness: 2<sup>1</sup>/2"- 3" Extended Components:
  • 2<sup>1</sup>/2" & 3" Rosette Screws
  • Extra Long Single Cylinder Tailpiece
  • · Long Outside Entry Spindle
  • 3<sup>1</sup>/2" Deadbolt Mounting Screws
  • Extended Full-Lip Strike Plate
  • · Deadbolt Strike Plate

Grip-By-Grip Tubular Entryset Sectional, Monolithic & Full Length, Double Cylinder

Ridgemont (454727), Logan (454828), Brighton (454929), Denver (454212), Remington (454111), Greeley (454333), Rectangular Sectional (454414) or Monolithic (454515) or Full Length (454636), Rustic Modern Rectangular Sectional (454424) or Monolithic (454525) or Full Length (454646)

  • Standard Door Thickness: 1<sup>3</sup>/<sub>4</sub>"- 2<sup>1</sup>/<sub>8</sub>" Standard Components:
  • 1<sup>1</sup>/2" Rosette Screws
  • · Double Cylinder Tailpiece
  • · Outside Entry Spindle
  • 2<sup>1</sup>/2" & 3" Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • · Deadbolt Strike Plate

  • Extended Door Thickness: 2<sup>1</sup>/8"- 3" Extended Components:
  • 2<sup>1</sup>/2" & 3" Rosette Screws
  • · Long Double Cylinder Tailpiece
  • · Long Outside Entry Spindle
  • 3" & 3<sup>1</sup>/2" Deadbolt Mounting Screws
  • Extended Full-Lip Strike Plate
  • · Deadbolt Strike Plate

Wrought Steel Tubular Entryset Sectional, Single Cylinder

Lafayette (461212), San Carlos (461222), Normandy (461232)

  • Standard Door Thickness: 1<sup>5</sup>/8"- 2" Standard Components:
  • 1<sup>1</sup>/2" Rosette Screws
  • Single Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2<sup>1</sup>/4" Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

  • Extended Door Thickness: 2"- 2<sup>1</sup>/2" Extended Components:
  • 2" Rosette Screws
  • Long Single Cylinder Tailpiece
  • · Long Outside Entry Spindle
  • Long Inside Passage Half Spindle
  • 3" Deadbolt Mounting Screws
  • Spindle Extensions
  • · Extended Full-Lip Strike Plate
  • · Deadbolt Strike Plate

  • Extended Door Thickness: 2^{1}/2 "- 2^{7}/8 " Extended Components:
  • 2<sup>1</sup>/2" Rosette Screws
  • Extra Long Single Cylinder Tailpiece
  • · Long Outside Entry Spindle
  • Extra Long Inside Passage Half Spindle
  • 3<sup>1</sup>/2" Deadbolt Mounting Screws
  • Spindle Extensions
  • Extended Full-Lip Strike Plate
  • · Deadbolt Strike Plate

Wrought Steel Tubular Entryset Sectional, Double Cylinder

Lafayette (462212), San Carlos (462222), Normandy (462232)

  • Standard Door Thickness: 1<sup>1</sup>/2"- 2" Standard Components:
  • 1<sup>1</sup>/2" Rosette Screws
  • Double Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2<sup>1</sup>/4" Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

  • Extended Door Thickness: 2"- 2<sup>5</sup>/8" Extended Components:
  • 2" Rosette Screws
  • Long Double Cylinder Tailpiece
  • · Long Outside Entry Spindle
  • · Long Inside Passage Half Spindle
  • · 3" Deadbolt Mounting Screws
  • Spindle Extensions
  • Extended Full-Lip Strike Plate
  • · Deadbolt Strike Plate

  • Extended Door Thickness: 2^5/8 "- 2^7/8 " Extended Components:
  • 2<sup>1</sup>/2" Rosette Screws
  • Extra Long Double Cylinder Tailpiece
  • · Long Outside Entry Spindle
  • Extra Long Inside Passage Half Spindle
  • 3<sup>1</sup>/2" Deadbolt Mounting Screws
  • Spindle Extensions
  • · Extended Full-Lip Strike Plate
  • · Deadbolt Strike Plate

Wrought Steel Tubular Entryset Monolithic, Single Cylinder

Lafayette (461111), San Carlos (461121), Normandy (461131)

  • Standard Door Thickness: 1<sup>3</sup>/4"- 2<sup>1</sup>/8" Standard Components:
  • 1<sup>1</sup>/2" Rosette Screws
  • Single Cylinder Tailpiece
  • · Outside Entry Spindle
  • · Inside Passage Half Spindle
  • 2<sup>1</sup>/4" Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

  • Extended Door Thickness: 2<sup>1</sup>/4"- 2<sup>1</sup>/2" Extended Components:
  • · 2" Rosette Screws
  • · Long Single Cylinder Tailpiece
  • · Long Outside Entry Spindle
  • · Long Inside Passage Half Spindle
  • 2<sup>1</sup>/2" Deadbolt Mounting Screws
  • Spindle Extensions
  • · Extended Full-Lip Strike Plate
  • · Deadbolt Strike Plate

  • Extended Door Thickness: 2<sup>1</sup>/2"- 3" Extended Components:
  • 2<sup>1</sup>/2" Rosette Screws
  • Extra Long Single Cylinder Tailpiece
  • Long Outside Entry Spindle
  • · Extra Long Inside Passage Half Spindle
  • 3" Deadbolt Mounting Screws
  • Spindle Extensions
  • Extended Full-Lip Strike Plate
  • · Deadbolt Strike Plate

Wrought Steel Tubular Entryset Monolithic, Double Cylinder

Lafavette (462111), San Carlos (462121), Normandy (462131)

  • Standard Door Thickness: 1<sup>3</sup>/<sub>4</sub>"- 2" Standard Components:
  • 1<sup>1</sup>/2" Rosette Screws
  • Double Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2<sup>1</sup>/4" Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

  • Extended Door Thickness: 2"- 2<sup>5</sup>/8" Extended Components:
  • · 2" Rosette Screws
  • · Long Double Cylinder Tailpiece
  • Long Outside Entry Spindle
  • · Long Inside Passage Half Spindle
  • · 3" Deadbolt Mounting Screws
  • Spindle Extensions
  • Extended Full-Lip Strike Plate
  • · Deadbolt Strike Plate

TS-TE REV18 08/31/2018

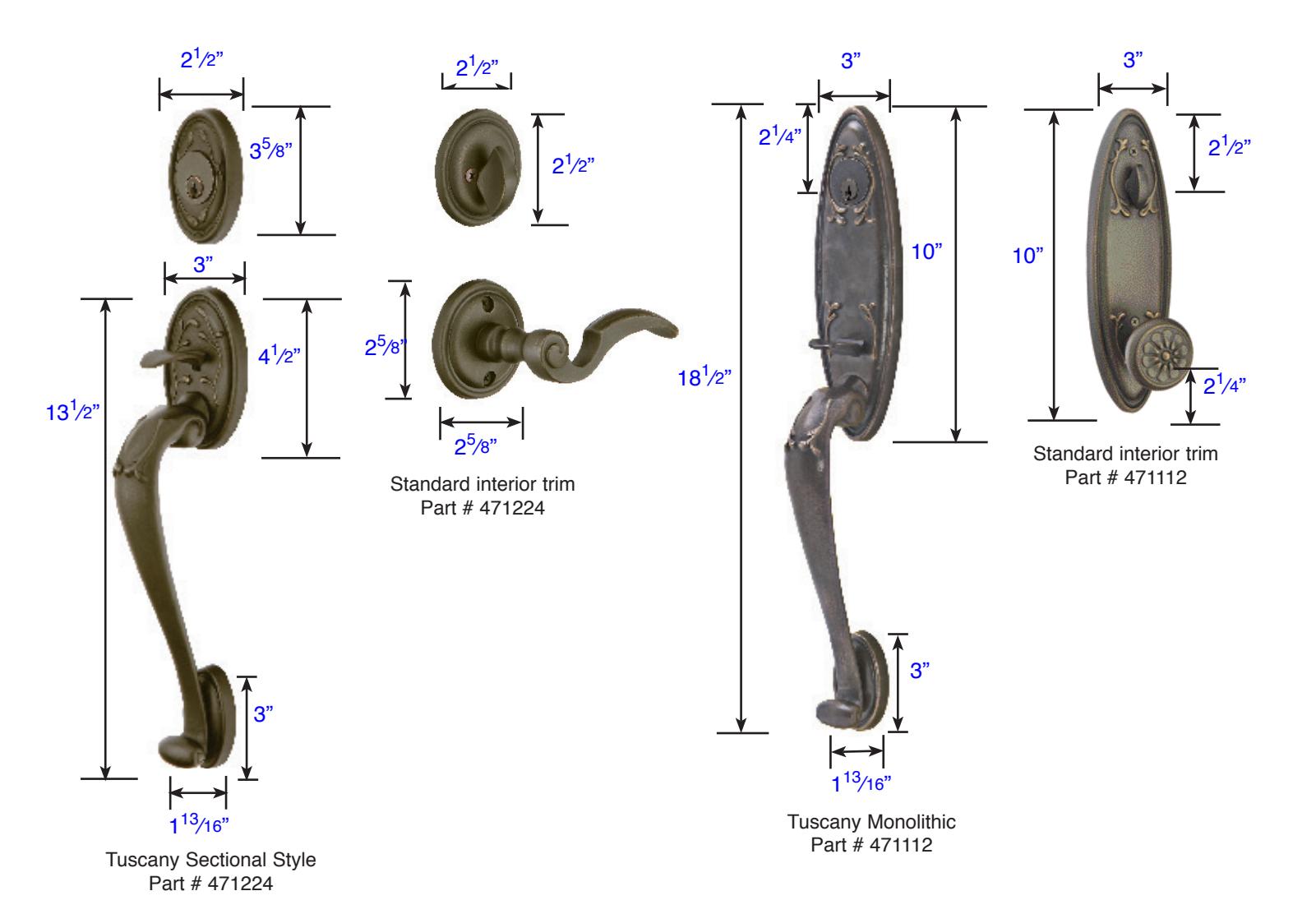

Additional Dimensions: (Part # 471224)

  • Exterior Projection is 3\%32"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1%16"
  • Clearance between door & grip is 23/8"
  • Plates thickness: 1/2"

Same Dimensions for Double Cylinder & Dummy Function

Additional Dimensions: (Part # 471112)

  • Exterior Projection is 3\%32"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1"
  • Clearance between door & grip is 23/8"
  • Plates thickness: 1/2"

Same Dimensions for Double Cylinder & Dummy Function

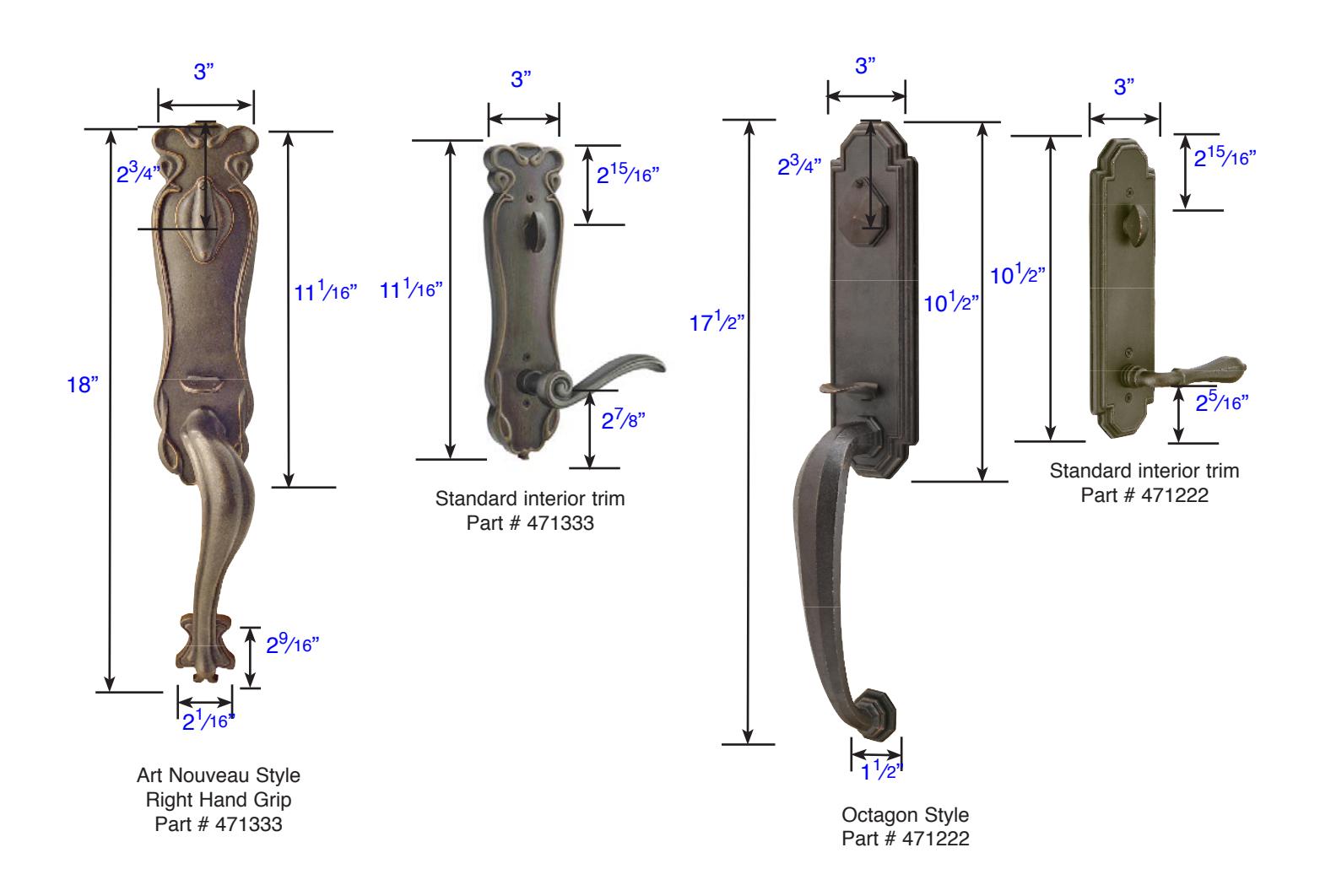

Additional Dimensions: (Part # 471333 & 471222)

  • Exterior Projection is 31/8"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1¾"
  • Clearance between door & grip is 13/4"
  • Plates thickness: 1/2"

Same Dimensions for Double Cylinder & Dummy Function

Lost Wax Cast Bronze Tubular Entryset Sectional, Single Cylinder

Tuscany Sectional (471224)

  • Standard Door Thickness: 1<sup>3</sup>/4"- 2" Standard Components:
  • 1 1/2" & 2" Rosette Screws
  • · Single Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2<sup>1</sup>/2" Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

  • Extended Door Thickness: 2"- 2<sup>1</sup>/2" Extended Components:
  • 2" Rosette Screws
  • · Long Single Cylinder Tailpiece
  • · Long Outside Entry Spindle
  • · Long Inside Passage Half Spindle
  • 3" Deadbolt Mounting Screws
  • Spindle Extensions
  • Extended Full-Lip Strike Plate
  • · Deadbolt Strike Plate

  • Extended Door Thickness: 2^{1/2} "- 2^{7/8} " Extended Components:
  • 2<sup>1</sup>/2" Rosette Screws
  • · Extra Long Single Cylinder Tailpiece
  • · Long Outside Entry Spindle
  • · Extra Long Inside Passage Half Spindle
  • 3<sup>1</sup>/2" Deadbolt Mounting Screws
  • Spindle Extensions
  • · Extended Full-Lip Strike Plate
  • · Deadbolt Strike Plate

Lost Wax Cast Bronze Tubular Entryset Sectional, Double Cylinder

Tuscany Sectional (472224)

  • Standard Door Thickness: 1<sup>3</sup>/4"- 2" Standard Components:
  • 1<sup>1</sup>/2" Rosette Screws
  • Double Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2<sup>1</sup>/2" Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • · Deadbolt Strike Plate

  • Extended Door Thickness: 2^{1/4} "- 2^{5/8} " Extended Components:
  • 2" & 2<sup>1</sup>/2" Rosette Screws
  • · Long Double Cylinder Tailpiece
  • · Long Outside Entry Spindle
  • · Long Inside Passage Half Spindle
  • 3" & 3<sup>1</sup>/2" Deadbolt Mounting Screws
  • Spindle Extensions
  • Extended Full-Lip Strike Plate
  • · Deadbolt Strike Plate

Lost Wax Cast Bronze Tubular Entryset Monolithic & Full Length, Single Cylinder

Tuscany (471112), Art Nouveau (471333), Octagon (471222)

  • Standard Door Thickness: 1<sup>3</sup>/4"- 2" Standard Components:
  • 1<sup>1</sup>/<sub>2</sub>" & 2" Rosette Screws
  • Single Cylinder Tailpiece
  • Outside Entry Spindle
  • Long Inside Passage Half Spindle
  • 2<sup>1</sup>/2" Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

  • Extended Door Thickness: 2"- 2<sup>1</sup>/2" Extended Components:
  • · 2" Rosette Screws
  • · Long Single Cylinder Tailpiece
  • Long Outside Entry Spindle
  • Long Inside Passage Half Spindle
  • 3" Deadbolt Mounting Screws
  • Spindle Extensions
  • Extended Full-Lip Strike Plate
  • · Deadbolt Strike Plate

  • Extended Door Thickness: 2^{1/2} "- 2^{7/8} " Extended Components:
  • 2<sup>1</sup>/2" Rosette Screws
  • Extra Long Single Cylinder Tailpiece
  • · Long Outside Entry Spindle
  • Extra Long Inside Passage Half Spindle
  • 3<sup>1</sup>/2" Deadbolt Mounting Screws
  • · Spindle Extensions
  • Extended Full-Lip Strike Plate
  • · Deadbolt Strike Plate

Lost Wax Cast Bronze Tubular Entryset Monolithic & Full Length, Double Cylinder

Tuscany (472112), Art Nouveau (472333), Octagon (472222)

  • Standard Door Thickness: 1<sup>3</sup>/4"- 2" Standard Components:
  • 1<sup>1</sup>/2" Rosette Screws
  • Double Cylinder Tailpiece
  • Outside Entry Spindle
  • Long Inside Passage Half Spindle
  • 2<sup>1</sup>/2" Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

  • Extended Door Thickness: 2"- 2<sup>5</sup>/8" Extended Components:
  • 2" & 2<sup>1</sup>/2"Rosette Screws
  • · Long Double Cylinder Tailpiece
  • · Long Outside Entry Spindle
  • · Long Inside Passage Half Spindle
  • 3" & 3<sup>1</sup>/2"Deadbolt Mounting Screws
  • Spindle Extensions
  • Extended Full-Lip Strike Plate
  • · Deadbolt Strike Plate

Grip-By-Grip Tubular Entryset, Single Cylinder

Tuscany Sectional(473444), Tuscany(473111), Octagon(473222), Art Nouveau-LH(473333LH), Art Nouveau-RH(473333RH)

  • Standard Door Thickness: 1<sup>5</sup>/8"- 2" Standard Components:
  • 1<sup>1</sup>/<sub>2</sub>" & 2" Rosette Screws
  • Single Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2<sup>1</sup>/2" Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

  • Extended Door Thickness: 2"- 2<sup>1</sup>/2" Extended Components:
  • 2" & 2<sup>1</sup>/2" Rosette Screws
  • Long Single Cylinder Tailpiece
  • · Long Outside Entry Spindle
  • 3" Deadbolt Mounting Screws
  • Extended Full-Lip Strike Plate
  • · Deadbolt Strike Plate

  • Extended Door Thickness: 2<sup>1</sup>/2"- 3" Extended Components:
  • 2<sup>1</sup>/2" & 3" Rosette Screws
  • Extra Long Single Cylinder Tailpiece
  • · Long Outside Entry Spindle
  • 3<sup>1</sup>/2" Deadbolt Mounting Screws
  • Extended Full-Lip Strike Plate
  • · Deadbolt Strike Plate

Grip-By-Grip Tubular Entryset, Double Cylinder

Tuscany Sectional(474444), Tuscany(474111), Octagon(474222), Art Nouveau-LH(474333LH), Art Nouveau-RH(474333RH)

  • Standard Door Thickness: 1<sup>5</sup>/8"- 2<sup>1</sup>/8" Standard Components:
  • 1<sup>1</sup>/2" Rosette Screws
  • Double Cylinder Tailpiece
  • · Outside Entry Spindle
  • 2<sup>1</sup>/2" & 3" Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • · Deadbolt Strike Plate

  • Extended Door Thickness: 2<sup>1</sup>/8"- 2<sup>1</sup>/2" Extended Components:
  • 2<sup>1</sup>/2" & 3" Rosette Screws
  • · Long Double Cylinder Tailpiece
  • · Long Outside Entry Spindle
  • 3" & 3<sup>1</sup>/2" Deadbolt Mounting Screws
  • Extended Full-Lip Strike Plate
  • Deadbolt Strike Plate

TS-TE REV18A 01/03/2019

Face and Strike Plates

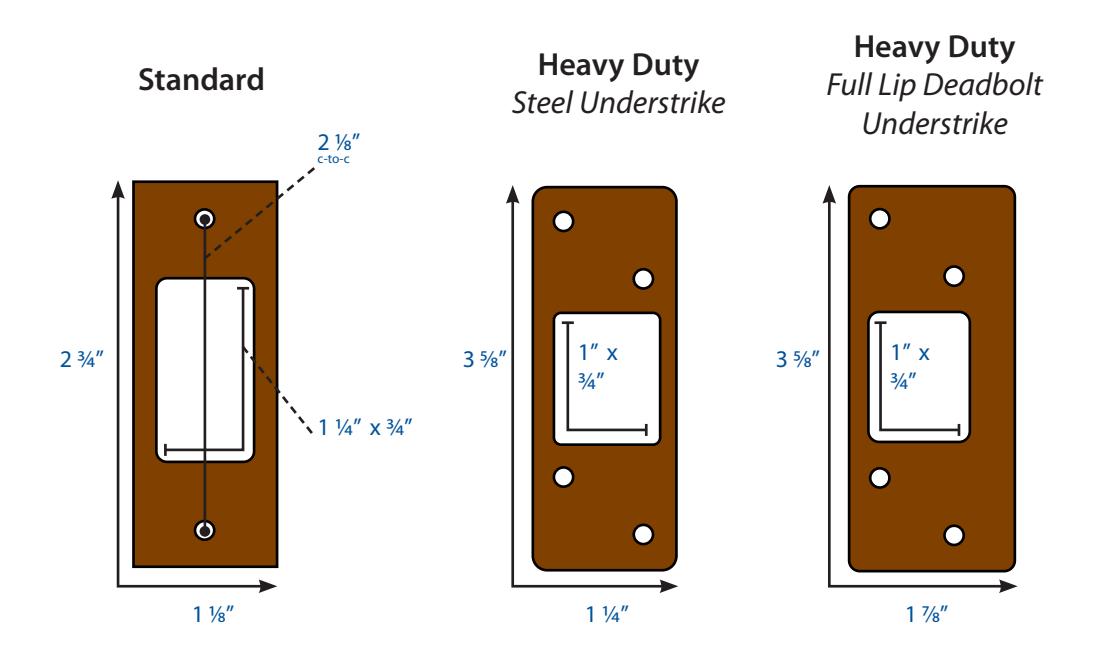

Deadbolt Strike Plates

TS-TE REV18A 01/03/2019
