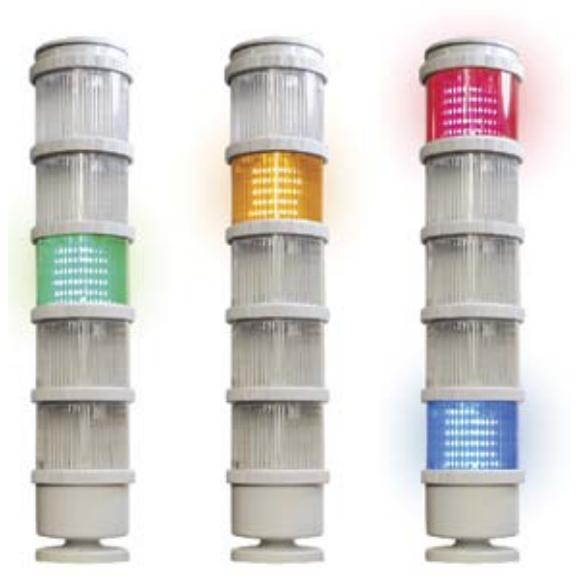

200 Class 70mm Clear Lens Stacklight™

The 200 Class 70mm LED Stacklight™ is a versatile, multi-mode signaling device that may contain up to five light modules, or four light modules and one sounder module in a single, integrated stack. The lens modules are clear, and are available with red, amber, blue, green, yellow and white LEDs. The lenses are made from a self-extinguishing polycarbonate material and are scratch and impact resistant.

Optional piezoelectric and magnetodynamic sounder modules complement the visual signals of the Stacklight™, offering several audible tones depending on the model chosen. The sound module has been designed so that it is always in the top position of the Stacklight™.

The 200 Class 70mm Stacklight™ features an interlocking system for quick assembly without any tools. It is available in industrial gray or basic black and offers multiple voltage ranges to provide solutions for most industrial applications, while also meeting machine builder and OEM requirements.

The clear outer lens with colored LEDs inside are an ideal solution for high ambient light conditions.

200 Class 70mm Clear Lens Stacklight™ Features

  • Available in Gray or Black
  • cULus Listed Stackable up to five modules including sounder
  • CE approved Quick and simple assembly with NO tools required
  • IP65 or IP54 available Two optional sounders available
  • Clear lens Piezoelectric: Six user selectable tones
  • LED light source Magnetodynamic: 32 user selectable tones
  • Multi-Mode Multiple voltage ranges

200 Class 70mm Clear Lens Stacklight<sup>™</sup>

Description Cat. No.** Operating Temp.
Wiring Base and Cover - Gray 270BC** -22°F to 140°F
Module Type Cat. No.** Operating Temp. LED Color Operating Current Current mA (flash) Flash
would type Cat. NO. Operating reinp. LED COIOI Voltage† Current Single Double Triple Rate
200 Oliver 70 ver Mark Lee - Ove 270CLEDS*24AD -22°F to 122°F Amber, Red, Yellow Blue, Green, White 24V DC 0.065A
200 Class 70mm Modules - Gray (-30°C to 50°C) Amber, Red, Yellow 24V AC 0.085A
Integrated LED _ Blue, Green, White 24V AC 0.075A
Steady 270CLEDS*120A -22°F to 122°F
(-30°C to 50°C) 		Amber, Red, Yellow
Blue, Green, White 		120V AC/DC 0.035A
270CLEDM*24AD Amber, Red, Yellow 24V AC 0.085A 60 50 50
000.01 =0 11.11 -22°F to 122°F
(-30°C to 50°C) 		Blue, Green, White 24V AC 0.075A 55 40 45 == .
200 Class 70mm Modules - Gray
Integrated LED
Multimode 		Amber, Red, Yellow
Blue, Green, White 		24V DC 0.065A 40 40 40 Single - 75 fpm
Double - 85 fpm
270CLEDM*120A -22°F to 122°F Amber, Red, Yellow 120V AC 0.035A 25 20 25 Triple - 85 fpm
(-30°C to 50°C) Blue, Green, White 120V AC 0.035A 25 20 20
270PZO1248AD 00051. 44005 12V AC/DC 0.003A
Piezoelectric Acoustic - Gray (IP54) -22°F to 140°F
(-30°C to 60°C) 		24V AC/DC 0.006A _
48V AC/DC 0.013A _
270PZO120240A -22°F to 132.8°F 120V AC/DC 0.004A
2/0PZO120240A (-30°C to 56°C) 240V AC/DC 0.010A
270MDA1224AD -22°F to 140°F
Magnetodynamic Acoustic - Gray (-30°C to 60°C) See chart helow
(IP54) 270MDA120A -22°F to 122°F See chart below
270MDA240A (-30°C to 50°C)

70mm Magnetodynamic (MDA) Acoustic Module

12\ / DC 24V DC 12V AC 24V AC 120V AC 240V AC
Sound Type F (Hz)‡ Α dB
@ 1m 		Α dB
@ 1m 		Α dB
@ 1m 		Α dB
@ 1m 		Α dB
@ 1m 		Α dB
@ 1m
450/540 100 89 120 95.5 0.340 92.5 0.380 97.5 0.055 96 0.035 96.5
Bi-tone 600/700 125 90 150 96.5 0.380 92.5 0.450 99 0.065 96.5 0.035 97.5
600/700 125 90 145 96.5 0.390 92.5 0.450 99 0.065 96.5 0.035 97.5
800/970 170 93 190 100 0.485 95 0.550 101 0.075 99 0.040 99.5
2400/2850 335 97.5 450 106 0.945 100.5 0.1060 107 0.0105 102 0.060 102.5
600/700 30 89.5 45 96 0.120 92 0.170 98 0.055 96.5 0.030 97.5
Bi-tone with pause 1200/1700 45 95 60 98.5 0.170 97.5 0.230 100.5 0.060 99 0.035 99.5
2400/2830 70 100 90 104.5 0.210 103 0.295 106 0.085 102 0.045 102
Fast bi-tone 800/970 170 92.5 190 99.5 0.485 94.5 0.555 101 0.075 99 0.040 99.5
Multi-tone 1000/1700 150 95 185 99.5 0.445 98 0.555 101 0.070 98.5 0.040 99
Multi-tone (buzzer) 800/970 110 92.5 140 96.5 0.370 96 0.440 98.5 0.060 97 0.035 97.5
Width-tone (buzzer) 2400/2830 290 100 335 104 0.755 102.5 0.875 105.5 0.090 101.5 0.050 102
Class as this tage 800/970 110 95 140 99 0.350 97.5 0.440 100.5 0.060 99 0.035 100
Slow multi-tone 2400/2830 290 101 335 105.6 0.720 103.5 0.855 106.5 0.095 103 0.050 103.5
Foot world to a 800/970 110 93 140 97.5 0.350 96 0.435 99 0.060 97 0.035 98
Fast multi-tone 2400/2830 290 100.5 335 104.5 0.725 102.5 0.865 105.5 0.095 102 0.050 102.5
Intermittent multi-tone 500/1200 85 95.5 110 99 0.280 98 0.355 101 0.065 99 0.035 100
Descending multi-tone 1200/500 95 94 125 98 0.315 96.5 0.385 99.5 0.060 98 0.035 98.5
Evacuation 430/560 110 86.5 125 95.5 0.345 89 0.400 97 0.060 95.5 0.035 96
660 45 89.5 65 93.5 0.190 92 0.250 95.5 0.045 94.5 0.025 95
Intermittent 660 45 90.5 70 94.5 0.190 93 0.240 96.5 0.055 95.5 0.030 95.5
970 30 92 50 96 0.130 94 0.185 97 0.050 95.5 0.030 96.5
Fast intermittent 2830 200 96.5 240 102 0.600 99.5 0.705 102.5 0.080 98.5 0.045 99
i ast intermittent 2850 170 95.5 205 101 0.550 98.5 0.585 102 0.075 98.5 0.040 99
Classificate and the set 660 50 90.5 70 94.5 0.175 93 0.240 96.5 0.055 95.5 0.030 95.5
Slow intermittent 970 70 92.5 95 96.5 0.230 94.5 0.295 97.5 0.065 96 0.035 96.5
300 40 87 60 91 0.170 91 0.220 93 0.040 93 0.025 93
Linear 500 65 89.5 90 93.5 0.235 93.5 0.290 96 0.050 95 0.030 95.5
Linear 1000 125 92 160 96.5 0.385 94 0.485 98 0.065 95.5 0.035 97
2830 320 97.5 360 102 0.770 100 0.915 103.5 0.095 99 0.055 99.5
Modulated 1000/1700 150 97 185 101.5 0.440 100 0.550 103 0.075 100.5 0.040 101
Modulated 1400/1600 165 95 205 99.5 0.470 98 0.595 101.5 0.075 98.5 0.040 98.5

^{\ star} \, Letter \, in \, this \, position \, designates \, LED \, color; \, A \, - \, amber, \, B \, - \, blue, \, G \, - \, green, \, R \, - \, red, \, W \, - \, white, \, or \, Y \, - \, yellow \, A \, - \, amber, \, B \, - \, blue, \, G \, - \, green, \, R \, - \, red, \, W \, - \, white, \, or \, Y \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, - \, yellow \, -

** NOTE: Add "B" to end of the catalog number for Black unit.

70mm Piezoelectric (PZO) Acoustic Module Dip Switch Settings

12V D 12V DC/V AC 24V DC/V AC 48V DC/V AC 120V AC / AC
Sound Type Diagram F (Hz)‡ Α dB
@ 1m 		Α dB
@ 1m 		Α dB
@ 1m 		Α dB
@ 1m 		Α dB
@ 1m
Continuous reduced output on 50/60 0.003 75 0.006 81 0.013 83 0.004 75 0.010 81
Continuous maximum output 1 2 3 50/60 0.003 79 0.006 85 0.013 89 0.004 81 0.010 87
Slow intermittent reduced output 1 2 3 50/60 0.003 72 0.006 77 0.013 79 0.004 76 0.010 78
Slow intermittent maximum output on 01 2 3 50/60 0.003 77 0.006 84 0.013 86 0.004 81 0.010 85
Fast intermittent reduced output on 01 2 3 50/60 0.003 74 0.006 79 0.013 81 0.004 76 0.010 79
Fast intermittent maximum output on 2 3 50/60 0.003 78 0.006 85 0.013 87 0.004 81 0.010 85

‡For AC voltages only

Accessories
Description Cat. No.
Junction Box - Gray 270JBX**
Footing with Extension - Gray 270KIT**
Threaded Extension Pole 100mm - Gray 270TEP**
Threaded Footing - Gray 270THF**
Threaded Wall Mount - Gray 270TWM**
Double Threaded Wall Mount - Gray 270TWM2**
270 Flexible Steel Extension Stem - 370mm 270FLXT
270 Stainless Steel Extension Stem - 100mm 270SSXT100
270 Stainless Steel Extension Stem - 200mm 270SSXT200
270 Stainless Steel Extension Stem - 400mm 270SSXT400
270 Female Adapter Base - Gray 270FMLADAPT

**NOTE: Add "B" to end of the catalog number for Black unit.

Threaded Wall Mount

Double Threaded Wall Mount

Junction Box

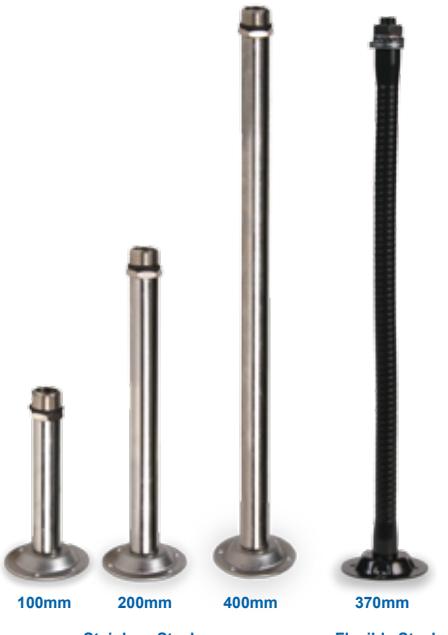

Stainless Steel Extension Stem

Flexible Steel Extension Stem

Dimensional Drawings

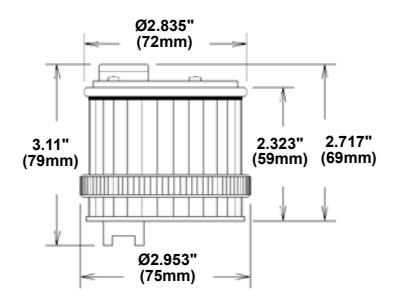

Light Module

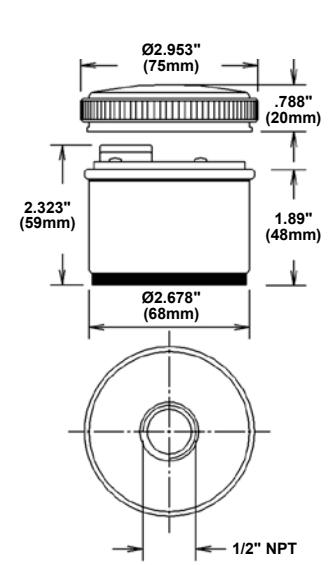

Base and Cover

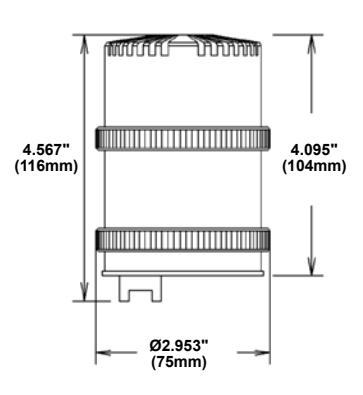

Acoustic Module

Agency Approvals
