EMLock® Magnetic Locks GK Distributor

EMLock ®

3774-0324:100

GWXT Auxiliary Locks CVXJ Burglary Resistant Electrically Operated Door Lock

1510 Series Grade 1 1650 lb / 748 Kg Holding Force

ELECTRICAL SPECIFICATIONS

Voltage: 12/24VDC Voltage Sensing Input Single: 350mA @ 24VDC; 670mA @ 12VDC Double: 700mA @ 24VDC; 1.34A @12VDC

MECHANICAL SPECIFICATIONS

Single: 11" L x 2-7/8" H x 1-5/8 D Double: 22" L x 2-7/8" H x 1-5/8" D

1570 Series Grade 1 1200 lb / 544 Kg Holding Force

ELECTRICAL SPECIFICATIONS

3 Watt Power Saver

Voltage: 12/24VDC Voltage Sensing Input Single: 125mA @ 24VDC; 250mA @ 12VDC Double: 250mA @ 24VDC; 500mA @ 12VDC

MECHANICAL SPECIFICATIONS

Single: 11" L x 2-7/8" H x 1-5/8" D Double: 22" L x 2-7/8" H x 1-5/8" D

1580 Series Grade 1 650 lb / 295 Kg Holding Force

ELECTRICAL SPECIFICATIONS

Voltage: 12/24VDC Voltage Sensing Input Single: 220mA @ 24VDC; 440mA @ 12VDC Double: 440mA @ 24VDC; 880mA @ 12VDC

MECHANICAL SPECIFICATIONS

Single: 8-3/4" L x 2-1/8" H x 1-1/4" D Double: 17-1/2" L x 2-1/8" H x 1-1/4" D

UL294 : Standard for Access Control System Units

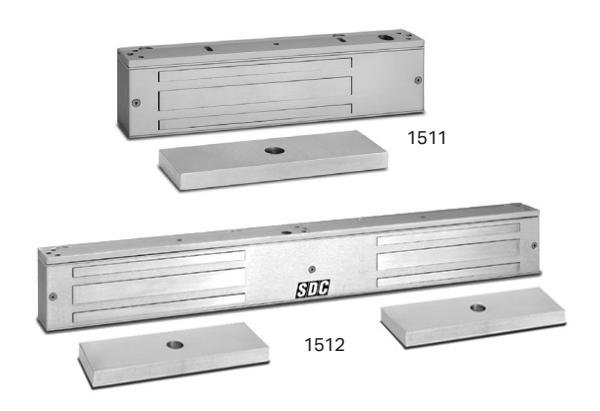

EMLOCK® MODELS LIST 1650lb / 748 kg Holding Force, Automatic Voltage Sensing Input 1511 Single EmLock® 499.00 1512 Double EmLock® 998.00

1200lb / 544 kg Holding Force, Automatic Voltage Sensing Input

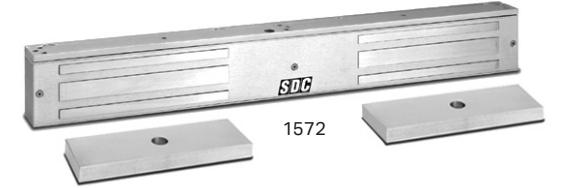

1571 Single EmLock® 457.00 1572 Double EmLock® 925.00

650lb / 295 kg Holding Force, Automatic Voltage Sensing Input

1581	Single EmLock®	381.00
1582	Double EmLock®	751.00

SPE	CIFY FINISH	Add to List
Anodi	zed Finishes Single EmLock	Double Emlock
V	628 Aluminum (standard) N/C	N/C
Υ	335 Black 89.00	134.00
Powd	er Coat Finishes (a coating electrostatically applied to form a hard finish, that is tougher than conventi	onal paint)
X	Dark Bronze Powder Coat Painted (313/613 Equal) 89.00	134.00
С	Brass Powder Coat Painted 89.00	134.00
Plated	Finishes - Special order, no cancellation, no returns
P	625 Bright Chrome 211.00	244.00
Q	626 Dull Chrome 211.00	244.00
CDE	CIFY OPTIONS	lint
SPE	CIFY OPTIONS	List
D	Door position sensor. Indicates door open and door closed.	45.00
	Specify two for double EMLocks* SPDT Dry, 250 mA @ 30VDC.
В	Magnetic bond sensor. Indicates locked with full holding power and unlocked, low holding power, low voltage, tampering and obstruction between armature and magnetic core.	67.00
	Specify (2) for double EmLocks ^®
	• 1510 & 1570 Series: SPDT Dry, 250 mA @ 30VDC.
	• 1580 Series: SPST N.O., Dry, 250 mA @ 30VDC.
Α	Anti-tamper sensor. Indicates access cover removal. SPDT Dry, 1 Amp @ 30VDC	56.00
T	Adjustable timer. Built in field adj. 0-30 sec. relock delay. Specify one for single or double EmLocks* (not available with 1580 series)	72.00
L	Bi-color status LED indicator. Field selectable Red and Green. (Not installed in lock.)	19.00
-	Indicates lock energized when wired to lock input. Indicates de-energized/unlocked or "Enter/Go" when wired to built-in TD Module	10.00
	Indicates energized and de-energized or "Enter/Go" when wired to access control auxiliary output.
	Indicates door is closed and locked and door is unlocked when wired to Bond Sensor.

SPECI	FY TOP JAMB I	MOUNTING	KIT		Distributor Discount Code	GK LIST
Kits for 1571 and 1511 Locks			Kits for	1581 Locks
TJ1	Single		TJ81	Single		134.00
TJ2	Double		TJ82	Double		218.00
					Ad	d to List
Anonized Finishes				Double Top Jamb
V 628	Aluminum (std)	N/C	Y Black Anodize	ed	89.00	177.00
Powder Coat Finishes (a coating electrostatically applied to form a hard finish, that is tougher than conventional paint)
X Dark	Bronze Powder	Coat Painted	C Brass Powder	Coat Painted	89.00	177.00
Plated Finishes - Special order, no cancellation, no returns			Ac	ld to List
P 625 E	Bright Chrome		Q 626 Dull Chro	me	211.00	244.00

Distributor Discount Code

SPECIFY GLASS DOOR MOUNTING KIT GK List

• Field adjustable for 1/2", 5/8" and 3/4" all glass Herculite doors

Kits for 1511, 1571, 1581 Kits for 1512, 1572, 1582

HDB1 Single 200.00 HDB2 Double, 2 single kits 400.00

Add to List Anodized Finishes Single Double V 628 Aluminum (std) N/C Y Black Anodized 89.00 177.00

Powder Coat Finishes (a coating electrostatically applied to form a hard finish, that is tougher than conventional paint)

X Dark Bronze Powder Coat Painted C Brass Powder Coat Painted 89.00 177.00

Plated Finishes - Special order, no cancellation, no returns

P 625 Bright Chrome Q 626 Dull Chrome 112.00 222.00

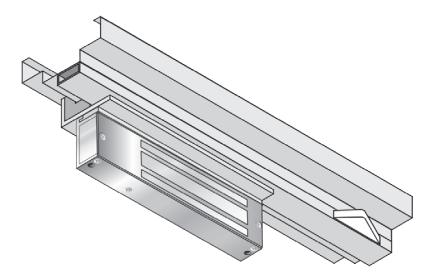

Interlocking Quick Mount Assembly

Vertical Housing EMLock GK LIST

Vertical Housings - Side jamb mount, aprovides 2,400 or 3,300 lbs. of holding force. Distributor Discount Code

1572VV82 Vertical Housing for 1572 EMLock, 82" length, for 84" opening - INCLUDES EMLock 1,662.00 1512VV82 Vertical Housing for 1512 EMLock, 82" length, for 84" opening - INCLUDES EMLock 1,722.00

Custom Length (1512 or 1572) Add to List

CV Custom length - any length OVER 82". Specify exact length 1,248.00

Field Installed Modular Upgrade Kits

Ordered separately for field upgrade without removing the lock from the frame

EZ-T-10 Adjustable Timer Input Module: Specify (1) for single or double EmLocks® (not available with1580 series)

72.00 EZ-A Anti-Tamper Switch Module: Indicates

(2) for double EmLocks®

cover plate removal. 56.00

EZ-D-10 1510, 1570 Door Position Sensor Module:

45.00 EZ-D-80 1580 Door Position Sensor Module: Specify 45.00

Specify (2) for double EMLocks®

Reusable Heavy Duty Drill Fixture G LIST Distributor

Discount Code

1511-DF	Heavy duty drill fixture for 1571 and 1511	167.00
1581-DF	Heavy duty drill fixture for 1580	167.00

Used in lieu of angle brackets, the Universal Header Bracket provides a faster mounting solution, saving time and labor costs for several EmLock* models. Reduce potential for mis-sized and misaligned mounting holes, broken taps, removal of broken taps. Combined with interlocking E-Z mount assembly, save up to a half day's labor with the installation of 12 locks.

Solid 1" bar provides higher security and superior aesthetics.
Machined wire chase provides concealed and secure wiring

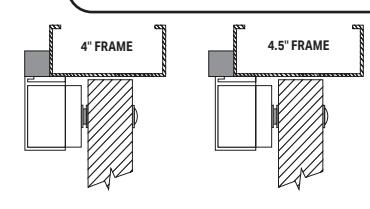

Multiple pre-drilled and tapped mounting holes to accommodate the use of several different locks on either 4" or 4.5" aluminum frames

UB11V Bracket for 1511, 1571. 1" x 1" x 11" 72.00 UB12V 142.00 Bracket for 1512, 1572. 1" x 1" x 22" See special finishes page 8

Aluminum Spacer Bracket & Concrete Filled Frame Plate - Pre-Drilled & TappedGK LIST

APPLICATION

Aluminum frames with blade stop lowers EmLock® below blade stop
Concrete filled hollow metal frames provides multiple points for concealed wire entry

FEATURES

Pre-drilled and tapped specifically for 1510, 1570, 1580 EmLock
Machined wire chase provides multiple points for concealed wire entry from concrete filled frames.

UF11V	Bracket for 1511, 1571. 1/2" x 1-1/2" x 11"	100.00
UF12V	Bracket for 1512 and 1572. 1/2" x 1-1/2" x 22"	124.00
UF81V	Bracket for 1581. 1/2" x 1-1/4" x 8-3/4"	81.00
UF82V	Bracket for 1582. 1/2" x 1-1/4" x 17-1/2"	112.00

Armature Mounting Plate

GK LIST

67.00

112.00

LIST

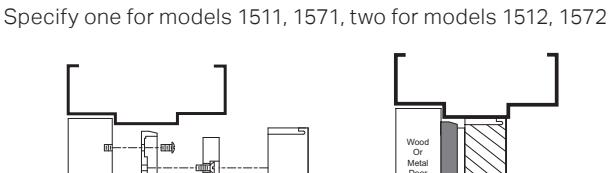

The AR Mounting plate provides a solution for mounting the EmLock® armature to the top rail of aluminum, glass, wood and hollow metal doors that do not permit the use of thru bolts. Dimension: 8 1/2" x 3"

AR11Y

MODEL

AR11Y Armature mounting plate (Black) Specify one for models 1511, 1571, two for models 1512, 1572

AR11YD Armature mounting plate (black) with door sensor

Distributor GK Discount Code GK

Door Coordinator Lock Mounting Kit

DC-1 Door coordinator mounting bracket for single models 1511 and 1571. 134.00 DC-2 Door coordinator mounting bracket for double models 1512 and 1572. 244.00

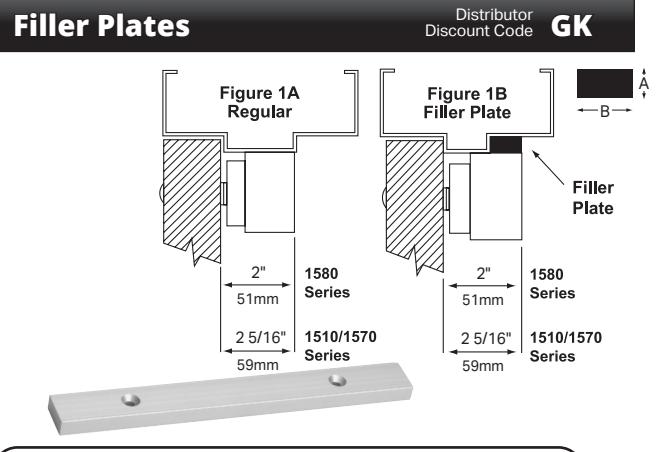

FILLER PLATES: For extension of the stop to provide a proper mounting surface on the underside of the header. See Figure 1B.

EOD 0 2
	/4" (222mm) SINGLE EMLOCK MODELS 581DEV	GK
PART#	A x B	LIST
FP01	1/8" x 1-1/4" (3 x 32mm)	34.00
FP02	1/4" x 1-1/4" (6 x 32mm)	37.00
FP03	3/8" x 1-1/4" (10 x 32mm)	39.00
FP04	1/2" x 1-1/4" (13 x 32mm)	41.00
FP05	5/8" x 1-1/4" (16 x 32mm)	41.00
FOR 11"	(279mm) SINGLE EMLOCK MODELS
1511	1571 1511S 1511DEV 1581S
1511T	1571DEV
PART#	A x B	LIST
FP11	1/8" x 1-1/4" (3 x 32mm)	38.00
FP12	1/4" x 1-1/4" (6 x 32mm)	39.00
FP13	3/8" x 1-1/4" (10 x 32mm)	39.00
FP14	1/2" x 1-1/4" (13 x 32mm)	43.00
FP15	5/8" x 1-1/4" (16 x 32mm)	45.00
		45.00
FOR 17-	1/2" (445mm) DOUBLE EMLOCK MODEL	43.00
1582
FOR 17- 1582 PART # FP30	АхВ	LIST 43.00
1582 PART #	A x B 1/8" x 1-1/4" (3 x 32mm)	LIST
1582 PART # FP30	A x B 1/8" x 1-1/4" (3 x 32mm) 1/4" x 1-1/4" (6 x 32mm)	LIST 43.00
1582 PART # FP30 FP31	A x B 1/8" x 1-1/4" (3 x 32mm) 1/4" x 1-1/4" (6 x 32mm) 3/8" x 1-1/4" (10 x 32mm)	LIST 43.00 45.00
1582 PART # FP30 FP31 FP32	A x B 1/8" x 1-1/4" (3 x 32mm) 1/4" x 1-1/4" (6 x 32mm)	LIST 43.00 45.00 47.00
1582 PART # FP30 FP31 FP32 FP33 FP34 FOR 22"	A x B 1/8" x 1-1/4" (3 x 32mm) 1/4" x 1-1/4" (6 x 32mm) 3/8" x 1-1/4" (10 x 32mm) 1/2" x 1-1/4" (13 x 32mm) 5/8" x 1-1/4" (16 x 32mm)	LIST 43.00 45.00 47.00 49.00
1582 PART # FP30 FP31 FP32 FP33 FP34	A x B 1/8" x 1-1/4" (3 x 32mm) 1/4" x 1-1/4" (6 x 32mm) 3/8" x 1-1/4" (10 x 32mm) 1/2" x 1-1/4" (13 x 32mm) 5/8" x 1-1/4" (16 x 32mm)	LIST 43.00 45.00 47.00 49.00
1582 PART # FP30 FP31 FP32 FP33 FP34 FOR 22"	A x B 1/8" x 1-1/4" (3 x 32mm) 1/4" x 1-1/4" (6 x 32mm) 3/8" x 1-1/4" (10 x 32mm) 1/2" x 1-1/4" (13 x 32mm) 5/8" x 1-1/4" (16 x 32mm)	LIST 43.00 45.00 47.00 49.00 52.00
1582 PART# FP30 FP31 FP32 FP33 FP34 FOR 22" 1512 PART# FP21	A x B 1/8" x 1-1/4" (3 x 32mm) 1/4" x 1-1/4" (6 x 32mm) 3/8" x 1-1/4" (10 x 32mm) 1/2" x 1-1/4" (13 x 32mm) 5/8" x 1-1/4" (16 x 32mm) (559mm) DOUBLE EMLOCK MODELS 1572 A x B 1/8" x 1-1/4" (3 x 32mm)	LIST 43.00 45.00 47.00 49.00 52.00 LIST 43.00
1582 PART# FP30 FP31 FP32 FP33 FP34 FOR 22" 1512 PART# FP21 FP22	A x B 1/8" x 1-1/4" (3 x 32mm) 1/4" x 1-1/4" (6 x 32mm) 3/8" x 1-1/4" (10 x 32mm) 1/2" x 1-1/4" (13 x 32mm) 5/8" x 1-1/4" (16 x 32mm) (559mm) DOUBLE EMLOCK MODELS 1572 A x B 1/8" x 1-1/4" (3 x 32mm) 1/4" x 1-1/4" (6 x 32mm)	LIST 43.00 45.00 47.00 49.00 52.00 LIST 43.00 45.00
1582 PART# FP30 FP31 FP32 FP33 FP34 FOR 22" 1512 PART# FP21	A x B 1/8" x 1-1/4" (3 x 32mm) 1/4" x 1-1/4" (6 x 32mm) 3/8" x 1-1/4" (10 x 32mm) 1/2" x 1-1/4" (13 x 32mm) 5/8" x 1-1/4" (16 x 32mm) (559mm) DOUBLE EMLOCK MODELS 1572 A x B 1/8" x 1-1/4" (3 x 32mm)	LIST 43.00 45.00 47.00 49.00 52.00 LIST 43.00

Angle Brackets	Discount Code GK
	Figure 1C Angle Bracket Angle Bracket
	2" 51mm 1580 Series
9 9 9	2 5/16" 1510/1570 Series

ANGLE BRACKETS: Used as extension on shallow door frames to provide adequate mounting surface. See Figure 1C.

$\overline{}$		_
FOR 8-3/4" (2	222mm) SINGLE EMLOCK MODELS	GK
1581, 1581	DEV
PART#	AxB	LIST
AB01	1" x 1" (25 x 25mm)	43.00
AB02	1" x 1-1/2" (25 x 38mm)	45.00
AB03	1-1/2" x 1-1/2" (38 x 38mm)	47.00
AB04	2" x 1-1/2" (51 x 38mm)	49.00
FOR 11" (279	mm) SINGLE EMLOCK MODELS
1511 157
	1T 1571DEV
PART#	AxB	LIST
AB11	1" x 1" (25 x 25mm)	45.00
AB12	1" x 1-1/2" (25 x 38mm)	47.00
AB13	1-1/2" x 1-1/2" (38 x 38mm)	49.00
AB14	2" x 1-1/2" (51 x 38mm)	52.00
FOR 17-1/2" (1582	(445mm) DOUBLE EMLOCK MODEL
PART#	AxB	LIST
AB30	1" x 1" (25 x 25mm)	56.00
AB31	1" x 1-1/2" (25 x 38mm)	60.00
AB32	1-1/2" x 1-1/2" (38 x 38mm)	65.00
AB33	2" x 1-1/2" (51 x 38mm)	69.00
	mm) DOUBLE EMLOCK MODELS
	572
PART#	AxB	LIST
AB21	1" x 1" (25 x 25mm)	56.00
AB22	1" x 1-1/2" (25 x 38mm)	60.00
AB23	1-1/2" x 1-1/2" (38 x 38mm)	65.00
AB24	2" x 1-1/2" (51 x 38mm)	69.00

SPECIFY FINISH			Add to List
		Single EmLock	Double EmLock
V 628 Aluminum (standard	1)	N/C	N/C
Y 335 Black Anodized		34.00	67.00
Powder Coat Finishes (a coating electrostatically applied to form a hard finish, that is tougher than conventional paint)
X Dark Bronze Powder Coa	at Painted	34.00	67.00
C Brass Powder Coat Painted		34.00	67.00
Plated Finishes - Special order, no cancellation, no returns
P 625 Bright Chrome	Q 626 Dull Chrome	34.00	67.00
