8000 Series Standard Consoles

General Description

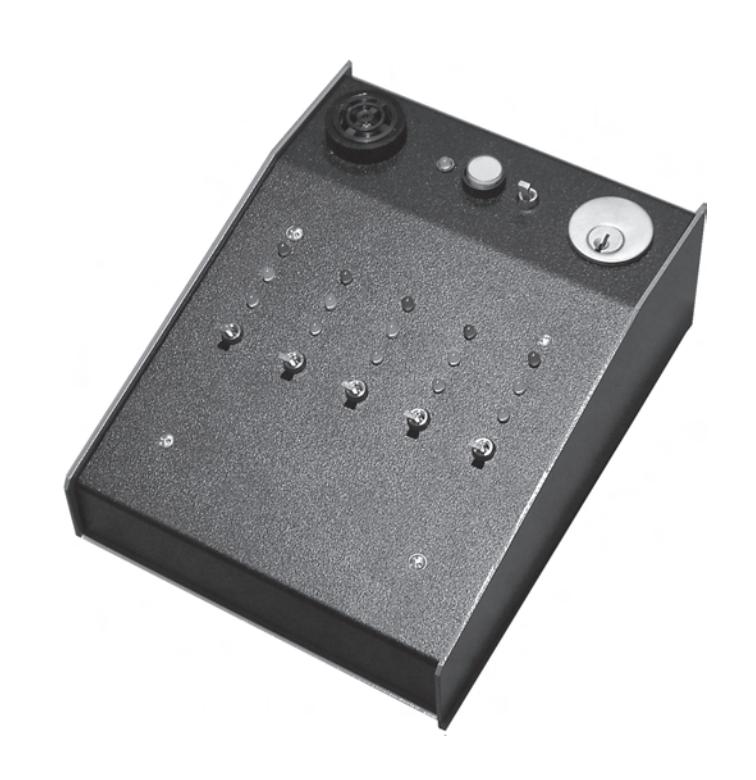

The 8000SF Series Standard Slope Front Console is designed to provide basic remote monitoring and control of doors equipped with electromagnetic locks, electric strikes or other similar electronic locking devices. The Console may be ordered with up to 12 individual zones, each consisting of one red and one green LED indicator and one toggle switch.

The LED's provide remote lock and/or door status indication when triggered by a dry contact closure from an external signal switch included in the locking device or elsewhere on the door or system (i.e. door position contact, alarm sensor, etc.).

The toggle switches may be specified as either maintained or momentary action and provide SPDT dry contacts for lock control or other remote control functions. The Console is housed in a low profile, slope-front metal enclosure with a powder coated black front panel. It may be specified to operate on 12 or 24VDC input power.

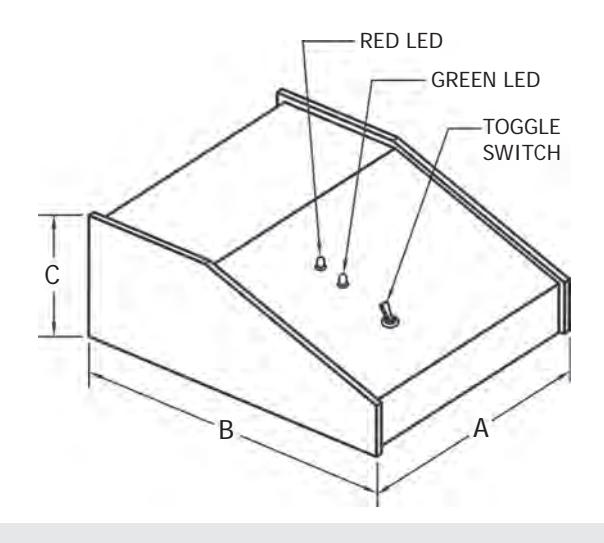

No. of Stations	А	В	С
1 - 3	6.5	8.3	3.0
4 - 5	10.0	8.3	3.0
6 - 8	14.0	8.3	3.0
9 - 12	17.0	8.3	3.0

Note: All dimensions shown in inches.

Accessories

LK

LABEL KIT

Kit includes engraved adhesive backed nameplates to number stations 1 thru 12 and five nameplates to label functions "SECURE", "UNSECURE", "CLOSED", "OPEN" and "RELEASE" as required. (Order Separately)

Notes

• If the LED's are labeled "SECURE" and "UNSECURE" DynaLock maglocks should include the DYN or HSM option to control the LED's.
• If the LED's are labeled "CLOSED" and "OPEN" DynaLock maglocks should include the DSM option to control the LED's.

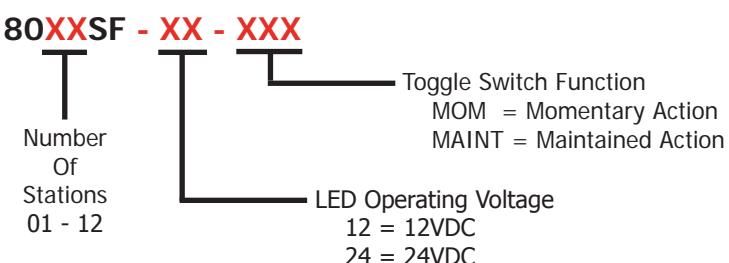

Part Number Configuration

8000 Series Standard Consoles

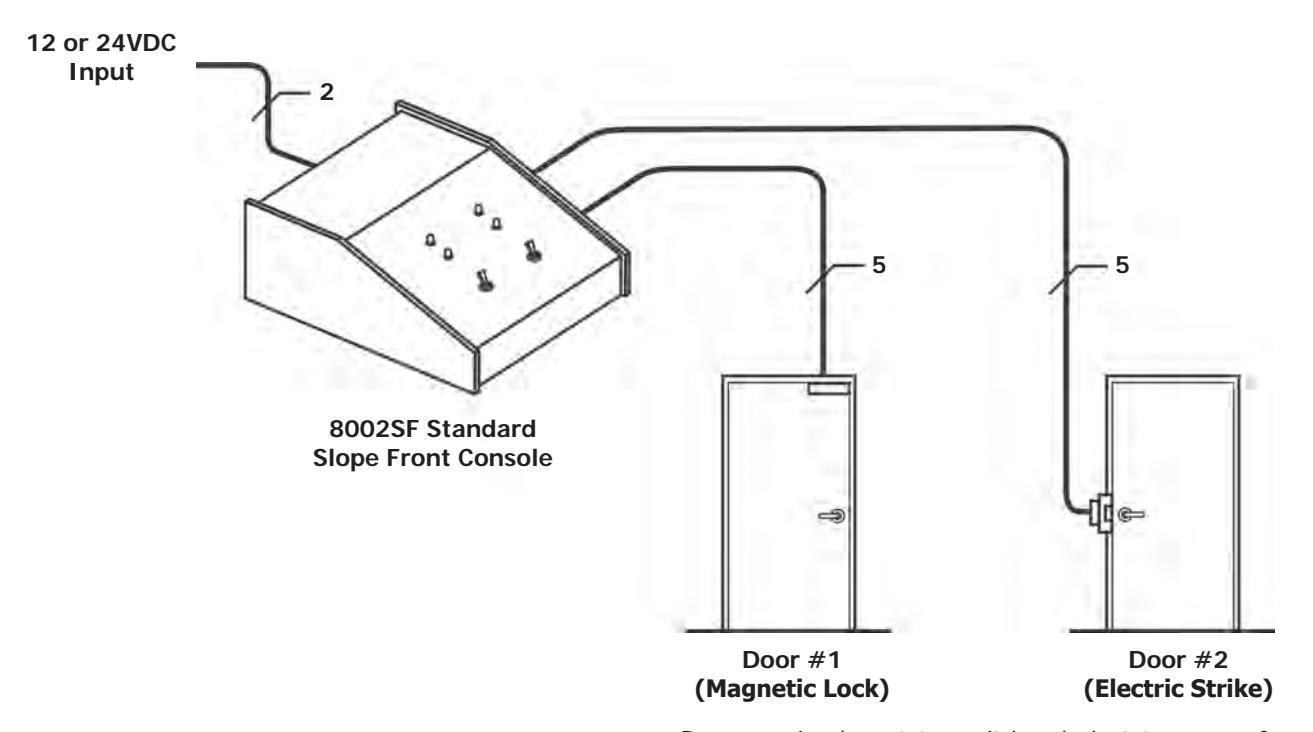

Typical System Wiring

Doors require door status switch or lock status sensor for LED indicator monitoring.

Specifications

Input Power: 12 or 24VDC @ 0.100 Amps per station.

Monitoring: Two (2) LED indicators per station - One (1) Red and One (1) Green.

Control: One SPDT toggle switch per station.

May be either momentary or maintained action, as ordered.

Output contacts rating: 2 Amps @ 30VDC.

General Description

8000 Series Custom Consoles are specially fabricated to customer requirements. The factory must be consulted for specific pricing, delivery and performance specifications. All Consoles, regardless of configuration, share common monitoring and control functions. DynaLock has developed a universal control module to perform these functions. It satisfies the majority of installations, keeps initial cost to a minimum and facilitates service.

Please refer to page 7 "Custom Console Quotation Questionnaire" before contacting DynaLock for a price quotation.

Enclosure/Panel Styles

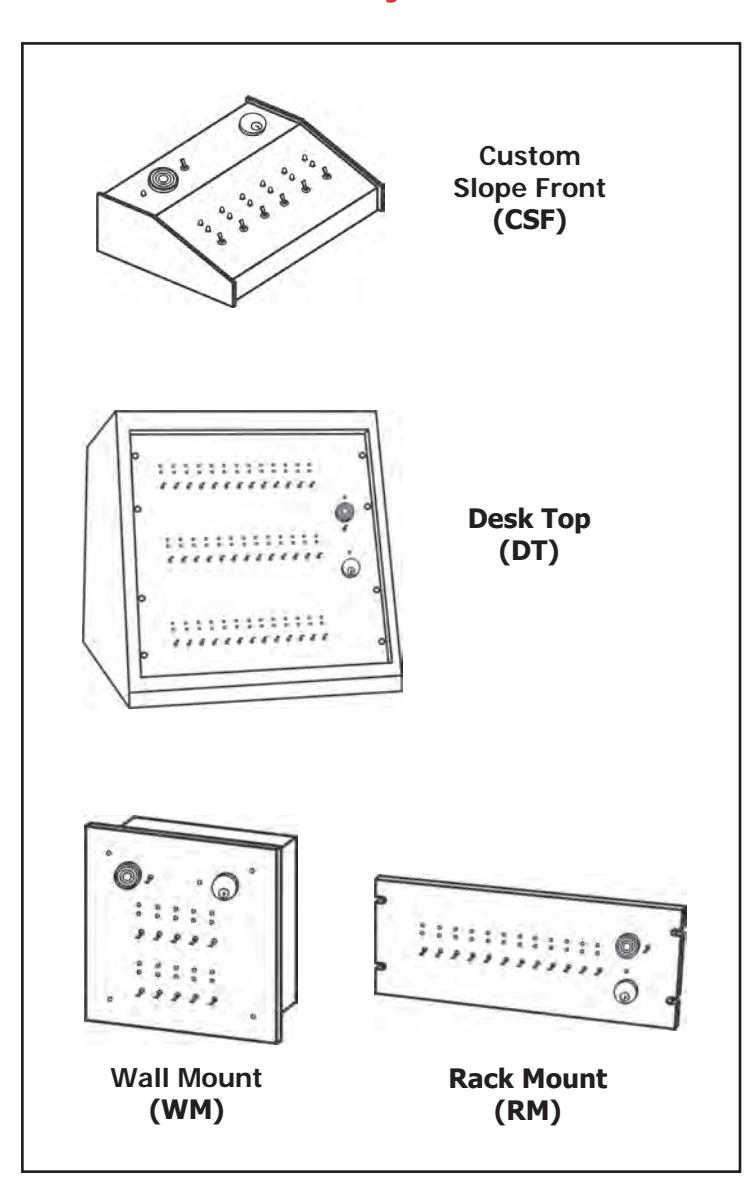

Custom consoles are available in four enclosure styles. The style selected may be based on customer preference or dictated by space required for custom options.

CSF - Custom Slope Front Series are capable of performing additional control and monitoring functions with increased station capacity beyond the standard SF Series.

DT - Desk Top Series are furnished in blue turretstyle cabinets with brushed aluminum front panels. Cabinet size and shape are configured to reflect console function.

WM - Wall Mount Series front panels are furnished in a brushed aluminum finish and include a removable steel back-box. Size will vary by number of stations and options selected.

RM - Rack Mount Series consoles are furnished on standard 19" wide brushed aluminum panels, less backbox. Size will vary by number of stations and options selected.

Note:

Console style availability may be limited by the number of station spaces selected. Refer to the selection guide on page 5 to configure a custom console with the features desired. Based on your selection DynaLock will confirm enclosure style availability.

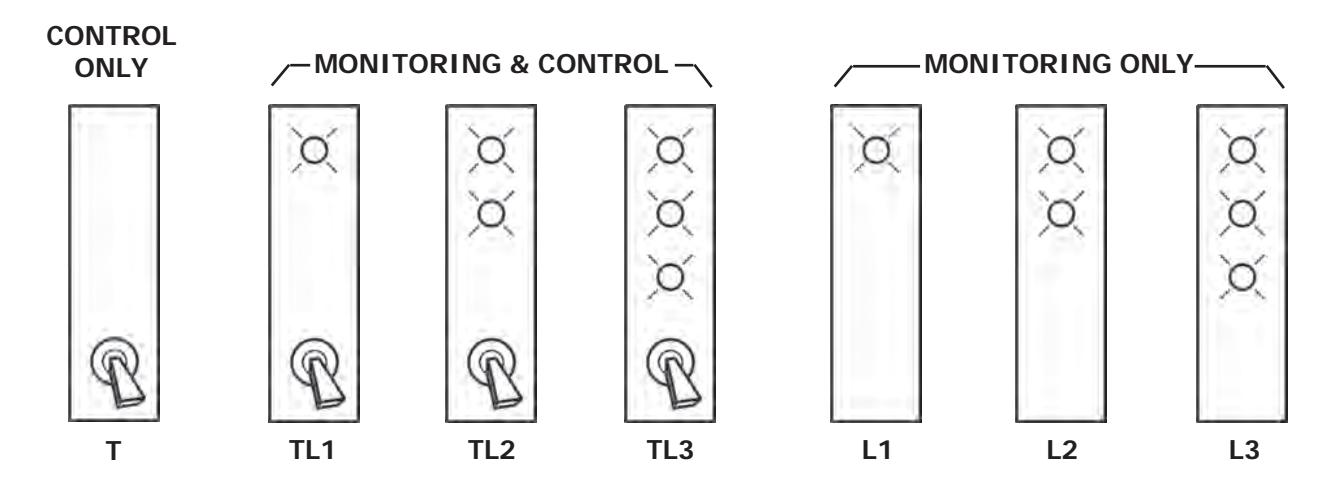

Individual Station Configuration Selection

Select one station configuration - all stations must be identical.

Optional Master Control Stations

Console may include one/each of the three options.

Allow Two Station Spaces

Red LED is console power ON indicator. Audible is used to indicate a violation condition and includes a audible mute toggle switch.

MASTER OVERRIDE -

MOT MOK

Allow Two Station Spaces

Select one style of Master Override switch:

• Toggle
• Keyswitch
• Mortise Cylinder

Master Override releases all stations simultaneously.

MASTER LOCKOUT —

Allow Two

Station Spaces

LK MI

Select one style of Master Lockout switch:

• Toggle
• Keyswitch
• Mortise Cylinder

Master Lockout disables all individual station toggle switches.

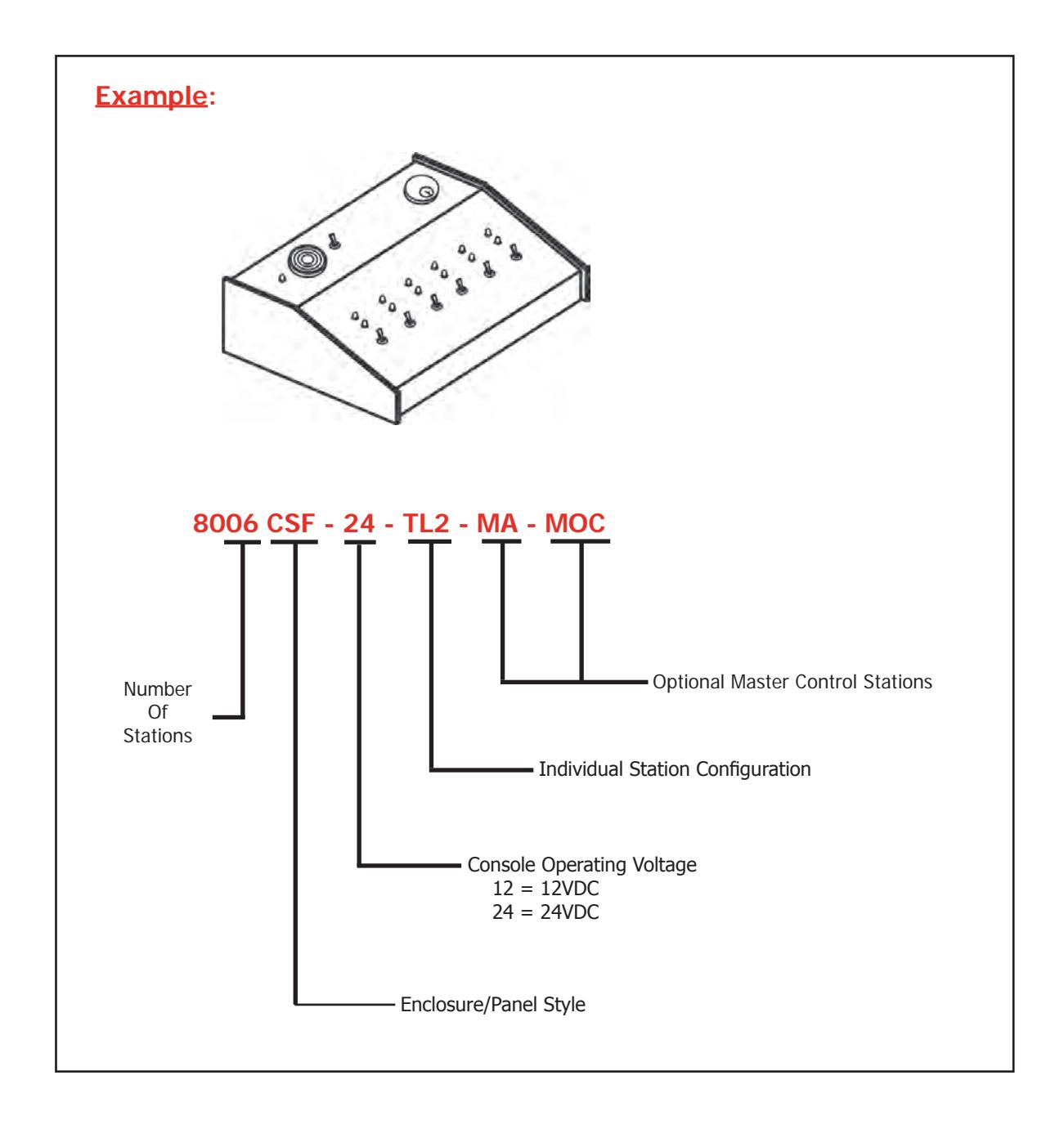

Custom Console Part Number Configuration

8000 Series Custom Console Quotation Questionnaire

Complete the following questionnaire. Copy and fax it to DynaLock's Sales Engineering Department for a prompt price and delivery quotation. Refer to pages 4 and 5 for further information.

Style of Console: CSF	Type of electric lock(s) to be controlled:
☐ RM	☐ Electromagnetic	☐ With delay egress
□DT	☐ Electric Deadbolt	☐ Fail-Safe ☐ Fail-Secure
□WM	☐ Electric Strike	☐ Fail-Safe ☐ Fail-Secure
Input Voltage: ☐ 12V ☐ 24V
Number of Stations:
Locks to be controlled have the following option	s: Door Status 🔲	ock Status
Console to: ☐ Control/Monitor ☐ Control	Only Monitor C	Only
Individual Station Type:	□ TL2 □ TL3	□L1 □L2 □L3
Type of Control Switch:
Light color preferences from top to bottom: (Re	d, Green, Yellow). (T) _	(M) (B)
Master Alarm Station with Audible (MA): ☐ Yes ☐ No
If Yes Audible Signals: ☐ Door Status (open) ☐ Lock Status (unlocked) ☐ Delay Egress (3101B lock)
☐ Standard: Audible will is corrected.		occurs and continue until condition
Other - Explain:
Master Alarm Station includes mute switch to silence audible (audible will silence but will be overridden with new alarm condition) and red power "ON" LED.
Master Override: MOT MOK	☐ MOC
Master Lockout: MLT MLK	☐ MLC
System Description of Operation: Type on a sep	parate page.
