View PDF3101C Series Electromagnetic Lock
Options
ATS ANTI-TAMPER SWITCH - Signals removal of the housing cover. SPDT contacts.
ATS2 ANTI-TAMPER SWITCH - For 3121C models.
BPM BYPASS MONITOR - Signals bypass keyswitch activation.
DSM DOOR STATUS SWITCH - Signals door closed or ajar.
DSM2 DOOR STATUS SWITCH - For 3121C models.
DYN DYNASTAT FORCE SENSOR - Indicates efficient magnetic bond. SPDT contacts.
DYN2 DYNASTAT FORCE SENSOR - For 3121C models.
EGRESS SENSOR OMITTED - For externally triggered egress. KSO KEYSWITCH OMITTED - In favor of separate remote keyswitch. LOW POWER COIL - 12V only @ 0.40 Amps (Single coil)
LP2 LOW POWER COIL - 12V only @ 0.72 Amps (Double coil)
SF SPECIAL FINISH - Standard finish US28 Satin Aluminum. See price book.
Building Code Software Options
*** Consult factory for special software/sequencing requirements.
Specifications
Finish:
| MECHANICAL | ELECTRICAL | ||
|---|---|---|---|
| Holding Force: | 1500 Lbs. Each Coil | Input Voltage: | 12 or 24 VDC/VAC (Auto-Sensing) |
| Lock Size: | Current Draw: | 453mA / 839mA @ 12VDC (Single/Double) | |
| 3101C | 3"D x 2 3 / 4 "H x 11"L | 1.08A / 1.79A @ 12VAC (Single/Double) | |
| 3121C | 3"D x 2 3 / 4 "H x 22"L | 254mA / 470mA @ 24VDC (Single/Double) | |
| 3121C2 | Each | 750mA / 1.27A @ 24VAC (Single/Double) | |
| Armature Size: | "D x "H x "L | Contact Ratings: | DSM - 0.5A @ 24VDC/VAC |
| Lock Weight: | 3101C 11.5Lbs. / 3121C 23Lbs. | DYN - 1A @ 24VDC/120VAC | |
| ATS - 0.25A @ 175VDC | |||
Terminal Strip (HDLAR WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/74 WACADOC T3/7
US28 Satin Aluminum with clear anodize.
Other Finishes Available.
Accessories
4000 Series: Filler Plates / Angle Brackets
Delay Monitor - 1A @ 24VDC/120VAC
Bypass Monitor - 4A @ 125VDC/VAC
5000 Series: Power Supplies
6000 Series: Push-buttons / Exit Controls
7000 Series: Keyswitches / Keypads
8000 Series: Consoles / Custom or Standard
DYNALOCK CORPORATION
705 EMMETT STREET / PO BOX 2728 BRISTOL, CT 06011-2728 PHONE: 877-DYNALOCK / FAX: 860-585-0338 E-MAIL: INFO@DYNALOCK.COM WEBSITE: WWW.DYNALOCK.COM
3101C Series
Delay Egress System* Magnetic Lock
- Prevent Unauthorized Exits
- Completely Self Contained
- Auto-Sensing 12/24 VDC/VAC Input
- Unique Sensor Unaffected by Minor Door Misalignment
- Lifetime Warranty
*Conforms to NFPA101 Life Safety Code
Description
The 3101C Series is designed to satisfy egress codes and high security needs at the same time. The next-generation 3101C system integrates totally-redesigned and updated electronics with DynaLock's proven and forgiving egress-sensing technology.
In a typical installation, the door is normally closed and latched by the existing mechanical door hardware and magnetically secured by the 3101C Lock. Attempting to exit by by unlatching and pushing on the door will activate the 3101C delay egress timer. The audible and red LED will pulsate for 15 seconds (30 seconds field selectable). After the time delay has elapsed, the lock will release and the audible will sound continuously with a green LED, until the door is shut and the lock is reset. Reset and/or bypass are accomplished with a built-in keyswitch or remote signal. The system unlocks automatically when the 3101C is integrated with the building emergency fire alarm system or power is removed. Fire alarm contacts on the 3101C Lock are field selectable for NO and NC signals.
Standard Features
- Microprocessor Controlled: An advanced digital processor manages all lock functions, without the need for an external system controller. Custom factory programs are available to meet varying jon requirements and local building codes.
- Low Installation Cost: The user-friendly, micrometer style adjustment wheel simplifies calibration of delay egress sensor and works with existing door hardware. Does not require touch or electrified exit devices, electric hinges, door cords or special power supplies.
- Auto-Sensing Power Input: 12 or 24 VDC/VAC
- Selectable Nuisance Delay: 1 or 3 second to deter false alarms.
- Opto-Electronic System Sensor: Featuring a concealed optical sensor unaffected by wind, warpage or door sag.
- Holding Force: 1500 Lbs. high security holding force (holding force not evaluated by UL) effectively deters forced access or egress.
- Lifetime Warranty American Made in the USA by DynaLock, with over 20 years experience in the manufacture of electromagnetic locks.
3101C Series Delay Egress System
2
Audible 87db at 30cm pulses once per second with LED during exit attempt. Sounds continuously after delay sequence, shunts when system resets.

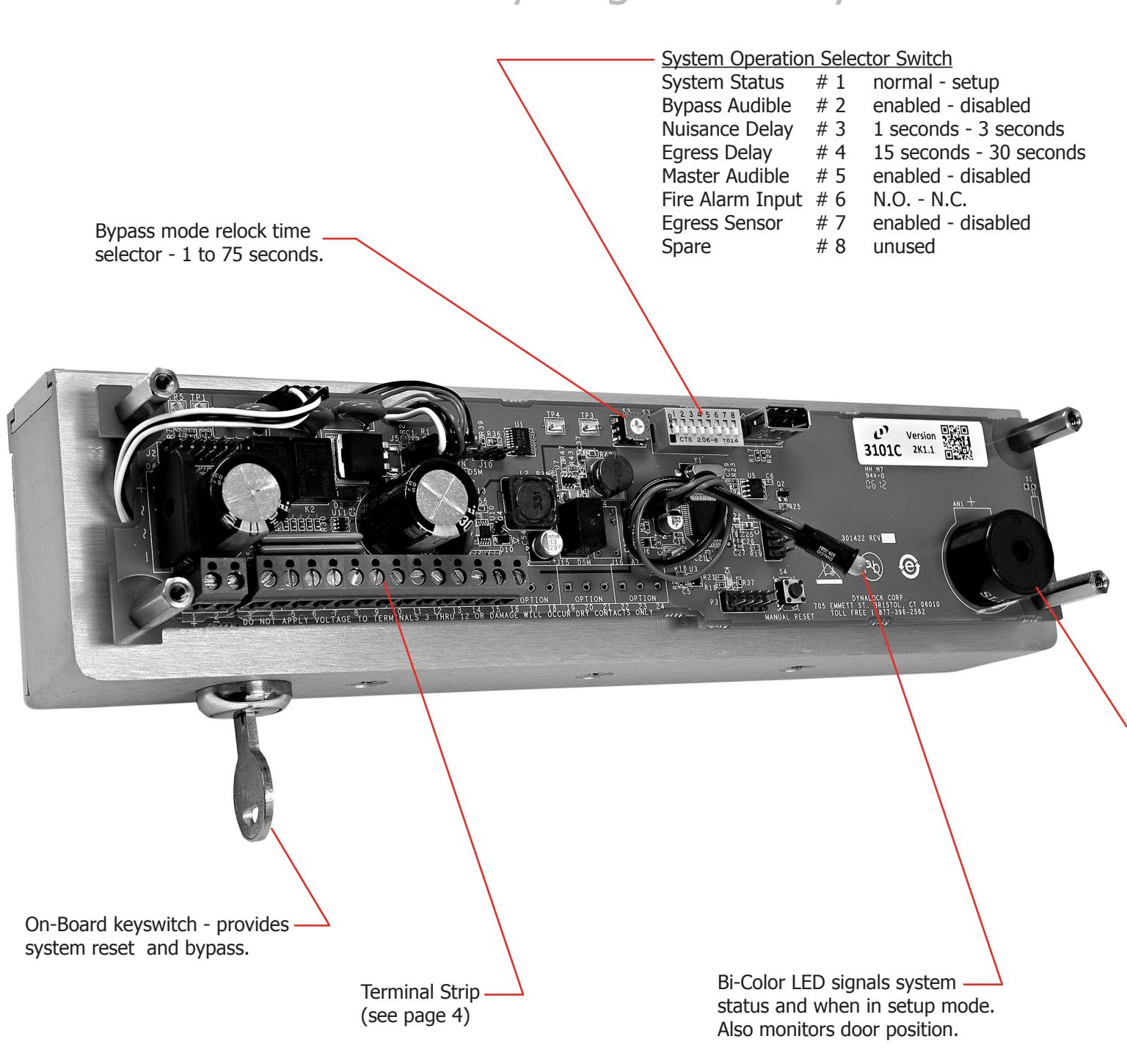

Rear View Model Selection

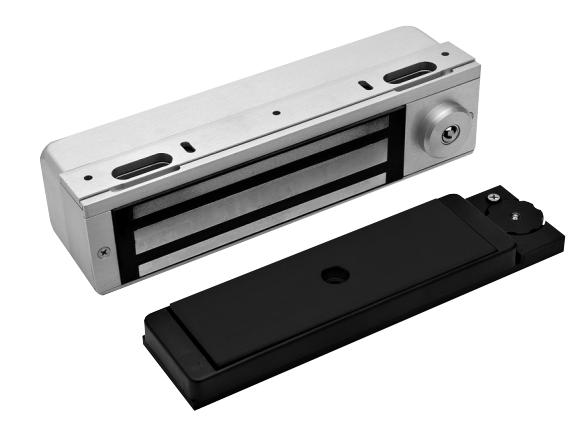

3101C Single Outswinging Door Single coil. Mounts to the underside of the frame header.

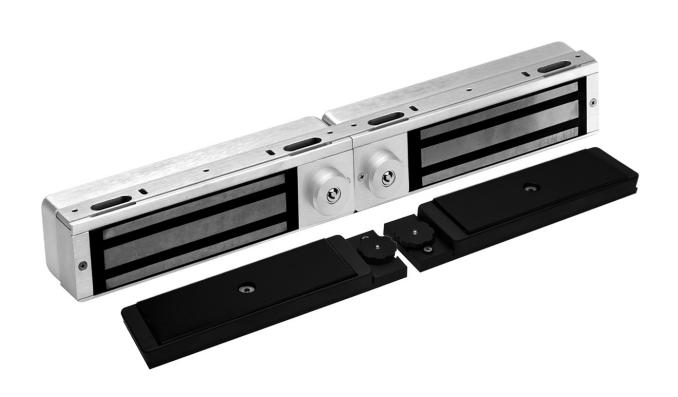

3121C Double Outswinging Door
No Center Mullion. Double coil. Mounts to the underside of the frame header. Master/slave configuration.

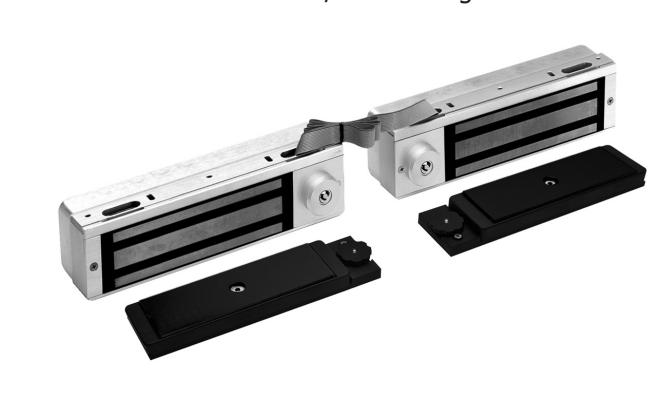

3121C2 Double Outswinging Door
With Center Mullion. Double coil. Mounts to the underside of the frame header. Master/slave configuration.
