Detex Advantex 87-Installation Instruction

Open the original PDF document

View PDF

Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045 830-629-2900 / 800-729-3839 / Fax 800-653-3839 / Text photos only: 830-481-6433 / INTERNET: www.detex.com

,167$//$7,21,16758&7,216)25$'9$17(;&21&($/('9(57,&$/52'

R

Concealed Vertical Rod Exit Device

87 Series - High security

for Medium to Wide Stile

Hollow Metal door applications

Drawing No: 106700

Table of Contents Page
Device parts breakdown view 2
Device parts breakdown list with part numbers 3
Hardware List with part numbers & tool required 4
Door condition check 6
Step 1: Door/opening measurements 6
Step 2: Door prep - hollow metal door 7

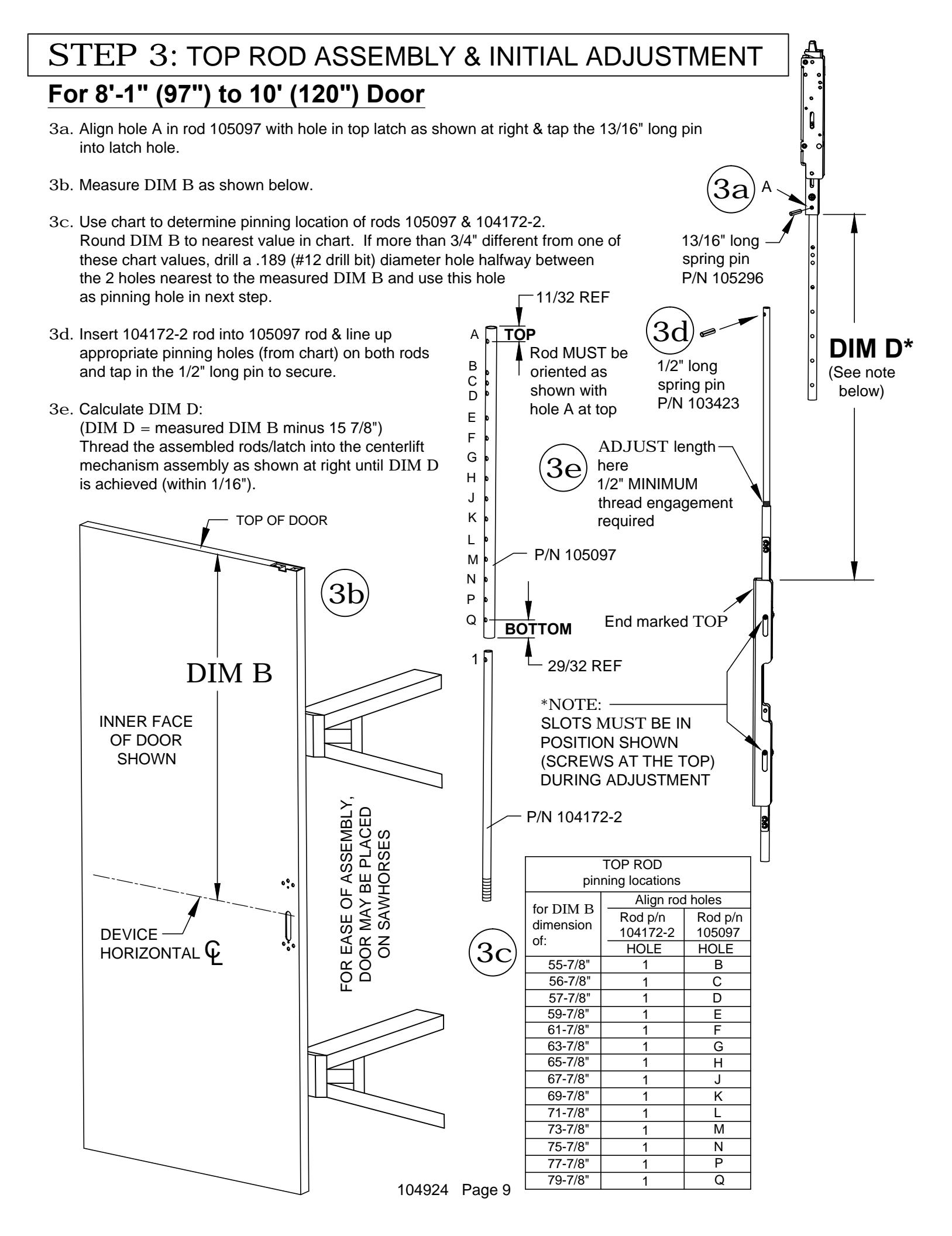

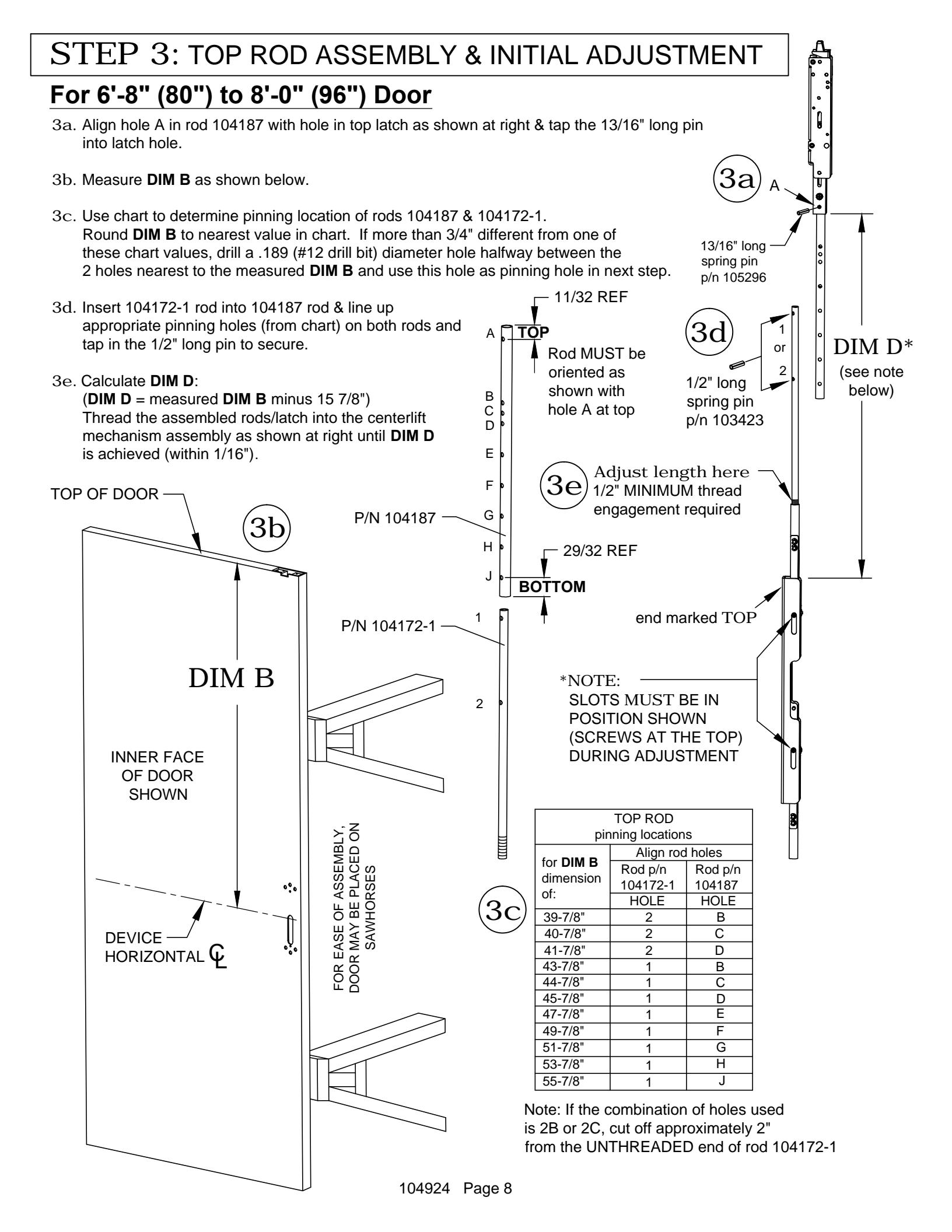

Step 3: Top rod assembly & initial adjustment (80" to 96" door) 8
Step 3: Top rod assembly & initial adjustment (97" to 120" door) 9
Step 4: Bottom rod/latch assembly & adjustment 10

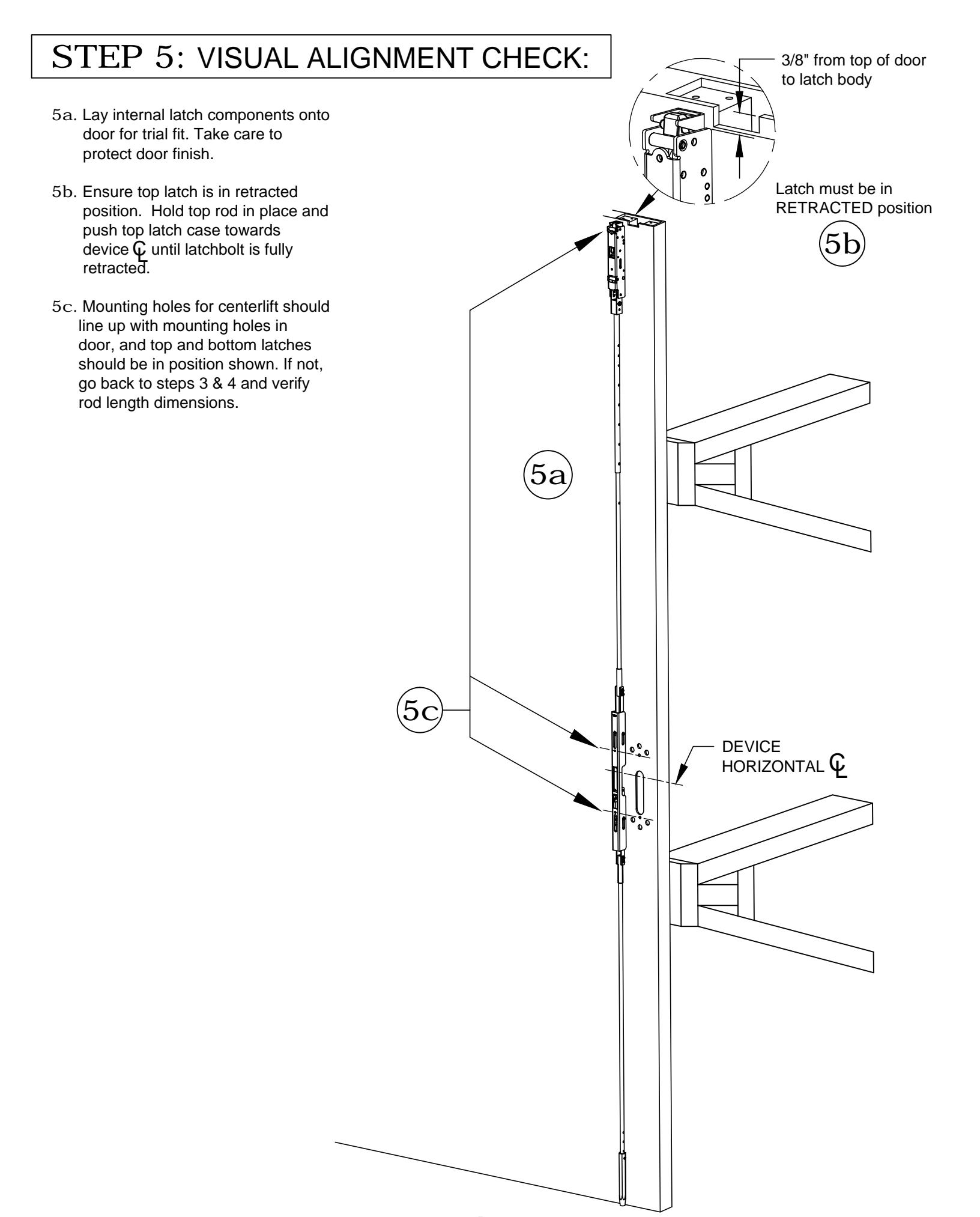

Step 5: Visual alignment check 11
Step 6: Attach top latch mounting brackets 12
Step 7: Insert rod/latch/centerlift assembly into door 12
Step 8: Secure rod/latch/centerlift assembly to door 13
Step 9: Verify centerlift mechanism operation 14
Step 10: Hang door/assemble device to door 15
Check device clearance 15
Install endcap bracket 16
Mortise cylinder installation 16
Step 11: Top strike installation 17
Step 12: Bottom strike installation 18
Step 13: Fine latch adjustment 18

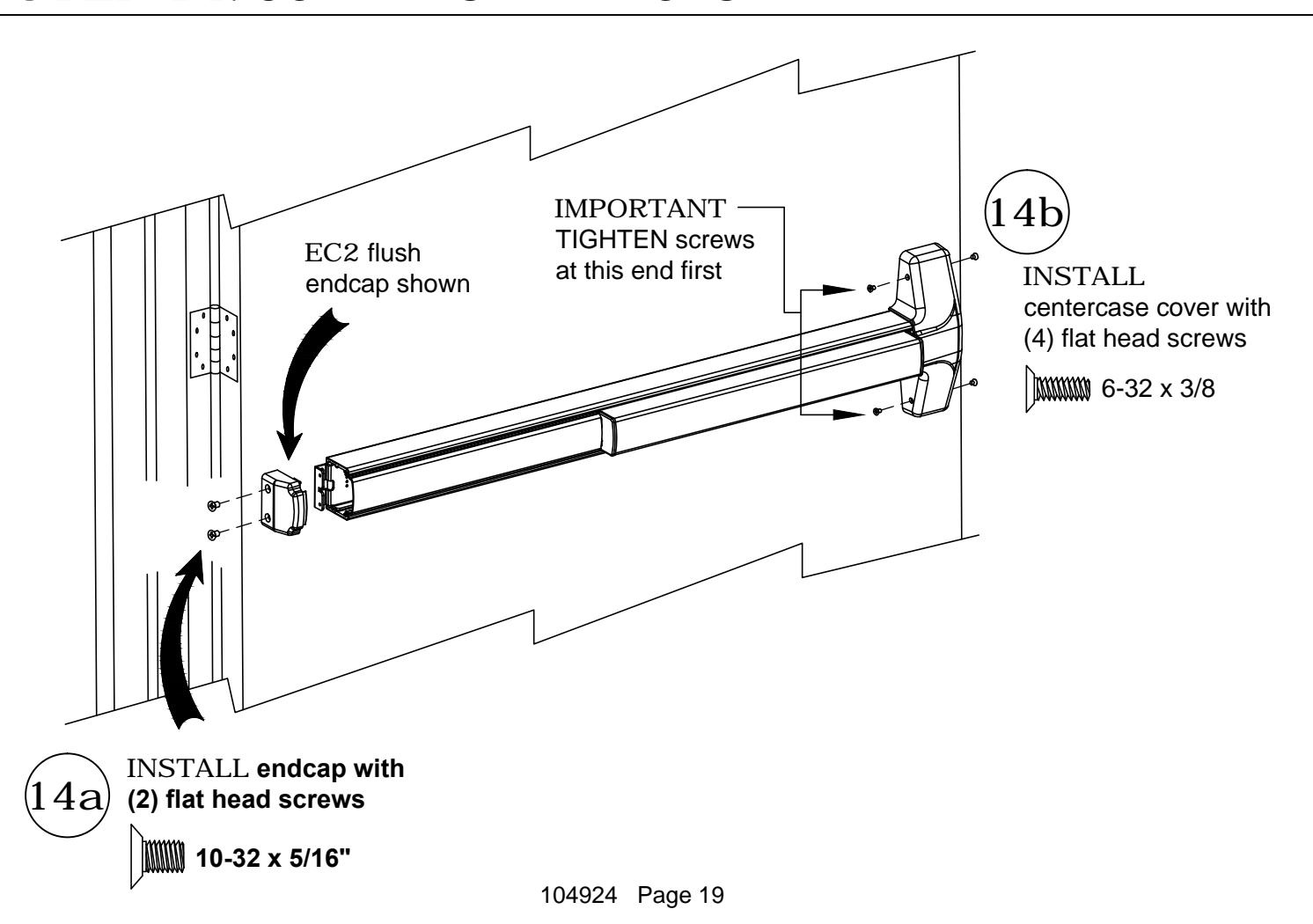

Step 14: Cover installations 19
Optional accessories 20

Owner's Copy

For WARRANTY information, scan code below or go to www.detex.com/warranty

For device installation videos, scan code below or go to www.detex.com/videos

Should you have a Question/Problem with your Detex device please call Detex Technical Support from the job site at 1-800-729-3839 and choose option 2 on our menu. Please do not return the product to the distributor.

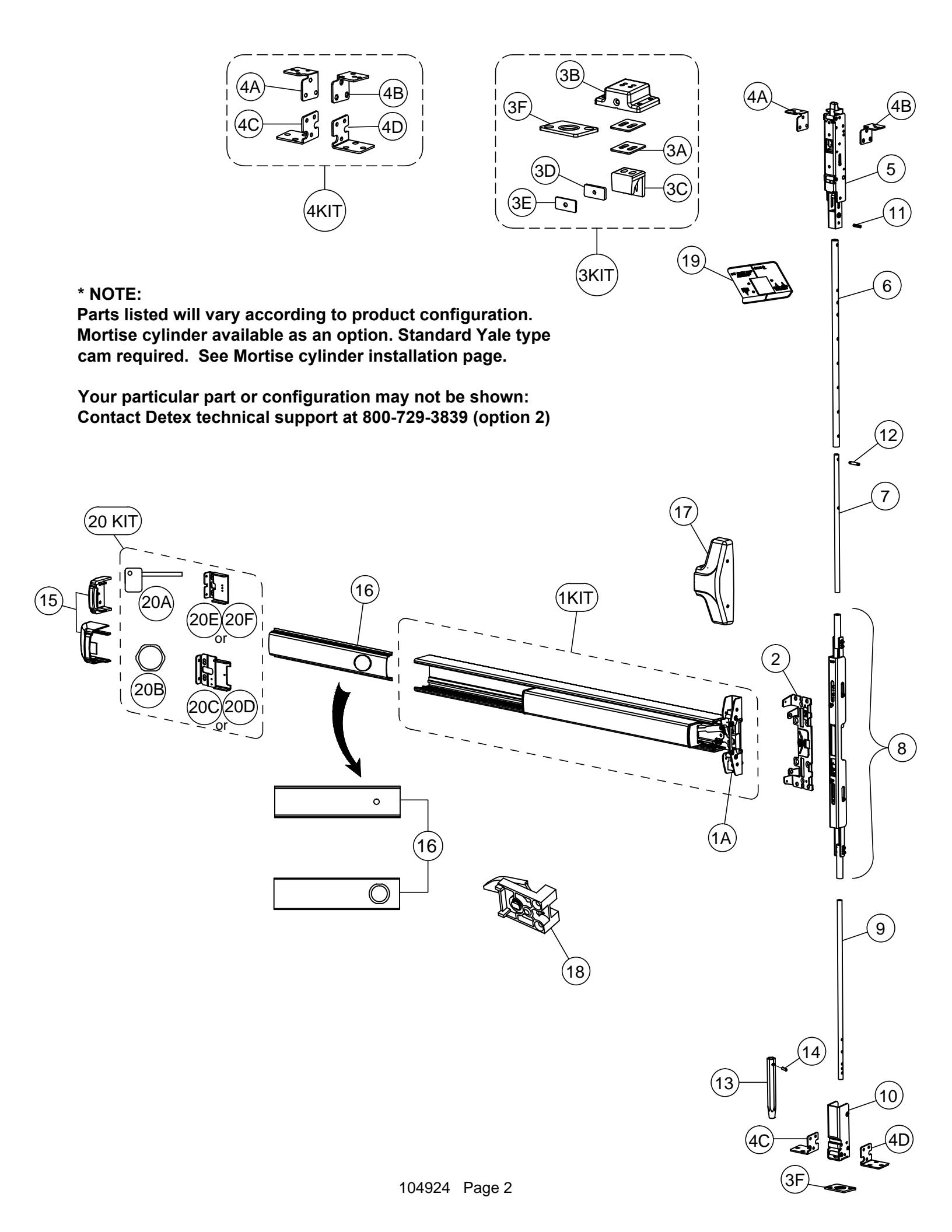

PARTS BREAKDOWN
Item Part # Description
105500-165 S&R Centercase/Pushpad Assy, ADV 87 x STD1 x RHR, 36", 630
1KIT 105500-166 S&R Centercase/Pushpad Assy, ADV 87 x STD1 x LHR, 36", 630 (Includes Item 1A)
104111-13 Centercase, CVR, Wide, RHR
1A | 104111-14 Centercase, CVR, Wide, LHR
_ 104171-1 Mounting plate, Wide, CVR, BP11 (Used with 08/09 lever trim)
2 104171-2 Mounting plate, Wide, CVR, BP13 (Used with 03 trim)
3KIT 106406-1 Strike kit, ADV 87 (Includes Items 3A-3F)
3A 105246 CVR strike shim ,
3B 105979-1 CVR top strike pocket, ADV 87
3C 105236-1 CVR top strike insert
3D 106145 CVR primary load shim, ADV 87
3E 106146 CVR supplemental load shim, ADV 87
3F 105249 Bottom strike (top and bottom rod device only)
4KIT 106409-1 Latch mounting kit, ADV 87 (Includes Items 4A-4D)
4A 106150-1 Top latch mounting bracket, ADV 87, RHR ,
4B 106150-2 Top latch mounting bracket, ADV 87, LHR
4C 105982-3 Bottom bolt mounting bracket, ADV 87, RHR (top and bottom rod de evice only)
4D 105982-4 Bottom bolt mounting bracket, ADV 87, LHR (top and bottom rod de
105984-1 Top latch assembly, ADV 87 (Panic) ,
5 105984-2 Top latch assembly, ADV 87 (Fire)
_ 104187 Outer top rod, 7' thru 8'
6 105097 Outer top rod, 8'-1" thru 10'
104172-1 Inner top rod, 7' thru 8' •
7 104172-2 Inner top rod, 8'-1" thru 10'
8 105990-1 Center lift mechanism assembly
9 105098 CVR bottom rod (top and bottom rod device only)
10 106330-1 Bottom boltcase assembly, ADV 87 (top and bottom rod device only)
11 105296 Spring pin 3/16 x 13/16
12 103423 Spring pin 3/16 x 1/2
13 103536-1 Bottom bolt, HURRICANE (top and bottom rod device only)
14 101607 Spring pin 3/16 x 5/8 (top and bottom rod device only)
101642-9 Endcap, EC1 (ramped) Stainless Steel 630 Endcap, EC1 (ramped) Stainless Steel 630
15 104304-9 Endcap, EC2 (flush) Stainless Steel 630
100860-54 Fillerplate Subassembly, S&R, Hex Dogging, HD, 630
16 100860-49 Fillerplate Subassembly, S&R, Cylinder Dogging, CD, 630
100860-100 Fillerplate Subassembly, S&R, Hex Dogging, HD, 628
17 102353-9 Centercase Cover, Stainless Steel, Wide, 630
10 102216-2 Hex Dogging Assembly
18 102216 Cylinder Dogging Assembly
19 105299-1 Template, Top Strike Prep
106431-1 Device Hardware Kit, HD, EC1 (not all components shown, includes Items 20A & 20C)
106431-2 Device Hardware Kit, CD, EC1 (not all components shown, includes Items 20B & 20C)
106431-3 Device Hardware Kit, EA, EC1 (not all components shown, includes Items 20B & 20D)
20KIT 106431-21 Device Hardware Kit, HD, EC2 (not all components shown, includes Items 20A & 20E)
106431-22 Device Hardware Kit, CD, EC2 (not all components shown, includes Items 20B & 20E)
106431-23 Device Hardware Kit, EA, EC2 (not all components shown, includes Items 20B & 20F)
20A 100450 Hex Key (for Hex Dogging)
20B 100783 Cylinder Nut (for Cylinder Dogging)
20C 100147 Endcap bracket for EC1 (ramped) endcap w/o battery holder
20D 101093 Endcap bracket for EC1 (ramped) endcap w/ battery holder
20E 104303 Endcap bracket for EC2 (flush) endcap w/o battery holder
20F 104636 104636 Endcap bracket for EC2 (flush) endcap w/ battery holder
Fastener Table
ADVANTEX 87 Device Mounting Hardware
Screw style & size Description Used on and Drill Bit used
1/4-20 x 1" PPH
P/N: 100980 		Used to install backplate & endcap bracket to door
Drill Bit - #7 or 13/64"
1/4-20 x 1-1/2" PPH
P/N: 100954 		Used to install backplate & endcap bracket on 2" or greater door thickness with Trim and/or sex nuts
- Comm 10-24 x 1/4" PPH
P/N: PP-5304-104 		Used to secure device centercase to backplate
10-32 x 5/16" PFH
P/N: 101632-2 		Used to install endcap to endcap bracket (Multiple finishes included)
6-32 x 3/8" PFH
P/N: 100162-106 		Used to install centercase cover to backplate (Multiple finishes included)
10-24 x 3/4" PFH
P/N: 100112-110 		Used to fasten centerlift assembly to backplate (Use 100112-110 for 14 gauge or heavier)
10-24 x 5/8" PFH
P/N: 100112 		Used to fasten centerlift assembly to backplate (Use 100112 for 16 gauge & thinner)
1/4" Lockwasher
P/N: PP-5067-25 		Lockwashers used with 1/4-20 screws

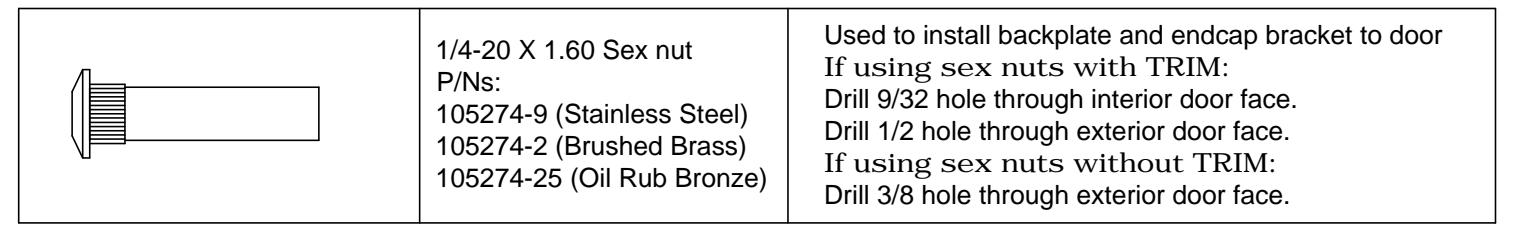

Sex nuts, if ordered. Sex nuts are used with screws in device hardware kit.

Tools Required

Power Drill Hammer Hack Saw (chopsaw preferred) Safety Glasses Phillips Screw Driver Hex Wrench -1/8 & 5/32 Tape Measure

Tap Wrench Masonry Bits - 3/16", 1/4", 5/16", 7/8", & 1" Pencil Pliers Drill bit set Center Punch Level

Fastener Table
ADVANTEX 87 Strike Mounting Hardware
#10 x 1" self-cutting PFH
P/N: 100109 		Used to install bottom strike to floor
(used with anchors, two styles of anchor included)
10-24 x 1/2" PFH
P/N: 100112-108 		Used to install bottom strike to floor (alternate)
10-32 x 5/8" FHSC
P/N: 106440-110 		Used to secure top strike pocket and
top strike insert to header
8-32 x 1/4" PFH
P/N: 100156-104 		Used to install primary load shim (QTY: 1) to
top strike pocket
8-32 x 5/16" PFH
P/N: 101950-105 		Used to install primary shim (QTY: 1) &
supplemental load shim (QTY: 1 or 2) to top
strike pocket
8-32 x 7/16" PFH
P/N: 101950-107 		Used to install primary load shim (QTY:1) &
supplemental load shims (QTY: 3 or 4) to
top strike pocket
Anchor (1" long)
P/N: 101129-1 		1/4 pilot hole
Used to install bottom strike to floor
Alligator Anchor (5/16 x 1-9/16)
P/N: 102642-6 		1/4 pilot hole
Used to install bottom strike to floor
Fastener Table
ADVANTEX 87 Latch Mounting Hardware
1/4-20 x 5/8" PPH, SS
Machine screw
P/N: 100110 		Used to install top latch mounting brackets to
door
10-24 x 1/4" BHS, BLK
Machine screw
1/8 Socket HD
P/N: 106434-104 		Used to install top latch mounting brackets to
top latch assembly

!!!CHECK BEFORE STARTING!!! Doors and frames with walls having a structural thickness (metal skin plus reinforcement) to engage less than (3) full screw threads, are considered unreinforced for hardware. Unreinforced Doors: Use Sex Nuts and Bolts Minimum Stile Width: 4-1/2" Unreinforced Frames: Use Blind Rivet Nuts (see sketch). Fasteners for unreinforced openings are not supplied by Detex. Reinforced door or Reinforcement frame engages at least (3) screw threads. Blind Rivet Nut Door Skin Door Must Swing Freely Door Must Not be Warped Door Must Not Bind Door Must Not Sag

NOTE : LOCAL CODES MAY REQUIRE THROUGH BOLTING. SEX NUTS ARE NOT INCLUDED WITH THIS DEVICE. SEX NUTS CAN BE PURCHASED SEPARATELY.

STEP 1: DOOR / OPENING MEASUREMENTS

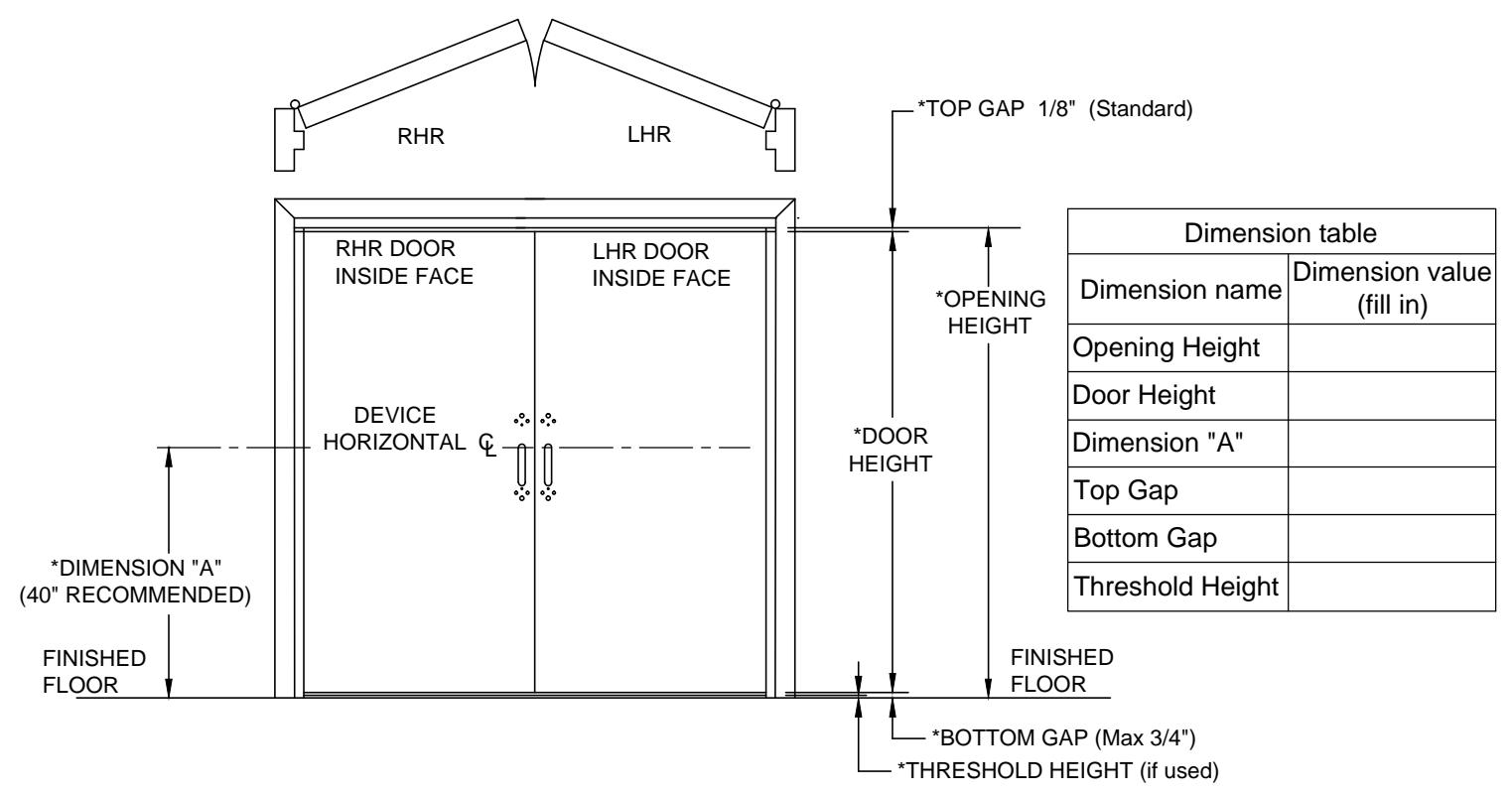

Measure per figure below:

*These dimensions will be needed during rod length adjustment. Measure door before removing.

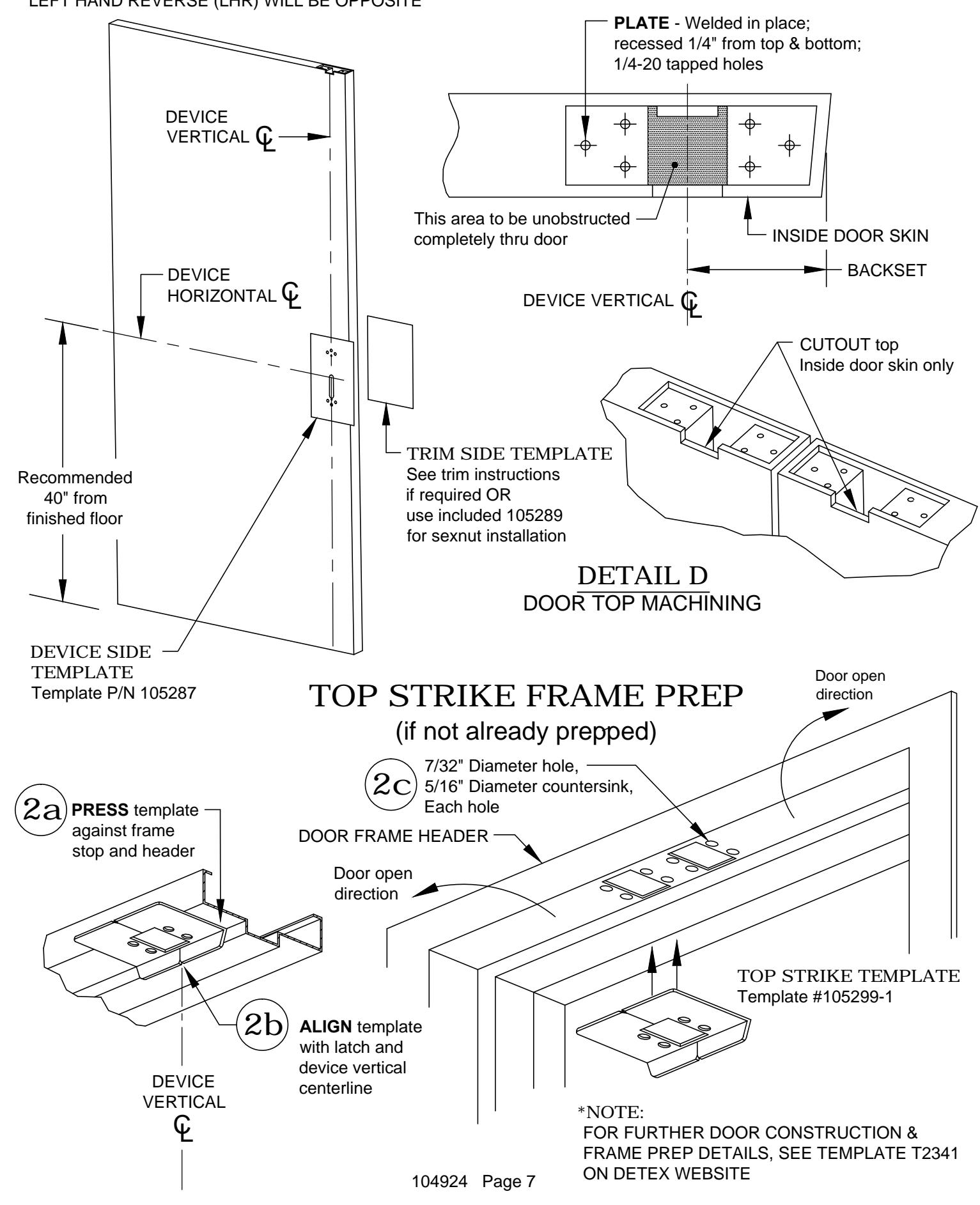

STEP 2: DOOR PREP - HOLLOW METAL DOOR

INSTALLATION SHOWN IN THIS INSTRUCTION IS FOR RIGHT HAND REVERSE (RHR); LEFT HAND REVERSE (LHR) WILL BE OPPOSITE

STEP 4: BOTTOM ROD / LATCH ASSEMBLY & ADJUSTMENT

4a. Using DIM A as measured in step 1, use chart to determine pinning location.

If DIM A is less than 37-1/4" from finished floor, a new pin hole must be drilled through 105098 rod. Subtract the centerline dimension from 38" and measure up this distance from hole V. Mark and drill .189 diameter hole (#12 drill).

If DIM A is more than 41-1/2", from floor, call customer service at 1-800-729-3839 for assistance.

_ |||
) Align rod holes (round DIM A to no
/ DIM A Bottom Rod ] ||
(device € at p/n: 105098
distance from floor) use HOLE
38" V 1 ||
39" W ] ||
40" X ] |]
40-3/8" Υ ] |]
40-3/4" Z ] |}
В воттом
ROD

NOTE: -

SLOTS MUST BE IN

POSITION SHOWN (SCREWS AT THE TOP)

P/N 105098

Note: If hole V or W is used (or if new hole is drilled closer to threaded end), trim off UNTHREADED end of rod as needed to allow rod to slide into bottom bolt far enough to pin.

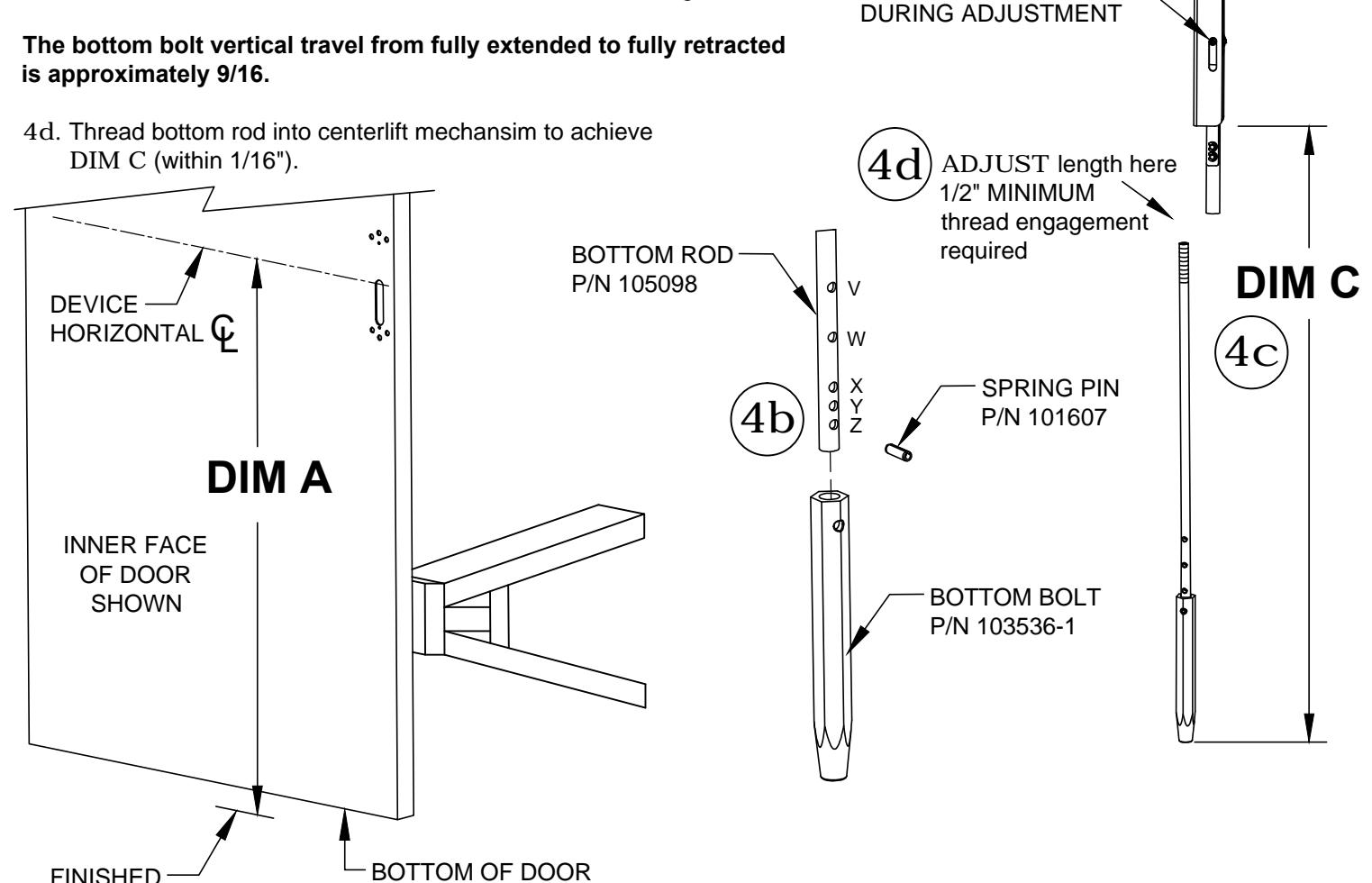

  • 4b. Place bottom rod 105098 into bolt, line up holes and secure with spring pin provided.
  • 4c. DIM C is the target length.

FLOOR

For no threshold or threshold 1/2" or less:

DIM C = measured DIM A minus 8".

For threshold greater than 1/2":

DIM C = measured DIM A minus 8" minus threshold height

104924 Page 10

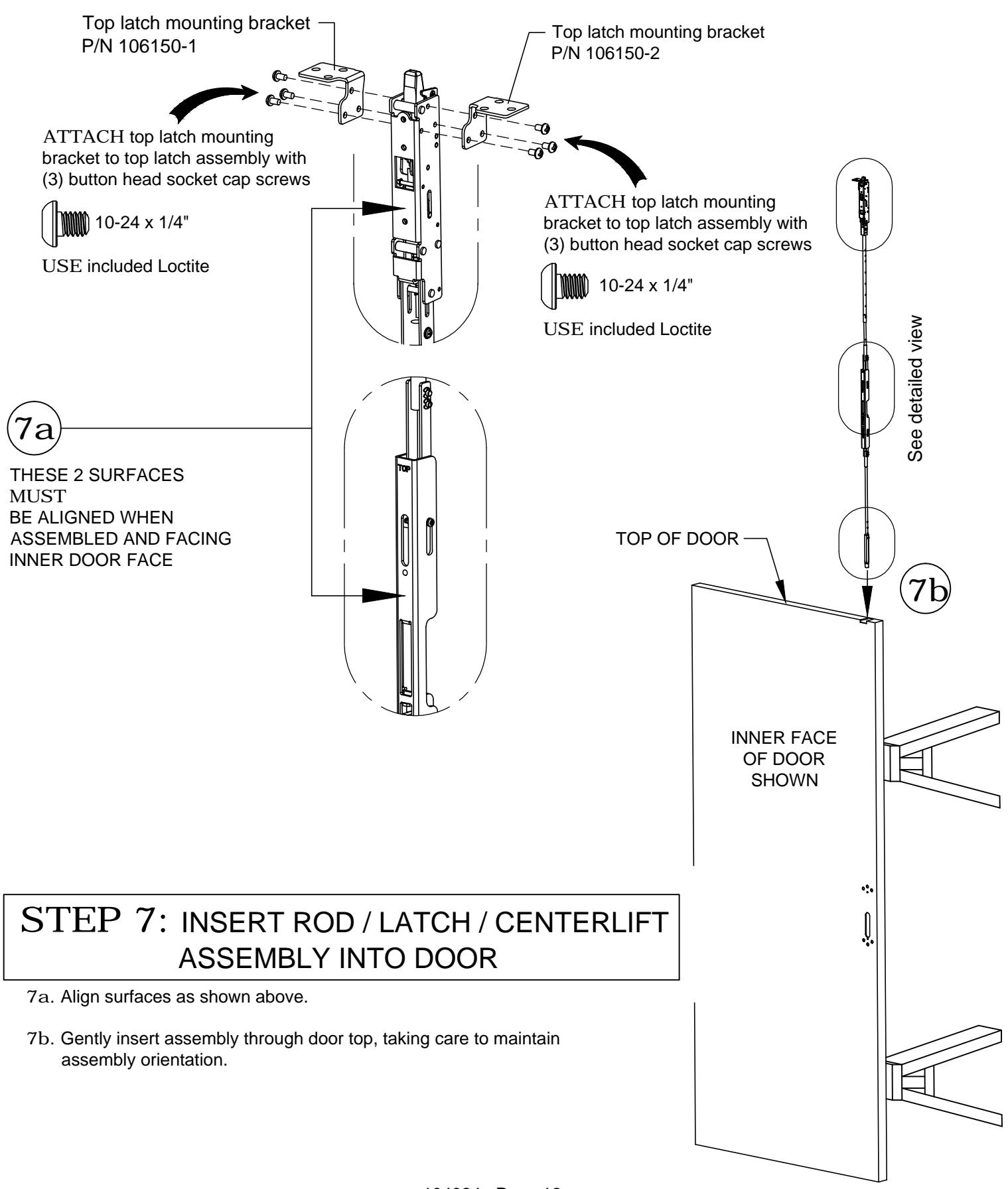

STEP 6: ATTACH TOP LATCH MOUNTING BRACKETS

\stackrel{\textstyle \frown}{} ATTACH top latch mounting brackets as shown below. Three screws required for each bracket.

STEP 8: SECURE ROD / LATCH / CENTERLIFT ASSEMBLY TO DOOR

8a. Attach top latch to door with six screws. 8b. Attach bottom bolt mounting brackets to bottom bolt case ATTACH top latch to door with six screws. with (6) phillips pan head screws 8c. Attach bottom bolt mounting brackets to door with six screws. 1/4-20 x 5/8" 8d. Attach back plate to centerlift mechanism with two screws - DO NOT OVERTIGHTEN. Assembly hint: Assemble one screw loosely without backplate, then add second screw through backplate. Remove first screw, align backplate and then re-install first screw. ATTACH bottom bolt mounting brackets to bottom bolt case assembly with (6) button head socket cap screws ∭ 10-24 x 1/4" ATTACH backplate to USE included Loctite centerlift mechanism with (2) phillips flat head screws 10-24 x 5/8" OR Bottom bolt mounting bracket P/N 105982-3 Bottom bolt Backplate mounting bracket BP11 or BP13 P/N 105982-4 ATTACH bottom bolt case to door with (6) phillips pan head screws THIS SURFACE MUST BE FACING INNER DOOR FACE (VIEWED FROM BOTTOM EDGE OF DOOR) Note: Bottom bracket may slide up on rod during assembly. It may be necessary to pull it towards bottom edge of door with a simple wire hook.

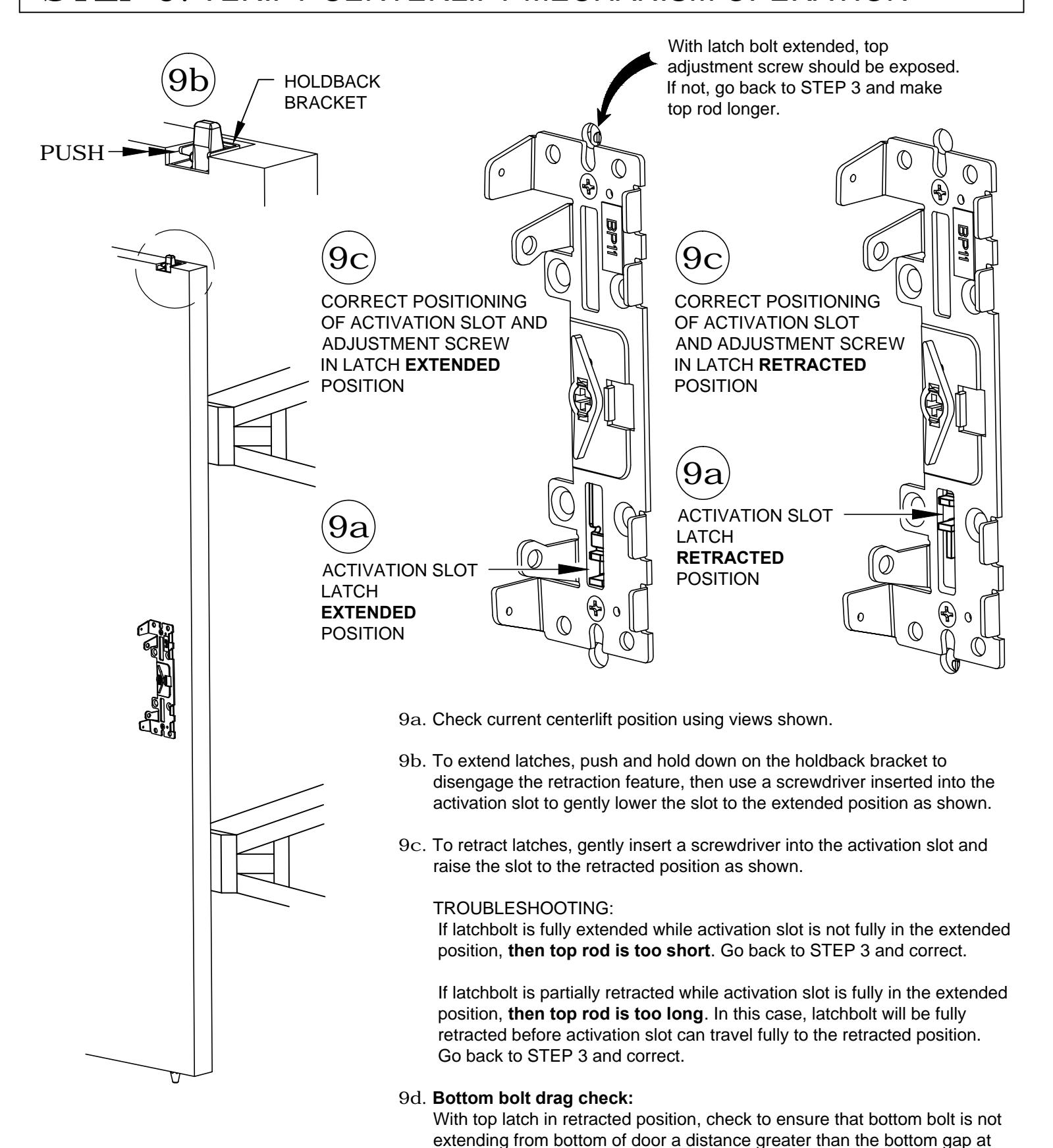

STEP 9: VERIFY CENTERLIFT MECHANISM OPERATION

9e. Upon completion, retract latches before proceeding to Step 10.

finished floor (minus the threshold height if threshold is used).

If it is, then bottom rod is too long. Go back to STEP 4 and correct.

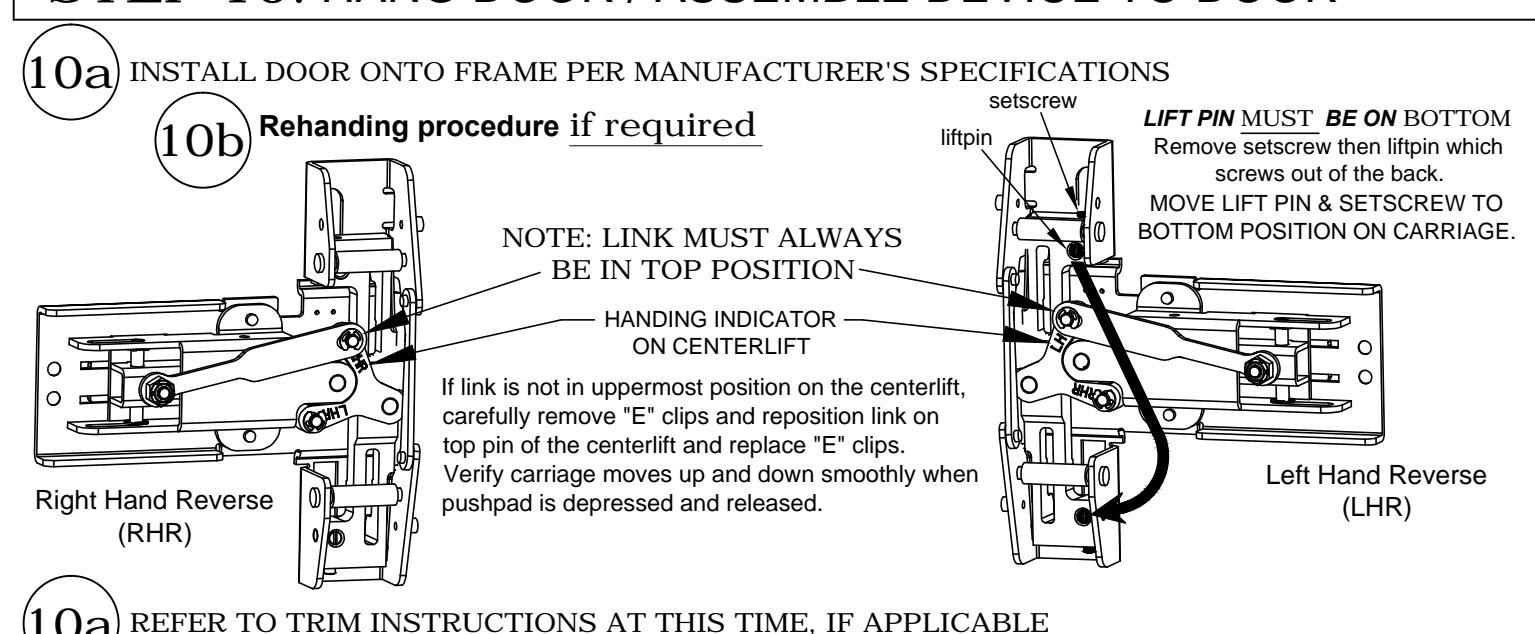

STEP 10: HANG DOOR / ASSEMBLE DEVICE TO DOOR

10d)complete backplate mounting

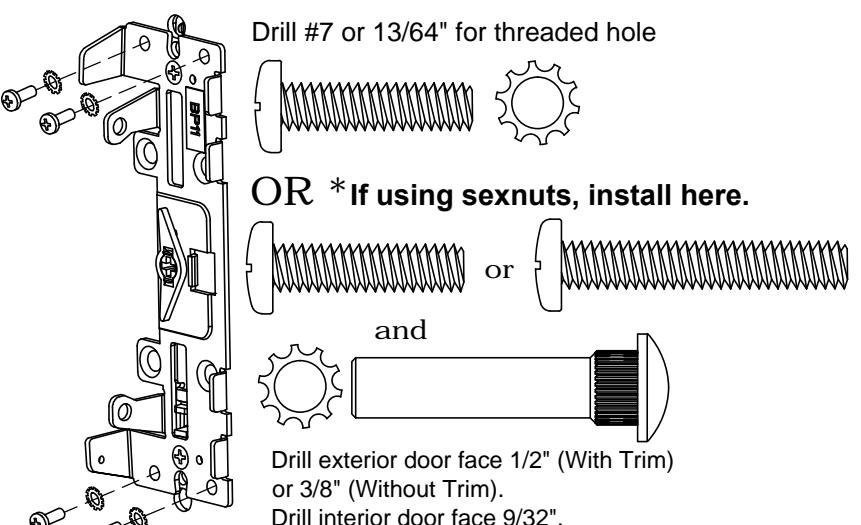

INSTALL backplate with (4) lockwashers & screws OR screws & sexnuts

INSTALL DEVICE TO BACKPLATE

Install device to backplate & fasten with 2 screws. Depress pushpad appropriate amount

to line up lift pin with tabs

INSTALL with (2) screws 10-24 x 1/4"

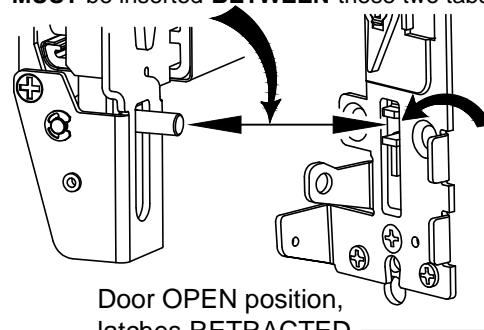

Lift pin protruding from back of centercase MUST be inserted BETWEEN these two tabs.

Minimum

Fillerplate

Length

Length (L)

2-1/2"

Type

LD

HD/CD

latches RETRACTED

CHECKING FOR DEVICE CLEARANCE

(Cut-Off procedure if required)

CUT fillerplate and extrusion STRAIGHT & SQUARE to desired length and deburr. SECURE with tape before cutting.

For aluminum Advantex finish cutdown applications: After cutting, the baseplate extrusion can be reversed to place the cut end inside the head cover.

To do so, loosen the setscrew inside the aluminum baseplate extrusion and slide extrusion out, reverse, & slide back in. Tighten setscrew.

Check for device and door frame clearance. If no cut-off needed, proceed to the next page.

104924 Page 15

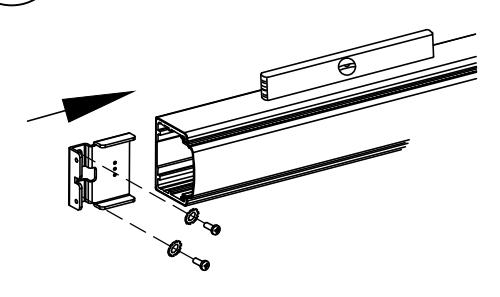

INSTALL ENDCAP BRACKET 10g

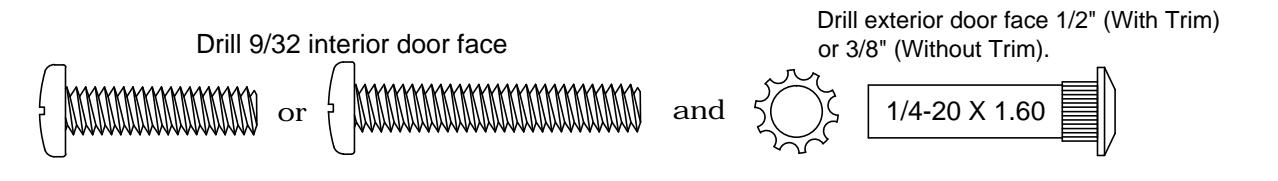

INSTALL bracket with (2) lockwashers & screws OR screws & sex bolts

LEVEL device before installing endcap bracket

ENSURE that device does not require cutting (See Step 10f on previous page).

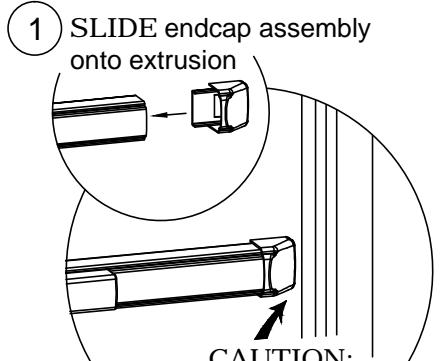

TEST device function after installation of endcap is complete by depressing & releasing pushpad. Action should be smooth with full return of pushpad and latch travel.

Drill #7 or 13/64" for threaded hole

OR * If using sexnuts, install here.

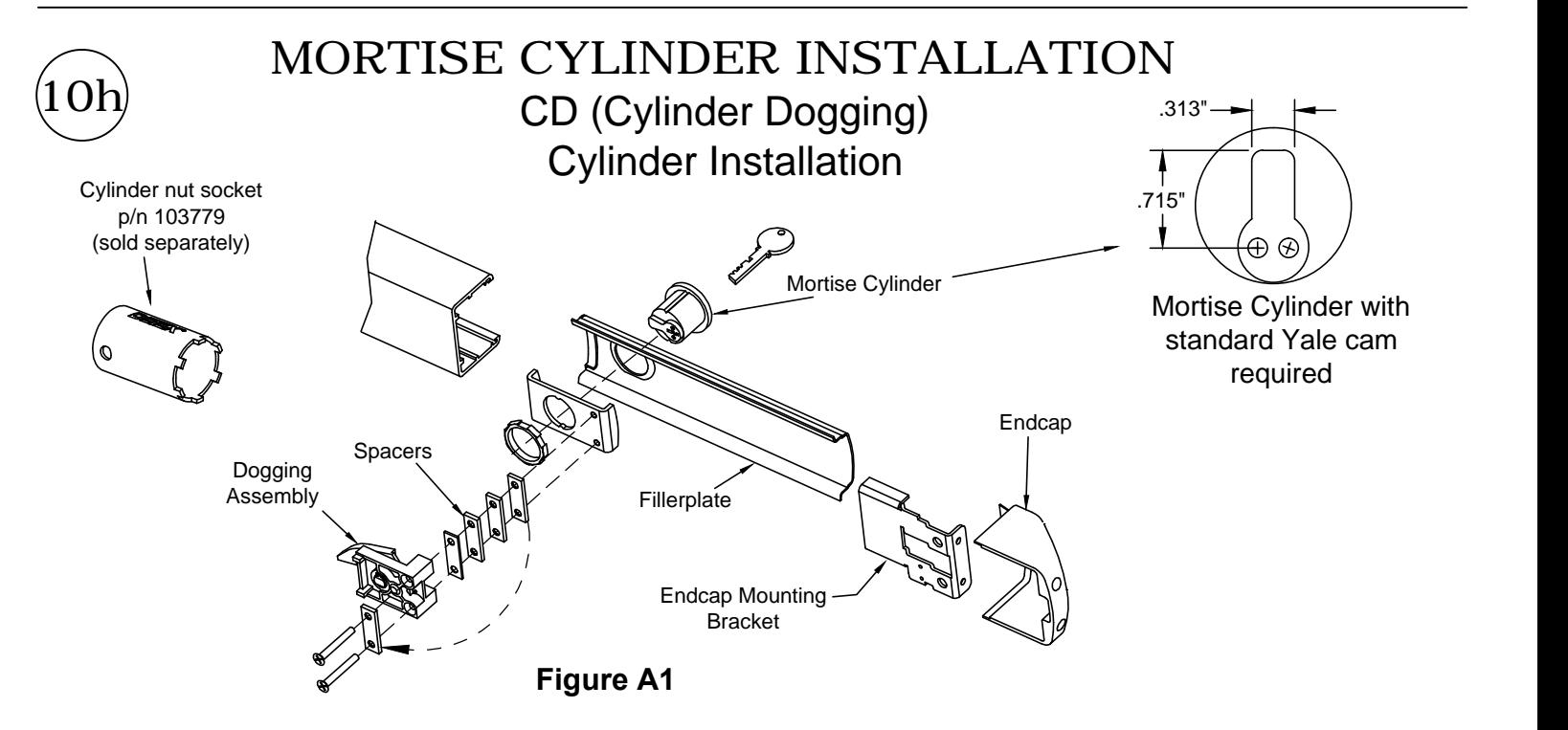

Follow steps "a" through "g" for CD installations

  • a. Remove endcap and endcap mounting bracket.
  • b. Remove fillerplate.
  • c. Remove and discard shipping insert and nut. Loosen (2) screws from dogging assembly.
  • d. Install mortise cylinder (sold separately) with large hex nut provided.
  • e. Trial fit dogging assembly. If cylinder is too short, remove spacers as necessary and reattach them under the (2) screw heads. Fasten the (2) screws to the rest of the assembly.

NOTE: The key should easily turn in both directions.

  • f. Rotate key counterclockwise
  • g. Assembly complete. Continue with Panic Hardware instruction.

STEP 11: TOP STRIKE INSTALLATION

11a STRIKE ORIENTATION

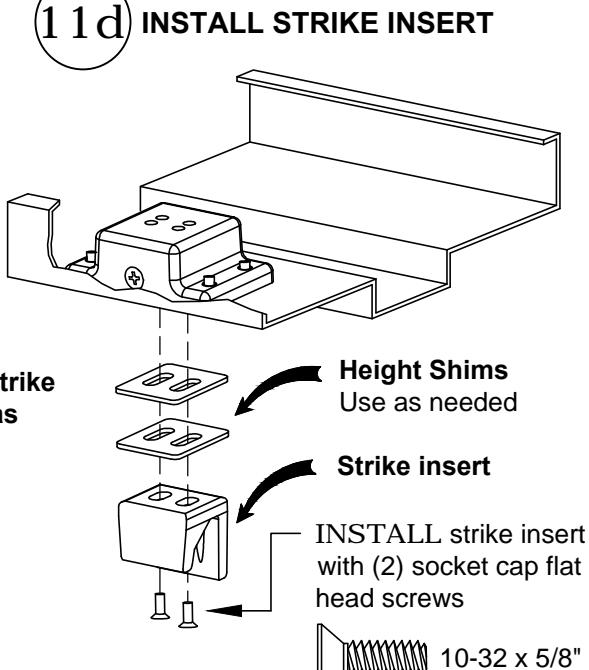

(\!1\,1b\!) install load shims

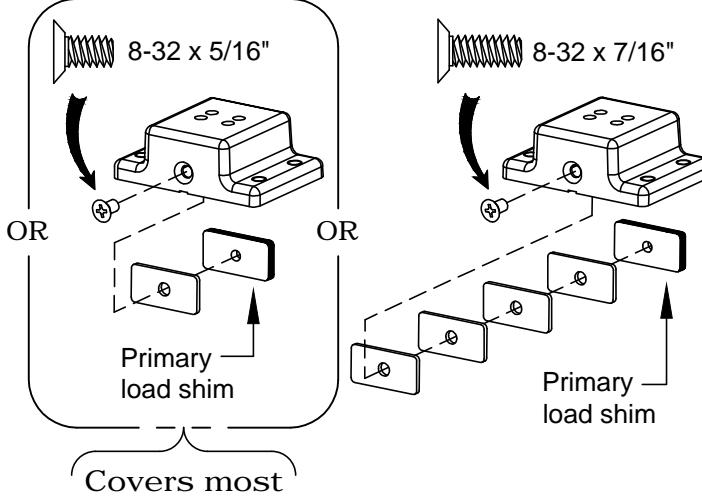

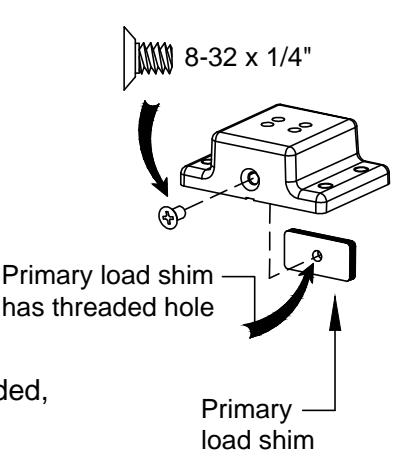

Load Shims are used to maximize device strength. Utilize to fill-in gap between strike insert and strike pocket wall. Primary shim should always be used.

Screw used with shims Supplemental
Load Shim
QTY
8-32 x 1/4" 0 shims
8-32 x 5/16" 1 or 2 shims
8-32 x 7/16" 3 or 4 shims

Begin strike installation with notched side of pocket towards inside door face. If additional adjustment is needed, rotate pocket 180°

applications

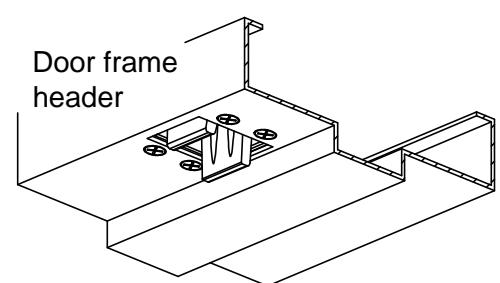

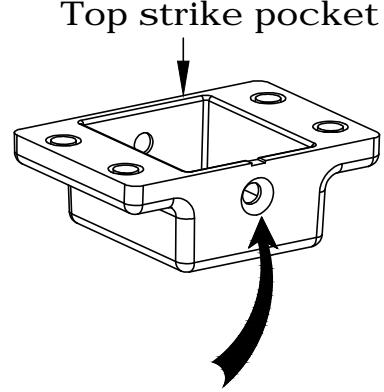

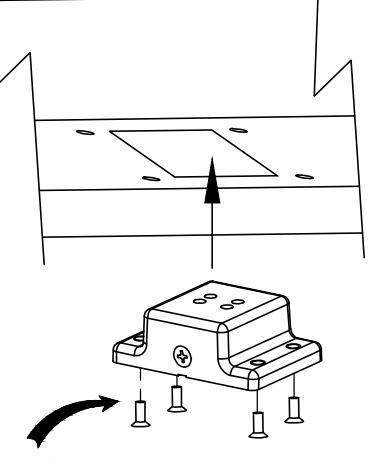

11C INSTALL TOP STRIKE POCKET

INSTALL top strike pocket with (4) socket cap flat head screws

Note: Load shims must be installed BETWEEN inside wall of top strike pocket & wall of strike insert as shown.

11\mathrm{e} finished strike installation view

10-32 x 5/8"

Verify device / strike fit.

Adjust the strike insert, load shims, and height shims as needed

Note:

Strike pocket must be removed from header in order to adjust load shims.

104924 Page 17

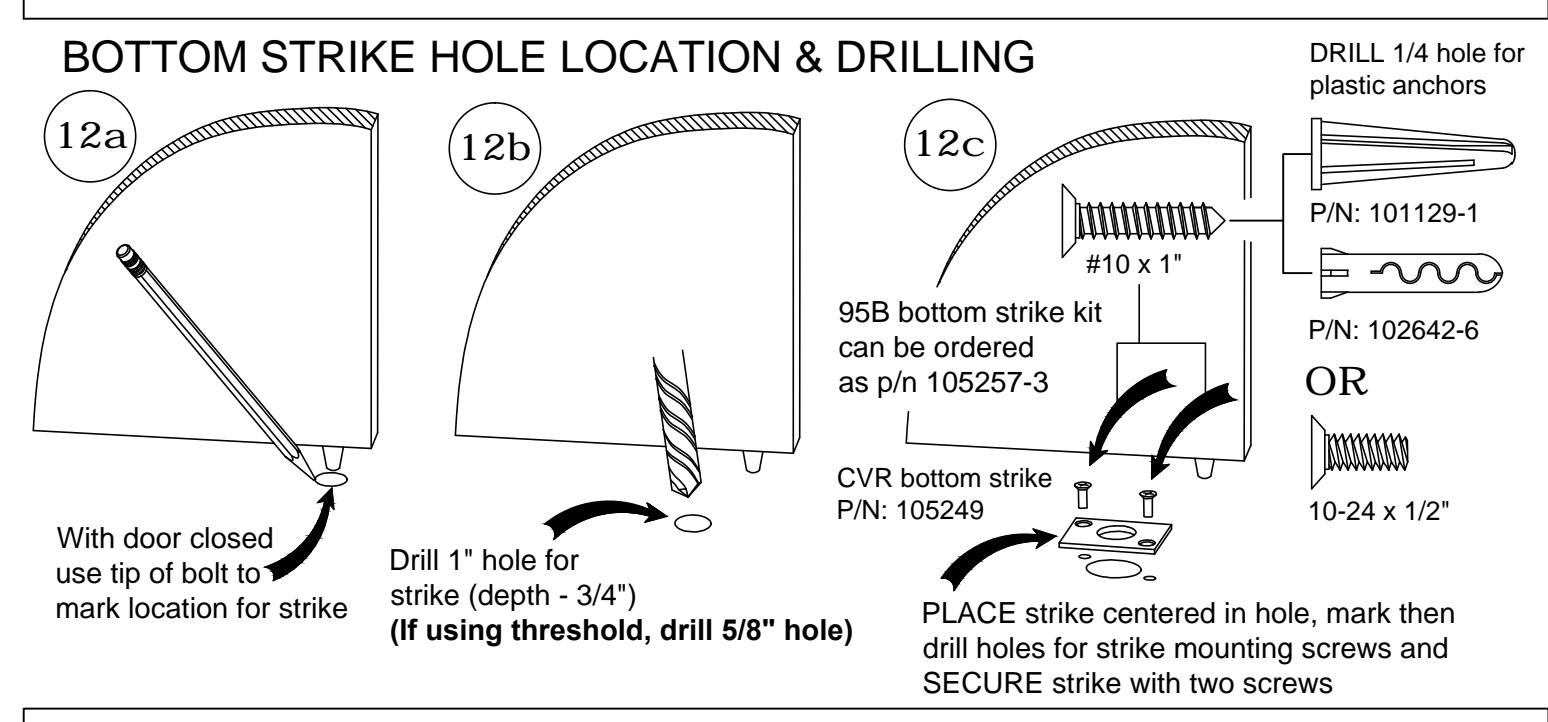

STEP 12: BOTTOM STRIKE INSTALLATION

STEP 13: FINE LATCH ADJUSTMENT

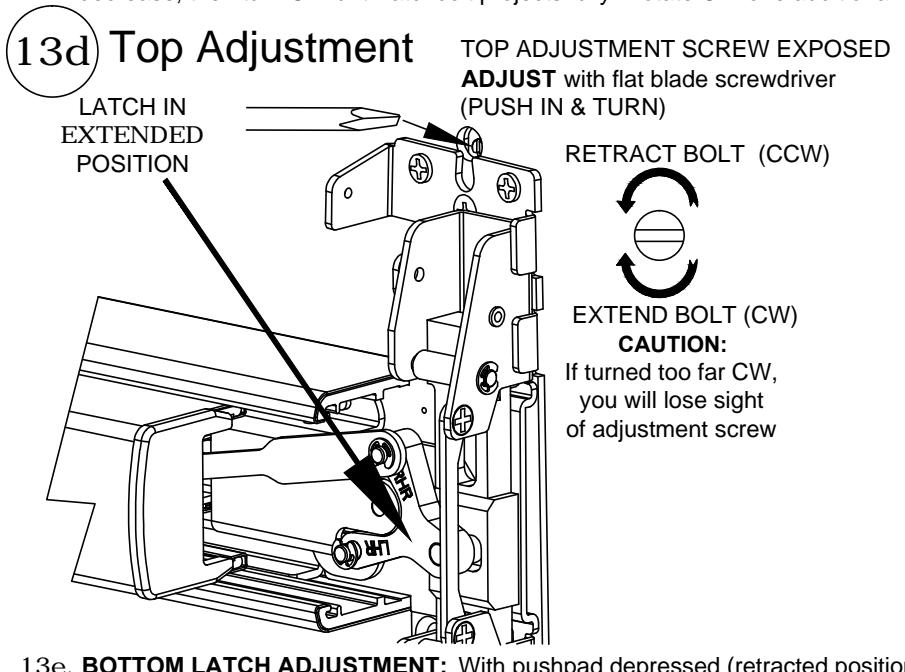

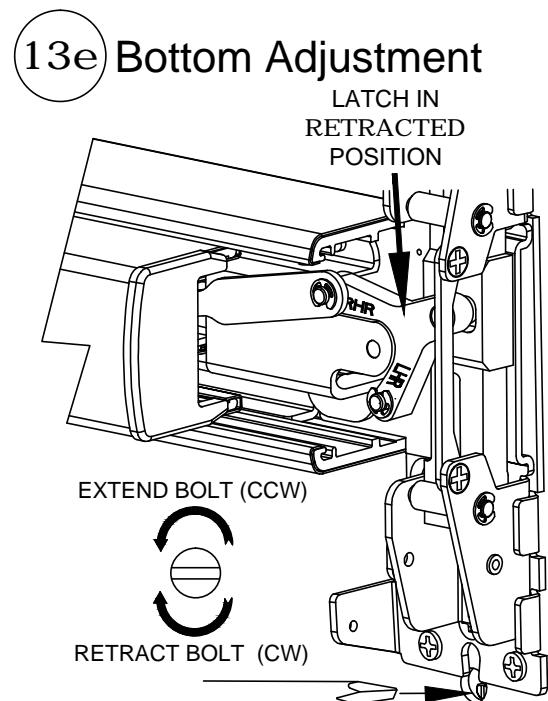

  • 13a. Ensure that latches are fully retracted. Gently close door. Latches should extend when door is closed.
  • 13b. Depress pushpad and open door. Top latch should clear top strike & bottom bolt should not drag. Latches should remain in retracted position with pushpad released.

FINE LATCH ADJUSTMENT (if needed) (± 3/8" adjustment possible on both top & bottom rods independently. See diagram below.)

  • 13c. Top strike fine adjustment: Adjust strike engagement by either retaining or removing shim. Adjust door tightness by moving insert to desired position. Note that strike pocket can be flipped around to achieve additional adjustment (see step 11).
  • 13d. TOP LATCH ADJUSTMENT: With latches extended, turn CCW until the top latchbolt projection begins to visually decrease, then turn CW until latchbolt projects fully. Rotate CW one additional full turn.

13e. BOTTOM LATCH ADJUSTMENT: With pushpad depressed (retracted position), extend or retract bottom bolt to desired engagement and clearance.

13f. Check device operation (See Device Operation Troubleshooting table). Reference STEP 13a & 13b.

104924 Page 18

BOTTOM ADJUSTMENT SCREW EXPOSED ADJUST with flat blade screwdriver (PUSH IN AND TURN)

DEVICE OPERATION TROUBLESHOOTING
SYMPTOM POSSIBLE CAUSE SOLUTION
Device not latching Bottom bolt is not properly aligned with bottom strike hole. Modify bottom strike hole for fit.
when door closes Top strike insert is not installed or not correctly aligned with the holdback. Install and/or position strike insert per instructions.
Through fasteners for trim (if applicable) are interfering with internal centerlift assembly. Loosen and re-position through screws to clear.
Rods improperly adjusted Adjust rods per instructions.
Troub improperty daylasted Remove device and re-install per instructions.
Latches release, but pushpad will not fully depress Device centercase lift finger not inserted properly into centerlift assembly. Remove device from backplate and re-install with lift finger correctly inserted.
Top adjustment screw is adjusted too far in the retracted direction (CCW). Rotate top adjustment screw in the extended direction (CW) per FINE LATCH ADJUSTMENT procedure.
Latches are not releasing when pushpad is fully depressed Device centercase lift finger not inserted properly into centerlift assembly. Remove device from backplate and re-install with lift finger correctly inserted.
Top adjustment screw is adjusted too far in the extended direction (CW). Rotate top adjustment screw in the retracted direction (CCW) per FINE LATCH ADJUSTMENT procedure.
Bottom adjustment screw is adjusted too far in the extended direction (CCW). Rotate bottom adjustment screw in the retracted direction (CW) per FINE LATCH ADJUSTMENT procedure.

STEP 14: COVER INSTALLATIONS

Optional Accessories

Sex Nut Kits

The #1/4-20 kits are available in 3 finishes: Brushed Brass BHMA 606: 105274-2 Oil Rubbed Bronze BHMA 613: 105274-25 Stainless Steel BHMA 630: 105274-9

Catalog No: SN3 uses screws in hardware kit

Tamper Kit (Security Kit)

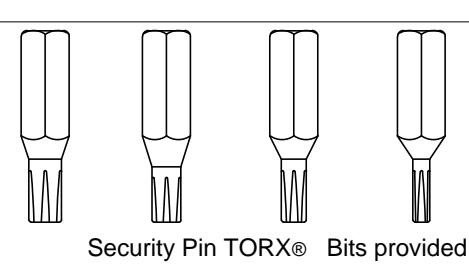

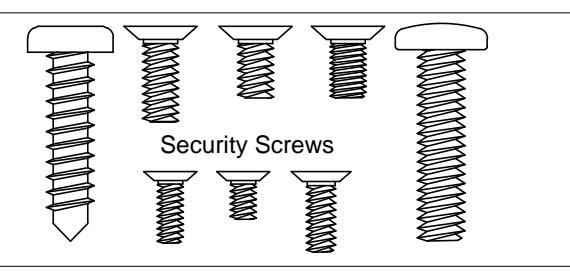

Catalog # & Part #: SSK5

Cylinder nut socket p/n: 103779
