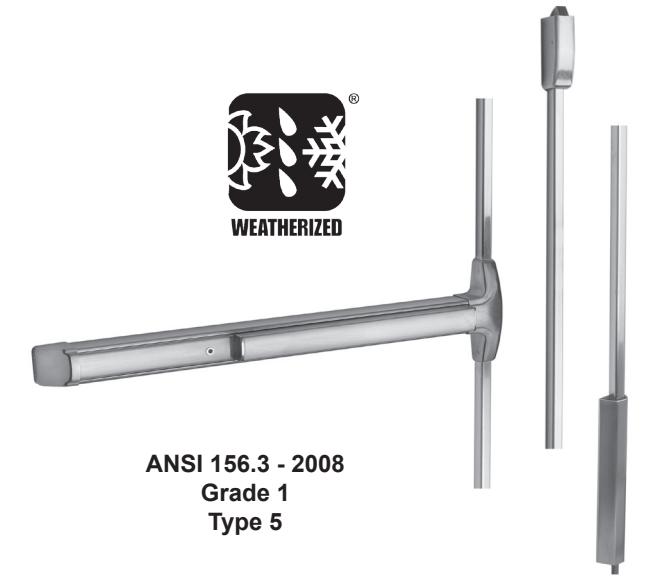

50xW SERIES

Weatherized Narrow Stile Surface Vertical Rod Device

The 50xW Series weatherized surface vertical rod exit device is super-heavy-duty panic and fire exit hardware for use on all types of narrow stile double doors without a mullion. All 50xW series SVR exit devices are supplied with top and bottom rod covers and an ADA compliant ramped bottom bolt cover. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available. In addition to listing as UL panic and fire exit hardware device, this device conforms to UL1034-34 Temperature Section 34, UL1034-54 Dust Section 54, MIL-STD 810F, Method 506.4 (driving rain test); and MIL-STD 810F, Method 509.4 (salt fog test).

Benefits

Tough and durable design for years of trouble-free service in high-use, high-abuse inclement weather environments
Heavy duty angled end cap deflects damage away from device
Minimal door prep saves time and money
Fast and easy installation saves time and money
Patented mounting plate and strike locator replaces paper templates
Security enhanced by stainless steel rod covers, standard
Outside trims are easily changed or rekeyed without removing device from door

Features

· Stainless steel deadlocking top latch
Hardened steel bottom drop bolt with dust proof strike
· Field sizeable

ADA ramped bottom bolt cover
1/8 turn hex or cylinder dogging
All exposed surfaces are finished over stainless steel with PVD, an environmentally friendly finishing process
Assembled using components resistant to temperature, dust, driving rain and salt fog
Fasteners made of stainless steel 316 material
· Handed field reversible

Mechanical Options

F 3-Hour Fire Rated
AM Anti-Microbial Coating
HD Hex Dogging (Std.)
CD Cylinder Dogging
· LD Less Dogging
EC1 Heavy duty angled end cap (Std.)

EC2 Flush end cap
24 Fits 24" Door Width
30 Fits 30" Door Width
36 Fits 36" Door Width (Std.)
48 Fits 48" Door Width

84 84" Door Height (Std.)
96 85" to 96" Door Height
120 97" to 120" Door Height

For full list of available mechanical options, see 50 Series How To Order page

Electrical Options

Electric Unlock (EU2W)
Request to Exit Weatherized (EX W)
Request to Exit Weatherized for High Voltage (EXV W)

Refer to Electrified Options section for more information

Accessories

SSK- Security Torx Screw Kit
GB5 Glass Bead Kit 7' Door Height (84")
GB9 Glass Bead Kit 8' Door Height (85" - 96")
GB13 Glass Bead Kit 10' Door Height (97" - 120")
SN1 Sex Nut Kit (2 per package)
Trim Functions (see Outside Trims)

Technical Information

Minimum Stile 2" with standard 96 strike
Door Thickness Fits standard 1-3/4" - 2-1/4" doors (for other door thicknesses contact factory)
Fasteners Machine and Self-Drilling Screws standard stainless steel 316 material

• Door Types - Wood, Hollow Metal, Fiberglass or Aluminum

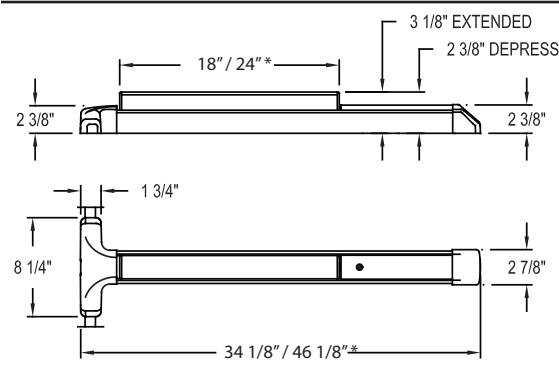

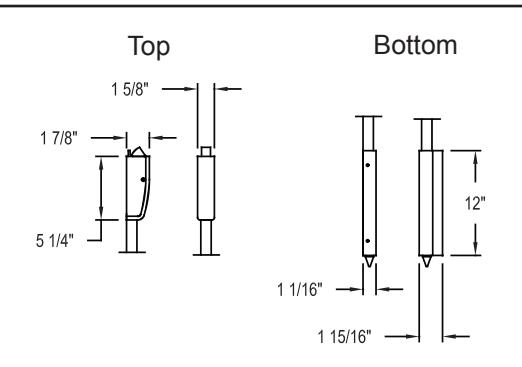

Dimensions

* 18" and 34 1/8" dimension for 36" door
* 24" and 46 1/8" dimension for 48" door

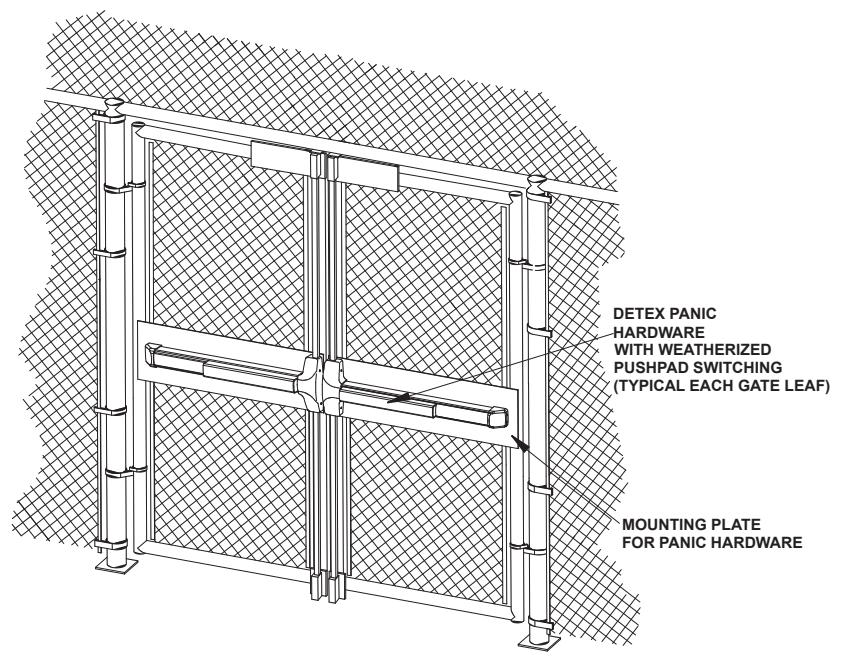

Double Gate Riser

Finishes

605 / US3	Polished Brass
606 / US4	Brushed Brass
611 / US9	Polished Bronze
612 / US10	Brushed Bronze
	613 / US10B Oil Rubbed Bronze
628 / US28	Aluminum Satin
629 / US32	Polished Stainless Steel
	630 / US32D Brushed Stainless Steel
	693 / SPBLK Black, Painted 695 / SP 313 Dark Bronze, Painted
