UT5200 Series

Pre-Assembled Unit Locks Parts and Service Manual

Refer to the installation instructions for complete installation.
In order to simplify the ordering procedure, parts are only available as listed.
To order parts, use the appropriate Part Number and specify Finish ( fin ) as directed. For example, to order ten Knob Sleeves for the UT5255 Function in 626 finish, use the following configurations:

Quantity	Part Number	Finish	Hand
10	401F08	626

• For assistance, contact your authorized Corbin Russwin Distributor or contact Corbin Russwin directly at the address on the back cover.

The warranty on Corbin Russwin products becomes void if the product is modified in any way, regardless of whether the modifications causes or contributes to any alleged defect. If a Corbin Russwin product is modified it may no longer meet industry certification and quality control standards applicable to the original product and is no longer a genuine Corbin Russwin product.

	Introduction 2
	Quick Conversion 4
	Do You have the current model? 5
Parts List

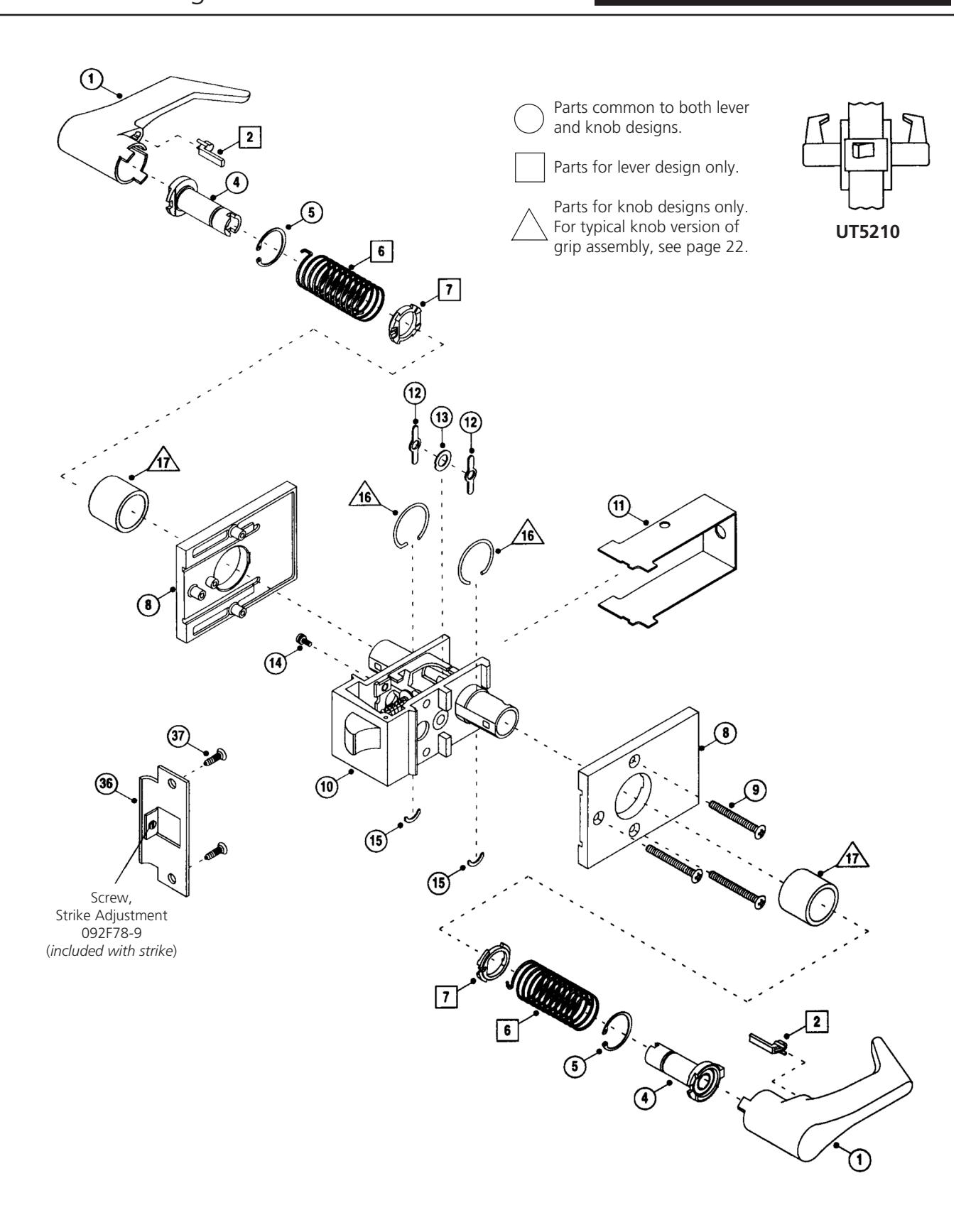

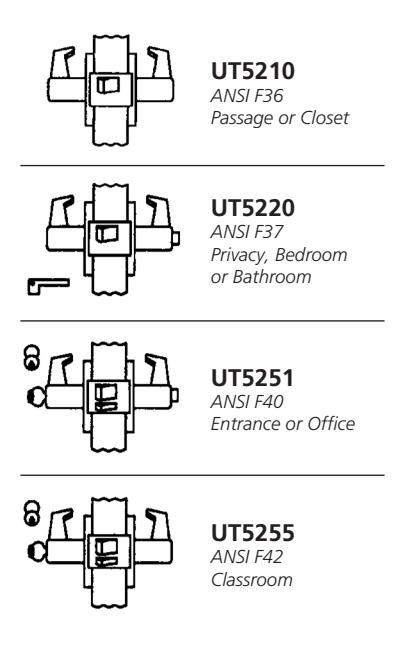

UT5210	Passage or Closet 6-7

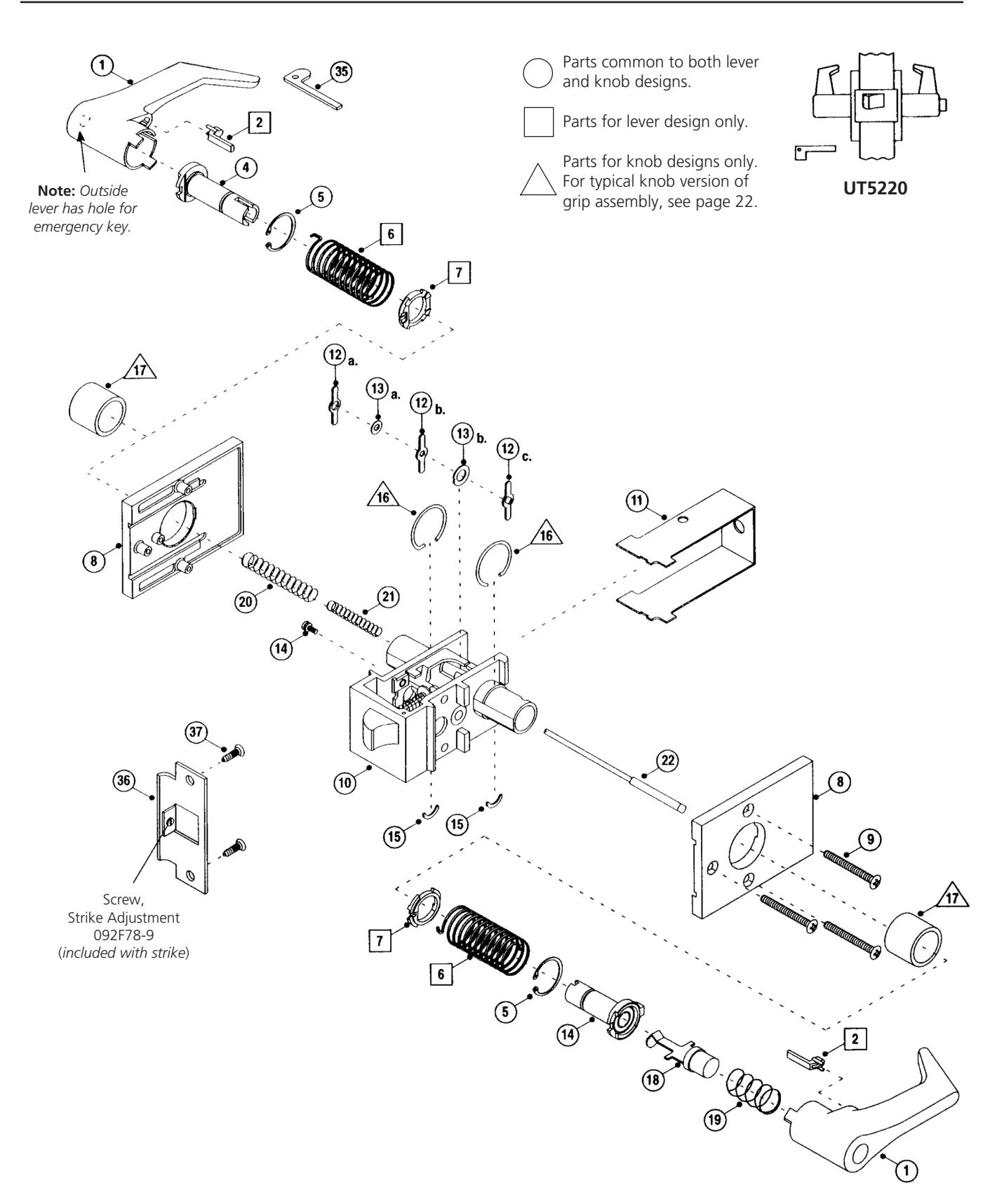

UT5220	Privacy, Bedroom or Bathroom 8-9

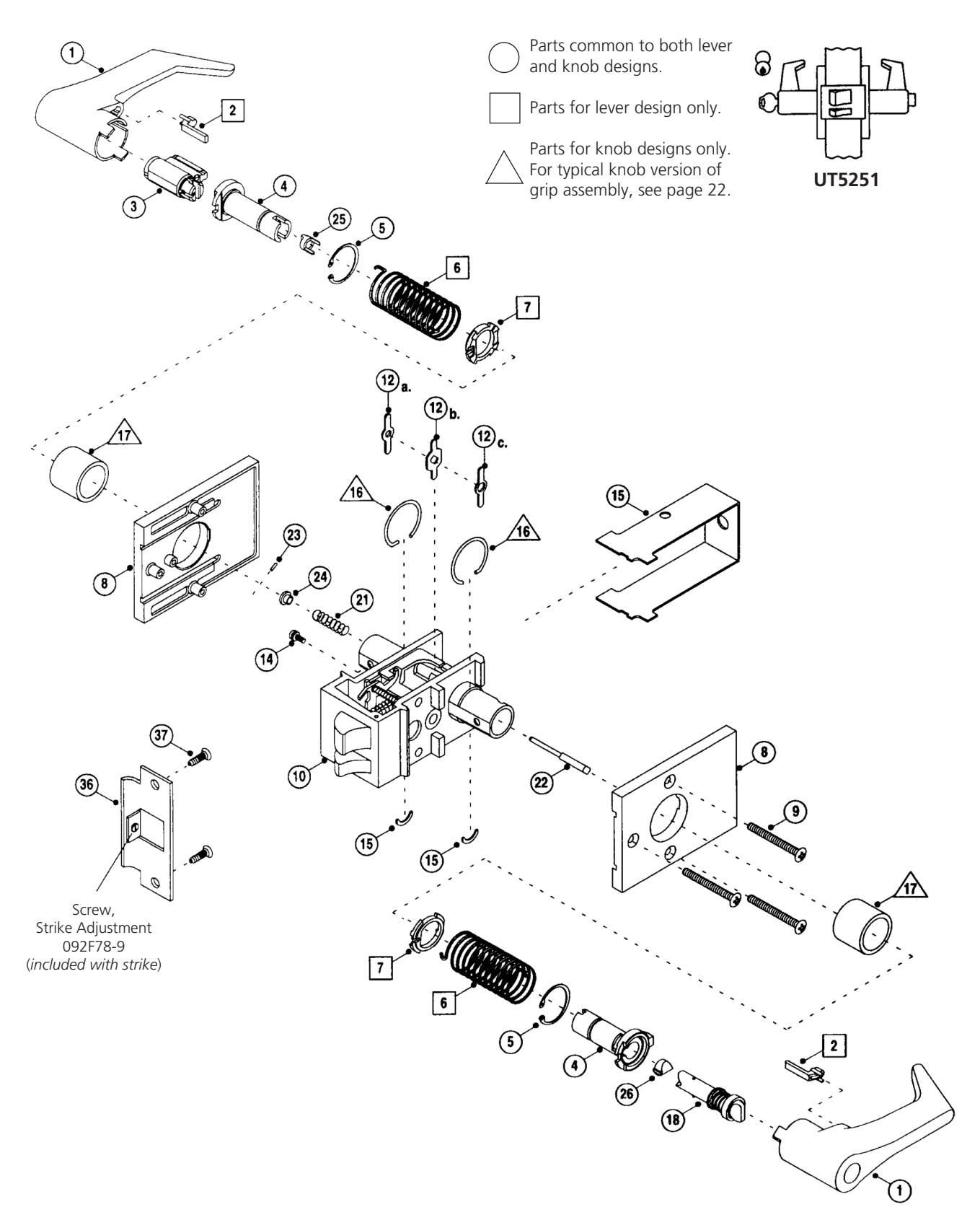

UT5251	Entrance or Office 10-11
UT5255	Classroom 12-13

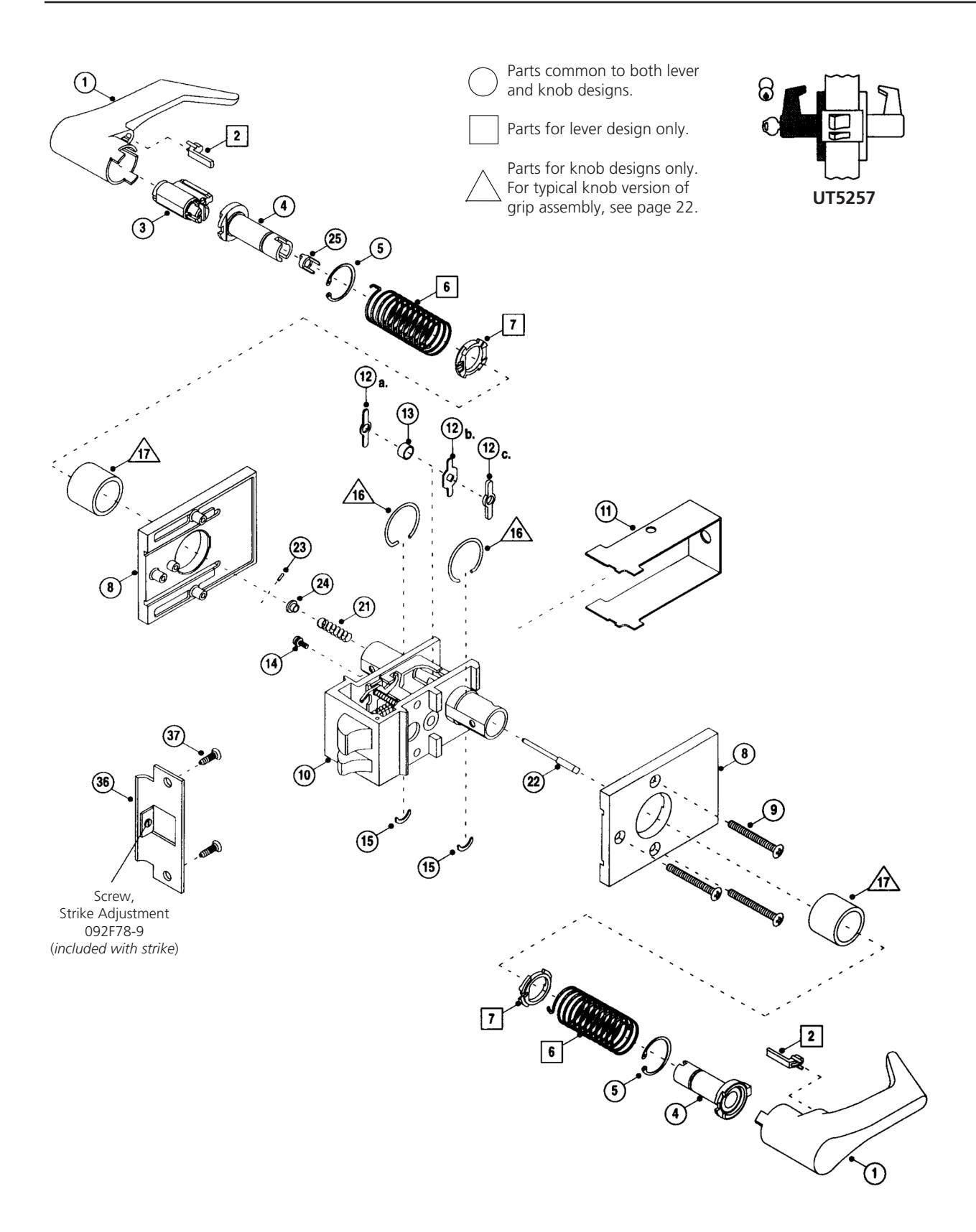

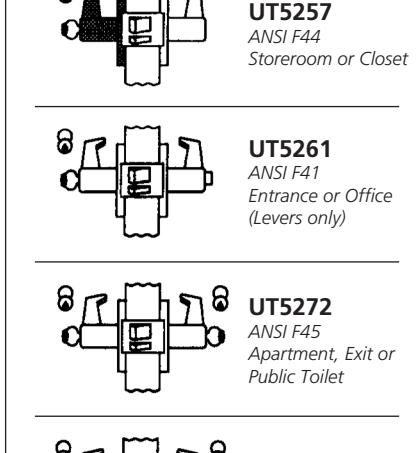

UT5257	Storeroom or Closet 14-15

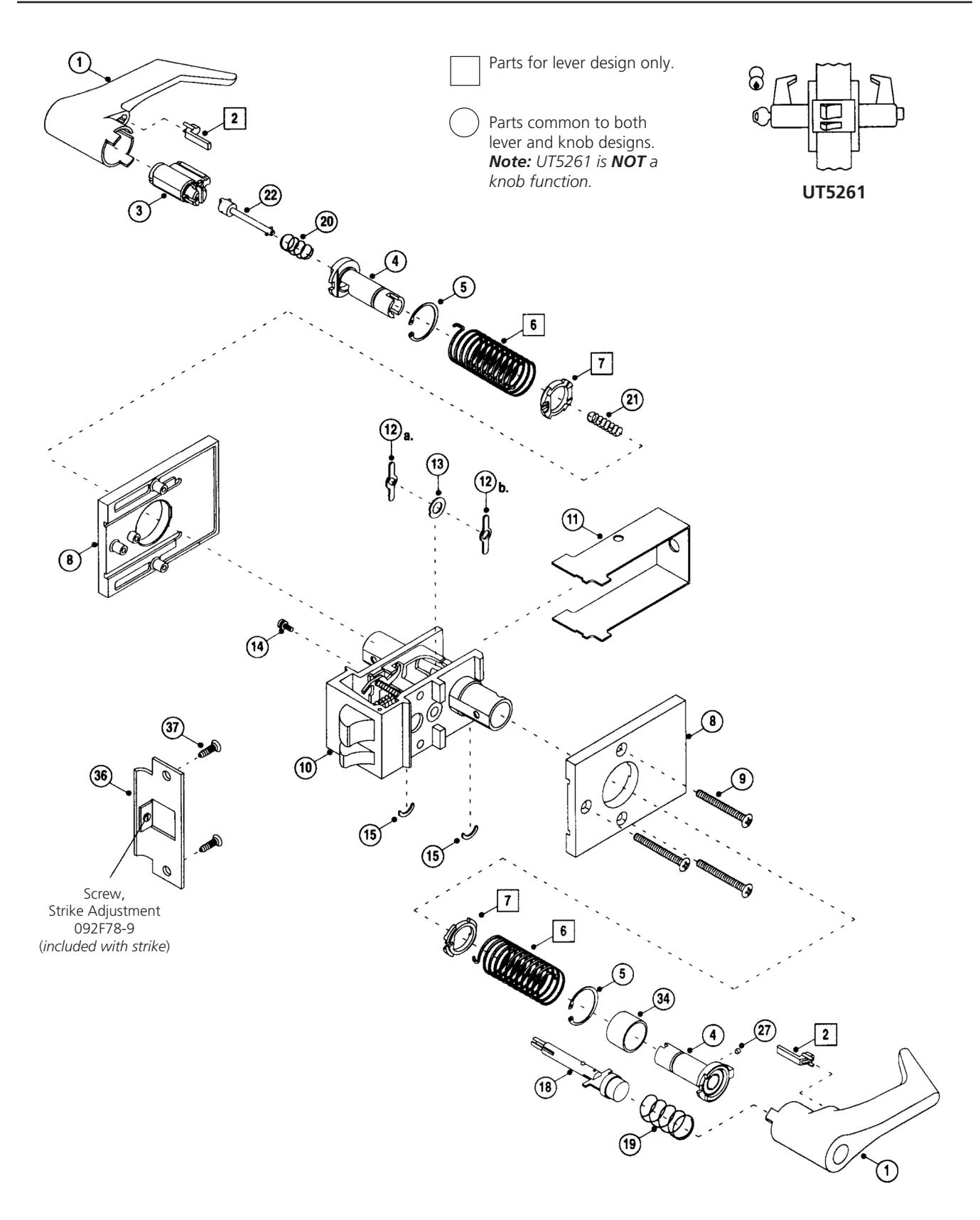

UT5261	Entrance or Office (levers only) 16-17

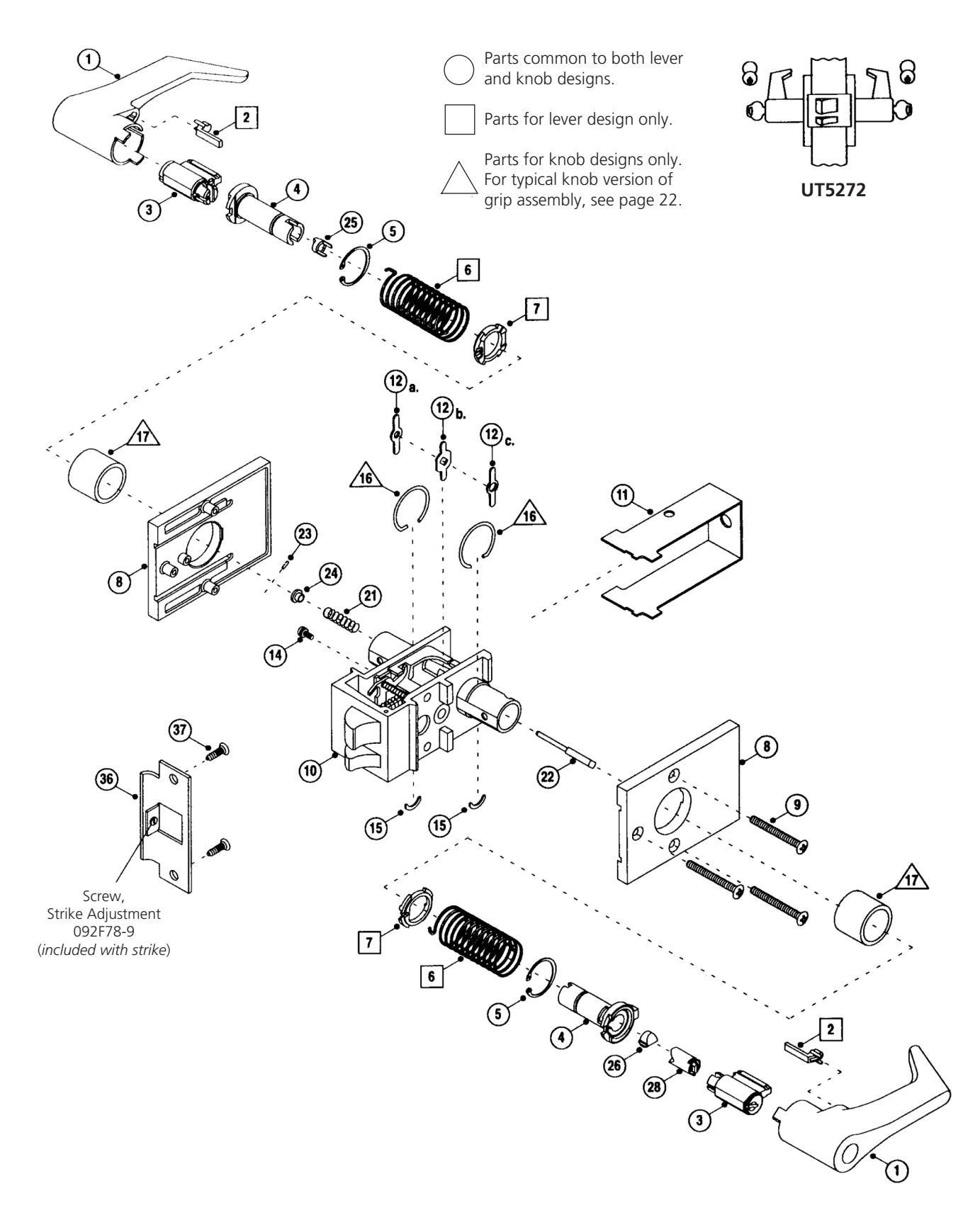

UT5272	Apartment, Exit or Public Toilet 18-19

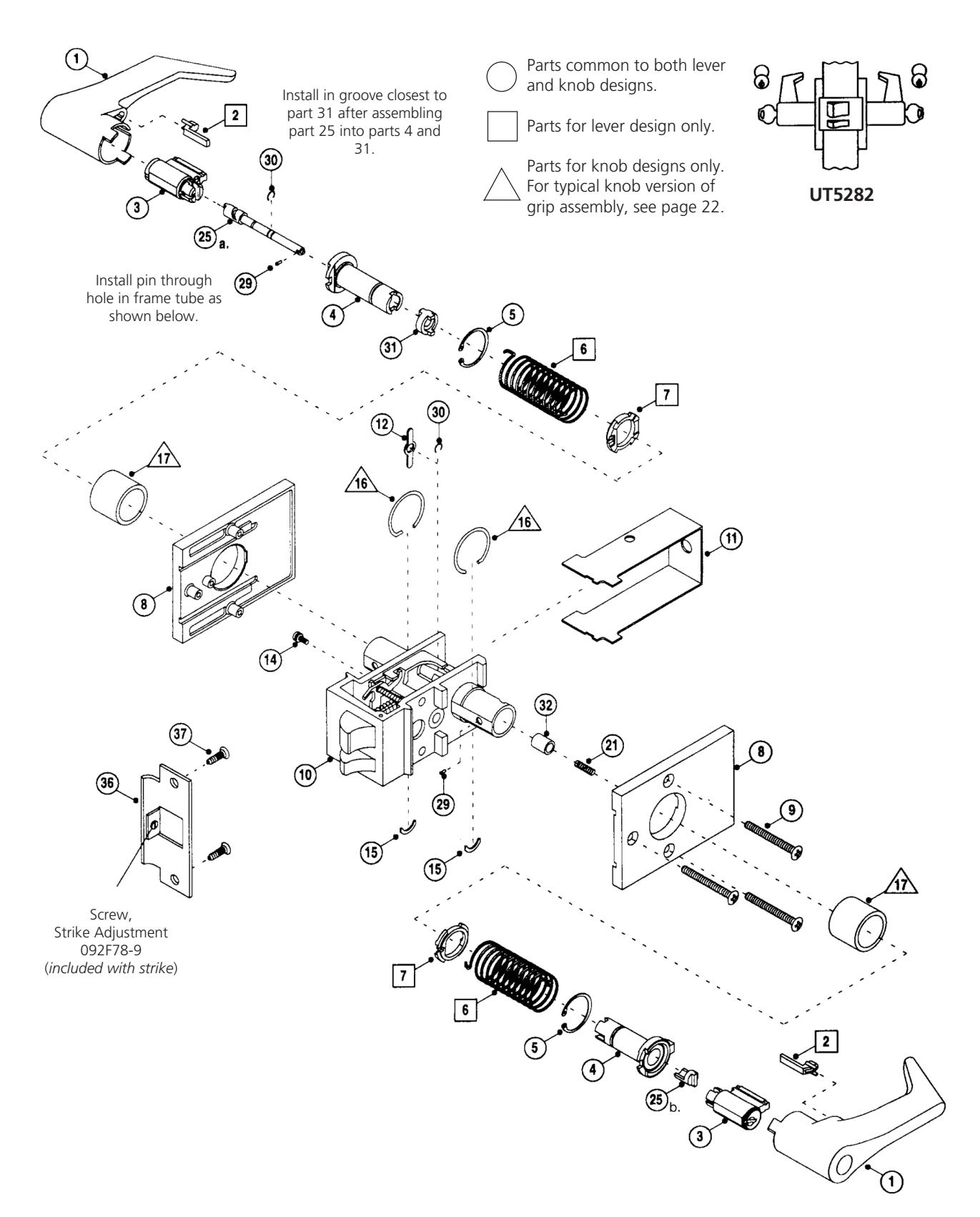

UT5282	Store Door 20-21

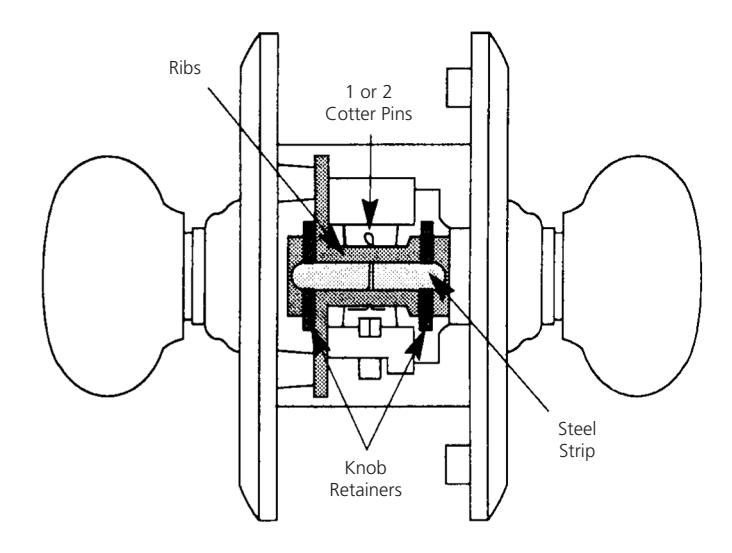

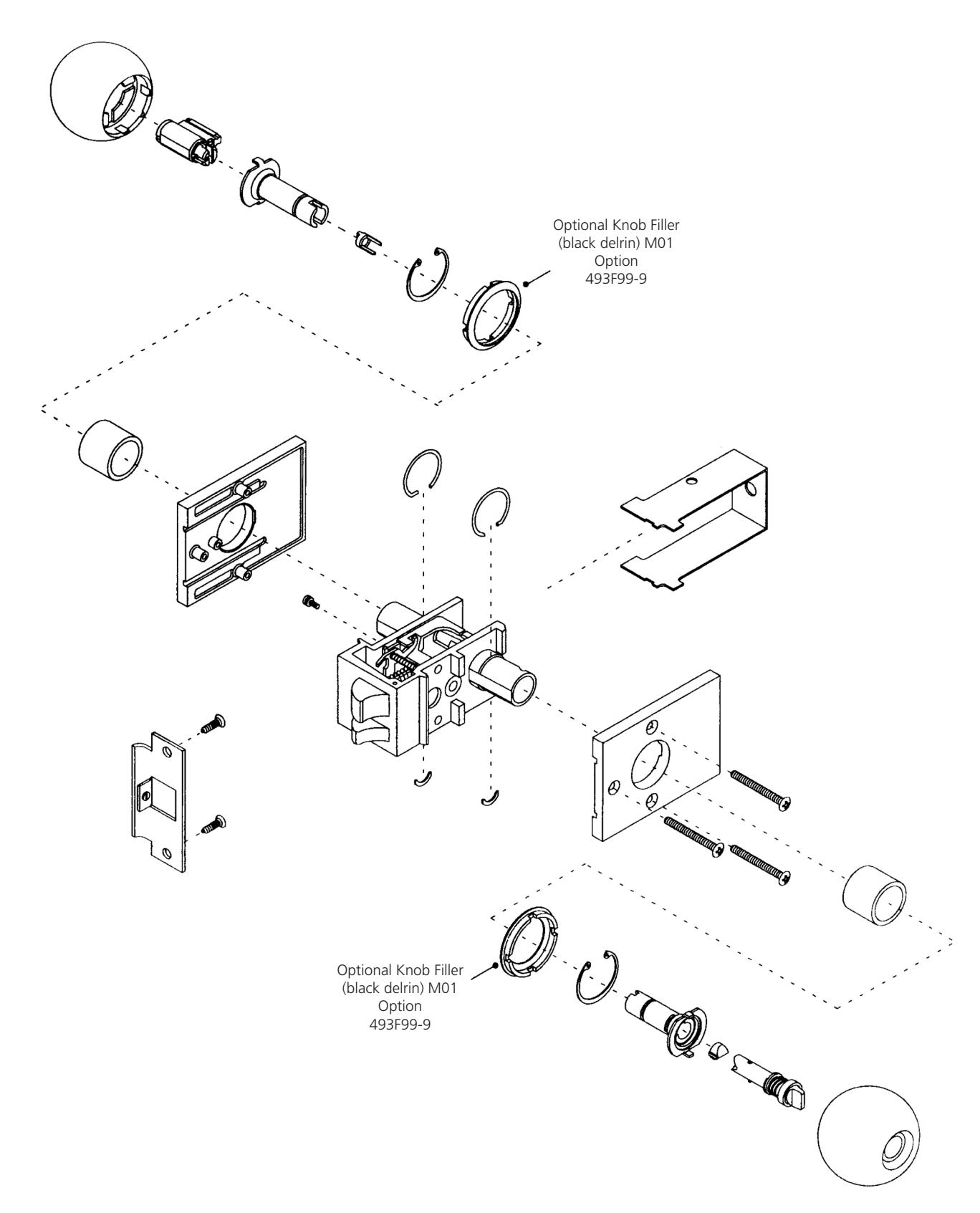

	Typical Knob Configuration 22

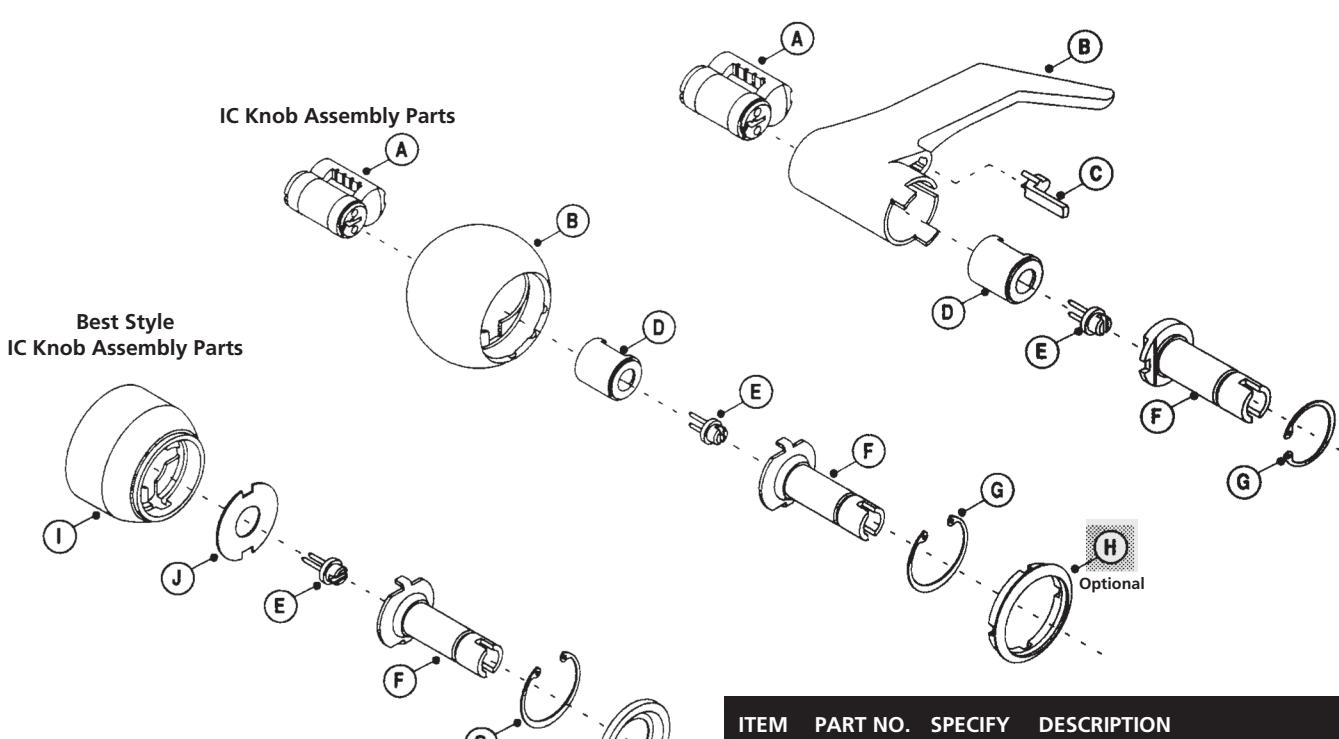

	Interchangeable Core Configuration 23
	Lever and Knob Shank – Comparison Guide 24
	Options and Accessories 25
	Parts Cross Reference 26-28

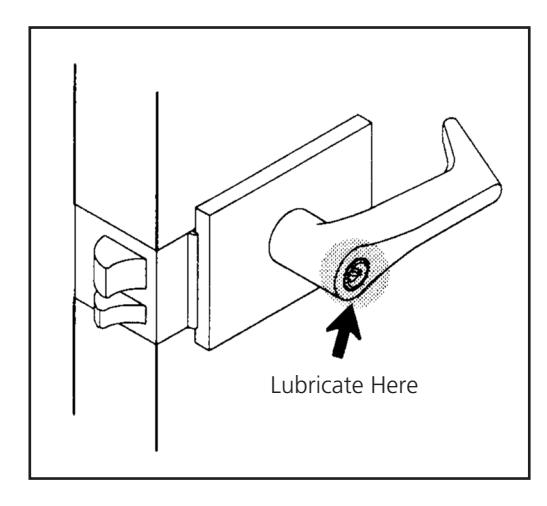

	Routine Maintenance 29

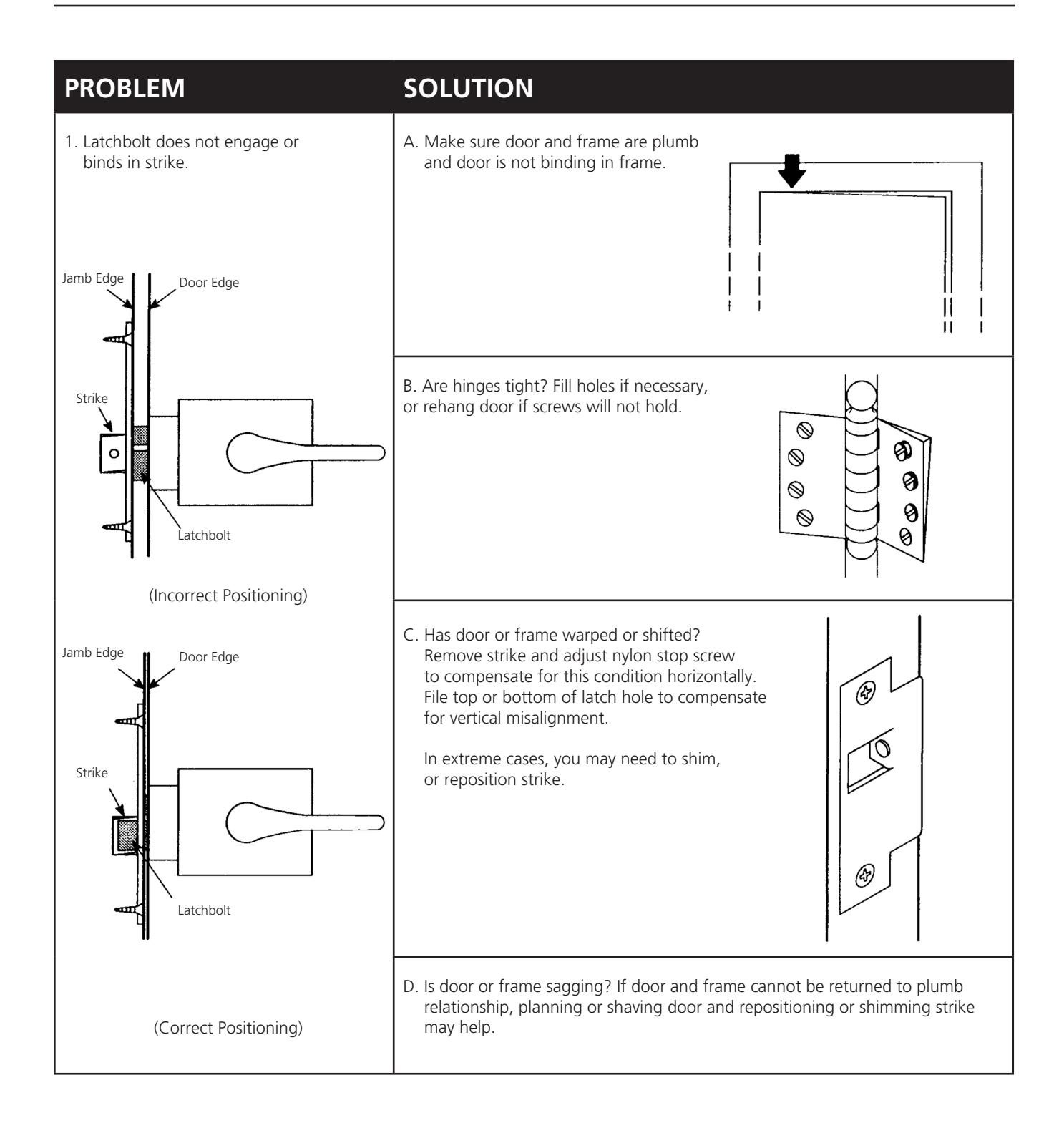

	Troubleshooting Guide 30-31

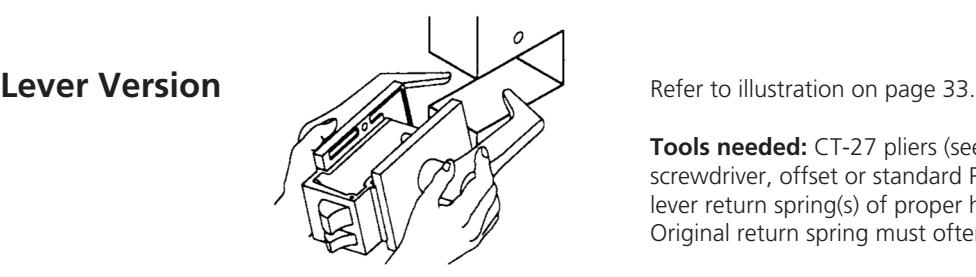

	Cylinder Removal Instructions 32
Current Model

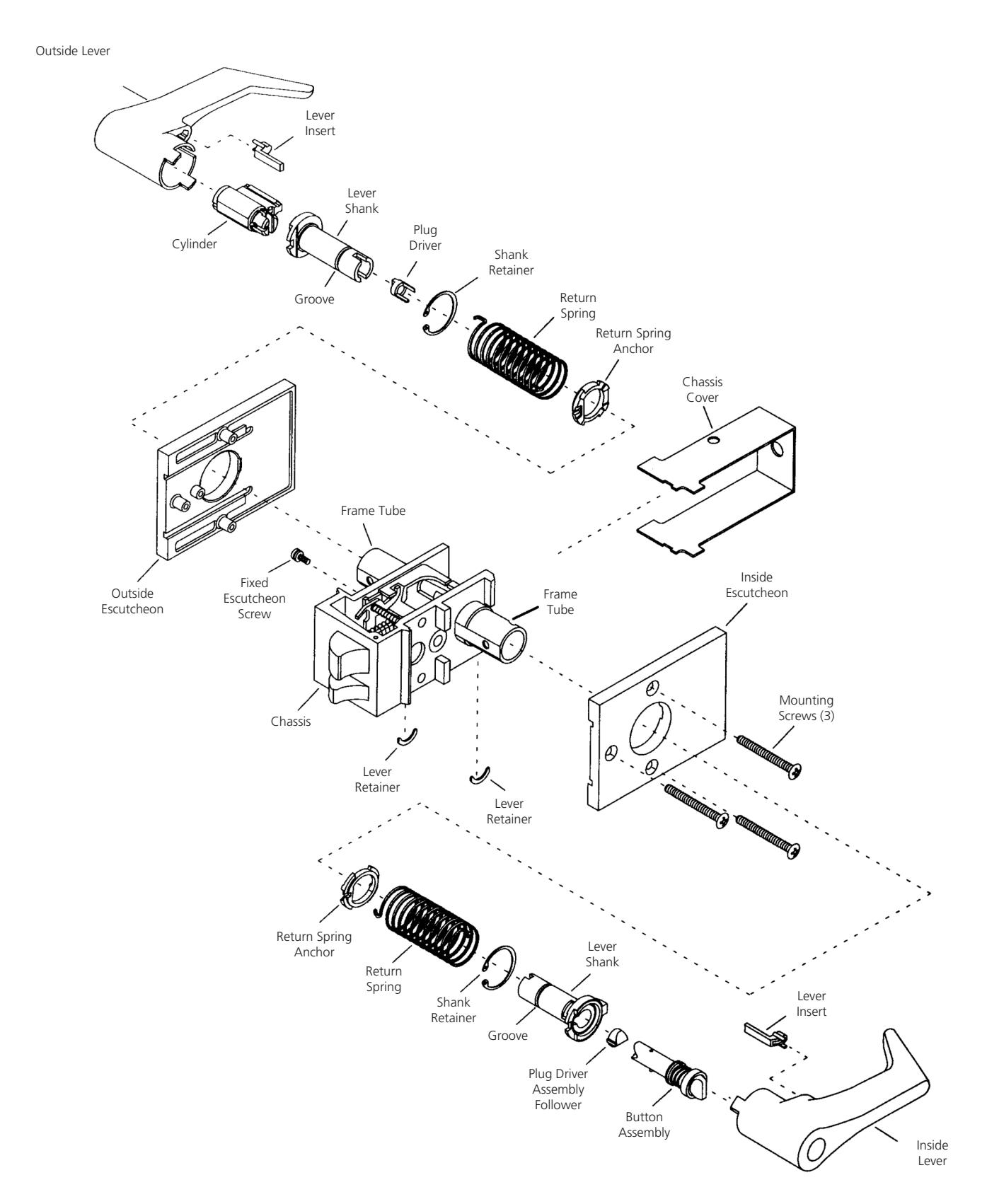

	Lever Version 32-33

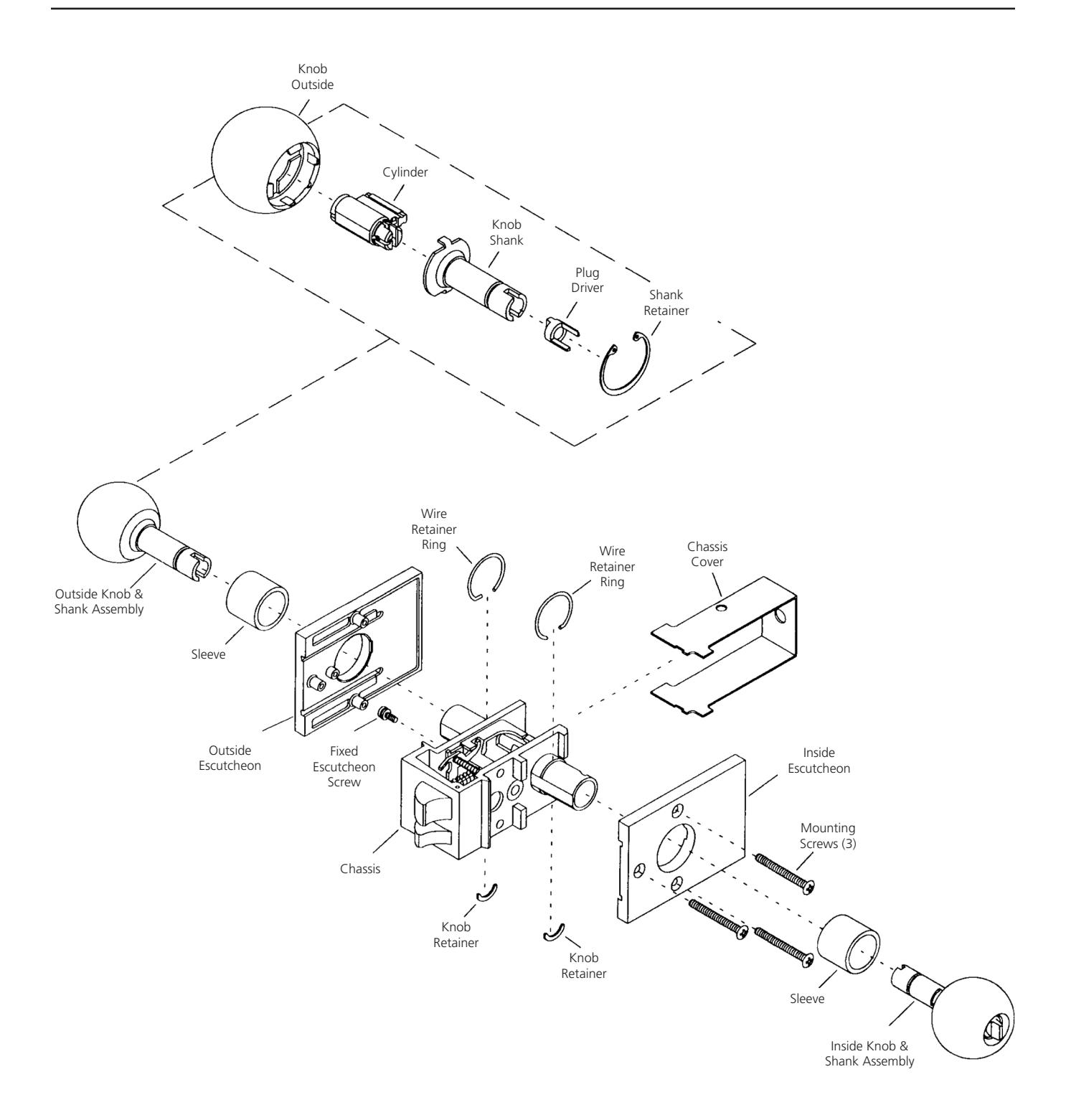

	Knob Version 34-35
Discontinued Models
	Corbin 2000/2200/2400 and 500 Series (1899 - 1963) 36

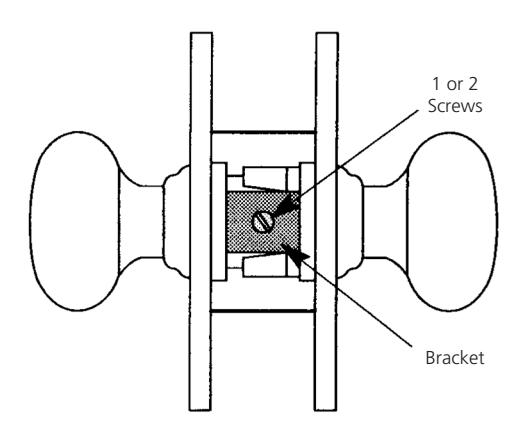

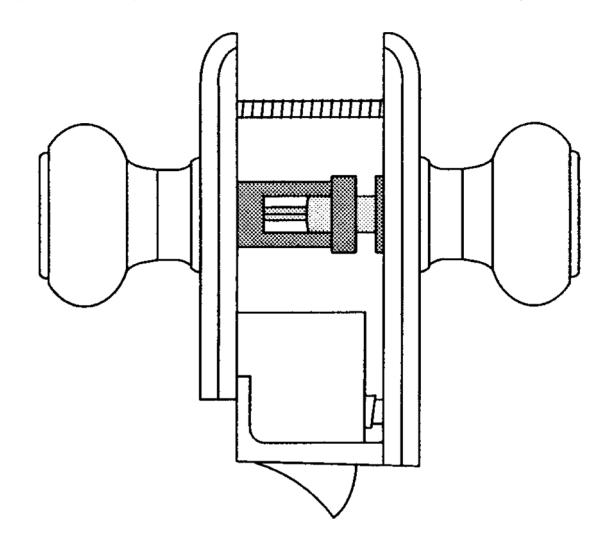

	Corbin 700/Russwin 1600 Series "Baby" Unit Lock 37

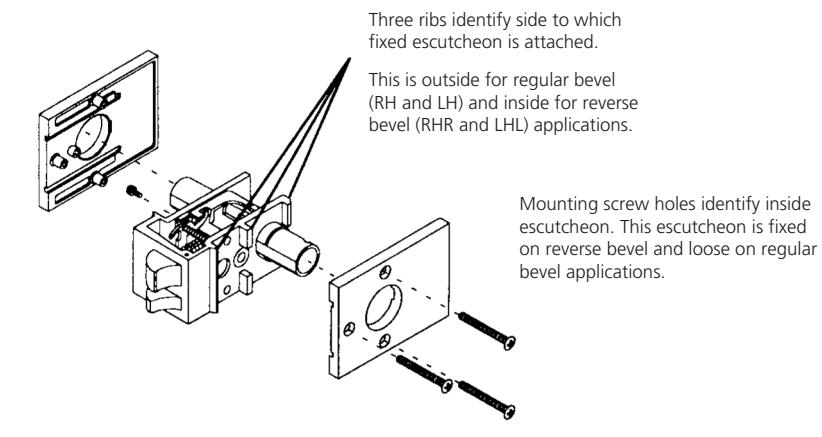

	Russwin 2100/2800 Series only (1904 - 1968) 38
	Service Procedures 39-40
	Changing from Knobs to Levers 39
Changing Hand of Lockset:
	Knob Version 39-40
	Lever Version 41

Quick Conversion As of May 1993, Corbin Russwin has introduced a new simplified product numbering system that makes it easy to identify, specify and order a complete line of architectural hardware.

Although the catalog numbers have changed, the part numbers have remained the same. Identifying parts is as easy as it's always been! To find a function or trim design, simply use this "Quick Conversion" as a helpful cross reference bridge from the former Corbin and Russwin languages (pre-May 1993) to the new Corbin Russwin language.

Corbin

Function No. Before 5/93	Function No. After 5/93
310	UT5210	6
320	UT5220	8
351	UT5251	10
354	UT5272	18
355	UT5255	12
357	UT5257	14
361	UT5261	16
388	UT5282	20

Trim Design Before 5/93	Trim Design After 5/93
912R	ESE
964 Global	GRE
966 Pierce	BRE

Russwin

Function No. Before 5/93	Function No. After 5/93	Page
510	UT5210	6
520	UT5220	8
540	UT5251	10
540 5/ 8	UT5255	12
546	UT5261	16
546 1/ 2	UT5272	18
548 1/ 2	UT5282	20
552	UT5257	14

Trim Design Before 5/93	Trim Design After 5/93
912R	ESE
Ashford	GRE
Belmont	BRE

Function

Copyright © 1999-2018, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

UT5282 ANSI F46 Store Door

Historically, no lockset design has been as closely associated with the Corbin Russwin brand name as the unit lock. The unit lock's sturdy, rugged construction gives it an unrivaled lifetime of smooth, trouble-free operation. Tens of thousands of these locks have already outlasted the buildings they were installed in! Now, past its 100th anniversary, the unit lock has evolved through several different models.

The rectangular chassis unit lock was invented by Byron Phelps, former mayor of Seattle, Washington. He brought his invention across the country in 1898 to P.F. Corbin, who licensed and manufactured it. The first patents were issued on January 31 and June 6, 1899. Today's UT5200 Series locksets are closely based on that design.

Instead of the large rectangular chassis by Corbin, the earliest Russwin unit lock had a different design and door prep. A 1" round knob spindle was completely separated from a small rectangular case around the latch area. This design was invented by Henry Voight, an extremely prolific lock inventor of that era, then employed by Russell & Erwin Mfg. Co. Its first patents issued on April 19 and August 30, 1904.

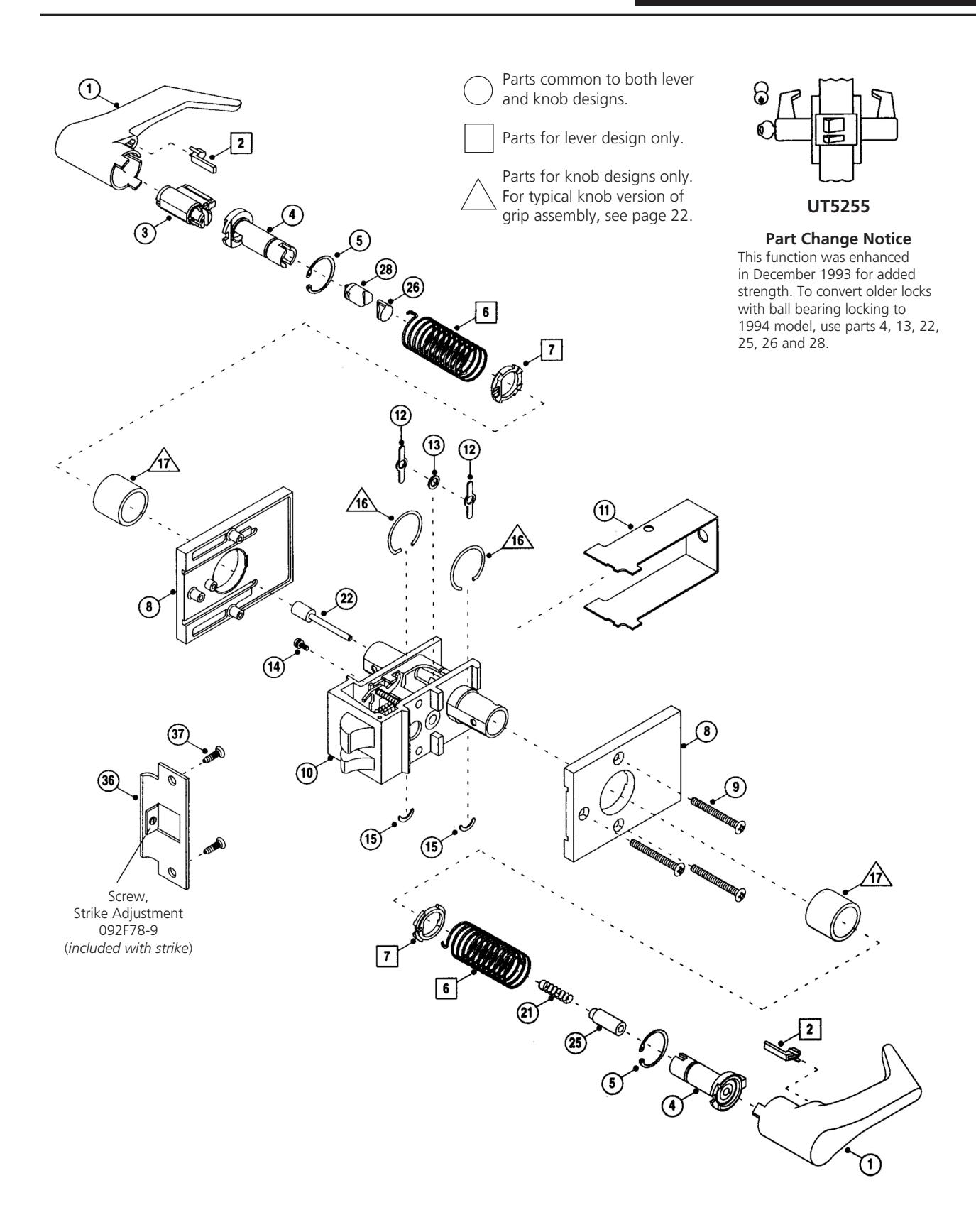

The exploded views in this manual are limited to the current model of UT5200 Series parts. For most functions, this includes all locks manufactured since 1968, although certain current parts will operate in some older models. Since locksmiths are often called on to rekey older locksets, we include cylinder removal instructions for earlier models

later in this manual. Use the table below to help identify the various models.

In reviewing the table, keep in mind that Corbin Russwin began as separate companies, so there is not a Corbin-to-Russwin cross-reference for the early models.

Old catalogs, price books and engineering drawings, as well as physical samples were studied to compile the table. However, a few pieces of the puzzle were still missing at press time.

Anyone with locksets or positive documentation to correct or add to this information is invited to contact the Corbin Russwin Marketing Department.

With lock removed, apply these clues to the table below to determine the model of your lock.

If it bears the Russwin name and the knobs have a round shaft separate from a small rectangular chassis, it is the Russwin 2100/2800 Series.
Look for numbers cast into underside of escutcheons.
Observe keyway orientation and measure chassis dimensions.
Read latest patent date stamped into chassis cover.
Look for numbers stamped into top or bottom edge of chassis frame (Note: some numbers are not significant)

Corbin Series	Russwin Series	Keyway	Chassis Dimensions	Backset	Cylinder Series	First Sold	Last Sold	Remarks
(0)2000*		vertical	1 1/2 x 3 1/2" 1 1/2 x 3 3/4" 1 1/2 x 3 1/2"	2 3/4" 3" 3"	250	1899	1913	4 or 5 pin 99 or 97 keyway
(0)2200*		vertical	2 x 3 3/4" 2 3/16 x 4" 2 5/8 x 4"	3" 3"	250	1913	1953	anti-friction fire (dead) latch
(0)2400*		vertical	2 x 3 1/2" 2 x 3 3/4" 2 5/8 x 3 3/4"	2 3/4" 3" 3"	250	1913	1953
	2100/2800	vertical	(see remarks)	3"	2100	1904	1968	small chassis + 1" spindle
7xx-500		vertical	2 5/8 x 3 3/4"	3"	250	1954	1966	= largest 2400 Series renamed
?		vertical	1 3/8 x 3"	2 3/8"	?	?	?	small model
9xx-700	1600	horizontal	1 3/4 x 3 1/4"	2 1/2"	260 & 250	1949	1954	small model
9xx-900	600	horizontal	1 3/4 x 3 1/4"	2 1/2"	460	1955	1963
9xx-300	500	horizontal	1 3/4 x 3 5/8"	2 1/2"	460	1963	current	changed in 1968; now UT5200

^{* &} quot;0" prefix designates deadlatching. Numbers without this prefix are not deadlatching.

ITEM	PART NO.	SPECIFY	DESCRIPTION
1	(see chart below)		Lever or Knob: plain both sides
2	613F02-9		Lever Insert (gray)
4	102F198 060F91-8		Lever Shank Knob Shank
5	242F50-8 219F80-8		Shank Retainer for Lever Knob
6	103F44-8 103F45-8		Return Spring Clockwise (RH) Lever Counter Clockwise (LH) Lever
7	171F79-8		Return Spring Anchor
8	144F33 144F34 301F56-7 605F90 415F15 415F16 415F27-7 605F91	fin fin	Escutcheon (lever Trim) inside outside outside, extended lip inside, lead lined option M28 Escutcheon (knob Trim) inside outside outside, extended lip inside, lead lined option M28

ITEM	PART NO.	SPECIFY	DESCRIPTION
9	222F85	fin	Mounting Screw
10	496F33	fin	Chassis
11	138F88-8		Chassis Cover
12	060F42-8		Hub
13	060F33-8		Hub Spacer
14	249F76-8		Screw, fixed escutcheon
15	078F07-8		Grip Retainer
16	078F08-8		Grip Retainer Ring
17	401F08	fin	Sleeve
36	236L75M020	fin	ANSI Strike (see page 25 for options)
37	480F70	fin	Screw Packet for Strike

Lever ( specify finish )

Note: Levers are handed.

RH lever: Clockwise rotation. For outside of RH or RHR locks and inside of LH or LHR locks.

LH lever: Counter-clockwise rotation. For outside of LH or LHR locks and inside of RH or RHR locks.

		Regular	Tactile Warning
	Essex (RH) Essex (LH)		Essex (RH)	Essex (LH)

plain	613F10-2	613F11-2	613F14-2	613F15-2

Knobs ( specify finish )

		Regular	Tactile Warning
	Global Belmont		Global	Belmont
plain	383F66	406F33	575F58	575F64

ITEM	PART NO.	SPECIFY	DESCRIPTION
1	(see chart below)		Lever or Knob: Privacy key outside x button inside
2	613F02-9		Lever Insert (gray)
4	114F678 102F378 202F338 133F418		Lever Shank, outside Knob Shank, inside Lever Shank, outside Knob Shank, inside
5	242F50-8 219F80-8		Shank Retainer for Lever Knob
6	103F44-8 103F45-8		Return Spring Clockwise (RH) Lever Counter Clockwise (LH) Lever
7	171F79-8		Return Spring Anchor
8	144F33 144F34 301F56-7 605F90 415F15 415F16 415F27-7 605F91	fin fin	Escutcheon (lever Trim) inside outside outside, extended lip inside, lead lined option M28 Escutcheon (knob Trim) inside outside outside, extended lip inside, lead lined option M28
9	222F85	fin	Mounting Screws
10	496F34	fin	Chassis
11	138F888		Chassis Cover

ITEM	PART NO.	SPECIFY	DESCRIPTION
12a	060F42-8	fin	Hub
12b	071F62-8	fin	Hub
12c	081F77-8		Hub
13a	070F42-8		Hub Spacer
13b	070F43-8		Hub Spacer
14	249F76-8		Screw, fixed escutcheon
15	078F07-8		Grip Retainer
16	078F08-8		Grip Retainer Ring
17	401F08	fin	Sleeve
18	022F80	fin	Button Assy.
19	022F72-3	fin	Button Spring
20	060F05-3	fin	Shoe Spring
21	071F67-3	fin	Spindle Spring
22	201F18-8	fin	Spindle
35	398F43-8	fin	Emergency Key
36	236L75M020	fin	ANSI Strike (see page 25 for options)
37	480F70	fin	Screw Packet for Strike

Lever ( specify finish )

Note: Levers are handed.

RH lever: Clockwise rotation. For outside of RH or RHR locks and inside of LH or LHR locks.

LH lever: Counter-clockwise rotation. For outside of LH or LHR locks and inside of RH or RHR locks.

	Regular		Tactile Warning
	Essex (RH) Essex (LH)		Essex (RH)	Essex (LH)

Cylinder or Button Privacy Key Hole	582F11-2 613F12-2	582F12-2 613F13-2	582F13-2 613F16-2	582F14-2 613F17-2

Knobs ( specify finish )

		Regular	Tactile Warning
	Global	Belmont	Global	Belmont
Cylinder or Button Privacy Key Hole	383F65 383F67	406F32 406F34	575F57 575F59	575F63 575F65


ITEM	PART NO.	SPECIFY	DESCRIPTION
1	(see chart below)		Lever or Knob: cylinder/button both sides
2	613F02-9		Lever Insert (gray)
3	2000-052	fin	Standard Cylinder (see page 25 for options)
4	188F75-8 188F73-8 187F07-8 147F08-8		Lever Shank, outside Lever Shank, inside Knob Shank, outside Knob Shank, inside
5	242F50-8 219F80-8		Shank Retainer for: Lever Knob
6	103F44-8 103F45-8		Return Spring Clockwise (RH) Lever Counter Clockwise (LH) Lever
7	171F79-8		Return Spring Anchor
8	144F33 144F34 301F56-7 605F90 415F15 415F16 415F27-7 605F91	fin fin	Escutcheon (lever trim) inside outside outside, extended lip inside, lead lined option M28 Escutcheon (knob trim) inside outside outside, extended lip inside, lead lined option M28
9	222F85	fin	Mounting Screws

ITEM	PART NO.		SPECIFY DESCRIPTION
10	496F32	fin	Chassis
11	138F88-8		Chassis Cover
12 .a	147F078		Hub (Small Hole)
12 .b	140F978		Hub
12 .c	060F428		Hub (Large Hole)
14	249F76-8		Screw, fixed escutcheon
15	078F07-8		Grip Retainer
16	078F08-8		Grip Retainer Ring
17	401F08	fin	Sleeve
18	157F11	fin	Button Assy.
21	249F77-3		Spindle Spring
22	144F30-8		Spindle
23	019F137		Drive Pin
24	019F11-7		Spindle Spring Seat
25	144F29-8		Plug Driver
26	584F818		Plug Diver Assy, Follower
36	236L75M020	fin	ANSI Strike (see page 25 for options)
37	480F70	fin	Screw Packet for Strike

Lever ( specify finish )

Note: Levers are handed.

RH lever: Clockwise rotation. For outside of RH or RHR locks and inside of LH or LHR locks.

LH lever: Counter-clockwise rotation. For outside of LH or LHR locks and inside of RH or RHR locks.

	Regular		Tactile Warning
	Essex (RH)	Essex (LH)	Essex (RH)	Essex (LH)

Cylinder or Button	582F11-2	582F12-2	582F13-2	582F14-2
6-Pin IC	489F88-2	489F89-2	549F35-2	549F36-2
7-Pin IC	613F22-2	613F23-2	613F24-2	613F25-2

Knobs ( specify finish )

		Regular	Tactile Warning
	Global	Belmont	Global	Belmont
Cylinder or Button Privacy Key Hole	383F65 482F75	406F32 438F79	575F57 577F54	575F63 577F59

ITEM	PART NO.	SPECIFY	DESCRIPTION
1	(see chart below)		Lever or Knob: Cylinder/Button Outside x plain inside
2	613F02-9		Lever Insert (gray)
3	2000-052	fin	Standard Cylinder (see page 25 for options)
4	605F77-8 605F76-8 605F80-8 605F81-8		Lever Shank, outside Lever Shank, inside Knob Shank, outside Knob Shank, inside
5	242F50-8 219F80-8		Shank Retainer for: Lever Knob
6	103F44-8 103F45-8		Return Spring Clockwise (RH) Lever Counter Clockwise (LH) Lever
7	171F79-8		Return Spring Anchor
8	144F33 144F34 301F56-7 605F90 415F15 415F16 415F27-7 605F91	fin fin	Escutcheon (lever trim) inside outside outside, extended lip inside, lead lined option M28 Escutcheon (knob trim) inside outside outside, extended lip inside, lead lined option M28
9	222F85	fin	Mounting Screws

ITEM	PART NO.		SPECIFY DESCRIPTION
10	496F32	fin	Chassis
11	138F88-8		Chassis Cover
12	147F07-8		Hub
13	606F03-8		Hub Spacer
14	249F76-8		Screw, Fixed Escutcheon
15	078F07-8		Grip Retainer
16	078F08-8		Grip Retainer Ring
17	401F08	fin	Sleeve
21	249F77-3		Spindle Spring
22	606F02-8		Spindle
25	606F01-8		Plug Driver
26	584F818		Plug Driver Assy. Follower
28	168F81-8		Plug Driver Assy.
36	236L75M020	fin	ANSI Strike (see page 25 for options)
37	480F70	fin	Screw Packet for Strike

Lever ( specify finish )

Note: Levers are handed.

RH lever: Clockwise rotation. For outside of RH or RHR locks and inside of LH or LHR locks.

LH lever: Counter-clockwise rotation. For outside of LH or LHR locks and inside of RH or RHR locks.

	Regular		Tactile Warning
	Essex (RH)	Essex (LH)	Essex (RH)	Essex (LH)
Cylinder or Button 6-Pin IC 7-Pin IC Plain	582F11-2 489F88-2 613F22-2 613F10-2	582F12-2 489F89-2 613F23-2 613F11-2	582F13-2 549F35-2 613F24-2 613F14-2	582F14-2 549F36-2 613F25-2 613F15-2

Knobs ( specify finish )

	Regular		Tactile Warning
	Global	Belmont	Global	Belmont
Cylinder or Button	383F65	406F32	575F57	575F63
6-Pin IC	482F75	438F79	577F54	577F59
Plain	383F66	406F33	575F58	575F64

ITEM	PART NO.	SPECIFY	DESCRIPTION
1	(see chart below)		Lever or Knob: Cylinder/Button Outside x plain inside
2	613F02-9		Lever Insert (gray)
3	2000-052	fin	Standard Cylinder (see page 25 for options)
4	188F75-8 102F19-8 187F07-8 060F91-8		Lever Shank, outside Lever Shank, inside Knob Shank, outside Knob Shank, inside
5	242F50-8 219F80-8		Shank Retainer for: Lever Knob
6	103F44-8 103F45-8		Return Spring Clockwise (RH) Lever Counter Clockwise (LH) Lever
7	171F79-8		Return Spring Anchor
8	144F33 144F34 301F56-7 605F90 415F15 415F16 415F27-7 605F91	fin fin	Escutcheon (lever trim) inside outside outside, extended lip inside, lead lined option M28 Escutcheon (knob trim) inside outside outside, extended lip inside, lead lined option M28
9	222F85	fin	Mounting Screws

ITEM	PART NO.		SPECIFY DESCRIPTION
10	496F32	fin	Chassis
11	138F88-8		Chassis Cover
12 .a	060F42-8		Hub
12 .b	140F978		Hub
12 .c	071F638		Hub
13	067F42-8		Hub Spacer
14	249F76-8		Screw, fixed escutcheon
15	078F07-8		Grip Retainer
16	078F08-8		Grip Retainer Ring
17	401F08	fin	Sleeve
21	249F77-3		Button Spring
22	335F98-8		Spindle
23	019F13-7		Spindle Drive Pin
24	019F11-7		Spindle Spring Seat
25	144F29-8		Plug Driver
36	236L75M020	fin	ANSI Strike (see page 25 for options)
37	480F70	fin	Screw Packet for Strike

Lever ( specify finish )

Note: Levers are handed.

RH lever: Clockwise rotation. For outside of RH or RHR locks and inside of LH or LHR locks.

LH lever: Counter-clockwise rotation. For outside of LH or LHR locks and inside of RH or RHR locks.

	Regular		Tactile Warning
	Essex (RH)	Essex (LH)	Essex (RH)	Essex (LH)
Cylinder or Button 6-Pin IC 7-Pin IC Plain	582F11-2 489F88-2 613F22-2 613F10-2	582F12-2 489F89-2 613F23-2 613F11-2	582F13-2 549F35-2 613F24-2 613F14-2	582F14-2 549F36-2 613F25-2 613F15-2

Knobs ( specify finish )

	Regular		Tactile Warning
	Global	Belmont	Global	Belmont
Cylinder or Button 6-Pin IC Plain	383F65 482F75 383F66	406F32 438F79 406F33	575F57 577F54 575F58	575F63 577F59 575F64

ITEM	PART NO.	SPECIFY	DESCRIPTION
1	(see chart below)		Cylinder/button both sides
2	613F02-9		Lever Insert (gray)
3	2000-052	fin	Standard Cylinder (see page 25 for options)
4	156F64-8 156F65-8		Lever Shank, outside Lever Shank, inside
5	242F50-8		Shank Retainer
6	103F44-8 103F45-8		Return Spring Clockwise (RH) Lever Counter Clockwise (LH) Lever
7	171F79-8		Return Spring Anchor
8	144F33 144F34 301F56-7 605F90	fin	Escutcheon (lever Trim) inside outside outside, extended lip inside, lead lined option M28
9	222F85	fin	Mounting Screws
10	198F71	fin	Chassis
11	138F88-8		Chassis Cover

ITEM	PART NO.	SPECIFY	DESCRIPTION
12 a.	060F42-8	fin	Hub
12 b.	208F80-8	fin	Hub
13	060F33-8		Hub Spacer
14	249F76-8		Screw, fixed escutcheon
15	078F07-8		Grip Retainer
18	156F43	fin	Button Assy.
19	022F72-3		Button Spring
20	060F05-3		Shoe Spring
21	218F08-8		Spindle Spring
22	156F36-8		Spindle
27	156F83-7		Pin
33	107F93-8		Spring
34	019F15-2		Shank Sleeve
36	236L75M020	fin	ANSI Strike (see page 25 for options)
37	480F70	fin	Screw Packet for Strike

Lever ( specify finish )

Note: Levers are handed.

RH lever: Clockwise rotation. For outside of RH or RHR locks and inside of LH or LHR locks.

LH lever: Counter-clockwise rotation. For outside of LH or LHR locks and inside of RH or RHR locks.

	Regular		Tactile Warning
	Essex (RH)	Essex (LH)	Essex (RH)	Essex (LH)
Cylinder or Button 6-Pin IC 7-Pin IC	582F11-2 489F88-2 613F22-2	582F12-2 489F89-2 613F23-2	582F13-2 549F35-2 613F24-2	582F14-2 549F36-2 613F25-2

ITEM	PART NO.	SPECIFY	DESCRIPTION
1	(see chart below)		Lever or Knob: Cylinder/Button both sides
2	613F02-9		Lever Insert (gray)
3	2000-052	fin	Standard Cylinder (see page 25 for options)
4	188F75-8 188F738 147F088 187F078		Lever Shank, outside Lever Shank, inside Knob Shank, outside Knob Shank, inside
5	242F50-8 219F80-8		Shank Retainer for: Lever Knob
6	103F44-8 103F45-8		Return Spring Clockwise (RH) Lever Counter Clockwise (LH) Lever
7	171F79-8		Return Spring Anchor
8	144F33 144F34 301F56-7 605F90 415F15 415F16 415F27-7 605F91	fin fin	Escutcheon (lever trim) inside outside outside, extended lip inside, lead lined option M28 Escutcheon (knob trim) inside outside outside, extended lip inside, lead lined option M28
9	222F85	fin	Mounting Screws

ITEM	PART NO.		SPECIFY DESCRIPTION
10	496F32	fin	Chassis
11	138F88-8		Chassis Cover
12 .a	060F42-8		Hub
12 .b	140F97-8		Hub
12 .c	147F07-8		Hub
14	249F76-8		Screw, fixed escutcheon
15	078F07-8		Grip Retainer
16	078F08-8		Grip Retainer Ring
17	401F08	fin	Sleeve
21	249F77-3		Spindle Spring
22	144F30-8		Spindle
23	019F13-7		Spindle Drive Pin
24	019F11-7		Spindle Spring Seat
25	144F29-8		Plug Driver
26	584F81-8		Plug Diver Assy. Follower
28	168F81-8		Plug Diver Assy.
36	236L75M020	fin	ANSI Strike (see page 25 for options)
37	480F70	fin	Screw Packet for Strike

Lever ( specify finish )

Note: Levers are handed.

RH lever: Clockwise rotation. For outside of RH or RHR locks and inside of LH or LHR locks.

LH lever: Counter-clockwise rotation. For outside of LH or LHR locks and inside of RH or RHR locks.

		Regular	Tactile Warning
	Essex (RH)	Essex (LH)	Essex (RH)	Essex (LH)
Cylinder or Button 6-Pin IC 7-Pin IC	582F11-2 489F88-2 613F22-2	582F12-2 489F89-2 613F23-2	582F13-2 549F35-2 613F24-2	582F14-2 549F36-2 613F25-2

Knobs ( specify finish )

		Regular	Tactile Warning
	Global	Belmont	Global	Belmont
Cylinder or Button 6-Pin IC	383F65 482F75	406F32 438F79	575F57 577F54	575F63 577F59

ITEM	PART NO.	SPECIFY	DESCRIPTION
1	(see chart below)		Lever or Knob: Cylinder/Button both sides
2	613F02-9		Lever Insert (gray)
3	2000-052	fin	Standard Cylinder (see page 25 for options)
4	102F27-8 287F60-8 069F78-8 144F89-8		Lever Shank, outside Lever Shank, inside Knob Shank, outside Knob Shank, inside
5	242F50-8 219F80-8		Shank Retainer for: Lever Knob
6	103F44-8 103F45-8		Return Spring Clockwise (RH) Lever Counter Clockwise (LH) Lever
7	171F79-8		Return Spring Anchor
8	144F33 144F34 301F56-7 605F90 415F15 415F16 415F27-7 605F91	fin fin	Escutcheon (lever trim) inside outside outside, extended lip inside, lead lined option M28 Escutcheon (knob trim) inside outside outside, extended lip inside, lead lined option M28
9	222F85	fin	Mounting Screws

ITEM	PART NO.		SPECIFY DESCRIPTION
10	381F30	fin	Chassis
11	138F88-8		Chassis Cover
12	060F42-8		Hub
14	249F76-8		Screw, fixed escutcheon
15	078F07-8		Grip Retainer
16	078F08-8		Grip Retainer Ring
17	401F08	fin	Sleeve
21	261F11-8		Spindle Spring
25 .a	144F88-8		Plug Driver & Spindle Assy.
25 .b	145F32-8		Plug Driver
29	286F50-7		Pin
30	251F19-8		Retaining Ring
31	131F27-8		Coupling
32	194F22-8		Bushing
36	236L75M020	fin	ANSI Strike (see page 25 for options)
37	480F70	fin	Screw Packet for Strike

Lever ( specify finish )

Note: Levers are handed.

RH lever: Clockwise rotation. For outside of RH or RHR locks and inside of LH or LHR locks.

LH lever: Counter-clockwise rotation. For outside of LH or LHR locks and inside of RH or RHR locks.

	Regular		Tactile Warning
	Essex (RH)	Essex (LH)	Essex (RH)	Essex (LH)
Cylinder or Button 6-Pin IC 7-Pin IC	582F11-2 489F88-2 613F22-2	582F12-2 489F89-2 613F23-2	582F13-2 549F35-2 613F24-2	582F14-2 549F36-2 613F25-2

Knobs ( specify finish )

		Regular	Tactile Warning
	Global	Belmont	Global	Belmont
Cylinder or Button 6-Pin IC	383F65 482F75	406F32 438F79	575F57 577F54	575F63 577F59

IC Lever Assembly Parts

Lever ( specify finish )

		Regular		Tactile Warning
	Essex (RH)	Essex (LH)	Essex (RH)	Essex (LH)

6-Pin IC 7-Pin IC Best (M08)	489F88-2 613F22-2 613F42	489F89-2 613F23-2 613F43	549F35-2 613F24-2 613F442	549F36-2 613F25-2 613F452

Knobs ( specify finish )

		Regular		Tactile Warning
	Global	Belmont	Global	Belmont
6-Pin IC Best (M10)	482F75 561F19	406F32 561F19	575F57 N/A	575F63 N/A

ITEM	PART NO.	SPECIFY	DESCRIPTION
A	8000 8010 8000-7	fin fin fin	6-Pin Core High Security Core 7-Pin Core
B	(see chart)		Lever or Knob
C	613F02-9		Lever Insert (gray)
D	342F05-2 442F95-2 613F352		6-Pin IC Housing 7-Pin IC Housing (lever only) Best
E	342F03-2 320F44-2		Throw Member for: Corbin Russwin Core Best Style Core
F	(see page 24)		Lever or Knob Shank
G	242F50-8 219F80-8		Lever Shank Retainer Knob Shank Retainer
H	493F99-9 378F84	fin	Knob Filler for: Corbin Russwin, black Delrin (M01 option) Best Style Knob Filler
I	317F71-3 561F19-3	fin fin	Knob Only for 6 or 7-Pin Best Style Core Knob Assembly (M10 option) for 6 or 7-Pin Best Style Core Includes items: E, H, I and J (Formerly S-15950)
J	317F68-8		Knob Plate

Lever Shanks Knob Shanks

Function	Outside	Inside
UT5210	102F19-8	102F19-8
UT5220	114F67-8	102F37-8
UT5251	188F75-8	188F73-8
UT5255	605F77-8	605F76-8
UT5257	188F75-8	102F19-8
UT5261	156F64-8	156F65-8
UT5272	188F75-8	188F73-8
UT5282	102F27-8	287F60-8

Function	Outside	Inside
UT5210	060F91-8	060F91-8
UT5220	202F33-8	133F41-8
UT5251	187F07-8	147F08-8
UT5255	605F80-8	605F81-8
UT5257	187F07-8	060F91-8
UT5261	N/A	N/A
UT5272	187F07-8	147F08-8
UT5282	069F78-8	144F89-8

Strikes (Specify Finish)	Description	Part Number
	ANSI Curved Lip Strike (Standard), 1 1/4" lip to center	236L75M020
	ANSI Straight Lip Strike for Extended Lip Escutcheon, 15/16" lip to center	610L43
	ANSI Straight Lip for Pairs of Doors	610L44
ANSI Curved Lip Strike ANSI Straight Lip Strike for Pairs of Doors	Curved Lip Box Strike (lip length measured from back to strike to edge of lip) Lip Lengths: 2" 2 1/8" (std) 2 1/4" 2 1/2" 2 3/4" 3"	083L96M032 083L96M034 083L96M036 083L96M040 083L96M044 083L96M048
Curved Up	Straight Lip Box Strike for extended Lip Escutcheon, 15/16" lip to center	293L14
Box Strike Strike for Pairs of Doors	Strike for Pairs of Doors	082L67

Cylinders (Specify Finish)	Standard	Interchangeable Core	Master Ring
Conventional 6-Pin	2000-052	8000	2060-052
Conventional 7-Pin	N/A	8000-7	N/A
High Security	2010-052	8010	N/A

Waldes Tru-Arc Pliers	Description	Part Number
	For removing and installing large shank retaining ring to gain access to cylinder of knob locksets	CT-25
CT-25 CT-27	For removing and installing the shank retaining ring of lever locksets	CT-27
	For installing small retainer on spindle of UT5282 (Waldes applicator #E-015)	301F59-8

Miscellaneous	Description	Part Number
	Delrin Insert (black) – Option M01	493F999
	Spanner Head Screws (specify finish) – Option M02	223F29-3 (fin)

(Parts cross reference does not include parts for product and cylinder options.)

		UT5210	UT5220	UT5251	UT5255	UT5257	UT5261	UT5272	UT5282
1 PART NO.	DESCRIPTION Lever or Knob			Sa	ο Pa	arts l	ict
2 613F02-9	Lever Insert (gray)	•	•		•	•	-130	•	•
3 2000-052	Standard Cylinder		Ť	•	•	•	•	•	•
(4) 060F91-8	Knob Shank	•		$\vdash$		•
069F78-8	Knob Shank, Outside			$\vdash$					•
102F19-8	Lever Shank	•				•
102F27-8	Lever Shank, Outside								•
102F37-8	Lever Shank, Inside		•
114F67-8	Lever Shank, Outside		•
133F41-8	Knob Shank, Inside		•
144F89-8	Knob Shank, Inside								•
147F08-8	Knob Shank, Inside			•				•
156F64-8	Lever Shank, Outside						•
156F65-8	Lever Shank, Inside						•
187F07-8	Knob Shank, Outside			•		•		•
188F73-8	Lever Shank, Inside			•				•
188F75-8	Lever Shank, Outside			•		•		•
202F33-8	Knob Shank, Outside		•
287F60-8	Lever Shank, Inside								•
605F76-8	Lever Shank, Inside				•
605F77-8	Lever Shank, Outside				•
605F80-8	Knob Shank, Outside				•
605F81-8	Knob Shank, Inside				•
219F80-8	Shank Retainer for Knob	•	•	•	•	•		•	•
5 242F50-8	Shank Retainer for Lever	•	•	•	•	•	•	•	•
103F44-8	Return Spring Clockwise (RH) Lever	•	•	•	•	•	•	•	•
6 103F45-8	Return Spring Counter Clockwise (LH) Lever	•	•	•	•	•	•	•	•
171F79-8	Return Spring Anchor	•	•	•	•	•	•	•	•
7 144F33	Escutcheon (lever) Inside	•	•	•	•	•	•	•	•
8 144F34	Escutcheon (lever) Outside	•	•	•	•	•	•	•	•
415F15	Escutcheon (knob) Inside	•	•	•	•	•		•	•
415F16	Escutcheon (knob) Outside	•	•	•	•	•		•	•

	(Parts cross reference does not include parts for product and cylinder option				tions.
ITEM DART NO	DESCRIPTION	UT5210	UT5220	UT5251	UT5255	UT5257	UT5261	UT5272	UT5282
ITEM PART NO. 9 222F85	DESCRIPTION Mounting Screw	•	•	•	•	•	•	•	•
10 198F71	Chassis	_	\|				•
381F30	Chassis								•
496F32	Chassis			•	•	•		•
496F33	Chassis	•
496F34	Chassis		•
(11) 138F88-8	Chassis Cover	•	•	•	•	•	•	•	•
12) 060F42-8	Hub	•	•	•		•	•	•	•
071F62-8	Hub		•
071F63-8	Hub					•
081F77-8	Hub		•
147F07-8	Hub			•	•			•
140F97-8	Hub			•		•		•
208F80-8	Hub						•
(13) 060F33-8	Hub Spacer	•					•
067F42-8	Hub Spacer					•
070F42-8	Hub Spacer		•
070F43-8	Hub Spacer		•
606F03-8	Hub Spacer				•
(14) 249F76-8	Screw, Fixed Escutcheon	•	•	•	•	•	•	•	•
15) 078F07-8	Grip Retainer	•	•	•	•	•	•	•	•
16 078F08-8	Grip Retainer Ring	•	•	•	•	•		•	•
401F08	Sleeve	•	•	•	•	•		•	•
(18) 022F80	Button Assembly		•
156F43	Button Assembly						•
157F11	Button Assembly			•
19 022F72-3	Button Spring		•				•
20 060F05-3	Shoe Spring		•				•
②1) 071F67-3	Spindle Spring		•
218F08-8	Spindle Spring						•
261F11-8	Spindle Spring							$\bigsqcup$	•
249F77-3	Spindle Spring			•	•	•		•

(Parts cross reference does not include parts for product and cylinder options.)

ITEM DART NO	DESCRIPTION	UT5210	UT5220	UT5251	UT5255	UT5257	UT5261	UT5272	UT5282
ITEM PART NO. (22) 144F30-8	Spindle			•				•
156F36-8	Spindle						•
201F18-8	Spindle		•
335F98-8	Spindle					•
606F02-8	Spindle				•
23) 019F13-7	Spindle Drive Pin			•		•		•
24) 019F11-7	Spindle Spring Seat			•		•		•
25) 144F29-8	Plug Driver			•		•		•
144F88-8	Plug Driver and Spindle Assembly								•
606F32-8	Plug Driver								•
606F01-8	Plug Driver				•
26) 584F81-8	Plug Driver Assembly Follower			•	•			•
27) 156F83-7	Pin						•
28) 168F81-8	Plug Driver Assembly				•			•
29 286F50-7	Pin								•
30 251F19-8	Retaining Ring								•
31) 131F27-8	Coupling								•
32) 194F22-8	Bushing								•
(33) 107F93-8	Spring						•
(34) 019F15-2	Shank Sleeve						•
(35) 398F43-8	Emergency Key		•
36) 236L75M020	ANSI Strike	•	•	•	•	•	•	•	•
(37) 480F70	Screw Packet for Strike	•	•	•	•	•	•	•	•

Periodic adjustment and maintenance will substantially lengthen the life of the lockset and ensure the best possible trouble-free operation.

Time frames in the following maintenance items are based on normal frequency of operation. For high traffic or high abuse applications, perform suggested maintenance more frequently.

If you have questions regarding installation or adjustment, contact an authorized Corbin Russwin distributor or local sales representative.

LUBRICATE CYLINDER R

Lubricate (conventional) cylinder with small amount of KeyLube by Medeco® every six months. Petroleum based liquid spray lubricants such as KeyLube by Medeco® should never be mixed with dry lubricants.

LUBRICATE MOVING PARTS R

Lubricate moving parts of inside and outside chassis with a small amount of grease or other petroleum lubricant every two years.

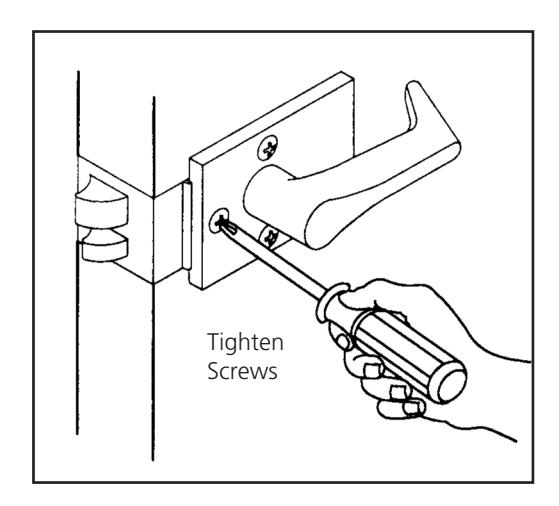

TIGHTEN SCREWS R

Check lockset for secure fastening to door once a year. Tighten throughbolts as needed.

CARE FOR LEVERSET FINISH R

Clean leverset using only a soft, damp cloth. Using lacquer thinners, caustic soaps, abrasive cleaners or polishes could damage the coating, resulting in tarnishing.

PROBLEM

SOLUTION

2. Key operates with difficulty.

A. Is latch binging due to door sag or
misalignment of latch and strike?
(See 1A and 1C)
B. Are silencers correct size?
C. Is weatherstripping causing
latch to bind?
D. Lubricate keyway. Do not use
petroleum products. Apply powdered
graphite to key and move slowly in
and out. For high security cylinders,
spray Poxylube™ into keyway and
move key in and out.
E. Key may be cut out of tolerance.
Use calipers or micrometer to check key
against specifications in Corbin Russwin
Cylinder manual. Replace key if necessary.
F. Cylinder may be improperly combinated. Dismantle cylinder (locksmiths only!),
measure all pins and compare to published factory specifications. Recombinate
if necessary.

3. Latchbolt does not deadlock

A. Is strike out of line or is gap between door and jamb too great?
B. Realign strike or shim strike out towards flat area of latchbolt.
Jamb Edge
Door Edge
Jamb Edge
Door Edge
Latchbolt
Strike
Strike
Latchbolt
Deadlocking
Deadlocking
Latch
Latch
(If strike is correctly aligned, latchbolt will deadlock)

Tools needed: CT-27 pliers (see page 25), small flat blade screwdriver, offset or standard Phillips screwdriver, and spare lever return spring(s) of proper hand of lever(s) to be rekeyed. Original return spring must often be destroyed to remove it.

1. Remove all visible screws from escutcheons. Push outside escutcheon away from door surface to clear lugs. Pull lock from edge of door.
2. If lockset function permits, unlock lever with button inside or key.
3. Remove chassis cover. Gently pry edges loose with small screwdriver while pulling cover away from chassis.
4. Door hand and bevel determine which escutcheon is fixed.

If outside escutcheon is loose , pry lever stop away from frame to expose crescent-shaped lever retainer in slot of frame tube. Using small screwdriver, pry retainer out of slot.

If outside escutcheon is fixed , use offset screwdriver to remove Phillips head screw, either from inside of frame or by using access hole in opposite frame wall.

If no offset screwdriver is available, loose escutcheon and opposite lever must be removed to expose access hole in opposite frame wall for standard phillips screwdriver. With screw removed and

escutcheon now loose, pry lever stop away from frame to expose crescentshaped lever retainer in slot of frame tube. Using small screwdriver, pry retainer out of slot.

5. For all functions except UT 5282 ( store door ), skip to step 6. For UT5282, remove small retainer ( item #30 on exploded view page ). This can be challenging so be patient. With small screwdriver, rotate retainer around spindle until its opening is in position of easiest access. Use second small screwdriver with first screwdriver to spread

retainer and remove it from spindle.

6. Pull lever handle, return spring and spring anchor off frame. Since spring is wound, rotate lever in appropriate direction to unwind spring. Remove lever stop from spring.
7. Note orientation of hooks on ends of spring in illustration. One hook is engaged in slot in shank. Twist and "snap" spring to disengage it; then remove it. If spring bends or deforms, it must be replaced on reassembly. Since spring and lever are both handed, set them aside together.
8. Remove gray insert from lever, ( see illustration ). Using Waldes Tru-Arc pliers ( Cat. No. CT-27 ), remove retaining ring from groove inside lever. Remove shank, plug driver and cylinder.

To Reassemble

1. Insert cylinder into lever. Be sure plug head seats properly in lever. Insert lever shank, making sure locating tab on shank flange aligns with slot in lever.
2. Install Waldes ring, beveled side up, into groove inside lever. Shank and cylinder must be properly to ensure proper engagement of Waldes ring. Rotate Waldes ring so opening aligns with notch in shank flange. Opening must be clear to accept hook of return spring in Step 3.
3. Install gray insert into lever. Insert lever return spring, large hook down, into slot in shank and twist spring to lock hook into place.
4. Place escutcheon onto lever and shank.Insert short hook of spring into slot of lever stop. Holding lever, spring and lever stop together with escutcheon, slide lever shank into frame tube. Align flat on inside of spring anchor with flat on frame tube. Wind spring one turn in appropriate direction, depending on hand. Push lever and shank assembly into frame tube until groove milled into lever shank aligns with slot in frame tube.
5. Press lever retainer firmly into slot. Be sure retainer seats completely to secure shank to frame tube. Stake lever retainer into frame tube slot by tapping screwdriver or punch into frame tube next to retainer. Caution: too much force may deform tube and prevent smooth lever operation.

6. If both levers were removed, reinstall second lever, repeating steps 4 and 5.
7. For all functions except UT5282 ( store door ), proceed to step 8. For UT5282, small retainer removed in step 2 must be reinstalled. The can be very difficult without Waldes ring applicator.
8. If outside escutcheon is to be fixed, use long nose pliers to start Phillips screw through frame into escutcheon. Using offset screwdriver, tighten screw making sure escutcheon is properly seated on frame.
9. Test operation of all keys, buttons and levers. Install chassis cover and throughbolts.

Knob Version

Horizontal Keyway Locksets Only. For locksets with vertical keyway see pages 36 and 38.

Refer to illustration on page 35.

Tools needed: CT-25 pliers, small flat blade screwdriver, and offset or standard Phillips screwdriver. For UT5282 only: Waldes applicator E-015 (301F59-8) see page 25.

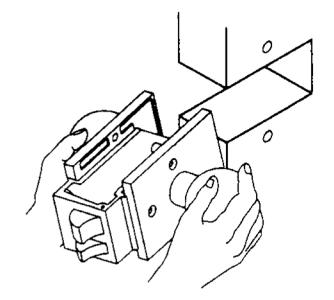

1. Remove all visible screws from escutcheons. Push outside escutcheon away from door surface to clear lugs. Pull lock from edge of door.
2. If lockset function permits, unlock knob with button inside or key.
3. Remove chassis cover. Gently pry edges loose with small screwdriver while pulling cover away from chassis.
4. Door hand and bevel determine which escutcheon is fixed.

If outside escutcheon is loose , pry wire retainer ring off to expose crescentshaped knob retainer in slot of frame tube. Using small screwdriver, pry retainer out of slot.

If outside escutcheon is fixed , use offset screwdriver to remove phillips head screw, either from inside of frame or by using access hole in opposite frame wall. If no offset screwdriver is available, loose escutcheon and opposite knob must be removed to expose access hole in opposite frame wall for standard Phillips screwdriver.

With screw removed and escutcheon now loose, pry wire retainer ring off to expose crescent-shaped knob retainer in slot of frame tube. Using small screwdriver, pry retainer out of slot.

5. For all functions except UT 5282 ( store door ), skip to step 6. For UT 5282, remove small retainer ( item #30 on exploded view page ). This can be challenging, so be patient. With small screwdriver, rotate retainer around spindle until its opening is on position of easiest access. Use second small screwdriver with first screwdriver to spread retainer and remove it from spindle.
6. Remove knob assembly.
7. Using Waldes Tru-Arc pliers ( Cat No. CT-25 ), remove large retaining ring from groove inside knob. Remove shank, plug driver and cylinder.

To Reassemble

1. Insert cylinder into knob. Be sure plug head seats properly in hole. Insert knob shank.
2. Install Waldes ring, beveled side up into groove inside knob.
3. Slip retaining ring over frame tube. Place escutcheon onto knob and shank. Push knob and shank assembly into frame tube until slot milled into knob shank aligns with slot in frame tube. Press crescent-shaped knob retainer firmly into slot. Be sure retainer seats completely to secure shank to frame tube.
4. Snap wire ring into position over knob retainer.
5. If outside escutcheon is to be fixed, use long nose pliers to start Phillips screw through frame into escutcheon. Using offset screwdriver, tighten screw making sure escutcheon is properly seated on frame.
6. If both knobs were removed, reinstall other knob repeating steps 3 and 4.
7. For all functions except UT5282 ( store door ) proceed to step 8. For UT5282, small retainer removed in step 5 ( above ) must be reinstalled. This can be very difficult without Waldes ring applicator 301F59-8.
8. Test all operation of keys, buttons and knobs. Install chassis cover and throughbolts.

For Corbin 2000/2200/2400 and 500 Series (1899-1963) Vertical Keyway

Tools needed: 1/8" and 1/4" flat blade screwdrivers, needle nose pliers and a plastic or rawhide mallet.

Caution! No replacement parts are available for this lock. Be very careful not to damage or distort any parts.

Exposed Mechanism on end of chassis opposite latchbolt

1. Remove thru-bolt and remove all escutcheon screws on both sides of door. Pull lock from edge of door.
2. Remove chassis cover. Gently pry edges loose with small screwdriver while pulling cover away from chassis.
3. Observe exposed mechanism on end of chassis OPPOSITE latch bolt. For this model, a Cotter key passes through ribs in the chassis and covers strip of steel with rounded ends. If chassis is not constructed this way, you are reading wrong set of instructions.

Before removing Cotter key, turn knob(s) and observe orientation of hubs and any other small parts directly connected with knob shanks. These parts may fall out when knob(s) are removed and you will need to reinstall them correctly. Make sketch if desired.

Depending on function of lock, unlock knobs by pressing stopworks button on lock front, by turning knurled ring around inside knob shank, or by using key. This may not be possible on

certain function with rigid knobs.

4. Remove cotter key and steel strip under it. If only one knob is to be removed, locate its flat steel retaining plate and remove it. Leave retainer in place for other knob.
5. To avoid spilling parts from chassis, grasp lockset by escutcheons and stand it on knob which will remain in place. Support lockset so escutcheons are parallel with work surface, and knob to be removed faces up.
6. Note orientation of keyway for proper handling during reassembly. Slowly pull knob off.
7. Remove cap from back of knob. If loose, it may have remained on trim as knob was removed. If stuck, rap end of knob shank (not cap!) with plastic or rawhide mallet to jar cap loose. If it has become sealed in place by paint, lacquer or brass polish, it may be necessary to pry it loose with small screwdriver.
8. Remove two shank screws which are now exposed. Early models have only

one screw.

9. Unscrew shank from knob and remove cylinder. If shank is stuck, rap area with plastic mallet to jar loose. If this fails, knob may be held snugly in vise with protective cloth. However, remember iron knobs can crack or break and brass knobs may become distorted if abused. Place screwdriver shaft across slot in end of knob shank to turn. If shank still does not unscrew, soak knob assembly in penetration oil or use ultra-sonic cleaner. Rap again.

On reassembly, be sure screw hole(s) in knob shank align with holes in knob before installing screws.

10. If cylinder must be dismantled, drive out actuator retaining pin. This pin also serves as plug retainer. LEAVE KEYS OUT of cylinder until you are ready to rekey it.

Caution: If you are rekeying several of these cylinders, keep all major components of each cylinder together. Mixing parts may result in end play of plug, making it necessary to "pinch" key to remove it.

Most cylinders used in these locks are master ring cylinders with X Class keyways and require .509" diameter plug follower. Refer to Corbin Russwin Cylinder Manual for cylinder combinating instructions, including all pin lengths and key bitting specifications.

11. Clean all parts, including inside of knob shank hole in escutcheon, and reverse these steps for reassembly. Use only dry powdered graphite to lubricate cylinder. Lubricate lockset parts as required.

For Corbin 700/Russwin 1600 Series "Baby" Unit Lock- Horizontal Keyway

Tools needed: 1/8" and 1/4" flat blade screwdrivers, needle nose pliers and a plastic or rawhide mallet.

Caution! No replacement parts are available for this lock. Be very careful not to damage or distort any parts.

Exposed Mechanism on end of chassis opposite latchbolt

1. Remove all escutcheon screws or thrubolts above and below knob on both sides of door. Loosen thru-bolt on inside near latch. Pull lock from edge of door.
2. Remove chassis cover. Gently pry edges loose with small screwdriver while pulling cover away from chassis.
3. Observe exposed mechanism on end of chassis OPPOSITE latch bolt. For this model, one or two screws pass through a bracket-shaped steel knob retainer. If chassis is not constructed this way, you are reading wrong set of instructions.

Before removing bracket screw(s), turn knob(s) and observe orientation of hubs and any other small parts directly connected with knob shanks. These parts may fall out when knob(s) are removed and you will need to reinstall them correctly. Make sketch if desired.

Depending on function of lock, unlock knob with inside turn button or by using key. This is not be possible on storeroom function with rigid outside knob.

4. Remove bracket screw(s). On reassembly, test all operations of both knobs before reinstalling screw(s).
5. To avoid spilling parts from chassis, grasp lockset by escutcheons and stand it on knob which will remain in place. Support lockset so escutcheons are parallel with work surface, and knob to be removed faces up.
6. Note orientation of keyway for proper handing during reassembly. Remove bracket and slowly pull knob off.
7. Remove cap from back of knob. If loose, it may have remained on trim as knob was removed. If stuck, rap end of knob shank ( not cap! ) with plastic or rawhide mallet to jar cap loose. If it has become sealed in place by paint, lacquer or brass polish, it may be necessary to pry it loose with small screwdriver.
8. Remove shank screws which are now exposed. Older model has two screws and newer model has one screw.

9. Unscrew shank from knob and remove cylinder. If stuck, place screwdriver shaft across slot in end of knob shank to turn. On reassembly, be sure screw hole(s) in knob shank align with holes in knob before installing screws.
10. If cylinder must be dismantled, drive out actuator retaining pin. This pin also serves as plug retainer. LEAVE KEYS OUT of cylinder until you are ready to rekey it.

Most cylinders used in these locks are master ring cylinders with X Class keyways with .509" diameter plugs. Refer to Corbin Russwin Cylinder Manual for cylinder combinating instructions, including all pin lengths and key bitting specifications.

For Russwin 2100/2800 Series Only (1904-1968) Vertical Keyway

Tools needed: 1/8" and 1/4" flat blade screwdrivers, needle nose pliers and a plastic or rawhide mallet.

Caution! No replacement parts are available for this lock. Be very careful not to damage or distort any parts.

Exposed Mechanism on Top of Lockset

1. Remove thru-bolt and remove all escutcheon screws on both sides of door. Pull lock from edge of door.

If your only task if to fit keys, further disassembly may not be required. If cylinder had never been rekeyed, look through slots in knob shank for original key bitting stamped on square tail piece. Refer to Corbin Russwin Cylinder Manual for bitting prefix and key bitting specifications.

Cylinder removal depends on hand of lockset. If keyed knob has staked hub visible on underside of escutcheon, skip to step 4. If keyed knob is in escutcheon with encased mechanism, continue with step 2.

2. Remove screws from plate covering mechanism under escutcheon ( NOT cover of latch assembly ). Before removing exposed parts, make sketch of their orientation for reassembly.
3. Remove spring and other parts, laying them out for reassembly. Note orientation of bottom hub with respect to cylinder keyway for proper handing upon reassembly.

4. Carefully pry staked hub from base of knob shank. If hub bends, lock will not operate smoothly when reassembled. Also, some knobs are cast iron and staked area may break. Proceed with caution. Upon reassembly, tap hub back into place with plastic or rawhide mallet. If one is not available, use heavy screwdriver handle.
5. Using two screwdrivers gently pry retainer ring from around knob shank and remove it. Do not allow wire to become bent or distorted.
6. With small screwdriver, disengage three arc-shaped retainers from around knob shank and remove knob assembly from escutcheon.
7. Remove cap from back of knob. If stuck, rap end of knob shank ( not cap! ) with a plastic mallet to jar cap loose. If it has become sealed in place by paint or brass polish, it may be necessary to pry it loose with small screwdriver.
8. Remove two shank screws which are now exposed.

For early models with square shank base, use adjustable wrench for extra leverage to unscrew shank. Before applying extreme force to stuck shank, soak assembly in penetrating oil or use ultra-sonic cleaner and rap again with plastic mallet.

On reassembly, be sure screw holes in knob shank align with knob base before reinstalling screws.

10. If cylinder must be dismantled, drive out tailpiece retaining pin. This pin also serves as plug retainer. LEAVE KEYS OUT of cylinder until you are ready to rekey it.

Use .522 diameter plug follower. Refer to Corbin Russwin Cylinder Manual for cylinder combinating instructions, including all pin lengths and key bitting specifications.

All procedures which follow are intended for use only with the current model lockset (Model 68) and the current offering of functions. For obsolete functions or models or designs, use these steps only as a guide and tailor them to your particular lockset. Some obsolete locksets may contain handed parts which are not field reversible.

Changing from Knobs to Levers

This is possible for all functions except UT5261 but it is not practical. Major components must be replaced and the cost can be prohibitive. In addition to the two levers with their shanks, return springs and spring anchors, both escutcheons must also be changed.

Changing Hand of Lockset

Knob Version

Tools required: Phillips screwdriver and large and small slotted screwdriver. For UT5282 (store door) function, Waldes ring applicator E-015 (order as 301F59-8) and second small slotted screwdriver.

To change between LH and RH, or between LHR and RHR, turn lockset upside down. No further action is required.

To change between regular and reverse bevel, the components which must be switched vary by function. For UT5210 (passage) and UT5282 (store door), both sides operate identically, so the only thing which distinguishes regular or reverse bevel is which side of door has exposed screws. For UT5210, this is purely an esthetic concern. For UT5282, security may be a factor in the decision. If neither is a concern for your particular application, there is no need to reverse either of these functions.

For all other functions:

1. Remove throughbolts and chassis cover. Notice that one escutheon is loose and the other is fixed. Fixed escutcheon is always attached to chassis on low side of bevel, which is side of chassis with three vertical ribs. This will be outside for regular bevel (RH and LH) and inside for reverse bevel (RHR and LHR). Consequently, fixed side will change during this procedure.
2. For all functions except UT5282 (store door), skip to step 3.

For UT5282, remove small retainer (item #30 on exploded view page). This can be challenging, so be patient. With small screwdriver, rotate retainer around spindle until its opening is in position of easiest access. Use second small screwdriver with first screwdriver to spread retainer and remove it from spindle.

3. Starting under loose escutcheon , use small screw driver to disengage retainer ring from groove around chassis tube, exposing crescent knob retainer. Remove retainer, then knob assembly with sleeve and escutcheon. If knob contains cylinder or button assembly, do not allow parts to fall out of knob shank. If knob has filler cap (optional on current model) keep it in place. With chassis centered in your work space, lay all parts out in order on side of chassis from which they were removed.
4. With all trim removed from first side, locate phillips screw which fastens opposite escutcheon from inside of chassis, Insert screwdriver through access hole in wall of chassis and remove screw and washer.
5. With second escutcheon now loose, disengage retainer ring from groove around chassis tube, exposing crescent knob retainer. Remove retainer, then knob assembly with sleeve and escutcheon. If knob contains cylinder or button assembly, do not allow parts to fall out of knob shank. All trim components should now be laid out in order on proper sides of chassis.

For functions other than UT5210 (passage), continue with step 6.

For UT5210, no further disassembly is required. Skip to step 11.

Changing Hand of Lockset (cont'd) Knob Version

6. Before proceeding, make mental note of chassis orientation relative to parts already laid out. Use ribbed wall as reference point and remember whether it faced left or right

All functions except UT5210 and UT5282 have a spindle which passes through chassis tube from one side, continues through various hubs and spacers in center of chassis and continues outward through opposite chassis tube. Parts vary by function and so does direction of spindle removal.

Carefully tilt chassis to look into each end of tube and determine which end of spindle is smaller. Hold chassis so small end of spindle points upward. If spindle falls out bottom tube at this to point, lay it out with other parts on proper side of work space and proceed to step7. Otherwise, look for small pin through hole in end of spindle.

Push spindle up from bottom until small pin can be removed through hole in chassis tube. Caution! Cover top end of tube during this process. Some functions have parts which spring off spindle when pin is removed. Spindle should now drop out. If not, gently rotate it until it falls out. Lay spindle and all other parts out in order on proper side(s) of work space.

7. Observe order and orientation of hubs and spacers inside chassis. Consult exploded view page for reference. Depress main latch to allow hubs to fall out. Again, lay them out carefully in center of work space from left to right as originally installed. Disassembly is now complete.
8. Turn chassis over so opposite tube points up. Depress main latch and reload hubs in same order as removed. Refer to appropriate exploded view page if parts get mixed. Caution: if any hub has a rectangular or "double-D" hole, its orientation is critical. Diagonal flats of hole must face holes in latch tube.
9. Install small end of spindle from bottom, passing through all hubs. If spindle has flat sides, verify that hole in spindle faces holes in frame tube. If not, Step 8 was incorrect.
10. Supporting spindle with finger in bottom tube, reinstall other parts ( depending on function ) over top end of spindle. In the case of some spring loaded assemblies, use small screwdriver to depress assembly into the chassis far enough to clear hole in end of spindle. Insert retainer pin through frame tube hole and install into spindle.

Before proceeding, check orientation of all parts in chassis against exploded view page. For comparison, all pages illustrate left hand reverse bevel assembly.
11. Remembering original left to right orientation of chassis on work space, turn chassis upside down so knobs and escutcheons are ready to install on opposite sides from original orientation. Note: Opposite escutcheon now becomes fixed ( always attached to ribbed wall of chassis ). Only small screw and washer must switch sides at this point. These must enter from other side of chassis for reassembly.

Observe sides of chassis and locate side with three vertical ribs. Install trim on this side first.

12. Place circular wire retainer around frame tube, but do not push all the way into position.
13. Put sleeve into back of knob and place that assembly through hole in escutcheon. Slide knob into frame tube as far as it will go. If this knob has cylinder, be sure top of keyway points toward latch ( edge of door ). Groove around the knob shank should now be positioned under the retainer slot in the frame tube.
14. Install crescent knob retainer and move retainer ring into place to secure crescent retainer.
15. Install fixed escutcheon screw and washer with screwdriver through hole in opposite wall of chassis. (Tip: Use needlenose pliers to position screw inside chassis for screwdriver tip and point lockset upward to start screw into threads.)
16. Repeat steps 10, 11, and 12 for remaining side.
17. For all functions except UT5282 ( store door ), proceed to step 18. For UT5282, small retainer removed in step 2 must be reinstalled. This can be very difficult without Waldes ring applicator.
18. Test operation of all keys, buttons and knobs. Install chassis cover and throughbolts.

Changing Hand of Lockset

Lever Version

Because levers are handed, it is not practical to print detailed hand changing instructions. There are too many variations, depending on function and cylinder options.

Use chart below to determine what parts and labor are necessary for the conversion you are attempting. Then, for specific service instructions, refer to previous pages devoted to:

Disassembly of lever version
Changing the hand of the knob version.

Note: New levers must be obtained when making the changes in the second half of the diagram below.

Levers are Same (UT5210, UT5272, UT5282, and non-IC UT5251, UT5261)
Between LH and RH or between LHR and RHR	Between LH and LHR or between RH and RHR	Between LH and RHR or between RH and LHR
Switch internal lever components.	Switch internal lever components and reverse spindle and/or hubs inside chassis	Switch internal lever components and reverse spindle and/or hubs inside chassis, but install levers back on original side of chassis

Levers are Different (UT5220, UT5255, UT5257, and IC UT5251, UT5261)
Between LH and RH or between LHR and RHR	Between LH and LHR or between RH and RHR	Between LH and RHR or between RH and LHR
Transfer internal components of old levers into NEW LEVERS of opposite handles	Transfer internal components of old levers into NEW LEVERS of opposite hands and reverse spindle and/or hubs	Transfer internal components of old levers into NEW LEVERS of opposite hands reverse spindle and/or hubs, but install levers back on original side of chassis

In U.S.

Corbin Russwin Architectural Hardware 225 Episcopal Road Berlin, CT 06037 Phone: 800-543-3658 Fax: 800-447-6714 corbinrusswin.com

In Canada

ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive Vaughan, Ontario Canada L4K 4T9 Phone: 800-461-3007 Fax: 800-461-8989 www.assaabloydss.ca

For more information regarding Corbin Russwin Locksets, Exit Devices, Door Controls and Key Systems, contact your authorized Corbin Russwin Distributor or Sales Representative.
