SE LP10 Series
with FE6600/BL6600/MP6600 Series Multi-Point Lock
This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.
SE LP10
FE6600/BL6600/MP6600 Series Multi-point Lock
Installation Instructions
| TOC | Table of Contents |
|---|---|
| 1 | Warning3 |
| 2 | General Description4 |
| 3 | Features4 |
| 4 | Regulatory Specifi cations5 |
| 5 |
Wiring Diagrams
6 |
| 6 | Product Illustrations8 |
| 7 |
Installation Instructions
10 |
| a | Verify Hand and Bevel of Door 10 |
| b | Door Preparation 10 |
| c | Prepare Lock Body (if necessary) 11 |
| d | Confi gure the DIP Switch Settings 12 |
| e | Install Lock Body 12 |
| f | Install Inside Mounting Plate 13 |
| g | Install Reader Backplate and "Optional" Fire Shield or Gasket 13 |
| h | Installation of SE LP10 Reader & Trim Bezel 14 |
| i | Wire Connections 15 |
| j | Fire Plate & Earth Ground Connection 15 |
| k | Outside Cylinder Installation 16 |
| l | Inside Outside Lever & Inside Adapter Plate Assembly 17 |
For installation assistance contact Corbin Russwin
SE LP10
FE6600/BL6600/MP6600 Series Multi-point Lock
Russwin 22 ASSA ABLOY
Installation Instructions
| TOC | Table of Contents, continued | |
|---|---|---|
| m | Install Inside Escutcheon Assembly | . 17 |
| n | Install Inside Rose & Inside Lever Assembly | . 18 |
| 0 | Attach Front Plate | . 18 |
| 8 | Operational Check | . 19 |

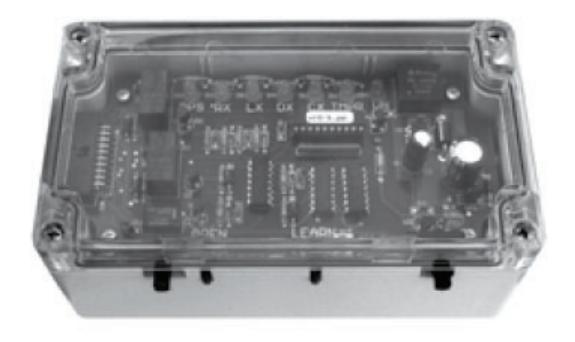

| 9 | Wiegand Test Unit | . 19 |
1 Warning
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
FCC:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced technician for help.
Industry Canada:
This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Cet appareillage numérique de la classe B répond à toutes les exigences de l'interférence canadienne causant des règlements d'équipement. L'opération est sujette aux deux conditions suivantes: (1) ce dispositif peut ne pas causer l'interférence nocive, et (2) ce dispositif doit accepter n'importe quelle interférence reçue, y compris l'interférence qui peut causer l'opération peu désirée.
"This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter."
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
Observe precautions for handling electrostatic sensitive devices.
and more open world
Installation Instructions
1 Warning, continued

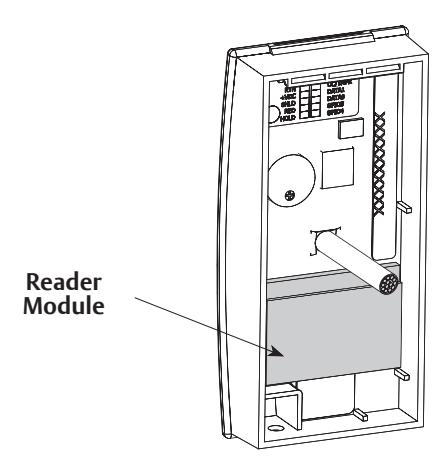

If the SE LP10 reader is installed with a module (See Section 7-h), make sure that the reader is powered down when inserting/removing the module; i.e., do not "hot-plug" (remove/insert while reader is powered) module as it may damage the reader.
2 General Description
The Corbin Russwin SE LP10 multi-point lock is designed to interface with existing Wiegand Electronic Access Control (EAC) panels. The reader requires 12VDC for power and features HID® multiCLASS SE® technology. SE LP10 is backed by Corbin Russwin's Grade 1 hardware.
The multi-point lock comes with Request to Exit (RX) & Door Position Switch (DPS) monitoring inside the lock body and operates from 12-24VDC.
3 Features
- Latch: Stainless steel, 3⁄4" projection, one-piece
- Deadbolt: One-piece hardened stainless steel
- Guardbolt: Stainless steel, non-handed
- Handed: Easily field reversible without opening case
- Case: 12 gauge heavy duty wrought steel
- Outside lever controlled by compatible credential
- Inside lever provides RX signal and retracts latch and deadbolt
- Field-selectable to Fail Safe or Fail Secure
- Complete monitoring of door includes request to exit and door position monitoring with optional end-of-line resistors
- Door position switch (DPS) within lock body
- Locks furnished for 1-3/4" doors. Other door thicknesses require confirmation with factory.
- UL and CUL listed for use on Fire Doors
- Wires directly to EAC Panels
-
Supports multiple credential formats:
-
2.4 GHz credential compatibility
- Secure Identity Object™ (SIO) on Mobile IDs (Bluetooth Smart)
-
13.56 MHz credential compatibility:
- Secure Identity Object™ (SIO) on iCLASS Seos®, iCLASS SE®/SR, MIFARE DESFire® EV1 and MIFARE Classic® (on by default)
- Standard iCLASS Access Control Application, ISO14443A (MIFARE) CSN, ISO14443B CSN, and ISO15693 CSN
- ISO14443A/B (PIV-compatible Transparent FASC-N read) available with SE LP10-F
- NFC-enabled mobile phones
-
125 kHz credential compatibilty:
- HID Prox®, AWID, EM4102
-
2.4 GHz credential compatibility
For installation assistance contact Corbin Russwin
4
Installation Instructions
4 Regulatory Specifi cations
Electrical Specifi cations
12/24VDC System
- Reader Draw = 200mA (Peak; average = 81mA @12VDC)
- Actuator Draw =15mA continuous (500mA peak)
The reader requires 12VDC for power, while the lock accepts either 12 or 24VDC.
• UL and CUL listed for use on Fire Doors McKinney
Wire Gauge Charts
|
Total
One-Way |
Load Current @ 12VDC | ||||||||
|---|---|---|---|---|---|---|---|---|---|
|
Length of
Wire Run (ft) |
1/4A | 1/2A | 3/4A | 1A | 1-1/4A | 1-1/2A | 2A | 3A | |
| 100 | 20 | 18 | 16 | 14 | 14 | 12 | 12 | 10 | |
| 150 | 18 | 16 | 14 | 12 | 12 | 12 | 10 | — | |
| 200 | 16 | 14 | 12 | 12 | 10 | 10 | — | — | |
| 250 | 16 | 14 | 12 | 10 | 10 | 10 | — | — | |
| 300 | 16 | 12 | 12 | 10 | 10 | — | — | — | |
| 400 | 14 | 12 | 10 | — | — | — | — | — | |
| 500 | 14 | 10 | 10 | — | — | — | — | — | |
| 750 | 12 | 10 | — | — | — | — | — | — | |
| 1,000 | 10 | — | — | — | — | — | — | — | |
| 1,500 | 10 | — | — | — | — | — | — | — | |
|
Total
One-Way |
Load Current @ 24VDC | |||||||
|---|---|---|---|---|---|---|---|---|
|
Length of
Wire Run (ft) |
1/4A | 1/2A | 3/4A | 1A | 1-1/4A | 1-1/2A | 2A | 3A |
| 100 | 24 | 20 | 18 | 18 | 16 | 16 | 14 | 12 |
| 150 | 22 | 18 | 16 | 16 | 14 | 14 | 12 | 10 |
| 200 | 20 | 18 | 16 | 14 | 14 | 12 | 12 | 10 |
| 250 | 18 | 16 | 14 | 14 | 12 | 12 | 12 | 10 |
| 300 | 18 | 16 | 14 | 12 | 12 | 12 | 10 | — |
| 400 | 18 | 14 | 12 | 12 | 10 | 10 | — | — |
| 500 | 16 | 14 | 12 | 10 | 10 | — | — | — |
| 750 | 14 | 12 | 10 | 10 | — | — | — | — |
| 1,000 | 14 | 10 | 10 | — | — | — | — | — |
| 1,500 | 12 | 10 | — | — | — | — | — | — |
5
Installation Instructions
5 Wiring Diagrams

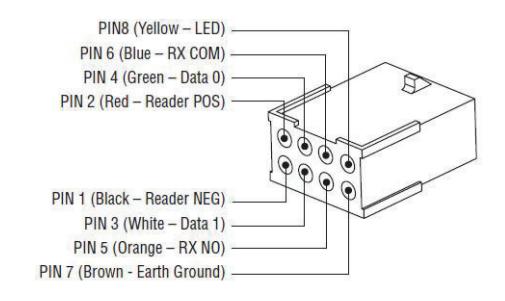

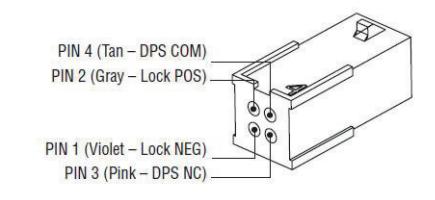

| Product | 8 PIN CONNECTOR | 4 PIN CONNECTOR | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1
Black |
2
Red |
3
White |
4
Green |
5
Orange |
6
Blue |
7
Brown |
8
Yellow |
1
Violet |
2
Gray |
3
Pink |
4
Tan |
|
| ACCESS CONTROL DEVICES: SE LP10 FE6600/BL6600/MP6600 Multi-point, ElectroLynx wire Color / Function assignments | ||||||||||||
|
Corbin
Russwin |
12/24VDC
WIE GAND (Reader) |
WIE
GAND |
RX | RX |
EGND
LED |
12/24 VDC
(LOCK RELAY) |
DPS
(NC) |
DPS
(COM) |
||||
|
FE 6600
BL6600 MP6600 Multi-point |
NEG | POS | DATA_1 | DATA_0 | NO/NC | COM |
REF.
*DIA GRAMS |
REF.
*DIA GRAMS |
NEG | POS | DPS | DPS |
|
Cylindrical/
Exits |
NEG | POS | DATA_1 | DATA_0 | NO | COM | NEG | POS | - | - | ||
See page 6 for diagram.
If your lock is confi gured with End of Line Resistors, reference instruction sheet FM406 for the wiring of RX & DPS outputs.
Reader LED Confi guration
The Access 600 series reader can be configured for (3) modes of LED operation. HID Programming cards are also supported to configure behavior for LED color activity. Call 1-800-810-WIRE for details.
Mode 1:
- Red LED 'ON' when powered.
- Presenting a valid credential will cause LED to 'FLICKER' green and return to red state.
Mode 2:
- Green LED "ON" when powered.
- (No Flicker) after presenting valid credential.
NOTE: LED wire must be connected to circuit GROUND of the system's power supply.
Mode 3:
• EAC Panel controls LED operation.
NOTE: Control of LED is a function of the EAC panel equipment (i.e. relay) to toggle between green and red. NOTE: When LED wire is tied directly into EAC panel relay, no AC signals should be applied on wire - door reader performance will be impacted.
Wire from EAC panel to door must be shielded with drain terminated at EAC panel controller.
Installation Instructions
Wiring Diagrams, continued

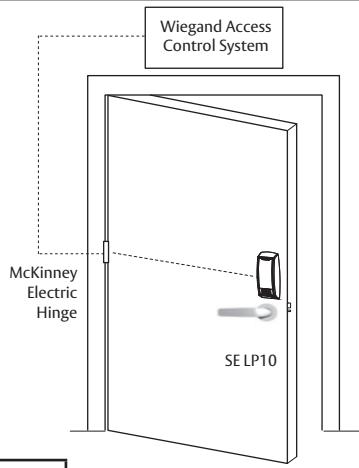

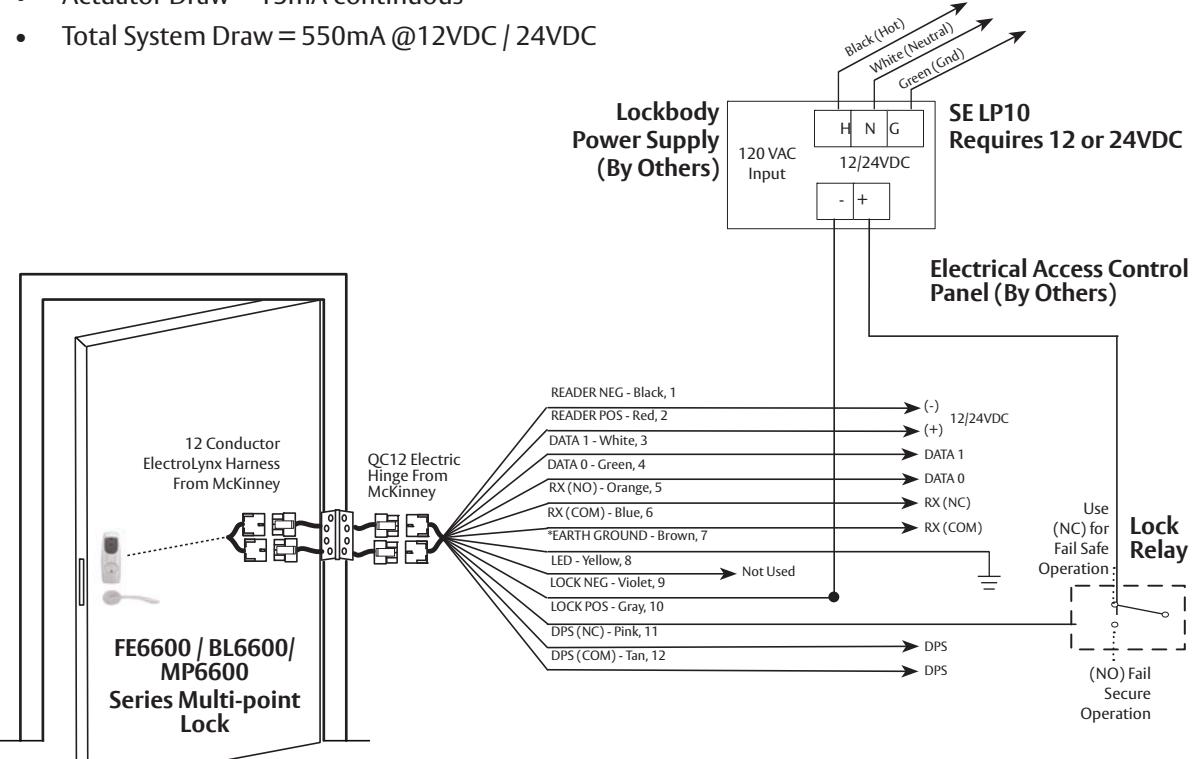

Typical FE6600/BL6600/MP6600 x SE LP10 Series Multi-point Lock Application Diagram (12/24VDC Lock)
Standard Application Shown For Alternative Applications Contact 1-800-810-WIRE (9473)
Reader Electronics Require 12 or 24VDC Power Supply
12/24VDC System
- Reader Draw = 150mA @12 or 24VDC
- Actuator Draw = 15mA continuous
*IMPORTANT:
Pin 7 must be tied to ground in the access control panel.
Failure to follow proper ESD safe grounding procedures could lead to equipment failure.
NOTE:
If your lock is configured with End of Line Resistors, reference instruction sheet FM406 for the wiring of RX & DPS outputs.
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
Installation Instructions
6 Product Illustrations

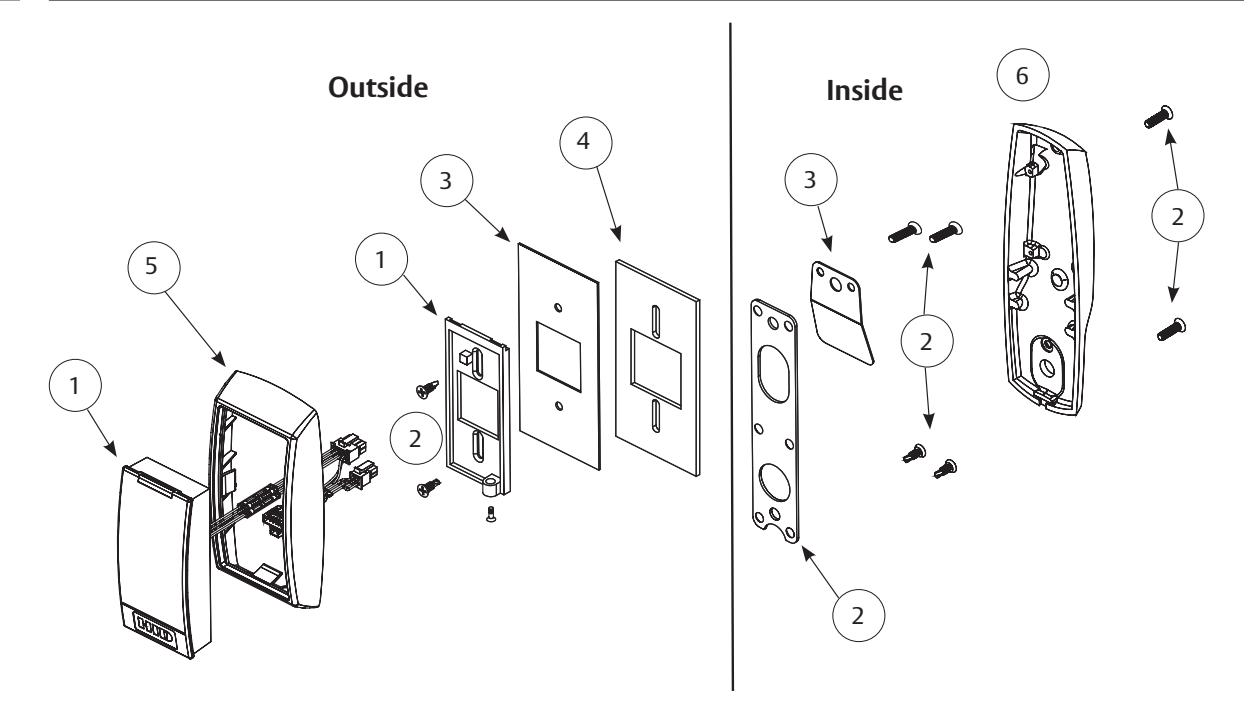

| ITEM | PART # | DESCRIPTION | |
|---|---|---|---|
| 1 | 763F629 | IPS-B03 Reader& Harness Assembly ( Black) | 1 |
| 763F809 | BIPS-B03 Reader & Harness Assembly - Bluetooth (Black) | ||
| 763F649 | FIPS-B03 Reader & Harness Assembly - 200 bit Wiegand output (Black) | ||
| 763F669 | FIPS-B04 Reader & Harness Assembly - 75 bit Wiegand output (Black) | ||
| 2 | 763F89M FIN | Mounting Packet | 1 |
| 3 | 763F719 | Fire Plate Packet | 1 |
| 4 | 764F319 | Gasket (for non fire-rated doors) | 1 |
| 5 | 763F689 | Trim Bezel- Black | 1 |
| 6 | 763F79M FIN | Inside Escutcheon with Thumbturn | 1 |
| 743F27M FIN | Inside Escutcheon without Thumbturn | 1 |
Tools Required:
- Phillips Screw Driver (Standard size)
- Slotted Screw Driver (Standard size)
- 1/8" Allen Wrench
Patent pending and/or patent - www.assaabloydss.com/patents.
Installation Instructions
6 Product Illustrations, continued

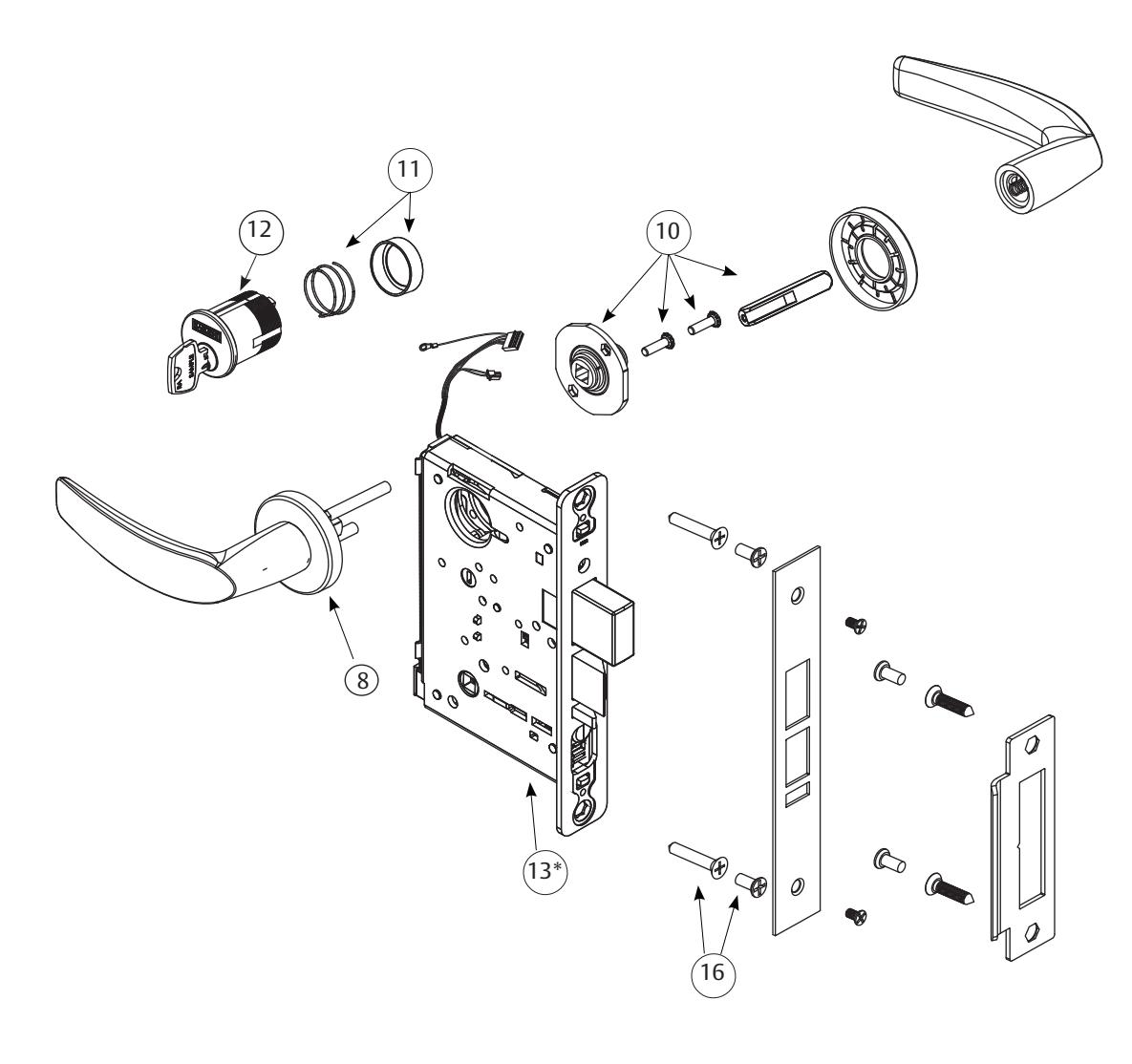

For mechanical parts listing refer to FE6600/BL6600/MP6600 Parts Manual 45499 & 45611
|
Reference SE LP10 Catalog For Available Lever Styles
1 |
||||
|---|---|---|---|---|
| Reference SE LP10 Catalog For Available Rose Styles | 1 | |||
| Lock Body† |
FE/BL/MP66609-SAF
w/out Deadbolt, Fail Safe |
|||
| FE/BL/MP66609-SEC | w/out Deadbolt, Fail Secure | 1 | ||
| w/out Deadbolt, Fail Safe, Both Levers Lock | 1 | |||
| w/ Deadbolt, Fail Safe | 1 | |||
| w/ Deadbolt, Fail Secure | 1 | |||
| w/ Deadbolt, Fail Safe, Both Levers Lock | 1 | |||
Installation Instructions
7 Installation Instructions

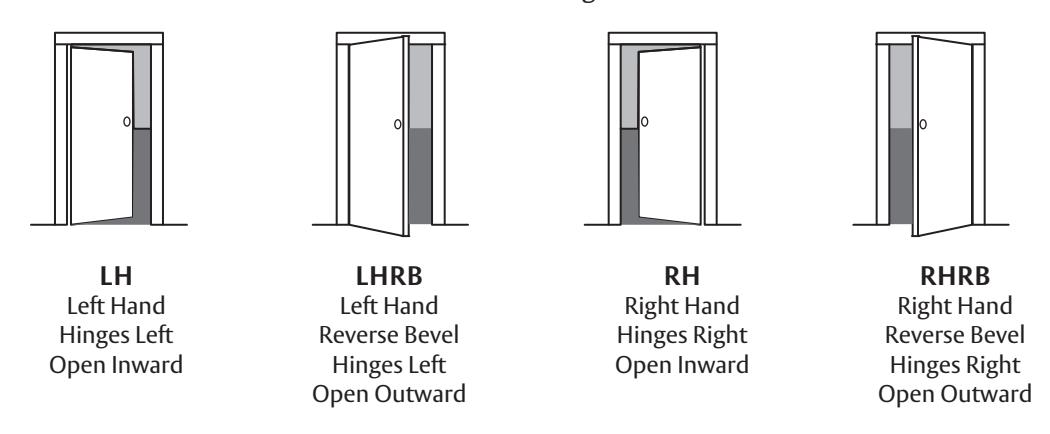

a Verify Hand and Bevel of Door
Stand on outside of locked door when determining door hand.
b Door Preparation

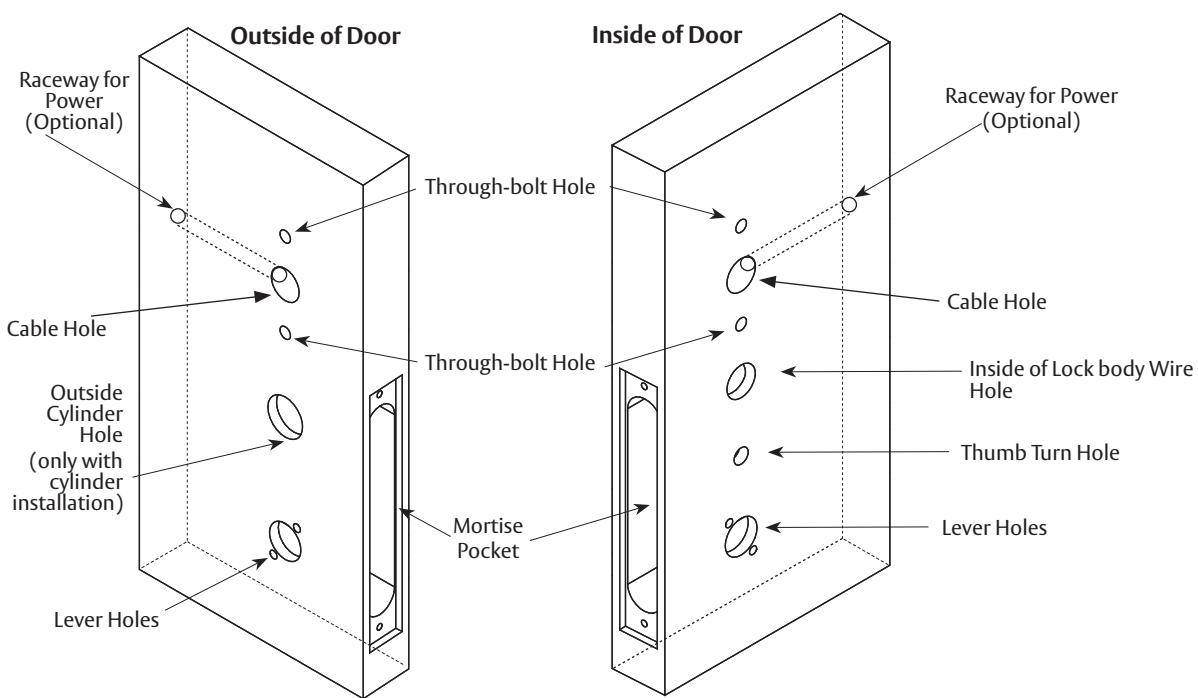

Prepare door according to appropriate template. If necessary, refer to website: www.intelligentopenings.com
- Prior to installation, make sure all holes are free of burrs, debris and sharp edges.
- If doors are not properly reinforced per ANSI 115.2, commercially available reinforcements should be installed.
Templates:
- Field: FM447 and FM448 template ships with product.
- Manufacturer: 4740 metal and wood door.
Installation Instructions
7 Installation Instructions, continued
c Prepare Lock Body (if necessary)
Reverse Lock Hand

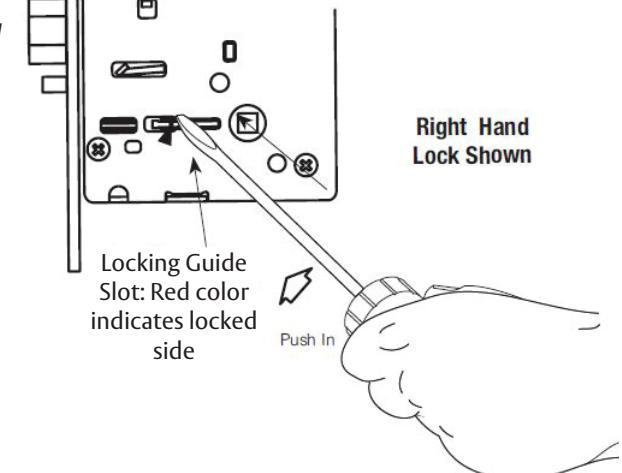

Red surface of locking piece must face the outside/ locked side of door.

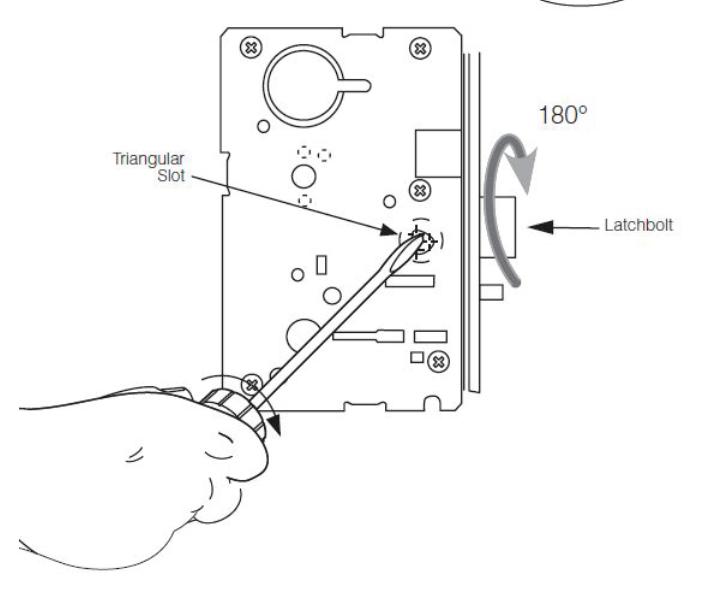

- 1. To rotate locking piece, position lock body with red surface of locking piece visible. See diagram to the right.
- 2. Insert blade type screwdriver into locking piece slot to rotate locking piece toward back of lock body.
- 3. Rotate the locking piece 180° until RED surface is on opposite side.
NOTE: Red indicates locked side (outside).
Reverse Latch Hand
Beveled surface of latch must face strike. See diagram at right.
The deadlatch is self adjusting.
To change hand of latchbolt:
- 1. Insert screwdriver into the spade shaped slot.
- 2. Rotate screwdriver 90º to push latch out until back of latch clears lock front; then rotate latch 180º.
Latch will then re-enter lock body.
NOTE: Latch cannot be unscrewed.
Installation Instructions
7 Installation Instructions, continued

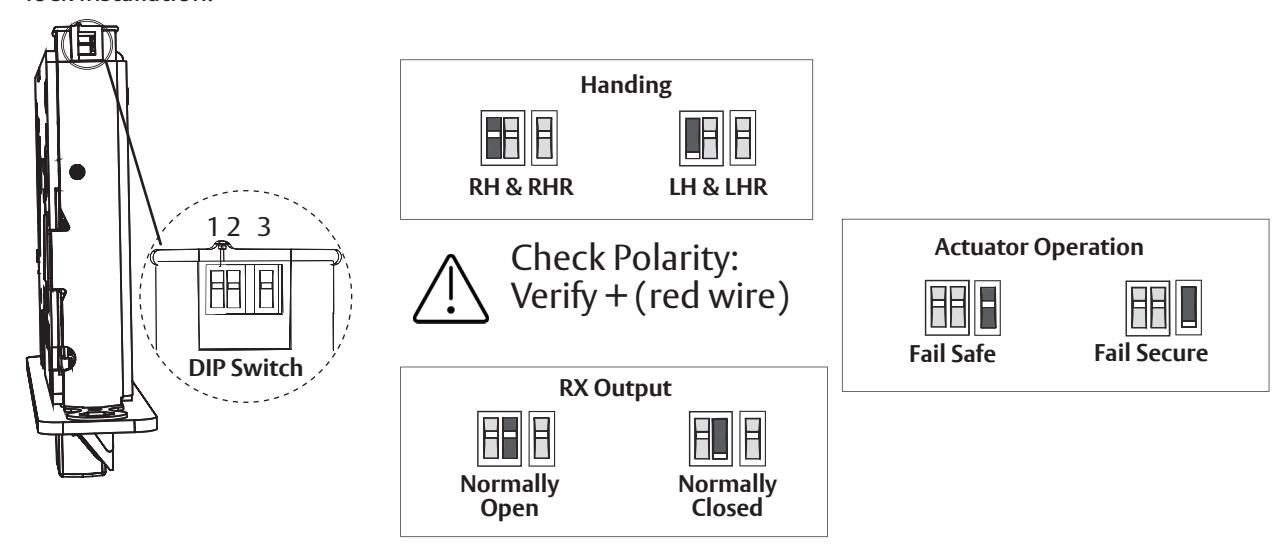

d Confi gure the DIP Switch Settings
IMPORTANT: This product is built and factory tested to the configuration specified. Any change to the 3-position DIP-switch settings located at the bottom of the mortise lock body must be made prior to lock installation.
e Install Lock Body
NOTE: Do not pull the lock into the pocket using the harness alone.
Ensure that the wire harness is not pinched between the lock and the mortise pocket.

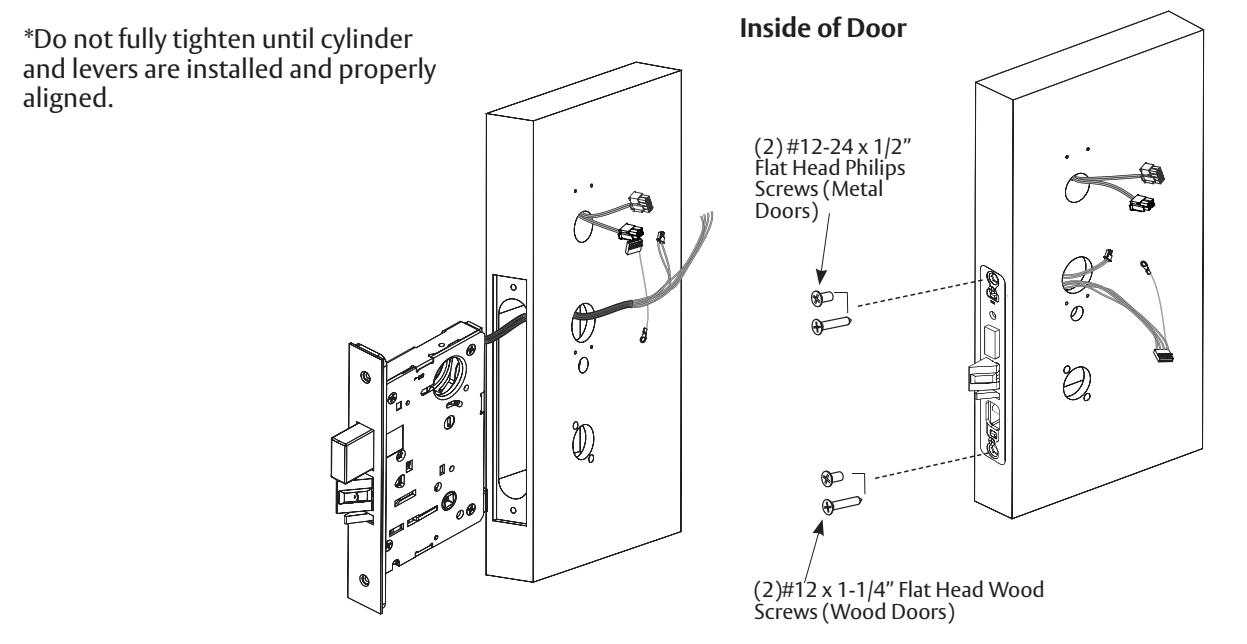

- 1. Feed the wire harness into the mortise pocket and through inside preparation hole as shown below.
- 2. Carefully push the lock body into the pocket while lightly applying tension to the wire harness.
- 3. Insert (2) #12-24 screws into the lock body and tighten* with a screw driver.
Installation Instructions
7 Installation Instructions, continued
f Install Inside Mounting Plate

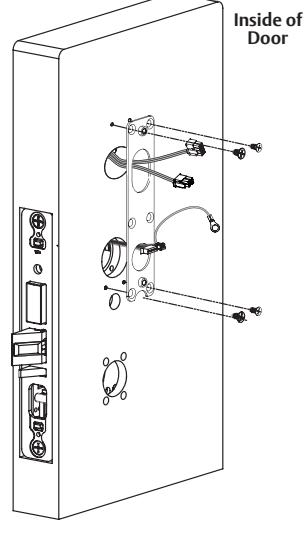

- NOTE: Feed connectors and door harness through the corresponding hole on the mounting plate.
- a. Attach the mounting plate using two (2) #8 x 1/2" lower screws. See figure to the right.
- b. If fire kit is not being used, install (2) #8 x 1/2" in upper mounting plate holes.

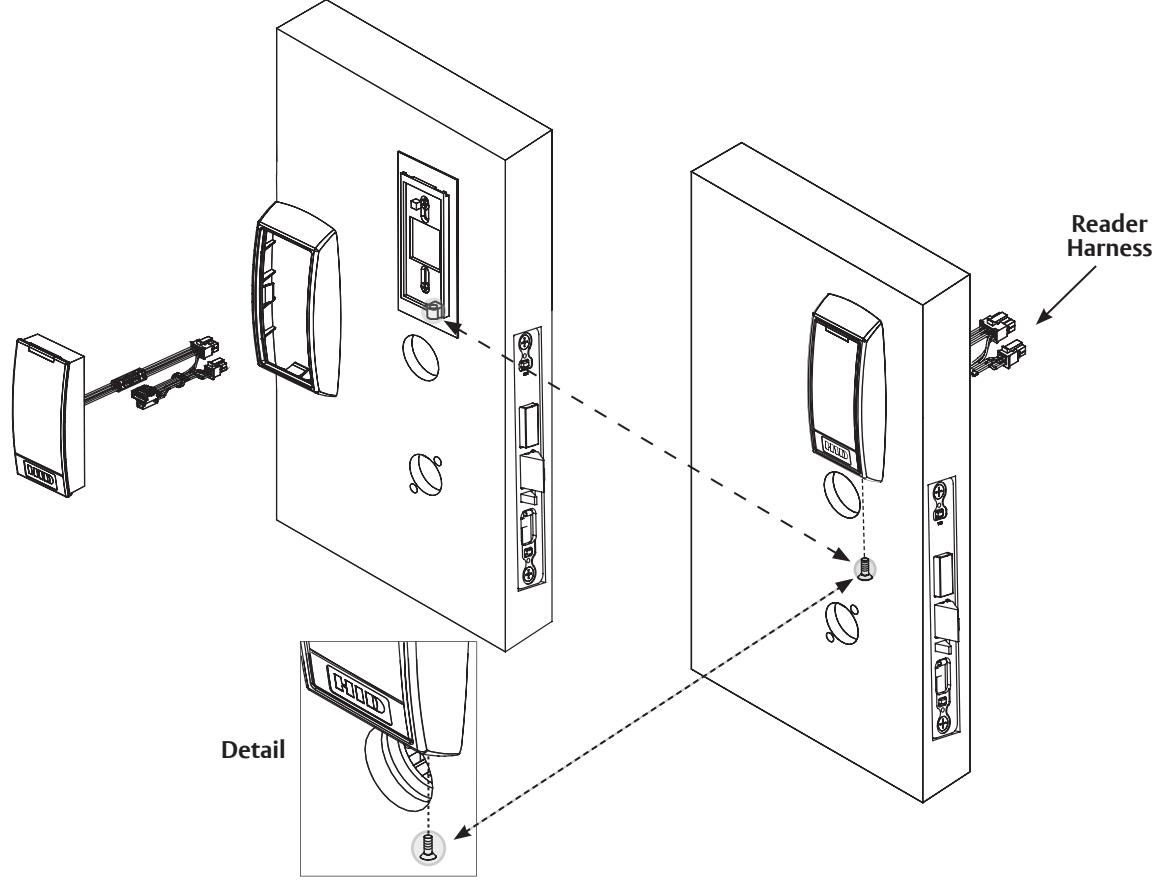

g Install Reader Backplate and "Optional" Fire Shield or Gasket

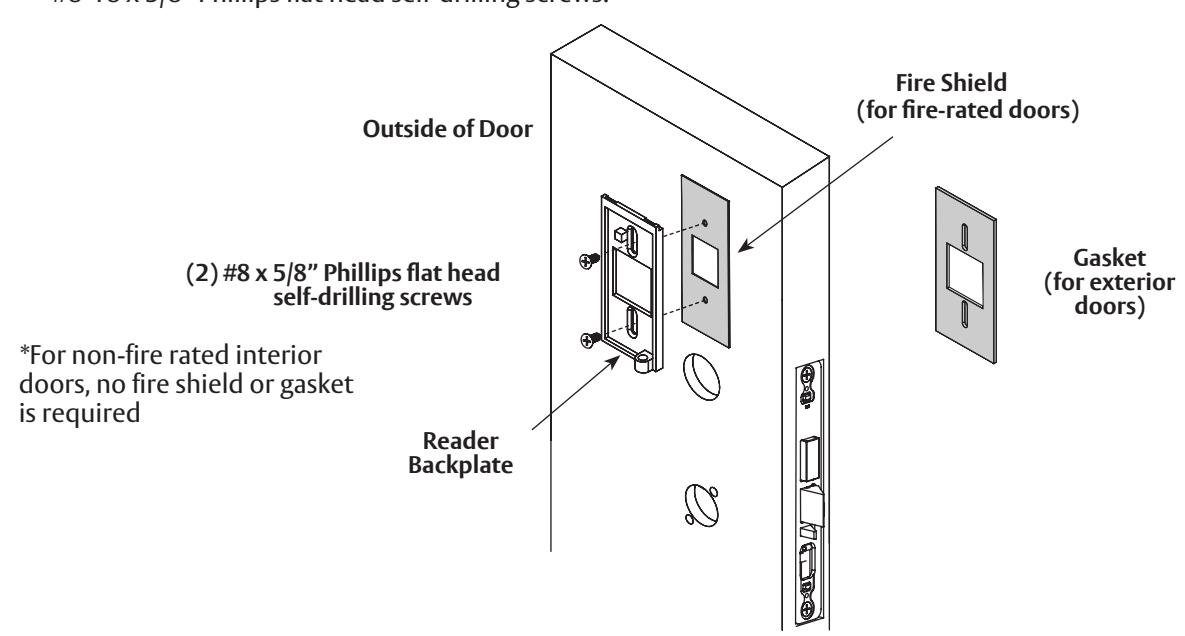

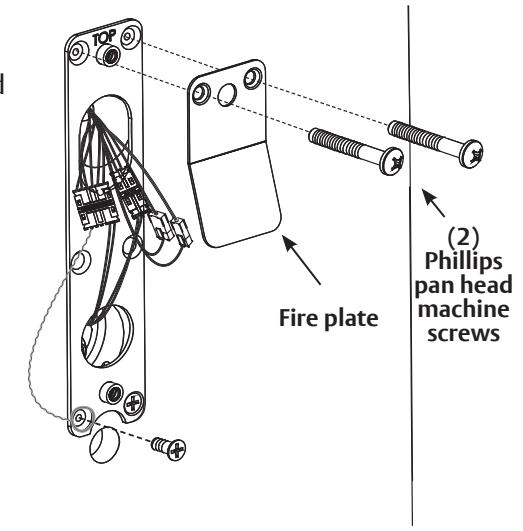

- a. For fire-rated doors only, install reader backplate and fire shield to door using two (2) #8-18 x 5/8" Phillips flat head self-drilling screws. See figure below.
- b. For exterior doors, install reader backplate and gasket using two (2) #8-18 x 5/8" Phillips flat head self-drilling screws. See figure below.
- c. For non-fire rated interior doors, no fire shield or gasket is required. Install backplate using two (2) #8-18 x 5/8" Phillips flat head self-drilling screws.
Installation Instructions
7 Installation Instructions, continued
h Installation of SE LP10 Reader & Trim Bezel
Observe precautions for handling electrostatic senstive devices.
If the SE LP10 reader is installed with a module (See below), make sure that the reader is powered down when inserting/removing the module; i.e., do not "hot-plug" (remove/insert while reader is powered) module as it may damage the reader.
- a. Fit trim bezel around the reader. Ensure access hole in the bezel aligns with screw hole on reader. The reader should be mounted so the holes face the bottom of door. (See figure to the right)
- b. Align top of reader with top of backplate. Pivot reader down until seated. Guide wires as needed to avoid pinching.
- c. Secure the reader with (1) #6-32 x 3/8" Phillips or anti-tamper security torx screw to the mounting plate (See figure below).
14
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
Installation Instructions
7 Installation Instructions, continued
i Wire Connections
Do not offset connectors and ensure that they are completely seated.

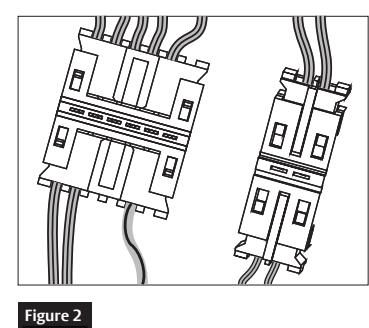

- a. Connect 6-pin connector from lock body to 6-pin connector on reader harness (Figures 1 and 2).
- b. Connect 2-pin connector from lock body to 2-pin connector on reader harness (Figures 1 and 2).
Note: Neatly fold excess wires into remaining space to prevent pinching wires when mounting inside escutcheon (Figure 3)
Figure 1

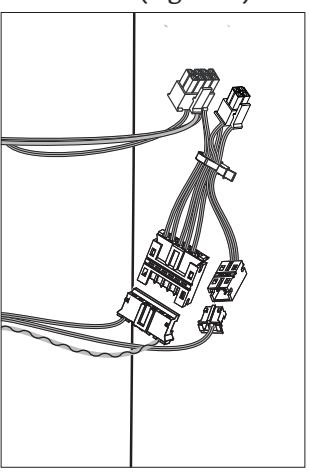

c. Carefully tuck connected harnesses into the 3/4-inch hole in the door (Figure 3). Connect the ElectroLynx 4- and 8-pin connectors from the door harness to (black) 4- and 8-pin connectors of the SE LP10 harness (Figure 3).
j Fire Plate & Earth Ground Connection
- a. Remove lower left screw from mounting plate. Feed screw through green/yellow ground wire terminal. Reinstall screw. Ensure that the green/yellow wire points toward the top of door in order to avoid interference with escutcheon.
- b. Install the fire plate to the mounting plate. Use caution not to trap wires between the pad and the mounting plate. Fasten plate with two (2) #8 x 1-1/4" Phillips pan head self-drilling screws.
Note: For non-fire rated doors, omit fire plate.
Installation Instructions
7 Installation Instructions, continued
k Outside Cylinder Installation

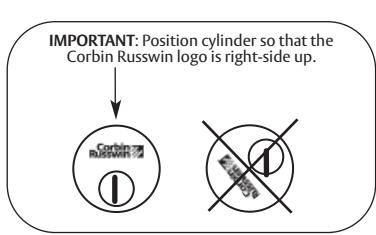

- a. Verify orientation of cylinder so that Corbin Russwin logo is right-side up (Figure 4).

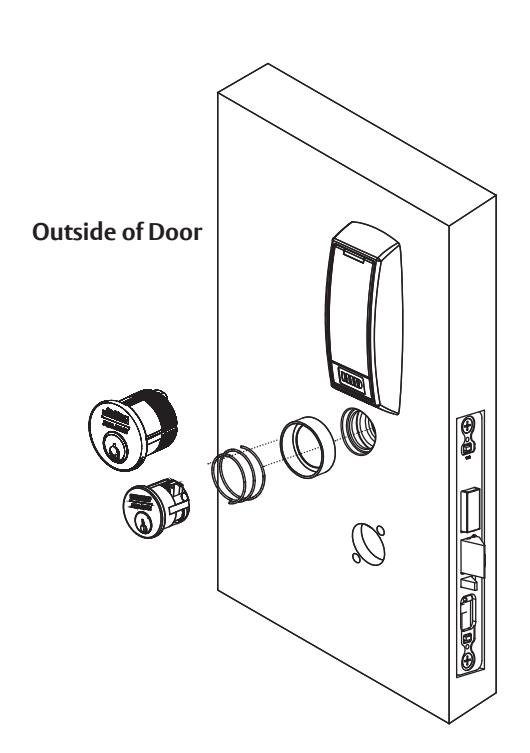

- b. Withdraw the key about 25% out of the cylinder before inserting into the escutcheon (Figure 5).
- c. Use the key to rotate the cylinder clockwise until it is flush at the bottom and the Corbin Russwin logo is right-side up.
Do not attempt to tighten all the way.

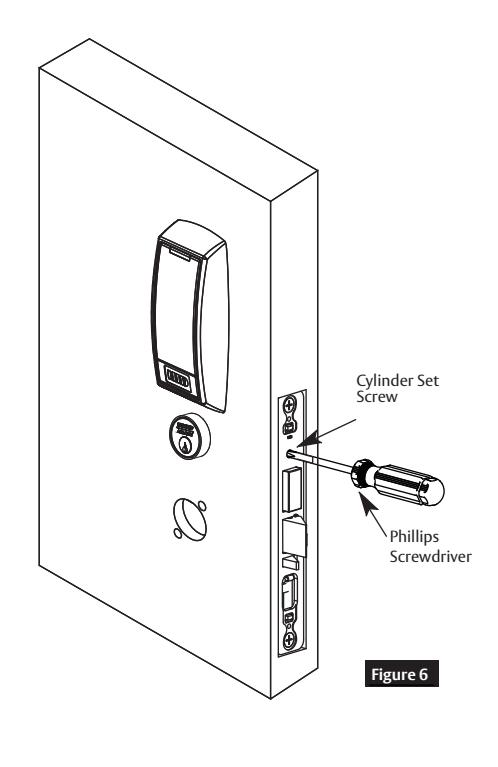

- d. Tighten the cylinder clamp set screw to prevent unscrewing of the cylinder (Figure 6).
-
e. Test cylinder:
- Key retracts latch.
- Ensure smooth operation of latchbolt and deadbolt.
Figure 4
Figure 5
For installation assistance contact Corbin Russwin
Installation Instructions
7
Installation Instructions, continued
Inside Outside Lever & Inside Adapter Plate Assembly

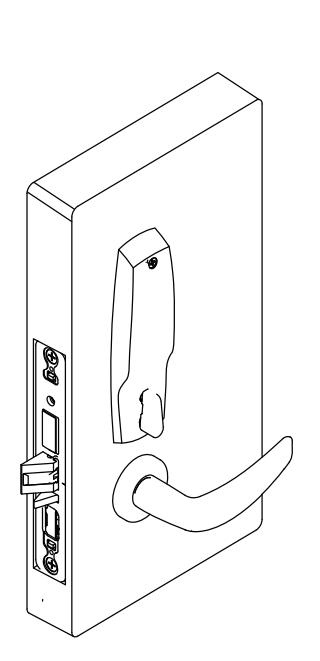

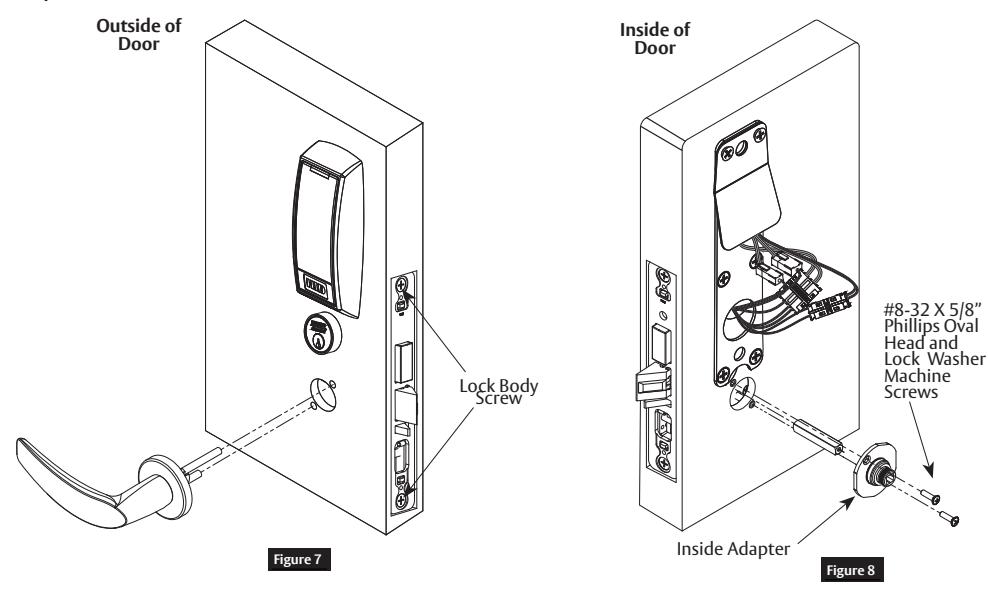

- a. With outside lever horizontal, insert mounting posts through outside of door and lock body. Make certain the lever spindle is properly engaged inside the lock body (Figure 7).
- b. On the inside of the door, insert spindle into square hole of mortise lock (Figure 8).
- c. Slide inside adapter and plate assembly over spindle and secure with (2) #8-32 X 5/8" Phillips oval head and lock washer machine screws.
Note: For Museo lever styles, ensure that position of set screw hole on inside adapter is oriented to match location of hole on inside lever handle. Also ensure that the slot in the spindle is facing away from the door (See figure 8), and is oriented to match the location of the hole in the inside lever handle.
m

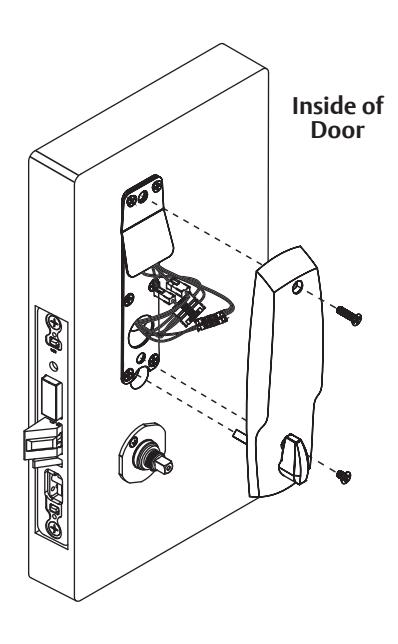

Install Inside Escutcheon Assembly
- a. Carefully and neatly fold back lock body wires.
- b. For locks equipped with deadbolts, align the inside escutcheon turn lever with slot in lock body. Adjust wires as necessary to ensure that they are clear of inside escutcheon. Seat inside escutcheon against door.
- c. Tighten the inside escutcheon securely to the mounting plate with the Phillips flat head machine screws provided. Use #8- 32 x 5/8" for the top of the escutcheon and the #8-32 x 1/4" screws for the bottom of the escutcheon located under the turn lever.
- d. Be sure turn assembly and deadbolt function properly.
and more open world
Installation Instructions
7 Installation Instructions, continued

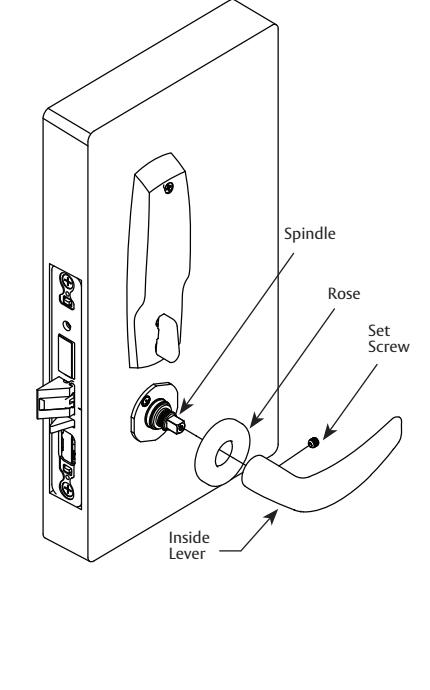

n Install Inside Rose and Inside Lever Assembly
- 1. Rotate the inside rose counterclockwise to seat the threads, then rotate clockwise to securely tighten.
- 2. Slide lever handle onto spindle until fully seated. The handle must be horizontal and facing the hinge side of the door.
- 3. Push lever onto spindle so minimum gap is visible.
- 4. Tighten the set screw securely with a 1/8" hex wrench.
- 5. Before closing the door, test that the lever is functional and the operation of the latchbolt and deadbolt is smooth.
o Attaching Front Plate

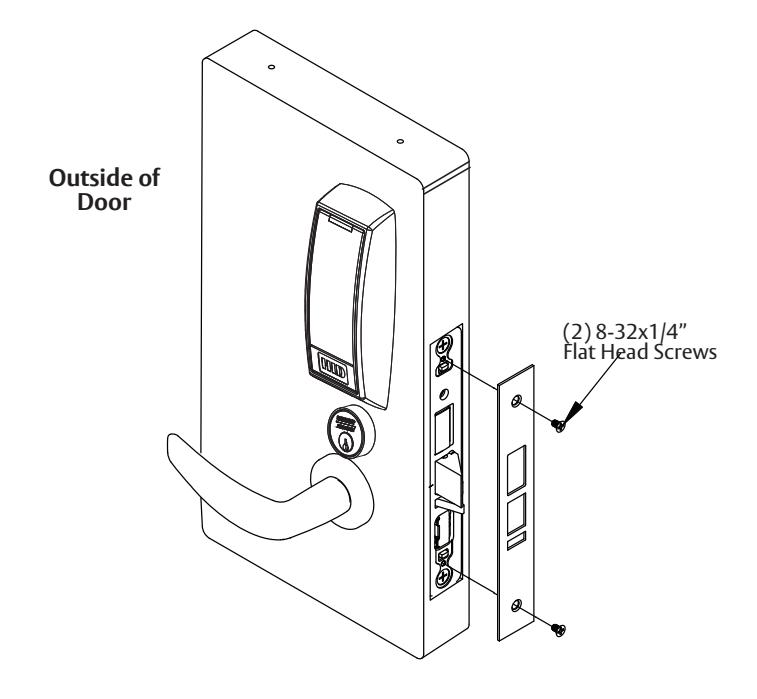

Attach front plate with (2) #8-32x1/4" flat head screws and tighten securely.
Installation Instructions
8 Operational Check
For multi-point locks with cylinders:
- a. Insert key into cylinder and rotate: There should be no friction against lock case, wire harness or any other obstructions.
- b. The key will retract the latch: Key should rotate freely.
- c. Inside lever: When used, ensure it retracts both the latch and deadbolt (if provided).
- d. Close door: Ensure latch and deadbolt fully extend and do not bind.
9 Wiegand Test Unit
The ASSA ABLOY Wiegand Test Unit verifies your installation in the field. The test unit checks for proper wiring, card reader data integrity, lock functionality including lock/unlock, door position status, and request-to-exit (REX) status.
In addition, this tool provides product demonstration abilities to highlight the product's features and capabilities.
| Feature | WT1 | WT2 |
|---|---|---|
|
12 or 24VDC solenoid
lock voltage adjustable |
X | X |
|
Operates as Fail Safe or
Fail Secure |
X | X |
|
"Learn" mode allows
testing of specific cards without programming at the panel level |
X | X |
|
Card reader data integrity
is validated at test unit |
X | X |
| Works with SE LP10 | X | X |
|
Displays detailed
Wiegand data, including hexadecimal string and total bits received |
X | |
|
Displays measured end
of-line resistor values (if applicable) |
X |
Note: Once electrical wiring has been successfully completed according to proper application, perform the following steps:
- 1. Ensure lock is interfaced with Wiegand Test Unit to verify installation & wiring up to (frame side) point of hinge.
- 2. Turn power ON.
- 3. Present compatible credential and verify LED and sounder activity.
- 4. Verify valid card read on Wiegand Test Unit or at the EAC panel.
- 5. Verify system operation functions; i.e., when credential is presented to reader, the door should unlock.
If the lock fails to operate when DC voltage is applied:
- a. Remove power.
- b. Confirm the polarity of the supply (i.e., ' + ' is positive).
If the lock is functioning opposite to the desired fail-safe or fail-secure operation:
- a. Remove power and check the "Fail" condition by attempting to rotate the outside lever (e.g. if fail-secure, the outside lever should be rigid with power removed).
- b. If the function is incorrect, remove the lock and repeat Section 7, Step D (DIP Switch configuration).
Corbin Russwin. 225 Episcopal Road Berlin, CT 06037 USA Phone: 800-543-3658 Fax: 800-447-6714 www.corbinrusswin.com
Corbin Russwin is a brand associated with ASSA ABLOY Access and Egress Hardware Group, Inc., an ASSA ABLOY Group company. Copyright © 2017, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
