Quick Ship

TABLE OF CONTENTS

Terms and Conditions	3
Auxiliary Locks
DL2200 Series Cylindrical Deadlock	4
DL3200 Series Cylindrical Deadlock	5
DL4100 Series Mortise Deadbolt	6
PL5000 Series Padlock	7
Cylindrical Locks
CL3100 Series Vandal Resistant Lever Lock	8-9
CLX3300 Series Cylindrical Lever Locksets
CL3800 Series Cylindrical Lever Locksets	12-13
CK4300 Series Cylindrical Knob Locksets	14
CK4800 Series Cylindrical Knob Locksets

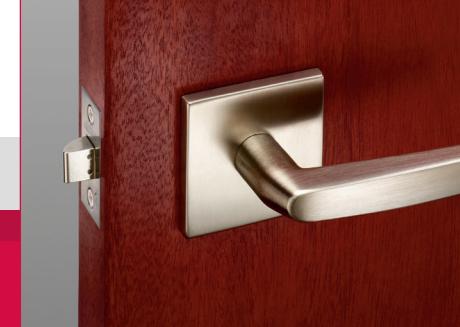

TL3700 Series Tubular Lock (Muséo)

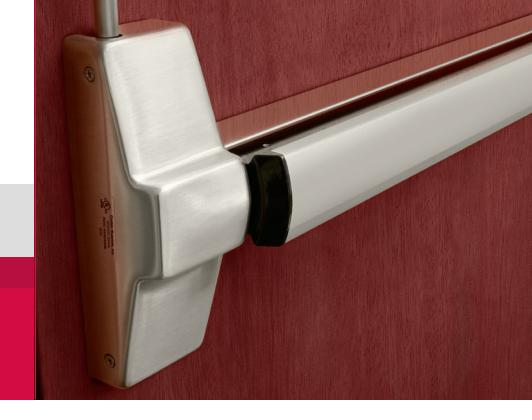

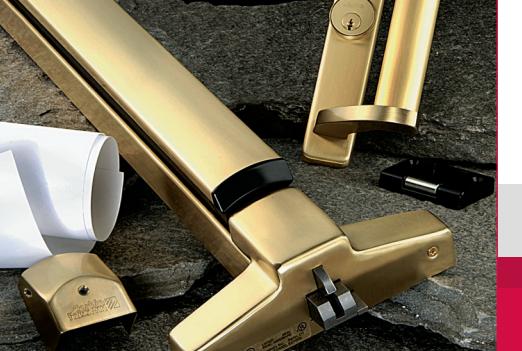

Exit Devices

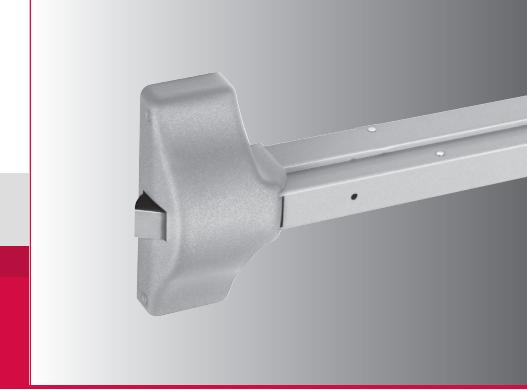

ED2000 Series Exit Device	18-19
ED4000 Series Pushpad Exit Device	20-21
ED5000 Series Exit Device	22-23

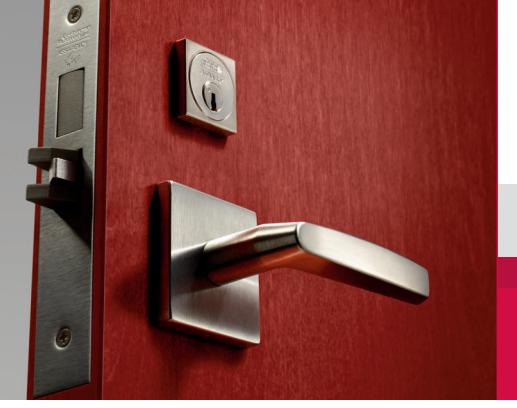

Mortise Locks
ML2000/ML20900 Series Mortise Lock	24-25
Status Indicator Upgrade Kits	26

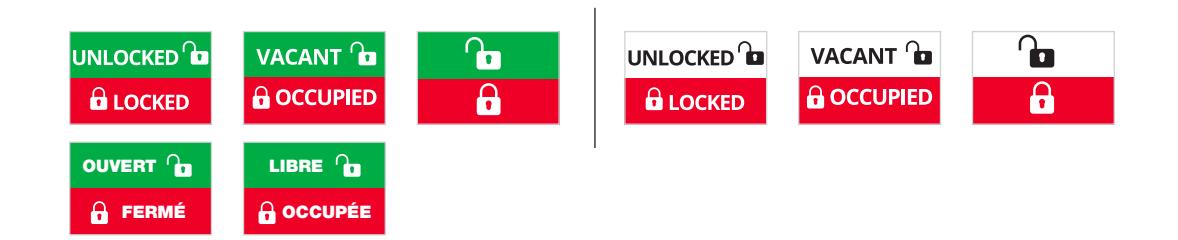

Indicator Option Codes	27

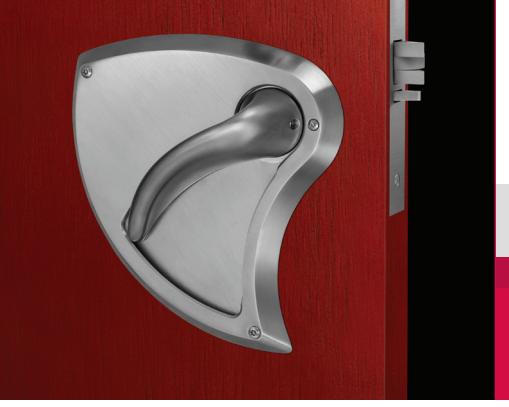

Healthcare Hardware	28-30

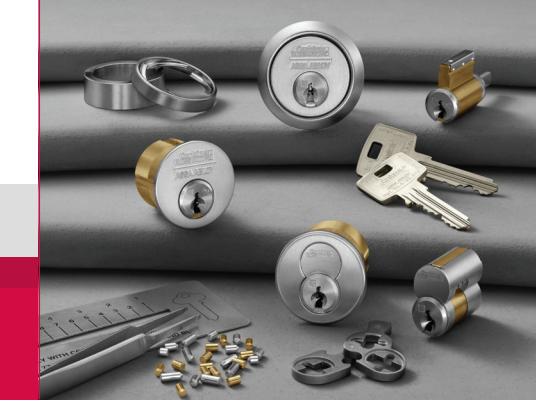

Cylinders
Order Forms

TERMS AND CONDITIONS

All Quick Ship orders will ship from Corbin Russwin within the specified time after receipt of order or Corbin Russwin will pay freight costs.

Quick Ship

Orders:

• Orders can be submitted to order entry via fax @ 800-260-8598 or email qsorders.corbinrusswin@assaabloy.com

Program Guidelines:

• 24-Hour
  • Orders received prior to 1pm EST will ship within 24 hours
  • Standard Buying Program discounts less 10% are automatically applied
  • Electrified products Maximum 50 locks per order
  • Orders cannot be changed or cancelled

• 1-Week

• Orders received prior to 4:30 EST will ship within 5 working days
• Standard Buying Program discounts apply
• Project quote discount less 5% is automatically applied
• Orders can be changed or cancelled within 24 hrs of receipt without a fee, if manufacture of product has not started
• If product has been started, orders changed or cancelled will incur a 45% fee
• The change/cancellation fee will be billed on the Customer's original order

• 2-Week

• Orders received prior to 4:30 EST will ship within 10 working days
• Standard Buying Program discount or project quote discounts are applicable
• Limited to $50,000 net/net orders
• Orders changed or cancelled 3 days after receipt of order will affect the shipping date and will result in a charge of cost for materials and incurred labor
• If the product has been made, a 45% fee will apply
• The change/cancellation fee will be billed on the Customer's original order

Shipments:

• All shipments are made F.O.B. factory, Berlin, CT
• Shipping charges are prepaid and will be added to your invoice
• Prepaid freight limit of $7,000
• UPS Ground for small orders, unless indicated otherwise
• Large orders ship via Corbin Russwin's standard freight carrier
• Shipments may be subject to small parcel handling charges and fuel surcharges

Pricing:

• Refer to the Corbin Russwin Price Book for product pricing and Buying Program for discounts

Returns:

• Refer to the Corbin Russwin Price Book for the policy on returned goods.

ORDER DETAILS

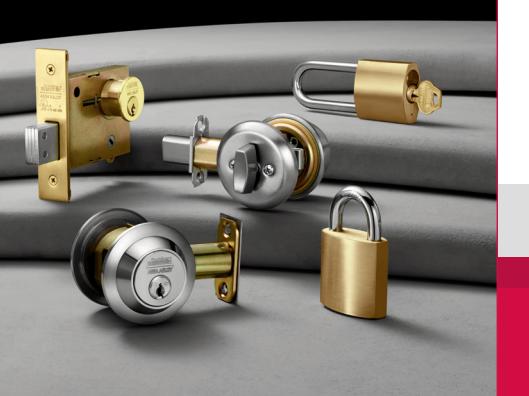

AUXILIARY LOCKS

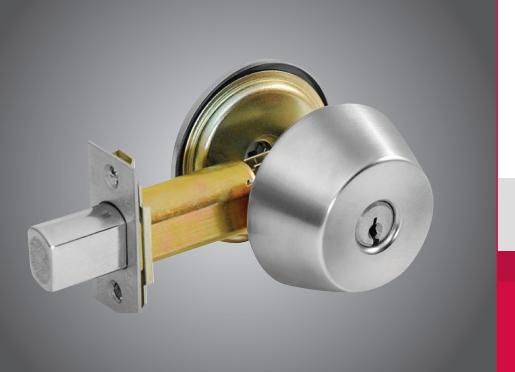

DL2200 SERIES DEADLOCKS

PROGRAM	FUNCTION					FIN	IISH
24 hour	DL2217				626
1 week	DI 2211	DI 2212	רוח	DI 2217	613E	626
2 week	DL2211 DL2260	DL2212 DL2261	DL2213	DLZZ I /	605 2 613E	606² 625²	612² 626	613

PRODUCT DETAILS
Strike:	Backset:
2-3/8" x 1-1/8" (standard) - SD234	2-3/4" - B234
ANSI/BHMA:	Door Thickness:
DL2200 Series - Grade 2	1-3/4" - D134
DI 3200 Series - Grade 1

Function:
DL2211	Cylinder x Blank
DL2212	Double Cylinder
DL2213	Single Cylinder
DL2217	Classroom
DL2260	Thumbturn x Blank
DL2261	Thumbturn x Indicator x V21
Finish:
605 2	Polished brass, clear coated
606 2	Satin brass, clear coated
612 2	Satin bronze, clear coated
613	Dark oxidized satin bronze, oil rubbed

Dark oxidized satin bronze - equivalent

Bright chrome plated

Satin chrome plated

Keyway - 0 Bit (standard):
59A1 1
60
D1
L4

Keying (	Options:
6P	Conventional 6-pin (standard)
CL6 1	LFIC 6-pin less core
KR	Keyed Random
LC	Less Cylinder
M17	ANSI Wrought Strike Box

• 1. Not available with 24 hour program
• 2. Maximum order of 25 locks

SAMPLE ORDER STRING
Quantity	Series/Function	Door Thickness	Finish	Options
24	DL2213	D134	626	CL6

613E

625² 626

AUXILIARY LOCKS

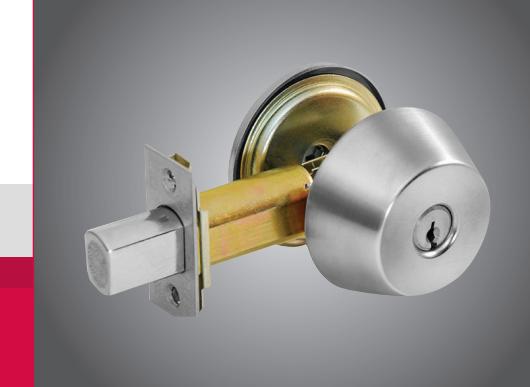

DL3200 SERIES DEADLOCKS

PROGRAM	FUNCTION					FIN	IISH
24 hour	DL3217				626
1 week	DI 2211	DI 2212	רו כי וח	DI 3217	613E	626
2 week	DL3211 DL3260	DL3212	DL3213	DL3217	605 2 613E	606² 625²	612² 626	613

PRODUCT DETAILS
Strike:	Backset:
2-3/8" x 1-1/8" (standard) - SD234	2-3/4" - B234
ANSI/BHMA:	Door Thickness:
DL2200 Series - Grade 2	1-3/4" - D134
DL3200 Series - Grade 1

ORDER DET	AILS
Function:		Keyway	- 0 Bit (standard):
DL3211	Cylinder x Blank	59A1 1
DL3212	Double Cylinder	60
DL3213	Single Cylinder	D1
DL3217	Classroom	L4
DL3260	Thumbturn x Blank
		Keying (	Options:
Finish:		6P	6P Conventional 6-pin (standard)
605 2	Polished brass, clear coated	CL6 1	LFIC 6-pin less core
606 2	Satin brass, clear coated	KR	Keyed Random
612 2	Satin bronze, clear coated	LC	Less Cylinder
613	Dark oxidized satin bronze, oil rubbed	M17	ANSI Wrought Strike Box
613E	Dark oxidized satin bronze - equivalent	4 11 11
625 2	Bright chrome plated	1. Not available with 24 hour program 2. Maximum order of 25 locks
626	Satin chrome plated	2. Waxiii aiii	0.46. 0.25.00.0

SAMPLE ORDER STRING
Quantity	Series/Function	Door Thickness	Finish	Options
24	DL2213	D134	626	CL6

45241-02/24

AUXILIARY LOCKS

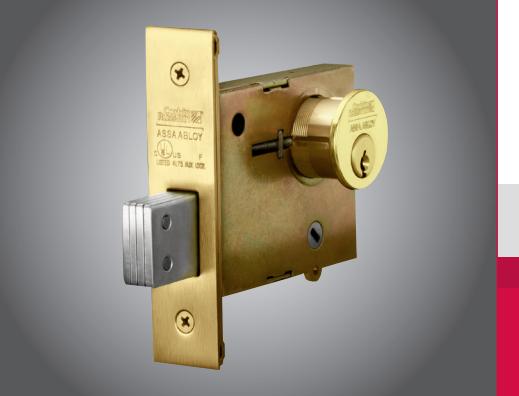

DL4100 SERIES DEADLOCKS

PROGRAM	FUNCTION			FINISH
24 hour	DL4117			626
1 week	DI //111	DI 4112	DI 4112	613E	619	626
2 week	DL4111 DL4117	DL4112 DL4122	DL4113 DL4160	605 625	606 626	612	613	613E	619

PRODUCT DETAILS
Strike:	Door Thickness:
3-1/2" x 1-1/8" (standard) - SD001	1-3/4" - D134

Function:		Options	5:
DL4111	Cylinder x Blank	M17	ANSI Wrought Strike Box
DL4112	Double Cylinder	M40	Box for standard strike
DL4113	Single Cylinder
DL4117	Classroom	Keyway	/ - 0 Bit (standard):
DL4122	Double Cylinder x Thumbturn	59A1 1
DL4160	Thumbturn x Blank	60
		D1
Finish:		L4
605	Polished brass, clear coated
606	Satin brass, clear coated	Keying	Keying Options:
612	Satin bronze, clear coated	6P	6P Conventional 6-pin (standard)
613	Dark oxidized satin bronze, oil rubbed	CL6 1	LFIC 6-pin less core
613E	Dark oxidized satin bronze - equivalent	KR	Keyed Random
619	Satin nickel, clear coated	LC	Less Cylinder
525	Bright chrome plated	1 Not avails	1. Not available with 24 hour program
626	Satin chrome plated	i. IVOL availe	abic with 24 flour program

SAMPLE ORDER STR	ING
Quantity	Series/Function	Door Thickness	Finish	Misc. Options
7	DL4112	D134	626	M40

AUXILIARY LOCKS

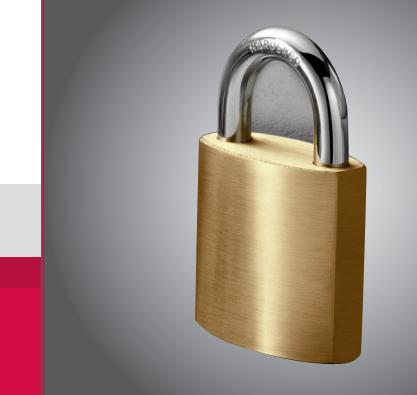

PL5000 SERIES PADLOCKS

PROGRAM				FUNCTIONS
24 hour	PL5000R	PL5100R	PL5200R
1 week & 2 week	PL5000R PL5270	PL5070 PL5280	PL5080	PL5100R	PL5170	PL5180	PL5200R

ORDER DETAILS
Function:
PL5000R	Hardened Steel; Rekeyable Fixed Core
PL5070	Hardened Steel; Interchangeable Core, Less Core
PL5080	Hardened Steel; Interchangeable Core
PL5100R	Brass; Rekeyable Fixed Core
PL5170	Brass; Interchangeable Core, Less Core
PL5180	Brass; Interchangeable Core
PL5200R	Stainless Steel; Rekeyable Fixed Core
PL5270	Stainless Steel; Interchangeable Core, Less Core
PL5280	Stainless Steel; Interchangeable Core

Keyway - 0 Bit (standard):
L4
D1
59A11
60

Keying Options:

6P	6P Conventional 6-pin (standard)
KR	Keyed Random

^1. Not available with 24 hour program

SAMPLE ORDER STRING
Quantity	Series/Function	Misc. Options
4	PL5080	KR

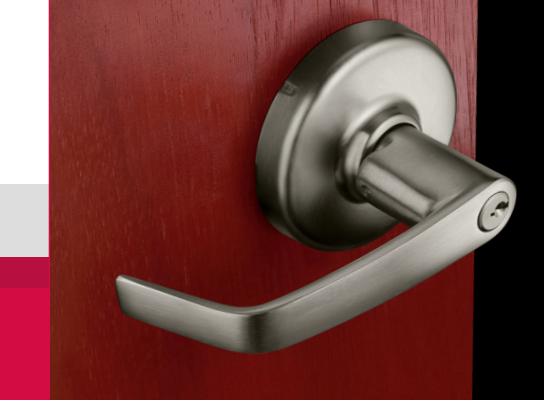

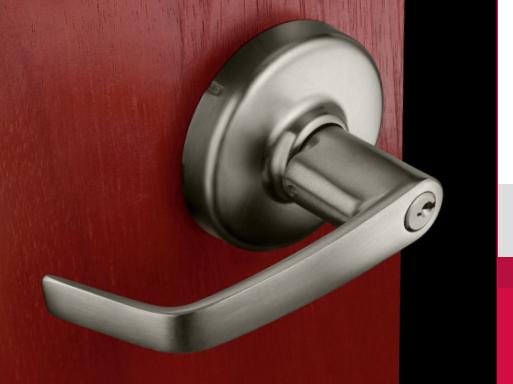

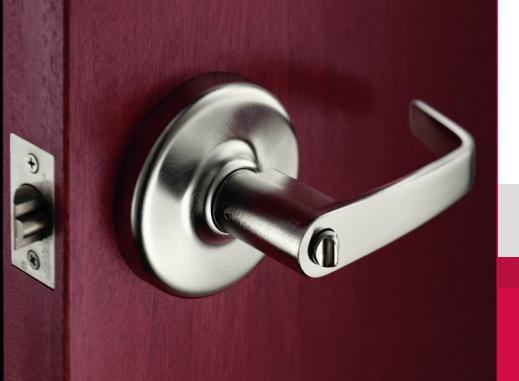

CL3100 SERIES VANDAL RESISTANT LEVER LOCK

PROGRAM		FUNCTIONS				TRIM				FINISH
1 week & 2 week	CL3110 CL3152 CL3161	CL3120 CL3155 CL3172	CL3151 CL3157 CL3175	AZC NZK	AZD PZC	AZK PZD	NZC PZK	NZD	613E	626

Trim Designs

CL3100 SERIES VANDAL RESISTANT LEVER LOCK

PRODUCT DETAILS
Strike:	Backset:
ANSI Curved Lip Strike (standard) - SA114	2-3/4" - B234
ANSI/BHMA:	Door Thickness:
Grade 1	1-3/4" - D134

59A12 60 D1 L4

Keyway - 0 Bit (standard):

ORDER DETAILS
Function:
CL3110	Passage or Closet
CL3120	Privacy, Bedroom or Bathroom
CL3151	Entrance or Office
CL3152	Classroom Intruder
CL3155	Classroom
CL3157	Storeroom or Closet
CL3161	Entry or Office
CL3172	Apartment, Exit or Public Toilet
Finish:
613E	Dark oxidized satin bronze - equivalent
626	Satin chrome plated

Keying Options:
6P	6P Conventional 6-pin (standard)
C2	Schlage® C keyway cylinder
CL6	LFIC 6-pin less core
KR	Keyed Random
LA2	Sargent® LA keyway cylinder
LC	Less Cylinder

Options:

M081,2	Lever to accept SFIC 6 or 7-pin interchange able core (NZD & PZD design only)
M17	ANSI Wrought Strike Box

• 1. Not available with AZC, AZD, AZK trim
• 2. Not available with 24 hour program

SAMPLE ORDER STRING
Quantity	Series/Function	Door Thickness	Trim	Finish	Misc. Options	Keying
24	CL3155	D134	NZD	626	M08	LC

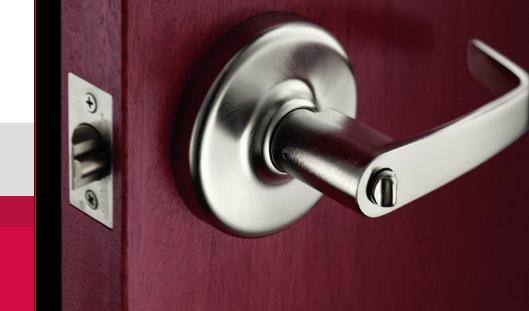

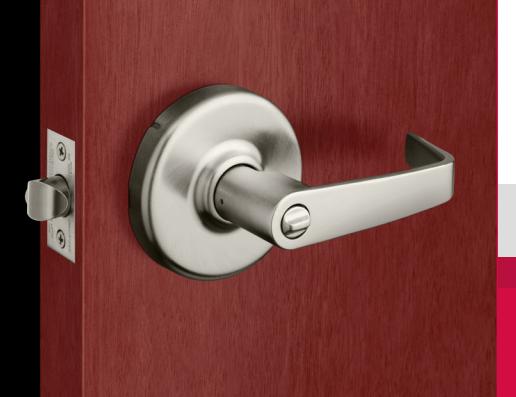

CLX3300 SERIES

PROGRAM	FUNCTIONS				TRIM		FINISH
1 & 2 week	CLX3310 CLX3351 CLX3357 CLX3372	CLX3320 CLX3352 CLX3361 CLX3380	CLX3350 CLX3355 CLX3370	AZD	NZD	PZD	626

Trim Designs

AZD NZD PZD

CLX3300 SERIES

PRODUCT DETAILS
Strike:	Backset:
ANSI Curved Lip Strike (standard) - SA114	2-3/4" - B234
ANSI/BHMA:	Door Thickness:
Grade 1	1-3/4" - D134

ORDER DETAILS Function:			Keyway - 0 Bit (standard):
CLX3310	Passage or Closet	59A1
CLX3320	Privacy, Bedroom or Bathroom	60
CLX3350	Half Dummy Trim	D1
CLX3351	Entrance or Office	L4
CLX3352	Classroom Intruder
CLX3355	Classroom		Keying Options:
CLX3357	Storeroom or Closet	6P	6P Conventional 6-pin (standard)
CLX3361	Entry or Office	C	Schlage® C keyway cylinder
CLX3372	Apartment, Exit or Public Toilet	CL6	LFIC 6-pin less core
CLX3380	Passage x Blank Plate	KR	Keyed Random
		LA	Sargent® LA keyway cylinder
Finish:		LC	Less Cylinder
626	Satin chrome plated

SAMPLE ORDER STRING
Quantity	Series/Function	Door Thickness	Trim	Finish	Hand	Misc. Options	Keying
24	CLX3355	D134	NZD	626	RHR	M08	KR

45241-02/24

M08 Lever to accept SFIC 6 or 7-pin interchangeable

core (all designs) M17 ANSI Wrought Strike Box

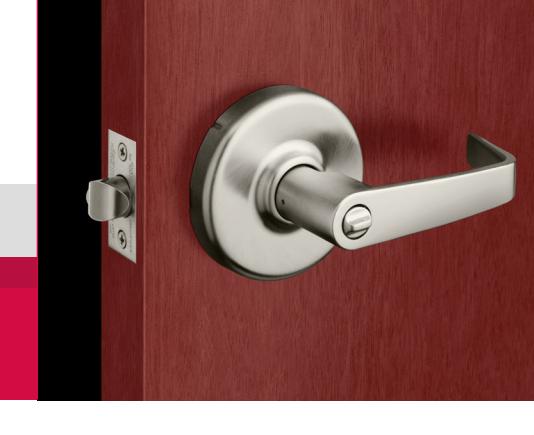

CL3800 SERIES

PROGRAM	FUNCTIONS			TRIM		FINISH
24 hour							626
1 week	CL3810	CL3820	CL3851				613	613E	626
	CL3855	CL3857	CL3861	AZD	NZD	PZD	6051	6061	6121
2 week	CL3870						613	613E	619
							6251	626

^1. Maximum order of 25 locks

Trim Designs

AZD NZD PZD

CL3800 SERIES

Backset:
2-3/4" - B234
Door Thickness:
1-3/4" - D134

Grade 2			1-3/4" - D134
ORDER DETAILS
Function:			Keyway - 0 Bit (standard):
CL3810	Passage or Closet	59A11
CL3820	Privacy, Bedroom or Bathroom	60
CL3851	Entrance or Office	D1
CL3855	Classroom	L4
CL3857	Storeroom or Closet
CL3861	Entry or Office		Keying Options:
CL3870	Full Dummy	6P	Conventional 6-pin (standard)
		C1	Schlage® C keyway cylinder
Finish:		CL61	LFIC 6-pin less core
6052	Polished brass, clear coated	KR	Keyed Random
6062	Satin brass, clear coated	LA1	Sargent® LA keyway cylinder
6122	Satin bronze, clear coated	LC	Less Cylinder
613	Dark oxidized satin bronze, oil rubbed
613E	Dark oxidized satin bronze - equivalent	6-pin cylinder only
619	Satin nickel, clear coated		1. Not available with 24 hour program 2. Maximum order of 25 locks
6252	Bright chrome plated
626	Satin chrome plated
Options:
M081	Lever to accept SFIC 6 or 7-pin interchangeable core (all designs)
M17	ANSI Wrought Strike Box

SAMPLE ORDER STRING
Quantity	Series/Function	Door Thickness	Trim	Finish	Hand	Misc. Options	Keying
24	CL3855	D134	NZD	626	RHR	M17	LC

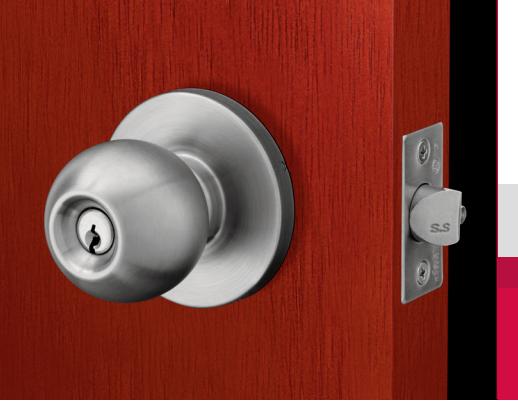

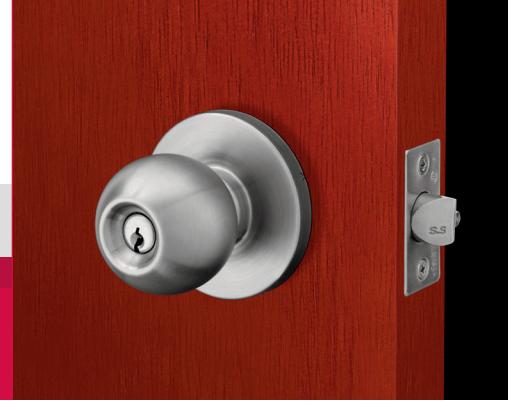

CK4300 SERIES

PROGRAM	FUNCTIONS	TRIM	FINISH
1 week & 2 week	CK4310 CK4320 CK4351 CK4355 CK4357	GRD	605 613E 630

Trim Design

GRD

PRODUCT DETAILS
Strike:	Backset:
ANSI Curved Lip Strike (standard) - SA114	2-3/4" - B234
ANSI/BHMA:	Door Thickness:
Grade 1	1-3/4" - D134

ORDER DETAILS
Function:			Keyway - 0 Bit (standard):
CK4310	Passage or Closet	59A1
CK4320	Privacy, Bedroom or Bathroom	60
CK4351	Entrance or Office	D1
CK4355	Classroom	L4
CK4357	Storeroom or Closet
			Keying Options:
Finish:		6P	Conventional 6-pin (standard)
605	Polished brass, clear coated	KR	Keyed Random
613E	Dark oxidized satin bronze - equivalent	LC	Less Cylinder
630	Satin stainless steel	M17	ANSI Wrought Strike Box

SAMPLE ORDER STRING
Quantity	Series/Function	Door Thickness	Trim	Finish	Hand	Misc. Options	Keying
24	CK4355	D134	GRD	630	RHR	M17	L4

CK4800 SERIES

PROGRAM	FUNC	CTIONS	TRIM			FINISH
24 hour	CK4851			626
1 week & 2 week	CK4810 CK4851	CK4820	GWC	605	613E	626

Trim Design

GWC

PRODUCT DETAILS
Strike:	Backset:
ANSI Curved Lip Strike (standard) - SA114	2-3/4" - B234
ANSI/BHMA:	Door Thickness:
Grade 2	1-3/4" - D134

Function:		Keying Options:
CK4810	Passage or Closet	6P	Conventional 6-pin (standard)
CK4820	Privacy, Bedroom or Bathroom	KR	Keyed Random
CK4851	Entrance or Office	LC	Less Cylinder
		M17	ANSI Wrought Strike Box
Finish:
605	Polished brass, clear coated	1. Not availa	able with 24 hour program
613E	Dark oxidized satin bronze - equivalent
626	Satin Chromium Plated
Keyway -	0 Bit (standard):
59A1 1
60
D1
1.4

SAMPLE ORDER	STRING
Quantity	Series/Function	Door Thickness	Trim	Finish	Hand	Misc. Options	Keying
24	CK4851	D134	GWC	626	RHR	M17	L4

TUBULAR LOCKS

TL3700 SERIES

PROGRAM		FUNCTIONS			TRIM					FINISH
24 hour				102T	110T			626	630
1 week	TL3710 TL3720A	TL3710A TL3750	TL3720 TL3750S	102T 110T 125T	103T 116T 25MT1	107T 123T	109T 124T	613E	619	626	630
2 week	TL3770	TL3780	TL3780A	102T 110T 123T 131T	103T 114T 124T 25MT1	107T 115T 125T	109T 116T 130T	6052 619	6122 6252	613 626	613E 630

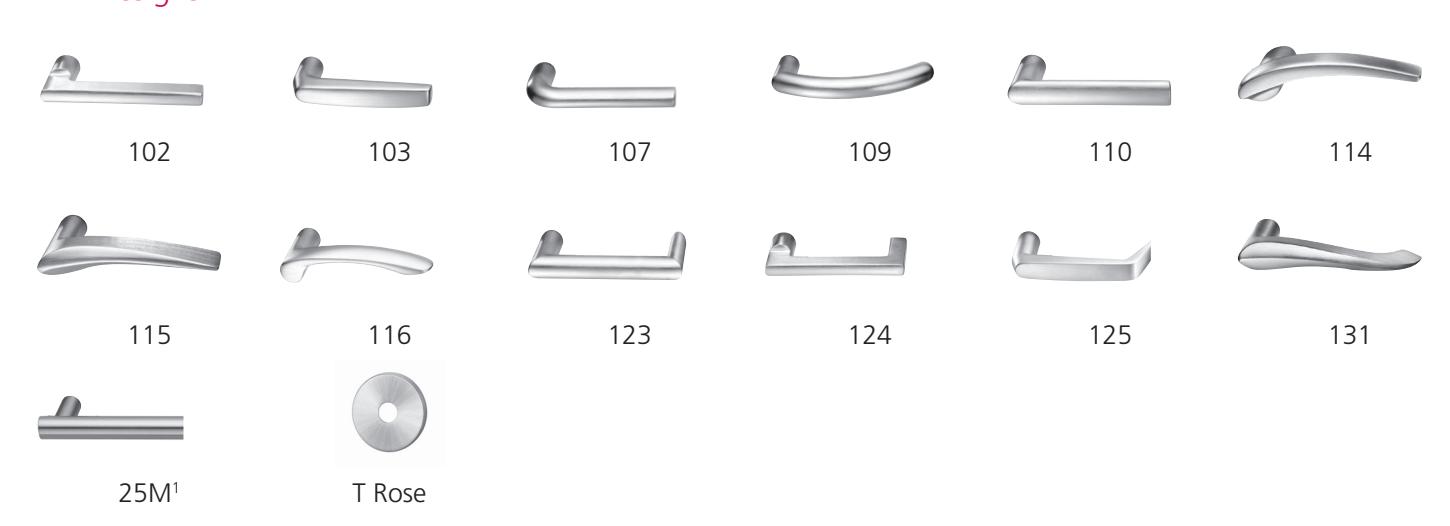

Trim Designs

TUBULAR LOCKS

TL3700 SERIES

2-3/4" - B234

PRODUCT DETAILS
Strike:	Door Thickness:
Curved lip "T" strike (standard) - SC114	1-3/4" - D134
Backset:

Function:		Finish:
TL3710	Passage	6052	Polished brass, clear coated
TL3710A	Passage - 3 hour	6122	Satin bronze, clear coated
TL3720	Privacy	613	Dark oxidized satin bronze, oil rubbed
TL3720A	Privacy - 3 hour	613E	Dark oxidized satin bronze - equivalent
TL3750	Half Dummy Trim - Through Bolted	619	Satin nickel, clear coated
TL3750S	Half Dummy Trim - Surface Bolted	6252	Bright chrome plated
TL3770	Full Dummy Trim - Through Bolted	626	Satin chrome plated
TL3780	Communicating	6301	Satin stainless steel
TL3780A	Communicating - 3 Hour		1. 25M avaialble in satin stainless steel only

^{1. 25} M avaialble in satin stainless steel only

SAMPLE ORDER STRING
Quantity	Series/Function	Door Thickness	Trim	Finish	Hand
25	TL3710	D134	102T	626	RH

^2. Maximum order of 25 locks

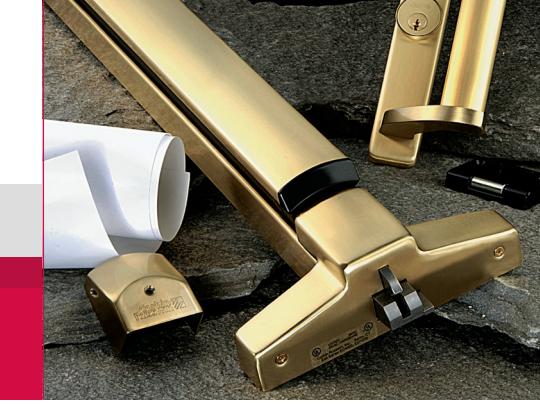

ED2000 SERIES

PROGRAM	EXIT DEVICE	TRIM	FUNCTION	FINISH
24hr	ED2200	N5*	10 50 55 57	689
1 week	ED2200 ED2200A	N5* PR5	10 50 55 57	689
2 week	ED2400 ED2400A	P18**	50 57	695

^* Available in 626 only

Trim Designs

PR5 (Princeton)

N5 (Newport)

Door Thickness: 1-3/4" - D134

PRODUCT DETA	AILS
Projection:
2-1/2"
ANSI/BHMA:
Grade 1

Note: Device and Trim are shipped in individual boxes.

^** Available in 689, 690, 691 only

ED2000 SERIES

ORDER DETAILS Type:		Door Width:
ED2200	Rim Device	W036	Standard
ED2200A	Rim Device - 3 hr. fire rated	W048	48"
ED2400	Surface Vertical Rod Device
	Surface Vertical Rod Device -		Keyway - 0 Bit (standard):
ED2400A	3 hr. fire rated	59A1
		60
Finish:		D1
689	Silver aluminum painted	L4
695	Dark bronze painted
			Keying Options:
Options:		6P	Conventional 6-pin (standard)
M51	Less Dogging	CL6	IC 6-pin less core
M54	Sex Nuts	LC	Less Cylinder (Standard)
M58	Shim Kit for vision light	KR	Keyed Random
Hand:
	Right Hand Reverse
RHR

SAMPLE ORDER STRING
		Trim/		Finish		Door Width	Misc. Options
Quantity	Exit Device	Function	Trim	Device	Hand
32	ED2200	P1857	689	689	LHR	W048	M54

ED4000 SERIES

PROGRAM	EXIT DEVICE	TRIM	FUNCTION	FINISH
1 week	ED42002 ED4200MA2	A	810	613E 619 6261 6301
2 week	ED4400 ED4400MA ED4800 ED4800MA	N PR	850 855 859	6052 6062 6122 6132 613E 619 6261 6301

^{1. 626} Finish trims are supplied with a 630 stainless steel exit device

Trim Designs

Levers

Armstrong (A) Newport (N) Princeton (PR)

PRODUCT DETAILS
Strike:	Projection:
ANSI - non handed	3-1/4"; 2-3/4" Dogged
Door Width:	Door Thickness:
W036 Standard	1 3/4" - D134

^2. Finishes 605, 606, 612, 613, 619, available with ED4200 Rim devices only. Maximum order of 25 devices.

ED4000 SERIES

ORDER DETAILS
Type:
ED42002	Rim Device
ED4200MA2	Rim Device - 3 hr. fire rated
ED4400	Surface Vertical Rod Device
ED4400MA	Surface Vertical Rod Device - 3 hr. fire rated
ED4800	Concealed Vertical Rod Device
ED4800MA	Concealed Vertical Rod Device - 3 hr. fire rated

	Function:

810	Passage
850	Dummy
855	Classroom
859	Storeroom/Nightlatch

Finish:

6052	Polished brass, clear coated
6062	Satin brass, clear coated
6122	Satin bronze, clear coated
6132	Dark oxidized satin bronze, oil rubbed
613E	Dark oxidized satin bronze - equivalent
619	Satin nickel, clear coated
6261	Satin chrome plated*
6301	Satin stainless steel*

Options:

H0800	8' door
M51	Less Dogging
M523	Cylinder Dogging
M54	Sex Nuts
M58	Shim Kit for Vision Light
M64	Wood Screws
MELR	Motorized Electric Latch Retraction
W048	48" Door Width

Hand:
RHR	Right Hand Reverse
LHR	Left Hand Reverse

Keyway - 0 Bit (standard):

59A1
60
D1
L4

Keying Options:

6P	Conventional 6-pin (standard)
CL6	LFIC 6-pin less core
KR	Keyed Random
LC	Less Cylinder (standard)

Accessories:

653F13 x 630	2" rod extension
655F17 x 630	12" rod extension
BPS-24-1	Power Supply 1 AMP @ 24VDC
BPS-24-2	Power Supply 2 AMP @ 24 VDC
BPS-24-4	Power Supply 4 AMP @ 24 VDC

• 1. 626 Finish trims are supplied with a 630 stainless steel exit device.
• 2. Finishes 605, 606, 612, 613, 619, available with ED4200 Rim devices only. Maximum order of 25 devices.
• 3. M52 is not available with fire rated (A) devices.

SAMPLE ORDER STRING
Quantity	Exit Device	Trim/Function	Finish	Hand	Cylinder Option
2	ED4200	N855	630	LHR	CL6

ED5000 SERIES

PROGRAM	EXIT DEVICE		TRIM					FUNCTION		FINISH
24 hour		L N							630
1 week	ED5200 ED5200A	A R 110	C TH 116	D 102 123	L 103 124	N 107 125	PR 109 25M1	910 950	613E 6263	619 6303
2 week	ED5200S ED5200SA	A R 110 125	C TH 114 131	D 102 115 25M1	L 103 116	N 107 123	PR 109 124	955 957 959	6052 6122 613E 6263	6062 6132 619 6303

PROGRAM	EXIT DEVICE				TRIM			FUNCTION		FINISH
24 hour		102	110						630
1 week	ED5400 ED5400A ED5470 ED5470B ED5600L ED5600AL	A R 110	C TH 116	D 102 123	L 103 124	N 107 125	PR 109 25M1	910 950	613E 6263	619 6303
2 week	ED5600T ED5600AT ED5800 ED5800A ED5860 ED5860B	A R 110 125	C TH 114 131	D 102 115 25M1	L 103 116	N 107 123	PR 109 124	955 957 959	605 612 613E 6263	606 613 619 6303

• 1. 25M available in satin stainless steel only
• 2. Finishes 605, 606, 612, 613, 619, available with ED5200 Rim devices only. Maximum order of 25 devices.
• 3. 626 Finish trims are supplied with a 630 stainless steel exit device.

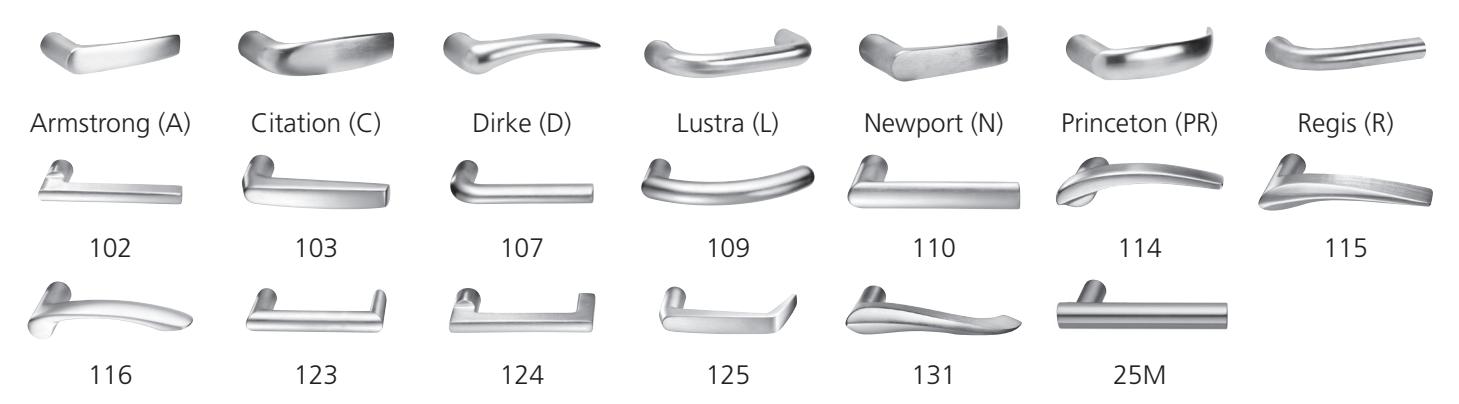

Trim Designs

Escutcheon

900 Series Trim TH9 00 Pull/Thumbpiece

Levers

ED5000 SERIES

PRODUCT DETAILS
Strike:	ANSI Curved Lip Strike (standard)	Voltage:	24AD
	ANSI - non handed	Backset:	2-3/4"
Door Width:	W036 Standard

ORDER DETAILS Type:		Options:
ED52002	Rim Device	H0800	8' door
ED5200A2	Rim Device - 3 hr. fire rated	M516	Less Dogging
ED5200S2	Rim Device - SecureBolt	M524,6	Cylinder Dogging
ED5200SA2	Rim Device - SecureBolt, 3 hr. fire rated	M546	Sex Nuts
ED5400	Surface Vertical Rod Device	M555	Less Bottom Rod
ED5400A	Surface Vertical Rod Device -	M58	Shim Kit for Vision Light
	3 hr. fire rated	M616	Exit Alarm
ED5470	Surface Vertical Rod Device -	M64	Wood Screws
	10 ft opening	M916	Bolt Position Monitoring
ED5470B	Surface Vertical Rod Device -	M926	Request to Exit
	1-1/2 hr. fire rated	M110	Flush End Cap
ED56003	Mortise Device	MELR	Motorized Electric Latch Retraction
ED5600AL	Mortise Device Double Cylinder 3 hr. fire	W048	48" device length
	rated	5CH	5lb Pressure Release
ED5800	Concealed Vertical Rod Device
ED5800A	Concealed Vertical Rod Device -	Hand:
	3 hr. fire rated	RHR	Right Hand Reverse
ED5860	Concealed Vertical Rod Device -	LHR	Left Hand Reverse
	10 ft opening	Keyway - 0 Bit (standard):
ED5860B	Concealed Vertical Rod Device -	59A16
	1-1/2 hr. fire rated	60
Function:		D1
9 x 10	Passage	L4
9 x 50	Dummy	Keying Options:
9 x 55	Classroom	6P	Conventional 6-Pin (standard)
9 x 57	Nightlatch	CL66	LFIC 6-pin Less Core
9 x 59	Storeroom	KR	Keyed Random
		LC	Less Cylinder (standard)
Finish:		Accessories:
6052	Polished brass, clear coated	655F15 x 630	2" Rod Extension
6062	Satin brass, clear coated	655F17 x 630	12" Rod Extension
6122	Satin bronze, clear coated	ED50AK	Alarm Kit
6132	Dark oxidized satin bronze, oil rubbed		1. 626 Finish trims are supplied with a 630 stainless steel exit device
613E	Dark oxidized satin bronze - equivalent		2. Finishes 605, 606, 612, 613, 619, available with ED5200 Rim devices only.
619	Satin nickel, clear coated	Maximum order of 25 devices 3. ED5600 Exit only, NO trim
6261	Satin chrome plated1	4. M52 is not available with fire rated devices

SAMPLE ORDER STRING
Quantity	Exit Device	Trim/Function	Finish	Hand	Cylinder Option Door Thickness		Door Width
2	ED5600	L9M10	630	LHR	6P	D200	W048

6301 Satin stainless steel1

6. Not available with 24 hour program

5. M55 is only available with ED5470(B) and ED5860(B)

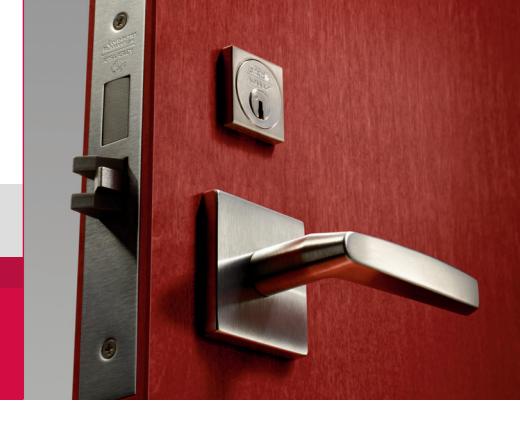

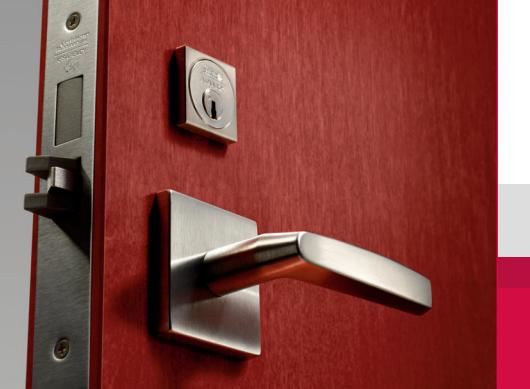

ML2000/ML20900 SERIES

PROGRAM		FUNC	TIONS			LE'	√ER		ESC	UTCHE ROSE	ON/	FINISH
24 hour*	ML2010 ML20906 ML20932	ML2055 ML20907	ML2057 M20914	ML2072 ML20915	CS PS	LL 6	LW	NS	А	М	N	626
1 week	ML2010 ML2048 ML2053 ML2060 ML2069 ML2080 ML20907*	ML2011 ML2050 ML2055 ML2062 ML2070 ML2082 M20914*	ML2020 ML2051 ML2056 ML2065 ML2072 ML2090 ML20915*	ML2030 ML2052 ML2057 ML2067 ML2073 ML20906* ML20932*	AS LW RW 109 124	CS NS 102 110 125	DS PS 103 116 25M 1	GZ YZ 107 123 LL 6		Z, YZ)		613E 619 626 630 1, 5
2 week	ML2010 ML2024 ML2048 ML2054 ML2060 ML2069 ML2080 ML20907*	ML2011 ML2030 ML2051 ML2055 ML2062 ML2070 ML2082 M20914*	ML2020 ML2032 ML2052 ML2056 ML2065 ML2072 ML2090 ML20915*	ML2022 ML2042 ML2053 ML2057 ML2067 ML2073 ML20906* ML20932*	AS LW RW 109 116 131	CS NS 102 110 123 25M	DS PS 103 114 124 LL 6	GZ YZ 107 115 125	M N T X			605 5 606 5 612 5 613 613E 619 626 630 1,5

• 1. 25M available in satin stainless steel only
• 4. Maximum order of 15 locks
• 5. Maximum order of 25 locks
• 6. Lockbody only

Trim Designs

N Escutcheon

Τ

M Escutcheon

PRODUCT DETAILS

Strike:

ML2000/ML20900 SERIES

ANSI Straic	ht Lip Strike	(standard)	2-3/4"
ANSI/BHN		(Staridard)
Grade 1	IA.
Grade 1
ORDER DE	TAILS
Function:			Finish:
Non-Keyed	ML2010	Passage or Closet	605⁵	Polished brass, clear coated
	ML2020	Privacy, Bedroom or Bathroom	606	Satin brass, clear coated
	ML2030	Privacy	612 5	Satin bronze, clear coated
	ML2050	Half Dummy	613	Dark oxidized satin bronze, oil rub
	ML2060	Privacy	613E	Dark oxidized satin bronze - equiva
	ML2070	Full Dummy	619	Satin nickel, clear coated
	ML2080	Half Active Dummy Trim	626	Satin chrome plated
	ML2090	Full Active Dummy Trim		Satin chrome plated Satin stainless steel*
Single	ML2011	Deadlock	_6301,5	Satiri Stairiless Steel
Cylinder	ML2051	Office	Options:
	ML2053	Entrance	— M17	ANSI Wrought Strike Box
	ML2054	Entrance or Office
	ML2055	Classroom	Electrified
	ML2056	Classroom Holdback	M91	Latchbolt Monitor
	ML2057	Storeroom	M92	Request to Exit
	ML2069	Institutional Privacy	M105³	Security Monitor
	ML20906 4		SAF	Fail Safe
	ML20914 4		— SEC	Fail Secure
Single	ML2024	Entrance or Showroom
Cylinder	ML2048	Entrance	Hand:	5.1
With	ML2065	Dormitory	RH	Right Hand
Deadbolt	ML2067	Apartment	LH	Left Hand
	ML2073	Classroom Security	RHR	Right Hand Reverse
No	ML20907 4	,	LHR	Left Hand Reverse
Cylinder			Kevwav -	0 Bit (standard):
Override	ML20915 4		59A1 2	•
Double	ML2032	Institutional or Privacy	60
Cylinder	ML2042	Entrance or Public Restroom	D1
-	ML2052	Classroom Intruder	L4
	ML2082	Dormitory
	ML20932 4		Keying Op
Double	ML2022	Store Door	6P	Conventional 6-pin (standard)
Cylinder	ML2032	Institutional or Privacy	C6 2	LFIC 6-pin (optional)
with	IVILZUJZ	institutional of Frivacy	CL 62	LEIC 6-nin loss coro

Backset:

ML2062 25M available in satin stainless steel only Not available with 24 hour program

ML2042

• 3. Not availabe with 24 hour or 1 week program

45241-02/24

Entrance or Public Restroom

Intruder Deadbolt

• 4. Maximum order of 15 locks
• 5. Maximum order of 25 locks

Finish:
605⁵	Polished brass, clear coated
606	Satin brass, clear coated
612 5	Satin bronze, clear coated
613	Dark oxidized satin bronze, oil rubbed
613E	Dark oxidized satin bronze - equivalent
619	Satin nickel, clear coated
626	Satin chrome plated
630 1,5	Satin stainless steel*
Options:
M17	ANSI Wrought Strike Box
	d Options:
M91	Latchbolt Monitor
M92	Request to Exit
M105 3	Security Monitor
SAF	Fail Safe
SEC	Fail Secure
Hand:
RH	Right Hand
LH	Left Hand
RHR	Right Hand Reverse
LHR	Left Hand Reverse
Keyway	· 0 Bit (standard):
59A1 2	o bit (staildald).
60
D1
L4
Keying O
6P	Conventional 6-pin (standard)
C6 2	LFIC 6-pin (optional)
CL6 2	LFIC 6-pin less core
CLS6 2	SFIC 6-pin less core
KR	Keyed Random
LC	Less Cylinder

SAMPLE ORDER STRING
Quantity	Series/Function	Trim	Finish	Hand	Misc.Options	Optional Cylinder
24	ML2055	LWA	626	RHR	M17	C6
10	ML20906	103T	613E	RH	SAF	CL6

with

Deadbolt

STATUS INDICATOR UPGRADE KITS

Used in a variety of applications, status indicators are most commonly used to identify occupancy or display the locked/ unlocked status of a room.

PROGRAM	ILLUSTRATION	MODEL #	USED WITH FUNCTIONS	AVAILABLE OPTION CODES	INDICATOR LOCATION*
	UNLOCKED	ML190	ML2002, ML2003, ML2004, ML2011, ML2012, ML2013, ML2017, ML2022, ML2024, ML2029, ML2048, ML2049, ML2059, ML2062, ML2065, ML2067, ML2068, ML2069, ML2072, ML2073, ML2075, ML2082, ML2092, ML20608 x NAC x PHR	Outside Trim: V10, V10F, V20, V20F, V30, V40, V50, V60 Inside Trim: V01, V01F, V03, V04, V06	Inside and/ or Outside per Function
1-Week &	UNLOCKED	ML193	ML2020, ML2030, ML2060	V10, V10F, V20, V20F, V30, V40, V50, V60	Outside
2-Week	UNLOCKED	ML194	ML2004, ML2013, ML2017, ML2020, ML2024, ML2029, ML2030, ML2040, ML2048, ML2049, ML2060, ML2065, ML2067, ML2068, ML2069, ML2075, ML20608 x NAC x PHR, ML20609 x NAC x PHR	V01, V01F, V03, V04, V06	Inside
	UNLOCKED	ML197	ML2003, ML2011, ML2040, ML2059, ML2073, ML20609 x NAC x PHR	Outside Trim: V10, V10F, V20, V20F, V30, V40, V50, V60 Inside Trim: V01, V01F, V03, V04, V06	Inside or Outside per Function

^* When indicators are required on both sides of the door, 2 upgrade kits must be ordered, one kit for each side. Note: Indicators available in 626 finish only.

INDICATOR OPTION CODES

Indicator Option Codes

ML2000 Series indicator option codes are designed to convey wording, color and side of door desired in one simple code. To order, specify option code for complete locksets and/or retrofit/upgrade trim kits.

OPTION CODE	WORDING	COLOR	MOUNTING LOCATION
V10	Unlocked/Locked	Green/Red	Outside of Door
V10F	Ouvert/Fermé	No Indicator	Green/Red
V20	Vacant/Occupied	Green/Red	Outside of Door
V20F	Libre/Occupée	No Indicator	Green/Red
V30	Icons Only	Green/Red	Outside of Door
V40	Unlocked/Locked	White/Red	Outside of Door
V50	Vacant/Occupied	White/Red	Outside of Door
V60	Icons Only	White/Red	Outside of Door
V01	No Indicator	Green/Red	Inside of Door
V01F	No Indicator	Green/Red	Inside of Door
V03	No Indicator	Green/Red	Inside of Door
V04	No Indicator	White/Red	Inside of Door
V06	No Indicator	White/Red	Inside of Door

45241-02/24

HEALTHCARE HARDWARE

ML2000 SERIES

PROGRAM				FUNCTIONS			TRIM	FINISH
24 hour*	ML2010 ML2072	ML2020 ML20906	ML2051 ML20907	ML2055 ML20914	ML2057 ML20915	ML2060 ML20932	BLSS HPSK
1 week	ML2010 ML2051 ML2060 ML2072 ML20907	ML2011 ML2052 ML2062 ML2073 ML20914	ML2020 ML2053 ML2065 ML2080 ML20915	ML2030 ML2055 ML2067 ML2082 ML20932	ML2048 ML2056 ML2069 ML2090	ML2050 ML2057 ML2070 ML20906	BHSS	630
2 week	ML2010 ML2032 ML2053 ML2062 ML2073 ML20914	ML2011 ML2042 ML2054 ML2065 ML2080 ML20915	ML2020 ML2048 ML2055 ML2067 ML2082 ML20932	ML2022 ML2050 ML2056 ML2069 ML2090	ML2024 ML2051 ML2057 ML2070 ML20906	ML2030 ML2052 ML2060 ML2072 ML20907	BLSS HPSK

Maximum order of 15 locks on all functions

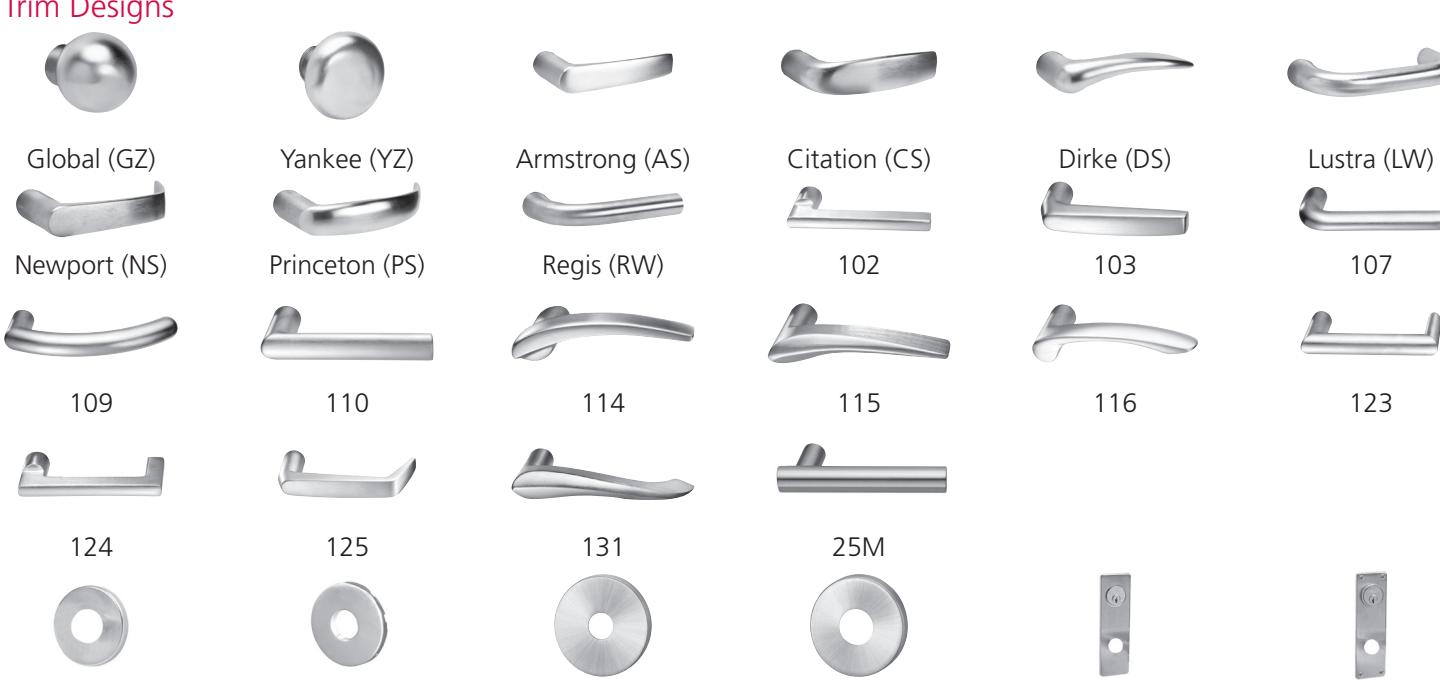

Trim Designs

^*24 hour program has a maximum of 5 locks per order

HEALTHCARE HARDWARE

ML2000 SERIES

Strike:	Backset:
ANSI - non handed	2-3/4"
ANSI/BHMA:
Grade 1

ORDER DETAILS Function:			Hand:
Non-Keyed	ML2010	Passage or Closet	LH	Left Hand
	ML2030	Privacy	RH	Right Hand
	ML2060	Privacy	Options:
	ML2090	Full Active Dummy Trim	M04	Torx Head Screws
Single	ML2011	Deadlock	M17	ANSI Wrought Strike Box
Cylinder	ML2051	Office
	ML2053	Entrance	Electrified Options:
	ML2054	Entrance or Office	M91	Latchbolt Monitor
	ML2055	Classroom	M92	Request to Exit
	ML2056	Classroom Holdback	M1051,2	Security Monitor
	ML2057	Storeroom	SAF	Fail Safe
	ML2069	Institutional Privacy	SEC	Fail Secure
	ML20914
	ML20906			Keyway - 0 Bit (standard):
Single	ML2024	Entrance or Showroom	59A1
Cylinder With	ML2048	Entrance	60
Deadbolt	ML2065	Dormitory	D1
	ML2067	Apartment	L4
	ML2073	Classroom Security
No	ML20907		Keying Options:
Cylinder	ML20915		6P	Conventional 6-pin (standard)
Override			C6	LFIC 6-pin (optional)
Double	ML2032	Institutional or Privacy	CL6	LFIC 6-pin less core
Cylinder	ML2042	Entrance or Public Restroom	CLS62	SFIC 6-pin less core
	ML2052	Classroom Intruder	KR	Keyed Random
	ML20932		LC	Less Cylinder
Double	ML2022	Store Door
Cylinder With	ML2032	Institutional or Privacy		1. Not available with 1 week program
Deadbolt	ML2042	Entrance or Public Restroom		2. Not available with 24 hour program
	ML2062	Intruder Deadbolt
Finish:
630	Satin stainless steel

SAMPLE ORDER STRING
Quantity	Series/Function	Trim	Finish	Hand	Misc. Options	Optional Cylinder
24	ML2055	HPSK	630	RHR	M04	C6

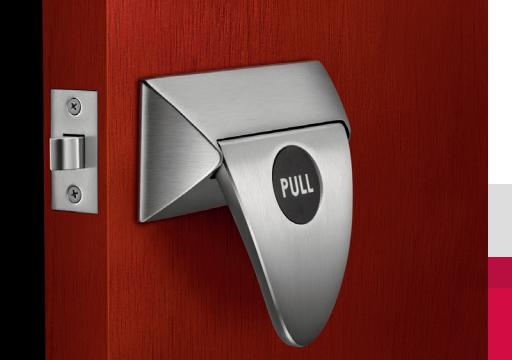

HEALTHCARE HARDWARE

HP3000

PROGRAM	FUNCTIONS	TRIM	FINISH
24 hour*	HP3010
1 week & 2 week	HP3020	HPSK	630

PRODUCT DETAILS
Strike:	Backset:
ANSI - non handed - SA114	5" Backset (standard) - B500
Door Thickness:
1-3/4" - D134

Options:
B234 2-3/4"
B700 7" Back
M04 Torx Head Screws
M17 ANSI Wrought Strike Box
M38 Push/Pull Identification

Hand:

LH	Left Hand
RH	Right Hand
RHR	Right Hand Reverse
LHR	Left Hand Reverse

Maximum order of 15 locks on all functions

SAMPLE ORDER STRING
Quantity	Series/Function	Door Thickness	Trim	Finish	Hand	Misc. Options
12	HP3020	D134	HPSK	630	RHR	M38

^*24 hour program has a maximum of 5 locks per order.

CYLINDERS

PROGRAM	TYPE	CYLINDER PART NUMBER	FINISH	KEYWAY	KEYING OPTIONS
1 week & 2 week	Mortise	CR1000-118-A01 CR1000-118-A02 CR1070-114-A01 CR1070-114-A02 CR1080-114-A01 CR1080-114-A02	606, 612, 619, 626	59A1 60 D1 L4	0 6P KR
PROGRAM	TYPE	CYLINDER PART NUMBER	FINISH	KEYWAY	KEYING OPTIONS
1 week & 2 week	Key-in Lever/Knob	CR2000-031 CR2000-033 CR2000-034 CR2000-044 CR2400-031-LA* CR2400-033-LA* CR2400-034-LA* CR2400-031-C* CR2400-033-C* CR2400-034-C* CR8000	606, 626	59A1 60 D1 L4	0 6P KR
PROGRAM	TYPE	CYLINDER PART NUMBER	FINISH	KEYWAY	KEYING OPTIONS
1 week & 2 week	Deadlock/ Padlock	CR1000-118-A07 CR1080-114-A07 CR4400-134-A51 CR8000	606, 626	59A1 60 D1 L4	0 6P KR
PROGRAM	TYPE	CYLINDER PART NUMBER	FINISH	KEYWAY	KEYING OPTIONS
1 week & 2 week	Rim	CR1000-118-A02 CR1070-114-A02 CR1080-114-A02 CR2000-033H CR3000-058-6 CR3000-200-6 CR3000-200N-6 CR3070-058 CR3070-178 CR3080-058 CR3080-178 CR8000	606, 612**, 613** 619, 626	59A1 60 D1 L4	0 6P KR

^* Available 0 bit only

^**2 week program only

CR1070 Cylinder

CR1080 Cylinder

Cylinder

Cylinder

Cylinder

Cylinder

Cylinder

Cylinder

TYPE	CYLINDER #	DESCRIPTION
	CR1000-118-A01	6-Pin Standard Cylinder
	CR1000-118-A02	6-Pin Standard Cylinder
	CR1080-114-A01	6-Pin Large Format Interchangeable Core
Mortise	CR1080-114-A02	6-Pin Large Format Interchangeable Core
	CR1070-114-A01	Housing Only - LFIC
	CR1070-114-A02	Housing Only - LFIC
	CR2000-031	Standard Cylinder - CL3100
	CR2000-033	Standard Cylinder - CL3300, CL3500, CL3800
	CR2000-034	Standard Cylinder - CLX3300
	CR2000-044	Standard Cylinder - CK4400
	CR8000	6-Pin Large Format Interchangeable Core
Cylindrical	CR2400-031-LA	SARGENT LA Keyway Cylinder - CL3100
	CR2400-033-LA	SARGENT LA Keyway Cylinder - CL3300, CL3500, CL3800
	CR2400-034-LA	SARGENT LA Keyway Cylinder - CLX3300
	CR2400-031-C	Schlage C Keyway Cylinder - CL3100
	CR2400-033-C	Schlage C Keyway Cylinder - CL3300, CL3500, CL3800
	CR2400-034-C	Schlage C Keyway Cylinder - CLX3300
	CR4400-134-A51	6-Pin Standard Cylinder - DL2200, DL3200 (11, 13 & 17 functions)
	CR1000-118-A07	6-Pin Standard Cylinder - DL4100
Deadlock	CR8000	6-Pin Large Format Interchangeable Core - DL2200, DL3200
	CR1080-114-A07	6-Pin Large Format Interchangeable Core - DL4100
	CR1000-118-A02	6-Pin Standard Cylinder - KIM57 Trim or Cylinder Dogging
	CR1080-114-A02	6-Pin Large Format Interchangeable Core - KIM57 Trim or Cylinder Dogging
	CR1070-114-A02	Housing ONLY - KIM57 Trim or Cylinder Dogging
	CR2000-033H	Key-in-Knob Cylinder for G10 Trim
	CR3000-200-6	Rim Cylider
Exits	CR3000-058-6	Rim Cylinders - ED5000 Series Trim (55 & 59 Function Rim & SVR)
	CR3000-200N-6	Nightlatch Trim
	CR8000	6-Pin Large Format Interchangeable Core - ED5000 (55 & 59 Function)
	CR3080-178	Rim Housing & Large Format Interchangeable Core Assembly - ED5000 (57 Function)
	CR3080-058	Rim Housing & Large Format Interchangeable Core Assembly - ED5000 (55 & 59 Function)
	CR3070-178	Rim Housing ONLY, Large Format Interchangeable Core - ED5000 (57 Function)
	CR3070-058	Rim Housing ONLY, Large Format Interchangeable Core - ED5000 (55 & 59 Function)

ORDER DETAILS

Finish:
606	Satin brass, clear coated
612	Satin bronze, clear coated
619	Satin nickel, clear coated
626	Satin chrome plated

ORDER STRING
Type	Tailpiece Length	Pins	Keyway	Finish
CR3000	058	6	59A1	612

CUSTOMER

CUSTOMER ACCT. NO.

ORDER FORM - QUICK SHIP

AUXILIARY LOCKS

THIS FORM IS THE PURCHASE ORDER. DO NOT SEND A COVER P.O. DUPLICATED ORDERS CANNOT BE RETURNED.

FAX: 800-338-0965 EMAIL: qsorders.corbinrusswin@assaabloy.com

CUSTOMER P.O. NO. DATE

1-860-225-7411 www.corbinrusswin.com

STATE ZIP TITLE SHIP GOODS TO ADDRESS STATE ZIP STD. CARRIER (OTHER) FOR EDITING, DO NOT WRITE o24-Hour (Q0) o1-Week (Q1) o2-Week (Q2) ORD NO. Quote #: Quote #: Program Qty Series/Function Finish Misc. Options	ADDRESS
	CITY
	BUYER
	ATTN TO
	CITY
	SHIP VIA
	Program:

45241-02/24

ORDER FORM - QUICK SHIP

CYLINDRICAL LOCKS

THIS FORM IS THE PURCHASE ORDER. DO NOT SEND A COVER P.O. DUPLICATED ORDERS CANNOT BE RETURNED.

FAX: 800-338-0965 EMAIL: qsorders.corbinrusswin@assaabloy.com

1-860-225-7411 www.corbinrusswin.com

CUSTOMER P.O. NO.						DATE
CUSTOMER
CUSTOMER ACCT. NO.
ADDRESS
CITY				STATE		ZIP
BUYER				TITLE
SHIP GOODS TO
ADDRESS
ATTN TO
CITY				STATE		ZIP
SHIP VIA				STD. CARRIER		(OTHER)
Program:						FOR EDITING, DO NOT WRITE
o24-Hour (Q0)		o1-Week (Q1) Quote #:		o2-Week (Q2) Quote #:		ORD NO.
Program	Qty	Series/ Function	Trim	Finish	Hand	Misc. Options	Keying

34

ORDER FORM - QUICK SHIP

EXIT DEVICES

THIS FORM IS THE PURCHASE ORDER. DO NOT SEND A COVER P.O. DUPLICATED ORDERS CANNOT BE RETURNED.

FAX: 800-338-0965 EMAIL: qsorders.corbinrusswin@assaabloy.com

1-860-225-7411 www.corbinrusswin.com

CUSTOMER P.O. NO.						DATE
CUSTOMER CUSTOMER ACCT. NO.
ADDRESS
CITY				STATE		ZIP
BUYER				TITLE
SHIP GOODS TO
ADDRESS
ATTN TO
CITY				STATE		ZIP
SHIP VIA				STD. CARRIER		(OTHER)
Program:						FOR EDITING, DO NOT WRITE
o24-Hour (Q0)		o1-Week (Q1)		o2-Week (Q2)		ORD NO.
		Quote #:		Quote #:
Program	Qty	Exit Device	Trim/Function	Finish	Hand	Cylinder Option	Hand

Trogram	Qty	LAIT DEVICE	i i i i i i i i i i i i i i i i i i i	1 1111311	Hand	Option	ITATIC

45241-02/24

ORDER FORM - QUICK SHIP

MORTISE LOCKS

THIS FORM IS THE PURCHASE ORDER. DO NOT SEND A COVER P.O. DUPLICATED ORDERS CANNOT BE RETURNED.

1-860-225-7411 www.corbinrusswin.com

FAX: 800-3	FAX: 800-338-0965 EMAIL: qsorders.corbinrusswin@assaabloy.com
CUSTOMER	R P.O. NO					DATE
CUSTOMER	₹
		STATE ZIP
BUYER				TITLE
SHIP GOOD	S TO
ADDRESS_
CITY				STATE		ZIP
SHIP VIA				STD. CARRIER		(OTHER)
Program:					FOR I	EDITING, DO NOT	WRITE
24-H c	our (Q0)	1-Week (0	Q1)	2-Week (Q2	OR OR	D NO.
		Quote #:		Quote #:
	1
Program	Qty	Series/ Function	Trim	Finish	Hand	Misc. Options	Optional Cylinder

CUSTOMER

ORDER FORM - QUICK SHIP

CYLINDERS/KEYS

THIS FORM IS THE PURCHASE ORDER. DO NOT SEND A COVER P.O. DUPLICATED ORDERS CANNOT BE RETURNED.

FAX: 800-338-0965 EMAIL: qsorders.corbinrusswin@assaabloy.com

CUSTOMER P.O. NO. DATE

1-860-225-7411 www.corbinrusswin.com

CUSTOMER ACCT. NO.
		STATE		ZIP
		TITLE
		STATE		ZIP
				(OTHER)
				FOR EDITING, DO NOT WRITE
o24-Hour (Q0)			ORD NO.
Qty				Finish
	o1-Week (Q1) Quote #:	Cylinder Option	STD. CARRIER o2-Week (Q2) Quote #:	Cylinder Type

For additional information, contact your ASSA ABLOY Door Security Solutions sales consultant or visit www.corbinrusswin.com.

In U.S.

Corbin Russwin Architectural Hardware 225 Episcopal Road Berlin, CT 06037 Phone: 800-543-3658 Fax: 800-447-6714 www.corbinrusswin.com

In Canada

ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive Vaughan, Ontario Canada L4K 4T9 Phone: 800-461-3007 Fax: 800-461-8989 www.assaabloydss.ca
