MP9800 Series

Product Catalog

Overview

MP9800 Series

Table of Contents

Introduction 2
Features 3
Function Combinations and Electrical Options 4
UL Ratings 4
Trim 5-7
How To Order The Muséo Piet Levers 8
Electric Latch Retraction Option (MELR) 9
MELR Function Combinations & Electrical Options 10
Cylinders 11
Strikes 12
How to order 13
Quick Codes 13-15
Architectural Specifications 15

www.corbinrusswin.com

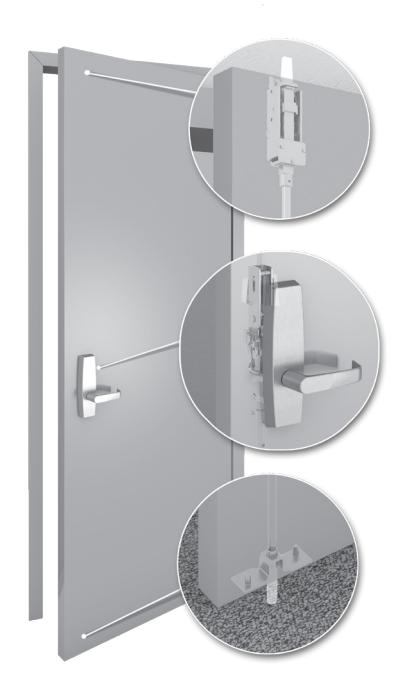

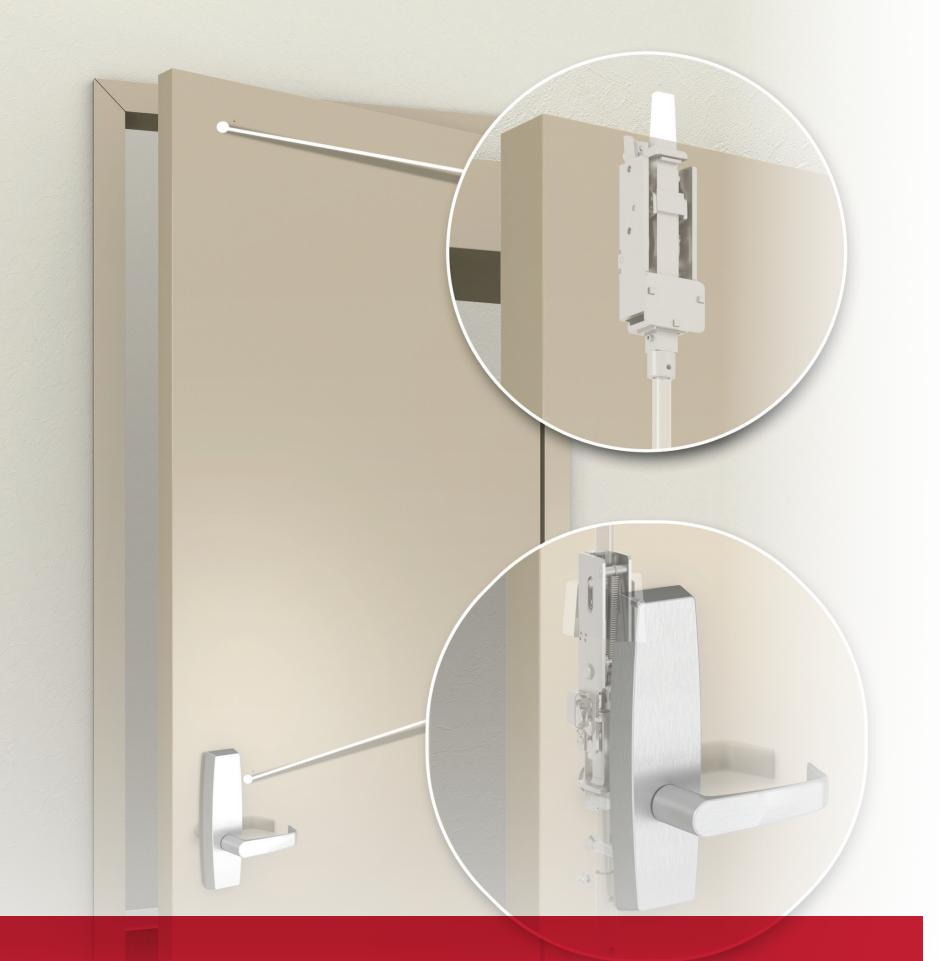

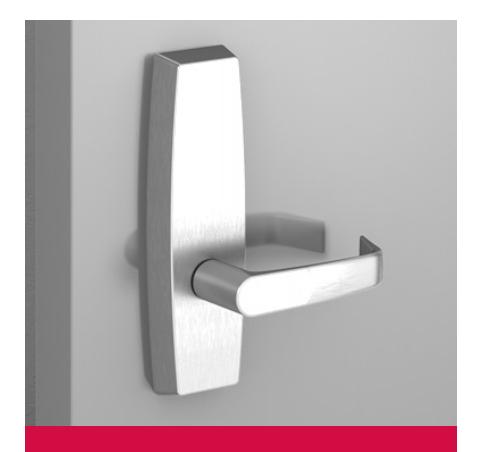

The MP9800 Series Multi-Point Lock is ideal for security applications, and joins the Corbin Russwin line of multi-point door security solutions including:

• The FE5400S and FE6800 Multi-Point auto deadlocking systems
• Exit Devices with the choice of concealed or surface mounted vertical rods

Eliminating the need for automatic flushbolts and coordinators, the MP9800 Series provides flexibility, simplicity, strength, durability, aesthetics and innovation and is perfect for a wide variety of applications that do not require panic/exit devices.

MP9800 Series multi-point locks are offered in a variety of functions for aluminum, wood and metal doors. Single point top latching can also be specified, eliminating the bottom strike and the additional installation work required with a bottom bolt. Rods are retracted by dual mounted controls offering wide a variety of functions.

The MP9800 Series is available for fire rated wood or metal doors.

Thermal pin requirements for fire rated doors:

• Double doors with two point latching on each do not require thermal pins
• Double doors with single point latching (M55) on each require a total of 2 thermal pins, one thermal pin (supplied) for each lock

Simplicity

• Easy installation!
• Maintenance free design
• Few moving parts less wear
• Modular construction

Aesthetics

• Clean, simple, aesthetically pleasing design
• "True" architectural hardware finishes consistent with BHMA/ANSI standards
• Vineyard Series and Muséo Collection decorative levers available

Security

• Torx® screws available
• Master keying available with Corbin Russwin key systems: Access 3, Pyramid

Innovation

• The MP9800 Series is available with electric latch retraction (MELR), bolt monitoring, EcoFlex® motor activated trim inside and outside lever monitoring

Strength & Durability

• Heavy duty mounting construction
• Built to withstand abusive conditions
• 5 Year warranty

Features

MP9800 Series

Features

Handina

Field Reversible.

Doors*

Metal doors, 1-3/4" (44mm) door thickness standard, 4-1/2" minimum stile, 2-1/4" backset standard.

Aluminum doors (Quick Code-MPAD), 1-3/4" (44mm) door thickness (STD), 1-7/8" minimum stile, 7/8" backset (STD) for double doors, 1-1/8" backset for single doors.

Wood doors (Quick Code-MPWD), 1-3/4" (44mm) door thickness standard, 4-1/2" minimum stile, 2-1/4" backset standard.

Mounting

Supplied fasteners are for all doors with through-bolts for trim.

Rods

Steel. Top and bottom bolt travels 7/16" (11mm) Projection adjustable up to 3/4" (19mm).

Latching

Top and Bottom or Top only (M55).

Trim

Features EcoFlex®. Available with all lever designs. Auxiliary Control offers cylinder override for 01, 40, 50, 903 & 905 functions

Top and Bottom Bolts

Stainless steel top and bottom bolt travels 7/16" (11mm). Projection adjustable up to 1" (25mm).

Strikes

See page 13.

Cylinder

See cylinders page 12.

Applications

Pairs of doors that do not require panic devices

When flush bolts are not permitted in:

• Assembly
• Education
• Healthcare
• Hazard Occupancy

Single doors that do not require a panic device with power operators

Thermal Pins

MP9800A x M55: supplied with ONE thermal pin per fire-rated lock, for installation on pairs of fire-rated doors.

Warranty

5 year.

Certification/Compliance

ANS

Meets A117.1 Accessibility Code.

UL /cUL

Three-hour fire-rated locks listed as fire hardware for A label and lesser class 8' x 8' double doors; UL symbol on cover indicates listing. Any retrofit or other field modification to a fire-rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

California State Reference Code

This product has been approved by the California State Fire Marshal pursuant to section 13144.1 of the California Health and Safety Code.

NFPA

All fire-rated locks comply with NFPA 80 Fire Doors and Windows.

ADA

Lever trims comply with Americans with Disabilities Act.

Featuring EcoFlex®*

• Reduces energy consumption up to 95%, as certified by GreenCircle
• EcoFlex inside g
• Lower operating costs
• Assists with load reduction in optimizing energy performance credit in LEED
• Reduces number of power supplies required
• Field configurable to fail-safe or failsecure
• Lock operates from 12-24VDC, offering greater flexibility in system design
• Innovative actuator design provides superior reliability
  • Higher performance and reduced maintenance
  • Ability to have longer cable runs without negatively impacting lock function
  • Reduces risk of voltage drops and eliminates inductive kickback
• Lower total cost of ownership*Patent pending

*NOTE: Must specify MPAD or MPWD when ordering

Function Combinations

MP9800 Series

Assilable Foresting Combineditors			Inside Function (N)
Available Function Combinations:			10	45¹	49¹	50	52	55¹	59¹	903¹	905¹
Blank Escutcheon Plate		01	Х	Х	Х			Х	Х	Х	Х
Passage only (No cylinder)		10	X	Х	X			Х	Х
No outside Operation (No Cylinder); Pull Only		40²	Х	Х	Х					Х	Х
Class Room Key Outside Unlocks/locks Trim	Œ	45	X	Х	Х
Key unlocks Trim; Trim retracts latch; Trim relocks when key is removed	ion	49	Х	Х	Х					Х	Х
Freewheeling Trim; No Outside Operation	Function	50						X	Х
Key outside unlocks/locks O/S trim; Key inside unlocks/locks O/S trim	or F	52					Х
Freewheeling Trim; Key Outside Unlocks/locks Trim	Exterior	55	X			X		X	X
Freewheeling Trim; Key unlocks Trim; Trim retracts latch/Trim relocks when key is removed	ă	59	X			Х		Х	Х
Electrified Trim - Fail Safe (No Cylinder)		903³	Χ	X	Х					Χ	X
Electrified Trim - Fail Secure (No Cylinder)		905³	Х	Х	Х					Х	Х

• 1. Not recommended for use on any door used for Life Safety egress
• 2. Rigid lever
• 3. 903 and 905 functions require the voltage to be specified, 12V or 24V.

UL Ratings

		U	L Fire Door I	Hardware Ra	ting	Pair of	Pair of
Device	Maximum Door Opening	3 Hours (A)	1-1/2 Hour (B)	3/4 Hour (B)	20 min. (B)	Doors, Swinging\nin Same Direction. Notes:	Doors Swinging in Opposite Directions. Notes:
MP9800(A/B) x MP9800(A/B)	8' x 10' Hollow Metal	Х	X	Х	X	2A, 2B	2B
MP9800(A/B) M55 x MP9800(A/B) M55	8' x 10' Hollow Metal	X	X	X	X	2A, 2B, 3A	2B, 3A
MP9800(B) MPWD x MP9800(B) MPWD	8' x 8' Wood		X	X	X	2A, 2B	2B
MP9800(B) M55 MPWD x MP9800(B) M55 MPWD	X, X S, M/00d		X	X	X	2A, 2B	2B

Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Corbin Russwin makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

Note 2A: An astragal cannot be used when both doors are active, unless a coordinator is also used.

Note 2B: Door construction limitations or building code may require the use of an astragal to match the maximum hardware listing.

Note 3A: Hardware listing requires 2 thermal pins, door-to-door orientation.

Trim

MP9800 Series

Features:

• Beveled edges
• 5-year limited warranty

Note: Must designate E for exterior function or N for interior function when specifying order.

Pull Trim Design		Trim Designation
Armstrong Lever: Cast Escutcheon: Forged	2-3/8" 8-1/4"	A
Citation Lever: Cast Escutcheon: Forged	2-3/8" 8-1/4"	C
Dirke Lever: Cast Escutcheon: Forged Handed: Specify RHR or LHR	2-3/8" 8-1/4"	D
Essex Lever: Cast Escutcheon: Forged	2-3/8" 8-1/4" 4-5/8" 2-3/4"	E
Lustra Lever: Cast Escutcheon: Forged	2-3/8" 8-1/4"	L
Newport Lever: Cast Escutcheon: Forged	2-3/8" 8-1/4"	N
Regis Lever: Cast Escutcheon: Forged	2-3/8" 8-1/4"	R
Princeton Lever: Cast Escutcheon: Forged	2-3/8" 8-1/4"	PR
Blank Escutcheon Plate 01	1-7/8" 1/4" 8-1/8"	01

Muséo Levers

MP9800 Series

Muséo levers are available in a broad array of designs and finishes allowing for uniformity throughout a facility when using the FE6600 Series locks. All levers meet ADA compliance for national codes. Visit the online Decorative Hardware Selector at selector.corbinrusswin.com.

Georges Series 139 140 Handed 141 142 143 Georgia Series 102 103 1043 1241 1431 Jackson Series 1053 1173 1193 Handed 1213 Handed 1261,3 Handed 1271,3 Handed Josef Series2

133 1341 135 136 1371 1381

Laszlo Series
	147
	1481
	149
	150

¹ Lever returns within 1/2" (13 mm) of door face.

^{2 135-138 -} Contain white or black polycarbonate inserts. Not available with MicroShield® antimicrobial coating.

³ Not available in 32D or 32 finish

Muséo Levers (continued)

MP9800 Series

Marc Series	Piet Series2	Salvador Series
1113	21L	106
1123	21M	107
1143	21S	108
1153	21G	109
1163	23G	110
1301,3	25M	1231
1311,3	27M	1281
1321,3

Auxiliary Control

• 1 Lever returns within 1/2" (13 mm) of door face.
• 2 Piet levers are customized. See "How To Order" on page 8 for ordering information.
• 3 Not available in 32D or 32 finish

• Key override for classroom function (AUX155) and storeroom function (AUX159) only
• Provided with mortise cylinder

Finishes

MP9800 Series

Finishes

Standard Levers Finish	Description	Standard Levers Finish	Description
605	Bright brass, clear coated	625	Bright chrome
606	Satin brass, clear coated	626	Satin chrome
611	Bright bronze, clear coated	626C	Satin chrome with Microshield
612	Satin bronze, clear coated	629	Bright stainless steel
613	Oxidized bronze, oil rubbed	630	Satin stainless steel
613E	Dark oxidized satin bronze, equivalent	630C	Satin stainless steel with Microshield
618	Bright nickel plated	722	Black oxidized bronze, oil-rubbed
619	Satin nickel, clear coated	BSP	Black Suede Powder Coat

Note: Split Finishes — specify outside finish first, then inside finish example: 626 (outside) / 606 (inside)

Piet Finish Codes

BHMA/ASSA ABLOY Finish	Piet Code*	Description
630	30	Satin Stainless Steel
629	29	Bright Stainless Steel
613E	3E	Dark Oxidized Satin Bronze, Equivalent
BSP	BS	Black Suede Powder Coat
WSP	WS	White Suede Powder Coat
N/A	BK	Black (Santoprene™ or leather insert)
N/A	BN	Brown (leather insert)
N/A	00	No Insert

^* Code used to specify Piet Collection finishes only. Use available finishes list to specify desired finish when ordering.

Piet Lever Descriptions & Available Finishes

Lever Designation	Lever Description	Available Finishes (as ordered)
21G	Grooved Insert	292929, 303030, 3E003E, BS00BS, WS00WS
21L	Leather Insert	29BK29, 29BN29, 30BK30, 30BN30, 3EBK3E, 3EBN3E, BSBKBS, BSBNBS, WSBKWS, WSBNWS
21M	Metallic Insert	293029** only
215	Santoprene Insert	29BK29, 30BK30, 3E003E, BS00BS, WS00WS
23M	Raised Band	290029, 300030, 290030**, 3E003E, BS00BS, WS00WS
25M	Plain	290029, 300030, 3E003E, BS00BS, WS00WS
27M	Two Grooves	290029, 300030, 3E003E, BS00BS, WS00WS

^** Two-tone finish - grip of lever is 630, balance of lever is 629. Escutcheon finish will be 618.

Ordering Examples

Quantity	Series	Trim/Exterior Function	Trim/Interior Function	Finish	Lock Finish	Hand	Door Height	Cylinder Option	Misc. Options
4	MP9800A	25ME10	25MN10	300030	630	RHR	H0702	CL6	M55

Motorized Electric Latch Retraction Option (MELR)

MP9800 Series

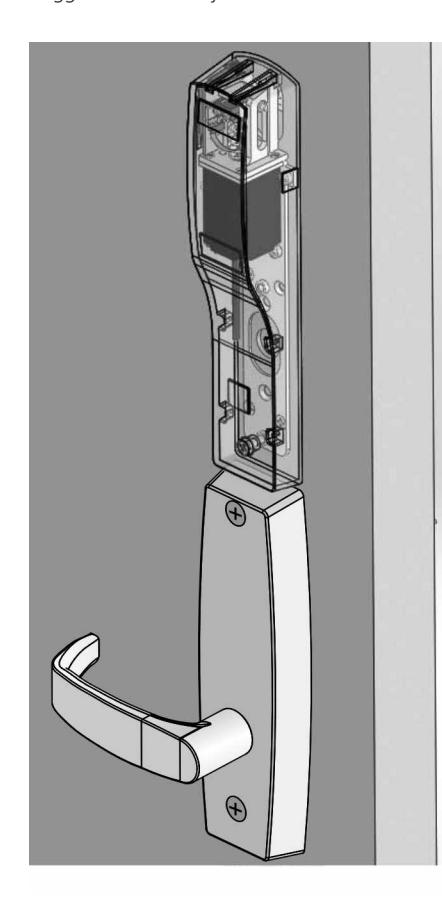

Corbin Russwin's Motorized Electric Latch Retraction (MELR) is the perfect choice for high traffic doors that require access control. This non-handed module is durable and easy to install. It utilizes a latch retraction motor rather than a solenoid, ensuring quiet operation ideal for locations such as conference rooms, theaters and libraries. Once retracted, the door functions in a push/pull manner.

The MELR can be dogged for momentary ingress and egress and is commonly used in conjunction with an automatic door operator. The lock can be dogged continuously on fire-rated locks that are tied into the building's fire detection system.

Motorized Electric Latch Retraction Features

• 5 year warranty
• Patented
• Field serviceable modular design
• Supports electrified dogging
• Motor-driven latch retraction for smooth, precise operation
• Amount of latch retraction is automatically controlled by the MELR circuitry; System actively monitors its position and adjusts itself
• Digital retraction timer (0-20 seconds; factory setting is 0)
• Standard electric hinge no special power transfer required
• Can be used for continuous and intermittent use
• UL Listed for Class II Circuitry
• Power Requirements: 24 or 12VDC regulated/filtered power supply (BPS Series)
• Current draw:
  • 24VDC: 700mA during retraction & 150mA maintained in dogged position
• 12VDC: 850mA during retraction & 250mA maintained in dogged position
• Available for MP9800 series only
• See page 10 for compatible functions
• See McKINNEY's Transfer Device Solutions Catalog for QC Hinge and cable requirements
• Order as a MELR option (e.g., MP9800 x 108E45 x 108N10 x 626 x MELR)

Optional Accessories

• Power Supply (BPS)
• Keyswitch (MKA)
• Keypad (DK-12)
• Door Status Switch (708F989)
• Push Button Switch (PB2)

Featuring EcoFlex®*

• Reduces energy consumption up to 96%, as certified by GreenCircle
  • Lower operating costs
  • Assists with load reduction in optimizing energy performance credit in LEED
  • Reduces number of power supplies required
• Field configurable to fail-safe or fail-secure
• Operates from 12-24VDC, offering greater flexibility in system design
• Innovative actuator design provides superior reliability
  • Higher performance and reduced maintenance
  • Ability to have longer cable runs without negatively impacting lock function
  • Reduces risk of voltage drops and eliminates inductive kickback
  • Lower total cost of ownership
  • *Patent pending

MELR Function Combinations & Electrical Options

MP9800 Series

Available Function Combinations When Head With an BAFID antion			Inside Function (N)
Available Function Combinations When Used With an MELR option			10	45*	49*	52	55*	59*
Blank Escutcheon Plate		01	MELR	MELR	MELR		MELR	MELR
Passage only (No cylinder)		10**	MELR	MELR	MELR	MELR	MELR	MELR
No outside Operation (No Cylinder); Pull Only	on (	10+	MELR	MELR	MELR		MELR	MELR
Class Room Key Outside Unlocks/locks Trim	Ŧ.	45	MELR	MELR	MELR		MELR	MELR
Key unlocks Trim; Trim retracts latch; Trim relocks when key is removed	Fun	49	MELR	MELR	MELR		MELR	MELR
Freewheeling Trim; No Outside Operation	or R	50	MELR	MELR	MELR		MELR	MELR
Key outside unlocks/locks O/S trim; Key inside unlocks/locks O/S trim	eric	52				MELR
Freewheeling Trim; Key Outside Unlocks/locks Trim	Exteric	55	MELR	MELR	MELR		MELR	MELR
Freewheeling Trim; Key unlocks Trim; Trim retracts latch/Trim relocks when key is removed		59	MELR	MELR	MELR		MELR	MELR

^* Not recommended for use on any door used for Life Safety egress

Electrified Hinge Options (Not Supplied by Corbin Russwin)

One Hinge	NONE	M91	M93	M92	M91-M93	M91-M92
NONE	_	QC4	QC8^	QC8^	QC12	QC12
Fail safe	QC8^	QC12	QC8^	QC8^	QC12	QC12
Fail Secure	QC8^	QC12	QC8^	QC8^	QC12	QC12
MELR	QC8^	QC12	_	_	_	_

Two Hinges◆	NONE	M91	M93	M92	M91-M93	M91-M92
NONE	_	_	_	_	_	_
Fail safe	_	_	_	_	_	_
Fail Secure	_	_	_	_	_	_
Fail Safe, Fail Safe	QC8, QC8	QC8, QC12	QC8, QC8	QC8, QC8	QC8, QC12	QC8, QC12
Fail Secure, Fail Secure	QC8, QC8	QC8, QC12	QC8, QC8	QC8, QC8	QC8, QC12	QC8, QC12
Fail Secure, Fail Safe	QC8, QC8	QC8, QC12	QC8, QC8	QC8, QC8	QC8, QC12	QC8, QC12
MELR	_	_	QC8, QC8^	QC8, QC8^	QC8, QC12	QC8, QC12

^{^} Available on wood door

^** Passage function, non-locking

⁺ Rigid lever

^◆ Consult power transfer manufacturer and door manufacturer for load bearing hinge requirements.

Cylinders

MP9800 Series

Mortise Rim

	(Used for N52 function only)						Trim Functions
Description	Cylinder Type	Collar Pack	*45	*49	*E52 (Outside)	*N52 (Inside)	*55	*59	AUX155	AUX159
	CR1000-118-A07	447F43	X	X	X		X	X	X	X
6 Pin	CR3000-200	654F08				X
	CR1000-114-A07-7	723F94	X	X	X		X	X	X	X
7 Pin	CR3000-200-7	654F08				X
Access 3 Patented	CR1500-114-A07	723F94	X	X	X		X	X	X	X
	CR3500-200	654F08
Access 3 Security	CR1600-114-A07	723F94	X	X	X		X			X
	CR3600-200	654F08				X
Access 3 High Security	CR1700-114-A07	723F94	X	X	X		X			X
	CR3700-200 CR1580-114-A07	654F08 723F94	X	X	X	X	X			X
Acess3 IC Patented	CR3580-178	654F08				X
	CR1680-114-A07	723F94	X	X	X		X			X
Access 3 IC Security	CR3680-178	654F08				X
	CR1788-114-A07	723F94	X	X	X		X			X
Access 3 IC High Security	CR3788-178	654F08				X
	CR1027-114-A07	723F94	X	X	X		X			X
Pyramid Security	CR3027-200	654F08				X
Pyramid Security IC	CR1037-114-A07	723F94	X	X	X		X	X	X	X
	CR3037-178	654F08				X
Pyramid High Security	CR1020-114-A07	723F94	X	X	X		X	X	X	X
	CR3020-200	654F08				X
Pyramid High Security IC	CR1030-114-A07	723F94	X	X	X		X			X
	CR3030-178	654F08				X
Pyramid IC	CR1080-114-A07	723F94	X	X	X		X	X	X	X
LFIC 6 Pin LFIC 6 Pin - Red
LFIC 6 Pin - Blue	CR3080-178	654F08				X
LFIC 6 Pin - Green
Pyramid LFIC (Disposable)	CR1070-114-A07	723F94	X	X	X		X			X
Pyramid LFIC Less Core
LFIC 6 Pin Less Core	CR3070-178	654F08				X
LFIC 6 Pin (Disposable)
SFIC 6 Pin	CR1050-114-A07	723F94	X	X	X		X			X
SFIC 6-Pin - Blue
SFIC 6 Pin Less Core	CR1040-114-A07	723F94	X	X	X		X			X
SFIC 6 Pin (Disposable)									X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X
SFIC 6 Pin	CR3050-178	654F08				X
SFIC 6-Pin - Blue
SFIC 6 Pin Less Core	CR3040-178	654F08				X
SFIC 6 Pin (Disposable)
Security	CR1010-114-A07	723F94	X	X	X		X			X
	CR3010-200 CR1090-114-A07	654F08 723F94	X	X	X	X	X			X
Security LFIC	CR3090-178	654F08				X
LFIC 7 Pin	CR1080-134-A07-7	609F37	X	X	X		X			X
LFIC 7 Pin - Red
LFIC 7 Pin - Blue	CR3080-178-7	654F08				X
LFIC 7 Pin - Green
SFIC 7 Pin	CR1050-134-A07	609F37	X	X	X		X			X
SFIC 7 Pin - Blue
SFIC 7 Pin Less Core
SFIC 7 Pin (Disposable)	CR1040-134-A07	609F37	X	X	X		X			X
SFIC 7 Pin
SFIC 7 Pin - Blue	CR3050-178-7	654F08				X
SFIC 7 Pin Less Core	CR3040-178-7	654F08				X
SFIC 7 Pin (Disposable)

Strikes & Back Plates

MP9800 Series

Top Strike (Metal and Wood Doors)

• For MP9800, MP9800A, MP9800 x M55, MP9800A x M55
• Stainless steel
• Part # 764F577

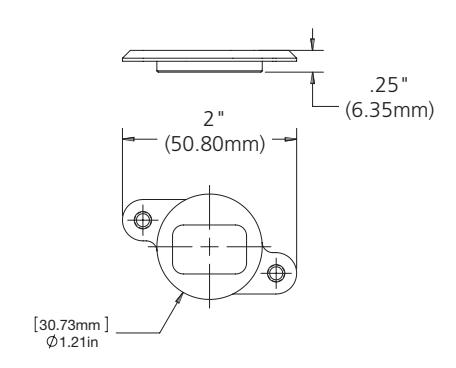

Bottom Strike (Metal and Wood Doors)

• For MP9800, MP9800A
• · Mortised into floor
• Stainless steel
• Part # 764F587

MPER & MPES Trim Back Plates

The back plates are:

• Mounted between the trim and the door
• Required for wood doors (MPWD)
• Optional on metal doors

Note: May be used to cover existing door preps

Strike Kits (Aluminum Doors)

• For MP9800 x MPAD
• Steel with Black Nylon Coating
• Machine Screws Supplied
• 764F597 Kit contains 2 strikes (Top & Bottom)
• 764F607 Kit contains 1 strike (Top Only)

How to Order

MP9800 Series

Ordering Examples

Metal Door

Quantity	Series	Trim/Exterior Function	Trim/Interior Function	Finish	Hand	Door Thickness	Door Height	Misc. Options	Voltage for Electrified Trim*
65	MP9800	DE49	DN10	605	LHR	D214	Н0800	M55	12VDC

Wood Door

ı	Quantity	Series	Trim/Exterior Function	Trim/Interior Function	Finish	Hand	Door Thickness	Door Height	Misc. Options	Voltage for Electrified Trim*
	11	MP9800	NE55	NN50	626	RHR	D214	H0706	MPWD, MPER	12VDC

^* Specify voltage desired for 903 and 905 function (12VDC/24VDC)

Trim Designation Description

Where to find ordering information and Quick Codes

Functions	_
Trims
Cylinders and Keying	Pg 14
Door Height	Pg 14
Strike	Pg 13
Finish	Pg 15
Door Thickness	Pg 14
Handing	Pg 15
Miscellaneous Options	Pg 15

Quick Codes

MP9800 Series

Description	Specify
Conventional 6-pin	(standard) 6P
Conventional 7-pin	7P
Less Cylinder(s)	LC*
LFIC
LFIC 6-pin	C6
LFIC 6-pin Less Core1	CL6
LFIC 6-pin Disposable Core1	CT6D
LFIC 6-pin with Temporary Construction Core (Red)	CT6R
LFIC 6-pin with Temporary Construction Core (Blue)	CT6B
LFIC 6-pin with Temporary Construction Core (Green)	CT6G
LFIC 7-pin	C7
LFIC 7-pin Less Core1	CL7
LFIC 7-pin Disposable Core1	CT7D
LFIC 7-pin with Temporary Construction Core (Red)	CT7R
LFIC 7-pin with Temporary Construction Core (Blue)	CT7B
LFIC 7-pin with Temporary Construction Core (Green)	CT7G
SFIC
SFIC 6-pin1	C6S
SFIC 6-pin with Temporary Construction Core (Blue)1	CT6SB
SFIC 6-pin with disposable temporary core1	CT6SD
SFIC 6-pin less core1	CLS6
SFIC 7-pin1	C7S
SFIC 7-pin with Temporary Construction Core (Blue)	CT7SB
SFIC 7-pin with disposable temporary core1	CT7SD
SFIC 7-pin less core1	CLS7
Security
Security	HS
Security LFIC	CHS
Access 3®
Access 3® Patented Fixed Core	AP
Access 3® Security Fixed Core	AS
Access 3® High Security Fixed Core	AHS
Access 3® Patented LFIC	ACP
Access 3® Security LFIC	ACS
Access 3® High Security LFIC	ACHS
Pyramid
Pyramid Security Fixed Core	PS
Pyramid High Security Fixed Core	PHS
Pyramid Security LFIC	PCS
Pyramid High Security LFIC	PCHS
Pyramid LFIC Less Core	CLP
Pyramid with Temporary Construction Core	CTP
Pyramid Disposable Core	CTPD

Cylinder and Keying Cylinder and Keying (cont)

Description	Specify
Keying and Keys
Keyed Random	KR
Construction Master Keyed (not available for Pyramid)	CMK
2 keys per lock	(standard)
More than 2 keys	KY# (e.g., KY6)
Visual key control (VKC)
No bitting or keyset stamping on keys	VKC0
Keys only	VKC1
Cylinders and keys (not for AS, AHS, ACS, ACHS, HS, CHS, PHS or PCHS)	VKC2
Cylinders only (not for AS, AHS, ACS, ACHS, HS, CHS, PHS or PCHS)	VKC3
Concealed key control (CKC)
CKC cylinders with VKC keys	CKC2
CKC cylinders only (not for AS, AHS, ACS, ACHS, PHS, PCHS)	CKC3

^1. Not available with ML2029.

Door Height

Specify
(standard)
H0702
H0706
H0800
H0900
H1000

Note: Maximum adjustment of rod length is 3/4"

Door Thickness

Door	Specify
1-3/4" (44mm)	(standard)
2" (51mm)	D200
2-1/4" (57mm)	D214

^2. Not available for ML2017, ML2029 or ML2032 x MR, ML2000HS or ML2000VR.

Indicates availability with ML200VR lockset

^* Not available with 52 function

Quick Codes

MP9800 Series

Finish

Description	Specify
Bright Brass	605
Satin Brass	606
Bright Bronze	611
Satin Bronze	612
Dark Oxidized Satin Bronze, oil rubbed	613
Dark Oxidized Satin Bronze Equivalent	613E
Bright Nickel Plated	618
Satin Nickel Plated	619
Bright Chromium Plated	625
Satin Chromium Plated	626
Satin Chromium Plated with MicroShield®	626C
Bright Stainless Steel	629*
Stain Stainless Steel	630*
Black Suede Powder Coat	BSP

^* Only available with Piet Collection

Lock/Cylinder Finish

Lock	Cylinder/Core*
605,606,611,612,613,613E,722	606
618,619,625,626,626C,629,630,630C	626
BSP	BSP

^* Finish when cylinder provided with lock

Handing

Hand	Specify
Right Hand	RH
Right Hand Reverse	RHR
Left Hand	LH
Left Hand Reverse	LHR

Miscellaneous Options

Description	Specify
Torx® head screws	M04
Knurling outside and inside	M202
Knurling outside only	M212
Knurling inside only	M222
Abrasive coat outside and inside	M23
Abrasive coat inside only	M24
Abrasive coat outside only	M25
Less bottom vertical rod	M55
Windstorm	M107
Aluminum Door	MPAD1
Rectangular Back Plate (Required for Wood Door - MPWD)	MPER
Back Plate (Required for Wood Door - MPWD)	MPES
Lever Hold Back	MPHB
Wood Door	MPWD1
Aux Control (Classroom)	AUX155
Aux Control (Storeroom)	AUX159

• 1 Must specify Quick Code when ordering for aluminum or wood doors
• 2 All levers provided in a powder coat finish will be supplied with an abrasive coating

Electrified Options

Description	Specify
Latchbolt Monitoring	M91
O/S Lever Monitoring	M93
I/S Lever Monitoring	M92
Electric Latch Retraction	MELR

Architectural Specifications

• A. Multi-Point Locking Solutions shall be MP9800 Series as manufactured by Corbin Russwin, Berlin, CT.
• B. Multi-Point Locking Solutions shall be listed by Underwriters Laboratories and bear the UL label in full compliance with NFPA 80. Multi-Point Locking Solutions for fire labeled doors shall be UL listed as "Fire Hardware".
• C. Rods shall be retracted in one operation by dual mounted lever controls with a complete range of functions, including electro-mechanical, on the secure side of the door.
• D. The lock shall also be available as a single latching lock with top latching only, eliminating the bottom strike.
• E. Lever trim shall be available in finishes and designs to match that of the specified locksets.
• F. Sargent 7000 Multi Point is the only approved substitute.
• G. Multi-point locks shall have a five year limited warranty.

The ASSA ABLOY Group is the global leader in access solutions. Every day, we help billions of people experience a more open world.

ASSA ABLOY Opening Solutions leads the development within door openings and products for access solutions in homes, businesses and institutions. Our offering includes doors, frames, door and window hardware, mechanical and smart locks, access control and service.

For additional information, contact your ASSA ABLOY Door Security Solutions sales consultant or visit www.corbinrusswin.com.

In U.S.

Corbin Russwin 225 Episcopal Road Berlin, CT 06037 Phone: 800-543-3658 Fax: 800-447-6714 www.corbinrusswin.com

In Canada

ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive Vaughan, Ontario Canada L4K 4T9 Phone: 800-461-3007 Fax: 800-461-8989 www.assaabloydss.ca

ASSA ABLOY Group companies offer MicroShield®, an anti-microbial coating for door hardware. MicroShield uses proven silver ion-based technology from Agion®, a leading provider of antimicrobial solutions, to stem the spread of bacteria and other microbes.

MicroShield® is a registered trademark of ASSA ABLOY Access and Egress Hardware Group, Inc.

The Agion antimicrobial is not intended as a substitute for good hygiene. Coated products must still be cleaned to ensure the surfaces will be free of destructive microbes. ASSA ABLOY makes no representations or warranties, express or impled, as to the efficacy of the Agion antimicrobial. A copy of the Agion warranty is available upon request. Agion is a registered trademark of Agion Technologies, Inc., Wakefield, MA, USA.
