Corbin Russwin M30 Half Trim for ML2000 Series Mortise Locks Template_T30607

Notes:

• Backset is measured from centerline of bevel which is centerpoint of door thickness.
• 2. (*) When preparing doors for lead wrapped locks, add 1/8 (3.2) to dimensions marked (*) to allow proper clearance.
• 1-1/8 (28.6) strike lip suits frame for 1-3/4 (44.5) thick door, lip will vary for other door thicknesses.
• For preparation of trim, refer to separate template. 4.
• Dimensions given in inches and (mm).
• For open back strike, refer to template T30606.

	Function	Α	В	C
	ML 2010
	ML 2020			•
	ML 2022		•
	ML 2024	•		•
	ML 2029	•		•
	ML 2030			•
	ML 2032		•
(7 )	ML 2049	•		•
$\backslash circ$	ML 2052		•
	ML 2053	•		•
	ML 2055	•
	ML 2056	•
	ML 2057	•
	ML 2058	•		•
	ML 2059	•
	ML 2062		•
	ML 2065	•		•

Series

A =	CYL O/S
B=	CYL BOTH SIDES
C=	TP I/S

Required Holes

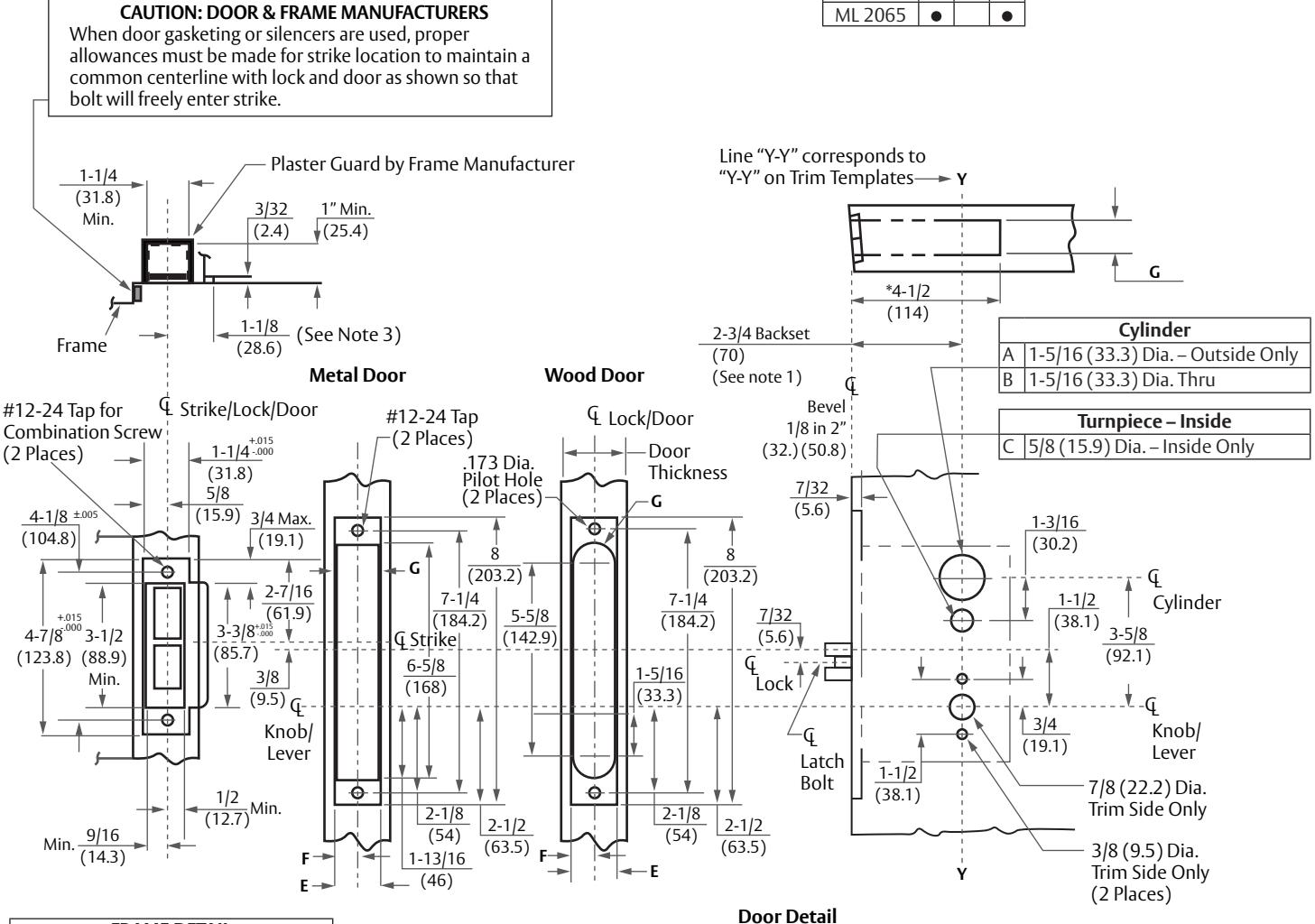

FRAME DETAIL
ANSI Strike	•
236L72	Latch & Dead Bolt Holes
236L73	Latch Bolt Hole Only
236L74	Dead Bolt Hole Only
And Optional Box 120F76

E	F	G	Door Thickness
1-1/4 (31.8)	5/8 (15.9)	1-1/16 (27)	1-3/4 (44.5) or Over (Std)
1-1/16 (27)	17/32 (13.5)	1-1/32 (26.2)	1-3/8 (34.9) (D138)

Tolerances
Inches	(mm)
.005	(.127)
.015	(.381)

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES. REGARDLESS OF TYPE. MATERIAL, OR METHOD OF CONSTRUCTION.

ML2000 Series by M30 Mortise Lock by Half Trim
