IN Series IN120 WiFi & IN220 PoE

Intelligent IP-Enabled Access Control

Available through Authorized Channel Partners only. Contact your local ASSA ABLOY Door Security Solutions sales consultant for details.

Product Catalog

About ASSA ABLOY's Authorized Channel Partner and Certified Integrator Programs

The Corbin Russwin IN120 and IN220 are part of the expanding ASSA ABLOY family of innovative products combining our proven mechanical locking devices with leading-edge technologies to provide integrated electronic access control solutions. As such, these products require training and certification for resellers and integrators to ensure proper product selection, successful deployment and customer satisfaction.

To aid our customers in this area, ASSA ABLOY has created two programs that provide the necessary training to sell, order, install and service our technology products, including Aperio® wireless, Integrated Wiegand, IP-enabled and self-configurable intelligent components:

  • The Authorized Channel Partner (ACP) program is open to resellers, who sell ASSA ABLOY's technology products to certified integrators and help with product selection based on the application.
  • The Certified Integrator (CI) program provides hands-on training for security systems integrators and network administrators. Not only does this training familiarize certified integrator candidates with product features and applications, it also gives them valuable experience installing, commissioning and troubleshooting the products in a real-world environment.

For more information on the qualifications for becoming an ACP or CI, contact your local ASSA ABLOY Door Security Solutions sales consultant for details.

Sold through: Installed by:

Introduction

IN Series Intelligent IP-Enabled Access Control

Index

Features and Benefits 4
Overview 5
ML2000 Mortise Locks
Features 6
How to Order7-8
Quick Codes 9
CLX33100 Cylindrical Locks
Features 10
How to Order 11
Trim 12
Quick Codes 13
ED5000N Exit Devices
Features 14
How to Order15-16
Quick Codes 17
PED5000 Exit Devices
Features 18
How to Order19-21
Quick Codes 22
BL6600/FE6600/MP6600
Multi-Point Locks
Features 23
How to Order24-25
IN Series Retrofit Kits for Von
Duprin® 98/99 series
Features 26
How to Order 27
Options & Accessories28-29

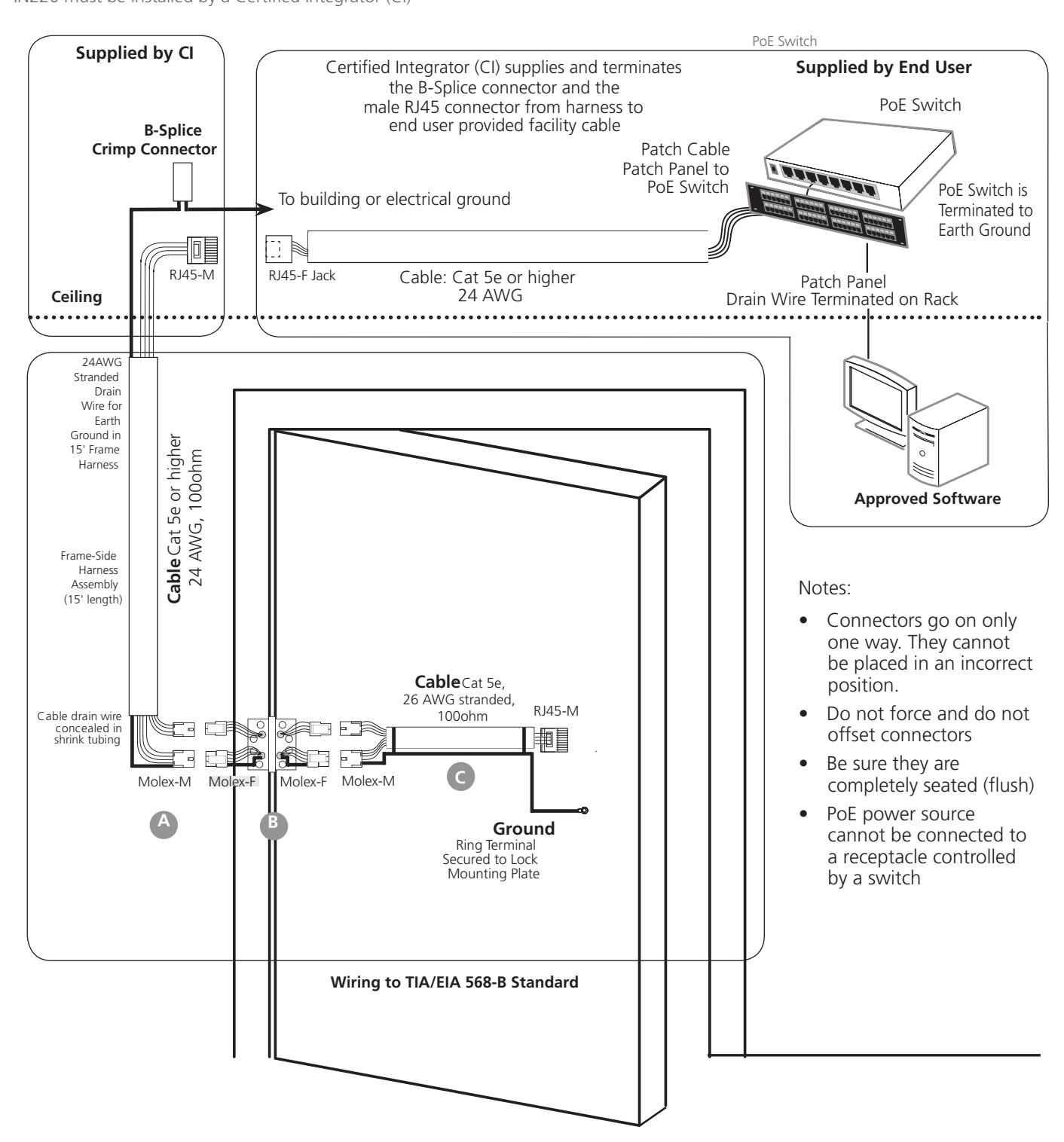

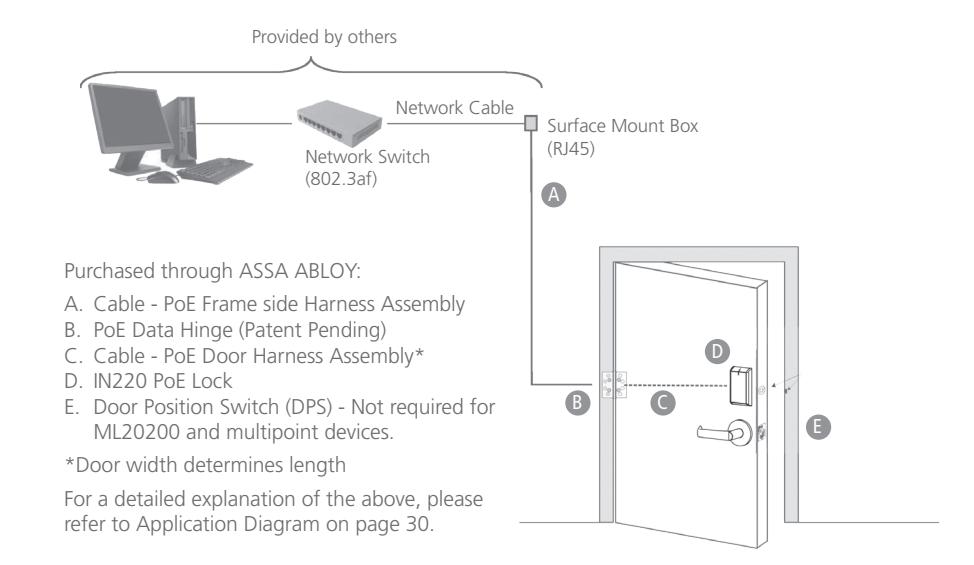

IN220 Application Diagram 30
Lock Management Tool 31

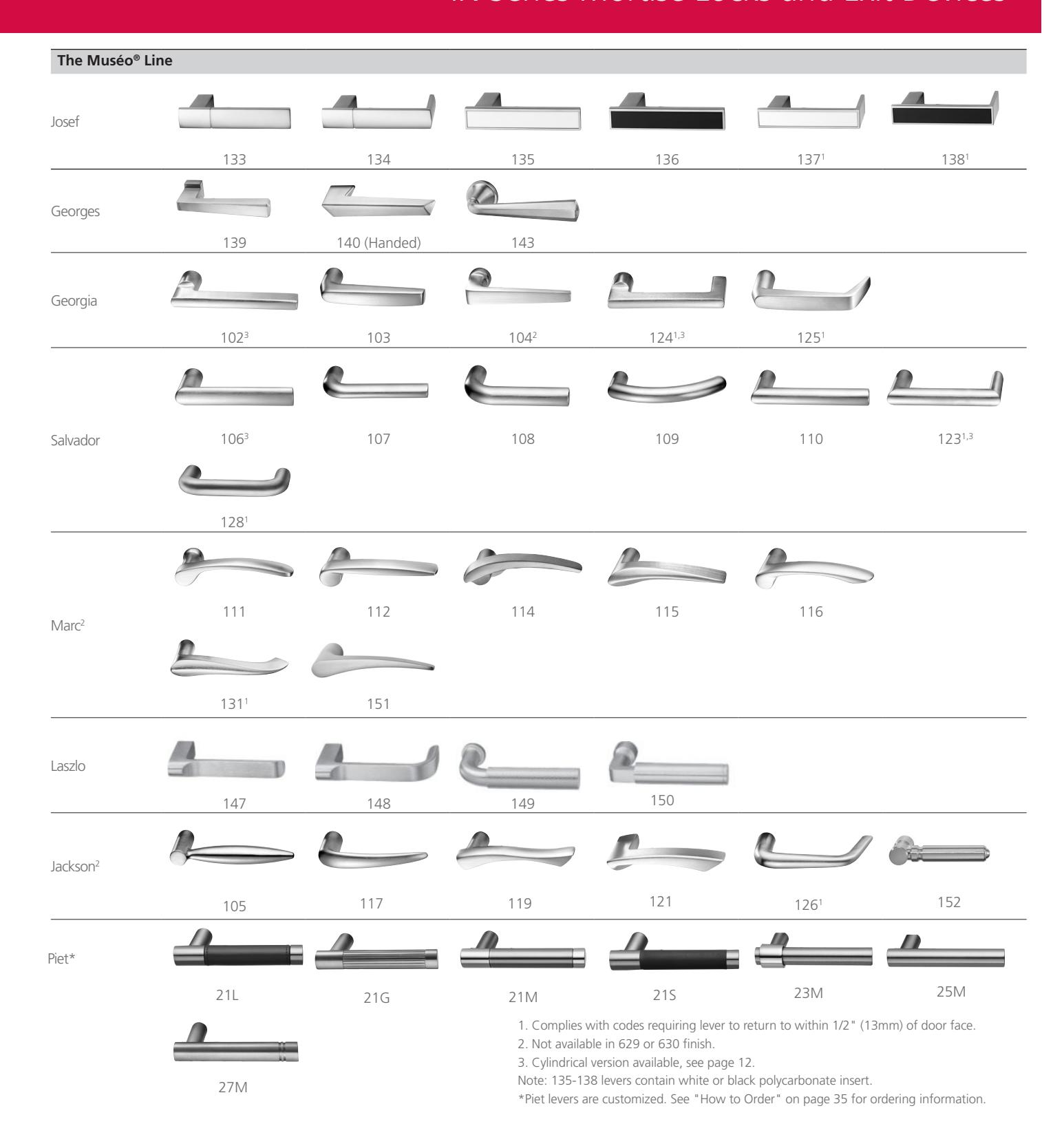

Available Trim Options32-34
How to Order Museo Piet Levers 35
Common Replacement Parts36-37

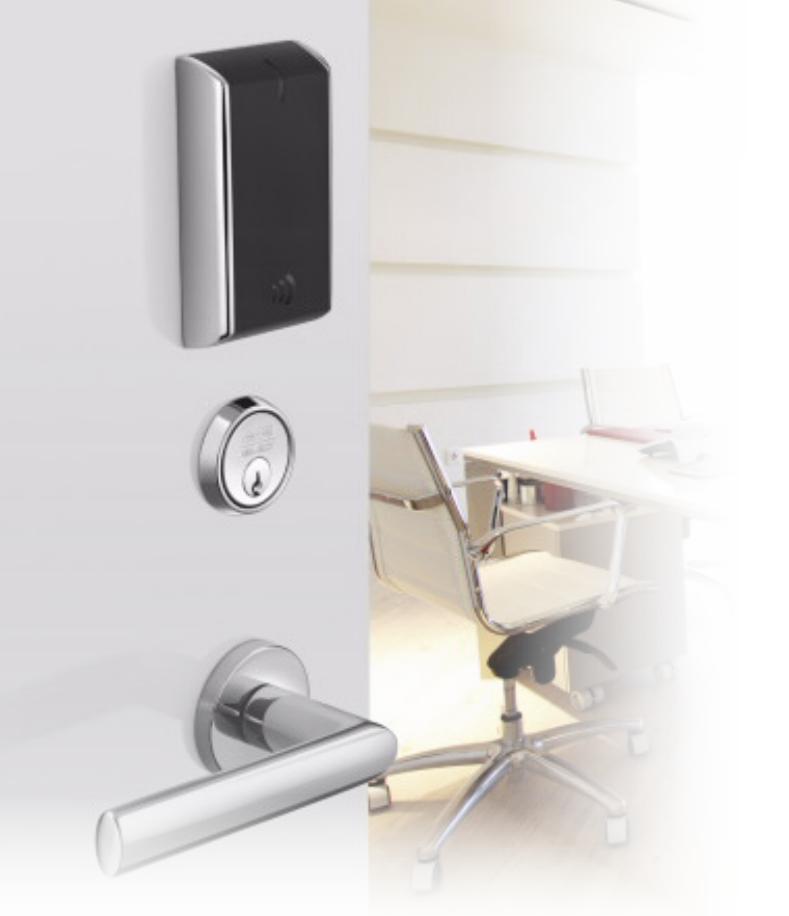

The Corbin Russwin IN Series of IP-enabled locks pairs a sleek, attractive design with the latest in access control technology to address the evolving needs of today's facilities. Featuring HID® multiCLASS SE® technology, our innovative WiFi and PoE locks make it easy and affordable to expand your access control system by leveraging existing network infrastructure.

Overview

IN Series Intelligent IP-Enabled Access Control

Features Benefits IN120
WiFi Lock 		IN220
PoE Lock
Utilizes IEEE 802.3af PoE-enabled
network infrastructure for both power
and data 		• Streamlines the installation process, reducing costs
• Eliminates the need for any proprietary equipment
• Enables real-time communication 		•
Utilizes IEEE 802.11 WiFi infrastructure • Significantly reduces installation costs
• Eliminates the need for any proprietary equipment
• Ideal for hard-to-wire locations 		•
802.11b/g/n radio • Interoperability with other WiFi equipment •
multiCLASS SE® Technology from
HID Global® 		• Provides heightened security
• Supports:
–
Multiple credential types
–
HID Mobile Access® powered by Seos®, for iOS® and
Android™ devices 		• •
Field selectable communication
frequency 		• Allows you to balance security requirements with battery life •
• Significantly less power consumption in standby mode than
traditional access control 		•
Reduced energy consumption and
product sustainability measures 		• Leverages existing network infrastructure • •
• Streamlined system architecture provides improved reliability
and reduces materials 		• •
• Lock operates regardless of network status • •*
Intelligence built into lock for local
decision making* 		• Supports up to 2,400/10,000 users** • •
• Provides a 10,000 event transaction history/audit trail • •
Privacy button • Enables shelter in place/local lockdown
• Offers privacy capabilities for applications such as restrooms 		• •
Integrated ANSI/BHMA Grade 1
hardware, available in cylindrical lock, 		• Flexibility to support various openings
mortise lock, exit device, and multi-point
lock configurations 		• Assurance of high quality Corbin Russwin hardware • •
Superior aesthetics • Blends into any environment seamlessly
• Designed to meet the requirements of designers and architects
• Available with a wide range of finishes and decorative levers
• Suites with other IN Series locks, regardless of technology 		• •

* Requires backup power for IN220

** Contact your access control system manufacturer for more information

Overview

IN Series Intelligent IP-Enabled Access Control

Credential Support:

The IN Series IP-enabled locks feature HID® multiCLASS SE® technology to support the following credentials:

  • Mobile Credentials:
    • HID Mobile Access® support, featuring Secure Identity Object™ (SIO) on mobile IDs (BLE and NFC)
    • LenelS2 BlueDiamond™
    • Apple Wallet Seos or DESFire® (NFC)
    • Google Pay DESFire® (NFC)
  • High Frequency (13.56 MHz):
    • HID iCLASS®
    • HID iCLASS SE® (SIO-enabled)
    • HID iCLASS® Seos™
    • HID MIFARE® SE
    • HID DESfire® EV1 SE
    • MIFARE Classic
    • DESfire EV1
  • Felica
    • PIV/PIV-I (40-bit BCD, 64-bit BCD, 75 bit, 128-bit or 200-bit outputs)
  • Low Frequency (125 kHz):
    • HID Prox®
  • Optional keypad
  • PIN only usage or dual authentication needs

Note: If your site is planning to use multi-technology cards, please contact 800-810-WIRE for more information.

Technical Specifications:

IN120

• Compatible with 802.11 b/g/n 2.4GHz wireless networks

IN220

• Conforms to IEEE 802.3af Class 1 standard, requiring less than 3.84 watts

Security:

  • Optional, protocol level, 128-bit AES encryption (IN120, IN220)
  • IN120 supports current WiFi network security standards, including:
    • WEP, WPA and WPA2
    • 802.1x
  • For specific security information, please contact your local ASSA ABLOY Door Security Solutions sales representative or call 800-810-Wire.

Software:

  • Works with ASSA ABLOY IP-Enabled Access Control Partner software, allowing simple integration into existing or new systems
  • Software Development Kits (SDK) and support available to integrate into other third party access control systems.

For assistance, email:

OEMSupport_Group@assaabloy.com

• Lock Management Tool available for small installations

EAC Regulatory Compliance*:

  • UL 294 Indoor Use
  • ULC-60839-11-1, Grade 1
  • BHMA A156.25

*Excludes CREK series.

Optional Keypad PIN only usage or dual authentication needs

Features

Sold through:

ML2000 Mortise Locks

Mortise Lock ML2000

Features

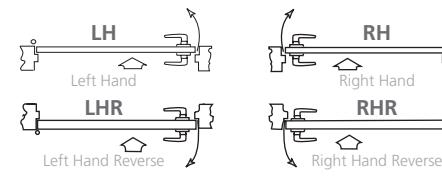

Handing

Handed; quick reversibility. The lockset can be re-handed without disassembling the lock body.

Door Thickness

1-3/4" (44mm) standard.

Optional 2" (50mm) to 2-1/4" (57mm); see Quick Code section.

Backset

2-3/4" (70mm).

Lockcase

Heavy-gauge chrome plated steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).

Front

Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x 3/32" (2mm). Accommodates non-beveled and beveled doors 1/8" (3mm) in 2" (51mm).

Armored Front

Wrought brass, bronze or stainless steel attached by machine screws to lockcase front.

Latch

Quick, reversible 2-piece mechanical with anti-friction insert 5/8" (16mm) x 1" (25mm) x 3/4" (19mm).

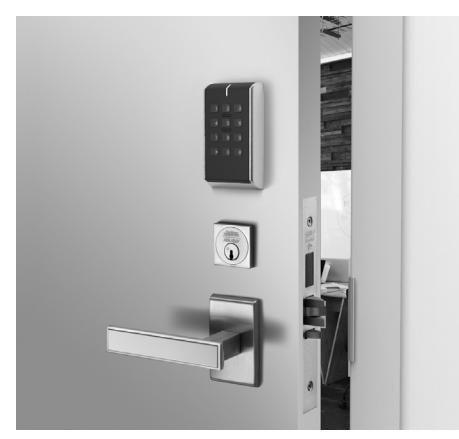

The IN Series mortise lock has a clean, crisp design and is available with a variety of lever designs and hardware finishes.

Auxiliary Latchbolt

9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.

Deadbolt

One-piece stainless steel, 19/32" (15mm) x 1-1/4" (32mm) x 1" (25mm) throw.

Hub

Steel, 5/16" (8mm).

Strike

Wrought brass, bronze or stainless steel ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center.

Optional strikes, lip lengths and ANSI wrought strike box available.

Cylinder

CR1000-118-A01, 6-pin, L4, keyed random,

furnished standard for 1-3/4" (44mm) door.

Optional cylinders available.

Keying Features Available

Master keying

Construction master keying

Visual key control

Concealed key control

Interchangeable core (LFIC or SFIC)

Security

Security LFIC

Access 3

Access 3 LFIC

Pyramid

Pyramid LFIC

Environmental Specifications

Operating Temperature:

-13°F (-25°C) to 151°F (66°C)

Operating humidity:

Operates in condensing environments*

*always refer to the installation instructions for correct procedure when installing in condensing environments

EcoFlex®

EcoFlex technology reduces power consumption up to 92% as certified by GreenCircle

ML20100 Monitoring

  • Request to Exit
  • Door Position (external)

ML20200 Monitoring

  • Request to Exit
  • Deadbolt
  • Auxiliary latch
  • Latch bolt
  • DPS cylinder monitoring (indirect) integrated into lock body

Warranty

10-year limited mechanical.

2-year limited electrical.

Shipping Weight

Approx. 11 lbs.

Certification/Compliance

ANSI/BHMA

Meets A156.13, Grade 1 requirements. Meets A117.1 Accessibility Code. Meets A156.25 requirements.

UL /ULC-UL10C Positive Pressure

All locks listed for A label and lesser class doors, 4' (122cm) x 10' (305cm) single or 8' (244cm) x 10' (305cm) pair. Letter F and UL symbol on armored front indicate listing.

Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

ML2000 IN Series Mortise Locks

Build your order string:

Required Options Other Options
Function Trim Finish Handing Technology Code Reader Code Reader Modifier Cylinder, Strike, Door
Thickness
ML20

For finish, additional cylinder, and/or mechanical options, please refer to page 9.

Function
ML20133
No Key Override
No Deadbolt 		Type
Entry 		Monitoring Function Description
• Deadlocking latch
• Latch retracted by inside
lever at all times
• Outside lever rigid except
when in "passage"
mode or valid credential
presented
ML20134
With Key Override
No Deadbolt 		Entry • Request to Exit
• Door Position
(external) 		• Deadlocking latch
• Latch retracted by inside
lever at all times
• Outside lever rigid except
when in "passage"
mode or valid user code
entered
• Key outside retracts latch
• No deadbolt function
ML20233
No Key Override
No Deadbolt 		Entry • Deadlocking latch
• Latch retracted by inside
lever at all times
• Outside lever rigid except
when in "passage"
mode or valid user code
entered
ML20234
With Key Override
No Deadbolt 		Entry • Request to Exit
• Deadbolt
• Auxiliary latch 		• Deadlocking latch
• Latch retracted by inside
lever at all times
• Outside lever rigid except
when in "passage"
mode or valid user code
entered
• Key outside retracts latch
• No deadbolt function
ML20235
No Key Override
With Deadbolt1 		Entry • Latch bolt
• DPS cylinder
monitoring
(indirect)
integrated into
lock body 		• Deadlocking latch
• Latch and deadbolt
retracted by inside lever
at all times
• Outside lever rigid except
when in "passage"
mode or valid user code
entered
ML20236
With Key Override
With Deadbolt1 		Entry • Deadlocking latch
• Latch and deadbolt
retracted by inside lever
and deadbolt at all times
• Outside lever rigid except
when in "passage"
mode or valid user code
entered
• Key outside projects or
retracts deadbolt and
Reader Code Credentials
BIPS All credentials supported by the IP option plus HID Mobile
Access® powered by Seos® for use with Bluetooth Smart
enabled mobile phones
BCP All credentials supported by the CP option plus HID Mobile
Access® powered by Seos® for use with Bluetooth Smart
enabled mobile phones
IPV Supports HID iCLASS®, HID iCLASS SE® (SIO-enabled), HID
iCLASS® Seos™, HID MIFARE® SE, HID DESFire® EV1 SE,
FeliCa, HID Prox® PIV/PIV-I (64-bit BCD, 128-bit BCD or
200-bit outputs)
IKPV All credentials supported by the IPV option plus keypad
BIKPS All credentials supported by the BIPS option plus keypad
BCKP All credentials supported by the BCP option plus keypad
DIPS All credentials supported by the IPS option plus LenelS2
BlueDiamond™ mobile credentials
DIKPS All credentials supported by the IPS option plus LenelS2
BlueDiamond™ mobile credentials and keypad
Reader Code Credentials
BIPS HID Prox®, iCLASS®, iCLASS SE®, iCLASS® Seos®, SIO on
MIFARE® Classic, SIO on MIFARE DESFire® EV1 MIFARE Classic,
MIFARE DESFire EV1, HID Mobile Access, Apple Wallet,
Google Pay
BIKPS All credentials supported by the BIPS option plus keypad
IPV PIV/PIV-I (40-bit BCD, 64-bit BCD, 75 bit, 128-bit BCD or
200-bit outputs)
IKPV All credentials supported by the IPV option plus keypad
BCP/ BCKP Options supporting FeliCa credentials. Contact Blackboard for
more details.
DIPS/DIKPS* Options supporting LenelS2 BlueDiamond™ mobile
credentials.
Reader Modifier Description
B Black reader, black trim
MB Black reader, metal trim

Note: Metal trim is supplied in the finish specified in the order string.

WiFi Technology Code

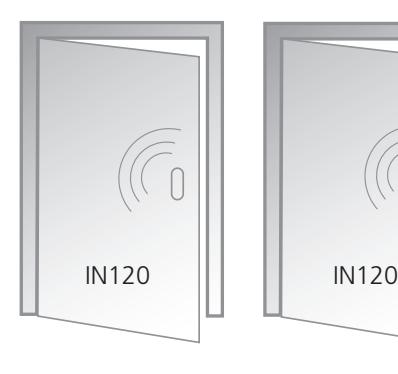

IN120
IN220
PoE

1 Deadbolt required for escape return functionality (a residential requirement in Canada)

retracts latch

ML2000 IN Series Mortise Locks

Finishes

Description Specify
Polished Brass, Clear Coated 605
Satin Brass, Clear Coated 606
Polished Bronze, Clear
Coated 		611
Satin Bronze, Clear Coated 612
Dark Oxidized Satin Bronze,
Oil Rubbed 		613
Dark Oxidized Satin Bronze -
Equivalent 		613E
Description Specify
Polished Nickel 618
Satin Nickel 619
Polished Chrome 625
Satin Chrome 626
Satin Chrome
with MicroShield® 		626C
Black Oxidized Bronze,
Oil Rubbed 		722
Description Specify
Satin Stainless Steel 629*
Bright Stainless Steel 630*
Satin Stainless Steel with
MicroShield® 		630C*
Black Suede Powder Coat BSP
White Suede Powder Coat WSP

* Metal escutcheon trim (MB) plated to match

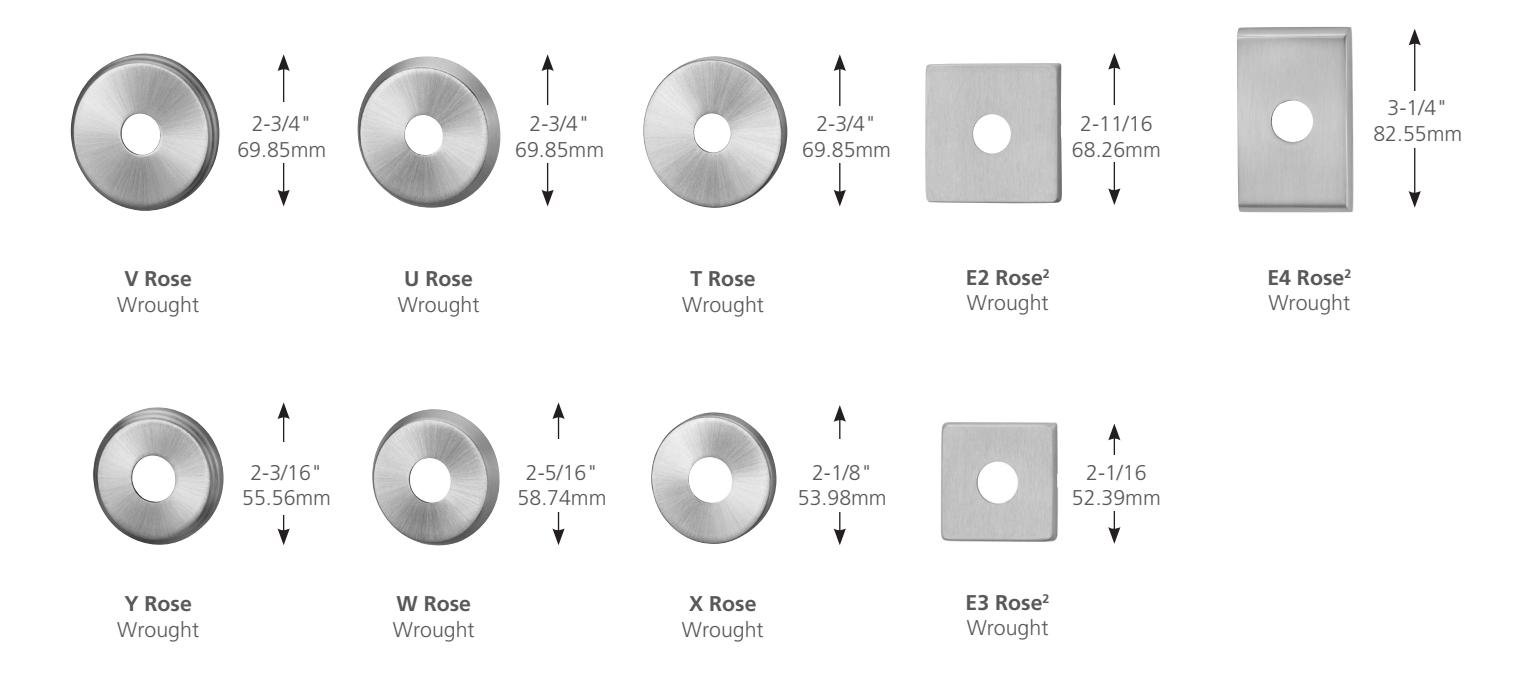

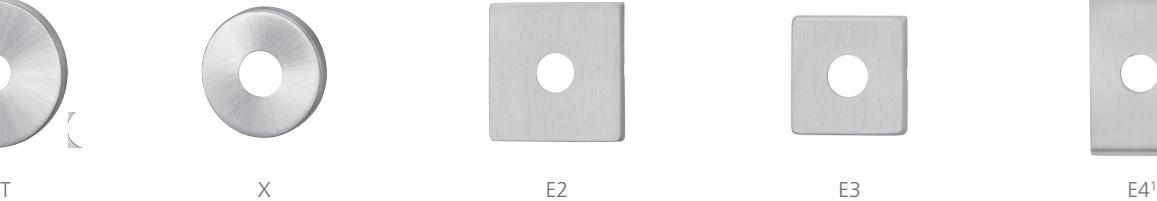

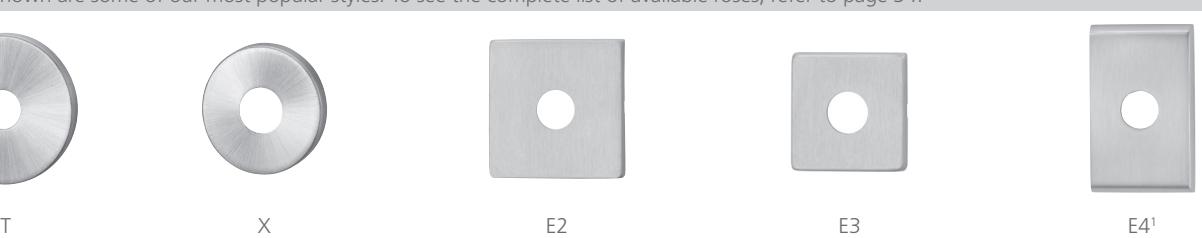

Roses

The roses shown are some of our most popular styles. To see the complete list of available roses, refer to page 34.

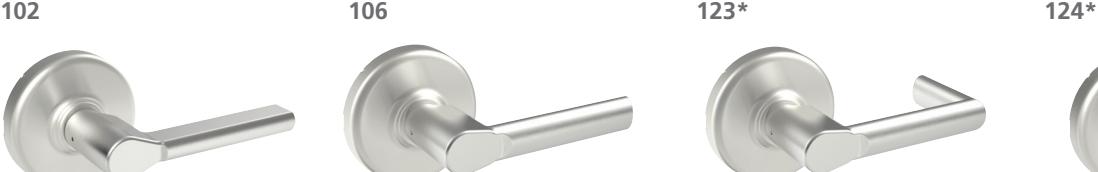

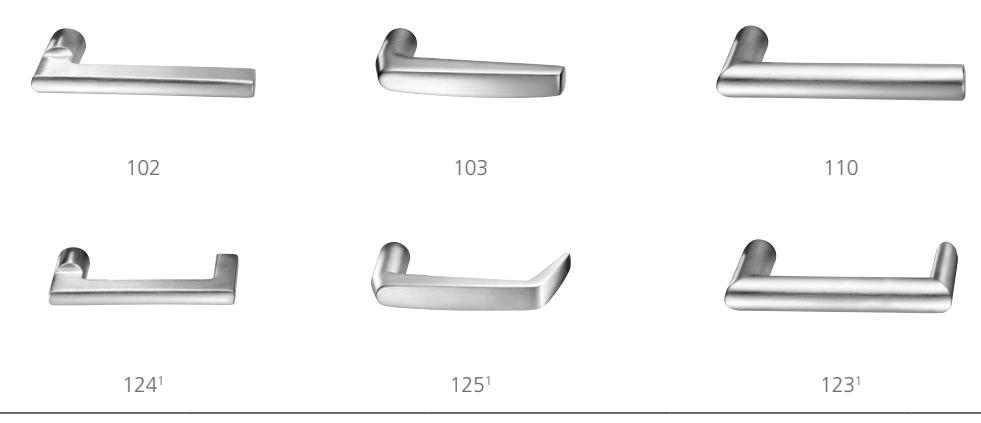

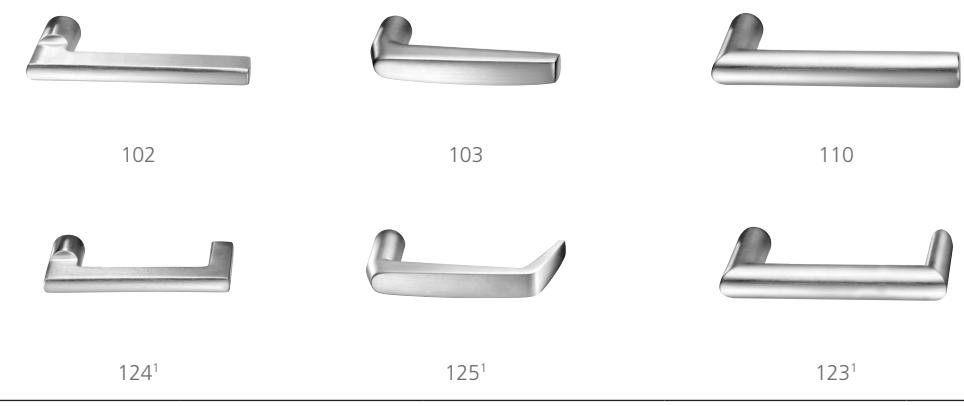

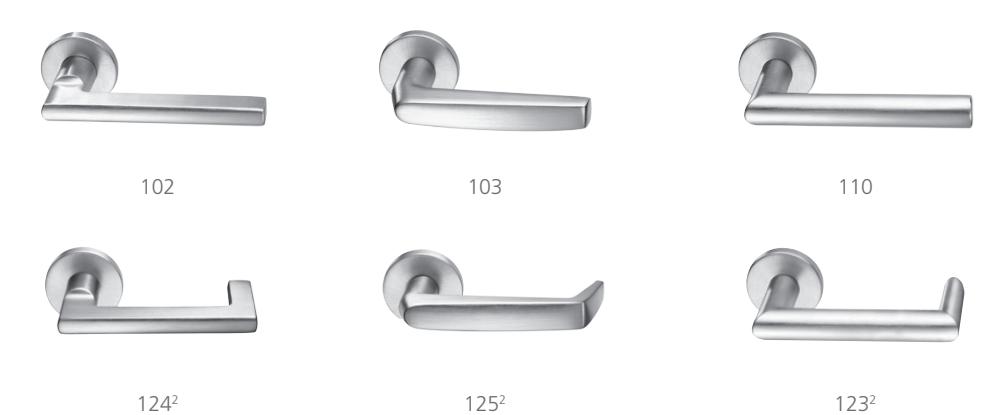

Levers

The levers shown here are some of our most popular styles from the Muséo Collection. To see the complete range of levers, refer to pages 32-35.

102 103 110

1242 1252 1232

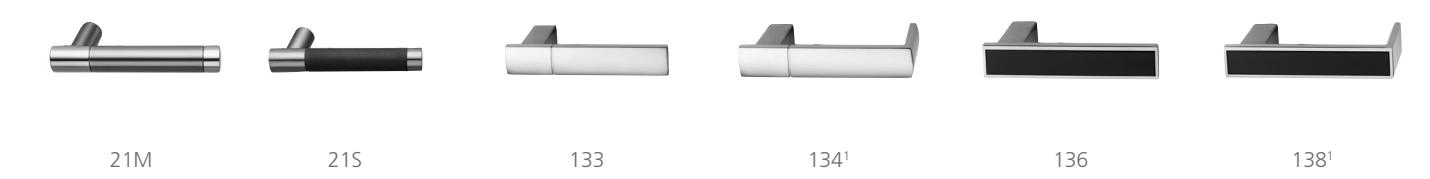

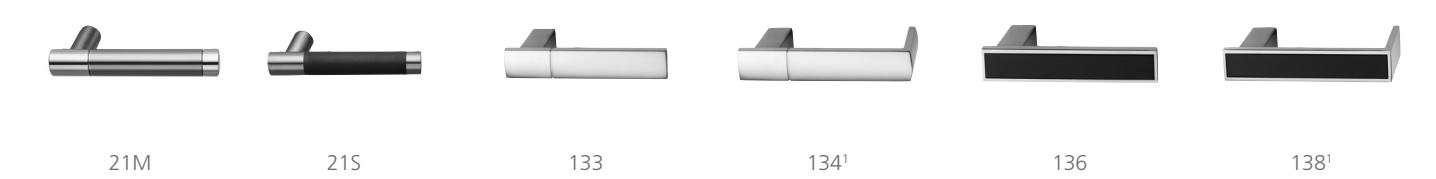

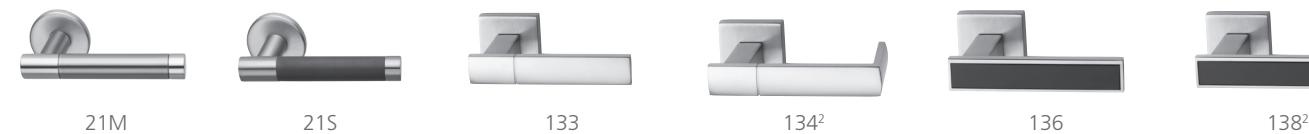

Premium Levers

21M 21S 133 1342 136 1382

1 Rose design suites with IN220 reader.

2 Lever returns within 1/2" (13 mm) of door face.

Quick Codes

ML2000 IN Series Mortise Locks

Cylinder and Keying

Cylinder and Keying
Description 		Specify
Conventional 6-pin (standard)
Conventional 7-pin 7P
Less Cylinder(s) LC
LFIC
LFIC 6-pin C6
LFIC 6-pin Less Core CL6
LFIC 6-Pin Disposable Core CT6D
LFIC 6-pin with Temporary
Construction Core (Red) 		CT6R
LFIC 6-pin with Temporary
Construction Core (Blue) 		CT6B
LFIC 6-pin with Temporary
Construction Core (Green) 		CT6G
LFIC 7-pin C7
LFIC 7-pin Less Core CL7
LFIC 7-Pin Disposable Core CT7D
LFIC 7-pin with Temporary
Construction Core (Red) 		CT7R
LFIC 7-pin with Temporary
Construction Core (Blue) 		CT7B
LFIC 7-pin with Temporary
Construction Core (Green) 		CT7G
SFIC
SFIC 6-pin C6S
SFIC 6-pin Less Core CLS6
SFIC 6-Pin Disposable Core CT6SD
SFIC 6-pin with Temporary
Construction Core (Blue) 		CT6SB
SFIC 7-pin C7S
SFIC 7-pin Less Core CLS7
SFIC 7-Pin Disposable Core CT7SD
SFIC 7-pin with Temporary
Construction Core (Blue) 		CT7SB
Security
Security HS
Security LFIC CHS
Access 3®
Access 3® Patented Fixed
Core 		AP
Access 3® Security Fixed
Core 		AS
Access 3® High Security
Fixed Core 		AHS
Access 3® Patented LFIC ACP
Access 3® Security LFIC ACS
Access 3® High Security LFIC ACHS
Pyramid
Pyramid Security Fixed Core PS
Pyramid High Security PHS
Fixed Core
Pyramid Security LFIC 		PCS

Cylinder and Keying

Description Specify
Pyramid LFIC Less Core CLP
Pyramid with Temporary
Construction Core 		CTP
Pyramid Disposable Core CTPD
UL Housing
LFIC 6-pin Less Core CL6AH
LFIC 6-Pin Disposable Core CTAHD
LFIC 6-pin with Temporary
Construction Core
(Red/Blue/Green) 		CT6AH
(R/B/G)
Keying and Keys
0-bitted with 2 blank keys 0Bit
(standard)
Keyed Random
Construction Master Keyed 		KR
CMK
(not available for Pyramid)
Uncombinated 		UC
2 keys per lock (standard)
More than 2 keys KY#
(e.g., KY6)
Visual key control (VKC)
No bitting or keyset
stamping on keys or
cylinder 		VKC0
Keys only VKC1
Cylinders and keys (not for
AS, AHS, ACS, ACHS, HS,
CHS, PHS or PCHS) 		VKC2
Cylinders only (not for AS,
AHS, HS, ACS, ACHS, CHS,
PHS or PCHS) 		VKC3
Concealed key control (CKC)
CKC cylinders with VKC keys CKC2
CKC cylinders only (not for
AS, AHS, HS, ACS, ACHS,
CHS, PHS or PCHS) 		CKC3

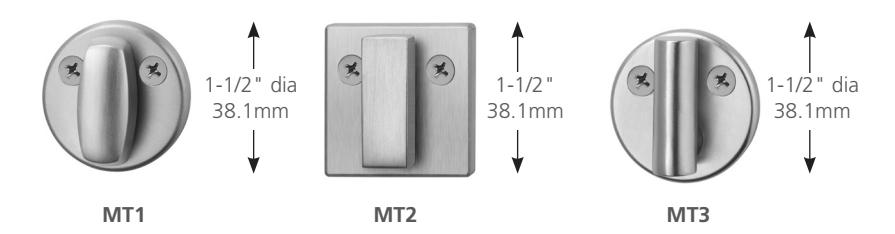

Thumbturns

Description Specify
Decorative MT1
Decorative Square MT2
Decorative Cylinder MT3

Door Thickness

Door Thickness Specify
1-3/4" (44mm) (standard)
1-7/8" (48mm) D178
2" (51mm) D200
2-1/8" (54mm) D218
2-1/4" (57mm) D214

Miscellaneous Options

Description Specify
Torx® head screws M04
ANSI wrought strike box M17
Knurling outside and inside1 M202
Knurling outside only1 M212
Knurling inside only1 M222
Abrasive coat outside and inside1 M23
Abrasive coat inside only1 M24
Abrasive coat outside only1 M25

  • 1 Not available with Vineyard or Museo levers.
  • 2 All levers provided in a powder coat finish will be supplied with an abrasive coating

Strikes

ANSI
Lip to Center 		ANSI
Straight Lip
Specify 		Curved
Lip
Specify
7/8" (22mm) SS078 N/A
1-1/8" (29mm) (standard) N/A
1-1/4" (32mm) SS114 SA114
1-3/8" (35mm) SS138 SA138
1-1/2" (38mm) SS112 SA112
1-3/4" (44mm) SS134 SA134
2" (51mm) SS200 SA200
2-1/4" (57mm) SS214 SA214
2-1/2" (64mm) SS212 SA212
2-3/4" (70mm) SS234 SA234
3" (76mm) SS300 SA300
Open Back Strike Door Thickness Specify
1-3/4" (44mm) SB134
2" (51mm) SB200
2-1/4" (57mm) SB214
Rabbeted front and strike - Specify SR118

Handing

Hand Specify
Right Hand RH
Left Hand LH
Right Hand Reverse RHR
Left Hand Reverse LHR

Note: Arrow indicates secure side of door.

Features

CLX3300 IN Series Cylindrical Lock

Cylindrical Lock CLX3300

Features Non-handed

Door Thickness

1-3/4" (44mm) to 2" (50mm) standard, 2" (50mm) to 2-1/4" (57mm) optional

Lock Chassis

Steel, zinc dichromated for corrosion resistance.

Backset

2-3/4" (70mm) standard.

Optional: 3-3/4" (95mm) and 5" (127mm).

Latchbolt

Stainless steel, 1/2" (13mm) throw. Optional: 3/4" (19mm) throw deadlocking fire latch for pair of doors.

Auxiliary Latchbolt

Deadlocking latchbolt prevents manipulation when door is closed.

Front

Wrought brass or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates non-beveled and beveled doors 1/8" (3mm) in 2" (51mm). Optional: rounded corners.

CLX3300 Series is a cutting-edge lock that represents the pinnacle of security and design. With its advanced features and robust construction, it offers unrivaled protection for any facility. Boasting a wide array of lever designs, allowing for customization and integration with other Corbin Russwin locks, ensuring a consistent aesthetic throughout the premises.

Strike

Wrought brass or stainless steel ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center.

Optional strikes, lip lengths and ANSI wrought strike box available

Cylinder

Brass, 6-pin, L4 keyway, 0-bitted standard.

Keying Features Available

Master keying

Construction master keying

Visual key control

Concealed key control

Interchangeable core (LFIC or SFIC)

Security

Security LFIC

Access 3

Access 3 LFIC

Pyramid

Pyramid LFIC

Environmental Specifications

  • Operating temperature:
    • -13°F (-25°C) to 151°F (66°C)
  • Operating humidity: Operates in condensing environments*

*always refer to the installation instructions for correct procedure when installing in condensing environments

Keys

Two nickel silver standard.

Key Override

Standard. Not available with non-key override.

EcoFlex®

EcoFlex technology reduces power consumption up to 92% as certified by GreenCircle

Monitoring

  • Request to Exit (Non-Handed)
  • Door Position Switch (Supplied and mounted above the lock. Connects directly into the lock's electronics.)

Warranty

10-year limited mechanical; 2-year limited electrical.

Shipping Weight Approx. 11 lbs.

Certification/Compliance ANSI/BHMA

Meets A156.2 Grade 1 requirements.

California State Reference Code (Formerly Title 19, California State Fire Marshal Standard) All levers with returns comply; levers return to within 1/2" (13mm) of door face.

UL /ULC-UL10C Positive Pressure All locks with 1/2" (13mm) throw latchbolt listed for A label and lesser class 4' x 10' single doors. All locks with 3/4" (19mm) throw latchbolt listed for A label and lesser class 8' x 10' pairs of doors. Letter F and UL symbol on latch front indicate listing.

Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

CLX3300 IN Series Cylindrical Lock

Build your order string:

Required Options Other Options
Function Trim Finish Handing Technology Code Reader Code Reader Modifier Cylinder, Strike, Door
Thickness
CLX33134 —

For finish, additional cylinder, and/or mechanical options, please refer to page 13.

Series/Function Type Function Description
CLX33134
With Key
Override 		Entry • Latch retracted by inside lever at all
times.
• Key outside retracts latch.
• Outside lever locked (freewheeling)
except when in "passage" mode or
valid user code entered.
Reader Modifier Description
B Black reader, black trim
MB Black reader, metal trim

Note: Metal trim is supplied in the finish specified in the order string.

Reader Code Credentials
BIPS HID Prox®, iCLASS®, iCLASS SE®,iCLASS® Seos®,
SIO on MIFARE® Classic, SIO on MIFARE DESFire® EV1
MIFARE Classic, MIFARE DESFire EV1, HID Mobile Access,
Apple Wallet, Google Pay
BIKPS All credentials supported by the BIPS option plus keypad
IPV PIV/PIV-I (40-bit BCD, 64-bit BCD, 75 bit, 128-bit BCD or
200-bit outputs)
IKPV All credentials supported by the IPV option plus keypad
BCP/ BCKP Options supporting FeliCa credentials. Contact Blackboard
for more details.
DIPS/DIKPS* Options supporting LenelS2 BlueDiamond™ mobile
credentials.
Technology Code Description
IN120 WiFi
IN220 PoE

Trim

CLX3300 IN Series Cylindrical Lock

Levers - Solid Cast Zinc

Armstrong AZ

Newport* NZ

Princeton* PZ

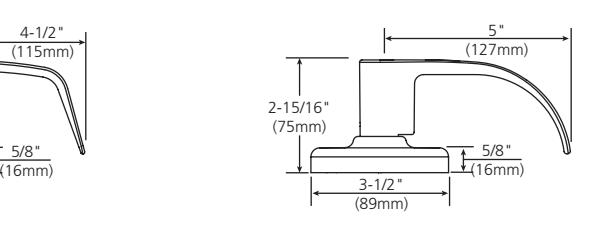

Decorative Levers

3-1/2" (89mm)

(16mm)

Rose Wrought Brass

* Lever with return to within 1/2" of door face.

Quick Codes

CLX3300 IN Series Cylindrical Lock

Cylinders and Keying
Description Specify
Conventional 6-pin (standard)
Conventional 7-pin 7P
Less Cylinder(s) LC
LFIC
LFIC 6-pin C6
LFIC 6-pin Less Core CL6
LFIC 6-Pin Disposable Core CT6D
LFIC 6-pin with Temporary
Construction Core (Red) 		CT6R
LFIC 6-pin with Temporary
Construction Core (Blue) 		CT6B
LFIC 6-pin with Temporary CT6G
Construction Core (Green)
LFIC 7-pin C7
LFIC 7-pin Less Core CL7
LFIC 7-Pin Disposable Core CT7D
LFIC 7-pin with Temporary
Construction Core (Red) 		CT7R
LFIC 7-pin with Temporary
Construction Core (Blue) 		CT7B
LFIC 7-pin with Temporary
Construction Core (Green) 		CT7G
SFIC (all lever designs)
SFIC 6-pin C6S
SFIC 6- or 7-pin Disposable
Core 		CTSD
SFIC 6-pin with Temporary
Construction Core (Blue) 		CT6SB
SFIC 7-pin C7S
SFIC 7-pin with Temporary
Construction Core (Blue) 		CT7SB
Security
Security HS
Security LFIC CHS
Access 3®
Access 3 Patented Fixed
Core 		AP
Access 3 Security Fixed Core AS
Access 3 High Security Fixed
Core 		AHS
Access 3 Patented LFIC ACP
Access 3 Security LFIC ACS
Access 3 High Security LFIC ACHS
Pyramid
Pyramid Security Fixed Core PS
Pyramid High Security Fixed
Core1 		PHS
Pyramid Security LFIC PCS
Pyramid High Security LFIC PCHS
Pyramid LFIC Less Core CLP
Pyramid with Temporary
Construction Core 		CTP
Cylinders and Keying
Description Specify
Keying and Keys
0-bitted with 2 blank keys (standard)
Keyed Random KR
Construction Master Keyed CMK
2 keys per lock (standard)
More than 2 keys KY#
(e.g., KY6)
Visual Key Control (VKC)
No bitting or keyset
stamping on keys 		VKC0
Keys only VKC1
Cylinders and keys (not for
AS, AHS, ACS, ACHS, HS,
CHS, PHS or PCHS) 		VKC2
Cylinders only (not for AS.
AHS, HS, ACS, ACHS, CHS,
PHS or PCHS) 		VKC3
Concealed Key Control
(CKC)
CKC cylinders with VKC
keys 		CKC2
CKC cylinders only (not for
AS, AHS, ACS, ACHS, PHS,
PCHS) 		CKC3
Schlage® C keyway cylinder
(0-Bitted or KR)1 		C
SARGENT® LA keyway cylinder
(0-Bitted)1 		LA

Finish

Description Specify
Polished Brass, Clear Coated 605
Satin Brass, Clear Coated 606
Polished Bronze, Clear Coated 611
Satin Bronze, Clear Coated 612
Dark Oxidized Satin Bronze,
Oil Rubbed 		613
Dark Oxidized Satin Bronze -
Equivalent 		613E
Polished Nickel 618
Satin Nickel 619
Polished Chrome 625
Satin Chrome 626
Black Oxidized Bronze,
Oil Rubbed 		722
Satin Chrome
with MicroShield® 		626C
Black Suede Powder Coat BSP
White Suede Powder Coat WSP

Miscellaneous Options

Description Specify
Spanner head screws M02
Torx® head screws M04
Less cylinder, with tailpiece for
Schlage® 6-pin fixed core cylinder
(all designs) 		M06
Lever to accept 6 or 7-pin SFIC (all
designs) 		M08
Lever to accept SARGENT® 6-pin
fixed core cylinder (all designs) 		M09
Rounded corners on latch front M13
3/4" (19mm) throw fire latch1 M16
ANSI wrought strike box M17
Knurling outside and inside (AZ,
NZ, PZ only) 		M201
Knurling outside only (AZ, NZ,
PZ only) 		M211
Knurling inside only (AZ, NZ, PZ
only) 		M221
Abrasive coat outside and inside
(AZ, NZ, PZ only) 		M23
Abrasive coat inside only (AZ, NZ,
PZ only) 		M24
Abrasive coat outside only (AZ,
NZ, PZ only) 		M25
Lever to accept Schlage® LFIC (AZ,
NZ, PZ only) 		M69
Rigid outside lever when locked M200
Less cylinder, with tailpiece for
Yale® 6-pin fixed core cylinder (all
designs) 		YC
Less cylinder, with tailpiece for
Yale® 7-pin fixed core cylinder (all
designs) 		YC7
Lever to accept Yale® 6-pin LFIC
(AZ, NZ, PZ only) 		YRC

1 All levers provided in a powder coat finish will be supplied with an abrasive coating

Strikes

Lip to Center ANSI
Curved Lip
Specify 		Curved Lip
Box Specify
1" (25mm) SA100 SC100
1-1/8" (29mm) SA118 SC118
1-1/4" (32mm) (standard) SC114
1-3/8" (35mm) SA138 SC138
1-1/2" (38mm) SA112 SC112
1-3/4" (44mm) SA134 SC134
2" (51mm) SA200 SC200
2-1/4" (57mm) SA214 SC214
2-1/2" (64mm) SA212 SC212
2-3/4" (70mm) SA234 SC234
3" (76mm) SA300 SC300

Door Thickness

Description Specify
1-3/4" (44mm) - 2" (51mm) (standard)
2" (51mm) - 2-1/4" (57mm) D214

Features

ED5000N IN Series Exit Devices

Shown: ED5200S Exit Device With 9100 Series Trim

Features

Handing

Device is handed but easily field reversible. Lever trim is handed.

Bar Length

Easily field cut to size.

Standard: 36" (914mm) bar fits 30"- 36"

(762mm-914mm) door.

Optional: 24" (610mm) bar fits 24"

(610mm) door; specify W024.

Optional: 48" (1219mm) bar fits 36"-48" (914mm-1219mm) door; specify W048.

Door Thickness

1-3/4" (44mm) standard.

Optional: 2" (51mm); specify D200. Optional: 2-1/4" (57mm); specify D214.

Stile

Minimum width 4-1/2" (114mm).

Latchbolt

Top: 3/4" (19mm) throw, stainless steel pullman-type with automatic deadlatching. Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swin

EcoFlex®

EcoFlex technology reduces power consumption up to 89% as certified by GreenCircle

Monitoring

Request-to-Exit (Non-Handed)

Door Position Switch (DPS) (Supplied and mounted above the lock. Connects directly into the lock's electronics.)

Materials

Heavy-duty cold-forged steel chassis; heavy-gauge steel mechanisms, electroplated for corrosion resistance; finished parts are brass, bronze or stainless steel; stainless steel springs; nylon bearings.

Projection

3-1/4" (83mm) active, 2-3/4" (70mm) dogged.

Dogging

Standard on panic devices; single-point 1/4 turn hex key dogging. Optional: less dogging, specify M51. Optional: cylinder dogging, specify M52. Mechanical dogging not available on fire-rated devices.

Fasteners

Standard on panic devices: machine screws and wood door fasteners.

Standard on fire-rated devices: sex nuts and bolts.

Optional on panic devices: sex nuts and bolts for use on wood, composite, or unreinforced metal doors; specify M54. Optional wood screws for use on approved fire-rated solid wood or wood core doors. Specify M64.

Strike

Optional strikes available; see Options and Accessories, page 17.

Cylinders

Cylinder not included unless specified. See Quick Codes, page 17.

Shim Kit

Optional for mounting device over raised vision light molding; specify M58.

Warranty

Five-year limited mechanical 2-year limited electrical

Certification/Compliance

ANSI/BHMA

Meets A156.3, Type 2, Grade 1. UL /cUL

All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware. Threehour fire-rated devices listed as fire exit hardware for A label and lesser class 8' x 8' double doors; UL symbol on active case cover indicates listing.

Any retrofit or other field modification to a fire- rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

California State Reference Code This product has been approved by the California State Fire Marshal pursuant to section 13144.1 of the California Health and Safety Code.

NFPA

All exit devices comply with NFPA 101 Life Safety Code. All fire-rated devices comply with NFPA 80 Fire Doors and Windows. ADA Lever trims and pulls comply with Americans with Disabilities Act.

ED5000N IN Series Exit Devices

Build your order string:

Required Options Other Options
Series Function Lever Finish Handing Technology
Code 		Reader Code Reader Modifier Cylinder, Strike, Door
Thickness, Door Width
ED5 91

For finish, additional cylinder, and/or mechanical options, please refer to page 17.

Series/Function Туре Function Description
ED5200(A)N & ED5200S(A)N x 9133 ED5233N - IN Series Rim Exit Device, No Key Override ED5233AN - IN Series Rim Exit Device, Fire-Rated, No Key Override ED5233SN - IN Series Rim Exit Device, Secure Bolt, No Key Override ED5233SAN - IN Series Rim Exit Device, Secure-Bolt, Fire-Rated, No Key Override Latch retracted by inside push pad at all times Outside lever locked (freewheeling) except when in passage mode or valid user code entered
ED5200(A)N & ED5200S(A)N x 9134 ED5234N - IN Series Rim Exit Device, With Key Override ED5234AN - IN Series Rim Exit Device, Fire-Rated, With Key Override ED5234SN - IN Series Rim Exit Device, Secure Bolt, With Key Override ED5234SAN - IN Series Rim Exit Device, Secure-Bolt, Fire-Rated, With Key Override Latch retracted by inside push pad at all times Outside lever locked (freewheeling) except when in passage mode or valid user code entered Outside cylinder override allows lever to retract latch
ED5633(A)LN x 9M133 ED5633LN - IN Series Mortise Exit Device, No Key Override
ED5633ALN - IN Series Mortise Exit Device, Fire-Rated, No Key Override 		Latch retracted by inside push pad at all times Outside lever rigid except when in passage mode or valid user code entered
ED5634(A)LN x 9M134 ED5633LN - IN Series Mortise Exit Device, With Key Override
ED5634ALN - IN Series Mortise Exit Device, Fire-Rated, With Key Override 		Latch retracted by inside push pad at all times Outside lever rigid except when in passage mode or valid user code entered Outside cylinder override retracts latch

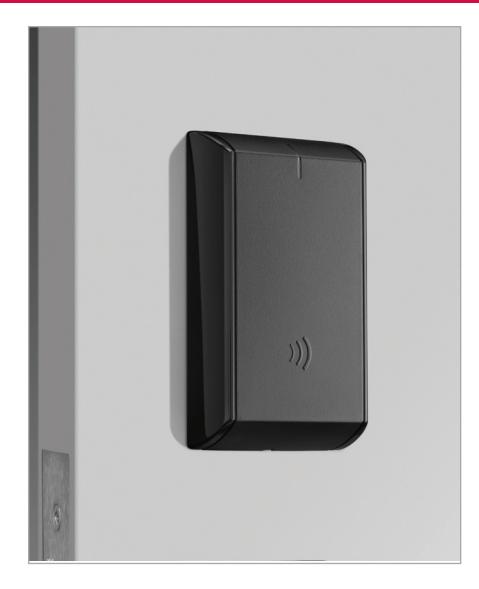

Reader Code Credentials
BIPS HID Prox®, iCLASS®, iCLASS SE®,iCLASS® Seos®, SIO on MIFARE® Classic, SIO on MIFARE DESFire® EV1 MIFARE Classic, MIFARE DESFire EV1, HID Mobile Access, Apple Wallet, Google Pay
BIKPS All credentials supported by the BIPS option plus keypad
IPV PIV/PIV-I (40-bit BCD, 64-bit BCD, 75 bit, 128-bit BCD or 200-bit outputs)
IKPV All credentials supported by the IPV option plus keypad
BCP/ BCKP Options supporting FeliCa credentials. Contact Blackboard for more details.
DIPS/DIKPS* Options supporting LenelS2 BlueDiamond™ mobile credentials.
Reader Modifier Description
В Black reader, black trim
MB Black reader, metal trim

Note: Metal trim is supplied in the finish specified in the order string.

Technology Code Description
IN120 WiFi
IN220 PoE

ED5000N IN Series Exit Devices

Finishes

Description Specify
Polished Brass, Clear Coated 605
Satin Brass, Clear Coated 606
Polished Bronze, Clear
Coated 		611
Satin Bronze, Clear Coated 612
Dark Oxidized Satin Bronze,
Oil Rubbed 		613
Dark Oxidized Satin Bronze -
Equivalent 		613E
Description Specify
Polished Nickel 618
Satin Nickel 619
Polished Chrome 625
Satin Chrome 626**
(Trim only)
Black Oxidized Bronze,
Oil Rubbed 		722
Description Specify
Satin Stainless Steel 629*
Bright Stainless Steel 630*
Satin Stainless Steel with
MicroShield® 		630C*
Black Suede Powder BSP
White Suede Powder WSP

* Metal escutcheon trim (MB) plated to match

Levers

The levers shown here are some of our most popular styles from the Muséo Collection. To see the complete range of levers, refer to pages 32-35.

Premium Levers

1. Lever returns within 1/2" (13 mm) of door face.

** Contact factory for devices needed in 626 finish

Quick Codes

ED5000N IN Series Exit Devices

Description Specify
Conventional 6-pin (standard)
Conventional 7-pin 7P
Less Cylinder(s) LC
LFIC
LFIC 6-pin C6
LFIC 6-pin with Temporary
Construction Core )Red) 		CT6R
LFIC 6-pin with Temporary
Construction Core (Blue) 		CT6B
LFIC 6-pin with Temporary
Construction Core (Green) 		CT6G
LFIC 6-pin Less Core CL6
LFIC 7-pin C7
LFIC 7-pin with Temporary
Construction Core (Red) 		CT7R
LFIC 7-pin with Temporary
Construction Core (Blue) 		CT7B
LFIC 7-pin with Temporary
Construction Core (Green) 		CT7G
LFIC 7-pin Less Core CL7
SFIC
SFIC 6-pin with Less Core CLS6
SFIC 6-pin with SFIC CT6SD
disposable temporary core
SFIC 7-pin with Less Core
SFIC 7-pin with SFIC 		CLS7
disposable temporary core CT7SD
Security
Security HS
Security IC CHS
Access 3®
Access 3® Patented AP
Access 3® Security AS
Access 3® High Security AHS
Access 3® Patented IC ACP
Access 3® Security IC ACS
Access 3® High Security IC ACHS
Pyramid
Pyramid Fixed Core PHS
Pyramid IC PCHS
Pyramid IC Less Core CLP
Pyramid with Temporary
Construction Core 		CTP
Pyramid Security PS
Pyramid Security IC PCS
Pyramid Disposable Core CTPD

Cylinders and Keying (Cont.)

Description Specify
Keying and Keys
6-pin Disposable Core CT6D
7-pin Disposable Core CT7D
Keyed Random
(Standard) 		KR
Construction Master
Keyed (not available
for Pyramid) 		CMK
2 Keys per Cylinder (standard)
More than 2 Keys KY#
(e.g., KY6)
Visual Key Control
No Keying Data
Stamped on Key or
Cylinder 		VKC0
Keys Only VKC1
Cylinders and Keys (not
for HS, CHS, PHS or
PCHS) 		VKC2
Cylinders Only (not for
HS, CHS, PHS or PCHS) 		VKC3
Concealed Key Control (CKC)
- CKC Cylinders with
VKC Keys 		CKC2
- CKC Cylinders Only
(not for PHS, PCHS) 		CKC3

Strikes

Description Specify
Rim strike S02 S02
Mortise ANSI strike for pairs
of doors with astragal 		SS078
Open back strike for 1-3/4"
doors 		SB134
Open back strike for 2-1/4"
doors 		SB214

Door Thickness

Door Thickness Specify
1-3/4" (44mm) (standard)
2" (51mm) D200
2-1/4" (57mm) D214

Door Width

Door Width Specify
24" (610mm) W024
36" (914mm) (standard)
48" (1219mm) W048

Handing

Hand Specify
Right Hand Reverse RHR
Left Hand Reverse LHR

Note: Arrow indicates secure side of door.

Miscellaneous Options

Description Specify
Torx® head screws M04
Windstorm M107
ANSI wrought strike box M17
Knurling outside and inside1 M202
Knurling outside only1 M212
Knurling inside only1 M222
Abrasive coat outside and inside1 M23
Abrasive coat inside only1 M24
Abrasive coat outside only1 M25
Less dogging M51
Cylinder dogging M52
Sex nuts and bolts (SNBs) M54
Shim kit (for vision light) M58
Wood screws for use on fire-rated
solid wood or wood core doors 		M64

  • 1 Not available with Vineyard or Museo levers.
  • 2 All levers provided in a powder coat finish will be supplied with an abrasive coating

Features

PED5000 IN Series Exit Devices

EcoFlex technology reduces energy

Features

Handing

Device is handed but easily field reversible. Lever trim is handed.

Bar Length

Easily field cut to size.

W032: 24" to 32" (61 cm to 81 cm) W036: 32.5" to 36" (84 cm to 91 cm) W042: 36.5" to 42" (94 cm to 107 cm) W048: 42.5" to 48" (110 cm to 122 cm)

Note: Must specify rail length on order string to receive factory cut rail. (ex: W026 - 26" wide door) Availalbe in 1/8" increments.

Door Thickness

1-3/4" (44mm) standard.

Optional: 2" (51mm); specify D200. Optional: 2-1/4" (57mm); specify D214.

Stile

Minimum width 4-1/2" (114mm).

Latchbolt

Top: 3/4" (19mm) throw, stainless steel pullman-type with automatic deadlatching. Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing

Rim: 3/4" (19mm) throw stainless steel pullman-type latchbolt with stainless steel auxiliary deadlocking latch standard

Mortise: 2-piece mechanical 3/4" throw deadlocking stainless steel latchbolt

consumption, which lowers operation cost and reduces the number of power supplies required.

Monitoring

Request-to-Exit (Non-Handed) Door Position Switch (DPS)* (Supplied and mounted above the lock. Connects directly into the lock's electronics.)

Materials

Heavy-duty cold-forged steel chassis; heavy-gauge steel mechanisms, electroplated for corrosion resistance; finished parts are brass, bronze or stainless steel; stainless steel springs; nylon bearings.

Projection

3.10" (79mm) active, 2.18" (55mm) dogged.

Dogging

Standard on panic devices; single-point 1/4 turn hex key dogging. Optional: less dogging, specify M51. Optional: cylinder dogging, specify M52. Mechanical dogging not available on fire-rated devices.

Fasteners

Standard on panic devices: machine screws and wood door fasteners.

Standard on fire-rated devices: Thrubolts. Optional on panic devices: sex nuts and bolts for use on wood, composite, or unreinforced metal doors; specify M54.

Strike

Optional strikes available; see Options and Accessories, page 22.

Cylinders

Cylinder not included unless specified. See Quick Codes, page 22.

Shim Kit

Reference PED5000 Series catalog for optional shims.

Warranty

Ten-year limited mechanical 2-year limited electrical

Certification/Compliance

ANSI/BHMA

Meets A156.3, Type 2, Grade 1. UL /cUL

All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware. Threehour fire-rated devices listed as fire exit hardware for A label and lesser class 8' x 8' double doors; UL symbol on active case cover indicates listing.

Any retrofit or other field modification to a fire- rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

California State Reference Code This product has been approved by the California State Fire Marshal pursuant to section 13144.1 of the California Health and Safety Code.

NFPA

All exit devices comply with NFPA 101 Life Safety Code. All fire-rated devices comply with NFPA 80 Fire Doors and Windows. ADA Lever trims and pulls comply with Americans with Disabilities Act.

Vertical rod configurations utilize Ease of Access (EA) with offset positioning required

*For Double-door applications the DPS is installed in-between the active and inactive leaves. The DPS monitors both doors, but the REX only monitors the active leaf. To prevent door-force or door-held alarms, the alarms must be disabled.

PED5000 IN Series Exit Devices

Build your order string:

Required Option ns Other Options
Series Function Lever Finish Handing Technology
Code 		Reader Code Cylinder, Strike, Door
Thickness, Door Width
PED5233 9133PT 124 630 RHR IN120 BIPS В

For finish, additional cylinder, and/or mechanical options, please refer to page 22.

Rım

Surface Vertical Rod Ease of Access (EA- Option)

Mortise

Concealed Vertical Rod Ease Access (EA- Option)

Function Туре Function Description Trim
PED5233 (A) PED5233 - IN Series Rim Exit Device, No Key Override PED5233A - IN Series Rim Exit Device, Fire-Rated, No Key Override Latch retracted by inside push pad at all times Outside lever locked (rigid) except when in passage mode or valid user code entered No Key Override 8133PT/9133PT
PED5234 (A) PED5234 - IN Series Rim Exit Device, With Key Override PED5234A - IN Series Rim Exit Device, Fire-Rated, With Key Override Latch retracted by inside push pad at all times Outside lever locked (rigid) except when in passage mode or valid user code entered Outside cylinder override allows lever to retract latch With Key Override 8134PT/9134PT
PED5433 (A) PED5433 - IN Series SVR Exit Device, No Key Override PED5433A - IN Series SVR Exit Device, Fire-Rated, No Key Override Latch retracted by inside push pad at all times Outside lever locked (rigid) except when in passage mode or valid user code entered No Key Override. EA- Option Required. 8M133PT/9M133PT
PED5633 (A) PED5633 - IN Series Mortise Exit Device, No Key Override PED5233A - IN Series Mortise Exit Device, Fire-Rated, No Key Override Latch retracted by inside push pad at all times Outside lever rigid except when in passage mode or valid user code entered No Key Override 8M133PT/9M133PT
PED5634 (A) PED5633 - IN Series Mortise Exit Device, No Key Override
PED5233A - IN Series Mortise Exit Device, Fire-Rated, No
Key Override 		Latch retracted by inside push pad at all times Outside lever rigid except when in passage mode or valid user code entered With Key Override 8M134PT/9M134PT
PED5833 (A) PED5833 - IN Series CVR Exit Device, No Key Override PED5833A - IN Series CVR Exit Device, Fire-Rated, No Key Override Latch retracted by inside push pad at all times Outside lever rigid except when in passage mode or valid user code entered No Key Override. EA- Option Required. 8CV133PT/9CV133PT

PED5000 IN Series Exit Devices

Reader Modifier Description
B Black reader, black trim
MB Black reader, metal trim

Note: Metal trim is supplied in the finish specified in the order string.

Technology Code Description
IN120 WiFi
IN220 PoE
Reader Code Credentials
BIPS HID Prox®, iCLASS®, iCLASS SE®,iCLASS® Seos®, SIO on
MIFARE® Classic, SIO on MIFARE DESFire® EV1 MIFARE
Classic, MIFARE DESFire EV1, HID Mobile Access, Apple
Wallet, Google Pay
BIKPS All credentials supported by the BIPS option plus keypad
IPV PIV/PIV-I (40-bit BCD, 64-bit BCD, 75 bit, 128-bit BCD or
200-bit outputs)
IKPV All credentials supported by the IPV option plus keypad
BCP/ BCKP Options supporting FeliCa credentials. Contact
Blackboard for more details.
DIPS/DIKPS* Options supporting LenelS2 BlueDiamond™ mobile
credentials.

PED5000 IN Series Exit Devices

Description Specify
Polished Brass, Clear Coated 605
Satin Brass, Clear Coated 606
Polished Bronze, Clear
Coated 		611
Satin Bronze, Clear Coated 612
Dark Oxidized Satin Bronze,
Oil Rubbed 		613
Dark Oxidized Satin Bronze -
Equivalent 		613E
Oxidized satin, bronze, clear
coated 		613L
Polished Nickel 618

* Metal escutcheon trim (MB) plated to match

Description Specify
Satin Nickel 619
Satin Nickel with
Microshield 		619C
Polished Chrome 625
Satin Chrome 626
Satin Stainless Steel 629*
Bright Stainless Steel 630*
Satin Stainless Steel with
MicroShield® 		630C*

Black Suede Powder BSP White Suede Powder WSP

Trim Finishes Exit Device Finishes

Description Specify
Polished Brass, Clear Coated 605
Satin Brass, Clear Coated 606
Polished Bronze, Clear Coated 611
Satin Bronze, Clear Coated 612
Dark Oxidized Satin Bronze, Oil
Rubbed 		613
Dark Oxidized Satin Bronze -
Equivalent 		613E
Oxidized Satin, Bronze, Clear
Coated 		613L
Satin Stainless Steel 629*
Bright Stainless Steel 630*
Satin Stainless Steel with
MicroShield® 		630C*
Black Suede Powder Coat BSP
White Suede Powder Coat WSP

Note; Mixed finishes available please see PED5000 Series Catalog *Metal escutcheon trim (MB) plated to match

Levers

The levers shown here are some of our most popular styles from the Muséo Collection. To see the complete range of levers, refer to pages 32-35.

Premium Levers

1. Lever returns within 1/2" (13 mm) of door face.

** Contact factory for devices needed in 626 finish

Quick Codes

PED5000 IN Series Exit Devices

Cylinders and Keying
Description Specify
Conventional 6-pin (standard)
Conventional 7-pin 7P
Less Cylinder(s) LC
LFIC
LFIC 6-pin C6
LFIC 6-pin with Temporary
Construction Core (Red) 		CT6R
LFIC 6-pin with Temporary
Construction Core (Blue) 		CT6B
LFIC 6-pin with Temporary
Construction Core (Green) 		CT6G
LFIC 6-pin Less Core CL6
LFIC 7-pin C7
LFIC 7-pin with Temporary
Construction Core (Red) 		CT7R
LFIC 7-pin with Temporary
Construction Core (Blue) 		CT7B
LFIC 7-pin with Temporary
Construction Core (Green) 		CT7G
LFIC 7-pin Less Core CL7
SFIC
SFIC 6-pin with Less Core CLS6
SFIC 6-pin with SFIC
disposable temporary core 		CT6SD
SFIC 7-pin with Less Core CLS7
SFIC 7-pin with SFIC
disposable temporary core 		CT7SD
Security
Security HS
Security IC CHS
Access 3®
Access 3® Patented AP
Access 3® Security AS
Access 3® High Security AHS
Access 3® Patented IC ACP
Access 3® Security IC ACS
Access 3® High Security IC ACHS
Pyramid
Pyramid Fixed Core PHS
Pyramid IC PCHS
Pyramid IC Less Core CLP
Pyramid with Temporary
Construction Core 		CTP
Pyramid Security PS
Pyramid Security IC PCS
Pyramid Disposable Core CTPD

Cylinders and Keying (Cont.)

Description Specify
UL Housing
UL IC 6-pin housing less
core 		CL6AH
UL IC 6-pin housing w/
disposable core 		CTAHD
UL IC 6-pin w/ temporary
construction core (red) 		CT6AHR
UL IC 6-pin w/ temporary
construction core (blue) 		CT6AHB
UL IC 6-pin w/ temporary
construction core (green) 		CT6AHG
Keying and Keys
6-pin Disposable Core CT6D
7-pin Disposable Core CT7D
Keyed Random
(Standard) 		KR
Construction Master
Keyed (not available for
Pyramid) 		CMK
2 Keys per Cylinder (standard)
More than 2 Keys KY#
(e.g., KY6)
Visual Key Control
No Keying Data Stamped
on Key or Cylinder 		VKC0
Keys Only VKC1
Cylinders and Keys (not
for HS, CHS, PHS or PCHS) 		VKC2
Cylinders Only (not for HS,
CHS, PHS or PCHS) 		VKC3
Concealed Key Control (CKC)
CKC Cylinders with
VKC Keys 		CKC2
CKC Cylinders Only (not
for PHS, PCHS) 		CKC3

Strikes

Description Specify
Half mortised strike 613
Mortised strike 642
Door pairs w/o mullion 644
Surface strike 649
Blade Stop Strike 657
Mullion Strike 658
Curved Lip Strike C908
Open Back Strike 815
Flat lip strike 908

Door Thickness

Door Thickness Specify
1-3/4" (44mm) D134 (standard)
2" (51mm) D200
2-1/4" (57mm) D214

Door Width

Inches Fractions
Code Measurement Code Measurement
W024 24" 1 1/8"
W025 25" 2 1/4"
W026 26" 3 3/8"
W027 27" 4 1/2"
W028 28" 5 5/8"
W029 29" 6 3/4"
W030 30" 7 7/8"
W031 31"
W032 32"
W033 33"
W034 34"
W035 35"
W036 36"
W037 37"
W038 38"
W039 39"
W040 40"
W041 41"
W042 42"
W043 43"
W044 44"
W045 45"
W046 46"
W047 47"
W048 48"

Note; Reference PED5000 catalog for door width example.

Handing

Hand Specify
Right Hand Reverse RHR
Left Hand Reverse LHR

Note: Arrow ( ) indicates secure side of door.

Miscellaneous Options

Description Specify
Security Fasteners M04
Milled Outside Lever M211
Abrasive Strip on Rail & Abrasive
Coating on Outside Lever 		M23
Abrasive Coating on Outside Lever M24
Abrasive Strip on Rail M25
Passage Dogging Indicator M48
Less dogging M51
Cylinder dogging M52
Thrubolts M54
Windstorm M107
Ease of Access (Required for PED5400
and PED5800) 		EA

1 Not available with Museo levers.

Features

BL6600/FE6600/MP6600 Series Series Multi-Point Locks

Features

Handing

Handed; quick reversibility. The lockset can be re-handed without disassembling the lock body.

Door Thickness

1-3/4" thick door only; fully integrated – 6600 is part of a complete ASSA ABLOY windstorm solution

Backset

2-3/4" (70mm).

Lockcase

Heavy-gauge chrome plated steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).

Front

Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x 3/32" (2mm). Accommodates non-beveled and beveled doors 1/8" (3mm) in 2" (51mm).

Armored Front

Wrought brass, bronze or stainless steel attached by machine screws to lockcase front.

Device Type

Available with both BL (Blast) and FE (FEMA) prefixes

Top Bolt

Adjustable stainless steel 3/4" square bolt with 11/16" engagement; 5/16" steel reinforcement plate

Installation

Concealed vertical assembly (rods, latches and cassette) pre-installed in door

Bottom Bolt

Adjustable stainless steel 3/4" square bolt with 5/8" engagement; 1/4" steel reinforcement plate

Center Bolts

Latchbolt is stainless steel with 3/4" projection. One piece, anti-friction reversible catch. Deadbolt is one piece hardened stainless steel with 1" projection Lock Front

1/8" steel mortise front reinforced with 13/64" thick lock edge stiffener

Center Bolt Strike

1/4" thick stainless steel

Backset

2-3/4" standard

Door Thickness

1-3/4" standard

Door Height

7'0" - 8'0"

Maximum Opening

Single door 4'0" x 8'0" and double doors 8'0" x 8'0"

Strike

Wrought brass, bronze or stainless steel ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center.

Environmental Specifications

Operating Temperature:

-13°F (-25°C) to 151°F (66°C)

Operating humidity:

Operates in condensing environments

*always refer to the installation instructions for correct procedure when installing in condensing environments

Monitoring

  • Deadbolt
    • Latch bolt
  • DPS integrated into lock body
  • Request to exit

Warranty 7-year limited mechanical. 2-year limited electrical.

Shipping Weight Approx. 11 lbs.

Certification/Compliance

ANSI/BHMA

Meets A156.37, Operational Grade 1 and Security Grade 1 requirements. Meets A117.1 Accessibility Code. Meets A156.25 requirements.

UL /ULC-UL10C Positive Pressure

All locks listed for A label and lesser class doors, 4' (122cm) x 8' (305cm) single or 8' (244cm) x 8' (305cm) pair. Letter F and UL symbol on armored front indicate listing.

Windstorm Certification

Windstorm certification information is listed in the Corbin Russwin 6600 Series catalog.

Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

BL6600/FE6600/MP6600 Series Multi-Point Locks

Build your order string:

Required Options
Function Trim Finish Handing Technology
Code 		Reader Code Reader Modifier Other Options
66135 I N

For finish, additional cylinder, and/or mechanical options, please refer to page 17.

Series/Function Type Function Description
BL/FE/MP66135
No Key Override
With Deadbolt 		Entry • Deadlocking latch
• Latch and deadbolt retracted by
inside lever at all times
• Outside lever rigid except when in
"passage" mode or valid user code
entered
BL/FE/MP66136
Key Override
With Deadbolt 		Entry
With
Deadbolt 		• Key outside retracts deadbolt.
Key outside also retracts latch and
unlocks outside when trim is locked
electronically
• Top and bottom rods retracted by
lever
• Deadbolt projected and retracted by
thumbturn or key
Reader Code Credentials
BIPS HID Prox®, iCLASS®, iCLASS SE®,iCLASS® Seos®,
SIO on MIFARE® Classic, SIO on MIFARE DESFire® EV1
MIFARE Classic, MIFARE DESFire EV1, HID Mobile Access,
Apple Wallet, Google Pay
BIKPS All credentials supported by the BIPS option plus keypad
IPV PIV/PIV-I (40-bit BCD, 64-bit BCD, 75 bit, 128-bit BCD or
200-bit outputs)
IKPV All credentials supported by the IPV option plus keypad
BCP/ BCKP Options supporting FeliCa credentials. Contact
Blackboard for more details.
DIPS/DIKPS* Options supporting LenelS2 BlueDiamond™ mobile
credentials.
Reader Modifier Description
B Black reader, black trim
MB Black reader, metal trim

Note: Metal trim is supplied in the finish specified in the order string.

Technology Code Description
IN120 WiFi
IN220 PoE

Finishes

Specify Description Specify Description Specify
605 Polished Nickel 618 Satin Stainless Steel 629*
606 Satin Nickel 619 Bright Stainless Steel 630*
611 Polished Chrome 625 Satin Stainless Steel with
MicroShield® 		630C*
Satin Chrome 626 BSP
612
613 with MicroShield® 626C WSP
613E Oil Rubbed 722
Satin Chrome
Black Oxidized Bronze, 		Black Suede Powder Coat
White Suede Powder Coat
*Metal escutcheon trim (MB) plated to match

BL6600/FE6600/MP6600 Series Multi-Point Locks

Roses

The roses shown are some of our most popular styles. To see the complete list of available roses, refer to pages 34.

Levers

The levers shown here are some of our most popular styles from the Muséo Collection. To see the complete range of levers, refer to pages 32-35.

Premium Levers

  • 1 Rose design suites with IN220 reader. 2 Lever returns within 1/2" (13 mm) of door face.

Miscellaneous Options

Description Specify
Torx® head screws M04
ANSI wrought strike box M17
Knurling outside and inside1 M202
Knurling outside only1 M212
Knurling inside only1 M222
Abrasive coat outside and
inside1 		M23
Abrasive coat inside only1 M24
Abrasive coat outside only1 M25

  • 1 Not available with Vineyard or Museo levers.
  • 2 All levers provided in a powder coat finish will be supplied with an abrasive coating

Thumbturns

Copyright © 2015-2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Description Specify
Decorative MT1
Decorative Square MT2
Decorative Cylinder MT3

Handing

Hand Specify
Right Hand RH
Left Hand LH
Right Hand Reverse RHR
Left Hand Reverse LHR

Note: Arrow indicates secure side of door.

Retrofit Kits

Von Duprin 98/99 Series Rim Exit Devices

Mechanical Features

Certified ANSI/BHMA A156.3 Grade 1.

Key override compatible with a variety of rim cylinders. Trim prepped for cylinder (not included).

Requires Von Duprin RX switch assembly #050251-00 (supplied by others).

Provides complete coverage of door prep for Von Duprin 996 trim; call 800-810-WIRE for information on door prep coverage for other trims.

Available with Vineyard, Muséo Collection and all standard levers.

UL/ULC Listed for fire doors

Matching dummy trim available for double doors.

IN Series Exit Device Functions

Lever outside rigid except when in passage mode or valid user code entered.

Always allows free egress.

Request-to-Exit (REX): monitors rail position

Low battery, tamper signaling standard.

Door position switch (DPS, part #783F619) supplied.

Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

Select from the following options to order IN Series multi-point locks:

Technology
IN120 WiFi
IN220 PoE
Function
231 Rim exit device, key override
Reader Modifier Description
B Black reader, black trim
MB Black reader, metal trim

Note: Metal trim for the reader is supplied in the finish specified in the order string. It is not available in stainless steel (629/630).

Reader Code Credentials
BIPS HID Prox®, iCLASS®, iCLASS SE®,iCLASS® Seos®, SIO on MIFARE®
Classic, SIO on MIFARE DESFire® EV1 MIFARE Classic, MIFARE DESFire EV1,
HID Mobile Access, Apple Wallet, Google Pay
BIKPS All credentials supported by the BIPS option plus keypad
IPV PIV/PIV-I (40-bit BCD, 64-bit BCD, 75 bit, 128-bit BCD or
200-bit outputs)
IKPV All credentials supported by the IPV option plus keypad
BCP/ BCKP Options supporting FeliCa credentials. Contact Blackboard for more details.
DIPS/DIKPS Options supporting LenelS2 BlueDiamond™ mobile credentials.

Finishes

Polished Chrome 625

Description Specify Description Specify
Polished Brass, Clear Coated 605 Satin Chrome 626
Satin Brass, Clear Coated 606 Satin Chrome with MicroShield® 626C
Polished Bronze, Clear Coated 611 Bright Stainless Steel 629
Satin Bronze, Clear Coated 612 Satin Stainless Steel 630*
Dark Oxidized Satin Bronze, 613 Satin Stainless Steel with MicroShield® 630C*
Oil Rubbed Black Oxidized Bronze, Oil Rubbed 722
Dark Oxidized Satin Bronze -
Equivalent 		613E Black Suede Powder BSP
White Suede Powder WSP
Polished Nickel 618
Satin Nickel 619

*Metal escutcheon trim (MB) plated to match

Retrofit Kits

Von Duprin 98/99 Series Rim Exit Devices

Handing

Hand Specify
Right Hand Reverse RHR
Left Hand Reverse LHR

Note: Arrow indicates secure side of door.

Build your order string:

Required Options Other Options
Function Trim Finish Handing Technology Code Escutcheon Reader Code Reader Modifier Cylinder, Strike, Door
Thickness
231 102 605 RHR IN120 CREK1 BIPS B —

For finish, additional cylinder, and/or mechanical options, please refer to page 17.

Escutcheon

CREK1 Plate for Von Duprin Retrofit Fit

Lever

The levers shown here are some of our most popular styles from the Studio Collection. To see the complete range of available levers, refer to pages 31-32.

Premium Levers

1 Lever returns within 1/2" (13 mm) of door face.

Options & Accessories

IN Series Intelligent IP-Enabled Access Control

WFCD1 Lock Configuration CD Tool Kit*

• Required to configure network settings of IN120 and IN220

Contains:

  • Serial adapter cable (to order, specify 712F879)
  • USB cable (P/N 783F909)
  • Quick start guide
  • iCLASS® Reader Configuration Cards Pack (WF001)

*Lock Configuration Software is required to set up IN220 locks and is available for download at IntelligentOpenings.com (ACP/ CI login required)

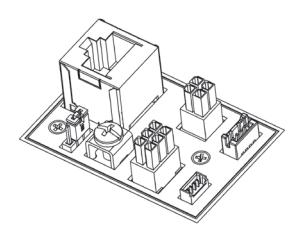

DHTA

Power over Ethernet (PoE) Cable and Data Hinge Test Adapter Developed for troubleshooting Corbin Russwin Access 700 PIP1 , Access 800 IP1, and IN220 locks, the ASSA ABLOY PoE cable and data hinge test adapter verifies your PoE installation in the field. Sold as a kit containing two test adapters, it allows you to verify proper wiring from the door frame to the PoE data hinge and lock, or test the frame, hinge or door cables independently.

This test tool helps answer the question "Is the problem in the lock or in the wiring to the lock?" and will save you troubleshooting time.

Hard Power Option (M35)

The Hard Power option (Quick Code M35) is recommended for high traffic doors or openings that require online behavior. Hard powering an IN120 allows the lock to operate in an always connected mode. The IN120 allows hard powering via an input of 9-24VDC (UL 294 Listed Power Supply Required) and draws 300mA at 9VDC in always connected mode. Corbin Russwin offers a range of power supplies suitable for this application.

Operation

Power supplies are designed to provide reliable filtered and regulated power for long life to a variety of electrified hardware components. All modular power supplies are designed to meet UL 1481 Standards.

Features

  • Fire panel emergency release input
  • PC Board mounted system LED indicator
  • Regulated and filtered with input and output protection
  • Battery charging is provided from a separate output terminal

784F199 Hard Power Cable Kit

  • Included with M35 option units
  • Allows for hard powering (M35) of Access 700 PWI1 or IN120 (required for certain monitoring features)
  • Compatible with ElectroLynx system

Cover Plate Kits

Description Part
Number
IN220 mortise lock, ML20133
(no key override, no deadbolt) 		784F137 630
IN220 mortise lock, ML20134
(key override, no deadbolt) 		784F147 630
IN220 mortise lock, ML20135
(no key override, with deadbolt) 		784F157 630
IN220 mortise lock, ML20136
(key override, with deadbolt) 		784F167 630
IN220 cylindrical lock, CLX33134
(with key override) 		784F177 630

The DHTA works in conjunction with the following products or their equivalent, provided by others:

• Two (2) Category 5e patch cables, each (10) feet in length

Electrical Specifications

  • Inputs: 115VAC @600mA
  • Outputs: 12/24 VDC @ 1 Amp, 1.5 Amp or 4 Amp, Filtered and regulated output

Listings

  • UL & cUL listed 1012 General Purpose Power Supply
  • Fire & Burglar Alarm Power Supply Unit URT2
  • Releasing device Accessory SYSW
  • Access Control Systems Units ALVY
  • Burglar Alarm Systems Power Supply APHY

Model Description
BPS-24-1 Power supply 1.0 amp @ 24 VDC output
BPS-24-2 Power supply 2 amp @ 24 VDC output
BPS-24-4 Power supply 4 amp @ 24 VDC output
BPS-12-1 Power supply 1 amp @ 12 VDC output
BPS-12-3 Power supply 3 amp @ 12 VDC output

ElectroLynx® hinges and harnesses required for hard-powered IN120 applications are available through McKinney.

Options & Accessories

IN Series Intelligent IP-Enabled Access Control

IN220 PoE Accessories

The following are required system components ordered through McKinney, in addition to the lock.

Please note that one electrified hinge, one door harness assembly and one frame harness assembly are required for each PoE opening.

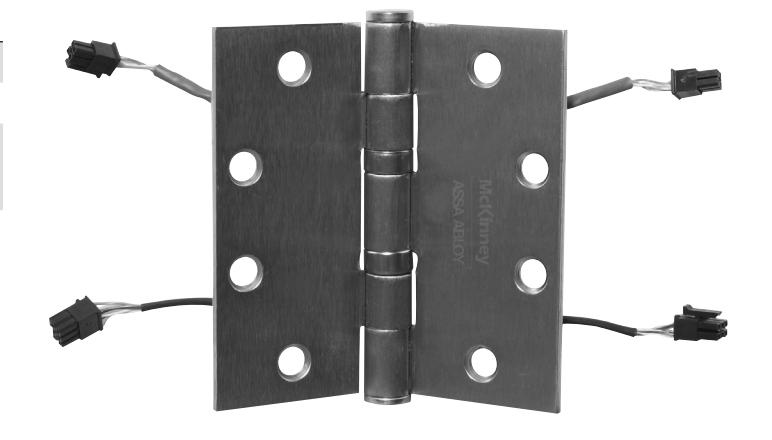

McKinney ElectroLynx® PoE Hinges* Description

4 ½ x 4 ½ TA2714 26D PoE (Standard Weight 5 knuckle)

4 ½ x 4 ½ T4A3786 26D PoE (Heavy Weight 5 knuckle)

The PoE door & frame harnesses can accommodate a variety of new (with raceway) and retrofit applications.

McKinney ElectroLynx® PoE Door Harnesses

Door Width Cable
Length 		Wood Door Hollow Metal
Door
28" to 31" 36" PoE-C300RJ PoE-C300PRJ
32" to 36" 42" PoE-C306RJ PoE-C306PRJ
37" to 42" 48" PoE-C400RJ PoE-C400PRJ
43" to 48" 54" PoE-C406RJ PoE-C406PRJ

All are Cat5e, 26 AWG, Shielded, Stranded, 100 Ohm

McKinney ElectroLynx® PoE Frame Harness

Cable Length Harness Description
180" PoE-C1500P
Cat5e, 24 AWG, Shielded, Stranded, 100 Ohm

* See the McKinney catalog for additional finishes and hinge types Note: One electrified hinge, door harness and frame harness are required for each PoE opening.

Application Diagram

IN220

Note: IN220 must be installed by a Certified Integrator (CI)

Lock Management Tool

IN Series Intelligent IP-Enabled Access Control

Lock Management Tool

Lock Management Tool™ (LMT) allows programming, interrogation and overall management of ASSA ABLOY PoE locks from a centralized location for up to 50 doors. The application facilitates communication from a computer to the locks via IEEE 8802.3af PoE infrastructure. The LMT program allows an administrator to establish multiple user types, time zones, holidays, user groups, auto-unlock periods and to obtain transaction history from all locks connected to the system. LMT consists of a server based installation (a small workstation will be sufficient) with most of the daily administration and configuration being done through a web browser. A local client on the server can be used for more complex configuration tasks.

Features:

  • Password protected database
  • User database size based on local hardware configuration
  • Allows for creation of user groups
  • Easy to follow data entry
  • Real-time clock with date and time
  • Sixteen different time zones
  • Holiday support
  • Auto-unlock schedule with or without "first in" unlock
  • Allows viewing of system wide events and history (total number of events based on local hardware configuration) – includes event type, date, time, user ID and name
  • Configurable for all major HID® Prox 125 kHz or iCLASS® 13.56 MHz card formats
  • Scheduler utility to establish lock communication at pre-defined intervals
  • User manual included
  • Browser-based user interface
  • Simple drag-and-drop configurations
  • Basic alarm monitoring

Lock Management Tool 7.0 System Requirements / Server Requirements:

  • Screen: 800 x 600 required;1024 x 768 Recommended
  • Network Card required
  • CD-ROM required Memory: 4 GB minimum, 8 GB+ recommended for servers
  • Storage: 50 GB available or more as needed
  • Processor: 2 GHz or faster Dual-core minimum

Supported Operating Systems:

  • Windows 10 Pro & Enterprise (Home editions of Windows are not supported)
  • Windows Server 2012, 2012R2, 2016 & 2019

Supported Databases:

  • Microsoft SQL Server 2012 to 2019
  • Installed with Mixed Mode authentication enabled as installer requires a SQL sys admin account.

WFCD2 Lock Management Tool (LMT)

  • Lock Management Tool™ allows programming, interrogation and overall management from a centralized location of up to 25 doors
  • License is included and is obtained at time of installation
  • Download from IntelligentOpenings.com

WFCD3 Lock Management Tool (LMT)

  • Lock Management Tool™ allows programming, interrogation and overall management from a centralized location of up to 50 doors
  • License is included and is obtained at time of installation
  • Download from IntelligentOpenings.com

Integration Tools for ASSA ABLOY Locks

The Corbin Russwin IP-enabled locks are managed by a range of access control and security systems. For more information on which systems support the Corbin Russwin IP-enabled locks, please contact your local ASSA ABLOY Door Security Solutions office, www.assaabloydss.com. To learn more about how to integrate these and other ASSA ABLOY products with your system, please call 800-810-WIRE. For a complete list of IP-enabled access control partners, visit www.intelligentopenings.com.

Available Trim Options

IN Series Mortise Locks and Exit Devices

Standard

Mortise Lock Trim
Armstrong Newport Princeton Citation Dirke Essex Lustra Regis
A Rose ASA NSA PSA CSA DSA ESA LSA RSA
B Rose ASB NSB PSB CSB DSB ESB LSB RSB
E Rose ASF NSF PSF CSF DSF ESF LSF RSF
Exit Device Trim
Armstrong
Newport
Princeton
Citation
Dirke
Essex
Lustra
Regis
A N P C D E L R

Armstrong Citation Dirke Essex

Lustra Newport Princeton Regis

Vineyard

Mortise Lock Trim
Frascati
Merlot
Zinfandel
G Rose FSG MSG ZSG
Exit Device Trim
Frascati Merlot Zinfandel
F M Z

Frascati Merlot Zinfandel

Available Trim Options

IN Series Mortise Locks and Exit Devices

Available Trim Options

ML2000 IN Series Mortise Locks

The Muséo® Line Roses1

Thumbturns3

Specify quick code MT1, MT2, or MT3 for decorative turns. Standard thumbturn will be supplied without quick code.

Notes:

  • 1. Roses trim are only available with Muséo levers.
  • 2. Square cylinder collar and thumbturn backplate automatically supplied with E2, E3, and E4 roses.
  • 3. Thumbturn back plate will match shape of rose chosen (i.e. round or square).

How to Order the Muséo® Piet Levers

ML2000 IN Series Mortise Locks

Grooved Insert 21G

Leather Insert 21L

Polished with Satin Insert 21M

Santoprene™ Insert 21S

With Raised Band 23M

Plain 25M

Plain with Two Grooves 27M

Piet Finish Codes

Finish Piet Code* Description
630 30 Satin Stainless Steel
629 29 Bright Stainless Steel
613E 3E Dark Oxidized Satin Bronze, Equivalent
BSP BS Black Suede Powder Coat
WSP WS White Suede Powder Coat
N/A BK Black (Santoprene™ or leather insert)
N/A BN Brown (leather insert)
N/A 00 No Insert

* Code used to specify Piet Collection finishes only. Use available finishes list to specify desired finish when ordering.

Piet Lever Descriptions & Available Finishes

Lever Designation Lever Description Available Finishes (as ordered)
21G Grooved Insert 303030, 292929, 293029, 302930, 3E003E, BS00BS
OR WS00WS
21L Leather Insert 30BK30, 30BN30, 29BK29, 29BN29, 3EBK3E,
BSBKBS, WSBKWS, 3EBN3E, BSBNBS OR WSBNWS
21M Metallic Insert 293029**
21S Santoprene Insert 30BK30, 29BK29, 3E003E, BS00BS or WS00WS
23M Raised Band 290030, 290029, 300030, 300029, 3E003E, BS00BS
OR WS00WS
25M Plain 290029, 300030, 3E003E, BS00BS or WS00WS
27M Two Grooves 290029, 300030, 3E003E, BS00BS or WS00WS

** Two-tone finish - grip of lever is 630, balance of lever is 629. Rose/escutcheon and lock finish will be 629.

Ordering Examples

Rose Options: E2, E3, E4, T, U, V, W, X, Y

Quantity Series/
Function 		Trim Lever Finish Lock Finish Hand Thumbturn
Options
2 ML20134 21LU 29BK29 629 RH MT3
1 ML20136 23ME3 290030 629 RH MT3

Common Replacement Parts

IN Series Intelligent IP-Enabled Access Control

Catalog Number Description
Reader Modules1
IN120-CREM01-[Credentials]-[Reader Modifier] See below for Credentials and Reader Modifier
Reader Code Credentials
BIPS HID Prox®, iCLASS®, iCLASS SE®,iCLASS® Seos®, SIO on
MIFARE® Classic, SIO on MIFARE DESFire® EV1 MIFARE
Classic, MIFARE DESFire EV1, HID Mobile Access, Apple
Wallet, Google Pay
BIKPS All credentials supported by the BIPS option plus keypad
IPV PIV/PIV-I (40-bit BCD, 64-bit BCD, 75 bit, 128-bit BCD or
200-bit outputs)
IKPV All credentials supported by the IPV option plus keypad
BCP/ BCKP Options supporting FeliCa credentials. Contact Blackboard
for more details.
DIPS/DIKPS* Options supporting LenelS2 BlueDiamond™ mobile
credentials.
Reader Modifier Description
B Black reader, black trim
MB Black reader, metal trim

Note: Metal trim for the reader is supplied in the finish specified in the order string. It is not available in stainless steel (629/630).

  • 1. Reader modules, inside escutcheons, mounting kit, lockbodies, and door position switch can be used for both IN120 and IN220
  • 2. Select from finishes on page 13

Catalog Number Description Color
Replacement Kits
IN120-CREM07-B WiFi replacement kit (controller, plate, cover) Black
IN120-CREM07-MB-[finish]2 WiFi replacement kit (controller, plate, cover) Black with metal trim
IN220-CREM07-B PoE replacement kit (controller, plate, cover) Black
IN220-CREM07-MB-[finish]2 PoE replacement kit (controller, plate, cover) Black with metal trim

Common Replacement Parts

IN Series Intelligent IP-Enabled Access Control

Catalog Number Description
Controllers
IN220-CREM03 PoE Controller
IN120-CREM04 3 Inside Mounting Kit (mounting plate and hardware)
IN120-CREM03 WiFi Controller
Catalog Number Description
Lock Bodies 3
783F938-[handing]¹-[finish]² ML20133/ML20134 Mortise lock, no deadbolt
783F948-[handing]¹-[finish]² ML20135/ML20136 Mortise lock, with deadbolt
885F980 CLX33134 Cylindrical lock, freewheeling lever (1-3/8" - 2-1/4" door)
885F990 CLX33134 Cylindrical lock, rigid lever (1-3/8" - 2-1/4" door)
816F048 [handing]*626 ML20233/ML20234 Lock Case - No
Deadbolt
816F058 [handing]*626 ML20235/ML20236 Lock Case - With
Deadbolt
Catalog Number Description
Inside Escutcheons 3
IN120-EM02-B Black
IN120-EM02-MB-[finish] 2 Black with metal trim
Catalog Number Description
Exit Device Replacement Pa rts³
9133-[finish] 2 Rim exit trim without cylinder
9134-[finish] 2 Rim exit trim with cylinder
9M133-[finish] 2 Mortise exit trim without cylinder
9M134-[finish] 2 Mortise exit trim with cylinder
Catalog Number
783F619 Door Position Switch (DPS) 3
SPST concealed switch (2 wire)
Metal door adapter included
3/8" diameter for wood door
Supplied with IN120/IN220

  • 1. Replace with handing (L, LR, R, RR)
  • 2. Select from finishes on page 13
  • 3. Reader modules, inside escutcheons, mounting kit, lockbodies, and door position switch can be used for both IN120 and IN220

The ASSA ABLOY Group is the global leader in access solutions. Every day, we help billions of people experience a more open world.

ASSA ABLOY Opening Solutions leads the development within door openings and products for access solutions in homes, businesses and institutions. Our offering includes doors, frames, door and window hardware, mechanical and smart locks, access control and service.

For additional information, contact your ASSA ABLOY Door Security Solutions sales consultant or visit www.corbinrusswin.com.

In U.S. Corbin Russwin 225 Episcopal Road Berlin, CT 06037 Phone: 800-543-3658 Fax: 800-447-6714 www.corbinrusswin.com

In Canada ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive Vaughan, Ontario Canada L4K 4T9 Phone: 800-461-3007 Fax: 905-738-2478 www.assaabloy.ca

MicroShield®

As part of their promise to provide innovative solutions to their customers, certain ASSA ABLOY Group brands offer the MicroShield® technology, a silver-based antimicrobial coating designed to inhibit the growth of bacteria.

Microshield® is a registered trademark of ASSA ABLOY Access and Egress Hardware Group, Inc.

The Agion antimicrobial is not intended as a substitute for good hygiene. Coated products must

still be cleaned to ensure the surfaces will be free of destructive microbes. ASSA ABLOY makes no representations or warranties, express or implied, as to the efficacy of the Agion antimicrobial. A copy of the Agion warranty is available upon request. Agion is a registered trademark of Agion Technologies, Inc., Wakefield, MA, USA
