ED3000 Series
Product Catalog
Introduction
ED3000 Series
Table of Contents
| Applications and Listings 3 |
| Functions 4 |
| Rim Exit Features 5 |
| Surface Vertical Rod Exit Features 7 |
| Mortise Exit Features 9 |
| Trims and Functions 11 |
| Options and Accessories 14 |
| Mullions 16 |
| Cylinders 17 |
| How to Order 19 |
| Quick Codes 20 |
| How to Specify 22 |
www.corbinrusswin.com

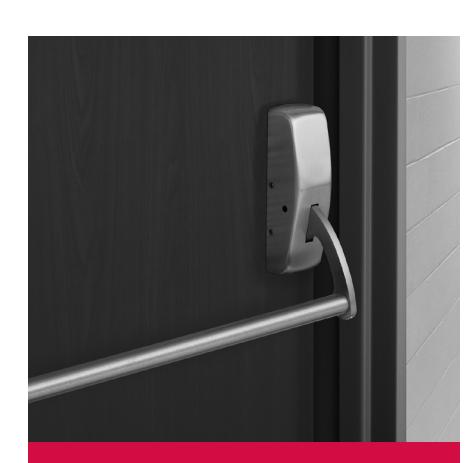

ED3000 Series
Applications
Since patenting some of the first exit devices nearly a century ago, Corbin Russwin has met rigorous life safety and security requirements, while offering pleasing aesthetics and trouble-free operation. Designed for applications in high-use, high-abuse situations, ED3000 Crossbar Exit Devices can be teamed with a variety of Corbin Russwin trims to provide desired functions, styles and finishes in new construction and renovations, including:
- Schools and universities
- Health care facilities
- Government and municipal buildings
- Commercial and industrial
- Office and retail complexes
- Transportation facilities
- Hotels and conference centers
- Religious facilities
Advantages
- Heavy-duty construction
- Base metals (brass, bronze and stainless steel) for durability
- Easy-to-use crossbar operation for quick egress
- Dogging standard on all panic listed devices
- Thru-bolted trims for strength and security
- Wide range of finishes, trims and styles to match other Corbin Russwin products
- Devices available to satisfy panic and fire opening requirements
- ADA compliant
Overview Applications and Listings
ED3000 Series
UL UL listed as fire exit hardware by Underwriters Laboratories Inc.
Single Door
|
Max. Door
Opening |
Fire Door Ratings
A 3 Hr. |
Application | |||
|---|---|---|---|---|---|
| Rim | |||||
| ED3200 | 4' | Devices are panic listed only. | |||
| ED3200A | 4' x 8' | UL | Surface applied; single point latching. | ||
| Vertical Rod | |||||
| ED3400 | 4' x 8' | Devices are panic listed only. | |||
| ED3400A | N/A | Fire ratings do not apply for single door applications. | Surface applied; two point latching. | ||
| Mortise | |||||
| ED3600 | 4' | Devices are panic listed only. | |||
| ED3600A | 4' x 7'2" | UL | Mortised in door; two point latching. | ||
Pair of Doors with Removable Mullion
|
Max. Door
Opening |
Fire Door Ratings
A 3 Hr. |
Application | ||
|---|---|---|---|---|
| Rim x Rim | ||||
| ED3200 x ED3200 x CR972 | 8' x 8' | Devices are panic listed only. | ||
| ED3200 x ED3200 x CR910A | 8' x 10' | Devices are panic listed only. |
2 independent, active doors with removable
mullion. |
|
| ED3200A x ED3200A x CR972A | 8' x 8' | UL |
Pair of Doors
|
Max. Door
Opening |
Fire Door Ratings
A 3 Hr. |
Application | |||
|---|---|---|---|---|---|
| Vertical Rod (Swinging in the Same Direction) | |||||
| ED3400 x ED3400 | 8' x 8' | Devices are panic listed only. | 2 independent doors with 2 point latching – | ||
| ED3400A x ED3400A | 8' x 8' | UL | overlapping astragal not required | ||
| Vertical Rod (Swinging in Opposite Directions) | |||||
| ED3400 x ED3400 | 8' x 10' | Devices are panic listed only. | 2 independent doors with 2 point latching | ||
| ED3400A x ED3400A | 8' x 8' | UL |
– overlapping astragal required for 3 hour
openings. |
||
| Vertical Rod x Mortise | |||||
| ED3400 x ED3600 | 8' x 7'2" | Devices are panic listed only. |
Overlapping astragal required for 3 hour
openings. Coordinator required with standard |
||
| ED3400A x ED3600A | 8' x 7'2" | UL | strike. | ||
| Vertical Rod x Rim | |||||
| ED3400 x ED3200 x S02 | 8' x 8' | Devices are panic listed only. |
Non-prepped doors only; S02 strike required on
inactive door; coordinator recommended. |
||
Functions
ED3000 Series
| Device with Trim | ||||
|---|---|---|---|---|
| Device | Туре | ANSI # | Description | Trim Designation* |
|
ED3210, ED3410,
ED3610 |
Passage | 14 | Free at all times | XX3310 |
|
ED3210A, ED3410A,
ED3610A |
Passage | 14 | 3-hour fire-rated, Free at all times | XX3310 |
|
ED3210AT,
ED3410AT, ED3610AT |
Thumbpiece Passage | 15 | 3-hour fire-rated, Free at all times | T3X10 |
|
ED3210T, ED3410T,
ED3610T |
Thumbpiece Passage | 15 | Free at all times | T3X10 |
|
ED3250, ED3450,
ED3650 |
Dummy/Exit Only | 01/02 | Always rigid; Exit only | XX3350, T3X50 |
|
ED3250A, ED3450A,
ED3650A |
Dummy/Exit Only | 01/02 | 3-hour fire-rated, Always rigid; Exit only | XX3350, T3X50 |
|
ED3255, ED3455,
ED3655 |
Classroom | 08 | Free at all times except when locked by key | XX3355 |
|
ED3255A, ED3455A,
ED3655A |
Classroom | 08 | 3-hour fire-rated, free at all times except when locked by key | XX3355 |
|
ED3255AT,
ED3455AT, ED3655AT |
Thumbpiece
Classroom |
05 | 3-hour fire-rated, free at all times except when locked by key | T3X55, T3XM55 |
|
ED3255T, ED3455T,
ED3655T |
Thumbpiece
Classroom |
05 | Free at all times except when locked by key | T3X55, T3XM55 |
| ED3257, ED3257A | Nightlatch | 03 | Entrance by trim when latchbolt is retracted by key. Key removable only when locked | XX3357, T3X57 |
| ED3457, ED3457A | Nightlatch | 09 | Entrance by trim when latchbolt is retracted by key. Key removable only when locked | XX33V57 |
| ED3657, ED3657A | Nightlatch | 03 | Entrance by trim when latchbolt is retracted by key. Key removable only when locked | XX33M57, T3XM57 |
* When ordering a device, the function must be included in the device component of the order string and must match the trim function (e.g. ED3255/A3355). See pages 11-12.
Rim Exit Features
ED3000 Series

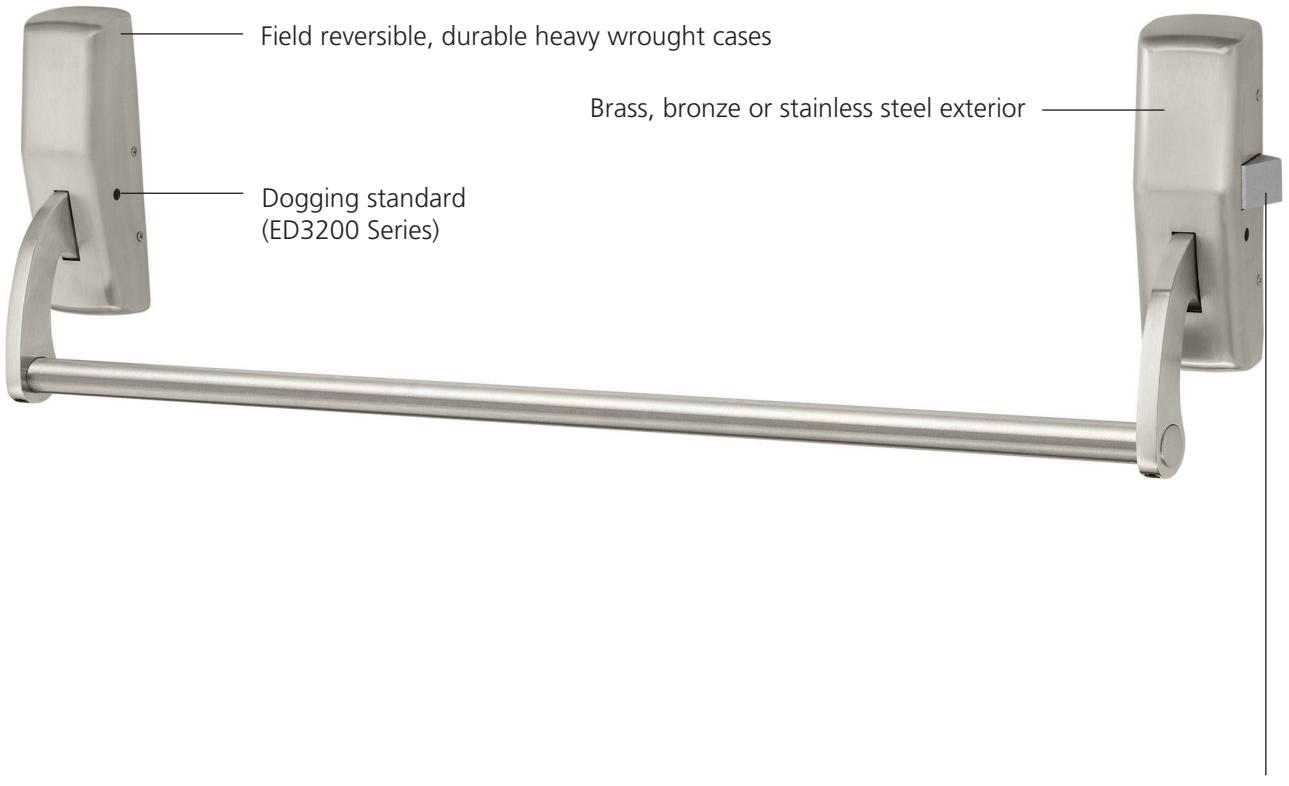

ED3200 Series Panic Listed Rim Exit Device ED3200A Series 3-Hour Fire Listed Rim Exit Device
Features
Handing
Field reversible (ED3200 Series only); specify hand.
Bar Length
Easily field cut to size.
Standard: 36" (914mm) bar fits up to 36" (914mm) door.
Optional: 48" (1219mm) bar fits up to 48" (1219mm) door; specify W048.
Door Thickness
1-3/4" (44mm) standard. Optional: 2" (51mm); specify D200. Optional: 2-1/4" (57mm); specify D214.
Stile
Minimum width 4-1/8" (105mm).
Latchbolt
3/4" (19mm) pivoted.
Materials
Brass, bronze or stainless steel.
Cases
Heavy wrought, 8-3/8" (213mm) x 2-5/8" (67mm).
Projection
4" (102mm); 2-7/8" (74mm) depressed.
Crossbar
Standard: round seamless tubing. Optional: reinforced crossbar; see Quick Codes, page 20.
Dogging
Standard on ED3200 Series devices. Dogging not available on ED3200A Series devices.
Fasteners
Standard: machine and wood screws. Optional: sex nuts and bolts or spanner head screws; see Quick Codes, page 20.
Strike
See Options and Accessories, page 14.
Removable Mullion
See Mullions, page 16.
Cylinders
Cylinder not included unless specified. See How to Order, page 19.
Applications and Listings
See page 3.
Warranty
One-year limited.
Certification/Compliance
ANSI
Meets A156.3, Grade 1. Meets A117.1 Accessibility Code. ADA Compliant.
C-UL US
All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware. 3-hour firerated devices listed as fire exit hardware for use on 4' x 8' single doors and 8' x 8' double doors. UL symbol on active case cover indicates listing.
Any retrofit or other field modification to a fire-rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing firerated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
California State Reference Code
This product has been approved by the California State Fire Marshal pursuant to section 13144.1 of the California Health and Safety Code.
NFPA
All exit devices comply with NFPA 101 Life Safety Code. All fire-rated devices comply with NFPA 80 Fire Doors and Windows.
Finishes
| BHMA 605 | Bright Brass |
|---|---|
| BHMA 606 | Satin Brass |
| BHMA 611 | Bright Bronze |
| BHMA 612 | Satin Bronze |
| BHMA 613 | Oxidized Bronze, oil rubbed |
| 613E |
Dark Oxidized Satin Bronze -
Equivalent |
| BHMA 629 | Bright Stainless Steel |
| BHMA 630 | Satin Stainless Steel |
| 630C* |
Satin Stainless Steel
with MicroShield® |
* Finish available with MicroShield® antimicrobial coating.
Rim Exit Features
ED3000 Series
ED3200 and ED3200A Series Rim Exit Devices
3/4" throw pivoted latchbolt
Surface Vertical Rod Exit Features

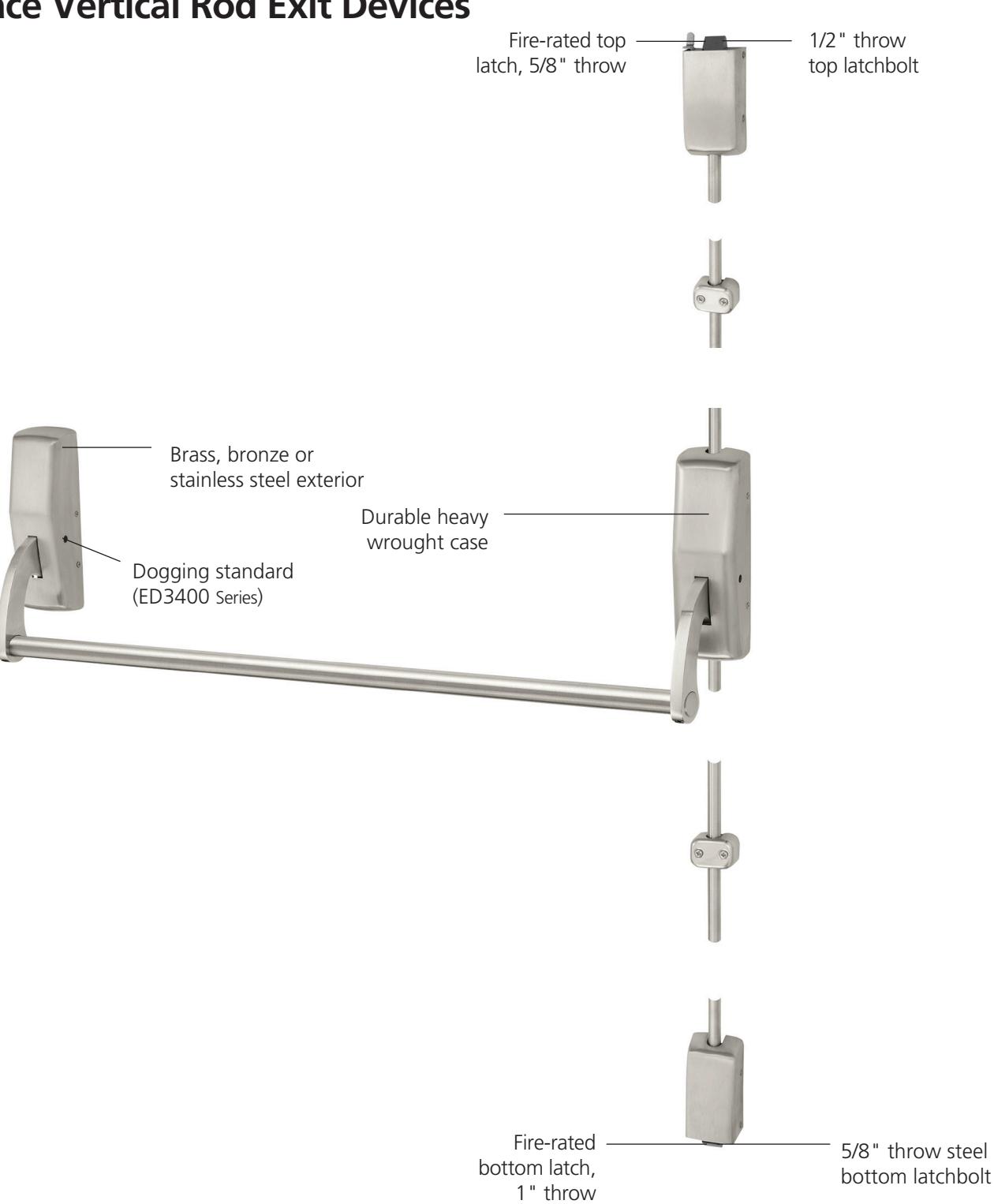

ED3400(A) Series
ED3400 Series Panic Listed Surface Vertical Rod Exit Device ED3400A Series 3-Hour Fire Listed Surface Vertical Rod Exit Device
Features
Handing
Device non-handed (ED3400 Series only); specify hand.
Bar Length
Easily field cut to size. Standard: 36" (914mm) bar fits up to 36"
(762mm-914mm) door. Optional: 48" (1219mm) bar fits up to 48" (1219mm) door; specify W048.
Door Thickness
1-3/4" (44mm) standard. Optional: 2" (51mm); specify D200. Optional: 2-1/4" (57mm); specify D214.
Stile
Minimum width 3" (76mm).
Door Height
All top rods easily field cut to size. Standard: Top rod is for doors up to 8'. Optional: Top rod for doors up to 10'. See Quick Codes, page 21.
Latchbolt
ED3400 Series devices:
Top: 1/2" throw.
Bottom: 5/8" throw; acts independently, allowing top latch to remain engaged even when bottom latch is not projected.
ED3400A Series devices:
Top: 5/8" throw.
Bottom: 1" throw; acts independently, allowing top latch to remain engaged even when bottom latch is not projected
Latchbolt Operation
Standard on ED3400 and ED3400A Series devices: latchbolts held in retraced position until door closes.
Vertical Rods
1/2" round tubing
Materials
Brass, bronze or stainless steel.
Cases
Heavy wrought, 8-3/8" (213mm) x 2-5/8" (67mm).
Projection
4" (102mm); 2-7/8" (74mm) depressed.
Crossbar
Standard: round seamless tubing. Optional: reinforced crossbar; see Quick Codes, page 20.
Dogging
Standard on ED3400 Series devices. Dogging not available on ED3400A Series devices.
Fasteners
Standard: machine and wood screws. Optional: sex nuts and bolts or spanner head screws; see Quick Codes, page 20.
Strike
See Options and Accessories, page 14.
Cylinders
Cylinder not included unless specified. See How to Order, page 19.
Applications and Listings
See page 3.
Warranty
One-year limited.
Certification/Compliance
ANSI
Meets A156.3, Grade 2. Meets A117.1 Accessibility Code.
C-UL US
All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware. 3-hour fire-rated devices listed as fire exit hardware for use on 4' x 8' single doors and 8' x 8' double doors. UL symbol on active head indicates listing.
Any retrofit or other field modification to a fire-rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
California State Reference Code
This product has been approved by the California State Fire Marshal pursuant to section 13144.1 of the California Health and Safety Code.
NFPA
All exit devices comply with NFPA 101 Life Safety Code. All fire-rated devices comply with NFPA 80 Fire Doors and Windows.
Finishes
| BHMA 605 | Bright Brass | |
| BHMA 606 | Satin Brass | |
| BHMA 611 | Bright Bronze | |
| BHMA 612 | Satin Bronze | |
| BHMA 613 | Oxidized Bronze, oil rubbed | |
| 613E |
Dark Oxidized Satin Bronze -
Equivalent |
|
| BHMA 629 | Bright Stainless Steel | |
| BHMA 630 | Satin Stainless Steel | |
| 630C* |
Satin Stainless Steel
with MicroShield® |
|
* Finish available with MicroShield® antimicrobial coating.
Surface Vertical Rod Exit Features
ED3400(A) Series
ED3400 and ED3400A Series Surface Vertical Rod Exit Devices
Mortise Exit Features
ED3600(A) Series

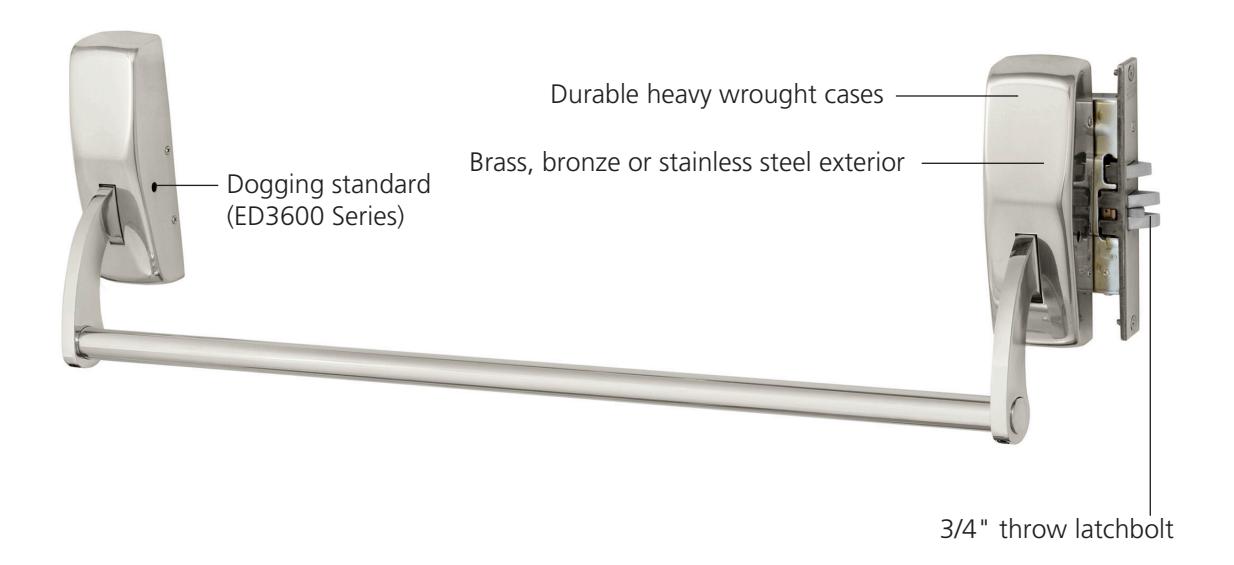

ED3600 Series Panic-Listed Mortise Exit Device ED3600A Series 3-Hour Fire-Listed Mortise Exit Device
Features
Handing
Handed, specify hand when ordering.
Bar Length
Easily field cut to size.
Standard: 36" (914mm) bar fits up to 36"
(762mm-914mm) door.
Optional: 48" (1219mm) bar fits up to 48" (1219mm) door; specify W048.
Door Thickness
1-3/4" (44mm) standard. Optional: 2" (51mm); specify D200. Optional: 2-1/4" (57mm); specify D214.
Stile
Minimum width 4-1/2" (114mm).
Latchbolt
Brass, 3/4"(19mm) throw.
Auxiliary Latch
Brass.
Front
8" x 1-1/4" (203mm x 32mm) heavy gauge brass.
Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
Materials
Brass, bronze or stainless steel.
Cases
Heavy wrought, 8-3/8" (213mm) x 2-5/8" (67mm).
Projection
4" (102mm); 2-7/8" (74mm) depressed.
Crossbar
Standard: round seamless tubing. Optional: reinforced crossbar; see Quick Codes, page 20.
Dogging
Standard on ED3600 Series devices. Dogging not available on ED3600A Series devices.
Fasteners
Standard: machine and wood screws. Optional: sex nuts and bolts or spanner head screws; see Quick Codes, page 20.
Strike
See Options and Accessories, page 15.
Cylinders
Cylinder not included unless specified. See How to Order, page 19.
Applications and Listings
See page 3.
Warranty
One-year limited.
Certification/Compliance
ANSI
Meets A156.3, Grade 1. Meets A117.1 Accessibility Code. ADA Compliant.
C-UL US
All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware. 3-hour firerated devices listed as fire exit hardware for use on 4' x 7'2"' single doors and 8'x7'2" double doors. UL symbol on active head indicates listing.
Any retrofit or other field modification to a fire-rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
California State Reference Code
This product has been approved by the California State Fire Marshal pursuant to section 13144.1 of the California Health and Safety Code.
NFPA
All exit devices comply with NFPA 101 Life Safety Code. All fire-rated devices comply with NFPA 80 Fire Doors and Windows.
Finishes
| BHMA 605 | Bright Brass |
| BHMA 606 | Satin Brass |
| BHMA 611 | Bright Bronze |
| BHMA 612 | Satin Bronze |
| BHMA 613 | Oxidized Bronze, oil rubbed |
| 613E |
Dark Oxidized Satin Bronze -
Equivalent |
| BHMA 629 | Bright Stainless Steel |
| BHMA 630 | Satin Stainless Steel |
| 630C* |
Satin Stainless Steel
with MicroShield® |
* Finish available with MicroShield® antimicrobial coating.
Mortise Exit Features
ED3600(A) Series
ED3600 and ED3600A Series Mortise Exit Devices
Trim
ED3000 Series
| Lever Trim Design | |||
|---|---|---|---|
|
Armstrong
A33 Lever: Cast Escutcheon: Cast |
2-3/8"
8-1/4" |
Trim Designation
A3310ET - Passage A3350ET - Dummy A3355ET - Classroom A3357ET - Nightlatch (Rim) A33V57ET - Nightlatch (SVR) A33M57ET - Nightlatch (Mortise) |
ANSI #
14 02 08 03 09 03 |
|
Citation
C33 Lever: Cast Escutcheon: Cast |
2-3/8"
8-1/4" |
Trim Designation
C3310ET - Passage C3350ET - Dummy C3355ET - Classroom C3357ET - Nightlatch (Rim) C33V57ET - Nightlatch (SVR) C33M57ET - Nightlatch (Mortise) |
ANSI #
14 02 08 03 09 03 |
|
Dirke
D33 Lever: Cast Escutcheon: Cast |
2-3/8"
8-1/4" |
Trim Designation
D3310ET - Passage D3350ET - Dummy D3355ET - Classroom D3357ET - Nightlatch (Rim) D33V57ET - Nightlatch (SVR) D33M57ET - Nightlatch (Mortise) |
ANSI #
14 02 08 03 09 03 |
|
Lustra
L33 Lever: Cast Escutcheon: Cast |
2-3/8"
8-1/4" |
Trim Designation
L3310ET - Passage L3350ET - Dummy L3355ET - Classroom L3357ET - Nightlatch (Rim) L33V57ET - Nightlatch (SVR) L33M57ET - Nightlatch (Mortise) |
ANSI #
14 02 08 03 09 03 |
|
Newport
N33 Lever: Cast Escutcheon: Cast |
2-3/8"
8-1/4" |
Trim Designation
N3310ET - Passage N3350ET - Dummy N3355ET - Classroom N3357ET - Nightlatch (Rim) N33V57ET - Nightlatch (SVR) N33M57ET - Nightlatch (Mortise) |
ANSI #
14 02 08 03 09 03 |
|
Regis
R33 Lever: Cast Escutcheon: Cast |
2-3/8"
8-1/4" |
Trim Designation
R3310ET - Passage R3350ET - Dummy R3355ET - Classroom R3357ET - Nightlatch (Rim) R33V57ET - Nightlatch (SVR) R33M57ET - Nightlatch (Mortise) |
ANSI #
14 02 08 03 09 03 |
|
Princeton
PR33 Lever: Cast Escutcheon: Cast |
2-3/8"
8-1/4" |
Trim Designation
PR3310ET - Passage PR3350ET - Dummy PR3355ET - Classroom PR3357ET - Nightlatch (Rim) PR33V57ET - Nightlatch (SVR) PR33M57ET - Nightlatch (Mortise) |
ANSI #
14 02 08 03 09 03 |
See Page 21 for available finishes
Trim
ED3000 Series
| Pull Trim/Thumbpiece De | sign 1 | |||
|---|---|---|---|---|
| D Grip | 2-5/8" 2-1/16" | Trim Designation | ANSI# | |
| 100 | 133 |
(67mm) (52mm)
I→I I→I |
T3310ET - Passage | 15 |
| Grip: Extruded Escutcheon: Wrought | T3350ET - Dummy | 02 | ||
| 100 | Lacutcheon. Wrought |
14-1/4"
(362mm) |
T3355ET - Classroom (Rim/SVR) | 05 |
| li i | T33M55ET - Classroom (Mortise) | 05 | ||
| 152mm | T3357ET - Nightlatch (Rim) 2 | 03 | ||
| T33M57ET - Nightlatch (Mortise) | 03 | |||
| Round Grip | 1-3/4" 2-1/16" | Trim Designation | ANSI # | |
| 100 | 134 |
(44mm) (52mm)
I→I I→I |
T3410ET - Passage | 15 |
| Grip: Extruded Escutcheon: Wrought | T3450ET - Dummy | 02 | ||
| Escutcheon, wrought |
1'4-5/16"
(364mm) |
T3455ET - Classroom (Rim/SVR) | 05 | |
| n | T34M55ET - Classroom (Mortise) | 05 | ||
| ш | (152mm) | T3457ET - Nightlatch (Rim) 2 | 03 | |
| T34M57ET - Nightlatch (Mortise) | 03 | |||
| Sectional Grip | 1-5/8" 2-1/4" | Trim Designation | ANSI # | |
| • | (41mm) (57mm) | T3510ET - Passage | 15 | |
| П | Grip: Extruded | T3550ET - Dummy | 02 | |
| * |
9-5/8"
(244mm) 7-3/16" (198mm) |
T3555ET - Classroom (rim) | 05 | |
| ll l | T35M55ET - Classroom (Mortise) | 05 | ||
| l) | T3557ET - Nightlatch (Rim) 2 | 03 | ||
| T35M57ET - Nightlatch (Mortise) | 03 | |||
|
Auxiliary Control/
Inside Lever Assembly |
-1.6- | Trim Designation 3357TET - Nightlatch (SVR) | ANSI # | |
| 5.1 |
- Passage and Classroom functions have thumbpiece. Dummy and Nightlatch functions are pull only. Not available with Surface Vertical Rod devices. For SVR X Night-latch x pull trim requirement must order ED3450(A) x Dummy pull trim and 3357T Auxiliary Control.
- 3. T33, T34 and T35 trim only available in 629 or 630 finish
See Page 21 for available finishes.
Offset Pull Trim
ED3000 Series
| Offset Pull Trim: P12, P13, P14* | ||||
|---|---|---|---|---|
|
Offset Pull
P12 Clearance: 2-1/2" |
11" | Specify Part Number, 716F50M x Finish 1 | ||
|
Offset Pull
P13 Clearance: 2-1/2" |
19" | Specify Part Number, 716F51M x Finish 1 | ||
|
Offset Pull
P14 Clearance: 2-1/2" |
10-3/4" | Specify Part Number, 716F52M x Finish 1 | ||
1. Available in 605, 606, 612, 613, 626, 629 and 630 finishes. *Available on 1-3/4" thick doors only.
Options and Accessories
ED3000 Series
Rim Strikes
(Screws Included)
Rim Strike
Standard on ED3200 Series devices. For doors with 1/2" (13mm) or 5/8" (16mm) stop. Adjustable to compensate for shrinkage and swelling of door. Nylon anti-friction inserts for quieter operation. 3-1/4" x 1-1/16" (82mm x 27mm). To order separately, specify 787F44. 1/8" (3mm) shim available for 1/2" (13mm) stop; specify 786F72.
Rim x Vertical Rod Strike
Required for ED3200 Series devices when used with ED3400 Series device on a pair of doors. To order with device, specify option S02. To order separately, specify 786F53.
Mortised Adjustable Rim Strike
Optional for ED3200 Series devices only. Adjustable to compensate for shrinkage and swelling of door. 3-5/8" x 1-1/2" (92mm x 38mm). To order with device, specify option S04. To order separately specify 786F51.
Vertical Rod Strikes
(Screws Included)
Top Strike
Standard Top Strike for both Panic & Fire Hardware. Surface applied to frame. Black nylon coated. 3-11/16" x 1-5/32" (94mm x 29mm). Specify 787F42
Flush Transom Strike
For doors having transom panel applications. 2-1/2" x 1-7/8" (64mm x 48mm). To order with device, specify option M67. To order separately, specify 787F41.
Bottom Strike
Optional for ED3400 Series devices. 2-3/4" x 1-13/16" (70mm x 46mm). To order with device specify option S03. To order separately, specify 786F56.
Surface Projecting Bottom Strike
Standard on ED3400 Series devices. 2-9/16" x 19/32" x 5/8" (65mm x 15mm x 16mm) high. To order separately, specify 786F52.
Bottom Strike for Threshold
Optional on ED3400A Series devices. For use with threshold. To order with device, specify option S06. To order separately, specify 786F55.
Options and Accessories
ED3000 Series
Mortise Strikes
Curved Lip ANSI Strike
Standard on ED3600 and ED3600A Series. Handed. 1-1/4" lip standard, longer lips in increments of 1/4" through 2-7/8" available. 4-7/8" x 1-1/4" x 1-1/8" (124mm x 32mm x 28mm) lip to center, for 1-3/4" (44mm) doors.
| Hand |
Door
Thickness |
Part No. |
|---|---|---|
| 1-3/4" | 786F66 | |
| LHR | 2" | 786F67 |
| 2-1/4" | 786F68 | |
| RHR | 1-3/4" | 786F69 |
| 2" | 786F70 | |
| 2-1/4" | 786F71 |
Straight Lip ANSI Strike
4-7/8" x 1-1/4" x 1-1/8" (124mm x 32mm x 28mm) lip to center, for 1-3/4" (44mm) doors. To order separately, specify Part No.
|
Door
Thickness |
Part No. |
|---|---|
| 1-3/4" | 786F63 |
| 2" | 786F64 |
| 2-1/4" | 786F65 |
Open Back Strike
Optional for use with ED3400 x ED3600 Series devices on a pair of doors. See How to Order, page 20. To order separately, specify Part No. x Door Thickness x Finish.
| Hand |
Door
Thickness |
Part No. |
|---|---|---|
| 1-3/4" | 786F57 | |
| LHR | 2" | 786F58 |
| 2-1/4" | 786F59 | |
| 1-3/4" | 786F60 | |
| RHR | 2" | 786F61 |
| 2-1/4" | 786F62 |

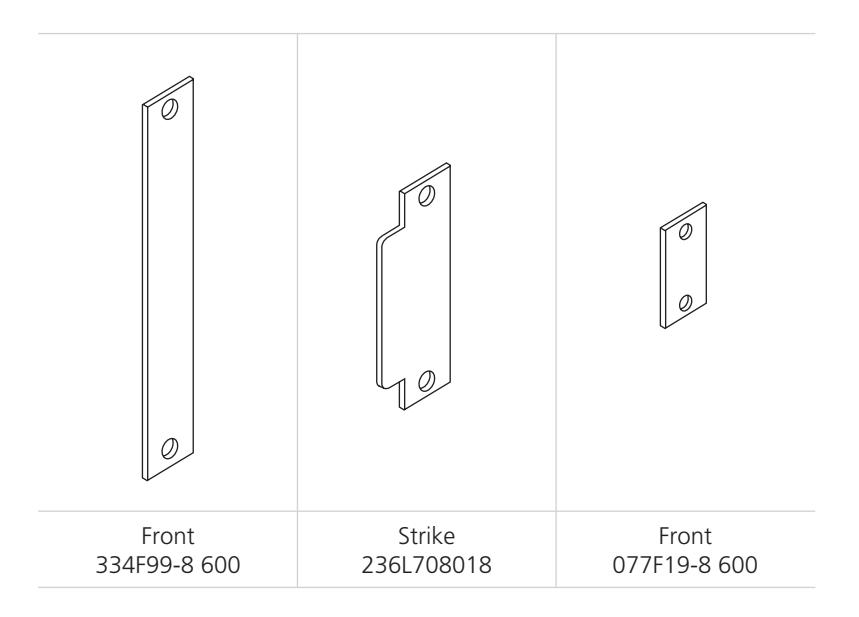

Filler Plates
Optional for use on stock metal doors when required. To order, specify Part No. x Finish.
Mullions
ED3000 Series
CR900 Series Removable Mullions
The CR900 series mullions are used to install two ED3200 Series Rim Exit Devices in a double door opening. They may be quickly and easily removed, then reinstalled, when a full double door opening is temporarily required. The CR900 series mullions meet ANSI A156.3, Type 22.
Materials and Finish
Steel mullion with malleable iron top and bottom plates; furnished with zinc plated fasteners for metal frames and concrete floors. May be cut, drilled and tapped in the field for Rim Exit Devices. The CR900 series mullions are primed for painting, BHMA 600, red.
CR900 Series Mullions - How to Order Removable Mullions
| UL Fire Rating1 |
Mullion Opening
Height2 |
Catalog
Number |
|---|---|---|
| Panic Only | Up to 7'2" | CR972 |
| 3-Hour | Up to 7'2" | CR972A |
|
3-Hour
(Only fire rated up to 8') |
Up to 10'0" | CR910A4 |
Key Removable Mullions
| UL Fire Rating1 |
Mullion Opening
Height2 |
Catalog
Number |
|---|---|---|
| 1-1/2 Hour | Up to 7'2" | CR972BKM3 |
|
1-1/2 Hour
(Only fire rated up to 8') |
Up to 10'0" | CR910BKM3 |
Notes:
- 1. UL label on mullion indicates listing.
- 2. May be field cut for doors.
- 3. Cylinder and collars not included, specify separately. See Cylinders on page 18.
- 4. For 8' length mullion must be ordered as CR910A option and cut in the field to 8' size.
CR900 Mullion Top Plate Bottom Plate
CR900 Series Mullions - Options
M95- Spacer Block
Recommended for double rabbeted frames where the stop face width is less than the mounting hole spacing and also for door frames 5-3/4" (176mm) or less. To order with a mullion, specify M95. To order separately, specify Part No. 683F29-8.
M96- Angle Bracket
Recommended for any header configuration with less than 3" (76mm) of mounting surface. To order with a mullion, specify M96. To order separately, specify Part No. 655F63-8.
M57- Mullion Stabilizer Kit
Controls the movement of the mullion. Recommended for opening over 7' high, or whenever door movement must be minimized. To order with mullion, specify M57. To order separately, specify Part No. 653F11-1 x 695 or 628.
Cylinders
ED3000 Series
Cylinders
- L4 keyway standard; specify other keyways.
- Specify Collar.
- To order with Exit Device, see How to Order, page 19.
- To order separately, specify Cylinder Type x Keyways Finish (e.g., 3000-200 x L4 x 626).
Available with the following trim:
| *3357 | T3357 |
|---|---|
| T3355 | T3457 |
| T3455 | T3557 |
| T3555 |
| Lever Trim | |||
|---|---|---|---|
| Description | 1-3/4" Door | 2" and 2-1/4" Door | Thumbpiece Trim |
| 6 Pin | CR3000-200 | CR3000-312 | CR3000-200 |
| 7 Pin | CR3000-200-7 | CR3000-312-7 | CR3000-200-7 |
| Access 3® Patented | CR3500-200 | CR3500-312 | CR3500-200 |
| Access 3® Security | CR3600-200 | CR3600-312 | CR3600-200 |
| Access 3® High Security | CR3700-200 | CR3700-312 | CR3700-200 |
| Access 3® IC Patented | CR3580-178 | CR3580-318 | CR3580-178 |
| Access 3® IC Security | CR3680-178 | CR3680-318 | CR3680-178 |
| Access 3® IC High Security | CR3780-178 | CR3780-318 | CR3780-178 |
| Pyramid Security | CR3027-200 | CR3027-312 | CR3027-200 |
| Pyramid Security IC | CR3037-178 | CR3037-312 | CR3037-178 |
| Pyramid High Security | CR3020-200 | CR3020-312 | CR3020-200 |
| Pyramid High Security IC | CR3030-178 | CR3030-312 | CR3030-178 |
|
Pyramid IC
LFIC 6 Pin |
|||
|
LFIC 6 Pin - Red
LFIC 6 Pin - Blue LFIC 6 Pin - Green |
CR3080-178 | CR3080-318 | CR3080-178 |
|
Pyramid IC (Disposable)
Pyramid IC Less Core LFIC 6 Pin Less Core LFIC 6 Pin (Disposable) |
CR3070-178 | CR3070-318 | CR3070-178 |
| SFIC 6 Pin | CR3050-178 | CR3050-318 | CR3050-178 |
| SFIC 6 Pin - Blue | CR3050-178 | CR3050-318 | CR3050-178 |
| SFIC 6 Pin Less Core | CR3040-178 | CR3040-318 | CR3040-178 |
| SFIC 6 Pin (Disposable) | CR3040-178 | CR3040-318 | CR3040-178 |
| Security | CR3010-200 | CR3010-312 | CR3010-200 |
| Security IC | CR3090-178 | CR3090-318 | CR3090-178 |
|
LFIC 7 Pin
LFIC 7 Pin - Red LFIC 7 Pin - Blue LFIC 7 Pin - Green |
CR3080-178-7 | CR3080-318-7 | CR3080-178-7 |
|
LFIC 7 Pin Less Core
LFIC 7 Pin (Disposable) |
CR3070-178-7 | CR3070-318-7 | CR3070-178-7 |
|
SFIC 7 Pin
SFIC 7 Pin - Blue SFIC 7 Pin Less Core SFIC 7 Pin (Disposable) |
CR3050-178-7
CR3050-178-7 CR3040-178-7 CR3040-178-7 |
CR3050-318-7
CR3050-318-7 CR3040-318-7 CR3040-318-7 |
CR3050-178-7
CR3050-178-7 CR3040-178-7 CR3040-178-7 |
Rim CR900 Series Key Removable Mullion Mortise Cylinders
| Description | Cylinder Type |
|---|---|
| 6-Pin | CR1000-118-A62 |
| 7-Pin | CR1000-114-A62-7 |
| 6-Pin, IC | CR1080-114-A62 |
| 7-Pin, IC | CR1080-112-A62-7 |
| Pyramid High Security | CR1020-114-A62 |
| Pyramid Security | CR1027-114-A62 |
| Pyramid High Security IC | CR1030-114-A62 |
| Pyramid Security IC | CR1037-114-A62 |
| Security | CR1010-118-A62 |
| Security IC | CR1090-114-A62 |
| 6-pin, IC, less core | CR1070-114-A62 |
| 7-pin, IC, less core | CR1070-112-A62-7 |
| Access 3® – Patented | CR1500-114-A62 |
| Access 3® - Security | CR1600-114-A62 |
| Access 3® - High Security | CR1700-114-A62 |
| Access 3® IC - Patented | CR1580-114-A62 |
| Access 3® IC - Security | CR1680-114-A62 |
| Access 3® IC- High Security | CR1788-114-A62 |
CR900 Series Key Removable Mullion Cylinder Collar Packet
| Mullion | Cylinder Length and Type | |||||||
|---|---|---|---|---|---|---|---|---|
| Series | 1-1/8" | 1-1/4" 1-1/4" IC 1-1/2" IC | ||||||
|
CR972BKM
CR910BKM 610F01* |
447F43* | 609F37* | ||||||
Note: Cylinder collar packets contain a collar and spring washer. *Specify finish when ordering packets.
Cylinders
ED3000 Series
Mortise
| Trir | n Function | S | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Description | Cylinder Type | 55 | M57 | V57 | T33M55 | T34M55 | T35M55 | T33M57 | T34M57 | T35M57 | 3357T |
| · | CR1000-118-A07 | Χ | Χ | X | Х | Х | Х | Х | Х | Х | |
| 6 Pin | CR1000-134-A07 | X | |||||||||
| CR3000-200 | Х | X | |||||||||
| 7 Pin | CR1000-114-A07-7 | X | X | Χ | |||||||
| 7 PIII | CR1000-134-A07-7 | X | X | Χ | Χ | Χ | Χ | Χ | |||
| Access 3 Patented | CR1500-114-A07 | X | X | Χ | |||||||
| Access 3 Pateriled | CR1500-134-A07 | Х | X | Χ | Χ | Χ | Χ | Χ | |||
| Access 2 Cocurity | CR1600-114-A07 | X | X | Χ | |||||||
| Access 3 Security | CR1600-134-A07 | X | X | Χ | Χ | Χ | Χ | Χ | |||
| Access 2 High Cognitive | CR1700-114-A07 | X | X | Χ | |||||||
| Access 3 High Security | CR1700-134-A07 | X | X | Χ | Χ | Χ | Χ | Χ | |||
| Acess3 IC Patented | CR1580-114-A07 | X | X | Χ | |||||||
| Acesso ic raterited | CR1580-134-A07 | X | X | Χ | Χ | Χ | Χ | Χ | |||
| Access 2 IC Convity | CR1680-114-A07 | X | X | Χ | |||||||
| Access 3 IC Security | CR1680-134-A07 | X | Χ | Χ | Χ | Χ | Χ | X | |||
| Access 2 IC High Cogusity | CR1788-114-A07 | Χ | Χ | X | |||||||
| Access 3 IC High Security | CR1788-134-A07 | X | X | Χ | Χ | Χ | Χ | Χ | |||
| Pyramid Security | CR1027-114-A07 | Χ | Χ | X | |||||||
| Duramid Casurity IC | CR1037-114-A07 | X | X | X | |||||||
| Pyramid Security IC | CR1037-134-A07 | Χ | X | Χ | Χ | Χ | Χ | Χ | |||
| Pyramid High Security | CR1020-114-A07 | X | X | X | |||||||
| Pyramid High Security IC | CR1030-114-A07 | X | X | Χ | |||||||
| ryramid High Security IC | CR1030-134-A07 | X | X | Χ | Χ | Χ | Χ | Χ | |||
|
Pyramid IC
LFIC 6 Pin LFIC 6 Pin - Red |
CR1080-114-A07 | X | X | X | |||||||
|
LFIC 6 Pin - Blue
LFIC 6 Pin - Green |
CR1080-134-A07 | X | X | Х | X | Х | Х | Х | |||
| Pyramid IC (Disposable) Pyramid IC Less Core | CR1070-114-A07 | X | X | Х | |||||||
|
LFIC 6 Pin Less Core
LFIC 6 Pin (Disposable) |
CR1070-134-A07 | X | X | X | X | X | X | X | |||
| SFIC 6 Pin | CR1050-114-A07 | Χ | Χ | Χ | |||||||
| SFIC 6 Pin - Blue | CITIO30 114 A07 | Χ | Χ | Χ | |||||||
| SFIC 6 Pin Less Core | CR1040-114-A07 | Χ | Χ | Χ | |||||||
| SFIC 6 Pin (Disposable) | CN1040-114-AU/ | Χ | Χ | Χ | |||||||
| Socurity | CR1010-114-A07 | Χ | Χ | Χ | |||||||
| Security | CR1010-134-A07 | X | Χ | Χ | Χ | Χ | Χ | Х | |||
| Socurity IC | CR1090-114-A07 | Χ | Χ | Χ | |||||||
| Security IC | CR1090-134-A04 | Х | Χ | Χ | Χ | Χ | Χ | Χ | |||
|
LFIC 7 Pin
LFIC 7 Pin - Red LFIC 7 Pin - Blue LFIC 7 Pin - Green |
CR1080-134-A07-7 | X | × | X | X | X | X | X | |||
|
LFIC 7 Pin Less Core
LFIC 7 Pin (Disposable) SFIC 7 Pin |
CR1070-134-A07 | ||||||||||
|
SFIC 7 Pin - Blue
SFIC 7 Pin Less Core |
CR1050-134-A07 | Х | X | X | X | X | X | X | |||
| SFIC 7 Pin (Disposable) | CR1040-134-A07 |
How to Order
ED3000 Series
Exit Device
| Quantity | Exit Device | Finish | Hand | Misc. Options | |
|---|---|---|---|---|---|
| 27 | ED3250 | 630 | RHR | M54 | |
Removable Mullion
| Quantity | Mullion |
|---|---|
| 9 | CR972 |
Trim Only (For ExitDevice)
| Quantity | Trim | Finish | Hand |
Door
Thickness |
|---|---|---|---|---|
| 34 | L3310ET | 625 | RHR | D214 |
Where to find ordering information and Quick Codes
| Trims | Pages 11-12 |
| Offset Pull Trims | Page 13 |
| Cylinder and Keying | Page 20 |
| Miscellaneous Options | Page 20 |
| Strike | Page 21 |
| Finish | Page 21 |
| Door Height | Page 21 |
| Handing | Page 21 |
| Door Width | Page 21 |
| Door Thickness | Page 21 |
Exit Device with Trim
| Quantity | Exit Device | Trim | Finish | Hand | Door Thickness | Optional Strike | Door Width | Misc. Options |
|---|---|---|---|---|---|---|---|---|
| 18 | ED3255 | R3355ET | 605 | LHR | D200 | S04 | W048 | M53 |
Contract/Detailed Order - Exit Device with Trim
| Quantity | Keyset | Exit Device | Trim | Finish | Hand |
Door
Thickness |
Door
Width |
Door
Options |
Misc.
Options |
Cylinder
Keying |
Keyway |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 68 | AA1 | ED3255 | A3355ET | 626 | RHR | D200 | W048 | M54 | 7P | VKC3 | 59A1 |
Note: When ordering a device, the function must be included in the device component of the order string and must match the trim function. e.g. ED3255/A3355
Quick Codes
ED3000 Series
| Description | Specify |
| Conventional 6-pin | 6P |
| Conventional 7-pin | 7P |
| LFIC | |
| LFIC 6-pin1 | C6 |
| LFIC 6-pin less core | CL6 |
| LFIC 6-pin with temporary construction core (Red) | CT6R |
| LFIC 6-pin with temporary construction core (Blue) | CT6B |
| LFIC 6-pin with temporary construction core (Green) | CT6G |
| LFIC 6-pin with temporary disposable core | CT6D |
| LFIC 7-pin | C7* |
| LFIC 7-pin less core | CL7* |
| LFIC 7-pin with temporary construction core (Red) | CT7R* |
| LFIC 7-pin with temporary construction core (Blue) | CT7B* |
| LFIC 7-pin with temporary construction core (Green) | CT7G* |
| LFIC 7-pin with temporary disposable core | CT7D* |
| SFIC | |
| SFIC 6-pin | C6S |
| SFIC 6-pin with temporary construction core (Blue) | CT6SB |
| SFIC 6-pin with Less Core | CLS6 |
| SFIC 6-pin with SFIC disposable temporary core | CT6SD |
| SFIC 7-pin | C7S |
| SFIC 7-pin with temporary construction core (Blue) | CT7SB |
| SFIC 7-pin with Less Core | CLS7*+ |
| SFIC 7-pin with SFIC disposable temporary core | CT7SD* |
| Security | |
| Security | HS |
| Security IC | CHS |
| Access 3® | |
| Access 3® - Patented | AP |
| Access 3® - Security | AS |
| Access 3® - High Security | AHS |
| Access 3® IC - Patented | ACP |
| Access 3® IC - Security | ACS |
| Access 3® IC- High Security | ACHS |
| Pyramid | |
| Pyramid Security fixed core | PS |
| Pyramid Security IC | PCS |
| Pyramid High Security fixed core | PHS |
| Pyramid High Security IC | PCHS |
| Pyramid IC with temporary construction core | CTP |
| Pyramid IC with temporary disposable core | CTPD |
| Pyramid IC less core | CLP |
| Keying and Keys | |
| 0-bitted with 2 blank keys | (standard) |
| Keyed random | KR |
| Construction master keyed | CMK |
| (not available for Pyramid) | |
| 2 keys per lock | (standard) |
| More than 2 keys | KY# (e.g., KY6) |
| Visual key control (VKC) | |
| No keying data stamped on key or cylinder | VKC0 |
| Keys only | VKC1 |
| Cylinders and keys (not for HS, CHS, PHS or PCHS) | VKC2 |
| Cylinders only (not for HS, CHS, PHS or PCHS) | VKC3 |
| Concealed key control (CKC) | |
| CKC cylinders with VKC keys | CKC2 |
| CKC cylinders only (not for HS, CHS, PHS or PCHS) | CKC3 |
Cylinder and Keying Miscellaneous Options
| Description | Specify |
|---|---|
| Spanner Head Screws | M02 |
| Torx Head Screws | M04 |
|
Abrasive coat outside and inside
(trim and device) |
M23 |
|
Abrasive coat inside only (device
side) |
M24 |
|
Abrasive coat outside only (trim
side) |
M25 |
| Steel reinforced crossbar | M53 |
| Sex nuts and bolts (SNBs) | M54 |
| Mullion stabilizer kit | M57 |
|
Shim for 2-3/4" backset on doors
with 1/2" stop (rim devices only) |
M59 |
| Mullion spacer block | M95 |
| Mullion angle bracket | M96 |
* Not available with Rim or SVR lever trim - Classroom Function
+ Not available with 55 function
Quick Codes
ED3000 Series
Strike
| Description | Specify |
|---|---|
| Rim | |
| Mortised adjustable | S04 |
| Rim x Vertical Rod | S02 |
| Vertical Rod | |
| Flush bottom (ED3400 devices only) | S03 |
| 3-hour fire-rated bottom for use with threshold | S06 |
| Flush Transom Strike | M67 |
| Mortise | |
| Open back strike | |
| 1-3/4" door thickness | SB134 |
| 2" door thickness | SB200 |
| 2-1/4" door thickness | SB214 |
| Straight Lip ANSI Strike | |
| 1-3/4" door thickness | SS118 |
| 2" door thickness | SS138 |
| 2-1/4" door thickness | SS158 |
| Curved Lip ANSI Strike | |
| 1-3/4" door thickness |
SA114
(standard) |
| 2" door thickness | SA138 |
| 2-1/4" door thickness | SA158 |
Finish
| Description | |
|---|---|
| Specify | |
| Bright Brass | 605 |
| 606 | |
| 611 | |
| 612 | |
| 613 | |
| 613E | |
| 6181 | |
| 6191 | |
| 6251 | |
| 6261 | |
| 626C1,3 | |
| 6292 | |
| 6302 | |
| 630C2,3 | |
| BSP1 | |
| White Suede Powder Coat | WSP1 |
|
Satin Brass
Bright Bronze Satin Bronze Dark Oxidized Satin Bronze, oil rubbed Dark Oxidized Satin Bronze - Equivalent Bright Nickel Plated Satin Nickel Plated Bright Chromium Plated Satin Chromium Plated Satin Chromium Plated with MicroShield Bright Stainless Steel Satin Stainless Steel Satin Stainless Steel with MicroShield® Black Suede Powder Coat |
- 1. Outside trim only
- 2. Not available on lever trim or T34 trim
- 3. Finish available with MicroShield® antimicrobial coating.
Lock/Cylinder Finish
| Lock | Cylinder/Core* |
|---|---|
| 605,606,611,612,613,613E,722 | 606 |
| 618,619,625,626,626C,629,630,630C,WSP | 626 |
| BSP | BSP |
* Finish when cylinder provided with lock
Door Height (SVR Only)
| Door | Specify |
|---|---|
| 7'0" | H0700 |
| 7'2" | H0702 |
| 7'6" | H0706 |
| 8' | (standard) |
| 8'6" | H0806 (ED3400 device only) |
| 9' | H0900 (ED3400 device only) |
| 10' | H1000 (ED3400 device only) |
Handing
| Hand | Specify |
|---|---|
| Right Hand Reverse | RHR |
| Left Hand Reverse | LHR |
Door Width
| Door | Specify |
|---|---|
| 36" (914mm) | (standard) |
| 48" (1219mm) | W048 |
Door Thickness
| Door | Specify |
|---|---|
| 1-3/4" (44mm) | (standard) |
| 2" (51mm) | D200 |
| 2-1/4" (57mm) | D214 |
How to Specify
ED3000 Series
Suggested Specification ED3000 Series
All exit devices shall be ED3000 Series Crossbar Exit Devices as manufactured by Corbin Russwin Architectural Hardware.
The maximum projection shall be 4" (102mm) and 2-7/8" (74mm) when crossbar is depressed. Exit devices shall have matched twin cases mounted with concealed fastening screws and shall be constructed of brass, bronze or stainless steel. Non-matched twin cases shall not be acceptable. Crossbar lever arms shall be drop forged.
Crossbar must have minimum wall thickness of .062" or be reinforced. Main arm pivots and springs shall be stainless steel. Crossbars and arms shall be counter balanced by springs in both center case and hinge style cases. All exit devices shall be of chassis mounted unit construction with removable covers. Top and bottom rods of vertical rod devices shall be a minimum of 3/8" diameter.
Panic listed exit devices shall have dogging standard. Dogging screws shall seat into heat-treated pivots for long life and minimum wear. All crossbars on exit devices to be locked down by inside dogging feature accomplished by depressing crossbar and turning key.
All exit devices shall have ample allowances for easy alignment.
Trims shall be through-bolted with concealed fasteners. Escutcheon and pull trims shall be constructed of brass, bronze or stainless steel. All lever trims shall use cast levers. Wrought levers shall not be acceptable. Lever trims shall match those on Corbin Russwin Mortise and Cylindrical Locksets.
All devices and trims shall be furnished in architectural finishes.
All devices shall be listed by Underwriters Laboratories (UL) for safety as panic hardware. Fire-rated devices shall be UL listed for mortise: 4' x 7'2" single and 8' x 7'2" pair; rim and surface vertical rod - 4' x 8' single and 8' x 8' pair.
Certification:
ANSI A156.3, Grade 1 ANSI A156.3, Grade 2 (ED3400 Series) ANSI A117.1 Accessibility Code California State Fire Marshal pursuant to section 13144.1 of the California Health and Safety Code. ADA Complaint
All devices, trims and cylinders shall be from one manufacturer.
All mechanical devices and trims shall carry a one-year limited warranty.
Notes
ED3000 Series
The ASSA ABLOY Group is the global leader in access solutions. Every day, we help billions of people experience a more open world.
ASSA ABLOY Opening Solutions leads the development within door openings and products for access solutions in homes, businesses and institutions. Our offering includes doors, frames, door and window hardware, mechanical and smart locks, access control and service.
For additional information, contact your ASSA ABLOY Door Security Solutions sales consultant or visit www.corbinrusswin.com.
In U.S.
Corbin Russwin Architectural Hardware 225 Episcopal Road Berlin, CT 06037 Phone: 800-543-3658 Fax: 800-447-6714 www.corbinrusswin.com
In Canada
ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive Vaughan, Ontario Canada L4K 4T9 Phone: 800-461-3007 Fax: 800-461-8989 www.assaabloydss.ca
MicroShield®
As part of their promise to provide innovative solutions to their customers, certain ASSA ABLOY Group brands offer the MicroShield® technology, a silver-based antimicrobial coating designed to inhibit the growth of bacteria.
Microshield® is a registered trademark of ASSA ABLOY Access and Egress Hardware Group, Inc.
The Agion antimicrobial is not intended as a substitute for good hygiene. Coated products must still be cleaned to ensure the surfaces will be free
of destructive microbes. ASSA ABLOY makes no representations or warranties, express or implied, as to the efficacy of the Agion antimicrobial. A copy of the Agion warranty is available upon request. Agion is a registered trademark of Agion Technologies, Inc., Wakefield, MA, USA.
