MOUNTING INFORMATION

Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) type doors.

RH SHOWN LH OPPOSITE

CAUTION: Closer To Be Installed In A True Horizontal Position To Ensure Proper Closer Performance.

·

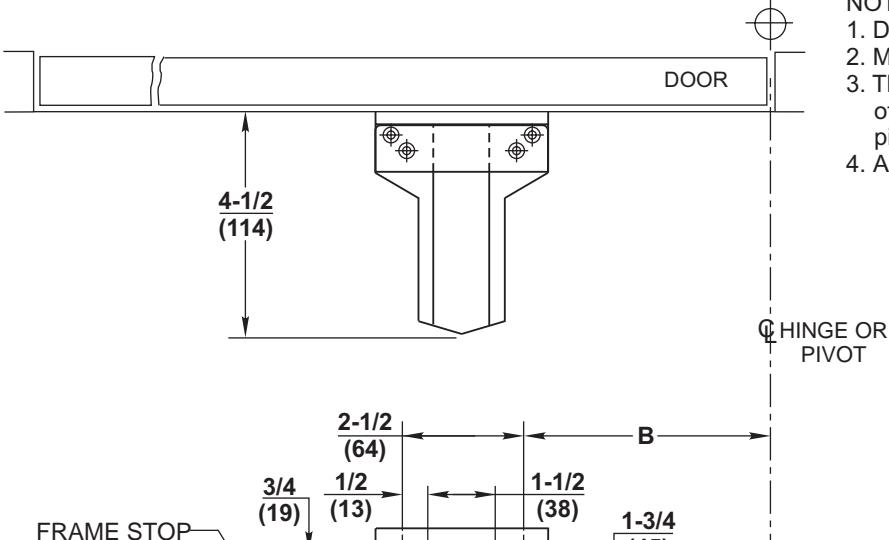

Opening		DOORS 28" TO 32"		DOORS 33" TO 41"		DOORS 42" TO 48"
		1 \ /1
		615F51 HO ARM (A12)		615F53 HO ARM (A12)		615F55 HO ARM (A12)
HOLD OPEN	DEAD STOP		Dim. B	Dim. A	Dim. B	Dim. A	Dim. B
85°	90°	5-5/8 (143)	9-3/4 (248)	8 (203)	11-7/8 (302)	10-1/8 (257)	14-1/4 (362)
90°	95°	5-1/8 (130)	9-1/4 (235)	7-3/8 (187)	11-1/4 (286)	9-1/2 (241)	13-1/2 (343)
95°	100°	4-3/4 (121)	8-7/8 (225)	6-7/8 (175)	10-3/4 (273)	8-7/8 (225)	13 (330)
100°	105°	4-1/4 (108)	8-3/8 (213)	6-1/2 (165)	10-3/8 (264)	8-3/8 (213)	12-1/2 (318)
105°	110°	4 (102)	8-1/8 (206)	6-1/8 (156)	10 (254)	7-7/8 (200)	12 (305)
110°	115°	3-5/8 (92)	7-3/4 (197)	5-3/4 (146)	9-5/8 (244)	7-1/2 (191)	11-5/8 (295)

10

(254)

(305)

NOTES:

• 1. Dimensions given in inches and (mm).
• 2. Minimum Top Rail: 5 (127).
• These dimensions apply to the centerline of hinge/pivot for butt hinges or offset pivots.
• 4. A12 arms cannot be used on fire doors.

₹ Habitat for Humanity®

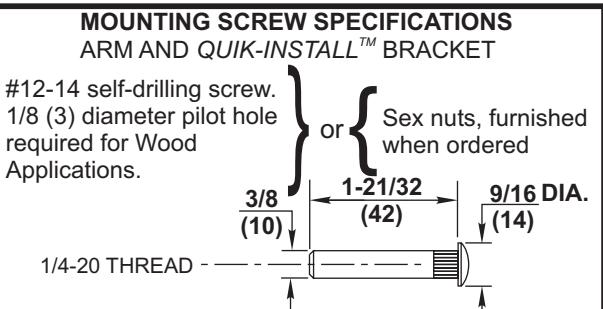

SEE MOUNTING

SCREW SPECS

RESPONSIBILITY

1-1/2

(38)

(25)

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

DC8210 Series x A11/A12 x 615F60

(25)

(45)

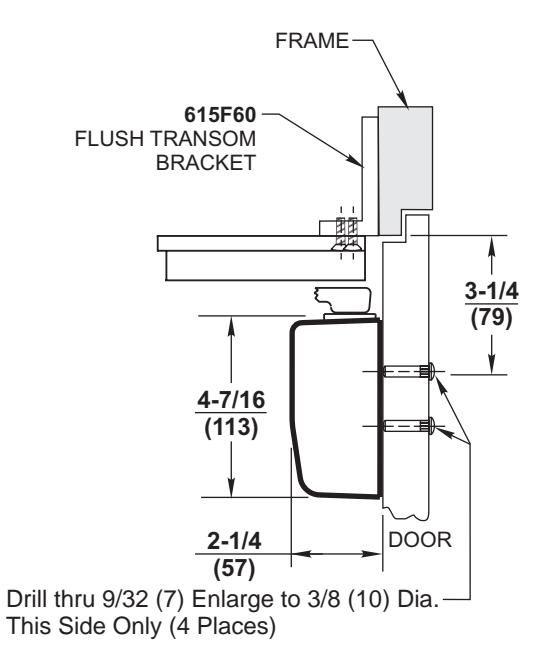

A11 or A12 Push Side Parallel Arm Mounted Surface Door Closer with 615F60 Flush Transom Bracket

Russwin

ASSA ABLOY

www.corbinrusswin.com

Do Not Scale Drawing Supersedes Dr. App. Date 04-08 Template Number T31064
