CLX3300 Series

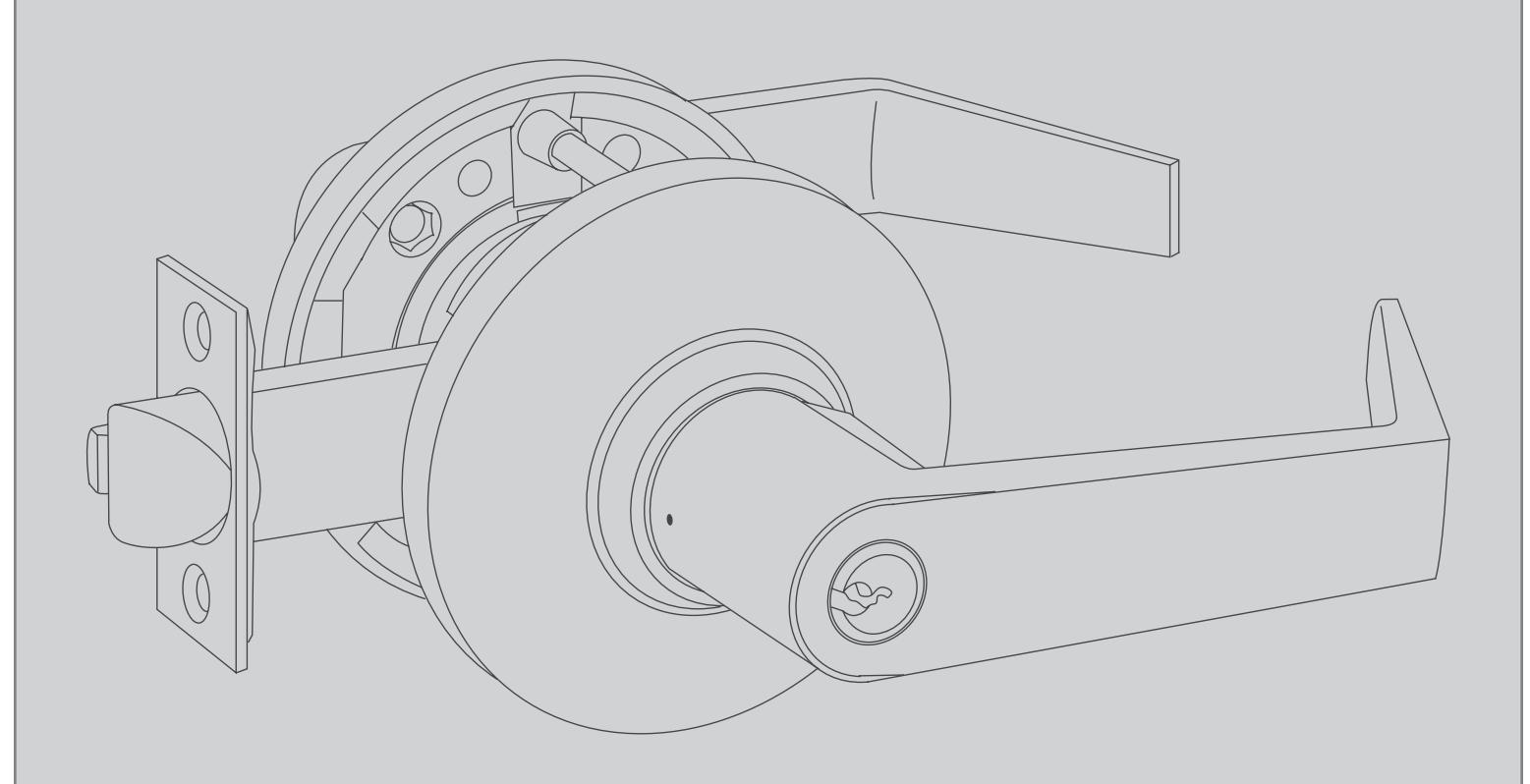

Cylindrical Lockset Parts Manual
This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.

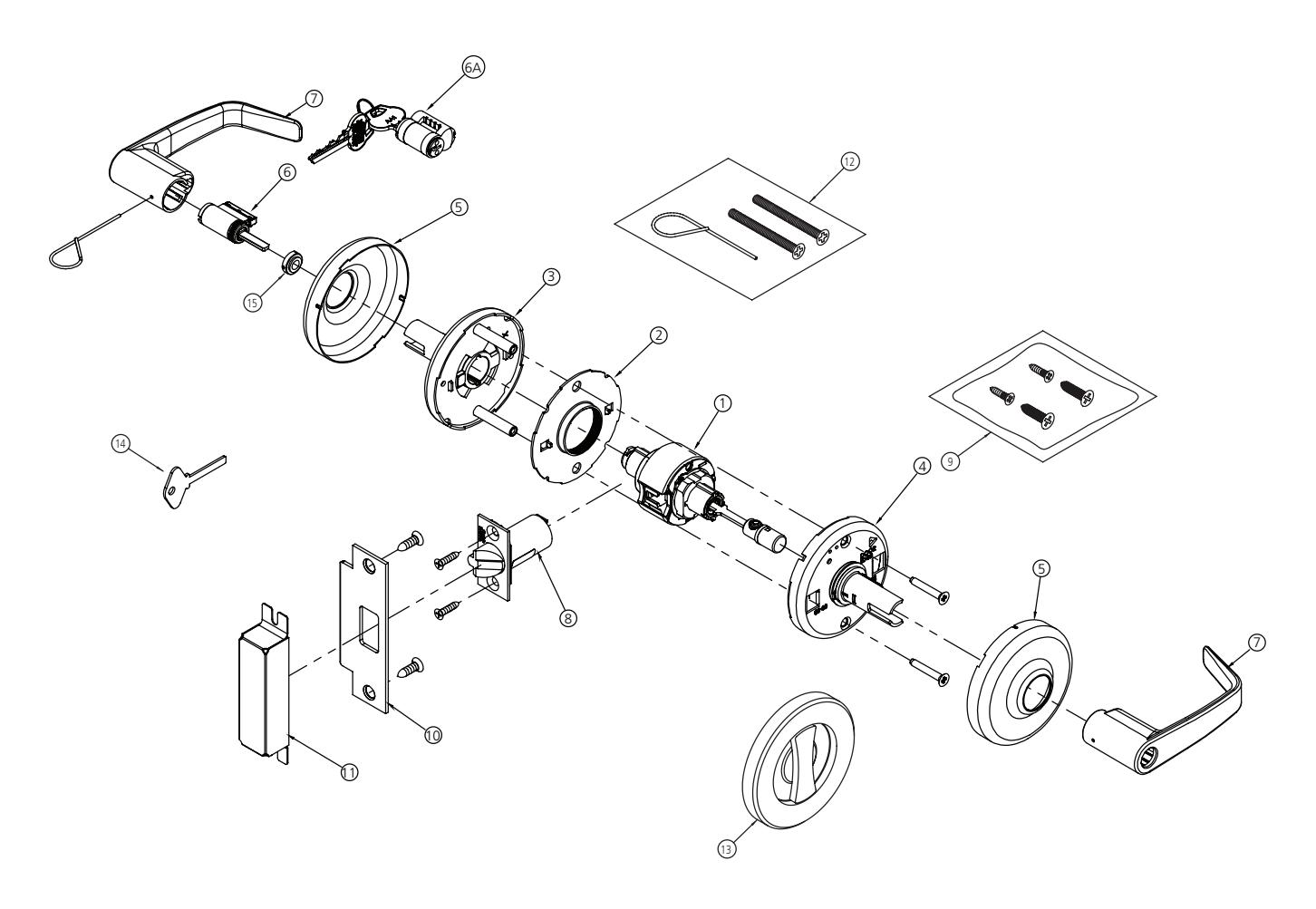

| Exploded View3 | |
|---|---|
| Lockbodies & Buttons4 | |
| Spring Housing Assemblies5 | |
| Roses/Liners and Misc6 | |
| Latches7 | |
| Strikes8 | |
| Cylinders9-12 | |

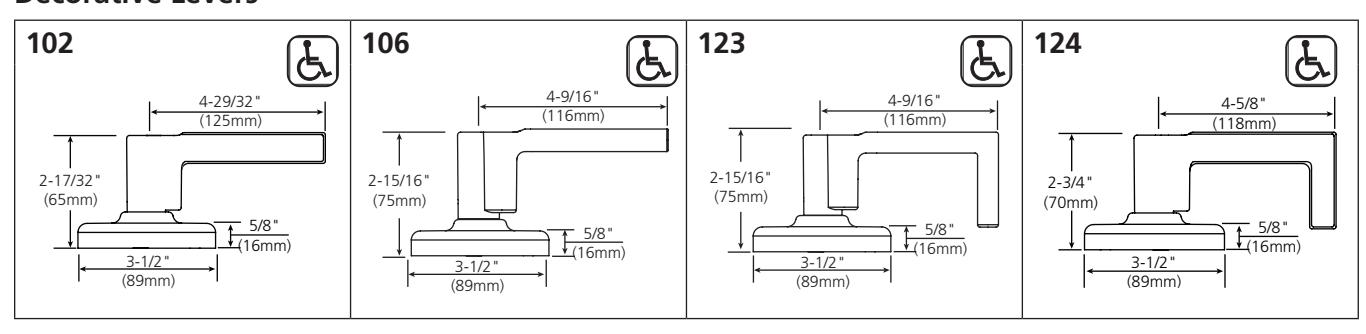

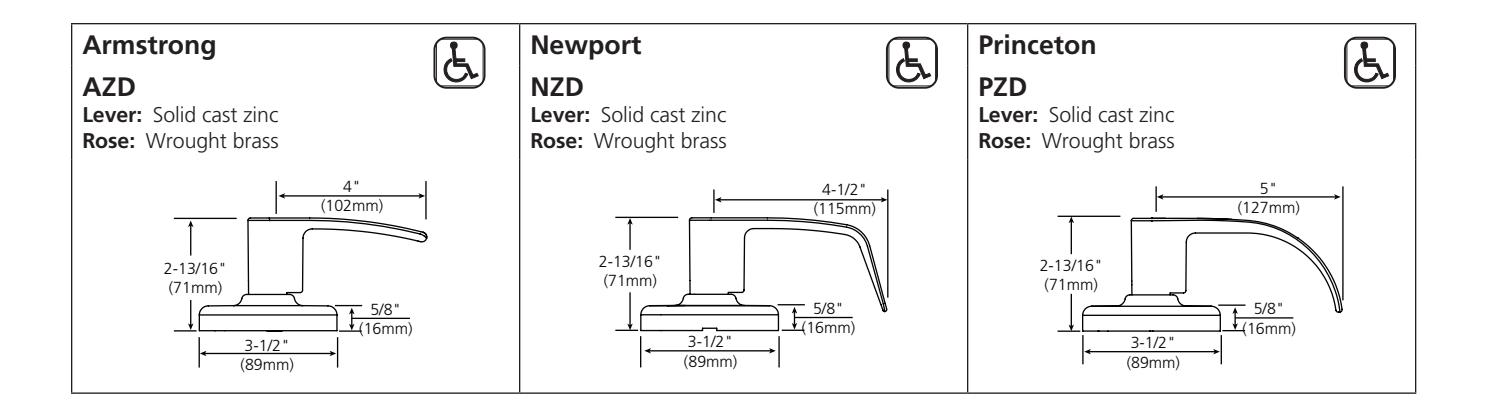

| Standard Levers and Components13-14 | |
| How to Order Parts15 | |
| Finishes15 |
| Item | Description | Page # |
|---|---|---|
| 1 | Lockbody | 4 |
| 2 | Rose Liner/Mounting Plate | 6 |
| 3 | Spring Housing Assembly, Outside | 5 |
| 4 | Spring Housing Assembly, Inside | 5 |
| 5 | Rose | 6 |
| 6 | Cylinder | 9 |
| 6A | Core | 9 |
| 7 | Lever | 11 |
| 8 | Latch | 7 |
| 9 | Screw pack | 6 |
| 10 | Strike | 8 |
| 11 | Strike Box | 8 |
| 12 | Thru Bolt Mounting Pack | 6 |
| 13 | Thumbturn Assembly (CLX3390 only) | 5 |
| 14 | Emergency Release Tool (CLX3320 only) | 6 |
| 15 | Cylinder Spacer | 10 |
The warranty on Corbin Russwin products becomes void if the product is modified in any way, regardless of whether the modifications causes or contributes to any alleged defect. If a Corbin Russwin product is modified it may no longer meet industry certification and quality control standards applicable to the original product and is no longer a genuine Corbin Russwin product.
Copyright © 2021, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

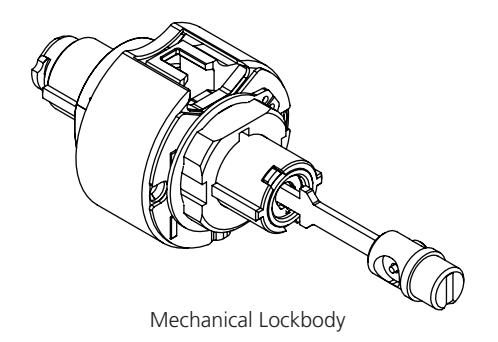

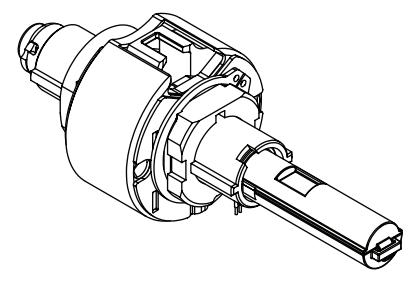

Electrified Lockbody
Mechanical Lockbodies 1-3/8" - 2-1/4" Door (does not include rose liner/mounting plate)
| Part Number | |||||
|---|---|---|---|---|---|
| Description | Function | Std/Freewheeling |
Std/Freewheeling
(B238 only) |
Rigid Lever |
Rigid Lever
(B238 only) |
| Passage or Closet | CLX3310 | 861F708 | 866F028 | N/A | N/A |
| Privacy, Bedroom or Bathroom | CLX3320 | 861F748 Fin* | 866F068 Fin* | 861F758 Fin* | 866F078 Fin* |
| Hospital Privacy | CLX3320H | 861F748 Fin* | 866F068 Fin* | 861F758 Fin* | 866F078 Fin* |
| Time Out Lock | CLX3320TO | 861F728 Fin* | 866F048 Fin* | 861F738 Fin* | 866F058 Fin* |
| Hotel or Motel | CLX3329 | 861F768 Fin* | 866F088 Fin* | 861F778 Fin* | 866F098 Fin* |
| Privacy, Bedroom or Bathroom | CLX3330 | 861F748 Fin* | 866F068 Fin* | 861F758 Fin* | 866F078 Fin* |
| Institutional or Utility | CLX3332 | 861F968 | 866F268 | 861F978 | 866F278 |
| Patio or Privacy | CLX3340 | 861F748 Fin* | 866F068 Fin* | 861F758 Fin* | 866F078 Fin* |
| Exit Latch | CLX3340NT | 861F358 | 861F378 | 861F368 | 861F388 |
| Entrance or Office | CLX3351 | 861F828 Fin* | 866F128 Fin* | 861F838 Fin* | 866F138 Fin* |
| Classroom Intruder | CLX3352 | 861F848 | 866F148 | 861F858 | 866F158 |
| Classroom | CLX3355 | 861F848 | 866F148 | 861F858 | 866F158 |
| Storeroom or Closet | CLX3357 | 861F358 | 861F378 | 861F368 | 861F388 |
| Barrier Free Storeroom or Public Restroom | CLX3359 | 861F868 | 866F168 | 861F878 | 866F178 |
| Entry or Office | CLX3361 | 861F788 Fin* | 866F108 Fin* | 861F798 Fin* | 866F118 Fin* |
| Communicating | CLX3362 | 861F988 | 866F288 | 861F998 | 866F298 |
| Apartment, Exit or Public Toilet | CLX3372 | 862F008 | 866F308 | 862F018 | 866F318 |
| Corridor/Dormitory Lock | CLX3375 | 861F888 Fin* | 866F188 Fin* | 861F898 Fin* | 866F198 Fin* |
| Corridor/Dormitory Lock (modified) | CLX3376 | 861F908 Fin* | 866F208 Fin* | 861F918 Fin* | 866F218 Fin* |
| Passage Lever x Blank Plate | CLX3380 | 861F718 | 866F038 | N/A | N/A |
| Classroom x Blank Plate | CLX3381 | 861F928 | 866F228 | 861F938 | 866F238 |
| Store Door Lock | CLX3382 | 862F028 | 866F328 | 862F038 | 866F338 |
| Storeroom x Blank Plate | CLX3383 | 861F948 | 866F248 | 861F958 | 866F258 |
| Passage Lever x Turnpiece | CLX3390 | 861F718 | 866F038 | N/A | N/A |
| Service Station | CLX3393 | 861F828 Fin* | 866F128 Fin* | 861F838 Fin* | 866F138 Fin* |
* Includes finished button. Specify finish.
Electrified Lockbodies 1-3/8" - 2-1/4" Door (includes lock harness)
| Description | Frantian | Part Number | |
|---|---|---|---|
| Description | Function | Std/Freewheeling | Rigid Lever |
| Electromachanical | CLX33903 | 886F000 | 886F010 |
| Electromechanical | CLX33905 | 886F000 | 880F010 |
PART No. 860F608 Spring Housing Assembly, Outside
Part No. 860F618 Spring Housing Assembly, Inside
Outside Spring Housing Assemblies (1-3/8" - 2-1/4" Door)
| Part # | Description |
|---|---|
| 860F608 | All Functions except CLX3380, CLX3381, CLX3383, CLX3350, CLX3370 |
| 860F638 | All Functions for Yale® LFIC |
Inside Spring Housing Assemblies (1-3/8" - 2" Door)
| Part # | Description |
|---|---|
| 860F618 | All Functions except CLX3332, CLX3352, CLX3362, CLX3372, CLX3381, CLX3382, CLX3383, CLX3390, CLX3350, CLX3370 |
| 860F628 | Functions CLX3332, CLX3352, CLX3362, CLX3372, CLX3381, CLX3382, CLX3383 |
| 860F648 | Functions CLX3332, CLX3352, CLX3362, CLX3372, CLX3381, CLX3382, CLX3383 for Yale® LFIC |
| 885F860 | All Functions with Request to Exit Option (M92) |
Note: For 2-1/4" door, rose liner must be replaced with part number 789F028
Dummy Spring Housing Assemblies
| Part # | Description |
|---|---|
| 863F108 | Outside CLX3350, CLX3370 |
| 863F118 | Inside CLX3370 |
Thumbturn Assembly (CLX3390)
| Part # | Description |
|---|---|
| 865F32 x Fin* | 1-3/4"-2" door thickness |
| 865F33 x Fin* | 2-1/4" door thickness |
* Specify Finish
The warranty on Corbin Russwin products becomes void if the product is modified in any way, regardless of whether the modifications causes or contributes to any alleged defect. If a Corbin Russwin product is modified it may no longer meet industry certification and quality control standards applicable to the original product and is no longer a genuine Corbin Russwin product.
Roses/Rose Liners
Miscellaneous
| Part No. | Description |
|---|---|
| 678F25 Fin* | Rose |
| 598F59 Fin* | Blank Rose/Plate (CLX3380, CLX3381, CLX3383) |
| 789F018 | Rose Liner Inside 1-3/4" - 2" |
| 789F028 | Rose Liner Inside Over 2" |
| 789F058 | Rose Liner Outside 1-3/4" - 2" |
| 789F068 | Rose Liner Outside Over 2" |
| 789F228 | Rose Liner Assembly Outside CLX3380, CLX3381, CLX3383 |
678F25
Outside Rose Liner
865F199
Mounting Screw Packs
Part No. Description
865F199 Hotel Adjustment Tool 041F478 Hotel Shut-out Key
865F298 Emergency Release Tool (CLX3320) 867F388 1-3/8" Door Adapter Plates Pack (D138)
| Part No. | Description |
|---|---|
| 865F308 | 1-3/8" - 2" Doors |
| 865F398 | Over 2" up to 2-1-4" Doors |
| 867F73 Fin* | CLX3390 1-3/8" - 2-1/4" Phillips Head |
| 867F74 Fin* | CLX3390 1-3/8" - 2-1/4" Spanner Head |
| 867F75 Fin* | CLX3390 1-3/8" - 2-1/4" Torx Head |
| 867F70 Fin* | CLX3350 Half Dummy Trim - Phillips Head |
| 867F71 Fin* | CLX3350 Half Dummy Trim - Spanner Head |
| 867F72 Fin* | CLX3350 Half Dummy Trim - Torx Head |
| 869F150 Fin* |
BHSS Trim - Security Pin Torx Head (includes mounting,
latch and ANSI strike screws) |
Latch and Strike Screw Packs
| Part No. | Description | ||
|---|---|---|---|
| 604F228 Fin* | Latch & ANSI Strike (4-7/8") - Phillips Head (Std) | ||
| 604F238 Fin* | Latch & ANSI Strike (4-7/8") - Spanner Head | ||
| 604F248 Fin* | Latch & ANSI Strike (4-7/8") - Torx Head | ||
| 604F268 Fin* | Latch & T-Strike (2-3/4") - Phillips Head | ||
| 604F278 Fin* | Latch & T-Strike (2-3/4") - Spanner Head | ||
| 604F288 Fin* | Latch & T-Strike (2-3/4") - Torx Head | ||
* Specify Finish
The warranty on Corbin Russwin products becomes void if the product is modified in any way, regardless of whether the modifications causes or contributes to any alleged defect. If a Corbin Russwin product is modified it may no longer meet industry certification and quality control standards applicable to the original product and is no longer a genuine Corbin Russwin product.
Copyright © 2021, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
Plain Latch - CLX3310, CLX3320, CLX3320H, CLX3320TO
| Part No. | Front | Front Width | Backset |
|---|---|---|---|
| 867F20 | Square Corner | 1-1/8" (29mm) | 2-3/4" (70mm) |
| 867F26 | Rounded Corner | 1-1/8" (29mm) | 2-3/4" (70mm) |
| 599F91 | Square Corner | 1" (25mm) | 2-3/8" (60mm) |
| 599F94 | Rounded Corner | 1" (25mm) | 2-3/8" (60mm) |
| 599F97 | Square Corner | 1-1/8" (29mm) | 2-3/8" (60mm) |
| 600F00 | Rounded Corner | 1-1/8" (29mm) | 2-3/8" (60mm) |
| 867F22 | Square Corner | 1-1/8" (29mm) | 3-3/4" (95mm) |
| 867F28 | Rounded Corner | 1-1/8" (29mm) | 3-3/4" (95mm) |
| 867F24 | Square Corner | 1-1/8" (29mm) | 5" (127mm) |
| 867F30 | Rounded Corner | 1-1/8" (29mm) | 5" (127mm) |
Plain
Deadlocking Latch - All Other Mechanical Functions
| Part No. | Front | Front Width | Backset |
|---|---|---|---|
| 867F21 | Square Corner | 1-1/8" (29mm) | 2-3/4" (70mm) |
| 867F27 | Rounded Corner | 1-1/8" (29mm) | 2-3/4" (70mm) |
| 599F92 | Square Corner | 1" (25mm) | 2-3/8" (60mm) |
| 599F95 | Rounded Corner | 1" (25mm) | 2-3/8" (60mm) |
| 599F98 | Square Corner | 1-1/8" (29mm) | 2-3/8" (60mm) |
| 600F01 | Rounded Corner | 1-1/8" (29mm) | 2-3/8" (60mm) |
| 867F23 | Square Corner | 1-1/8" (29mm) | 3-3/4" (95mm) |
| 867F29 | Rounded Corner | 1-1/8" (29mm) | 3-3/4" (95mm) |
| 867F25 | Square Corner | 1-1/8" (29mm) | 5" (127mm) |
| 867F31 | Rounded Corner | 1-1/8" (29mm) | 5" (127mm) |
Deadlocking
Deadlocking Latch - Electrified Functions
| Part No. | Front | Front Width | Backset |
|---|---|---|---|
| 867F32 | Square Corner | 1-1/8" (29mm) | 2-3/4" (70mm) |
| 867F35 | Rounded Corner | 1-1/8" (29mm) | 2-3/4" (70mm) |
| 867F33 | Square Corner | 1-1/8" (29mm) | 3-3/4" (95mm) |
| 867F36 | Rounded Corner | 1-1/8" (29mm) | 3-3/4" (95mm) |
| 867F34 | Square Corner | 1-1/8" (29mm) | 5" (127mm) |
| 867F37 | Rounded Corner | 1-1/8" (29mm) | 5" (127mm) |
3/4" Throw Deadlocking Fire Latch - for pair of doors
3/4" Throw Deadlocking Fire Latch
| Part No. Front | Front | Front Width | Backset | ||
|---|---|---|---|---|---|
| 601F69 | Square Corner | 1-1/8" (29mm) | 2-3/4" (70mm) | ||
When ordering latchbolt, specify Part No. x Finish (e.g., 867F21 x 626). Screw pack must be ordered separately, see page 6.
The warranty on Corbin Russwin products becomes void if the product is modified in any way, regardless of whether the modifications causes or contributes to any alleged defect. If a Corbin Russwin product is modified it may no longer meet industry certification and quality control standards applicable to the original product and is no longer a genuine Corbin Russwin product.
Copyright © 2021, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

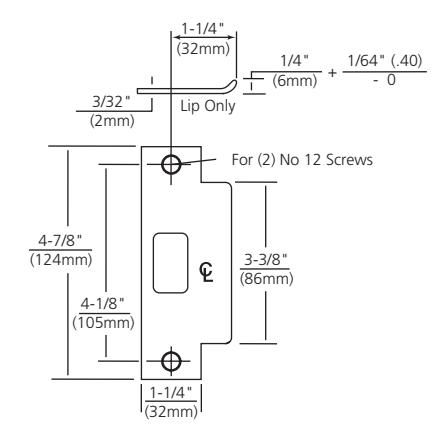

ANSI Curved Lip (standard)
Brass or stainless steel.
4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center. Optional lip lengths:
1" (25mm), 1-1/8" (29mm), 1-3/8" (35mm), 1-1/2" (38mm), 1-3/4" (44mm), 2" (51mm), 2-1/4" (57mm), 2-1/2" (64mm), 2-3/4" (70mm), 3" (76mm).
To order separately, specify Part No. x Finish.
Full Lip Strike
Brass
2-3/4" (70mm) x full lip x 1-1/8" (29mm) lip to center. No optional lip lengths.
To order separately, specify 607F76 x Finish.

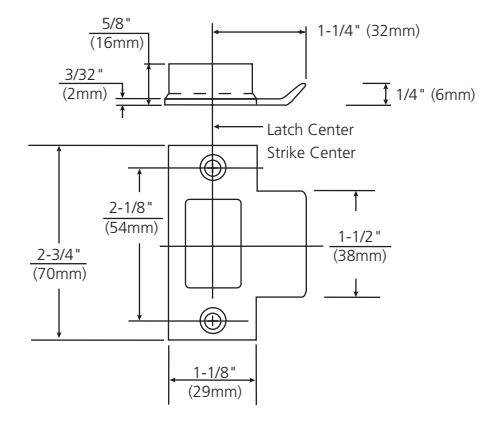

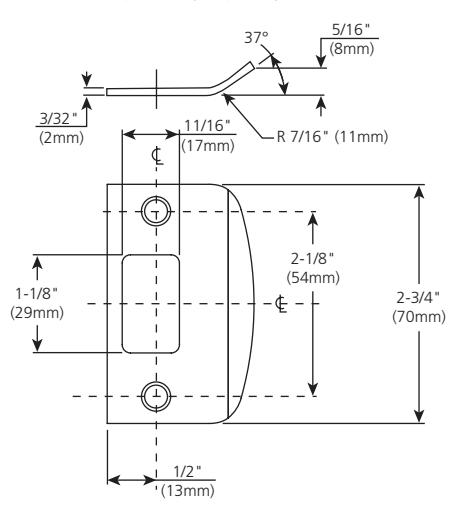

Curved Lip "T" Strike
Brass.
2-3/4" (70mm) x 1-1/8" (29mm) x 1-1/4" (32mm) lip to center. Optional lip lengths: 1" (25mm), 1-1/8" (29mm), 1-3/8" (35mm), 1-1/2" (38mm), 1-3/4" (44mm), 2" (51mm), 2-1/4" (57mm), 2-1/2" (64mm), 2-3/4" (70mm), 3" (76mm). To order separately, specify Part No. x Finish.
ANSI Wrought Strike Box
Used with ANSI 4-7/8" (124mm) strike . To order with lockset, specify Quick Code M17. To order separately, specify 120F768.
Strikes - 4-7/8" ANSI Curved Lip Strikes - 2-3/4" T- Curved Lip
| • | |||
|---|---|---|---|
| Part No. | Description | Part No. | Description |
| 217L13M016 Fin* | 1" Lip Length | 586L19M016 Fin* | 1" Lip Length |
| 217L13M018 Fin* | 1-1/8" Lip Length | 586L19M018 Fin* | 1-1/8" Lip Length |
| 217L13M020 Fin* | 1-1/4" Lip Length | 586L19M020 Fin* | 1-1/4" Lip Length |
| 217L13M022 Fin* | 1-3/8" Lip Length | 586L19M022 Fin* | 1-3/8" Lip Length |
| 217L13M024 Fin* | 1-1/2" Lip Length | 586L19M024 Fin* | 1-1/2" Lip Length |
| 217L13M028 Fin* | 1-3/4" Lip Length | 586L19M028 Fin* | 1-3/4" Lip Length |
| 217L13M032 Fin* | 2" Lip Length | 586L19M032 Fin* | 2" Lip Length |
| 217L13M036 Fin* | 2-1/4" Lip Length | 586L19M036 Fin* | 2-1/4" Lip Length |
| 217L13M040 Fin* | 2-1/2" Lip Length | 586L19M040 Fin* | 2-1/2" Lip Length |
| 217L13M044 Fin* | 2-3/4" Lip Length | 586L19M044 Fin* | 2-3/4" Lip Length |
| 217L13M048 Fin* | 3" Lip Length | 586L19M048 Fin* | 3" Lip Length |
Strike - 2-3/4" Full Lip
| Part No. | Description | |||
|---|---|---|---|---|
| 607F76 Fin* | 1-1/8" Lip Length | |||
| Sti | пке | ROX | |
|---|---|---|---|
| _ | Part No. | Description |
|---|---|---|
| _ | 120F768 | 4-7/8" ANSI strike box |
Screw pack must be ordered separately, see page 6.
The warranty on Corbin Russwin products becomes void if the product is modified in any way, regardless of whether the modifications causes or contributes to any alleged defect. If a Corbin Russwin product is modified it may no longer meet industry certification and quality control standards applicable to the original product and is no longer a genuine Corbin Russwin product.
Copyright © 2021, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
* Specify finish
Access 3® - .510" plug diameter Pyramid - .496" plug diameter Conventional - .509" plug diameter Security - .552" plug diameter Brass, 6-pin 2 nickel silver keys Finishes: 606, 626, BSP
Fixed Core Cylinders for Mechanical Functions
| Description | Cylinder Model Number | Door |
|---|
| Description | Cylinder Model Number |
Door
Thickness |
Tailpiece
Pack |
||
|---|---|---|---|---|---|
|
6-Pin
conventional, Security, |
CR2000-034 (Std.)
CR2500-034 CR2010-034 CR2600-034 CR2027-034 CR2700-034 CR2020-034 |
1-3/8" - 2" | 862F998 |
6-Pin
conventional, security, |
|
|
Pyramid
(7-Pin) and Access 3® |
CR2000-034L
CR2010-034L CR2027-034L CR2020-034L |
CR2500-034L
CR2600-034L CR2700-034L |
2-1/4" | 863F008 |
Pyramid
(7-Pin) and Access 3® |
| 7-Pin | CR2000-034-7 | 1-3/8" - 2" | 863F018 | 7-Pin | |
| conventional | CR2000-034L-7 | 2-1/4" | 863F028 | conventional | |
| 6-Pin |
CR2400-034-C
CR2400-034-C-KR CR2400-034-LA |
1-3/8" - 2" | 863F038 | 6-Pin | |
|
competitor
keyway |
CR2400-034L-C
CR2400-034L-C-KR CR2400-034L-LA |
2-1/4" | 863F048 |
competitor
keyway |
|
|
Hotel
function |
CR2001-034A
CR2001-034A-7 CR2501-034A |
CR2601-034A
CR2701-034A |
1-3/8" - 2-1/4" | N/A | |
| Description | Cylinder Model Number |
Door
Thickness |
Tailpiece
Pack |
|
|---|---|---|---|---|
|
6-Pin
conventional, security, |
CR2000-E34 (Std.)
CR2010-E34 CR2027-E34 CR2020-E34 |
CR2500-E34
CR2600-E34 CR2700-E034 |
1-3/8" - 2" | 886F140 |
|
Pyramid
(7-Pin) and Access 3® |
CR2000-E34L
CR2010-E34L CR2027-E34L CR2020-E34L |
CR2500-E34L
CR2600-E34L CR2700-E34L |
2-1/4" |
886F150
1-3/8" - 2" |
| 7-Pin | CR2000-E34-7 | 1-3/8" - 2" | 886F160 | |
| conventional | CR2000-E34L-7 | 2-1/4" | 886F170 | |
|
6-Pin
competitor |
CR2400-E34-C
CR2400-E34-C-KR CR2400-E34-LA |
886F180 | ||
| keyway |
CR2400-E34L-C
CR2400-E34L-C-KR CR2400-E34L-LA |
2-1/4" | 886F190 | |
862F998 (A=1.056") 863F008 (A=1.280") 863F018 (A=0.900") 863F028 (A=1.124")
863F038 (A=1.056") 863F048 (A=1.280")
886F140 (A=0.895") 886F150 (A=1.058") 886F160 (A=0.739") 886F170 (A=0.902")
886F180 (A=0.895") 886F190 (A=1.058")
The warranty on Corbin Russwin products becomes void if the product is modified in any way, regardless of whether the modifications causes or contributes to any alleged defect. If a Corbin Russwin product is modified it may no longer meet industry certification and quality control standards applicable to the original product and is no longer a genuine Corbin Russwin product.
Large Format Interchangeable Core (LFIC) Mechanical and Electrified Functions
Access 3® - .510" plug diameter Pyramid - .496" plug diameter Conventional - .509" plug diameter Security - .552" plug diameter
| Pyramid496" plug diameter |
|---|
| Conventional509" plug diameter |
| Security552" plug diameter |
| Brass, 6-pin |
| 2 nickel silver keys |
| Description | Core Model Number |
Door
Thickness |
Tailpiece Pack for
Use with Mechanical Functions |
Tailpiece Pack for
Use with Electrified Functions |
|
|---|---|---|---|---|---|
| 6-or 7-Pin LFIC |
CR8000
CR8000-7 |
CR8027
CR8500 |

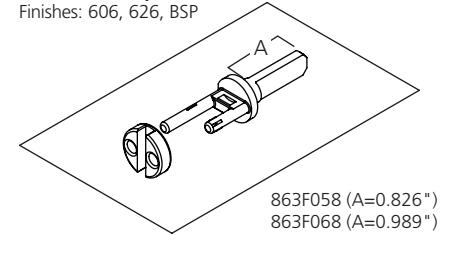

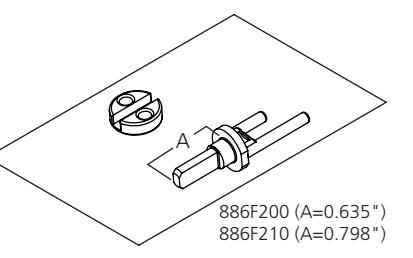

1-3/8" - 2" | 863F058 | 886F200 |
|
conventional, security,
Pyramid and Access 3® |
CR8010
CR8600 CR8020 CR8700 |
2-1/4" | 863F068 | 886F210 | |

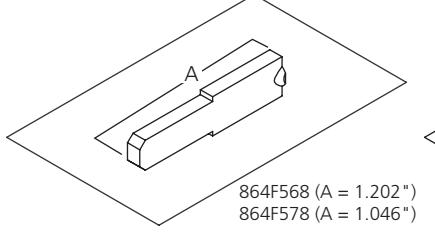

| CR8001-034A | 1-3/8" - 2-1/4" | 864F568 | N/A | ||
| Hotel function | CR8001-034A-7 | 1-3/8" - 2-1/4" | 864F578 | N/A | |
Small Format Interchangeable Core (SFIC) Mechanical and Electrified Functions
| Description | Core Model Number | Door Thickness |
Tailpiece Pack for Use with
Mechanical Functions |
Tailpiece Pack for Use with
Electrified Functions |
|
|---|---|---|---|---|---|
| 6-Pin SFIC |
CR8200
CR8200-7 |

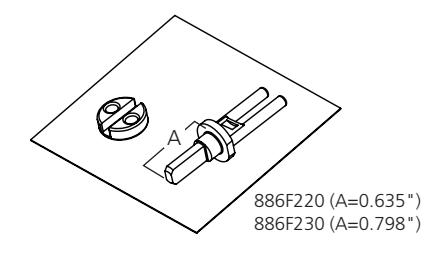

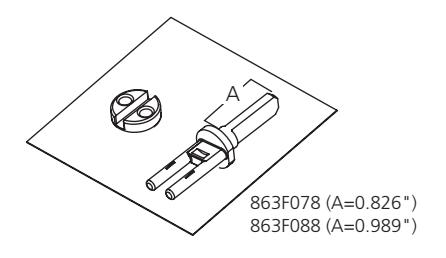

1-3/8" - 2" | 863F078 | 886F220 | |
| 7-Pin SFIC | 2-1/4" | 863F088 | 886F230 | ||

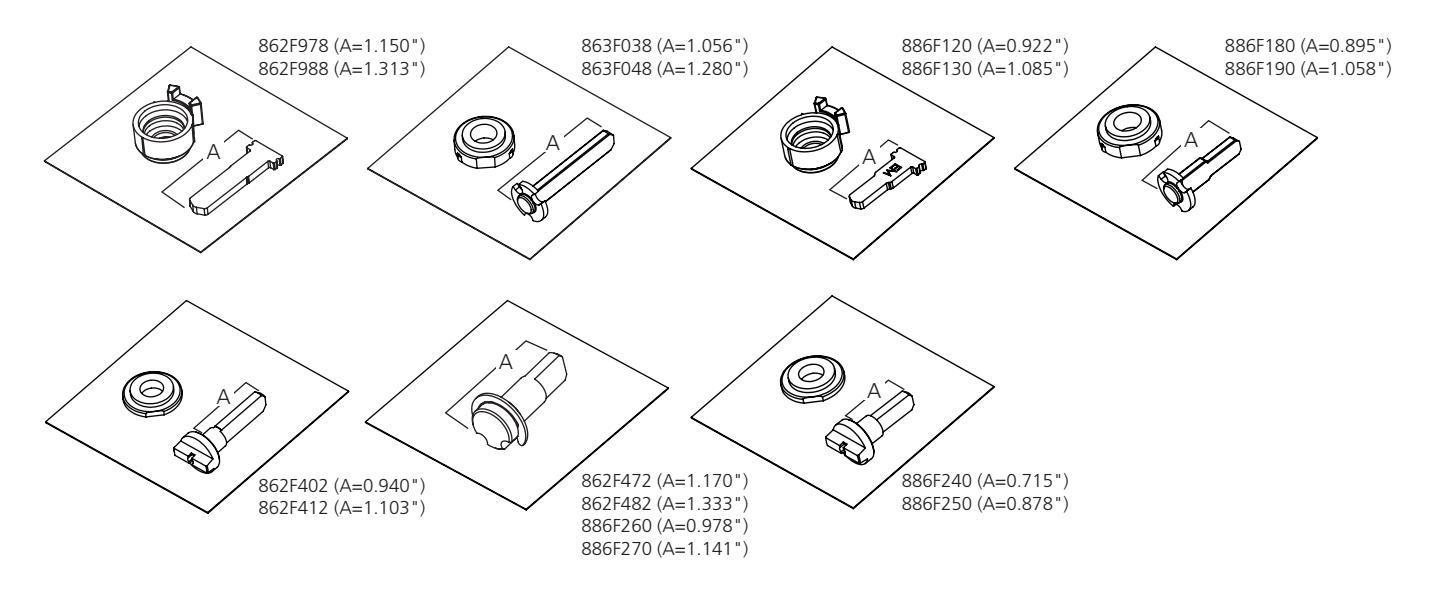

Compatibility with Competitive Cylinders/Cores*
| Door | Tailpiec | e Packs | Ontion Code | |||||
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Cylinder Type | Thickness |
Mechanical
Functions |
Electrified
Functions |
Option Code
with Lock |
Description | ||
| Fixed Core | • | |||||||
| Sargent® | Fixed Core 6 Pin | 1-3/8" - 2" | 862F978 | 886F120 | M09 | For Sargent® 6 pin cylinders (13-3266). Option code | ||
| July gerre | Timed cole of iii | 2-1/4" | 862F988 | 886F130 | 11103 | with lock includes special lever and tailpiece. | ||
| Cablaga® | Fixed Core & Dia | 1-3/8" - 2" | 863F038 | 886F180 | MOG | For Schlage® 6 pin conventional cylinders (21-002, 23-001 or 23-013) or Schlage Primus cylinders (20-548, | ||
| Schlage ® | Fixed Core 6 Pin | 2-1/4" | 863F048 | 886F190 | M06 | 20-550, 20-748 or 20-750). Option code with lock includes tailpiece. | ||
| Yale® | Fixed Core 6 Pin | 1-3/8" - 2" | 862F998 | 886F140 | YC | For Yale® 6 pin conventional cylinders (1803-46L or | ||
| raie | Fixed Core 6 Pin | 2-1/4" | 863F008 | 886F150 | 1803-46LL). Option code with lock includes tailpiece. | |||
| Yale ® | Fixed Core 7 Pin | 1-3/8" - 2" | 863F018 | 886F160 | YC7 | For Yale® 7 pin conventional cylinders (1803A-46L or | ||
| Tale | Tixed Cole / Fill | 2-1/4" | 863F028 | 886F170 | 107 | 1803A-46LL). Option code with lock includes tailpiece | ||
| nterchangeable | Core | |||||||
| All | SFIC 6 or 7 Pin | 1-3/8" - 2" | 863F078 | 886F220 | M08 | For all SFIC 6 and 7 pin cores. Option code with lock | ||
| All | SFIC 6 OF 7 FIII | 2-1/4" | 863F088 | 886F230 | IVIUO | includes special lever and tailpiece. | ||
| Schlage® | LFIC 6 Pin | 1-3/8" - 2" | 862F472 | 886F260 | M69 | For Schlage® 6 pin large format interchangeable cores. Option code with lock includes special lever and | ||
| Schlage | LITE OT M | 2-1/4" | 862F482 | 886F270 | 1000 | tailpiece. | ||
| Yale® | LFIC 6 Pin | 1-3/8" - 2" | 862F402 | 886F240 | YRC | For Yale® 6 pin large format interchangeable cores. Option code with lock includes special lever and | ||
| iale | LICOFIII | 2-1/4" | 862F412 | 886F250 | ] | | | | | tailpiece. | ||
* Cylinder/core not included
11
The warranty on Corbin Russwin products becomes void if the product is modified in any way, regardless of whether the modifications causes or contributes to any alleged defect. If a Corbin Russwin product is modified it may no longer meet industry certification and quality control standards applicable to the original product and is no longer a genuine Corbin Russwin product.
Miscellaneous Cylinder Parts
| Part # | Description |
|---|---|
| 627F009 | Disposable Cores Corbin Russwin LFIC (10 pack) |
| 707F299 | Disposable Cores SFIC (10 pack) |
| 862F049 | Spacer Only - Fixed Core Cylinder |
| CR2000C-034 |
Emergency Release Cylinder - Privacy/Bathroom
Function (CLX3330), 1-3/8" - 2" Doors |
| CR2000C-034L |
Emergency Release Cylinder - Privacy/Bathroom
Function (CLX3330), 2-1/4" Doors |
862F049

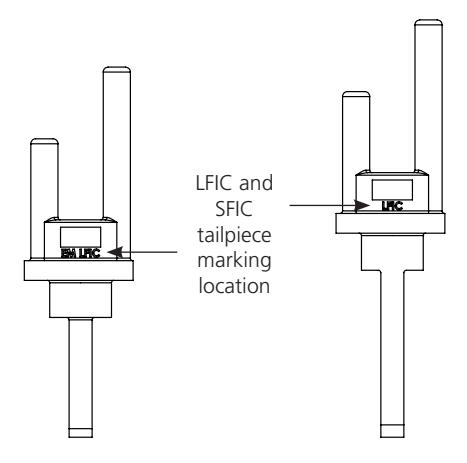

Identifying Tailpieces
CLX3300 Series cylinder tailpieces include stampings to help identify them.
Decorative Levers
Levers for Doors 1-3/8 " - 2-/4 " (Specify finish)
| Application | AZ | NZ | PZ | 102 | 106 | 123 | 124 |
|---|---|---|---|---|---|---|---|
| Passage/plain | 860F005 | 860F205 | 860F405 | 860F655 | 860F905 | 861F035 | 860F775 |
| Emergency key hole | 860F055 | 860F255 | 860F455 | 860F705 | 860F955 | 861F085 | 860F825 |
|
Fixed core cylinder (Corbin Russwin 6/7-pin, Yale®
6/7-pin, Schlage® 6-pin) |
860F015 | 860F215 | 860F415 | 860F665 | 860F915 | 861F045 | 860F785 |
|
Fixed core cylinder (Corbin Russwin 6/7-pin, Yale®
6/7-pin, Schlage® 6-pin inside CLX3352) |
860F025 | 860F225 | 860F425 | N/A | N/A | N/A | N/A |
|
Push/turn button or fixed core cylinder (SARGENT®
6-pin) |
860F035 | 860F235 | 860F435 | 860F685 | 860F935 | 861F065 | 860F805 |
| Fixed core cylinder (SARGENT® inside CLX3352) | 860F045 | 860F245 | 860F445 | N/A | N/A | N/A | N/A |
| LFIC (Corbin Russwin 6-pin) | 860F065 | 860F265 | 860F465 | 860F715 | 860F965 | 861F095 | 860F835 |
| LFIC (Corbin Russwin 6-pin inside CLX3352) | 860F075 | 860F275 | 860F475 | N/A | N/A | N/A | N/A |
| LFIC (Corbin Russwin 7-pin) | 860F085 | 860F285 | 860F485 | 860F735 | 860F985 | 861F115 | 860F855 |
| LFIC (Corbin Russwin 7-pin inside CLX3352) | 860F095 | 860F295 | 860F495 | N/A | N/A | N/A | N/A |
| LFIC (Schlage® 6-pin) | 860F125 | 860F325 | 860F525 | N/A | N/A | N/A | N/A |
| LFIC (Schlage® 6-pin inside CLX3352) | 860F135 | 860F335 | 860F535 | N/A | N/A | N/A | N/A |
| LFIC (Yale® 6-pin) | 860F145 | 860F345 | 860F545 | N/A | N/A | N/A | N/A |
| LFIC (Yale® 6-pin inside CLX3352) | 860F155 | 860F355 | 860F555 | N/A | N/A | N/A | N/A |
| SFIC 6/7-pin | 860F105 | 860F305 | 860F505 | 860F755 | 861F015 | 861F135 | 860F875 |
| SFIC 6/7-pin (inside CLX3352) | 860F115 | 860F315 | 860F515 | N/A | N/A | N/A | N/A |
The warranty on Corbin Russwin products becomes void if the product is modified in any way, regardless of whether the modifications causes or contributes to any alleged defect. If a Corbin Russwin product is modified it may no longer meet industry certification and quality control standards applicable to the original product and is no longer a genuine Corbin Russwin product.
Levers with Knurling for Doors 1-3/8" to 2-1/4" (Specify finish)
| Application | AZ | NZ | PZ | 102 | 106 | 123 | 124 |
|---|---|---|---|---|---|---|---|
| Passage/plain | 860N005 | 860N205 | 860N405 | N/A | N/A | N/A | N/A |
| Emergency key hole | 860N055 | 860N255 | 860N455 | N/A | N/A | N/A | N/A |
|
Fixed core cylinder (Corbin Russwin 6/7-pin, Yale®
6/7-pin, Schlage® 6-pin) |
860N015 | 860N215 | 860N415 | N/A | N/A | N/A | N/A |
|
Fixed core cylinder (Corbin Russwin 6/7-pin, Yale®
6/7-pin, Schlage® 6-pin inside CLX3352) |
860N025 | 860N225 | 860N425 | N/A | N/A | N/A | N/A |
|
Push/turn button or fixed core cylinder (SARGENT®
6-pin) |
860N035 | 860N235 | 860N435 | N/A | N/A | N/A | N/A |
| Fixed core cylinder (SARGENT® inside CLX3352) | 860N045 | 860N245 | 860N445 | N/A | N/A | N/A | N/A |
| LFIC (Corbin Russwin 6-pin) | 860N065 | 860N265 | 860N465 | N/A | N/A | N/A | N/A |
| LFIC (Corbin Russwin 6-pin inside CLX3352) | 860N075 | 860N275 | 860N475 | N/A | N/A | N/A | N/A |
| LFIC (Corbin Russwin 7-pin) | 860N085 | 860N285 | 860N485 | N/A | N/A | N/A | N/A |
| LFIC (Corbin Russwin 7-pin inside CLX3352) | 860N095 | 860N295 | 860N495 | N/A | N/A | N/A | N/A |
| LFIC (Schlage® 6-pin) | 860N125 | 860N325 | 860N525 | N/A | N/A | N/A | N/A |
| LFIC (Schlage® 6-pin inside CLX3352) | 860N135 | 860N335 | 860N535 | N/A | N/A | N/A | N/A |
| LFIC (Yale® 6-pin) | 860N145 | 860N345 | 860N545 | N/A | N/A | N/A | N/A |
| LFIC (Yale® 6-pin inside CLX3352) | 860N155 | 860N355 | 860N555 | N/A | N/A | N/A | N/A |
| SFIC 6/7-pin | 860N105 | 860N305 | 860N505 | N/A | N/A | N/A | N/A |
| SFIC 6/7-pin (inside CLX3352) | 860N115 | 860N315 | 860N515 | N/A | N/A | N/A | N/A |
Levers with Abrasive Coat for Doors 1-3/8" to 2-1/4" (Specify finish)
| Application | AZ | NZ | PZ | 102 | 106 | 123 | 124 |
|---|---|---|---|---|---|---|---|
| Passage/plain | 860R005 | 860R205 | 860R405 | N/A | N/A | N/A | N/A |
| Emergency key hole | 860R055 | 860R255 | 860R415 | N/A | N/A | N/A | N/A |
|
Fixed core cylinder (Corbin Russwin 6/7-pin, Yale®
6/7-pin, Schlage® 6-pin) |
860R015 | 860R215 | 860R425 | N/A | N/A | N/A | N/A |
|
Fixed core cylinder (Corbin Russwin 6/7-pin, Yale®
6/7-pin, Schlage® 6-pin inside CLX3352) |
860R025 | 860R225 | 860R435 | N/A | N/A | N/A | N/A |
|
Push/turn button or fixed core cylinder (SARGENT®
6-pin) |
860R035 | 860R235 | 860R445 | N/A | N/A | N/A | N/A |
| Fixed core cylinder (SARGENT® inside CLX3352) | 860R045 | 860R245 | 860R455 | N/A | N/A | N/A | N/A |
| LFIC (Corbin Russwin 6-pin) | 860R065 | 860R265 | 860R465 | N/A | N/A | N/A | N/A |
| LFIC (Corbin Russwin 6-pin inside CLX3352) | 860R075 | 860R275 | 860R475 | N/A | N/A | N/A | N/A |
| LFIC (Corbin Russwin 7-pin) | 860R085 | 860R285 | 860R485 | N/A | N/A | N/A | N/A |
| LFIC (Corbin Russwin 7-pin inside CLX3352) | 860R095 | 860R295 | 860R495 | N/A | N/A | N/A | N/A |
| LFIC (Schlage® 6-pin) | 860R125 | 860R325 | 860R525 | N/A | N/A | N/A | N/A |
| LFIC (Schlage® 6-pin inside CLX3352) | 860R135 | 860R335 | 860R535 | N/A | N/A | N/A | N/A |
| LFIC (Yale® 6-pin) | 860R145 | 860R345 | 860R545 | N/A | N/A | N/A | N/A |
| LFIC (Yale® 6-pin inside CLX3352) | 860R155 | 860R355 | 860R555 | N/A | N/A | N/A | N/A |
| SFIC 6/7-pin | 860R105 | 860R305 | 860R505 | N/A | N/A | N/A | N/A |
| SFIC 6/7-pin (inside CLX3352) | 860R115 | 860R315 | 860R515 | N/A | N/A | N/A | N/A |
How to Order Parts
- 1. In order to simplify the ordering procedure and maintain regulatory compliance, parts are only available as listed
- 2. To order parts, provide the appropriate quantity, part number, finish, hand (when required) and description as directed and illustrated below.
For example, use the following configuration to order:
- A) ten lockbodies in satin chrome
- B) one rose in bright brass
| Quantity | Part Number | Finish | Hand | Description | |
|---|---|---|---|---|---|
| A | 10 | 861F748 Fin | 626 | — | Privacy Function Lockbody |
| B | 1 | 678F25 Fin | 605 | — | Rose |
For assistance, contact your authorized Corbin Russwin distributor, sales agency or visit our website at www.corbinrusswin.com .
Finishes
| ANSI/BHMA Code | Finish Description | ||
|---|---|---|---|
| 605 | Bright Brass, Clear Coated | ||
| 606 | Satin Brass, Clear Coated | ||
| 611 | Bright Bronze, Clear Coated | ||
| 612 | Satin Bronze, Clear Coated | ||
| 613 | Dark Oxidized Satin Bronze, Oil Rubbed | ||
| 613E | Dark Oxidized Satin Bronze, Equivalent | ||
| 613L | Dark Oxidized Satin Bronze, Clear Coated | ||
| 618 | Bright Nickel, Clear Coated | ||
| 619 | Satin Nickel Plated, Clear Coated | ||
| 619C | Satin Nickel Plated with MicroShield® | ||
| 625 | Bright Chrome Plated | ||
| 626 | Satin Chrome Plated | ||
| 626C | Satin Chrome Plated with MicroShield® | ||
| 630 | Satin Stainless Steel (BHSS only) | ||
| 630C |
Satin Stainless Steel with MicroShield®
(BHSS only) |
||
| 722 | Black Oxidized Satin Bronze, Oil Rubbed | ||
| BSP | Black Suede Powder Coat | ||
| WSP | White Suede Powder Coat | ||
| Lock Finish | Cylinder/Core* |
|---|---|
| 605, 606, 611, 612, 613, 613E, 613L, 722 | 606 |
| 618, 619, 625, 626, 630, WSP | 626 |
| BSP | BSP |
* Finish when cylinder provided with lock
The warranty on Corbin Russwin products becomes void if the product is modified in any way, regardless of whether the modifications causes or contributes to any alleged defect. If a Corbin Russwin product is modified it may no longer meet industry certification and quality control standards applicable to the original product and is no longer a genuine Corbin Russwin product.
15
The ASSA ABLOY Group is the global leader in access solutions. Every day, we help billions of people experience a more open world.
ASSA ABLOY Opening Solutions leads the development within door openings and products for access solutions in homes, businesses and institutions. Our offering includes doors, frames, door and window hardware, mechanical and smart locks, access control and service.
For additional information, contact your ASSA ABLOY Door Security Solutions sales consultant or visit www.corbinrusswin.com.
In U.S.
Corbin Russwin Architectural Hardware 225 Episcopal Road Berlin, CT 06037 Phone: 800-543-3658 Fax: 800-447-6714 www.corbinrusswin.com
In Canada
ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive Vaughan, Ontario Canada L4K 4T9 Phone: 800-461-3007 Fax: 800-461-8989 www.assaabloydss.ca
