CL3800 Series Standard-Duty Key-in-Lever Locksets

Product Catalog

Table of Contents

CL3800 Series

Overview3
Certifications4
Technical Details5
Trim Designs6
Functions7
Cylinders8-9
Latches10
Strikes11
Quick Codes12-13
Finishes14
How to Order15
How to Specify16

MicroShield®

ASSA ABLOY Group companies offer MicroShield®, an anti-microbial coating for door hardware. MicroShield uses proven silver ion-based technology from Agion®, a leading provider of antimicrobial solutions, to stem the spread of bacteria and other microbes.

MicroShield® is a trademark of ASSA ABLOY Access and Egress Hardware Group, Inc.

MicroShield® Coating

  • Revolutionary finish coating available on all Corbin Russwin product lines, utilizes a silverbased antimicrobial compound from Agion Technologies
  • As an integral part of the finish coating, MicroShield lasts for the life of the hardware
  • MicroShield coating permanently suppresses the growth of bacteria, algae, fungus, mold and mildew. It is effective against a broad spectrum of bacteria.
  • Non-toxic and completely safe. The Agion antimicrobial compound is EPA and NSF approved and FDA listed for use in medical and food preparation equipment.
  • Applications: Anywhere there is need for a clean environment (hospitals, laboratories, schools, medical centers, daycare, food processing etc.)

The Agion antimicrobial is not intended as a substitute for good hygiene. Coated products must still be cleaned to ensure the surfaces will be free of destructive microbes. ASSA ABLOY makes no representations or warranties, express or implied, as to the efficacy of the Agion antimicrobial. A copy of the Agion warranty is available upon request. Agion is a registered trademark of Agion Technologies, Inc., Wakefield, MA, USA.

Overview

CL3800 Series

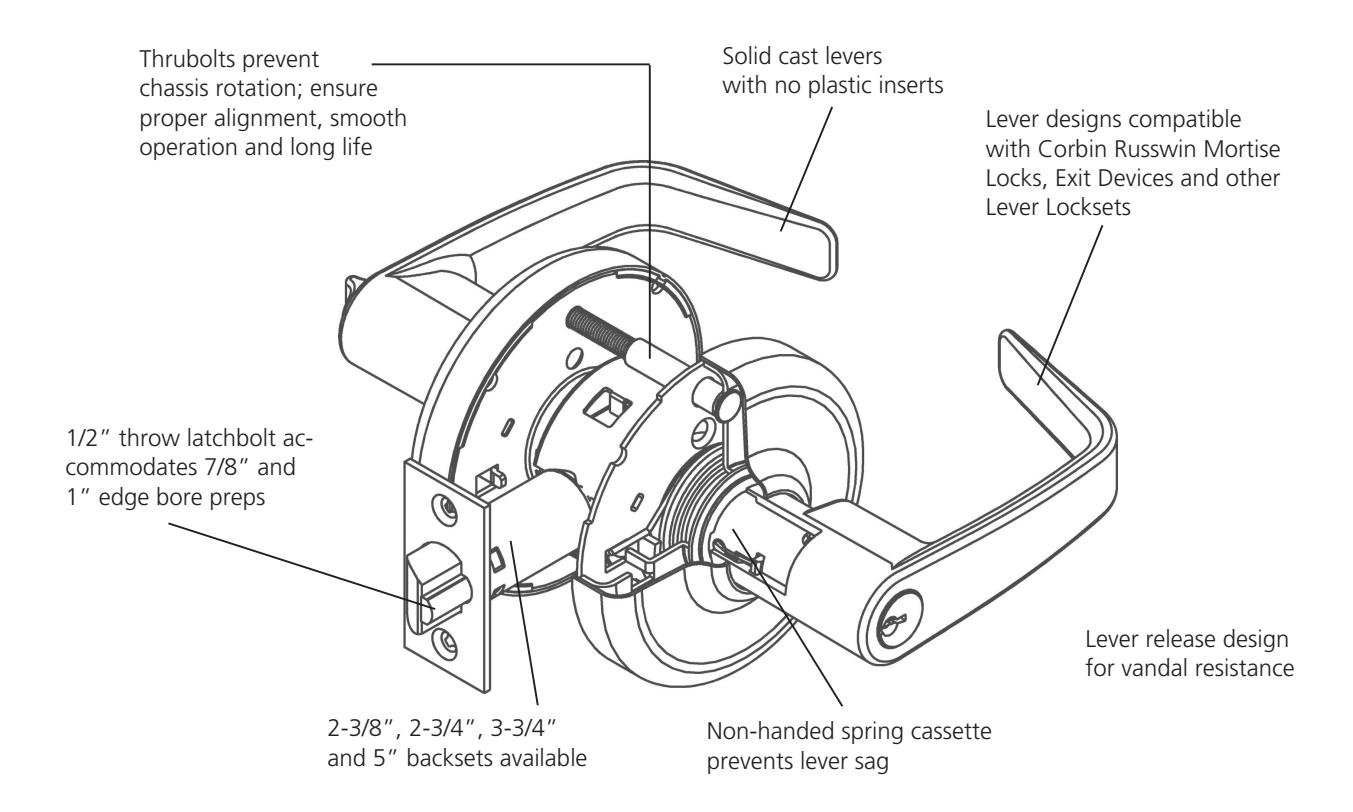

An economical, Grade 2 standard-duty lever lockset which provides an outstanding combination of value and performance. It's the ideal lever lockset for standard commercial applications. When used in conjunction with the CLX3300 Series Extra Heavy-Duty Grade 1 Cylindrical Lever Locksets, the overall cost of many projects may be reduced without compromising functionality and durability.

Applications

  • Interior offices
  • Closets
  • Multi-family housing
  • Restaurants
  • Retail complexes

Certifications

CL3800 Series

Certification/Compliance

ANSI/BHMA Certified ANSI/BHMA A156.2 (2017) Series 4000 — Grade 2
Certified ANSI/BHMA A156.41
UL/cUL UL/cUL listed to US and Canadian safety standards for 3 hour doors up to 4' x 10'
NFPA 80 Conforms for life safety and property protection, Standard for Fire Doors and Other Opening Protectives
Positive Pressure Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies
ADA All levers conform to ADA clear opening width requirements of ANSI A117.1
California State
Reference Code
(Formerly Title 19,
California State Fire
Marshal Standard) 		All levers with returns comply; levers return to within 1/2" (13mm) of door face
Windstorm/Hurricane All individual components of a total door opening are required to comply with each code. Refer to the Corbin
Russwin Website (www.corbinrusswin.com) for specific code compliance listings for both the lock hardware and other
door components.

Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Corbin Russwin makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

Windstorm Certifications: Florida Building Codes & UL Listings

Corbin Russwin products meet building codes that require hurricane and windstorm certifications, including some of the most stringent building codes as specified in the Florida Building Code, Miami Dade Code and the International Building Code. Listed below are certifications and standards met by the CL3800 Series locks.

Florida Building Code: FL3067

UL Certification Directory: ZHEM.R21836 – Latching Hardware

ANSI/SDI A250.13 (2014) "Testing and Rating of Severe Windstorm Resistant Components for Swinging Door Assemblies"
ASTM E330 (2002) "Standard Test Method for Structural Performance of Exterior Windows, Doors, Skylights and Curtain Walls by
Uniform Static Air Pressure Difference"*
ASTM E1886 (2005) "Standard Test Method for Performance of Exterior Windows, Curtain Walls, Doors, and Impact Protective Systems
Impacted by Missile(s) and Exposed to Cyclic Pressure Differentials"*
ASTM E1996 (2009) "Standard Specification for Performance of Exterior Windows, Curtain Walls, Doors and Impact Protective Systems
Impacted by Windborne Debris in Hurricanes"*
(TAS) 201 (1994) "Impact Test Procedures"*
(TAS) 202 (1994) "Standard Test Method for Structural Performance of Exterior Windows, Doors, Skylights and Curtain Walls by
Uniform Static Air Pressure Difference"*
(TAS) 203 (1994) "Criteria for Testing Products Subject to Cyclic Wind Pressure Loading"*

* Published in the 7th Edition (2020), "Florida Building Code" (FBC), State Product Approval Number FL3067

Technical Details

CL3800 Series

Door Prep ANSI/BHMA A156.115
Door Thickness Standard 1-3/8" to 1-7/8" (35 to 48mm); factory set for 1-3/4" doors
For 2" (51mm) up to 2-1/4" (57mm), specify Quick Code D214
Minimum Stile 4-1/2" (114mm)
Handing Non-handed
Backset 2-3/4" (70mm) backset w/ 1-1/8" front (standard)
2-3/8" (60mm) backset w/ 1" wide front (specify Quick Code B238)
3-3/4" (95mm) backset w/ 1-1/8" front (specify Quick Code B334)
5" (127mm) backset w/ 1-1/8" front (specify Quick Code B500)
Latchbolt Stainless steel, 1/2" (13mm) throw
Front Wrought brass, bronze, or stainless steel
Optional: rounded corners (specify Quick Code M13)
2-1/4" x 1-1/8" (57mm x 29mm) standard for 2-3/4" (70mm), 3-3/4" (95mm) and 5" (127mm) backset
2-1/4" x 1" (57mm x 25mm) standard for 2-3/8" (60mm) backset
Accommodates flat doors and doors beveled 1/8" in 2" (3mm in 51mm)
Strike Wrought brass or stainless steel
ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center
Optional strikes, lip lengths and ANSI wrought strike box available; see page 11
Cylinder Brass, 6-pin L4 keyway, 0-bitted standard, see Quick Codes page 12
Keys Two nickel silver change keys per lock standard
Masterkeying Can be master keyed or grand master keyed
Construction key systems available
Tactile Levers Knurling (etching) or abrasive coating (surface tape) applied to backside of levers (see Quick Codes page 13)
Finishes See page 20
Warranty Five-year limited

Advantages

  • Independent return springs allow lock to exceed ANSI/BHMA A156.2 Grade 2 cycle requirements without lever sag
  • Thrubolted for solid attachment
  • High Security and security key systems available (Access 3, Pyramid, etc.)
  • Lever Release freewheeling levers standard for vandal resistance
  • 14 finishes plus MicroShield® antimicrobial options
  • Solid cast levers with multiple options including decorative designs

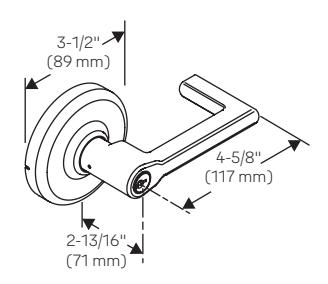

Trim Designs

CL3800 Series

Levers - Solid Cast Zinc

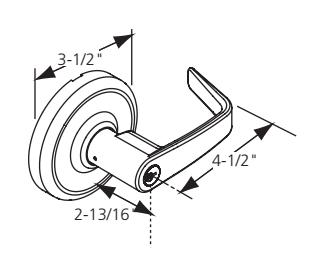

Armstrong AZ

4"

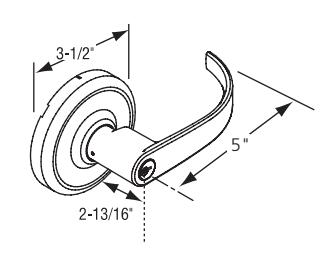

Newport NZ

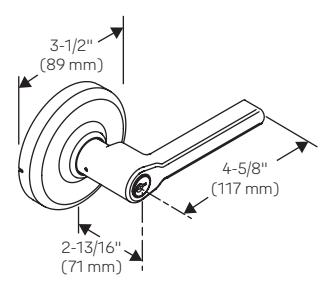

Princeton PZ

Decorative Levers

2-13/16"

102 124*

Rose Wrought Brass

D

* Complies with codes requiring lever to return to within 1/2" (13mm) of door face.

Functions

CL3800 Series

Outside Inside Series/Function Туре ANSI No. Function Description
CL3810 Passage
or Closet 		F75 Latchbolt by lever either side Both levers always free.
CL3820 Privacy
Bedroom or
Bathroom 		F76A
  • Throw-off latchbolt by lever either side, except when push button locks outside lever.
  • Outside lever locked by push button. (Lever handle is freewheeling in locked position.)
  • Outside lever unlocked by emergency release tool, by rotating inside lever or by closing door.
  • Inside lever always free.
CL3850 Half Dummy
Trim 		_
  • Lever acts as pull only; no operation.
  • Lever is rigid.
CL3851 Entrance
or Office 		F109
  • Deadlocking latchbolt by lever either side except when turn button locks outside lever. (Lever handle is free-wheeling in locked position). Pushing turn button locks outside lever, requiring use of key outside to unlock.
  • Turning inside lever unlocks outside lever.
  • Pushing in and turning button locks outside lever, requiring key at all times. Turning inside lever does not unlock outside lever until button is manually turned to unlocked position.
  • Inside lever always free.
CL3855 Classroom F84
  • Deadlocking latchbolt by lever either side except when key outside locks outside lever. (Lever handle is free-wheeling in locked position.)
  • Outside lever unlocked by key outside.
  • Inside lever always free.
CL3857 Storeroom
or Closet 		F86
  • Deadlocking latchbolt by key in outside lever or by rotating inside lever.
  • Outside lever always locked (lever handle is free-wheeling in locked position).
  • Inside lever always free.
CL3861 Entry
or Office 		F82A
  • Deadlocking latchbolt by lever either side, except when push button locks outside lever.
  • Push button released by turning inside lever or by key in outside lever. (Lever handle is free-wheeling in locked position.)
  • Closing door does not release push button.
  • Inside lever always free.
CL3870 Full Dummy
Trim 		_
  • Levers act as pulls only; no operation.
  • Levers are rigid.
CL3880 Passage
Lever x
Blank Plate 		F111
  • Deadlocking latchbolt by lever.
  • Lever on one side; blank plate on the other.
  • Lever always free.
  • For single or double communicating doors.

Cylinders

CL3800 Series

Corbin Russwin Cylinders

Security Type Pins Standard Cylinder Large Format
Interchangeable Core
6-pin CR2000-033 (standard) CR8000
Conventional 7-pin CR2000-033-7 CR8000-7
Security 6-pin CR2010-033 CR8010
Pyramid High Security 7-pin CR2020-033 CR8020
Pyramid Security 7-pin CR2027-033 CR8027
Access 3® AP 6-pin CR2500-033 CR8500
Access 3® AS 6-pin CR2600-033 CR8600
Access 3® AHS 6-pin CR2700-033 CR8700

Plug diameter for standard cylinders is .509, .510 for Access 3®, .552 for security cylinders and .496 for Pyramid cylinders. Cylinders are brass and come with 2 nickel silver keys.

Finishes for all cylinders and cores include 606, 626 or BSP.

To order cylinders separately, specify Part No. x Keyway x Finish (e.g., CR2000-033 x L4 x 626).

Small Format Interchangeable Core

Description Number
6-pin CR8200
7-pin CR8200-7

Cores are available in Best® keyways A, B, C, D, E, F, G, H, J, K, L, M. Cores are brass and come with 2 nickel silver keys.

Finishes: 606, 626

Cylinders

CL3800 Series

Cylinders with Keyways From Other Manufacturers*

Competitive Keyway Number
Schlage® C (0-bitted) CR2400-033-C
Schlage® C (keyed random) CR2400-033-C-KR
SARGENT® LA (0-bitted) CR2400-033-LA

* All cylinders are 6-pin and available in 606 or 626 finish.

Levers That Accept Competitive Interchangeable Core Cylinders*

Cylinder Type Quick Code Tailpiece Pack Only
SFIC 6 or 7-pin (all designs) M08
Tailpiece included 		682F958
Schlage® 6-pin LFIC (NZ, PZ only) M69
Tailpiece included 		697F942

* Core not included.

Adapters Required to Accept Competitive Cylinders*

Competitive Cylinder Quick Code Tailpiece Pack Only
Schlage® fixed core Conventional (21-002, 23-001, 23-013) or
Primus® (20-548, 20-550, 20-748, 20-750) 		M06
Tailpiece included 		682F398
SARGENT® fixed core C10-1 M09
Tailpiece and special lever included 		682F969

* Cylinder not included.

Latches

CL3800 Series

Latches

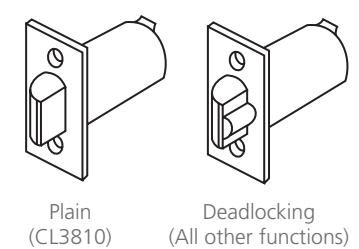

To order optional latchbolt with lockset, see How to Order, page 9. To order latchbolt separately, specify Part No. x Finish (e.g., 599F91 x 626).

Backset and Front Description Plain Deadlocking Throw-Off
1" width, square corner 599F91 599F92 599F93
1" width, rounded corner 599F94 599F95 599F96
2-3/8" Backset 1-1/8" width, square corner 599F97 599F98 599F99
1-1/8" width, rounded corner 600F00 600F01 600F02
1" width, square corner 600F03 600F04 600F05
1" width, rounded corner 600F06 600F07 600F08
2-3/4" Backset 1-1/8" width, square corner (std) 600F09 600F10 600F11
1-1/8" width, rounded corner 600F12 600F13 600F14
1-1/8" width, square corner 600F62 600F63 600F64
3-3/4" Backset 1-1/8" width, rounded corner 600F65 600F66 600F67
1-1/8" width, square corner 600F68 600F69 600F70
5" Backset 1-1/8" width, rounded corner 600F71 600F72 600F73

Strikes

CL3800 Series

Strikes

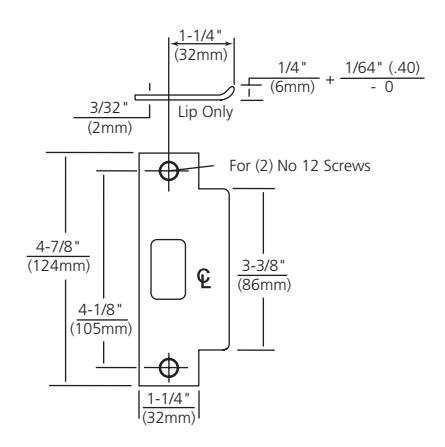

ANSI Curved Lip (standard) Curved Lip "T" Strike

Brass or stainless steel.

4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center.

Optional lip lengths:

1" (25mm), 1-1/8" (29mm), 1-3/8" (35mm), 1-1/2" (38mm), 1-3/4" (44mm), 2" (51mm), 2-1/4" (57mm), 2-1/2" (64mm), 2-3/4" (70mm), 3" (76mm).

To order with lockset, see Quick Codes below.

To order separately, specify 217L13 x Lip Length x Finish.

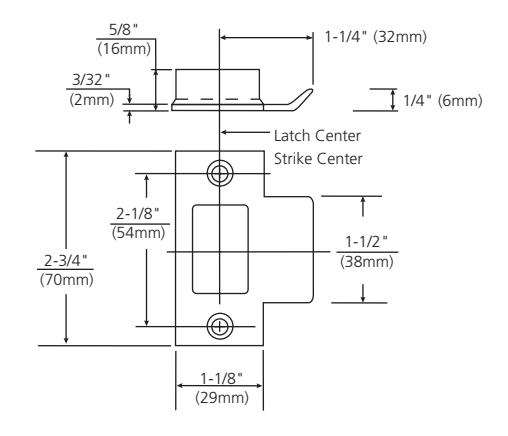

Brass.

2-3/4" (70mm) x 1-1/8" (29mm) x 1-1/4" (32mm) lip to center.

Optional lip lengths: 1" (25mm), 1-1/8" (29mm), 1-3/8" (35mm), 1-1/2" (38mm), 1-3/4" (44mm), 2" (51mm), 2-1/4" (57mm), 2-1/2" (64mm), 2-3/4" (70mm), 3" (76mm).

To order with lockset, see Quick Codes below.

To order separately, specify 586L19 x Lip Length x Finish.

Full Lip Strike

  • Brass or stainless steel.
  • 2-1/4" x 1-3/4" x 1-1/4" lip to center.
  • No optional lip lengths.
  • To order with lockset, see Quick Codes.
  • To order separately specify 680L50M020 x Finish.
  • Anti-rattle tab.

Full Lip Strike – 1/4" Radius Corners

  • Brass or stainless steel.
  • Similar in dimension and function to L50 strike (above) but with radius corners for easy mortising by power tools.
  • To order with lockset, see Quick Codes.
  • To order separately specify 680L51M020 x Finish.
  • Anti-rattle tab.

ANSI Wrought Strike Box

  • Used with ANSI 4-7/8" (124mm) strike.
  • To order with lockset, specify quick code found on page 13. To order separately, specify 120F768.

ANSI
Lip to Center 		ANSI
Curved Lip
Specify 		Curved Lip
Box
Specify 		Full Lip
Specify 		Full Lip
Radius
Corner
Specify
1" (25mm) SA100 SC100 N/A N/A
1-1/8" (29mm) SA118 SC118 N/A N/A
1-1/4" (32mm) SA114 (standard) SC114 SF114 SFR114
1-3/8" (35mm) SA138 SC138 N/A N/A
1-1/2" (38mm) SA112 SC112 N/A N/A
1-3/4" (44mm) SA134 SC134 N/A N/A
2" (51mm) SA200 SC200 N/A N/A
2-1/4" (57mm) SA214 SC214 N/A N/A
2-1/2" (64mm) SA212 SC212 N/A N/A
2-3/4" (70mm) SA234 SC234 N/A N/A
3" (76mm) SA300 SC300 N/A N/A

Quick Codes

CL3800 Series

Cylinder and Keying

Description Specify
Conventional 6-pin (standard)
Conventional 7-pin 7P
Less Cylinder(s) LC
LFIC
LFIC 6-pin C6
LFIC 6-pin Less Core CL6
LFIC 6-pin Disposable Core CT6D
LFIC 6-pin with Temporary Construction Core (Red) CT6R
LFIC 6-pin with Temporary Construction Core (Blue) CT6B
LFIC 6-pin with Temporary Construction Core (Green) CT6G
LFIC 7-pin C7
LFIC 7-pin Less Core CL7
LFIC 7-pin Disposable Core CT7D
LFIC 7-pin with Temporary Construction Core (Red) CT7R
LFIC 7-pin with Temporary Construction Core (Blue) CT7B
LFIC 7-pin with Temporary Construction Core (Green) CT7G
SFIC
SFIC 6-pin C6S
SFIC 6- or 7-pin Small Format Disposable Core CTSD
SFIC 6-pin with Temporary Construction Core (Blue) CT6SB
SFIC 7-pin C7S
SFIC 7-pin with Temporary Construction Core (Blue) CT7SB
Security
Security HS
Security LFIC CHS
Access 3®
Access 3® Patented Fixed Core AP
Access 3® Security Fixed Core AS
Access 3® High Security Fixed Core AHS
Access 3® Patented LFIC ACP
Access 3® Security LFIC ACS
Access 3® High Security LFIC ACHS
Pyramid
Pyramid Security Fixed Core 		PS
Pyramid High Security Fixed Core PHS
Pyramid Security LFIC PCS
Pyramid High Security LFIC PCHS
Pyramid LFIC Less Core CLP
Pyramid with Temporary Construction Core CTP
Pyramid Disposable Core CTPD
Keying and Keys
0-bitted with 2 blank keys (standard)
Keyed Random KR
Construction Master Keyed CMK
2 keys per lock (standard)
More than 2 keys KY# (e.g.,
KY6)

Cylinder and Keying (cont.)

Description Specify
Visual key control (VKC)
No bitting or keyset stamping on keys VKC0
Keys only VKC1
Cylinders and keys (not for AS, AHS, ACS, ACHS, HS,
CHS, PHS or PCHS) 		VKC2
Cylinders only (not for AS, AHS, ACS, ACHS, HS,
CHS, PHS or PCHS) 		VKC3
Concealed key control (CKC)
CKC cylinders with VKC keys CKC2
CKC cylinders only (not for AS, AHS, ACS, ACHS,
PHS, PCHS) 		CKC3
Schlage® C keyway cylinder (0-Bitted or KR) C
SARGENT® LA keyway cylinder (0-Bitted) LA

Door Thickness

Door Thickness Specify
1-3/8" (35mm) - 1-7/8" (48mm) (standard)
2" (51mm) - 2-1/4" (57mm) D214

Backset

Description Specify
2-3/8" (60mm) B238
2-3/4" (70mm) (standard)
3-3/4" (95mm) B334
5" (127mm) B500

Quick Codes

CL3800 Series

Miscellaneous Options

Description
Specify
Spanner head screws
M02
Torx® head screws
M04
Less cylinder, with tailpiece for Schlage® fixed core
M06
cylinder (all designs)
Lever to accept SFIC 6 or 7-pin interchangeable core
M08
(all designs)
Lever to accept SARGENT® cylinder (NZD & PZD
M09
designs only)
Lever to accept Schlage® Interchangeable core
M69
(NZD & PZD design only)
Rounded corners on latch front
M13
1" latch front, square corners (standard for 2-3/8"
M14
backset)
1" latch front, rounded corners
M15
ANSI wrought strike box
M17
Knurling outside and inside
M20*
Knurling outside only
M21*
Knurling inside only
M22*
Abrasive coat outside and inside
M23
Abrasive coat inside only
M24
Abrasive coat outside only
M25
1-1/8" front, square corners (standard for 2-3/4",
M32
3-3/4"and 5" backsets)

* All levers provided in a powder coat finish will be supplied with an abrasive coating

Finishes

CL3800 Series

Finishes

Description Specify
ANSI/BHMA 605 (US3) Bright Brass 605
ANSI/BHMA 606 (US4) Satin Brass 606
ANSI/BHMA 611 (US9) Bright Bronze 611
ANSI/BHMA 612 (US10) Satin Bronze 612
ANSI/BHMA 613 (US10B) Dark Oxidized Satin Bronze, Oil Rubbed 613
613E Dark Oxidized Satin Bronze - equivalent 613E
613L Dark Oxidized Satin Bronze, Clear Coated 613L
ANSI/BHMA 618 (US14) Bright Nickel Plated 618
ANSI/BHMA 619 (US15) Satin Nickel Plated 619
619C Satin Nickel Plated with MicroShield® 619C
ANSI/BHMA 625 (US26) Bright Chromium Plated 625
ANSI/BHMA 626 (US26D) Satin Chromium Plated 626
626C Satin Chromium Plated with MicroShield® 626C
722 Black Oxidized Bronze, Oil Rubbed 722
BSP Black Suede Powder Coat BSP
WSP White Suede Powder Coat WSP

Zinc levers are plated to match ANSI/BHMA finish.

Lock/Cylinder Finish

Lock Cylinder/Core*
605, 606, 611, 612, 613, 613E, 613L, 722 606
618, 619, 625, 626, WSP 626
BSP BSP

* Finish when cylinder provided with lock

How to Order

CL3800 Series

Ordering Examples

Stock Order

Quantity Series/Function Trim Finish Hand
100 CL3855 NZD 626 RHR

Split Trim / Finish Order

Quantity Series/
Function 		Tr im Fin Hand
Outside Inside Outside Inside Пани
12 CL3855 NZD AZD 626 625 RH

Contract/Detailed Order

Quantity Series/
Function 		Trim Finish Hand Door
Thickness 		Backset Optional
Strike 		Misc.
Options 		Optional
Cylinder 		Keying Keyset
24 CL3855 NZD 626 RHR D214 B238 SC114 M17 PHS CKC2 AA1

How to Specify Handing:

Door hands determined from outside (secure side) of door.

Specifications

CL3800 Series

Suggested Specification

Lockset chassis shall be constructed of heavy gauge steel and cast components, plated to protect against rust and corrosion. Locksets shall be adjustable for 1-3/8" (35mm) and 1-7/8" (48mm) or 2" (51mm) and 2-1/4" (57mm) door thickness.

Locksets shall be non-handed, and shall install easily without the need for specialized installation tools. Locksets shall have separate anti-rotation thrubolts in the 6 o'clock and 12 o'clock position outside the 2-1/8" face bore, and shall have no exposed mounting screws.

Locksets shall have solid one-piece, cast levers without plastic inserts, and shall be a minimum of 4" (102mm) in length. Levers shall operate independently, and shall have inside and outside lever return springs. Outside levers on the keyed locksets shall be removable only when the designated key is in the cylinder.

Vandal-resistant levers shall be offered as a standard feature in all locking functions and shall be free-wheeling in the locked condition. Locksets that are rigid in the locked condition, or must require resetting (breakaway) are not acceptable.

All locksets shall carry a five-year mechanical warranty.

All locksets shall comply with the following certifications:

  • UL-cUL 3-Hour Fire Rating
  • ANSI/BHMA A156.2 Series 4000, Grade 2
  • ANSI/BHMA A117.1 Accessibility Code
  • ANSI/BHMA A156.115 & A156.115W Preparations
  • Windstorm/Hurricane (refer to local codes)

All locksets shall be CL3800 Series Grade 2 Key-in-Lever Cylindrical Locksets as manufactured by Corbin Russwin Architectural Hardware.

Notes

CL3800 Series

The ASSA ABLOY Group is the global leader in access solutions. Every day, we help billions of people experience a more open world.

ASSA ABLOY Opening Solutions leads the development within door openings and products for access solutions in homes, businesses and institutions. Our offering includes doors, frames, door and window hardware, mechanical and smart locks, access control and service.

For additional information, contact your ASSA ABLOY Door Security Solutions sales consultant or visit www.corbinrusswin.com.

In U.S.

Corbin Russwin 225 Episcopal Road Berlin, CT 06037 Phone: 800-543-3658 Fax: 800-447-6714 www.corbinrusswin.com

In Canada

ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive Vaughan, Ontario Canada L4K 4T9 Phone: 800-461-3007 Fax: 800-461-8989

www.assaabloydss.ca

MicroShield®

ASSA ABLOY Group companies offer MicroShield®, an anti-microbial coating for door hardware. MicroShield uses proven silver ionbased technology from Agion®, a leading provider of antimicrobial solutions, to stem the spread of bacteria and other microbes.

MicroShield® is a trademark of ASSA ABLOY Access and Egress Hardware Group, Inc.

The Agion antimicrobial is not intended as a substitute for good hygiene. Coated products must still be cleaned to ensure the surfaces will be free of destructive microbes. ASSA ABLOY makes no representations or warranties, express or implied, as to the efficacy of the Agion antimicrobial. A copy of the Agion warranty is available upon request. Agion is a registered trademark of Agion Technologies, Inc., Wakefield, MA, USA.
