CL3500 Series Cylindrical Lever Locksets

Applications

CL3500 Series

Table of Contents

Applications 2
Features 3
Functions 4
Trim Designs 6
Options & Accessories7-9
How to Order 10
Quick Codes11-12
How to Specify 13

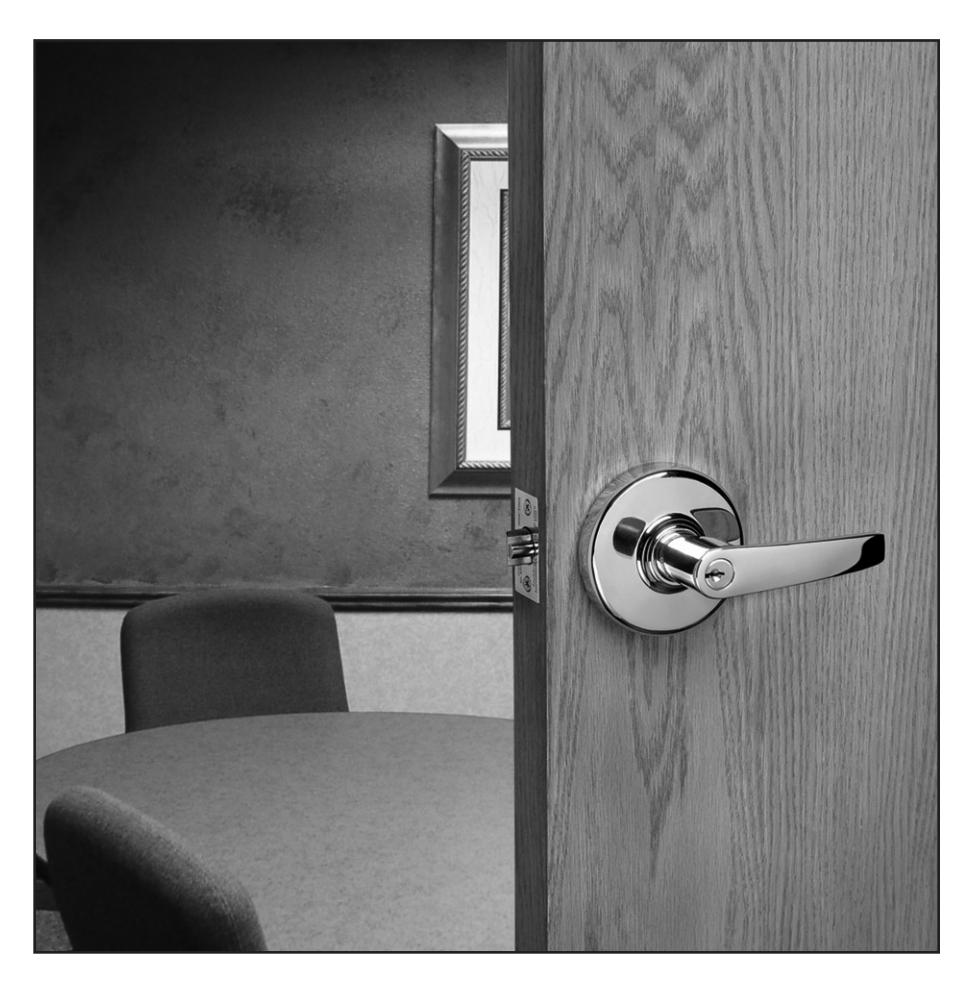

Applications

A heavy-duty Grade 1 lever lockset, ideal for commercial, institutional and multifamily applications such as:

  • Interior offices
  • Apartment complexes
  • Convalescent and elderly care facilities
  • Hotels
  • Restaurants
  • Retail centers

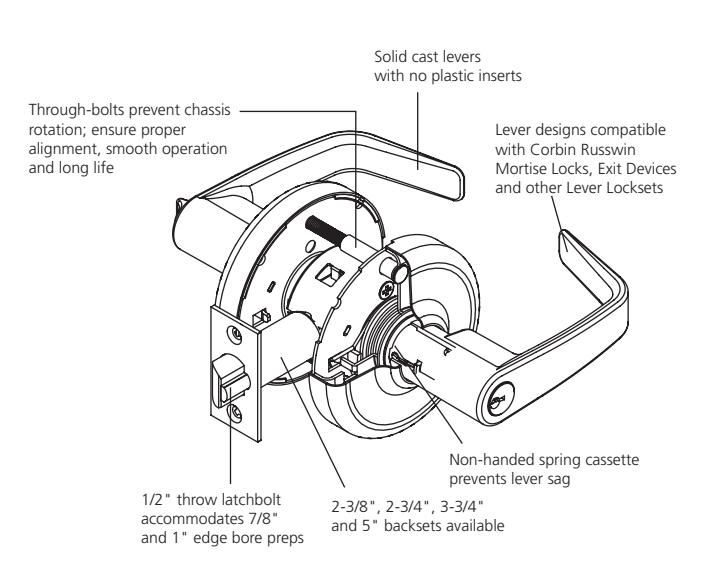

Advantages

  • Non-handed
  • Solid cast levers
  • Independent return springs to prevent lever sag
  • Through-bolted cylindrical chassis prevents rotation and ensures proper alignment
  • Designed to meet ANSI/BHMA Grade 1
  • Trim and keying compatible with other Corbin Russwin locksets

www.corbinrusswin.com

Features

CL3500 Series

Features

Handing

Non-handed.

Door Thickness

1-3/4" (45mm) standard (fits doors 1-3/8" - 1-3/4" (35mm - 45mm))

Backset

2-3/4" (70mm) standard. Optional: 2-3/8"(60mm), 3-3/4" (95mm) and 5" (127mm); see Quick Codes page 12.

Lock Chassis

Steel, zinc dichromated for corrosion resistance.

Front

Brass, Bronze or Stainless Steel. 2-1/4" x 1-1/8" (29mm) standard for 2-3/4" (70mm), 3-3/4" (95mm) and 5" (127mm) backset. 2-1/4" x 1" (57mm x 25mm) standard for 2-3/8" (60mm) backset. Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).

Optional: rounded corner fronts; 1" (25mm) fronts; see Quick Codes page 12.

Latchbolt

Brass, chrome plated with 1/2" (13mm) throw.

Auxiliary Latchbolt

Deadlocking latchbolt prevents manipulation when door is closed.

Strike

Wrought brass or stainless steel ANSI curved lip, 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available; see Quick Codes page 12.

Cylinder

Brass, 6-pin, L4 keyway, 0-bitted standard. Optional Cylinders available; see Quick Codes page 11.

Keying Features Available

7-pin

Master keying

Construction master keying

Visual key control

Concealed key control

Interchangeable core (LFIC or SFIC)

Security

Security IC

Access 3® Patented

Access 3® Security

Access 3® High Security

Access 3® Patented LFIC

Access 3® Security LFIC

Access 3® High Security LFIC Pyramid Security Pyramid Security LFIC Pyramid High Security Pyramid High Security LFIC

Keys

Two nickel-silver standard.

Warranty

Seven-year limited.

MicroShield®

CL3500 series locks are available with MicroShield® antimicrobial coating. MicroShield is a revolutionary hardware finish coating, using a silver ion based technology, which inhibits the growth of bacteria, algae, yeast, fungus, mold and mildew. MicroShield is non-toxic and lasts for the lifetime of the finish to which it is applied. To order, suffix option code "C".

Note: MicroShield® coating may vary finish color from architectural standards. MicroShield is not intended as a substitute for traditional infection control programs such as hand hygiene or use of disinfectants. Coated product must still be cleaned to insure the surfaces will be free of destructive microbes. Corbin Russwin makes no representations or warranties, express or implied, as to the efficacy of the MicroShield antimicrobial.

California State Reference Code

(Formerly Title 19, California State Fire Marshal Standard)

All levers with returns comply; levers return to within 1/2" of door face.

UL-cUL

All locks listed for "A" label and lesser class single doors, 4' x 10'. Letter F and UL symbol on latch front indicate listing.

Any retrofit or other field modification to a fire-rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire- rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

Certification/Compliance

ANSI/BHMA

Designed to meet A156.2 Series 4000, Grade 1. Meets A117.1 Accessibility Code.

Functions

CL3500 Series

Outside Inside Series/
Function 		Туре ANSI No. Function Description
CL3510 Passage
or Closet 		F75
  • Latchbolt by lever either side.
  • Both levers always free.
CL3520 Privacy
Bedroom or
Bathroom 		F76A
  • Throw-off latchbolt by lever either side.
  • Outside lever locked by push button.
  • Outside lever unlocked by emergency release tool outside, by rotating lever or by closing door.
  • Inside lever always free.
CL3551 Entrance or
Office 		F109
  • Deadlocking latchbolt by lever either side except when turn button locks outside lever. Pushing turn button locks outside lever, requiring use of key outside to unlock.
  • Turning inside lever unlocks outside lever (when button is pushed in but not turned).
  • Pushing in and turning button locks outside lever, requiring key at all times. Turning inside lever does not unlock outside lever until button is manually turned to unlocked position.
  • Inside lever always free.
CL3555 Classroom F84
  • Deadlocking latchbolt by lever either side except when key outside locks outside lever.
  • Outside lever unlocked by key outside.
  • Inside lever always free.
CL3557 Storeroom or
Closet 		F86
  • Deadlocking latchbolt by key in outside lever or by rotating inside lever.
  • Outside lever always rigid.
  • Inside lever always free.
CL3561 Entrance or
Office 		F82A
  • Deadlocking latchbolt by lever either side, except when push button locks outside lever.
  • Push button released by turning inside lever or by key in outside lever.
  • Closing door does not release push button.
  • Inside lever always free.

\ensuremath{\mbox{\fontfamily{0.05ex}{$\otimes$}}} Indicates optional interchangeable core available; see How to Order, page 10.

Indicates lever always rigid.

Functions

CL3500 Series

Outside
Inside 		Series/
Function 		Type ANSI No. Function Description
CL3580 Passage
Lever x Blank
Plate 		F111 • Deadlocking latchbolt by lever.
• Lever on one side; blank plate on other side.
• Lever always free.
• For single or double communicating doors.
CL3581 Classroom
x Blank Plate 		F113 • Deadlocking latchbolt by lever, except when lever is locked by key.
• Lever on one side, blank plate on other side.
CL3582 Store Door F91 • Deadlocking latchbolt by lever either side, except when key either side
locks both levers.
• Keyed alike unless otherwise specified.
CL3550
CL3493 		Half Dummy
Trim 		–– • Lever acts as pull only; no operation.
CL3570 Full Dummy
Trim 		–– • Levers act as pulls only; no operation.

Indicates optional interchangeable core available; see How to Order, page 10.

Indicates lever always rigid.

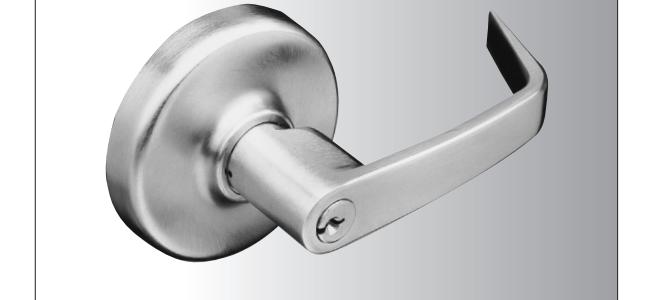

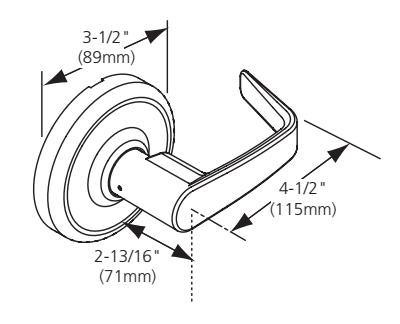

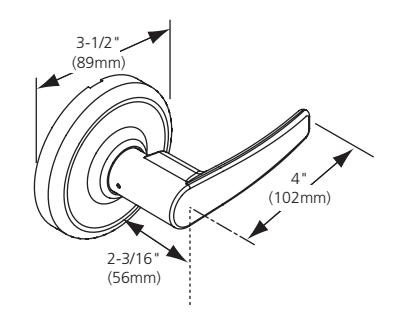

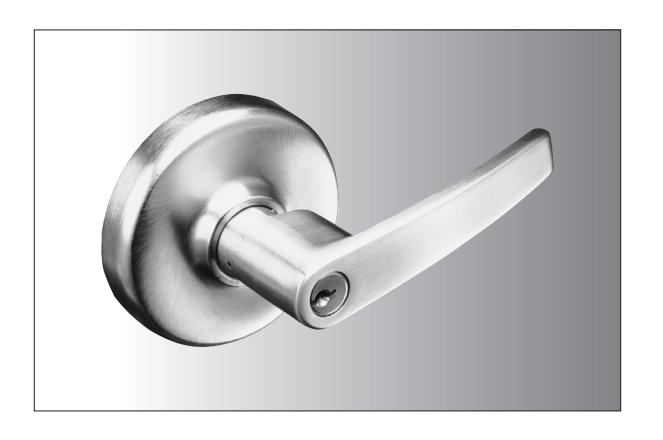

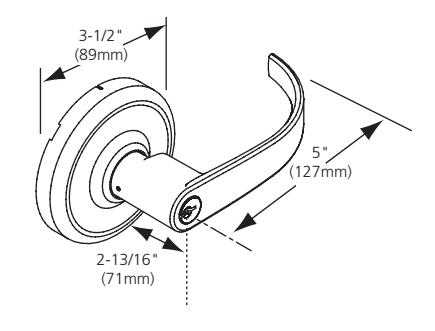

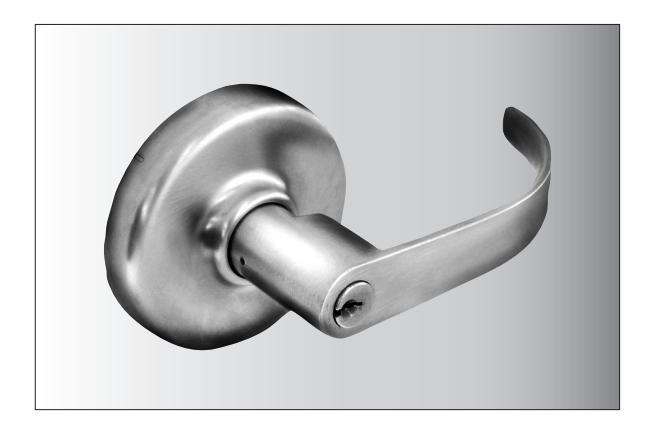

Trim Designs

CL3500 Series

Armstrong

AZD

Lever: Solid cast zinc Rose: Wrought brass

Newport

Complies with codes requiring lever to return to within 1/2" (13mm) of door face.

Lever: Solid cast zinc Rose: Wrought brass

Princeton

Complies with codes requiring lever to return to within 1/2" (13mm) of door face.

PZD

Lever: Solid cast zinc Rose: Wrought brass

Options & Accessories

CL3500 Series

Latches

To order optional latchbolt with lockset, see How to Order, page 10. To order latchbolt separately, specify Part No. x Finish (e.g., 599F91 x 626).

Backset and Front Description Plain Deadlocking Throw-Off
1" width, square corner 599F91 599F92 599F93
2-3/8" Backset 1" width, rounded corner 599F94 599F95 599F96
Z-3/8 Backset 1-1/8" width, square corner 599F97 599F98 599F99
1-1/8" width, rounded corner 600F00 600F01 600F02
1" width, square corner 600F03 600F04 600F05
2-3/4" Backset 1" width, rounded corner 600F06 600F07 600F08
2-3/4 Dackset 1-1/8" width, square corner 600F09 600F10 600F11
1-1/8" width, rounded corner 600F12 600F13 600F14
3-3/4" Backset 1-1/8" width, square corner 600F62 600F63 600F64
3-3/4 Backset 1-1/8" width, rounded corner 600F65 600F66 600F67
Ell Dankert 1-1/8" width, square corner 600F68 600F69 600F70
5" Backset 1-1/8" width, rounded corner 600F71 600F72 600F73

Plain (CL3510)

Deadlocking (All other functions)

Throw-Off (CL3520)

Housing diameter 7/8" for all models. 1" diameter latch sleeve furnished with each latchbolt.

Strikes

ANSI Curved Lip (standard)

Brass or stainless steel.

4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to

Optional lip lengths: 1" (25mm), 1-1/8" (29mm), 1-3/8" (35mm), 1-1/2" (38mm), 1-3/4" (44mm), 2" (51mm), 2-1/4" (57mm), 2-1/2" (64mm), 2-3/4" (70mm), 3" (76mm).

To order separately, specify 217L13 x Lip Length x Finish.

Curved Lip "T" Strike

2-3/4" (70mm) x 1-1/8" (29mm) x 1-1/4" (32mm) lip to center

Optional lip lengths: 1" (25mm), 1-1/8" (29mm), 1-3/8" (35mm), 1-1/2" (38mm), 1-3/4" (44mm).

2" (51mm), 2-1/4" (57mm), 2-1/2" (64mm), 2-3/4" (70mm), 3" (76mm)

To order optional strike with lockset, see Quick Codes, page 12.

To order separately, specify 586L19 x

Lip Length x Finish.

ANSI Wrought Strike Box

To order with lockset, see How to Order, page 12. To order separately, specify 120F768.

Rabbeted Front and Strike

Brass or bronze.

4" (102mm) x 5/8" (16mm) for 1/2" (13mm) rabbet.

No optional lip lengths.

To order with lockset, see Quick Codes, page 12.

To order separately, specify 601F28 x Finish.

Full Lip Strike

Brass.

2-3/4" (70mm) x full lip x 1-1/8" (29mm) lip to center. No optional lip lengths. To order separately specify 607F76.

Options & Accessories

CL3500 Series

Corbin Russwin Cylinders

Security Type Pins Standard Cylinder Large Format
Interchangeable Core
6-pin CR2000-033 (standard) CR8000
Conventional 7-pin CR2000-033-7 CR8000-7
Security 6-pin CR2010-033 CR8010
Pyramid High Security 7-pin CR2020-033 CR8020
Pyramid Security 7-pin CR2027-033 CR8027
Access 3® - Patented 6-Pin CR2500-033 CR8500
Access 3® - Security 6-Pin CR2600-033 CR8600
Access 3® - High Security 6-Pin CR2700-033 CR8700

Plug diameter for standard cylinders is .509, .510 for Access 3®, .552 for security cylinders and .496 for Pyramid cylinders. Cylinders are brass and come with 2 nickel silver keys.

Finishes for all cylinders and cores include 606, 626 or BSP.

To order cylinders separately, specify Part No. x Keyway x Finish (e.g., CR2000-033 x L4 x 626).

Small Format Interchangeable Core

Description Number
6-pin CR8200
7-pin CR8200-7

Cores are available in Best® keyways A, B, C, D, E, F, G, H, J, K, L, M. Cores are brass and come with 2 nickel silver keys.

Finishes: 606, 626

Options & Accessories

CL3500 Series

Cylinders with Competitive Keyways*

Competitive Keyway Number
Schlage® C (0-bitted) CR2400-033-C
Schlage® C (keyed random) CR2400-033-C-KR
SARGENT® LA (0-bitted) CR2400-033-LA

* All cylinders are 6-pin and available in 606 or 626 finish.

Levers That Accept Competitive Interchangeable Core Cylinders*

Cylinder Type Quick Code Tailpiece Pack Only
SFIC 6 or 7-pin (all designs) M08
Tailpiece included 		682F958
Schlage® 6-pin LFIC (NZ, PZ only) M69
Tailpiece included 		697F942

* Core not included.

Adapters Required to Accept Competitive Cylinders*

Competitive Cylinder Quick Code Tailpiece Pack Only
Schlage® fixed core Conventional (21-002, 23-001, 23-013) or
Primus® (20-548, 20-550, 20-748, 20-750) 		M06
Tailpiece included 		682F398
SARGENT® fixed core C10-1 M09
Tailpiece and special lever included 		682F969

* Cylinder not included.

How to Order

CL3500 Series

Ordering Examples

Stock Order

Quantity Series/Function Trim Finish
100 CL3555 NZD 626

Split Trim/Finish Order

Quantity Series/
Function 		Series/ Tr im Finish
Function Outside Inside Outside Inside
12 CL3555 NZD AZD 626 625

Where to find ordering information and Quick Codes

Series/Function Pages 4-5
Trim Designs Page 6
Cylinder and Keying Page 11
Finish Page 11
Strike Page 12
Door Thickness Page 12
Backset Page 12
Miscellaneous Options Page 12

Contract / Detailed Order

Quantity Series/
Function 		Trim Finish Backset Optional
Strike 		Misc.
Options 		Optional
Cylinder 		Keying Keyset
24 CL3555 PZD 626 B238 SC200 M04-M17 C6 VKC1 AA1

Quick Codes

CL3500 Series

Cylinder and Keying

Description Specify
Conventional 6-pin (standard)
Conventional 7-pin 7P
Less Cylinder(s) LC
LFIC
LFIC 6-pin C6
LFIC 6-pin Less Core CL6
LFIC 6-pin Disposable Core CT6D
LFIC 6-pin with Temporary Construction Core (Red) CT6R
LFIC 6-pin with Temporary Construction Core (Blue) CT6B
LFIC 6-pin with Temporary Construction Core (Green) CT6G
LFIC 7-pin C7
LFIC 7-pin Less Core CL7
LFIC 7-pin Disposable Core CT7D
LFIC 7-pin with Temporary Construction Core (Red) CT7R
LFIC 7-pin with Temporary Construction Core (Blue) CT7B
LFIC 7-pin with Temporary Construction Core (Green) CT7G
SFIC
SFIC 6-pin C6S
SFIC 6- or 7-pin Small Format Disposable Core CTSD
SFIC 6-pin with Temporary Construction Core (Blue) CT6SB
SFIC 7-pin C7S
SFIC 7-pin with Temporary Construction Core (Blue) CT7SB
Security
Security HS
Security LFIC CHS
Access 3®
Access 3® Patented Fixed Core AP
Access 3® Security Fixed Core AS
Access 3® High Security Fixed Core AHS
Access 3® Patented LFIC ACP
Access 3® Security LFIC ACS
Access 3® High Security LFIC ACHS
Pyramid
Pyramid Security Fixed Core PS
Pyramid High Security Fixed Core PHS
Pyramid Security LFIC PCS
Pyramid High Security LFIC PCHS
Pyramid LFIC Less Core CLP
Pyramid with Temporary Construction Core CTP
Pyramid Disposable Core1 CTPD
Keying and Keys
0-bitted with 2 blank keys (standard)
Keyed Random KR
Construction Master Keyed CMK
2 keys per lock (standard)
More than 2 keys KY# (e.g.,
KY6)

Cylinder and Keying (cont.)

Description Specify
Visual key control (VKC)
No bitting or keyset stamping on keys VKC0
Keys only VKC1
Cylinders and keys (not for AS, AHS, ACS, ACHS, HS,
CHS, PHS or PCHS) 		VKC2
Cylinders only (not for AS, AHS, ACS, ACHS, HS,
CHS, PHS or PCHS) 		VKC3
Concealed key control (CKC)
CKC cylinders with VKC keys CKC2
CKC cylinders only (not for AS, AHS, ACS, ACHS,
PHS, PCHS) 		CKC3
Schlage® C keyway cylinder (0-Bitted or KR) C
SARGENT® LA keyway cylinder (0-Bitted) LA

Finishes

Description Specify
ANSI/BHMA 605 (US3) Bright Brass 605
ANSI/BHMA 606 (US4) Satin Brass 606
ANSI/BHMA 611 (US9) Bright Bronze 611
ANSI/BHMA 612 (US10) Satin Bronze 612
ANSI/BHMA 613 (US10B) Dark Oxidized Satin Bronze,
Oil Rubbed 		613
613E Dark Oxidized Satin Bronze -
equivalent 		613E
613L Dark Oxidized Satin Bronze,
Clear Coated 		613L
ANSI/BHMA 618 (US14) Bright Nickel Plated 618
ANSI/BHMA 619 (US15) Satin Nickel Plated 619
619C Satin Nickel Plated with
Microshield® 		619C
ANSI/BHMA 625 (US26) Bright Chromium Plated 625
ANSI/BHMA 626 (US26D) Satin Chromium Plated 626
626C Satin Chromium Plated with
MicroShield® 		626C
722 Black Oxidized Bronze, oil
rubbed 		722
BSP Black Suede Powder Coat BSP
WSP White Suede Powder Coat WSP

Zinc levers are plated to match ANSI/BHMA finish.

Lock/Cylinder Finish

Lock Cylinder/Core*
605,606,611,612,613,613E,613L,722 606
618,619,625,626,WSP 626
BSP BSP

* Finish when cylinder provided with lock

Quick Codes

CL3500 Series

Strikes

ANSI
Lip to Center 		ANSI Curved Lip
Specify 		T-Strike Curved
Lip Box Specify 		Full Lip
Specify
1" (25mm) SA100 SC100
1-1/8" (29mm) SA118 SC118 SF118
1-1/4" (32mm) SA114 (standard) SC114
1-3/8" (35mm) SA138 SC138
1-1/2" (38mm) SA112 SC112
1-3/4" (44mm) SA134 SC134
2" (51mm) SA200 SC200
2-1/4" (57mm) SA214 SC214
2-1/2" (64mm) SA212 SC212
2-3/4" (70mm) SA234 SC234
3" (76mm) SA300 SC300
Rabbeted front and strike Specify SR118

Door Thickness

Door Thickness Specify
1-3/4"(44mm) (standard)*
1-3/8" (35mm) D138**

* Fits doors 1-3/8" -1-3/4"

Backset

Description Specify
2-3/8" (60mm) B238
2-3/4" (70mm) B234 (standard)
3-3/4" (95mm) B334
5" (127mm) B500

Miscellaneous Options

Description Specify
Spanner head screws M02
Torx® head screws M04
Less cylinder, with tailpiece for Schlage® fixed core
cylinder (all designs) 		M06
Lever to accept 6 or 7-pin SFIC (all designs) M08
Lever to accept SARGENT® fixed core cylinder (NZD &
PZD designs only) 		M09
Lever to accept Schlage® LFIC (NZD & PZD design only) M69
Rounded corners on latch front M13
1" latch front, square corners (standard for 2-3/8"
backset) 		M14
1" latch front, rounded corners M15
ANSI wrought strike box M17
Knurling outside and inside M20*
Knurling outside only M21*
Knurling inside only M22*
Abrasive coat outside and inside M23
Abrasive coat inside only M24
Abrasive coat outside only M25
1-1/8" front, square corners (standard for 2-3/4",
3-3/4"and 5" backsets) 		M32

* All levers provided in a powder coat finish will be supplied with an abrasive coating

** Lock preset to for 1-3/8" door. Supplied with 2-3/8" backset latch unless B234 specified

How to Specify

CL3500 Series

Suggested Specification

All locksets shall be CL3500 Series Heavy-Duty Cylindrical Lever Locksets as manufactured by Corbin Russwin Architectural Hardware.

A single lock chassis shall accommodate 1-3/8" (35mm) to 1-3/4" (44mm) thick doors. Locksets shall be non-handed. Locksets shall have through-bolted anti-rotation rose liners and shall contain no exposed screws. Chassis mounting screws may be accessed only when the lever and rose are removed.

Locksets shall have solid cast levers with no plastic inserts, and wrought roses on both sides. Locksets shall have lever return spring cassettes to prevent lever sag.

Levers shall operate independently. Lever handles shall be a minimum of 4" (102mm) in overall length and shall provide a minimum of 2" clearance from the surface of the door to the inside of the lever at the midpoint, and may also have a return that comes to within 1/2" of the door surface. Levers on keyed locksets shall be removable only when the designated key is in the cylinder.

A single lockset shall accommodate 6 or 7-pin conventional cylinders and all levels of master keying, construction master keying, visual key control, high security and interchangeable core. Cylinders may be easily changed by removing the lever without disassembling the lockset.

All locksets shall be listed by Underwriters Laboratories for A label and lesser class single doors, 4'x10'.

Certification:

Designed to meet ANSI/BHMA A156.2 Series 4000, Grade 1 ANSI A117.1 Accessibility Code California State Reference Code (formerly Title 19, California State Fire Marshal Standard)

All locks, trim and cylinders shall be from one manufacturer.

All locksets shall carry a seven-year limited warranty.

For additional information, contact your ASSA ABLOY Door Security Solutions sales consultant or visit www.corbinrusswin.com.

In U.S.

Corbin Russwin Architectural Hardware 225 Episcopal Road Berlin, CT 06037 Phone: 800-543-3658 Fax: 800-447-6714 www.corbinrusswin.com

In Canada

ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive Vaughan, Ontario Canada L4K 4T9 Phone: 800-461-3007 Fax: 800-461-8989 www.assaabloydss.ca

ASSA ABLOY Group companies offer MicroShield®, an anti-microbial coating for door hardware. MicroShield uses proven silver ion-based technology from Agion®, a leading provider of antimicrobial solutions, to stem the spread of bacteria and other microbes.

MicroShield® is a registered trademark of ASSA ABLOY Access and Egress Hardware Group, Inc.

The Agion antimicrobial is not intended as a substitute for good hygiene. Coated products must still be cleaned to ensure the surfaces will be free of destructive microbes. ASSA ABLOY makes no representations or warranties, express or impled, as to the efficacy of the Agion antimicrobial. A copy of the Agion warranty is available upon request. Agion is a registered trademark of Agion Technologies, Inc., Wakefield, MA, USA.
