CL3300 Series Cylindrical Lever Locksets

Overview

CL3300 Series

Table of Contents

Overview2
Features3
Functions5
Electrified Lockset8

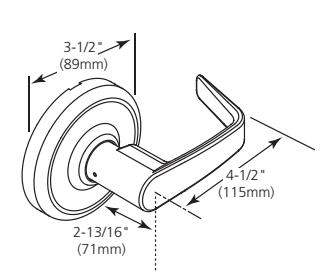

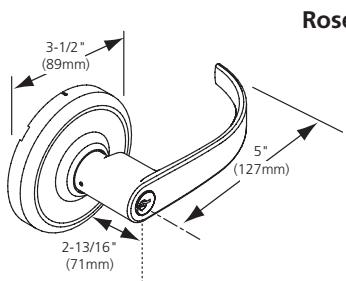

Trim Designs11
Options and Accessories12
How to Order15
Quick Codes16
How to Specify 18

Quality

The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.

Classroom Security

The CL3352 Classroom Intruder function is the solution to classroom security: a double cylinder lockset that allows locking of the outside lever from either side. Egress is always possible with the standard anti-panic feature, whether the door is locked or not. And because a key is needed to secure the door from either side, students cannot lock a teacher out of the classroom.

Vandal Resistance

Engineered to meet today's increased security needs, the CL3300 series offers several advantages. All functions feature the Lever Release™ design for vandal resistance, allowing the outside lever to rotate when in the locked position.

Access Control

For access control, the CL33900 Series Electrified Cylindrical lockset utilizes the proven CL3300 series lockset and features an integral continuous duty solenoid that allows installation in a standard cylindrical prep. Available in Fail Safe or Fail Secure, the CL33900 is ideal for door control where increased security is necessary at all times, while meeting life safety codes.

Key Advantages

  • EZ-Install components significantly reduce installation time
  • Lever Release™ lever design for vandal resistance
  • Several security key systems available (Access 3®, Pyramid, etc.)
  • Access control available with CL33900 Electrified lockset

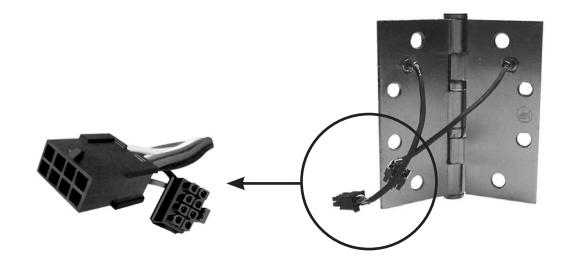

  • ElectroLynx® connectors are standard on all Corbin Russwin electrified products. McKinney QC hinges are recommended to make a complete plug and play application.
  • Independent return springs prevent lever sag
  • Covers ANSI/BHMA Door Prep A156.115

www.corbinrusswin.com

Features

CL3300 Series

Features

Handing

Non-handed (Except FZD trim)

Door Thickness

1-3/4" (44mm) - 2" (51mm) standard. Optional: Over 2"(51mm) - 2-1/4" (57mm); see Quick Codes, page 16.

Lock Chassis

Steel, zinc dichromated for corrosion resistance.

Backset

2-3/4" (70mm) standard. Optional: 3-3/4" (95mm) and 5" (127mm); see Quick Codes, page 16.

Latchbolt

Stainless Steel, 1/2" (13mm) throw. Optional: 3/4" (19mm) throw deadlocking fire latch for pair of doors; see Quick Codes, page 17.

Auxiliary Latchbolt

Deadlocking latchbolt prevents manipulation when door is closed.

Front

Wrought brass, bronze, or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Optional: rounded corners; see Quick Codes, page 17.

Strike

Wrought brass or stainless steel ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center.

Optional strikes, lip lengths and ANSI wrought strike box available; see Quick Codes, page 17.

Cylinder

Brass, 6-pin L4 keyway, 0-bitted standard.

Keying Features Available

Master keying Construction master keying Visual key control Concealed key control Interchangeable core (LFIC or SFIC) Security Security LFIC Pyramid Pyramid LFIC

Access 3® Access 3® LFIC

Keys

Two nickel silver standard.

Warranty

Seven-year limited.

Classroom Security

The CL3352 Classroom Intruder function lockset allows locking of the outside lever from either side with the key. In a panic situation, the Key Turn Indicator serves as a

quick reference for locking the door. And egress is always possible with the "antipanic" feature, which keeps the outside lever locked if the inside lever is activated.

MicroShield®

CL3300 series locks are available with MicroShield® antimicrobial coating. MicroShield is a revolutionary hardware finish coating, using a silver ion based technology, which inhibits the growth of bacteria, algae, yeast, fungus, mold and mildew. MicroShield is non-toxic and lasts for the lifetime of the finish to which it is applied. To order, suffix option code "C". Note: MicroShield® coating may vary finish color from architectural standards. MicroShield is not intended as a substitute for traditional infection control programs such as hand hygiene or use of disinfectants. Coated product must still be cleaned to insure the surfaces will be free of destructive microbes. Corbin Russwin makes no representations or warranties, express or implied, as to the efficacy of the MicroShield antimicrobial.

Tactile Levers

The CL3300 offers tactile options as a special feature applied to lever handles to assist the visually impaired or for safety precautions. Knurling, which is a laser etching of two rows of small holes, or an abrasive coating, which is a surface applied tape, can be applied to the backside of the lever. These options are available on all trim designs and can be specified for the inside, outside or both levers. See Quick Codes, page 17.

Lead Lining

Optional lead lining available for radiation protection in applications such as X-ray clinics, hospitals and government buildings. Specify Quick Code M28.

Certification/Compliance

ANSI/BHMA

Certified A156.2 Series 4000, Grade 1. Meets A117.1 Accessibility Code.

California State Reference Code

(Formerly Title 19, California State Fire Marshal Standard)

All levers with returns comply; levers return to within 1/2" (13mm) of door face.

UL-cUL

All locks with 1/2" (13mm) throw latchbolt listed for A label and lesser class 4' x 10' single doors. All locks with 3/4" (19mm) throw latchbolt listed for A label and lesser class 8' x 10' pairs of doors. Letter F and UL symbol on latch front indicate listing.

Any retrofit or other field modification to a fire-rated opening can potentially impact the fire-rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing firerated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

Windstorm/Hurricane Certified (refer to local codes).

Features

CL3300 Series

Finishes

Description Specify
ANSI/BHMA 605 (US3) Bright Brass 605
ANSI/BHMA 606 (US4) Satin Brass 606
ANSI/BHMA 611 (US9) Bright Bronze 611
ANSI/BHMA 612 (US10) Satin Bronze 612
ANSI/BHMA 613 (US10B) Dark Oxidized Satin Bronze, Oil
Rubbed 		613
613E Dark Oxidized Satin Bronze -
equivalent 		613E
613L Dark Oxidized Satin Bronze, Clear
Coated 		613L
ANSI/BHMA 618 (US14) Bright Nickel Plated 618
ANSI/BHMA 619 (US15) Satin Nickel Plated 619
619C Satin Nickel Plated with
MicroShield® 		619C
ANSI/BHMA 625 (US26) Bright Chromium Plated 625
ANSI/BHMA 626 (US26D) Satin Chromium Plated 626
626C Satin Chromium Plated with MicroShield® 626C
ANSI/BHMA 722 Black Oxidized Bronze, Oil Rubbed 722
BSP Black Suede Powder Coat BSP
WSP White Suede Powder Coat WSP
Zinc levers are plated to match ANSI/ BHMA finish.

Stainless Steel 1/2" (13mm) throw latch

Anti-rotational through-bolts at 6 and 12 o'clock positions 4 solid, cast lever options, with LEVER RELEASE design Heavy-duty lever return springs 3-1/2" (89mm) Rose scalp Expanded keying options

design

Functions

CL3300 Series

Outside Inside Series/Function Туре ANSI No. Function Description
CL3310 Passage or
Closet 		F75
  • Latchbolt by lever either side.
  • Both levers always free.
CL3320 Privacy,
Bedroom or
Bathroom 		F76A
  • Throw-off latchbolt by lever.
  • Outside lever locked by push button. (Lever handle is freewheeling in locked position.)
  • Outside lever unlocked by emergency release tool outside, by rotating inside lever or by closing door.
  • Inside lever always free.
CL3320H Hospital
Privacy 		_
  • Outside lever locked by inside push button. (Lever handle is freewheeling in locked position.)
  • Outside lever unlocked by simultaneously depressing outside pushbutton while rotating lever.
  • Rotating inside lever or closing door also unlocks outside lever.
  • Outside lever handle is freewheeling when locked.
CL3320TO Time Out
Lock 		_
  • Deadlocking latchbolt by lever either side (passage) unless push button depressed and held by caretaker (detention side becomes freewheeling). Lock returns to passage mode upon release of push button.
  • Push button automatically releases when caretaker releases push button.
  • Both levers always free.
CL3329 Hotel or
Motel 		F93
  • Throw-off latchbolt by lever inside or by key outside.
  • Push button shuts out all keys except emergency key, and projects occupancy indicator in face of cylinder. (Lever handle is freewheeling in locked position.)
  • Push button released by turning inside lever or by closing door.*
  • Outside lever always locked.
  • Inside lever always free.
  • Not available with other manufacturers keyways
CL3332 Institutional
or Utility 		F87
  • Deadlocking latchbolt by key either side. (Lever handles are freewheeling in locked position.)
  • Should be used only in office or room with multiple entries.
  • Keyed alike unless otherwise specified.
CL3340 Patio or
Privacy 		F77A
  • Throw-off latchbolt by lever.
  • Outside lever locked by push button. (Lever handle is freewheeling in locked position.)
  • Outside lever unlocked by operating inside lever or closing door.
  • Inside lever always free.
  • Should not be used in rooms that have no other entrance.
CL3340NT Exit Latch F89
  • Deadlocking latchbolt by lever inside.
  • Outside lever always locked. (Lever handle is freewheeling in locked position.)
  • Inside lever always free.

Indicates optional interchangeable core available; see Quick Codes, page 16.

Indicates freewheeling lever in locked position.

* Unless push button has been fixed in locked position by spanner key (furnished). When push button is fixed by spanner key, lock is operable only by emergency key or by display key.

Functions

CL3300 Series

Outside
Inside 		Series/Function Type ANSI No. Function Description
CL3351 Entrance or
Office 		F109 • Deadlocking latchbolt by lever either side, except when turn
button locks outside lever. Pushing turn button in locks
outside lever, requiring use of key outside to unlock. (Lever
handle is freewheeling in locked position.)
• Turning inside lever unlocks outside lever.
• Pushing in and turning button locks outside lever, requiring
key at all times. Turning inside lever does not unlock outside
lever until button is manually turned to unlocked position.
• Inside lever always free.
CL3352 Classroom
Intruder 		F110 • Deadlocking latchbolt by inside lever or outside lever except
when key inside or outside locks outside lever. (Lever handle
is freewheeling in the locked position.)
• Outside lever is locked and unlocked by turning the key in
the inside or outside lever.
• Inside lever always free.
CL3355 Classroom F84 • Deadlocking latchbolt by lever either side, except when key
outside locks outside lever. (Lever handle is freewheeling in
locked position.)
• Outside lever unlocked by key outside.
• Inside lever always free.
CL3357 Storeroom
or Closet 		F86 • Deadlocking latchbolt by key in outside lever or by rotating
inside lever. (Lever handle is freewheeling in locked
position.)
• Inside lever always free.
CL3359 Barrier Free
Storeroom or
Public
Restroom 		— • Deadlocking latchbolt by inside lever.
• Key outside unlocks outside lever to retract latchbolt.
• Key is retained in unlock mode.
• When key is removed outside lever is locked. (Lever handle
is freewheeling in locked position.)
• Inside lever always free.
CL3361 Entry or
Office 		F82A • Deadlocking latchbolt by lever either side, except when
push button locks outside lever.
• Push button released by turning inside lever or by key
in outside lever. (Lever handle is freewheeling in locked
position.)
• Closing door does not release push button.
• Inside lever always free.
CL3362 Communicating F80 • Deadlocking latchbolt by lever either side, except when key
in either lever locks and unlocks the lever independently of
the other. (Lever handle is freewheeling in locked position.)
• Keyed alike unless otherwise specified.
• Should be used only in office or room with multiple entries.
CL3372 Apartment,
Exit or Public
Toilet 		F88 • Deadlocking latchbolt by lever either side, except when key
inside locks outside lever. (Lever handle is freewheeling in
locked position.)
• Key outside retracts latchbolt.
• Key inside unlocks outside lever.
• Inside lever always free.
• Keyed alike unless otherwise specified.

Indicates optional interchangeable core available; see Quick Codes, page 16.

Indicates freewheeling lever in locked position.

Functions

CL3300 Series

Outside
Inside 		Series/Function Type ANSI No. Function Description
CL3375 Corridor/
Dormitory
Lock 		F90 • Throw-off latchbolt by lever either side except when
pushbutton or key locks outside lever.
• Pushbutton released by turning inside lever or by closing
door.
• Depressed pushbutton indicates door is locked.
• When outside lever is locked by key, it can only be
unlocked by key.
• Inside lever always free.
• Outside lever rigid when locked.
CL3380 Passage
Lever x
Blank Plate 		F111 • Deadlocking latchbolt by lever.
• Lever on one side; blank plate on other side.
• Lever always free.
• For single or double communicating doors.
CL3381 Classroom x
Blank Plate 		F113 • Deadlocking latchbolt by lever, except when lever is
locked by key. (Lever handle is freewheeling in locked
position.)
• Lever on one side; blank plate on other side.
• Key unlocks lever
CL3390 Passage
Lever x
Turnpiece 		— • Deadlocking latchbolt by lever or by turnpiece.
• Lever on one side; turnpiece on other side.
• Lever and turnpiece always free.
CL3391 Keyed
Lever x
Turnpiece 		— • Deadlocking latchbolt by lever or turnpiece, except when
lever is locked by key.
• When lever is locked, latchbolt is operated by key in lever
or by turnpiece. (Lever handle is freewheeling in locked
position.)
• Lever on outside; turnpiece on inside.
• Turnpiece always free.
CL3393 Service
Station 		F92 • Throw-off latchbolt by lever.
• Outside lever locked by slotted push button. (Lever handle
is freewheeling in locked position.)
• When slotted push button is pushed in and turned,
outside lever becomes freewheeling and deadlocking latch
is activated. Outside lever is unlocked by using key or by
rotating inside lever, when slotted push button returned
to original position.
• Inside lever always free.
CL3350 Half
Dummy
Trim 		— • Lever acts as pull only; no operation.
• Lever is rigid.
CL3370 Full
Dummy
Trim 		— • Levers act as pulls only; no operation.
• Levers are rigid.

Indicates optional interchangeable core available; see Quick Codes, page 16.

Indicates freewheeling lever in locked position.

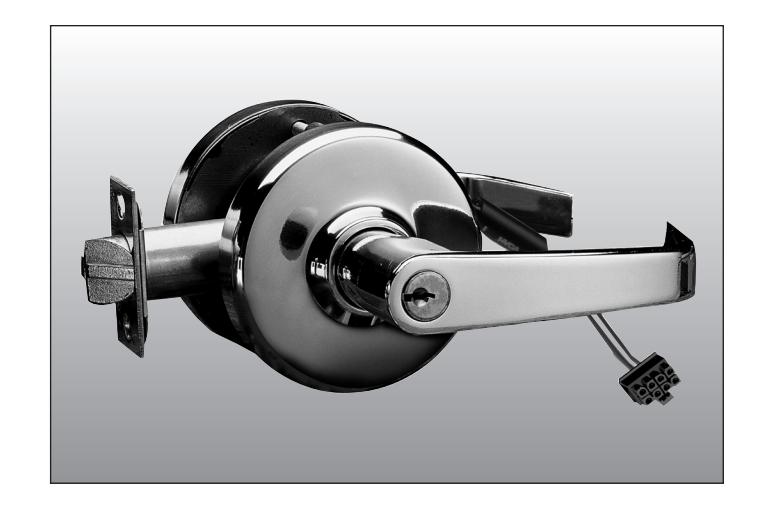

CL33900 Electrified Lockset

CL3300 Series

Applications

Provides remote locking and unlocking, utilizing the proven CL3300 Series Cylindrical Lockset. Ideal for door control where increased security is necessary at all times, while meeting life safety codes.

  • Stairwell towers
  • Tenant space
  • Pharmacies
  • Computer rooms
  • High-security areas

Advantages

  • Utilizes the CL3300 Series Cylindrical Lockset with Lever Release™ Mechanism
  • Self-contained integral solenoid allows installation in modified cylindrical prep
  • Minimal power requirements device is designed to lock or unlock as the situation demands
  • Available in either 12 or 24VAC/VDC
  • Mechanical cylinder override
  • Fail Safe and Fail Secure mode available
  • Optional M92 Request to Exit (REX) switch
  • ElectroLynx® 8-pin connector

ElectroLynx®

ElectroLynx®, a new quick-connect feature of ASSA ABLOY Group companies, takes the guesswork out of installing electrified door hardware products. It's ... Hardwiring Made Easy. By using standard "plug and play"

connectors, a simple "click" links power from the incoming source to electrified locking products, including hinges, locks, exit devices, magnetic holders, and strikes. What normally takes an hour or more can be connected in virtually minutes.

Functions

Outside Inside Series/Function Function Description
CL33903 Fail Safe
• Deadlocking latchbolt by lever either side except when power on locks outside
lever
• Power off/unlocks outside lever
• Inside lever always free
• Latchbolt retracted by key when locked electrically
CL33905 Fail Secure
• Deadlocking latchbolt by lever either side except when power off locks outside
lever
• Power on/unlocks outside lever
• Inside lever always free
• Latchbolt retracted by key when power is off

CL33900 Electrified Lockset

CL3300 Series

Features

Non-Handed (Except FZD trim)

Door Thickness

1-3/4" (44mm) - 2" (51mm) standard. Optional: Over 2" (51mm) - 2-1/4" (57mm); see Quick Codes, page 16.

Lock Chassis

Steel, zinc dichromated for corrosion resistance.

Backset

2-3/4" (70mm) standard. Optional: 3-3/4" (95mm) and 5" (127mm); see Quick Codes, page 16.

Latchbolt

Stainless Steel, 1/2" (13mm) throw. Optional: 3/4" (19mm) throw deadlocking fire latch for pair of doors; see Quick Codes, page 17.

Auxiliary Latchbolt

Deadlocking latchbolt prevents manipulation when door is closed.

Front

Wrought brass or bronze, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).

Optional: rounded corners; see Quick Codes, page 17.

Strike

Wrought brass, bronze, or stainless steel, ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to

Optional strikes, lip lengths and ANSI wrought strike box available; see Quick Codes, pages 17.

Trims

Available with all lever designs: Armstrong, Newport, Princeton, Frascati.

Cylinder

Brass, 6-pin L4 keyway, 0-bitted standard.

Keying Features Available

Master keying Construction master keying Visual key control Concealed key control Interchangeable core (LFIC or SFIC) Security Security LFIC Pyramid Pyramid LFIC Access 3® Access 3® LFIC

Keys

Two nickel silver standard.

Voltage

Locks are universal for AC or DC. Available with 12VAC/DC or 24VAC/DC. See Quick Codes, page 17.

Electrical Specifications

250mA @ 12VAC/VDC 150mA @ 24VAC/VDC Continuous duty solenoid.

Monitoring Option M92 - Request to Exit Monitoring

(Non-Handed) Request to Exit monitoring is a SPDT

switch which monitors the activation of the trim.

Warranty

Two-year limited.

Certification/Compliance ANSI/BHMA

Meets A156.2 Series 4000, Grade 1. Meets A117.1 Accessibility Code.

California State Reference Code

(Formerly Title 19, California State Fire Marshal Standard)

All levers with returns comply; levers return to within 1/2" (13mm) of door face.

UL-cUL

All locks with 1/2" (13mm) throw latchbolt listed for A label and lesser class 4' x 10' single doors. All locks with 3/4" (19mm) throw latchbolt listed for A label and lesser class 8' x 10' pairs of doors. Letter F and UL symbol on latch front indicate listing.

Finishes

Description Specify
ANSI/BHMA 605 (US3) Bright Brass 605
ANSI/BHMA 606 (US4) Satin Brass 606
ANSI/BHMA 611 (US9) Bright Bronze 611
ANSI/BHMA 612 (US10) Satin Bronze 612
ANSI/BHMA 613 (US10B) Dark Oxidized Satin Bronze, Oil Rubbed 613
613E Dark Oxidized Satin Bronze - equivalent 613E
613L Dark Oxidized Satin Bronze, Clear Coated 613L
ANSI/BHMA 618 (US14) Bright Nickel Plated 618
ANSI/BHMA 619 (US15) Satin Nickel Plated 619
619C Satin Nickel Plated with MicroShield® 619C
ANSI/BHMA 625 (US26) Bright Chromium Plated 625
ANSI/BHMA 626 (US26D) Satin Chromium Plated 626
626C Satin Chromium Plated with MicroShield® 626C
722 Black Oxidized Bronze, Oil Rubbed 722
BSP Black Suede Powder Coat BSP
WSP White Suede Powder Coat WSP

Zinc levers are plated to match ANSI/BHMA finish.

CL33900 Electrified Lockset

CL3300 Series

Requirements for Electrical and Data Transfer

To answer the demand for "smart" electronic access control and locking solutions that require fast, easy, and cost-effective installation, ASSA ABLOY Group brands use the ElectroLynx® standardized plug-in connectors and color-coded wiring system.

With ElectroLynx , doorway components come pre-wired for easy hookup to the power source. Key to the system is the transfer device hinge that carries power from the frame to the locking hardware.

Features of ElectroLynx:

  • Makes it easy to bring power to the locking hardware
  • Wires have connectors that snap together, like plugging a telephone into a jack

To connect a CL33900 series electrified cylindrical lock to the electronic access control system, the following items are required:

  • CL33900 series electrified cylindrical lock
  • ASSA ABLOY Door Group pre-wired door, or ElectroLynx retrofit cable (order from McKinney)
  • Electronic transfer device ( ElectroLynx electronic transfer hinge or Electrical Power Transfer with standard hinge, from McKinney)
  • ElectroLynx cable from the hinge to above the ceiling (order from McKinney)

Information regarding cable selection, hinge requirements and order strings can be found in the McKinney Transfer Device Solutions catalog. Consult 800-810-WIRE (9473) with questions on application specifications and requirements.

The McKinney QC8 ElectroLynx Hinge is recommended for the CL33903 function, the CL33905 function and the M92 (REX) option.

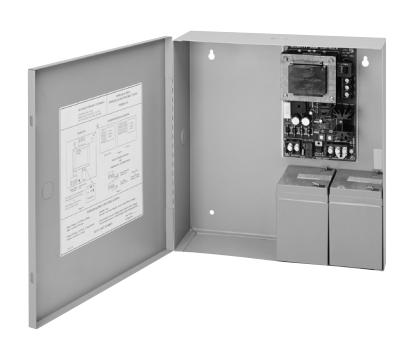

BPS Power Supply

Power supplies are designed to provide reliable filtered and regulated power for long life to a variety of electrified hardware components. All modular power supplies are voltage specific and are designed to meet UL 1481 Standards.

Features

  • Fire panel emergency release input
  • PC Board mounted system LED indicator
  • Voltage specific 12 or 24VDC
  • Regulated and filtered with input and output protection
  • Battery charging is provided from a separate output terminal

Model Input Output
BPS-12-1 1 Amp @ 12VDC
BPS-12-3 115VAC @ 50/60 Hz 3 Amp @ 12VDC
BPS-24-1 1 Amp @ 24VDC
BPS-24-2 115VAC @ 50/60 Hz 2 Amp @ 24VDC

Trim Designs

CL3300 Series

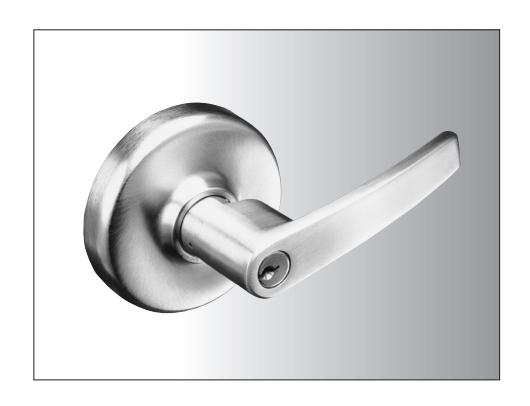

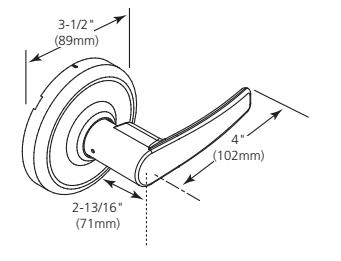

Armstrong

Lever: Solid cast zinc

Complies with codes requiring lever to return to within 1/2" (13mm) of door face.

NZD

Lever: Solid cast zinc Rose: Wrought brass

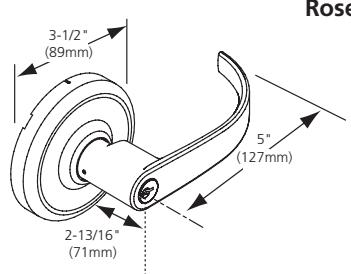

Princeton

Complies with codes requiring lever to return to within 1/2" (13mm) of door face.

PZD

Lever: Solid cast zinc Rose: Wrought brass

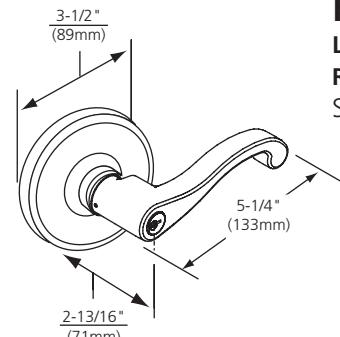

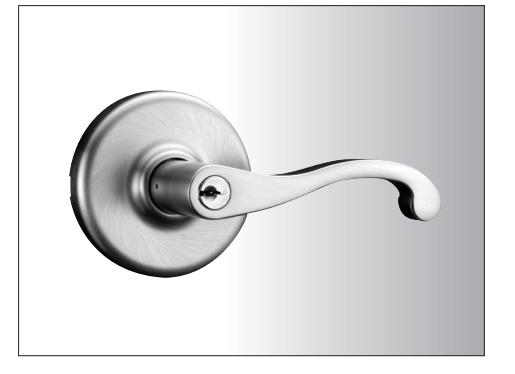

Frascati

FZD

Lever: Solid cast zinc Rose: Wrought brass Specify hand

Options & Accessories

CL3300 Series

Latches

To order optional latch with lockset, see Quick Codes, page 17. To order latch separately, specify Part No. x Finish (e.g., 586F16 x 626).

Backset and Front Description Plain
For CL3320TO,
CL3310 		Deadlocking Throw-Off
For CL3320,
CL3320H,
CL3329,
CL3340,
CL3375,CL3393 		3/4" (19mm) Throw
Deadlocking
Fire Latch for Pair of
Doors
2-3/4" (70mm) Backset
Square corner front, 2-1/4" (57mm) x 1-1/8" (29mm)
(standard) 		586F16 586F17 586F18 601F69
(Not available for CL3320,
CL3329, CL3340,
CL3375, CL3393)
605, 606 and 626
finishes available
Rounded corner front, 2-1/4"(57mm) x 1-1/8" (29mm) 596F66 596F67 596F68 Not available
3-3/4" (95mm) Backset
Square corner front, 2-1/4" (57mm) x 1-1/8" (29mm) 586F80 586F81 586F82 Not available
Rounded corner front, 2-1/4" (57mm) x 1-1/8" (29mm) 586F86 586F87 586F88 Not available
5" (127mm) Backset
Square corner front, 2-1/4" (57mm) x 1-1/8" (29mm) 598F20 598F21 598F22 Not available
Rounded corner front, 2-1/4" (57mm) x 1-1/8" (29mm) 601F24 601F25 601F26 Not available

Corbin Russwin Cylinders

Security Type Pins Standard Cylinder Large Format
Interchangeable Core
6-Pin CR2000-033 (standard) CR8000
Conventional 7-Pin CR2000-033-7 CR8000-7
6-Pin CR2001-034 CR8001-034
Hotel 7-Pin CR2001-034-7 CR8001-034-7
Security 6-Pin CR2010-033 CR8010
Pyramid - High Security 7-Pin CR2020-033 CR8020
Pyramid - Security 7-Pin CR2027-033 CR8027
Access 3® - Patented (AP) 6-Pin CR2500-033 CR8500
Access 3® - Security (AS) 6-Pin CR2600-033 CR8600
Access 3® - High Security (AHS) 6-Pin CR2700-033 CR8700
Access 3® (AP) - Hotel Function 6-Pin CR2501-034 N/A
Access 3® (AS) - Hotel Function 6-Pin CR2601-034 N/A
Access 3® (AHS) - Hotel Function 6-Pin CR2701-034 N/A

Plug diameter for standard cylinders is .509, .510 for Access 3®, .552 for security cylinders and .496 for Pyramid cylinders. Cylinders are brass and come with 2 nickel silver keys.

Finishes for all cylinders and cores include 606, 626 or BSP.

To order cylinders separately, specify Part No. x Keyway x Finish (e.g., CR2000-033 x L4 x 626).

Options & Accessories

CL3300 Series

Small Format Interchangeable Core

Number
CR8200
CR8200-7

Cores are available in Best® keyways A, B, C, D, E, F, G, H, J, K, L, M. Cores are brass and come with 2 nickel silver keys. Finishes: 606, 626

Cylinders with Competitive Keyways*

Competitive Keyway Number
Schlage® C (0-bitted) CR2400-033-C
Schlage® C (keyed random) CR2400-033-C-KR
SARGENT® LA (0-bitted) CR2400-033-LA

* All cylinders are 6-pin and available in 606 or 626 finish.

Levers That Accept Competitive Interchangeable Core Cylinders*

Cylinder Type Quick Code Tailpiece Pack Only
SFIC 6 or 7-pin (all designs) M08
Tailpiece included 		682F958
Schlage® 6-pin LFIC (FZ, NZ, PZ, only) M69
Tailpiece included 		697F942

* Core not included.

Adapters Required to Accept Competitive Cylinders*

Competitive Cylinder Quick Code Tailpiece Pack Only
Schlage® fixed core Conventional (21-002, 23-001, 23-013) or
Primus® (20-548, 20-550, 20-748, 20-750) 		M06
Tailpiece included 		682F398
SARGENT® fixed core C10-1 M09
Tailpiece and special lever included 		682F969

* Cylinder not included.

Options & Accessories

CL3300 Series

Strikes

ANSI Curved Lip (standard)

Brass or stainless steel.

4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center.

Optional lip lengths: 1" (25mm), 1-1/8" (29mm), 1-3/8" (35mm), 1-1/2" (38mm), 1-3/4" (44mm), 2" (51mm), 2-1/4" (57mm), 2-1/2" (64mm), 2-3/4" (70mm), 3" (76mm).

To order separately, specify 217L13 x Lip Length x Finish.

Rabbeted Front and Strike

Brass or bronze.

4" (102mm) x 5/8" (16mm) for 1/2" (13mm) rabbet.

No optional lip lengths.

To order with lockset, see Quick Codes, page 16.

To order separately, specify 601F28 x Finish.

Curved Lip "T" Strike

Brass.

2-3/4" (70mm) x 1-1/8" (29mm) x 1-1/4" (32mm) lip to center.

Optional lip lengths: 1" (25mm),

1-1/8" (29mm), 1-3/8" (35mm), 1-1/2" (38mm), 1-3/4" (44mm), 2" (51mm), 2-1/4" (57mm), 2-1/2" (64mm), 2-3/4" (70mm), 3" (76mm).

To order with lockset, see Quick Codes, page 16. To order separately, specify 586L19 x Lip Length x Finish.

ANSI Wrought Strike Box

To order with lockset, see Quick Codes, page 17.

To order separately, specify 120F768.

How to Order

CL3300 Series

Ordering Examples

Where to find ordering information and quick codes

Series/Function Pages 5-7
Trim Designs Page 11
Finish Page 16
Door Thickness Page 16
Backset Page 16
Cylinders and Keying Page 16
Strike Page 17
Miscellaneous Options Page 17
Electric Accessories Page 17
Voltage Page 17

Stock Order

Quantity Series/Function Trim Finish Hand
100 CL3355 NZD 626 RHR

Split Trim / Finish Order

Quantity Series/ Tr Trim Finish
Quantity Function Outside Inside Outside Inside Hand
12 CL3355 NZD AZD 626 625 LH

Contract / Detailed Order

Quantity Series/
Function 		Trim Finish Hand Door
Thickness 		Backset Optional
Strike 		Misc.
Options 		Optional
Cylinder 		Keying Keyset
24 CL3355 NZD 626 RHR D214 B334 SC114 M04-M16 C6 VKC3 AA1

Electrified CL33900 Series

Quantity Series/Function Trim Finish Hand Voltage
6 CL33903 AZD 626 RH 12AD

Quick Codes

CL3300 Series

Cylinder and Keying

Description Specify
Conventional 6-pin (standard)
Conventional 7-pin 7P
Less Cylinder(s)1 LC
LFIC
LFIC 6-pin C6
LFIC 6-pin Less Core1 CL6
LFIC 6-pin Disposable Core1 CT6D
LFIC 6-pin with Temporary Construction Core (Red)1 CT6R
LFIC 6-pin with Temporary Construction Core (Blue)1 CT6B
LFIC 6-pin with Temporary Construction Core (Green)1 CT6G
LFIC 7-pin C7
LFIC 7-pin Less Core1 CL7
LFIC 7-pin Disposable Core1 CT7D
LFIC 7-pin with Temporary Construction Core (Red)1 CT7R
LFIC 7-pin with Temporary Construction Core (Blue)1 CT7B
LFIC 7-pin with Temporary Construction Core (Green)1 CT7G
SFIC1
SFIC 6-pin C6S
SFIC 6- or 7-pin Small Format Disposable Core CTSD
SFIC 6-pin with Temporary Construction Core (Blue) CT6SB
SFIC 7-pin C7S
SFIC 7-pin with Temporary Construction Core (Blue) CT7SB
Security
Security1 HS
Security LFIC1 CHS
Access 3®
Access 3® Patented Fixed Core AP
Access 3® Security Fixed Core AS
Access 3® High Security Fixed Core AHS
Access 3® Patented LFIC1 ACP
Access 3® Security LFIC1 ACS
Access 3® High Security LFIC1 ACHS
Pyramid
Pyramid Security Fixed Core1
Pyramid High Security Fixed Core1 		PS
PHS
Pyramid Security LFIC1 PCS
Pyramid High Security LFIC1 PCHS
Pyramid LFIC Less Core1 CLP
Pyramid with Temporary Construction Core1 CTP
Pyramid Disposable Core1 CTPD
Keying and Keys
0-bitted with 2 blank keys (standard)
Keyed Random KR
Construction Master Keyed CMK
2 keys per lock (standard)
More than 2 keys KY# (e.g.,
KY6)

Cylinder and Keying (cont.)

Description Specify
Visual key control (VKC)
No bitting or keyset stamping on keys VKC0
Keys only VKC1
Cylinders and keys (not for AS, AHS, ACS, ACHS, HS,
CHS, PHS or PCHS) 		VKC2
Cylinders only (not for AS, AHS, ACS, ACHS, HS,
CHS, PHS or PCHS) 		VKC3
Concealed key control (CKC)
CKC cylinders with VKC keys CKC2
CKC cylinders only (not for AS, AHS, ACS, ACHS,
PHS, PCHS) 		CKC3
Schlage® C keyway cylinder (0-Bitted or KR)1 C
SARGENT® LA keyway cylinder (0-Bitted)1 LA

1. Not available in CL3329 function

Finishes

Description Specify
ANSI/BHMA 605 (US3) Bright Brass 605
ANSI/BHMA 606 (US4) Satin Brass 606
ANSI/BHMA 611 (US9) Bright Bronze 611
ANSI/BHMA 612 (US10) Satin Bronze 612
ANSI/BHMA 613 (US10B) Dark Oxidized Satin Bronze, Oil
Rubbed 		613
613E Dark Oxidized Satin Bronze -
equivalent 		613E
613L Dark Oxidized Satin Bronze,
Clear Coated 		613L
ANSI/BHMA 618 (US14) Bright Nickel Plated 618
ANSI/BHMA 619 (US15) Satin Nickel Plated 619
619C Satin Nickel Plated with
MicroShield® 		619C
ANSI/BHMA 625 (US26) Bright Chromium Plated 625
ANSI/BHMA 626 (US26D) Satin Chromium Plated 626
626C Satin Chromium Plated
with MicroShield® 		626C
722 Black Oxidized Bronze, Oil
Rubbed 		722
BSP Black Suede Powder Coat BSP
WSP White Suede Powder Coat WSP

Zinc levers are plated to match ANSI/BHMA finish.

Lock/Cylinder Finish

Lock Cylinder/Core*
605,606,611,612,613,613E,613L,722 606
618,619,625,626,WSP 626
BSP BSP

* Finish when cylinder provided with lock

Quick Codes

CL3300 Series

Strikes

ANSI
Lip to Center 		ANSI
Curved Lip Specify 		T-Strike Curved Lip
Box Specify
1" (25mm) SA100 SC100
1-1/8" (29mm) SA118 SC118
1-1/4" (32mm) SA114 (standard) SC114
1-3/8" (35mm) SA138 SC138
1-1/2" (38mm) SA112 SC112
1-3/4" (44mm) SA134 SC134
2" (51mm) SA200 SC200
2-1/4" (57mm) SA214 SC214
2-1/2" (64mm) SA212 SC212
2-3/4" (70mm) SA234 SC234
3" (76mm) SA300 SC300
Rabbeted front and strike Specify SR118

Door Thickness

Door Thickness Specify
1-3/4"(44mm) - 2" (51mm) (standard)
Over 2" (51mm) - 2-1/4" (57mm) D214

Backset

Description Specify
2-3/4" (70mm) (standard)
3-3/4" (95mm) B334
5" (127mm) B500

Electric Accessories

Description Part Number
Power supply 1.0 Amp @ 12 VDC output BPS-12-1
Power supply 3.0 Amp @ 12 VDC output BPS-12-3
Power supply 1.0 Amp @ 24 VDC output BPS-24-1
Power supply 2.0 Amp @ 24 VDC output BPS-24-2

Miscellaneous Options

Description Specify
Spanner head screws M02
Torx® head screws M04
Less cylinder, with tailpiece for Schlage® fixed core
cylinder (all designs) 		M061
Lever to accept 6 or 7-pin SFIC (all designs) M081
Lever to accept SARGENT® fixed core cylinder (all
designs) 		M091
Lever to accept Schlage® LFIC (FZD, NZD & PZD
designs only) 		M691
Rounded corners on latch front M13
3/4" (19mm) throw fire latch M16
ANSI wrought strike box M17
Knurling outside and inside M202
Knurling outside only M212
Knurling inside only M222
Abrasive coat outside and inside M23
Abrasive coat inside only M24
Abrasive coat outside only M25
Lead lining (roses) M28
Request to Exit (REX) Switch (CL33900 only) M92

  • 1 Not available in CL3329 functions
  • 2 All levers provided in a powder coat finish will be supplied with an abrasive coating

Voltage Options

Description Specify
12 volt alternating current/direct current 12AD
24 volt alternating current/direct current 24AD

How to Specify

CL3300 Series

CL3300 Series Suggested Specification

All locksets shall be CL3300 Series Extra Heavy Duty Cylindrical Lever Lockets as manufactured by Corbin Russwin Architectural Hardware.

A single lock chassis shall accommodate 1-3/4" (44mm) to 2-1/4" (57mm) door thickness. Locksets shall be non-handed. Locksets shall have separate anti-rotation throughbolts, and shall have no exposed mounting screws.

Locksets shall have solid cast levers without plastic inserts. Levers shall operate independently, and shall have separate inside and outside lever return springs to prevent lever sag. Outside lever handles shall be a minimum of 4-5/8" (117mm) in length and shall provide a minimum of 2" (51mm) clearance from the surface of the door to the inside of the lever at the midpoint. Outside lever handles may return to within 1/2" (13mm) of the door surface. Levers on keyed locksets shall be removable only when the designated key is in the cylinder.

When the outside lever is locked, it shall rotate freely and it shall return to its horizontal position when released.

A single lockset shall accommodate 6 or 7-pin conventional cylinders and all levels of master keying, construction master keying, visual key control, security, high security and interchangeable core. Cylinders may be easily changed by removing the lever without disassembling the lockset.

A 3/4" (19mm) throw latchbolt for pairs of fire doors shall be available. All locksets with a 1/2" (13mm) throw latchbolt shall be listed by Underwriters Laboratories for A label and lesser class single doors, 4' x 10'. All locksets with 3/4" (19mm) throw latchbolt shall be UL listed for A label and lesser class pairs of doors, 8' x 10'.

Certification:

ANSI/BHMA A156.2 Series 4000, Grade 1 ANSI A117.1 Accessibility Code California State Reference Code (formerly Title 19, California State Fire Marshal Standard).

Locksets shall carry a seven-year limited warranty.

How to Specify

CL3300 Series

CL33900 Electrified Series Suggested Specification

All locksets shall be CL33900 Series Extra Heavy Duty Cylindrical Lever Lockets as manufactured by Corbin Russwin Architectural Hardware.

A single lock chassis shall accommodate 1-3/4" (44mm) to 2-1/4" (57mm) door thickness. Locksets shall be non-handed. Locksets shall have separate anti-rotation throughbolts, and shall have no exposed mounting screws.

Locksets shall have solid cast levers without plastic inserts. Levers shall operate independently, and shall have separate inside and outside lever return springs to prevent lever sag. Outside lever handles shall be a minimum of 4-5/8" (117mm) in length and shall provide a minimum of 2" (51mm) clearance from the surface of the door to the inside of the lever at the midpoint. Outside lever handles may return to within 1/2" (13mm) of the door surface. Levers on keyed locksets shall be removable only when the designated key is in the cylinder.

When the outside lever is locked, it shall rotate freely and it shall return to its horizontal position when released.

The CL33900 Series shall be available 12 or 24 volt AC and DC (rectifier to be included) and Fail Safe or Fail Secure. The locking solenoid shall be continuous duty and self-contained in the lock chassis.

A single lockset shall accommodate 6 or 7-pin conventional cylinders and all levels of master keying, construction master keying, visual key control, security, high security and interchangeable core. Cylinders may be easily changed by removing the lever without disassembling the lockset.

A 3/4" (19mm) throw latchbolt for pairs of fire doors shall be available. All locksets with a 1/2" (13mm) throw latchbolt shall be listed by Underwriters Laboratories for A label and lesser class single doors, 4' x 10'. All locksets with 3/4" (19mm) throw latchbolt shall be UL listed for A label and lesser class pairs of doors, 8' x 10'.

Certification:

ANSI/BHMA A156.2 Series 4000, Grade 1 ANSI A117.1 Accessibility Code California State Reference Code (formerly Title 19, California State Fire Marshal Standard)

Electrified locksets shall carry a two-year limited warranty.

For additional information, contact your ASSA ABLOY Door Security Solutions sales consultant or visit www.corbinrusswin.com.

In U.S.

Corbin Russwin Architectural Hardware 225 Episcopal Road Berlin, CT 06037 Phone: 800-543-3658 Fax: 800-447-6714 www.corbinrusswin.com

In Canada

ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive Vaughan, Ontario Canada L4K 4T9 Phone: 800-461-3007 Fax: 800-461-8989 www.assaabloydss.ca

ASSA ABLOY Group companies offer MicroShield®, an anti-microbial coating for door hardware. MicroShield uses proven silver ion-based technology from Agion®, a leading provider of antimicrobial solutions, to stem the spread of bacteria and other microbes.

MicroShield® is a registered trademark of ASSA ABLOY Access and Egress Hardware Group, Inc.

The Agion antimicrobial is not intended as a substitute for good hygiene. Coated products must still be cleaned to ensure the surfaces will be free of destructive microbes. ASSA ABLOY makes no representations or warranties, express or impled, as to the efficacy of the Agion antimicrobial. A copy of the Agion warranty is available upon request. Agion is a registered trademark of Agion Technologies, Inc., Wakefield, MA, USA.
