CL3200 Series

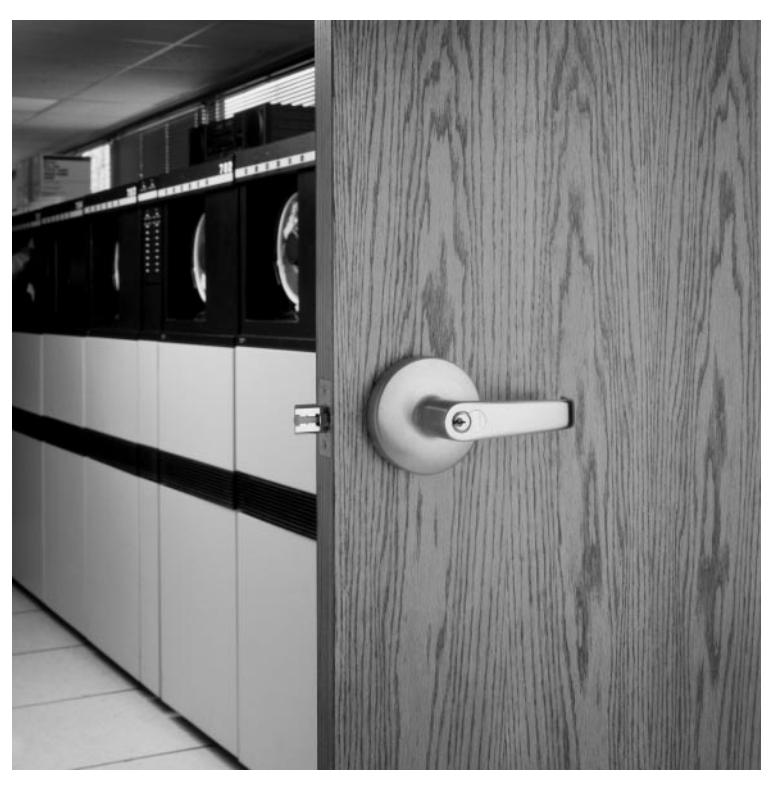

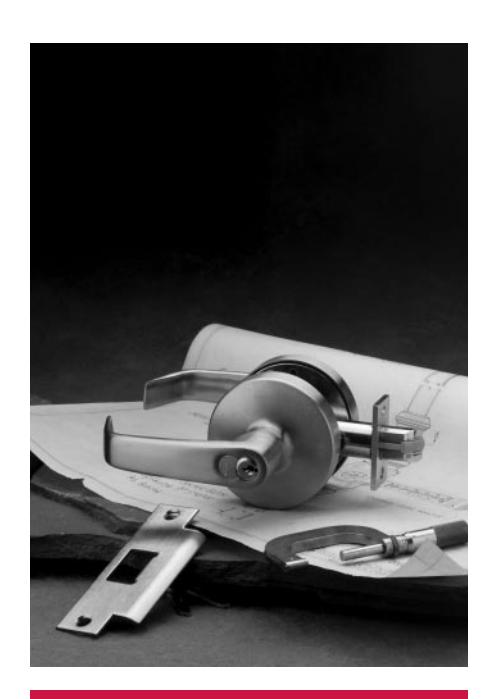

Applications
CL3200
Applications
A heavy-duty, high-use lockset that combines the convenience of a barrierfree lever lockset with the security of a 1" (25mm) deadbolt in a single door prep. Ideal for:
- Computer rooms
- Pharmacies
- AV storage
- File rooms
- Exterior doors
Advantages
- Enhanced access 20° turn of lever retracts deadbolt
- Combines 1/2" (13mm) throw latch and 1" (25mm) throw deadbolt
- Cost-effective requires less installation time than separate lockset and deadbolt
- Exceeds ANSI Grade 1 requirements
- Utilizes standard door prep
Table of Contents
| Applications2 |
|---|
| Features3 |
| Functions4 |
| Trim Design5 |
| Options and Accessories6-7 |
| How to Order8 |
| Quick Codes9 |
| Helpful Terms10 |
| How to Specify 11 |
www.corbinrusswin.com

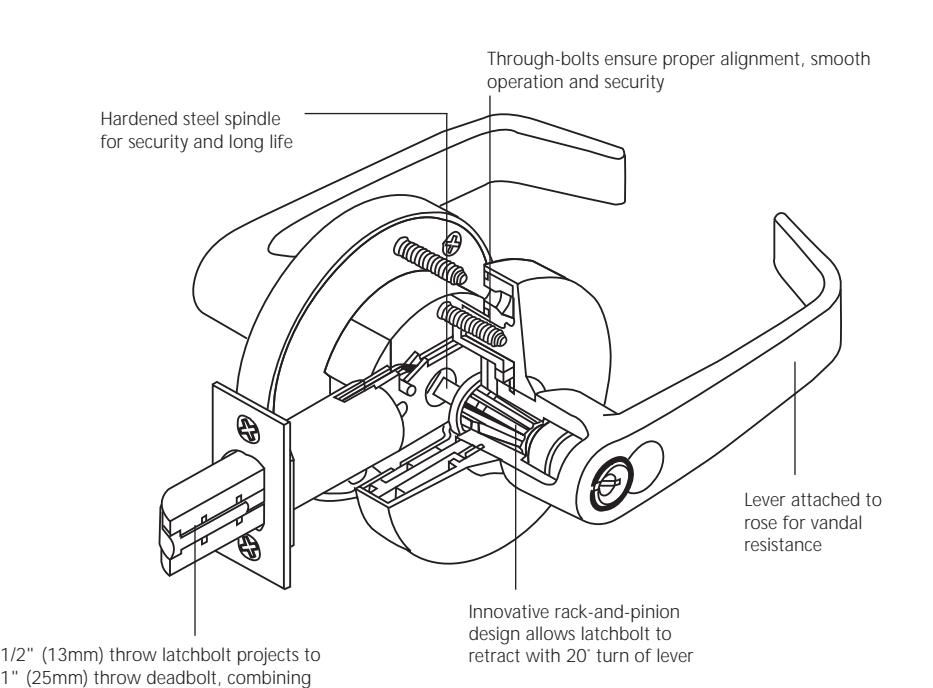

Features
CL3200
Features
Handing
Specify hand. Lockset is handed by door bevel.
Door Thickness
1-3/8" (35mm) - 1-3/4" (44mm) standard. Optional door thickness available; see Quick Codes, page 9.
Backset
2-3/4" (70mm) only.
Lock Chassis
Precision machined internal parts of hardened steel, zinc and dichromate plated for corrosion resistance.
Front
Brass, bronze or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
Latchbolt
Brass 1/2" (13mm) throw latch projects to 1" (25mm) throw deadbolt. Hardened steel insert, nylon anti-friction insert.
Strike
Wrought brass or bronze, ANSI curved lip standard, (4-7/8" x 1-1/4" x 1-1/4") (124mm x 32mm x 32mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available; see Quick Codes, page 9.
Cylinder
Brass, 6-pin interchangeable core (IC), L4 keyway, 0-bitted standard. Pyramid 7-pin optional. Security 6-pin optional.
Keying Features Available
Master keying Construction master keying Visual key control Concealed key control Security interchangeable core Pyramid interchangeable core
Keys
Two nickel-silver standard.
Warranty
Two-year limited.
Certification/Compliance
ANSI
Meets A117.1 Accessibility Code.
Federal
Meets FF-H-106C.
UL /ULC
All locks listed for A label and lesser class doors, single or pair, 4' x 10'. Letter F and UL symbol on latch front indicate listing.
California State Reference Code
convenience and security in one standard
door prep
(Formerly Title 19, California State Fire Marshal Standard)
All levers with returns comply; levers return to within 1/2" (13mm) of door face.
Finishes
| BHMA 605 (US3) | Bright Brass |
| BHMA 606 (US4) | Satin Brass |
| BHMA 611 (US9) | Bright Bronze |
| BHMA 612 (US10) | Satin Bronze |
| BHMA 613 (US10B) |
Oxidized Bronze, oil
rubbed, available lacquered |
| BHMA 618 (US14) | Bright Nickel Plated |
| BHMA 619 (US15) | Satin Nickel Plated |
| BHMA 625 (US26) |
Bright Chromium
Plated |
| BHMA 626 (US26D) | Satin Chromium Plated |
| BHMA 629 | Bright Stainless Steel |
| BHMA 630 | Satin Stainless Steel |
| BHMA 722 |
Black Oxidized Bronze,
oil rubbed |
Functions
CL3200
| Outside Inside | Series/Function | Туре | ANSI No. | Function Description |
|---|---|---|---|---|
| CL3210 |
Passage or
Closet |
F75 |
|
|
| CL3220 |
Privacy,
Bedroom or Bathroom |
F76 |
|
|
| CL3230 |
Privacy
Bedroom or Bathroom |
F76 |
|
|
| CL3251 |
Entrance
or Office |
F81 |
|
|
| CL3255 | Classroom | F84 |
|
|
| CL3257 |
Storeroom
or Closet |
F86 |
|
|
| CL3261 |
Office or
Privacy |
F82 |
|
|
| CL3250 |
Half
Dummy Trim |
- | Lever acts as pull only; no operation. | |
| CL3270 |
Full
Dummy Trim |
_ | Levers act as pulls only; no operation. |
Indicates rigid lever.
Trim Design
CL3200

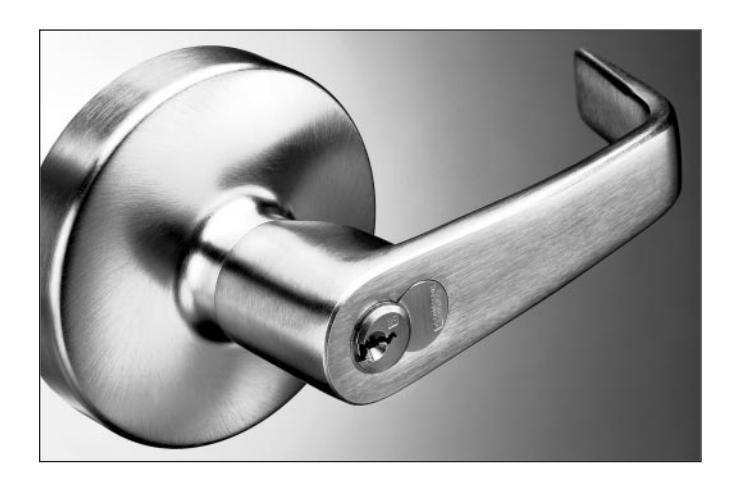

Newport
Complies with codes requiring lever to return to within 1/2" (13mm) of door face.

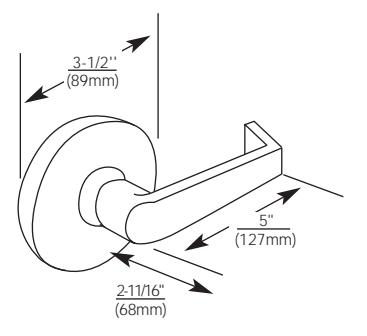

NSD
Lever: Forged brass or cast stainless steel Rose: Forged brass or cast stainless steel
Options and Accessories
CL3200

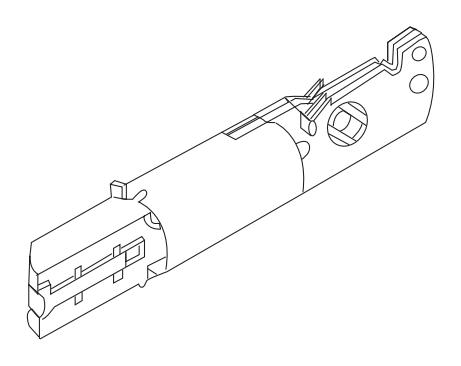

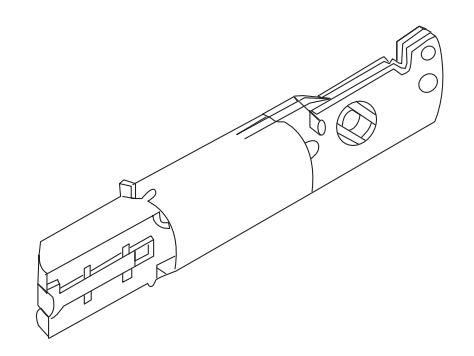

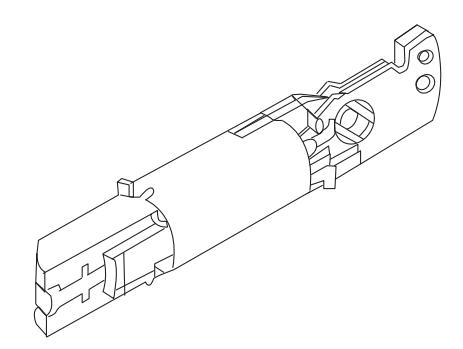

Latches
To order latchbolt separately, specify Part No. x Finish (e.g., 497F82).
| Series/Function | ||||||
|---|---|---|---|---|---|---|
| Hand | CL3220, CL3230, CL3261 | CL3251, CL3255, CL3257 | CL3210 | |||
| RH/LH | 497F80 | 497F82 | 497F86 | |||
| RHR/LHR | 497F81 | 497F83 | 497F87 | |||
| Cylinders | |
|---|---|
|
Interchangeable core
.509" plug diameter conventional .552" plug diameter high security .496" plug diameter Pyramid Brass, 6-pin, Pyramid 7-pin retrofits standard 6-pin prep 2 nickel silver keys Finishes: 605, 606, 611, 612, 613, 625, 626, 722 |
|
| Conventional 6-pin | 8000 (standard) |
| Security 6-pin | 8010 |
| Pyramid High Security 7-pin 8020 | |
| Pyramid Security 7-pin | 8027 |
To order optional cylinder with lockset, see Quick Codes, page 9. To order separately, specify Part No. x Keyway x Finish (e.g., 8010 x L4 x 626)
Options and Accessories
CL3200
Strikes
ANSI Curved Lip (Standard)
Brass or bronze Non-handed 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center Optional lip lengths: 1" (25mm), 1-1/8" (29mm), 1-3/8" (35mm), 1-1/2"(38mm), 1-3/4" (45mm), 2" (51mm), 2-1/4" (57mm), 2-1/2" (64mm), 2-3/4" (70mm), 3" (76mm) To order with lockset, see Quick Codes, page 9. To order separately, specify Part No. x Lip Length x Finish (e.g., 557L30 x 1-1/2" x 605).
| Part No. | Description |
|---|---|
| 496L90 | Standard |
| 557L30 | For use without door silencers |
| 557L31 |
For use with heavy gasketing
or weather stripping |
Curved Lip Box
Brass or bronze 2-3/4" (70mm) x 1-1/8" (29mm) x 1-1/4" (32mm) lip to center Optional lip lengths: 1" (25mm), 1-1/8" (29mm), 1-3/8" (35mm), 1-1/2"(38mm), 1-3/4" (45mm), 2" (51mm), 2-1/2" (64mm), 3" (76mm) To order with lockset, see Quick Codes, page 9. To order separately, specify Part No. x Lip Length x Finish (e.g., 557L37 x 1-1/2" x 605).
| Part No. | Description |
|---|---|
| 497L91 | Optional |
| 557L36 | For use without door silencers |
| 557L37 |
For use with heavy gasketing
or weather stripping |
ANSI Wrought Strike Box
To order with lockset, see Quick Codes, page 9. To order separately, specify 120F76-8.
How to Order
CL3200
Ordering Examples
Stock Order
| Quantity | Series/Function | Trim | Finish | Hand |
|---|---|---|---|---|
| 100 | CL3255 | NSD | 626 | RHR |
Where to find ordering information and Quick Codes
| Series/Function | Page 4 |
|---|---|
| Trim Design | Page 5 |
| Finish | Page 9 |
| Handing | Page 9 |
| Door Thickness | Page 9 |
| Strike | Page 9 |
| Miscellaneous Options | Page 9 |
| Cylinders and Keying | Page 9 |
Contract/Detailed Order
| Quantity | Keyset |
Series/
Function |
Trim | Finish | Hand |
Door
Thickness |
Optional
Strike |
Misc.
Options |
Optional
Cylinder |
Keying |
|---|---|---|---|---|---|---|---|---|---|---|
| 24 | AA1 | CL3255 | NSD | 626 | RHR | D214 | SA112 | M17-M20 | CHS | VKC1 |
Quick Codes
CL3200
Cylinder and Keying
| Description | Specify |
|---|---|
| IC 6-pin | (standard) |
|
IC 6-pin with Temporary Construction
Core (Red) |
CT6R |
|
IC 6-pin with Temporary Construction
Core (Blue) |
CT6B |
|
IC 6-pin with Temporary Construction
Core (Green) |
CT6G |
| IC 6-pin with temporary construction core | CT6 |
| IC 6-pin less core | CL6 |
| IC 6-Pin Disposable Core | CT6D |
| Security IC | CHS |
| Pyramid High Security IC | PCHS |
| Pyramid IC Less Core | CLP |
|
Pyramid IC with temporary
construction core |
CTP |
| Pyramid Security IC | PCS |
| 0-bitted with 2 blank keys | (standard) |
| Keyed random | KR |
| Construction master keyed | CMK |
| Visual key control (VKC) | |
| No bitting or keyset stamping on keys | VKC0 |
| Keys only | VKC1 |
|
Cylinders and keys (not for HS, CHS, PHS
or PCHS) |
VKC2 |
|
Cylinders only (not for HS, CHS, PHS or
PCHS) |
VKC3 |
| Concealed key control (CKC) | |
| CKC cylinders with VKC keys | CKC2 |
| CKC cylinders only (not for PHS, PCHS) | CKC3 |
| 2 keys per lock | (standard) |
| More than 2 keys | KY# (e.g., KY6) |
Finishes
| Description | Specify |
|---|---|
| BHMA 605 (US3) | Bright Brass |
| BHMA 606 (US4) | Satin Brass |
| BHMA 611 (US9) | Bright Bronze |
| BHMA 612 (US10) | Satin Bronze |
| BHMA 613 (US10B) | Oxidized Bronze, oil rubbed, available lacquered |
| BHMA 618 (US14) | Bright Nickel Plated |
| BHMA 619 (US15) | Satin Nickel Plated |
| BHMA 625 (US26) | Bright Chromium Plated |
| BHMA 626 (US26D) | Satin Chromium Plated |
| BHMA 629 (US32) | Bright Stainless Steel |
| BHMA 630 (US32D) | Satin Stainless Steel |
| BHMA 722 | Black Oxidized Bronze, oil rubbed |
Door Thickness
| Door Thickness | Specify |
|---|---|
| 1-3/8" (35mm) - 1-3/4" (44mm) | (standard) |
| 2" (51mm) | D200 |
| 2-1/8" (54mm) | D218 |
| 2-1/4" (57mm) | D214 |
Handing
| Door Thickness | Specify |
|---|---|
| Right Hand | RH |
| Left Hand | LH |
| Right Hand Reverse | RHR |
| Left Hand Reverse | LHR |
Strike
| Lip to Center |
ANSI
Curved Lip Specify |
Curved Lip Box
Specify |
|---|---|---|
| 1" (25mm) | SA100 | SC100 |
| 1-1/8" (29mm) | SA118 | SC118 |
| 1-1/4" (32mm) | (standard) | SC114 |
| 1-3/8" (35mm) | SA138 | SC138 |
| 1-1/2" (38mm) | SA112 | SC112 |
| 1-3/4" (44mm) | SA134 | SC134 |
| 2" (51mm) | SA200 | SC200 |
| 2-1/4" (57mm) | SA214 | SC214 |
| 2-1/2" (64mm) | SA212 | SC212 |
| 2-3/4" (70mm) | SA234 | SC234 |
| 3" (76mm) | SA300 | SC300 |
For door without silencers, add suffix "A" (e.g., SC134A). For doors with heavy gasketing or weather stripping, add suffix "B" (e.g., SC134B).
Miscellaneous
| Description | Specify |
|---|---|
| Spanner head screws | M02 |
| ANSI wrought strike box | M17 |
| Knurling outside and inside | M20 |
| Knurling outside only | M21 |
| Knurling inside only | M22 |
| Abrasive coat outside and inside | M23 |
| Abrasive coat inside only | M24 |
| Abrasive coat outside only | M25 |
| Lead lining (inside rose only) | M28 |
Helpful Terms
CL3200
Abrasive Coat
Hard granular material applied to a knob or lever to provide a non-slip tactile surface for the visually impaired.
Auxiliary Latchbolt
A supplementary latch which, when the door is closed, automatically deadlocks the latchbolt. Protects the latchbolt from forced retraction or "credit carding."
The distance from the front of the lock to the centerline of the cylinder or knob/lever
The angle of the edge of a door in relation to the inside and outside surfaces of the stile. The most common bevel for commercial doors is I/8" in 2"
Box Strike
A strike equipped with an enclosure behind the hole(s) for the latchbolt and/or deadbolt. Protects the strike area from mortar and cement.
Chassis
The housing of a lockset, containing most of the working space.
Curved Lip Strike
A strike with the lip curved to conform to the detail of the door frame.
Dummy Trim
Trim only, without the lock or latching mechanism, usually used on the inactive door of a pair of doors for design balance.
The part of a lock visible on the edge of a door.
The direction a door swings.
A permanently applied tactile warning engraved in the metal of a knob or lever to warn the visually impaired of dangerous conditions on the other side of the door.
Latchbolt
A lock component having a beveled end that projects from the lock front but may be forced back into the lockcase by end pressure or drawn back by action of the retractor. When the door is closed, the latchbolt projects into a hole provided in the strike, holding the door in the closed position.
Lead Lined
Pertains to a lockset whose trim has a lining of lead to prevent the passage of radiation. Generally used in hospital applications.
Lip of Strike
The projecting part of a strike which first engages the latch; may be curved or straight.
Return
The part of a lever handle which angles or turns back toward the face of the door. Also, the distance between the end of the return of the lever and the surface of the door
Sectional Trim
Lock trim with two sections; a lever or knob with a rose which is not joined by an external plate to the cylinder above.
A metal plate that is pierced or recessed to receive the deadbolt or latchbolt of a lock (sometimes called a keeper).
The distance that a lock's deadbolt or latchbolt projects when in the locked position. The effective throw is the distance that a latchbolt projects when
Wrought Strike Box
A metal box mounted behind the strike to protect the strike opening from mortar or cement.
Keying and Cylinder Terms
Concealed Key Control (CKC)
The marking of standard key symbols on a cylinder in a location which is not visible once the cylinder is installed.
Construction Core
An interchangeable core for temporary use during construction. It is replaced by the permanent core when construction personnel no longer need access
Construction Master Keying (CMK) A cylinder preparation which allows temporary access by construction personnel
Control Key A key used to remove and install interchangeable cores.
Cylinder
A lock component containing the combination which determines which keys will operate.
Security Cylinder
A cylinder which provides extra resistance to picking and unauthorized duplication of
Interchangeable Core (IC)
A cylinder which can be removed and installed quickly with a control key by nonskilled personnel when rekeying is required.
Key Section
The cross-section of a key blade, as viewed from bow to tip.
Key Symbol
A letter/number combination in standard industry format (e.g., 1AA, AA1, etc.) which indicates exactly how a key or cylinder fits into a keying system.
The opening in a cylinder plug through which the key enters.
Master Keying
Preparation of a cylinder to operate with keys of different levels of access.
Visual Key Control (VKC)
The marking of standard key symbols on keys and on the visible portion of the front of a cylinder.
How to Specify
CL3200
Suggested Specification
All locksets shall be CL3200 Series Security Bolt Lever Locksets as manufactured by Corbin Russwin Architectural Hardware.
Locksets shall have forged brass or cast stainless steel roses and levers, throughbolted into concealed lugs on the outside subassembly for added security.
Internal mechanisms shall be precision machined from hardened steel and shall be pre-assembled at the factory, utilizing rack and pinion construction and compression type springs.
Integral latchbolt deadbolt mechanisms shall be self-lubricating brass with Delrin insert. The latchbolt shall have a minimum 1/2" throw and shall be interlocked through the internal housing unit by means of a concealed set screw. The latchbolt shall project to a 1" throw deadbolt with hardened steel insert. The bolt may be fully retracted by a minimum 20º depression of the inside lever or by a key (depending on function). Cylinders shall be 6-pin interchangeable core type, with the option of high security interlocking pin mechanisms or 7-pin Pyramid type security or high-security interchangeable cores.
Locksets shall be field reversible by changing latchbolts. Independent latch fronts shall accommodate both flat-front and beveled doors. All locksets shall be available for doors from 1-3/8" to 2-1/4" thick.
Lever handle designs shall provide a minimum of 2" clearance from the surface of the door to the inside of the lever at the midpoint, and may also have a return which comes to within 1/2" of the door surface. The length of the lever to the end of the lever shall be a minimum of 4-11/16".
All locksets shall be listed by Underwriters Laboratories for A label and lesser class doors, single or pair, 4' x 10'.
Certification:
Federal Specification FF-H-106C ANSI A117.1 Accessibility Code California State Reference Code, 1989 (formerly Title 19, California State Fire Marshal Standard)
Locks, trim and cylinders shall be from one manufacturer.
Locksets shall carry a two-year limited warranty.
In U.S.
Corbin Russwin Architectural Hardware 225 Episcopal Road Berlin, CT 06037 Phone: 800-543-3658 Fax: 800-447-6714 corbinrusswin.com
In Canada
ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive Vaughan, Ontario Canada L4K 4T9 Phone: 800-461-3007
Fax: 905-738-2478 www.assaabloy.ca
For more information regarding Corbin Russwin Locksets, Exit Devices, Door Controls and Key Systems, contact your authorized Corbin Russwin Distributor or Sales Representative.
Corbin Russwin and Design® is a registered trademark of Corbin Russwin, Inc., an ASSA ABLOY Group company. Other products' brand names may be trademarks or registered trademarks of their respective owners and are mentioned for reference purposes only. These materials are protected under US copyright laws. All contents current at time of publication. Corbin Russwin, Inc., an ASSA ABLOY Group Company, reserves the right to change availability of any item in this catalog, its design, construction, and/or its materials. Copyright © 2000, 2010 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written
