CL3100 Series Cylindrical Locks

Product Catalog

Overview

CL3100 Series

Table of Contents

Overview2
Features3
Functions5
Trim Designs7
Options and Accessories8
How to Order11
Quick Codes12
How to Specify 14

Quality The CL3100 series is a Grade 1 lever lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes, the CL3100 series subtly complements any high-use commercial, industrial and institutional application.

T-Zone Construction

Direct linkage with fixed alignment between the hub and the latchbolt is the best construction for quietly and effectively operating the latchbolt. For this reason, Corbin Russwin interlocks the aligning and latch tubes, which form a rugged torque resistant "T" in the critical twist area. This "T-Zone" construction, combined with long lasting components, makes T-Zone Lever locks outstanding!

Vandal Resistance

The Corbin Russwin CL3100 Series* follows a higher standard for Grade 1 bored locks. The unique T-Zone construction provides strength and durability by true interlocking between the lockbody and the latch far exceeding the ANSI/BHMA A156.2 Series 4000 Grade 1 standards.

*Patented design and construction

Applications

  • High traffic areas
  • Offices
  • Public buildings
  • Hospitals
  • Institutions
  • Educational facilities K-12 and Universities
  • Retail

Key Advantages

  • UL Cycle above and beyond test completed at 7.6 Million Cycles. Verification ID: V875753
  • Several security key systems available (Access 3®, Pyramid, etc.)
  • Fits most standard door preps
  • Only 45 degrees of lever rotation required to retract latchbolt
  • 18 functions. Many of which are easily field changeable
  • 3 levers and 4 roses available to cover a wide variety of door preps and design requirements
  • Simple cylinder removal. Easy change outs.
  • T-Zone construction tested to over 15 million cycles, exceeding ANSI/BHMA Grade 1 standards by 15 times.

ASSA ABLOY Group companies offer MicroShield®, an antimicrobial coating for door hardware. MicroShield uses proven silver ion-based technology from Agion®, a leading provider of antimicrobial solutions, to stem the spread of bacteria and other microbes.

MicroShield® is a registered trademark of ASSA ABLOY Access and Egress Hardware Group, Inc.

The Agion antimicrobial is not intended as a substitute for good hygiene. Coated products must still be cleaned to ensure the surfaces will be free of destructive microbes. ASSA ABLOY makes no representations or warranties, express or impled, as to the efficacy of the Agion antimicrobial. A copy of the Agion warranty is available upon request. Agion is a registered trademark of Agion Technologies, Inc., Wakefield, MA, USA.

www.corbinrusswin.com

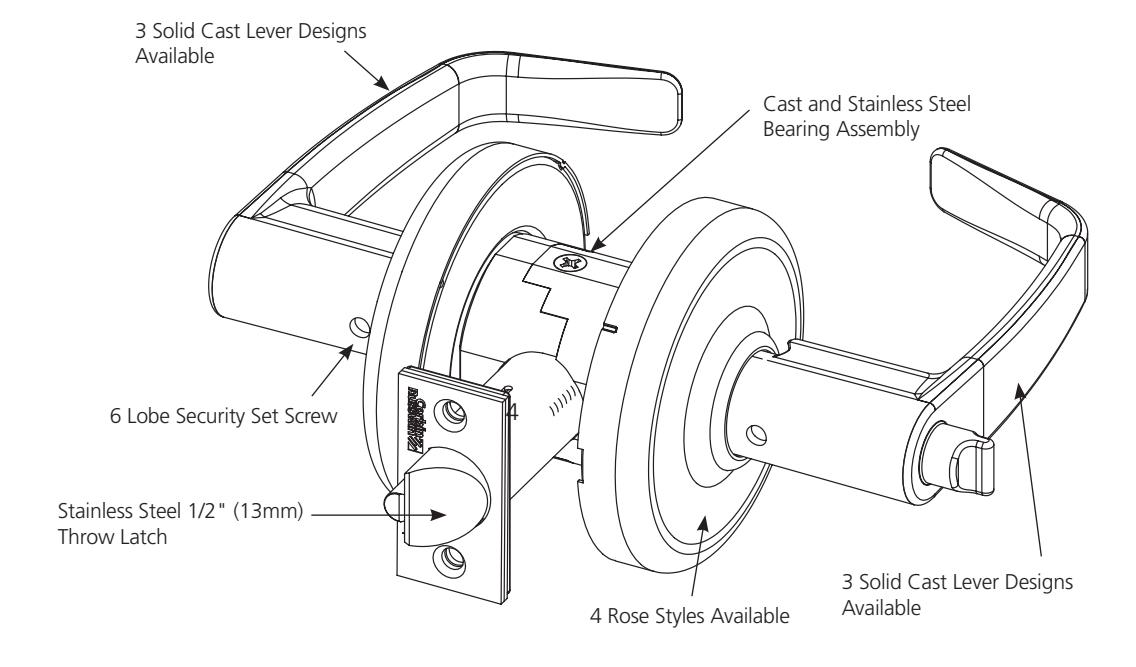

Features

CL3100 Series

Features

Handing

Non-handed

Door Thickness

1-3/4" (44mm) - 2" (51mm) standard. Optional: Over 2" (51mm) - 2-1/4" (57mm); see Quick Codes, page 13.

Door Prep

ANSI/BHMA A156.115 (161)

Lock Chassis

Steel, zinc dichromated for corrosion resistance.

Backset

2-3/4" (70mm) standard. Optional: 3-3/4" (95mm) and 5" (127mm); see Quick Codes, page 13.

Bearing Assembly

Cast and machined stainless steel

Latchbolt

Stainless steel bolt 7/8" (22mm) diameter x 1/2" (13mm) throw.

Optional: 3/4" (19mm) throw fire latch.

Front

Wrought brass or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates flat front doors and doors beveled 1/8" (3mm) in 2" (51mm).

Strike

Wrought brass or stainless steel ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center.

Optional: strikes, lip lengths and ANSI wrought strike box available. See Quick Codes, page 13.

Levers

Secured with 6 lobe security set screw standard

Roses

Brass

Cylinder

Brass, 6-pin L4 keyway, 0-bitted standard.

Keying Features Available

Master keying Construction master keying Visual key control Concealed key control Interchangeable core (LFIC or SFIC) Security Security LFIC Access 3® LFIC Pyramid Pyramid LFIC

Keys

Two nickel silver standard.

Warranty

Ten-year limited.

Classroom Security

The CL3152 Classroom Intruder function is the solution to classroom security: a double cylinder lockset that allows

locking of the outside lever from either side. Egress is always possible with the standard anti-panic feature, whether the door is locked or not.

STC55 Sound Transmission Class Rated Product (M112)

Corbin Russwin CL3100 Series Lever Locks are part of the STC Acoustical Door Systems from ASSA ABLOY Group brand Security Metal Products (SMP). This solution encompasses door, frame, sounds seals and threshold, and lock. The STC55 requires a special version of the CL3100 Lever Lock. To order the CL3100 Series Lever Lock for use with STC55 door system, include the M112 quick code in the order string and specify the C or K rose only. With this prefix, it will be configured for a 1-3/4" door with a 3/4" panel for 2-1/2" total thickness. Door handing is required to dictate panel location. Functions are limited to the following: CL3110, CL3151, CL3155, CL3157, CL3172 and CL3180.

To learn more about SMP and the STC 55 Acoustical Door System, please visit www.secmet.com

Certification/Compliance

ANSI/BHMA

Exceeds A156.2 Series 4000, Grade 1.

Meets A117.1 Accessibility Code.

California State Reference Code

(Formerly Title 19, California State Fire Marshal Standard)

All levers with returns comply; levers return to within 1/2" (13mm) of door face.

UL-cUL

UL and cUL listed to Canadian Safety Standards Listed for 3 Hour Doors

All locks with 1/2" (13mm) throw latchbolt listed for A label and lesser class 4' x 10' single doors. All locks with 3/4" (19mm) throw latchbolt listed for A label and lesser class 8' x 10' pairs of doors. Letter F and UL symbol on latch front indicate listing.

Any retrofit or other field modification to a fire-rated opening can potentially impact the fire-rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing firerated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

A.D.A.

All levers conform to ADA requirements for barrier-free accessibility.

Windstorm

UL Listed: ANSI/SDI-BHMA A250.13;ANSI/ ASTM E330-2002

ANSI/ASTM 31886-2005 & ASTM 31996- 1009

UL Certification Directory ZHEM.R21744 Latching Hardware

Listed on Florida Building Code Website: FL4351-R1

Features

CL3100 Series

Finishes
ANSI/BHMA 605 (US3) Bright Brass
ANSI/BHMA 606 (US4) Satin Brass
ANSI/BHMA 611 (US9) Bright Bronze
ANSI/BHMA 612 (US10) Satin Bronze
ANSI/BHMA 613 (US10B) Dark Oxidized Satin Bronze, Oil Rubbed
613E Dark Oxidized Satin Bronze - equivalent
613L Dark Oxidized Satin Bronze, Clear Coated
ANSI/BHMA 618 (US14) Bright Nickel Plated
ANSI/BHMA 619 (US15) Satin Nickel Plated
619C Satin Nickel Plated with Microshield®
ANSI/BHMA 625 (US26) Bright Chromium Plated
ANSI/BHMA 626 (US26D) Satin Chromium Plated
626C Satin Chromium Plated with MicroShield®
ANSI/BHMA 722 (US10A) Black Oxidized Bronze, Oil Rubbed
BSP Black Suede Powder Coat
WSP White Suede Powder Coat

Zinc levers are plated to match ANSI/BHMA finish.

MicroShield®

CL3100 series locks are available with MicroShield® antimicrobial coating. MicroShield is a revolutionary hardware finish coating, using a silver ion based technology, which inhibits the growth of bacteria, algae, yeast, fungus, mold and mildew. MicroShield is nontoxic and lasts for the lifetime of the finish to which it is applied. To order, suffix option code "C".

Note: MicroShield® coating may vary finish color from architectural standards. MicroShield is not intended as a substitute for traditional infection control programs such as hand hygiene or use of disinfectants. Coated product must still be cleaned to insure the surfaces will be free of destructive microbes. Corbin Russwin makes no representations or warranties, express or implied, as to the efficacy of the MicroShield antimicrobial.

Functions

CL3100 Series

Outside Inside Series/
Function 		Туре ANSI No. Function Description
CL3110 Passage or
Closet 		F75
  • Latchbolt by lever either side.
  • Both levers always free.
CL3120 Privacy,
Bedroom or
Bathroom 		F76A
  • Throw-off latchbolt by lever.
  • Outside lever locked by push button on inside lever.
  • Outside lever unlocked by emergency release tool outside, by rotating inside lever or by closing door.
  • Inside lever always free.
CL3120H Hospital
Privacy 		_
  • Outside lever locked by push button on inside lever.
  • Outside lever unlocked by rotating thumbturn on outside lever and releasing inside push button.
  • Rotating inside lever or closing door also unlocks outside lever.
CL3129 Hotel or
Motel 		F93
  • Deadlocking latchbolt by lever inside or by key outside.
  • Push button shuts out all keys except emergency key, and projects occupancy indicator in face of cylinder.
  • Push button released by turning inside lever.
  • Outside lever always locked.
  • Inside lever always free.
  • Not available with other manufacturers keyways
  • Pushbutton will not depress unless door is in closed position
  • Lockout key fixes pushbutton in locked position, shutting out all keys except emergency key.
  • Lockout key ordered separately.
CL3132 Institutional
or Utility 		F87
  • Deadlocking latchbolt by key either side.
  • Should be used only in office or room with multiple entries.
CL3140NT Exit Latch F89
  • Deadlocking latchbolt by lever inside.
  • Outside lever always locked.
  • Inside lever always free.
CL3150 Half
Dummy
Trim 		_
  • Lever acts as pull only; no operation.
  • Lever is rigid.
CL3151 Entrance or
Office 		F81
  • Deadlocking latchbolt by lever either side, except when turn button locks outside.
  • Turning button locks outside lever, requiring key at all times.
  • Turning inside lever does not unlock outside lever until button is manually turned to unlocked position.
  • Inside lever always free.
CL3152 Classroom
Intruder 		_
  • Deadlocking latchbolt by inside lever or outside lever except when key inside or outside locks outside lever.
  • Key in either lever locks or unlocks the outside lever except when inside locks the outside lever - then only the inside key can unlock the outside lever. The outside key only retracts the latchbolt unless the outside lever is unlocked by the inside key.
  • Inside lever always free.

lndicates optional interchangeable core available; see Quick Codes, page 12.

Functions

CL3100 Series

Outside
Inside 		Series/
Function 		Type ANSI No. Function Description
CL3155 Classroom F84 • Deadlocking latchbolt by lever either side, except when key outside
locks outside lever.
• Outside lever locked or unlocked by key outside.
• Inside lever always free.
CL3157 Storeroom
or Closet 		F86 • Deadlocking latchbolt by key in outside lever or by rotating inside
lever.
• Inside lever always free.
• Outside lever rigid at all times.
CL3161 Entry or
Office 		F82A • Deadlocking latchbolt by lever either side, except when push
button locks outside lever.
• Push button released by turning inside lever or by key in outside
lever.
• Closing door does not release push button.
• Inside lever always free.
CL3162 Communicating F80 • Deadlocking latchbolt by lever either side, except when key in
either lever locks and unlocks the lever independently of the other.
• Keyed alike unless otherwise specified.
• Should be used only in office or room with multiple entries.
CL3170 Full
Dummy
Trim 		— • Levers act as pulls only; no operation.
• Levers are rigid.
CL3172 Apartment,
Exit or Public
Toilet 		F88 • Deadlocking latchbolt by lever either side, except when key inside
locks outside lever.
• Key outside retracts latchbolt when outside lever is locked by key
inside.
• Key inside unlocks outside lever.
• Inside lever always free.
• Keyed alike unless otherwise specified.
CL3175 Corridor/
Dormitory Lock 		F90 • Latchbolt by lever either side except when pushbutton or key locks
outside lever.
• Pushbutton will not depress unless door is in closed position.
• Depressed pushbutton indicates door is locked. Rotating inside
lever releases button.
• Inside lever always free.
• Outside lever rigid when locked.
CL3180 Passage
Lever x
Blank Plate 		F111 • Deadlocking latchbolt by lever.
• Lever on one side; blank plate on other side.
• Lever always free.
• For single or double communicating doors.
CL3193 Service
Station 		F92 • Deadlocking latchbolt by lever.
• Outside lever locked by push button.
• Key retracts latchbolt when outside lever is locked.
• Pushbutton will not depress unless door is in closed position
• Push button released by turning inside lever or by key in outside
lever, unless pushbutton is fixed in locked position by turning coin
slot in inside lever.
• Inside lever always free.

Indicates optional interchangeable core available; see Quick Codes, page 12.

Trim Designs

CL3100 Series

Levers

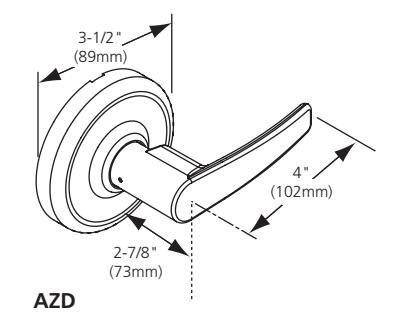

Armstrong

AZD, AZC, AZE, or AZK

Lever: Solid cast zinc

Rose: Brass

AZD shown

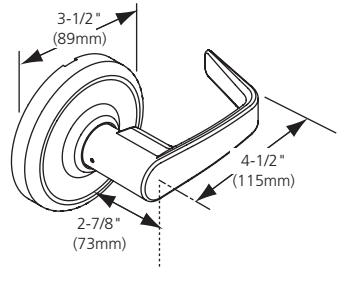

Newport

Complies with codes requiring lever to return to within 1/2" (13mm) of door face.

NZD, NZC, NZE, or NZK

Lever: Solid cast zinc

Rose: Brass

NZD

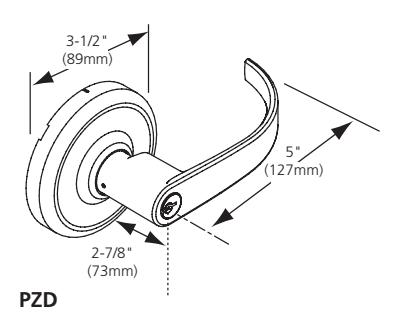

Princeton

Complies with codes requiring lever to return to within 1/2" (13mm) of door face.

PZD, PZC, PZE, or PZK

Lever: Solid cast zinc

Rose: Brass

Roses

D Rose (standard) 3-1/2" Dia. Brass

C Rose 2-3/4" Dia. Brass

E Rose 3-1/8" Sq. Brass

K Rose 2-3/4" Dia. Brass

Options & Accessories

CL3100 Series

Latches

To order optional latch with lockset, see Quick Codes, page 13. To order latch separately, specify Part No. x Finish (e.g., 780F81 x 626).

Part Code Functions
Standard 2-3/4" (70mm) Backset
780F81 А 10
780F82 В 32, 40NT, 51, 52, 55, 57, 62, 72, 80
780F83 С 20, 20H
780F84 D 29, 75, 93
780F85 K 61
B334 option 3-3/4" (95mm) Backset
780F86 А 10
780F87 В 32, 40NT, 51, 52, 55, 57, 62, 72, 80
780F88 С 20, 20H
780F89 D 29, 75, 93
780F90 K 61
B500 option 5" (127mm) Backset
780F91 А 10
780F92 В 32, 40NT, 51, 52, 55, 57, 62, 72, 80
780F93 С 20, 20H
780F94 D 29, 75, 93
780F95 K 61
M16 option 3/4" (19mm) Throw*
780F96 _ 10, 51, 55, 57, 72, 80

Note: Code letter stamped on inside corner of latch front identifies function(s) compatible with latch assembly. *Limited to 2-3/4" Backset only

Corbin Russwin Cylinders

Security Type Pins Standard Cylinder Large Format
Interchangeable Core
Conventional 6-Pin CR2000-031 (standard) CR8000
Conventional 7-Pin CR2000-031-7 CR8000-7
Hotel 6-Pin CR2001-031 CR8001-031
Hotel 7-Pin CR2001-031-7 CR8001-031-7
Security 6-Pin CR2010-031 CR8010
Pyramid - High Security 7-Pin CR2020-031 CR8020
Pyramid - Security 7-Pin CR2027-031 CR8027
Access 3 - Patented (AP) 6-Pin CR2500-031 CR8500
Access 3 - Security (AS) 6-Pin C&R2600-031 CR8600
Access 3 - High Security (AHS) 6-Pin CR2700-031 CR8700
Access 3 - AP (Hotel Function) 6-Pin CR2501-031 N/A
Access 3 - AS (Hotel Function) 6-Pin CR2601-031 N/A
Access 3 - AHS (Hotel Function) 6-Pin CR2701-031 N/A

Plug diameter for standard cylinders is .509, .510 for Access 3®, .552 for security cylinders and .496 for Pyramid cylinders. Cylinders are brass and come with 2 nickel silver keys.

Finishes for all cylinders and cores include 606, 626 or BSP.

To order cylinders separately, specify Part No. x Keyway x Finish (e.g., CR2000-031 x L4 x 626).

Options & Accessories

CL3100 Series

Small Format Interchangeable Core

Description Number
6-pin CR8200
7-pin CR8200-7

Cores are available in Best® keyways A, B, C, D, E, F, G, H, J, K, L, M. Cores are brass and come with 2 nickel silver keys.

Finishes: 606, 626

Cylinders with Keyways From Other Manufacturers*

Competitive Keyway Number
Schlage® C (0-bitted) CR2400-031-C
Schlage® C (keyed random) CR2400-031-C-KR
SARGENT® LA (0-bitted) CR2400-031-LA

* All cylinders are 6-pin and available in 606 or 626 finish.

Levers That Accept Cylinders/Cores From Other Manufacturers1

Cylinder Type Quick Code
Ordered with
Lock 		Available Levers Tailpiece Kit
(provided with lock) 		Competitor Cylinder Compatibility
Fixed Core
SARGENT 6-pin M09 AZ, NZ, PZ 775F948 —
Schlage® 6-pin M06 AZ, NZ, PZ 778F788 Schlage® Conventional 21-002, 23-001,
23-013 or Primus® 20-548,
20-550, 20-748, 20-750 cylinders
Yale® 6-pin YC NZ, PZ 778F759 (spacer) Yale® 1803-54L, 5803-54L and K403-54L
cylinders only.
Yale® 7-pin YC7 NZ, PZ Yale® 1803A-54L, 5803A-54L and K403A
54L cylinders only.
Interchangeable Core
SFIC 6- or 7-pin M082 AZ, NZ, PZ 780F658 All 6- or 7-pin small format interchangeable
cores
Schlage® LFIC 6-pin M69 AZ, NZ, PZ 780F662 All Schlage® 6-pin large format
interchangeable cores
Yale® LFIC 6-pin YRC NZ, PZ 774F878 All Yale® 6-pin large format interchangeable
cores
Yale® LFIC 7-pin YRC7 NZ, PZ 774F888 All Yale® 7-pin large format interchangeable
cores

1. Cylinder/core not included.

2. Ships with disposable core installed.

Options & Accessories

CL3100 Series

Strikes

ANSI Curved Lip (standard)

Brass or stainless steel.

4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center.

Optional lip lengths: 1" (25mm), 1-1/8" (29mm), 1-3/8" (35mm), 1-1/2" (38mm), 1-3/4" (44mm), 2" (51mm), 2-1/4" (57mm), 2-1/2" (64mm), 2-3/4" (70mm), 3" (76mm).

To order separately, specify

217L13 x Lip Length x Finish.

ANSI Wrought Strike Box

To order with lockset, see Quick Codes, page 13. To order separately, specify 120F768.

Curved Lip "T" Strike (option)

Brass.

2-3/4" (70mm) x 1-1/8" (29mm) x 1-1/4" (32mm) lip to center

Optional lip lengths: 1" (25mm), 1-1/8" (29mm), 1-3/8" (35mm), 1-1/2" (38mm), 1-3/4" (44mm),

2" (51mm), 2-1/4" (57mm), 2-1/2" (64mm), 2-3/4" (70mm), 3" (76mm)

To order optional strike with lockset, see Quick Codes, page 12.

To order separately, specify 586L19 x Lip Length x Finish.

How to Order

CL3100 Series

Ordering Examples

Where to find ordering information and quick codes

Series/Function Pages 5-6
Trim Designs Page 7
Latches Page 8
Finish Page 12
Cylinders and Keying Page 12
Door Thickness Page 13
Backset Page 13
Strike Page 13
Miscellaneous Options Page 13

Stock Order

Quantity Series/Function Trim Finish Hand
100 CL3155 NZD 626 RHR

Split Trim / Finish Order

Quantity Series/ Trim Fin Hand
Quantity Function Outside Inside Outside Inside папи
12 CL3155 NZD NZD 626 625 LH

Contract / Detailed Order

Quantity Series/
Function 		Trim Finish Hand Door
Thickness 		Backset Optional
Strike 		Misc.
Options 		Optional
Cylinder 		Keying Keyset
24 CL3155 NZE 626 RHR D214 B334 SC114 M04-M16 C6 VKC3 AA1

Quick Codes

CL3100 Series

Cylinder and Keying

Description Specify
Conventional 6-pin (standard)
Conventional 7-pin 7P
Less Cylinder(s)1 LC
LFIC
LFIC 6-pin C6
LFIC 6-pin Less Core1 CL6
LFIC 6-pin Disposable Core1 CT6D
LFIC 6-pin with Temporary Construction Core (Red)1 CT6R
LFIC 6-pin with Temporary Construction Core (Blue)1 CT6B
LFIC 6-pin with Temporary Construction Core (Green)1 CT6G
LFIC 7-pin C7
LFIC 7-pin Less Core1 CL7
LFIC 7-pin Disposable Core1 CT7D
LFIC 7-pin with Temporary Construction Core (Red)1 CT7R
LFIC 7-pin with Temporary Construction Core (Blue)1 CT7B
LFIC 7-pin with Temporary Construction Core (Green)1 CT7G
SFIC1
SFIC 6-pin C6S
SFIC 6- or 7-pin Small Format Disposable Core CTSD
SFIC 6-pin with Temporary Construction Core (Blue) CT6SB
SFIC 7-pin C7S
SFIC 7-pin with Temporary Construction Core (Blue) CT7SB
Security
Security1 HS
Security LFIC1 CHS
Access 3®
Access 3® Patented Fixed Core AP
Access 3® Security Fixed Core
Access 3® High Security Fixed Core 		AS
AHS
Access 3® Patented LFIC1 ACP
Access 3® Security LFIC1 ACS
Access 3® High Security LFIC1 ACHS
Pyramid
Pyramid Security Fixed Core1 PS
Pyramid High Security Fixed Core1 PHS
Pyramid Security LFIC1 PCS
Pyramid High Security LFIC1 PCHS
Pyramid LFIC Less Core1 CLP
Pyramid with Temporary Construction Core1 CTP
Pyramid Disposable Core1 CTPD
Keying and Keys
0-bitted with 2 blank keys (standard)
Keyed Random KR
Construction Master Keyed CMK
2 keys per lock (standard)
More than 2 keys KY# (e.g.,
KY6)

Cylinder and Keying (cont.)

Description Specify
Visual key control (VKC)
No bitting or keyset stamping on keys VKC0
Keys only VKC1
Cylinders and keys (not for AS, AHS, ACS, ACHS, HS,
CHS, PHS or PCHS) 		VKC2
Cylinders only (not for AS, AHS, ACS, ACHS, HS,
CHS, PHS or PCHS) 		VKC3
Concealed key control (CKC)
CKC cylinders with VKC keys CKC2
CKC cylinders only (not for AS, AHS, ACS, ACHS,
PHS, PCHS) 		CKC3
Schlage® C keyway cylinder (0-Bitted or KR)1 C
SARGENT® LA keyway cylinder (0-Bitted)1 LA

1. Not available in CL3129 function

Finishes

Description Specify
ANSI/BHMA 605 (US3) Bright Brass 605
ANSI/BHMA 606 (US4) Satin Brass 606
ANSI/BHMA 611 (US9) Bright Bronze 611
ANSI/BHMA 612 (US10) Satin Bronze 612
ANSI/BHMA 613 (US10B) Dark Oxidized Satin Bronze,
Oil Rubbed 		613
613E Dark Oxidized Satin Bronze
- equivalent 		613E
613L Dark Oxidized Satin Bronze,
Clear Coated 		613L
ANSI/BHMA 618 (US14) Bright Nickel Plated 618
ANSI/BHMA 619 (US15) Satin Nickel Plated 619
619C Satin Nickel Plated
with Microshield® 		619C
ANSI/BHMA 625 (US26) Bright Chromium Plated 625
ANSI/BHMA 626 (US26D) Satin Chromium Plated 626
626C Satin Chromium Plated
with MicroShield® 		626C
ANSI/BHMA 722 (US10A) Black Oxidized Bronze, Oil
Rubbed 		722
BSP Black Suede Powder Coat BSP
WSP White Suede Powder Coat WSP

Zinc levers are plated to match ANSI/BHMA finish.

Lock/Cylinder Finish

Lock Cylinder/Core*
605,606,611,612,613,613E,613L,722 606
618,619,625,626,WSP 626
BSP BSP

* Finish when cylinder provided with lock

Quick Codes

CL3100 Series

Strikes

ANSI
Lip to Center 		ANSI
Curved Lip Specify 		T-Strike Curved Lip
Box Specify
1" (25mm) SA100 SC100
1-1/8" (29mm) SA118 SC118
1-1/4" (32mm) SA114 (standard) SC114
1-3/8" (35mm) SA138 SC138
1-1/2" (38mm) SA112 SC112
1-3/4" (44mm) SA134 SC134
2" (51mm) SA200 SC200
2-1/4" (57mm) SA214 SC214
2-1/2" (64mm) SA212 SC212
2-3/4" (70mm) SA234 SC234
3" (76mm) SA300 SC300

Door Thickness

Door Thickness Specify
1-3/4"(44mm) - 2" (51mm) (standard)
Over 2" (51mm) - up to 2 1/4" (57mm) D214

Backset

Description Specify
2-3/4" (70mm) (standard)
3-3/4" (95mm) B334
5" (127mm) B500

Miscellaneous Options

Description Specify
Spanner head screws M02
Torx® head screws M04
Less cylinder, with tailpiece for Schlage® fixed core
cylinder (AZ, NZ & PZ designs) 		M061
Lever to accept 6 or 7-pin SFIC (AZ, NZ & PZ designs) M081
Lever to accept SARGENT® fixed core cylinder (AZ, NZ
& PZ designs) 		M091
3/4" (19mm) throw fire latch M16
ANSI wrought strike box M17
Knurling outside and inside M202
Knurling outside only M212
Knurling inside only M222
Abrasive coat outside and inside M23
Abrasive coat inside only M24
Abrasive coat outside only M25
Lead lining (roses) M28
Lever to accept Schlage® LFIC (AZ, NZ & PZ designs) M691
Security Lever M111
STC 55 Door Kit M112
Lever to accept Yale® 6-pin fixed core cylinder
(NZ & PZ designs only) 		YC1
Lever to accept Yale® 7-pin fixed core cylinder
(NZ & PZ designs only) 		YC71
Lever to accept Yale® 6-pin LFIC (NZ & PZ designs only) YRC1
Lever to accept Yale® 7-pin LFIC (NZ & PZ designs only) YRC71

1 Not available in CL3129 functions

2 All levers provided in a powder coat finish will be supplied with an abrasive coating

How To Specify

CL3100 Series

CL3100 Series Suggested Specification

All locksets shall be CL3100 Series Vandal Resistant Lever Locksets as manufactured by Corbin Russwin Architectural Hardware.

A single lock chassis shall accommodate 1-3/4" (44mm) to 2-1/4" (57mm) door thickness. Locksets shall be non-handed.

Locksets shall be able to withstand 3000 inch pounds of torque applied to the locked lever without gaining access.

Locksets shall have solid cast levers without plastic fillers. Outside lever handles shall be a minimum of 4-5/8" (117mm) in length and shall provide a minimum of 2" (51mm) clearance from the surface of the door to the inside of the lever at the midpoint. Outside lever handles may return to within 1/2" (13mm) of the door surface. Levers on keyed locksets shall be removable only when the designated key is in the cylinder.

Locksets shall be able to fit a standard 2-1/8" (55mm) bore without the use of thru-bolts. Standard rose size shall be 3-1/2" (89mm) in diameter.

Latchbolt head shall be one piece stainless steel. Latchbolt assembly shall be encased within the lock body.

Lockset shall have 2-3/4" (70mm) backset, standard.

A single lockset shall accommodate a 6 or 7-pin conventional cylinder and all levers of master keying, construction master keying, visual key control, security, high security and interchangeable core. Cylinders may be easily changed by removing the lever without disassembling the lockset.

Locksets required for fire doors shall be listed by UL for ratings of A label (3 hours) and less, for doors up to 4'0" (1.2m) x 10'0" (3m) and pairs of doors 8'0" (2.4m) x 10'0" (3m). A 3/4" (19mm) throw Latchbolt for pairs of fire doors shall be standard.

Locksets shall be cycle tested per ANSI/BHMA A156.2, to eight (8) million cycles without any visible lever sag.

Certification:

Exceeds ANSI/BHMA A156.2 Series 4000, Grade 1 UL and cUL listed to Canadian safety standards UL-cUL listed for 3 Hour doors All levers conform to ADA requirements for barrier free accessibility Meets UL 10C and UBC 7-2 UL Listed: ANSI/SDI-BHMA A250.13;ANSI/ASTM E330-2002 ANSI/ASTM 31886-2005 & ASTM 31996-1009 UL Certification Directory ZHEM.R21744 Latching Hardware Listed on Florida Building Code Website: FL4351-R1 Meets ANSI A117.1 Accessibility Code.

California State Reference Code (formerly Title 19, Cal. State Fire Marshal Standard).

Lockset shall carry a ten (10) year limited warranty.

Notes

CL3100 Series

For additional information, contact your ASSA ABLOY Door Security Solutions sales consultant or visit www.corbinrusswin.com.

In U.S.

Corbin Russwin 225 Episcopal Road Berlin, CT 06037 Phone: 800-543-3658 Fax: 800-447-6714 corbinrusswin.com

In Canada

ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive Vaughan, Ontario Canada L4K 4T9 Phone: 800-461-3007 Fax: 905-738-2478

www.assaabloy.ca

ASSA ABLOY Group companies offer MicroShield®, an anti-microbial coating for door hardware. MicroShield uses proven silver ion-based technology from Agion®, a leading provider of antimicrobial solutions, to stem the spread of bacteria and other microbes.

MicroShield® is a registered trademark of ASSA ABLOY Access and Egress Hardware Group, Inc.

The Agion antimicrobial is not intended as a substitute for good hygiene. Coated products must still be cleaned to ensure the surfaces will be free of destructive microbes. ASSA ABLOY makes no representations or warranties, express or impled, as to the efficacy of the Agion antimicrobial. A copy of the Agion warranty is available upon request. Agion is a registered trademark of Agion Technologies, Inc., Wakefield, MA, USA.
