Padlocks & Deadlocks
Product Catalog
Introduction
Padlocks & Deadlocks
Table of Contents
| Introduction 2 |
|---|
|
Padlocks PL5000 Series
Features 3 Ordering Examples 4 Quick Codes 4 |
|
Deadlocks DL2200/
DL3200 Series Features 5 Functions 5 Strikes 5 Indicators 6 Ordering Examples 7 Cylinders 7 Quick Codes 8 |
|
Deadlocks DL3000 Series
Features 9 Functions 9 Strikes 9 Ordering Examples 10 Quick Codes10-11 |
|
Deadlocks DL4100 Series
Features 12 Functions 12 Strikes 13 Thumbturns 13 Ordering Examples 14 Quick Codes14-15 |

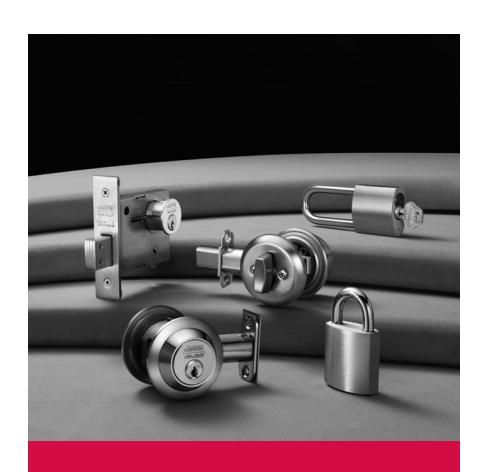

Applications
Corbin Russwin Auxiliary Locks provide security for a wide range of applications. Our auxiliary and special purpose locks including padlocks and deadlocks allow end users to meet specific security needs.
www.corbinrusswin.com

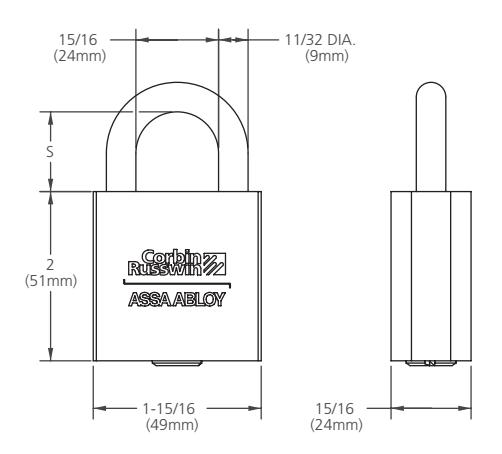

PL5000 Series
Padlocks
Rekeyable Fixed Core (RFC) and Large Format Interchangeable Core (LFIC) Models
| Model | Series |
Shackle Clearance
S |
|---|---|---|
| RFC |
PL5000R
PL5100R PL5200R |
Std: 7/8" (22mm) |
| LFIC |
PL5070
PL5170 PL5270 |
258: 2-5/8" (67mm) |

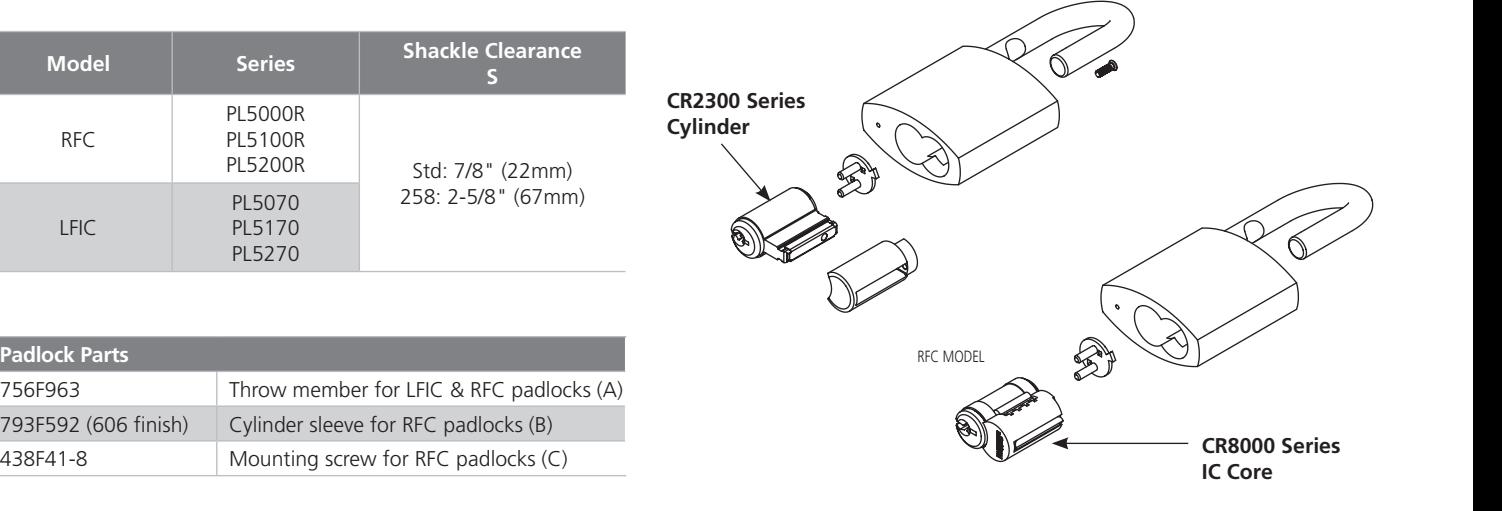

| Padlock Parts | |
|---|---|
| 756F963 | Throw member for LFIC & RFC padlocks (A) |
| 793F592 (606 finish) | Cylinder sleeve for RFC padlocks (B) |
RFC MODEL LFIC MODEL
Features
Case
Extruded brass.
Shackle
11/32" (9mm) diameter hardened steel (PL5000 Series), brass (PL5100 Series) or stainless steel (PL5200 Series).
Locking
Ball-bearing locking heel and toe.
Cylinder
RFC model: 6-pin Fixed Core (CR2300) LFIC model: 6-Pin, Security, Pyramid & Access 3 (CR8000 Series) L4 keyway standard
Keying Features Available
Master keying Construction master keying Interchangeable core (LFIC) 6-pin LFIC security Concealed key control Visual key control (not for HS) Pyramid (LFIC only) Access 3® (LFIC only)
Keys
Two nickel silver standard.
Warranty
One-year limited.
Finish
BHMA 606 Satin Brass (US4) only.
PL5000 Series
Padlocks
Ordering Examples
Stock Order
| Quantity | Series/Function |
|---|---|
| 10 | PL5000R |
Contract/Detailed Order
| Quantity | Keyset | Series/Function | Shackle Length | Misc. Options |
|---|---|---|---|---|
| 4 | AJ3 | PL5080 | 258 | M45 x S19866 |
Quick Codes
Series/Function
| Series/Function | |||
|---|---|---|---|
| Description |
Hardened
Steel Shackle |
Brass
Shackle |
Stainless
Steel Shackle |
|
Rekeyable Fixed Core
(RFC) |
PL5000R | PL5100R | PL5200R |
|
Large Format
Interchangeable core (LFIC) less core |
PL5070 | PL5170 | PL5270 |
| LFIC 6-pin | PL5080 | PL5180 | PL5280 |
| LFIC security | PL5090 | PL5190 | PL5290 |
|
Pyramid High
Security (LFIC) |
PL5030 | PL5130 | PL5230 |
| Pyramid Security (LFIC) | PL5037 | PL5137 | PL5237 |
Miscellaneous Options
| Description | Specify |
|---|---|
| Chain and clevis attached | M44 |
|
Custom die stamped case
(specify existing die number, or provide lettering specifications or artwork) |
M45 x # |
Cylinder Only
| Description | Specify |
|---|---|
| Removable Core | |
| Standard 6-pin | CR2300 |
| Large Format Interchangeable Core | |
| Standard 6-pin | CR8000 |
| Security | CR8010 |
| Pyramid High Security | CR8020 |
| Pyramid Security | CR8027 |
| Access 3® - Patented | CR8500 |
| Access 3® - Security | CR8600 |
| Access 3® - High Security | CR8700 |
Cylinder and Keying
| Description | Specify |
|---|---|
|
Keyed Random
(standard for Pyramid & LFIC security padlocks) |
KR |
|
0-bitted
(not available for Pyramid & LFIC security padlocks) |
(standard) |
| Construction Master Keyed (RFC & LFIC 6-pin padlocks only) | CMK |
|
Temporary Construction Core (Red)
(LFIC 6-pin padlocks only) |
CT6R |
|
Temporary Construction Core (Blue)
(LFIC 6-pin padlocks only) |
CT6B |
|
Temporary Construction Core (Green)
(LFIC 6-pin padlocks only) |
CT6G |
| Visual Key Control (VKC) | |
| - Keys only | VKC1 |
|---|---|
|
- Locks and keys
(RFC & LFIC 6-pin padlocks only) |
VKC2 |
|
- Locks only
(RFC & LFIC 6-pin padlocks only) |
VKC3 |
Concealed Key Control (CKC)
(LFIC 6-pin & LFIC security padlocks only)
| - CKC cores and VKC keys | CKC2 |
| - CKC cores only | CKC3 |
| 2 keys per lock | (standard) |
| More than 2 keys |
KY#
(e.g., KY6) |
| Rekeyable FC (RFC) Less Cylinder | LC |
| Access 3® Patented LFIC | ACP |
| Access 3® Security LFIC | ACS |
| Access 3® High Security LFIC | ACHS |
Shackle Clearance
| Description | Specify |
|---|---|
| 7/8" (22mm) | (standard) |
| 2-5/8" (67mm) | 258 |

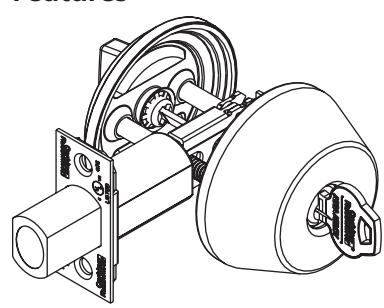

DL2200/DL3200 Series
Deadlocks
Features
Handing Non-handed.
Door Thickness Standard: 1-3/4" (44mm). Optional door thicknesses available; see Quick Codes.
Backset Standard: 2-3/4" (70mm)
Optional: 2-3/8" (60mm)
Front Standard: brass or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm). Optional: 1" width; see Quick Codes.
Deadbolt 1" throw, solid steel deadbolt with hardened, free spinning, steel pin
Strike Standard; 2-3/4" (70mm) x 1-1/8" (29mm). Optional strikes and wrought boxes available; see Strikes, this page.
Cylinder Standard: brass, 6-pin, L4 keyway, 0-bitted. Security cylinder optional; see Quick Codes.
Keys Two nickel silver standard.
Keying Features Available
Master keying Construction master keying Security Visual key control Concealed key control
Warranty One-year limited.
Certification/Compliance
UL10B/UL10C Fire Rated Auxiliary Lock for A label and lesser class doors when used with a correspondingly rated primary latching device.
ANSI/BHMA
DL2200 - A156.36 Certified Grade 2 BHMA DL3200 - A156.36 Certified Grade 1
Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
Functions
| Outside Inside |
Series/
Function |
Туре |
ANSI
No. |
Function Description |
|---|---|---|---|---|
|
DL2213
DL3213 |
Single
Cylinder |
E0150
Series |
- By key outside and by thumbturn inside. | |
|
DL2212
DL3212 |
Double
Cylinder |
E0140
Series |
- By key either side. | |
| ONLY |
DL2217
DL3217 |
Classroom |
E0170
Series |
- By key outside and by thumbturn inside Thumbturn will retract but not project deadbolt. |
|
DL2211
DL3211 |
Cylinder
x Blank |
E0160
Series |
- By key one side only; opposite side blank. | |
|
DL2260
DL3260 |
Thumbturn
x Blank |
E0190
Series |
- By thumbturn one side only; opposite side blank. | |
| DL2261 |
Thumbturn
x Indicator |
E01112 |
By thumbturn inside,
emergency override key outside. Indicator standard for both sides, specify indicator option code. |
Strikes
Metal Frame Strike
Standard 2-3/4" (70mm) x 1-1/8" (29mm). To order separately, specify 781F568 x Finish
Wood Frame Strike
Standard 2-3/4" (70mm) x 1-1/8" (29mm). To order separately, specify 781F558 x Finish.
Strike Box
Standard with standard strikes. To order separately, specify 781F599.
ANSI Strike
Optional; see Quick Codes. To order separately, specify 423L71 x Finish.
ANSI Wrought Strike Box
Optional for use with ANSI strike; see Quick Codes. To order separately, specify 120F768.
Copyright © 2001-2022, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents
DL2200 Series
Indicators
Available on the DL2200 Series, ANSI/BHMA Grade 2, deadbolts, status indicators can be used in a variety of applications and are most commonly used to identify occupancy status of a room.
With indicator option codes that are designed to convey wording and color in one simple code, indicators are provided on the DL2213 function as an option, and standard on both sides for the DL2261 function. Indicator option codes must be specified when ordering.
Note: Oversized thumbturn standard on indicator functions only. Other functions available by special application. Contact customer service for more details.
- Multiple indicator windows
- Large indicator windows
- Color, wording and symbols
- Options for wording/color
- Oversized thumbturn
- Patent pending thumbturn indicator
- Handed and field reversible
Applications:
- Restrooms
- Quiet rooms
- Nursing mother's rooms
Indicator Option Codes
| Single Indicator (Available for DL2213) | ||||
|---|---|---|---|---|
| Option Code | Outside Wording | Inside Wording | Color | |
| V01 | No Indicator | Unlocked/Locked | Green/Red | |
| V01F | No Indicator | Ouvert/Fermé | Green/Red | |
| V04 | No Indicator | Unlocked/Locked | White/Red | |
| Double Indicator (Available for DL2261) | ||||
| Option Code | Outside Wording | Inside Wording | Color | |
| V21* | Vacant/Occupied | Unlocked/Locked | Green/Red | |
| V21F | Libre/Occupée | Ouvert/Fermé | Green/Red | |
| V54 | Vacant/Occupied | Unlocked/Locked | White/Red | |
* V21 provided standard for DL2261 unless otherwise specified
LOCKED LOCKED
DL2200/DL3200 Series
Deadlocks
Ordering Examples
Stock Order
Contract/Detailed Order
| Quantity | Series/Function | Finish | Quantity | Keyset | Series/Function | Finish | Strike | Options |
|---|---|---|---|---|---|---|---|---|
| 24 | DL2213 | 626 | 24 | AA1 | DL2213 | 626 | SS078 | HS-CKC2 |
Cylinders
Cylinder Only (less housing)
| Function | Part Number | Cylinder Type | Door Thickness | |
|---|---|---|---|---|
| CR4400-134-A51 | 6-Pin Conventional | |||
| CR4400-134-A51-7 | 7-Pin Conventional | |||
| CR4410-134-A51 | Security | 1-3/8" (35mm) | ||
| CR4420-134-A51 | Pyramid High Security | 1-3/4" (44mm) | ||
| 11,13,17 |
CR4427-134-A51
Pyramid Security |
2" (51mm) | ||
| CR4500-134-A51 | Access 3® Patented | 2-1/4" (57mm) | ||
| CR4600-134-A51 | Access 3® Security | |||
| CR4700-134-A51 | Access 3® High Security | |||
| CR4400-134-A52 | 6-Pin Conventional | |||
| CR4400-134-A52-7 | 7-Pin Conventional | |||
| CR4410-134-A52 | Security | |||
| CR4420-134-A52 | Pyramid High Security | 1-3/8" (35mm) | ||
| CR4427-134-A52 | Pyramid Security | 1-3/4" (44mm) | ||
| CR4500-134-A52 | Access 3® Patented (AP) | |||
| CR4600-134-A52 | Access 3® Security (AS) | |||
| CR4700-134-A52 | Access 3® High Security (AHS) | |||
| 12 | CR4400-214-A52 | 6-Pin Conventional | ||
| CR4400-214-A52-7 | 7-Pin Conventional | |||
| CR4410-214-A52 | Security | |||
|
CR4420-214-A52
Pyramid High Security |
2" (51mm) | |||
| CR4427-214-A52 | Pyramid Security | |||
| CR4500-214-A52 | Access 3® Patented (AP) | |||
| CR4600-214-A52 | Access 3® Security (AS) | |||
| CR4700-214-A52 | Access 3 High Security (AHS) | |||
| CR8000 | 6-Pin LFIC | See the Housing | ||
| CR8000-7 | 7-Pin LFIC | Assembly | ||
|
11,12,
13,17 |
CR8010 | Security LFIC | for Interchangeable | |
| CR8020 | Pyramid High Security LFIC |
Core
Cylinder chart below. |
||
| CR8027 | Pyramid Security LFIC | |||
| CR8200 | 6-pin SFIC | |||
| CR8200-7 | 7-pin SFIC | |||
| CR8500 | Access 3® Patented LFIC | |||
| CR8600 | Access 3® Security LFIC | |||
| CR8500 | Access 3® High Security LFIC | |||
Housing Assembly - Interchangeable Core Cylinder
| Function | Part Number | Accepts Core | Door Thickness | |||
|---|---|---|---|---|---|---|
| CR4440-134-A51 | 6 & 7 Pin SFIC | |||||
| CR4470-134-A51 | 6-Pin LFIC | 1-3/8" (35mm) | ||||
| 11,13,17 | CR4470-134-A51-7 | 7-Pin LFIC |
1-3/4" (44mm)
2" (51mm) 2-1/4" (57mm) |
|||
| CR4440-138-A52-XX (*) | 6 & 7 Pin SFIC | |||||
| CR4470-138-A52-XX | 6-Pin LFIC | 1-3/8" (35mm) | ||||
| CR4470-138-A52-7-XX | 7-Pin LFIC | |||||
| CR4440-134-A52-XX | 6 & 7 Pin SFIC | |||||
| CR4470-134-A52-XX | 6-Pin LFIC | 1-3/4" (44mm) | ||||
| CR4470-134-A52-7-XX | 7-Pin LFIC | |||||
| 12 | CR4440-200-A52-XX | 6 & 7 Pin SFIC | ||||
| CR4470-200-A52-XX | 6-Pin LFIC | 2" (51mm) | ||||
| CR4470-200-A52-7-XX | 7-Pin LFIC | |||||
| CR4440-214-A52-XX | 6 & 7 Pin SFIC | |||||
| CR4470-214-A52-XX | 6-Pin LFIC | 2-1/4" (57mm) | ||||
| CR4470-214-A52-7-XX | 7-Pin LFIC | |||||
(*) Specify "OS" for outside of door or "IS" for inside of door.
DL2200/DL3200 Series
Deadlocks
Quick Codes
Cylinder and Keying Strike
| Description | Specify |
|---|---|
| Conventional 6-pin | (standard) |
| Less Cylinder(s) | LC |
| Conventional 7-pin | 7P |
| LFIC | |
| LFIC 6-pin | C6 |
| LFIC 6-pin Less Core | CL6 |
| LFIC 6-pin with Temporary Disposable Core | CT6D |
| LFIC 6-pin with Temporary Construction Core (Red) | CT6R |
| LFIC 6-pin with Temporary Construction Core (Blue) | CT6B |
| LFIC 6-pin with Temporary Construction Core (Green) | CT6G |
| LFIC 7-pin | C7 |
| LFIC 7-pin Less Core | CL7 |
| LFIC 7-pin with Temporary Disposable Core | CT7D |
| LFIC 7-pin with Temporary Construction Core (Red) | CT7R |
| LFIC 7-pin with Temporary Construction Core (Blue) | CT7B |
| LFIC 7-pin with Temporary Construction Core (Green) | CT7G |
| SFIC | |
| SFIC 6-pin | C6S |
| SFIC 6-pin Less Core | CLS6 |
| SFIC 6-pin with Temporary Construction Core (Blue) | CT6SB |
| SFIC 7-pin | C7S |
| SFIC 7-pin Less Core | CLS7 |
| SFIC 7-pin with Temporary Construction Core (Blue) | CT7SB |
| SFIC 6- or 7-pin Small Format Disposable Core | CTSD |
| Security | |
| Security | HS |
| Security LFIC | CHS |
| Access 3® | |
| Access 3® Patented Fixed Core | AP |
| Access 3® Security Fixed Core | AS |
| Access 3® High Security Fixed Core | AHS |
| Access 3® Patented LFIC | ACP |
| Access 3® Security LFIC | ACS |
| Access 3® High Security LFIC | ACHS |
| Pyramid | |
| Pyramid High Security Fixed Core | PHS |
| Pyramid High Security LFIC | PCHS |
| Pyramid Security Fixed Core | PS |
| Pyramid Security LFIC | PCS |
| Keying and Keys | |
| 0-bitted with 2 blank keys | (standard) |
| Keyed Random | KR |
|
Construction Master Keyed (not available for Pyramid
& Security cylinders) |
CMK |
| 2 keys per lock | (standard) |
| More than 2 keys (e.g., KY6) | KY# |
| Visual key control (VKC) | |
| Keys only | VKC1 |
|
Cylinders and keys (not for AS, AHS, ACS, ACHS, HS,
CHS, PHS or PCHS) |
VKC2 |
|
Cylinders only (not for AS, AHS, ACS, ACHS, HS,
CHS, PHS or PCHS) |
VKC3 |
| Concealed key control (CKC) | |
| CKC cylinders and VKC keys | CKC2 |
| CKC cylinders only (not for AS, AHS, ACS, ACHS, | |
| PHS, PCHS) | CKC3 |
| Lip to Center | ANSI Straight Lip Specify |
| 7/8" (22mm) | SS078 |
| 1-1/8" (29mm) | SS118 |
| 1-1/4" (32mm) | SS114 |
| 1-3/8" (35mm) | SS138 |
| 1-1/2" (38mm) | SS112 |
| 1-3/4" (44mm) | SS134 |
| 2" (51mm) | SS200 |
| 2-1/4" (57mm) | SS214 |
| 2-1/2" (64mm) | SS212 |
| 2-3/4" (70mm) | SS234 |
| 3" (76mm) | SS300 |
Finish
| Description | Specify | |
|---|---|---|
| US3 | Bright Brass | 605 |
| US4 | Satin Brass | 606 |
| US10 | Satin Bronze | 612 |
| US10B |
Dark Oxidized Satin Bronze,
oil rubbed |
613 |
|
Dark Oxidized Satin Bronze -
US10BE equivalent US26 Bright Chromium Plated |
613E | |
| 625 | ||
| US26D | Satin Chromium Plated | 626 |
| — | Black Suede Powder Coat | BSP |
| — | White Suede Powder Coat | WSP |
Lock/Cylinder Finish
| Lock | Cylinder/Core* |
|---|---|
| 605,606, 612,613,613E | 606 |
| 625,626,WSP | 626 |
| BSP | BSP |
* Finish when cylinder provided with lock
Door Thickness
| Description | Specify |
|---|---|
| 1-3/8" (35mm) | D138 |
| 1-3/4" (44mm) | (standard) |
| 2" (51mm) | D200** |
| 2-1/4" (57mm) | D214** |
** Special application required for use with DL2261, contact Technical Product Support
Miscellaneous Options
| Description | Specify |
|---|---|
| ANSI wrought strike box | M17 |
| Plastic box for standard strike | (standard) |
Bolt Assembly
| Description | Part No. | Specify |
|---|---|---|
| 2-3/8" (60mm) Backset | 781F528 | B238 |
| 2-3/4" (70mm) Backset | 781F538 | (standard) |
| Front Trim Plates | ||
| 1" (25mm) Wide | 781F50M x Finish | M14 |
| 1-1/8" (29mm) Wide | 781F51M x Finish | (standard) |
DL3000 Series
Deadlocks
Features
Handing
Non-handed, except DL3017, which is handed and field reversible.
Door Thickness
Standard: 1-3/4" (44mm) - 2-1/4" (57mm). Optional door thicknesses available; see Quick Codes.
Backset
Standard: 2-3/4" (70mm) Optional: 2-3/8" (60mm)
Front
Standard: wrought brass or bronze, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
Deadbolt
Zinc diecast hardened steel insert. 1" (25mm) throw, 5/8" (16mm) wide x 3/4" (19mm) high.
Strike
Standard; 2-3/4" (70mm) x 1-1/8" (29mm).
Optional strikes and wrought boxes available; see Strikes, this page.
Cylinder
Brass, 6-pin, L4 keyway, 0-bitted. Security cylinders optional; see Quick Codes.
Keys
Two nickel silver standard.
Keying Features Available
Master keying Construction master keying 7-pin (FC) conventional Interchangeable core (LFIC or SFIC) Security Security (LFIC) Visual key control Concealed key control
Pyramid (FC) Pyramid (LFIC)
Warranty
One-year limited.
Functions
|
Outside
Inside |
Series/
Function |
Type | ANSI No. | Function Description |
|---|---|---|---|---|
| DL3013 |
Single
Cylinder |
E0150
Series |
- By key outside and by
thumbturn inside. |
|
| DL3012 |
Double
Cylinder |
E0140
Series |
- By key either side. | |
| DL3017 | Classroom |
E0170
Series |
- By key outside and by
thumbturn inside. - Thumbturn will retract but not project deadbolt. |
|
| DL3011 |
Cylinder
x Blank |
E0160
Series |
- By key one side only; opposite
side blank. |
|
| DL3060 |
Thumbturn
x Blank |
E0190
Series |
- By thumbturn one side; opposite
side blank. |
Strikes
Standard Strike 2-3/4" (70mm) x 1-1/8" (29mm). To order separately, specify 424F83 x
Wrought Strike Box
Finish.
Standard with Standard Strike. To order separately, specify 496F71-8.
Optional Strike
3-1/2" (89mm) x 1-1/8" (29mm); see Quick Codes. To order separately, specify 394F19 x Finish.
Optional Thumbturn
ANSI Strike Optional; see Quick
To order separately, specify 423L71 x
ANSI Wrought Strike Box Optional for use with ANSI Strike; see Quick Codes. To order separately, specify 120F76-8.
Codes.
Finish.
Large profile and offset center thumbturn makes it easier to grasp and rotate. To order specify Quick Code M34. Available for DL3013, DL3017, DL3060.
Note: Large Format Interchangeable core not available with 1-3/8" door thickness (D138) option and 2-3/8" backset (B238) option.
DL3000 Series
Deadlocks
Ordering Examples
Stock Order
| Quantity | Series/Function | Finish |
|---|---|---|
| 24 | DL3013 | 626 |
Contract/Detailed Order
| Quantity | Keyset |
Series/
Function |
Finish |
Optional
Strike |
Door
Thickness |
Misc.
Options |
|---|---|---|---|---|---|---|
| 24 | AA1 | DL3013 | 613 | SS118 | D214 | C6-M17 |
Quick Codes
Finish
| Description | |||||
|---|---|---|---|---|---|
| US3 | US3 Bright Brass | ||||
| US4 | Satin Brass | 606 | |||
| US10 | Satin Bronze | 612 | |||
| US10B | Dark Oxidized Satin Bronze, oil rubbed | 613 | |||
| US10BE | Dark Oxidized Satin Bronze - equivalent | 613E | |||
| US26 | Bright Chromium Plated | 625 | |||
| US26D | Satin Chromium Plated | 626 | |||
| _ | Black Suede Powder Coat | BSP | |||
| _ | White Suede Powder Coat | WSP | |||
Strike
| Lip to Center |
ANSI Straight
Lip Specify |
|---|---|
| 7/8" (22mm) | SS078 |
| 1-1/8" (29mm) | SS118 |
| 1-1/4" (32mm) | SS114 |
| 1-3/8" (35mm) | SS138 |
| 1-1/2 " (38mm) | SS112 |
| 1-3/4" (44mm) | SS134 |
| 2" (51mm) | SS200 |
| 2-1/4" (57mm) | SS214 |
| 2-1/2 " (64mm) | SS212 |
| 2-3/4" (70mm) | SS234 |
| 3" (76mm) | SS300 |
| Other Strikes (no lip) | Specify |
| 2-3/4" (70mm) x 1-1/8" (29mm) | (standard) |
| 3-1/2" (89mm) x 1-1/8" (29mm | SD001 |
Door Thickness
| Description | Specify |
|---|---|
| 1-3/4" (44mm) - 2" (51mm) | (standard) |
| 2-1/4" (57mm) | D214 |
| 1-3/8" (35mm) | D138 |
Miscellaneous Options
| Description | Specify |
|---|---|
| ANSI wrought strike box | M17 |
| Ergonomic Thumbturn | M34 |
| Wrought box for standard strike | (standard) |
DL3000 Series
Deadlocks
Quick Codes (cont.)
Cylinder and Keying
| Description | Specify |
|---|---|
| Conventional 6-pin | (standard) |
| Less Cylinder(s) | LC |
| Conventional 7-pin | 7P |
| LFIC | |
| LFIC 6-pin | C6 |
| LFIC 6-pin Less Core | CL6 |
| LFIC 6-pin with Temporary Disposable Core | CT6D |
| LFIC 6-pin with Temporary Construction Core (Red) | CT6R |
| LFIC 6-pin with Temporary Construction Core (Blue) | CT6B |
| LFIC 6-pin with Temporary Construction Core (Green) | CT6G |
| LFIC 7-pin | C7 |
| LFIC 7-pin Less Core | CL7 |
| LFIC 7-pin with temporary disposable core | CT7D |
| LFIC 7-pin with Temporary Construction Core (Red) | CT7R |
| LFIC 7-pin with Temporary Construction Core (Blue) | CT7B |
| LFIC 7-pin with Temporary Construction Core (Green) | CT7G |
| SFIC | |
| SFIC 6-pin | C6S |
| SFIC 6-pin Less Core | CLS6 |
| SFIC 6-pin with Temporary Construction Core (Blue) | CT6SB |
| SFIC 7-pin | C7S |
| SFIC 7-pin Less Core | CLS7 |
| SFIC 7-pin with Temporary Construction Core (Blue) | CT7SB |
| SFIC 6- or 7-pin Small Format Disposable Core | CTSD |
| Security | |
| Security | HS |
| Security LFIC | CHS |
| Access 3® | |
| Access 3® Patented Fixed Core | AP |
| Access 3® Security Fixed Core | AS |
| Access 3® High Security Fixed Core | AHS |
| Access 3® Patented LFIC | ACP |
| Access 3® Security LFIC | ACS |
| Access 3® High Security LFIC | ACHS |
| Pyramid | |
| Pyramid High Security Fixed Core | PHS |
| Pyramid High Security LFIC | PCHS |
| Pyramid Security Fixed Core | PS |
| Pyramid Security LFIC | PCS |
| UL Housing | |
| LFIC 6-pin Less Core | CL6AH |
| LFIC 6-Pin Disposable Core | CTAHD |
| LFIC 6-pin with Temporary Construction Core | CT6AH |
| (Red/Blue/Green) | (R/B/G) |
| Keying and Keys | |
| 0-bitted with 2 blank keys | (standard) |
| Keyed Random | KR |
| Construction Master Keyed (not available for Pyramid & | |
| Security cylinders) | CMK |
| 2 keys per lock | (standard) |
| More than 2 keys (e.g., KY6) | KY# |
| Visual key control (VKC) | |
| Keys only | VKC1 |
|
Cylinders and keys (not for AS, AHS, ACS, ACHS, HS,
CHS, PHS or PCHS) |
VKC2 |
|
Cylinders only (not for AS, AHS, ACS, ACHS, HS, CHS,
PHS or PCHS) |
VKC3 |
| Concealed key control (CKC) | |
| CKC cylinders and VKC keys | CKC2 |
| CKC cylinders only (not for AS, AHS, ACS, ACHS, | CKC3 |

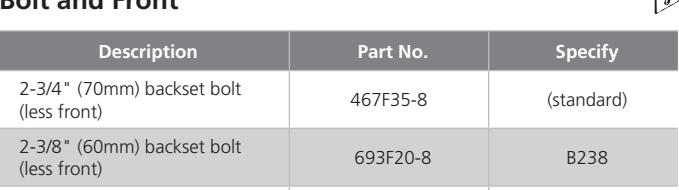

Bolt and Front
1-1/8" (29mm) front 467F36 —
Cylinder Only Specify Part No. x Keyway x Finish
| Description | Number |
|---|---|
| Conventional 6-pin | CR1000-118-A03 |
| Conventional 7-pin | CR1000-114-A03-7 |
| LFIC 6-pin | CR1080-114-A03 |
| LFIC 6-pin less core | CR1070-114-A03 |
| LFIC 7-pin | CR1080-114-A03-7 |
| LFIC 7-pin less core | CR1070-114-A03-7 |
| SFIC 6-pin | CR1050-114-A03 |
| SFIC 6-pin | CR1040-114-A03 |
| SFIC 7-pin | CR1050-114-A03-7 |
| SFIC 7-pin | CR1040-114-A03-7 |
| Security | CR1010-118-A03 |
| Security LFIC | CR1090-114-A03 |
|
Pyramid (FC)
Conventional |
CR1020-114-A03 |
| Pyramid (LFIC) | CR1030-114-A03 |
| Access 3 Patented Fixed Core | CR1500-114-A03 |
| Access 3 Security Fixed Core | CR1600-114-A03 |
| Access 3 High Security Fixed Core | CR1700-114-A03 |
| Access 3 Patented Interchangeable Core | CR1580-114-A03 |
| Access 3 Security Interchangeable Core | CR1680-114-A03 |
| Access 3 High Security Interchangeable Core | CR1788-114-A03 |
| Access 3 UL 6-Pin Housing | CR1078-114-A03 |
Deadlocks
Features
Handing
Non-handed.
Door Thickness
Standard: 1-3/4" (44mm). Optional door thicknesses available; see Quick Codes.
Backset
2-3/4" (70mm).
Lockcase
Heavy wrought steel; zinc dichromate finish.
Front
Brass, bronze, stainless steel. 4-5/8"(117mm) x 1-1/8" (29mm). Adjustable for flat or beveled doors (bevel adjustment 1/8"(3mm) in 2"(51mm).
Deadbolt
Laminated stacked steel with hardened pin, 1" (25mm) throw.
Strike
Standard: wrought brass or bronze, 3-1/2" (89mm) x 1-1/8" (29mm). Optional strikes available; see Strikes, next page.
Cylinder
6-pin, L4 keyway, 0-bitted. Security cylinder optional; see Quick Codes.
Keys
Two nickel silver standard.
Keying Features Available
Master keying Construction master keying 7-pin (FC) conventional Interchangeable core (LFIC or SFIC) Security Security (LFIC) Visual key control Concealed key control Pyramid (FC) Pyramid (LFIC)
Warranty
One-year limited.
Certification/Compliance
UL
Listed for use on fire doors.
Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing firerated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
Functions
| Outside/Inside |
Series/
Function |
Type | ANSI No. | Function Description |
|---|---|---|---|---|
| DL4113 | Single Cylinder |
E6070
Series |
- By key outside and by thumbturn
inside. |
|
| DL4112 |
Double
Cylinder |
E6060
Series |
- By key either side. | |
| DL4117 | Classroom |
E6090
Series |
- By key outside and by thumbturn
inside. - Thumbturn will retract but not project deadbolt. |
|
| DL4111 |
Cylinder
x Blank |
E6080
Series |
- By key one side only; opposite
side blank. |
|
| DL4122 |
Double Cylinder
x Thumbturn |
— |
- By key either side and
by thumbturn inside. - Thumbturn will retract but not project deadbolt. |
|
| DL4160 |
Thumbturn
x Blank |
— |
- By thumbturn inside
only; opposite side blank. |
Deadlocks
Standard Strike
3-1/2" (89mm) x 1-1/8" (29mm). To order separately, specify 796F34 x Finish.
Strike Box
Optional with Standard Strike; see Quick Codes. To order separately, specify 466F27-9.
ANSI Strike
Optional; see Quick Codes. To order separately, specify 240L08 x Finish.
ANSI Wrought Strike Box
Optional for use with ANSI Strike; see Quick Codes. To order separately, specify 120F76-8.
Strikes Thumbturns
Standard Thumbturn
Cast brass or bronze. Standard on functions utilizing thumbturn. Surface screw mounted. To order separately, see table.
Optional Thumbturn
Large profile and offset center thumbturn makes it easier to grasp and rotate. To order with lock, specify Quick Code M34. To order separately, see table.
| Packet | ||
|---|---|---|
| Door | Standard | Optional |
| 1-3/4" (44mm) | 796F30M x FIN | |
| 2" (51mm) | 857F45M x FIN | 791F51M x FIN |
| 2-1/4" (57mm) | 857F46M x FIN | |
Deadlocks
Ordering Examples
Stock Order
Contract/Detailed Order
| Quantity | Series/Function | Finish |
|---|---|---|
| 24 | DL4113 | 626 |
| Quantity | Keyset |
Series/
Function |
Finish |
Optional
Strike |
Door
Thickness |
Misc.
Options |
|---|---|---|---|---|---|---|
| 7 | AA13 | DL4112 | 626 | SS118 | D214 | C6-VKC2 |
Quick Codes
Cylinder and Keying
| Description | Specify |
|---|---|
| Conventional 6-pin | (standard) |
| Conventional 7-pin | 7P |
| Less Cylinder(s) | LC |
| LFIC | |
| LFIC 6-pin | C6 |
| LFIC 6-pin Less Core | CL6 |
| LFIC 6-Pin Disposable Core | CT6D |
| LFIC 6-pin with Temporary Construction Core (Red) | CT6R |
| LFIC 6-pin with Temporary Construction Core (Blue) | CT6B |
| LFIC 6-pin with Temporary Construction Core (Green) | CT6G |
| LFIC 7-pin | C7 |
| LFIC 7-pin Less Core | CL7 |
| LFIC 7-Pin Disposable Core | CT7D |
| LFIC 7-pin with Temporary Construction Core (Red) | CT7R |
| LFIC 7-pin with Temporary Construction Core (Blue) | СТ7В |
| LFIC 7-pin with Temporary Construction Core (Green) | CT7G |
| SFIC | |
| SFIC 6-pin | C6S |
| SFIC 6-pin Less Core | CLS6 |
| SFIC 6-Pin Disposable Core | CT6SD |
| SFIC 6-pin with Temporary Construction Core (Blue) | CT6SB |
| SFIC 7-pin | C7S |
| SFIC 7-pin Less Core | CLS7 |
| SFIC 7-Pin Disposable Core | CT7SD |
| SFIC 7-pin with Temporary Construction Core (Blue) | CT7SB |
| Security | |
| Security | HS |
| Security LFIC | CHS |
| Access 3° | |
| Access 3° Patented Fixed Core | AP |
| Access 3° Security Fixed Core | AS |
| Access 3° High Security Fixed Core | AHS |
| Access 3° Patented LFIC | ACP |
| Access 3° Security LFIC | ACS |
| Access 3° High Security LFIC | ACHS |
| Pyramid | |
| Pyramid Security Fixed Core | PS |
| Pyramid High Security Fixed Core | PHS |
| Pyramid Security LFIC | PCS |
| Pyramid High Security LFIC | PCHS |
| Pyramid LFIC Less Core | CLP |
| Pyramid with Temporary Construction Core | СТР |
| Pyramid Disposable Core | CTPD |
| LFIC 6-Pin Disposable Core LFIC 6-pin with Temporary Construction Core (Red/Blue/Green)) Other Master Ring Flex Head Cylinder, 6-pin (sectional trim) Flex Head Cylinder, 7-pin (sectional trim) Flex Head Cylinder, Master Ring (sectional trim) Flex Head Cylinder, Master Ring (sectional trim) Flug Only to Show, Less Cylinder Plug Only to Show, 6-pin (concealed shell; M and R escutcheons only, single cylinder only) Plug Only to Show, 7-pin (concealed shell; M and R escutcheons only, single cylinder only) Keying and Keys O-bitted with 2 blank keys Keyed Random Construction Master Keyed (not available for Pyramid) Uncombinated 2 keys per lock More than 2 keys Visual key control (VKC) No bitting or keyset stamping on keys or cylinder Keys only Cylinders and keys (not for AS, AHS, ACS, ACHS, HS, CHS, PHS or PCHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, HS, CHS, PHS or PCHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) | Description | Specify |
|---|---|---|
| LFIC 6-Pin Disposable Core LFIC 6-pin with Temporary Construction Core (Red/Blue/Green) 1 Other Master Ring Flex Head Cylinder, 6-pin (sectional trim) Flex Head Cylinder, 7-pin (sectional trim) Flex Head Cylinder, Master Ring (sectional trim) Flex Head Cylinder, Master Ring (sectional trim) Plug Only to Show, Less Cylinder Plug Only to Show, 6-pin (concealed shell; M and R escutcheons only, single cylinder only) Plug Only to Show, 7-pin (concealed shell; M and R escutcheons only, single cylinder only) Keying and Keys O-bitted with 2 blank keys Keyed Random Construction Master Keyed (not available for Pyramid) Uncombinated 2 keys per lock More than 2 keys Visual key control (VKC) No bitting or keyset stamping on keys or cylinder Keys only Cylinders and keys (not for AS, AHS, ACS, ACHS, HS, CHS, PHS or PCHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, HS, CHS, PHS or PCHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) | UL Housing | |
| LFIC 6-pin with Temporary Construction Core (Red/Blue/Green)* Other Master Ring Flex Head Cylinder, 6-pin (sectional trim) Fixof Flex Head Cylinder, 7-pin (sectional trim) Flex Head Cylinder, Master Ring (sectional trim) Flug Only to Show, Less Cylinder Plug Only to Show, 6-pin (concealed shell; M and R escutcheons only, single cylinder only) Plug Only to Show, 7-pin (concealed shell; M and R escutcheons only, single cylinder only) Keying and Keys O-bitted with 2 blank keys Keyed Random Construction Master Keyed (not available for Pyramid) Uncombinated 2 keys per lock More than 2 keys Visual key control (VKC) No bitting or keyset stamping on keys or cylinder Keys only Cylinders and keys (not for AS, AHS, HS, ACS, ACHS, HS, CHS, PHS or PCHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, HS, CHS, PHS or PCHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) | LFIC 6-pin Less Core | CL6AH |
| (Red/Blue/Green)* Other Master Ring Flex Head Cylinder, 6-pin (sectional trim) Flex Head Cylinder, 7-pin (sectional trim) Flex Head Cylinder, Master Ring (sectional trim) Flug Only to Show, Less Cylinder Plug Only to Show, 6-pin (concealed shell; M and R escutcheons only, single cylinder only) Plug Only to Show, 7-pin (concealed shell; M and R escutcheons only, single cylinder only) Keying and Keys O-bitted with 2 blank keys Keyed Random Construction Master Keyed (not available for Pyramid) Uncombinated 2 keys per lock More than 2 keys Visual key control (VKC) No bitting or keyset stamping on keys or cylinder Keys only Cylinders and keys (not for AS, AHS, HS, ACS, ACHS, HS, CHS, PHS or PCHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) | LFIC 6-Pin Disposable Core | CTAHD |
| Other Master Ring Flex Head Cylinder, 6-pin (sectional trim) Fixof Flex Head Cylinder, 7-pin (sectional trim) Fixof Flex Head Cylinder, Master Ring (sectional trim) Flex Head Cylinder, Master Ring (sectional trim) Plug Only to Show, Less Cylinder Plug Only to Show, 6-pin (concealed shell; M and R escutcheons only, single cylinder only) Plug Only to Show, 7-pin (concealed shell; M and R escutcheons only, single cylinder only) Keying and Keys O-bitted with 2 blank keys Keyed Random Construction Master Keyed (not available for Pyramid) Uncombinated 2 keys per lock More than 2 keys Visual key control (VKC) No bitting or keyset stamping on keys or cylinder Keys only Cylinders and keys (not for AS, AHS, HS, ACS, ACHS, HS, CHS, PHS or PCHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) | CT6AH | |
| Master Ring Flex Head Cylinder, 6-pin (sectional trim) Flex Head Cylinder, 7-pin (sectional trim) Flex Head Cylinder, Master Ring (sectional trim) Flex Head Cylinder, Master Ring (sectional trim) Flug Only to Show, Less Cylinder Plug Only to Show, 6-pin (concealed shell; M and R escutcheons only, single cylinder only) Plug Only to Show, 7-pin (concealed shell; M and R escutcheons only, single cylinder only) Keying and Keys O-bitted with 2 blank keys Keyed Random Construction Master Keyed (not available for Pyramid) Uncombinated 2 keys per lock More than 2 keys Visual key control (VKC) No bitting or keyset stamping on keys or cylinder Keys only Cylinders and keys (not for AS, AHS, HS, ACS, ACHS, HS, CHS, PHS or PCHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) | ` ' | (R/B/G) |
| Flex Head Cylinder, 6-pin (sectional trim) FIEX Head Cylinder, 7-pin (sectional trim) FIEX Head Cylinder, Master Ring (sectional trim) FIEX Head Cylinder, Master Ring (sectional trim) FIEX Head Cylinder, Master Ring (sectional trim) FIEX Head Cylinder, Master Ring (sectional trim) FIEX Head Cylinder, Master Ring (sectional trim) FIEX Head Cylinder, Master Ring (sectional trim) FIEX Head Cylinder, Master Ring (sectional trim) FIEX Head Cylinder, FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HEAD FIEX HE SEARCH HEAD FIEX HE ACCOUNTY HEAD FIEX HE ACCOUNTY HE FOR THE FIEX HE ACCOUNTY HE FOR THE FIEX HE ACCOUNTY HE FOR THE FIEX HE ACCOUNTY HE FOR THE FIEX HE ACCOUNTY HE FOR THE FIEX HE ACCOUNTY HE FOR THE FIEX HE ACCOUNTY HE FOR THE FIEX HE ACCOUNTY HE FOR THE FIEX HE ACCOUNTY HE FOR THE FIEX HE ACCOUNTY HE FOR THE FIEX | ||
| Flex Head Cylinder, 7-pin (sectional trim) FIRM Head Cylinder, Master Ring (sectional trim) Plug Only to Show, Less Cylinder Plug Only to Show, 6-pin (concealed shell; M and R escutcheons only, single cylinder only) Plug Only to Show, 7-pin (concealed shell; M and R escutcheons only, single cylinder only) Keying and Keys O-bitted with 2 blank keys Keyed Random Construction Master Keyed (not available for Pyramid) Uncombinated 2 keys per lock More than 2 keys Visual key control (VKC) No bitting or keyset stamping on keys or cylinder Keys only Cylinders and keys (not for AS, AHS, HS, ACS, ACHS, HS, CHS, PHS or PCHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) | ||
| Flex Head Cylinder, Master Ring (sectional trim) Plug Only to Show, Less Cylinder Plug Only to Show, 6-pin (concealed shell; M and R escutcheons only, single cylinder only) Plug Only to Show, 7-pin (concealed shell; M and R escutcheons only, single cylinder only) Keying and Keys O-bitted with 2 blank keys Keyed Random Construction Master Keyed (not available for Pyramid) Uncombinated 2 keys per lock More than 2 keys Visual key control (VKC) No bitting or keyset stamping on keys or cylinder Keys only Cylinders and keys (not for AS, AHS, HS, ACS, ACHS, HS, CHS, PHS or PCHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) | ||
| Plug Only to Show, Less Cylinder Plug Only to Show, 6-pin (concealed shell; M and R escutcheons only, single cylinder only) Plug Only to Show, 7-pin (concealed shell; M and R escutcheons only, single cylinder only) Keying and Keys O-bitted with 2 blank keys Keyed Random Construction Master Keyed (not available for Pyramid) Uncombinated 2 keys per lock More than 2 keys Visual key control (VKC) No bitting or keyset stamping on keys or cylinder Keys only Cylinders and keys (not for AS, AHS, HS, ACS, ACHS, HS, CHS, PHS or PCHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) | , , , , | |
| Plug Only to Show, 6-pin (concealed shell; M and R escutcheons only, single cylinder only) Plug Only to Show, 7-pin (concealed shell; M and R escutcheons only, single cylinder only) Keying and Keys O-bitted with 2 blank keys Keyed Random Construction Master Keyed (not available for Pyramid) Uncombinated 2 keys per lock More than 2 keys Visual key control (VKC) No bitting or keyset stamping on keys or cylinder Keys only Cylinders and keys (not for AS, AHS, HS, ACS, ACHS, HS, CHS, PHS or PCHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) | ||
| escutcheons only, single cylinder only) Plug Only to Show, 7-pin (concealed shell; M and R escutcheons only, single cylinder only) Keying and Keys O-bitted with 2 blank keys Keyed Random Construction Master Keyed (not available for Pyramid) Uncombinated 2 keys per lock More than 2 keys Visual key control (VKC) No bitting or keyset stamping on keys or cylinder Keys only Cylinders and keys (not for AS, AHS, ACS, ACHS, HS, CHS, PHS or PCHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) | PO-LC | |
| escutcheons only, single cylinder only) Keying and Keys 0-bitted with 2 blank keys Keyed Random Construction Master Keyed (not available for Pyramid) Uncombinated 2 keys per lock More than 2 keys Visual key control (VKC) No bitting or keyset stamping on keys or cylinder Keys only Cylinders and keys (not for AS, AHS, ACS, ACHS, HS, CHS, PHS or PCHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) | escutcheons only, single cylinder only) | PO6 |
| 0-bitted with 2 blank keys Keyed Random Construction Master Keyed (not available for Pyramid) Uncombinated UC 2 keys per lock More than 2 keys Visual key control (VKC) No bitting or keyset stamping on keys or cylinder Keys only Cylinders and keys (not for AS, AHS, ACS, ACHS, HS, CHS, PHS or PCHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) | PO7 | |
| O-bitted with 2 blank keys Keyed Random Construction Master Keyed (not available for Pyramid) Uncombinated 2 keys per lock More than 2 keys Visual key control (VKC) No bitting or keyset stamping on keys or cylinder Keys only Cylinders and keys (not for AS, AHS, ACS, ACHS, HS, CHS, PHS or PCHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) | Keying and Keys | |
| Construction Master Keyed (not available for Pyramid) Uncombinated UC 2 keys per lock More than 2 keys Visual key control (VKC) No bitting or keyset stamping on keys or cylinder Keys only Cylinders and keys (not for AS, AHS, ACS, ACHS, HS, CHS, PHS or PCHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) | 0-bitted with 2 blank keys |
0Bit
(standard) |
| Uncombinated 2 keys per lock (standa KY# More than 2 keys Visual key control (VKC) No bitting or keyset stamping on keys or cylinder Keys only Cylinders and keys (not for AS, AHS, ACS, ACHS, HS, CHS, PHS or PCHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) | Keyed Random | KR |
| 2 keys per lock More than 2 keys (standa KY# (e.g., K' Visual key control (VKC) No bitting or keyset stamping on keys or cylinder Keys only Cylinders and keys (not for AS, AHS, ACS, ACHS, HS, CHS, PHS or PCHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) | CMK | |
| More than 2 keys Visual key control (VKC) No bitting or keyset stamping on keys or cylinder Keys only Cylinders and keys (not for AS, AHS, ACS, ACHS, HS, CHS, PHS or PCHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) | ||
| Wisual key control (VKC) No bitting or keyset stamping on keys or cylinder Keys only Cylinders and keys (not for AS, AHS, ACS, ACHS, HS, CHS, PHS or PCHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS, CHS, CHS, CHS, CHS, CHS, CHS, | 2 keys per lock | (standard) |
| No bitting or keyset stamping on keys or cylinder Keys only Cylinders and keys (not for AS, AHS, ACS, ACHS, HS, CHS, PHS or PCHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) | More than 2 keys |
KY#
(e.g., KY6) |
| Keys only Cylinders and keys (not for AS, AHS, ACS, ACHS, HS, VKC2 CHS, PHS or PCHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS) | Visual key control (VKC) | |
| Cylinders and keys (not for AS, AHS, ACS, ACHS, HS, CHS, PHS or PCHS) Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS, CHS, CHS, ACS, ACHS, CHS, CHS, CHS, ACS, ACHS, CHS, ACS, ACHS, CHS, ACS, ACHS, CHS, ACS, ACHS, CHS, ACS, ACHS, CHS, ACS, ACHS, CHS, ACS, ACHS, CHS, ACS, ACHS, CHS, ACS, ACHS, CHS, ACS, ACHS, CHS, ACS, ACHS, CHS, ACS, ACHS, CHS, ACS, ACHS, CHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACHS, ACS, ACS, ACHS, ACS, ACS, ACHS, ACS, ACS, ACHS, ACS, ACS, ACHS, ACS, ACS, ACS, ACS, ACS, ACS, ACS, AC | No bitting or keyset stamping on keys or cylinder | VKC0 |
| CHS, PHS or PCHS) Cylinders only (not for AS AHS HS ACS ACHS CHS | VKC1 | |
| Cylinders only (not for AS AHS HS ACS ACHS CHS | VKC2 | |
| PHS or PCHS) | Cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS, PHS or PCHS) | VKC3 |
| Concealed key control (CKC) | Concealed key control (CKC) | |
| CKC cylinders with VKC keys CKC2 | CKC cylinders with VKC keys | CKC2 |
| CKC cylinders only (not for AS, AHS, HS, ACS, ACHS, CHS, PHS or PCHS) | CKC3 |
Deadlocks
Finish
| Description | Specify | |
|---|---|---|
| BHMA 605 (US3) | Bright Brass | 605 |
| BHMA 606 (US4) | Satin Brass | 606 |
| BHMA 611 (US9) | Bright Bronze | 611 |
| BHMA 612 (US10) | Satin Bronze | 612 |
| BHMA 613 (US10B) |
Dark Oxidized Satin Bronze, Oil
Rubbed |
613 |
|
BHMA 613E
(US10BE) |
Dark Oxidized Satin Bronze -
equivalent |
613E |
| 613L |
Dark Oxidized Satin Bronze,
Clear Coated |
613L |
| BHMA 618 (US14) | Bright Nickel | 618 |
| BHMA 619 (US15) | Satin Nickel | 619 |
| BHMA 625 (US26) | Bright Chromium Plated | 625 |
| BHMA 626 (US26D) | Satin Chromium Plated | 626 |
| — | Black Suede Powder Coat | BSP |
| — | White Suede Powder Coat | WSP |
Strike
| Lip to Center |
ANSI Straight Lip
Specify |
|---|---|
| 7/8" (22mm) | SS078 |
| 1-1/8" (29mm) | SS118 |
| 1-1/4" (32mm) | SS114 |
| 1-3/8" (35mm) | SS138 |
| 1-1/2" (38mm) | SS112 |
| 1-3/4" (44mm) | SS134 |
| 2" (51mm) | SS200 |
| 2-1/4" (57mm) | SS214 |
| 2-1/2" (64mm) | SS212 |
| 2-3/4" (70mm) | SS234 |
| 3" (76mm) | SS300 |
Miscellaneous Options
| Description | Specify |
|---|---|
| Spanner head screws | M02 |
| Torx® head screws | M04 |
| ANSI wrought strike box | M17 |
| Lead wrapped case | M29 |
| Ergonomic thumbturn | M34 |
| Box for standard strike | M40 |
Door Thickness
| Description | Specify |
|---|---|
| 1-3/4" (44mm) - 2" (51mm) | (standard) |
| 2-1/4" (57mm) | D214 |
Cylinder Only Specify Part No. x Keyway x Finish
| Description | Number |
|---|---|
| Conventional 6-pin | CR1000-118-A07 |
| Conventional 7-pin | CR1000-114-A07-7 |
| LFIC 6-pin | CR1080-114-A07 |
| LFIC 6-pin less core | CR1070-114-A07 |
| LFIC 7-pin | CR1080-112-A07-7 |
| LFIC 7-pin less core | CR1070-112-A07-7 |
| SFIC 6-pin | CR1050-114-A07-6 |
| SFIC 6-pin less core | CR1040-114-A07-6 |
| SFIC 7-pin | CR1050-114-A07-7 |
| SFIC 7-pin less core | CR1040-114-A07-7 |
| Security | CR1010-118-A07 |
| Security IC | CR1090-114-A07 |
| Pyramid (FC) Conventional | CR1020-114-A07 |
| Pyramid (IC) | CR1030-114-A07 |
| Access 3® Patented Fixed Core | CR1500-114-A07 |
| Access 3® Security Fixed Core | CR1600-114-A07 |
| Access 3® High Security Fixed Core | CR1700-114-A07 |
| Access 3® Patented Interchangeable Core | CR1580-114-A07 |
| Access 3® Security Interchangeable Core | CR1680-114-A07 |
| Access 3® High Security Interchangeable Core | CR1788-114-A07 |
For additional information, contact your ASSA ABLOY Door Security Solutions sales consultant or visit www.corbinrusswin.com.
In U.S.
Corbin Russwin 225 Episcopal Road Berlin, CT 06037 Phone: 800-543-3658 Fax: 800-447-6714 www.corbinrusswin.com
In Canada
ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive Vaughan, Ontario Canada L4K 4T9 Phone: 800-461-3007 Fax: 800-461-8989
www.assaabloydss.ca
Corbin Russwin is a brand associated with ASSA ABLOY Access and Egress Hardware Group, Inc., an ASSA ABLOY Group company. Copyright © 2001-2022, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
